Does the Incorporation of Biochar in Biodegradable Mulch Films Affect Soil Carbon Stock?

1. Introduction

Agricultural plastic film is an effective cultivation material to maintain soil temperature and soil water, reduce pesticide usage, prevents soil erosion, and suppresses weed proliferation [1]. Non-biodegradable petroleum-based films such as polyethylene (PE), followed by polypropylene (PP), polyvinyl chloride (PVC), ethylene vinyl acetate (EVA), polymethyl methacrylate (PMMA), and polycarbonate (PC) have been widely utilized in agriculture leading to a significant environmental problem [2]. The main cause of this issue is the exhaustion of fossil fuels used in the production of polymers, which leads to a higher amount of plastic trash being generated and subsequently contaminating the natural environment with microplastics. Microplastics can lead to a decrease in soil aggregation and soil bulk density, while also increasing the rate at which soil water evaporates [3]. The accumulation of agricultural plastic residues has become a concealed threat to the quality and safety of agricultural soil, obstructing gas exchange between soil and water, distributing of water-stable aggregates, bulk density, water retention capacity, and pH value and modifying the soil microbial population [4,5]. In China, the utilization of agricultural film escalated from 600,000 tons in 1981 to 137.9 million tons in 2019, representing a 230-fold growth. The prediction of plastic film usage would reach 228 million tons by 2025 [2]. Hence, it is crucial to conduct additional investigations into biodegradable materials used for agricultural films in order to reduce plastic mulch pollution.

The residual plastic mulch adversely impacts soil structure, characteristics, and moisture absorption, leading to the unsustainable use of agricultural land. Biodegradable plastic films have been engineered for facile degradation by microorganisms into carbon dioxide, methane, water, and microbial biomass [7]. BDM are produced from commonly used Bio-based polymer and fossil-sourced polymer, including polylactic acid (PLA), poly (butylene succinate-co-adipate) (PBSA) poly (butylene adipate-co-terephthalate) (PBAT), poly(butylene succinate) (PBS), poly(caprolactone) (PCL), and poly(vinyl alcohol) (PVOH) [7,8,9]. Employing BDM can improve soil physicochemical and microbiological properties and crop productivity, with certain biodegradable films exhibiting performance comparable to PE plastic films [10,11,12,13]. However, it is premature to advocate for the widespread use of BDM without definitive proof about their potential ecotoxicity to soil ecosystems [14]. Particularly, the effect on soil processes, including carbon sequestration, remains predominantly unexamined [7]. Additionally, the drawback of BDMs remains a topic of discussion concerning the expense of biopolymers which constitute the primary component in BDMs production. Widely utilized biopolymers, such as PLA, necessitate a production cost over 4000 USD per metric ton, whereas traditional polymers are priced at roughly 1000 to 1500 USD per meter ton. Thus, BDMs are approximately 1.5 to 1.8 times more costly than plastic mulches [15].

One alternative approach for reducing the cost of biopolymer manufacture is to incorporate organic materials as a natural filler in the BDM. Natural fillers in biodegradable composite films not only alleviates the detrimental effects of synthetic materials on the environment, such as incomplete decomposition, but also possesses advantageous characteristics, including renewability, and high specific strength, rendering them suitable for the production of composites for diverse applications [9,16]. The creation of materials yielding films with unique properties, such as biodegradability and non-toxicity, is appealing due to their extensive applicability and significantly reduced environmental impact [17]. The novel materials for product the deterioration via the enzymatic activity of bacteria, yeasts, and/or fungi allowing for usage as fertilizers and soil conditioners is required [18]. Several studied has been reported the filling of natural material in BDMs for improving their properties such as empty fruit bunches [19], cotton fibers [20], chitosan [21], alginate [22], starch [23], and cellulose [24]. Previous studies have reported the BDM can improve function of soil conditioner and productivity. Biodegradable mulching sheet containing the highest concentration of urea significantly enhances seedling growth [16]. A separate study indicated that the decomposition of carbon waste ash-reinforced starch films can release the nutrients contained in the ashes into the soil [25].

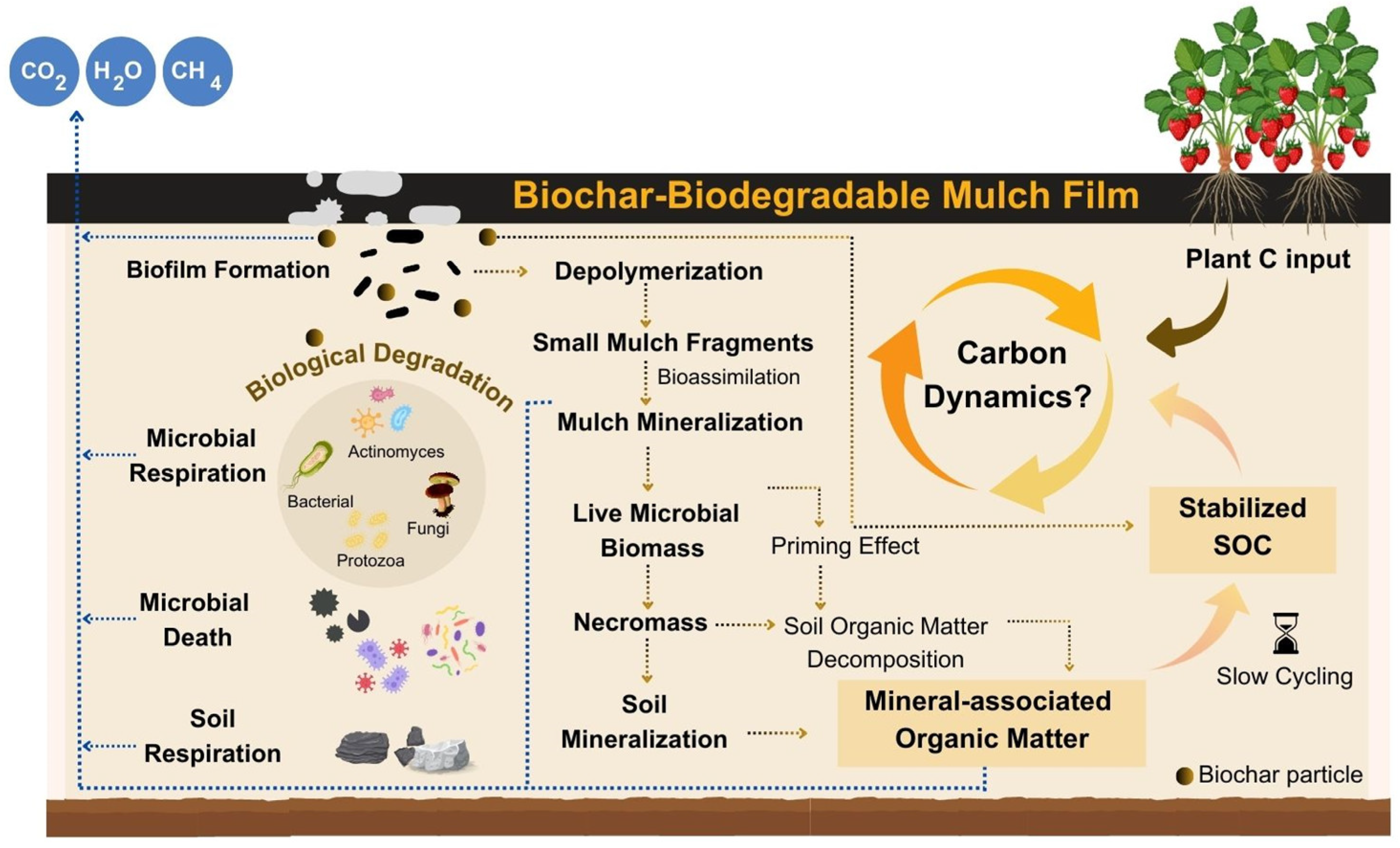

As previously explained, biochar is able to serve as an alternative natural material for manufacturing the BDM. It is posited that the breakdown of biochar composites with biocomposite-based mulching films can enrich the soil with nutrients following decomposition. The biochar-derived biocomposite presents a viable option for producing BDM due to its elevated biodegradability rate and substantial nutrient content, while addressing the issue of plastic waste contamination. Biochar is a highly aromatic porous carbonaceous material produced through the thermochemical conversion of organic material (such as agricultural waste) in oxygen-limited conditions. Initially, the utilization of biochar as a soil remediation agent has been firmly established in the field of agriculture. These uses encompass enhancing the composition and productivity of depleted soils, retaining soil moisture, and sequestering carbon [26,27]. Biochar possesses distinctive chemical, physical, and biological properties, making it a versatile material with a wide range of applications. Over the past few decades, interest in converting biomass into biochar has grown significantly, driven by its multiple benefits and diverse application potential [28]. As biochar matures, it becomes part of soil aggregates, safeguarding the carbon in biochar and facilitating the stabilization of rhizodeposits and microbial products. Biochar carbon remains in soil for extended periods ranging from hundreds to thousands of years [29]. The physio-chemical properties of biochar, including its three-dimensional reticulated and porous structure, make it an effective long-term carbon storage solution that can also absorb and degrade contaminants. The main benefits of biochar-based materials lie in their highly porous, large surface area, better ion exchange capacity, and plentiful functional groups [30]. The numerous features of biochar can enhance the functionality of BDM. Biochar’s non-graphitic structure is rich in surface functional groups such as C-O, C=O, COOH, OH, etc. These groups have the potential to create additional chemical interactions with a polymer matrix [26]. Considering these properties, the application of biochar as a filler can improve the properties of composites and broaden their usability. For example, it has been reported that biochar improves the composite’s tensile modulus of elasticity, and strength of Hemp-PLA composites [31] and enhances mechanical properties, thermal transitions, and biodegradability poly(butylenesuccinate) (PBSu) [32]. Biochar composite with BDMs for various functions has now increasingly studied including as a fertilizer carrier [33].

The emission reduction commitments outlined in the Paris Agreement have been enhanced on a worldwide scale since 2020. Reducing greenhouse gas (GHG) emissions and storing carbon are two essential methods to address global warming [27]. Soil, which is the greatest reservoir of organic carbon (OC) on land, contains a greater amount of OC than the total amount found in global plants and the atmosphere [34]. Nevertheless, the majority of soil organic carbon (SOC) pools, including forests, permafrost, and wetlands, are not actively controlled or manipulated. Only agricultural soil has the potential to be actively managed in order to enhance carbon sequestration [35]. Therefore, the sequestering OC in agricultural soil has gained significant societal and scientific interest because of its significant impact on soil health and the mitigation of climate change [36] Increased soil carbon sequestration in agriculture can be accomplished by many management techniques, such as implementing cover cropping, practicing no-tillage, rotating crops, and incorporating organic matter. These strategies promote plant development and enhance soil microbial activity. These mechanisms result in the breakdown of stable carbon, hence preventing its emission into the atmosphere [37].

As the abovementioned, filling natural material is necessary for enhance the practical application of BDM. While numerous studies have examined the role of biochar enhance the mechanical properties of BDMs, limited research has demonstrated the practical application of biochar composite on BDMs for the soil carbon stock contribution after its degradation. The debate issue for soil carbon sequestration under treated with BDM remains largely unstudied. To date, a few studies has reported the application of biochar integrated with agricultural mulch film on enhance soil carbon [38]. Thus, the objective of this review is to investigate the efficacy of biochar incorporated in BDMs in enhancing soil carbon sequestration in agricultural soils. Two key inquiries were addressed: 1) The application of biochar integrated with various bioplastic mulch films, and 2) the potential contribution of biochar incorporated in BDM to soil carbon sequestration. This study provides insights into BDMs incorporated with biochar as an alternative material in the agricultural production for reducing the greenhouse gas emission. This review emphasizes the theoretical and empirical findings regarding the physical and chemical impacts of biochar-derived BDM on soil carbon sequestration. This evaluation would facilitate the progression of sustainable materials and the enhancement of environmental consciousness.

2. Quantitative Assessment of the Publications

The annual publication count was aggregated to analyze the trend of BDM research, as illustrated in Figure 1. In the beginning of the investigation, only 13 articles related of BDM were published in 2001. The research initially concentrated on the characterizations of as-produced BDM [39]. The increased of publications from ten years later accounted for 50% in compared to those from beginning. While, the development of BDM by incorporating of natural materials into BDM has been happening after 2005. Two decades later, the study viewpoints were varied, encompassing natural material filler [25,40], biodegradation validation on the soil environment [8]. The significant rise of publications was noted in 2024, reaching up to 56 times that of 2001. Interestingly, the quantity of BDM publications rose from 502 to 738 within a single year (2023 to 2024). Even the environmental impact such as carbon footprint analysis under BDM was highly investigated [12,41,42]. Therefore, the figure indicates a substantial rise in the number of publications post-2015, particularly from 2020 onwards concerning the practical application of BDM on soil functions. This probably directs an increasing interest in advancing technology pertinent to soil management and environmental sustainability. The evaluation of environmental impact, particularly on the soil environment of BDM, which directly affects sustainable agricultural development, has garnered significant attention from researchers. Also, the advancement of research methodologies facilitated the evolution of BDM [14].

The literature study indicates that the potential benefits of utilizing biochar as an additive in BDM have been reported since 2015 [43,44]. The documentation outlines the possible benefits of incorporating biochar as an ingredient in BDM products, highlighting its advantageous properties such as elevated surface area and enduring chemical and physical stability. Documented enhancements in the performance of polymer–biochar composites encompass increased water adsorption, heat resistance, and rigidity [45]. Despite the documented use of biochar as an addition in BDM since 2015, current investigations into the impact of biochar-enriched BDM on soil carbon have garnered less focus.

3. Comparative Assessment of BDM Degradation in Soil

BDM is not pure polymers; rather, they require degradation in an agricultural setting through the activity of indigenous microbes, some of which may or may not degrade under specific environmental conditions [46]. Thus, to examine the practical application of BDM concerning degradation in the soil environment, a synopsis of the bioplastic type is essentially investigation. The literature analysis indicates the summary of polymers-based agricultural mulches production and their corresponding rates of biodegradation in soil as shown in Table 1. Biodegradability under typical environmental conditions is not contingent upon the polymer’s source; rather, its chemical structure and physical qualities are critical determinants [8]. Plastic mulch films have been replaced with BDM. These mulches should be tilled into the soil after usage so that natural microbes can break down the plastic. BDM can be made from either biobased polymer generated by plants or microbes or fossil-derived materials [46]. The category of biodegradable polymers comprises bio-based material including cellulose, starch, PLA, and poly (hydroxyalkanoates) (PHAs). Biodegradable polymers originating from fossil-based sources encompasses PBAT, poly (butylene succinate) (PBS), PBSA, PCL, and PVOH. When evaluating the biodegradable polymer derived from renewable resources, its primary advantage is in its ability to replenish the carbon cycle, as the duration required for production and conversion to biomass is comparable. Biodegradable polymers derived from bio-based resources convert to biomass significantly more rapidly than fossil-based polymers, which require millions of years for the same process [8]. However, mulch film properties cannot be predicted based on the properties of pure polymers. The study of Arias et al. [47] and Gattin et al. [48] reported that the degradation behavior of PLA was modified upon blending with PHB and other additives, leading to alterations in the miscibility of the polymer components. To combat plastic pollution, cradle-to-cradle strategies focused on the creation of highly recyclable and biodegradable polymers with minimal environmental impact are gaining traction [13,49]. One approach to mitigate the greenhouse gas emissions generated by plastics is to substitute fossil-based plastics with bio-based alternatives [50].

4. Biochar-Bioplastic Composite in Biodegradable Mulch Film

The utilization of biochar as a versatile filler in BDM has garnered significant interest from the scientific community in recent years, owing to its remarkable potential for creating sustainable and high-performance materials. The primary advantages of utilizing biochar as a filler in the fabrication of BDM pertain to the enhancement of mechanical properties, electrical conductivity, and thermal stability, facilitated by the incorporation of a sustainable and renewable material [51]. Most polymer composites consist of a thermoset or thermoplastic matrix combined with organic fillers such as PHA, PLA, and PHB [9].

Table 2 presents a summary of prior articles about the development of biochar bioplastic composites for agricultural mulch films. Biochar has been utilized as an ingredient in BDM items owing to its advantageous properties, such as elevated surface area and enduring chemical and physical durability. Documented enhancements in the efficacy of polymer–biochar composites encompass increased water adsorption, heat resistance, and stiffness. The advantages of preventing organic waste disposal in landfills (which may produce methane emissions) and sequestering carbon inside the biochar material enhance its appropriateness for incorporation into circular manufacturing systems [45].

Biodegradable plastic has emerged as a favored substitute for traditional plastic in response to the plastic pollution challenge. The superior mechanical qualities of bioplastics enable their application in various potential areas, including agriculture. Nonetheless, bioplastics are infrequently selected as the primary material due to their significantly elevated cost. Consequently, a cost-effective natural filler, readily obtainable from agricultural waste, is suggested for incorporation into the polymer to create a biocomposite [16]. The potential of food-waste derived biochar as a filler material and its associated problems, including inadequate dispersion and heightened thermal degradation in PLA. A significant discovery of this study is that biochar produced from food waste enhanced the degradation rate of PLA under composting conditions, exhibiting nearly double the mass loss after 40 days in samples with high biochar content compared to pure PLA [52]. The use of biochar resulted in an enhancement of the elastic modulus while preserving elevated deformation values. Measurements of the water contact angle indicated an enhancement in the hydrophobic properties of the biocomposite films relative to PBAT. Furthermore, accelerated deterioration testing, monitored through tensile tests and spectroscopic analysis, demonstrated that the filler conferred photo-oxidative resistance to PBAT by postponing degradation processes [53]. Assess the potential of biochar generated from various biomass residues, including cassava rhizome, durian peel, pineapple peel, and corncob, as a filler or reinforcement to enhance the mechanical characteristics of polylactic acid (PLA). Among these biomass residues, carbon-rich biochar obtained from durian peel shown significant improvement in the mechanical properties of PLA-biochar composites. The tensile strength and elongation at break of the PLA composite diminished upon incorporation of durian biochar, decreasing from 14.9% to 10.4%. This may be attributed to the inefficiencies in stress transfer and the uneven distribution of biochar particles inside the matrix [54].

Table 2. Summary of the biochar-bioplastic composite in fabrication of mulch film.

Biochar feedstock	Biochar loading (wt %)	Base Polymer	Key finding	Citation
Dairy manure Wood chip	10	PCL PLA	Biochar’s moisture content contributed to the hydrolytic degradation of the synthesized polymer.	[55]
Cassava rhizome Durian peel Pineapple peel Corncob	0.25	PLA	Carbon content in biochar improved mechanical properties (tensile elastic modulus and impact energy) of PLA/biochar composites.	[54]
Beechwood	5	PLA	Incorporating 5 wt% of biochar improved the composite’s tensile modulus of elasticity and strength.	[31]
Spent ground coffee	1, 2.5, 5, and 7.5	PLA	The content of BC highly influenced the ultimate properties of the PLA/BC biocomposites	[56]
Switchgrass	12	PLA	Biochar significantly enhanced the hydrophobicity and mechanical characteristics relative to the control film.	[57]
Wood chips	10, 15, 20, and 30	PBAT/PLA	The degradation time of the composites was prolonged by a biochar content exceeding 15 wt%, which was attributed to the entrapment of PLA and/or PBAT within the matrix.	[58]
Post-consumer food waste	2.5, 5, 10, and 20	PBAT/PLA	The degradation rate of PLA was significantly increased by biochar under composting conditions, resulting in a nearly doubled mass loss in samples with a high biochar content after 40 days compared to neat PLA.	[52]
Wood Sewage sludge	10, 20	PLA	The use of biochars in biocomposites resulted in a reduction of the mechanical characteristics and impact strength as compared to PLA.	[59]
Pelleted miscanthus straw	1, 2.5, 5	PBS	The disintegration rate of biocomposites through enzymatic hydrolysis increased as the biochar content increased.	[32]
Birch and beech wood	5, 10, 20	PBAT	The elastic modulus was improved by biochar, while the deformation values were maintained at a high level.	[53]
Carob waste	10 and 20	PBAT	The dispersion grade and compatibility of biochar particles within the PBAT matrix were outstanding.	[60]
Waste coffee grounds	10, 20, and 30	PCL	The modulus of elasticity and tensile strength were not significantly impacted by the addition of biochar, despite the fact that the elongation at break decreased.	[45]
Wood	50	PBAT	A comprehensive techno-economic analysis and life cycle assessment indicated that biochar is currently not a viable choice in film production.	[60]

PLA: Poly (lactic acid); PHA: Polyhydroxyalkanoate; PHB: Poly (3-hydroxybutyrate); PBAT: Poly butylene-adipate-co-terephthalate; PCL: Poly (ɛ-caprolactone); PBS: Polybutylene succinate.

Table 2. Summary of the biochar-bioplastic composite in fabrication of mulch film.

Biochar feedstock	Biochar loading (wt %)	Base Polymer	Key finding	Citation
Dairy manure Wood chip	10	PCL PLA	Biochar’s moisture content contributed to the hydrolytic degradation of the synthesized polymer.	[55]
Cassava rhizome Durian peel Pineapple peel Corncob	0.25	PLA	Carbon content in biochar improved mechanical properties (tensile elastic modulus and impact energy) of PLA/biochar composites.	[54]
Beechwood	5	PLA	Incorporating 5 wt% of biochar improved the composite’s tensile modulus of elasticity and strength.	[31]
Spent ground coffee	1, 2.5, 5, and 7.5	PLA	The content of BC highly influenced the ultimate properties of the PLA/BC biocomposites	[56]
Switchgrass	12	PLA	Biochar significantly enhanced the hydrophobicity and mechanical characteristics relative to the control film.	[57]
Wood chips	10, 15, 20, and 30	PBAT/PLA	The degradation time of the composites was prolonged by a biochar content exceeding 15 wt%, which was attributed to the entrapment of PLA and/or PBAT within the matrix.	[58]
Post-consumer food waste	2.5, 5, 10, and 20	PBAT/PLA	The degradation rate of PLA was significantly increased by biochar under composting conditions, resulting in a nearly doubled mass loss in samples with a high biochar content after 40 days compared to neat PLA.	[52]
Wood Sewage sludge	10, 20	PLA	The use of biochars in biocomposites resulted in a reduction of the mechanical characteristics and impact strength as compared to PLA.	[59]
Pelleted miscanthus straw	1, 2.5, 5	PBS	The disintegration rate of biocomposites through enzymatic hydrolysis increased as the biochar content increased.	[32]
Birch and beech wood	5, 10, 20	PBAT	The elastic modulus was improved by biochar, while the deformation values were maintained at a high level.	[53]
Carob waste	10 and 20	PBAT	The dispersion grade and compatibility of biochar particles within the PBAT matrix were outstanding.	[60]
Waste coffee grounds	10, 20, and 30	PCL	The modulus of elasticity and tensile strength were not significantly impacted by the addition of biochar, despite the fact that the elongation at break decreased.	[45]
Wood	50	PBAT	A comprehensive techno-economic analysis and life cycle assessment indicated that biochar is currently not a viable choice in film production.	[60]

PLA: Poly (lactic acid); PHA: Polyhydroxyalkanoate; PHB: Poly (3-hydroxybutyrate); PBAT: Poly butylene-adipate-co-terephthalate; PCL: Poly (ɛ-caprolactone); PBS: Polybutylene succinate.

However, the ambiguous present circumstances regarding incorporated of biochar in AFM are currently being addressed. The cost of production BDMs has been costly. Additionally, elevated manufacturing costs have consistently been a significant constraint for biopolymers. Widely utilized biopolymers, such as PLA, necessitate a production cost over 4000 USD per metric ton, whereas traditional polymers are priced at roughly 1000 to 1500 USD per meter ton. Consequently, BDMs are roughly 1.5 to 1.8 times more expensive than plastic mulches [15]. A comprehensive techno-economic analysis and life cycle assessment indicated that biochar is currently not a viable choice in film production. Biochar formulas necessitated increased thickness, adversely affecting both cost and environmental impact of the film [38]. The promotion of biodegradable films encounters several challenges, namely high costs, farmers’ reluctance to use them, and difficulties in their promotion. The government ought to cultivate and leverage ample and cost-effective biological resources tailored to local conditions, while establishing film production enterprises to minimize transportation expenses, thereby decreasing unit prices and increasing farmer’s propensity to purchase and utilize biodegradable films effectively [42].

5. Conclusions

Biochar has a direct effect the characteristics of synthesized BDM. The enhancement of mechanical properties and increasing the breakdown rate has been mentioned in the literature. Frequent incorporation of biochar-BDM composite pieces into soil may modify the soil’s physical environment and serve as a novel carbon source for microorganisms. While the overall carbon contribution from BDMs is minimal, their stimulatory effect on microbial activity may increase soil microbial biomass and, subsequently, soil organic matter. Nevertheless, substantial gaps remain in the current understanding of the effects of continuous BDM consumption on soil carbon stock. To address these knowledge gaps, long-term research is necessary to assess soil health and sustainability consequences, particularly regarding soil carbon impacts. Prolonged field trials are necessary to measure the greenhouse gas emissions (the CO₂ equivalent of methane, nitrous oxide, and alterations in soil organic carbon).
