Radial Artery Used as a Conduit for Coronary Artery Bypass Grafting

1. Introduction and Historic Context

Coronary-artery bypass grafting (CABG) constitutes a surgical procedure in which the patient's own arteries or veins are employed as grafts to circumvent obstructed coronary arteries, the result of the accumulation of atherosclerotic plaque. CABG is one of the procedures with the highest frequency of occurrence among major surgical operations, with approximately 400,000 cases conducted annually in the United States. Nevertheless, over the past decade, there has been a notable reduction in the number of CABG procedures performed in the United States. This reduction has occurred despite an ageing population and growing evidence to support the effectiveness and safety of the operation. [1,2,3,4,5,6] This decline has been accompanied by a corresponding increase in percutaneous coronary revascularization (PCI) procedures.

The utilisation of the radial artery (RA) in coronary artery bypass grafting (CABG) surgery represents an evolutionary trajectory in surgical techniques. [7] Despite the fact that the operation was first described almost 50 years ago, it has continued to evolve through the gradual acquisition of knowledge regarding the complex physiological processes involved in its execution and related to the function of arterial grafts.[7,8,9,10,11,12]

The radial artery was first used by our team as a bypass graft in CABG operation, as described in the Annals journal. [7] Since then, our centre has performed more than 910 radial artery grafts, with the latest follow-up occurring at 27 years post-surgery. [8,9,10,11,12] Our findings demonstrated that the radial artery graft remained patent and revascularised the left anterior descending artery (LAD) without evidence of graft disease. Additionally, the radial artery served as a second target conduit on the circumflex artery and right coronary artery (RCA) branches at this time point. Five further angiographic evaluations of individuals who had undergone surgery in the early 1970s utilising the RA demonstrated that the RA grafts were fully patent 13 to 18 years following their operation. [8,9]

The long-term effectiveness of saphenous-vein grafts (SVG) in coronary-artery bypass surgery has prompted extensive debate regarding the optimal conduit for CABG procedures. This includes the relative merits of bilateral versus single internal-thoracic-artery grafts (LITA) and the radial artery. [13,14,15,16,17,18,19,20,21] The extant evidence and the consensus guidelines indicate that the left internal mammary artery should be used to provide grafting to the left anterior descending coronary artery. [22,23,24,25] The enhanced efficacy observed with the LITA is likely attributable to its greater long-term vascular integrity. A number of investigations have documented significantly diminished longevity associated with the use of saphenous vein grafts, with approximately 75% exhibiting occlusion or notable disease at decade-long follow-up. [26] In comparison, the LITA which has been demonstrated to retain vascular integrity rates greater than 90%. [27]

There is ongoing debate regarding the optimal second conduit; however, the 2018 ESC/ESCTS guidelines for coronary revascularization indicate that the radial artery may be used with a class 1A recommendation. [2,25,28] The recent randomised controlled ARTS trial [13,14] found no significant benefit in the use of bilateral internal mammary arteries in comparison to a single artery. In view of the foregoing observations, a comprehensive review of the use of radial arteries was conducted.

Table 1. Graphical abstract.

1971	Carpentier was the first to utilise the radial artery as a conduit for bypassing the coronary arteries. A series of 30 patients underwent surgical procedures utilising the radial artery. (ref 7)
1975	The annual meeting of the American Association for Thoracic Surgery was held in New York. Carpentier reported that occlusions occurred in approximately one-third of patients. The occlusion of the arterial conduit was attributed to spasm of the denervated vessel. The use of the radial artery as a graft was discontinued until the physiological issue was resolved.(ref 8)
1989	The methodology employed in the harvesting and preparation of the radial artery underwent a modification. The artery was dissected in a pedicled fashion with its satellite veins, a procedure known as "en bloc" dissection. Dilatation of the artery was achieved by infusing it with blood and the vasodilator papaverine at low pressure, with the administration of the antispasmodic drug diltiazem.
1992	A total of 104 patients who underwent radial artery surgery in the early 1970s were successfully managed. (ref 9)

Table 1. Graphical abstract.

1971	Carpentier was the first to utilise the radial artery as a conduit for bypassing the coronary arteries. A series of 30 patients underwent surgical procedures utilising the radial artery. (ref 7)
1975	The annual meeting of the American Association for Thoracic Surgery was held in New York. Carpentier reported that occlusions occurred in approximately one-third of patients. The occlusion of the arterial conduit was attributed to spasm of the denervated vessel. The use of the radial artery as a graft was discontinued until the physiological issue was resolved.(ref 8)
1989	The methodology employed in the harvesting and preparation of the radial artery underwent a modification. The artery was dissected in a pedicled fashion with its satellite veins, a procedure known as "en bloc" dissection. Dilatation of the artery was achieved by infusing it with blood and the vasodilator papaverine at low pressure, with the administration of the antispasmodic drug diltiazem.
1992	A total of 104 patients who underwent radial artery surgery in the early 1970s were successfully managed. (ref 9)

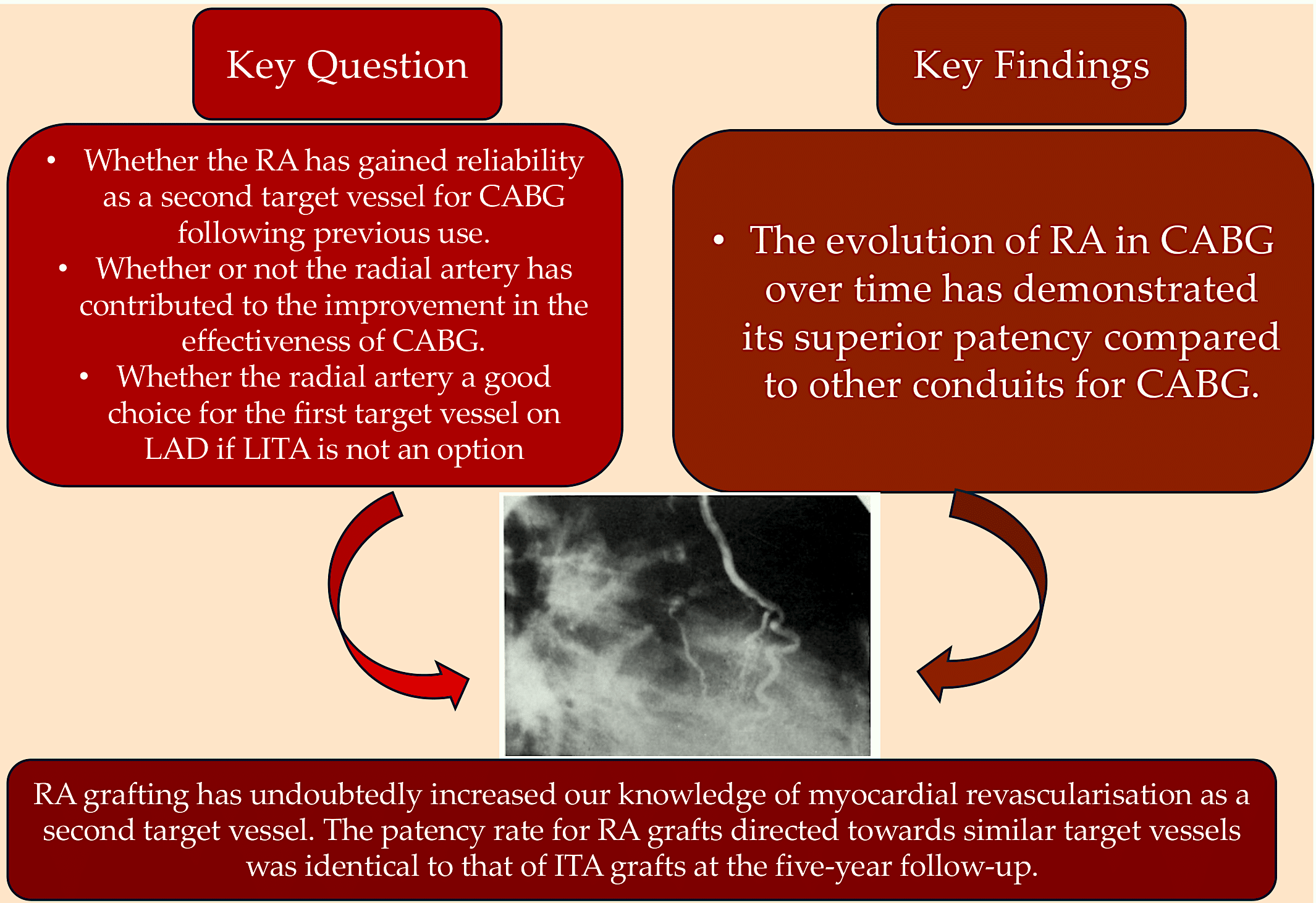

Graphical abstract. A long-term assessment of patients who received the radial artery in the early 1970s series for coronary artery bypass grafting (CABG) definitively demonstrated its effectiveness as the first or second target vessel. A single radial artery (RA) graft from the Oliveira series and five from the Carpentier series were fully patent at a 23-year follow-up. Adapted with permission from Acar et al. Ref [7,8,9].

2. Technical Consideration

A median sternotomy is usually used for CABG. There is no muscle division and the sternum is repaired with wire fixation at the end of the procedure. This incision allows for optimal exposure of the heart. Approximately 0.4% of patients experience serious adverse such as sternal wound infection. [29]

To achieve the precision required for successful CABG surgery, the heart is usually stopped. This is accomplished by occluding the ascending aorta. The heart is then infused with a cold, high potassium cardioplegia solution. Arresting the heart requires the use of a cardiopulmonary bypass machine, which delivers both perfusion pressure and oxygenation to assist the circulatory system during the 1- to 2-hour period of the ischemic heart stop.

The left internal thoracic artery (LITA) and the greater saphenous vein (SV) are the most widely accepted bypass conduits. The utilization of a LITA graft to the LAD is recognized as an important quality marker in CABG and is linked to better long-term patency rates than SV grafts. The related clinical outcomes are also better than those of patients who do not receive a LITA graft. [1,2,29,30,31,32] SV grafts are most commonly harvested from the patient's thigh through small incisions guided by endoscopy. [33] The use of conduits from alternative arterial sites, including the RA, right internal thoracic artery (RITA, and gastroepiploic artery (GEA), has been investigated and has shown improved patency rates relative to SV conduits. However, these alternative conduits are not currently employed as standard practice. [10,34,35,36]

In order to guarantee that the CABG procedure is precisely tailored to the patient's coronary anatomy, the surgeon will undertake a review of the coronary angiogram prior to the operation. In addition, the surgeon may have the opportunity to view the angiographic images in the operating room. In instances where the coronary arteries demonstrate clinically significant stenoses at the proximal level and patent distal vessels, the procedure may be deemed a viable treatment option for coronary artery bypass grafting.

During the surgical procedure, an evaluation of every epicardial coronary artery with a proximal stenosis is conducted through direct external inspection and palpation to identify a potential distal landing site that is adequately suited for the procedure. The process of suturing the distal anastomosis is facilitated by the use of optical amplification, representing the most technologically challenging aspect of the surgical procedure. The distal anastomosis is conducted using 7/0 or 8/0 polypropylene suture, contingent on the wall thickness and the diameter of the designated vessel. In patients who have received the radial artery as a graft, it is imperative to clamp the RA during cardioplegia delivery to avert a steal phenomenon through the graft, which lacks intrinsic valves.

As a general principle the surgeon advocates proximal anastomosis to the anterior portion of ascending aorta. Proximal anastomoses for individual conduits are achieved through the use of a suture to affix the graft end-to-side to an aortotomy in the proximal ascending aorta. A circular aperture measuring 3 mm in diameter is created in the aortic wall using a punch. The graft is then secured directly to the aorta using 7/0 Prolene sutures (Figure 1 A,B).

However, for target vessels situated in the proximal obtuse marginal position, the graft used for CABG is anastomosed to the posterior aspect of the aorta through the transverse sinus (Figure 2A, B).

In the case of in situ arterial grafts (such as a left internal thoracic artery graft), the native arterial inflow is retained, thus necessitating an alternative approach. Figure 3

The RA conduit can be employed for sequential revascularisation and sutured as Y-graft to LITA. (Figure 4 A) Furthermore, it represents an optimal site for proximal anastomosis of additional arterial conduits, including an additional RA graft (Figure 4A) or free right internal thoracic artery (RITA). (Figure 4 B,C)

Table 37. and subsequently employed by other surgeons. [9,21] This approach involves the creation of a composite arterial graft, which is technically challenging. In the event of geometric distortion, the composite graft may become dysfunctional. Proximal RA anastomosis can be performed prior to the initiation of extracorporeal circulation. The optimal location for the anastomosis is the initial portion of the left ITA graft situated against the pleura, proximal to the pericardial cavity. It is optimal for the suture to be completed in a manner that orientates the two arteries in parallel. Additionally, the length of the RA graft should be meticulously measured, as it has the potential to exert traction on the IMA pedicle (if it is too short) or cause kinking of the RA conduit (if it is too long).

The conventional CABG procedure typically requires between three and four hours to complete. Patients typically remain in the hospital for a period of five to seven days following the procedure, with a recovery period of six to 12 weeks post-discharge. [39] It is important to consider certain technical aspects in relation to the radial artery

2.1. Harvesting and Preparation of the Radial Artery

The left radial artery is selected for preferential harvesting in all individuals, regardless of handedness, for two primary reasons: firstly, the left RA has a higher probability of sparing in the event of transradial angiography, and secondly, its removal can be conducted concurrently with the left internal thoracic artery dissection. The individual is placed in a position with the arm at an angle of 90° to the longitudinal axis of the body. Arterial blood pressure is monitored by means of a radial artery catheter placed in the opposite arm. Intravenous catheters are not introduced into the arm on the side of the radial artery harvesting, as this would result in backflow from the infusion line into the operative area. The incision is made laterally, 2 cm above the wrist, and extends in a medial direction to the line where the elbow meets the wrist. The antibrachial fascia is excised above the vascular pedicle, in a manner that avoids injury to the vascular pedicle and the surrounding tissues. In the proximal third of the forearm, the RA courses deep underneath the brachioradialis muscle, which is subsequently displaced laterally in a manner that avoids injury to the muscle and does not require its division. The multitude of collateral vessels are secured with metallic clips, and the vascular pedicle is removed in a single piece with the artery and both satellite veins. The majority of the dissection process can be undertaken without the use of electrically-powered cautery devices. [7,8,9,10,11]

The presence of anatomical variants of the RA necessitates minor technical adaptation. In rare instances, the distal portion of the vessel may be situated superficially above the antibrachial fascia [40]. This is a typical location of the accessory RA in exceptional instances of duplication of the vessel. Nevertheless, the surgical approach does not deviate from the standard procedure. The radial artery can be extracted up to the bifurcation of the brachial artery, contingent on the number of grafts necessitated and their relative extent, in order to achieve optimal anastomosis. The sole possible risk that may be faced is that of damage to the ulnar artery. Indeed, the bifurcation of the brachial artery is typically situated beneath the elbow, with the origin of the ulnar artery located in a deep posterior position, obscured by the muscle belly of the pronator teres. It is of the utmost importance to prevent injury to the vessel in question during the process of dissecting or ligating the RA graft. Two anatomical indicators provide evidence that the bifurcation of the brachial artery is in proximity. These indicators are the emergence of the recurrent radial artery and the presence of a dense venous network surrounding the radial artery. It is advised that a distance of 1 cm be maintained from the brachial bifurcation. In rare instances, the RA may arise from either the proximal brachial artery or the axillary artery which accounts for 14% of cases. [40] This anatomical divergence is of clinical consequence, as an incision extending beyond the elbow should not be made if the origin of the RA is not identified in that region. The process of dermal regeneration may be affected when the interline of the elbow is divided. Following excision, the RA typically exhibits vasoconstriction and is therefore not suitable for immediate use in bypass procedures. It is recommended that the tissue be preserved initially in a solution comprising blood, heparin and papaverine. The catheter is then inserted into the proximal end of the radial artery using a 16-gauge Cathlon catheter, followed by hydrostatic dilation at a low pressure using the same mixture. This allows the surgeon to fully release the spasm and verify the hemostasis of the minor collateral branches. It has been demonstrated that this technique does not result in structural impairment of the vessel wall, notably the intima. [41] An alternative approach that is equally effective involves disconnecting the distal end of the radial artery following complete heparinisation, while preserving the proximal end connected to the brachial artery. The radial artery is then maintained in a beat-to-beat state against an anti-traumatic bulldog clamp, covered by a papaverine-impregnated sponge, until complete relaxation of the spasm has occurred.

A further modification to the aforementioned harvesting techniques has been documented, including RA skeletonisation, the utilisation of an ultrasonic scalpel or endoscopic techniques. [42,43,44] However, the advantages of these alternative methods over the open procedure have yet to be conclusively established.

2.2. Risk for Hand Ischemia

In an article published in 1929, Edgar V. Allen [45] outlined a clinical test for assessing the relative importance of the ulnar and radial arteries in delivering blood to the hand. The procedure involved clenching the fist and manually compressing both the radial and ulnar arteries until complete exsanguination of the hand was achieved. Following the release of the occlusion in the ulnar artery, the time taken for colouration to return to the extremity is noted. The Allen test is deemed positive if full colouration is not achieved for all fingers within six seconds. Prior to catheterization of the radial artery, this test has been a widely used diagnostic tool. In practice, numerous studies have demonstrated that the Allen test is not a reliable indicator due to the prevalence of false-positive and false-negative outcomes. [46] Additionally, it has been shown to have limited efficacy in predicting the presence of compensatory circulation via the palmar arches.

A number of initiatives have been implemented with the objective of enhancing the sensitivity of the Allen test. The use of a digital oximeter with a probe positioned on the thumb enabled the measurement of oxygen saturation in the radial artery region. [47] The results demonstrated that the normal oxygen saturation curve was disrupted by the occlusion of both forearm arteries. Furthermore, the failure of a normal tracing to re-emerge subsequent to ulnar artery re-opening indicated inadequate blood flow.

Similarly, the digital pressure was gauged with the aid of a pressure cuff positioned at the level of the proximal interphalangeal joint. It has been demonstrated that in the event that collateral circulation is functional, the pressure in question is maintained at the level of the thumb and fifth finger, even with the radial artery subjected to occlusion. Therefore, a systolic digit pressure reading at the level of the thumb that is below 40 mmHg is deemed to be a positive result, as this value is indicative of a healthy collateral circulation. [48] Others have put forth the notion of utilising Doppler ultrasound technology for the assessment of the main artery of the thumb, otherwise known as the princeps pollicis artery. An alteration of the typical triphasic signal would signify an inadequate degree of collaterality from the ulnar artery. [49,50,51,52] Subsequently, the flow in the superior palmar arch was determined precisely by utilising a Doppler probe positioned at the third digit's metacarpal region. A sustained reduction in the discernible Doppler signal in the palmar arch subsequent to RA compressive strain was considered an indicative marker of insufficient ulnar artery flow in a retrograde direction. [53,54,55,56]

The implementation of the classic Allen test or its aforementioned modifications has the potential to result in the disqualification of a considerable number of prospective candidates for radial artery removal, with an estimated exclusion rate of 20–40%. There has been a notable lack of correlation observed between the Allen test and the anatomy of the blood supply to the arm. Based on the author's experience, the Allen test has consistently failed to identify any potential limitations for RA removal. Furthermore, there has not been a single instance where RA removal has been contraindicated due to concerns about hand ischemia. Two patients experienced a technically-induced stenosis at the point of emergence of the ulnar artery, resulting from proximal ligation of the radial artery. This necessitated prompt surgical reintervention, with no further adverse consequences. In patients whose occupation entails strenuous upper limb use, removal of the RA has been demonstrated to be safe and has not resulted in any significant functional incapacity. [57] The aforementioned findings have also been observed in patient groups comprising the elderly. [58]

A comprehensive anatomical study, complemented by angiographic correlations of arterial variations in the upper limb, has demonstrated that the ulnar artery is a constant presence and that the probability of ulnar artery agenesis is essentially non-existent. Pre- and postoperative measurements of blood flow, conducted via plethysmography or Doppler ultrasound, have revealed a modification in the configuration of the blood supply network within the forearm subsequent to the surgical excision of the radial artery. The flow in the distal brachial artery in the elbow region is indicative of the blood circulation within the forearm. Following the RA harvesting procedure, this flow has been observed to remain unaltered. An enhanced flow in the ulnar artery during the early postoperative period enables this to occur; however, no alteration in the artery's dimensions could be identified. [59] It is proposed that the increased flow observed in the radial artery while the caliber of the ulnar artery remains unchanged is accounted for by peripheral resistance competition through the palmar arches. In contrast, approximately three months later, vasodilation of the ulnar artery can be observed, with a notable and sustained increase in diameter (by approximately 15% ). [59]

In essence, the determination of whether to utilize this conduit should not hinge upon the Allen test. The author's findings demonstrate that the radial artery can be safely harvested in all instances, with no evidence of hand ischaemia, contingent on the utilisation of an appropriate surgical technique. Other research teams have similarly reported extensive utilisation of the radial artery graft without any instances of postoperative ischaemic complications. [57] It is important to note that the RA is not a suitable graft in every circumstance. There are a number of contraindications for using the RA, which are related to the anatomical characteristics of the artery itself rather than to the potential variations in the distribution of vascular supplies to the upper limb.

3. Contraindications to radial artery conduit coronary grafting

A number of contraindications have been studied. The radial artery is the dominant artery of the forearm and consistently gives rise to the interosseous artery, which irrigates the deep muscles. The procedure of removing the RA is safe in all instances, [2,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,25,28,37,38,45,46,47,48,49,50,51,52,53,54,55,56,57] as its vascular territory is consistently maintained by collateral circulation provided by the ulnar artery. This is achieved through an augmented ulnar artery flux which equates to an augmented vessel size. [59] The variations in the anatomy of the palmar arches are not relevant in the context of RA grafting. Furthermore, the Allen test and its modifications are not useful in the preoperative period. [11] However, it is essential to consider some of the potential anatomic variations [60] as they may impact the harvesting technique.

It is possible that the radial artery may have its origin in a higher position. The radial artery typically originates from the brachial artery in the elbow region, situated beneath the brachioradialis muscle. On rare occasions (4%), [60] it may originate at a higher level, within the mid-section of the arm or in the axillary region. The RA traverses the forearm in a superficial course, situated anterior to the brachioradialis muscle. In instances where the artery has a high origin, it is advisable to refrain from extending the dissection of the radial conduit above the elbow joint.

The high termination of the RA represents an anatomical feature that should be taken into account when considering the contraindications to harvesting the radial artery. The RA bifurcates at the wrist joint, with one branch continuing as a superficial artery along the anterior aspect of the hand and the other forming a deep artery that curves posteriorly to supply the dorsal aspect of the scaphoid bone. It is typical for these two branches to serve as the superficial and deep palmar arches, respectively. However, it is worth noting that in rare instances (approximately 1%), a high RA termination at the midpoint of the forearm may be observed. [60] In this scenario, the radial artery can be utilised for CABG, with its branches exhibiting a natural Y-shaped configuration, [61] contingent upon the diameter of these branches being sufficiently large. In select instances, characterised by a high bifurcation, the deep branch of the RA follows an aberrant trajectory. It exhibits an external curve and traverses the external border of the forearm, subsequently running along the dorsal aspect of the wrist.

The aetiological disease process, known as atheromatous disease, has a propensity to spare the arteries of the upper limb. However, proximal lesions do occur with some frequency. When left subclavian artery stenosis is identified and occurring in up to 2% of patients undergoing coronary surgery, [62] the LITA flow can be at risk and endovascular stenting may be the preferred option preceding arterial grafting. [62] In other instances, with an obstruction occurring in a location proximal to the upper limb arteries, it seems preferable to avoid the removal of the RA. [9,10,11] It is not uncommon for the RA itself to be the site of atheromatous plaque lesions. Patients with insulin-requiring diabetes mellitus and those with phospho-calcic metabolic disorders, as observed in long-lasting renal insufficiency, may exhibit non-obstructive medial calcifications. [63] In instances of multiple atheromatous lesions accompanied by calcifications, there is a possibility of observing obstructive alterations of the RA, such as stenotic plaques or thrombotic occlusions.[64] In conclusion, it can be stated that 6% of patients undergoing coronary surgery present with atheromatous lesions of the RA. These findings constitute definite contraindications in the context of RA grafting.

Forearm wounds and bone fractures have the potential to result in RA injury. Nevertheless, the predominant etiological factors underlying traumatic injury to this vessel are of an iatrogenic nature. Arterial puncture for the purpose of obtaining blood gas measurements or catheterisation for the monitoring of systemic pressure may result in the induction of fibrotic stenosis or localised dissection. However, it has been observed that the proximal part of the RA retains its integrity in such instances. [11] This is not the situation that arises in the context of retrograde catheterisation of the RA, which is employed for the purpose of coronary angiography. The introduction of the material can induce spasm, and the shearing stress caused by the advancement of both the guidewire and the angiography catheter in a collapsed artery almost inevitably leads to significant intimal damage, [65,66] which can propagate throughout the entire conduit. The reported incidence of occlusion of the radial artery following transradial catheterisation is as high as 7%. [67] The insertion of even larger sheaths for purposes of percutaneous coronary intervention (PCI) can result in the infliction of severe arterial trauma, including but not limited to wall disruption, false aneurysm, [68] and arterio-venous fistula. [69] The incidence of postoperative occlusion in RA conduits that have undergone prior retrograde catheterisation and have been employed as coronary grafts is markedly elevated. [70] Therefore, it is recommended that transradial artery catheterisation be regarded as an absolute contraindication to RA grafting. [11] As it is most commonly conducted on the right side, the RA on the opposite side can then be used for coronary grafting. Consequently, even in patients who are left-handed, the left side should always be the preferred choice for harvesting.

4. Grafting of the radial artery: Clinical results

Coronary artery bypass grafting is a well-established surgical procedure with a documented history of favourable short-term outcomes. [71,72,73,74] The advent of advanced CABG techniques and the implementation of quality improvement strategies, facilitated by the extensive participation of CABG centres in the Society of Thoracic Surgeons National Adult Cardiac Surgery Database, have contributed to a notable decline in observed mortality rates over the past decade, despite minimal alterations in estimated risk. [29,30,75]

While the surgical team bears significant responsibility for the success of a CABG operation, the effectiveness and reliability of the procedure also rely considerably on the input of other members of the multidisciplinary management team and on compliance with established perioperative and postoperative protocols.[1,2,76] The risks associated with CABG are most significant during and immediately following the surgical procedure. It is essential to carefully evaluate the potential short-term complications of CABG in light of the long-term benefits that the operation can offer.

Following its revival over two decades ago, the radial artery has been employed effectively as a conduit for coronary bypass grafting by numerous surgical institutions. Extensive data sets are currently available for evaluating the clinical benefits of utilising the radial artery. The fate of the RA graft has been assessed via repetitive conventional or CT angiographies, facilitating the identification of factors influencing RA graft patency. Additionally, assessments have been conducted in comparison with other conduits.

4.1. Early Clinical Results

The in-hospital mortality and incidence of perioperative myocardial infarction (at 1.0% and 2.0% respectively) were comparable following radial artery grafting to the rates observed in patients undergoing conventional coronary surgery using alternative types of conduits. [10,11,77,78,79] In cases involving increased risk factors, including left ventricle dysfunction [80] or coronary reoperation, [81] the postoperative mortality and infarction rates exhibited no significant change when the radial artery was employed. Additionally, a single study demonstrated that the utilisation of exclusive arterial conduits, encompassing the RA in conjunction with the LITA, is associated with a diminished in-hospital mortality rate when compared to patients in instances where vein grafts constituted the treatment modality. [82]

Our group's findings suggest that, in some patients with unstable haemodynamic conditions, the use of the radial artery may be an effective approach. In patients experiencing haemodynamic shock with a rupture of the posterior papillary muscle, an occlusion of the right coronary artery can be effectively treated by anastomosing the right coronary artery using the RA as a conduit. Additionally, in cases of severe ischaemic mitral regurgitation where revascularisation of the circumflex or right coronary artery territory is required, the radial artery has been a valuable tool. [83,84,85,86]

It has been observed that arterial conduits exhibit a higher propensity for spasms when compared to their venous counterparts. It is inevitable that mechanical stimuli will result in spasm of the RA when it is subjected to surgical dissection. It is therefore essential that this spasm is released before the coronary anastomoses are constructed, in order to prevent a low flow situation that could precipitate early graft thrombosis. It is therefore necessary to employ intraoperative pharmacological and/or mechanical manoeuvres in order to obtain a fully dilated conduit. On infrequent occasions, postoperative angiograms have identified the presence of localised stenosis resulting from an episode of spasm. [9] In a considerable number of circumstances, the intraluminal infusion of nitroglycerin and/or linsidomine facilitates the dissolution of the spasm. In some cases, the diagnosis is made in retrospect when a subsequent examination confirms the resolution of the stenosis. [9] A spasm can manifest at the proximal extremity of the graft where it is in proximity to the angiography catheter, as observed in previous studies, [87] or at a more distal location. [9] It is probable that some of these spasms occurred during surgery and were not fully released by the usual intraoperative manoeuvres. Consequently, they may have persisted throughout the postoperative period. It is important to note that spasm can mimic a permanent narrowing of the vessel, potentially leading to unwarranted PCI, as previously documented in the literature. [88] While radial artery spasm has been documented in a limited number of isolated case reports to have been associated with electrocardiogra changes and hemodynamic impairment, it has been observed to be well managed and rarely problematic in our series. [89,90] Radial artery spasm has consistently manifested as neither clinically nor electrically evident, and was coincidentally identified through a routine angiogram. [9]

The administration of calcium channel inhibitors to patients who have undergone arterial grafting is a topic that is the subject of considerable debate. From 1989 to 1994, our institutional policy was to prescribe a calcium channel blocker (diltiazem) in all patients with radial artery grafting. [9] Given its adverse inotropic impact, the intravenous administration of diltiazem was rapidly discontinued in the operating room and intensive care unit settings. Instead, the medication was only administered orally. Upon the completion of the long-term follow-up period, it was determined that among patients who had undergone a radial artery graft, only 59% were still receiving calcium channel blocker treatment at the five-year mark, [10] and 48% were still undergoing this treatment at the nine-year mark. [10] The results of various statistical examinations did not yield any evidence to suggest that pharmacological medications act as individual factors influencing the patency of radial artery grafts. [10,11] In light of the aforementioned clinical findings, as well as those observed in stress myocardial scintigraphy and angiography, other reports have also demonstrated the lack of an evident benefit associated with the utilisation of calcium channel blockers in RA grafting procedures. [91,92,93] It can therefore no longer be posited that RA grafting represents a definitive criterion for the prescription of calcium channel blockers. It is important to note that contemporary practice involves the administration of antithrombotic therapy to nearly all patients who have undergone coronary bypass grafting, in addition to one or more classes of antianginals. Given the potential for pharmacokinetic interplay between these pharmaceutical agents, it is challenging to reach a definitive conclusion regarding the impact of these medications on the patency of arterial grafts.

The surgical incision made on the forearm skin typically heals rapidly, and the occurrence of local infection is uncommon. Re-examination of the wound for the development of a haematoma is also uncommon, with the overall incidence of local complications estimated to be approximately 1%. [94,95,96] This figure contrasts with that seen following saphenous vein harvesting, where local complications are more prevalent, particularly when the vein is extracted from the thigh and in patients of advanced age. [96] This observation has led several researchers to conclude that RA graft recipients experience reduced length of hospitalisation, fewer readmissions and lower overall hospitalisation costs.[94,95,96] Other studies have made a comparative analysis between the postoperative results of patients who have undergone coronary bypass surgery with the RITA versus RA as a secondary graft in addition to the LITA to the left ascending coronary artery. A higher incidence of sternal wound infection or dehiscence has been observed in patients who have received a RITA. [97,98,99] Additionally, these patients exhibit a higher incidence of postoperative bleeding and a prolonged hospitalisation period. [97,98,99]

A number of studies have identified significant concerns associated with the utilisation of the bilateral internal thoracic artery in association or not with RA graft , particularly in relation to the elevated risk of sternal wound complications and mediastinitis. The results of the most extensive meta-analysis on this subject indicated that the incorporation of a second internal thoracic artery into the left internal thoracic artery grafting procedure resulted in a notable increase in the incidence of sternal complications (with a single internal thoracic artery presenting a relative risk of 0.62 and a 95% confidence interval of 0.55-0.71). [100] Patients with diabetes and pulmonary disease are at an elevated risk. In ART, the incidence of sternal wound complications increased from 0.6% in patients receiving a single ITA to 1.9% in those who underwent bilateral internal thoracic artery surgery. This equates to an incremental difference of 1.3%, which is equivalent to a number needed to causally link the observed effect to the observed outcome of 78 individuals. [13,14]

Surgical techniques for harvesting ITAs may influence the extent of the survival benefit. It is noteworthy that the better favorable early results resulting from bilateral internal thoracic artery grafting have been observed in both diabetic and non-diabetic patients. [101] For example, two reports based on systematic reviews have both emphasised the pivotal role of harvesting the ITA via the skeletonisation procedure. The correlation between deep sternal wound infections was lower in both diabetic and non-diabetic cohorts when the skeletonisation technique was preferred to the pedicled harvesting technique [100,102].

Ultimately, the surgeon's overall strategy for identifying candidates for coronary revascularisation by using arterial-only conduits or alternatively incorporating saphenous vein grafts continues to have important implications. This is particularly the case with regard to the choice of the bilateral internal thoracic artery for the coronary revascularisation procedure. Accordingly, it is advised that the avoidance of bilateral internal thoracic artery be considered in patients exhibiting specific potentially morbid characteristics, particularly when these characteristics co-exist (overweight status, diabetes, underlying respiratory conditions). Additionally, consideration should be given to the avoidance of bilateral internal thoracic artery in patients undergoing steroid therapy or immunosuppressive therapy. [9,10,11,12,13,14,15,16,17,18,19,20,21]

Neurological complications may arise as a consequence of damage to the superficial branch of the radial nerve, which courses in close proximity to the radial artery. This phenomenon has been documented in 8% of cases, manifesting as numbness and paresthesia of the thumb. In the majority of cases, these symptoms resolve within a year. [10,12,103] In no case does this trivial adverse event result in any appreciable degree of clinically significant functional inability. Electroneurography and motor-unit potential studies have demonstrated that minimal conduction alterations can be observed even when neurological symptomatology has been documented. [104] It was reported that there were exceptions to the rule, namely cases of extreme and enduring pain in the forearm. [105] However, no anatomical basis for this phenomenon was identified, and it was therefore concluded that this condition, known as causalgia, was most likely of a co-existing psychological disturbance. It is uncommon for transient dysesthesia in the territory of the ulnar nerve, fourth and fifth fingers to occur as a result of traction on the brachial plexus, which is caused by the upper extremity being positioned incorrectly during surgical removal of the radial artery. Notwithstanding these minor adverse effects, quality of life studies have demonstrated the safety of RA removal, which was responsible for merely residual discomfort. [17,18]

Stroke continues to be the most severe complication of CABG, affecting 1% to 2% of patients in the peri perioperative phase. [106] It is well documented that a variety of factors can contribute to an increased risk of stroke. These include a personal or family history of neurological events, increasing chronological age, peripheral or cerebrovascular disease, and diabetes. [107,108] Additionally, aortic atherosclerosis represents a significant risk element in the context of stroke occurrence following CABG, largely due to the inherent necessity for both mechanical manipulation and clamping of the ascending thoracic aorta. [109] The utilisation of a single aortic cross-clamp, in conjunction with the application of epiaortic ultrasonography throughout the CABG procedure, has been demonstrated to result in a notable decline in the incidence of stroke events amongst patients subjected to this surgical approach over the extended period of the earlier decades of the current century. Additionally, neurocognitive impairment has been linked to CABG, notably in relation to the utilisation of cardiopulmonary bypass. Nevertheless, these correlations have been identified in studies lacking control for confounding variables over an extended period. Randomised trials investigating CABG conducted with and without cardiopulmonary bypass, as well as CABG in comparison to PCI, have not substantiated these observations. [110,111,112] The prevailing opinion regarding neurocognitive impairment following CABG is that it is attributable to a confluence of factors. These include the immediate and short-term consequences of major surgery, as well as the long-term effects of advanced age, depression, and a shared predisposition to neurocognitive dysfunction and coronary artery disease. [113,114]

4.2. Late Clinical Results

A common misconception among patients and some physicians is that CABG is a definitive cure for coronary artery disease. In reality, CABG does not hait the advancement of native coronary artery disease, and internal thoracic artery, radial artery and saphenous vein grafts are susceptible to failure.

the progression of native coronary artery disease, and internal thoracic artery and saphenous vein grafts can fail. Nevertheless, the advancement of disease and the deterioration of vein grafts can be mitigated by the implementation of robust secondary prevention strategies employing pharmacological interventions.

The results of a most recent investigation into our experience of radial artery grafting, comprising 819 patients, revealed that the five-year, ten-year and fifteen-year survival rates were 95%, 81% and 70% respectively [9,10,11,12,13]. Figure 5

Given the older age at operation, these results are more favourable than those of historical series of CABG , which included primarily vein grafts and demonstrated survival rates of 56% and 62%, respectively, at 15 years. [115,116] It is noteworthy that other studies have documented comparable long-term survival rates following RA grafting, with reported rates of 83% and 79% at 7 and 10 years, respectively. [117,118,119] A contemporary series of coronary bypass grafting with the LITA and SVG demonstrated a similar survival to that previously reported. [120] It is noteworthy that other studies have documented comparable long-term survival rates following RA grafting, with reported rates of 83% and 79% at 7 and 10 years, respectively [117,118,119]. A contemporary series of coronary bypass grafting with the LITA and SVG demonstrated a similar survival to that previously reported. [120] A freedom from cardiovascular-related death rate of 89% at 15 years is observed following RA bypass grafting (Fig. 18.1). Among the principal contributors to cardiac mortality within this cohort have been identified congestive heart failure, arrhythmia, stroke and calcified aortic valve stenosis. [13] Our findings indicate that preoperative ejection fraction below 40% represents a statistically significant predictive factor for late death. [12]

Two comprehensive case-matched studies were conducted involving patients who met the same demographic criteria and who received either a RA or SVG as a second conduit to supplement the LITA-LAD graft. [121,122] These studies were the first to demonstrate that using the RA in place of a vein resulted in a reduced risk of mortality, [121,122] especially beyond the third post-operative year. [122] This finding was further corroborated by subsequent observation-based studies [118] and RCT. [123] When focusing on specific patient subgroups, the survival benefit of utilizing a RA instead of a SVG becomes particularly evident, particularly in female patient, [124] in cases where endarterectomy is conducted on the target coronary artery, [125] and in instances of grafting in a sequential manner. [126] A similar benefit is identified in the context of coronary repeat operations. [127] In contrast, long-term survival rates in diabetic patients are not significantly enhanced by the utilisation of radial arteries as conduit for grafting. [128] Zacharias' case-matched study was conducted on a prolonged timescale of 12 years with the aim of assessing the long-term survival benefit of employing the totality of arterial grafting techniques, with at least one RA graft used in nearly 92% of total patients. [122] The use of an total-arterial grafting technique has been shown to result in a superior 12-year survival rate compared to the standard single LITA and SGV procedure. This advantage is particularly evident in the context of three-vessel disease, although it is more modest in patients with two-vessel disease. [122]

The plethora of confounding variables poses a significant challenge for even the most sophisticated statistical methods, which often struggle to identify the graft type as a risk factor for death. In contrast with the aforementioned literature the randomized trial undertaken by Buxton (Radial Artery Patency and Clinical Outcome trial, RAPCO) did not demonstrate a statistically significant improvement in survival rates associated with the use of the RA in comparison to a SVG in individuals aged over 70 years. [17,129] However, the patient cohorts were relatively small, which may have contributed to the lack of statistical significance observed. In the subgroup in which the target was the right coronary artery, there was no impact observed on patient survival as a result of the use of the RA. [130]

5. Complication

The recurrence of angina is a common occurrence subsequent to CABG. The probability of angina recurrence increases with the passage of time, with an estimated incidence of approximately 40% at 10 years. [131] While some authors have deemed the postponement of late angina recurrence to be clinically inconsequential, [131] the incidence of angina recurrence is lower when radial artery grafting is employed, occurring in 18% of patients at 9 years. [12] Furthermore, in the context of undergoing arterial grafts, patients were subjected to a rigorous course of treatment with a range of antianginal medications. This included the administration of beta-blockers (70%), calcium channel blockers (48%), ACE inhibitors (49%), nitrates (13%) or a combination of these agents (14%). Other pharmacological agents employed included central antihypertensive drugs such as molsidomine, nicorandil and trimetazidine [12]. Sergeant asserts that the recurrence of angina following coronary artery bypass grafting has a negligible effect on patient survival and lacks prognostic value for imminent infarction. [131]

In historical cohorts comprising predominantly of vein grafts, the occurrence of acute myocardial infarction (AMI) reached as elevated a rate as 16% at the 10-year mark. [115].A more recent survey of arterial grafting revealed an occurrence of only 2.1% at nine years, with rare instances of sudden thrombosis in the RA graft [12]. The vast majority of patients undergo antithrombotic medication, with aspirin being the most common (74%), followed by clopidogrel in cases of previous stenting or multifocal atheroma (20%) and orally administered anticoagulants, predominantly due to atrial fibrillation (18%). The administration of antithrombotic medications is only contraindicated in the event of a serious medical condition (3%). [12].

Congestive heart failure represents the leading cause of cardiovascular mortality in the contest of coronary heart disease (CHD). In a cohort of patients who underwent renal artery angioplasty and stenting, the incidence of congestive heart failure symptoms was observed in 11% of cases at the 9-year mark.[12] As previously stated, all patients were administered an intensive pharmacotherapy regimen, comprising angiotensin-converting enzyme inhibitors in 49% of cases. A modest yet statistically significant reduction in the mean ejection fraction was observed over the course of the follow-up period, from 57% preoperatively to 55% at the nine-year mark. Therefore, arterial grafting with the radial artery affords long-term safeguard of myocardial contractility against the progression of CHD. [12]

Based on our most recent investigation, it is estimated that 13% of patients with a radial artery conduit used for CABG require percutaneous intervention, with a mean of 6.5 years after surgery. [12] At 15 years, one in four individuals will have had at least one percutaneous intervention. In this clinical trial series, 2/3 of the procedures were performed on a native coronary artery. [12] Because the myocardial territory was partially protected by the patent grafts, PCI of the left main or proximal LAD coronary artery could be performed safely. Direct PCI of a stenosed arterial or venous graft was performed in rare instances. Stent implantation was performed in the overwhelming number of patients, and balloon dilatation alone was used only in the early stages of the present work.

In our experience, the necessity for reoperation is 2.3% and the Kaplan-Meier free from reoperation rate is 96% at 15 years. [12] In practice, since most reoperations are indicated primarily for valvular failure, the actual need for repeat surgical revascularisation is only 0.5%. The main causes of repeat surgery are calcified aortic stenosis and ischemic mitral regurgitation. [12] In previous series, in which SVGs were the primary surgical technique, the incidence of reintervention at the designated time interval was fourfold higher. [115] In the matched trial by Cohen and colleagues, freedom from non-fatal cardiac events, defined as rehospitalization, myocardial infarction, percutaneous coronary intervention, and reoperation, was longer when RAs rather than SVGs were used to supplement the left internal thoracic artery-to-coronary artery bypass graft. [121]

The radial artery presents a number of benefits in comparison to the right internal thoracic artery. It offers a highly adaptable alternative conduit, with a diameter and length that make it suitable for use in all coronary targets, including those at the most distal locations. Additionally, the radial artery can be retrieved at the same time as the LITA, reducing the overall time required for the procedure. The sole restriction associated with the RA graft is its propensity to become affected by atheromatous deposits, a phenomenon that occurs with greater frequency than that observed with the ITA. Borger et al [99] evaluated the clinical advantages of complementing the LITA-to-LAD graft with the RA instead of the RITA. The findings presented in this publication are based on the experience of a single centre and, as such, remain a matter of debate. [132,133] Nevertheless, given that the employ of radial artery provides a lower wound complications than BITA harvest, [97,98,99] the choice of this conduit as the second graft to accompany the LITA represents a fruitful avenue.

6. The destiny of radial artery grafts

The patency of RA is one of the most important tools in the CABG. While conventionally, angiograms were performed as a matter of routine in the early days of RA grafting, [9] guidelines have modified our approach to the assessment of graft function. [9,77] Over the past decennium, conventional angiography has been performed solely in cases where evidence of myocardial ischaemia has been identified. Due to the minimally invasive nature of CT angiography, it can be more readily mandated for asymptomatic patients and the elderly. It has been shown to be a good screening tool for assessing graft perfusion [134,135,136] and this method has been widely used to assess long-term RA graft patency. [12,137] The patency of the radial arterial graft is 100%, 93%, 83% and 83% at 1 month, 1 year, 5 years and 10 years respectively [9,10,137] and three different angiographic studies have reported 1-year, 5-year and long-term (more than 5 years and as far as 20 years) outcomes. [137] As two thirds of patients with an occluded RA graft remained clinically asymptomatic in the long term, RA graft occlusion does not inevitably lead to recurrence of angina. [137] If an ECG stress test or scintigraphy is performed, myocardial ischaemia is often not detected. [137]

The findings of other researchers corroborate the conclusion that the vast majority of RA grafts remain patent when examined in the immediate postoperative period. [138,139] Additionally, it has been observed that some loss of patency occurs during the initial postoperative year, with a remaining patency rate of 90-93%. [140,141,142] In a comparative analysis of our series with other published data, analogous or moderately elevated patency rates have been documented in the intermediate term follow-up period: 95%, 89% and 88% at 4 years, [117] 5 years [143] and 8 years, respectively. [144]

A comprehensive analysis was conducted on all serial angiographic controls collected over a 20-year period, as part of a study undertaken by our research group. Out of the total number of patients included in the study, 563, approximately half underwent at least one angiographic control. A total of 1,427 coronary bypass grafts, comprising 629 RA conduits, underwent opacification. A partitioning of the angiograms into four equivalent categories at distinct time intervals revealed that the majority of RA occlusions transpire in the initial six months. In the period extending further than one-year, radial artery graft functionality demonstrates considerable stability, with minimal deterioration observed over the course of up to 20 years.[12]

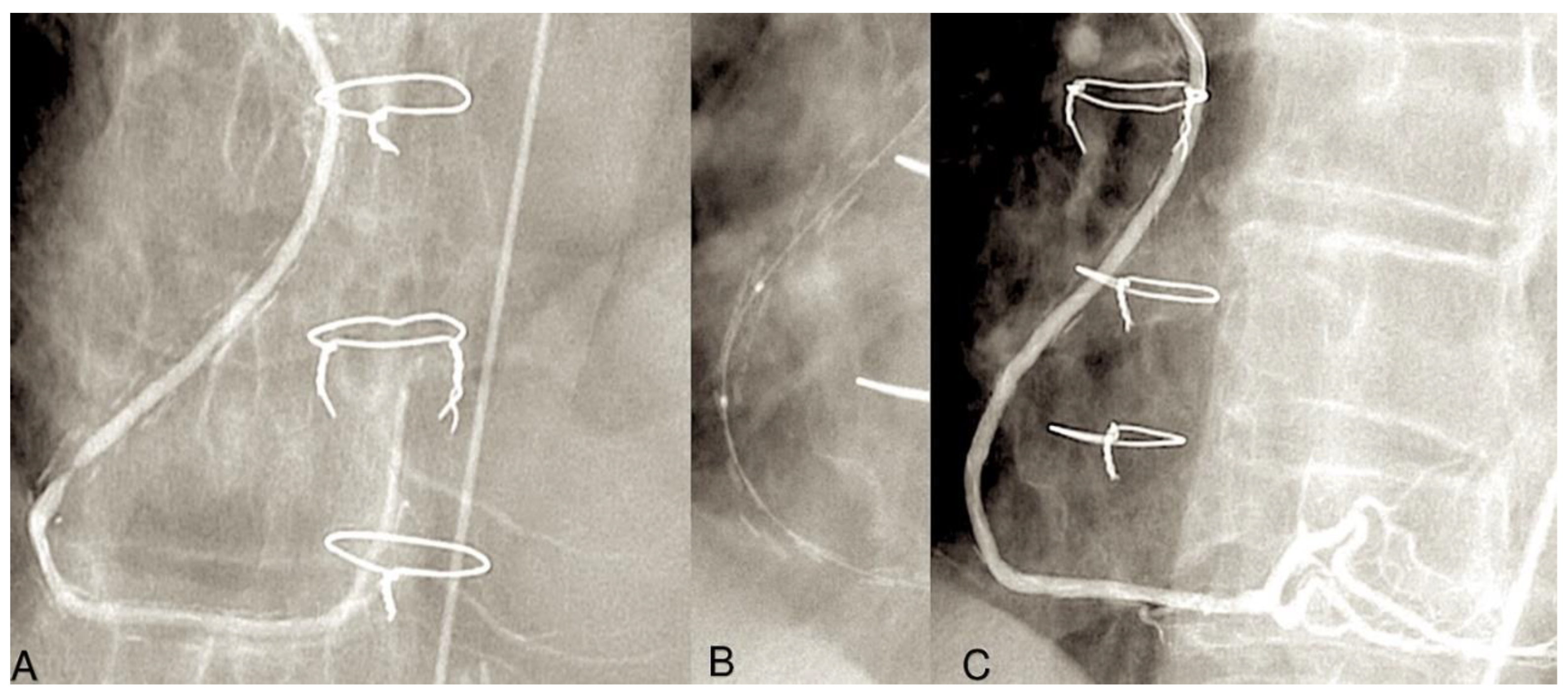

The term 'string sign' is used to describe a condition characterised by a diffusely occurring narrowing of the entire graft, which is refractory to the effects of in situ vasodilators. This phenomenon is more frequently discernible on preliminary post-operative angiograms, with an estimated prevalence of approximately 7% in RA grafts within the initial postoperative year. [9,140,145,146]The phenomenon of "graft involution" is thought to arise from a process of competitive flow, as evidenced by a number of previous investigations [145,147,148] Indeed, when a stress test is conducted, it is uncommon for ischemia to be observed in the distribution associated with the string sign. [140] Some have postulated that the string sign may be precipitated by the administration of alpha-adrenergic medications prior or during the perioperative interval. [146] It is noteworthy that the regression of the RA string sign is exceedingly uncommon. [147] In such cases, the grafts in question have ceased to function, and they should therefore be classified as non-perfused.

It is imperative to differentiate between a string sign and vasospasm of radial artery. The concern that vasospasm might occur due to the muscular composition of the radial artery vessel wall has been allayed by evidence of progressive morphofunctional remodelling of the artery towards an elastomuscular configuration following implantation in the coronary circulation. [149] This is likely to be the underlying anatomical reason for the lack of efficacy of long-term antispastic therapy in patients with RA grafts [93], despite the continued widespread use of such therapy in the field of surgical practice. [150]

The most common type of angiographic failure observed in radial artery grafts is total obstruction, although string-like appearance has also been documented. In rare instances, localised stenosis of the radial artery graft has been identified. [151] Our own experience, spanning two decades, indicates that 6% of RA grafts exhibited stenosis on angiographic controls. [151] In some cases, stenosis was identified at either the proximal or distal anastomosis. In such instances, the potential culprits included a flawed surgical technique or intimal hyperplasia. In more frequent instances, stenosis affected the bodily region of the RA graft, thereby posing challenging pathophysiological concerns. It can often prove problematic to definitively exclude a spasm that is refractory to in situ vasodilators. If identified at an early stage following surgery, the stenosis can be treated with balloon dilation without the need for stenting. [151] If the stenosis is not identified in a timely manner, it is typically of an organic nature. It is possible that some narrowings existed prior to surgery involving the radial artery at the forearm. The development of RA stenosis may be attributable to the presence of an atheromatous plaque that had not been identified at the time of the initial surgical procedure. An additional possibility is that it is associated with fibrosis resulting from arterial trauma caused by inadequate harvesting techniques or prior intravascular procedures. It has been demonstrated that transradial angiography often results in intimal damage and/or medial dissection. [152] In certain instances, the stenosis of the radial artery was identified as a subsequent occurrence, as evidenced by instances where the graft was found to be intact in previous angiograms. [151] It seems plausible to suggest that these vessels may have been the focus of a preceding minor perivascular injury, which subsequently developed into a clinically significant flow-limiting stenosis. It can be reasonably deduced that the occurrence of RA graft stenosis may be prevented by the implementation of a systematic preoperative echo-doppler screening process, coupled with the deliberate preclusion of all calcified RAs and prior interventionally treated conduits. It is possible to safely treat RA graft stenoses by means of PCI and stenting, with the result being durable. [151,153] In regard to percutaneous interventions for venous graft disease, a significant challenge persists due to the high incidence of periprocedural morbidity associated with embolic complications from atherothrombotic detritus.[154] Figure 6

6.1. Determinants of RA patency

A number of studies have demonstrated that diabetes represents a risk factor for the occlusion of RA grafts. [155,156,157] The majority of angiographic investigations conducted for the purpose of determining the patency of the radial artery are based on the presence or absence of symptoms, and thus do not provide an accurate representation of the true state of patency of the graft. There is a notable increase in the occurrence of graft occlusion when the rationale for angiographic investigation is predicated on the presence of myocardial ischaemia, with an estimated doubling of incidence rates. [158,159] A similar phenomenon is observed in the case of the RA graft, where the occlusion rate at seven years is 12% in asymptomatic patients and 26% in those exhibiting clinical, electrocardiographic, or scintigraphic indications of ischaemia. [12]

The identity of the target coronary artery serves as a significant predictor of the graft's patency, regardless of whether the graft is of a venous [160] or arterial [161] nature. Conduits placed on the left anterior descending coronary artery with a substantial supply from the surrounding perforators demonstrate the most favourable outcome in terms of blood flow, with the diagonal and obtuse marginal branches of the left coronary artery exhibiting a comparatively higher success rate. Given its limited territorial scope, which encompasses primarily the thin right ventricular myocardium, the right coronary artery exhibits the lowest recorded propensity for maintaining patency. [160,161] Similarly, the viability of radial artery conduits is contingent upon the dimensions of the intended coronary target. [91,143,145,159,162,163] The statistical analysis reveals that RA graft longevity for targets of the RCA is inferior to that for targets of the left anterior descending artery, with a borderline correlation observed when compared to the left coronary circumflex perfusion territory. A review of our experience revealed that the number of RA grafts used for anastomosis to the LAD was insufficient for a meaningful statistical analysis. However, for the other targets, the 7-year patency of RA grafts decreased from 92% to 82% to 78% for the diagonal, the obtuse marginal, and the right coronary artery, respectively. [10]

It has been established that competitive flow represents a significant contributing factor to the development of failure in radial artery grafts. The anastomotic permeability of targets with moderate stenosis is inferior to that of vessels with high-grade stenosis. [10,140,143,145,162] The definition of critical stenosis remains a topic of debate, with some authors proposing 70% and others 90% as the threshold. [164] The findings of the Maniar and colleagues investigation [162] indicated that the mean degree of stenosis for patent anastomoses was 82%, compared to 71% for obstructed anastomoses. This suggests that the threshold for flow competition may lie between these two values. In cases where coronary bypass surgery is combined with valve replacement, the decision to perform coronary bypass often hinges on the identification of coronary stenoses through conventional preoperative angiography, rather than on the presence of myocardial ischaemia. The risk of performing coronary bypass grafting on a coronary artery with a low-grade stenosis, which could potentially lead to competitive flow, is higher in such cases. This results in a higher rate of graft occlusion, as evidenced in previous studies. [12] Similarly, other researchers have shown that RA graft occlusion is more prevalent in patients with minimal or no preoperative angina. [143] Another situation at risk for competitive flow is the performance of a coronary bypass for proximal left main stenosis. The obtuse marginal RA graft is particularly susceptible to competitive flow due to the unimpeded retrograde flow from the LITA-to-LAD graft towards the left coronary circumflex artery plexus. [11] Ultimately, an ample compensatory circulation may rival the flow from a graft that has been anastomosed to a persistently obliterated coronary artery. [11]

It has been demonstrated that sequential grafting has the effect of enhancing vascular patency, which can be attributed to the augmented distal runoff. In general, sequential RA conduits demonstrate an enhanced patency rate in comparison to grafts with a sole anastomosis, reaching 91% at seven years versus 82% in the event of unifocal anastomosis grafts. [12]

In some cases, only one end of the graft may remain patent, while the remainder of the graft is rendered non-functional, resulting in a "string" or "occlusion" effect. This phenomenon has been observed in both experimental and clinical settings. [11,126]

The utilisation of composite arterial conduits with the radial artery anastomosed to the LITA has gained considerable recognition within the scientific community. This approach has been extensively documented in numerous studies. [163,165,166,167,168,169,170] The use of shorter segments of the radial artery is a significant advantage of this technique, as it allows for the maximisation of all-arterial revascularisation. Those in favour of this method maintain that an increase in shear stress is generated when the radial artery is sutured to the aorta, given that the aorta has a greater caliber than the artery from which the radial artery naturally originates. There is still no clear consensus on whether RA should be proximally anastomosed to the IMA rather than to the aorta, with the current evidence base remaining inconclusive. Comparative studies have yielded conflicting results. Some have reported similar patency rates, [117,169] while others have observed the opposite outcome. [163,170] Some have suggested that LITA anastomosed RA grafts are more susceptible to the effects of concurrent flow, [163] which may result in higher occlusion rates at both one-year and five-year intervals. [170]

The secondary prevention measures employed to ensure patency of the RA must first be analysed in the context of each individual conduit utilised for the CABG procedure. Given the potential for the RA to be employed in conjunction with SVG, there is an increasing awareness of the factors that contribute to vein graft failure. The vast majority of SVGs that are unsuccessful do so with minimal immediate clinical consequence to the patient. [26,32] A recent scientific statement from the American Heart Association (AHA) on appropriate secondary prevention after coronary artery bypass grafting (CABG) recommends lifelong antiplatelet therapy for patients. [1,2,171] Among the antiplatelet agents, low-dose aspirin (81 mg daily) may be preferable to full-dose aspirin (325 mg daily) due to the lower risk of bleeding. [1,2,171] The extant evidence derived from RCTs and observational studies is inconclusive with regard to the use of aspirin and a P2Y12-receptor inhibitor, such as clopidogrel or ticagrelor, in patients who have undergone CABG. In the event that a patient was undergoing treatment with a P2Y12-receptor inhibitor prior to surgery, it is recommended that this course of medication be continued following surgery for the original indication. The administration of a 12-month course of a P2Y12-receptor inhibitor subsequent to CABG has been evidenced as an effective strategy to enhance vein graft patency, with a utilization rate exceeding 25% in clinical practice. [171,172,173,174,175,176,177,178,179,180]

A patient-level meta-analysis was conducted on four RCTs [177,178,179,180] with the objective of investigating patients undergoing coronary artery bypass graft surgery. [181] The addition of ticagrelor to aspirin was found to be associated with a significantly reduced risk of vein graft failure. However, this was accompanied by a significantly increased risk of clinically important bleeding. The incidence of saphenous vein graft failure was significantly lower in the ticagrelor DAPT group (11.2%) than in the aspirin group (20%). This difference was statistically significant (P < 0.001). Moreover, the incidence of saphenous vein graft failure per patient was significantly lower (13.2% vs 23.0%, and a P-value of less than 0.001). The incidence of Bleeding Academic Research Consortium type 2, 3, or 5 bleeding events was significantly higher in the ticagrelor DAPT group (22.1%) than in the aspirin group (8.7%). This difference was 13.3% and the OR was 2.98. The incidence of BARC type 2, 3, or 5 bleeding events was significantly higher with ticagrelor DAPT than with aspirin (P < .001), however, this was not the case for BARC type 3 or 5 bleeding events (1.8% vs 1.8%; P = .99). [181]

Beta-blockers should be employed in patients who have recently experienced a myocardial infarction, those with left ventricular systolic dysfunction, or those with non-fully revascularised coronary artery disease. [75,171] All patients, irrespective of their lipid values, should be administered lifelong high-intensity statin medication. [171,182,183] Angiotensin-converting enzyme inhibitors are recommended for use in patients with diabetes or left ventricular dysfunction. Aldosterone antagonists may be a suitable option for patients with left ventricular systolic dysfunction. [171] To facilitate long-term compliance with a treatment plan, it is advisable to implement preventive strategies prior to patients being discharged from hospital. Furthermore, patients are encouraged to engage in a brief cardiac rehabilitation regimen, which expedites recuperation and paves the way for constructive lifestyle modifications, including routine aerobic exercise, a diet that is low in saturated fats and carbohydrates, and smoking cessation. [1,2,76,171]

7. Radial artery versus other grafts

In the initial postoperative period, graft deterioration is unlikely to be attributed to intimal hyperplasia; rather, the prevailing mechanism is sudden graft thrombosis. In comparison to a SVG, a radial artery is likely to be less susceptible to thrombosis due to its enhanced haemodynamic properties. Its diameter is just 20% greater than that of the target vessel, enabling an optimal size match with the coronary arteries. [138] Additionally, the conduit is characterised by a lack of valves and displays a consistent internal diameter along its length, with a slight reduction in diameter observed from the proximal to the distal end. In contrast, the dimensions of the vein are 50% larger than those of the target coronary artery. [138] Consequently, a notable discrepancy often arises. Additionally, the saphenous vein luminal surface is lined with valves, and its diameter is prone to fluctuations at the level of its collateral branches. The SVG diameter exhibits an increment from the proximal to the distal end. These haemodynamic characteristics are less favourable in terms of flow and, consequently, contribute to an elevated thrombosis rate in comparison to that occurring in the RA conduit.

The findings of observational investigations [77,78,79,80] and a RCT (Radial Artery Patency Study, RAPS) [156] indicate that radial artery use is a highly effective method of preventing graft occlusion at 1 year when compared to vein. With respect to gender, radial artery graft occlusion rates at 1 year are observed to be comparable between men and women, whereas the saphenous vein graft occlusion rate is found to be twice as high in women as in male subjects. [156] A comparison of SVG with TA grafting indicates that the latter results in a higher rate of patency in both diabetic and non-diabetic patients at one year postoperatively. These findings contravene those of the previously mentioned publications. A randomized angiographic study conducted one year post-total arterial revascularization failed to detect a difference in graft patency when compared to conventional single LITA with vein grafting (Copenhagen Arterial Revascularization Randomized Patency and Outcome Trial, CARRPO.) [184]

Over time, SGVs are affected by an advancing graft pathology and degeneration, which is responsible for a number of changes including progressive intimal hyperplasia, calcification of the vessel wall and intraluminal clustering of atheromatous debris. At ten years, only 60% of vein grafts remain patent, with 50% of these sites demonstrating the presence of atheroma [116,185]. In contrast, the 10-year efficacy of RA grafts has been demonstrated to exceed 80% in all comprehensive long-term investigations, [10,159,186] with the RA exhibiting minimal incidence of graft disease. [10,159] The results of a RCT demonstrated that RA anastomosed to a stenosed branch of the left circumflex coronary artery exhibited a significantly higher five-year patency rate in comparison to SVGs. This was evidenced by the Radial Artery versus Saphenous Vein Patency (RSVP) trial. [16] Similarly, RA graft longevity at five years is more favourable than that of SVGs among individuals who have suffered from in-stent restenosis. [187] In contrast with the findings of previous investigations, the RAPCO trial, which recruited recipients of RA grafting over the age of 70, did not indicate any improvement in patency rates with arterial grafts. At the five-year follow-up, comparable angiographic outcomes were achieved with radial artery or vein grafting to the largest non-left anterior descending artery target. [188]

The highest rates of patency have been observed when the ITA is grafted to the left coronary vessels, whether in situ or as a Y- or free graft. [159] Conversely, the lowest rates of efficacy have been reported when the ITA is grafted to the right coronary artery, which is likely due to disparities in size and the advancement of disease at the crux, or to a lesser quantity of viable myocardium. To date, only one published randomized RCT has directly addressed the comparative efficacy of single ITA and BITA grafting. The ART (Arterial Revascularization Trial) enrolled 3,108 patients from seven different nations. The primary outcome is 10-year survival. However, an initial review after one year (a 'safety' endpoint) revealed positive results with both strategies. Mortality, myocardial infarction and repeat revascularisation rates were all below 2.5% [13], indicating the efficacy of both approaches. These initial findings were subsequently validated by the 10-year outcomes. The intention-to-treat analysis revealed no significant intergroup disparity in the 10-year mortality rate from any cause amongst patients undergoing CABG and randomly assigned to bilateral or single internal-thoracic-artery grafting. A further examination is necessary to ascertain whether the utilisation of multiple arterial grafts is associated with superior outcomes in comparison to a single internal thoracic artery graft. [14]

Two distinct meta-analyses have corroborated this conclusion over the past two years, not only in larger cohorts of patients, but also with longer-term follow-up. A single study encompassed 27 observational reports comprising a total of 79,000 patients, comprising approximately one-quarter of those with BITA. The findings indicated a statistically significant reduction in long-term mortality rates with BITA (p < 0.00001). [189] An investigation conducted by Yi and Associates [190] included nine observational series of over 15,000 patients, representing approximately half of whom had BITA, with follow-up lasting a mean period of nine years. The analysis revealed a notable decline in fatality rates associated with BITA (HR: 0.79; 95% CI: 0.75 to 0.84). It is noteworthy that no study has documented any adverse impact of BITA on fatality rate. Figure 7

In the majority of cases, the patency rate of the RA graft is found to be inferior to that of the LITA graft. [77,78,79,80] In addition to the conduit type, it is essential to consider the other factors that can contribute to graft failure when interpreting angiographic data. The size of the target vessel also affects ITA patency, with lower rates for right coronary target grafts and the highest for anastomosis inserted on the LAD. [161,191,192] It should be noted that the ITA graft is also susceptible to competitive flow. In instances where the degree of stenosis is below 60%, there is a fourfold increase in the occlusion rate of the graft compared to the target artery with 80% stenosis. [191,192] In studies where the ITA graft was directed towards similar target vessels, the patency rate was found to be identical to that of the RA grafts at the five-year follow-up. [162,188]

There is a paucity of studies comparing the safety and efficacy of GEA with RA. [193,194,195,196,197,198,199,200] SVG is the more extensively studied treatment in CABG [77,78,79,161,191,192,200]. A recent meta-analysis of RA and GEA as alternatives to saphenous vein grafting for CABG surgery has found that both RA and GEA are combined with similar and statistically significant long-term clinical advantages when implanted in the right coronary artery. [196] In the majority of surgical procedures, the choice of conduit is typically limited to one of these two options. It is important to note that sub-occlusive stenosis of the target coronary artery, with a degree of narrowing greater than 90%, is a crucial factor in achieving long-term patency rates. Severe stenosis prevents the onset of spasm and subsequent failure due to chronic competition for coronary flow. The typical objective of RA and GEA utilisation during CABG is the right coronary artery.

8. Comment

There is no consensus on the use of radial artery (RA) as a graft for the second target vessel, despite the paucity of contraindications to its use. The analysis of the Society of Thoracic Surgeons database yielded findings indicating that less than 5% of coronary artery bypass graft patients received a radial artery as a second arterial bypass conduit. This trend should be the subject of further investigation and potential intervention. Randomized clinical trials have played a pivotal role in driving this shift in practice, [13,14,15,24,28] with numerous cardiac surgeons in Europe [15,16,18], USA [20], Canada [19] and Australia [17,21] participating in these trials. If the attitude of the community towards the use of RA as a second arterial conduit was initially characterised by a high level of reluctance, the evidence presented subsequently has contributed to a progressive softening of this stance.

The results of the ongoing randomized trials investigating arterial revascularization continue to generate inconsistencies, yet a definitive answer to this long-standing debate has yet to emerge. [13,14] The addition of the radial artery as both a stand-alone and a composite graft (LITA-TA in Y fashion), as demonstrated by Royce et al. and Calafiore et al [21,37], is gradually gaining more convergence of opinion [15]. We noted that the use of RA as a second arterial graft conferred benefits even in high-risk patients, such as those with reduced ventricular function or unstable angina. The freedom from cardiac death at 15 years was 89%. [10,12] Moreover, the position of the second RA conduit used for sequential anastomosis has no effect on the long-term survival benefit, as evidenced by our series of 910 patients treated since 1989 [9,10] and more recent reports where 52/57 patients exhibited RA conduit integrity for sequential anastomosis at 9.8 years (91.2%, P=0.08). [11,12]

A dogmatic bias concerning the technical challenges inherent to BITA grafts, coupled with apprehension regarding financial implications related to sternal wound infection, has historically constrained its utilisation. It is evident that this perspective has also influenced the discourse surrounding the use of radial artery grafts in total arterial revascularization procedures, despite the mounting body of evidence in support of their use. [15] With over half a century of clinical experience, we can confidently assert that the RA represents an excellent alternative to other graft types for total arterial revascularization operations. [22]

9. Conclusion

While the surgical technique itself is relatively unchanged since its inception, the use of RA grafts, a technique that originated during the middle ages but was subsequently overlooked for many years before making a resurgence in modern times, is gaining traction as a second-line conduit for improving graft harvest and outcomes. This is partly attributed to advancements in graft harvesting techniques as well as the utilisation of calcium antagonists, which have proven effective in reducing vasoreactivity. The efficacy of this technique has been demonstrated in both the short and long term, thereby reinforcing its position as a principal intervention in international guidelines for myocardial revascularisation. A comprehensive long-term assessment of patients from the early 1970s series has demonstrated that one RA graft by De Oliveira [201] and five RA grafts by Carpentier [7] remained fully patent at the 23-year follow-up and 27-year follow up. Figure 8

In consideration of the insights gained over the past two decades, it can be posited that the aorto-to-coronary radial bypass graft represents a technique that enables the prevention of pathological changes in grafts, as originally proposed by Carpentier in 1973 in the Annals of Thoracic Surgery. [7]
