Tennis Game Dynamic Prediction Model Based on Players’ Momentum

1. Introduction

Professional tennis matches require a great combination of the player’s technical performance, tactics, endurance, and psychological conditions. Many players have profound skills but is hard to win the match due to hidden factors. Therefore, it is important to develop models to help players and coaches formulate corresponding game strategies to improve the winning rate.

Momentum in sports, refers to the positive or negative shifts in cognition, emotions, physiology, and behavior that result from an event or series of events, potentially influencing performance and competition outcomes [1]. This concept is often described as the “Hot Hand” or being “In The Zone”.

Previous studies have shown that tactical momentum and psychological momentum both exist in tennis matches, especially at some clutch points. Tactical Momentum (TM) is the advantage gained as a result of a strategy or tactical adjustment employed by a player or team during a match. On the other hand, Psychological Momentum (PM) refers to psychological energy that affects players’ performance when it is positive or harmful [1],[3]. When a player is controlling the match, the positive PM will provide a physiological boost involving a positive change in activity level, rhythm, posture, or frequency [2]. It is harder to quantify.

Specifically, previous research mainly focused on proving the existence of PM. Dietl and Nesseler (2017) used the binary approach and established the OLS and Logit model to demonstrate the effect of PM [2]. Through analyzed break-serve points and serve points, statistical hypothesis tests were also used to verify the significance of players' performance before and after key points. (Moss & O’Donoghue, 2015) [4]. Based on the results of the theoretical model, direct testing, and indirect testing, Depken et al. (2022) concluded that the historical score has some influence on the current winning percentage [3].

There are also studies focused on the prediction of the tennis match outcome before the match. Gu et al. (2019) employ the Analytic Network Process (ANP) to combine tangible and intangible variables to better assess match outcomes. The model’s overall prediction accuracy reached 84%, significantly higher than the accuracy of traditional statistical methods, which was around 70% [18].

However, limited research has been done to combine real-time momentum and match outcome prediction. Focusing on this gap is significant which is helpful to develop players’ tactics, mindset, and performance.

In this paper, our analysis mainly focuses on PM. First, we develop the tennis momentum quantification methodology and apply it to predict the outcome of matches. Based on the changes in winning and losing probability, we calculate momentum and provide the visualization of momentum, which is crucial for the analysis of a match.

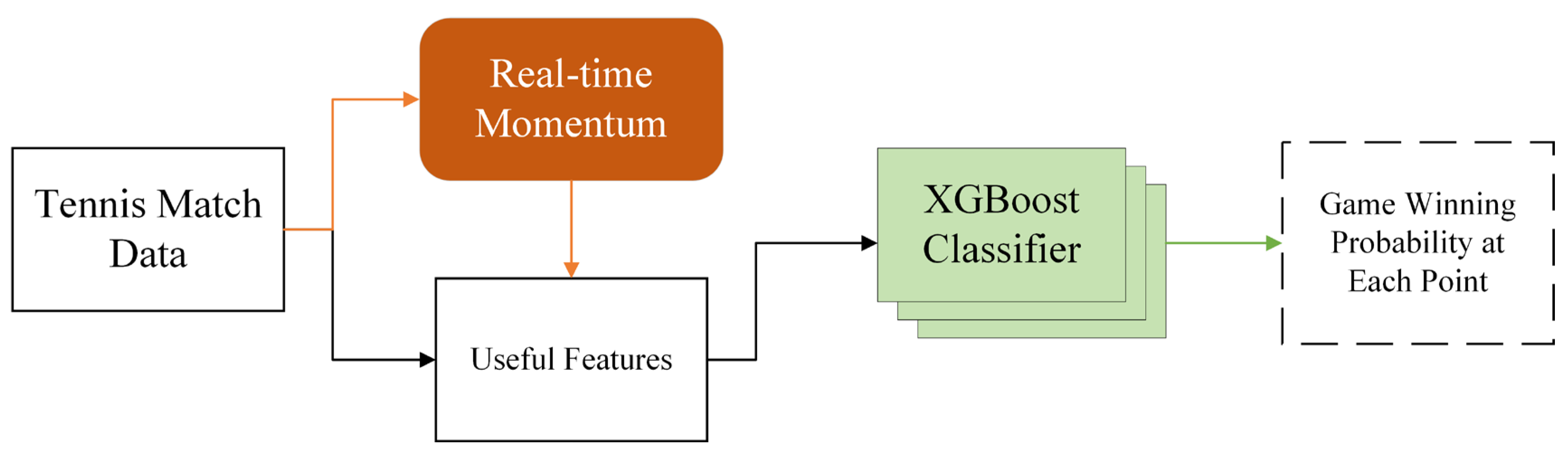

In our match outcomes prediction, we establish the classification model of machine learning and use it to predict the game-winner. Additionally, we calculate several error indicators to evaluate the accuracy of the model and interpret whether the momentum is an important factor in the prediction.

With our study, the player and his coach can know the dynamic changes in his momentum and winning probability. This system can be used to analyze the rival before or after the match, and even in the match with the help of a data analyst. In that case, our study will help improve the winning percentage of players and promote the development of professional tennis matches.

2. Research Objectives

Our research aims to demonstrate the impact of momentum in a match and contribute to the advancement of tennis players’ competitive level.

To reach our objectives, our first step entails quantifying the momentum and creating visual representations. By analyzing these visualizations, we can draw valuable conclusions. The next step involves effectively training models and predicting the game-winner based on real-time player momentum. Finally, we will evaluate the model’s performance in various matches to demonstrate its reliability.

3. Data and Methods

3.1. Data Collection

Source 1: Wimbledon 2023

The data is collected from the playing record of Men’s singles at Wimbledon 2023. This tournament includes a lot of surprises, especially in the final match, Carlos Alcaraz against Novak Djokovic. The dramatic match flow impresses everyone and seems to imply the existence of the concept of momentum in tennis. As a result, we collect the data from this tournament to analyze the player’s momentum.

The dataset contains 31 matches in total and recorded detailed information on each point for every match in this tournament [7]. Furthermore, according to Colino et al. (2024), the surface can affect players’ performance significantly [11], so our analysis mainly fits on the grassland surface.

Source 2: Paris 2024 Olympics

To further illustrate our model and test whether our model can be applied to Women's matches, we collect the data from the match of Zheng Qinwen against Donna Vekić. We record the data by watching the match and filling them into Excel forms.

Table 1. Variables Description.

Variable	Symbol	Description
sets	St	Number of Sets won by Player 1/2
games	Gm	Number of Games won by Player 1/2
score	Scr	Scores of Player 1/2
serve	Srv	Serve by Player 1/2
points	Pt	Number of Points won by Player 1/2
point_victor	PtVct	Point Victor is Player 1/2
ace	Ace	Ace by Player 1/2
break_pt_won	BPtW	Break points won by Player 1/2
double_fault	DF	Double Fault made by Player 1/2
rally_count	Ra	The number of rallies
distance_run	DR	The meters of running distance for Player 1/2

Table 1. Variables Description.

Variable	Symbol	Description
sets	St	Number of Sets won by Player 1/2
games	Gm	Number of Games won by Player 1/2
score	Scr	Scores of Player 1/2
serve	Srv	Serve by Player 1/2
points	Pt	Number of Points won by Player 1/2
point_victor	PtVct	Point Victor is Player 1/2
ace	Ace	Ace by Player 1/2
break_pt_won	BPtW	Break points won by Player 1/2
double_fault	DF	Double Fault made by Player 1/2
rally_count	Ra	The number of rallies
distance_run	DR	The meters of running distance for Player 1/2

3.2. Methods

To quantify the momentum, our core idea is based on probabilities of serve and receive. To reflect the dynamic flow, we elicit the quantity of Leverage and use it to compute momentum (Seidl & Lucey, 2022) [8]. After that, the momentum graph can significantly reflect the psychological and tactical changes. Finally, we extract and select features to establish the eXtreme Gradient Boosting (XGBoost) [9] classification model to predict players’ winning rates in the current game (as shown in Figure 1).

4. Momentum Quantification

4.1. Mechanism

Momentum refers to the force that keeps the objects moving in Physics. If two objects collide with each other, the momentum will also switch between them. Based on this idea, the momentum must reflect two players’ status after they are against at a certain point.

To illustrate the quantification system and show its importance, we select the final match in the tournament, Carlos Alcalas 3:2 Novak Djokovic.

4.1.1. Real-Time Winning Probability

First of all, due to the characteristics of tennis, the server has significant advantages in winning the current point [17], which should be reflected in the model (Gillet et al., 2009).

In accordance with the Experiments of Depken et al. (2022), we set window size = 20 as the denominator. We calculate the winning probability for each player at a specific point based on the now and previous 19 points served and received successful rates. When player A is serving, there are two situations, mathematically,

$$P_1=P_{ASrvWin}=P_{BRcvLose}={\displaystyle \frac{n_{APriviousSrvWin}+1}{20}}$$

(1)

$$P_2=P_{ASrvLose}=P_{BRcvWin}={\displaystyle \frac{n_{BPriviousRcvWin}+1}{20}},$$

(2)

where n is the number of wins, P is the probability, and $P_1+P_2=1$. Based on this idea, the winning probability of each player is shown in Figure 2.

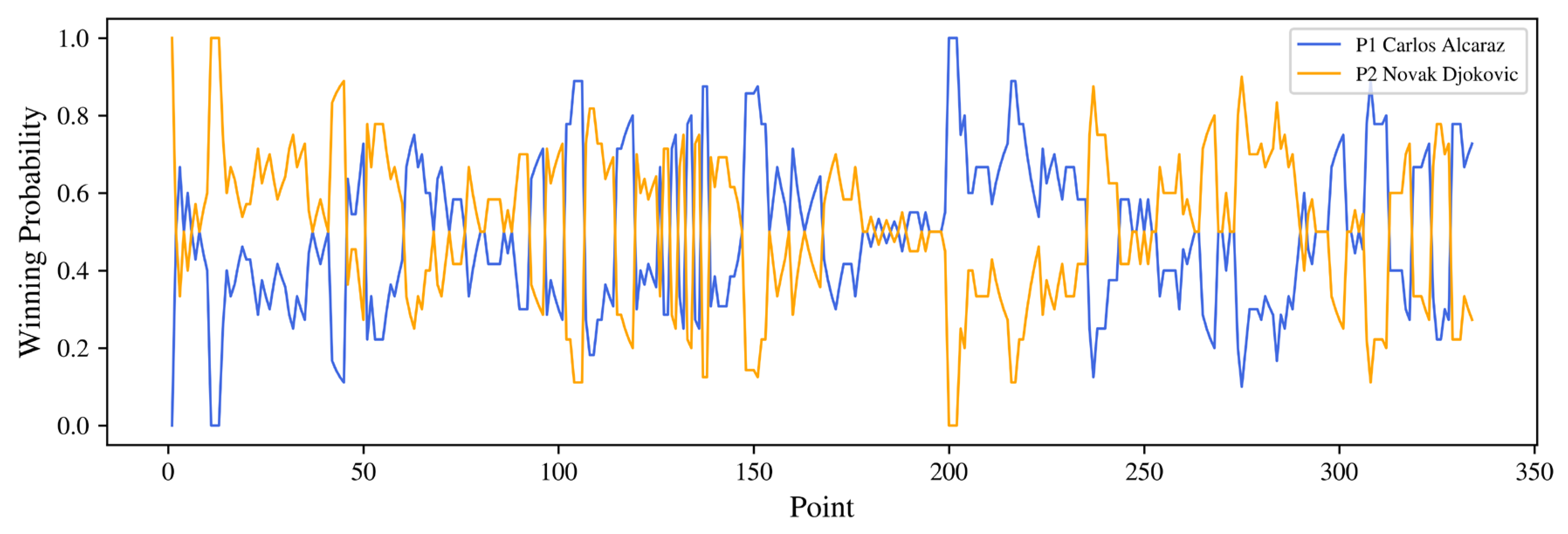

In Figure 2, the blue line refers to Player 1 Carlos Alcaraz, and the orange line refers to Player 2 Novak Djokovic. When one player’s winning probability is rising, the other’s will drop. It is obvious to figure out which player has more chance to win the current point. However, the momentum should reflect the changes in the flow. For example, if the player who has been trailing suddenly wins several crucial points in a row, even if they are still behind in the overall score, the momentum shift can provide them with a psychological boost. So we elicit the concept of “leverage” next.

4.1.2. Leverage Based on Counterfactual Prediction Framework

The counterfactual prediction framework can reflect the dynamic flow. The main idea is to calculate the “leverage”. Leverage is a measurement that refers to how the probability will vary after winning or losing a point [8]. We define the leverage as a positive quantity and the player will gain the leverage only if he wins the current point.

Mathematically, the player’s leverage

$$L_t=\left\{\begin{array}{c}{l}_t, if l_t>0\\ 0, if l_t\le 0\end{array}\right.,$$

(3)

where

$$l_t=\left\{\begin{array}{cc}{P}_{win}\left(t\right)-P_{lose}\left(t\right),& if player wins the point\\ 0,& if player loses the point\end{array}.\right.$$

(4)

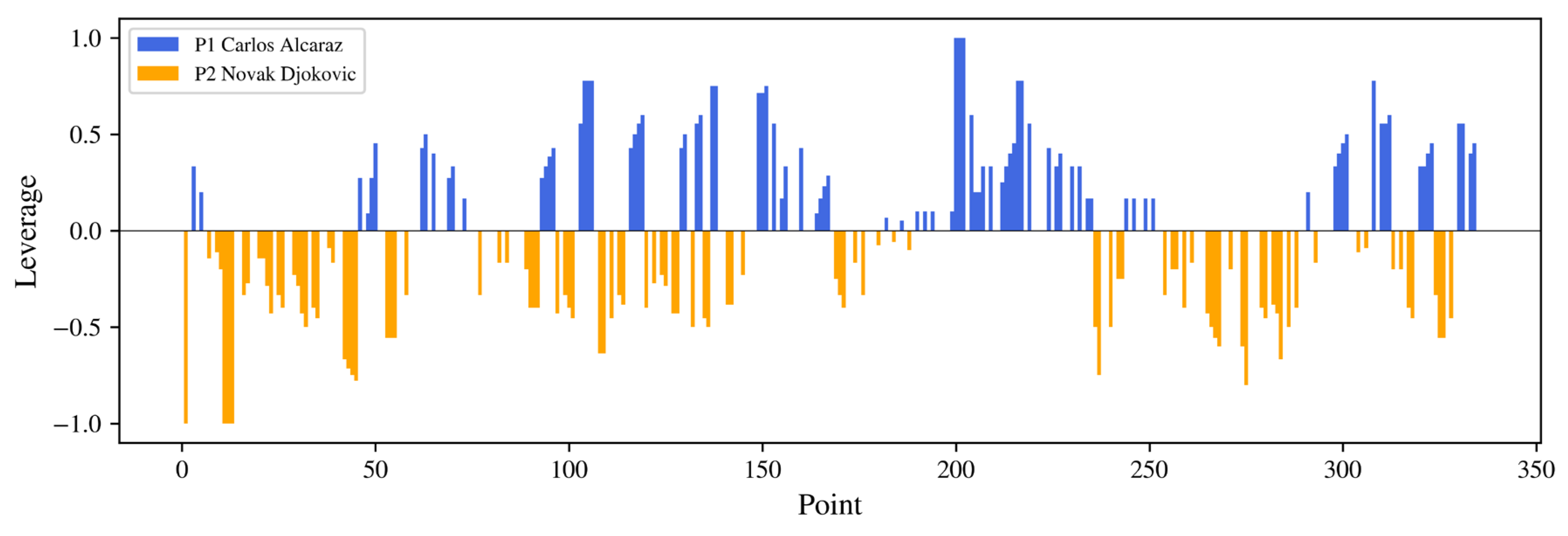

For visualization purposes, we assign the two players’ leverage to the opposite sign (positive versus negative). The leverage gained by each player can be shown in Figure 3. The blue and orange bars are the leverage of Alcaraz and Djokovic respectively, and L_t = 0 is the turning point.

4.1.3. Momentum and Visualization

To turn the discrete leverage into continuous momentum flow. Finally, we let momentum be constructed with the Exponentially Weighted Moving Average (EWMA) [19] of the leverage gained by a player, which is denoted by

$$M_X\left(t\right)={\displaystyle \frac{L_t+\left(1-\alpha \right)L_{t-1}+{\left(1-\alpha \right)}^2{L}_{t-2}+\cdots +{\left(1-\alpha \right)}^{t-1}{L}_1}{1+\left(1-\alpha \right)+{\left(1-\alpha \right)}^2+\cdots +{\left(1-\alpha \right)}^{t-1}}},$$

(5)

where $L_t$ is the leverage at point $t$, and $\alpha$ is the smoothing factor. The large $\alpha$ implies the large magnitude of smoothness. A player gains leverage when he wins a point, and it decreases when he loses. Recent points are weighted more in the momentum calculation [8].

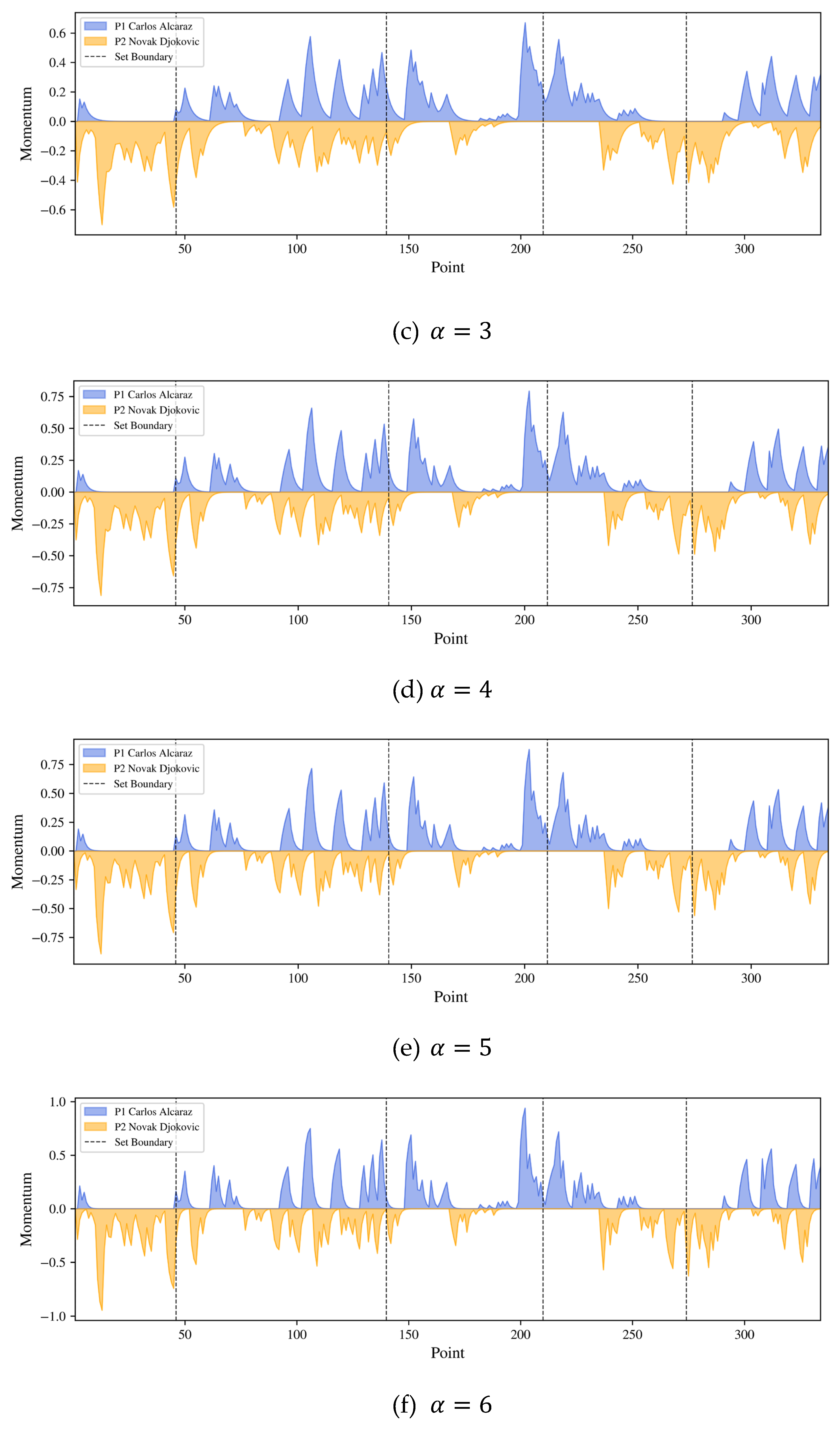

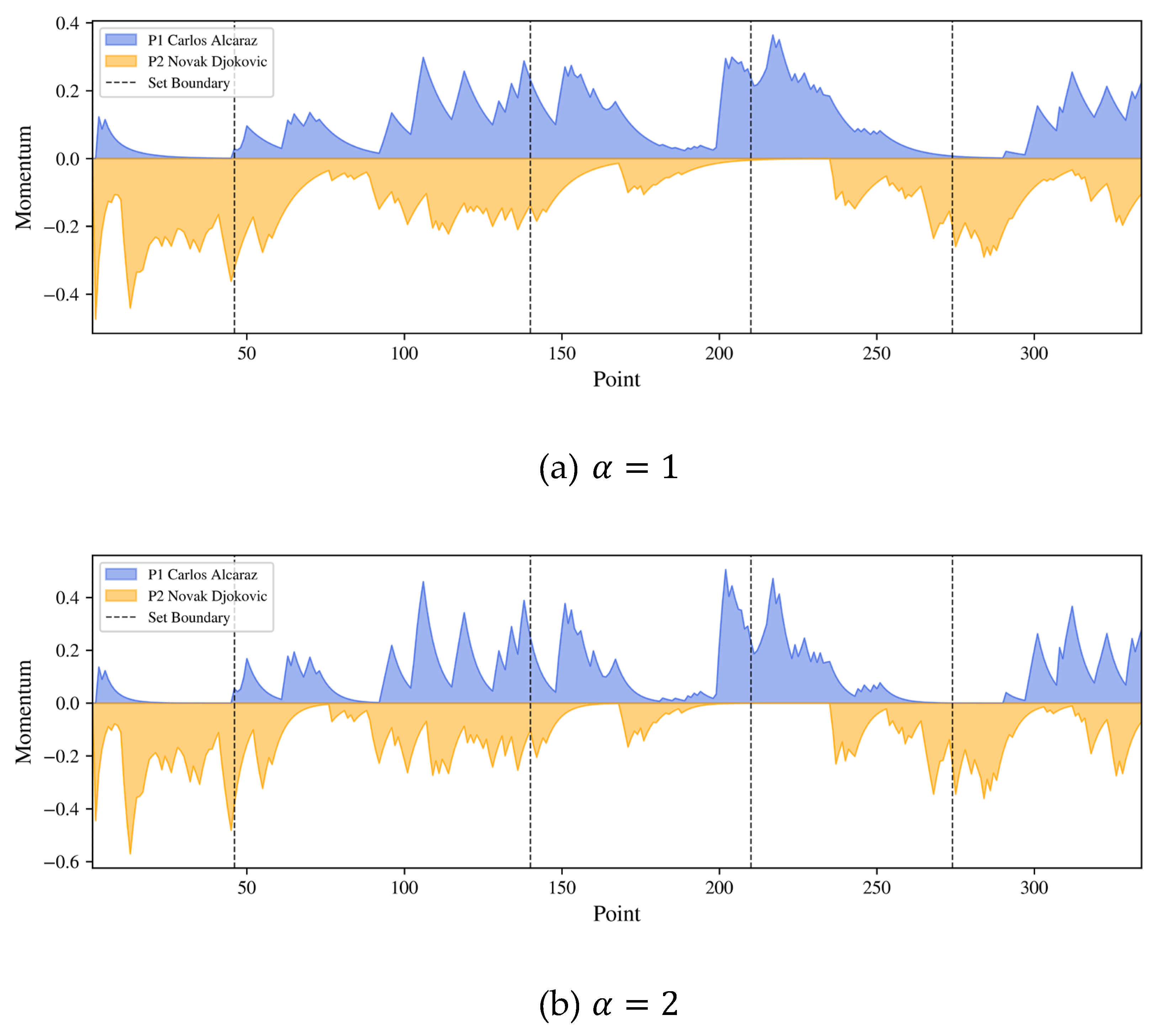

As shown in Figure 4, we start with $\alpha =0.1$. When we increase the magnitude of $\alpha$, the momentum graph tends to display more subtle details and level changes of a match. On the other hand, we may not be able to capture the main trend of the match if $\alpha$ is too large. For visualization purposes, we utilize $\alpha =3.4$ after all the calculations. The blue area stands for Alcaraz’s momentum and the orange area stands for Djokovic’s momentum. When the player’s momentum is approximately zero but not zero, he is still not in the total downdraft. On the other hand, only if one player has momentum while his rival’s is zero, does the momentum swing happen. In that case, the player has less pressure from his rival and has more chance to win or swing the match.

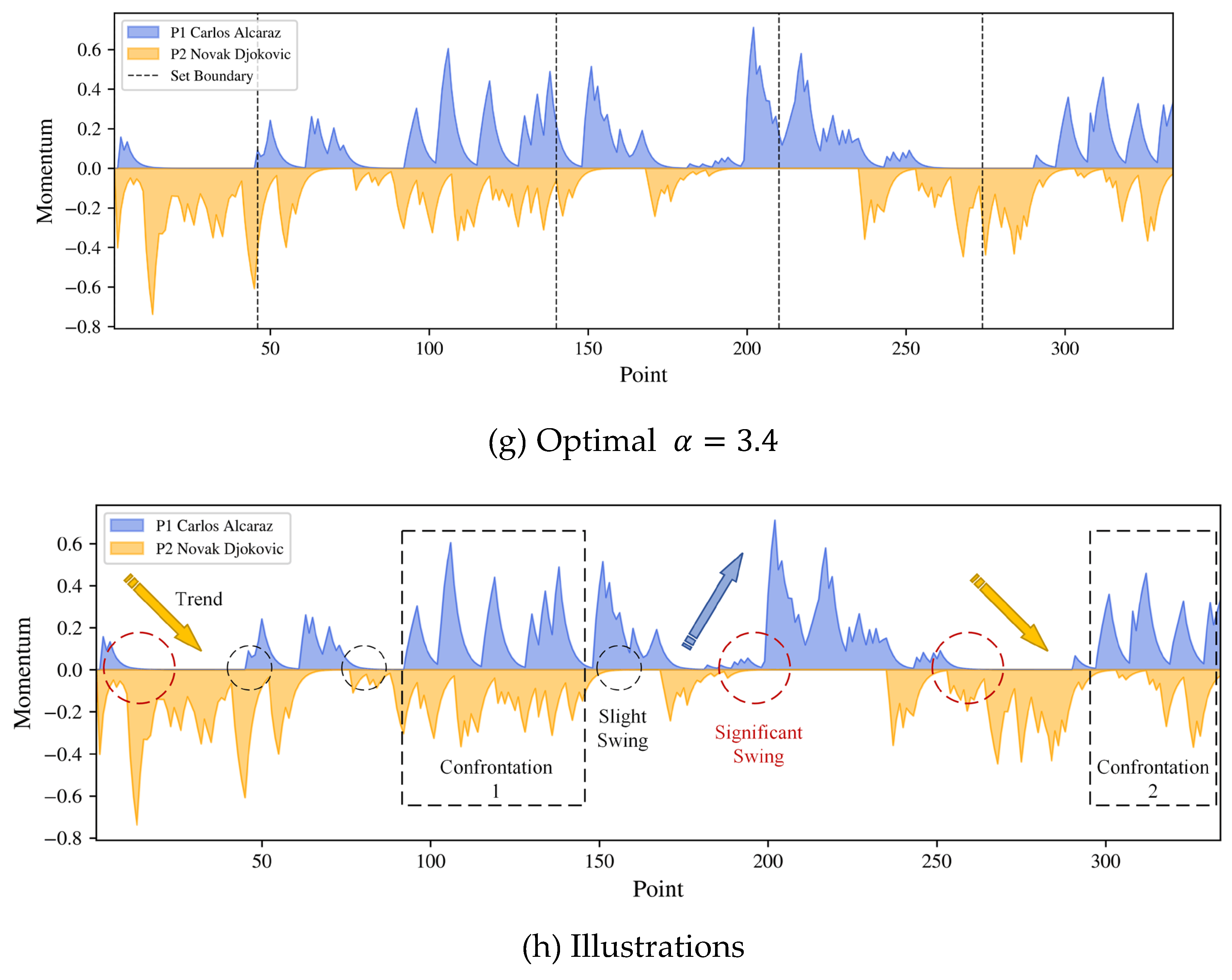

The momentum graph is generally consistent with the trend of the match, to be more specific, the situations of score versus momentum can be described as follows.

• Djokovic’s Dominance

In the first set, Djokovic seemed destined to win easily as he dominated 6–1. The orange area from points 0 to 45 shows Djokovic’s momentum, despite fluctuations, was significantly overwhelming Alcaraz.

• First Swing

The second set was tense and finally won by Alcaraz in a tie-breaker 7–6. The curve section from points 46 to 139 shows the momentum of both players fluctuating frequently towards the end, reflecting the intensity of the situation.

• Alcaraz’s Fight Back

In the third set, Djokovic struggled with a low momentum, while Alcaraz continued his high momentum. From points 140 to 209, the curve shows that, after some initial intersections, the young Spaniard’s momentum significantly leads over Djokovic, mirroring the actual scoreline.

• Second Swing

In the final two sets, our model showcased its superiority. In the fourth set, the young Spaniard seemed in total control as the set started, but Djokovic took complete control to win the set 6–3. This is reflected in our model by the orange curve overcoming the blue.

• Alcaraz’s Victory

Carrying the edge from the fourth set, Djokovic seemed poised to maintain the lead, but a shift occurred, and Alcaraz gained control, winning 6–4. In our model, the blue curve overtakes the orange in the midsection, eventually surpassing Djokovic’s representation.

As a result, the momentum does but does not always reflect the match’s scoreline. Compared with the current scoring condition, momentum has a more evident trend with our quantification. It can be used to analyze the player and his rival in a tennis match.

4.2. Interpretation of Momentum and Break-Serve Points

Utilizing our momentum graph is crucial, for example, we can analyze the important factors that affect the momentum swing (or turning point).

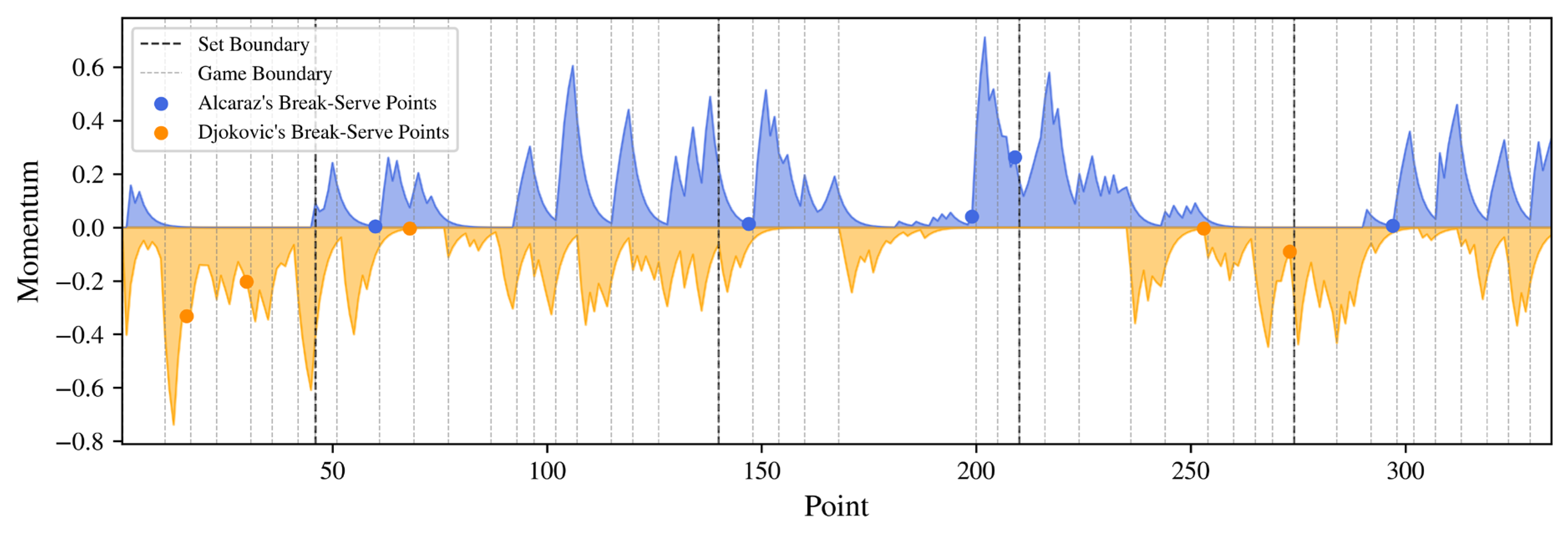

We find that the break-serve point affects the momentum significantly, as shown in Figure 5. The blue points stand for Alcaraz’s break points and the orange points stand for Djokovic’s. The sets and game boundaries are all marked in the plot. It is obvious that when a player wins the break-serve point, he is more likely to have a rapid increase in his momentum, especially for Alcaraz. As a result, break-serve points play an important role in players’ wins in the next few points.

In this situation, the momentum shift is crucial because it not only impacts the immediate game but can also influence the overall match dynamics. Carlos’s recent performance might make Novak more cautious, causing him to adjust his strategy and potentially leading to a different outcome than expected based solely on the current score.

4.3. 2024 Paris Olympics Tennis Women's Single

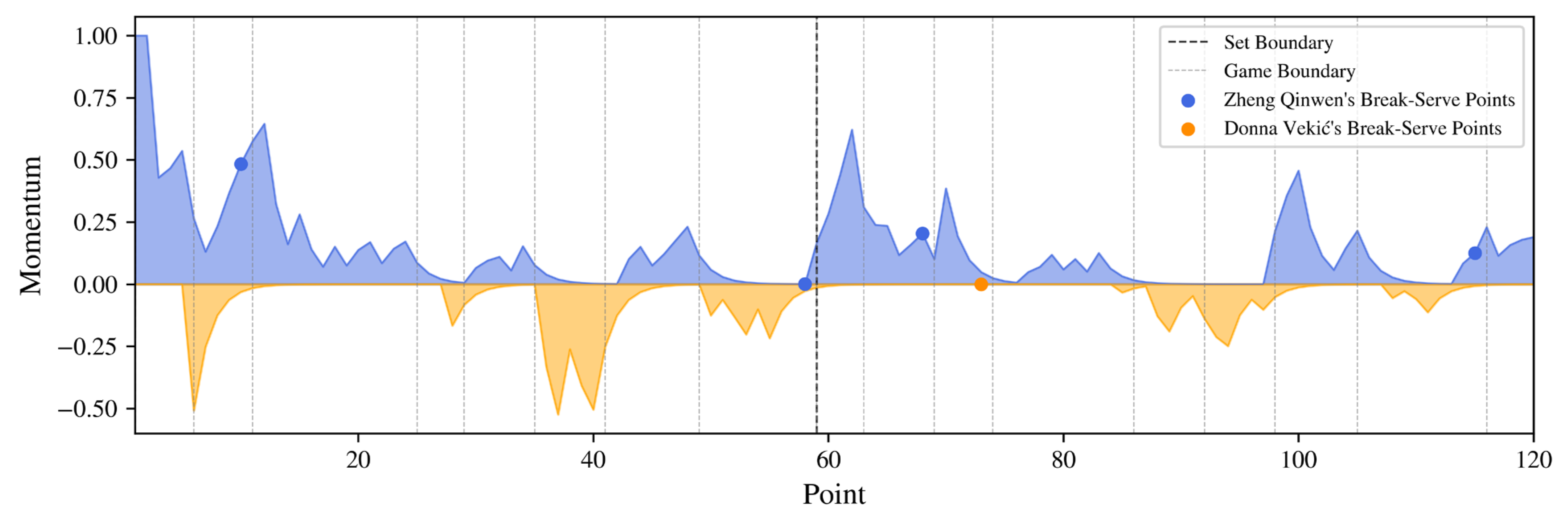

To demonstrate the usefulness of Women Single, we record the data by watching the match and filling them into Excel forms. Our Momentum Quantification model performs well as follows (Figure 6), and we can interpret the momentum graph as follows.

First Set Opening Sparks: Zheng Qinwen's Momentum

Right from the start, Zheng Qinwen took control of the match, showing remarkable momentum. The momentum graph in the first 20 points clearly reveals a significant rise in the blue area, marking Zheng's early dominance. Her serves were powerful, and her baseline returns precise, launching a series of continuous attacks. Meanwhile, Donna Vekić (represented by the orange area) was in a negative momentum state, struggling to respond to Zheng's intense aggression and falling into a defensive position. Vekić's momentum briefly showed a slight increase but quickly dipped again, illustrating her struggle in the opening phase. Zheng's consistency and proactive gameplay allowed her to control the pace entirely in the early phase, while Vekić found it difficult to break through, frequently on the defensive.

Mid-Set Battle: Vekić's Brief Counterattack

As the match progressed, Donna Vekić gradually stabilized, with some momentum fluctuations appearing between points 30 and 40. Although Zheng Qinwen still maintained an advantage, Vekić displayed stronger resistance in certain rallies, with her momentum slightly rising as she attempted to shift the tide. During this stage, both players engaged in several intense baseline exchanges, creating a fiercely competitive rally at times, with Vekić managing to counterattack in key points. However, it's worth noting that Vekić often struggled to recover quickly whenever her momentum dipped, which frequently disrupted her rhythm. In contrast, Zheng Qinwen demonstrated a remarkable ability to regain control after brief momentum drops, showcasing better adaptability and emotional resilience.

Late in the First Set: Zheng Qinwen's Momentum Rebound

In the closing phase of the first set (around points 45 to 60), Zheng Qinwen's momentum showed a noticeable rebound. During this period, she gradually regained her rhythm, demonstrating a strong ability to adjust and respond. Around point 45, Zheng's momentum curve began to rise from a low point, signaling her effort to recalibrate and recover her dominance toward the end of the first set.

Meanwhile, Donna Vekić's momentum declined. Although she had shown some dominance earlier, she lost control during this phase. Vekić seemed somewhat strained on the court, unable to sustain the momentum she had built, which allowed Zheng to gradually overtake her at crucial moments. Although Zheng's momentum didn't reach its peak, the recovery was sufficient to help her consolidate her advantage by the end of the first set, laying a solid foundation for the entire match.

Opening of the Second Set: Zheng Qinwen Extends Her Advantage

Entering the second set, Zheng Qinwen's momentum remained strong. Between points 60 and 80, her momentum curve consistently stayed in the positive range, indicating that she continued to control the pace in the second set. Meanwhile, Donna Vekić struggled to break through; her momentum remained low, hovering in the negative range without any significant improvement. In this phase, Zheng demonstrated excellent stability, leveraging her powerful serves and precise baseline shots to once again put Vekić on the back foot.

Tense Rally: Vekić Throws Her Racket in Frustration

At points 110 to 111, the match reached a highlight with an intense rally that captivated everyone's attention. Both players engaged in a long baseline exchange, each shot filled with power and accuracy. Zheng Qinwen and Donna Vekić repeatedly traded attacks, neither willing to concede. Spectators held their breath as they watched the fierce back-and-forth. In the end, Zheng clinched the point with an aggressive backhand shot. Frustrated, Donna Vekić lost her cool, furiously throwing her racket on the ground to vent her disappointment. This episode not only highlighted the pressure Vekić felt during crucial points but also showed her difficulty in regaining momentum after it dropped. In contrast, Zheng thrived in such intense moments, showcasing her resilience and composure.

End of the Second Set: Zheng Qinwen's Steady Victory

After this intense exchange, Zheng Qinwen's momentum gradually recovered and continued to rise. From points 100 to 120, her momentum consistently remained positive, securing her control of the match. Although Donna Vekić tried to counterattack during this period, she couldn't break Zheng's dominance. With calmness and precision, Zheng closed out the match in a stable and decisive manner, ultimately claiming a clear victory.

5. Game Winner Prediction

In this section, we establish an XGBoost Classification model. This is because of the accuracy of XGBoost in machine learning models and its interpretability combined with feature importance. In this case, we can evaluate whether momentum plays an important role.

5.1. Model Training

5.1.1. Training and Testing Set Splitting

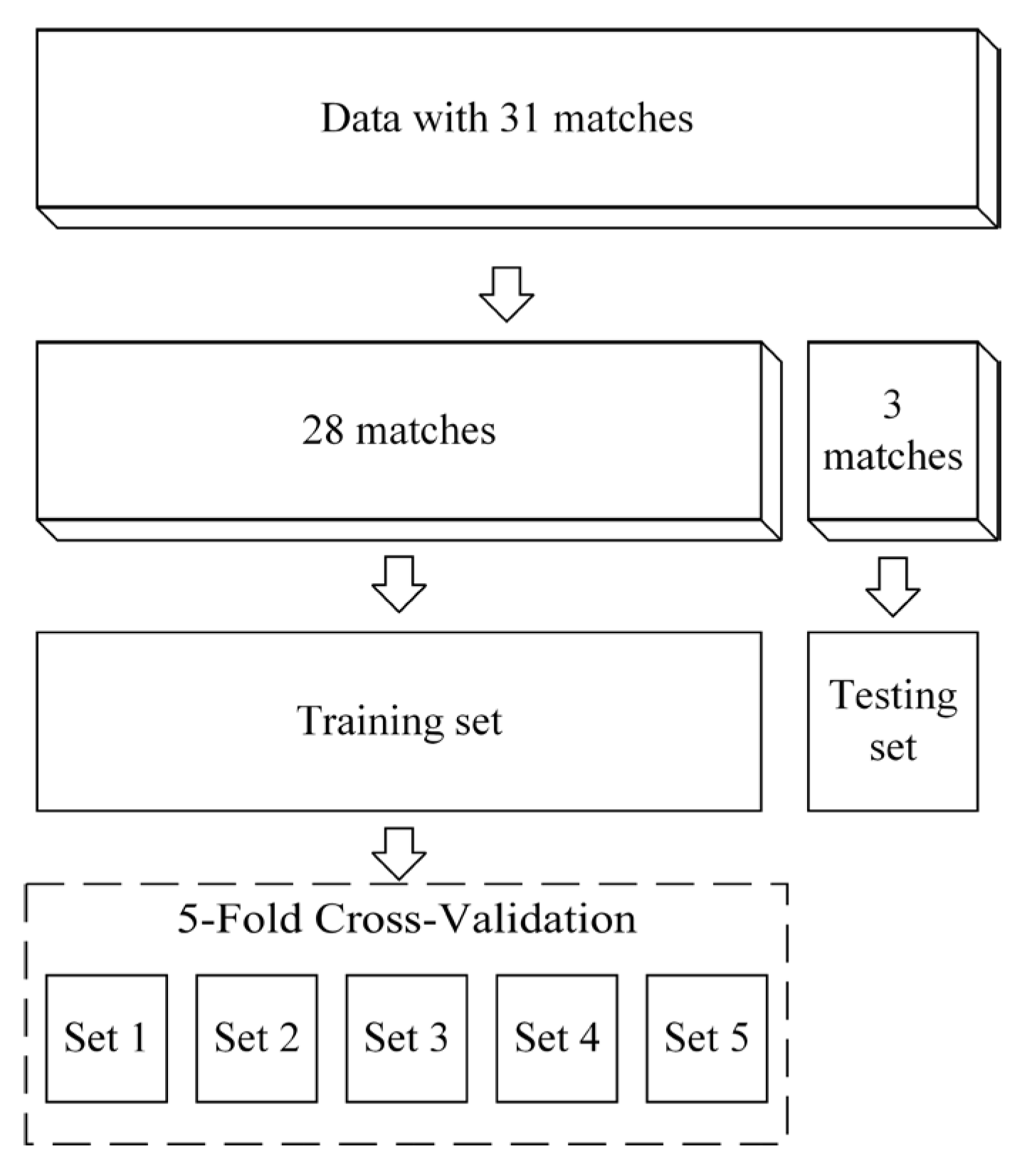

All 31 matches are used in our model establishment. As shown in Figure 7, we select 28 matches to train our model and 3 matches to test the model. In training sets, we proceed with 5-fold cross-validation to turn the best parameters.

5.1.2. Feature Engineering

To ensure the best performance of the XGBoost model, we proceed with feature engineering in this part. First, we add some new variables from the original dataset that can reflect the match flow. The selected variables contain:

• Momentum: M(t) = M₁(t) – M₂(t);
• Distance Run Difference (D_DR): p1_distance_run – p2_distance_run;
• Served Score (SrvScr): the cumulative points won when p1 served in the game;
• Received Score (RcvScr): the cumulative points won when p1 received in the game;
• Score Difference (D_Scr): p1_score – p2_score;
• Game won Difference (D_Gm): p1_game – p2_game;
• Others: Serve (Srv), Set number (St), Game number (Gm), Point number (Pt), and Point Victor (PtVct).

After selecting the variables, we process them to derive useful features. To reveal the pattern of momentum flow, we apply the time series decomposition method for feature extraction. Initially, we set the window size to 5 points and calculate the mean (Mn), kurtosis (Kr), skewness (Sk), numerical derivative mean (NDM), and numerical integral (NI). After feature extraction, we obtained more than 100 features as input to the XGBoost binary classification model to improve its accuracy.

The model accuracy was evaluated by using 5-fold Cross-Validation (CV) [15], and we combined our judgment and the results of Bayesian optimization (BO) [16] to obtain the best parameters. Subsequently, we obtained the best parameter combination and selected suitable features. The feature engineering process is outlined in the flowchart provided below (Figure 8).

As shown in Figure, at each step, we calculate the real-time features and long-term features with a window size of 5. That’s why we call the model a dynamic model. To use this method, our model can take into account the subtle changes and information in a match. In the next part, we will evaluate which feature is more important.

Figure 9. Computation Demonstration Step-by-Step.

Figure 9. Computation Demonstration Step-by-Step.

5.2. Model Accuracy

5.2.1. Training Set Accuracy

We compute the Accuracy, Precision, Recall, F1-score, and AUC-value [13],[14] with 5-Fold CV, the result in Table 2 suggests that our model performs well with an accuracy of 85.2026%, and other metrics are all greater than 80%, which ensure the good performance in the training set.

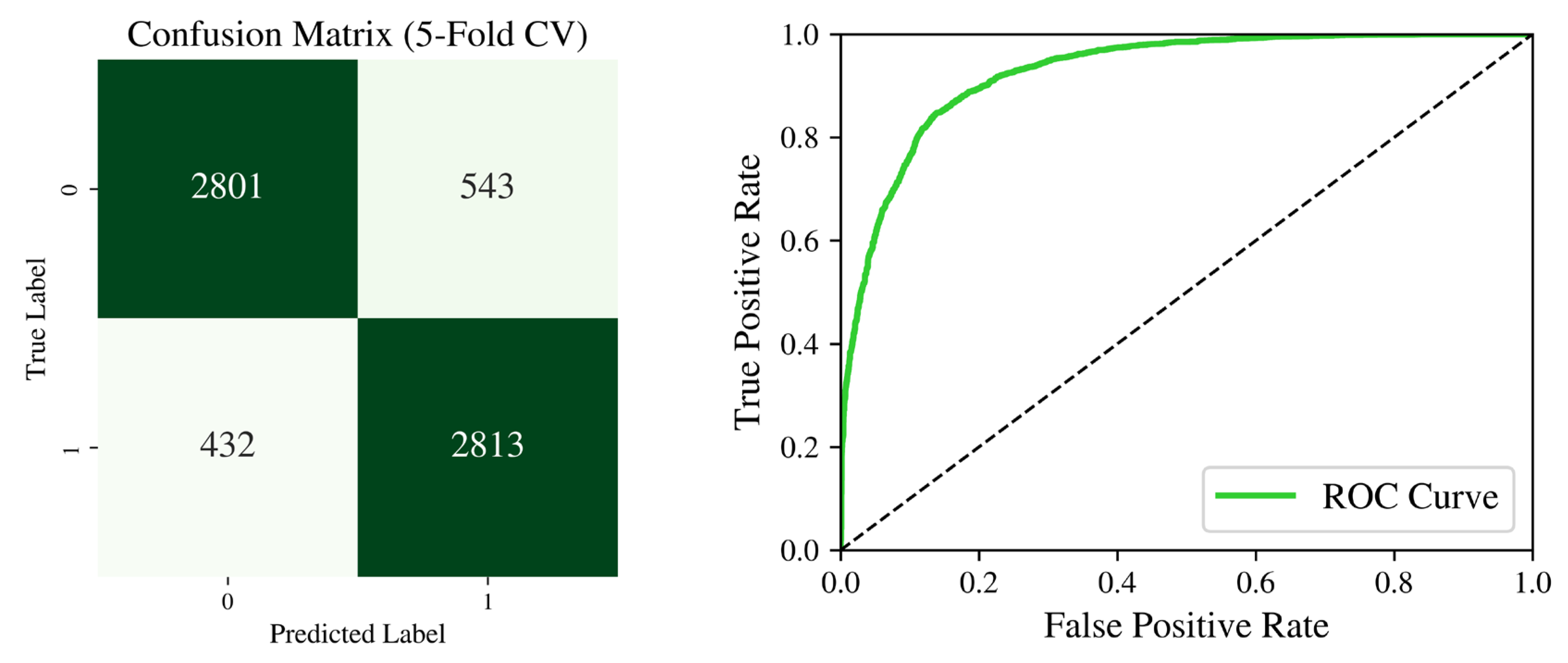

To analyze the model accuracy deeply, we generate the confusion matrix as shown in Figure 10. In the confusion matrix, “0” stands for player 1 winning, and “1” stands for player 2 (rival) winning. The True Positive (TP), False Positive (FP), False Negative (FN), and True Negative (TN) sample numbers are all shown in the confusion matrix. The number of TP cases is similar to TN cases, but the FP number is slightly higher than FN, which is acceptable.

In the right plot of Figure 10, the dashed line stands for the random situation, the green line is the ROC curve. In ideal situations, the ROC curve should be away from the dashed line as much as possible. From the plot, we get an ROC curve that is smooth and close to the upper left, this implies the model performs well.

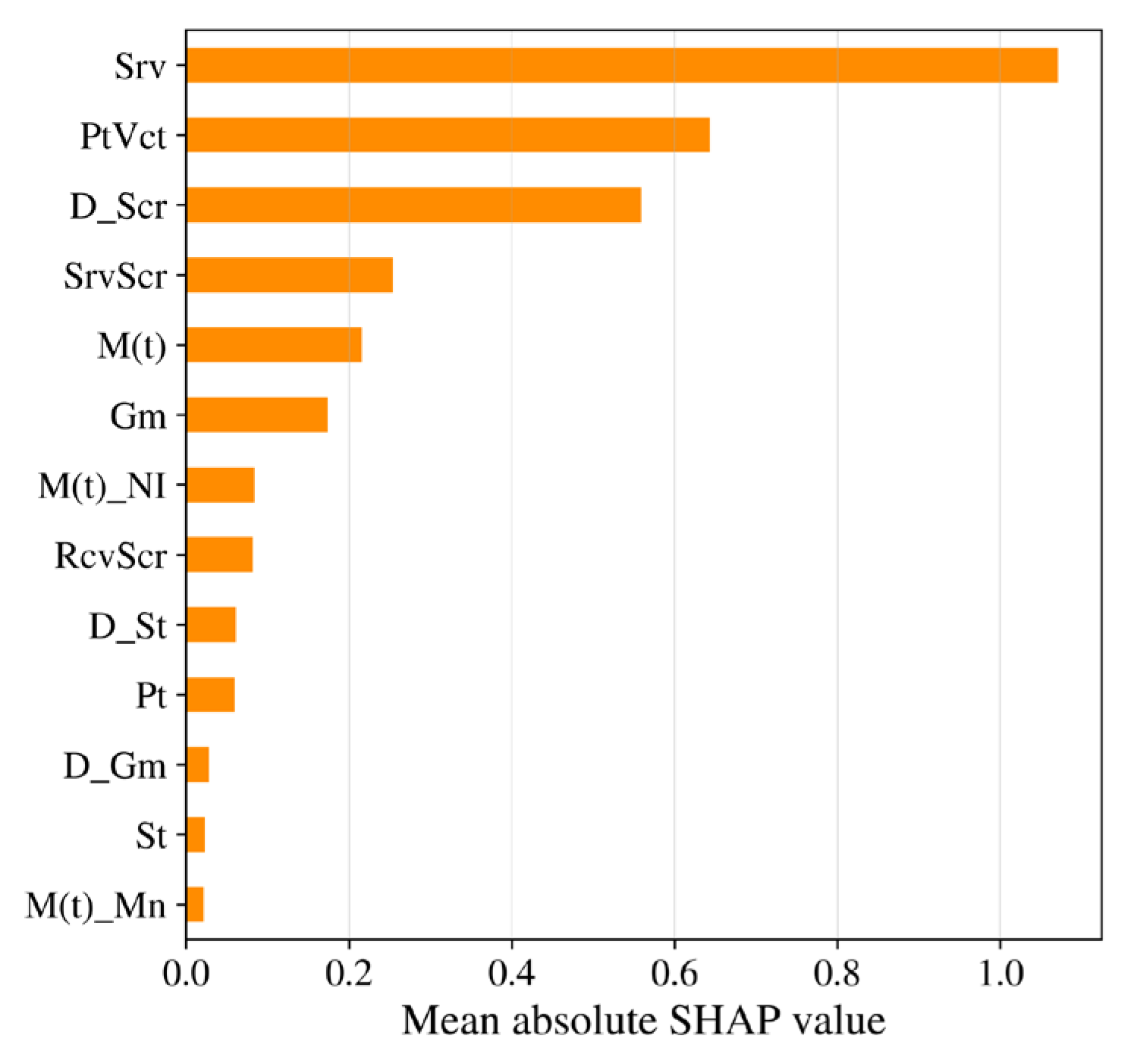

After training the model, we analyze the feature importance. As shown in the SHapley Additive exPlanation (SHAP) value [10] graph (Figure 11), momentum is the top 5th important feature in the XGBoost classification model. Its SHAP value is 0.215892. However, the serve is the most important factor for the game-winner, with the dominant SHAP value.

As a result, momentum is a medium important factor in winning the game in general. The most important features are the serve, different scores, and point victor, so the model can identify the serve wins and receive wins by highly important features. As a result, serving and receiving are the key factors that determine the outcome of a match. Psychological factors are not the dominant factor for a game-winner, but they do play a role and contribute to the prediction.

5.2.2. Testing Set Accuracy

In the testing set, our model performs well with an accuracy of 79.1367%, and the recall value is 86% (Table 3). A high Recall rate indicates that the model performs well in detecting positive samples, which can help coaches make conservative decisions. However, the accuracy is lower than the validation set, which means there may still be hidden factors that are out of our model.

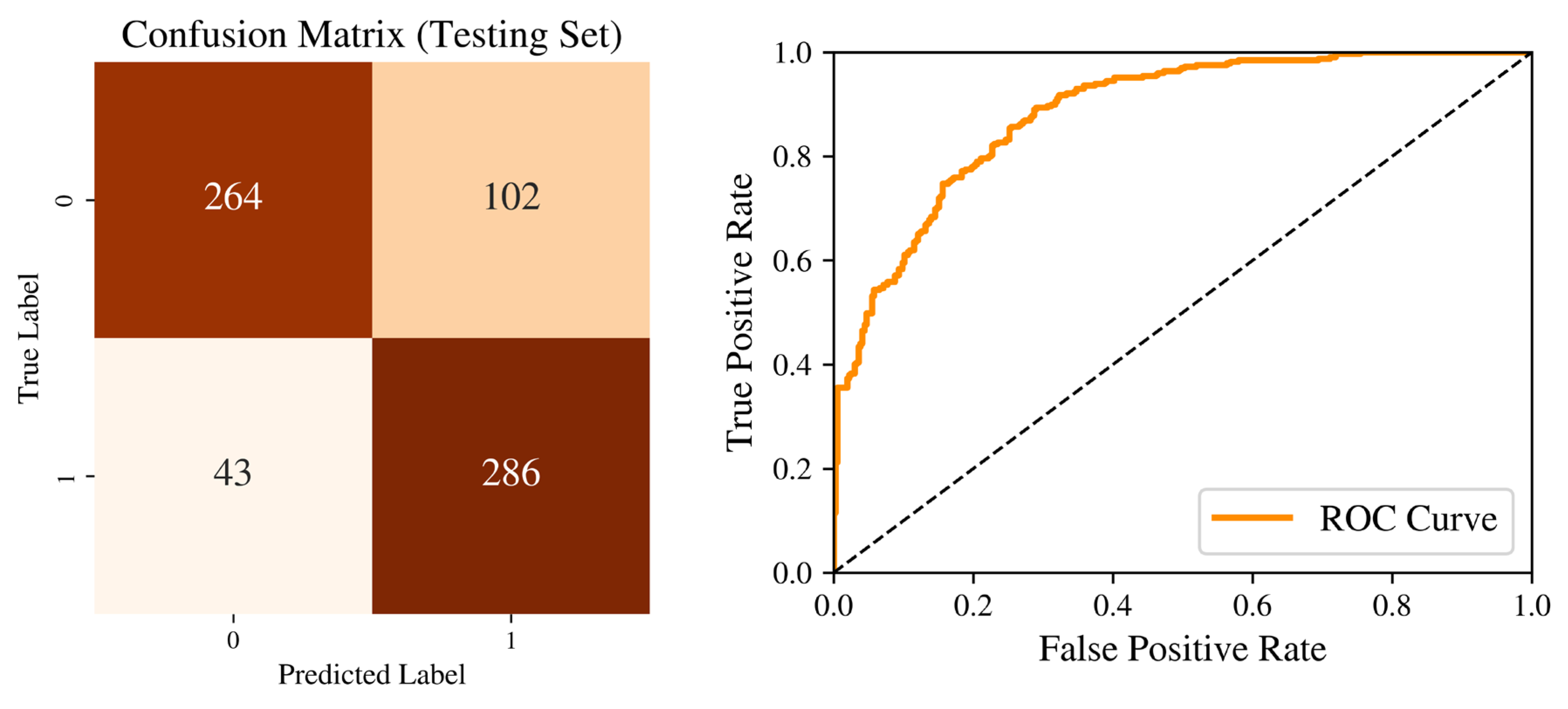

Figure 12. Confusion Matrix and ROC Curve in Testing Set.

Figure 12. Confusion Matrix and ROC Curve in Testing Set.

Our model is impacted by unexpected factors, which bring some uncertainty to the prediction, as psychological reversal [3] suggested by Depken et al. (2022). “Psychological Reversal (PR)” refers to a significant change in an athlete’s mental state during a competition, resulting in a performance that is contrary to the previous trend.

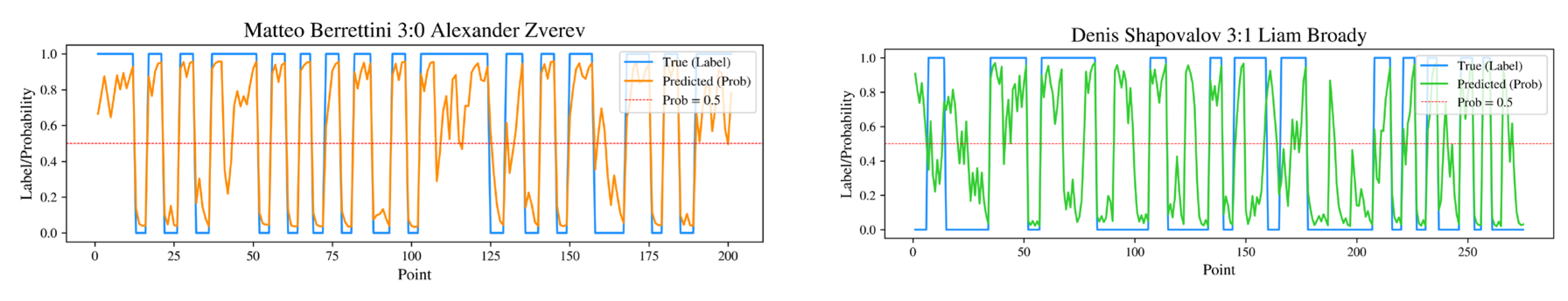

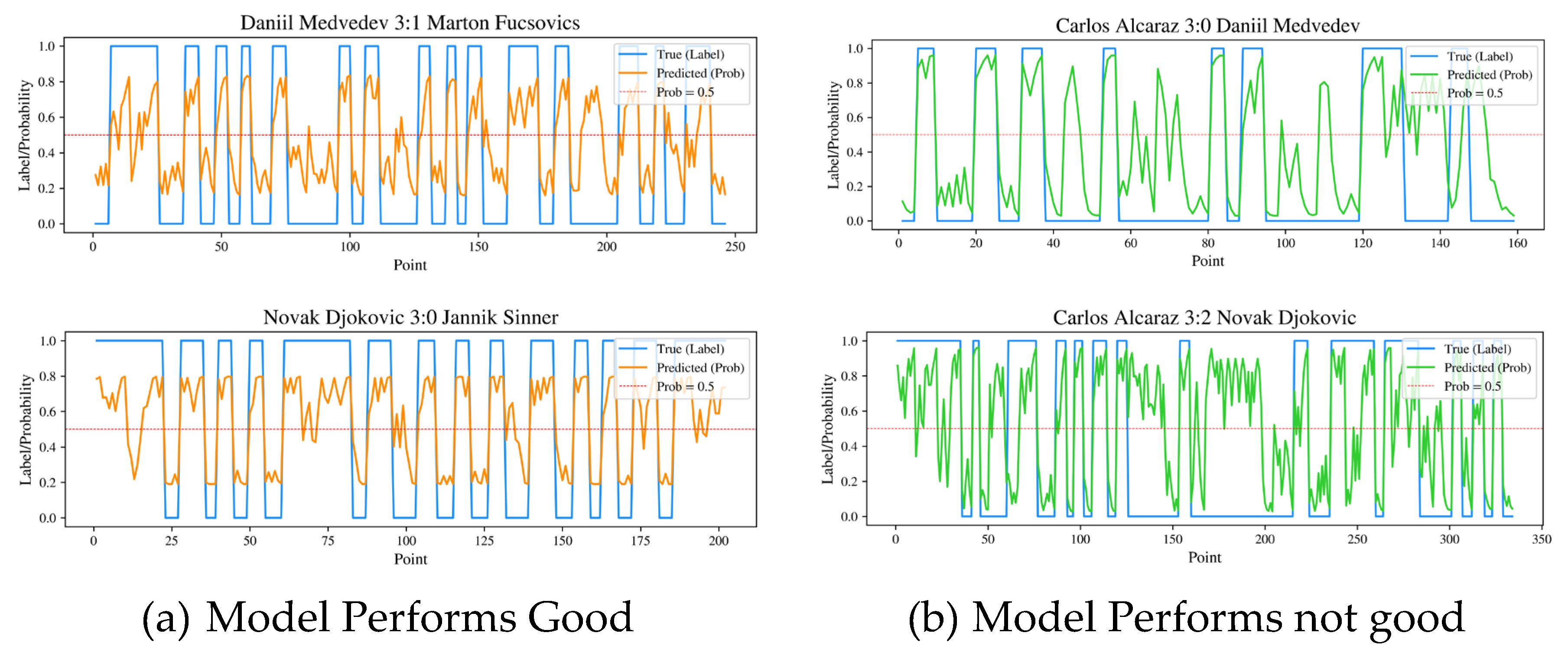

To be more specific, as Figure 13 suggested, if the performance of two players has significant differences, their momentum will reflect their future performance. However, the performance of our model will drop when PR happens. Most of the time, by the end of the game, the model can correct its earlier incorrect predictions. Our model gets more accurate as a game goes on.

To assess the strength of our model, we divided the data into training, validation, and testing sets across 5 different splits. Each time, we calculated metrics to evaluate model accuracy and then computed the average performance. The resulting data suggests a high degree of reliability as we can see in Table 4.

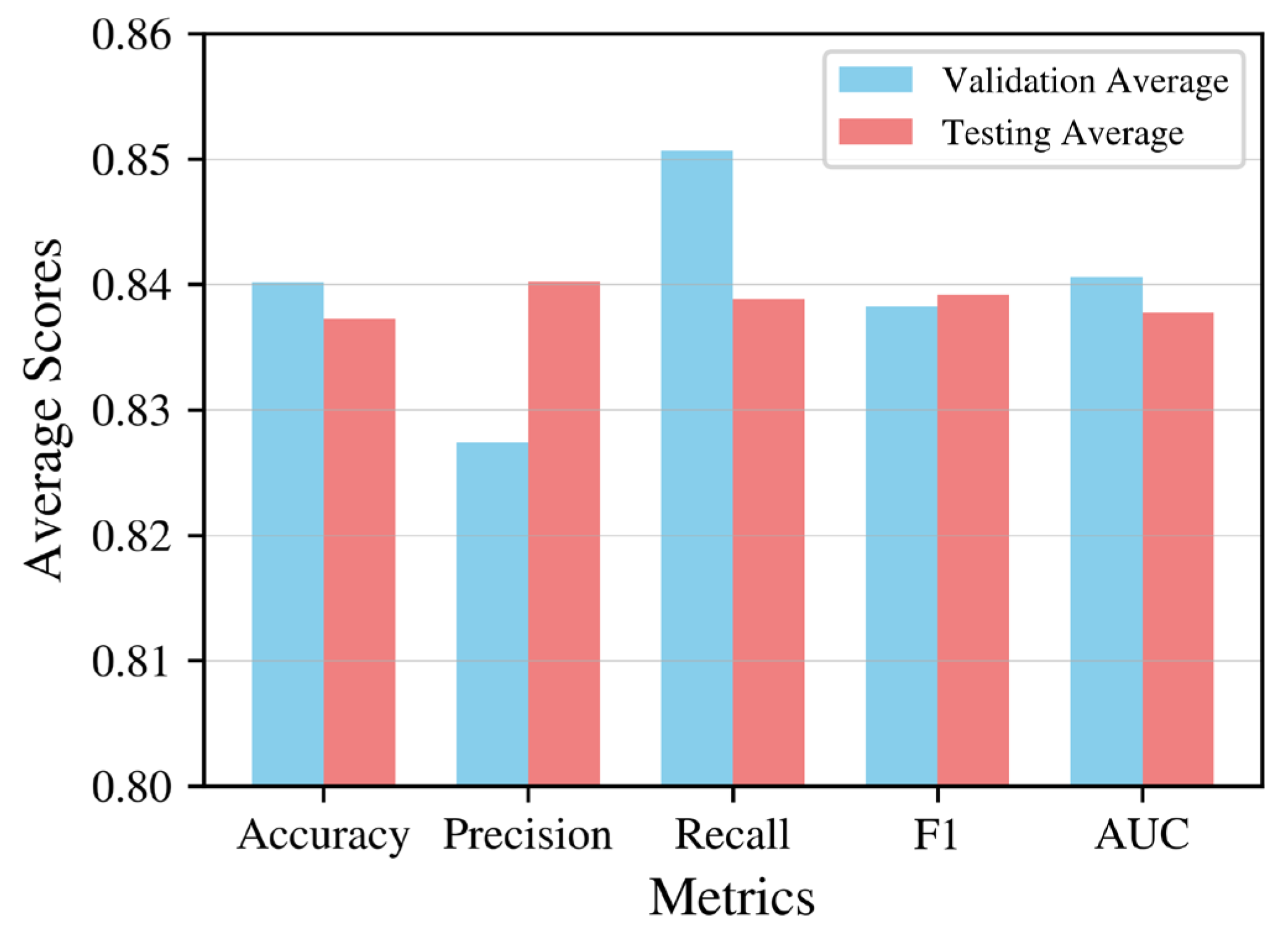

A visual depiction of the metrics is shown below. In Figure 14, the blue and red bars represent the mean values of the validation and test sets, respectively. The accuracy, F1 score, and AUC values are similar, hanging around 84%. In terms of precision and recall, the validation and test set means differ by only 1%. The validation set mean appears to lack consistency, whereas the test set mean remains stable at 84%. The difference in the validation set mean can be attributable to our match selection; heated matches and one-sided matchups may have influenced overall performance. In summary, the model scores between 83% and 84% on average across all measures.

6. Discussion

We made progress in several areas of our analysis. First, our quantification method has shown some improvements. Compared to linear approaches and logit models (Dietl & Nessele, 2017), our probability-based momentum quantification represents players’ real-time psychological status more explicitly, dynamically, and intuitively. In addition, we discovered that break-serve scores can increase momentum through visualization, which is consistent with Moss and O’Donoghue’s (2015) research, confirming the effectiveness of our strategy. As a result, this strategy can assist tennis coaches in better understanding their players’ psychological situation and cultivating their mentality.

For match prediction, our model can predict the winner by using momentum, which considers the match's dynamic aspects. Unlike typical pre-match forecasts, which rely solely on historical data (Gu et al., 2019), our system evaluates players’ game performance in real-time. This method can more accurately track the chance of winning during the game, giving a more nuanced understanding of how little changes affect the outcome.

Although our game-winning prediction model shows good accuracy, there are still some misclassifications due to unaccounted factors. Future research can focus on optimizing the momentum quantification system and further improving the prediction accuracy. Specifically, combining historical data and the characteristic factors of both players may be helpful. Future analysis of fixed players can lead to better prediction results compared to relying solely on the generative model.

7. Conclusions

This paper presents a method for quantifying the real-time psychological momentum of players during a game. The momentum graph can be used to display one player’s performance after the match. The quantification method also underscores the significant impact of break-serve points on momentum and emphasizes the effectiveness of the XGBoost model in accurately predicting game winners by using momentum as a valuable and moderately important feature. Our model can correct its mispredictions and be more accurate as the game goes on. This method has potential applications in predicting the outcomes of tennis matches.
