Bi-LSTM-Based Model for Classifying Software Requirements

1. Introduction

The classification of the text refers to the categorization based on the attributes and properties belonging to each text. Text classification is utilized in various domains such as the identification of spam [1] and the categorization of news [2]. It is possible to do manual classification if the number of documents is limited. The task becomes difficult if these documents are in hundreds or thousands [3]. Manual requirement classification becomes cumbersome with increasing data volumes, necessitating efficient automated solutions. By Machine Learning (ML) and Deep Learning (DL) techniques aims to accelerate the accurate classification of Functional (FRs) and Non-functional Requirements (NFRs), ultimately contributing to improve software reliability and meeting project deadlines. Through automated classification, the goal is to empower software engineers to create efficient, error-free, and high-quality software within limited timeframes. The same is the case with software development requirement classification as the development of high-quality software is considered a costly and time taking task as it addresses the real-world problem [4]. There involve some software engineering tasks such as requirement identification, analyzing, designing, and final implementation. The requirements of the software, which are considered major properties of the software, are also constrained by various factors. There are some other factors such as the tool of development, techniques, competency of a developer, and timeline that also add an additional layer of complexity. Due to these complexities, there come some defects in the software development life cycle (SDLC) [5]. One of the key challenges in requirements classification is accurately identifying relevant stakeholders during the elicitation phase, as misidentification can lead to incomplete or incorrect requirements, ultimately causing project failure. A systematic literature review highlights 17 methodologies for stakeholder identification, emphasizing its importance in ensuring high-quality requirements classification [6]. According to authors of study [7], there is a fact that requirement engineers and software users use various terminologies and structures of sentences for a description of same kind of requirements. The high orders of inconsistency in the elicitation of requirements make the classification of requirements prone to error. There should be some optimal way to find automated classification. Inadequate collection, misunderstanding of requirements, inefficient architecture, and bad practices of coding may also create problems [8]. It will be very helpful in making good quality software as well in a limited time if these tasks are automized [9-12]. Identification of software requirements is considered a key task in the development of software. The Software Requirement Classification task is based on the classification of requirements of software [13]. The classification of the requirements can be considered as two categories as FRs and NFRs. Generally, the provision of the service that is considered mandatory is called FRs such as the function or behavior of a system and the quality of providing these services is referred as NFRs. The NFRs are based on performance, security, usability, and reliability.

The user of software delivers their requirements in natural language and typically in words. After gathering of these requirements, this is the responsibility of analyst to extract the software requirements from the unstructured and ambiguous data to make the designer understand. The manual extraction of each requirement from ambiguous language is considered as daunting task. This difficulty comes due to ineffective extraction of features by human being. It is obvious that, if the FRs and NFRs are not extracted correctly, it will result in the failure of the project or software. Therefore, it is important to extract the complete and accurate FRs and NFRs in limited time at initial stage of SDLC. This is the reason that manual extraction of requirement is considered inaccurate and ineffective. The accurate and faster classification of requirement can be performed with the help of Artificial Intelligence (AI) techniques. Currently, ML and DL have transformed personal computers in hard working and intelligent assistants. These assistants are helping people in different domains such as industry, medicine and in software engineering as well. Hence, it can be easily stated that these methods can help software engineers to successfully classify the software requirements.

The primary contribution of this paper is the introduction and utilization of the Bi-LSTM model [14], an advanced type of Recurrent Neural Network (RNN). Traditional RNNs are adept at recognizing patterns in sequences of data but struggle with learning from data points that are far apart due to issues like vanishing and exploding gradients. The Bi-LSTM model addresses these limitations by incorporating both bidirectional processing and long-term memory capabilities, making it particularly effective for sequence-based classification tasks [15]. This approach enables the network to remember information over extended periods and capture dependencies within the data more effectively.

This paper develops the Bi-LSTM Model specifically for classification tasks, where the principal objective is to determine the specific category or class to which a particular input belongs. Conventional machine learning (ML) techniques often face difficulties in handling such tasks due to their limited ability to manage temporal dependencies and contextual information within sequences. The Bi-LSTM model overcomes these hurdles by processing data in both forward and backward directions, thus utilizing the entire context of the sequence. This bidirectional approach, combined with the memory retention properties of LSTM networks, ensures a more comprehensive understanding of the sequence, leading to improved classification accuracy.

Furthermore, the paper elaborates on the dual processing capability of Bi-LSTMs, which consents them to utilize together prior and impending contexts, providing a richer and more nuanced analysis of the sequence. This comprehensive context utilization is critical for accurately capturing the intricacies of sequence-based data, which is often missed by conventional ML models. By addressing these challenges, the Bi-LSTM model enhances the performance and reliability of classification tasks, making it a robust solution for applications requiring precise and thorough sequence analysis.

The rest of the paper is organized as follows: Section 2 reviews existing approaches and highlights the unique contributions of this research. Section 3,details the proposed framework, explaining the techniques and processes used. Section 4. presents the experimental results and discussion. Section 5 discusses the threats to validity and how they were addressed. Section 6 concludes the paper with a summary of key findings and suggestions for future work.

2. Literature Review

Timely and correct identification of requirements is very important for high quality software development. For this purpose, many researchers have carried out a plenty of work. In recent years, ML techniques have been used in Requirement Engineering (RE) activities, offering new approaches. A systematic mapping by [16] identified 57 algorithms applied in eight key RE activities, including requirements analysis and failure prediction. The authors of study [17], employed a method for classification of NFRs to help the experts in development of a good quality software. The method is based on a combination of ML attributes computation and classification methods. The approach is comprised of seven ML based techniques and four selection methods for features. The aim was to automatically classify NFRs by finding suitable pairs. The scheme was assessed for precision, F1-score, recall, accuracy and obtained results of 66, 61, 61, and 76 percent accordingly. In study [3], authors compared some of the ML based algorithms for feature extraction to classify the NFRs and FRs. Initially, the preprocessing is performed by cleaning the document. After cleaning, two methods for computation and one for selection of features is used such as Term Frequency–Inverse Document Frequency (TF-IDF), Bag of Words (BoW), and Chi Squared (CHI2). A new dataset called PROMISE_exp is used to test the scheme and obtained F1-score of 74 percent for general classification.

To classify software requirements, a new method is presented by authors [18]. Initially, the dataset called PURE is manually annotated to make a new dataset based on FRs and NFRs. The fine tuning of the model called BERT is performed and results are compared with ELMo and fastText. The assessment of the system is performed by comparing the results of PURE and document of Request for Information (RFI). The system succeeded in obtaining a maximum F1-score of 86% on PURE dataset and 80% on RFI dataset. In another method [19], DL based technique is presented by authors for classification of requirement. The task of classification is performed by exploiting five DL methods with the help of two voting algorithm of classification. The experiments were conducted by creating data from PURE dataset having 2617 FRs and 2044 NFRs and achieved promising results. Study [20] presented a scheme based on 5 ML methods and classified FRs into different 6 classes such as empowerment, solution, feature limitation, action limitation, policy, and definition. The method was tested by exploiting dataset having 600 FRs. The ML algorithms along with vector counting and TF-IDF were used for experiments. In another method [21], a technique for classification of software requirement is employed which is based on ML. They investigated the application and design of two models such as convolutional neural network (CNN) and artificial neural network (ANN). The aim was to classify NFRs into 5 different categories such as usability, security, maintainability, performance, and operability. The method was tested by using a dataset having 1000 NFRs and obtained maximum precision of 94, recall of 97, and f-score of 92 percent. In another method [22], authors applied the amalgamation of LR, NB, and SVM, with Doc2Vec for classification of NFRs and FRs. Another combination of CNN, Word2vec and the FastText method is also applied on the PROMISE dataset. The outcomes of the FastText technique were best. Authors also used the combination of LR, NB, and SVM with BoW, and TF-IDF. The combination of Word2Vec and CNN algorithms is also utilized. The outcome of LR and TF-IDF attained best performance.

In the research [5], a method for prioritization of demand is presented for development of software. Initially, a dataset in Turkish language was introduced for demand prioritization. The dataset was based on records of manually labeled demands obtained from an insurance company demand management system. after that, a DL method is designed for improvement and prioritization of demands for software development. It was observed through experiments that DL method perform well as compared to other ML methods. To consider maintainability as security requirement, a method for classification of software is presented by authors [23]. The data was extracted from the projects of student. The technique is also verified by utilized DOSSPRE which contains 1317 requirements for software having both FRs and NFRs. The ML such as SVM, LR, Multinomial Nave Bayes (MNB) algorithms were used for classification. The accuracy of 86% is obtained on all of classifiers for both binary class and multiclass. In another method presented in [24], an automated method for quality attributes prioritization and extraction is presented. The attributes were considered in context of development of agile based method. The method is comprised of two components such as QAPrioritiser and QAExtractor. QAExtractor is based on natural language processing (NLP) and QAPrioritiser is used for ranking of computed attributes. The method is assessed by calculating F-score, recall and precision. In study [25], a fine tuning method based on three stages is presented for prediction of software requirement. The prediction is based on priority, type and severity of the text requirement initiated by user. The method is compared with various techniques such as Sentence BERT and pooling based on word embedding. The result shows that fine tunned model can perform well for data distribution. The study [26], proposed a hybrid model, Bi-LSTM+CNN, to address the weaknesses of LSTM and CNN individually. This model incorporates an attention mechanism to enhance accuracy and reduce the number of learnable parameters. By utilizing a CNN to extract features from various sentence locations, the Bi-LSTM model effectively reduces input features, resulting in improved accuracy, especially with larger training data sizes and epochs, offering a potential solution to long-term dependency and data loss issues in existing models.

Here is the state-of-the-art table summarizing various studies, techniques/models used, key findings, research gaps, and our contribution:

The exploration of various methodologies for automated requirement classification includes leveraging ML attributes computation, employing diverse classification techniques, as well as utilizing Natural Language Processing (NLP) tools. The methods encompass both traditional ML algorithms, such as Support Vector Machine (SVM), Logistic Regression (LR), and Multinomial Naive Bayes (MNB), and advanced DL methods like Convolutional Neural Networks (CNN) and Bidirectional Encoder Representations from Transformers (BERT). It covers ensemble methods and explores the amalgamation of different techniques, such as combining LR, Naive Bayes (NB), and SVM classifiers with techniques like Bag of Words (BoW), Term Frequency-Inverse Document Frequency (TF-IDF), Doc2Vec, and Word2Vec.

Our contribution focuses on addressing these gaps by utilizing the Bidirectional Long Short-Term Memory (Bi-LSTM) model, which offers significant improvements over the techniques and models discussed in the previous studies. Bi-LSTM's ability to capture and learn from sequential data more effectively enables it to enhance classification accuracy, improve context utilization, and provide a more robust solution for handling complex data dependencies. This model's bidirectional processing capability also allows for a more comprehensive understanding of input data, leading to better performance in classification tasks. By leveraging the strengths of Bi-LSTM, we aim to overcome the limitations identified in earlier studies, providing a more scalable, generalizable, and precise approach to machine learning classification.

These methods are assessed using metrics like precision, recall, F1-score, and accuracy to gauge their effectiveness in classifying requirements. The utilization of advanced techniques like BERT, CNN, and DL methods enables accurate categorization, which in turn enhances software reliability and quality. However, the drawbacks are also acknowledged, including challenges related to imbalanced data, feature extraction, and the complexity of requirement classification due to the diversity of terminologies and sentence structures. This research aims to address these limitations and provide insights into the optimal utilization of automated techniques to attain accurate and efficient requirement classification, thus contributing to the advancement of software engineering practices.

The state-of-the-art studies presented in the Table 1 summarize various techniques and models used in machine learning and deep learning for classification tasks, with each study contributing unique insights and advancements in the field. Despite these contributions, several research gaps have been identified, including limited precision and recall rates, challenges in pre-processing and feature extraction, complexity in managing multiple deep learning methods, handling of imbalanced data, and the need for better generalization across datasets.

3. Proposed Framework

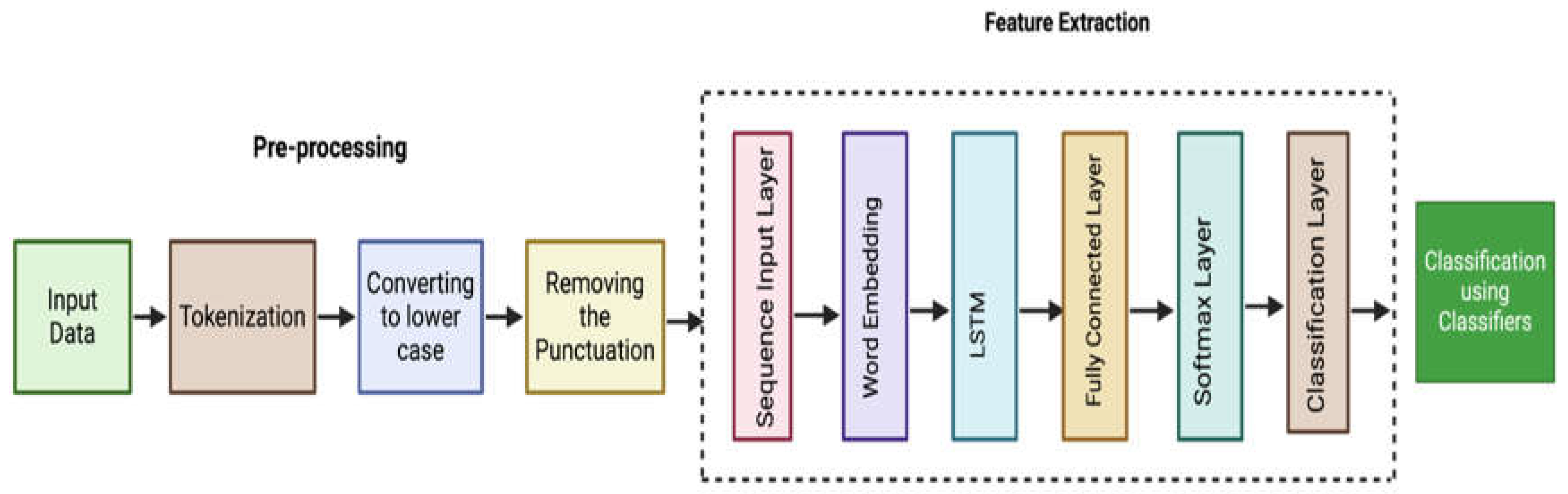

In this research, a Bi-LSTM model is used for requirements classification. The proposed model is based on some basic steps such as Tokenization the input, converting to lower case, removing the punctuation, feature extraction and classification. After the preprocessing of the data, the Bi-LSTM model is used to compute features, classifying the sequence into NFR or FR and training the model using carefully selected hyper-parameters to ensure optimal performance. Finally, the computed feature vector is fed into multiple classifiers for final classification as illustrated in Figure 1.

A. Data Pre-processing

In this section, a datasets available at [27] is obtained then we prepared a programming environment on the computer for the analysis and process of the dataset. In the preprocessing phase, we've selected techniques that are particularly effective for NFR classification. We also make sure that these techniques work well with our deep neural network. The benefits of employing these techniques include an increase in model accuracy and a decrease in both resource consumption and computation time. After preprocessing the data is divided into training and validation sets. The detail of these preprocessing steps is mentioned in Figure 2.

B. Extraction of Features Vector by employing Bi-LSTM Model

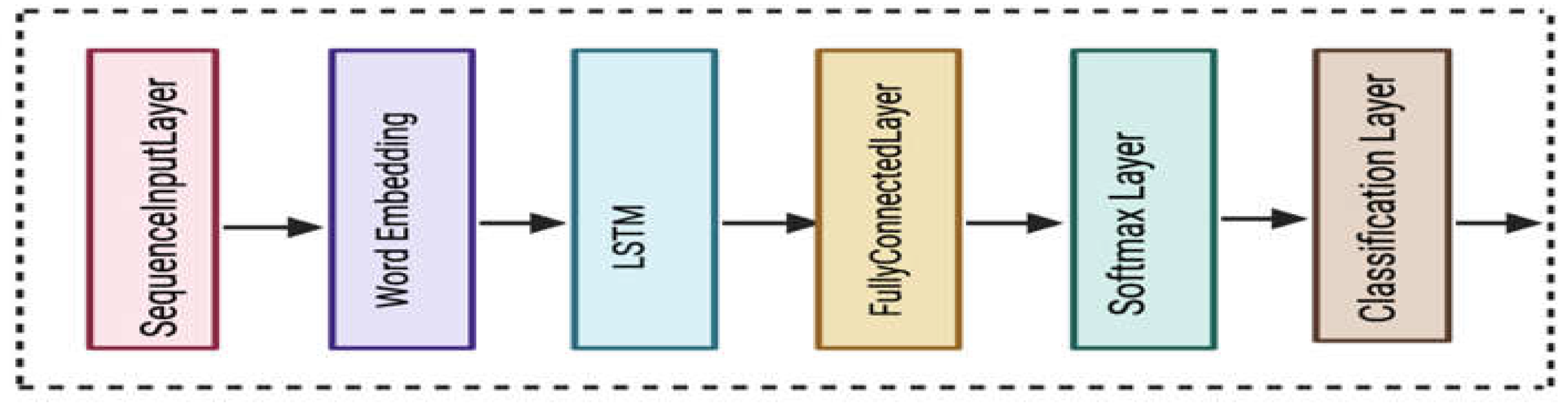

The Bi-LSTM model is a powerful type of neural network used for sequential data processing, and is utilized for extraction of the features from input data. The Bi-LSTM model is based on the six layers as illustrated in Figure 3. These layers are Sequence Input, Word Embedding Layer [28], LSTM [29], Fully Connected [30], Softmax [31], and classification output.

The model is trained using the training dataset. For training the model, hyper-parameters such as the number of LSTM units in each layer, learning rate, batch size, and the number of epochs are specified. These parameters are finalized after extensive experiments. Sequence Input Layer and Word Embedding Layer, these two layers form the foundational part of Bi-LSTM model for feature extraction. We used input layer to capture the raw text sequences, and the embedding layer converted these sequences into meaningful dense representations that can be processed by the subsequent Bi-LSTM layers.

LSTM networks are considered an improvement over traditional Recurrent Neural Networks (RNNs), especially in tasks involving learning from sequences of data. Traditional RNNs struggle with long-term dependencies due to the vanishing gradient problem. The gating mechanisms in LSTMs allow for focusing on the most relevant features in a sequence. The LSTM is based on four gates such as (i) input gate, (ii) forget gate, (iii) output gate, and (iv) cell candidate gate. In the context of an LSTM network, the four gates along with the two key additional components Cell State and the LSTM Output work together to regulate the flow of information through the LSTM cell and the details are provided in Table 2.

Here, W_x and b_x represents the weights and biases of the respective gates.

$$\mathit{W}=\left[\begin{array}{c}\begin{array}{c}{\mathit{R}\mathit{W}}_{\mathit{i}\mathit{n}\mathit{p}\mathit{u}\mathit{t}}\\ {\mathit{R}\mathit{W}}_{\mathit{f}\mathit{o}\mathit{r}\mathit{g}\mathit{e}\mathit{t}}\end{array}\\ {\mathit{R}\mathit{W}}_{\mathit{c}\mathit{e}\mathit{l}\mathit{l} \mathit{c}\mathit{a}\mathit{n}\mathit{d}\mathit{i}\mathit{d}\mathit{a}\mathit{t}\mathit{e}}\\ {\mathit{R}\mathit{W}}_{\mathit{o}\mathit{u}\mathit{t}\mathit{p}\mathit{u}\mathit{t}}\end{array}\right], \mathit{b}\mathit{i}=\left[\begin{array}{c}\begin{array}{c}{\mathit{b}}_{\mathit{i}\mathit{n}\mathit{p}\mathit{u}\mathit{t}}\\ {\mathit{b}}_{\mathit{f}\mathit{o}\mathit{r}\mathit{g}\mathit{e}\mathit{t}}\end{array}\\ {\mathit{b}}_{\mathit{c}\mathit{e}\mathit{l}\mathit{l} \mathit{c}\mathit{a}\mathit{n}\mathit{d}\mathit{i}\mathit{d}\mathit{a}\mathit{t}\mathit{e}}\\ {\mathit{b}}_{\mathit{o}\mathit{u}\mathit{t}\mathit{p}\mathit{u}\mathit{t}}\end{array}\right]$$

σ is the sigmoid function that squishes values between 0 and 1, effectively deciding how much of the past information to keep.

h_t−1 represents the output of the LSTM block at time step t-1

x_t represents the time at current time step t

⊙ Represents the Hadamard product (element-wise multiplication) and it is used as the operation for combining the outputs of the gates with the cell state or candidate values.

In the LSTM, time steps of layers of LSTM are utilized to compute the feature vectors and give us input to the next block. The n^th block output is used to predict the next class label, in which the hidden unit is given to the fully connected, SoftMax, and the output. After extracting feature vectors with the Bi-LSTM, we fed these vectors into different classifiers, including Medium KNN (MKNN), Cubic KNN (CKNN), Linear SVM (LSVM), Quadratic SVM (QSVM), and Cubic SVM (CSVM). Each of these classifiers has its own approach to making predictions based on the feature vectors. Each classifier is trained on the training data and evaluated on the testing data. The performance of each classifier is assessed, and the best classifier is selected for the specific task. This process allows us for comparing different classification methods and choosing the one that works best.

4. Experimental Results

In this study, we rigorously evaluated the performance of a Bi-LSTM model for feature extraction from our dataset, followed by the application of these features to various classifiers to assess their efficacy in predictive analytics. Our experimental framework was structured to first fine-tune and train the Bi-LSTM model, ensuring optimal feature extraction, and then to employ these features in different classification algorithms. The results section is presented in two main parts: firstly, the training and optimization of the Bi-LSTM model, and secondly, the classification results obtained from deploying various classifiers , including Medium KNN (MKNN) [32], Cubic KNN (CKNN) [33], Linear SVM (LSVM) [34], Quadratic SVM (QSVM) [35], and Cubic SVM (CSVM) [36] using the extracted features. The Bi-LSTM model was trained on a comprehensive dataset [27]. The dataset is comprised of a total of 12 classes and are represented in Table 3 along with their class symbols.

Dataset was divided into a training set and a testing set in a 70: 30 ratio. This means that 70% of the data was used for training the Bi-LSTM model, and the remaining 30% was used for evaluating the model's performance. The 10-fold cross-validation method was utilized in which the training data was further divided into 10 equal parts (folds). The model was trained and evaluated 10 times, each time using a different fold as the test set and the remaining nine folds as the training set. This helped in assessing the model's generalization performance. A learning rate of 0.001 was used during the training of the Bi-LSTM model. The learning rate is a hyper-parameter that controls the step size at which the model's parameters are updated during training. A smaller learning rate can lead to slower but more stable convergence during training. The entire experimentation and analysis were carried out using MATLAB 2021A. The experiments were conducted on a computer system with specific hardware specifications. We used a Core i7 system with 16GB of RAM (Random Access Memory) and an NVIDIA 940MX GPU (Graphics Processing Unit) with 4GB of memory. The GPU can significantly speed up DL tasks due to its parallel processing capabilities. For computing features we used Matcovnet [37] as the DL toolbox. This toolbox is likely used to implement and train the Bi-LSTM model and perform feature extraction.

During of our proposed Bi-LSTM model, we undertook a series of extensive experiments to select the optimal hyper-parameters for training. This involved conducting various experiments, each designed to evaluate the effectiveness of varying hyper-parameter configurations. The results of four experiments are organized in Table 4.

These experiments collectively demonstrate how varying the number of epochs while holding other parameters steady can impact the training effectiveness of the Bi-LSTM model. A lot of padding is occurred while training the model which results the overhead and also affects classification. This problem is addressed by limiting the length of sequence to 60. Experiment 3 emerged as the most successful, achieving the highest accuracy among all trials. Based on these findings, we selected the hyper-parameters used in Experiment 3 for our final model configuration.

This includes setting the model with 150 hidden units, a manageable batch size of 16, a learning rate of 0.001, and a comprehensive training duration of 150 epochs. The decision to adopt these specific parameters was driven by their demonstrated ability to significantly enhance the model's performance.

Figure 4. Training Accuracy of Bi-LSTM in Experiment 1.

Figure 4. Training Accuracy of Bi-LSTM in Experiment 1.

Figure 5. Training Accuracy of Bi-LSTM in Experiment 2.

Figure 5. Training Accuracy of Bi-LSTM in Experiment 2.

Figure 6. Training Accuracy of Bi-LSTM in Experiment 3 .

Figure 6. Training Accuracy of Bi-LSTM in Experiment 3 .

Figure 7. Training Accuracy of Bi-LSTM in Experiment 4.

Figure 7. Training Accuracy of Bi-LSTM in Experiment 4.

After the successful extraction of features, the resultant feature vector (FV) was subjected to a series of classification tests to evaluate the efficacy of the extracted features. Utilizing MATLAB, we applied several well-established classifiers, namely Medium KNN (MKNN), Cubic KNN (CKNN), Linear SVM (LSVM), Quadratic SVM (QSVM), and Cubic SVM (CSVM). This phase was crucial to determine the predictive power of the features under various classification schemes. The computational cost, measured in seconds (sec), is also evaluated. This indicates how much time it takes for the system to perform the experiments and computations, which is important for assessing the system's efficiency and response time. When feature vectors are fed into classifiers, the classifier's performance evaluation relies heavily on metrics such as Recall (Rec), Precision (Pr), and Accuracy (Acc). These metrics are essential for understanding how well the model can classify and predict outcomes, providing insights into different aspects of its effectiveness. Table 5 summarizes the key aspects of these metrics.

• TP (True Positives): Instances correctly identified as positive.
• TN (True Negatives): Instances correctly identified as negative.
• FP (False Positives): Instances incorrectly identified as positive.
• FN (False Negatives): Instances incorrectly identified as negative.

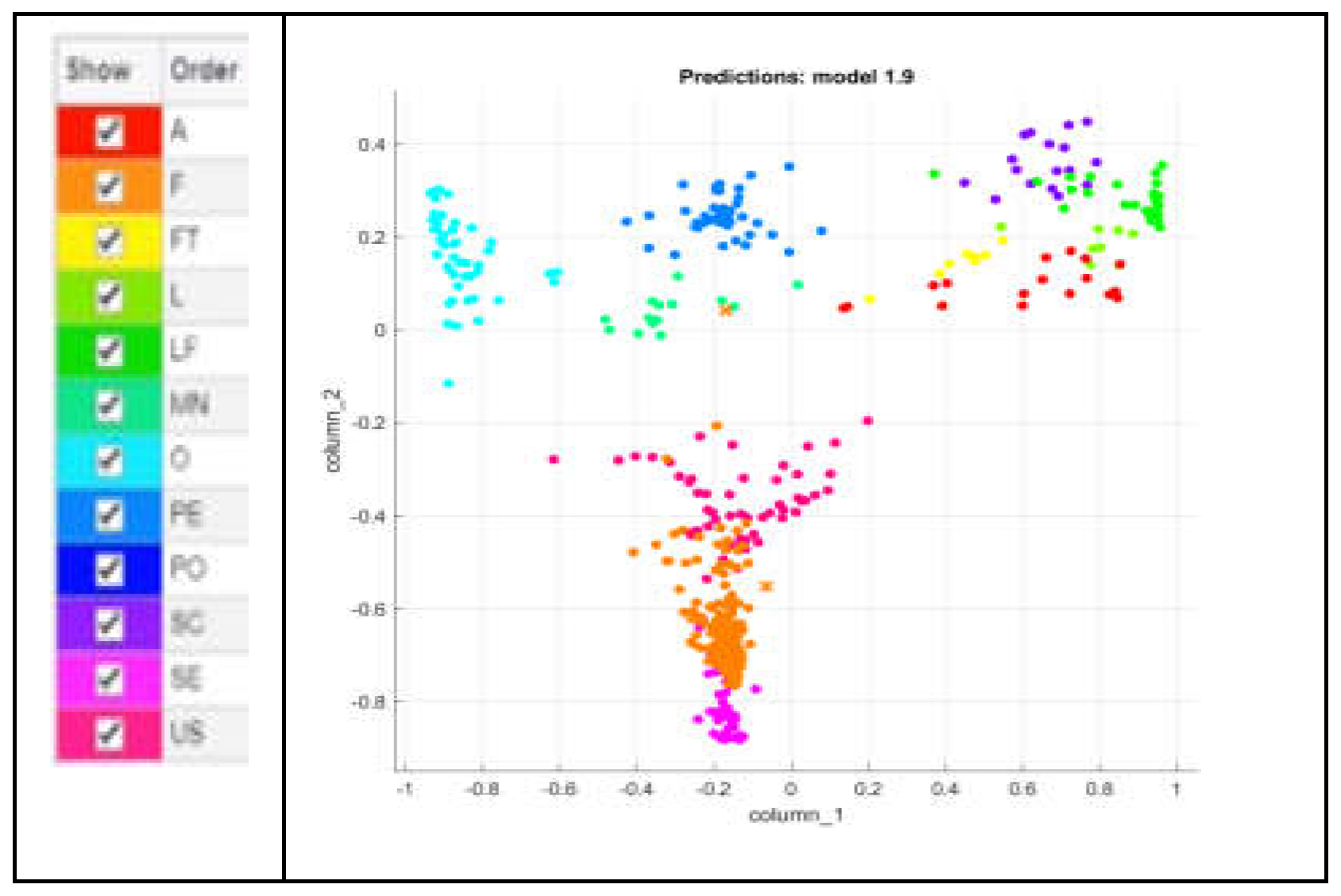

To visually assess and compare the performance of these classifiers, scatter plots are utilized. Such plotting allows a graphical representation of the classifier's outcomes in a two-dimensional space. Each point on the scatter plot corresponds to a feature vector and is colored according to the classifier's prediction. This visualization technique enables a quick and intuitive way to understand how well each classifier is segregating the data points. The legend of a scatter plot helps to understand the plot by providing information about the different colors represented within the plot. The verification of the results by using namely MKNN, CKNN, LSVM, QSVM, and CSVM classifiers is presented with the help of scatter plots as shown in Figure 8, Figure 9, Figure 10, Figure 11 and Figure 12. The detailed information about how each classifier performs in terms of these metrics and how long it takes them to compute their results is described in Table 5.

According to the results chart Table 6, the MKNN classifier outperforms the others, achieving the highest precision and recall scores compared to other classifiers. Additionally, MKNN demonstrates competitive computational efficiency, with a relatively low time of 1.5199 seconds. Therefore, MKNN emerges as a good classifier due to its balanced performance in recall, precision and significantly faster computation time.

6. Conclusion

In this work, our aim was to classify the user requirement in the field of RE. Traditional methods of user requirements classification often struggle to handle the complexity and variability present in natural language, making it difficult to capture context-dependent features of user requirements. Furthermore, these methods may lack scalability, as they may not be equipped to handle large volumes of requirements data efficiently. We utilized a DL technique named as Bi-LSTM model for feature extraction followed by the integration of these feature vectors into five distinct ML classifiers namely MKNN, CKNN, LSVM, QSVM, and CSVM. We observed that MKNN stands out as an effective classifier due to its balanced performance in recall, precision and notably accelerated computation time. The adoption of this technique promises to revolutionize requirement classification by enabling efficient and accurate identification of NRFs and FRs. Notably, our approach surpasses previous methodologies due to several key factors. Firstly, Bi LSTM has a bidirectional processing capability of capturing both forward and backward contextual dependencies ensured a more comprehensive understanding of the input sequence. Secondly, the utilization of multiple ML classifiers offered a robust evaluation framework, ensuring a comprehensive analysis of the model's performance across various algorithms. Furthermore, our emphasis on both performance metrics and computational efficiency underscores our commitment to practical applicability and scalability. Overall, our study represents a significant contribution to the domain by offering a refined methodology that outperforms previous approaches in terms of accuracy, versatility, and computational efficiency.
