Fusion of Visual and Textual Data for Enhanced Semantic Representations

1. Introduction

The quest for effective and meaningful representations of textual data remains a highly active and dynamic area of research within the field of natural language processing. Numerous models have been developed with the capability to learn such representations by directly optimizing for specific end-to-end tasks within a supervised learning framework [42,46,47,54]. These models often rely on vast amounts of labeled data to achieve high performance, which poses significant challenges in practical applications where such extensive labeled datasets are not readily available [49,55]. The process of acquiring and annotating large-scale datasets can be both prohibitively expensive and time-consuming, thereby limiting the scalability and applicability of these models in real-world scenarios.

A widely adopted alternative strategy to mitigate the dependency on large labeled datasets involves leveraging pre-trained embeddings [48,62]. These embeddings, which are trained on extensive corpora, require substantially fewer labeled examples—often an order of magnitude less—to achieve competitive performance on downstream tasks [50]. This approach leverages the transferability of embeddings learned from large-scale datasets, thereby reducing the need for extensive labeled data and enabling the application of these models to a broader range of tasks with limited annotated resources.

A significant portion of existing research in this domain focuses on training embeddings exclusively from textual data. While these text-only embeddings have proven effective, they often struggle to capture certain types of relationships and co-occurrences that are more naturally and intuitively represented in other modalities, particularly visual data [51]. Visual information provides complementary cues that can enhance the semantic richness and contextual understanding of text [52]. For instance, visual similarity measures derived from image data, when combined with paired image-text data, can facilitate the induction of more nuanced and contextually relevant similarity measures between sentences, thereby enriching the quality of the resulting text embeddings.

In this paper, we explore the construction of sentence embeddings by harnessing text-image pairs to enhance sentence similarity metrics. This approach builds upon and extends prior works such as [17,20], which have demonstrated the potential of multimodal data in improving text representations. By integrating visual information, we aim to capture a broader spectrum of semantic relationships that are not easily discernible from text alone [53].

We introduce a novel and conceptually straightforward model, referred to as VisualText Fusion Network (VTFN), which integrates visual information from images to refine the quality of sentence embeddings. The VTFN model leverages existing components and synergistically combines them to achieve superior performance. Specifically, it employs a pre-trained Convolutional Neural Network (CNN) to generate image embeddings, while sentence embeddings are derived by normalizing the aggregate of individual word embeddings. These word embeddings are trained in an end-to-end manner to align with their corresponding image embeddings while ensuring that misaligned pairs do not share such alignment, optimizing the Pearson correlation coefficient as the objective function.

Despite its inherent simplicity, the VTFN model significantly outperforms pure text-based models as well as the leading multimodal model presented in [20,70] across a suite of well-established text similarity benchmarks, including those from the SemEval competition [23]. Notably, for datasets that are inherently image-related, our model not only matches but also sets new state-of-the-art results while utilizing a fraction of the training data previously required. These outcomes underscore the efficacy of incorporating visual data into text embedding processes, demonstrating that visual modalities can significantly bolster the semantic understanding and generalization capabilities of text representations [71,72]. Furthermore, we conduct a thorough ablation study to assess the impact of various factors on embedding quality within the context of image-to-text knowledge transfer.

In summary, the key contributions of this work are as follows:

• We introduce VTFN, a straightforward multimodal model that surpasses existing image-text integration approaches across a diverse array of text similarity evaluation tasks. Moreover, VTFN achieves state-of-the-art performance on image-related SemEval datasets while requiring significantly less training data.
• We conduct an exhaustive investigation into image-to-text knowledge transfer, evaluating various model architectures, text encoding strategies, loss functions, and dataset configurations to identify optimal practices for enhancing embedding quality.
• We demonstrate that directly learning sentence embeddings through our proposed VTFN method consistently outperforms traditional techniques that first learn word-level embeddings and subsequently aggregate them, highlighting the advantages of end-to-end sentence embedding approaches.

2. Related Work

The exploration of multimodal data, particularly the integration of image and text pairs, has garnered significant attention in recent years. Researchers have delved into leveraging these paired modalities to enhance performance across various tasks that inherently require an understanding of both visual and textual information. Notably, applications such as image captioning [13,32], where the goal is to generate descriptive text for a given image, and image retrieval [6,12,16,17,31,34,74,85], which involves finding relevant images based on textual queries, have benefited immensely from the advancements in multimodal learning.

A substantial body of work in this domain focuses on creating shared embeddings that bridge the gap between visual and textual data. These shared embeddings facilitate tasks that require a seamless transition between modalities, enabling models to comprehend and generate content that aligns both visually and semantically with the input data. For instance, [13,76] introduced a model that combines convolutional neural networks (CNNs) for image processing with recurrent neural networks (RNNs) for text generation, achieving remarkable results in image captioning. Similarly, [32] proposed an encoder-decoder framework that effectively maps images to their corresponding textual descriptions, thereby enhancing the quality and relevance of generated captions.

Despite the promising advancements in tasks that directly involve both images and text, the utilization of images as auxiliary data to enhance natural language processing (NLP) tasks remains relatively underexplored. Most existing studies primarily focus on tasks that require direct interaction between the two modalities, such as those mentioned above, rather than using visual data to inform and improve text embeddings for broader NLP applications. One notable exception is the work by [17], who extended the skip-gram algorithm [21] to incorporate visual information. In the traditional skip-gram model, each word embedding is optimized to predict the surrounding context words, thereby capturing semantic relationships based solely on textual co-occurrence. [17,82] augmented this approach by introducing a mechanism to maximize the similarity between word embeddings and their corresponding image embeddings. Specifically, they employed a max-margin loss function to align the textual and visual modalities:

$$L_{vision}\left(w_t\right)=E_{w^{\prime }}max(0,\gamma -cos(f\left(w_t\right),g\left(w_t\right))+cos(f\left(w_t\right),g\left(w^{\prime }\right)))$$

where $g\left(w\right)$ represents the average embedding of the images associated with the word w, and $\gamma$ is the margin parameter. This formulation ensures that the embedding of a word is not only predictive of its textual context but also closely aligned with its visual representations, thereby enriching the semantic information captured by the embeddings. Similarly, [9,63] adopted a comparable strategy by integrating image data into the learning process of word embeddings. Their approach involved jointly optimizing the embeddings to capture both textual and visual co-occurrences, thereby enhancing the semantic richness and generalizability of the learned representations. This joint optimization allows the model to leverage visual cues that are often implicit or hard to discern from text alone, thereby addressing some of the limitations inherent in text-only embeddings.

Building upon these foundations, [16] introduced a model that employs a max-margin loss to co-embed images and their corresponding textual descriptions. Unlike previous approaches that primarily focus on word-level embeddings, [16] utilized different textual models depending on the specific task at hand. For tasks such as image captioning or retrieval, they employed an LSTM-based encoder to process textual data, enabling the model to generate coherent and contextually relevant descriptions. Additionally, for investigating the properties of the resulting word embeddings, particularly their ability to capture arithmetic relationships, they employed a simpler word embedding model. Their experiments demonstrated intriguing arithmetic capabilities, such as vector arithmetic operations where “image of a blue car” minus “blue” plus “red” yields an image of a red car. However, despite these qualitative observations, [16] did not provide a quantitative evaluation of the text embeddings’ quality in terms of text similarity metrics, leaving room for further exploration in this area.

In more recent developments, [20] explored phrase embeddings that are trained using visual signals to assess their efficacy in capturing semantic similarities. Their approach involved using a Recurrent Neural Network (RNN) as a language model to learn word embeddings, which were subsequently combined to form phrase embeddings. They proposed three distinct models to evaluate the effectiveness of incorporating visual information:

• Model A: This model mirrors the captioning framework introduced by [32], where an RNN decoder is conditioned on a pre-trained CNN embedding. Specifically, the RNN (using a Gated Recurrent Unit, or GRU, in their experiments) processes the input text to predict the next token in the sequence, with the initial state being a transformation of the final internal layer of a pre-trained VGGNet [29], denoted as $v_{image}$.
• Model B: This variant attempts to align the final state of the RNN with the image embedding $v_{image}$, thereby enforcing a direct correspondence between the textual and visual modalities at the embedding level.
• Model C: Extending the multimodal skip-gram approach of [17], this model incorporates an additional loss term that measures the distance between word embeddings and the image embedding $v_{image}$, further tightening the alignment between the two modalities.

Through their comprehensive experiments, [20] demonstrated that Model A outperformed the other variants, establishing it as the most effective among the proposed configurations. Consequently, they adopted this model as a baseline for subsequent evaluations, highlighting the significance of conditioning RNNs on visual embeddings for enhancing the quality of learned phrase embeddings. Expanding upon these foundational works, recent studies have continued to push the boundaries of multimodal learning by exploring novel architectures and loss functions that better capture the intricate relationships between visual and textual data. For instance, some approaches have integrated attention mechanisms to allow models to focus on specific regions of an image while generating corresponding textual descriptions, thereby improving the relevance and accuracy of the generated text [1,90,91]. Others have explored adversarial training frameworks to ensure that the embeddings of different modalities are indistinguishable from each other, promoting a more unified and cohesive representation space [2].

Moreover, the advent of transformer-based architectures has further revolutionized the field by providing more powerful and flexible mechanisms for integrating multimodal information. Models such as CLIP [3] and ALIGN [4,93] have demonstrated that large-scale pre-training on vast amounts of image-text pairs can yield embeddings that are not only highly effective for retrieval tasks but also transferable to a wide array of downstream NLP applications. These models leverage self-attention mechanisms to capture long-range dependencies and complex interactions between words and visual features, resulting in more nuanced and semantically rich embeddings. In addition to these advancements, there has been a growing interest in understanding the theoretical underpinnings of multimodal embedding spaces. Researchers have investigated the geometric and topological properties of these spaces to elucidate how different modalities interact and influence each other during the embedding process [5]. Such studies aim to provide deeper insights into the mechanisms that enable effective cross-modal transfer, ultimately guiding the development of more robust and generalizable models.

Despite the significant progress in multimodal learning, several challenges remain. One of the primary issues is the scalability of models to handle the vast diversity and complexity of real-world data. Ensuring that embeddings remain coherent and meaningful across diverse contexts and domains requires careful consideration of model architectures and training strategies. Additionally, there is a need for more comprehensive evaluation metrics that can accurately assess the quality of embeddings in capturing both visual and textual semantics. In light of these challenges, our proposed approach seeks to build upon the existing body of work by introducing a novel model that effectively integrates visual information into text embeddings, thereby enhancing their semantic richness and generalizability. By leveraging advanced neural architectures and innovative loss functions, our model aims to address the limitations of previous methods and provide a more unified and robust framework for multimodal representation learning.

3. System Architecture of VTFN

The primary objective of our framework is to facilitate the direct transfer of knowledge between visual and textual modalities, with a focus on generating versatile and reusable sentence embeddings. To achieve this, we leverage paired datasets comprising images and their corresponding descriptive texts. Our proposed architecture, VisualText Fusion Network (VTFN), is meticulously designed with two distinct encoders: one dedicated to processing images and the other to handling textual data. This dual-encoder setup ensures that each modality is effectively captured and integrated, enabling the model to learn rich and meaningful representations that encapsulate both visual and semantic information.

3.1. Text Encoder Design

The text encoder within the VTFN framework is pivotal in transforming raw textual data into coherent and semantically rich embeddings. We explore three distinct categories of text encoding models, each employing different strategies to amalgamate individual word representations into comprehensive sentence embeddings. These categories include:

3.1.1. Bag-of-Words (BOW) Model

The Bag-of-Words model serves as the most straightforward approach for sentence embedding. In this paradigm, each word within a sentence is represented by its corresponding embedding vector. The sentence embedding is then computed as the normalized sum of these individual word vectors:

$$E_{txt}^{BOW}\left(S\right)={\displaystyle \frac{1}{\parallel {\sum }_{w\in S}{\mathbf{e}}_w\parallel }}\sum _{w\in S}{\mathbf{e}}_w$$

where ${\mathbf{e}}_w\in {\mathbb{R}}^N$ denotes the embedding vector for word w in the vocabulary V, and S represents the sentence composed of words from V. This approach effectively captures the aggregate semantic content of the sentence by considering the presence and frequency of words, albeit without accounting for word order or syntactic structure.

3.1.2. Recurrent Neural Network (RNN) Model

To incorporate sequential information and capture the syntactic nuances of sentences, we employ a Recurrent Neural Network-based encoder. Specifically, we utilize either Long Short-Term Memory (LSTM) or Gated Recurrent Unit (GRU) architectures, known for their proficiency in modeling temporal dependencies and mitigating the vanishing gradient problem inherent in traditional RNNs. The RNN processes the sentence word by word, maintaining a hidden state that encapsulates the contextual information up to the current word:

$${\mathbf{h}}_t=\mathrm{RNN}({\mathbf{h}}_{t-1},{\mathbf{e}}_{w_t})$$

where ${\mathbf{h}}_t$ is the hidden state at time step t, and ${\mathbf{e}}_{w_t}$ is the embedding vector for the t-th word in the sentence. The final hidden state ${\mathbf{h}}_T$ after processing the entire sentence serves as the sentence embedding:

$$E_{txt}^{RNN}\left(S\right)={\mathbf{h}}_T$$

This method effectively captures both the semantic and syntactic information present in the sentence, enabling a more nuanced representation compared to the BOW model.

3.1.3. Convolutional Neural Network (CNN) Model

Alternatively, we explore a Convolutional Neural Network-based encoder, inspired by the work of [14]. The CNN model employs convolutional layers with multiple filter sizes to capture local n-gram features within the sentence. These features are then aggregated through pooling operations to form a fixed-size sentence embedding:

$$E_{txt}^{CNN}\left(S\right)=\mathrm{FC}\left(\mathrm{Pooling}\left(\mathrm{Conv}\left(S\right)\right)\right)$$

where $\mathrm{Conv}\left(S\right)$ represents the convolution operation over the sentence, Pooling denotes a global max or average pooling layer, and FC is a fully connected layer that maps the pooled features to the final embedding space of dimensionality N. The CNN model is adept at capturing hierarchical and positional information, making it a robust choice for sentence representation.

3.2. Image Encoder Design

For the visual modality, the VTFN architecture utilizes a pre-trained Convolutional Neural Network (CNN) to extract high-dimensional feature representations from images. Specifically, we employ the InceptionV3 model [30], renowned for its efficacy in large-scale image recognition tasks. The InceptionV3 model processes each input image, which is resized and cropped to $300\times 300$ pixels, and outputs a 2048-dimensional feature vector:

$$E_{img}\left(I\right)=\mathrm{InceptionV}3\left(I\right)$$

where I denotes an input image. The choice of InceptionV3 is motivated by its balanced architecture that provides a rich and compact representation of visual content, capturing intricate patterns and features essential for effective cross-modal alignment.

3.3. Embedding Alignment and Training Objective

The crux of the VTFN model lies in aligning the textual and visual embeddings within a shared semantic space. Let $E_{img}\left(I\right)\in {\mathbb{R}}^{2048}$ denote the image embedding for image I, and $E_{txt}\left(S\right)\in {\mathbb{R}}^N$ represent the sentence embedding for sentence S produced by one of the text encoders ($txt\in \{BOW,RNN,CNN\}$). To facilitate this alignment, we introduce an affine transformation matrix $W\in {\mathbb{R}}^{2048\times N}$ that projects the high-dimensional image embeddings into the N-dimensional textual embedding space:

$${\tilde{E}}_{img}\left(I\right)=W{E}_{img}\left(I\right)$$

The training objective is to maximize the cosine similarity between paired image-sentence embeddings and minimize it for non-paired (mismatched) pairs. The cosine similarity between two vectors ${\mathbf{v}}_1$ and ${\mathbf{v}}_2$ is defined as:

$$sim({\mathbf{v}}_1,{\mathbf{v}}_2)={\displaystyle \frac{{\mathbf{v}}_1·{\mathbf{v}}_2}{\parallel {\mathbf{v}}_1\parallel \parallel {\mathbf{v}}_2\parallel }}$$

Formally, for a batch of B image-sentence pairs $(I_1,S_1),\cdots ,(I_B,S_B)$, we generate negative samples by randomly permuting the sentences, resulting in incorrect pairs $(I_1,S_{\sigma \left(1\right)}),\cdots ,(I_B,S_{\sigma \left(B\right)})$, where $\sigma$ is a random permutation of $\{1,\cdots ,B\}$. The similarity scores are then computed as:

$$sim(I_i,S_j)=sim({\tilde{E}}_{img}\left(I_i\right),E_{txt}\left(S_j\right))$$

Our objective is to maximize the Pearson correlation coefficient $\rho (x,y)$ between the vector of similarity scores for correct pairs and the vector of similarity scores for both correct and incorrect pairs, paired with their respective labels:

$$\rho (x,y)={\displaystyle \frac{\mathrm{Cov}(x,y)}{\mathrm{Std}\left(x\right)\mathrm{Std}\left(y\right)}}$$

where:

$$x=\left[\underset{\mathrm{correct}\mathrm{pairs}}{\underbrace{sim(I_1,S_1),\cdots ,sim(I_B,S_B)}},\underset{\mathrm{incorrect}\mathrm{pairs}}{\underbrace{sim(I_1,S_{\sigma \left(1\right)}),\cdots ,sim(I_B,S_{\sigma \left(B\right)})}}\right]$$

$$y=\left[\underset{B\mathrm{positive}\mathrm{labels}}{\underbrace{1,\cdots ,1}},\underset{B\mathrm{negative}\mathrm{labels}}{\underbrace{-1,\cdots ,-1}}\right]$$

Maximizing $\rho (x,y)$ encourages the model to assign higher similarity scores to correctly paired image-sentence embeddings while assigning lower scores to mismatched pairs, thereby enhancing the discriminative power of the embeddings.

3.4. Training Procedure and Optimization

The training of VTFN involves optimizing the alignment between image and text embeddings through stochastic gradient descent (SGD) or its variants, such as Adam [15]. The learnable parameters in the model include:

• Word Embedding Matrix: $\mathbf{E}\in {\mathbb{R}}^{\left|V\right|\times N}$, where each row corresponds to the embedding vector of a word in the vocabulary V.
• Text Encoder Parameters: These include the weights and biases of the RNN or CNN models used for text encoding.
• Affine Transformation Matrix: $W\in {\mathbb{R}}^{2048\times N}$, which projects image embeddings into the textual embedding space.

During each training iteration, a mini-batch of B image-sentence pairs is processed. The sentences are randomly shuffled to create negative samples, and the similarity scores are computed for both correct and incorrect pairs. The Pearson correlation objective is then evaluated and backpropagated to update the model parameters, thereby refining the embeddings to better capture the semantic alignment between images and text.

3.5. Regularization and Hyperparameter Tuning

To prevent overfitting and ensure the generalizability of the learned embeddings, we incorporate several regularization techniques:

• Dropout: Applied to the hidden layers of the RNN and CNN encoders to mitigate over-reliance on specific neurons.
• L2 Regularization: Added to the loss function to penalize large weights, encouraging smoother and more generalizable embeddings.
• Early Stopping: Monitoring the validation loss to halt training when performance ceases to improve, thereby avoiding overfitting.

Hyperparameters, such as the embedding dimensionality N, learning rate, batch size B, and margin parameter $\gamma$, are meticulously tuned using grid search and cross-validation on a held-out validation set to identify the optimal configuration for the VTFN model.

3.6. Evaluation Metrics and Benchmarking

The efficacy of the VTFN model is assessed using a suite of well-established text similarity benchmarks, particularly those from the SemEval competition [23]. These benchmarks provide a standardized framework for evaluating the quality of sentence embeddings in capturing semantic similarities. Additionally, we evaluate the model’s performance on image-related datasets to demonstrate its superior ability to integrate visual information into textual representations.

Key evaluation metrics include:

• Pearson Correlation Coefficient: Measures the linear correlation between predicted similarity scores and ground truth labels.
• Spearman’s Rank Correlation: Assesses the monotonic relationship between predicted rankings and actual rankings of sentence pairs.
• Mean Reciprocal Rank (MRR): Evaluates the model’s ability to rank the correct image-sentence pair higher than incorrect pairs.

By employing these metrics, we ensure a comprehensive assessment of the VTFN model’s performance across diverse scenarios, highlighting its robustness and versatility in handling both textual and visual data.

3.7. Implementation Details

The VTFN model is implemented using the PyTorch framework, leveraging its dynamic computational graph and GPU acceleration capabilities to facilitate efficient training. Key implementation considerations include:

• Pre-trained Models: The InceptionV3 network is utilized as a fixed feature extractor, with its parameters frozen during training to focus on optimizing the alignment between image and text embeddings.
• Word Embeddings: Initialized using pre-trained GloVe embeddings [25] to provide a strong semantic foundation, followed by fine-tuning during training to adapt to the specific dataset.
• Batch Size: Set to 128 to balance computational efficiency and gradient stability.
• Learning Rate: Initialized at $1\times {10}^{-4}$ with a decay schedule to ensure convergence.
• Optimization Algorithm: Adam optimizer with ${\beta }_1=0.9$ and ${\beta }_2=0.999$ to adaptively adjust learning rates for different parameters.

Extensive experimentation was conducted to fine-tune these hyperparameters, ensuring that the VTFN model achieves optimal performance across all evaluated tasks.

3.8. Model Variants and Ablation Studies

To comprehensively understand the impact of different components within the VTFN architecture, we conduct a series of ablation studies. These studies involve systematically modifying or removing certain elements of the model to assess their contribution to overall performance. Specifically, we investigate:

• Text Encoder Variants: Comparing the performance of BOW, RNN, and CNN-based text encoders to determine which architecture best captures the semantic nuances of sentences.
• Affine Transformation: Evaluating the necessity and impact of the affine transformation matrix W in aligning image and text embeddings.
• Loss Functions: Exploring alternative loss functions beyond Pearson correlation to ascertain their effectiveness in optimizing embedding alignment.
• Regularization Techniques: Assessing the role of dropout, L2 regularization, and early stopping in preventing overfitting and enhancing generalization.

These ablation studies provide valuable insights into the strengths and limitations of the VTFN architecture, guiding further refinements and optimizations.

3.9. Scalability and Computational Efficiency

Given the high-dimensional nature of image and text embeddings, computational efficiency is a critical consideration in the VTFN model. To address scalability concerns, we employ the following strategies:

• Batch Processing: Utilizing mini-batch training to leverage parallel computations and expedite the training process.
• Dimensionality Reduction: Implementing principal component analysis (PCA) on image embeddings to reduce dimensionality without significant loss of information, thereby decreasing computational overhead.
• Hardware Acceleration: Leveraging GPU acceleration to expedite matrix operations and convolutional computations inherent in the model.

These measures ensure that the VTFN model remains scalable and efficient, even when deployed on large-scale datasets with millions of image-text pairs.

3.10. Integration with Downstream NLP Tasks

The ultimate utility of the VTFN model lies in its ability to generate high-quality sentence embeddings that can be seamlessly integrated into a variety of downstream natural language processing (NLP) tasks. Potential applications include:

• Semantic Textual Similarity (STS): Leveraging the model’s embeddings to assess the semantic similarity between pairs of sentences with high accuracy.
• Information Retrieval: Enhancing search engines by utilizing aligned embeddings to improve the relevance of retrieved documents based on textual queries.
• Text Classification: Employing the embeddings as input features for classification tasks such as sentiment analysis, topic detection, and spam filtering.
• Machine Translation: Utilizing the rich semantic representations to improve the quality and coherence of translated text.

By providing versatile and semantically enriched embeddings, the VTFN model serves as a foundational component that can enhance a wide array of NLP applications.

4. Experiments

4.1. Training Datasets

Our experimental evaluation encompasses three primary training datasets: MS COCO, SBU, and Pinterest5M. Each of these datasets offers a unique set of image-caption pairs, providing a diverse foundation for training and evaluating our models. Detailed descriptions of these datasets are provided below. It is noteworthy that we preprocess datasets containing multiple captions per image (specifically MS COCO and Pinterest5M) to retain only a single caption per image. This modification is crucial to prevent the network from inadvertently exploiting the image feature vector as a means of associating multiple text pairs, a potential source of bias that could artificially inflate performance metrics. To the best of our knowledge, this particular issue has not been previously addressed in the evaluation of multimodal image-text models. While it is established that training similarity models directly on text-text pairs can yield favorable results [35], our focus is exclusively on assessing the impact of knowledge transfer from images to text.

MS COCO

The Microsoft Common Objects in Context (MS COCO) dataset [18] is a widely recognized benchmark in the field of computer vision, comprising 80 distinct image categories. Each image in the MS COCO 2014 dataset is accompanied by five high-quality captions, meticulously curated to provide diverse descriptions of the visual content. For our experiments, we adopt the train/validation/test split as implemented in the im2txt TensorFlow framework [28] based on [33]. Initially, our train, validation, and test sets consist of 586k, 10k, and 20k image-caption pairs, respectively. Subsequently, we apply a filtering process to retain only one caption per image, thereby reducing the "text part" of our final datasets by a factor of five. This ensures a balanced and unbiased training regime, allowing the model to focus on learning robust embeddings without overfitting to redundant textual information.

SBU

The Stony Brook University (SBU) dataset [24] comprises 1 million image-caption pairs sourced from Flickr. Unlike MS COCO, each image in the SBU dataset is associated with only one caption, eliminating the need for post-processing to filter out redundant captions. We randomly partition this dataset into train, validation, and test subsets, containing 900k, 50k, and 50k image-caption pairs, respectively. The diversity and scale of the SBU dataset make it an invaluable resource for training models that can generalize across a wide array of visual contexts and descriptive nuances.

Pinterest5M

The Pinterest40M dataset [20] originally contains 40 million images, curated to reflect a broad spectrum of user-generated content. However, at the time of our study, only 5 million image URLs were publicly available. Due to the unavailability of certain images, we successfully collected approximately 3.9 million images from this dataset. Similar to our approach with MS COCO, we retain only one caption per image to maintain consistency and prevent data leakage. The filtered dataset is then randomly split into training, validation, and test sets comprising 3.8 million, 50k, and 50k image-caption pairs, respectively. The Pinterest5M dataset is particularly valuable for its informal and varied language use, capturing a wide range of descriptive styles that enhance the robustness of the learned embeddings.

All training data across the aforementioned datasets undergo preprocessing steps involving lowercasing and tokenization using the Stanford Tokenizer [19]. Additionally, we encapsulate each sentence with special tokens "<S>" and "</S>" to denote the beginning and end of the sentence, respectively. This encapsulation aids in delineating sentence boundaries, facilitating more accurate and context-aware embedding generation.

4.2. Hyperparameter Selection and Training

The performance of any machine learning model is intrinsically linked to the selection of its hyperparameters. To ensure a fair and unbiased comparison between our approach and existing methods, we adhere to a consistent hyperparameter search protocol across all models. Our strategy involves selecting the hyperparameters that yield the highest average score on the SemEval 2016 dataset (as detailed in Section 4.3), which we refer to as the “avg2016” metric.

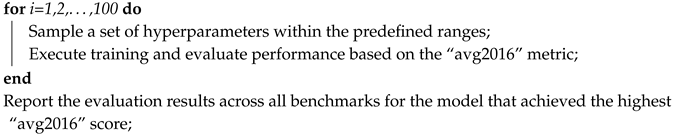

Algorithm 1: Protocol for Hyperparameter Search.

For hyperparameters that exhibit similar semantics across different models (e.g., learning rate, initialization scale, learning rate decay, etc.), we maintain consistent search ranges to ensure comparability. Furthermore, we guarantee that the hyperparameter values reported in previous studies are encompassed within our search ranges, thereby ensuring that our models can potentially replicate or surpass the performance of established benchmarks.

In all models, training is conducted using the Adam optimizer [15], a state-of-the-art optimization algorithm known for its efficiency and effectiveness in handling sparse gradients. Depending on the dataset, training is performed for either 10 epochs (MS COCO and SBU) or 5 epochs (Pinterest5M), balancing computational efficiency with convergence requirements. The final embeddings produced by our models are of dimensionality 128, a standard choice that offers a trade-off between computational tractability and representational capacity. Notably, all VTFN models employ the Pearson loss function, as further explored in our ablation studies (Section 5.2).

4.3. Evaluation

Our primary objective is to develop robust text embeddings that encapsulate knowledge derived from corresponding images. To assess the efficacy of this knowledge transfer from images to text, we utilize a suite of textual semantic similarity datasets sourced from the SemEval 2014 and 2015 competitions [23]. Unfortunately, direct comparison with the Gold RP10K dataset introduced by [20] is infeasible, as it has not been publicly released.

In addition to the SemEval datasets, we construct two custom test sets: COCO-Test and Pin-Test. These test sets are derived from the MS COCO and Pinterest5M test datasets, respectively. Each comprises $1,000$ semantically related caption pairs (originating from the same image) and $1,000$ non-related caption pairs (sourced from different images). Unlike the SemEval datasets, which provide nuanced similarity scores, the similarity score in these custom test sets is binary, indicating either related or unrelated pairs. This binary classification objective allows us to evaluate the model’s performance on a task that aligns closely with our training objective, while also reflecting the word distribution characteristics of our training data.

For each model type, we identify the best-performing model based on the average score on the SemEval 2016 datasets. Subsequently, we report the performance metrics of these selected models across all other test datasets, providing a comprehensive evaluation of their generalization capabilities.

4.4. Results

Table 1 presents the performance scores of models trained exclusively on the MS COCO dataset. This isolated training scenario allows for a fair comparison of algorithmic efficacy without confounding factors introduced by varying datasets. In Section 5.3, we delve deeper into the robustness of our methods by evaluating their performance on two additional datasets: SBU and Pinterest5M.

As a direct benchmark, we implement Model A as delineated in [20], which we designate as PinModelA. Our implementation mirrors the original approach by utilizing a pre-trained InceptionV3 network for extracting visual features, aligning it with the VTFN models’ methodology. To elucidate the impact of integrating visual information into text data, we also evaluate two baseline models trained solely on text:

• RNN-based Language Model: This model learns sentence embeddings through an RNN-based language model, corresponding to the PureTextRNN baseline from [20]. It serves as a benchmark to assess the incremental benefits of incorporating visual data.
• Word2Vec: We trained Word2Vec word embeddings [26] on a corpus consisting of sentences from the MS COCO dataset. This model provides a traditional word embedding baseline against which the performance of our multimodal approaches can be compared.

The results indicate that all VTFN models outperform the pure-text baselines and PinModelA. Consistent with observations in [35], we find that RNN-based encoders are surpassed by the simpler BOW model in terms of performance. This trend persists for CNN-based encoders as well. Notably, this discrepancy appears to be primarily attributable to domain adaptation issues, as both RNN and CNN encoders exhibit superior performance on the COCO-Test set, where the data distribution closely mirrors that of the training set. This underscores the importance of aligning training and evaluation data distributions to harness the full potential of complex encoders. The detailed analysis of how varying the text encoder impacts performance is discussed in Section 5.1.

To contextualize our findings within the broader landscape of existing methodologies, Table 2 juxtaposes our results with those from other models trained on significantly larger corpora. Specifically, we incorporate word embeddings derived from three prominent methods:

• GloVe: Introduced in [25], GloVe embeddings are trained on a vast Common Crawl dataset comprising 840 billion tokens, offering a rich and diverse semantic representation.
• M-Skip-Gram: As proposed in [17], this approach trains embeddings on Wikipedia and a subset of images from ImageNet, integrating both textual and visual information to enhance semantic understanding.
• PP-XXL: The most robust embeddings from [35], trained on 9 million phrase pairs from the PPDB (Paraphrase Database), providing a comprehensive coverage of linguistic variations.

For each of these embedding approaches, we evaluate two variants based on the vocabulary constraints at inference time:

• Restricted (R): The vocabulary is limited to that of the MS COCO dataset, ensuring compatibility with our training data.
• Non-Restricted (NR): The full vocabulary is utilized, allowing for broader applicability but introducing challenges with out-of-vocabulary (OOV) terms.

The impact of vocabulary size is particularly pronounced on the Pinterest-Test benchmark, where $16.5$% of all tokens are absent from the MS COCO vocabulary. This results in $97.6$% of all sentences containing at least one missing token, significantly affecting performance. Despite these challenges, our VTFN models demonstrate competitive performance, showcasing their ability to generalize effectively even with constrained vocabularies.

Finally, we include the best-performing results from the SemEval competition, where available. It is important to note that these results originate from heavily tuned and more complex models, trained without any data restrictions. Nonetheless, our VTFN models are capable of matching these state-of-the-art results, underscoring their efficacy and potential for broader application.

5. Ablation Studies

To dissect the contributions of different components within our architecture, we conduct comprehensive ablation studies focusing on the text encoder, loss function, and training dataset. Additionally, we examine the effects of training at the word level versus the sentence level. In all scenarios, we adhere to a standardized protocol analogous to that described in Section 4.2.

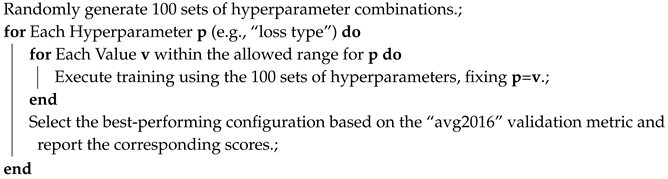

Algorithm 2: Protocol for Hyperparameter Ablation Study.

5.1. Impact of Text Encoders

We investigate the influence of different text encoders on the performance of the VTFN model. The outcomes are encapsulated in Table 3. Specifically, “RNN-GRU” and “RNN-LSTM” denote RNN encoders utilizing GRU [7] and LSTM [10] cells, respectively. For the BOW model, we explore two variations: one employing the sum of word embeddings and the other utilizing the mean. Our findings reveal that both Bag-of-Words encoders outperform their RNN counterparts. However, RNN-based encoders exhibit marginally superior performance on the COCO-Test dataset, which shares the same distribution as the training data. This suggests that while RNNs can capture distribution-specific nuances effectively, the BOW models offer better generalization across diverse datasets.

5.2. Evaluation of Loss Functions

In this subsection, we explore various loss functions employed during the training of our model. Consider two paired variables x (similarity score between two embeddings) and $y\in \{-1,1\}$. The sample sets $(x_1,\cdots ,x_n)$ and $(y_1,\cdots ,y_n)$ represent n corresponding realizations of x and y, respectively.

• Covariance: Measures the covariance between x and y, defined as $Cov(x,y)$.
• Pearson Correlation $\rho$: Quantifies the linear relationship between x and y, defined as $\rho (x,y)={\displaystyle \frac{Cov(x,y)}{Std\left(x\right)Std\left(y\right)}}$.
• Surrogate Kendall $\tau$: While Pearson correlation captures linear dependencies, Kendall’s $\tau$ assesses rank-based dependencies. However, due to its non-differentiable nature, we employ a surrogate differentiable approximation, defined as:

  $$SK{T}_{\alpha }(x,y)={\displaystyle \frac{{\sum }_{i,j}tanh\left(\alpha (x_i-x_j)(y_i-y_j)\right)}{n(n-1)/2}},$$

  where $\alpha >0$ is a scaling parameter [11].
• Rank Loss: A pairwise ranking loss function, closely following the definition in [16], which penalizes incorrect pairings based on their relative rankings.

Table 4 delineates the comparative performance impacts of these various loss functions when applied within the VTFN-BOW model. Our analysis reveals that the Pearson loss function yields the highest average score, indicating its effectiveness in optimizing the alignment between image and text embeddings.

5.3. Effect of Training Dataset

We examine the influence of different training datasets on the performance of our VTFN models. The results of training on MS COCO, SBU, and Pinterest5M datasets are presented in Table 5. Each cell within the table reflects the average score across four evaluation datasets: images2014, images2015, COCO-Test, and Pin-Test. The variability in image captions across these datasets is substantial. Despite this variability, our findings consistently demonstrate that the relative performance hierarchy among models remains unchanged: PinModelA consistently underperforms compared to VTFN-RNN, which in turn is outperformed by VTFN-BOW.

The consistency in performance across diverse training datasets underscores the robustness of the VTFN-BOW model in generalizing across different domains and linguistic distributions. This adaptability is crucial for deploying models in real-world scenarios where data distributions can be highly variable and unpredictable.

5.4. Sentence-Level vs Word-Level Embedding

Traditional approaches for transferring knowledge from images to text have predominantly focused on enhancing word-level embeddings, subsequently aggregating them to form sentence representations. In contrast, our approach involves learning sentence embeddings holistically. Interestingly, our experiments reveal that the Bag-of-Words (BOW) encoder, despite its simplicity, outperforms more complex encoders like RNNs and CNNs, particularly in out-of-domain scenarios. This observation prompts the following inquiry: can the model achieve comparable performance by training solely at the word level and aggregating word embeddings during inference?

To address this, we conduct a comparative analysis between word-level and sentence-level training approaches, as illustrated in Table 6. The results unequivocally demonstrate the superiority of sentence-level training, with sentence-level models significantly outperforming their word-level counterparts. This enhancement is attributed to the model’s ability to capture complementary information and co-occurrences between words when trained at the sentence level, thereby producing more coherent and semantically enriched embeddings.

The pronounced improvement observed with sentence-level training highlights the benefits of capturing global semantic structures and inter-word dependencies, which are often lost in word-level training paradigms. This finding advocates for a holistic approach to embedding learning, where the interplay between words within a sentence is leveraged to produce more meaningful and contextually aware representations.

6. Conclusion and Future Directions

In this study, we explored the enhancement of text embeddings by harnessing multimodal datasets, specifically leveraging a pre-trained image model alongside paired image-text datasets. Our primary contribution, the VisualText Fusion Network (VTFN), presents a streamlined approach that directly optimizes sentence embeddings to align with corresponding image representations. This method distinguishes itself by outperforming existing multimodal frameworks, which often entail greater complexity and focus on optimizing word-level embeddings rather than holistic sentence embeddings. Our experiments demonstrated that VTFN not only achieves superior performance on various semantic similarity tasks but also maintains competitiveness against more intricate models trained on substantially larger text corpora, particularly in domains where the vocabulary is closely tied to visual concepts.

A noteworthy observation from our experiments was the underperformance of advanced encoder models, such as Long Short-Term Memory (LSTM) networks, compared to simpler encoders like the Bag-of-Words (BOW) model. While LSTMs exhibited enhanced performance within the same data distribution as the training set, their embeddings showed diminished transferability to different text distributions. In contrast, the BOW model, despite its simplicity, exhibited robust generalization capabilities across diverse datasets. This finding underscores the necessity for general-purpose embeddings to exhibit resilience against distributional shifts, suggesting that further refinement and adaptation of encoder architectures could yield embeddings with broader applicability and robustness.

The under-explored potential of multimodal approaches to enrich general text embeddings is evident from our results. The success of the relatively simple VTFN model indicates significant opportunities for advancement in this area. Future research directions may include the integration of more sophisticated visual processing techniques, such as attention mechanisms, to enable the model to focus on salient regions of images that are most relevant to the textual descriptions. Additionally, incorporating transformer-based architectures could further enhance the model’s ability to capture complex dependencies and interactions between visual and textual modalities.

Another promising avenue for future work involves the expansion of training datasets to include a more diverse array of image-text pairs, encompassing a wider range of contexts and linguistic variations. This diversification can potentially improve the model’s ability to generalize across different domains and languages, thereby broadening its applicability. Moreover, exploring unsupervised or semi-supervised learning paradigms could mitigate the reliance on large labeled datasets, making the approach more scalable and accessible for various applications.

Furthermore, investigating the interplay between visual and textual modalities in different linguistic constructs, such as idiomatic expressions or abstract concepts, could provide deeper insights into the model’s semantic understanding capabilities. This line of inquiry could lead to the development of embeddings that not only capture concrete visual information but also grasp the nuanced and often abstract relationships inherent in natural language.

In summary, our work with VTFN demonstrates the efficacy of integrating visual information to enhance text embeddings, highlighting the benefits of multimodal learning in natural language processing. The simplicity and effectiveness of our approach open up numerous possibilities for future research, encouraging the exploration of more advanced multimodal integration techniques and the development of embeddings that are both semantically rich and highly generalizable. We anticipate that our findings will inspire further innovations in the field, driving the creation of more sophisticated and versatile models capable of bridging the gap between visual and textual understanding.
