The Impact of Data Packet Loss on Neural Decoding

1. Introduction

Neural decoding technology plays a critical role in brain-computer interface (BCI) research. By analyzing neural signals, researchers can extract information about the subject’s intentions or movements, enabling brain-controlled operations. Over the past few decades, neural decoding has enabled various interpretations, such as motion decoding [1,2,3] and language decoding [4,5]. This technology holds significant potential in the diagnosis, treatment, and rehabilitation of neurological diseases [6,7,8].

Neural signal acquisition, as the primary data source for neural decoding technology, is vital to the overall effectiveness of decoding. The transmission media used in neural signal acquisition can be categorized into two types: wired and wireless. Wired transmission offers higher bandwidth and more channels, making it the most commonly used method in current applications. However, wireless transmission is free from cable interference, enabling greater freedom of movement for the subject, which is particularly advantageous in experimental studies involving free motion. As research into the nervous system progresses, lightweight and flexible wireless brain-computer interface systems are gaining increasing attention from researchers due to their practical benefits and versatility.

Between the recording and decoding of neural signal data, packet loss is inevitable, whether using wired or wireless transmission modes. When the device configuration is correct, the physical reasons for packet loss may include network congestion and line interference [9,10]. Compared to wired transmission, wireless transmission are more susceptible to external interference, and considering factors such as power consumption, size, and transmission distance, the data transmission bandwidth is smaller compared to wired transmission. The wireless neural signal acquisition and transmission system developed by related neuroscience instrument companies and research teams has gradually been promoted in the field of neuroscience research, such as CerePlex W(Blackrock Neurotech, USA), the results and processing methods related to data packet loss have been mentioned in some studies. Berger et al. [11] have used two 96-channel Exilis Headstages(Blackrock Neurotech, USA) to record neural signals from monkeys wirelessly. In their experiment, the best session showed loss rates of 1.03%, and the worst session of 6.59%, respectively. They believe that experimental results bias was introduced by trials with high data loss rates. When removing trials with a loss rate of above 5% there was no significant bias anymore. Lee et al. [12] have developed wireless recording system could stably transmit neural data to the server, the packet loss rate is approximately 3%. Packet losses can occur randomly, but most of the causes were from crosstalk with other nearby wireless communication systems. Simeral et al. [13] have used four components provided by Blackrock Neurotech to record neural signals from participants: a pedestal-mounted wireless transmitter, four polarized planar antennas, a wireless receiver and a digital hub. This device achieves a minimum packet loss of 0.4166% and a maximum packet loss of 4.69%. Due to the use of multiple transmitters, a large number of packet losses on one transmitter have little impact on the final decoding result. Hansmeyer et al. [14] have also used 96-channel Exilis Headstages(Blackrock Neurotech, USA) to record neural signals from monkeys. They have reinforced the structure, with an average packet loss rate of 1.5% compared to previous studies. In current research, the packet loss rate of wireless devices is generally within 7%. Due to electromagnetic environment, device placement, and other conditions, the packet loss situation may be better or worse. However, there is currently a lack of quantitative research on the impact of packet loss on neural signal processing, especially subsequent neural decoding.

There are various reasons for packet loss in wireless transmission. In terms of specific manifestations, there are several types: Congestion loss. The packet loss will occur when the buffer overflows caused by the burst of data traffic [15,16,17]. This type of packet loss is specifically manifested as the loss of continuous large segments of data packets. Distributed loss. This type of packet loss often occurs in situations such as signal interference and equipment failure. In terms of statistical probability, this type of packet loss is more likely to the average distribution [18,19,20]. Burst loss. This type of packet loss is mostly continuous, meaning that once a packet loss occurs, several packet losses will occur. Unlike congestion loss, this type of packet loss is still probabilistic. Currently, most studies use the Gilbert-Elliott model(GE model) to investigate burst loss [21,22,23].It is widely believed that packet loss will have an impact on subsequent data processing. However, in the field of neural signal decoding, there is a lack of quantitative analysis on the decoding results caused by data packet loss, especially the impact of different types of packet loss on neural decoding. In most studies, the processing method for data with packet loss is to directly discard it. In this study, we constructed four different types of packet loss models and used macaque superior arm-movement decoding experiments [24] to verify the impact of packet loss on decoding results. The results indicate that different types of packet loss have significant differences in their impact on decoding results, providing reference for other studies on packet loss prevention, the impact of packet loss, and the processing of packet loss data.

2. Materials and Methods

2.1. Signal Acquisition

The neural data utilized in this study were sourced from a publicly available dataset provided by the Sabes lab. [25] These data were recorded from both the M1 and S1 areas of a macaque during the performance of a behavioral task, which involved continuous self-paced reaching movements towards targets arranged in an 8×8 square grid using the right arm. The recordings were made using a 96-channel intracranial micro-electrode array. This study used all 37 sessions of data from the monkey Indy, spanning approximately 10 months and encompassing a total of 20,000 reaching movements.

2.2. Signal Processing

The recurrent exponential-family harmonium (rEFH) [26] is a novel filter introduced by Philip N. Sabes to address the limitations of the Kalman filter algorithm [27], which is widely used in neural decoding. For the data mentioned above, rEFH outperforms some of the most frequently used decoding algorithms. This study select rEFH as the neural decoding algorithm to analyze the effects of packet loss.

Prior to commencing neural network training, it is essential to perform several preprocessing steps on the raw data extracted from the dataset to enhance its manageability and facilitate subsequent processing. As shown in Figure 1(a), the raw neural data is structured in a 192×3 cell array, where the 192 rows correspond to 192 channels from the M1 and S1 areas of the monkey, and the 3 columns represent three distinct spike signal types. Each cell contains a matrix with dimensions N×1, where each entry denotes the time at which a spike signal occurs.

As the first step, we consider neural pathways rather than physical channels, implying that neural signals passing through the same physical channel may originate from different neural pathways. Consequently, the original cell array is transformed into a 576×1 cell array, where the 576 rows represent the 576 neural pathways. As shown in Figure 1(b).

The next step is to construct a new matrix based on the time information in each cell. By defining a time interval, we can count the number of spikes occurring within each interval for each neural channel. This results in a matrix with dimensions N×576, where the nth row represents the nth time interval, and the 576 columns correspond to the 576 neural pathways. Each element in the matrix represents the number of spikes observed in a single neural pathway during a given time interval. As shown in Figure 1(c).

This matrix serves as the foundation for initiating neural network training, using both the spike data and location information provided in the dataset. Additionally, a packet loss model can be incorporated to simulate the effects of actual packet loss on the neural pathways.

2.3. Packet Loss Model

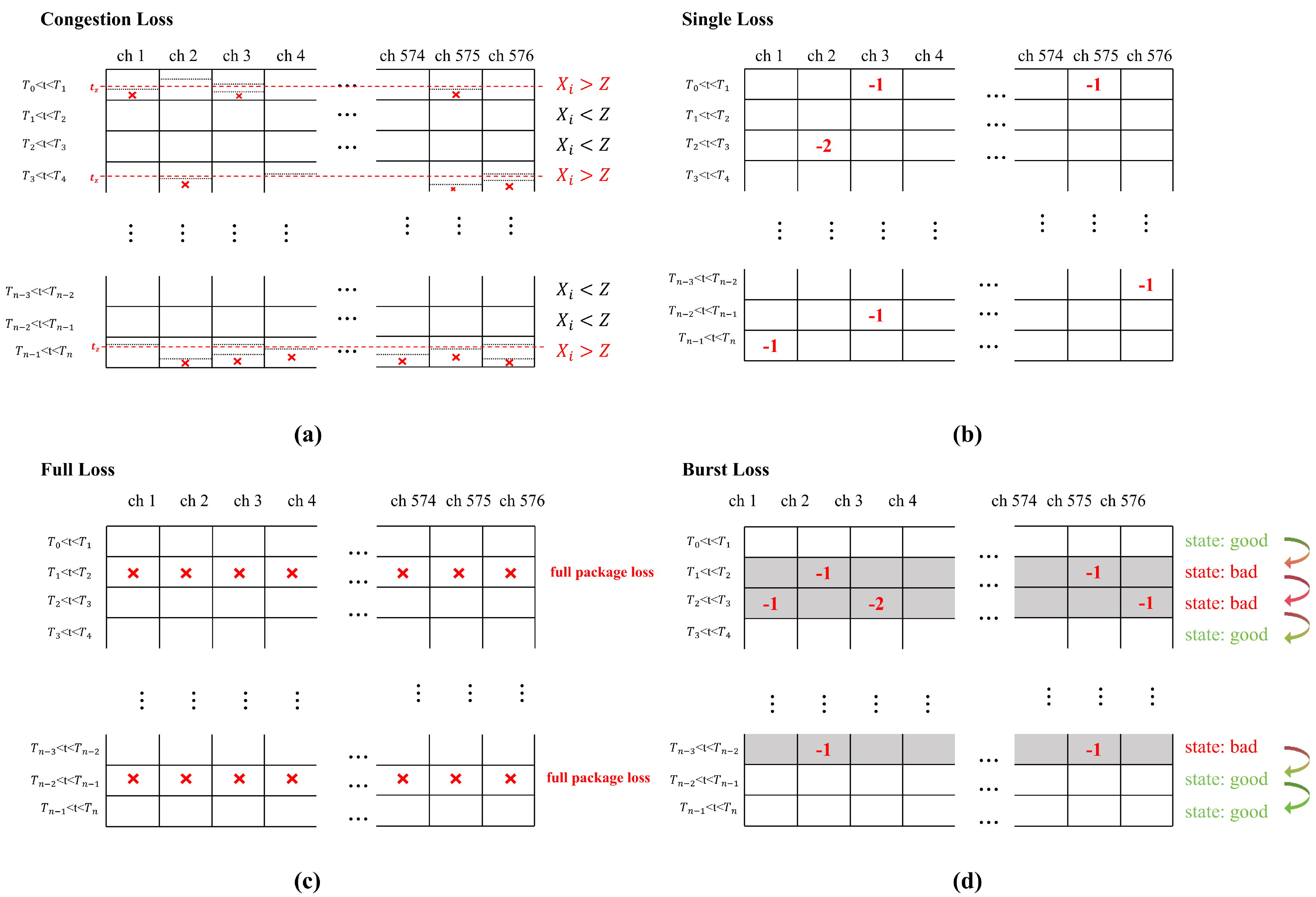

After the preprocessing steps After completing the preprocessing of the raw data, we obtained a matrix that next all named matrix A with dimensions N×576. At this stage, various packet loss models can be applied to this matrix to simulate the effects of actual packet loss on the data. As shown in Figure 2.

2.3.1. Congestion Loss

Congestion packet loss often occurs when the amount of data in a transmission exceeds the bandwidth of the data transmission, which can lead to a large amount of data loss in the excess of the bandwidth. To simulating this type of packet loss, we first calculate the total number of spikes X for each row i in the matrix A:

$${\mathrm{X}}_i=\sum _{j=1}^N{A}_{ij}$$

where $A_{ij}$ represents the spike count in the jth channel during the ith time interval, and N is the total number of channels. If $X_{ij}$ exceeds the bandwidth Z, which corresponds to the number of packets exceeding the bandwidth at a given time interval. All channel spike signals in the interval will be sorted from early to late, assuming that the sorting results are $T_{jk}$, which j represents the channel and k denotes the random ordering of spike signals for this channel. With the sorting result, we can simulate the congestion loss mode using the following formula:

$$A_{ij}=\left\{\begin{array}{cc}{A}_{ij}\hfill & \mathrm{if}{T}_{jk}<Z,\hfill \\ A_{ij}-1\hfill & \mathrm{if}{T}_{jk}>Z.\hfill \end{array}\right.$$

This process is repeated until all rows have been traversed, resulting in the modified matrix A’.

2.3.2. Distributed Loss

According to the different ways of data packaging, distributed packet loss can also be categorized into two types, full package loss and single package loss.

The full packet loss model assumes that neural signals are transmitted in discrete, complete packet formats. When packet loss occurs in this transmission mode, all neural signal data within the affected packet is lost. In the resulting matrix A, each row represents a complete packet of spike data.

To simulate the full packet loss model within the neural signal matrix A, we first calculate the total number of packets to be lost, denoted as L, using the following formula:

$$L=⌊p\times N⌋$$

where p represents the packet loss rate, and N corresponds to the total number of rows in matrix A. Subsequently, we randomly select L rows from the matrix using the MATLAB function randperm, and set their values to zero, thereby simulating the full packet loss model. The resulting matrix, denoted as A’, reflects the impact of the packet loss, with the selected rows zeroed out.

The single package loss assumes that neural signals are transmitted alone. In order to simulate packet loss within the neural signal matrix A, we first calculate the total number of packets to be lost L as:

$$L=⌊p\times N\times 576⌋$$

where p represents the packet loss rate. Subsequently, we randomly select elements $A_{ij}$ within the matrix and decrement their values by 1, provided that $A_{ij}$ > 0. This process is repeated until L packets have been lost, resulting in the modified matrix A’.

2.3.3. Burst Loss

The GE model was applied to simulate packet loss in the neural signal matrix A. This model operates based on a two-state Markov process, where each state represents a different packet transmission state: ’good’ (no loss) and ’bad’ (packet loss). The transition between the states can be described by the following equation:

$${\mathrm{state}}_{t+1}=\left\{\begin{array}{cc}\mathrm{bad}\hfill & \mathrm{if}{\mathrm{state}}_t=\mathrm{good}\mathrm{and}{P}_{\mathrm{good}\to \mathrm{bad}}\mathrm{is}\mathrm{satisfied},\hfill \\ \mathrm{good}\hfill & \mathrm{if}{\mathrm{state}}_t=\mathrm{bad}\mathrm{and}{P}_{\mathrm{bad}\to \mathrm{good}}\mathrm{is}\mathrm{satisfied},\hfill \\ {\mathrm{state}}_t\hfill & \mathrm{otherwise}.\hfill \end{array}\right.$$

Where $stat{e}_t$ denotes the state of the transition at time t, $stat{e}_{t+1}$ represents the state at the subsequent time step. During the ’bad’ state, a portion of the signals in the corresponding rows of matrix A are set to zero, simulating packet loss. The resulting matrix A’ reflects the impact of packet loss modeled by the Gilbert-Elliott process.

2.4. Evaluation Indicator

The result of the refh algorithm contains six parameters. They are position XY, speed XY, and acceleration XY. They represent the reconstruction of the monkey’s motion information at the level of position, speed, and acceleration. The coefficient of determination $R^2$ is a commonly used metric in statistics and regression analysis to measure how well a regression model explains the variation in the data. Specifically, $R^2$ quantifies the proportion of variance in the observed data that is explained by the model’s predictions. The formula is given as:

$$R^2:=1-{\displaystyle \frac{\langle {(x-\widehat{x})}^2\rangle }{\langle {(x-\langle x\rangle )}^2\rangle }}$$

In this formula, $\widehat{x}$ represents the model’s predicted values, x is the actual observed value, and $\langle ·\rangle$ denotes the expectation operator (i.e., the mean). The numerator $\langle {(x-\widehat{x})}^2\rangle$ represents the mean squared error (MSE) between the observed and predicted values, while the denominator $\langle {(x-\langle x\rangle )}^2\rangle$ represents the total variance of the observed data with respect to its mean.

By calculating the coefficient of determination $R^2$, we obtain a value ranging between 0 and 1, where a value of 1 signifies that the model fully accounts for the variance in the data, while a value of 0 indicates that the model fails to explain any variance. In this study, we calculate $R^2$ between the six parameters of the refh algorithm results and the actual data. We employ $R^2$ to evaluate the impact of packet loss on neural decoding. A higher $R^2$ value corresponds to a reduced impact of packet loss.

3. Results

The rEFH algorithm generates six-dimensional outputs, including position (x, y), speed (x, y), and acceleration (x, y). By comparing the algorithm’s outputs with actual results and calculating the evaluation parameter$R^2$, the impact of different packet loss models on the performance of the refh algorithm can be rigorously analyzed.

3.1. Results of Packet Loss Model Construction

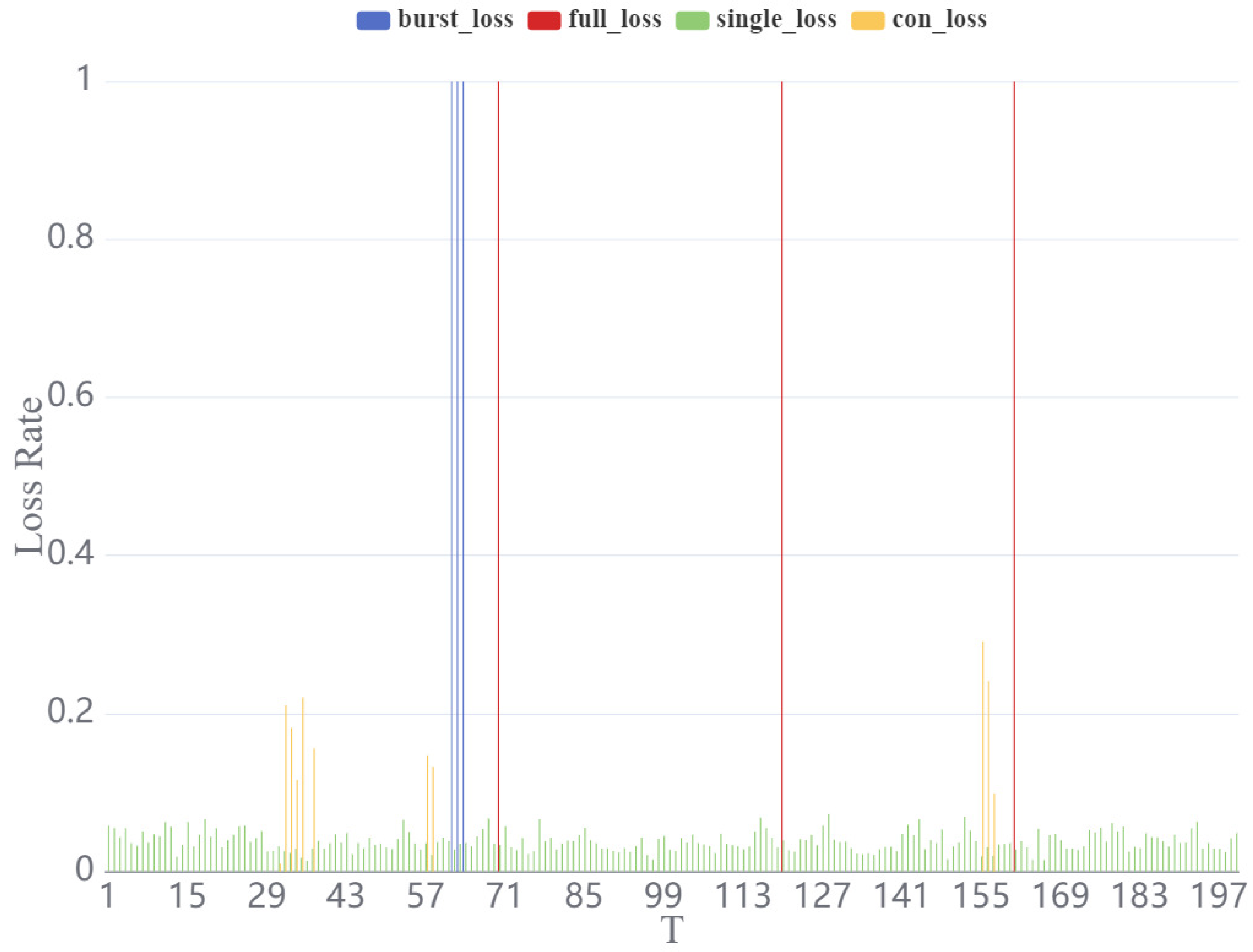

The results of packet loss simulation are shown in Figure 3. The average packet loss rate of each model is controlled at 2%. For the single loss model, the packet loss rate remains consistent across time intervals, fluctuating within a narrow range of approximately 2%. In the full loss model, entire packets are dropped at random time intervals, with the points of packet loss scattered more unpredictably. For the congestion loss model, packet loss is concentrated within specific intervals, with loss rates generally staying below 40%, and most variations occur between 0 and 20%. The burst loss model shows a packet loss rate of 100% at random intervals; unlike the full loss model, these intervals are more continuous, with consecutive time periods where the loss rate remains at 100%.

3.2. The Impact of Different Packet Loss on Decoding Results

3.2.1. Congestion Loss

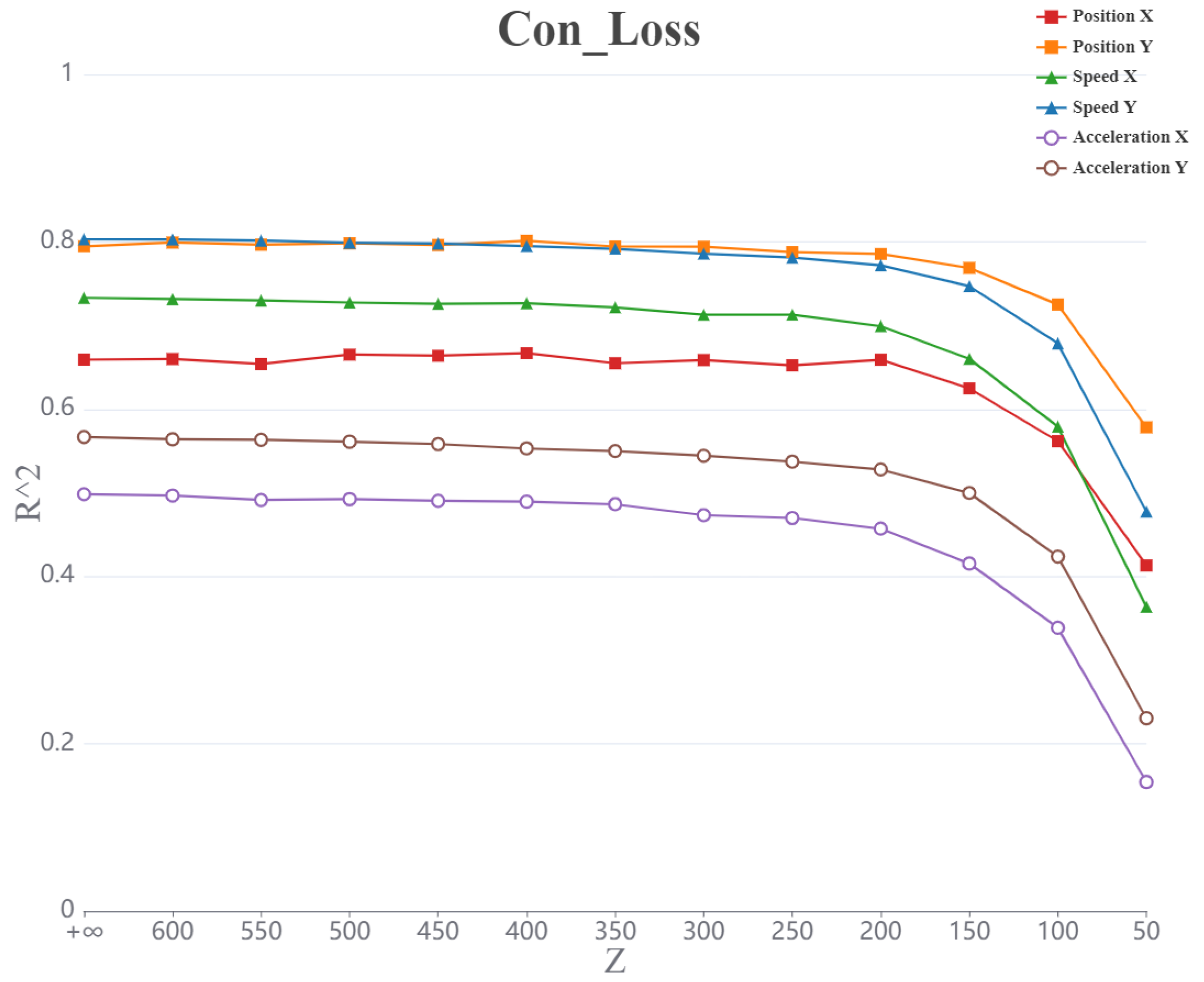

When the set Z is varied at larger values (corresponding to greater wireless transmission bandwidth), there is no significant change in the $R^2$ values representing the six parameters. However, as Z gradually decreases toward a critical threshold, the $R^2$ values for all six parameters exhibit a noticeable decline. The trends in $R^2$ for the different parameters are largely consistent as Z varies, with speed and acceleration being more significantly affected by changes in Z compared to the other parameters.

3.2.2. Distributed Loss

The $R^2$ representing the six parameters exhibit a decreasing trend as the packet loss rate increases. Among these, the $R^2$ value associated with the acceleration shows the most significant change due to packet loss, while the $R^2$ value corresponding to the position is the least affected.

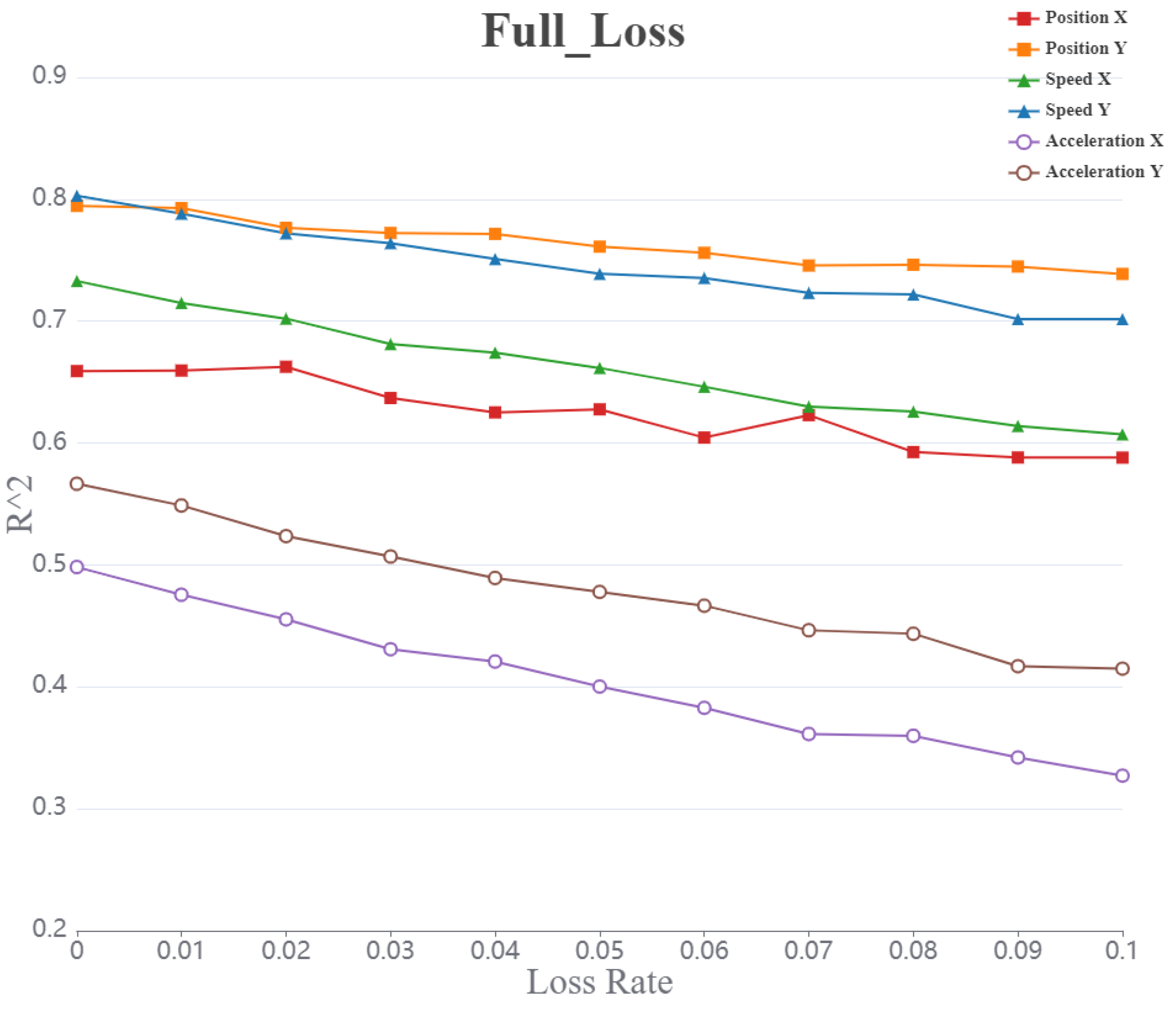

Figure 5. Curve representing the $R^2$ value of acceleration (X, Y) speed (X, Y) position (X, Y) with increasing packet loss rate under the whole packet loss model.

Figure 5. Curve representing the $R^2$ value of acceleration (X, Y) speed (X, Y) position (X, Y) with increasing packet loss rate under the whole packet loss model.

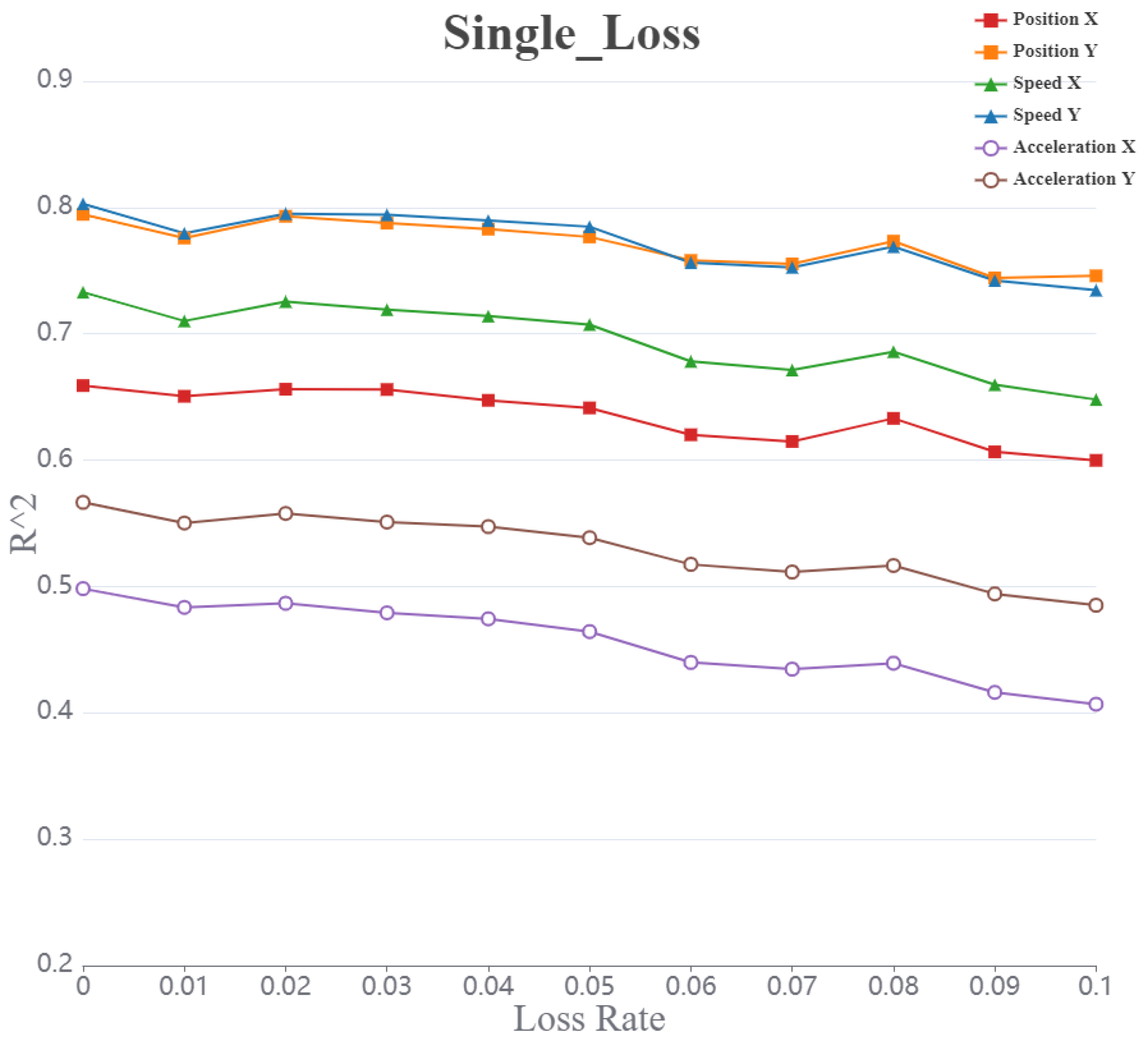

Figure 6. Curve representing the $R^2$ value of acceleration (X, Y) speed (X, Y) position (X, Y) with increasing packet loss rate under the single loss model.

Figure 6. Curve representing the $R^2$ value of acceleration (X, Y) speed (X, Y) position (X, Y) with increasing packet loss rate under the single loss model.

The $R^2$ values representing the six parameters decreased volatility as the packet loss rate increases. Among these, the $R^2$ value for acceleration shows the greatest change in magnitude, while the overall trend and magnitude of changes in the $R^2$ values for position and speed are similar.

3.2.3. Burst Loss

The $R^2$ values representing the six parameters all exhibit a gradual decline as the packet loss rate increases. Among them, the $R^2$ for acceleration shows the most significant change, while the $R^2$ values for position and speed follow similar overall trends and magnitudes.

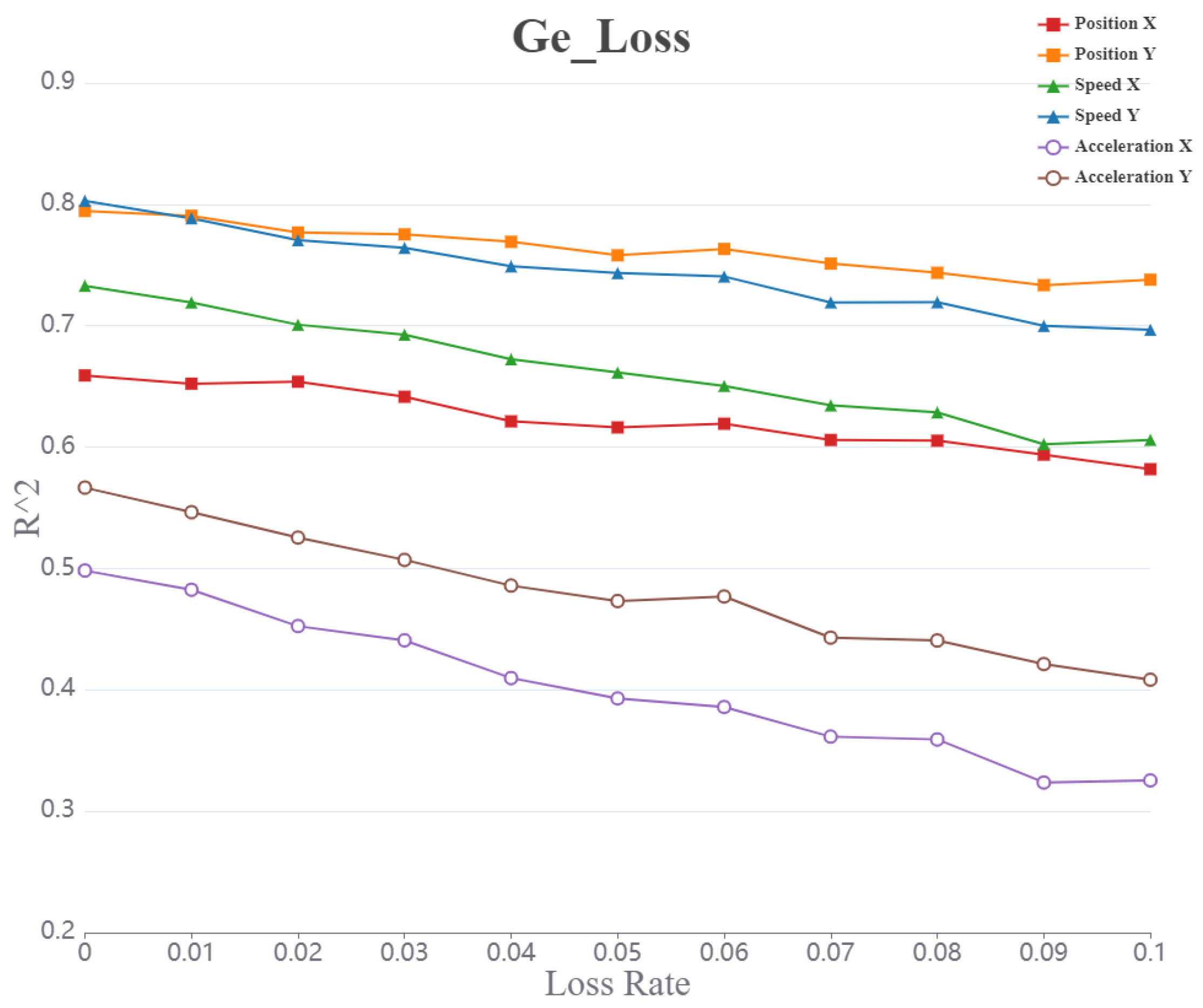

Figure 7. Curve representing the $R^2$ value of acceleration (X, Y) speed (X, Y) position (X, Y) under the GE packet loss model with increasing packet loss rate.

Figure 7. Curve representing the $R^2$ value of acceleration (X, Y) speed (X, Y) position (X, Y) under the GE packet loss model with increasing packet loss rate.

3.3. Performance of Different Decoding Parameters on Packet Loss Data

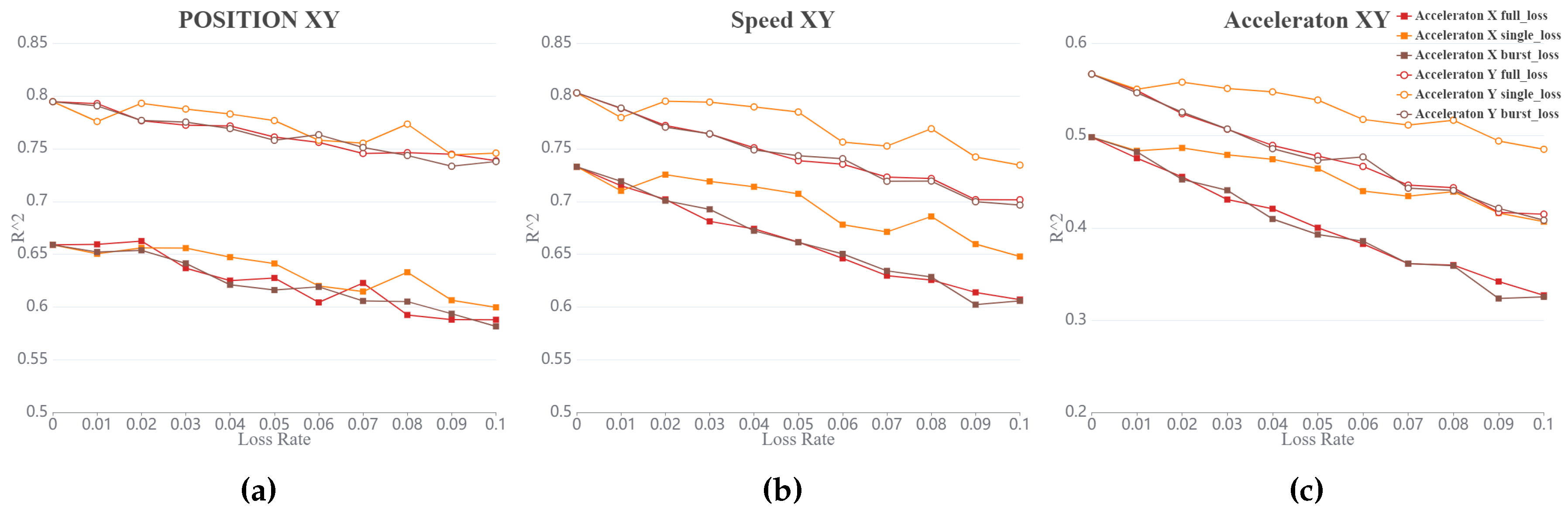

The $R^2$ representing the position parameter XY exhibits a decreasing trend as the packet loss rate increases across different packet loss models. As shown in Figure 8(a). Under the full loss and burst models, the decline in $R^2$ is more gradual with increasing packet loss rate. In contrast, under the single loss model, $R^2$ shows a fluctuating downward trend, with occasional small increases as the packet loss rate rises. This suggests that the $R^2$ for parameter XY is least affected by the packet loss rate under the single loss model and most affected under the burst model. Furthermore, the $R^2$ values for parameters X and Y are similarly influenced by the various packet loss models, with the main difference observed under the full loss model. In this model, the $R^2$ representing parameter X demonstrates a more complex, fluctuating downward trend, while the $R^2$ representing parameter Y follows a more steady downward trajectory.

The $R^2$ values representing the speed parameter XY show an overall decreasing trend as the packet loss rate increases across different packet loss models. As shown in Figure 8(b). The overall decline is similar in both the full loss and burst loss models, with comparable rates of decrease. In contrast, the single loss model demonstrates a fluctuating but decreasing trend, with a smaller overall reduction compared to other packet loss models. Additionally, the decreasing trends of the speed parameters X and Y are largely consistent across the different models.

The $R^2$ representing the acceleration parameter exhibits a generally gentle decreasing trend as the packet loss rate increases across different packet loss models. As shown in Figure 8(c). The magnitude and trend of the decrease are nearly identical for both the full loss and burst loss models, whereas the single loss model shows a significantly smaller reduction compared to the other two models. The trends for both the acceleration parameter X and acceleration parameter Y are consistent across all packet loss models.

Among the position, speed, and acceleration parameters, the $R^2$ of the position parameter is the least impacted by packet loss, exhibiting the smallest overall decrease. In contrast, the $R^2$ of the acceleration parameter is the most affected by packet loss, with the largest overall reduction.

3.4. Reconstruction Result

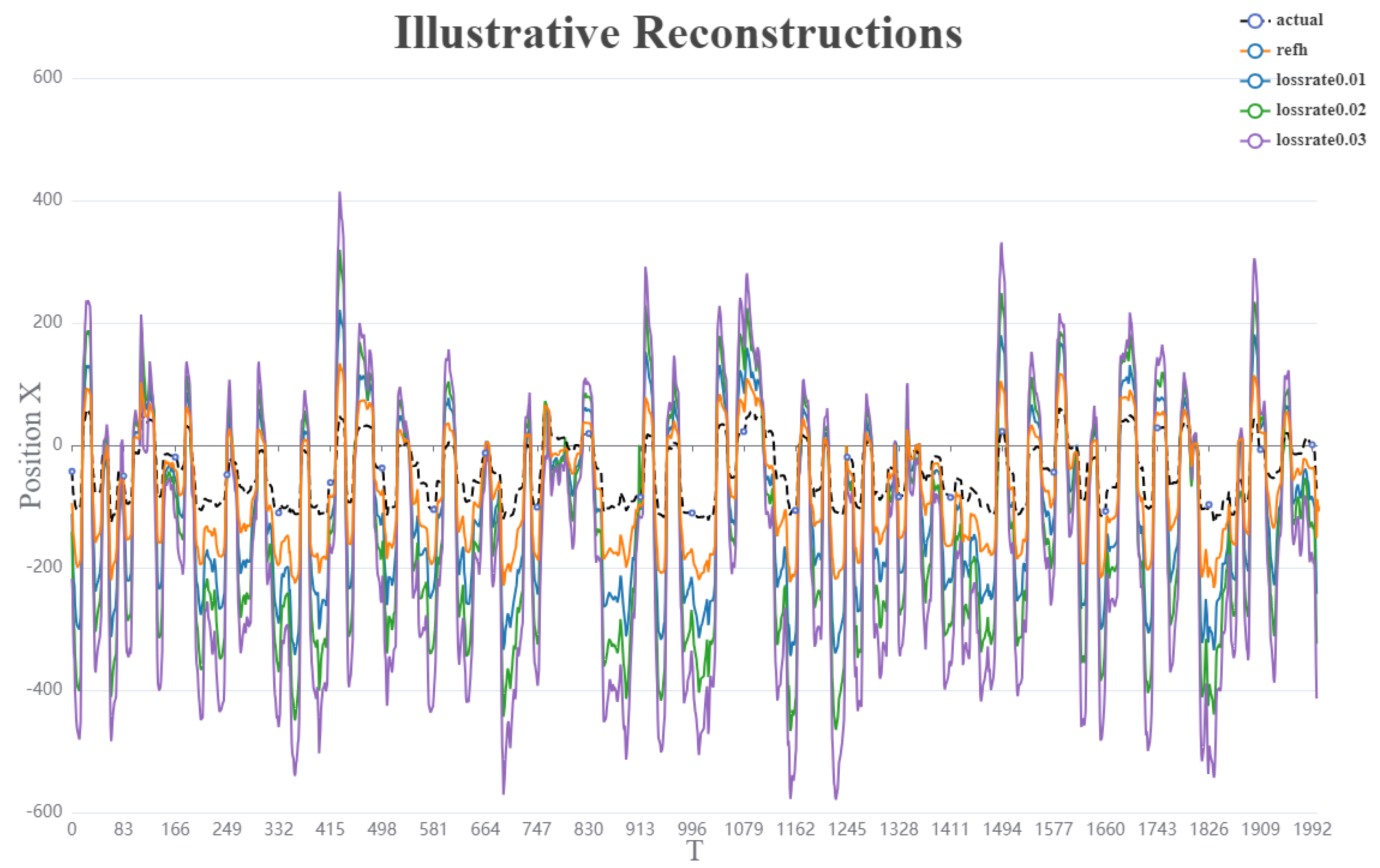

The overall reconstruction results indicate a clear trend: as the packet loss rate increases, the deviation of the position reconstruction in the X direction progressively grows. The reconstruction result that most closely aligns with the actual position is achieved by the rEFH algorithm without incorporating any packet loss model. Conversely, the result with the greatest deviation from the actual position is observed when the burst packet loss model, with a packet loss rate of 0.03, is applied. Despite variations in the degree of deviation across different packet loss rates, the overall trend of the reconstruction results remains consistent.

4. Discussion

In our study, we investigated the effects of various packet loss models on neural decoding outcomes. Specifically, we designed four distinct packet loss models, each based on different packing methods and wireless transmission characteristics. We applied these models to experimental data involving macaque reach kinematics for testing and analysis. Unlike previous studies that tended to discard data entirely when faced with significant packet loss, we took a different approach by analyzing and comparing how different types of packet loss affect decoding performance. This shift in methodology allows us to explore alternative strategies for dealing with lost data, offering insights into how different packet loss models impact the decoding process. Our findings highlight the importance of understanding the specific characteristics of packet loss, as different types of loss can have varying effects on the accuracy of the neural decoding process. This analysis provides important guidelines for handling packet loss in future neural signal processing and decoding applications, particularly in wireless systems where packet loss is inevitable.

4.1. Continuous and Burst Packet Loss Have Greater Impact on Decoding

Our analysis shows that the congestion loss model has a minimal impact on the decoding of position, speed, and acceleration in both the x and y directions. Even in scenarios with sufficient bandwidth, where ample spike information is available, the decoding performance remains stable, and ideal results can still be achieved despite packet loss caused by network congestion. Next is the single loss model. For the main experiments of this article, spikes were binned at 128ms intervals. the single loss model resulted in a reduction of spike counts in every bin, though the complete loss of an entire bin was exceedingly rare. This ensures that the continuity of the neural signals along the timeline is largely preserved. In contrast, the full loss model, which results in the loss of complete data bins, disrupts data continuity. Even when the total number of lost bits is similar, the loss of entire data packets leads to poorer decoding performance compared to the single loss model. A key insight from these results is the importance of designing data packaging strategies that minimize the size of the data units being transmitted. By reducing the packet size, we can avoid the complete loss of packets, thus preserving the continuity of neural signals and improving decoding performance. However, this approach comes with trade-offs. Smaller packets require additional metadata (such as headers, tails, and checksum) for transmission, which reduces overall efficiency and increases bandwidth usage. Therefore, it is crucial to strike a balance between packaging size and transmission efficiency.

The GE loss model more closely approximates real-world conditions, and it demonstrates how disruptions in data continuity significantly impact decoding performance. In the GE model, transitions between Good and Bad states affect the integrity of the transmitted data. To mitigate the impact of packet loss, it is essential to decrease the transition probability from the Good state to the Bad state, while simultaneously increasing the probability of returning from a Bad state to a Good state. The primary strategy is to enhance transmission quality to reduce the likelihood of entering a Bad state. However, if a transition to the Bad state occurs, minimizing packet loss and rapidly returning to the Good state is critical. This can be achieved through various techniques, including:Automatic Retransmission Requests (ARQ) [28]: Requests to resend lost packets. Forward Error Correction (FEC) [29]: Adding redundancy to the data stream to enable recovery of lost packets without retransmission. Transmission Rate Adjustment: Dynamically adjusting the transmission rate to adapt to network conditions and reduce packet loss. By applying these strategies, we can reduce the detrimental effects of packet loss and maintain higher neural decoding accuracy, especially in systems where data continuity is crucial.

4.2. Decoding with Higher Data Continuity Requirements Is More Affected by Packet Loss

In this decoding experiment, spike counts are a linear function of these variables as well as the six kinematic states themselves [25]. Due to the sparsity of the processed spike count matrix and the relatively slow changes in position compared to speed and acceleration, small amounts of packet loss have a minimal impact on position decoding.

However, since speed and acceleration are derivatives of position and depend on the dynamic discharge patterns in neural signals over short time intervals, packet loss or signal discontinuities can directly affect the accuracy of these estimates. This is because the derivatives amplify any fluctuations or inconsistencies in the underlying signal. Additionally, the recursive nature of the decoding algorithm can exacerbate errors in speed and acceleration estimation, leading to the accumulation of prediction errors. These accumulated errors further degrade decoding performance, especially for speed and acceleration, which are highly sensitive to small temporal changes. As a result, neural decoding algorithms that demand high data continuity and integrity are particularly sensitive to packet loss. In contrast, algorithms based on sparse matrices or averaged spike rate data may exhibit slightly better tolerance to packet loss due to the smoother or less dynamic nature of the data being processed.

4.3. The Relationship between Packet Loss Rate and Decoding Result

The accuracy requirements for decoding results vary depending on the evaluation criteria and the specific application scenarios. For example, in the rat compression bar experiment [30], the goal is to determine whether the bar has been pressed, a binary classification task. In such cases, high decoding accuracy may not be essential, and the system can tolerate a certain amount of packet loss without significantly affecting performance.

In contrast, for trajectory prediction tasks, such as the experiment presented in this study, the ideal scenario is for the decoded motion trajectory to perfectly match the actual trajectory—an outcome where the $R^2$ is 1. However, no existing decoding algorithm can achieve such a high performance metric. Thus, in regression tasks like this, it is crucial to minimize packet loss to maximize decoding accuracy.

In this study, we found that a packet loss of less than 2% can ensure that the difference in $R^2$ values between the predicted trajectory and the true trajectory is within 0.05. Additionally, the impact of packet loss on position decoding was found to be slightly smaller compared to speed and acceleration.

This study has several limitations:

Firstly, given the high precision required in kinematic decoding, the analysis was limited to one specific kinematic experimental paradigm. However, the packet loss model developed here can also be applied to other forms of neural decoding, broadening its potential use in future studies.

Secondly, the evaluation metrics for assessing the impact of packet loss on decoding results lack universality. Currently, the impact is gauged through performance indicators such as decoding accuracy or trajectory similarity, which vary across different decoding algorithms. This variation complicates the subsequent processing of packet loss data, as each algorithm requires tailored evaluation criteria. Developing more universal metrics or models could streamline the process of data filtering and handling in future research.

5. Conclusions

This study examines the impact of packet loss on neural signal decoding by constructing four distinct packet loss models. Our results show that, under the same packet loss probability, continuous burst packet loss has a more significant negative effect on decoding performance, suggesting the necessity of prevention strategies like packet retransmission. On the other hand, occasional packet loss has a comparatively minor effect on decoding results within certain limits. The insights and models presented here offer valuable references for addressing packet loss in future neural signal acquisition processes, particularly in wireless transmission environments where packet loss is more prevalent.
