Comparative Study of Random Forest and SVM for Land Cover Classification and Post-Wildfire Change Detection

1. Introduction

Post-wildfire land cover change affects the ecosystem dynamics, biodiversity system, and ecological processes [1,2]. According to the European Commission, land cover indicates “the visible surface of land on Earth (e.g. crops, grass, water, broad-leaved, forest or built-up area)” [3]. Thus, land cover plays a key role in environmental conditions in multiple ways [4]. Several studies have proved that fire events change soil characteristics, which increase runoff and erosion risk [5,6,7], plant diversity [8,9,10], habitat and species composition [11,12,13], water quality [14,15,16], climate [17,18,19], and carbon storage [20,21]. Detecting the land cover change during a wildfire is critical, as it enables authorities to develop prompt disaster management strategies to prevent fatalities caused by landslides and flash floods following a wildfire [22]. Furthermore, periodic assessments scrutinizing burned area recovery and vegetation dynamics after a wildfire provide valuable information for land management and biodiversity recovery monitoring.

According to Copernicus, Portugal is one of the countries most vulnerable to wildfire in the European Union [23]. More than 200 forest fires happened annually in Portugal from 2013 to 2022. Portugal experienced the worst drought in 2017 since 1931, which caused 408 wildfires and involved 563,532 ha of burned area [24,25]. The Serra da Estrela Natural Park (PNSE), the largest protected area in Portugal, experienced the most significant fire since 1975 [26], which involved a burned area of 21,942 ha in 2022 [27]. This study focused on the major burned area in a wildfire that started on 6 August 2022 and ended on 2 September 2022 in PNSE [27]. The fire spread beyond the PNSE to Estrela Geopark. As a recognized Biogenetic Reserve and Geopark [28], the impacts of the large burned area post-wildfire 2022 in the PNSE are concerning. Close monitoring of post-wildfire burned area recovery and vegetation dynamics to observe the ecosystem dynamics and plan for disaster management is imperative.

The open data on land use and land cover (LULC) in Portugal is publicly available in vector format at a scale of 1:25,000 for Land Use and Occupation Map (COS), and in raster format with 10 m pixels for Conjunctural Land Occupation Map (COSc) from the National Geographic Information System (SNIG) [29]. LULC maps are widely used by various stakeholders for research, analysis, planning, and monitoring purposes [31,32,33]. However, continuous assessment and regular scrutiny of the land cover change are not achievable even with the annual update of the COSc [29].

Researchers have been exploring the integration of machine learning (ML) algorithms and remote sensing (RS) data since the late 1990s [34]. It has proven effective in image classification, object detection, and semantic segmentation since the 2010s [35,36,37]. More recently, the integration of ML algorithms and RS data has been widely applied to convert satellite imagery into valuable spatial data for environmental monitoring [11,12,13,17,18,20,21], urban planning [19,38], disaster management [5,6,7], and more. Previous studies proved that integrating ML and RS techniques is more efficient in land cover classification and achieves higher accuracy [39,40] than conventional methods [34].

ML is a subset of artificial intelligence (AI) that imitates intelligent human behavior and learns by trial and error from the database to perform predictions [41,42]. Many studies have found Support Vector Machines (SVM) and Random Forest (RF) the most efficient algorithms to be integrated with RS data for land cover classification, compared to other ML algorithms such as Artificial Neural Networks (ANN), K-Nearest Neighbours (K-NN), single decision trees (DTs), and boosted DTs [32,34,39,40,43]. RF adopts an ensemble learning method formed by bagging, boosting, and stacking processes [44]. The advantages of RF are that it is robust to outliers, accurate, and less overfitting [45]. However, the right hyperparameters are decisive in generating high accuracy [46]. Also, RF cannot forecast values other than the feature range of the training data [47]. SVM uses kernel functions to maximize the margin between classes through a support vector and find the best hyperplane (optimal line) to define the best decision boundary for accurate predictions [48]. SVM is effective for clear class separation, able to handle linear/nonlinear tasks, good for diverse land covers, and memory efficient [49]. However, SVM can be computationally expensive and not suitable for large datasets [50].

Object-Based Image Analysis (OBIA) and Pixel-Based Image Analysis (PBIA) are two common approaches for LULC [38]. OBIA groups the neighbouring pixels with similar spectral properties and contextual information into meaningful objects. OBIA is useful for object identification in addition to pixel labeling. The quality of the object segmentation determines the final classification. Edge-based algorithms, region-based, and superpixel algorithms are common for OBIA segmentation [51,52]. PBIA is a traditional RS image classification commonly used in supervised and unsupervised techniques. PBIA classifies individual pixels based on their spectral properties without considering the adjacent pixels. Minimum Distance, Maximum Likelihood, and Spectral Angle Mapping are common algorithms available in many Geographic Information Systems (GIS) software for PBIA approaches [52,53,54].

The LULC maps provided by the SNIG in Portugal are not ideal for continuous assessment and regular scrutiny. This study aims to identify the most appropriate LULC approach and classifier for land cover classification to resolve the challenges faced for continuous assessment in the study area while serving as a reference for other forest regions with similar characteristics.

This study was conducted with specific objectives: i) to identify the best model for land cover classification for the study area employing the integration of LULC classification with classifier on Google Earth Engine (GEE); ii) to compare the effectiveness of the two LULC classification methods: OBIA and PBIA; iii) to compare the accuracy of RF and SVM algorithms for land cover classification using GEE; iv) to assess the accuracy of the land cover classification generated by different models with different evaluation metrics (confusion matrix, overall accuracy (OA), kappa coefficient, and F1 score), burned territories from the Institute for Nature Conservation and Forests (ICNF), Normalized Difference Vegetation Index (NDVI) map, computed from the Sentinel-2A imagery, and COSc 2023 from SNIG; v) to detect the vegetation dynamic and burned area by computing NDVI and Normalized Burn Ratio (NBR) using Sentinel-2A; and vi) to detect the land cover change be-tween pre-wildfire 2022, post-wildfire 2022, and summer 2023, and vii) observe the burned area recovery with the highest accuracy land cover maps.

If an adequate model can be determined for the land cover classification in the study area, it will enable authorities to develop prompt disaster management strategies to prevent fatalities caused by landslides and flash floods following a wildfire and regular scrutiny on burned area recovery and vegetation dynamics. This provides valuable information for risk management, land management, and biodiversity recovery monitoring.

2. Materials and Methods

2.1. Study Area

The PNSE is a protected natural park with the highest mountain range in the central East of Portugal mainland and is also the largest protected area in the nation. The PNSE spans 89,132.21 ha across 9 municipalities of Belmonte, Celorico da Beira, Covilhã, Fornos de Algodres, Gouveia, Guarda, Manteigas, Oliveira do Hospital, and Seia [55]. The largest point of the Central Cordillera is the Tower, with the highest point at 1,991 m of altitude [28], where over half of the natural park is above 700 m (Figure 1).

The PNSE’s biodiversity thrives across 3 climate types – Mediterranean, Atlantic, and Continental - distributed over 3 altitudinal floors: basal, intermediate, and higher [28]. Its unique topography and climate foster exclusive species, subspecies, and varieties of flora and fauna. The PNSE mountain areas hide endemic species of flora and fauna, some of which only exist in this territory but nowhere else in the world, owing to its altitude and geographic isolation [28,55].

The importance of PNSE was officially recognized as a Natural Park in July 1976, a Biogenetic Reserve in 1993, and a Natura 2000 Network in March 2008 [56,57]. In addition, the United Nations Educational, Scientific and Cultural Organization (UNESCO) recognizes the PNSE as a geopark, Estrela Geopark, for its remnants of the last glaciation, which occurred 30,000 years ago, and rocks aged up to 600 million years, which present high geodiversity [28]. Estrela Geopark, which occupied an area of 2,216 km² surrounding the PNSE (Figure 1), boasts a diverse landscape that is evidence of multiple geological transformations, climatic contrasts, and ancient human settlement, with the first records dating back to the beginning of the 4^th millennium B.C. This made PNSE a territory of solid contrasts, where its tangible and intangible landscape reflects a prolonged adaptation process and successive transformations. The rugged terrain makes it inhospitable for human occupation, which shapes the natural park biodiversity and is safe for the diversity of fauna and flora species [58]. Overall, the PNSE plays a crucial role in biodiversity and nature conservation on an international scale.

This study analyzed the land cover changes of the significant burned area affected by the 2022 wildfire, which occurred from 6 August 2022 to 2 September 2022 in the PNSE [27]. The study area covers a burned area beyond the PNSE to the Estrela Geopark (highlighted in red in Figure 1), which occupied 24,238.62 ha.

2.2. Data Sources

Sentinel 2A imagery was used to measure the Difference Normalized Burn Ratio (dNBR) to identify the major burned area in the PNSE post-wildfire 2022. Sentinel-2A imagery was acquired from ‘COPERNICUS/S2_SR_HARMONIZED’1 Image Collection using ee.ImageCollection function on GEE [59]. Level-2A imageries are orthorectified atmospherically corrected surface reflectance where the effects of the atmosphere on the light being reflected from the surface of the Earth and reaching the sensor are excluded [60]. Three imageries were selected by filtering the region of interest (ROI), relevant date range, and cloud coverage below 10% using ee.ImageCollection.filterBounds(), ee.ImageCollection.filterDate(), and ee.Filter.metadata() on GEE (Table 1). A buffer area around the major burned area (Figure 1) was drawn as the ROI to include the neighboring spatial features, enhancing accuracy for the OBIA approach. Images before and after the 2022 wildfire and an image in the summer of 2023 were acquired for comparison consistency to observe the vegetation recovery in the same season (Table 1). All 12-unit bands in Sentinel-2A imagery were selected, while B1 and B9 were excluded as they are relevant for atmospheric study instead of land surface study, and there is no B10 in Level-2A imagery.

Spectral indices were performed with ee.Image.normalizedDifference() on GEE for both NBR and NDVI. NBR was computed to detect the burned area before and after the 2022 wildfire (Equation 1). The dNBR was applied to observe the fire severity of the 2022 wildfire (Equation 2). The polygon of the major burned area derived from dNBR before and after the 2022 wildfire was exported to be used as the scope of the study area for further analysis. The fire severity of the major burned area in the ROI was classified according to the dNBR values range proposed by Mediterranean local conditions (MLC) [61] and the United States Geological Survey (USGS) [62].

NBR = (NIR - SWIR) / (NIR + SWIR)

(1)

dNBR = NBRprefire - NBRpostfire

(2)

Where, NIR and SWIR correspond to the near-infrared band surface reflectance and short-wave infrared band surface reflectance, respectively.

NDVI is one of the most used vegetation indices to quantify green vegetation and monitor vegetation health in agriculture, forestry, and ecology (Equation 3) [63]. This study used NDVI to observe the vegetation dynamics between pre-wildfire 2022, post-wildfire 2022, and summer 2023. The results provide valuable information for vegetation loss after the 2022 wildfire and vegetation recovery in the summer of 2023. Subsequently, the NDVI was classified according to the NDVI values range proposed by USGS [64].

NDVI = (NIR - Red) / (NIR + Red),

(3)

Where, NIR and Red correspond to the near-infrared band surface reflectance and red band surface reflectance, respectively.

The Land Use and Occupation Map (COS) was published between 3 and 5 years from 1995 to 2018 in Portugal by Direção Geral do Território (DGT). The COSc has been published annually since 2018 as complementary information to COS. Both COS and COSc are products of the Land Occupation Monitoring System (SMOS), an innovative initiative designed and developed by the General Directorate of Territory (DGT) [29,30]. The COS serves as the primary reference cartography for planning, while the COSc demonstrates the land occupation that is not the land use in a specific year. COS is prepared in vector format at a scale of 1:25,000 with 44 classes of LULC, with an exception where COS2018 v2.0 has 83 classes of LULC [30]. On the other hand, COSc is available in raster format with 10 m pixels with 6, 9, and 13 classes at levels 1, 2, and 3, respectively, whereas subsequent maps have 15 classes at level 3 with improvement in the agriculture class [29]. COSc 2023 was classified based on a spectral database of monthly mean in addition to spectral indices and intra-annual metrics from October 2022 to September 2023. The training database is processed with auxiliary information and photo interpretation and further classified with space technologies and artificial intelligence. COSc was used as the reference map for the land cover classification in this study to ensure consistency in validating the summer 2023 maps with COSc 2023.

The study area covers 15 classes at level 3 and 6 classes at level 1, referring to COSc. Referring to COSc 2021 and 2022, shrub and spontaneous herbaceous vegetation were prominent land covers in the study area. It was difficult to distinguish them at level 3 due to their remarkably similar spectral reflectance. Furthermore, it is challenging to classify the land cover classes as detailed as at level 3 solely based on red, green, and blue (RGB) composition and NDVI results. In addition, Ma et al. studied the fact that large classes will reduce the accuracy of classifications [65]. Hence, features with high correlation were merged based on their COSc classes at level 1 for further analysis (Table 2).

2.3. Methodology

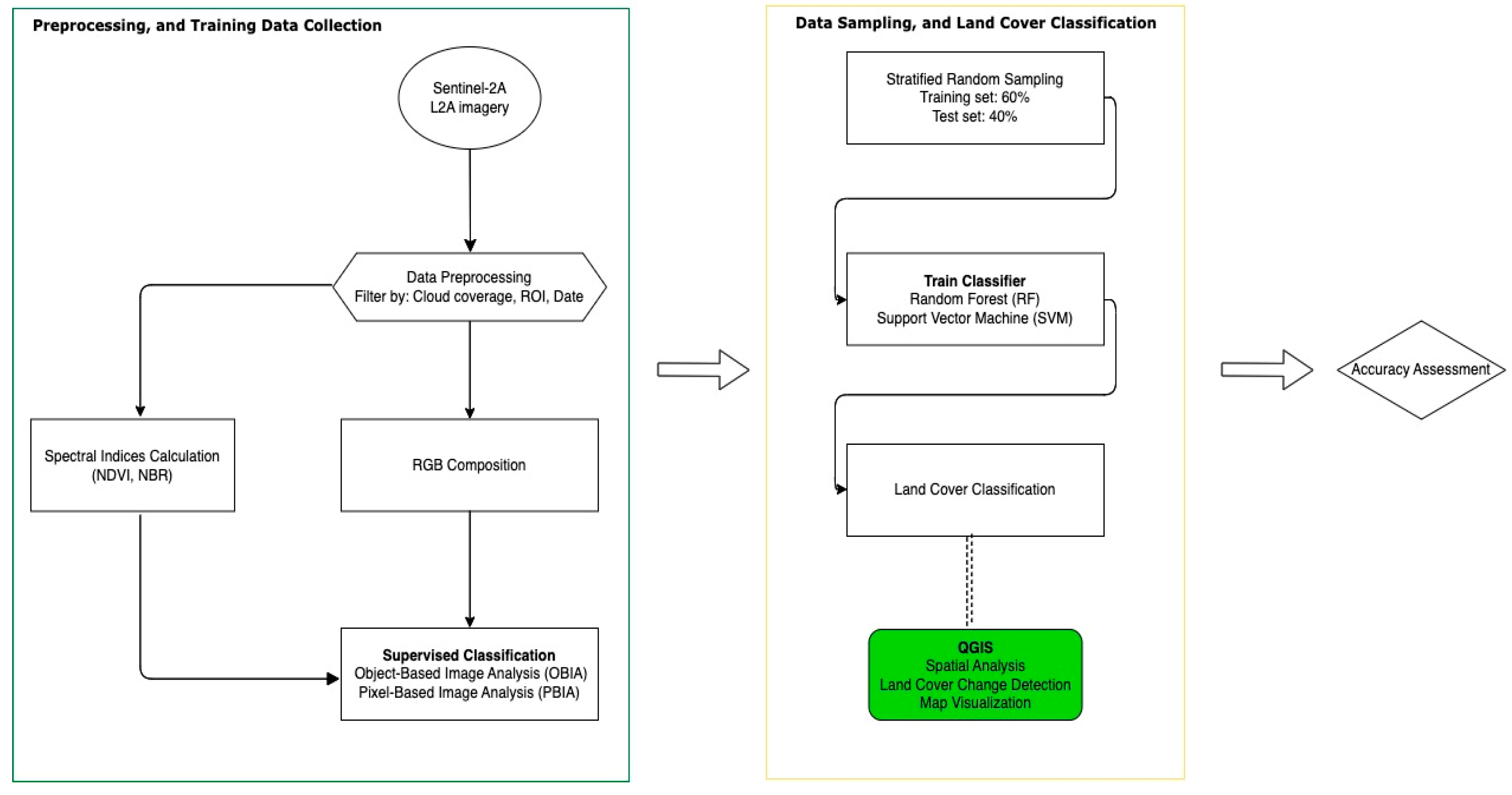

This section outlines the step-by-step approach (Figure 2) applied to compare RF and SVM algorithms, with the processing primarily conducted on the GEE platform for land cover classification and burned area recovery detection in the study area. The approach begins with data acquisition and pre-processing, followed by feature extraction using RGB composition and NDVI results. The feature collections were then processed with PBIA and OBIA for land cover classification. Subsequently, the samples were further split to train/test set to train the classifiers for land cover classification in the ROI. The accuracy of the final land cover classification was assessed with evaluation metrics and validation techniques. The land cover maps with the highest accuracy were exported to QGIS software for further spatial analysis, burned area recovery detection, and map visualization.

2.3.1. Dataset Creation

PBIA and OBIA are widely used for land cover classification in RS applications [51,52,53,54,66]. This study used RGB composition and NDVI results to collect the features manually. The features were drawn in polygon because point-based samples tend to be more unstable [65]. Subsequently, the features were grouped into 6 feature collections, as categorized in Table 2 (section 2.2.). As sample size does not guarantee dataset accuracy [65], 100 features were collected for all land cover classes except for the water class, which occupied an insignificant area within the ROI. The 6 feature collections were combined into a single feature collection using ee.FeatureCollection() function to unify all samples of all the land cover classes for data training and validation purposes. Images were sampled at 20 m resolution for both PBIA and OBIA approaches using ee.Image.sampleRegions(). The scale parameter was set at 20 m resolution after some experiments. A lower scale was computationally expensive and tended to be overfitting the samples.

PBIA classification was performed with different classifiers for land cover classification in urban [53] and forest areas [52]. These models produced land cover classification with satisfactory accuracy, which justified the inclusion of the PBIA approach in developing the best model to classify the land cover in the study area.

The Simple Non-Iterative Clustering (SNIC) algorithm on GEE was used for OBIA segmentation. SNIC is a bottom-up, seed-based segmentation algorithm that groups neighboring pixels based on spatial data and proximity similarity into clusters. The seeds are the initial points where the clusters grow and are spaced evenly across the image based on the parameter set [67]. There were large homogeneous areas, such as forest and bare land, and fine details, such as artificial areas, shrublands, and water, so a balance between the grid spacing is crucial. After some experiments, the parameter of 20 pixels was set for the spacing between seeds to be able to capture the feature details while not over-segmenting the image. The grid's shape was hexagonal to minimize the distances and increase the uniform distribution between neighboring seeds. The compactness was set to 0 to enable accurate segmentation based on the intrinsic characteristics (spectral and textural features) instead of the spatial proximity due to the diversified classes and irregular shape of land cover in the study area [59].

2.3.2. Classification

The samples generated were split into training and test datasets in a 60:40 ratio using ee.ImageCollection.randomColumn(). This provided datasets to train RF and SVM algorithms for land cover classification through stratified random sampling. After testing datasets with different decision tree sizes, the parameter was set to 30 for the RF classifier to optimize the land cover classification using ee.Classifier.smileRandomForest(). For the SVM classifier, the default setting of ee.Classifier.libsvm() on GEE was employed. The default Radial Basis Function (RBF) kernel was effective for various classification tasks, including land cover classification [37,68,69]. Also, Yousefi et al. studied that variation in the gamma values did not affect the land cover classification accuracy [36]. Subsequently, the trained classifiers were applied to classify the land cover of the 3 images. Hence, 4 models were applied to each imagery, which produced 12 land cover maps in total: (a) RF x OBIA, (b) RF x PBIA, (c) SVM x OBIA, and (d) SVM x PBIA. All the land cover maps were reprojected to EPSG:3763.

2.4. Accuracy Assessment

The land cover maps produced by different models and the integration of LULC classifications (PBIA or OBIA) and classifiers (RF or SVM) were assessed and compared to identify the best model for land cover classification. Evaluation metrics include (a) confusion matrix, (b) F1 score, (c) OA, and (d) kappa coefficient, which were conveniently performed using ee.ConfusionMatrix function. Due to a lack of ground truth data, the resulting land cover maps were compared with NDVI maps for the pre-wildfire 2022 results, burned area 2022 from ICNF and dNBR maps for the post-wildfire 2022 results, and COSc 2023 from SNIG for summer 2023 results.

A confusion matrix is a table that summarizes the performance of a classification algorithm [70]. Confusion matrix was performed using ee.ConfusionMatrix() function. True positive (TP) is the assignment where the model correctly predicts the land cover classes. In contrast, true negative (TN) is the assignment where the model is wrongly assigned the land cover classes. On the other hand, commission error (false positive/FP) is a sample wrongly assigned to other land cover classes that it does not belong to, while omission error (false negative/FN) is a sample left out in the land cover class that it is supposed to be assigned. The values generated in the confusion matrix were further evaluated for precision and recall values, performed with consumersAccuracy() and producersAccuracy() on GEE, respectively.

While precision and recall values of different land cover classes might be inconsistent in accuracy ranking, the F1 score was measured to obtain an insight into the accuracy of each model in classifying the land cover classes. F1 score balances precision and recall by minimizing FP and FN [71]. F1 score has a value from 0 to 1, where 1 indicates perfect precision and recall while 0 means otherwise.

OA provides an overview of the overall accuracy of TP and TN to the total assignments [72]. OA has a value range between 0 and 1, where 1 represents the highest accuracy while 0 shows no accuracy.

Kappa coefficient indicates the inter-rater reliability between the land cover classification [68]. The degree of agreement ranges between –1 and 1, where 1 represents perfect agreement, 0 represents no agreement, and –1 represents an agreement worse than random.

2.5. Comparison of Classified Maps with Official Maps

The burned territories - burned area 2022 (BA22), prepared by the ICNF, were retrieved for land cover classification validation purposes. The extent of the major burned area, derived from the dNBR before and after the 2022 wildfire, was compared with BA22 to validate the burned area extent after the wildfire event. As BA22 lacks robustness in assessing land cover maps, the dNBR map was used to analyze the rationality of post-wildfire land cover change relative to fire severity.

NDVI map generated for the pre-wildfire event was compared with the land cover maps classified by different models for the same event to assess if the land size of the land cover reflected the vegetation conditions of the study area and examine the spatial data's consistency.

COSc 2023 was obtained from SNIG to compare with land cover maps of summer 2023. The land cover classes in COSc 2023 were visualized at COSc level 1, as illustrated in Table 1, to make the maps comparable.

The land cover maps generated by the models were exported to QGIS software for further analysis. The land cover maps were first clipped with the major burned area extent. Descriptive statistics of NDVI and NBR, land area size according to spectral indices and land cover classes of the study area were computed. Land cover maps of the study area's pre-wildfire 2022, post-wildfire 2022, and summer 2023 were intersected to detect the land cover change.

3. Results and Discussion

3.1. Spectral Indices

The study area primarily experienced moderate and high degree of fire severity in the 2022 wildfire, according to the dNBR classification proposed by both MLC and USGS (Figure 3). 49.23% and 12.05% of the study area experienced moderate and low degree of fire severity according to USGS’s classification. In comparison, 43.03% and 16.89% of the study area experienced moderate and low degree of fire severity according to MLC’s classification (Table 3). The differences in area were due to the significant difference in the classification values range proposed by MLC and USGS in low and moderate degrees of fire severity. In both classifications, unburned areas and areas affected by high fire severity occupied around 2% and 37%, respectively (Table 3).

Figure 4 presents the NDVI maps of the study area computed from Sentinel-2A data and classified according to USGS.

As shown in Figure 4a, the study area was predominantly occupied by dense vegetation before the wildfire event. About 98% of the study area experienced low to high fire severity during the 2022 wildfire (Table 4). The study area was occupied with sparse vegetation and had little dense vegetation after the wildfire. On the NDVI map of summer 2023 (Figure 4c), vegetation recovery was observed, especially in the top north. The land area of dense vegetation validated the vegetation dynamic of the study area along the events where dense vegetation occupied 65.12% of the study before the wildfire, reduced to 7.04% after the wildfire, and recovered to 23.84% in summer 2023 (Table 4). Meanwhile, the sparse vegetation increased from 34.85% to 91.98% after the 2022 wildfire and reduced to 75.11% in the summer of 2023 (Table 4). The area with no vegetation within the study area remained around 1% and less in any events (Table 4).

3.2. Evaluation Metrics for Random Forest and SVM

The confusion matrix tables show that the RF x OBIA model achieved the highest accuracy in land cover classification for the study area in all events (Table S1 to S3). This model distinguishes different land cover classes in all events except for Shrub. The Shrub was always misclassified with Agriculture interchangeably, particularly with models using the PBIA approach. The misclassification in the post-wildfire result generated by the SVM x PBIA model was weighty, where 223 samples (69.91%) were misclassified as Agriculture (Table 5). This has far exceeded the 83 samples that were classified correctly for Shrub. Consequently, the classification of Shrub and Agriculture achieved a precision value of 0.2602 and a recall value of 0.6459 in this event. However, the precision and recall value for the Shrub classified by the RF x OBIA model was satisfactory. Furthermore, misclassification between Agriculture and Forest was generally noticeable in the PBIA approach. However, land cover classification of pre-wildfire generated by the SVM x OBIA model demonstrated 770 samples misclassified as Forest instead of Agriculture, resulting in a low precision value of 0.6266 and recall value of 0.4787 for Forest and Agriculture, respectively.

The F1 score was also used to evaluate the balances of precision and recall value of the land cover classification generated by each model. Water achieved an F1 score of 1, indicating perfect precision and recall value in all models (Figure 5). This was expected as the spectral reflectance of Water is significantly different from other land covers. Regardless of the models, Bareland and Forest were classified precisely, especially in the RF x OBIA model (Table S4 to S6), where the F1 score was close to the value 1 in all events. Classification of Shrub achieved the lowest F1 score with the SVM x PBIA model in all events. While none of the F1 scores were higher than 0.634 with the SVM x PBIA model, the classification for Shrub, after the 2022 wildfire, achieved the lowest values of 0.3374, 0.2602, and 0.4798 for F1 score, precision, and recall, respectively (Table S7 to S9). Furthermore, Agriculture obtained the lowest F1 score with the SVM classifier in pre-wildfire events (Table S7), as low as 0.6015 and 0.6151 for the OBIA and PBIA approaches, respectively. It is challenging to classify vegetation as they have very similar spectral reflectance [47]. Figure 5 presents the F1 score of the land cover according to their ranking in each model. Interestingly, OBIA and PBIA consistently performed with both RF and SVM classifiers in F1 score ranking for classification in post-wildfire 2022 and summer 2023. Hence, choosing the right classifier is vital to increase land cover classification accuracy. Overall, RF has a relatively stable performance compared to SVM, as land cover classification accuracy using SVM fluctuated significantly among different scenarios. This was observed from the samples classified for Artificial, where high accuracy was achieved in the pre-wildfire event, while lower accuracy was attained in other events (Figure 5).

Table 6 presents the OA and kappa coefficient of each model. The OA and kappa coefficient values aligned with the results found in the confusion matrix. RF x OBIA model achieves the highest accuracy where the OA value was 0.99, and the kappa coefficient value was higher than 0.98 in all events. The RF classifier achieved higher OA and kappa coefficient values than the SVM classifier in most events, except for summer 2023. The SVM x OBIA model attained exceptional accuracy with an OA of 0,97 and a kappa coefficient of 0.96 for land cover classification of summer 2023, outperforming the RF x PBIA model. Table 6 shows that the performance of the SVM classifier with both LULC approaches was not stable; one was better than the others in different events.

3.3. Comparison of Land Cover Classification Accuracy

Land cover maps of post-wildfire 2022, classified by different models, are presented in Figure 6. The burned territories (BA22) shapefile retrieved from ICNF was highlighted in red border. The land cover map classified by the RF x OBIA model (Figure 6a) reflected the fire severity better. Furthermore, 20,512.27 ha (Table 7) of Bareland classified by RF x OBIA model is closest to the total area that experienced moderate and high degrees of fire severity, 19,611.21 ha (MLC) and 20,785.27 ha (USGS) as indicated in Table 3. Nevertheless, a smaller Bareland size classified by the SVM x PBIA model was due to larger agricultural land in the study area, which was proven to be more fire resistant. Thus, BA22 and dNBR were inadequate in comparing the accuracy of post-wildfire land cover maps.

Figure 7 presents the land cover maps of pre-wildfire 2022, classified by the different models proposed. They were compared with the NDVI map of pre-wildfire 2022 (Figure 4a). Land cover maps classified by RF x OBIA (Figure 7a) and SVM x PBIA (Figure 7d) were observed to be more consistent with the NDVI map. The study area was no vegetation (0.03%), sparse vegetation (34.85%), and dense vegetation (65.12%) before the 2022 wildfire (Table 4). PBIA maps (Figure 7b and Figure 7d) presented a smaller area for Agriculture, Artificial, and Bareland, and a larger area for Forest and Shrub compared to the OBIA maps (Figure 7a and Figure 7c). The land cover map classified by the RF x OBIA model (Figure 7a and Figure 7c) indicates an unusual Bareland area compared to the NDVI map (Figure 4a) in the Southwestern of the study area. Given the comparison with the NDVI map and the land cover size analysis, the land cover map classified by the SVM x PBIA model reflected the pre-wildfire land cover more precisely. This is logical as the NDVI map was produced by pixel comparison of the NIR and red bands; even the RF x PBIA maps had better visual results than the RF x OBIA maps (Figure 7).

Figure 8 presents the COSc 2023, where the study area was majorly recovered to Shrub with minor Agriculture and Forest regeneration while a smaller area of Bareland remained. Compared to the maps of Figure 9, land cover maps classified by the PBIA approach (Figure 9b and Figure 9d) reflect the burned area recovery and regeneration of forest more precisely. This was further confirmed by the land cover analysis presented in Table 8, in which the land size of Bareland and Forest classified by the PBIA approach was closer to the COSc 2023 classification than the land cover maps classified by the OBIA approach. Table 8 details that all models classified a much larger area of Agriculture and Artificial land and a much smaller Shrub compared to COSc 2023. Pertaining to the comparison of COSs 2023 with land cover maps of summer 2023, the SVM x PBIA map (Figure 9d) closely resembled COSc 2023 (Figure 8), except the major Shrub area in COSc 2023 was classified as Agriculture on the map. There are a few limitations to this accuracy validation. First, both maps are incomparable as the land cover map generated in this research was based on a specific date, while the land cover classification in COSc 2023 was based on the monthly mean of a year. Moreover, there is no ground truth data to validate whether the Agriculture on the SVM x PBIA map was correctly presented and whether the Shrub on COSc 2023 indicated the vegetation dynamic after the agricultural harvest. Furthermore, whether it was the failure of the SVM x PBIA model in distinguishing Shrub and Agriculture that caused the difference in the land cover was also untestable. Overall, the NDVI map, dNBR map, and COSc 2023 were not the most adequate to serve as a solid comparison to examine the accuracy of the land cover maps.

3.4. Post-Widlfire Land Cover Change Detection

Following the results in sections 3.2 and 3.3, where the RF x OBIA model indicated the highest accuracy in all events among the models while the SVM x PBIA model reflected better visual accuracy against the NDVI map and COSc 2023, land cover change detection was observed for both models. All the land cover classes had major changes to Bareland, which was ecologically reasonable after 98% (Table 3) of the study area was burned in the wildfire event. According to the land cover change detected by the RF x OBIA model (Table 9), 75.98% of the land cover changed to Bareland post-wildfire, where the paramount area was originally Forest that formed 65.38% of the study area. Consequently, 84.63% of the study area was covered by Bareland after the 2022 wildfire (Table 9). A significant study area size remained Bareland (41.11%) in summer 2023 (Table 9). While most of the land cover remained, there was remarkable regeneration of Agriculture, Forest, and Shrub, particularly in the north and east of the study area (Table 9). As for land cover change detected by the SVM x PBIA model (Table 10), 67.94% of the land cover changed to Bareland after the 2022 wildfire, making up 71.56% of Bareland in the study area, of which forest was originally 46.92% of the study area. Furthermore, greater burned area recovery was noticed from the land cover change of summer 2023 in the SVM x PBIA model. It demonstrates a major Agriculture regeneration and a minor Forest and Shrub regeneration. There was major Agriculture regeneration from each land cover class, particularly 38.59% of the study area was recovered from Bareland to Agriculture, except for Forest (Table 10).

3.5. Land Cover Maps

3.5.1. Land Cover Maps – RF x OBIA Model

Figure 10 presents the land cover maps classified by the RF x OBIA model for the three events. The land cover change is visually noticeable throughout the events. As shown in Figure 10a and Table 11, the study area was predominantly covered by forest (73.64%) with a considerable size of Bareland (9.31%) in the southwest area, while Agriculture (10.12%) and Shrub (6.22%) spread across the study area before the wildfire. As a consequence of the 2022 wildfire, the study area attained 84.63% of Bareland, resulting in minor vegetation of Agriculture (6.83%), Forest (4.76%), and Shrub (2.99%) as presented in Figure 10b and Table 11. Nearly half of the Bareland in the post-wildfire event was recovered in the summer of 2023 (Figure 10c). Regeneration of vegetation was reflected in the land cover change (Table 11): Agriculture (28.34%), Shrub (17.65%), and Forest (9.56%). The recovery was noticeable across the study area in the summer of 2023 (Figure 10c). Moreover, Artificial remained the smallest (not more than 1.44%, Table 11) land cover within the study area. Furthermore, Forest and Shrub were observed to be vulnerable to wildfire, with 93.54% and 51.93% of their land cover burned in the 2022 wildfires, respectively (Table 11). On the other hand, Agriculture was more fire resistant, with 32.5% of its land cover burned in the wildfire event (Table 11).

3.5.2. Land Cover Maps – SVM x PBIA Model

Figure 11 presents the land cover maps classified by the SVM x PBIA model for the three events. The land cover change is visually noticeable throughout the events. Figure 11a indicates that the study area was majorly covered with vegetation: Forest (61.41%), Agriculture (21.83%), and Shrub (12.42%), where Bareland (4.06%) and Artificial (0.26%) occupied less than 5% of the study area (Table 12) before the wildfire. As a consequence of the 2022 wildfire, the study area attained 71.56% of Bareland, which burned 97.37% and 75.65% of Forest and Shrub, respectively (Figure 11b and Table 12). This has again proved the vulnerability of Forest and Shrub against wildfire. On the other hand, Agriculture was more fire resistant, with 97.73% of its land cover preserved in the wildfire event (Table 12). More than half of the Bareland was recovered in the summer of 2023 (Figure 11c); major Agriculture regeneration was noticed where Agriculture occupied 58.55% of the study area while Forest (3.1%) had a smaller occupation than Shrub (3.62%) in the summer of 2023 (Table 12). Furthermore, the Artificial area remained the smallest (not more than 2.5%, Table 12) land cover within the study area.

The RF x OBIA model (Figure 10a) indicated larger Forest and Bareland areas in pre-wildfire events. In contrast, the SVM x PBIA model (Figure 11a) indicated larger Agriculture and Shrub areas compared to each other. In addition, the RF x OBIA model (Figure 10b) demonstrated a larger Bareland. In comparison, the SVM x PBIA model (Figure 11b) showed slightly smaller Bareland with higher preservation of Agriculture land in the post-wildfire events. Both models confirmed the vulnerability of Forest and Shrub against wildfire and proven the fire resistance of Agriculture. Furthermore, the SVM x PBIA model (Figure 11c) detailed a larger burned area recovery with major Agriculture regeneration, while the RF x OBIA model (Figure 10c) demonstrated a smaller burned area recovery with the regeneration of Agriculture, Shrub, and Forest in summer 2023.

4. Conclusions

This research aimed to identify the best model for land cover classification of the study area using GEE. A land cover map provides important information for emergency planning and disaster management during a wildfire, as well as burned areas and vegetation monitoring after a wildfire. Sentinel-2A imagery was processed with two LULC classification approaches, OBIA and PBIA. The feature collections were subsequently trained with RF and SVM classifiers on GEE. The land cover maps were compared with the NDVI, BA22, dNBR, and COSc 2023 maps. The evaluation metric results were very consistent; the RF x OBIA model was the most accurate for land cover classification in the study area. Compared with the NDVI map and COSc 2023, the SVM x PBIA map resembled the maps better. However, the validation of land cover maps against COSc 2023 was not ideal as the land cover map generated in this research was based on a specific date, while the land cover classification in COSc 2023 was based on the monthly mean of a year. In addition, there is no access to field data, which is available for validation. Considering these limitations, the best model for land cover classification of the study area was not conclusively determined. Nonetheless, this research provided some important insights: i) The land cover classification with the highest values of evaluation metrics might not reflect the same level of accuracy in map presentation; ii) Concurrent with Lawrence and Moran’s studies, more classifiers should be tested to identify the most accurate model; iii) The PBIA approach had difficulties in distinguishing the vegetation; the OBIA approach tackled this problem better with the RF classifier but not with the SVM classifier; and iv) The SVM classifier had unstable performance where the accuracy in classifying the land cover classes fluctuates in different events.

In future work, it is ideal to test the model with imagery of other data with available field data to identify an optimized model to classify the land cover for periodic assessment in the study area. Since the SVM x PBIA model strongly resembled COSc 2023 while achieving low accuracy in evaluation metrics, different parameters can be tested and refined to optimize the result in future works. Furthermore, different ML and deep learning algorithms can be tested to improve the land cover classification result.
