Synthesis of methyl 2-((4R)-3-acryloyl-4-phenyloxazolidin-2-yl)acetates

Hugo Pilotzi Xahuentitla; Jesús Guadalupe Ortega Montes; Dino Hernán Gnecco Medina; Joel Luis Terán Vazquez; Emanuel Hernández Núñez; Maria Laura Orea Flores

doi:10.20944/preprints202409.0483.v1

Submitted:

05 September 2024

Posted:

06 September 2024

You are already at the latest version

Abstract

Chiral oxazolidine moiety is an important core in asymmetric synthesis due to its ability to participate in various stereoselective chemical reactions and because forms a part of more complex important active compounds. Therefore, in this letter we report a convenient diastereoselective and practical strategy for the synthesis of chiral methyl 2-((4R)-3-acryloyl-4-phenyloxazolidin-2-yl)acetates starting from (R)-(–)-2-phenylglycinol and methyl propiolate which were obtained via simple two chemical and stereoselective reactions.

Keywords:

asymmetric synthesis

;

N-acryloyl-4-phenyloxazolidine

;

(R)-(-)-2-phenylglycinol

;

methyl propiolate

Subject:

Chemistry and Materials Science - Organic Chemistry

1. Introduction

Oxazolidines are five-membered heterocycles that contain an oxygen and nitrogen atom in the 1,3 positions[1]. Chiral oxazolidines are moieties in biologically active compounds [2] and as intermediates materials in the asymmetric synthesis of various compounds [3,4]. Additional, chiral oxazolidines have been used as catalysts [5,6] and as possible drugs [7,8].

Oxazolidines are mainly synthesized by the reaction of an amino alcohol with an aldehyde or a ketone, however, there are more synthetic methods to obtain them[9,10]. Particularly functionalized chiral oxazolidines are compounds for which efforts have been made to obtain stereoselectively [11,12].

In this sense, Agami and coworkers in 2002 reported the synthesis of methyl 2-((4R)-3-acryloyl-4-phenyloxazolidin-2-yl)acetate in a yield of 38% as a byproduct of an attempted aza-annulation reaction between a b-enaminoester derived from (R)-(-)-2-phenylglycinol and acryloyl chloride [13]. They argued that the poor performance of oxazolidine was due to the trimerization of the corresponding b-enaminoester.

Considering of the above, in this communication we report a straightforward methodology for synthesizing specifically these methyl 2-((4R)-3-acryloyl-4-phenyloxazolidin-2-yl)acetates as main intermediates.

2. Results

2.1. Synthesis of Chiral Acrylamides

In this synthesis to access methyl 2-(4R)-3-acryloyl-4-phenyloxazolidin-2-yl)acetates, we begin with the preparation of the respective chiral acrylamides 4 and 5, through condensation reaction of (R)-(-)-2-phenylglycinol 1 and the corresponding acryloyl chlorides 2 or 3, in a biphasic system CH₂Cl₂:H₂O (1:1), with K₂CO₃, r.t. by 2 h (completion of the reaction monitored by TLC) [14]. Chiral acrylamides 4 and 5 were obtained in yields greater than 90% after purification by column chromatography SiO₂ (Scheme 1).

Compounds 4 and 5 were successfully characterized by ¹H and ¹³C NMR spectra. Those spectrums show respectively the characteristic signals for the vinyl H, for 4 at 5.7 ppm(d, J = 11.5 Hz ), 6.12 ppm(dd, J = 10.5, 17.0 Hz), and 6.29 ppm (d, J = 15.5 Hz), for 5 at 6.39 ppm (d, J = 15.5 Hz), and 7.60 ppm (d, J = 15.5 Hz). On the other hand, in the ¹³C NMR spectra, the signal corresponding to the carbonyl group can be observed at 166.0 ppm for 4 and 166.3 ppm for 5 (please refer to the supplementary material).

2.2. Synthesis of Methyl 2-(4R)-3-acryloyl-4-phenyloxazolidin-2-yl)acetates, 7 and 8

The next step was the condensation reaction between the chiral acrylamides and methyl propiolate 6. To a stirred solution of the corresponding acrylamide in acetonitrile at 0°C, DABCO (10 m0l%) was added. Subsequently, methyl propiolate was added drop by drop [15]. The reaction mixture was kept stirring for an additional 2 h. After purification by column chromatography of the reaction crude, we obtained the chiral oxazolidines 7 and 8, in yields greater than 80% and d.r. around 70:30.

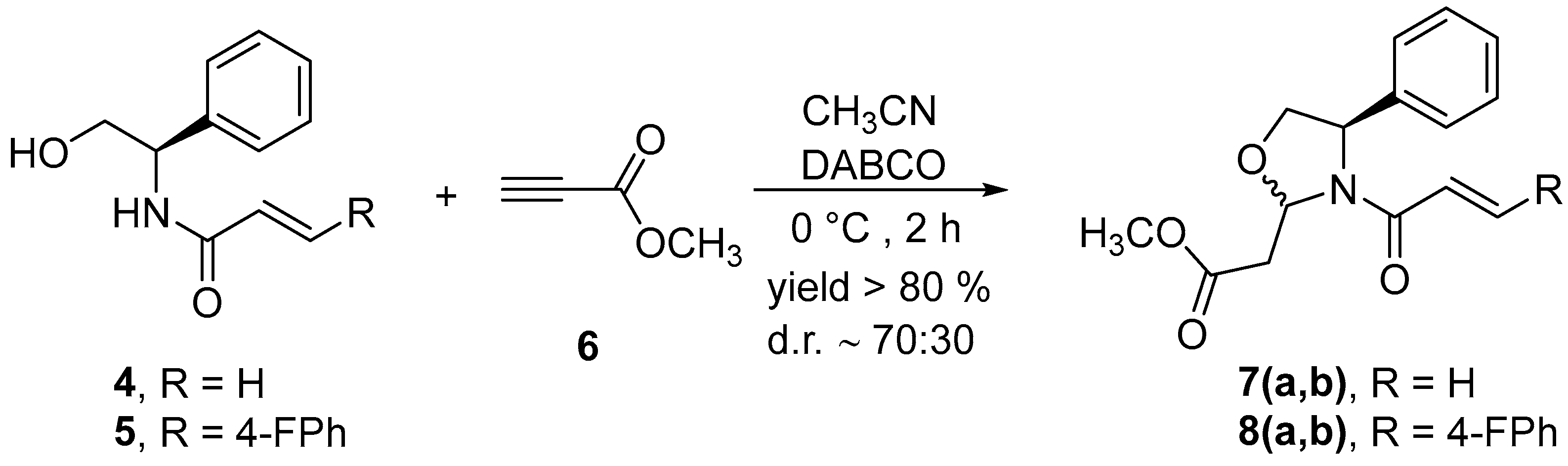

Scheme 2. Synthesis of chiral 4-pheniloxazolidines 7(a,b) and 8(a,b).

The diastereomeric ratio for each 4-phenyloxazolidine 7(a,b) and 8(a,b) was determined in the NMR ¹H spectrum of the crude reaction, with the signal assigned to H-Bn. The spectrum of diastereomeric mixture of 7(a,b) shows two signals appearing at 4.34 ppm(dd, J = 6.5, 8.5 Hz) for the major diastereoisomer, and at 4.47 ppm(dd, J = 6.0, 8.5 Hz), for the minor diastereoisomer, yielding a d.r. = 74:26. On the other hand, the spectrum of the diastereomeric mixture of 8(a,b) shows signals at 4.37 ppm (dd, J = 6.5, 9.0 Hz) for the major diastereoisomer, and at 4.51 ppm (dd, J = 6.0, 8.5 Hz) for the minor diastereoisomer, with a d.r. = 67:33. Furthermore, in the NMR ¹³C spectra the signals corresponding to the hemiaminal carbon for each pair of diastereoisomers appear at around 87 ppm (please refer to the supplementary material).

We successfully separated the minor diastereoisomer from mixture 7(a,b) by using column chromatography (SiO₂, hexane:AcOEt, 70:30). The pure diastereoisomer 7b, was analyzed by NOESY-NMR experiment to determine the relative configuration of the new chiral center generated which was established as 2S configuration (Figure 1).

3. Discussion

The condensation of (R)-(-)-2-phenylglycinol 1 with acryloyl chlorides 2 and 3 resulted in the formation of chiral acrylamides 4 and 5 in good chemical yields. The reaction was very chemoselective and clean and no byproducts were observed.

In the second step, the condensation of chiral acrylamides 4 and 5 with methyl propiolate 6 was catalyzed with DABCO (10 mol%), maintaining the temperature at 0 °C. This enabled us to obtain the chiral oxazolidines 7(a,b) and 8(a,b), with acceptable diastereomeric relationships. It is important to carry out the reaction at 0 °C because the various reactive sites of methyl propiolate 6 can lead to the formation of byproducts [16].

It should be noted that the ¹H NMR analysis of the diastereomeric mixtures did not allow for the assignment of the absolute configuration of the new chiral center. Consequently, the absolute configurations of the major and minor diastereomers could not be determined. Only for the mixture of compound 7(a,b), after separating the minor diastereomer 7b by column chromatography, was it possible to assign the absolute configurations with the aid of the NOESY-NMR experiment. The minor diastereoisomer 7b was determined to have the (2S,4R) configuration, and consequently, the major diastereoisomer 7a was assigned the (2R,4R) configuration. This same behavior is expected for the mixture of compound 8(a,b).

Derived from these results, a plausible mechanism for the catalytic process is described. Initially, an aza-Michael addition reaction of DABCO to chiral acrylamide affords the zwitterionic intermediate in which the Nitrogen nucleophilic character is improving promoting a second aza-Michael addition to methyl propiolate and delivering the high reactive allene which through a proton transfer give an enaminoester. Finally, an oxa-Michael addition reaction followed by a proton transfer produced the desired chiral oxazolidine.

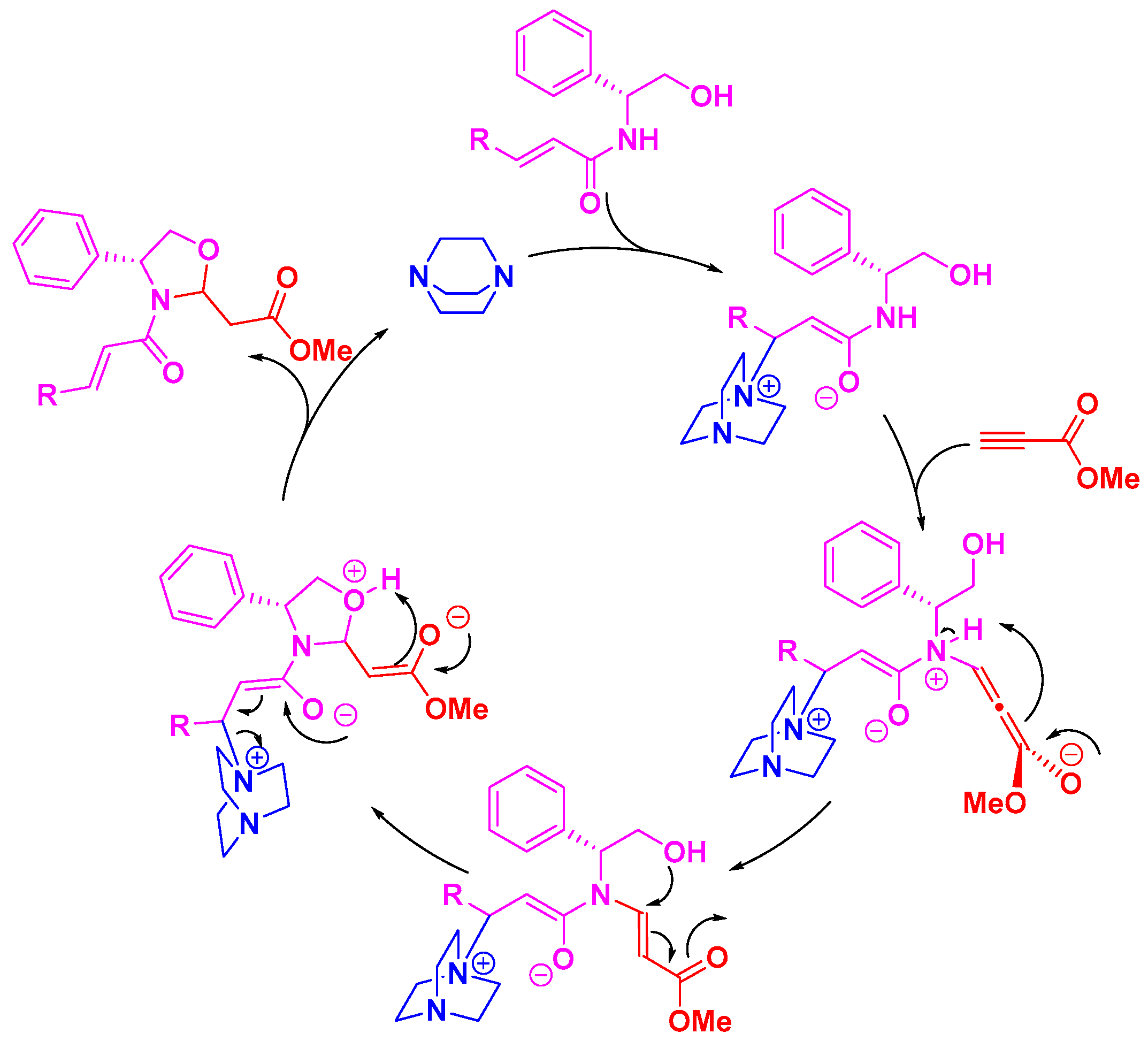

Scheme 3. Mechanistic proposal for the synthesis of N-acryloyl-4-phenyloxazolidines.

It is important to note that these highly functionalized oxazolidines have great potential as intermediates in the asymmetric synthesis of piperidine-derived alkaloids

4. Materials and Methods

4.1. General

All commercial reagents and solvents were used without any further purification. NMR spectra were recorded on a 500 MHz Bruker spectrophotometer, with CDCl₃ as the solvent and TMS as the reference. Optical rotations were determined at room temperature using a Perkin-Elmer 341 polarimeter, with a 1 dm cell holding a total volume of 1 mL, and reference to the sodium D line. Infrared spectra were obtained using an ATR Perkin-Elmer spectrophotometer. Reactions were monitored by TLC on silica gel 60 F₂₅₄ plates (Merck).

4.2. Synthesis of Chiral Acrylamides

To a solution of (R)-(-)-2-phenylglycinol 1 (1.45 mmol) in CH₂Cl₂ (2 mL) was added K₂CO₃ (2.18 mmol) in H₂O (2 mL), then was stirred. After acryloyl chloride, 2 or 3 ( 2.00 mmol) was added dropwise. The reaction was stirred for 2.0 h at room temperature and monitored by TLC (CH₂Cl₂:MeOH, 95:5). When the reaction ended, extractions were carried out with CH₂Cl₂ (3 x 15 mL). The organic phase was dried with anhydrous Na₂SO₄, filtered, and subsequently the solvent was concentrated under reduced pressure. The residue was purified by column chromatography on SiO₂ (CH₂Cl₂:MeOH, 80:20).

(R)-N-(2-Hydroxy-1-phenylethyl)acrylamide 4 in 90% yield as white solid, melting point 120-123 °C, [a]_D²⁰ -119.0 (c 1, CH₂Cl₂). ¹H NMR (500 MHz, CDCl₃) δ ppm 3.88 (d, J = 5.0 Hz, 2H-CH₂), 5.10 (dd, J = 5.5, 12.5 Hz, 1H-Bn), 5.66 (d, J = 11.5 Hz, 1H-CH₂), 6.12 (dd, J = 10.5 Hz, 17.0 Hz, 1H-CH), 6.29 (d, J = 15.5 Hz, 1H-CH₂), 6.51 (d, J = 7.0 Hz, 1H-NH), 7.26 (m, 5H-Ph) (Figure S1). ¹³C NMR (150 MHz, CDCl₃) δ ppm 56.0, 66.4, 126.8, 127.4, 128.0, 128.9, 130.4, 138.8, 166.0 (Figure S2). IR: 1537, 1626, 3307 cm^-1 (Figure S3).

(R,E)-3-(4-Fluorophenyl)-N-(2-hydroxy-1-phenylethyl)acrylamide 5 in 85% yield as white solid, melting point 157-160 °C, [a]_D²⁰ +19.4 (c 1, CH₂Cl₂). ¹H NMR (500 MHz, CDCl₃) δ ppm 2.91 (s, 1H-OH), 3.93 (m, 2H-CH₂), 5.19 (dd, J = 6.0, 11.0 Hz, 1H-Bn), 6.39 (d, J = 15.5 Hz, 1H-CH), 6.43 (d, J = 7.0 Hz, 1H-NH), 7.03 (t, J = 8.5 Hz, 2H-Ar), 7.30 (m, 5H-Ph), 7.45 (dd, 5.5, 9.0 Hz, 2H-Ar), 7.60 (d, J = 15.5 Hz, 1H-CH) (Figure S4). ¹³C NMR (150 MHz, CDCl₃) δ ppm 56.3, 66.8, 115.9, 116.1 119.8, 126.8, 128.1, 129.0, 129.7, 129.8, 130.8, 138.7, 140.8, 166.3 (Figure S5). IR: 698, 1224, 1657, 3308 cm^-1 (Figure S6).

4.3. Synthesis of Methyl 2-(4R)-3-acryloyl-4-phenyloxazolidin-2-yl)acetates

To a solution of chiral acrylamide, 4 or 5 (3.5 mmol) in CH₃CN (10 mL) at 0°C was added DABCO (10 mol%) in CH₃CN (2 mL), and the mixture was stirred. Then, methyl propiolate 6 (5.26 mmol) was added dropwise. The reaction was stirred for 2.0 h at 0°C and monitored by TLC (SiO₂, CH₂Cl₂:MeOH, 95:5). When the reaction ended, the solvent was evaporated under reduced pressure. Then, the mixture was purified by column chromatography (SiO₂, Hexane:AcOEt, 70:30).

Methyl 2-((4R)-3-acryloyl-4-phenyloxazolidin-2-yl)acetate 7(a,b) in 86 % yield as a yellow pale oil, d.r. 74:26. ¹H NMR (500 MHz, CDCl₃) δ ppm 2.72 (m, H-CH₂), 3.31 (d, J = 15.5 Hz, 1H-CH₂), 3.44 (d, J = 15.0 Hz, 1H-CH₂), 3.73 (s, H-OMe), 3.95 (d, J = 9.0 Hz, 1H-CH₂), 4.06 (dd, J = 3.0, 8.5 Hz, 1H-CH₂), 4.34 (dd, J = 6.5, 8.5 Hz, 1H-Bn), 4.48 (d, J = 6.0, 8.5 Hz, 1H-Bn), 5.02 (m, 1H-CH₂), 5.48 (dd, J = 2.0, 10.5 Hz, 1H-CH₂), 5.58 (d, J = 10.0 Hz, 1H-CH₂), 5.88 (d, J = 7.5 Hz, 1H-CH₂), 6.05 (dd, J = 10.5, 17.0 Hz, 1H-CH), 6.15 (dd, J = 2.5, 8.0 Hz, 1H-CH₂), 6.25 (d, 16.5 Hz, 1H-CH₂), 6.36 (d, J = 17.0 Hz, 1H-CH₂), 7.21 (m, H-Ph) (Figure S7). ¹³C NMR (150 MHz, CDCl₃) δ ppm 37.4, 38.9, 51.9, 52.0, 60.3, 60.3, 73.7, 74.0, 87.8, 88.0, 125.8, 125.9, 128.2, 128.4, 128.6, 129.2, 129.2, 129.4, 139.9, 141.3, 163.7, 165.1, 170.1, 170.3 (Figure S8). IR: 699, 1423, 1649, 1735 cm^-1 (Figure S9).

Methyl 2-((4R)-3-((E)-3-(4-fluorophenyl)acryloyl)-4-phenyloxazolidin-2-yl)acetate 8(a,b) in 81 % yield as a yellow pail oil, d.r. 67:33. ¹H NMR (500 MHz, CDCl₃) δ ppm 2.77 (dd, J = 8.5, 16.0 Hz, H-CH₂), 3.34 (dd, J = 3.0, 16.0 Hz, 1H-CH₂), 3.46 (d, J = 15.5 Hz, 1H-CH₂), 3.74 (s, 3H-OMe), 3.75 (s, 3H-OMe), 3.93 (d, J = 5.0 Hz, 1H-CH), 3.99 (dd, J = 2.0, 9.0 Hz, 1H-CH₂), 4.08 (dd, J = 4.0, 9.0 Hz, 1H-CH₂), 4.37 (dd, J = 6.5, 8.5 Hz, 1H-Bn), 4.51 (dd, J = 6.0, 8.5 Hz, 1H-Bn), 5.09 (m, H-CH₂), 5.95 (d, J = 7.0 Hz, 1H-CH), 6.19 (dd, J = 3.0, 8.0 Hz, 1H-CH), 6.25 (d, J = 7.5 Hz, 1H-CH₂), 6.05 (dd, J = 10.5, 17.0 Hz, 1H-CH), 6.15 (dd, J = 2.5, 8.0 Hz, 1H-CH₂), 6.25 (d, 15.5 Hz, 1H-CH), 6.30 (d, J = 15.0 Hz, 1H-CH), 6.46 (d, J = 15.5 Hz, 1H-CH), 6.93 (m, H-Ph), 7.18 (m, H-Ar), 4.27 (m, H-Ph) (Figure S10). ¹³C NMR (150 MHz, CDCl₃) δ ppm 37.5, 39.0, 51.9, 52.0, 56.1, 60.4, 60.6, 66.4, 73.7, 74.1, 87.9, 88.1, 115.8, 115.8, 115.8, 115.9, 116.0, 116.0, 118.0, 118.6, 120.3, 120.3, 139.2, 140.0, 140.2, 141.3, 141.4, 142.1, 162.5, 162.6, 162.7, 164.0, 164.5, 164.6, 164.7, 165.4, 166.2, 170.2, 170.3 (Figure S11). IR: 700, 1508, 1650, 1734 cm^-1 (Figure S12).

Methyl 2-((2S,4R)-3-acryloyl-4-phenyloxazolidin-2-yl)acetate 7b, [a]_D²⁰ -49.5 (c 0.5, CH₂Cl₂).. ¹H NMR (500 MHz, CDCl₃) δ ppm 2.72 (dd, J = 8.5, 16.0 Hz, 1H-CH₂), 3.32 (dd, J = 2.5, 15.5 Hz, 1H-CH₂), 3.75 (s, 3H-OMe), 3.96 (dd, J = 2.5, 9.0 Hz, 1H-CH₂), 4.47 (dd, J = 6.0, 9.0 Hz, 1H-Bn), 5.00 (d, J = 6.5 Hz, 1H-CH₂), 5.47 (d, J = 10.5 Hz, 1H-CH₂), 6.04 (dd, J = 10.5, 16.5 Hz, 1H-CH), 6.15 (dd, J = 3.0, 8.0 Hz, 1H-O-CH-N), 6.26 (d, J = 16.5 Hz, 1H-CH₂), 7.21 (5H-Ph) (Figure S13). ¹³C NMR (150 MHz, CDCl₃) δ ppm 29.7, 37.4, 51.9, 60.3, 73.7, 88.0, 125.8, 128.2, 128.5, 128.6, 129.1, 141.3, 163.7, 170.2 (Figure S14). See COSY and NOESY spectra in Figures S14 and S15 respectively.

5. Conclusions

In this communication, we report a simple two-step synthesis of two N-acryloyl-4-phenyloxazolidines 7(a,b) and 8(a,b) from chiral acrylamides 4 and 5 derived from (R)-(-)-2-phenylglycinol 1 and their condensation with methyl propiolate 6. These compounds were obtained in good chemical and stereochemical yields as mixtures of diastereoisomers. The minor diastereoisomer of compound 7b was purified, and the absolute configuration was assigned as (2S,4R).

Supplementary Materials

IR and NMR spectra of compounds are available online at preprints.org.

Author Contributions

Conceptualization, H.P.X; performing synthesis, J.G.O.M; investigation, D.H.G.M; resources, M.L.O.F. and D.H.G.M; writing—original draft preparation, H.P.X.; review and editing, J.L.T.V and E.H.N.; supervision, M.L.O.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by VIEP-BUAP, grant number 100130955-VIEP 2023.

Data Availability Statement

Not applicable.

Acknowledgments

H.P.X thanks CONAHCYT for Postdoctoral Scholarship 592119. J.G.O.M thanks CONAHCYT for Scholarship 1298566.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

Cordero, F. M.; Giomi, D.; Lascialfari, L. Five-Membered Ring Systems. With O and N Atoms. In Progress in Heterocyclic Chemistry; Elsevier Ltd, 2013; Vol. 25, pp 291–317. [CrossRef]
Qian, X.; Xu, X.; Li, Z.; Li, Z.; Song, G. Syntheses, Structures and Bioactivities of Fluorine-Containing Phenylimino-Thia(Oxa)Zolidine Derivatives as Agricultural Bioregulators. In Journal of Fluorine Chemistry; Elsevier B.V., 2004; Vol. 125, pp 1609–1620. Morales-Monarca, G.-H.; Gnecco, D.; Terán, J. L. Diastereoselective Functionalization of Chiral N-Acyl-1,3-oxazolidines and Their Applications in the Synthesis of Bioactive Molecules. Eur. J. Org. Chem., 2022, 33. [CrossRef]
Carbonnelle, A.-C.; Gotta, V.; Roussi, G. b-Amino alcohol-N-oxides as precursors of chiral oxazolidines: synthesis of (R)-(-)-cryptostyline I. Heterocycles 1993, 36, 1763–1769. [Google Scholar]
Pytkowicz, J.; Stéphany, O.; Marinkovic, S.; Inagaki, S.; Brigaud, T. Straightforward Synthesis of Enantiopure (R)- and (S)-Trifluoroalaninol. Org. Biomol. Chem. 2010, 8, 4540–4542. [Google Scholar] [CrossRef] [PubMed]
Kang, Y. F.; Wang, R.; Liu, L.; Da, C. S.; Yan, W. J.; Xu, Z. Q. Enantioselective Alkynylation of Aromatic Aldehydes Catalyzed by New Chiral Oxazolidine Ligands. Tetrahedron Lett. 2005, 46, 863–865. [Google Scholar] [CrossRef]
Pichon-Barré, D.; Zhang, Z.; Cador, A.; Vives, T.; Roisnel, T.; Baslé, O.; Jarrige, L.; Cavallo, L.; Falivene, L.; Mauduit, M. Chiral Oxazolidines Acting as Transient Hydroxyalkyl-Functionalized N-Heterocyclic Carbenes: An Efficient Route to Air Stable Copper and Gold Complexes for Asymmetric Catalysis. Chem. Sci. 2022, 13, 8773–8780. [Google Scholar] [CrossRef] [PubMed]
Khrapova, A. V.; Saroyants, L. V.; Yushin, M. Y.; Zukhairaeva, A. S.; Velikorodov, A. V. Prospects of Using Pharmacologically Active Compounds for the Creation of Antimycobacterial Drugs. Pharm. Chem. J. 2022, 55, 1108–1114. [Google Scholar] [CrossRef]
Santos, R. V. C.; Cunha, E. G. C.; de Mello, G. S. V.; Rizzo, J. Â.; de Oliveira, J. F.; de Lima, M. D. C. A.; Pitta, I. D. R.; Pitta, M. G. D. R.; Rêgo, M. J. B. M. New Oxazolidines Inhibit the Secretion of Ifn-γ and Il-17 by Pbmcs from Moderate to Severe Asthmatic Patients. Med Chem (Los Angeles) 2021, 17, 289–297. [Google Scholar] [CrossRef] [PubMed]
Bergmann, E. D. The Oxazolidines. 1953. https://pubs.acs.org/sharingguidelines.
Reyes-Bravo, E.; Gnecco, D.; Juárez, J. R.; Orea, M. L.; Bernès, S.; Aparicio, D. M.; Terán, J. L. Diastereoselective Synthesis of New Zwitterionic Bicyclic Lactams, Scaffolds for Construction of 2-Substituted-4-Hydroxy Piperidine and Its Pipecolic Acid Derivatives. RSC Adv. 2022, 12, 4187–4190. [Google Scholar] [CrossRef] [PubMed]
Das, A.; Buzzetti, L.; Puriņš, M.; Waser, J. Palladium-Catalyzed Trans-Hydroalkoxylation: Counterintuitive Use of an Aryl Iodide Additive to Promote C-H Bond Formation. ACS Catal. 2022, 12, 7565–7570. [Google Scholar] [CrossRef] [PubMed]
Feng, H.; Zhang, Y.; Zhang, Z.; Chen, F.; Huang, L. Copper-Catalyzed Annulation/A 3 -Coupling Cascade: Diastereodivergent Synthesis of Sterically Hindered Monocyclic Oxazolidines Bearing Multiple Stereocenters. Eur. J. Org. Chem. 2019, 2019, 1931–1939. [Google Scholar] [CrossRef]
Agami, C.; Dechoux, L.; Hebbe, S. Asymmetric Synthesis of Nitrogen Heterocycles by Reaction of Chiral b-Enaminocarbonyl Substrates with Acrylate Derivatives. Tetrahedron Lett. 2002, 43, 2521–2523. [Google Scholar] [CrossRef]
Aparicio, D. M.; Gnecco, D.; Juárez, J. R.; Orea, M. L.; Mendoza, A.; Waksman, N.; Salazar, R.; Fores-Alamo, M.; Terán, J. L. Diastereoselective Synthesis of Aryl and Alkyl Trans-Glycidic Amides from Pseudoephedrine-Derived Sulfonium Salt. Chemospecific Exo-Tet Ring Closure for Morpholin-3-Ones. Tetrahedron 2012, 68, 10252–10256. [Google Scholar] [CrossRef]
Mola, L.; Font, J.; Bosch, L.; Caner, J.; Costa, A. M.; Etxebarría-Jardí, G.; Pineda, O.; De Vicente, D.; Vilarrasa, J. Nucleophile-Catalyzed Additions to Activated Triple Bonds. Protection of Lactams, Imides, and Nucleosides with MocVinyl and Related Groups. J. Org. Chem. 2013, 78, 5832–5842. [Google Scholar] [CrossRef] [PubMed]
Tejedor, D.; López-Tosco, S.; Cruz-Acosta, F.; Méndez-Abt, G.; García-Tellado, F. Acetylides from Alkyl Propiolates as Building Blocks for C₃ Homologation. Angew. Chem. In. Ed. 2009, 48, 2090–2098. [Google Scholar] [CrossRef] [PubMed]

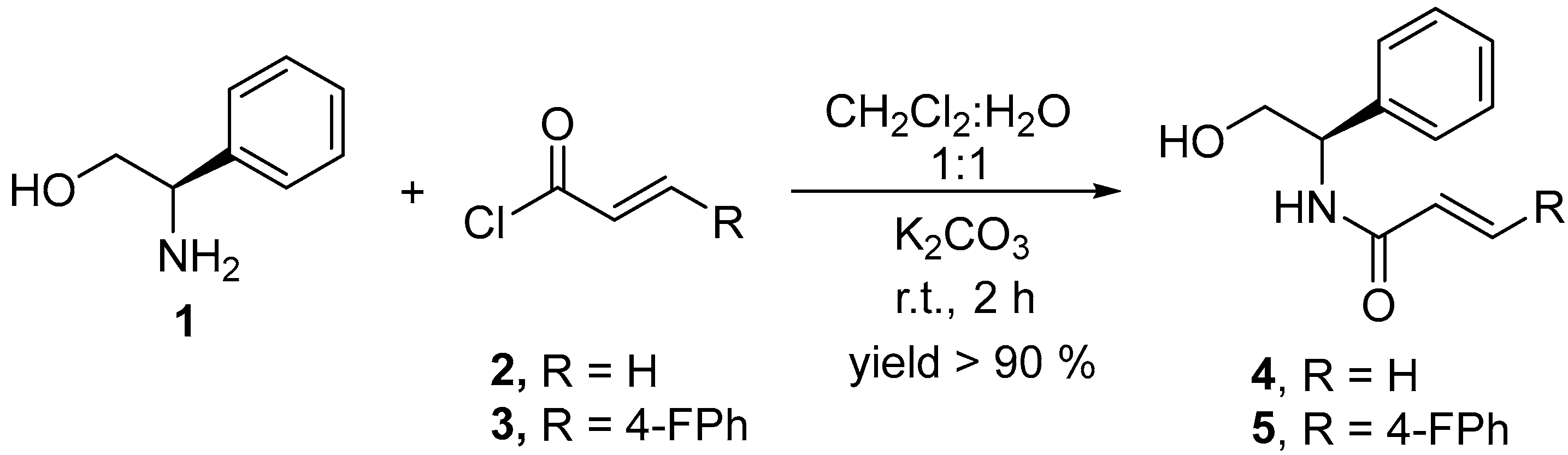

Scheme 1. Synthesis of chiral acrylamides 4 and 5.

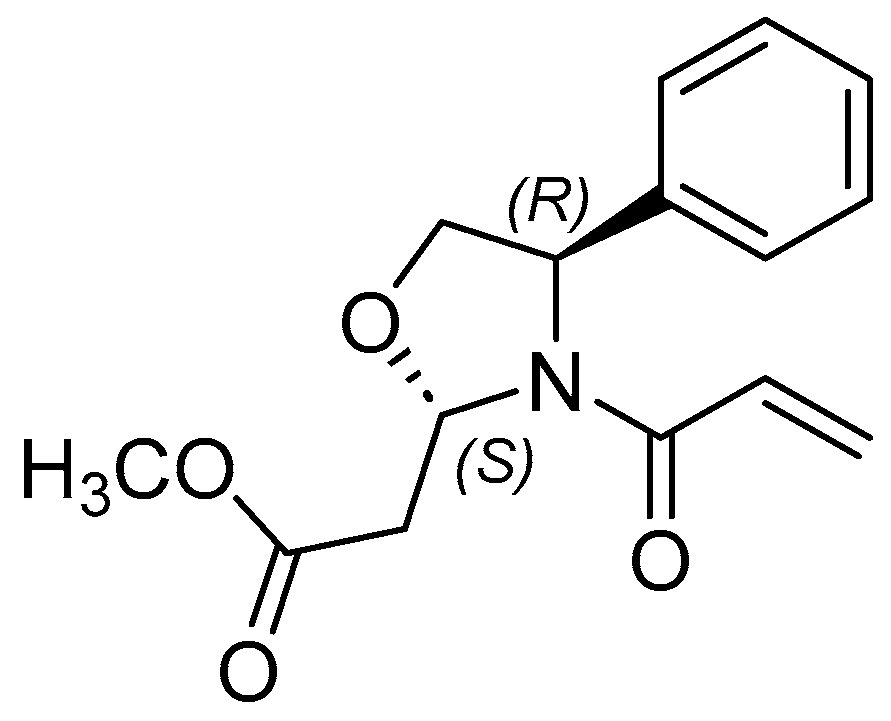

Figure 1. Methyl 2-((2S,4R)-3-acryloyl-4-phenyloxazolidin-2-yl)acetate, 7b minor diastereoisomer.
