A Dynamic Simulation of a Piezoelectric Energy Harvesting System Integrated with a Closed-Loop Voltage Source Converter for Sustainable Power Generation

1. Introduction

Daily activities and production processes frequently demonstrate inefficiencies in energy use, resulting in the inadequate harnessing of significant amounts of energy and its release into the atmosphere as various forms of waste heat. This event results in substantial waste and environmental degradation. Since the initial observation of piezoelectric electricity (PE), extensive research efforts have been dedicated to exploring its diverse applications [1,2,3,4] and [5]. On the other hand, wind-induced vibrations offer a valuable source of potential for electrical power generation [6]. The vibrational force is used as input to generate AC electricity that changes sinusoidally, which is further rectified to be practical for power applications [7].

Zhao et al. [8] described the combination of two approaches involving a nanogenerator on the sole of a shoe to use energy from walking. They presented a new device architecture that combines flexible thermoelectric and piezoelectric materials to increase the overall power output while reducing the effect on shoe functionality. Additionally, Peng Wang et al.[9] presented an innovative electrical power generation device that uses high-frequency dynamic piezoelectric deformation through shear caused by friction. Despite these advances, research initiatives concentrating on power generation via piezoelectric and thermal means remain relatively limited. Various mechanisms have been used to increase the efficiency of smart tiles, including wearable biomechanical energy harvesting, triboelectric pairs, and mechanical impact mechanisms.

Krishnasamy et al. [10] proposed the conversion of the input vibration force, which is dependent on the vibration frequency, as a common method for harvesting piezoelectric energy.

Yingyong et al. [11] presented a system that uses piezoelectric cantilevers (PZCs) connected to the moving surface of a tile to generate alternative electricity. The principle of the presented system comes from the human footstep, because people walking by can produce a mechanical impact, which generates kinetic energy. To maintain frequency movement, a fixed mass is placed at the end of the PZCs.

Panthongsy et al. [12] suggested an approach using the principle of a magnetic tension mechanism to increase vibration in PZCs. In this configuration, a permeant magnet attached to one end and an iron piece fastened to the moving surface of the tile act as activators for the piezoelectric consoles. When individuals step on the tile, the moving surface descends, reducing the distance between the iron piece and the permeant magnet, thus causing attraction. On the basis of the passage, the tile surface returns to its original position, separating the magnet from the iron piece and inducing vibration in the piezoelectric console. In the same context, many mechanical methods have been used to harness the energy of smart tiles, although with considerable friction. Duarte et al. [13] presented the rack-and-pinion mechanical approach, in which the gear connected to the moving surface of the tile interacts with a pinion gear connected to a generator. With tile stimulation, gear rotation drives the gear pinion, thereby activating the generator to produce energy. In this instance, the applied force directly stimulates the piezoelectric cells, facilitating energy production. The study presented in [14] adopted a similar approach by placing PE cells beneath the tile surface, using pedestrian-induced force to drive energy production.

[15] investigated the utilization of the triboelectric effect within a tile structure and explored the dielectric effects to improve energy harvesting. The electromagnetic effect uses coils around the perimeter of the tile and a central disc that holds magnets. The disc rotates due to the applied force, which creates flux on the coils[16] [17].

In [18], the authors explored techniques in resonant piezoelectric vibration energy harvesters (RPVEHs). These devices generate electrical power from vibrating sources, but their optimal operating point changes over time as input vibrations vary. This study focuses on the most common RPVEH architecture, which employs a diode bridge rectifier and a DC/DC converter. Additionally, it provides experimentally validated guidelines for parameter selection in two popular maximum power point tracking (MPPT) techniques (Perturb & Observe and Open Circuit Voltage). The simulation results are analysed to assess the efficacy of the proposed modelling method. A previous study [19] explored the modelling of a piezoelectric bender to convert ambient vibrations into electrical energy. It compares an analytical approach based on beam theory with two existing models. Previous studies have proposed many useful models for PE energy harvesting, but few of them have concentrated on investigating the dynamic simulation of these models. However, this paper delves into the theoretical modelling of PE vibration energy harvesting and the associated DC‒DC boost converter. The aim of this paper is to present a new approach to the use of wind-induced vibrations for energy harvesting by developing a detailed dynamic simulation model. The simulation analysis focuses on achieving a constant DC output of the energy harvested. The following is a summary of the key contributions.

• An approach to harnessing the energy vibrations caused by wind, which can be harnessed as a source of electrical power, is explored.
• This paper emphasizes the efficiency of piezoelectric materials in response to vibrations, which makes them suitable for energy harvesting.
• An electromechanical dynamic simulation model is developed to represent the PE harvester, which translates the vibrational force into the electrical output.
• The process involves converting the sinusoidally varying AC output from the piezoelectric material into a rectified DC output suitable for power applications.
• The piezoelectric model is also interconnected with an electrical circuit that has a PWM single-phase bridge rectifier and a DC-DC boost converter that is controlled by a P&O MPPT to obtain greater stability in power output.

2. Piezoelectric Harvester Model

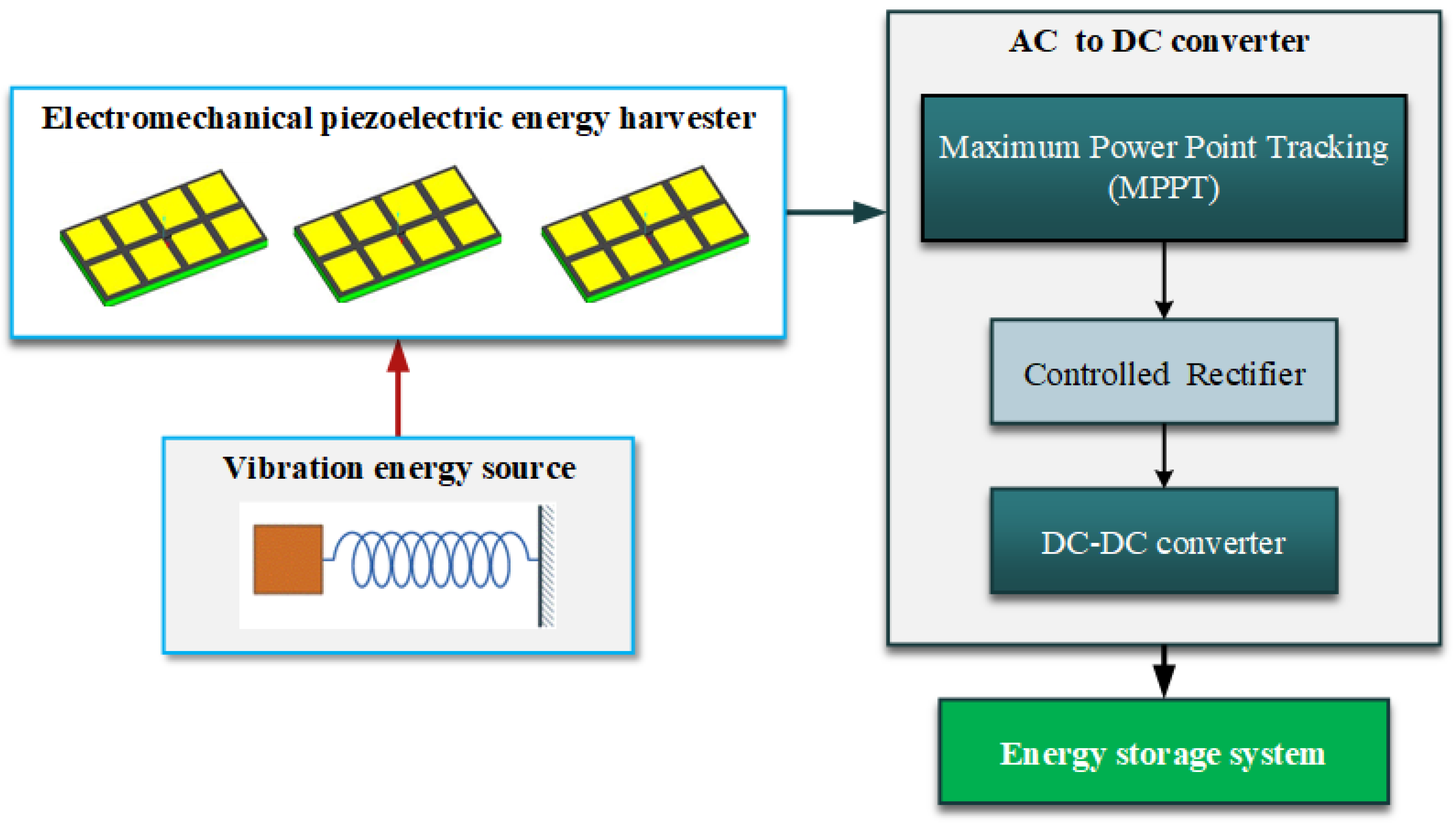

The electromechanical model diagram for a piezoelectric-based energy harvester consists of many components and primarily incorporates wind vibrations. Figure 1 depicts the functional schematic of a wind-vibration energy harvester that utilizes piezoelectric technology.

• Vibration source: Wind can cause vibrations in a structure. This structure can be a cantilever beam or any other resonant structure specifically built to oscillate due to wind-induced vibrations [20].
• Piezoelectric materials: The direct piezoelectric effect converts mechanical strain into a train of electrical charges [26].
• Electrical output: The piezoelectric material generates an electrical charge, which it immediately collects, stores, or uses as electrical power.
• Energy Storage Management: This circuit divides a group of capacitors or batteries into rectifiers, voltage regulators, a DC-to-DC converter, and possibly an energy storage device [7].

The piezoelectric vibration energy harvester uses a complex second-order mass spring damper model to fully describe its dynamic behaviour [19,21]. Within this model, the harvester frame is composed of a mass denoted as $\mathrm{M}$ suspended by a spring characterized by its stiffness constant ${\mathsf{\mu }}_{\mathrm{k}}$ and a damper with a coefficient ${\mathsf{\mu }}_{\mathrm{D}}$. This damper embodies various sources of mechanical damping, such as wind-induced vibrations and air friction. The application of an external force to the system induces movement in the mass, which in turn causes deformation in the connected piezoelectric element.

The principle of the piezoelectric effect governs this idea by generating an electric voltage when mechanical stress is applied to the piezoelectric material. Crucially, we assume that the external vibrational force acting on the system follows a sinusoidal pattern. For wind turbine applications, we can mathematically express the force related to the wind speed as follows:

$${\mathrm{F}}_{\mathrm{w}\mathrm{i}\mathrm{n}\mathrm{d}}\left(\mathrm{t}\right)={\mathrm{F}}_0\sin (\mathsf{\omega }\mathrm{t}+\mathsf{\theta })$$

(1)

where ${\mathrm{F}}_0$ represents the amplitude of the force, $\mathsf{\omega }$ is the angular frequency of the sinusoidal vibrational force, $\mathrm{t}$ denotes time, and $\mathsf{\theta }$ is the angle between the direction of the wind and the direction of motion of the harvester frame. This equation concisely captures the sinusoidal nature of the external vibrational force, which in turn induces harmonic motion in the harvester frame, facilitating efficient energy harvesting. The equation of motion in a second-order mass‒spring damper system describes the relative motion of the mass with respect to the frame, represented as $x\left(\mathrm{t}\right)$. When the influence of wind as an external force is considered, the equation becomes ${\mathrm{F}}_{\mathrm{w}\mathrm{i}\mathrm{n}\mathrm{d}}\left(\mathrm{t}\right)$, resulting in:

$${\mathrm{F}}_{\mathrm{w}\mathrm{i}\mathrm{n}\mathrm{d}}\left(\mathrm{t}\right)=\mathrm{M}{\displaystyle \frac{{\mathrm{d}}^{2}x\left(\mathrm{t}\right)}{{\mathrm{d}\mathrm{t}}^2}}+{\mathsf{\mu }}_{\mathrm{D}}{\displaystyle \frac{\mathrm{d}x\left(\mathrm{t}\right)}{\mathrm{d}x}}+{\mathsf{\mu }}_{\mathrm{k}}x\left(\mathrm{t}\right)$$

(2)

where $x\left(\mathrm{t}\right)$ represents the displacement of the mass from its equilibrium position. The acceleration of the mass is ${\displaystyle \frac{{\mathrm{d}}^{2}x\left(\mathrm{t}\right)}{{\mathrm{d}\mathrm{t}}^2}}$. The velocity of the mass is ${\displaystyle \frac{\mathrm{d}x\left(\mathrm{t}\right)}{\mathrm{d}x}}$. To derive the transfer function of the system, we first need to express the equation of motion in terms of the Laplace transform and then solve for the output $\mathrm{X}\left(\mathrm{s}\right)$ in terms of the input force ${\mathrm{F}}_{\mathrm{w}\mathrm{i}\mathrm{n}\mathrm{d}}\left(\mathrm{s}\right)$. The transfer function $\mathrm{H}\left(\mathrm{s}\right)$ is defined when all initial conditions are zero as follows:

$$H\left(\mathrm{S}\right)={\displaystyle \frac{1}{\mathrm{M}{\mathrm{s}}^2+{\mathsf{\mu }}_{\mathrm{D}}\mathrm{s}+{\mathsf{\mu }}_{\mathrm{k}}}}$$

(3)

In the case of nonzero initial conditions, the transfer function can be expressed as:

$$H\left(\mathrm{S}\right)={\displaystyle \frac{\mathrm{M}{\mathrm{s}}^2}{\mathrm{M}{\mathrm{s}}^2+{\mathsf{\mu }}_{\mathrm{D}}\mathrm{s}+{\mathsf{\mu }}_{\mathrm{k}}}}$$

(4)

The mass $\mathrm{M}$ and stiffness ${\mathsf{\mu }}_{\mathrm{k}}$ of the system define the natural frequency.

$${\omega }_n=\sqrt{{\displaystyle \frac{{\mathsf{\mu }}_{\mathrm{k}}}{\mathrm{M}}}}$$

(5)

where ${\omega }_n$ is the natural frequency, which represents the frequency at which a system oscillates in the absence of damping$({\mathsf{\mu }}_{\mathrm{D}}=0)$. The mass and stiffness of the system dictate its intrinsic attributes. The damping ratio $\mathsf{\zeta }$ can be expressed in terms of the damping coefficient ${\mathsf{\mu }}_{\mathrm{D}}$ as:

$$\mathsf{\zeta }={\displaystyle \frac{{\mathsf{\mu }}_{\mathrm{D}}}{2\sqrt{\mathrm{M}}{\mathsf{\mu }}_{\mathrm{k}}}}$$

(6)

The damping ratio $\mathsf{\zeta }$ reveals the rate at which oscillations diminish after the system is subjected to a disturbance. It compares actual damping ${\mathsf{\mu }}_{\mathrm{D}}$ with the critical damping $2\sqrt{\mathrm{M}}{\mathsf{\mu }}_{\mathrm{k}}$, which represents the lowest level of damping required to avoid oscillations.

3. Modelling Interfaced Electrical Circuits

This section explores the methodology of modelling interconnected electrical circuits, involving transfer functions, impedance analysis, and a state‒space model, to predict the PEH precisely.

3.1. PWM Full-Wave Rectifier

A power electronic circuit known as a pulse width modulation (PWM) single-phase bridge rectifier converts the AC voltage to the control DC voltage in the output voltage. We use the PWM technique to control the output voltage. When the duty cycle of the PWM signal supply to the bridge switches is varied, the effective voltage of the load can be adjusted. The rectifier circuit typically uses MOSFETs or IGBTs as switches. The PWM signal controls these switches to regulate the output voltage.

Figure 2 shows the principal circuit configuration of a single-phase voltage source PWM converter. The switches ${\mathrm{T}}_1$ through ${\mathrm{T}}_4$ are fully controllable. On the AC side, the inductance is denoted as ${\mathrm{L}}_{\mathrm{m}}$, where ${\mathrm{R}}_{\mathrm{m}}$ represents the corresponding resistance. The DC side includes a filter capacitor labelled ${\mathrm{C}}_{\mathrm{d}}$. Furthermore, the terms ${\mathrm{U}}_{\mathrm{s}}$ and $i_s$ refer to the voltage and current of the AC supply, whereas ${\mathrm{U}}_{\mathrm{a}\mathrm{b}}$ and ${\mathrm{U}}_{\mathrm{D}\mathrm{c}}$ indicate the voltage on the AC side and the output voltage on the DC side, respectively [22].

The average DC output voltage of a single-phase PWM bridge rectifier can be expressed as

$$\begin{gathered} {\mathrm{U}}_{\mathrm{D}\mathrm{C}}={\displaystyle \frac{2U_{{max}_{a-b}}}{\pi }}\mathrm{D} \\ D={\displaystyle \frac{{\mathrm{T}}_{\mathrm{O}\mathrm{n}}}{{\mathrm{T}}_{\mathrm{s}}}} \end{gathered}$$

(7)

where ${\mathrm{U}}_{\mathrm{D}\mathrm{C}}$ is the maximum amplitude of the input AC voltage and where $\mathrm{D}$ represents the duty cycle of the PWM signal. A PWM converter controls the output voltage by varying the duty cycle of the PWM waveform. The duty cycle $\mathrm{D}$ is defined as the ratio of ${\mathrm{T}}_{\mathrm{O}\mathrm{n}}$, which is the duration for which the PWM signal is on (high), to the sample time ${\mathrm{T}}_{\mathrm{s}}$, which is the total period of the PWM signal (sum of the ON and OFF times).

The duty cycle typically ranges from 0 to 1, where 0 represents the PWM signal being fully off and where 1 represents the PWM signal being fully on. Adjusting the duty cycle between 0 and 1 allows fine control of the output voltage within this range [23].

3.2. DC-DC Converter

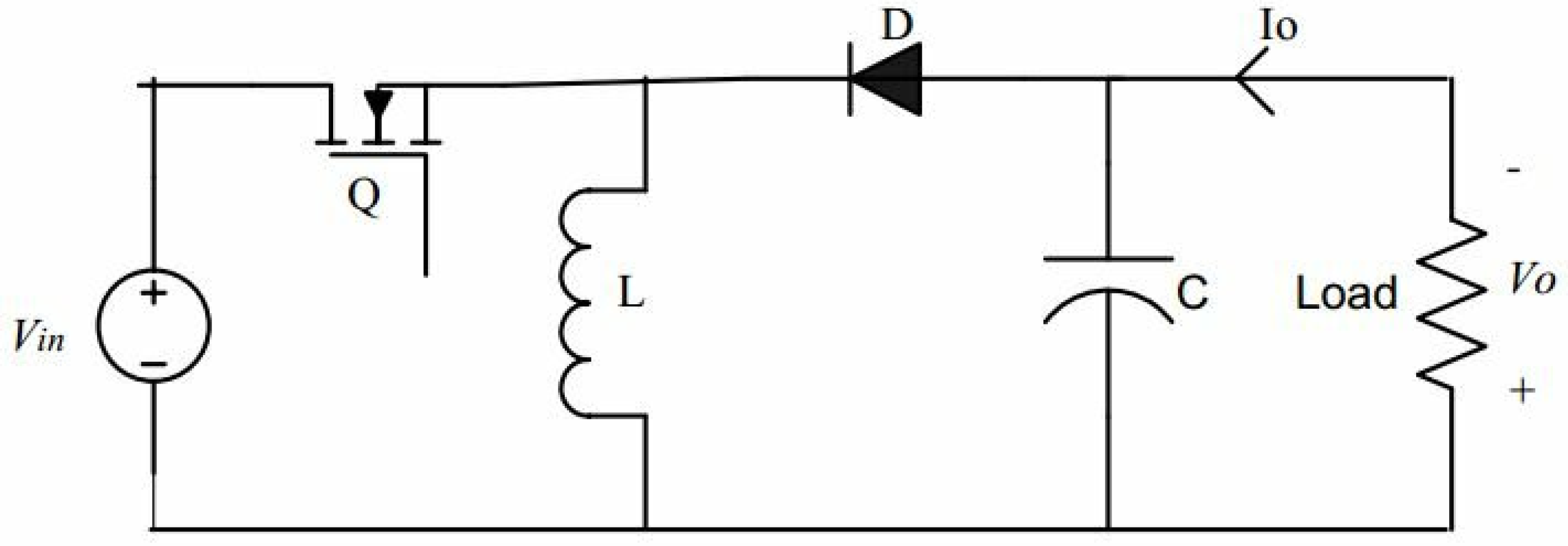

The DC-DC converter converts the DC input voltage source into either a step-up or a step-down of the DC output voltage. In piezoelectric vibrational energy harvester applications, a buck-boost converter is a widely used type of DC-to-DC converter to regulate the output voltage. The operation mode increases or decreases depending on the duty cycle of the PWM signal. The typical buck-boost converter consists of an inductor, a power electronic switch, a diode, and a capacitor, as illustrated in Figure 3. Typically, a capacitor is placed across the output to reduce the voltage ripple and stabilize the output voltage. The control circuit, which is an important part of the buck-boost converter, includes a PWM generator that is responsible for controlling the switches by generating a changeable duty cycle to control the switches. In a closed-loop system, the output voltage remains at a certain level on the basis of feedback from the output voltage [23].

The expression for the output voltage of a buck-boost converter is defined as

$${\mathrm{U}}_{\mathrm{B}-\mathrm{D}\mathrm{C}}={\displaystyle \frac{\mathrm{D}}{1-\mathrm{D}}}{\mathrm{U}}_{\mathrm{D}\mathrm{C}}$$

(8)

where ${\mathrm{U}}_{\mathrm{B}-\mathrm{D}\mathrm{C}}$ is the output voltage.

On the basis of the output voltage equation, the circuit controls the output voltage by regulating the duty cycle. Even in cases where the input voltage varies, the converter can regulate the output voltage by modifying the duty cycle.

3.3. Maximum Power Point Tracking (MPPT) Algorithm

The MPPT technique, which is based on perturbation and observation (P&O) algorithms, obtains the optimal output voltage and enhances the power transfer efficiency from the DC‒DC converter to the load. The P&O MPPT technique typically determines whether the system operates at its maximum power point [18]. The P&O MPPT technique uses the rectified output voltage and output current signals to ascertain the operation point that can transfer the maximum power by adjusting the conversion output voltage. In this paper, the P&O MPPT aims to ensure that the energy harvesting system operates at maximum power. The PWM generator block uses the signal from the P&O MPPT block to produce the reference duty cycle, allowing adaptable control for the DC‒DC converter output voltages. The P&O MPPT algorithm consistently monitors the rectifier output voltage and current, even in the presence of varying wind vibration frequencies. Figure 4 illustrates the sequential operation of the MPPT technique, which is based on the P&O algorithm [24]. On the basis of the flowchart for the P&O MPPT algorithm, the duty cycle appears to play a crucial role in determining the energy transfer from the piezoelectric device to the load. By simultaneously adjusting the duty cycle via the P&O algorithm, the system ensures that it consistently operates at maximum energy conversion efficiency.

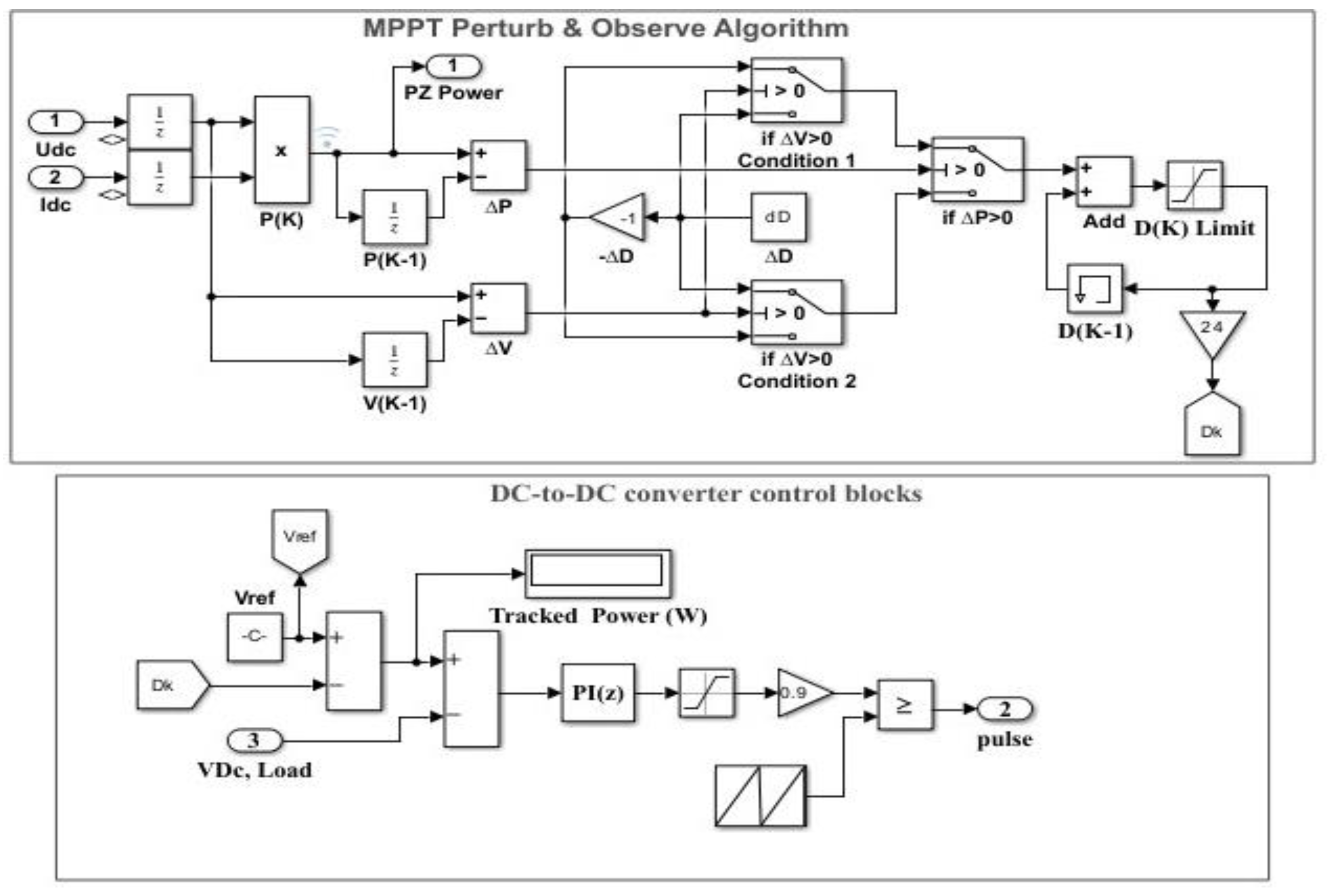

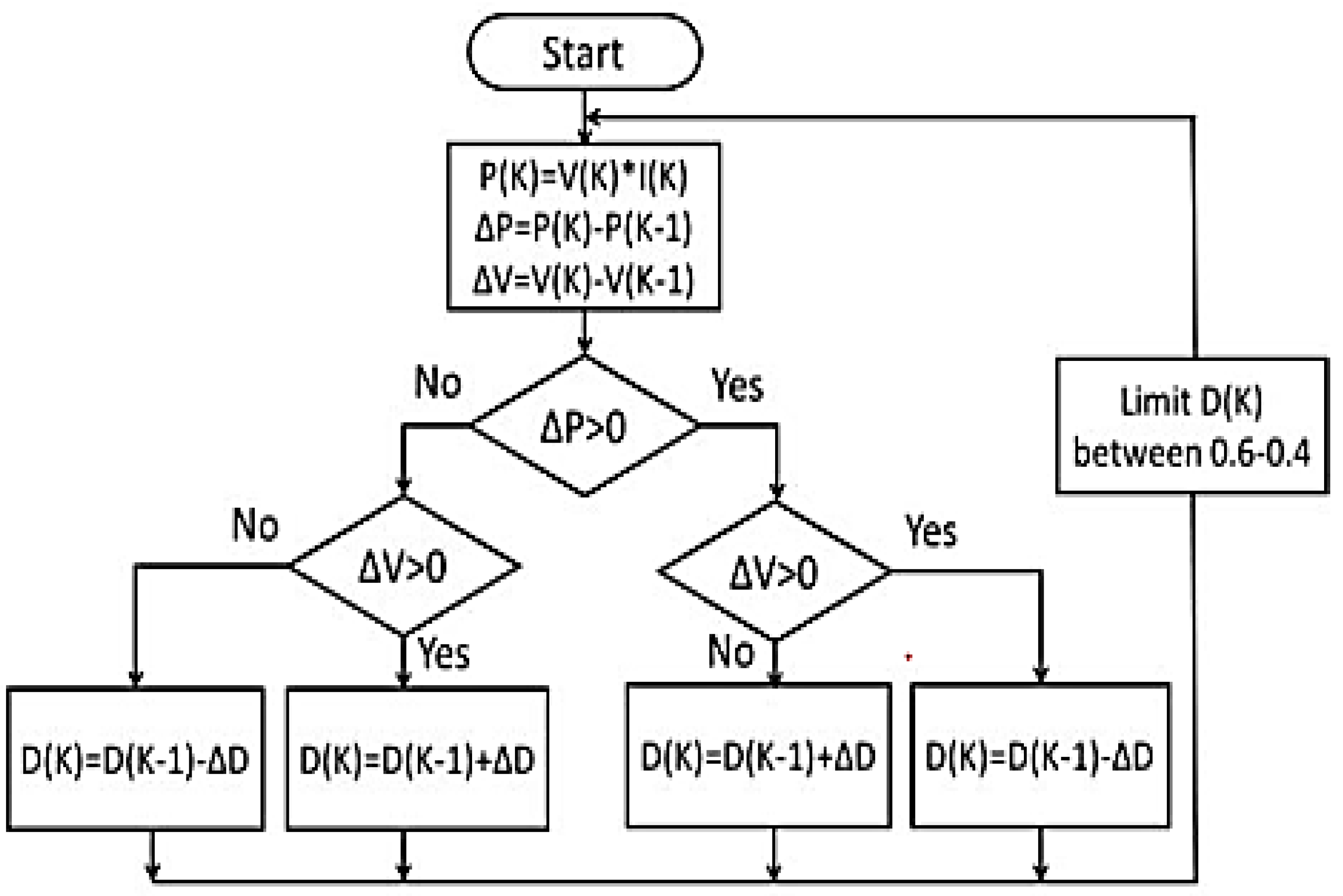

The implemented P&O MPPT block diagrams, which combine closed-loop control of a DC-to-DC converter, are shown in Figure 5. The implementation solely utilizes Simulink blocks; it does not incorporate scripting code. The flow chart of the P&O algorithm provides recommendations for marking each block with its role in the implanted P&O MPPT. The MPPT based on the P&O algorithm starts by accepting voltage and current readings from the rectifier outputs ${\mathrm{U}}_{\mathrm{D}\mathrm{C}}$ and ${\mathrm{I}}_{\mathrm{D}\mathrm{C}}$, respectively.

The unit delay function block implements the previous sample $(\mathrm{k}-1)$. The P&O algorithm uses the condition switch block to manage its three if-else conditions. Additionally, the block $∆{\mathrm{D}}_{\mathrm{B}}$ enables users to specify the perturbation step size of the duty cycle. An adder with a memory block manages the functions for the duty cycle's increase and decrease, ensuring consistency with the previous duty cycle${\mathrm{D}}_{\mathrm{B}}(\mathrm{k}-1)$. A limit block ${\mathrm{D}}_{\mathrm{B}}(\mathrm{k}-1)$ is used to restrict the duty cycle within the range of 0.4--0.6 [24].

In a closed-loop controller implementation using a buck-boost converter, the ${\mathrm{D}}_{\mathrm{k}}$ generated from P&O MPPT is multiplied by a constant gain to match the level of the control signal ${\mathrm{U}}_{\mathrm{D}}$. The control signal is subtracted from the ${\mathrm{V}}_{\mathrm{r}\mathrm{e}\mathrm{f}}$ set reference voltage to satisfy the requirements of the load or storage system. The PI controller receives the loop error by subtracting the measured converter output voltage from the reference voltage, which adjusts the duty cycle for the PWM generator. On the basis of the feedback from the voltages, the controller continuously modifies the operating point of the DC-to-DC converter to maintain system operation at or near the reference voltage.

4. Simulation of Wind Vibrations Integrated with Piezoelectric Materials

In this section, the simulations explain how the proposed integration of PEHS with wind-induced mechanical vibrations effectively generates electrical energy. The goal is to improve the PEHS design. Table 1 lists the parameters used in the simulation analysis. The simulation focused on the first five cycles of the fundamental frequency for the vibrational wind force.

$\mathrm{Filter}\mathrm{capacitor}(\mathsf{\mu }\mathrm{f}$$\mathrm{DC}-\mathrm{DC}-\mathrm{converter}\mathrm{Inductance}(\mathsf{\mu }\mathrm{H}$$\mathrm{DC}-\mathrm{DC}-\mathrm{converter}\mathrm{capacitor}(\mathsf{\mu }\mathrm{f}$

4.1. AC-to-DC Converter Based on Wind Energy Harvesting

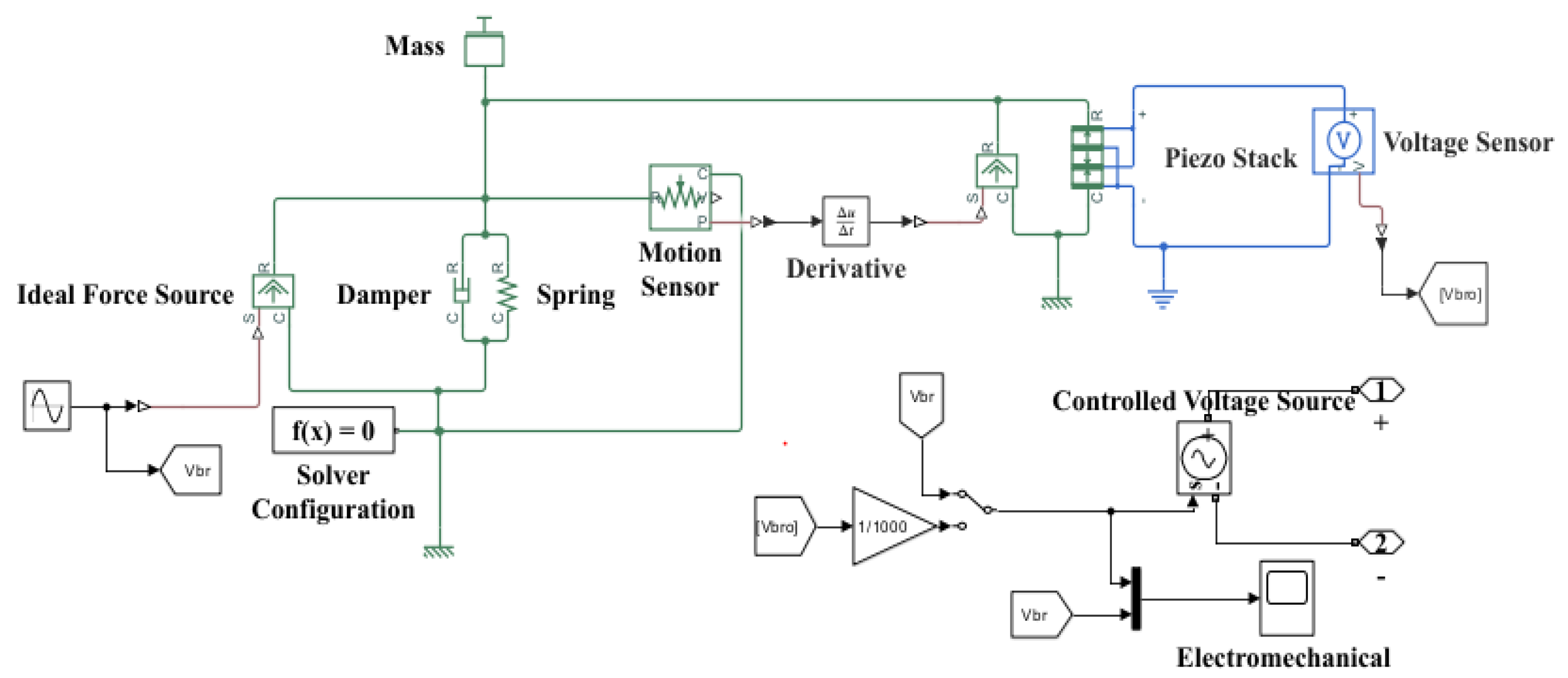

A translational motion sensor is inserted to extract and convert signals between two mechanical translational nodes in accordance with velocity and position. The piezo stack is a piezoelectric sensor model. The piezo stack uses the translation damper and the translation spring to model its mechanical components. Figure 6 illustrates the electromechanical model of the wind energy harvester. In the piezoelectric model, the mass‒spring damper system receives a sinusoidal force input, whereas a sensor detects the electrical output of the piezoelectric element. This force causes displacement in the spring and damper, which in turn generates vibrations in the piezoelectric element. A sinusoidally varying AC voltage source is used to represent the electrical voltage that the piezoelectric effect generates.

The proposed framework facilitates the investigation of the effects of changing the mechanical vibrating source input parameters, such as displacement and frequency. Parameters such as velocity, mass, force applied, and the damping factor can express the vibration of the wind. Connecting piezoelectric elements to a vibration source changes many properties of piezoelectric materials.

The piezoelectric material produces an electrical charge when exposed to mechanical stress [25]. These properties include the effective mass size, number of layers, charge constant, dielectric constant, elastic compliance, damping, and mechanical quality factor [26].

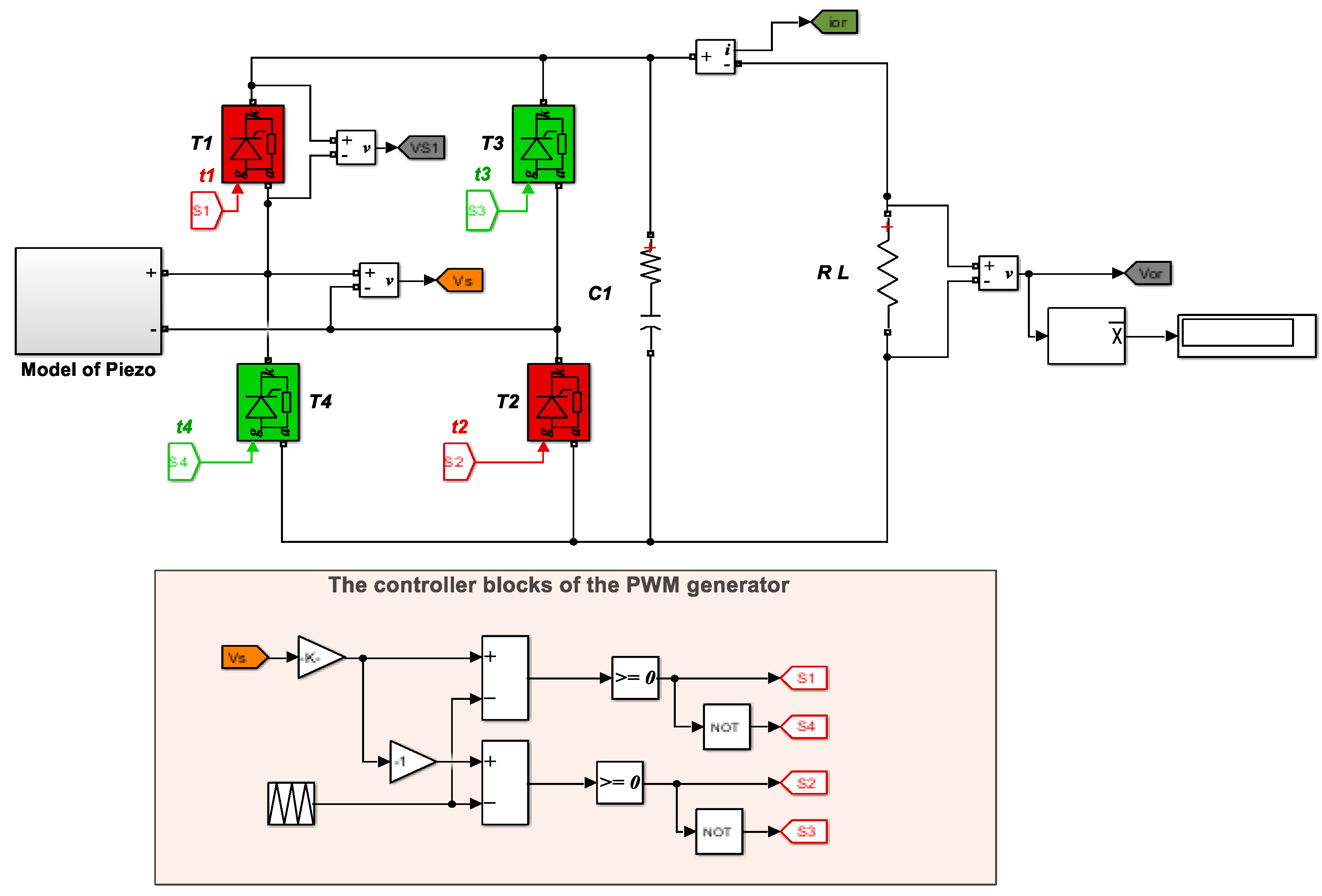

Figure 7 shows a comprehensive explanation of the mechanical and electrical AC-to-DC converters in Simulink. The rectifier switches use a pwm full-wave rectifier to reduce total harmonic distortions in the output waveform [23]. The rectifier passes the DC output voltage through a capacitive filter to minimize pulsation and reduce distortion in the DC voltage.

Table 2 shows the simulation results of the maximum and minimum voltages of an AC‒DC converter with various vibration frequencies. Figure 8 shows the simulation blocks of the closed-loop buck boost converter.

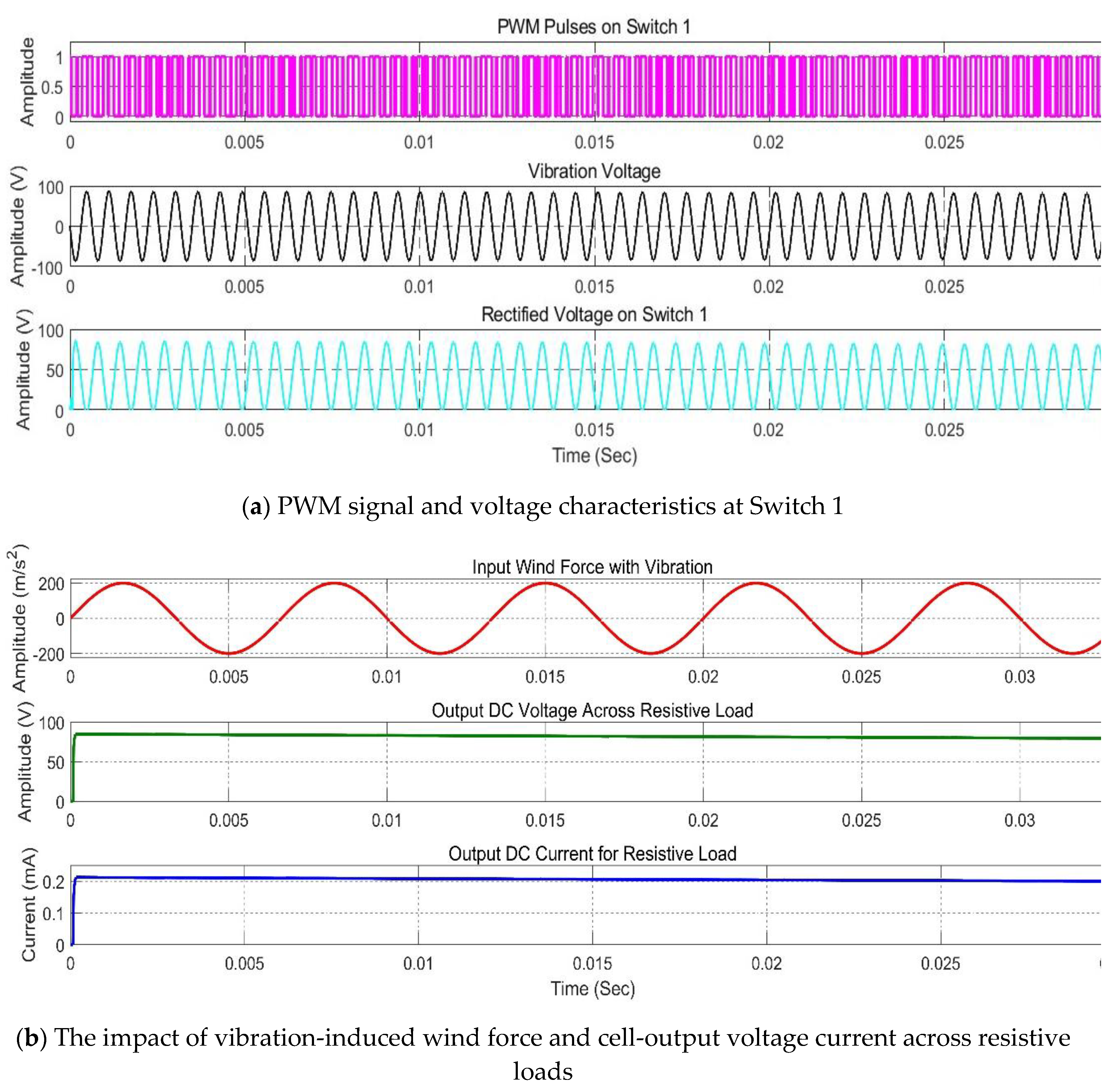

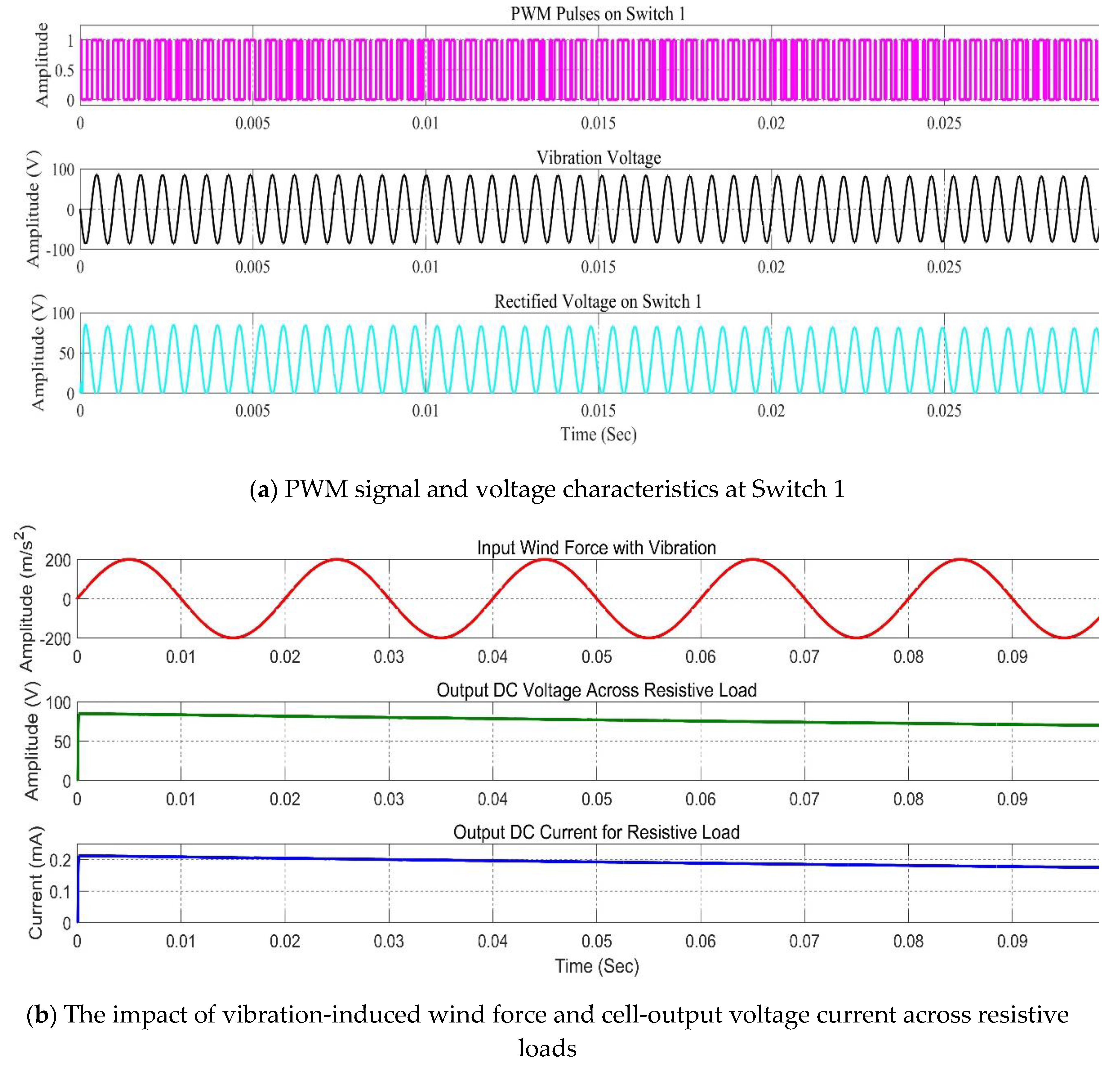

Figure 9, Figure 10, and Figure 11 show the output voltage, current, and switch pulse of the AC‒DC converter, respectively, on the basis of input sinusoidal frequencies of 15, 50, and 150 Hz. The closed-loop buck boost converter then receives this DC voltage and adjusts the DC voltage level to meet the load requirements.

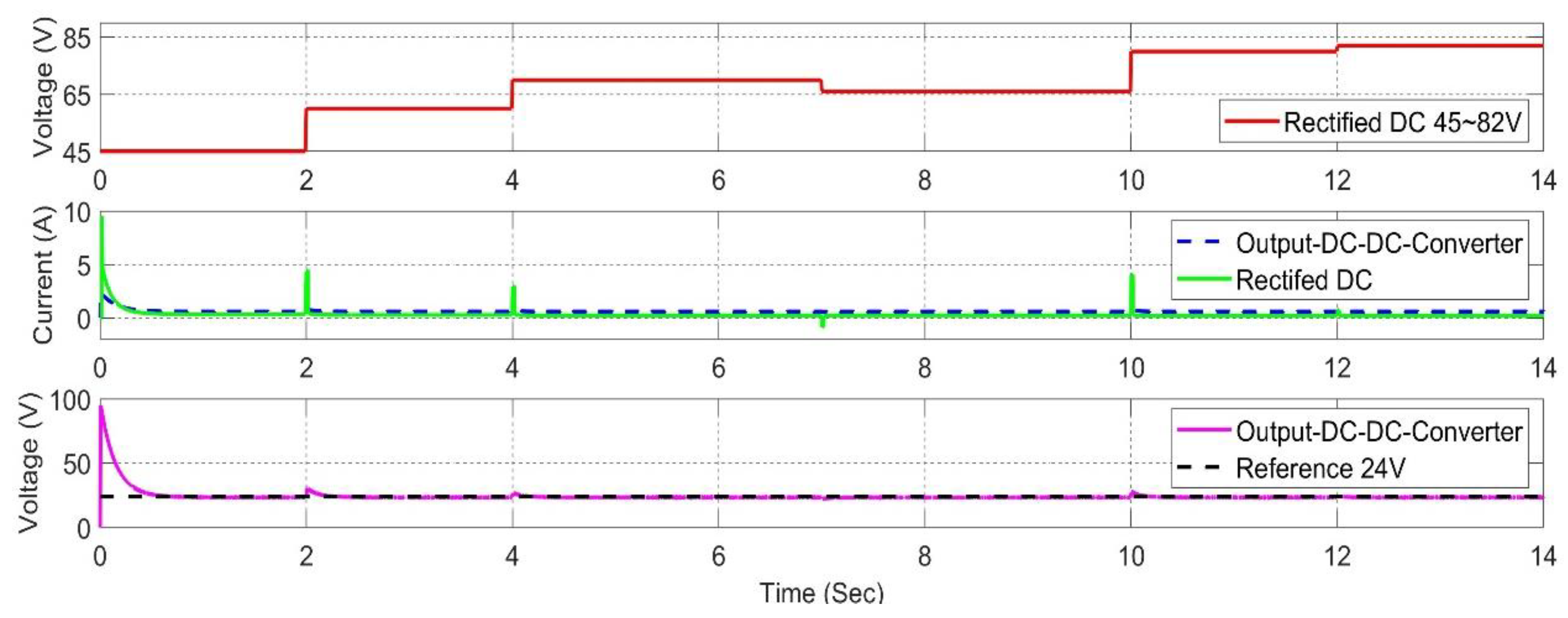

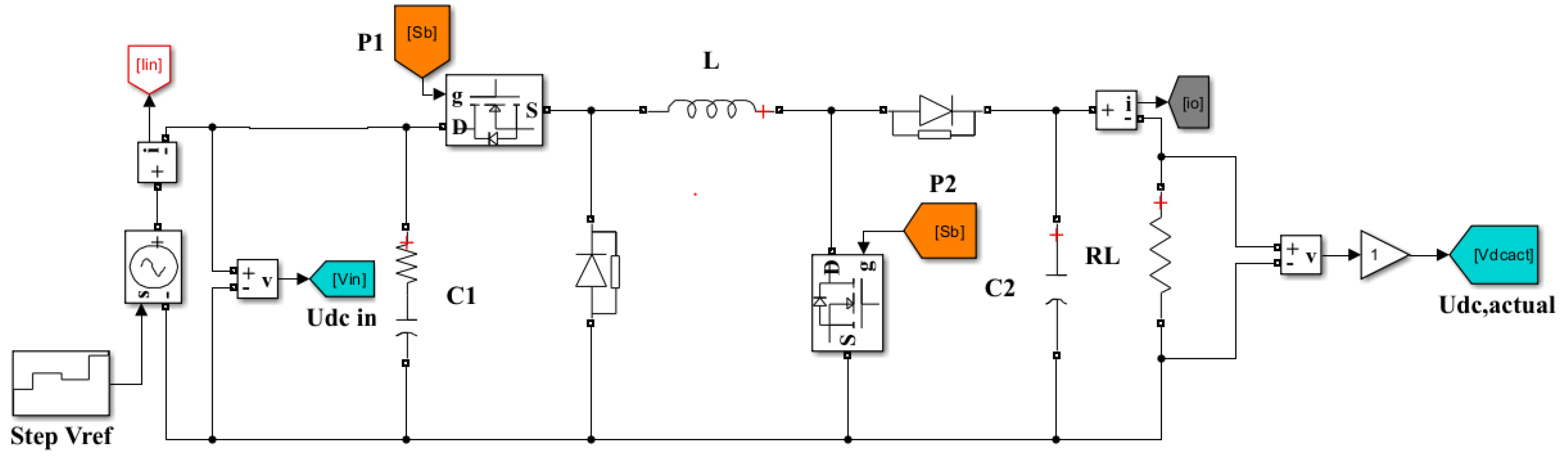

The evolution of closed-loop controllers for DC-to-DC converters plays a significant role in the overall performance of the proposed energy conservation system. Figure 12 illustrates the performance of the DC-to-DC converter controller, which continuously modifies the output voltage according to the reference voltage, set at 24 V.

4.2. Simulation of the Proposed Integrated Piezoelectric Energy Harvesting Cell

To simulate an integrated PEHS, we combine an AC‒DC converter, a back-boost converter based on P&O MPPT, and a piezoelectric energy harvesting source. The closed-loop DC‒DC converter changes its duty cycle on the basis of the input voltage and current from a full-wave rectifier, whereas the controller continuously tracks the set reference voltage. This makes it flexible for changing environmental conditions, but there can be oscillations around the maximum power point.

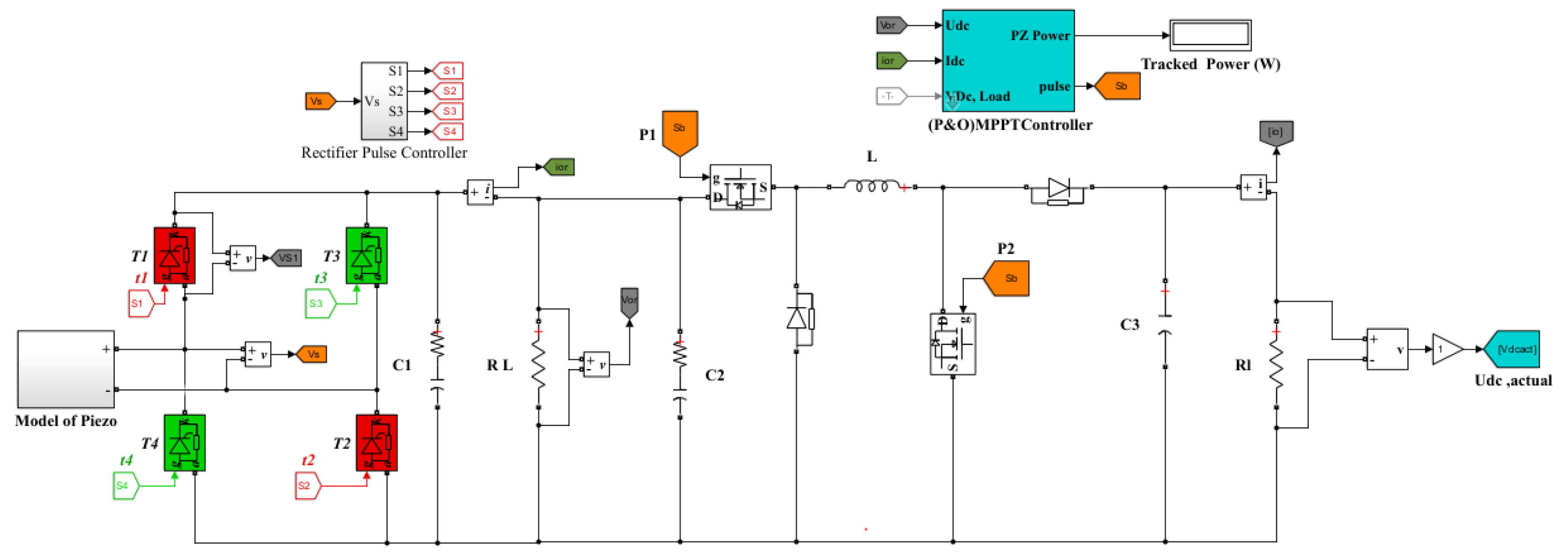

Figure 13 illustrates the wind vibration energy harvester system, which feeds the current and voltage outputs from the PWM rectifier to the P&O MPPT buck-boost converter, specifically focusing on the conversion of the mechanical impact of wind into electrical energy.

The closed-loop P&O MPPT DC‒DC converter is one of the most frequently used converters [18]. The DC‒DC converter continuously regulates the operating point to ensure that it operates at its maximum level, which depends on the rectified voltage and current of the PEHS sources. In addition, the closed loop is responsible for setting the required output voltage. Figure 14 shows the DC output voltage of the PEHS over time under a constant wind impact force and a 50 Hz vibration frequency. This can provide good insight into the performance of wind energy harvester systems that track the set reference voltage.

Table 3 compares the PEHS with a closed-loop P&O MPPT-DC converter with available state-of-the-art systems. The comparison table contains the following information: types of rectifiers, DC-to-DC converters, and design applicability.

The proposed energy harvesting system stands out because of its use of a PWM-IGBT bridge rectifier with a P&O MPPT closed-loop buck-boost converter. This structure can provide efficiency in power conversion management compared with systems employing uncontrolled bridge diodes with DC‒DC converters. In contrast to the system explained in [18].

The proposed system did not undergo full experimental testing, despite partial experimental testing via simulation and validation, which provided a thorough evaluation of its performance mathematically. This limitation underscores the importance of further experimental validation to assess its viability in real time as a prototype design. However, the proposed system shows promise because of its advanced components and comprehensive assessment through simulation compared with existing state-of-the-art systems.

5. Discussion

The proposed design of the PEHS approach, which incorporates a closed-loop buck-boost converter based on the P&O MPPT algorithm, represents a substantial improvement in the area of vibrational energy harvesting technology. The proposed design of the PEHS operates at a wide range of vibration frequencies, which, together with its effective power conversion and consistent output, make it a very favourable option for sustainable energy production. Figure 9, Figure 10, and Figure 11 show the rectifier voltage, current, and vibration force for input frequencies of 15 Hz, 50 Hz, and 150 Hz, respectively. The results indicate the ability of the proposed PEHS to efficiently transform generated voltages under different vibration frequencies. As shown in Figure 9, the AC-to-DC converter section stability increases the rectified voltage, which means that it can start transferring power even at lower vibration frequencies. The output demonstrates greater and more consistent voltages at a frequency of 50 Hz, suggesting that this frequency range is best for achieving peak performance. The system exhibited stable operation at a frequency of 50 Hz, which is typically used in several practical applications.

As shown in Figure 11, the AC-to-DC converter section effectively manages higher frequencies, resulting in a notable amplification in the output voltage. However, the heightened wind vibration force may induce supplementary mechanical strains, although the AC-to-DC converter seems to handle it effectively. As shown in Figure 14, the proposed buck-boost converter control approach exhibits notable performance in terms of the output voltage matching the reference voltage set. Despite fluctuations in the input voltage level, the controller continuously maintains an output voltage that reflects the robust and reliable performance of the suggested control method. Furthermore, the ability of the closed loop controller to promptly adjust the output voltage signifies an effective feedback system, which is crucial for sustaining stability in dynamic circumstances. The closed-loop system ensures a consistent and steady DC output, which is crucial for ensuring a dependable power supply to the load. Despite fluctuations in the input voltage level, the controller continuously maintains an output voltage that reflects the strong and dependable performance of the proposed control method.

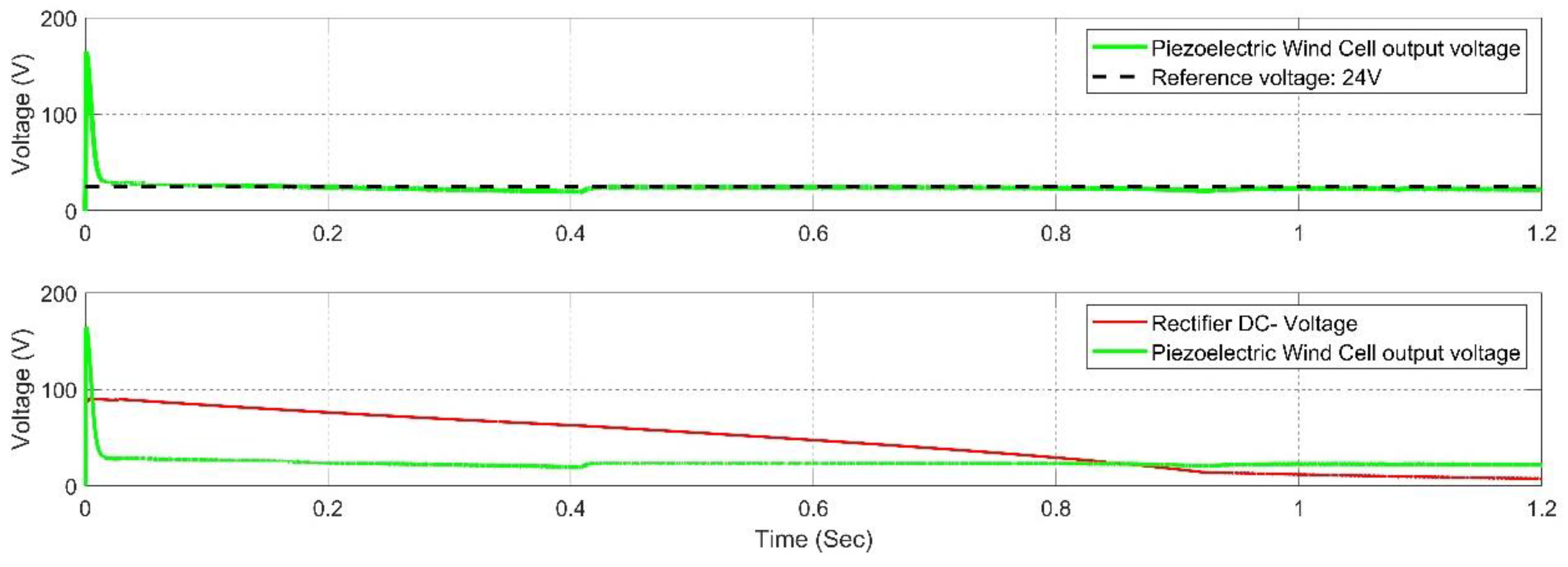

Furthermore, as shown in Figure 14, the ability to control and quickly modify the output voltage signifies an effective feedback system, which is crucial for sustaining stability in dynamic circumstances. The closed-loop system guarantees a steady DC output, which is essential for achieving optimal power delivery to the load.

5.1. A Comparison with Previous State-of-the-Art and Broader Contexts

The findings indicate that the proposed design of the piezoelectric energy harvesting system (PEHS), which incorporates a closed-loop perturbation and an observed MPPT buck-boost converter, was remarkably efficient in converting the mechanical vibration force at various frequencies into a consistent supply of electrical energy. This feature is crucial for applications in domains with fluctuating and uncertain sources of vibrational energy, such as equipment, structures, and transportation systems.

Previous studies have often concentrated on either low-frequency or high-frequency vibration energy harvesting devices, which yield different levels of achievement. The present paper demonstrates a significant enhancement in its ability to handle a broad variety of vibration frequencies while maintaining a consistent output voltage.

This increase effectively bridges the gap between various operating situations. In addition, the use of advanced MPPT techniques improves the overall efficiency, which is a significant improvement over simpler and less effective systems. The broad and significant implications of this study can be summarized as follows:

• Improved Energy Solutions: The improved energy solution system efficiently converts vibrational energy into electrical energy. This design can offer dependable power sources for remote sensors, IoT devices, and other low-power applications, reducing reliance on batteries or traditional power sources.
• Sustainable Energy Sources: The use of ambient vibrations for energy harvesting is compatible with sustainable energy objectives, offering an environmentally friendly substitute for traditional energy sources while diminishing eco-friendly alternatives.
• Scalability and Flexibility: The suggested design of the PEHS has the potential to be expanded to handle larger applications, enabling the provision of power solutions for more extensive infrastructure. This technology's ability to accommodate a broad variety of frequencies makes it extremely flexible for many industrial and commercial applications.

6. Conclusions

This article introduces a dynamic simulation model for a piezoelectric vibration energy hearing system based on wind vibration energy as a source of mechanical energy. The proposed model has integrated electrical circuits, such as an AC‒DC converter, a closed-loop buck‒boost converter, and an MPPT. A detailed description of the dynamic simulation performance has been provided, in addition to a brief overview of each part of the system. Specifically, the MPPT-equipped piezoelectric harvester generates a significantly higher DC electrical output voltage when it encounters a resistive load of 4 kΩ. This makes it a good choice for a wide range of low-voltage applications.

Notably, the closed-loop AC-to-DC converter based on the perturb and observe MPPT harvester demonstrates more stable output voltages, and the closed-loop DC-to-DC converter provides better tracking of the reference set values. This demonstrates that the vibration energy harvester with a closed-loop AC-to-DC converter, as well as the perturbation and observation of MPPTs, produces better performance than the systems available in the literature.
