The Evolution of Permeability and Sensitivity Analysis of Gas-bearing Coal Under Cyclic Dynamic Loading

1. Introduction

Due to the depletion of shallow coal resources, coal mining operations are progressively moving towards deeper deposits. Deep coal seams frequently experience repeated mining disturbances, resulting in cyclic dynamic loading on the coal layers. When subjected to such cyclic dynamic loading, the deformation of the coal body causes the propagation of fractures, which in turn affects the permeability of the coal, leading to abnormal gas outbursts in coal mines. In severe cases, this can result in catastrophic events such as gas explosions and coal and gas outbursts. Consequently, it is imperative to conduct experimental studies on the seepage behavior of gas-bearing coal under cyclic dynamic loading conditions.

Extensive research has been conducted by scholars both domestically and internationally on the permeability characteristics of coal rock masses[1,2,3,4,5,6,7]. Regarding the effects of coal matrix contraction and expansion on permeability, Bustin et al. [8] conducted preliminary studies on the relationship between adsorption expansion effects and permeability in coal samples under different gas purities. Wang et al. [9] investigated the relationship between coal matrix contraction and permeability under the adsorption of multiple gases. Niu et al. [10] investigated the differential effects of gas adsorption on the swelling behavior of raw coal versus structural coal. Mojgan et al. [11] conducted experiments to identify the critical point at which the effect of gas pressure on coal matrix shrinkage changes, and they noted that this pressure is approximately 1.5 MPa. Larsen [12] and Liu [13] hypothesized, based on experimental results, that the effect of gas adsorption on the permeability of coal rock is primarily due to matrix contraction and expansion. Li et al. [14] investigated the effects of effective stress, matrix expansion and contraction, temperature, and moisture on coal rock permeability, and identified the principal influencing factors. Liu et al. [15] investigated the effects of various gases on the permeability of coal rocks and analyzed the differences in adsorption of different gases concerning the contraction and expansion of the coal matrix. Zhao et al. [16] examined the mechanisms by which gas adsorption affects the permeability of coal. Zhao [17] and Hu[18] fitted the relationship between permeability and gas pressure based on experimental results.

In terms of the impact of effective stress on permeability variations, Li et al. [19] investigated the sensitivity of permeability to stress and delineated the relationship between permeability and stress fluctuations. Bai et al. [20] investigated the variations in coal-rock permeability across different stress stages. Lu [21] investigated the variations in coal rock permeability with respect to confining pressure and pore pressure, and obtained various experimental conclusions. Fan et al. [22] analyzed the variation in coal rock permeability with effective stress and delineated the characteristics of initial permeability. Mitra et al. [23] investigated the variations in coal rock permeability with changes in pore pressure and effective stress under uniaxial compression test conditions, and concluded that the rate of permeability change differs at various stages. Tang et al. [24] conducted experiments using self-developed seepage testing apparatus. Based on the experimental results, they fitted the relationship between effective stress and permeability during the testing process and highlighted the discrepancies observed between the loading and unloading phases. Zhao et al. [25] derived an equation that elucidates the correlation between coal matrix permeability and effective stress, thereby laying the groundwork for the establishment of subsequent models. Li et al. [26] investigated the sensitivity of coal rock permeability to effective stress during loading. Peng et al. [27] examined the impact of scale effects on coal rock permeability and noted that sensitivity to effective stress varies at different scales. Yin et al. [28,29] not only explored the influence of effective stress on coal rock permeability but also analyzed the effects of strain on permeability.

Regarding the influence of the Klinkenberg effect on gas permeability, Pirzada et al. [30] investigated the sensitivity of the Klinkenberg effect to confining pressure and pore pressure, and identified the inflection point of this effect; Talapatra et al. [31] conducted experimental studies on the aforementioned phenomenon, providing a quantitative analysis of the impact of the Klinkenberg effect on permeability reduction; Wang et al. [32] analyzed the discrepancies of the Klinkenberg effect between briquette coal and raw coal.

The aforementioned study primarily focuses on the gas permeability characteristics of coal under static load conditions. However, there is a paucity of research on the gas flow characteristics of coal under the combined effects of static load, dynamic load, and gas adsorption. The mechanisms of gas flow in coal under these combined influences remain to be further explored. This paper, utilizing self-developed instrumentation, investigates the impact of static load, dynamic load, and gas adsorption on the permeability of coal. The findings provide a theoretical foundation for understanding coal-rock dynamic disaster mechanisms and gas extraction processes.

2. Experimental Apparatus

A self-developed three-axis solid-gas coupling test apparatus is used to measure the permeability of the coal under cyclic dynamic and static combined loads [33]. It consists of four key units: dynamic and static loading unit, three-axis confining pressure unit, fluid injection unit, and information acquisition unit. The challenges of dynamic-static load combination, high-pressure sealing under dynamic loads, and permeability measurement during the full stress-strain process are solved.

3. Experimental Scheme

The permeability of gas-containing coal under combined static and dynamic loading is closely related to factors such as static load, dynamic load, and the amount of gas adsorption. The experimental variables chosen for this test are dynamic load impact energy, static load stress stages, and gas adsorption quantity. The dynamic impact energy is primarily achieved by adjusting the frequency and magnitude of the dynamic load. The static load stress phase is divided into the compaction stage, elastic stage, and yield stage. The gas adsorption amount is adjusted through different adsorptive gases at the same adsorption pressure. The dynamic load along the trough of the mining face is mainly caused by the excavation, and the source energy level is about 100 J. The dynamic load frequency band is mainly at 3-6 Hz, and the main deformation stage of coal and rock occurs within the first 300 cycles[34]. According to the storage conditions of the gas pressure in the coal under the actual working conditions, the gas pressure is selected as 1 MPa. At the same time, in order to create a triaxial stress environment and minimize the impact of effective stress, the confining pressure is 1.5 MPa. The ambient temperature throughout the experiment was maintained at approximately 25°C, with the adsorption time of the adsorptive gases uniformly regulated to around 48 hours. The detailed experimental plan is presented in Table 1, in which the σ_c is the coal compressive strength.

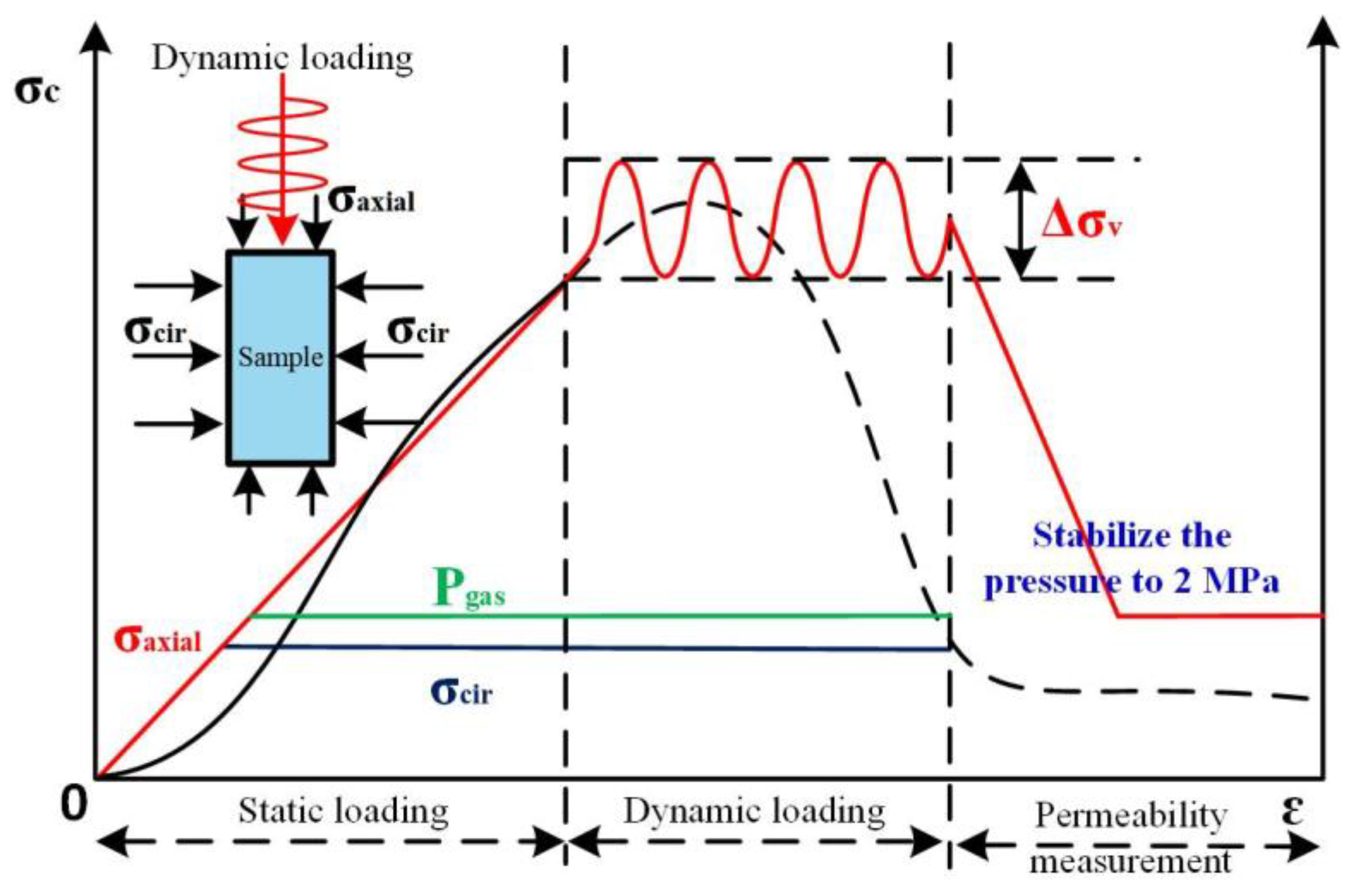

In order to ensure the comparability of experimental data, a testing loading path is designed as illustrated in Figure 1. The sample is initially subjected to a predeterminable confining pressure, after which it is infused with a predefined pressure of gas. After the gas adsorption reaches equilibrium, a static load is applied to the sample until it reaches the designated value. On this basis, a cyclic dynamic load is applied with the predetermined amplitude and frequency. After the dynamic loading disturbance concludes, return to the uniform predetermined stress state of 2 MPa and conduct the permeability test.

4. Results and Discussion

4.1. The Influence of Cyclic Loading Frequency on the Permeability

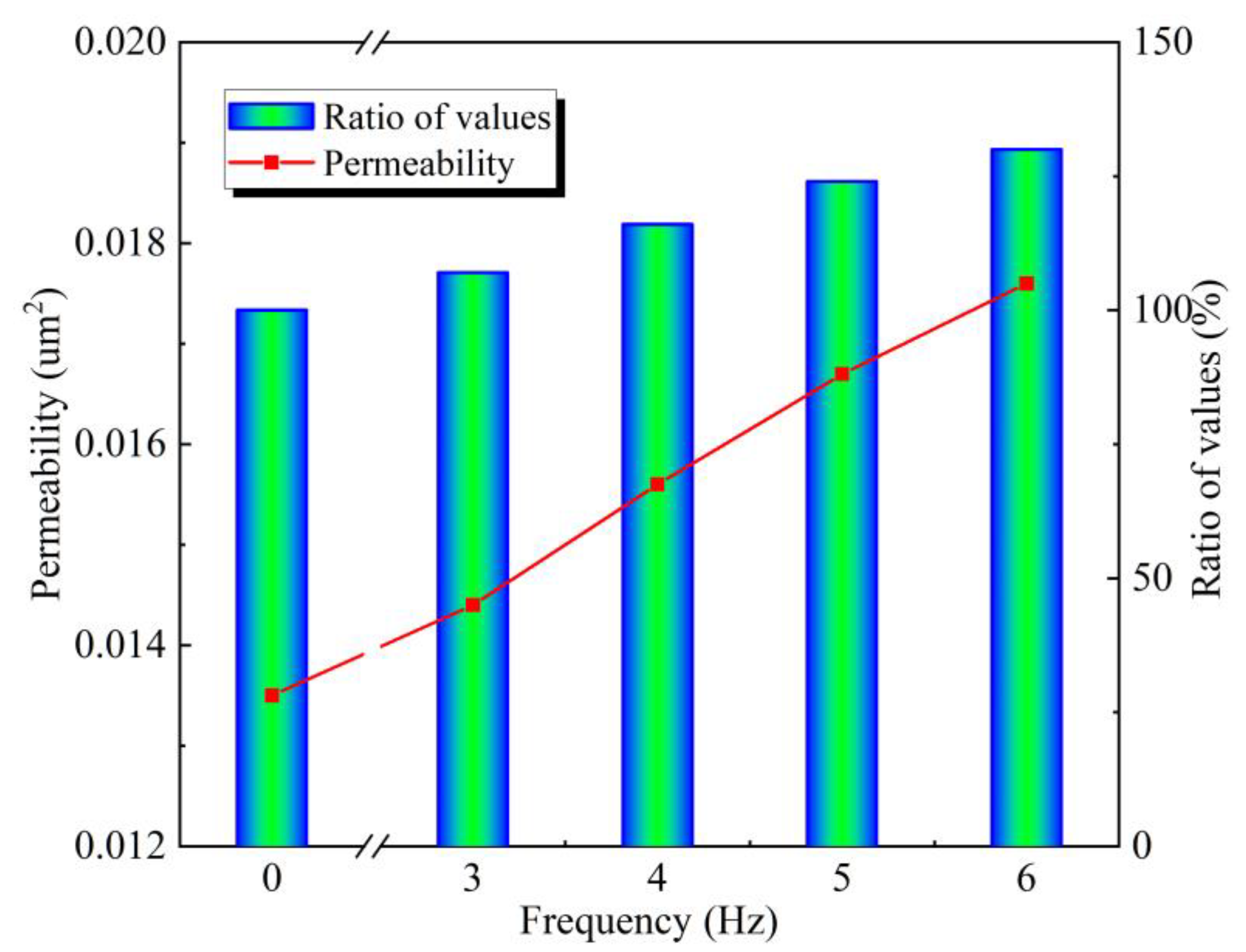

The variation of coal permeability with the frequency of cyclic dynamic loading is illustrated in Figure 2. It is evident that there is a positive correlation between the permeability of the coal body and the frequency of cyclic dynamic loading. When the coal body is undisturbed by dynamic loading, its permeability is approximately 0.0135 μm². However, after being subjected to cyclic dynamic loading with an amplitude of 2.5 MPa and a frequency of 6 Hz, the permeability increases to 0.0176 μm², reflecting an increase of approximately 30.1%. The increases in permeability at the other three dynamic loading frequencies are 7.2% (3Hz), 16.3% (4Hz), and 23.8% (5Hz), respectively. It is evident that cyclic dynamic loading has a significantly pronounced effect on increasing the permeability of coal bodies. The pores and fractures within the coal mass serve as the primary conduits for gas seepage. Under the continuous influence of cyclic loading, the primary pores and fractures further develop, resulting in an increased permeability. As the frequency of dynamic loading increases, a certain number of secondary fractures will develop, leading to a phenomenon where permeability continues to rise with the ongoing increase in dynamic loading frequency. Moreover, under the influence of cyclic dynamic loading, the gas adsorption equilibrium within the coal matrix is disrupted, further enhancing the gas adsorption and expansion effects. Thus, it is evident that the greater the external disturbance to the coal seam, the faster the gas migration within the seam, making it more prone to abnormal gas outbursts. Simultaneously, for coal seams from which gas can be extracted, external disturbances can enhance their permeability, thereby improving the efficiency of gas extraction.

4.2. The Influence of Cyclic Loading Amplitude on the Permeability

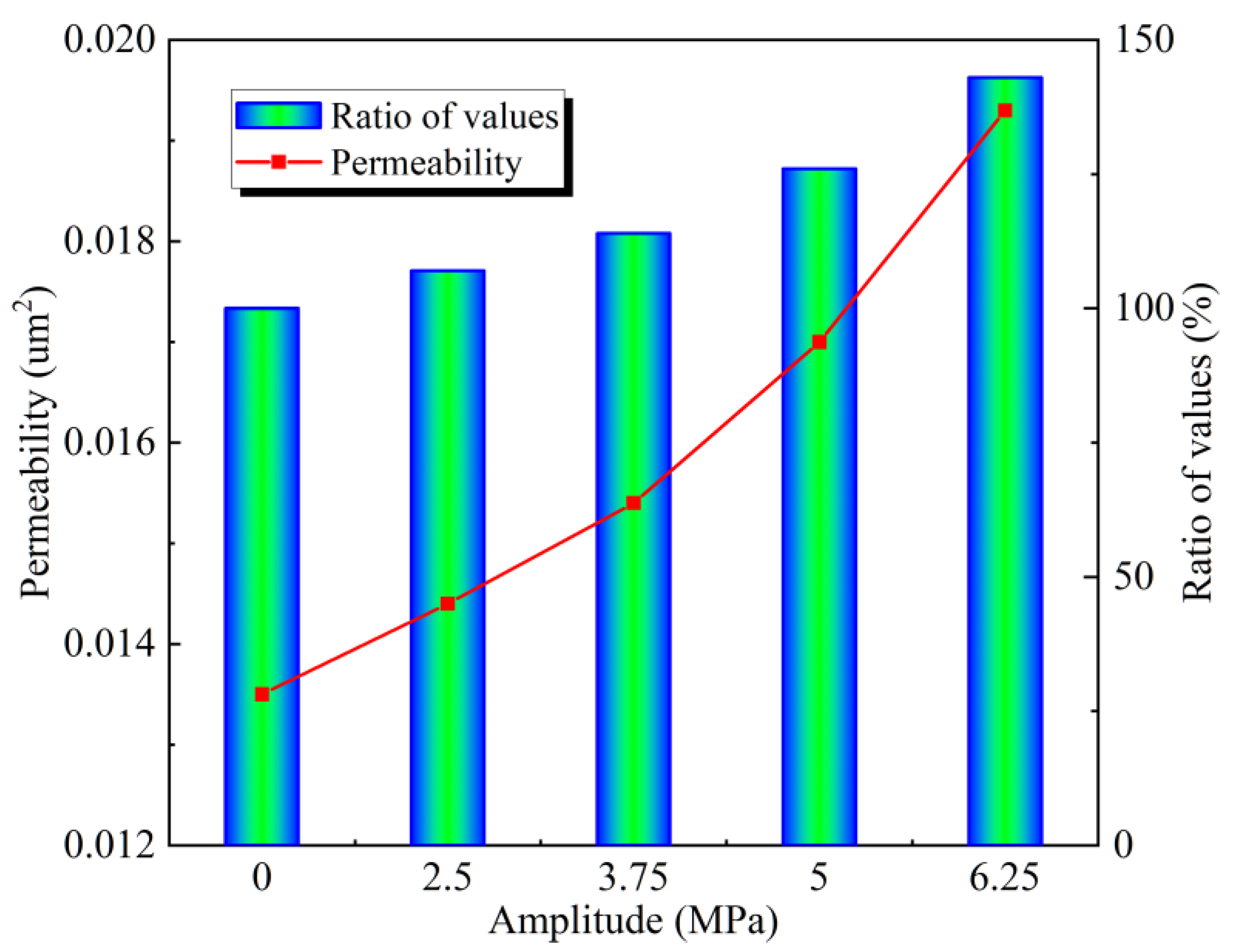

The variation in coal permeability with the amplitude of cyclic dynamic loading is illustrated in Figure 3. It is evident from the figure that the permeability of coal is positively correlated with the amplitude of cyclic dynamic loads. At amplitudes of 2.5 MPa, 3.75 MPa, 5 MPa, and 6.25 MPa, the permeabilities are recorded as 0.0144 um², 0.0154 um², 0.017 um², and 0.0193 um², respectively, with growth rates of 7.2%, 14.3%, 26.1%, and 43%. It is evident that the amplitude of dynamic loading exerts a more pronounced effect on the increase in permeability. The reasons for the increase in permeability are fundamentally consistent with that of different frequencies. The sharp 43% increase in permeability at an amplitude of 6.25 MPa is due to the fact that, at this stage, the cyclic dynamic loading is in the yield phase of the coal body stress-strain curve. Consequently, the degree of damage is greater, and the development of fractures is more pronounced.

4.3. The Influence of Static Load Stage on the Permeability

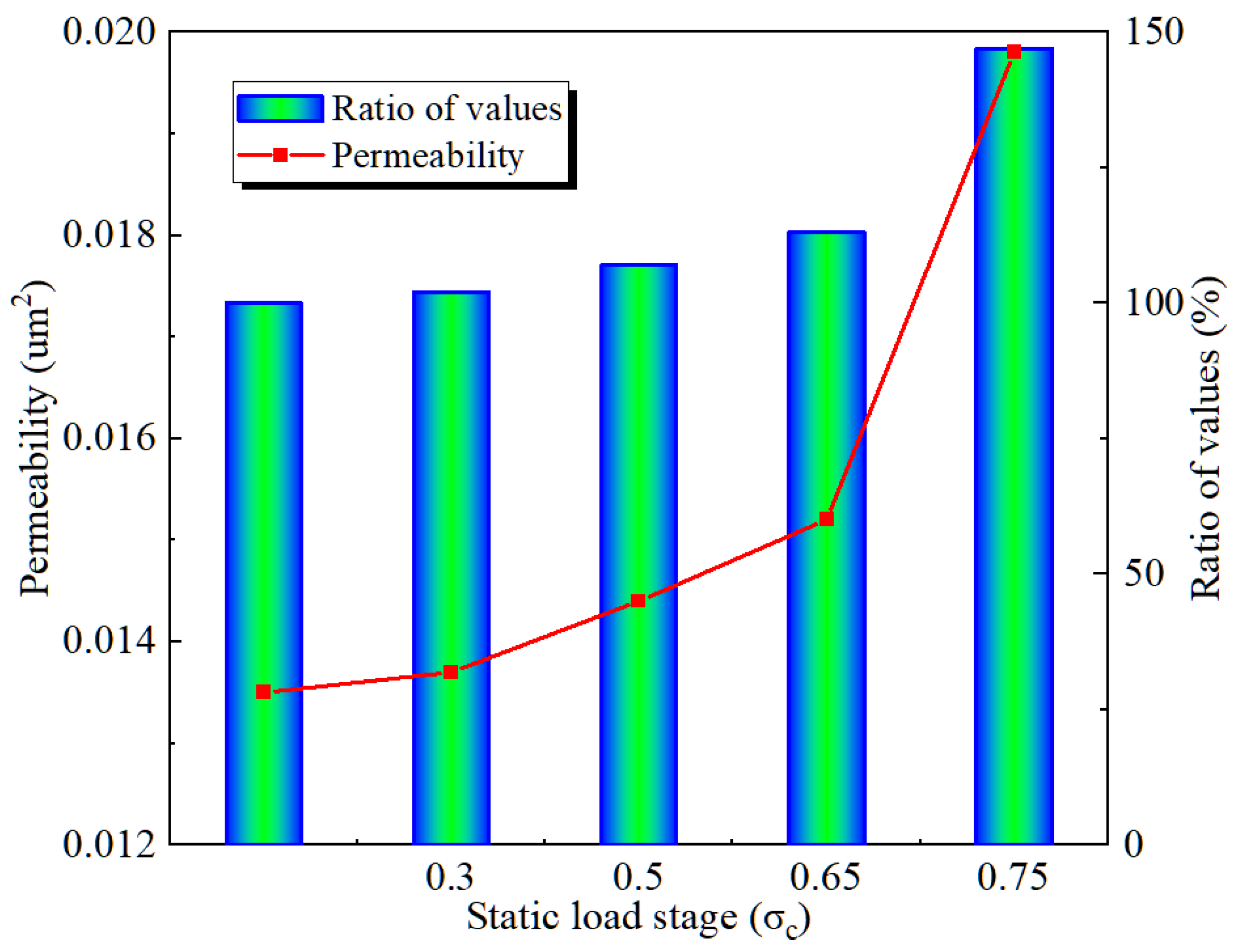

The variation in permeability with the static load stage of the cyclic dynamic load is illustrated in Figure 4. It is evident that there is a positive correlation between the permeability of the coal body and the static load stage. When the static load stages are 0.3 σ_c, 0.5 σ_c, 0.65 σ_c, and 0.75 σ_c, the permeability of the coal samples is observed to be 0.0137 μm², 0.0144 μm², 0.0152 μm², and 0.0198 μm², with corresponding growth rates of 2%, 7.1%, 13.1%, and 47.2%, respectively. During the elastic stage of coal, the impact of cyclic dynamic loading on permeability is not significant. This is because, during this phase, the internal damage to the coal body is minimal, and the resulting plastic deformations and newly-formed cracks are also relatively few. However, before and during the yield stage of the coal mass, its permeability significantly increases, with a maximum increase of up to 47.2% compared to the permeability without dynamic loading. The reason is that during this stage, the application of cyclic dynamic loads significantly exacerbates the internal damage to the coal body, leading to the expansion of primary fractures and the formation of numerous secondary fractures. It is evident that when coal seams are subjected to higher stress conditions, they are more prone to damage and abnormal gas outbursts when disturbed by external dynamic loads.

4.4. The Influence of Adsorbed Gas on the Permeability

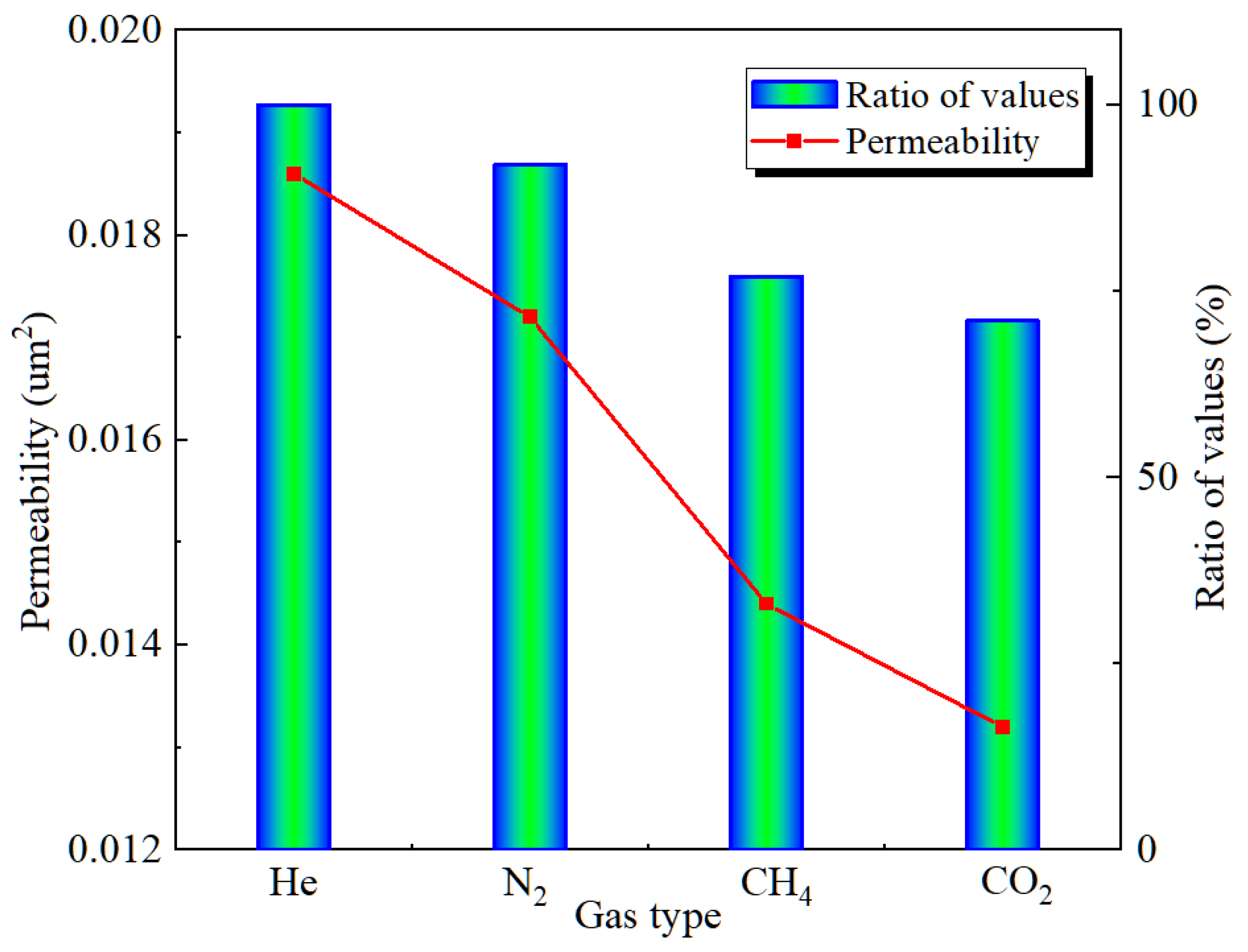

The gas adsorption capacity is achieved through the gases at identical pressures but of different types, thereby ensuring the comparability of permeability results. The adsorption capacity of the four gases, in ascending order, are He, N₂, CH₄, and CO₂. The variation in permeability with the capacity of gas adsorption is illustrated in Figure 5. It is evident that there is an inverse correlation between the permeability of the coal body and the gas adsorption capacity. As the capacity of gas adsorption increases, the permeability of the coal samples is 0.0186 μm², 0.0172 μm², 0.0144 μm², and 0.0132 μm², respectively. Taking the permeability of the non-adsorptive inert gas He as the baseline, the reductions in permeability for the other three gases are 8%, 23%, and 29.2%, respectively. Thus, it is evident that gas adsorption exerts an inhibitory effect on the permeability of the coal body. The reason is that after the coal body adsorbs gas, it undergoes adsorption-induced swelling and deformation. However, constrained by the confining pressure, deformation can only occur inwardly, thereby compressing the internal seepage pathways of the coal body and consequently reducing its permeability. As the amount of adsorption increases, so does the degree of adsorption-induced swelling and deformation, resulting in a more significant reduction in permeability.

4.4. The Permeability Behavior of Coal in the Full Stress-Strain Process

To more intuitively illustrate the overall evolution of coal permeability under cyclic dynamic loading, we have also obtained the stress-strain versus permeability relationship curves of the coal body under such loading, as depicted in Figure 6. There exists a notable coupling relationship between the stress of coal samples, axial strain, and permeability. The stress-strain curve of coal can be classified into four distinct phases: the compaction stage, the elastic oscillation stage, the plastic deformation stage, and the failure stage. Correspondingly, the permeability curve is divided into four regions: the compaction reduction zone (Ⅰ), the oscillation zone (Ⅱ), the gradual recovery zone (III), and the abrupt increase zone of failure (IV).

The compaction reduction zone (Ⅰ): From the initial compression point to the lowest permeability point before the application of cyclic loading, this phase corresponds to the consolidation stage and the elastic deformation stage of the stress-strain curve. During this period, the permeability of the coal samples exhibited a non-linear decreasing trend, with the rate of decrease gradually decelerating, ultimately reducing by approximately 50% of the initial permeability. The reason is that, under the gradual application of axial load, the inherent fissures within the coal body are progressively compacted. This leads to a reduction in the connectivity of the fissures, consequently decreasing the porosity. The channels through which gas molecules flow become narrower and fewer, resulting in a noticeable decline in permeability.

The oscillation zone (Ⅱ): This zone exhibits a propensity towards coupled resonance in the permeability during the application phase of cyclic dynamic loading, which evolves in tandem with the imposition of cyclic dynamic loads. The permeability after the application of dynamic load should exceed that before the application, as cyclic dynamic loading induces irreversible plastic deformation in the coal matrix, leading to a gradual accumulation of damage and an increase in the pathways available for gas flow.

The gradual recovery zone (III): From the end of the oscillatory zone in the permeability curve to the point of sudden slope increase, this stage corresponds to the plastic deformation phase of the stress-strain curve. During this period, with the increase in axial stress, permeability also exhibited growth. Due to the external load, the coal body framework undergoes irrecoverable plastic deformation, leading to a gradual accumulation of damage and destruction. Numerous new fissures emerge, develop, and stabilize, thereby causing the permeability to progressively recover.

The abrupt increase zone of failure (IV): From the point of the sharp increase in the slope of the permeability curve until the conclusion of the test, this phase corresponds to the peak strength and post-peak phase of the stress-strain curve. During this period, the permeability curve of the coal samples exhibits an almost vertical ascent. Compared to the initial permeability, the permeability at the end of this stage has increased by approximately a factor of two.

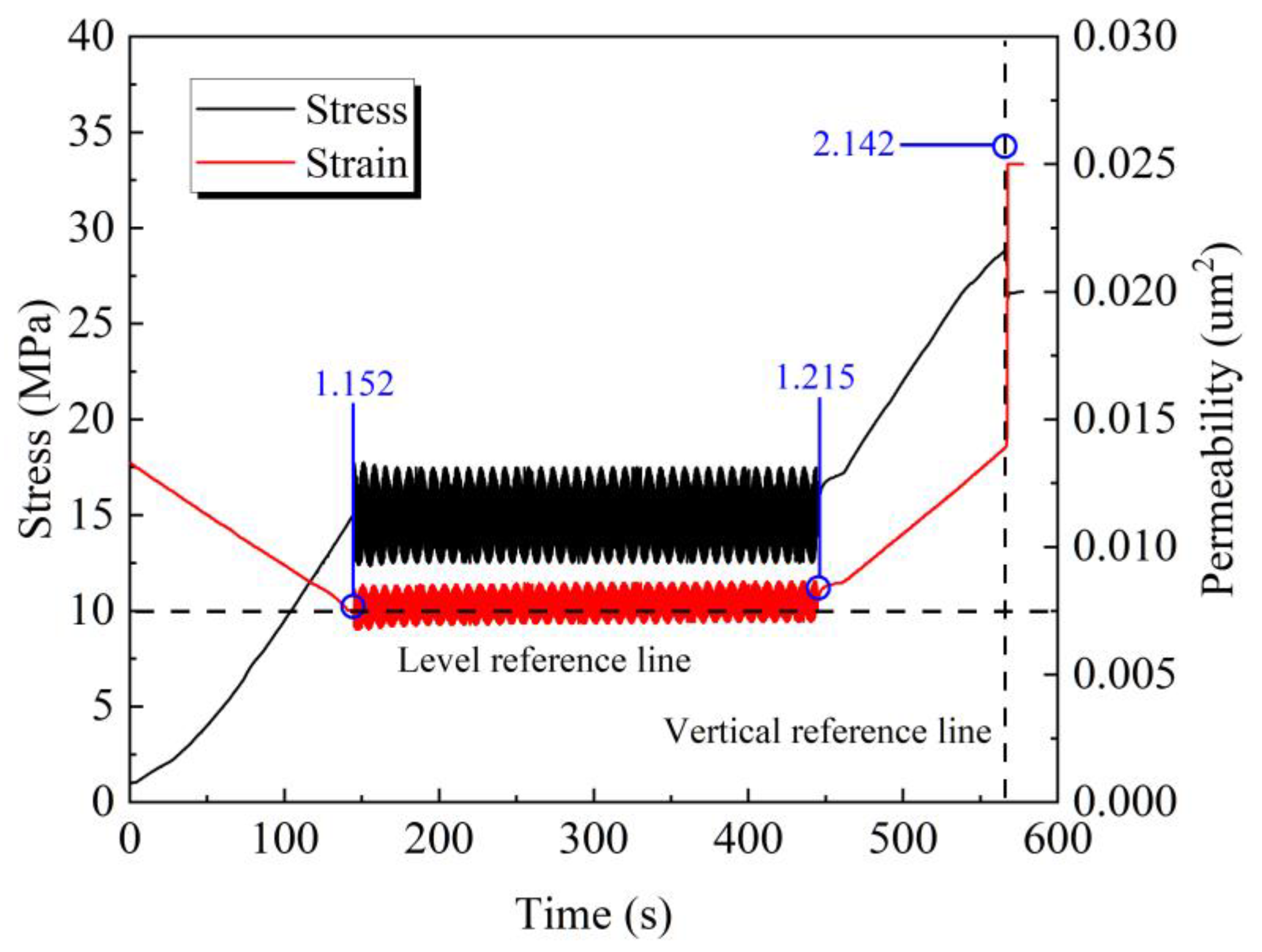

The stress-permeability temporal curve of coal under cyclic loading is illustrated in Figure 7. it is evident that the stress loading curve of the coal body and the variation in permeability exhibit a synchronous resonance pattern. When the cyclic load is applied and the stress returns to its pre-load level, the permeability fails to revert to its original state and actually increases to a certain extent. The reason lies in the fact that during the application of dynamic loading, the internal fissures within the coal body further develop, leading to the widening and proliferation of seepage pathways, which, to a certain extent, increases the permeability of the coal body.

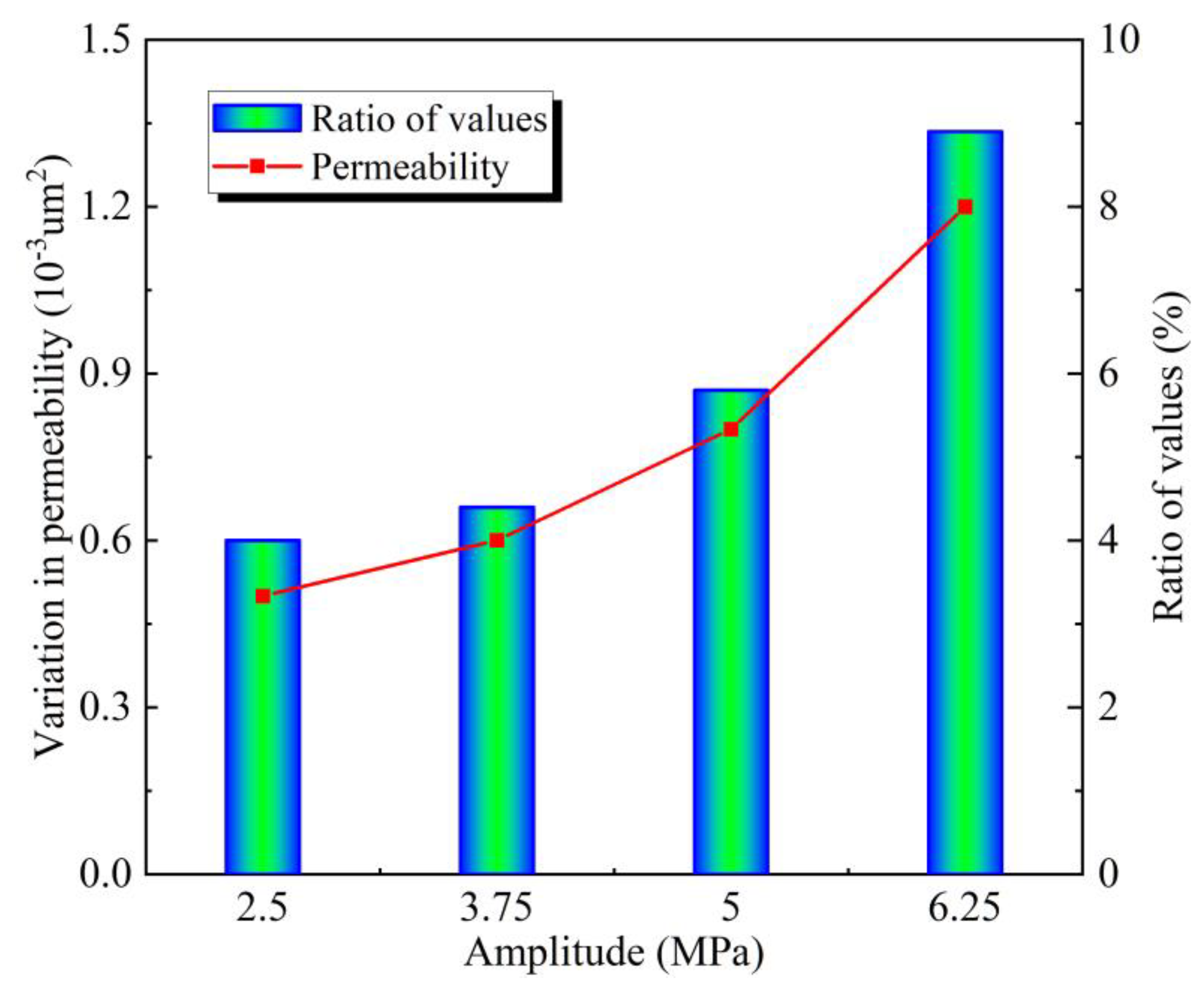

The increase in permeability of the coal mass during different cyclic dynamic loading processes is illustrated in Figure 8. As the amplitude of the cyclic dynamic load increases, the increment in permeability of the coal mass during the application of the dynamic load also rises. This indicates that with the increase in dynamic load amplitude, the damage within the coal mass becomes more pronounced, leading to more extensive development of fractures.

The coupling curve of permeability increase and yield strain of coal under different cyclic dynamic loading is illustrated in Figure 9. As the amplitude of dynamic loading increases, the yield strain during the dynamic loading process also becomes greater. This indicates that the coal body is subjected to further compression; however, an increase in permeability is observed. The reason for this is that, during this process, fractures radially expand further, leading to a continuous rise in permeability.

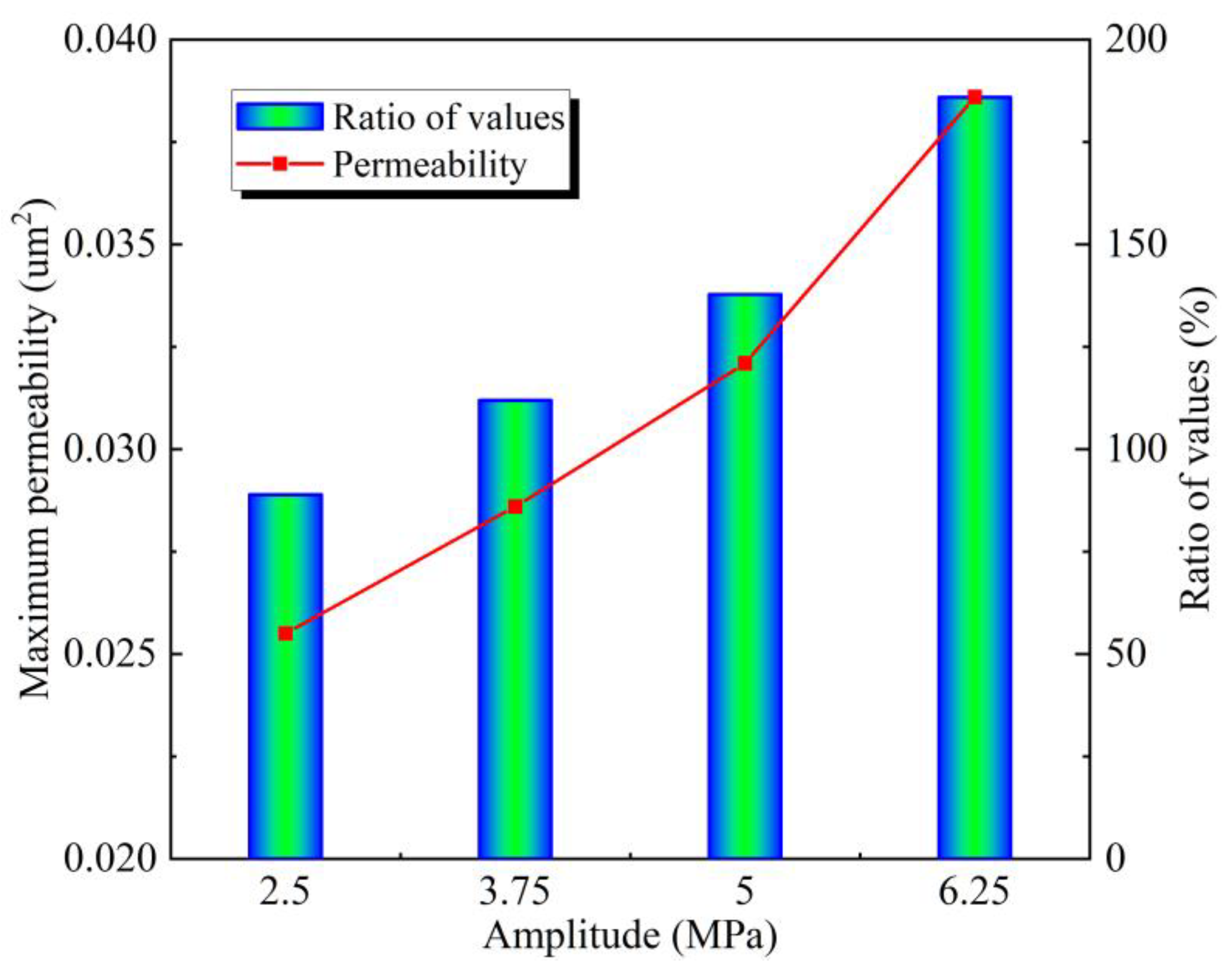

Following cyclic loading, the maximum permeability of the coal body during failure has also increased, as illustrated in Figure 10. When the cyclic loading amplitudes are 2.5 MPa, 3.25 MPa, 5 MPa, and 6.25 MPa, the maximum permeability values of the coal body are 0.0255 μm², 0.0286 μm², 0.0321 μm², and 0.0386 μm², respectively. Compared to the baseline value of 0.0135 μm², these represent increases of 88.9%, 111.9%, 137.8%, and 185.9%, respectively. It is evident that the application of dynamic loading not only enhances the current permeability of the coal body but also significantly contributes to the increase in its maximum permeability upon failure.

5. Sensitivity Analysis of Permeability to Cyclic Loading

As the depth of coal seam mining increases, the geostress (static load), gas pressure (gas adsorption), and dynamic load disturbances are continuously changing. The permeability of gas-bearing coal is not constant but rather a function of certain influencing factors. Given the numerous factors affecting coal seam permeability, this paper focuses on analyzing the impact of static and dynamic loads as well as gas adsorption. The deep coal and rock mass itself is complex in structure, surrounded by a challenging environment, and subject to rapidly changing evolutionary patterns. Ordinary control variable methods fall short in adequately describing these patterns; thus, a sensitivity coefficient for coal permeability is defined to characterize them.

5.1. Fitting of the Permeability Variation Curve

Figure 11 illustrates the variation in coal-rock permeability with respect to the frequency of cyclic dynamic loading. Under the condition of a fixed static load phase, the permeability of the coal-rock increases in an exponential manner with the rise of cyclic dynamic load. Initially, as the frequency of cyclic dynamic loading increases, the energy imparted by the load rises slowly, resulting in minimal damage and fewer fractures within the coal mass. Consequently, the rate of increase in permeability is gradual. However, as the frequency of cyclic dynamic loading continues to rise, the rate of energy increase accelerates, leading to a corresponding rapid increase in permeability.

Fitting the curve in Figure 11 reveals that when the adsorptive gas and static load phase are held constant, the permeability of the coal rock increases exponentially with the frequency v of cyclic dynamic loading:

$$k=a_0{e}^{b_{0}v}$$

(1)

where, k represents the permeability of the coal body, a₀ and b₀ are both fitting constants. a₀ signifies the magnitude of permeability, while b₀ indicates the rate of change of permeability. Table 2 presents the fitting results of the permeability of the coal body for various gases across different phases of static loading, along with the R² values, illustrating that the exponential function yields a commendable fit.

5.2. Evaluation Parameters for Cyclic Load Sensitivity

The sensitivity of coal permeability to the frequency of cyclic dynamic loading is analyzed from two perspectives, primarily concerning the rate of permeability change and the permeability dynamic loading sensitivity coefficient. These two parameters respectively reflect the magnitude and the rate of change in permeability.

The rate of change in permeability described in this paper refers to the variation in permeability induced by cyclic loading frequencies during the static load phase and with a fixed type of gas.

$$D_v={\displaystyle \frac{k_i-k_0}{k_0}}$$

(2)

Where, D_v represents the rate of change of coal permeability, indicating the magnitude of permeability variation. k₀ denotes the initial permeability of the coal body, μm². k_i signifies the permeability after an increase in dynamic loading frequency, μm².

The dynamic load sensitivity coefficient of permeability refers to the relative change in coal and rock permeability caused by an increase of 1 Hz in the frequency of cyclic dynamic loading, while the static loading phase and the type of gas are held constant. Based on the characteristics of the functions presented in this paper, the dynamic load sensitivity coefficient of permeability can be expressed using the following equation.

$$C_v={\displaystyle \frac{1}{k_0}}{\displaystyle \frac{\partial k}{\partial v}}$$

(3)

Where, C_v represents the coefficient of dynamic load sensitivity, Hz⁻¹. $\partial k$signifies the variation in permeability, µm². $\partial v$denotes the change in dynamic load frequency, Hz. Higher the C_v value indicates a greater sensitivity of permeability to dynamic loads, while a lower C_v value reflects reduced sensitivity.

5.3. Sensitivity Analysis of Cyclic Load

The results of the calculation for the variation rate of coal body permeability under different cyclic dynamic loading frequencies are presented in Table 3. When the static loading stage is constant, the permeability variation rate of the coal body decreases as the adsorption amount increases, although it remains positive throughout. This indicates that cyclic dynamic loading increases the permeability of the coal body, but the extent of this increase diminishes as the adsorption amount grows. When the adsorption amount is constant, the variation rate of coal body permeability increases with the increase in the static loading stage, with the maximum increase reaching 75.2%. Hence, it is evident that coal body permeability is highly sensitive to cyclic dynamic loading, with greater sensitivity associated with larger static loading stages. Conversely, higher adsorption amounts lead to reduced sensitivity.

Substitute equation (1) into (3) to derive the relationship between the coefficient of dynamic sensitivity of permeability C_v and the dynamic loading frequency ν.

$$C_v=a_1{e}^{b_{1}v}$$

(4)

Where, a₁ and b₁ are both fitting constants. The value of a₁ is related to the magnitude of the coal permeability. b₁ reflects the rate of change in the dynamic loading sensitivity coefficient, with a greater value of b₁ indicating a faster rate of change in the dynamic loading sensitivity factor. The relationship between the dynamic loading sensitivity coefficient and the dynamic loading frequency also follows an exponential function, with a greater dynamic loading frequency resulting in a higher sensitivity coefficient. The calculated results are presented in Table 4.

The coefficient of dynamic load sensitivity of permeability exhibits a pattern similar to that of the rate of change in permeability. The permeability of the coal body shows a pronounced sensitivity to dynamic load frequency, with this sensitivity diminishing as the adsorbed gas quantity increases, and increasing as the static load phase extends.
