Prevalence and Risk Factors of Renal Artery Stenosis in Patients Undergoing Simultaneous Coronary and Renal Artery Angiography: A Systematic Review and Meta-Analysis of 31,689 Patients from 31 Study

1. Introduction

Renal artery stenosis (RAS) is an important, but frequently unrecognised clinical condition. It shares common etiopatogenesis with other atherosclerotic diseases such as coronary artery disease (CAD), cerebrovascular disease (CVD) or peripheral artery disease (PAD).[1] The detection of significant RAS is clinically relevant as the condition can perpetuate the progression of associated cardiovascular disease due to renovascular hypertension and lead to heart failure due to cardiorenal syndrome with renin-angiotensin-aldosterone (RAAS) system activation.[2] Among patients with suspected CAD undergoing diagnostic coronary angiography, presence of RAS carries important prognostic implications. It was independently associated with a 2-fold increased risk of all-cause mortality, regardless of many confounders and type of revascularization received.[3] Four-year survival among patients undergoing catheterization was 21% lower among patients with established RAS compared to those without RAS.[4] In patients with renal insufficiency or PAD, RAS was common and its presence was strongly associated with increased mortality.[5,6] Even in asymptomatic individuals without known CVD, presence of renal artery calcification on CT was associated with increased all-cause mortality.[7]

To our best knowledge, this study is the first systematic review and meta-analysis examining the prevalence and clinical factors associated with renal artery stenosis among patients with suspected or established CAD. We conducted an up-to-date analysis of the most relevant literature in past two decades reporting on the prevalence and characteristics of RAS in patients who underwent simultaneous coronary and renal angiography.

2. Materials and Methods

The search strategy was devised by one of the investigators (JAB) while the search of electronic databases was independently carried out by JAB and ISB. Electronic databases included in the search were the National Library of Medicine (NLM) – PubMed, Ovid MEDLINE, Ovid Journals (full text), EMBASE, and SCOPUS. Search was conducted by using search terms: ”renal artery stenosis“ AND ”coronary artery disease” AND ”diagnostic angiography” AND/OR ”cardiac catheterization”. These databases were manually searched to obtain full records of original articles (observational cohort studies) that were specifically designed to investigate and to report on occurence of renal artery stenosis in the setting of cardiac catheterization for stable CAD or suspected CAD. The search was limited to records published in relevant peer-reviewed journals in the English language in the last 20 years (from 2002 until 2022). Similarly, only observational cohort studies involving adult human subjects were considered. The date of the last database search was performed on July 1st, 2022. All searches were independently manually performed by two reviewers (JAB, ISB) and potential studies were independently screened. Each investigator performed independent deletion of duplicate records, screening of available titles and abstracts, and provided final classification of studies as ”excluded“ or requiring further assessment or additional clarification. Such studies were labeled as “potential for inclusion“. If there was a discrepancy between the two investigators concerning the search strategy, this was resolved by the joint discussion involving the opinion of the third investigator. The meta-analysis was conducted in accordance to the PRISMA reporting recommendations (Preferred Reporting Items for Systematic Review and Meta-Analyses).[8]

Study inclusion criteria were: a) adult patients 18 years of age or older; b) patients with established stable CAD (chronic coronary syndrome) or suspected CAD undergoing diagnostic coronary angiography accompanied with additional angiography of renal arteries; c) non-randomized/retrospective/observational study design; d) studies explicitly reporting on the main outcome for this study which was the prevalence of renal artery stenosis in previously described cohorts. Exclusion criteria were: a) studies involving non-adult patients; b) studies that examined renal artery stenosis in the setting of acute coronary syndromes; c) studies designed as randomized controlled trials; d) studies that were conducted among patients with established or suspected CAD undergoing diagnostic coronary angiography but did not perform concomitant angiography of renal arteries; e) studies that did not report on the principal outcome of the interest such as the prevalence of renal artery stenosis (being significant and/or severe and/or bilateral); f) studies that did not provide basic data on study length, setting, and provided no description about relevant baseline patients characteristics such as age, sex, comorbidities, and other clinical factors; g) studies that were duplicate reports without additional or updated outcome data.

Data were manually extracted by three investigators (JAB, ISB, and KS) and were inserted in predefined and customized tables in MS Word format. Baseline data on age, sex distribution, diabetes mellitus, arterial hypertension, dyslipidemia, smoking, renal failure, peripheral vascular disease, carotid artery stenosis, and previous myocardial infarction were captured in these tables. Furthermore, study data including the total number of enrolled patients, study period and location, type of study (multicentric or single-center), and study design were recorded. For each study, following angiographic variables and their prevalences were recorded in the predefined tables: significant RAS (in most studies defined as 50% or more luminal stenosis of at least one renal artery), severe RAS (in most studies defined as 70% or more luminal stenosis of at least one renal artery), bilateral RAS (significant RAS affecting both renal arteries), one vessel CAD, two vessel CAD, three vessel CAD, and left main CAD. Study quality assessment was performed by using the Ottawa-Newcastle Scale for the assessment of quality of non-randomized studies.[9] All studies were independently scored by investigators KS and WM and the maximum of 9 stars could be assigned to an individual study (shown in Supplemental Table S1).

For the estimation of prevalence of significant RAS, severe RAS, bilateral RAS, three vessel CAD, and left main CAD we used weighted-proportion analysis and for these endpoints a sample size-weighted pooled proportions were reported at all instances. Risk ratio (RR) with 95% confidence intervals (95% CI) was used as the main summary measure for effect estimates on predefined dichotomous outcomes. Mean difference analysis was performed to determine possible absolute numerical differences in prespecified continuous outcomes such as age in patiens with vs. without RAS. Random-effects model with Mantel-Haenszel statistics was applied for the principal meta-analysis. Meta-analysis was performed by using Review Manager software (RevMan, version 5.4, The Cochrane Collaboration, 2020) and MedCalc Statistical software (version 20.112, Medcalc Software Ltd, Ostend, Belgium).

Chi-square (χ²) test of heterogeneity and Higgins I² statistic of non-consistency were used to assess heterogeneity across included studies. Studies with an I² statistic of 15% to <35% were considered to have low heterogeneity; >35% to 75% - moderate heterogeneity, and those with I² statistic >75% were considered to have a high heterogeneity.

Publication bias was assessed by visual inspection of obtained funnel plots and with formal Egger’s test calculation. In this regard, p-values <0.05 indicated significant publication bias across included studies. All p-values reported in the manuscript were two-tailed and results were considered statistically significant if p<0.05 unless explicitly stated otherwise.

3. Results

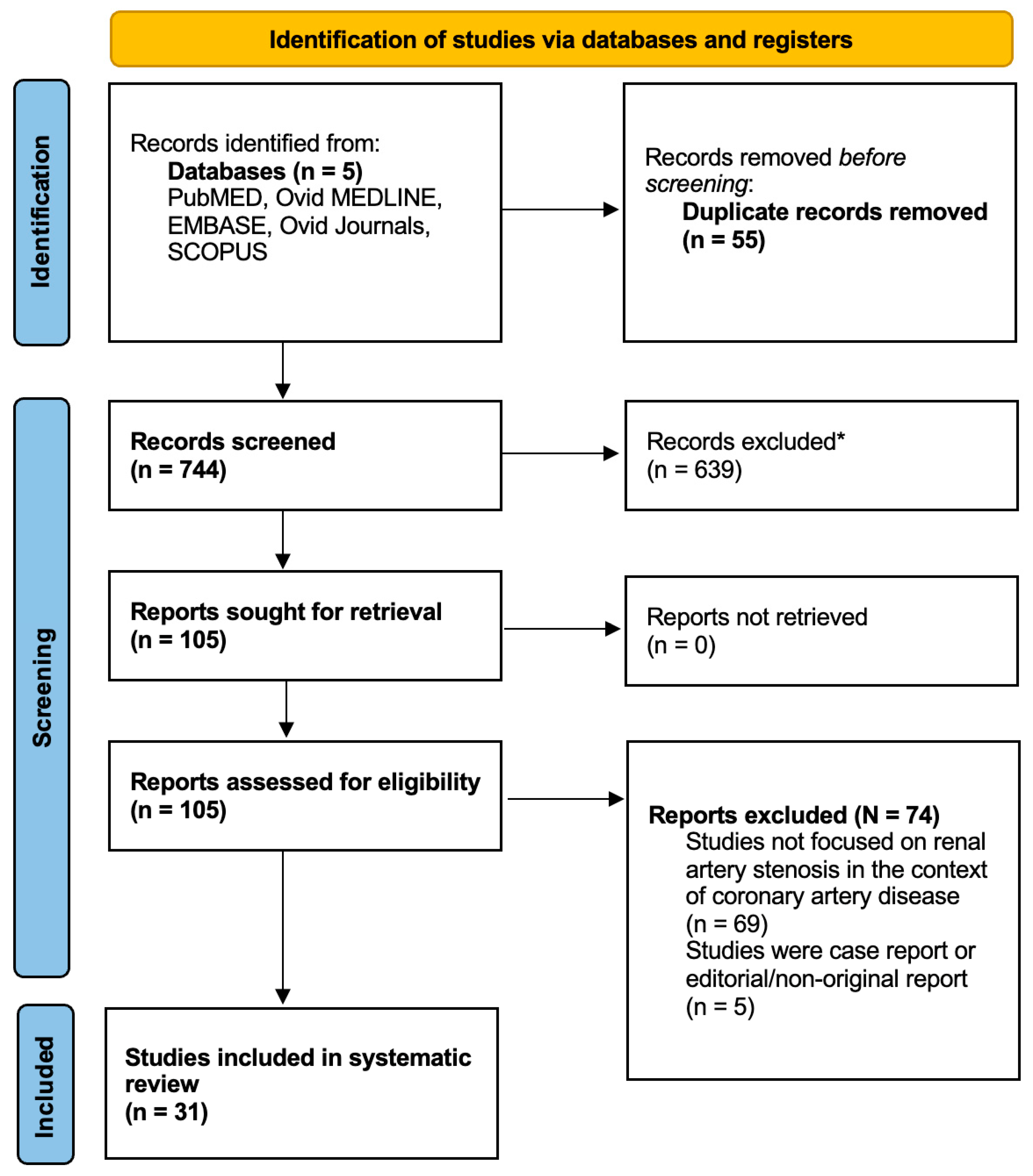

Thirty-one international study with total of 31,689 patients enrolled were included in the final analysis, as shown in the PRISMA flowchart depicted in Figure 1.[10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40]

Most studies were single-center, prospective or observational cohort studies. Only two were multicentre cross-sectional studies.[16,41] Three studies were from North America, six from Europe, seven from Central or East Asia, thirteen from Middle East or North Africa, and two form South America as shown in Table 1.

The weighted mean age of the entire studied population was 63.2±8.7 years. Across whole patient sample, women were represented with a weighted average of 36.4%. The weighted mean proportion of standard modifiable cardiovascular risk factors such as diabetes mellitus, arterial hypertension, dyslipidemia, smoking, peripheral vascular disease, carotid artery stenosis, and history of MI are shown in Table 2 while detailed baseline patient characteristics across individual studies are provided in the Supplemental Table S1.

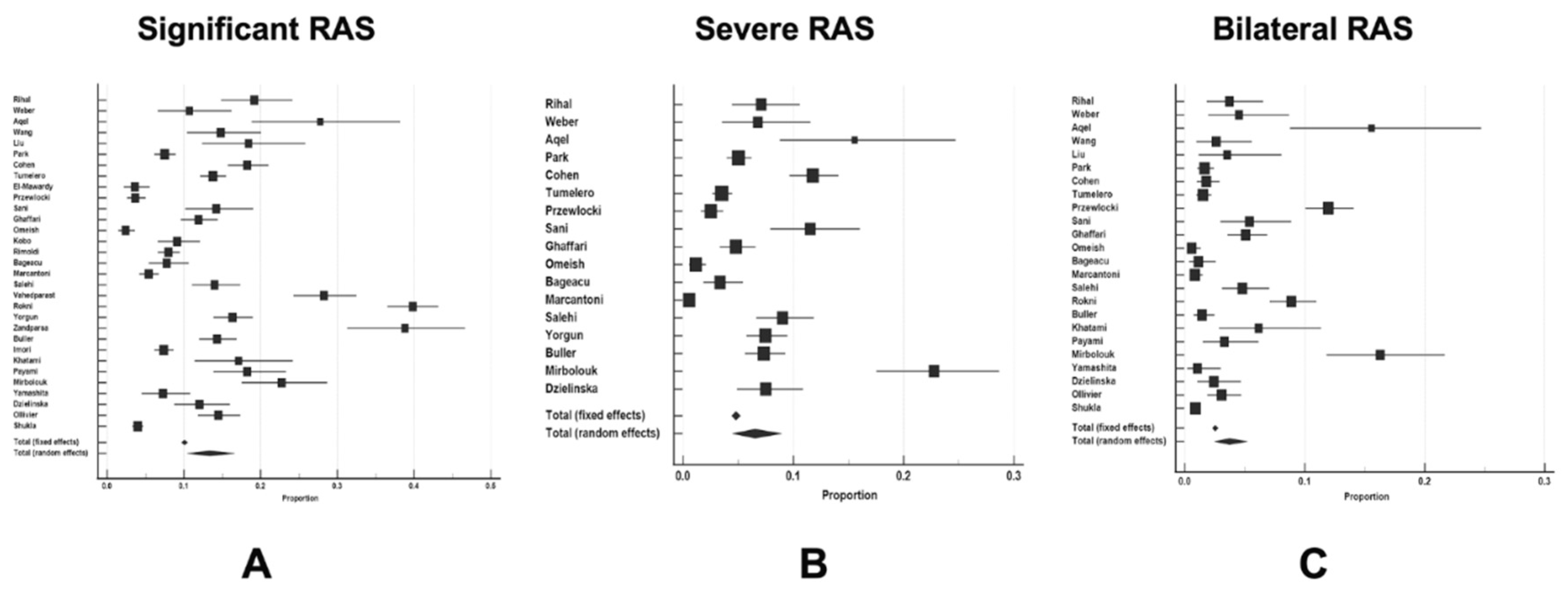

The pooled proportion of significant RAS (≥50% stenosis) in 22,757 patients undergoing coronary angiography was 13.4% (95% CI 10.5-16.7%) as shown in Figure 2A. Furthermore, the pooled proportion of severe RAS (≥70% stenosis) in 11,903 patients undergoing coronary angiography was 6.5% (95% CI 4.5-8.9%) as shown in Figure 2B. Finally, the pooled proportion of bilateral RAS in 17,167 patients undergoing coronary angiography was 3.7% (95% CI 2.5-5.2%) as depicted in Figure 2C.

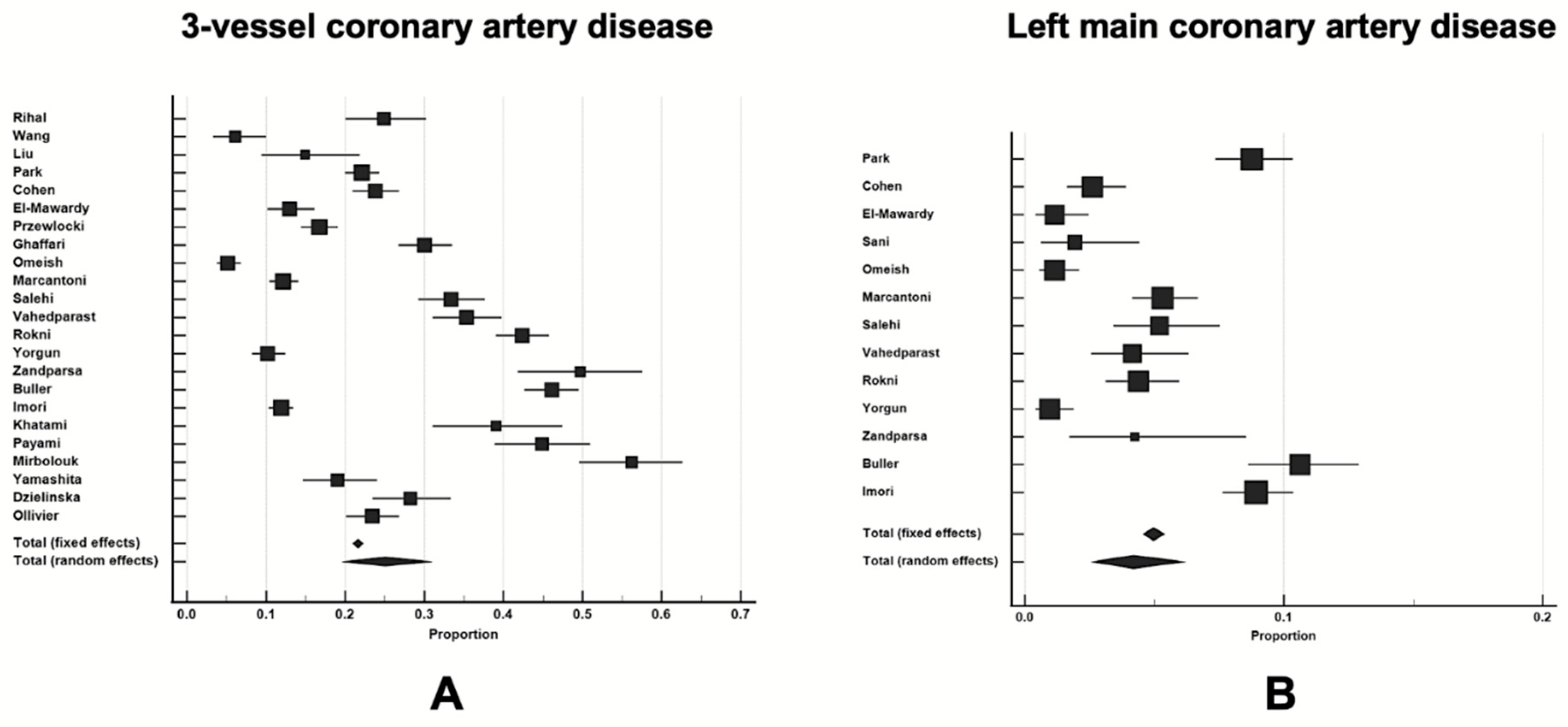

In terms of angiographic coronary artery disease (CAD) burden, the pooled weight-adjusted proportion of three-vessel coronary artery disease (3VD) was 25.1 (95% CI 19.6-30.9%) and this finding was based on data from 14,771 patients pooled from 23 studies (Figure 3A). Significant left main (LM) coronary disease was detected in 4.2% of cases (95% CI 2.6-6.2%) and this was based on data from 10,670 patients from 13 studies (Figure 3B). Detailed angiographic characteristics for each particular study (where available) are also provided in Supplemental Table 2. Detailed characteristics of each particular study included in this systematic review and meta-analysis are shown in Supplemental Table 3.

The impact of anthropometric factors such as age and female sex, and cardiovascular/clinical factors including diabetes mellitus (DM), arterial hypertension, dyslipidemia, smoking, chronic kidney disease (CKD), three-vessel coronary disease (3VD), left-main (LM) disease and peripheral artery disease (PAD) were evaluated for the potential association with RAS occurence in the meta-analysis. As shown in Table 3, and in the order of decreasing magnitude, CKD was found to be the most robust predictor of RAS as it was associated with more than 2.5-fold increase in the relative risk of RAS compared to patients without CKD. This was followed by PAD and LM disease that were associated with a 2-fold and 1.8-fold increases in the relative risk of RAS occurence. Likewise, 3VD was associated with a 56% relative risk increase of RAS.

Female sex and arterial hypertension were both associated with an increase of a relative risk of RAS (RR 1.3, and RR 1.33,) while smoking was not identified as a significant variable impacting on RAS occurence (RR 1.0). Similarly, diabetes mellitus and dyslipidemia were associated with a 22% and 10% increases in the relative risk of RAS occurence (RR 1.2 and RR 1.10). In terms of age, meta-analysis showed that patients with RAS were significantly older than patients without RAS. In fact, there was a mean age difference of 4.16 years (95% CI 3.75-4.58 years,) between patients with RAS versus those without RAS. The Figure 4 (Graphical Abstract) summarizes clinical factors associated with RAS and shows prevalence of significant, severe, and bilateral RAS among patients undergoing simultaneous coronary and renal angiography.

Detailed analyses with generated funnel plots (publication bias) and forest plots of individual clinical risk factors and consequent risk ratios comparing patients with RAS vs. non-RAS are provided in Supplemental Appendix (Supplemental Figures 1-15).

4. Discussion

We present the largest published data set on patients undergoing simultaneous coronary artery and renal artery catheterization. The key finding of our systematic review and meta-analysis is that among patients undergoing coronary angiography, around 13% have a significant RAS. About 6% of patients will have severe RAS and in almost 4% RAS is bilateral. Most included studies reported similar prevalence, however, two papers reported a markedly higher prevalence of significant RAS (38 to 39%).[30,40] Part of the reasons why in these two studies the proportions of RAS were higher could be due to the pooling and reporting of significant and severe RAS together. Another reason is possibly a high proportion of patients with previous MI (36%) in the study by Rokni et al. which is in contrast to other studies (range 15-30%) and hence possibly indicating a population with higher end-organ damage. Both studies originate from Iran and therefore racial or regional factors may play an additional role.

The prevalence of significant RAS in patients undergoing coronary angiography appears high compared to previously reported 2.7% found among patients with moderate-to-severe arterial hypertension.[42] In a population with established end-organ disease, such as peripheral artery disease (PAD), the prevalence of significant RAS was with 9.6% similar to our findings.[43] In very high-risk cohorts, RAS was previously even more frequently reported. Kuroda et al. described in a small study of patients who suffered fatal stroke on autopsy severe RAS (≥75% luminal area narrowing) in 10.4% patients, and the proportion of severe RAS was even higher in a subgroup of stroke patients who died and were known to have renal insufficiency with 28.6%.[44] These data reflect intricate pathophysiological relationships since significant or severe renal artery stenosis is an important driver of renal failure and CKD while CKD is an independent risk factor for CAD development.

Another key finding of our study was the determination of clinical factors associated with RAS occurence. Factors showing strongest association were older age, known CKD, and PAD. Patients with RAS were more than 4 years older compared to patients without RAS. Pre-existing CKD increased the relative risk of having RAS by almost three-fold, while patients with PAD were almost 2.5 times more at risk of having a significant RAS. Other clinical factors increasing the relative risk of RAS by 20 to 90% were female sex, arterial hypertension, diabetes, 3VD and LM disease. Interestingly, smoking did not pose any additional risk. However, it should be noted that smoking was not equally defined in all studies as it is unclear if some studies considered previous smoking as smoking or if only active smoking at the time of enrollment was captured. Other authors reported similar findings. For example, Ozkan et al. showed that in PAD patients, advanced age and hypertension were closely associated with the presence of significant RAS.[43] Sani et al. reported in 260 hypertensive and/or diabetic consecutive patients who underwent simultaneous coronary and renal artery catheterization that female sex, multivessel coronary disease and reduced glomerular filtration rate were independent predictors of significant RAS .[41] In a smaller study (n=165), Zandparsa et al. again identified arterial hypertension and increased serum creatinine levels as independent predictors of RAS. However, in this study, the severity of CAD as assessed by the Gensini score was not predictive of RAS.[45] This is possibly due to the rather smaller sample size.

The important question remaining is the clinical implication of RAS finding during coronary angiography and if such investigation should be pursued. In other words, if the RAS is detected, whether a simultaneous percutaneous coronary intervention (PCI) and intervention on renal arteries is feasible and what would be the clinical impact and net potential benefit for the patient. Unfortunately, there is a great paucity of data on this topic. Dong et al. published an article describing a retrospective cohort of 149 patients with simultaneous PCI and PTRAS (percutaneous transluminal renal artery stenting) and reported on the feasibility and safety of such an approach. This intervention led to improved arterial blood pressure control and reduced left ventricular mass (LVM) index, however it did not impact on changes in renal function.[46] Reznik et al. reported similar finding of LVM reduction in patients undergoing RAS stenting, however in their study this effect was independent from blood pressure reduction.[47] Following RAS stenting, reduction in LV filling pressures was observed in heart failure (HF) patients.[48] However, no randomized studies have thus far addressed the approach of PCI + PTRAS vs. PCI alone in patients with both established CAD and RAS and if such an approach would improve clinicial and patient-oriented outcomes. The retrospective study of Dong and colleagues combining PCI and PTRAS suggested a net clinical benefit in population of patients with HF and preserved ejection fraction, however, these findings should be first replicated in randomized studies.

Taken together, such a dual revascularization approach might be feasible for selected patient populations exhibiting both high-risk coronary and renal anatomy thus reflecting severe atherosclerotic burden. The risk of contrast-induced nephropathy (CIN) should be weighted against the potential benefits of dual revascularization and even vascular access approach and other factors might play an important role in this - e.g., femoral vs. radial approach (femoral naturally being more convenient for performing bilateral renal angiography), the experience of the operator (more experienced operators will likely use fewer contrast injections and will establish faster access to designated vascular territories).

There are several limitations to our study. First, the exact technique of RAS severity assessment is not described in detail in many of the studies involved in this analysis. Secondly, many of the studies do not describe clearly which cases of bilateral RAS had significant or severe stenoses. Third, the lack of individual data does not allow a direct comparison between patients who had normal coronary angiograms vs. patients who had significant coronary artery disease. However, pooled risk ratios from individual analyses confirm a significantly higher proportion of RAS occurrence in patients with significant coronary disease burden. Furthermore, due to the observational design of studies included in the analysis and the lack of consecutive enrollment of patients in most of the studies, a potential selection bias should be acknowledged. In that sense, it remains unclear how and which patients were selected to receive renal artery angiography on top of standard coronary angiography. Finally, an issue of high heterogeneity for some of the outcomes should be mentioned which can be reasonably explained by the large variability of studies in terms of their country of origin, patient population, and differences in definition/reporting of the RAS. On the other hand, the generalizability and representativeness of the presented findings in this study should be high due to the inclusion of a robust number of studies conducted in centers worldwide.

5. Conclusions

Renal artery stenosis is common in patients undergoing coronary artery catheterization. Our results show that between 1:7 to 1:10 patients undergoing diagnostic coronary angiography is likely to have significant RAS. Clinical factors such as chronic kidney disease, peripheral artery disease, older age, and severe coronary artery disease are the strongest associated factors with risk of having a significant RAS. Factors showing weaker, however, significant association with significant RAS were female gender, arterial hypertension, dyslipidemia, and diabetes mellitus. Smoking does not appear to be associated with RAS.
