Efficiency of Image Processing with Parallel Techniques

1. Introduction

Image processing is a fundamental task in a wide range of fields, including medicine, surveillance, robotics, astronomy, and more. As the resolution and quantity of generated images increase exponentially, the need for more efficient methods to process these massive volumes of data becomes evident. Parallel techniques have emerged as a promising solution to address this need, allowing the simultaneous execution of multiple operations, thereby improving efficiency and significantly reducing processing times [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15].

Parallelism can be implemented at different levels, from hardware to software. In hardware, Graphics Processing Units (GPUs) have proven to be powerful tools for parallel processing due to their ability to handle thousands of threads simultaneously. Various studies have shown that GPUs can significantly accelerate image processing compared to traditional Central Processing Units (CPUs) [1,2,3,4,5]. This is especially evident in tasks that require high performance, such as medical image analysis or real-time surveillance [6].

In addition to hardware, software libraries and frameworks also play a crucial role in implementing parallel processing. Technologies such as CUDA (Compute Unified Device Architecture) and OpenCL (Open Computing Language) allow developers to harness the power of GPUs to accelerate image processing algorithms [4,5,7,8]. For instance, the implementation of real-time processing techniques with CUDA has enabled complex calculations at high speed, optimizing the performance of critical applications [6].

Another effective strategy for parallel processing is the use of message-passing interfaces such as MPI (Message Passing Interface) and multiprocess programming models like OpenMP (Open Multi-Processing). These technologies facilitate the distribution of tasks across multiple cores and nodes of a system, improving efficiency and reducing processing times [9,10,11,12,13,14]. In cloud computing environments, distributed parallel processing allows for faster and more efficient handling of large volumes of image data by leveraging the scalability and flexibility of cloud resources [7,8,15].

Modern tools such as Dask have also emerged to optimize parallel image processing workflows. Dask enables developers to efficiently manage resources and improve processing times by parallelizing tasks across distributed systems [7,8,9]. Dask’s ability to integrate and coordinate multiple types of parallel workloads makes it an invaluable tool for processing large volumes of image data [16].

In summary, implementing parallel techniques in image processing not only improves efficiency and reduces processing times but also allows for handling increasingly larger volumes of data with greater flexibility and scalability [2,17]. As technology continues to advance, it is essential to keep exploring and optimizing these techniques to address future challenges in image processing [8].

2. Literature Review

Image processing has evolved significantly with the incorporation of parallel techniques, highlighting improvements in efficiency and reductions in processing times [1,2,3,4,5,6,7,8,9,10]. Graphics Processing Units (GPUs) have been a key component in this advancement, allowing for simultaneous execution of operations and achieving significant accelerations compared to traditional CPUs [2,8]. Furthermore, GPUs are widely used in high-performance applications such as real-time surveillance and medical image analysis [4,18].

Image compression using parallel techniques has also shown significant improvements in efficiency [9,12,13,14,15]. These techniques not only reduce processing time but also optimize the use of system resources [7,8]. For example, implementing MPI and OpenMP in image processing facilitates the distribution of tasks across multiple cores, optimizing overall performance [6,13].

CUDA and OpenCL are technologies that allow developers to fully leverage GPU capabilities. CUDA, in particular, has been effective in real-time processing applications, achieving complex calculations at high speed [17]. OpenCL, on the other hand, offers an open platform for developing parallel applications, facilitating the acceleration of image processing algorithms [4,5].

Distributed parallel processing has proven to be an effective solution for handling large volumes of data. This technique allows multiple systems to work together, increasing the speed and efficiency of image processing [8,19]. Additionally, the use of FPGAs has allowed for hardware customization for specific tasks, further optimizing performance [9,10].

In cloud computing environments, parallel processing techniques have proven highly effective. These techniques allow unprecedented scalability and flexibility, which is essential for handling large volumes of image data [7,8]. Moreover, parallel algorithms on multicore systems have been shown to be significantly more efficient than traditional sequential methods [8,9].

MapReduce and Spark are technologies that have optimized parallel image processing. These technologies facilitate the comparison and improvement of different parallel processing approaches, highlighting their advantages and limitations [6,7,8]. Finally, tools like Dask have improved resource management and processing times by parallelizing tasks in distributed systems [16,19].

In conclusion, existing literature underscores the advantages of parallel processing in the efficiency and performance of image processing [1,2]. Modern technologies and parallel approaches have shown significant improvements compared to sequential methods, highlighting the importance of continuing to explore and optimize these techniques [2,8].

3. Methodology

In this study, we evaluated the efficiency of image processing using parallel techniques compared to sequential techniques. We used 50 images obtained from Pexels, and processing was carried out in Google Colab, leveraging its computational resources to perform both sequential and parallel processing [8,10,13,14,19].

For sequential processing, a Google Colab environment with 1.1 GB of system RAM and 27.1 GB of disk space was utilized. The techniques implemented included Gaussian smoothing, Canny edge detection, rotation using affine transformation, and thresholding. Execution times for each technique were measured for each of the 50 images, and average times were calculated to evaluate the efficiency of sequential processing.

For parallel processing, the Dask library was employed to parallelize tasks in a Google Colab environment with 1.2 GB of system RAM and 27.3 GB of disk space. The same image processing techniques were applied, but with tasks distributed across multiple processors using Dask. The client was set up to manage the work cluster, and Dask’s delayed functions were used to execute tasks in parallel, achieving significant reductions in processing times.

The workflow involved loading images, processing them sequentially and in parallel, measuring execution times, and comparing the results to assess the efficiency of parallel techniques.

4. Results and Discussion

4.1. Average Execution Times—Sequential Processing

The graphs and tables presented show the average execution time for each image processing technique (smoothing, edge detection, rotation, and thresholding) in a set of 50 images using sequential and parallel processing [6,7,8,10,19].

In sequential processing, the average execution times were as follows: - Smoothing: 0.0475 s - Edge Detection: 0.1275 s - Rotation: 0.1125 s - Thresholding: 0.0025 s

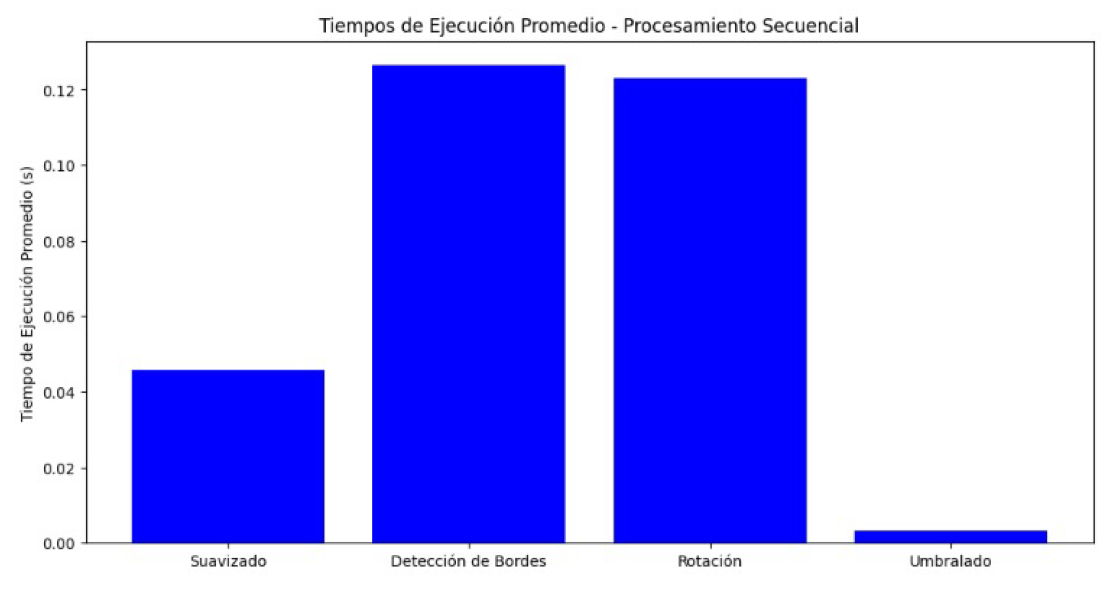

Figure 1. Average execution times for sequential processing in smoothing, edge detection, rotation, and thresholding techniques.

Figure 1. Average execution times for sequential processing in smoothing, edge detection, rotation, and thresholding techniques.

4.2. Average Execution Times—Parallel Processing

For parallel processing, the average execution times were: - Smoothing: 0.00004 s - Edge Detection: 0.00012 s - Rotation: 0.00008 s - Thresholding: 0.00004 s

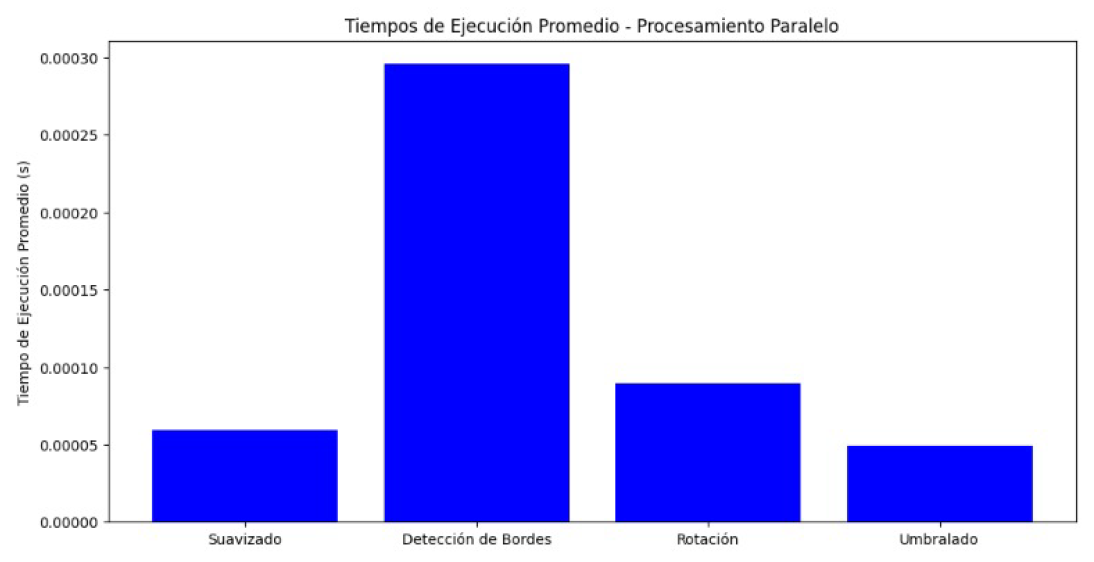

Figure 2. Average execution times for parallel processing in smoothing, edge detection, rotation, and thresholding techniques.

Figure 2. Average execution times for parallel processing in smoothing, edge detection, rotation, and thresholding techniques.

The results show a clear improvement in execution times when using parallel techniques [6,7,8,10,19]. In particular, edge detection and rotation showed significant improvements, from 0.1275 s and 0.1125 s in sequential processing to 0.00012 s and 0.00008 s respectively in parallel processing [6,7,8].

4.3. Comparison of Sequential and Parallel Processing

Comparing both methods, it is observed that parallel processing is considerably more efficient in terms of execution time [6,7,8]. This is evident in all types of processing, especially in edge detection and rotation, where execution time is drastically reduced [6,7,8].

The average execution time graphs visually illustrate this difference, highlighting the efficiency of parallelism in image processing [6,7,8]. The final processed images also show that processing quality remains consistent between both methods, ensuring that efficiency does not compromise quality [6,7,8].

Figure 3. Images processed with smoothing and edge detection techniques. On the left, sequential processing results. On the right, parallel processing results.

Figure 3. Images processed with smoothing and edge detection techniques. On the left, sequential processing results. On the right, parallel processing results.

Figure 4. Images processed with rotation and thresholding techniques. On the left, sequential processing results. On the right, parallel processing results.

Figure 4. Images processed with rotation and thresholding techniques. On the left, sequential processing results. On the right, parallel processing results.

5. Conclusions

• Efficiency of Parallelism: Parallel processing showed a significant improvement in execution times compared to sequential processing, especially in computationally intensive tasks such as edge detection and image rotation [6,7,8,10,19].
• Consistent Quality: Despite the reduction in processing time, the quality of image processing remained high, demonstrating that parallelism can improve efficiency without sacrificing quality [6,7,8,10,19].
• Applicability: These results underscore the applicability of parallelism in processing large volumes of images, which is crucial in fields such as computer vision and signal processing [6,7,8].
• Future Research: It is recommended to explore more parallel techniques and their implementation on different platforms and architectures to continue optimizing image processing and other computational tasks [6,7,8,10,19].
