Utilisation of Palm Frond Waste as Fuel for Co-firing Coal and Biomass in Tangentially Pulverized Coal Boiler Using Computational Fluid Dynamic (Cfd) Analysis

1. Introduction

In Indonesia, there has been a shift in Coal-Fired Power Plants (PLTU) from using high and medium-grade coal to low-grade coal. This policy change was primarily motivated by the comparatively lower cost of low-rank coal, which accounts for approximately 86.59% of the country's coal reserves [1]. The largest coal reserves in Indonesia consist of lignite and sub-bituminous coal, characterized by their low calorific value and higher sulfur content. Utilizing low-quality coal will affect all coal-fired power plant's operational reliability [2,3]. Unfortunately, the combustion of low-rank coal, which typically has a moisture content ranging from 40 to 50% (wet basis), presents challenges in Coal-Fired Power Plant boilers, leading to environmental issues and significant greenhouse gas emissions [4]. On the other hand, Indonesia possesses significant biomass potential, including palm oil plantations. The palm oil industry has experienced rapid expansion, with a 7.67% growth rate over the past decade and an 11.09% annual increase in palm oil production [5]. Unfortunately, the production of palm oil and the establishment of plantations have resulted in various environmental problems, such as greenhouse gas emissions, land conversion, and substantial agricultural waste production [6]. Such production generated solid waste, including fruit bunch peeling, palm shells, and fiber. Fiber frequently produces electricity and steam for milling [7]. To ensure the continuous cycling of nutrients and to mitigate soil erosion, it is usual practice to reuse peeled fruit bunches as mulch in the plantation. Compared to other types of solid waste, the mixed biomass of palm fronds (FRD) exhibits superior combustion performance, as indicated by higher Rmax and Tmax values, compared to other biomass mixtures [8].

Furthermore, using palm frond mixtures (FRD) can mitigate slagging-fouling risks, such as reducing the ash fusion temperature, deposition material, and sticky residue within the combustion chamber [9]. This process positively impacts the coal particle combustion, ensuring complete burning before entering the furnace exit [10,11]. There is a growing focus on utilizing biomass waste as an alternative to fossil fuels. Biomass co-firing is a promising technology that has the potential to substantially decrease CO₂ emissions and improve the utilization of renewable energy sources in the overall energy system [12]. It is essential to consider the specific characteristics of each biomass when designing and selecting combustion chambers and boiler operating conditions [13]. Biomass can be employed in two distinct ways to produce electricity via combustion: dedicated combustion and co-firing. This method offers several advantages when we use co-firing in existing power plants, particularly coal-fueled ones. These advantages encompass enhanced combustion efficiency and reduced capital expenses [14]. Research on biomass co-firing has progressed rapidly, mainly through experiments and computational analysis. Detailed explanations have been given about the complex modeling of combustion technologies, including the simultaneous burning of coal and biomass [15].

The process of hydrothermal (HT) processing has been extensively researched as a means of converting biomass with a high moisture content into high calorific solid fuels [16,17,18,19]. Hydrothermal processing involves hydrolysis, condensation, decarboxylation, and dehydration reactions to convert biomass materials into carbon-rich solids under autogenous pressure at moderate temperatures (150 - 350 °C) [19]. Numerous studies have demonstrated that because hydrothermal biomass has higher carbon content, a higher calorific value, and is hydrophobic, it is more energy dense [20,21]. In addition, the hydrothermal method was deemed necessary for the treatment of palm biomass due to its high conversion efficiency, the abilityto treat biomass under wet conditions, its potential to produce various value-added products, and its ability to remove some inorganic constituents including potassium from the biomass, although it requires specialised equipment and complex process control [22,23,24].

Additionally, a number of studies have used computational fluid dynamics (CFD) with various biomasses to examine how coal and biomass co-firing behave against current traditional methods, such as olive waste [25], switch grass [26], pinewood [27], and the Cynara cardunculus [28]. The cofiring of various biomass and natural gas blends has also been modeled using CFD [29]. Co-firing of coal and recovered fuel [30]. and combustion of coal and biomass for oxy-fuel [31]. This investigation employs Computational Fluid Dynamics (CFD) as a highly accurate measurement technique to analyze the thermal performance of co-firing combustion [32]. Unfortunately, to the best of the authors' knowledge, no research has been discovered that discusses and elucidates the combustion characteristics of palm fronds and coal co-firing using numerical simulation on tangentially fired pulverized coal boilers. The main aim of this study is to investigate the process of burning palm fronds (FRD) and coal as a fuel in a 315 MW power plant to analyze the distribution of temperature, gas velocity, and flue gas composition of CO, CO₂, and O₂ in the combustion chamber.

2. Hydrothermal-Based Co-Firing System

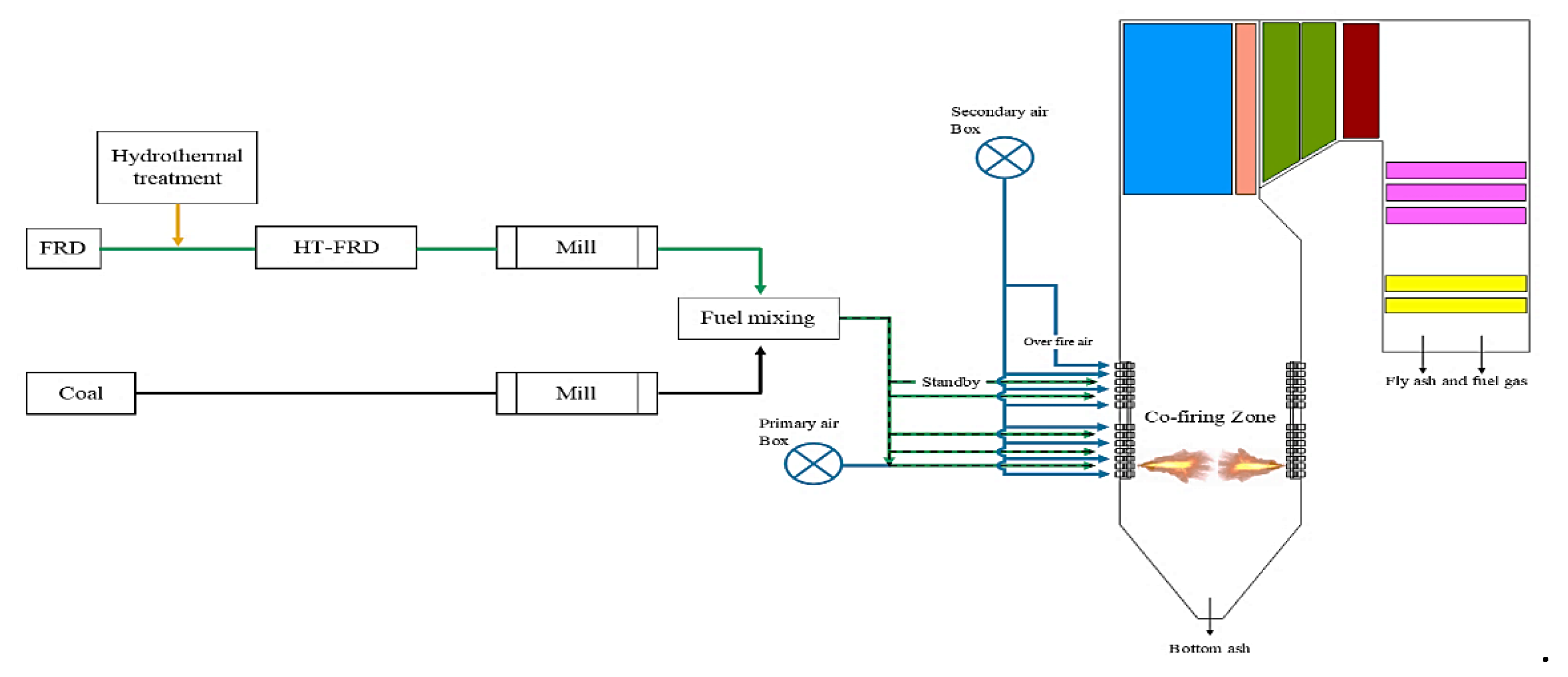

Various techniques can be employed to integrate biomass with coal in combustion chambers and injection, including comilling, pregasification, and parallel co-firing. Compared to other strategies, the injection technique is the most efficient due to its lower capital costs and higher co-firing ratios [33]. Hence, the co-firing injection was selected for this analysis study. In this specific procedure, the palm fronds (FRD) are mixed with powdered coal and inserted into the combustion chamber following individual drying and grinding methods. (Figure 1) is a schematic diagram that demonstrates the fundamental principle of the FRD co-firing system. The raw FRD is dehydrated at temperatures ranging from 200 to 250 °C [34,35], typically taking several minutes to two hours.

This drying process aims to enhance the calorific value and properties of the FRD. Subsequently, the coal fuel is finely ground to the required particle size for efficient combustion within the boiler chamber. Following this, both fuel types are thoroughly mixed and injected into the combustion chamber and air, facilitated by respective heaters [36,37]. The superheater absorbs thermal energy from the combustion process, while the economizer generates steam specifically for the turbine. The flue gas, characterized by its comparatively low exergy level, is the fluidization gas in the bed to supply heat to the drying chamber. In this study, (Figure 2) presents a schematic representation of the combustion chamber employed, illustrating its dimensions, meshing layout, and the burner inlet located in the corner of the boiler. The dimensions of the boiler are 63.7 m in height, 13.7 m in width, and 36.2 m in length. It is utilized in a pre-existing coal-fired power plant with a 315 MWe power generation capacity.

The configuration and area of the boiler's combustion system were established through the commercial software SOLIDWORK 2020. Afterward, the process is proceeded by creating a simulation of the established system domain. In the case of co-firing simulation, the software ANSYS FLUENT 2023 R2 is utilized to calculate velocity distribution, temperature distribution, and exhaust gas composition. The simulation includes the fundamental equations (enthalpy, mass, and momentum), heat transfer radiative, turbulence, and reactions in the gaseous phase and particles. This method is optimal for quantifying fluid flow, heat and mass transfer, chemical reactions, and interactions between solids and fluids. The research examines the co-firing FRD and coal performance using the CFD method [32,38,39]. CFD modeling proves to be significantly more efficient in terms of time and cost than physical experimentation while also being safe and easily scalable. Consequently, it is frequently utilized to validate experimental approaches. The CFD analysis aims to clarify combustion processes, including combustion temperatures and resulting exhaust gas concentrations. This study employed unaltered coal as the standard for combustion. The coal and FRD flow rates are determined based on the specified FRD mass fraction. The study investigates five distinct FRD mass fractions: 0% (representing 100% coal), 5%, 15%, 25%, 35%, and 50%. Observations are made on the temperature distribution and gas concentration generated during co-firing.

2.1. Governing Equations

The Eulerian-Lagrangian approach is frequently used to simulate co-firing as a two-phase reaction flow involving solid and gas phases. This technique uses the Navier-Stokes equations to examine the gas phase, regarding the solid phase as a different entity. Newton's equations of motion are employed to determine the trajectory of each particle, while a spherical technique is employed to simulate the interactions between particles [40]. The energy and mass transfer calculation for each particle is conducted to determine factors such as temperature and gas concentration. This technique allows for a more accurate simulation by tracking the motion of every individual particle within the system. The interactions between the gaseous phase and solid particles encompass mass, momentum, and energy, performed using the particle source method within a cell. The particle's state undergoes modification as it traverses its trajectory [41,42]. Mathematical calculations in this approach are primarily governed by heat transfer and fluid flow. Fluid dynamics is classified as a flow with high viscosity; each governing equation can be expressed in the following fashion:

Mass continuity equation

$${\displaystyle \frac{{\mathrm{D}}_{\mathsf{\rho }}}{{\mathrm{D}}_{\mathrm{t}}}}+\mathsf{\rho }\nabla .\overrightarrow{\mathrm{U}}=0$$

(1)

Momentum equation in the x component

$$\rho {\displaystyle \frac{D_u}{D_t}}=-{\displaystyle \frac{\partial p}{\partial x}}+{\displaystyle \frac{{\partial \tau }_{xx}}{\partial x}}+{\displaystyle \frac{{\partial \tau }_{yx}}{\partial y}}+{\displaystyle \frac{{\partial \tau }_{zx}}{\partial z}}\rho fx$$

(2)

Momentum equation in the y component

$$\rho {\displaystyle \frac{D_v}{D_t}}=-{\displaystyle \frac{\partial p}{\partial y}}+{\displaystyle \frac{{\partial \tau }_{xy}}{\partial x}}+{\displaystyle \frac{{\partial \tau }_{yy}}{\partial y}}+{\displaystyle \frac{{\partial \tau }_{zy}}{\partial z}}\rho fy$$

(3)

Momentum equation in the z component

$$\rho {\displaystyle \frac{D_w}{D_t}}=-{\displaystyle \frac{\partial p}{\partial z}}+{\displaystyle \frac{{\partial \tau }_{xz}}{\partial x}}+{\displaystyle \frac{{\partial \tau }_{yz}}{\partial y}}+{\displaystyle \frac{{\partial \tau }_{zz}}{\partial z}}\rho fz$$

(4)

Energy equation

$$\begin{array}{cc}\rho {\displaystyle \frac{D}{D_t}}\left(e+{\displaystyle \frac{U^2}{2}}\right)=& \rho q+{\displaystyle \frac{\partial }{\partial x}}\left(k{\displaystyle \frac{\partial T}{\partial x}}\right)+{\displaystyle \frac{\partial }{\partial y}}\left(k{\displaystyle \frac{\partial T}{\partial y}}\right)+{\displaystyle \frac{\partial }{\partial z}}\left(k{\displaystyle \frac{\partial T}{\partial z}}\right)-{\displaystyle \frac{\partial \left(up\right)}{\partial x}}-{\displaystyle \frac{\partial \left(vp\right)}{\partial y}}-{\displaystyle \frac{\partial \left(wp\right)}{\partial z}}\hfill \\ & +{\displaystyle \frac{\partial \left({u\tau }_{xx}\right)}{\partial x}}+{\displaystyle \frac{\partial \left({u\tau }_{yx}\right)}{\partial y}}+{\displaystyle \frac{\partial \left({u\tau }_{zx}\right)}{\partial z}}+{\displaystyle \frac{\partial \left({v\tau }_{xy}\right)}{\partial x}}+{\displaystyle \frac{\partial \left({v\tau }_{yy}\right)}{\partial y}}+{\displaystyle \frac{\partial \left({v\tau }_{zy}\right)}{\partial z}}\hfill \\ & +{\displaystyle \frac{\partial \left({w\tau }_{xz}\right)}{\partial x}}+{\displaystyle \frac{\partial \left({w\tau }_{yz}\right)}{\partial y}}+{\displaystyle \frac{\partial \left({w\tau }_{zz}\right)}{\partial z}}+\rho \overrightarrow{f}\overrightarrow{U}\hfill \end{array}$$

(5)

The fluid flow equations govern mathematical processes in quantitative physics calculations, specifically Computational Fluid Dynamics (CFD). The equations incorporate density, mass conservation, specific mass fraction, temperature, enthalpy, turbulent dissipation rate (ε), and turbulent kinetic energy (k) as essential factor fluids. It is assumed that the representation of viscous flow is achieved through fluid dynamics principles [43,44,45].

2.2. Turbulence

The combustion chamber flow in this study exhibits turbulence due to fluid inertia, complex geometry, and high flow rates. Turbulence plays a crucial role in the co-firing model within the combustion chamber as it significantly influences heat and mass transfer. The k-ε turbulence model is commonly used in computational fluid dynamics (CFD) modeling to calculate turbulent combustion flow. This study utilizes the k-ε model to solve the Reynolds-averaged Navier-Stokes (RANS) equations for co-firing modeling. The k-ε turbulence model is highly regarded for its effectiveness and user-friendly nature [33,46], making it a popular choice in numerous industrial applications [47]. This model's two primary equations govern the turbulent dissipation rate (ε) and turbulent kinetic energy (k). It can be articulated as follows:

Turbulent kinetic energy (k)

$${\displaystyle \frac{\partial }{\partial t}}\left(\rho k\right)+{\displaystyle \frac{\partial }{{\partial x}_i}}\left(\rho k{u}_i\right)={\displaystyle \frac{\partial }{{\partial x}_j}}\left[\left(u+{\displaystyle \frac{u_t}{{\sigma }_k}}\right){\displaystyle \frac{\partial k}{{\partial x}_j}}\right]+P_k+P_b-\rho \epsilon -Y_M+S_k$$

(6)

Turbulent dissipation rate (ε)

$${\displaystyle \frac{\partial }{\partial t}}\left(\rho \epsilon \right)+{\displaystyle \frac{\partial }{{\partial x}_i}}\left(\rho \epsilon u_i\right)={\displaystyle \frac{\partial }{{\partial x}_j}}\left[\left(u+{\displaystyle \frac{u_t}{{\sigma }_{\epsilon }}}\right){\displaystyle \frac{\partial k}{{\partial x}_j}}\right]+C_{1\epsilon }{\displaystyle \frac{ϵ}{k}}(P_k+C_{3\epsilon }{P}_b)-{\rho C}_{2\epsilon }{\displaystyle \frac{{\epsilon }^2}{k}}+S_{\epsilon }$$

(7)

The variables P_b, Y_m, P_k, and μ_t denote long-term k production, turbulent viscosity, time effect, and the impact of variations in expansion on the overall energy dissipation rate, respectively. The equation determines the values:

$${\mu }_t=\rho C_{\mu }{\displaystyle \frac{k^2}{ϵ}}$$

(8)

$$P_k=\overline{-\rho u_i^{\text{'}}{u}_j^{\text{'}}}{\displaystyle \frac{{\partial u}_j}{{\partial x}_i}}$$

(9)

$$P_b={\beta g}_i{\displaystyle \frac{{\mu }_t}{{Pr}_t}}{\displaystyle \frac{\partial T}{{\partial x}_i}}$$

(10)

$$\beta =-{\displaystyle \frac{1}{\rho }}\left({\displaystyle \frac{\partial \rho }{\partial T}}\right)p$$

(11)

G_i, T, and Pr_t are the gravitational acceleration, temperature, and turbulent Prandtl numbers.

2.3. Radiation

Solid particle combustion, including heating, ignition, and charcoal burning, relies on heat transfer through radiation. Therefore, it is essential to comprehend the rate and amount of volatile substances emitted during the devolatilization phase concerning temperature. The discrete ordinate (DO) radiation model is used in this simulation because it accurately considers the absorption of radiation heat during burning. The absorption coefficient is calculated using the weighted sum of grey gases model (WSGGM) with a fixed value of 0.6 [48,49]. To address the issue of radiation heat transfer, the study utilized the P-1 approach, which relies on the expansion of radiation intensity [46]. The radiation model can be mathematically represented in the following manner:

$$\nabla .\left(\mathsf{\Gamma }\nabla \mathrm{G}\right)=\left({a+a}_p\right)G-4\pi (a{\displaystyle \frac{\sigma T^4}{\pi }}+E_p)$$

(12)

$$\mathsf{\Gamma }=1/3(a+a_p+{\sigma }_p)$$

(13)

$$\mathrm{G}=4\sigma T^4$$

(14)

$$a_p=\underset{V\to 0}{\mathrm{Lim}}{\sum }_{n=1}^N{\epsilon }_{pn}{\displaystyle \frac{A_{pn}}{V}}$$

(15)

$$E_p=\underset{V\to 0}{\mathrm{Lim}}{\sum }_{n=1}^N{\epsilon }_{pn}{A}_{pn}{\displaystyle \frac{{\sigma T}_{pn}^4}{\pi V}}$$

(16)

$${\sigma }_p=\underset{V\to 0}{\mathrm{Lim}}{\sum }_{n=1}^N{(1-f_{pn})(1-\epsilon }_{pn}){\displaystyle \frac{A_{pn}}{V}}$$

(17)

The variables A_p, σ, V, G, σ_p, and E_p The terms to be represented include absorption coefficient, incident radiation, Stefan-Boltzmann constant, particulate presence, particle scattering factor, equivalent emission, and volumes all contribute to the equivalent absorption coefficient. Furthermore, f_pn, T_pn, ε_pn, and A_pn denote the emissivity, scattering factor, projected area, temperature, and particle n.

2.4. Reaction Mechanisms Particle Phases

The co-firing of coal and HT-FRD is recognised as a unique gas-solid flow system that induces chemical reactions. The model known as Eulerian-Lagrangian incorporates hydrodynamics into the analysis [50,51]. Coal particles and FRD chips are modeled separately as a two-phase discrete model. The Rosin-Ramler distribution approach is adopted for the particle distribution model [52]. Various reactions take place within the particle phase, notably during charcoal combustion. Charcoal undergoes oxidation, producing carbon monoxide (CO), which is then released into the combustion chamber as a large amount of gas. Acknowledging that charcoal produced from biomass generally exhibits greater reactivity and a higher heating rate than charcoal obtained from coal is crucial. This study utilizes a cohesive and all-encompassing response mechanism to assess the process of charcoal combustion in the presence of air. The process combustion of FRD and coal can be described as follows [36]:

$$\mathrm{C}\mathrm{h}\mathrm{a}\mathrm{r}\mathrm{c}\mathrm{o}\mathrm{a}\mathrm{l}\left(\mathrm{C}\right)+0.5{\mathrm{O}}_2\to \mathrm{C}\mathrm{O}$$

(18)

$$\mathrm{C}\mathrm{h}\mathrm{a}\mathrm{r}\mathrm{F}\mathrm{R}\mathrm{D}\left(\mathrm{C}\right)+0.5{\mathrm{O}}_2\to \mathrm{C}\mathrm{O}$$

(19)

2.5 Reaction Mechanisms Gas Phase

Throughout the devolatilization process, the volatile components from T-FRD and coal are disengaged and subsequently undergo a reaction with oxygen, facilitating additional combustion. The oxidation process of these volatile components is characterized by a two-step overall reaction mechanism in which CO plays a significant role [53,54]. The chemical composition and heat of formation of these components are determined through proximate and ultimate analyses. The Westbrook-Dryer mechanism provides insights into the reactions of volatile materials in the gas phase [55]:

$$\mathrm{C}\mathrm{o}\mathrm{a}\mathrm{l}:{\mathrm{C}}_{0.02}{\mathrm{H}}_{3.94}{\mathrm{O}}_{1.57}{\mathrm{N}}_{0.0278}{\mathrm{S}}_{0.0021}+0.22{\mathrm{O}}_2\to \mathrm{C}\mathrm{O}+1.97{\mathrm{H}}_2\mathrm{O}+0.0138{\mathrm{N}}_2+0.0021{\mathrm{S}\mathrm{O}}_2$$

(20)

$$\mathrm{H}\mathrm{T}\mathrm{F}\mathrm{R}\mathrm{D}:{\mathrm{C}}_{1.05}{\mathrm{H}}_{2.32}{\mathrm{O}}_{0.92}{\mathrm{N}}_{0.0116}{\mathrm{S}}_{0.0011}+1.17{\mathrm{O}}_2\to \mathrm{C}\mathrm{O}+1.16{\mathrm{H}}_2\mathrm{O}+0.0058{\mathrm{N}}_2+0.0011{\mathrm{S}\mathrm{O}}_2$$

(21)

$$\mathrm{C}\mathrm{O}+0.5{\mathrm{O}}_2\to {\mathrm{C}\mathrm{O}}_2$$

(22)

$$k=A{\mathcal{e}}^{-{\displaystyle \frac{E_i}{RT}}}$$

(23)

All reactions in the gas or particle phases have their kinetic parameters listed in Table 1. The kinetic reaction rate coefficients are determined using equation (23), which is derived from the Arrhenius equation that incorporates the activation energy Ei [40,56,57]. It is presumed that the coal in question belongs to the lignite kind.

3. Materials

In this work, the coal used in the existing power plant, the coal and FRD particles used in this experiment are detailed in Table 2, which presents their composition. The coal is sourced from Kalimantan, Indonesia, especially known as LRC, and has a significantly high moisture content. On the other hand, the FRD is sourced from a palm oil mill in Sumatra, Indonesia. The FRD utilized in this study is the as-received FRD type, which has been drying.

4. Boundary condition

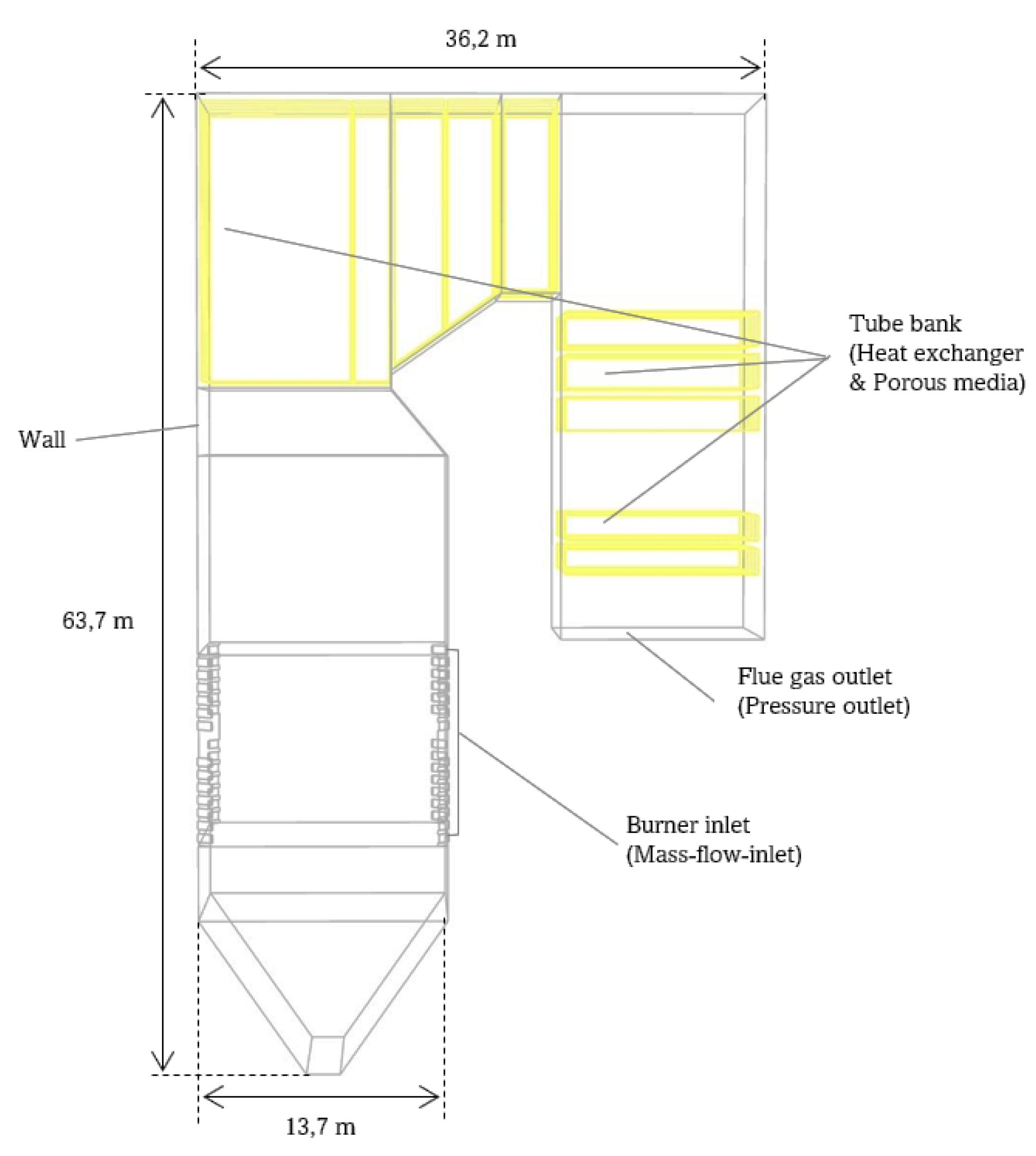

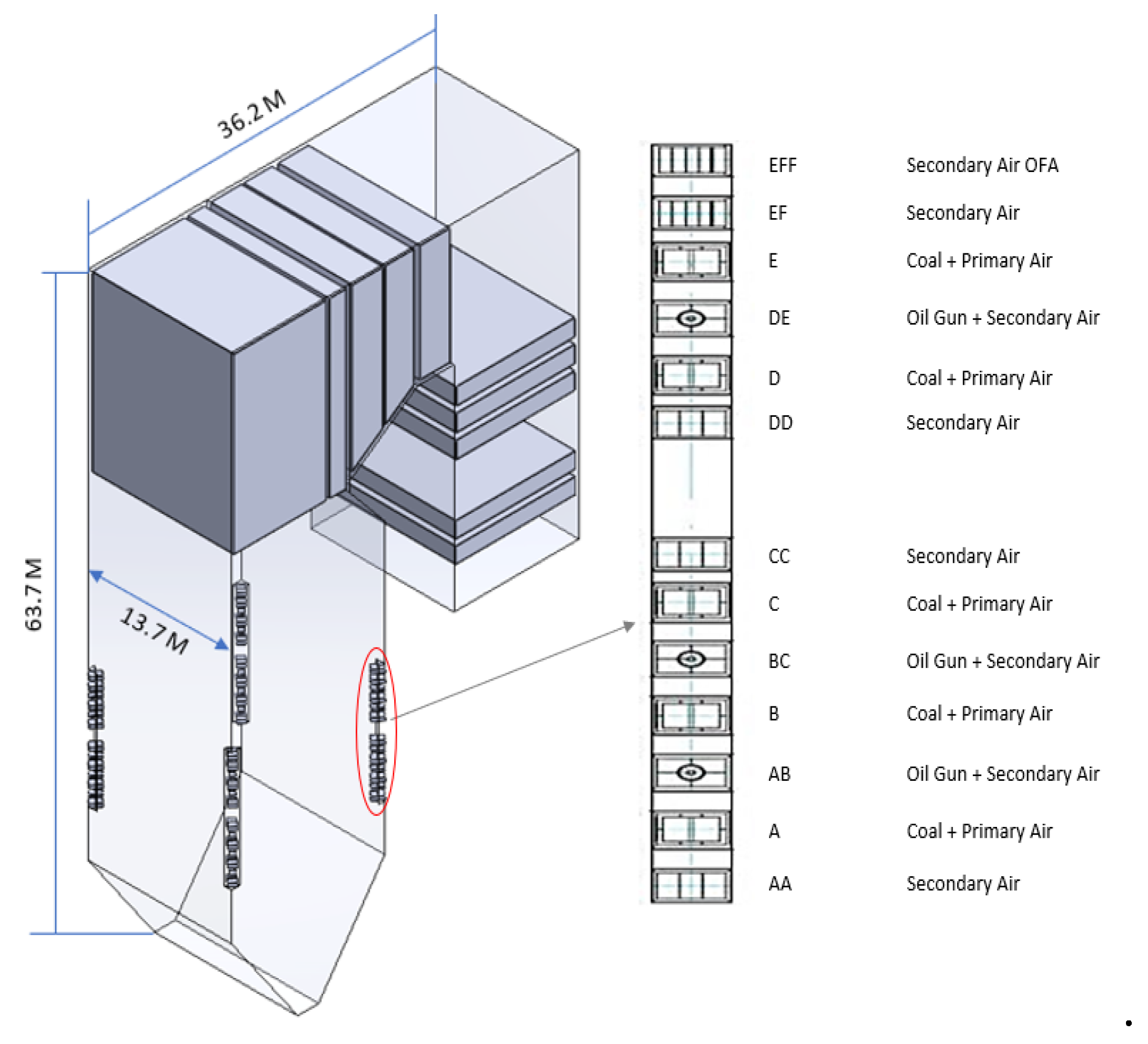

The simulation involves categorizing boundary conditions into four types: wall, mass flow inlet, pressure outlet, and interior. Figure 3 shows the simulation domain of co-firing coal and palm fronds in a tangentially pulverized coal boiler. The primary and secondary airflow at the inlet are subjected to mass flow inlet conditions, whereas the boiler outlet is subjected to pressure outlet conditions. The primary air is the fuel feeder gas that moves through the pipes alongside coal particles, and FRD is introduced into the furnace via burner inlets A, B, C, D, and E. However, in this simulation, burner E (standby) is not operated, so burner E is designated as a wall. Additional air gas, required for combustion, enters the furnace through burner inlets AA, AB, BC, CC, DD, DE, EF, and EFF, flowing through the outer pipe.

Each particle is viewed as a solid sphere ranging from 60 to 200 mesh (74-250μm), and the simulated power generator efficiently produces 315 MWe, achieving a fundamental combustion efficiency of 30%. Table 3 presents the boiler operating performance data. For the combustion simulation, the required amount of air is uniformly introduced into the chamber. The ratios of primary air, secondary air, and overfire air relative ratios remain unchanged compared to the scenario of pure coal combustion. Upon entering the combustion chamber, the particles undergo a series of ongoing events, which include heating, drying, devolatilization, combustion of gases and char, creation of pollutants, and emission of heat radiation [46,58]. The Coupled Algorithm, a method suitable for simulating complex geometries and multiple components, is employed to calculate the combined pressure and velocity of the Navier-Stokes equations. An analysis of the gas-solid two-phase flow is conducted using the Eulerian-Lagrangian technique. The Reynolds average Navier-Stokes (RANS) equations are solved in the Eulerian domain to conduct the gas phase modelling.

The coal characteristics and HT-FRD setup information at each burner location are presented in Table 4. Throughout the simulation, fuel is injected in varying proportions based on the HT-FRD mix ratio of 5-50% across 16 burners (A-D burner areas, while E burner remains on standby). The domain is represented in a 3D combustion chamber model with a mesh count of 737,426 unstructured tetrahedral cells. The CFD simulation tracks the spatial distribution of temperature, velocity, and concentrations of exhaust gases, including CO₂, CO, and O₂.

5. Grid Independence and Validating the Computational Fluid Dynamic (CFD) Simulation

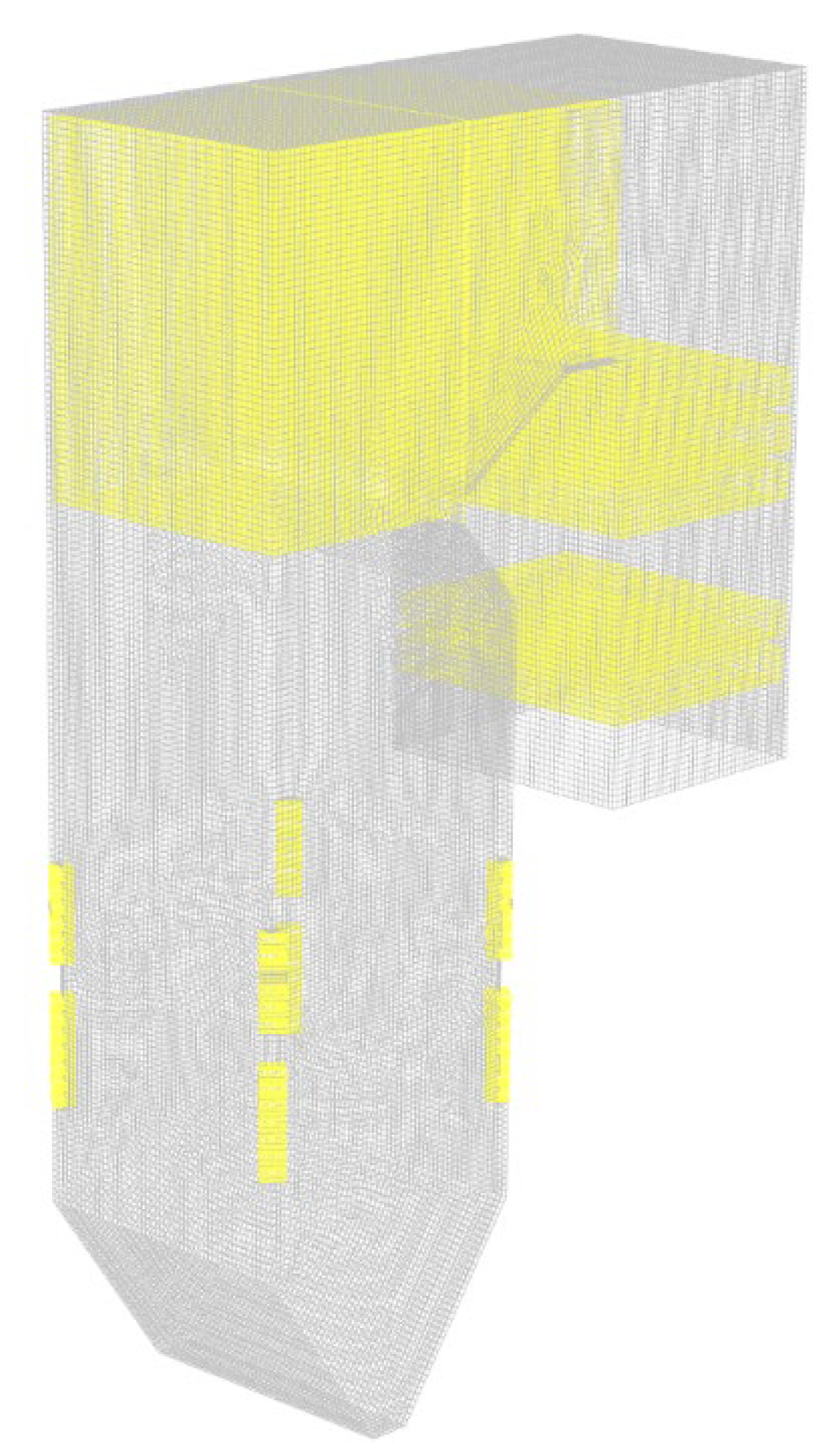

An independent study is necessary to verify the accuracy of the data findings. The grid domain utilized should closely resemble real-world conditions.

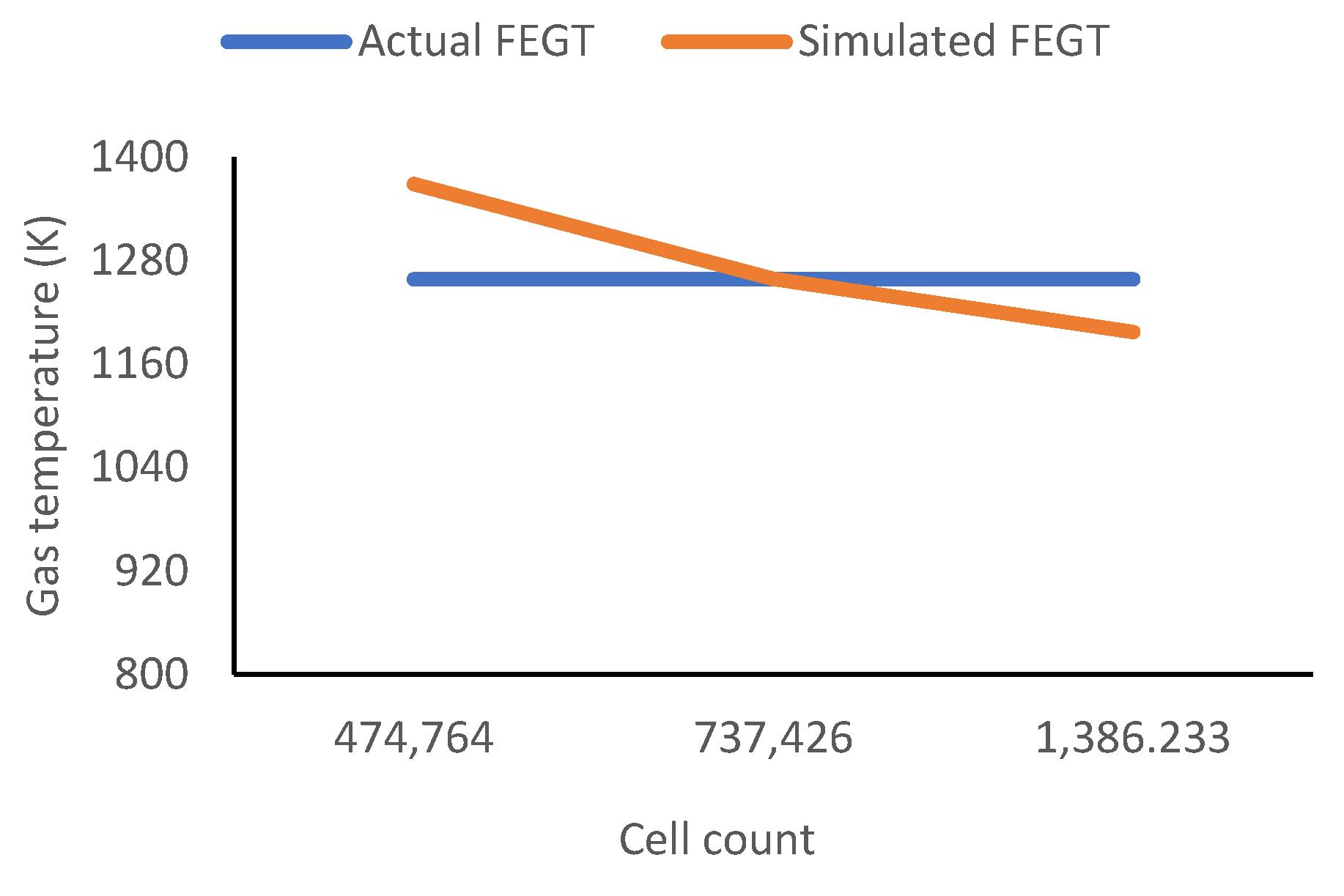

Figure 4 and Figure 5 depict the variations in cell count and the comparison of the exit temperature at FEGT (Flue Gas Exit Temperature) for grid independence and validation. Under real-world conditions, the FEGT of the boiler's combustion chamber is measured at 1258.15 K. The simulation results, obtained with different cell counts of 474,764, 737,426, and 1,386,233, yield exit temperatures of 1368.51 K, 1258.51 K, and 1197.05 K, respectively. Consequently, when comparing the simulated FEGT gas temperature to the actual value, the error margin is 0.03% for the cell count 737,426

6. Results and discussion

6.1. Effects of Co-Firing HT-FRD on Distribution Temperature

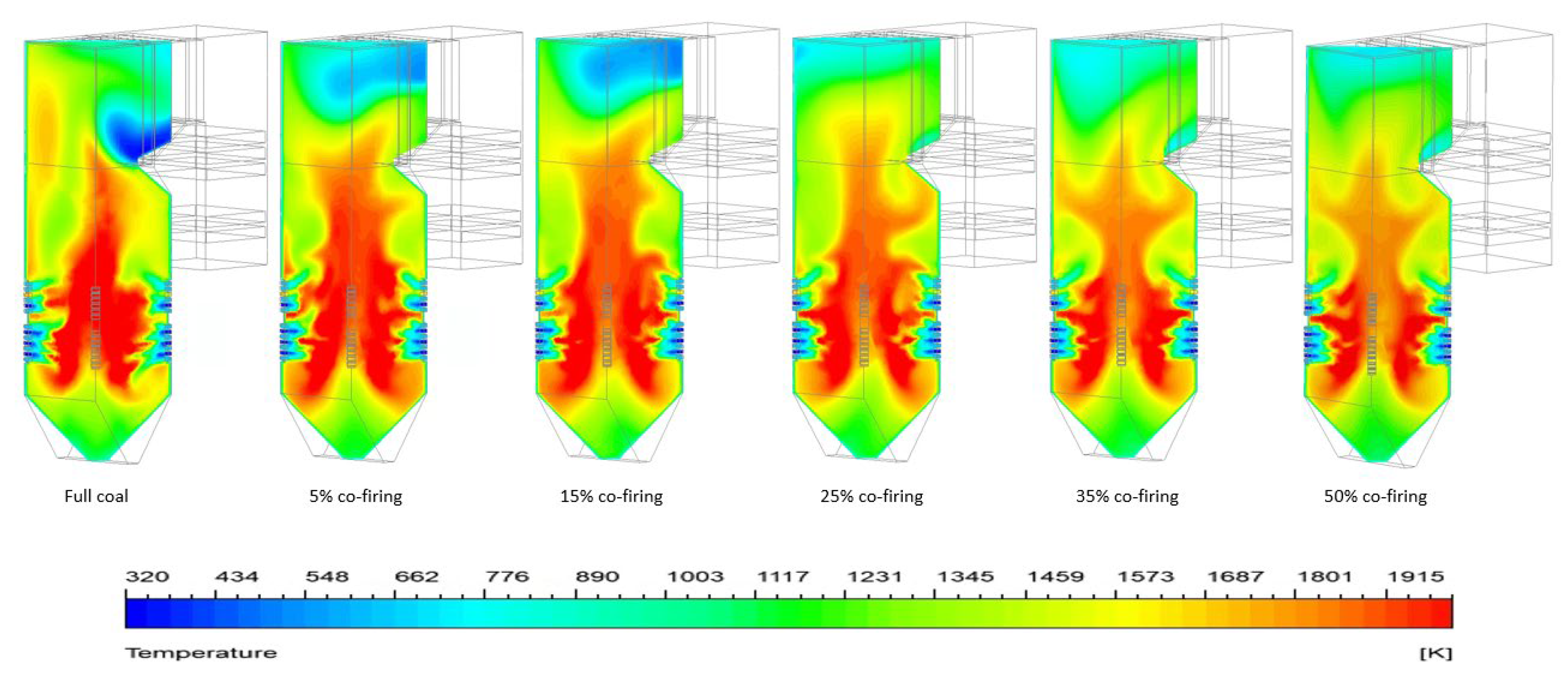

Simulation approaches were used to investigate the impact of HT-FRD co-firing on the combustion parameters of a pulverized coal boiler. Figure 6 depicts 3D display model the temperature distribution within the combustion chamber for each HT-FRD co-firing, with different mixing ratios. The simulation findings reveal a slight variation in gas temperature distribution, increasing the proportion of HT-FRD combination, which generally results in a more vital flame, which leads to a more consistent temperature as the height within the combustion chamber increases. Greater volatility leads to accelerated heat evaporation from combustion within the combustion chamber to the external environment of the furnace.

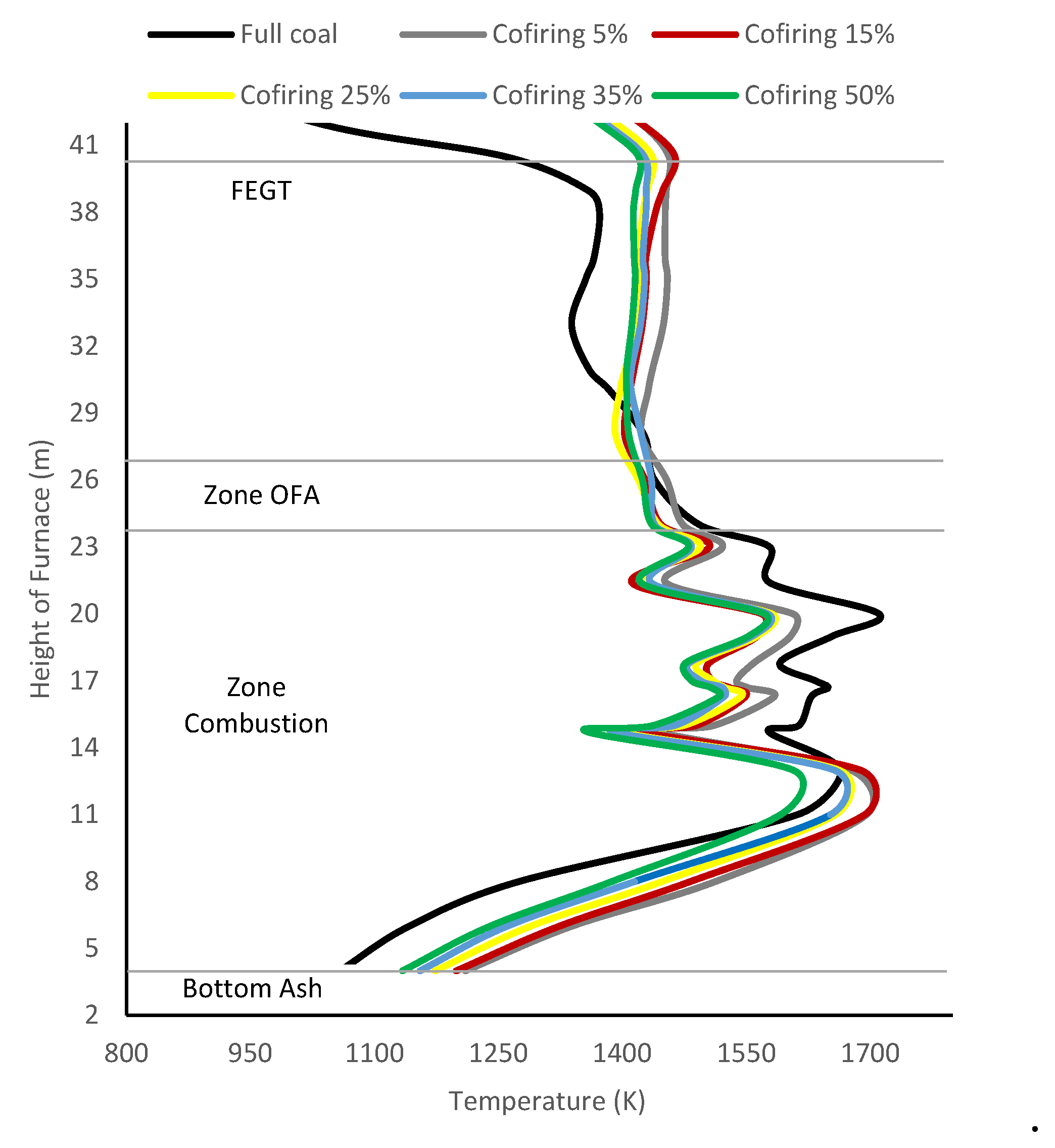

This conclusion is supported by the temperature measurements in the FEGT region. Figure 7 illustrates the temperature distribution curve across the height of the furnace, ranging from the bottom ash to the furnace exit, for various ratios of HT-FRD co-firing.

The gas temperature distribution appears to be consistent across all co-firing ratios. There is a disparity in temperature between the combustion and OFA zones that goes all the way to the FEGT. As the biomass ratio increases, the maximum temperature falls from the primary combustion zone to the overfire air (OFA) zone.

However, in the FEGT section, the temperature rises with the HT-FRD co-firing ratio compared to pure coal. The highest combustion center temperature is found in the furnace section of the combustion chamber, with 0% HT-FRD mass fraction at 1711 K, followed by 15% 1688 K (decrease of 1.3%), 5% 1662 K (decrease of 2,9%), 25% 1656 K (decrease of 3,2%), 35% 1653 K (decrease of 3.4%), and 50% 1607 K (decrease of 6%). When using a 15% mass fraction of HT-FRD in co-firing, a greater combustion temperature is found than a 5% mass fraction. However, the difference is not regarded to be significant. The mean temperature of the gas at the exit of the combustion chamber flue (FEGT) for HT-FRD mass fractions of 0%, 5%, 15%, 25%, 35%, and 50% are 1258 K, 1457 K (increase of 15.8%), 1464 K (increase of 16.4%), 1436 K (increase of 14,2%), 1427 K (increase of 13.4%), and 1420 K (increase of 12,9%) respectively. The temperature distribution profile indicates the most favorable coal combustion and HT-FRD co-firing performance when the HT-FRD mixing ratio is 15%. The combustion process involves four stages: ash formation, char combustion, devolatilization, and drying. [59]. It is important to note that the combustion stages may vary for different fuels.

6.2. Effects of Co-Firing HT-FRD on Distribution Velocity

Figure 8 depict the mean velocity distribution throughout the combustion chamber for varying HT-FRD co-firing ratio. The velocity increases as the HT-FRD mass ratio increases across the combustion chamber.

The data presented in Table 2 indicates that HT-FRD particles exhibit higher volatile content moisture and lower than coal particles. Consequently, HT-FRD particles are swiftly dispersed throughout the combustion chamber, leading to devolatilization and an accelerated combustion process with an increased HT-FRD co-firing ratio. In the OFA zone, it can be seen that the velocity distribution increases up to 80%, for the 0% FRD mass ratio it is 7.77 m/s, followed by 5% at 13.77 m/s, 15% at 14.23 m/s, 25% at 14.06 m/s, 35% at 13.94 m/s, and 50% at 13.54 m/s.

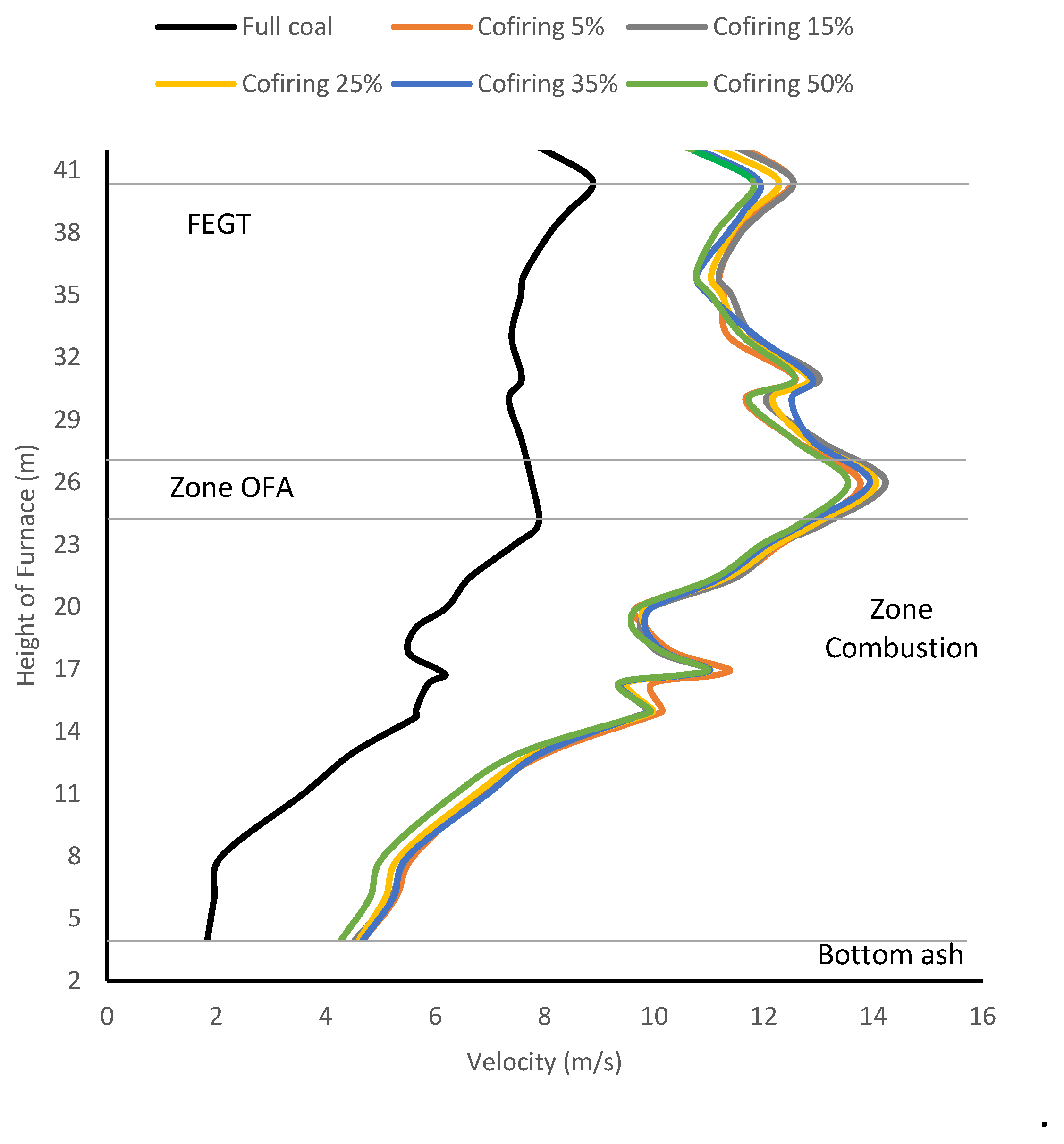

Figure 9 demonstrates that the gas flow velocity in the combustion zone is rather consistent regardless of whether full coal or palm frond co-firing is used as fuel. This indicates that blending the fuels does not significantly affect the distribution of velocity. The rapid speed in this area indicates the ongoing combustion reaction. In the FEGT zones, the gas flow velocities in all circumstances exhibit a minor decrease as a result of the combustion process being reduced up to the flue gas. In addition, the gas flow velocity concentration remains relatively constant across varied co-firing mass ratio, indicating that the flow properties in the furnace are not greatly affected.

6.3. Effects of Co-Firing HT-FRD on Gas Emission CO₂, CO, and O₂

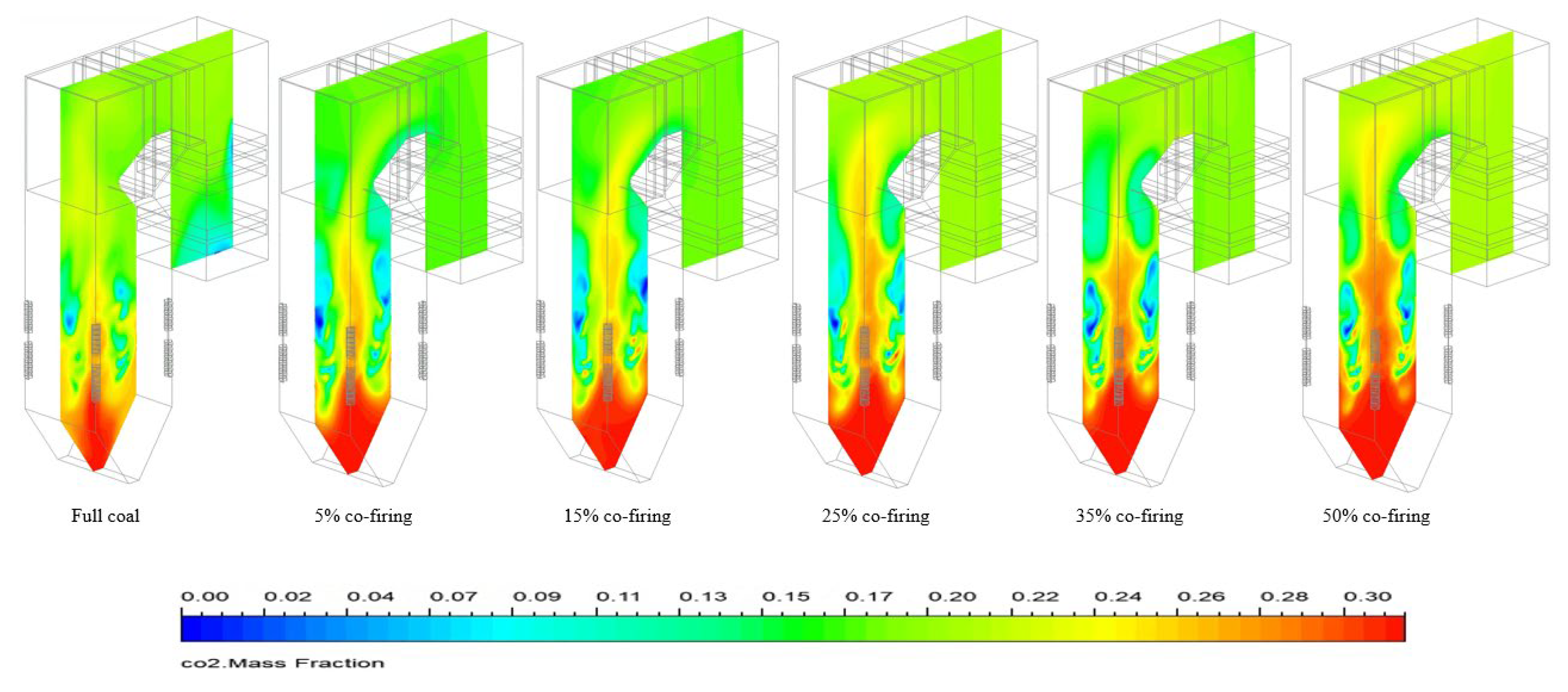

Figure 10 depict the distribution profiles of CO₂ in the cross-section and the central location within the combustion chamber. The mean mass percentages of carbon dioxide CO₂ in the flue gas at the exit of the combustion chamber (FEGT) the HT-FRD co-firing ratios resulted in a drop of up to 30.5%. Case 2 experienced a drop of 30.5% from 0.187 to 0.130. In case 3, there was a decrease of 25.1% from 0.187 to 0.140. Case 4 saw a decrease of 23.5% from 0.187 to 0.143. Case 5 had a decrease of 20.9% from 0.187 to 0.148. Finally, case 6 had a loss of 15% from 0.187 to 0.159. Therefore, a reduced ratio of thermal fuel replacement with biomass (HT-FRD) leads to a decreased concentration of carbon dioxide CO₂ in the exhaust gases. Thus, a low HT-FRD co-firing ratio results in a lower CO₂ concentration in the flue gas. The reactions illustrated in equations (18-22) primarily convert carbon into CO₂. Consequently, coal possesses a higher carbon content than FRD. The inclusion of HT-FRD diminishes the carbon content while enhancing the volumetric heat capacity and the propensity of the flame to spin [60].

Figure 11 demonstrates that including biomass HT-FRD into the fuel in the combustion zone can gradually decrease flue gas emissions, particularly CO₂, by reducing combustion reactions. The research demonstrates that the co-firing of palm frond biomass with coal can result in a reduction of CO₂ emissions when compared to the complete combustion of coal. This suggests potential environmental advantages.

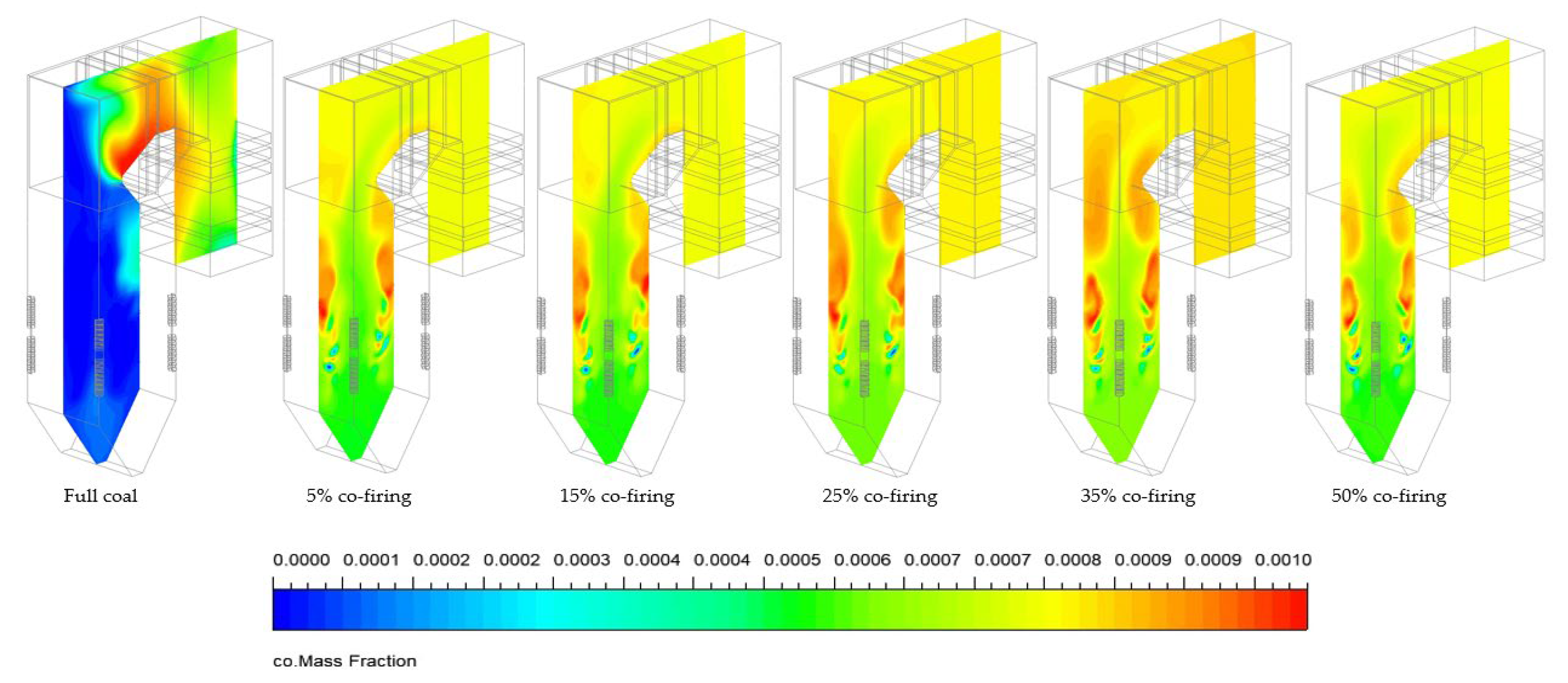

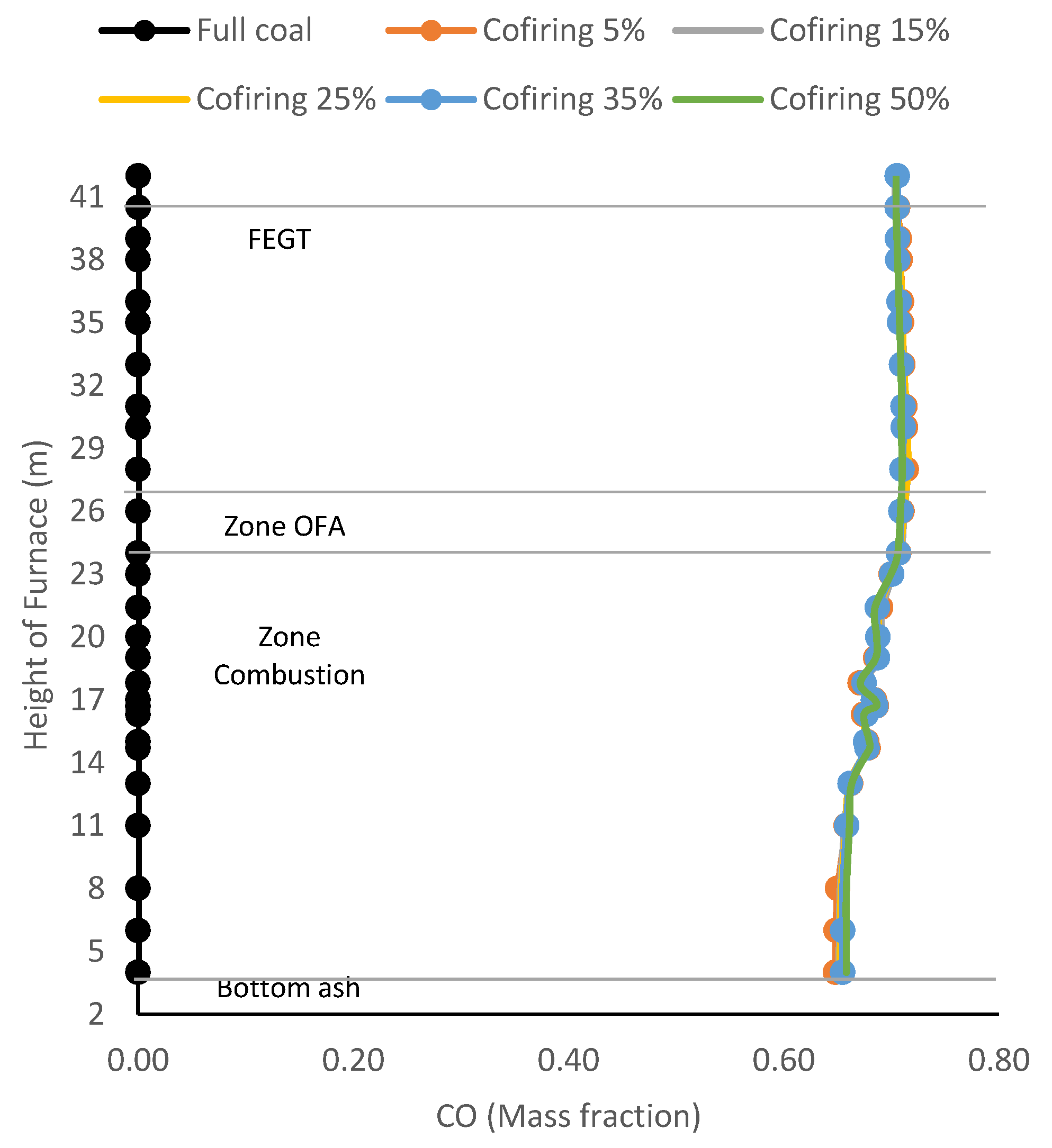

Figure 12 provide valuable insights into CO gas concentration traversing the combustion chamber during co-firing. Unlike total coal combustion, HT-FRD co-firing has properties that can increase the concentration of CO during combustion. An increase in the proportion of HT-FRD results in a higher level of CO concentration produced during the combustion process.

Nevertheless, augmenting the co-firing ratio of HT-FRD does not significantly alter the final result. The differing volatile matter levels between coal and HT-FRD can be considered as the cause of this outcome (as shown in Table 2), which are readily oxidized at high combustion temperatures, facilitating the formation of CO. Additionally, CO combines with the incoming O₂ in the combustion to generate CO₂.

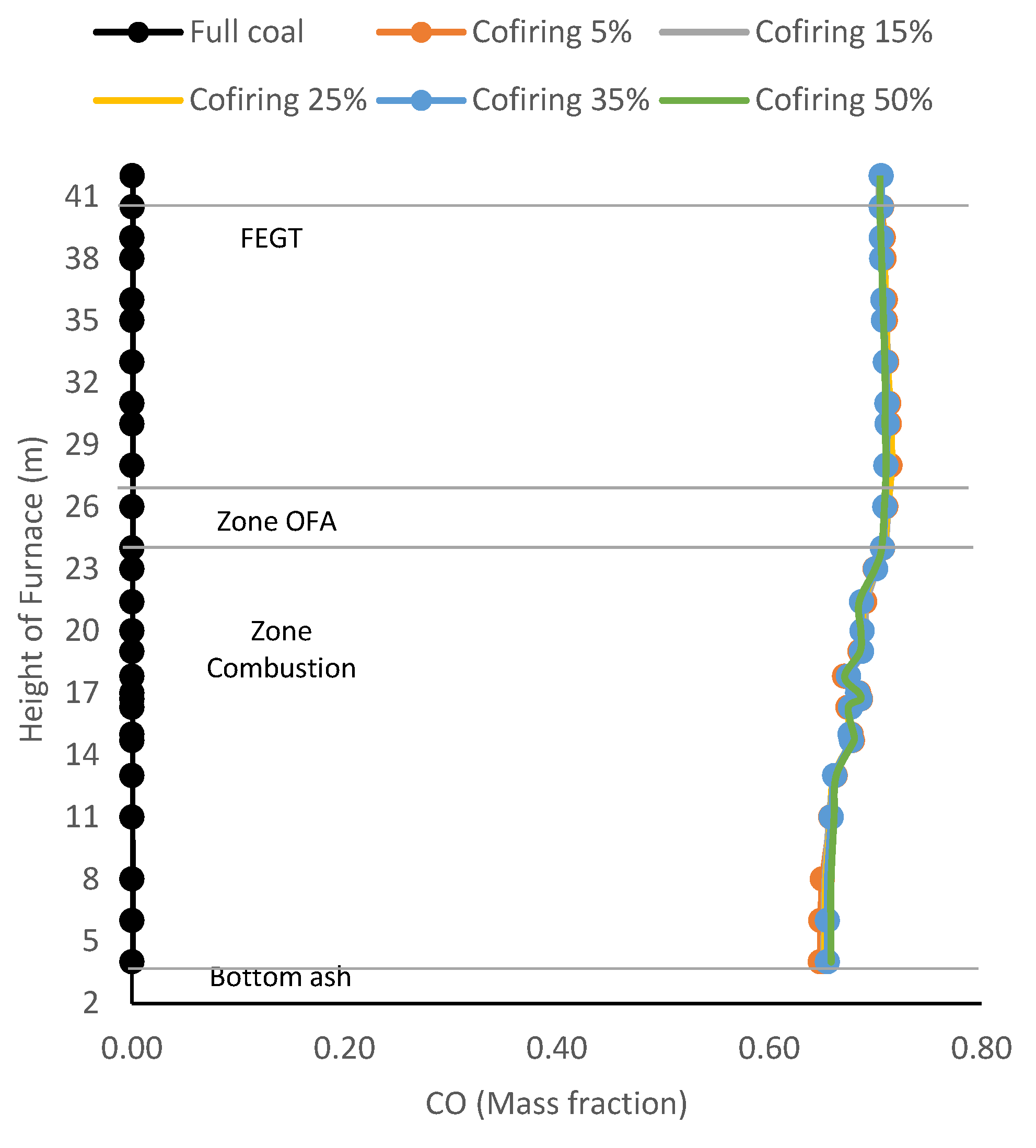

Figure 13 shows that CO exhaust emissions increase with the addition of HT-FRD mass ratio, this indicates that the combustion is incomplete or part of the fuel is not burned out which results in increased CO gas in each zone. So that CO gas is not fully oxidised to CO₂ in combustion.

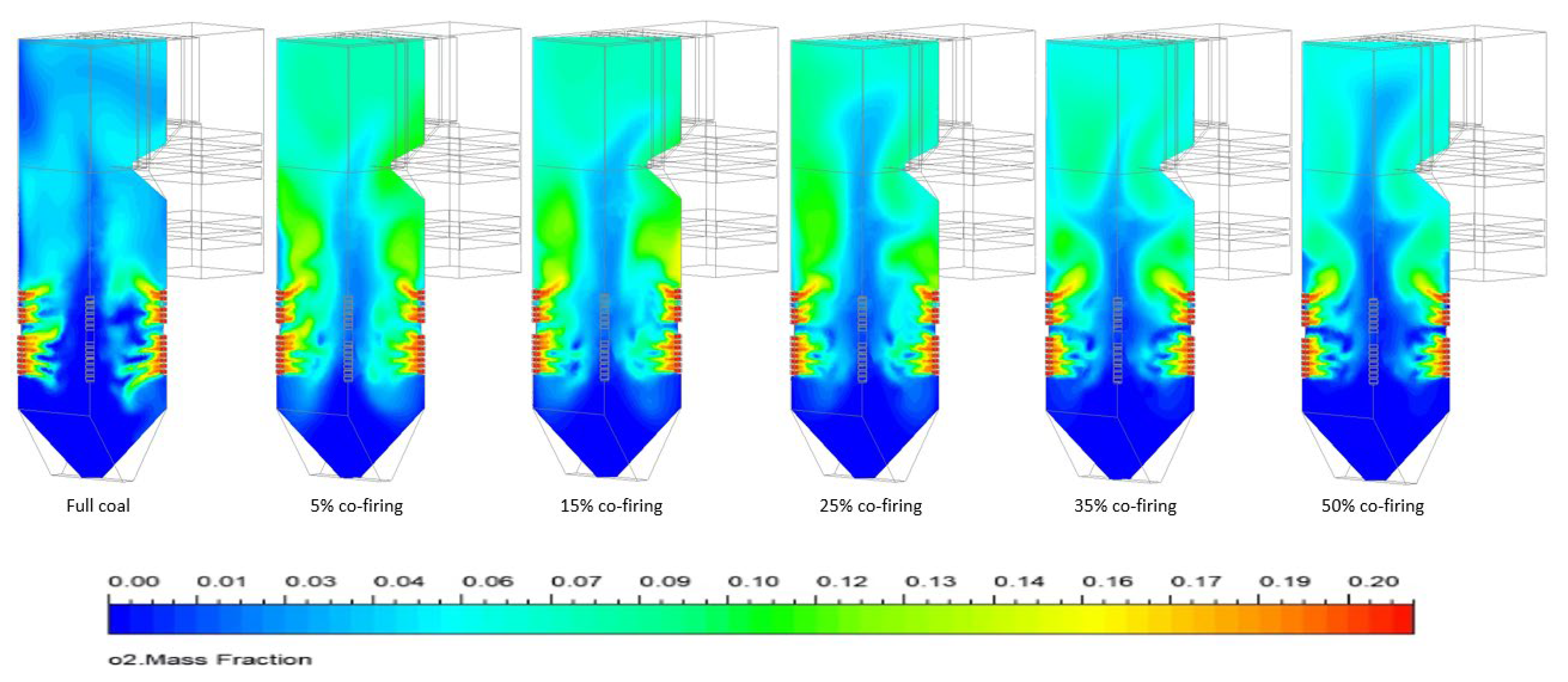

Figure 14 depict the oxygen distribution profiles within the combustion chamber when co-firing at different HT-FRD ratios. An increased HT-FRD mass ratio leads to a reduction in oxygen concentration. Due to its higher oxygen content relative to coal, HT-FRD can be depleted alongside other flue gases during combustion. The O₂ concentration exiting the combustion chamber at FEGT increased, for HT-FRD co-firing ratios of 0%, 5%, 15%, 25%, 35%, and 50% by 0.042, 0.084 (100% increase), 0.077 (83% increase), 0.075 (78.6% increase), 0.071 (69% increase), and 0.062 (47.6% increase), respectively.

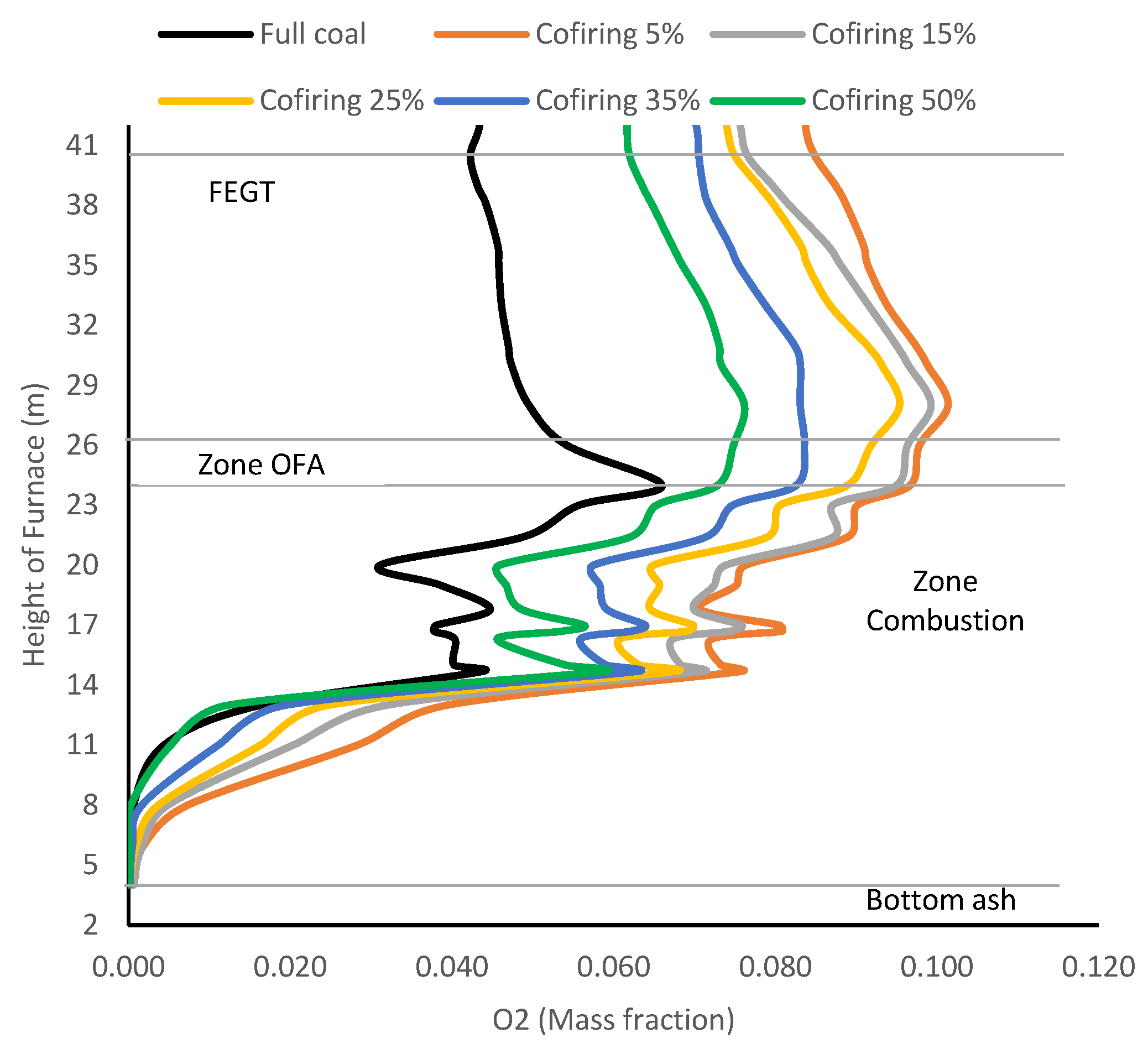

Figure 15 depicts the O₂ concentration curves as they move through the furnace during co-firing, with varying HT-FRD mass ratios.

In every instance, higher concentrations of O₂ are seen in close proximity to the OFA zone, but they diminish gradually as the combustion reaction progresses. When comparing pure coal combustion to HT-FRD fuel combustion, it is observed that HT-FRD fuel can be decomposed quickly and the combustion produces high temperatures. Therefore, co-firing HT-FRD fuel can increase the consumption of oxygen concentration and reduce the amount of O₂ remaining in the combustion zone.

7. Conclusions

The study investigated the potential of utilizing advanced FRD as a renewable energy source. Through modeling and evaluating the coal co-firing performance with HT-FRD using CFD analysis at various mixture mass ratios, it was found that a 5% HT-FRD mass ratio is the most optimal co-firing condition corresponding to the Coal-Fired Power Plants' actual conditions. It can be seen from the increase in combustion temperature in the FEGT zone by 16% from 1258 K to 1457 K, the velocity distribution increased by 80%, and the O₂ concentration also increased by 100% from 0.042 to 0.084 mf. And most importantly, it can reduce CO₂ emissions by 30% from 0.187 to 0.130 mf in the resulting exhaust gas. However, the addition of T-FRD produces a relatively high concentration of CO gas, which means that the freezing is not perfect. Attributed to the higher volatile matter HT-FRD content compared to coal. Incorporating this natural resource (FRD) can enhance the efficiency of utilizing renewable resources, mitigate environmental impacts, and prolong the operational lifespan of existing and future coal-fired power plants.
