Crack Identification Method for Prefabricated Concrete Pavement Based on Distributed Strain Monitoring

1. Introduction

Airport prefabricated pavement with reciprocating aircraft loads, plate bottom de-airing and aircraft type after the renewal of the load increase and other factors such as the impact of plate cracking, resulting in flight accidents. According to the statistics of an airport for 10 years, there were 76 cases of tire blowout, landing gear damage, engine damage and other failures caused by pavement quality disorders. Among them, 5 failures, or 6.6%, were caused by crack-type disorders [1]. Although the prefabricated pavement has obvious advantages in rapid repair and large-scale renewal, it also has the potential danger of slab cracking, and the incidence of crack-like disease even exceeds that of traditional pavement, so it is of great practical significance to monitor the prefabricated pavement in real time to effectively identify the crack development conditions, so as to avoid flight accidents.

At present, airport pavement crack monitoring/detection methods mainly include manual inspection, image recognition, infrared imaging, geo-radar identification and other methods. Manual inspection is a commonly used method in the Chinese civil aviation specification [2], but manual inspection has many problems such as poor accuracy, strong subjectivity, low efficiency, etc., which can no longer adapt to the requirements of the rapid development of civil aviation airports [3]. Some scholars [4,5,6,7,8] proposed various crack recognition algorithms to realize the work of recognizing cracks in images. For example, Oliveira [9] and others use automatic threshold segmentation and connected component algorithm to realize the extraction of cracks; Shi [10] and others identify cracks based on integral channel features and random decision forest. Although such methods can improve the recognition accuracy of cracks algorithmically, they can only recognize apparent cracks based on visible light images, which is vulnerable to the interference of the external environment and cannot recognize the internal cracks of the pavement surface. Infrared thermography is also often used for crack identification in different structures. Park [11] et al. based on infrared thermography and phase-locking method for crack identification in welded dissimilar metal pipes. Li [12] et al. based on finite element model of rail plate and field experiments, investigated the relationship between the detectable crack width of infrared thermography and the ambient temperature, and the crack width of not less than 0.2 mm was detected when the temperature was higher than 15 ℃; when the temperature was not lower than 20 ℃, cracks with width as small as 0.14 mm were able to be detected. When the temperature is higher than 15 ℃, cracks with a width of not less than 0.2 mm can be detected; when the temperature is not lower than 20 ℃, cracks with a width as small as 0.14 mm can be detected. However, due to the large range of airport pavement and the low resolution of infrared images, the infrared thermal imaging sensor cannot meet the requirements for the identification of small cracks on airport pavement. Geo-radar has a good effect in the disease detection of concrete structures. Ouyang [13] analysed the early crack damage of asphalt concrete pavement layer based on the random medium model, summarized the various characteristics of the radar profile, and also compared and analysed and summarized the results of the field collection of the crack damage of the pavement layer. Tian [14] et al. proposed a stepping-frequency null-coupled ground-penetrating radar system based on the vector network analyser, and the experimental results show that the system can detect narrow cracks with a depth of 50 cm. The geo-radar technology is characterized by strong penetration and high resolution in detecting larger defects, which will have a greater impact on the detection effect due to the narrow cracks and internal reinforcement of the prefabricated pavement.

In the past 10 years, distributed fiber optic monitoring technology has been applied to the crack monitoring of concrete structures in a lot of applications due to the advantages of high accuracy, good durability, and ease of automation [15,16,17,18]. At present, the distributed monitoring techniques mainly include the distributed fiber optic sensing technique based on Brillouin Optical Time Domain Analysis (BOTDA) and the long scale pitch Fiber Bragg Grating (FBG) sensing technique. Lu [19] and others applied the BOTDA crack monitoring technology to the crack monitoring of an asphalt pavement layer; Qian [20] and others carried out a study on fatigue crack monitoring of bridge deck slabs based on BOTDA and established a fatigue crack extension model by using the strain indexes obtained from fiber-optic sensor monitoring. Shi [21] and others carried out ground crack monitoring based on BOTDR, which can recognize the change of ground crack width of 0.1mm. Long scale distance fiber grating sensing technology is less applied in concrete crack identification, Pang [22] proposed a long scale distance fiber grating sensor deployment method under chain distribution, and the identification and location of diagonal cracks is realized by the change of the slope of the load-strain curve, and the analysis finds that it is completely consistent with the experimental observation results. The BOTDA can directly realize the continuous measurement of the strain, but the accuracy of the strain measurement is relatively low, and the accuracy of the measurement is generally only BOTDA can directly realize continuous measurement of strain, but the accuracy of strain measurement is low, generally only above 10 με, and with the increase of wiring distance, the optical loss will further increase, and the measurement accuracy will also decrease dramatically; while the long scale pitch FBG sensor can still realize the distributed measurement, and its accuracy can reach 1~2 με. Considering that the deformation of the structure of the airport road surface in the operation period is relatively small, in order to realize the structure of the high-precision monitoring and evaluation, this paper selects the long scale pitch fiber grating technology as the sensing technology.

In this paper, firstly, according to the principle of fiber grating sensing, a crack identification method of prefabricated pavement based on distributed strain monitoring is proposed; secondly, a 9-plate combined finite element model of prefabricated pavement surface is established to validate the crack identification algorithm and analyse the influence of the aircraft taxi position, load size and model; finally, the feasibility of the method is verified by a small-scale model scaling test.

2. Crack Identification Method Based on Distributed Long-Gauge Optic Fiber Sensing

2.1. Distributed Long-Gauge Optic Fiber Sensing

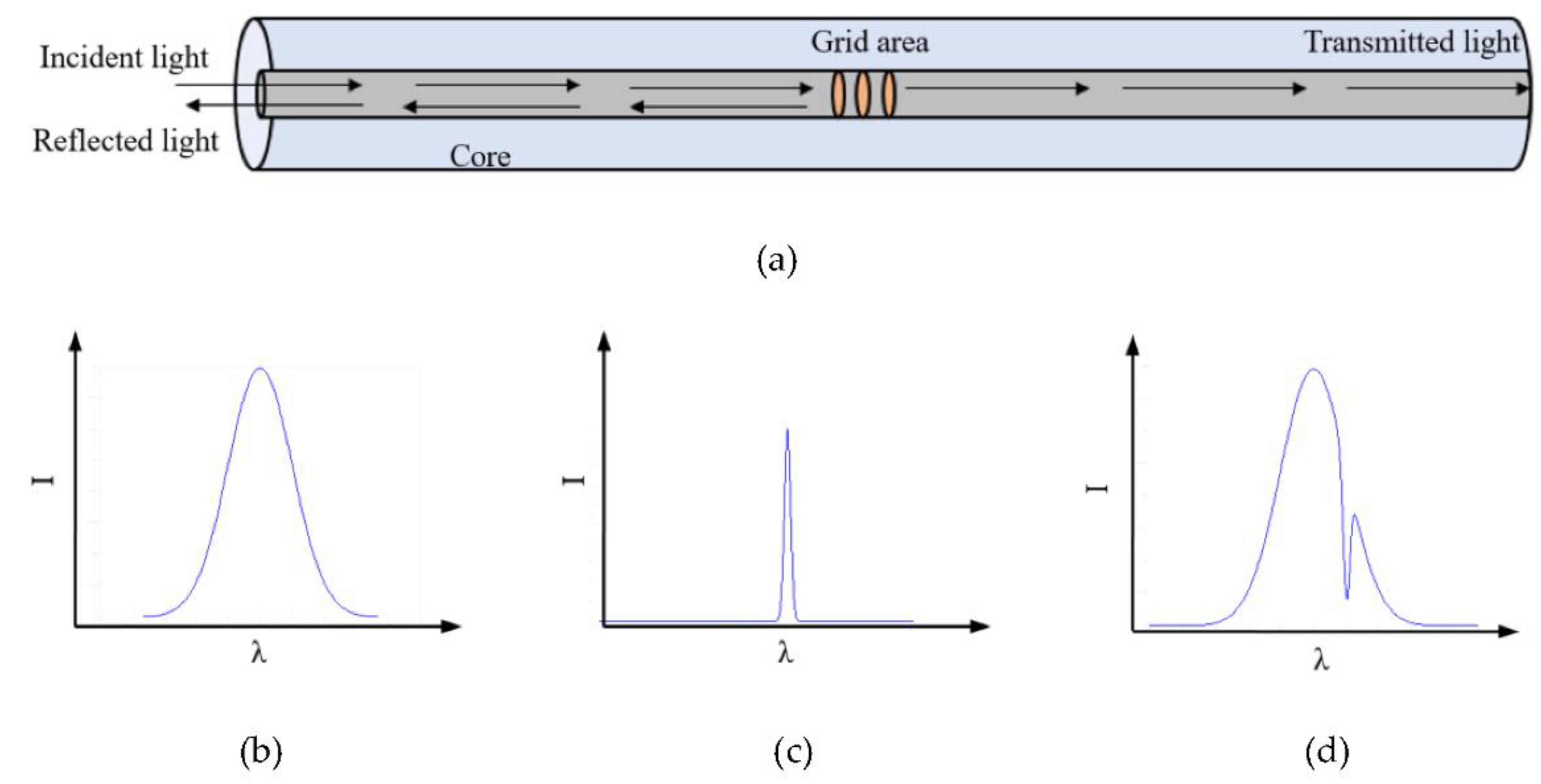

FBG sensors make use of the photosensitivity of fiber optic materials to form a permanent Bragg grating by making the refractive index within the core change periodically along the core axis through methods such as UV light exposure. When the wavelength of the incident light meets the specific Bragg conditions, it will be reflected back to the original direction, while other wavelengths of light will pass through the grating area unaffected. Once the Bragg grating area is subjected to external forces or changes in ambient temperature, the wavelength of the reflected light will also change. Therefore, strain changes and temperature changes can be measured by measuring the wavelength change of the reflected light [23,24], As shown in Figure 1.

The amount of wavelength change of the reflected light can be calculated by equation (1):

$$\Delta {\lambda }_b=(1-P_{\epsilon })\cdot \Delta \epsilon \cdot {\lambda }_b+({\alpha }_f+\xi )\cdot \Delta T$$

(1)

where $\Delta {\lambda }_b$ is the wavelength variation of the reflected light; $P_{\epsilon }$ is the effective elastic optical coefficient of the fiber; $\Delta \epsilon$ is the strain variation; ${\lambda }_b$ is the wavelength of the reflected light; ${\alpha }_f$ is the coefficient of thermal expansion of the fiber; $\xi$ is the thermo-optic coefficient of the fiber; and $\Delta T$ is the temperature variation.

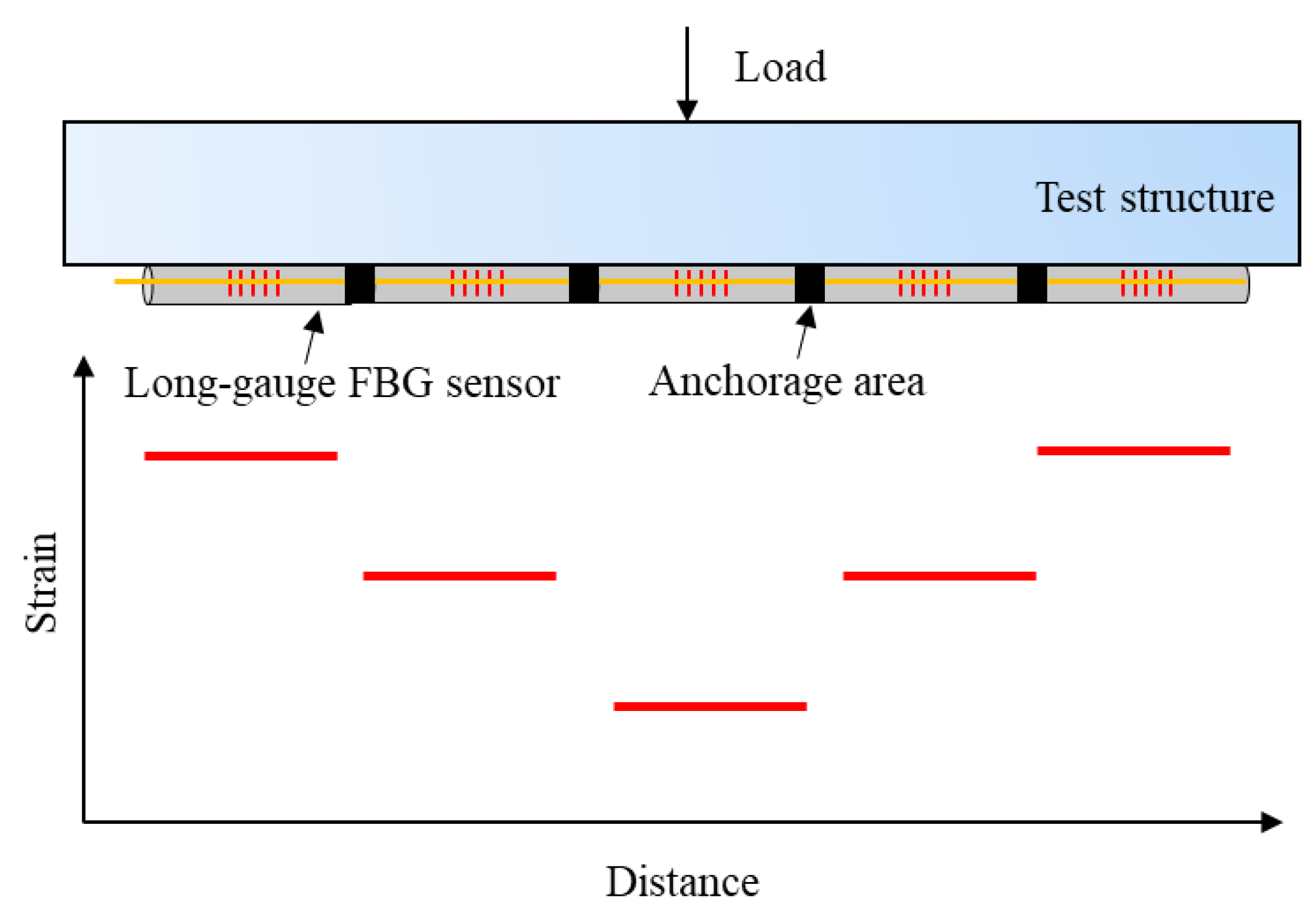

The long-gauge FBG sensor can obtain the average strain of the structure in the scale distance range, which is used as the characteristic strain of the structure in the monitoring range, which reduces the influence of the unevenness of the concrete material on the measurement, and can better reflect the actual performance of the structure. By connecting the sensors in series before and after to cover the monitoring area of the roadway panel, the distributed measurement of the structural strain in the area can be realized, which in turn can realize the identification of roadway cracks, as shown in Figure 2.

2.2. Crack Identification Method

In order to ensure the long-term monitoring needs of the sensor, without affecting the structural stress performance of the pavement and the rapid construction of the factory, the group used the slotted steel bar on the distributed fiber optic grating encapsulation to form a self-sensing bar for pavement crack monitoring. As the airplane operates on the pavement, each long scale pitch FBG sensor produces a strain variation curve as shown in Figure 3c. The envelope area of the strain curve at each sensor location can be constructed as a series.

$$\mathsf{\pi }=\{A_1,A_2,A_3\cdots A_i\cdots A_n\}$$

(2)

The strain curve envelope area monitored at one of the intact sensor locations is used as a reference, and the series is normalized to obtain the strain curve envelope area ratio distribution. Take the $E_1$ sensor as an example, the calculation formula is as follows:

$$\Pi =\{1,{\displaystyle \frac{A_2}{A_1}},{\displaystyle \frac{A_3}{A_1}}\mathrm{...}{\displaystyle \frac{A_i}{A_1}}\mathrm{...}{\displaystyle \frac{A_n}{A_1}}\}$$

(3)

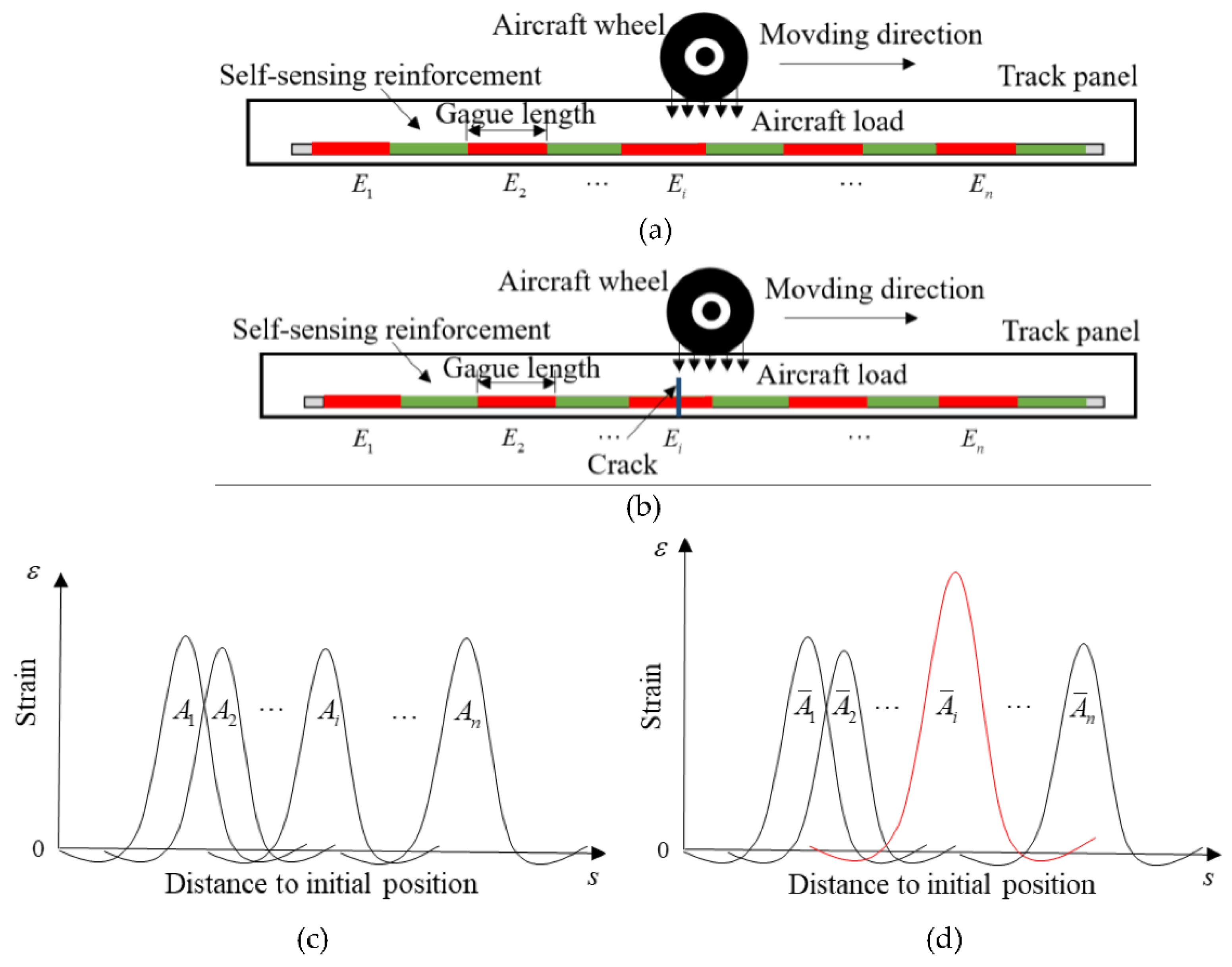

When a crack occurs at the $E_1$ sensor location, the strain peak monitored by the sensor will increase significantly, resulting in a significantly outwardly expanding strain curve, which increases the strain curve envelope area, as shown in Figure 2d. The strain curve envelope area of the sensors adjacent to the crack location will be slightly affected, and the curve envelope area of each sensor location can be constructed as a series after the crack appears.

$$\overline{\mathsf{\pi }}=\{{\overline{A}}_1,{\overline{A}}_2,{\overline{A}}_3\cdots {\overline{A}}_i\cdots {\overline{A}}_n\}$$

(4)

The distribution of the envelope area ratio of the strain curve after cracking of the pavement panel is further expressed as:

$$\overline{\Pi }=\{1,{\displaystyle \frac{{\overline{A}}_2}{{\overline{A}}_1}},{\displaystyle \frac{{\overline{A}}_3}{{\overline{A}}_1}}\mathrm{...}{\displaystyle \frac{{\overline{A}}_i}{{\overline{A}}_1}}\mathrm{...}{\displaystyle \frac{{\overline{A}}_n}{{\overline{A}}_1}}\}$$

(5)

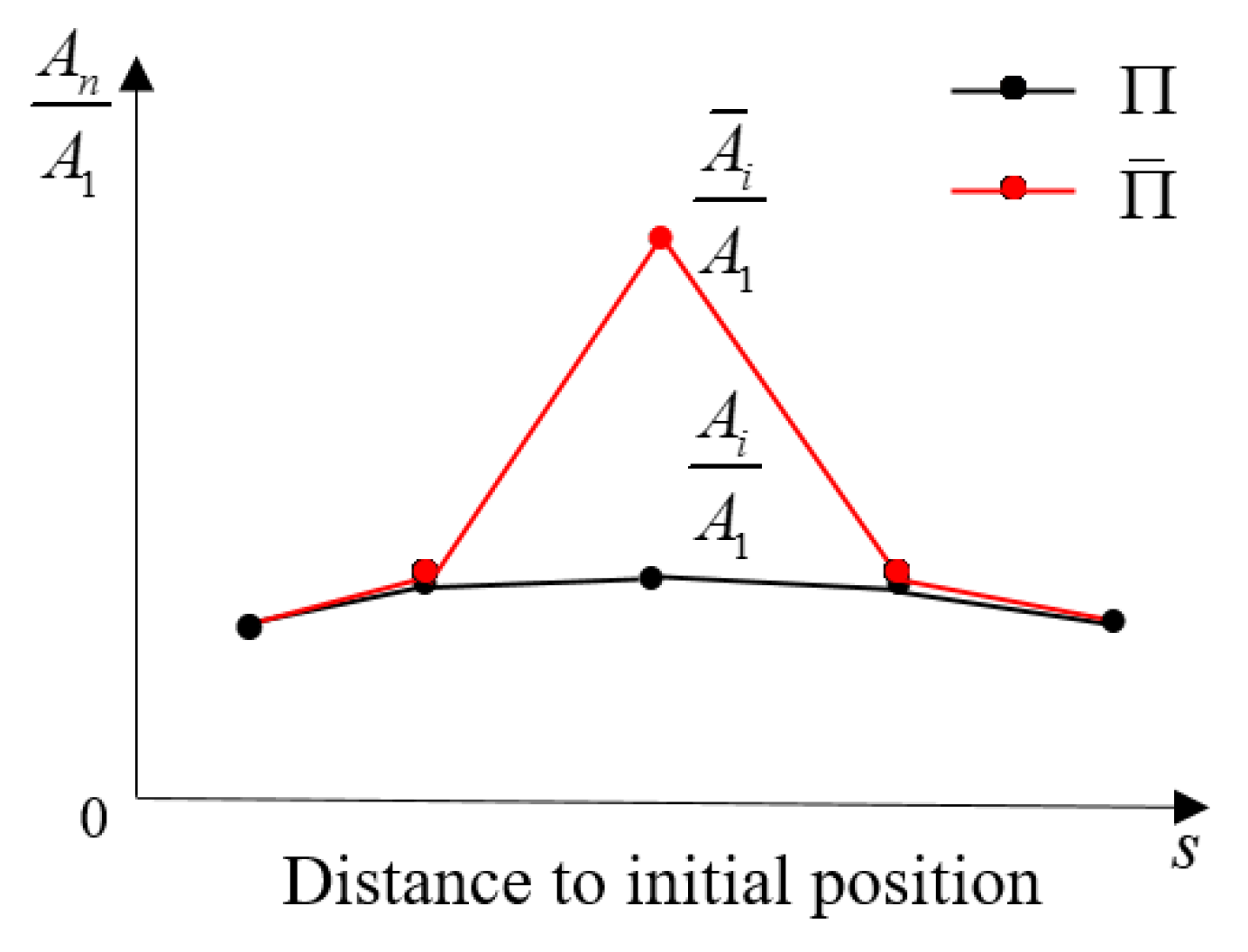

As shown in Figure 4, comparing the distribution of the envelope area ratio of the strain curve before and after the appearance of the crack, it can be found that the envelope area ratio of the strain curve at the location where the crack did not appear did not change or the change was small, and only the strain envelope area ratio at the corresponding location of the crack was changed, so the crack can be recognized on the pavement panel according to the change of the distribution of the envelope area ratio of the strain curve.

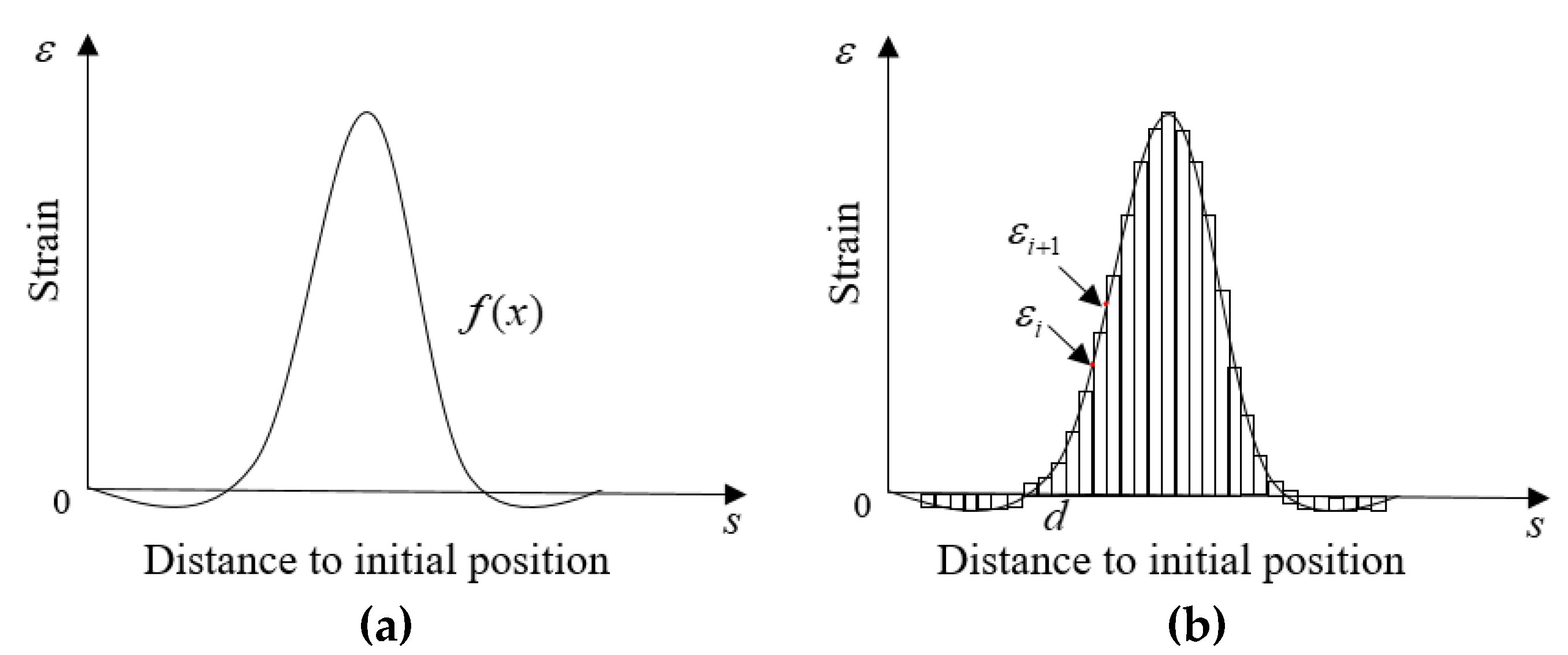

Since the strain over distance curve cannot be expressed using a specific formula therefore the curve is divided into n rectangles as shown in Figure 5b, by solving the sum of the areas of the n rectangles is approximately equal to the area of the envelope of the strain curve. Where the height of each rectangle is ${\displaystyle \frac{{\epsilon }_i+{\epsilon }_{i+1}}{2}}$, and the width is $d$. The specific formula is as follows.

$$A={\displaystyle \int f(x)dx=d{\displaystyle \sum _{i=1}^n\frac{({\epsilon }_i+{\epsilon }_{i+1})}{2}}}$$

(6)

3. Finite Element Modeling of Prefabricated Pavement

3.1. General Information of Prefabricated Pavement Model

3.1.1. Pavement Model Construction

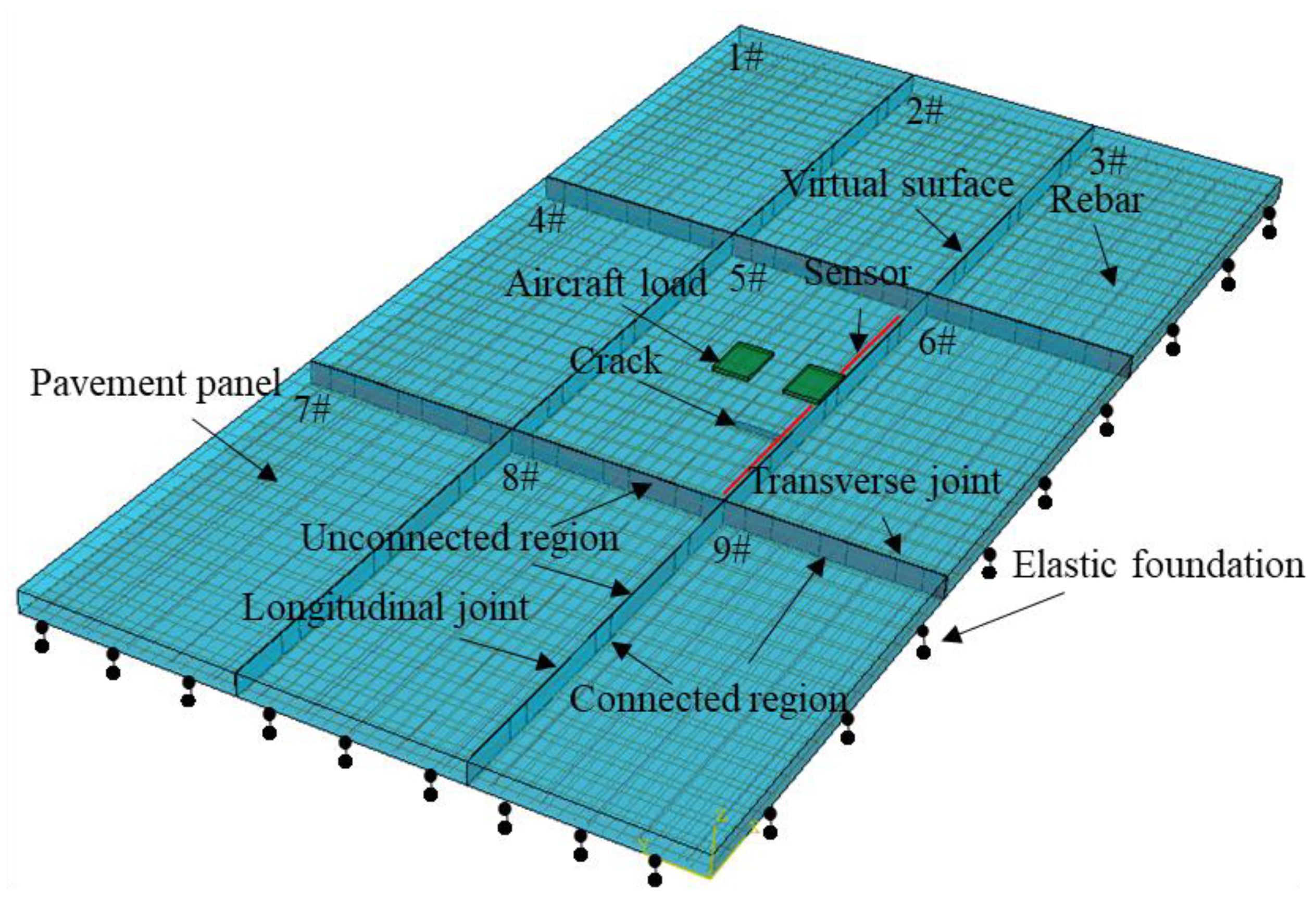

Establishment of prefabricated pavement 9 plate combination finite element model, pavement panel thickness of 0.3 m, size 2.5 m × 5 m. joint width of 8 mm, reinforcing steel using structural reinforcement, upper and lower two-layer bi-directional reinforcing, the thickness of the protective layer of 50 mm. as shown in Figure 6. The road pavement is modeled by three-dimensional solid modeling, the modulus of elasticity of concrete is taken as 36000 MPa, Poisson's ratio is taken as 0.15; the modulus of elasticity of steel reinforcement is taken as 200 GPa, Poisson's ratio is taken as 0.33, which is "built-in" in the pavement panel, and the grid cell type of steel reinforcement is truss. The Winkler foundation model is used to simplify the pavement subgrade and soil base into a composite spring and define the corresponding foundation reaction coefficients, and the foundation simulation adopts the "elastic foundation" in the interaction module of Abaqus, and the modulus of reaction of the top surface of the subgrade is taken as 150 MN/m³ by specifying the foundation surface in contact with the pavement slab [25]. The joint connection between slabs is very important for the mutual load transfer of prefabricated pavement panels, and the connection between pavement panels is realized by establishing virtual surface layer [26], and the elastic modulus of the longitudinal joint connection area is taken as 100MPa, the elastic modulus of the transverse joint connection area is taken as 50MPa, and the elastic modulus of the non-connection area is taken as 5MPa, and the Tie connection is adopted between the virtual surface layer and the pavement panels.

Combined with domestic and international research, the use of structured mesh helps to improve the calculation accuracy, so a rectangular shape is chosen to simulate the load contact surface. The selected role model is B-737-800, and the load is applied to the No. 5 plate by means of moving load step, the moving load simulation is realized by constantly moving the load surface and static loading several times [27], as shown in Figure 7.

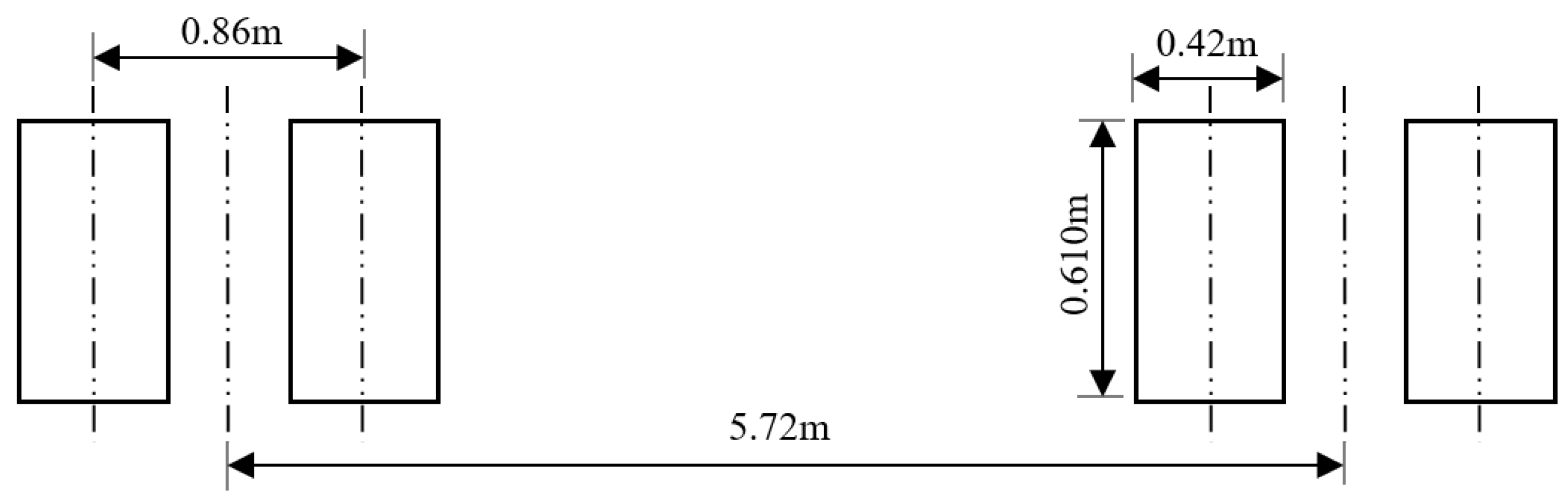

Table 1. B-737-800 Aircraft load parameters.

Maximum take-off weight (kN)	Tire pressure (MPa)	Main landing gear configuration	Single wheel load (kN)	Area of a single wheel (m2)	Wheel print length (m)	Wheel Printing Width (m)
792.04	1.47	Two axles and two wheels	376.22	0.25593	0.610	0.420

Table 1. B-737-800 Aircraft load parameters.

Maximum take-off weight (kN)	Tire pressure (MPa)	Main landing gear configuration	Single wheel load (kN)	Area of a single wheel (m2)	Wheel print length (m)	Wheel Printing Width (m)
792.04	1.47	Two axles and two wheels	376.22	0.25593	0.610	0.420

3.1.2. Crack Simulation and Location Selection

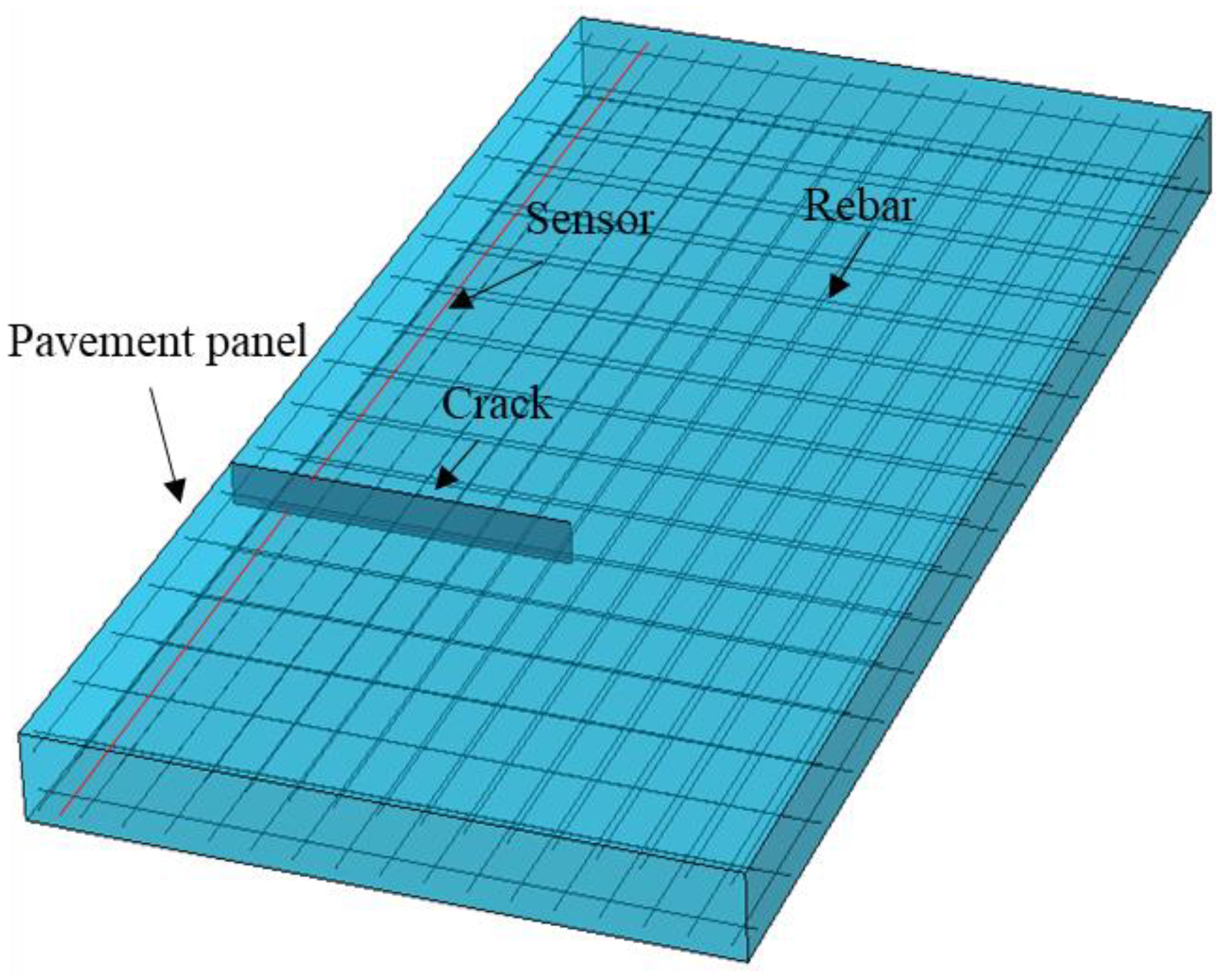

Extended finite element method (XFEM) is used to simulate cracks [28,29], firstly, a 3D shell is created in the component module, and the crack size is determined according to different damage conditions, and the contact properties are created in the interaction module, with the normal behavior of hard contact and the friction coefficient of 8.9 in the tangential behavior [30], and the crack properties are edited in the special settings, with the option "Allow crack growth" and the option "Crack location", the location of the 3D shell, which is the simulated crack location, noting that the shell location should be inside the mesh, and the location is the simulated crack location. Edit the crack properties in the special settings, check the "Allow crack growth" option, and check the "Crack location" option, the location of the 3D shell, which is the location of the simulated crack, note that the location of the shell needs to be inside the mesh, and specify the established contact properties, the mesh cell type is shell. According to the fatigue damage development law of the cracks on the panel under the airplane operation, the crack development degree is set into different levels, as shown in Table 2.

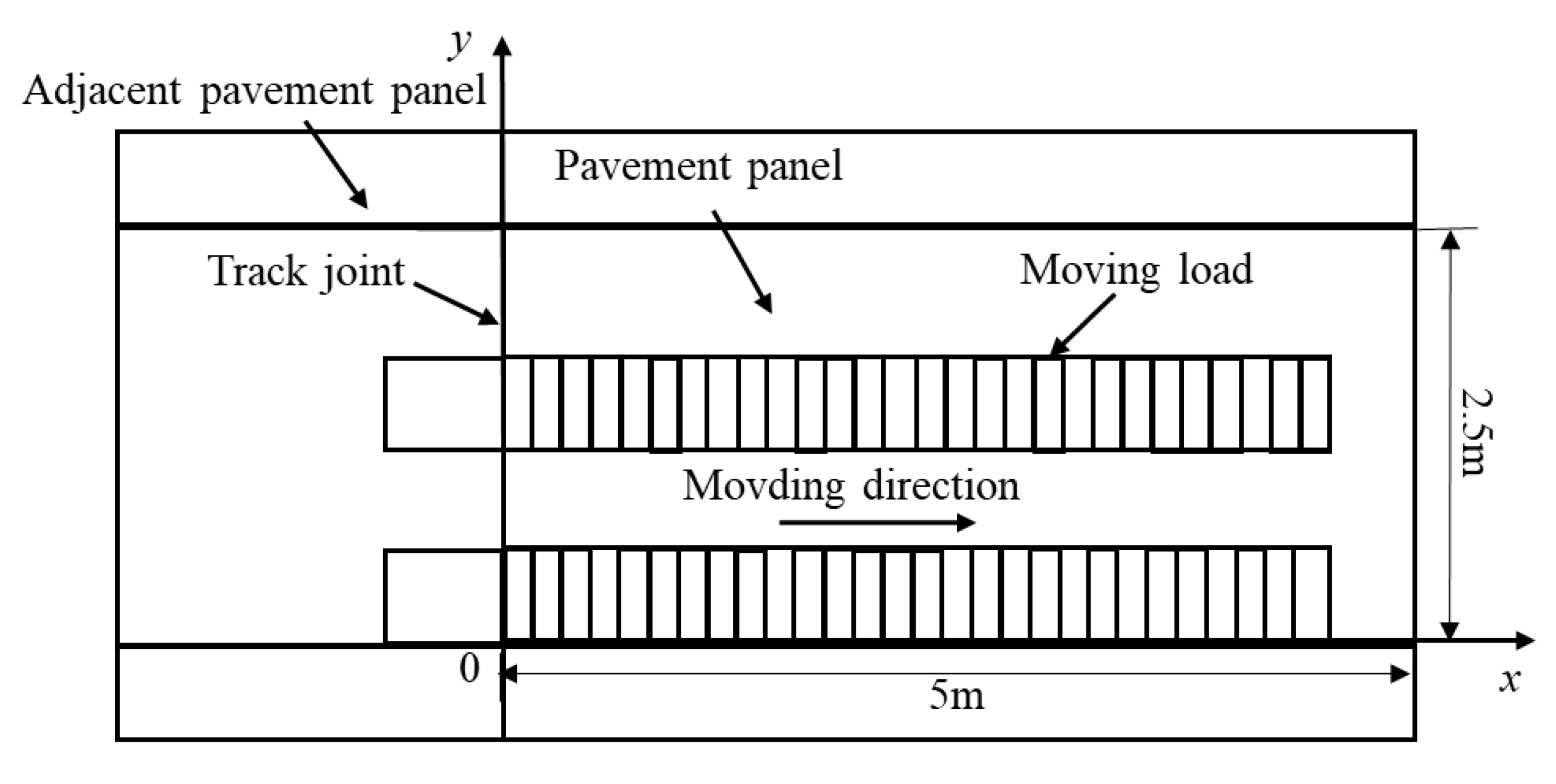

The B-737-800 model is used to apply the moving load along the longitudinal side of the plate, and the load level is taken as 0.1~1 times of the tire pressure to extract the maximum strain generated at the bottom of the plate when the load is applied, as shown in Figure 9. The strain is maximum when the load is in the non-connected area, which is the location where cracks are likely to occur, so the crack location is selected as the middle of the two connected areas at the longitudinal joints of the pavement panel in the finite element simulation, as shown in Figure 10.

3.1.3. Sensor Position Selection and Scale Distance Optimization

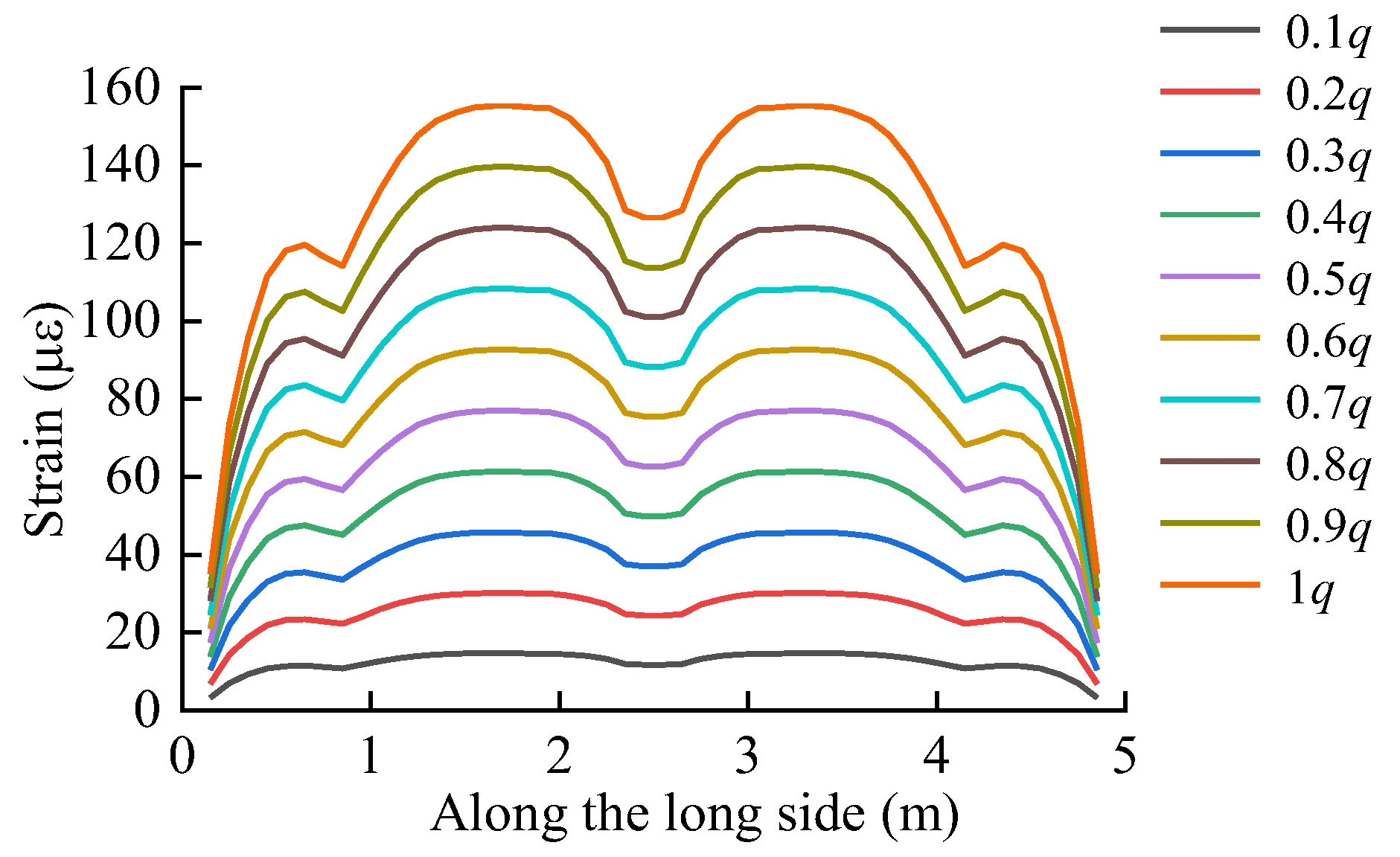

The specification [30] stipulates that the location of the strain measurement point for the calculation of the stress ratio transfer coefficient is selected to 150 mm from the slab edge, so in order to simultaneously monitor the strain at the slab edge and calculate the joint transfer coefficient without affecting the crack identification, the self-sensing reinforcement bar is placed at a distance of 150 mm from the edge of the slab, in which the simulation of the self-sensing reinforcement bar is the same as that of the ordinary reinforcement bar, and the value of the different marking spacing sizes can be realized by changing the length of the reinforcement bar's mesh cell.

The cracks were set up according to the crack locations shown in Figure 9, and the length of the control crack was 1250 mm, and the height of the crack was varied from 0 mm to 300 mm, with an interval of 50 mm for each condition. The sensor scale distances were taken to be 100 mm, 200 mm, 400 mm, 600 mm, 800 mm, and 1000 mm. The corresponding sensor strain at the crack location was extracted by applying a B-737-800 model load at the crack location. strain of the corresponding sensor at the crack location. As shown in Figure 11, when there is no crack, the measured strain does not change as the distance increases; controlling the height of the crack remains unchanged, the damage information of the crack is gradually submerged as the distance of the sensor increases, and as the height of the crack increases, the faster the damage information of the crack is submerged.

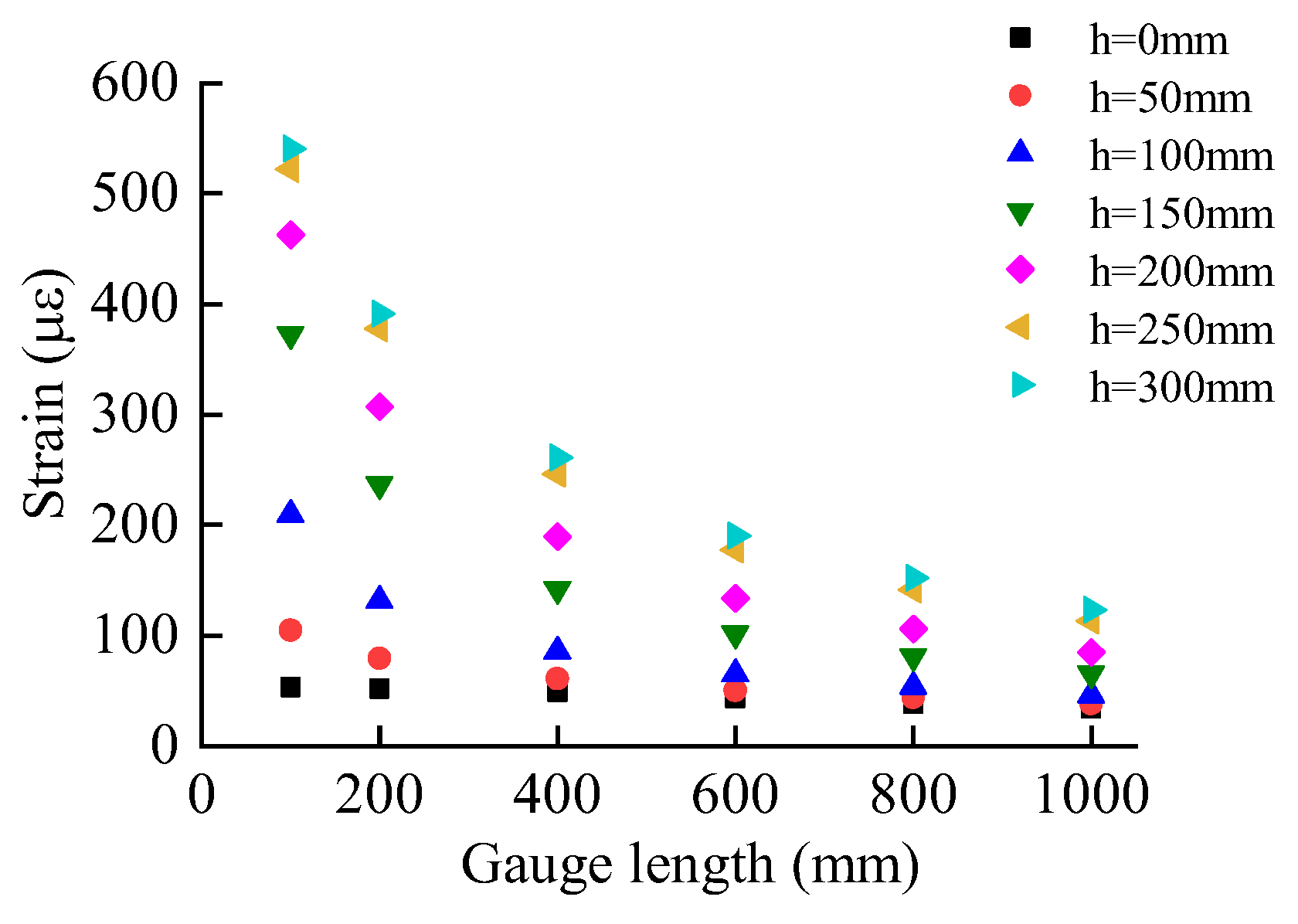

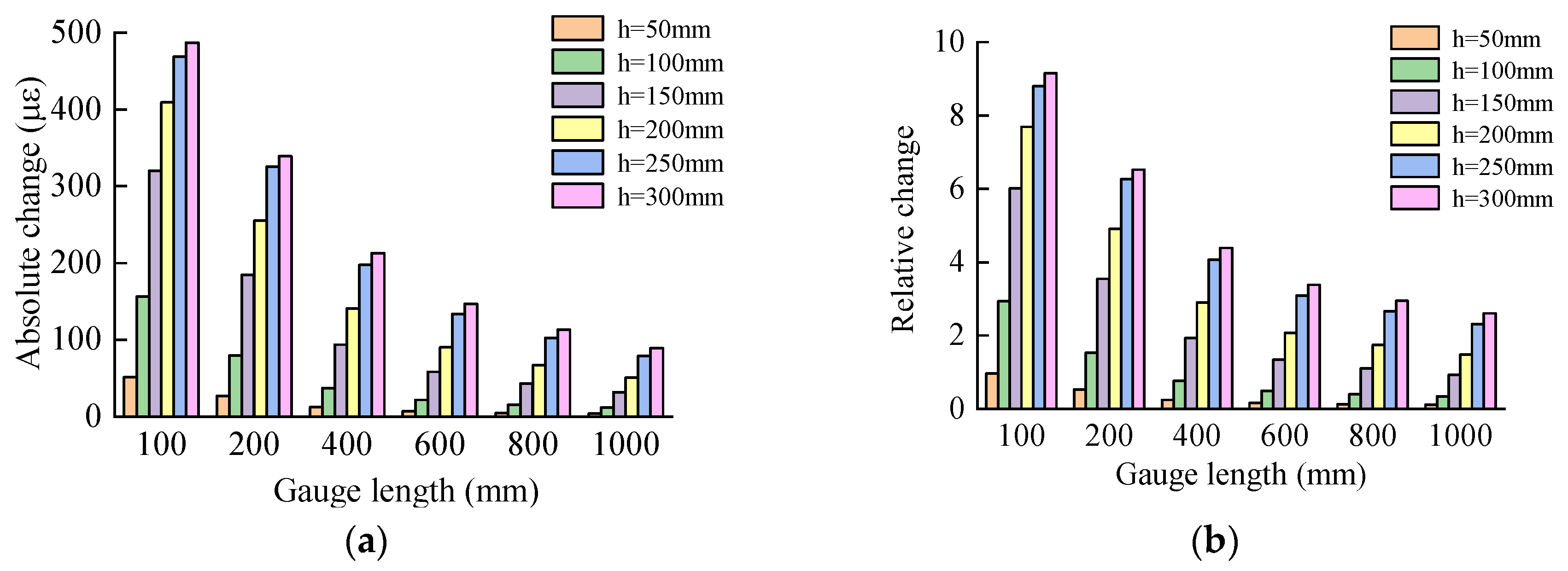

Figure 12 shows the absolute and relative changes in strain at different scale distances after the crack is carried out. From the figure, it can be seen that the smaller the scale distance of the sensor is, the larger the absolute and relative changes of the measured strain are. When the scale distance of the sensor is taken as 100mm, the absolute change can reach about 500με, and the relative change can reach 950%, which can obviously identify the crack; however, when the scale distance is taken as 1000mm, the maximum absolute change is less than 100με, and the relative change is about 300%, which makes it impossible to carry out the crack identification when the height of the crack is small. At the same time, in order to control the number of sensors and meet the minimum spacing requirements of fiber grating, the longitudinal seam sensor spacing is taken as 500mm which is more suitable.

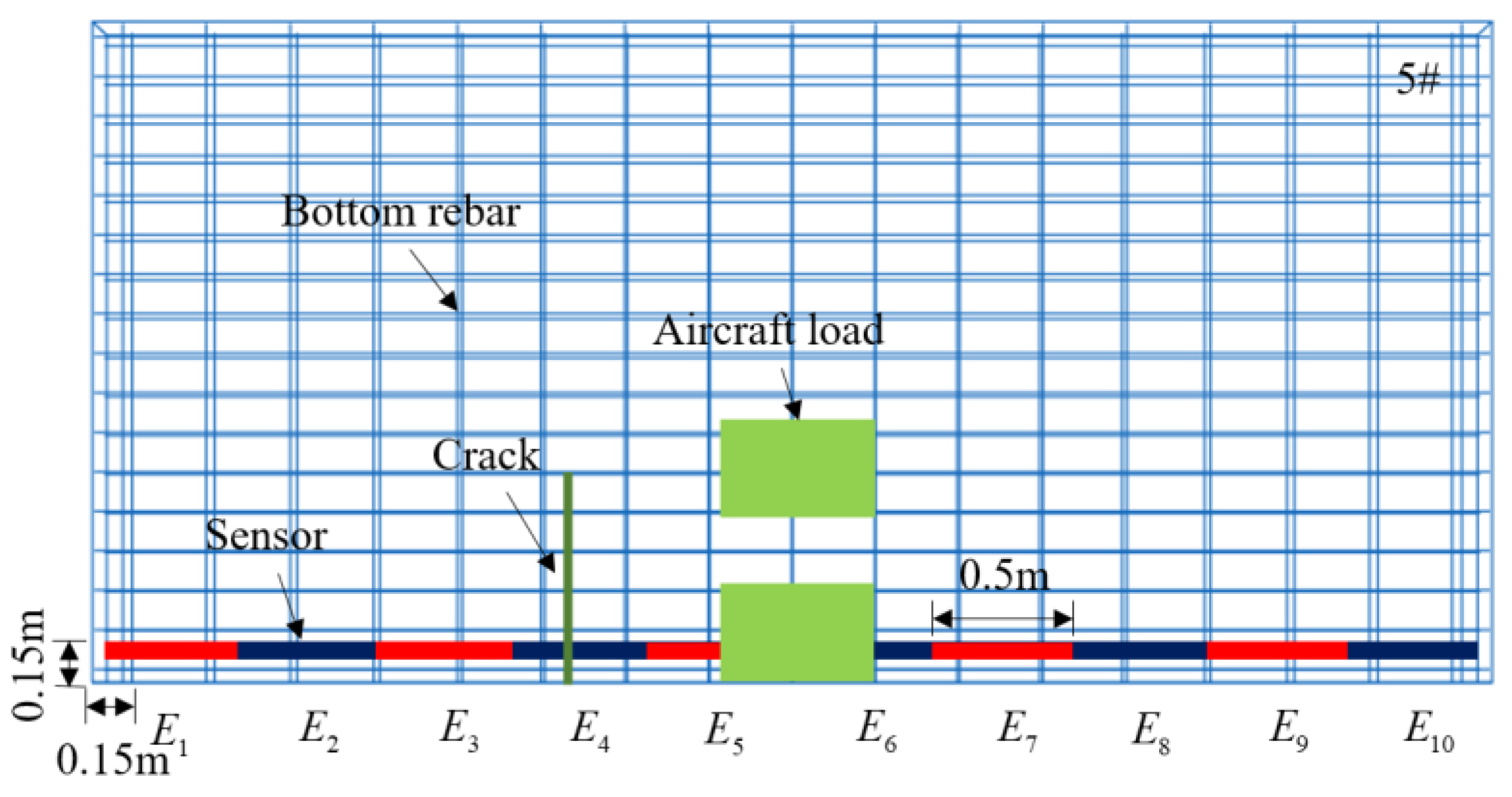

In summary, the sensor spacing is selected as 500mm, and 10 FBG sensors are distributed on the self-sensing reinforcement, numbered as $E_1~E_{10}$. The self-sensing reinforcement is 0.15m from the edge of the plate and 0.05m from the bottom position of the plate, as shown in Figure 13 for the self-sensing reinforcement layout schematic.

3.2. Results of Crack Identification

For single crack identification, the crack was set at sensor location No. 4; for multiple crack identification, the crack was set at sensor locations No. 4 and No. 6. The strain change curves for each FBG sensor location were extracted by applying the B-737-800 load.

3.2.1. Single Crack

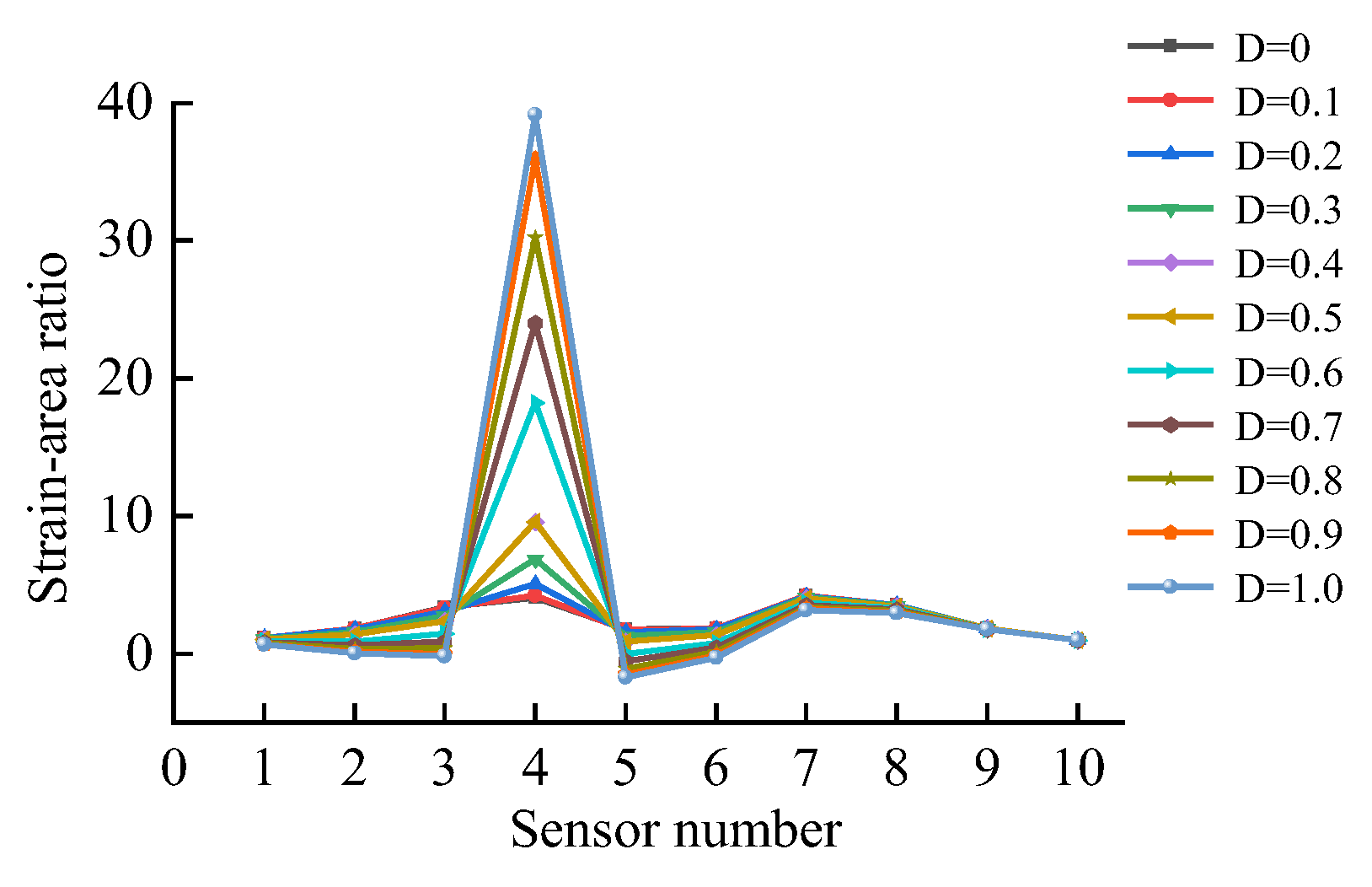

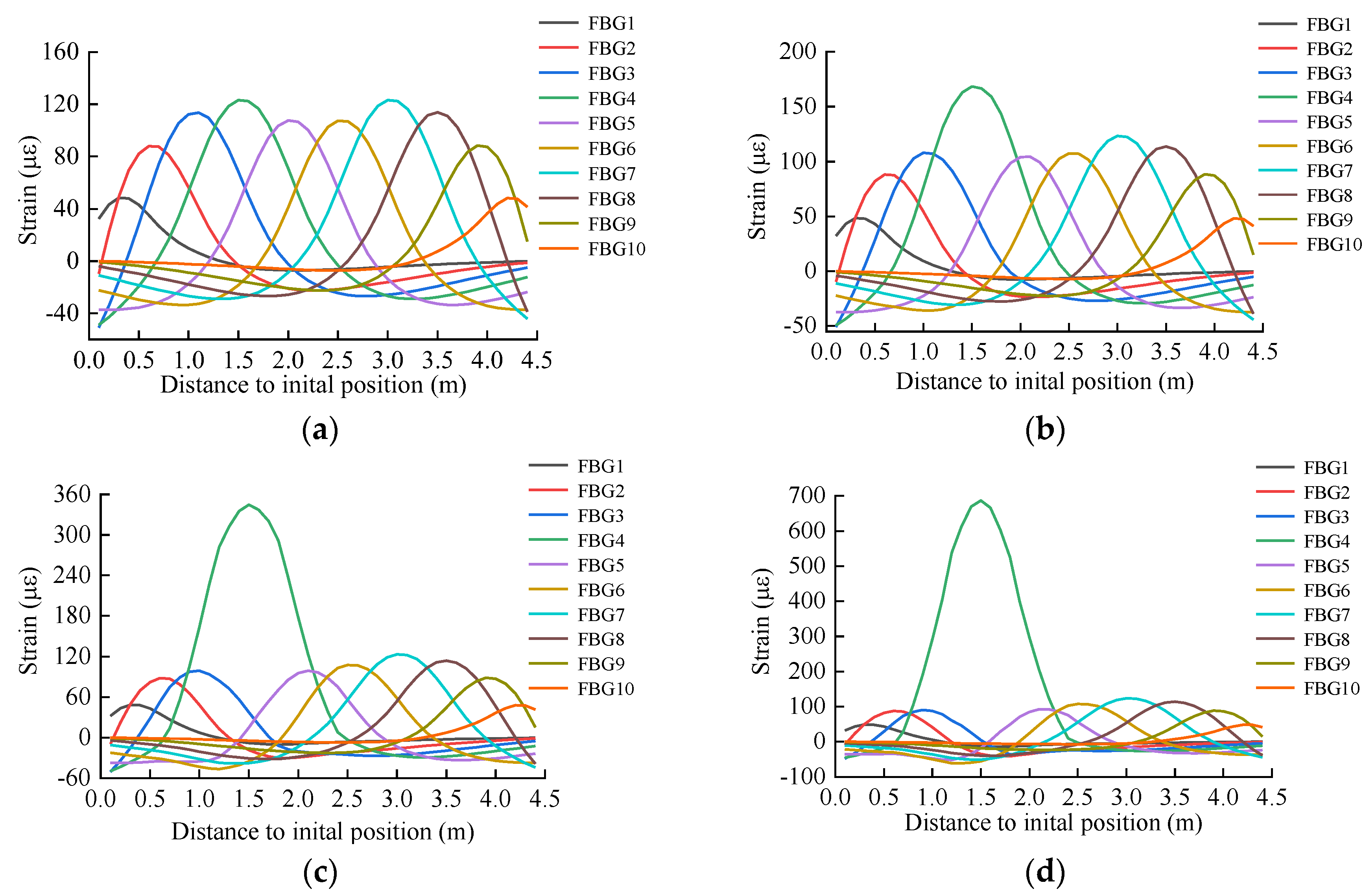

The strain change curves of each FBG sensor under different degrees of cracking are shown in Figure 14, with the increase of the degree of cracking, the strain peak of sensor No. 4 increases, and the strain measured by other position sensors changes less. Calculate the envelope area ratio of the strain curve of each sensor position, and get the distribution curve as shown in Figure 15, it can be found that, with the increase of the degree of cracking, the area ratio of the No. 4 sensor position increases, and the other position sensors hardly change, so the method can be utilized for the identification of a single crack development position, but when the degree of cracking development is smaller, the identification of the method is not obvious.

3.2.2. Multiple Cracks

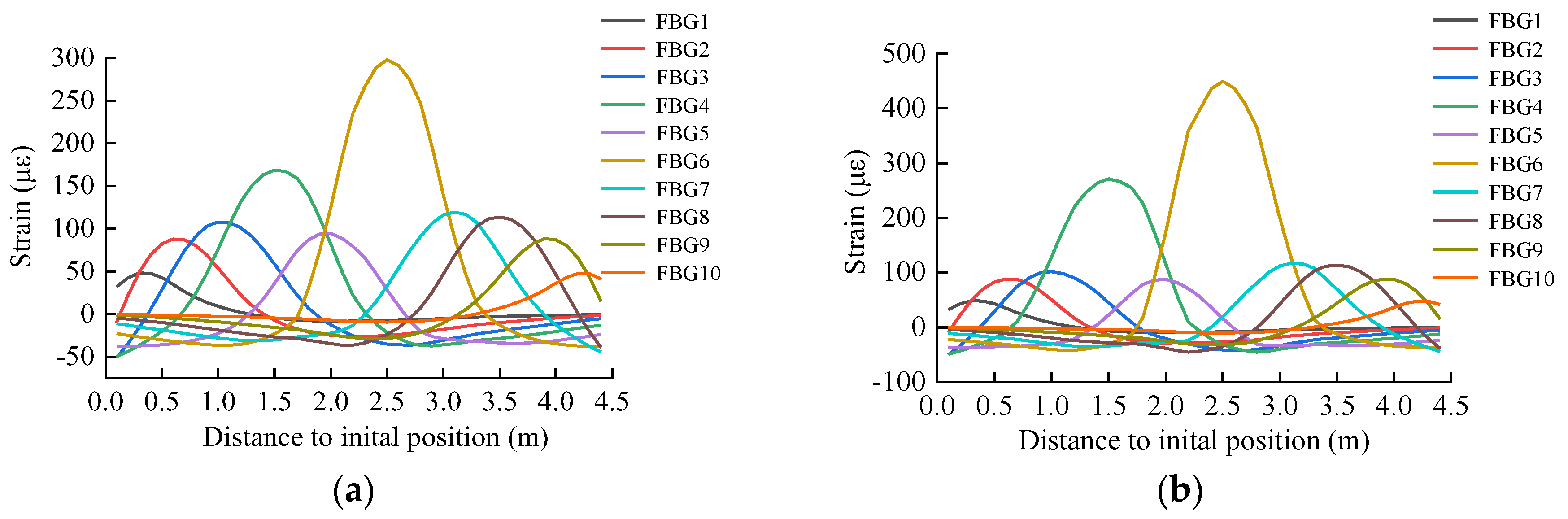

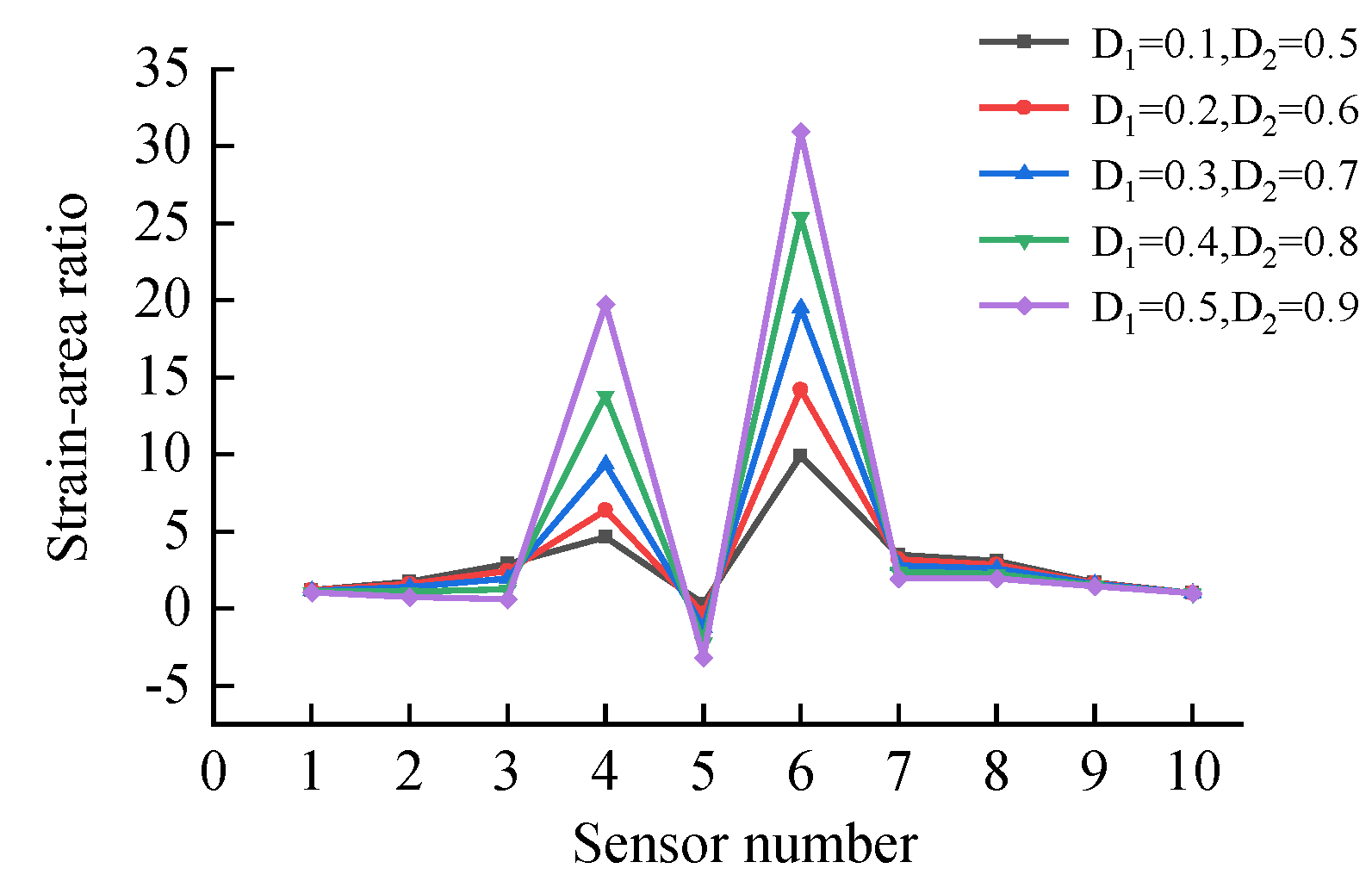

Figure 16 shows that as the degree of crack development increases in two different locations, the peak strains of sensors No. 4 and No. 6 increase, and the strains measured by the other location sensors change less. Calculating the envelope area ratio of the strain curve at each sensor position, the distribution curve is obtained as shown in Figure 17, which is consistent with the single crack identification results. Therefore, this method can be utilized to identify multiple cracks.

3.3. Analysis of Influencing Factors

3.3.1. Aircraft Taxiing Position

Different types of airplanes are unable to identify the cracks due to the different wheel spacing of the main landing gear and the main landing gear spacing, resulting in the fact that the skidding trajectory of the airplane is not necessarily at the board edge position during the taxiing process, and the deviation of the sensor position from the loaded position makes the measured strain decrease and the strain curve characteristics are not obvious, etc. Therefore, it is necessary to analyze and discuss the skidding position of the airplane. In the case of D=0.5, the envelope area ratios of the strain curves of different sensors are calculated respectively at the load center distance from the longitudinal edge position of 0.2m, 0.4m, 0.6m, 1.2m, 1.4m, 1.6m, to determine whether the crack identification is possible. As shown in Figure 18, a schematic diagram of the aircraft taxiing position, the distance from the load center to the longitudinal edge of the B-737-800 model is $s_1$.

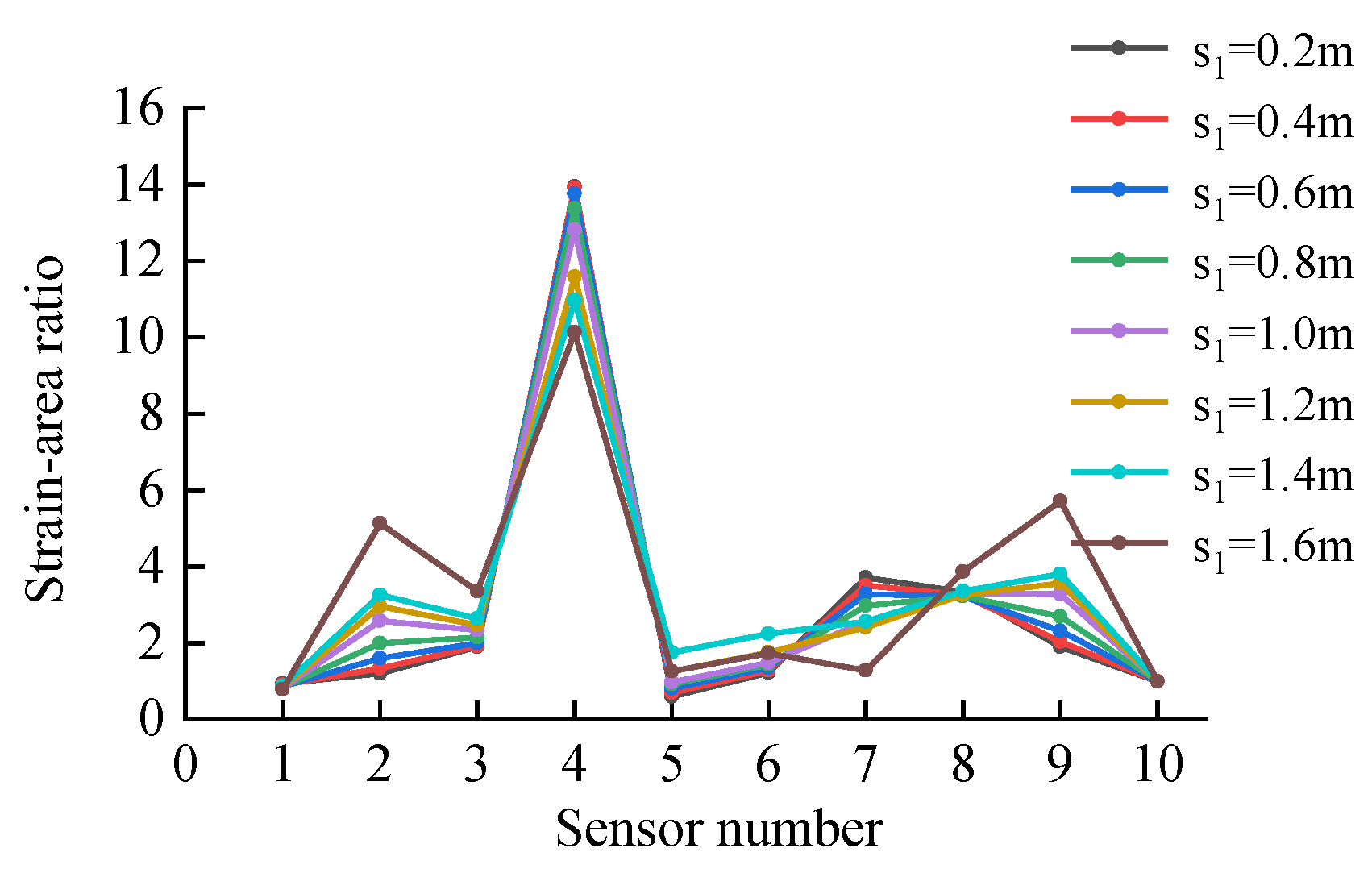

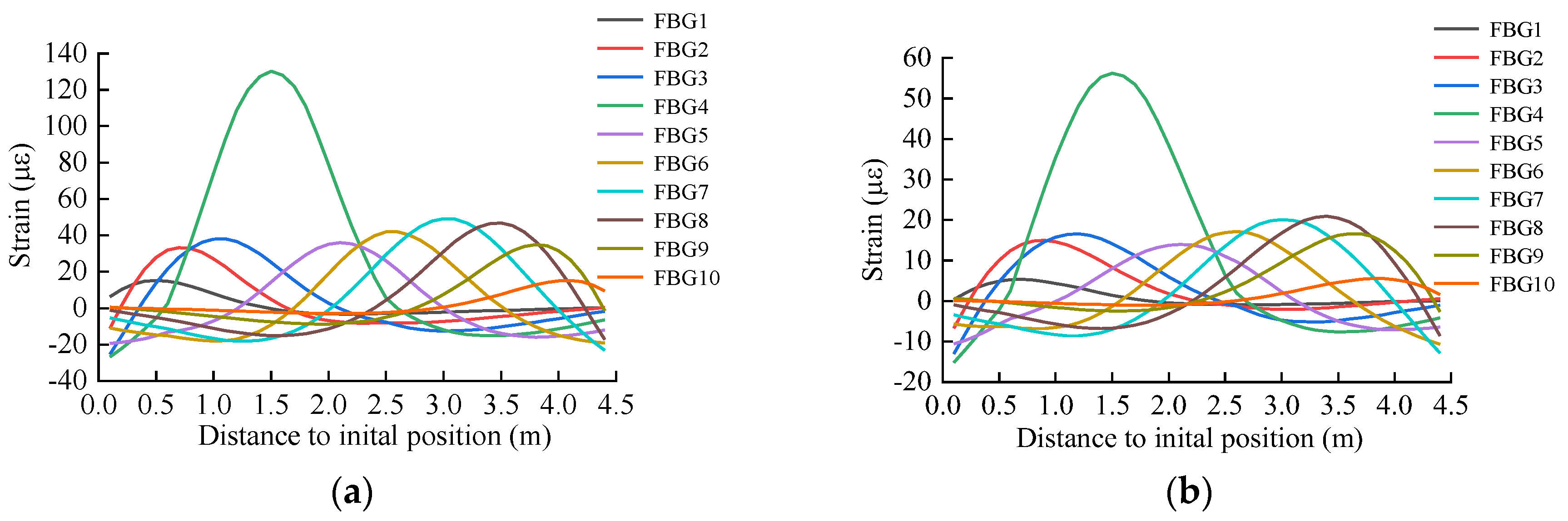

Figure 19 shows the strain change curves of each sensor location under the conditions of 0.6m and 1.2m, and it can be found that with the increase of $s_1$, each strain peak decreases with the increase of the distance between the load and the sensor, and the maximum strain decreases by 60 με. Calculate the envelope area ratio of the strain curve at each sensor location, and get the distribution curve as shown in Figure 20, at the crack location, the envelope area ratio of the strain curve decreases with the increase, and the envelope area ratio of the strain curve at other locations almost does not change, so it can be seen that the airplane taxiing position has only small effects on the crack identification method in this paper.

3.3.2. Aircraft Load Value

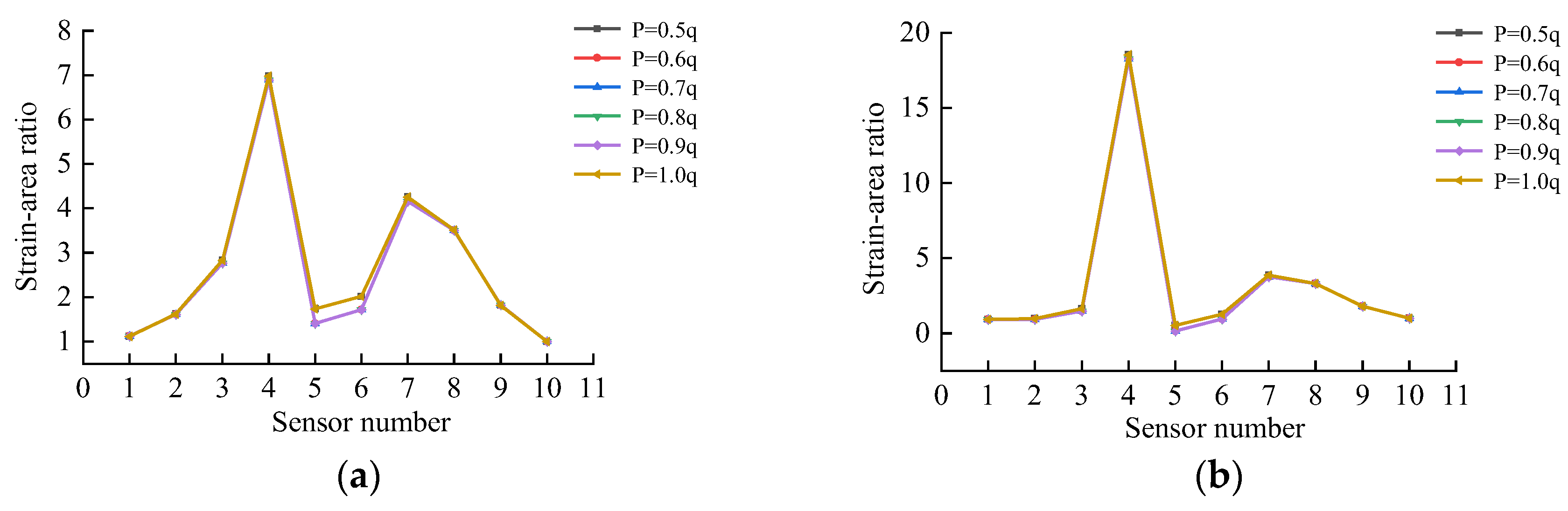

As the aircraft in the taxiing process, the load applied to the pavement depends on the aircraft weight, taxiing speed and fuel weight, etc., so the method of this paper may be affected under the action of different loads on the same model, so different load levels are taken for analysis. The empty weight of B-737-800 aircraft is about 0.5 times of the maximum taxiing weight, so the tire pressure of the aircraft is chosen to be 0.5~1.0 times of the tire pressure for analysis. As shown in Figure 21, under D=0.3 and D=0.6 conditions, the envelope area ratios of the strain curves at each sensor location are almost coincident, and the identification method in this paper will not be affected by the size of the airplane load.

3.3.3. Aircraft Type

The method may not be applicable for other aircraft types, so four aircraft types, Su-30, A320, A330-300, and B-777-300ER, were selected for analysis. The parameters of the above airplane models are shown in Table 3. The location of the crack is at sensor No. 4 and the degree of crack development is taken as D=0, 0.3, 0.6, 0.9.

Figure 22 shows the strain curves obtained from each sensor position for the A320 and B777-300ER models taxiing through the pavement with a longitudinal crack development degree of D=0.5. It can be found that for the two-axis model, the strain curve has two peaks when passing a certain sensor position, and the three-axis model has three peaks when passing, so it is more advantageous to use the envelope area ratio of the strain curve for crack identification than the peak ratio of the strain curve. By comparing the two models of A320 and A330-300, the difference of the corresponding horizontal coordinates of the two peak points is related to the axial distance of the landing gear, and the larger the load of the airplane is, the larger the strain peak is obtained, and the more obvious the characteristics of the strain curve is.

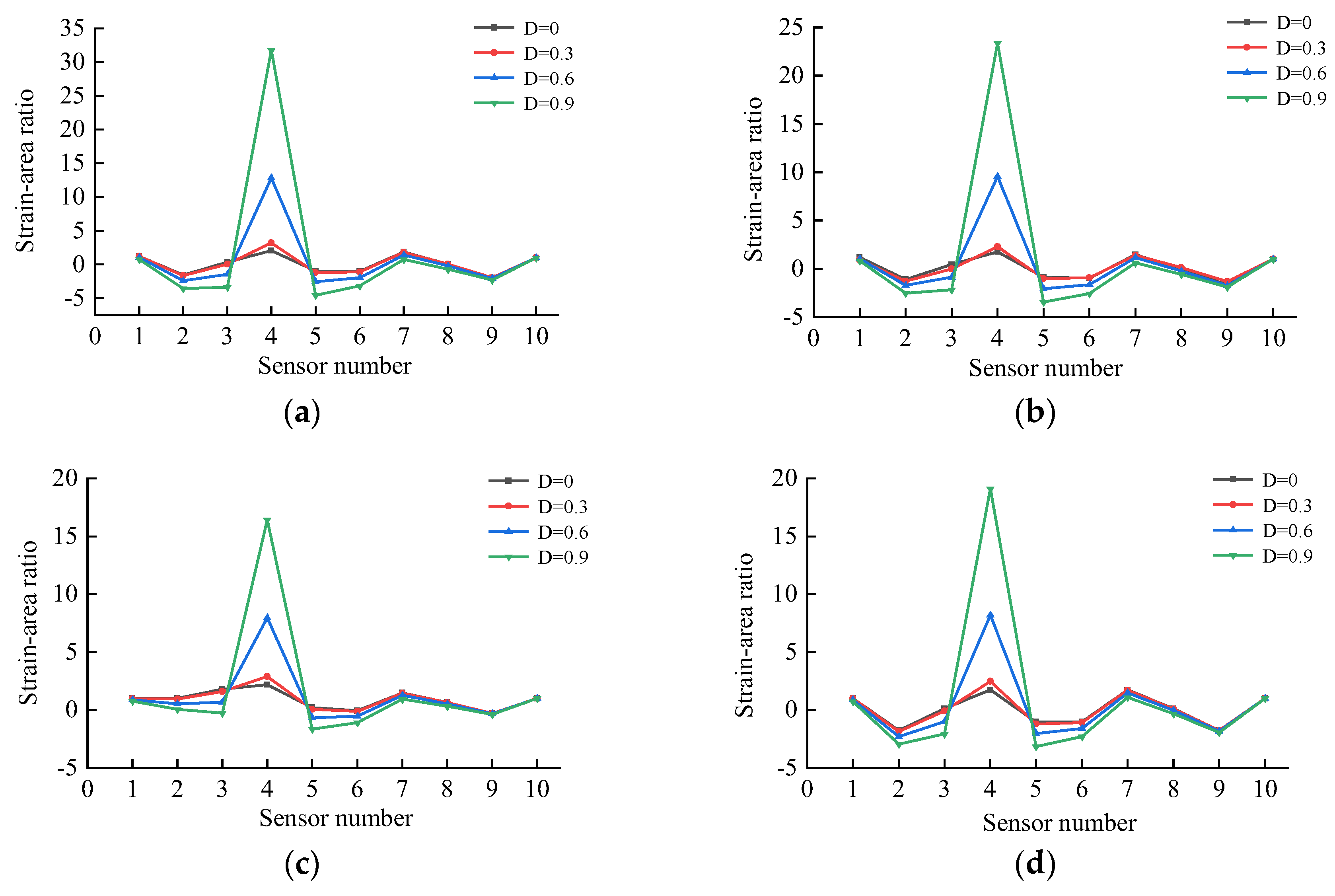

Calculate the envelope area ratio of the strain curve at each sensor position, and get the distribution curve as shown in Figure 23. For different models, the envelope area ratio of the strain curve hardly changes at the position of no crack, and at the position of crack, the envelope area ratio of the strain curve gradually increases with the degree of development of the crack, so that for different models, the method can also recognize the crack.

4. Loading Test with Small-Scale Model of Prefabricated Concrete Pavement

4.1. Experimental Setup

4.1.1. Test Scaling and Model Parameters

The small-scale model test takes the prefabricated pavement structure as a prototype, and under the premise of meeting the test requirements, the important components are scaled down and the non-important components are simplified. According to the magnitude analysis and similarity theory, the geometric scale similarity coefficient of 3:10 is taken as the standard to scale down the design of the pavement structure. Among them, the diameter of reinforcement bar is 8mm, model HRB400, and the reinforcement bar adopts double-layer bi-directional arrangement with a spacing of 90mm, and the thickness of upper and lower protective layer is 15mm; in order to ensure that there is enough welding area, the connecting part also adopts 8mm reinforcing bar, and the structural parameters are as shown in Table 4. B-737-800 model was chosen as the test loading model, also scale the load surface according to the ratio of 3:10. keep the tire pressure unchanged, calculate the applied load of the small-scale model test. The specific parameters are shown in Table 5.

4.1.2. Monitoring System Design

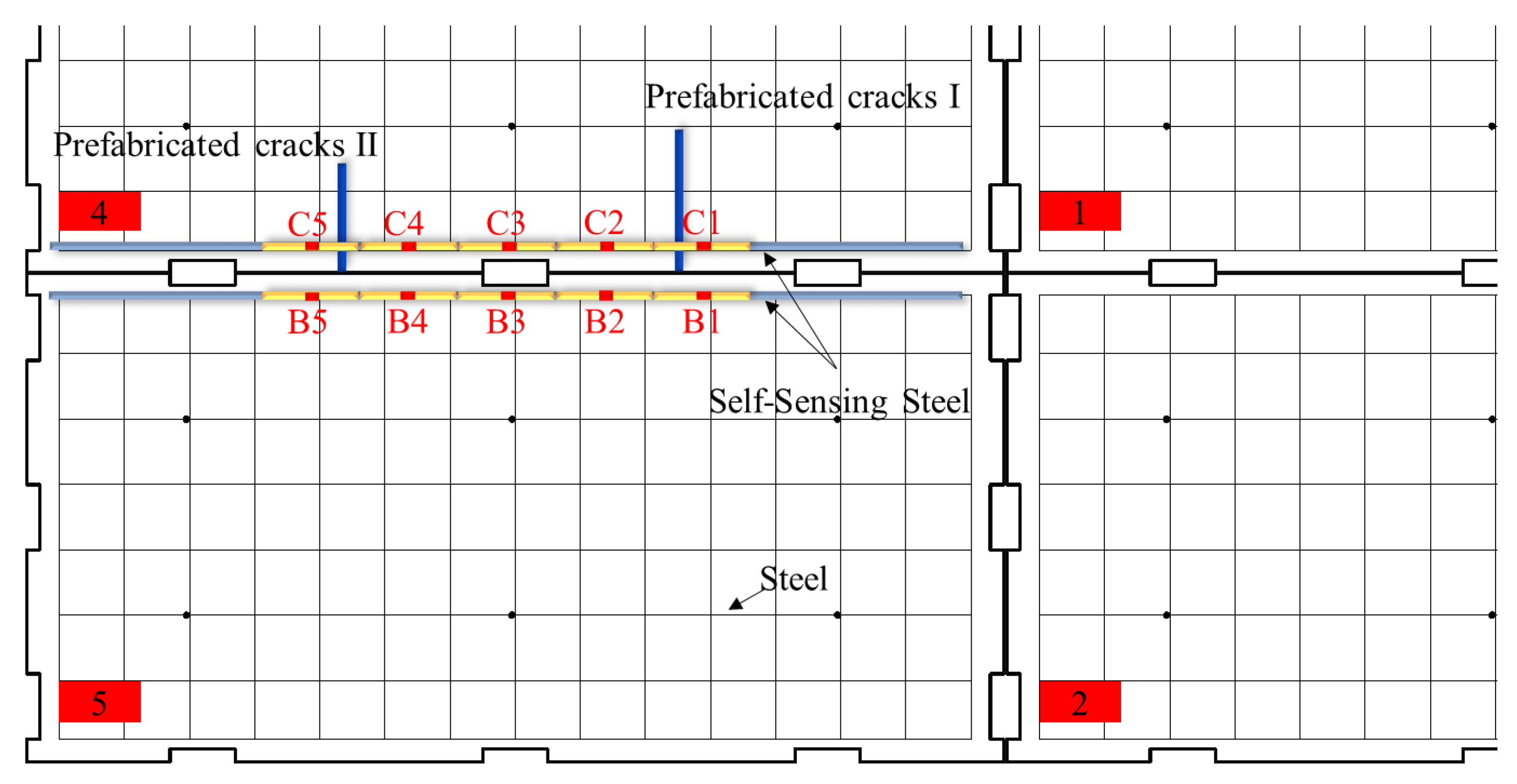

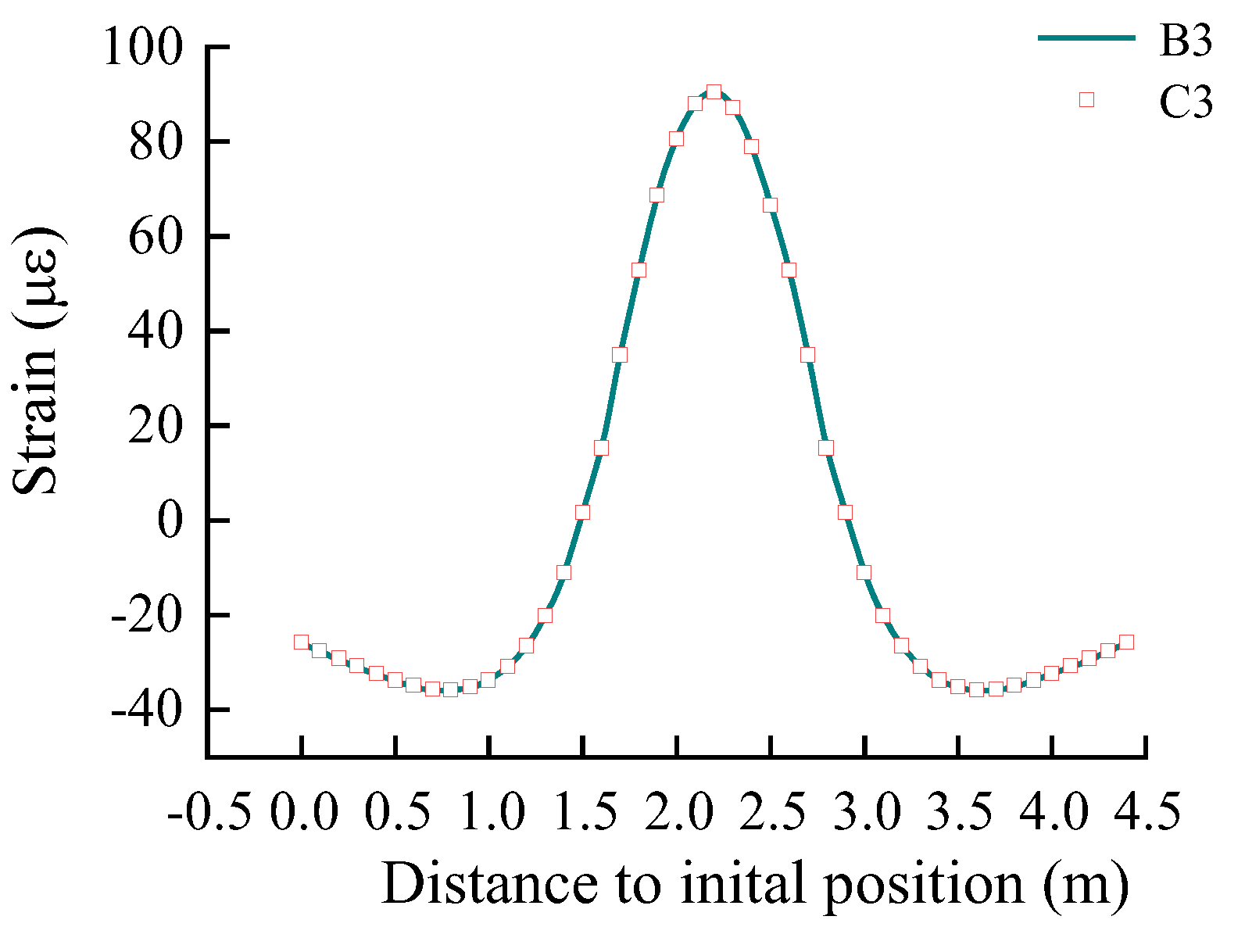

It is only necessary to set the crack location within the marked distance segment of the FBG sensors and the number of sensors is not limited. Therefore, according to the way of Figure 24 to lay the self-sensing rebar, only need to lay a self-sensing rebar in the position of plate No. 4 each self-sensing rebar set up five fiber optic sensors, the scale distance is taken as 150mm, which is set up in the C1 sensor position of 30cm×10cm of the preset crack, in the C5 sensing position of the preset crack set up 24cm×8cm. The use of C1~C5 to monitor the pavement before and after cracking the strain change curve of each sensor, due to this test preset crack, the sensor cannot be monitored to get the No. 4 plate without cracking the strain change curve of each sensor. Therefore, a self-sensing rebar is deployed at the longitudinal edge of plate No. 5, as shown in Figure 24, and the strain data obtained from B1~B5 are utilized to replace the strain data obtained from each sensor when there is no cracking in plate No. 4. The feasibility of this scheme was analyzed using finite elements, as shown in Figure 25, when no cracks were generated in each plate, the strain change curve generated by C3 when the aircraft load was taxiing at the longitudinal edge position of the No. 4 plate coincided with the strain change curve generated by B3 when the plate was taxiing at the longitudinal edge position of the No. 5 plate, and thus the test scheme could be implemented.

4.1.3. Performance Analysis of Self-Sensing Reinforcement and Strain Sensing

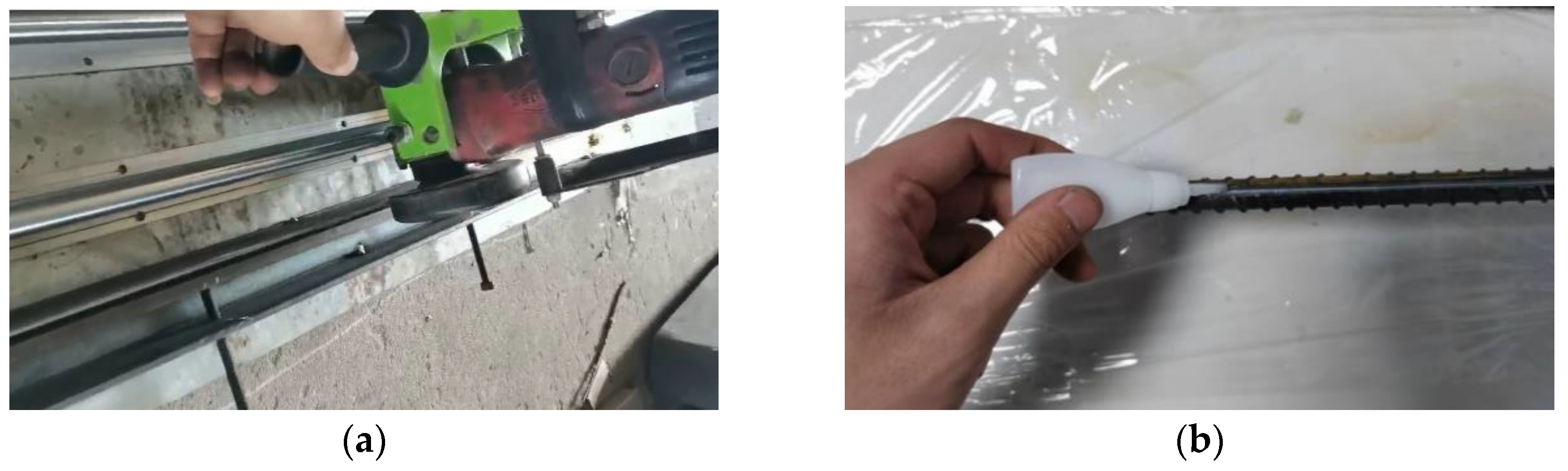

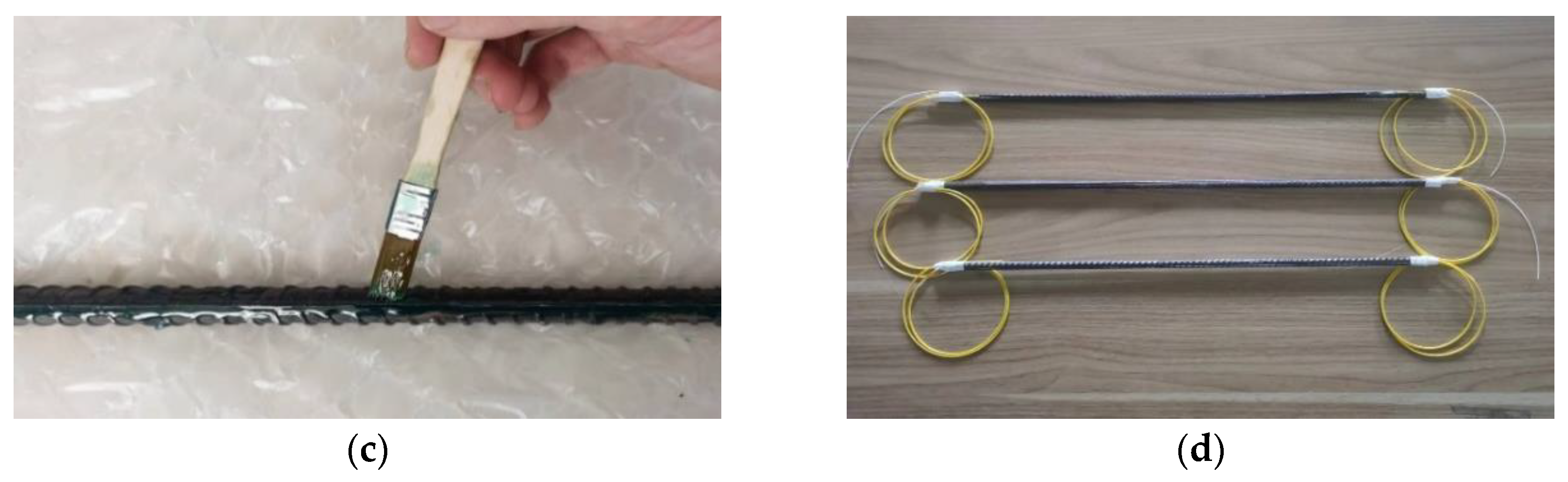

(1) Self-sensing steel fabrication

According to the monitoring program of this paper, the marking distance of the self-sensing bar in the actual road surface is 500mm, and the marking distance of the self-sensing bar in the small-scale model test is 150mm, so the self-sensing bar with a marking distance of 150mm is produced and tensile test is carried out to investigate its strain sensing performance. Specific production process as shown in Figure 26, self-sensing steel bar component length of 60cm, first of all, the steel bar tooling groove, to ensure that the groove is uniform, the width and depth of the groove is taken for the 2mm×2mm; followed by the paste of bare optical fiber, the bare optical fiber is placed in the groove, threaded into the corresponding distance length of the plastic tube, the use of glue will be pasted; and finally, the epoxy resin is injected into the groove, to ensure that the groove epoxy resin filled uniformly. According to the above steps to complete the self-sensing steel production.

(2) Strain sensing performance test

The strain sensing coefficient of the self-sensing rebar is very important, using the product of the wavelength change measured by the sensor and the strain sensing coefficient can be obtained to monitor the strain, the strain sensing coefficient of the same batch of calibrated bare optical fiber can be taken as 1.2, but the fiber grating sensors encapsulated in the slotted rebar and epoxy resin may be affected, and therefore need to carry out a tensile test on the self-sensing rebar to determine its strain sensing coefficient.

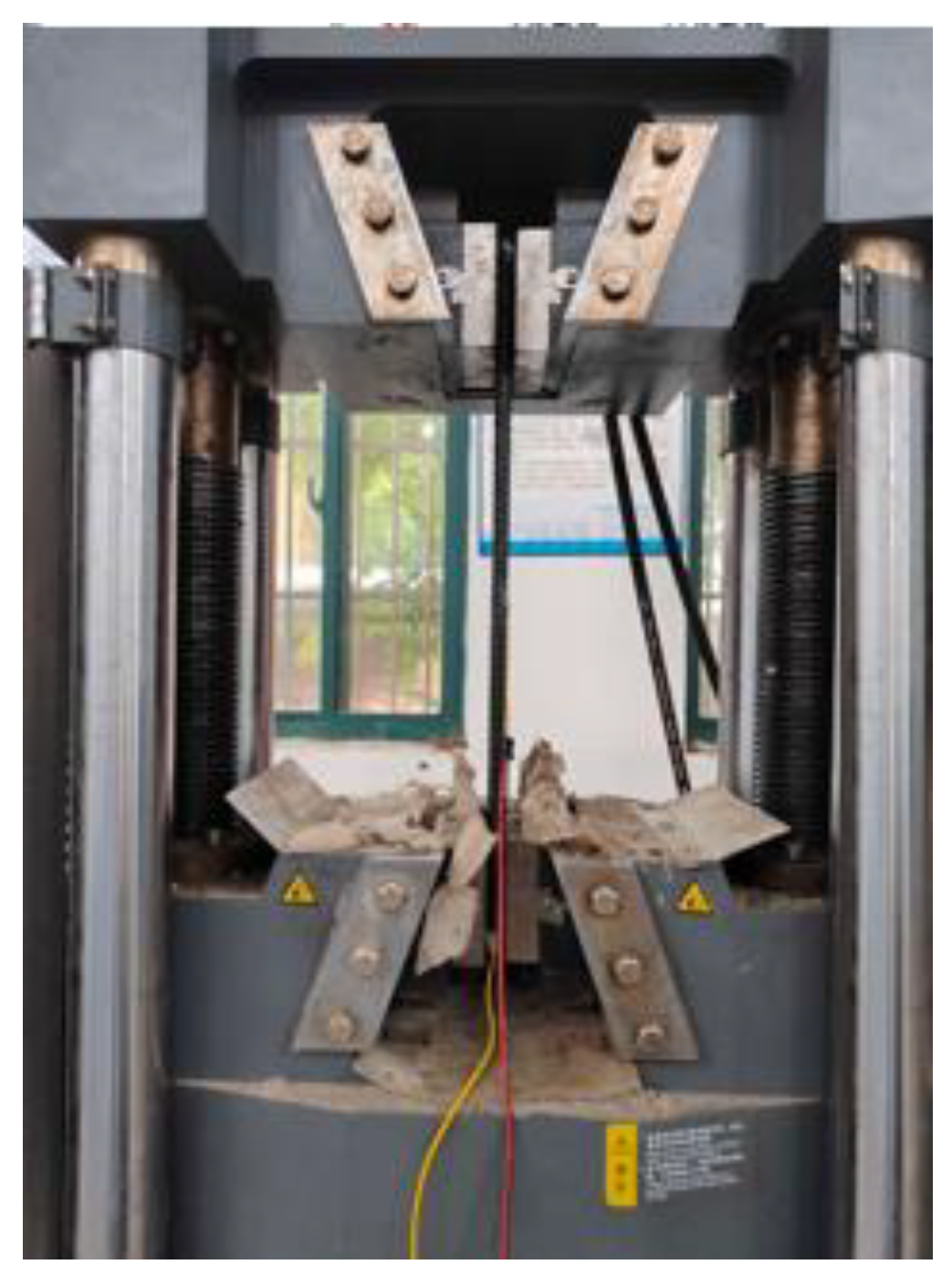

The universal tensile testing machine is used to tension the self-sensing rebar, as shown in 27. The steps and rate of rebar tensioning are adopted from the specification standard [31], the load control is adopted in the elastic phase, and the control load is taken as 1kN/s. The displacement control is adopted in the yielding phase of the rebar and the reinforcing phase, and the control displacement is taken as 30mm/min. When the concrete slab is subjected to the cracking by the aircraft loading and the external temperature and humidity, at this point in time, under the aircraft loading Under the action of the aircraft load, the strain of the reinforcement at the cracked position of the concrete can reach about 1000 με, so the self-sensing reinforcement is loaded to 1000 με and then stop the test.

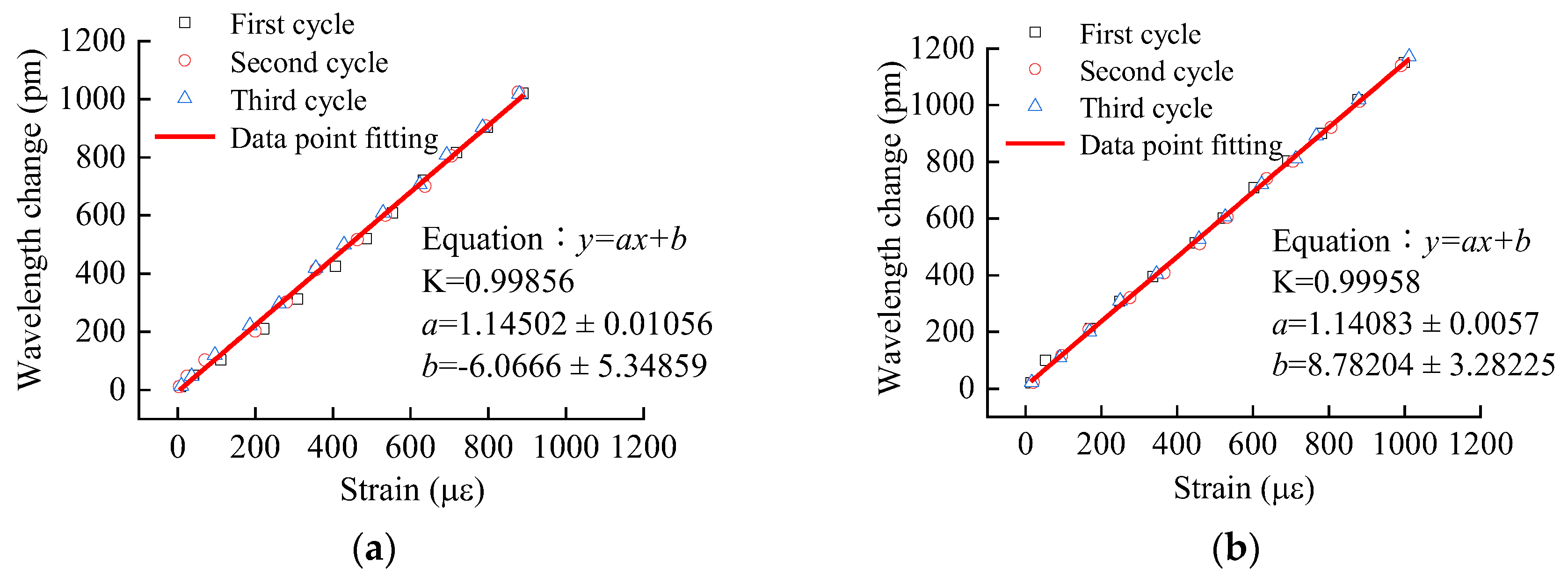

As shown in Figure 28, the wavelength change of the self-sensing bars is plotted against the measured strain change. It can be found that the wavelength change and the strain change show a significant linear relationship, and the linear correlation coefficient is higher than 0.99 under each working condition. The average value of the strain sensing coefficient is 1.14, and the coefficients of variation are 0.1580% in order, which indicates that the self-sensing rebar with a marking distance of 150 mm has a stable strain sensing performance.

Table 6. Results of strain sensing coefficients for self-sensing steel bars.

Gauge (mm)	1#	2#	3#	Average value	Standard deviation	Coefficient of variation (%)
150	1.1450	1.1408	1.1417	1.1425	0.0018	0.1580

Table 6. Results of strain sensing coefficients for self-sensing steel bars.

Gauge (mm)	1#	2#	3#	Average value	Standard deviation	Coefficient of variation (%)
150	1.1450	1.1408	1.1417	1.1425	0.0018	0.1580

4.2. Pilot Program Implementation

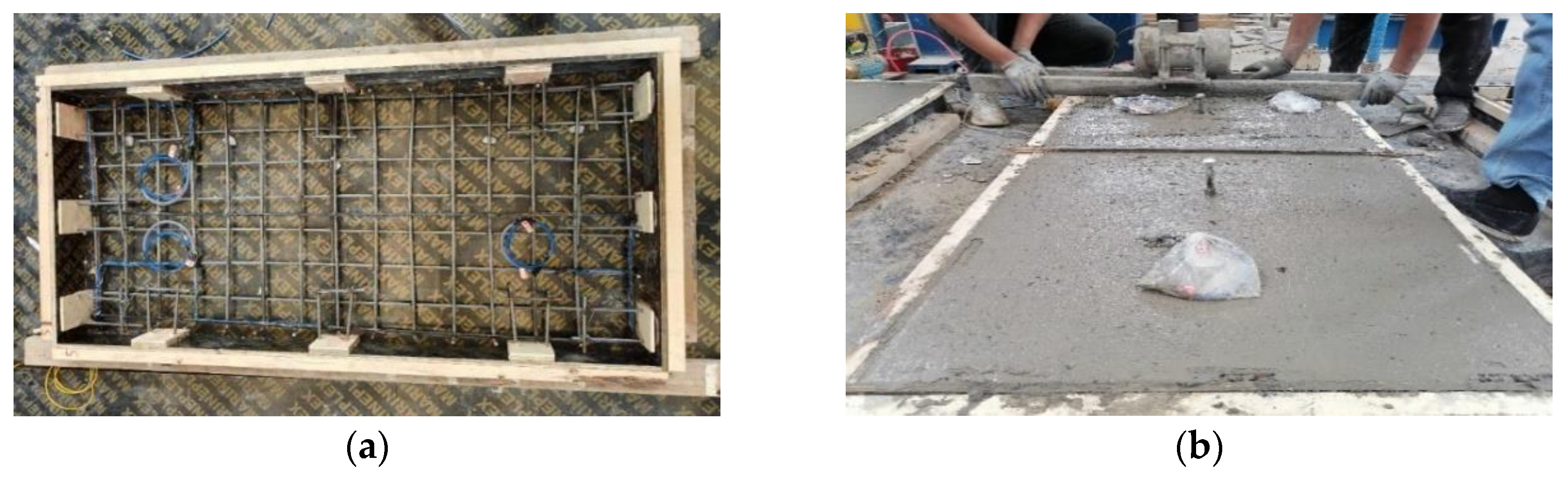

After completing the fabrication of the self-sensing rebar, the viability test was performed, and then the self-sensing rebar was tied in the rebar skeleton according to the sensor placement scheme in Figure 28, and the armored fiber-optic cable was led out through the rigid hose. As shown in Figure 29a, the rebar skeleton was placed in the formwork and the sensor position was calibrated to ensure that the sensor location coincided with the design position. Then pour the mixed concrete into the formwork and continuously vibrate it with the vibrator to make it dense and complete the pouring of the concrete slab, as shown in Figure 29b, and carry out the self-sensing rebar viability test after the completion of the concrete pouring to prevent the sensor from being damaged by the vibrator. When the strength of the concrete reaches 75%, the formwork can be dismantled for curing, and the curing time is 28 days.

The test schematic is shown in Figure 30a, and the vertical structure of the pavement mainly consists of soil base, mortar bedding layer, flexible coil and pavement panel. First of all, 400mm thick soil layer, and the use of tamping machine will be tamped soil base; followed by cement mortar paved in the soil base of the upper part of the mortar bedding thickness of 30mm, and the use of vibrators will be mortar bedding vibration, and complete the bedding layer leveling work; and then will be laid in the upper part of the bedding layer of flexible coil to increase the pavement panel and the grass-roots level of the degree of adhesion; and finally complete the pavement panel prefabricated and welded work. The test loading device mainly consists of reaction frame, jacks and anchors, as shown in Figure 30b for the completion of the test device. The B-737-800 model load is applied as shown in Figure 30c.

4.3. Crack Identification Analysis

4.3.1. Test Loading Condition

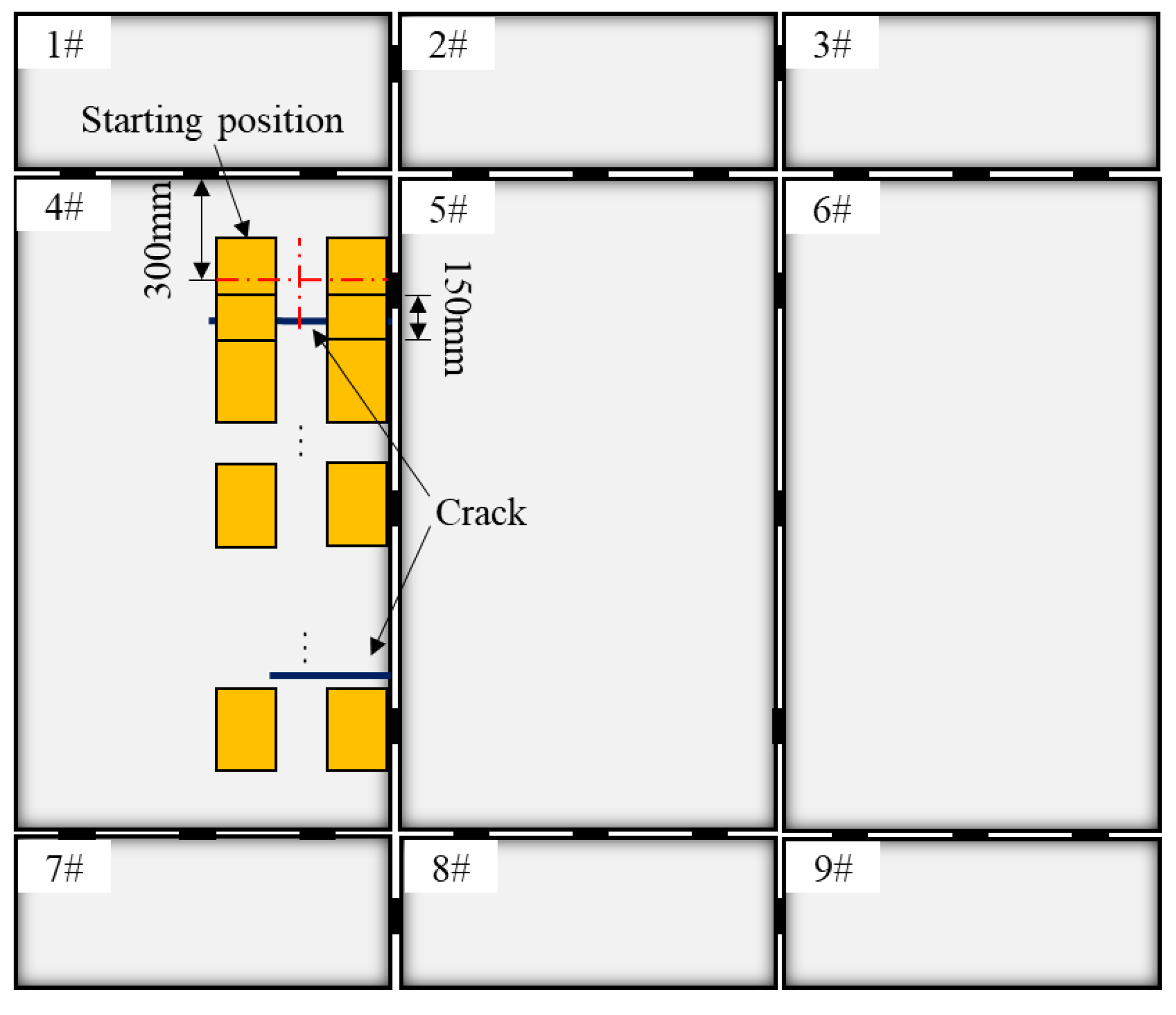

As shown in Figure 31, the load of B-737-800 model is placed at the starting position of the longitudinal edge of the No. 4 pavement panel, and the load size is taken to be 38.9 kN. The load simulation is realized by moving the counterweight frame along the direction of the panel's long edge, and the counterweight frame is moved by 150 mm each time, which is moved for seven times, and each loading test is cycled for three times, and the strains obtained by the fiber-optic grating sensors C1~C5 are extracted. Due to the preset cracks, it is not possible to directly measure the strain change curve of each sensor when the plate is intact under the same position of the longitudinal edge of the No. 4 plate, so the load is applied to the longitudinal edge of the No. 5 plate (adjacent to the No. 4 plate), the load is applied in the same position as that of the longitudinal edge of the No. 4 plate, and the strains obtained from the fiber-optic sensors B1~B5 are extracted.

4.3.2. Analysis of Test Results

The strain change curves as the load passes through each sensor location are shown in Figure 32. The strain measured by the sensor when the load is applied to the crack location is significantly larger than the strain when the load is applied to the non-crack location. Calculate the envelope area of the strain curve at each sensor location, take the envelope area of the strain curve monitored by the B3 sensor as a reference, and normalize the series to obtain the distribution of the ratio of the envelope area of the strain curve before and after the appearance of the crack, as shown in Figure 33. The strain curve envelope area ratio increases by 116.87% at the position of preset crack Ⅰ, 93.15% at the position of preset crack Ⅱ, and the maximum change is only 2.8% at other positions, which indicates that the method can realize the crack identification.

5. Conclusion and Remarks

The paper proposes a method for identifying cracks in prefabricated pavement based on strain distribution monitoring and draws the following main conclusions through finite element simulations and small-scale model tests:

(1) The location of the slab prone to cracking and the optimized scale distance of the sensor are identified. The middle position of the two joints is the weak link, and the cracks can be set in this position; the distance of the fiber optic sensor can be taken as 500mm, which can meet the needs of monitoring the cracks on the pavement panel.

(2) According to the finite element analysis results, comparing the distribution of the envelope area ratio of the strain curves before and after the cracks, the method in this paper can realize the identification of single and multiple cracks, and the larger the degree of crack development, the better the identification effect, but the specific quantitative indexes need to be further explored.

(3) The change of the taxiing position of the aircraft does not affect the identification of cracks by this method; when different models are operated under different loads, this method can also realize the identification of cracks.

(4) Analyzing the results of the small-scale model test, comparing with the uncracked condition, the envelope area ratio of the strain curve at the position of preset crack Ⅰ increases by 0.998, that at the position of preset crack Ⅱ increases by 0.819, and the maximum change of other positions is only 0.030, which indicates that the method can be used for the identification of cracks in prefabricated pavement.
