Experimental Verification of a Two-Motor-Two-Pump Motor-Controlled Hydraulic Cylinder with Throttle-Free Passive Load-Holding Capability in Four-Quadrant Operations

1. Introduction

Hydraulic cylinders are essential to heavy-duty industries due to their inherent advantages, including high power density, shock loads protection, and reliability in harsh operational environments. Even after decades of developments, the valve-controlled hydraulic cylinder remains the prevailing standard and continues to dominate the market. Although the valve-controlled hydraulic cylinder has the benefit of being simple, robust, and well-established, it has a relatively low efficiency attributed to the valve throttling [1].

In light of the ongoing climate crisis, the importance of energy efficiency is increased. Therefore, transitioning to a non-valve hydraulic cylinder control system represents a viable strategy for eliminating valve throttling losses. This is achieved through the direct connection of the hydraulic pumps and the cylinder without any control valves in the flow path. The non-valve hydraulic cylinder control system has received significant attention from academia and has seen substantial developments in recent years [2,3,4]. This system has two main trends in focus: the pump-controlled hydraulic cylinder (PCC) and the motor-controlled hydraulic cylinder (MCC) [5]. In a PCC, the control element is the variable-displacement hydraulic pump(s) driven by a constant-speed prime mover, either an electric motor or a combustion engine. Consequently, the cylinder motion is controlled by the pump displacement. PCCs have been intensively developed since the year 2000, primarily focusing on off-road mobile machinery [6,7,8,9]. Nonetheless, a PCC exhibits certain drawbacks when compared to an MCC. Variable-displacement pumps are more costly and less efficient than fixed-displacement pumps when operating under partial load [10,11]. Additionally, the prime mover in idling mode results in energy losses, noise generation, and excess heat [10]. Furthermore, swashplate control systems and external low-pressure sources compromise system compactness and contribute to increased energy losses. As a result, the academic and industrial sectors are gradually shifting their focus away from PCCs, giving more attention to MCCs [3].

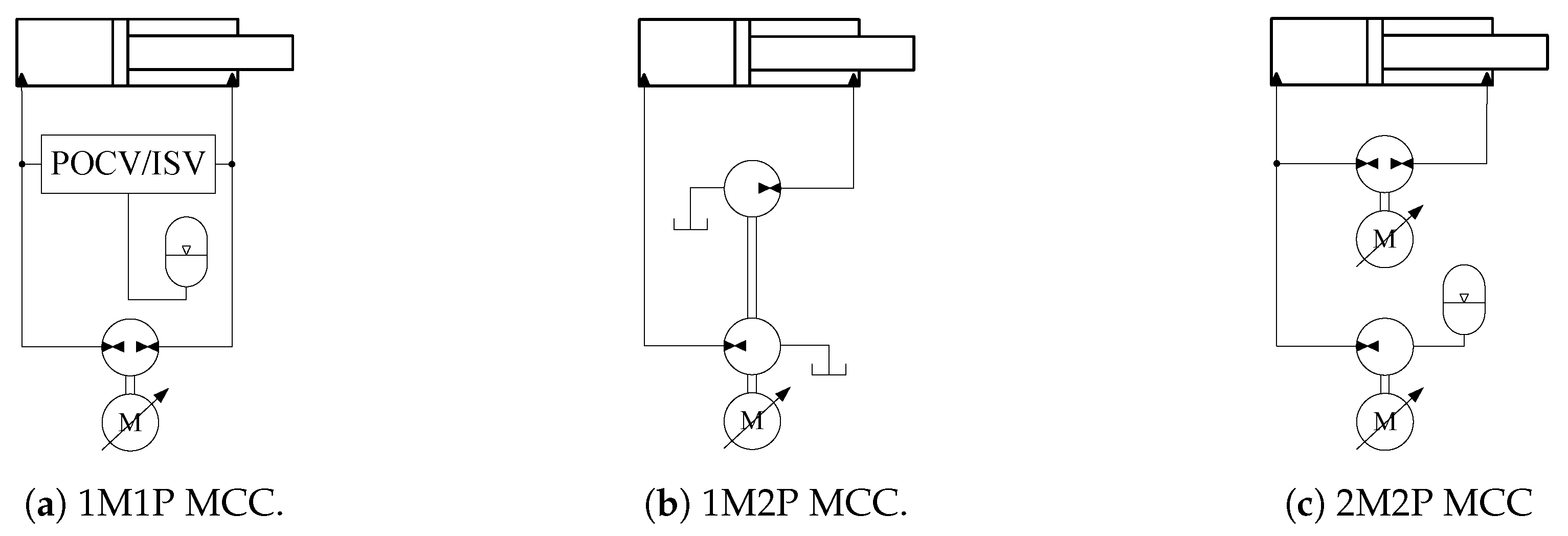

In an MCC, electric servo motor(s) driving fixed-displacement hydraulic pump(s) are used. The motion of the hydraulic cylinder is controlled by manipulating the electric servo motor velocities. MCCs can be categorized into various topologies based on the number of electric servo motors and hydraulic pumps employed [5]. The main topologies include one-motor-one-pump (1M1P), one-motor-two-pump (1M2P), and two-motor-two-pump (2M2P) MCCs, as illustrated in Figure 1.

Both 1M1P and 1M2P MCCs have been demonstrated to provide significantly higher energy efficiency than valve-controlled hydraulic cylinders without compromising the control performance [12,13,14,15]. However, these topologies are unsuitable for remote installations, which are particularly beneficial for large cranes [16]. The reason is that 1M1P and 1M2P MCCs cannot offer an efficient load-holding function in hose rupture situations when installed remotely. Furthermore, 1M1P MCCs suffer from the pump mode oscillation issue when using two pilot-operated check valves (POCVs) or an inverse shuttle valve (ISV) to compensate for the cylinder differential flow [17]. Although it is possible to mitigate the pump mode oscillation and enable remote deployment by introducing additional control elements in 1M1P MCCs, this approach results in decreased system energy efficiency [18]. Additionally, the widespread application of 1M2P MCCs is constrained by the requirement for the pump displacements to align with the cylinder area ratio.

The inherent limitations of 1M1P and 1M2P MCCs can be effectively mitigated in a 2M2P MCC. This system directly manages the cylinder differential flow by employing a secondary hydraulic pump driven by a secondary electric servo motor. This approach eliminates the requirement for two POCVs or an ISV, thereby removing pump mode oscillations [19]. With the utilization of two electric servo motors, which offer two degrees of control freedom, 2M2P MCCs do not require a strict matching of pump displacements to the cylinder area ratio. Furthermore, these two control degrees enable simultaneous control of both cylinder position and pressure, making 2M2P MCC an attractive option for applications such as injection molding machines [20,21,22] and knuckle boom cranes [23,24].

When applied in knuckle boom cranes, 2M2P MCCs need to operate in all four quadrants while also providing a load-holding function. Ideally, this load-holding function should not cause energy losses and effectively manage scenarios such as standstill commands, power outages, and hose ruptures. A 2M2P MCC, featuring an energy-efficient load-holding function for standstill commands and power outages, is demonstrated in [23]. Additionally, another study explores the same load-holding function in a 1M1P MCC, particularly in managing the hose rupture situation [18]. Achieving four-quadrant operation in hydraulic cylinder drive systems is essential as it is an industry requirement and serves as a prerequisite for energy regeneration. The current state of experimental verification for 2M2P MCCs applied in crane operations has predominantly concentrated on their two-quadrant functionality [24]. However, a critical gap exists in the literature regarding experimental validations encompassing both four-quadrant operation and load-holding function for a 2M2P MCC.

This paper addresses this gap by implementing a 2M2P MCC prototype, which has an energy-efficient load-holding function, on the knuckle cylinder of a knuckle boom crane. The main objective is to examine its operational and load-holding performance across all four quadrants.

2. Proposed System

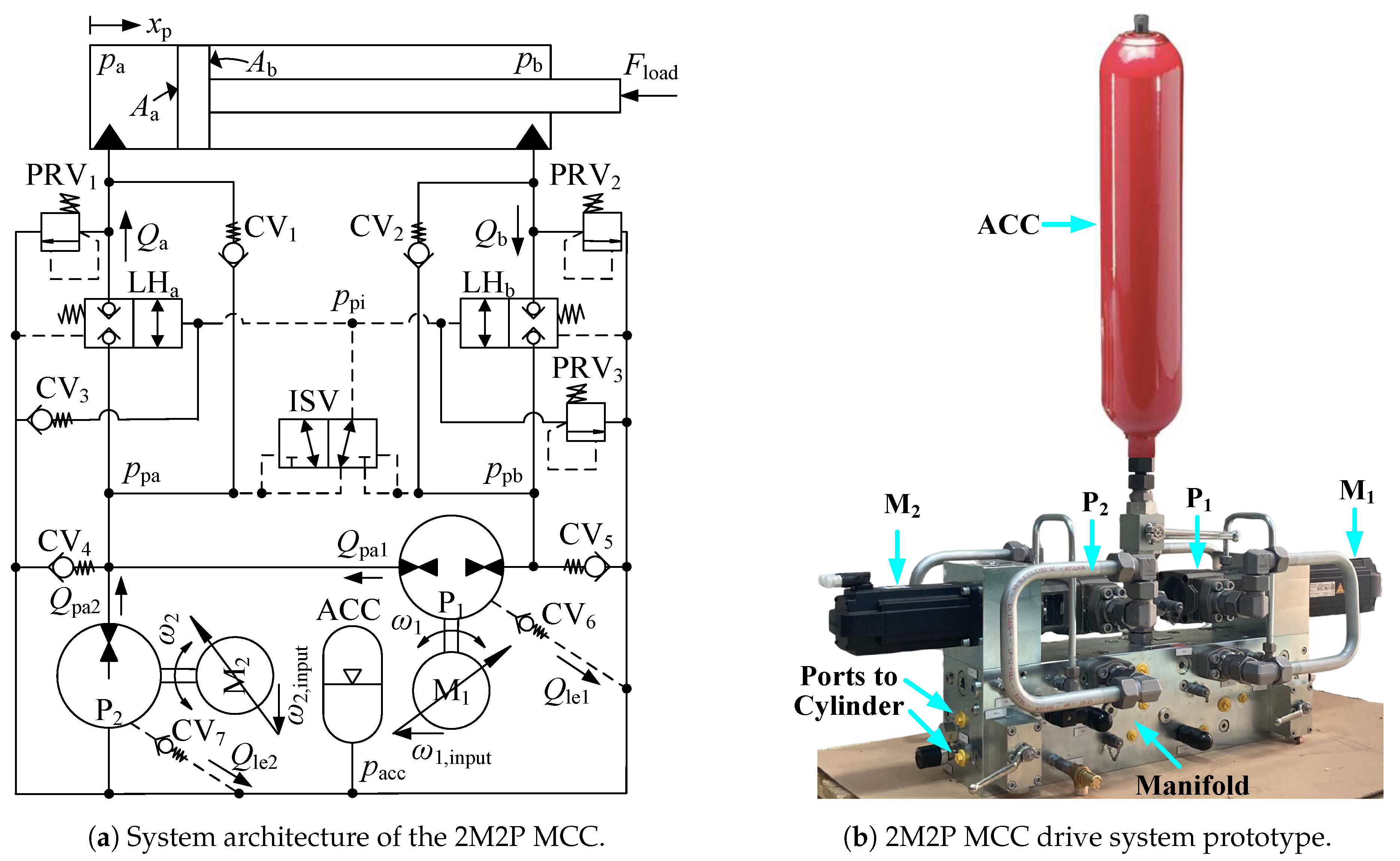

The hydraulic schematic of the proposed 2M2P MCC is depicted in Figure 2a. This 2M2P MCC was also used in study [24]. It consists of two fixed-displacement pump/motor units known as the main unit (P₁) and the secondary unit (P₂). These are operated by two electric servo motors, identified as the main electric servo motor/generator unit (M₁) and the secondary electric servo motor/generator unit (M₂). Both M₁ and M₂ serve as the control elements in this system.

The system inputs are represented by the velocity inputs (${\omega }_{1,\mathrm{input}}$ and ${\omega }_{2,\mathrm{input}}$) of M₁ and M₂. The variables ${\omega }_1$ and ${\omega }_2$ represent the shaft velocities. A low-pressure accumulator (ACC) serves as the pressurized reservoir, maintaining $p_{\mathrm{acc}}=$ 3 bar to supply the volumetric difference between the cylinder’s rod side and bore side, and to the pumps during suction to prevent cavitation. The external leakage lines of the pumps are linked to the ACC via two check valves (CV₆ and CV₇). Two 2/2 normally closed load-holding valves (LH_a and LH_b) are manipulated by the minimum cylinder pressure signal ($p_{\mathrm{pi}}$). The cracking pressure of LH_a and LH_b is 10 bar.

The $p_{\mathrm{pi}}$ signal is determined by the ISV, which switches its direction in response to the bore-side pump pressure $p_{\mathrm{pa}}$ and the rod-side pump pressure $p_{\mathrm{pb}}$. Two check valves (CV₁ and CV₂) are installed in parallel with the load-holding valves for improved system response. Three pressure relief valves (PRV₁, PRV₂, and PRV₃) are integrated to limit the maximum pressure in the system. Three check valves (CV₃, CV₄, and CV₅) are employed to ensure that the line pressures never become smaller than $p_{\mathrm{acc}}$. The proposed 2M2P MCC is characterized by two distinct modes: the operation mode and the load-holding mode. During the operation mode, the $p_{\mathrm{pi}}$ pressure is regulated to remain over 10 bar, which opens LH_a and LH_b, allowing for the piston position ($x_{\mathrm{p}}$) to adjust based on the command signal. Conversely, in the load-holding mode, $p_{\mathrm{pi}}$ is controlled to stay below 10 bar, causing LH_a and LH_b to close, thereby maintaining the cylinder piston in a stationary position.

The prototype of the proposed 2M2P MCC drive system is shown in Figure 2b. Table 1 lists the major components used in the 2M2P MCC prototype along with their respective parameters obtained from the manufacturers.

3. Experimental Analysis

3.1. Experimental Setup

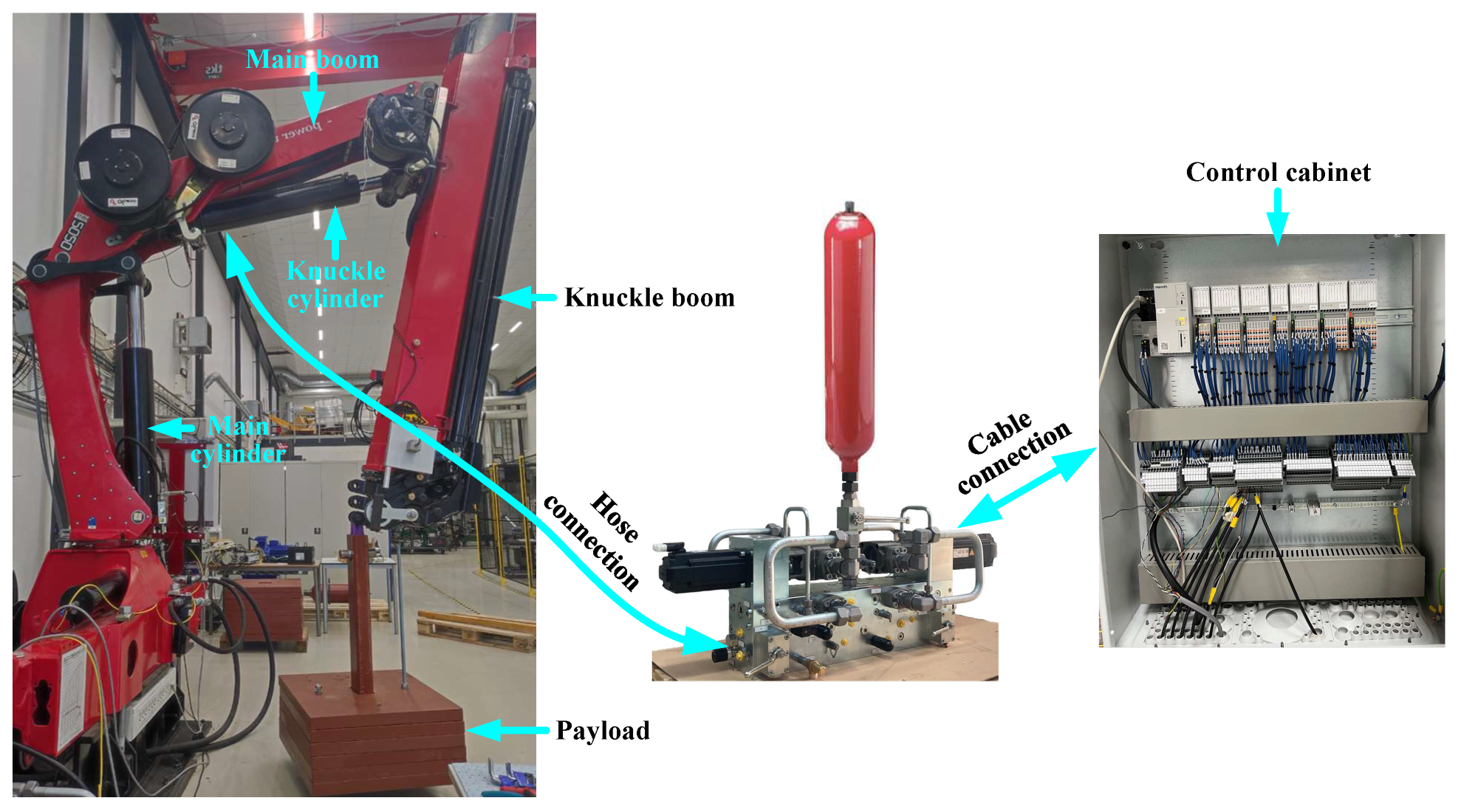

As depicted in Figure 3, the experiments are carried out on a knuckle boom crane featuring the 2M2P MCC drive system prototype connected to the knuckle cylinder. A payload is suspended from the tip of the knuckle boom. The position of the main cylinder remains fixed, resulting in a stationary main boom.

As the knuckle cylinder drives the knuckle boom and the payload, the 2M2P MCC (formed by the MCC drive system prototype and the knuckle cylinder) undergoes operation across all four quadrants, activating and deactivating the load-holding function as needed.

3.2. Four-Quadrant Operation Analysis

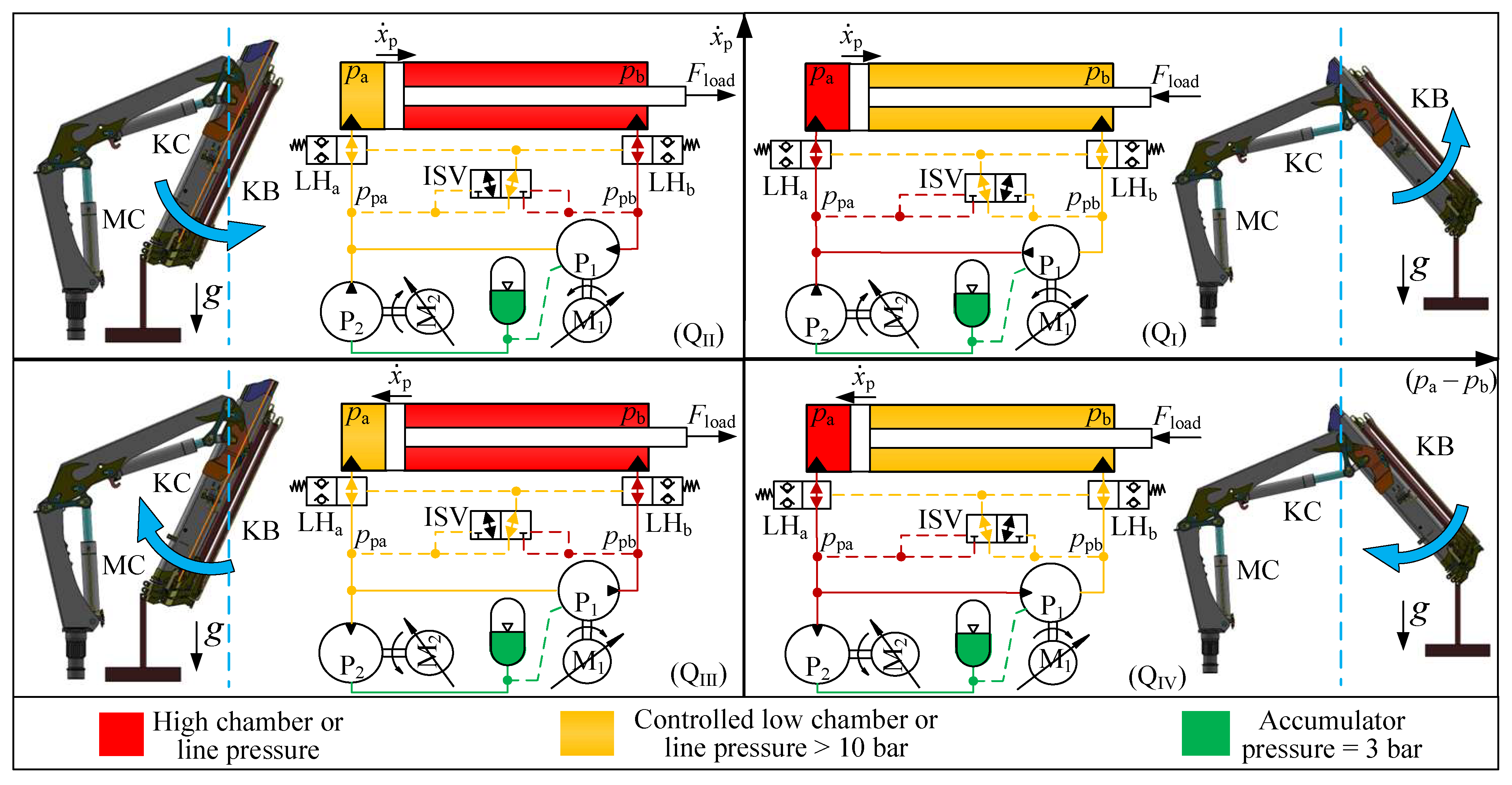

Figure 4 depicts the four-quadrant operation of the knuckle cylinder, showcasing its functionality in conjunction with the knuckle boom motion. In the figure, the red colour indicates the high chamber or line pressure, which holds the load. The yellow colour indicates the low chamber or line pressure, which is controlled by P₁ to stay above 10 bar so that the load holding valves remain open and cavitation is avoided with a certain margin. The green colour indicates the accumulator pressure, which is 3 bar. The blue dashed line on the crane icon denotes the neutral position, where no load force is applied to the knuckle cylinder. Gravity g acts downward. The first to the fourth quadrant are represented as Q_I, Q_II, Q_III, and Q_IV.

In Q_I, the knuckle boom (KB in the figure) resides to the right of the neutral position and exhibits counterclockwise movement, indicated by the blue arrow. The piston is moving to the right (extending). In this case, due to the combined effects of the payload and the knuckle boom’s weight, the cylinder load force ($F_{\mathrm{load}}$) directs towards the left, opposing the motion of the cylinder. Therefore, the cylinder bore side pressure ($p_{\mathrm{a}}$) is higher than the cylinder rod side pressure ($p_{\mathrm{b}}$). The nominal speed of P₁ and P₂ are linked to the reference speed of the cylinder piston, ${\dot{x}}_{\mathrm{p}}$. However, the speed of P₁ is continuously adjusted around its nominal value to ensure that the pump pressure on the rod side ($p_{\mathrm{pb}}$) is neither too low (P₁ speeds down) or too high (P₁ speeds up). Effectively, P₂ controls the motion and P₁ controls the low pressure in the cylinder. This pattern is repeated for the other three quadrants. Also, the nominal speed of the pumps are the same in all four quadrants. For P₁, it is $A_{\mathrm{b}}{\dot{x}}_{\mathrm{p}}/D_1$. For P₂, it is $(A_{\mathrm{a}}-A_{\mathrm{b}}){\dot{x}}_{\mathrm{p}}/D_2$. However, the sign changes with ${\dot{x}}_{\mathrm{p}}$, which is positive when extracting (Q_I and Q_II) and negative when retracting (Q_III and Q_IV). In Q_I both M₁ and M₂ are motoring.

In Q_II, the knuckle boom is on the left side of the neutral position and exhibits counterclockwise movement. The piston is moving to the right (extending). In this case, due to the combined effects of the payload and the knuckle boom’s weight, $F_{\mathrm{load}}$ directs towards the right, assisting the motion of the cylinder and $p_{\mathrm{b}}$ is higher than $p_{\mathrm{a}}$. As in Q_I, the low pressure, here $p_{\mathrm{pa}}$, is controlled by adjusting the speed of P₁, speeding up if $p_{\mathrm{pa}}$ goes below the reference pressure and slowing down if $p_{\mathrm{pa}}$ goes above the reference pressure. As in Q_I, P₂ is subtracting liquid from the accumulator and M₂ is motoring while M₁ is generating.

In Q_III, the knuckle boom is on the left side of the neutral position and exhibits clockwise movement. The piston is moving to the left (retracting). In this case, due to the combined effects of the payload and the knuckle boom’s weight, $F_{\mathrm{load}}$ directs towards the right, opposing the motion of the cylinder and $p_{\mathrm{b}}$ is higher than $p_{\mathrm{a}}$. In this quadrant, P₂ is adding liquid to the accumulator and P₁ is controlling $p_{\mathrm{pa}}$. M₁ is motoring and M₂ is generating.

In Q_IV, the knuckle boom is on the right side of the neutral position and exhibits clockwise movement. The piston is moving to the left (retracting). In this case, due to the combined effects of the payload and the knuckle boom’s weight, $F_{\mathrm{load}}$ directs towards the left, assisting the motion of the cylinder and $p_{\mathrm{b}}$ is lower than $p_{\mathrm{a}}$. In this quadrant, P₂ is adding liquid to the accumulator and P₁ is controlling $p_{\mathrm{pb}}$. Both M₁ and M₂ are generating.

It is noteworthy that during the operation of the knuckle cylinder within the transitional regions between Q_I and Q_II or between Q_III and Q_IV, specifically when the knuckle boom moves across the neutral position, the controlled pressure dynamically switches between $p_{\mathrm{pa}}$ and $p_{\mathrm{pb}}$. As a result, the magnitudes of $p_{\mathrm{pa}}$ and $p_{\mathrm{pb}}$ shall intersect at the switching point. It should be noted that the switching point is not precisely at the neutral position but rather occurs slightly around it due to the cylinder area ratio. Consequently, the operation spans four quadrants, and the dynamic switching of controlled pressure presents additional challenges for both the system and the control algorithm. These challenges are to be systematically addressed in the experiments.

3.3. Passive Load-Holding Function in Four Quadrants

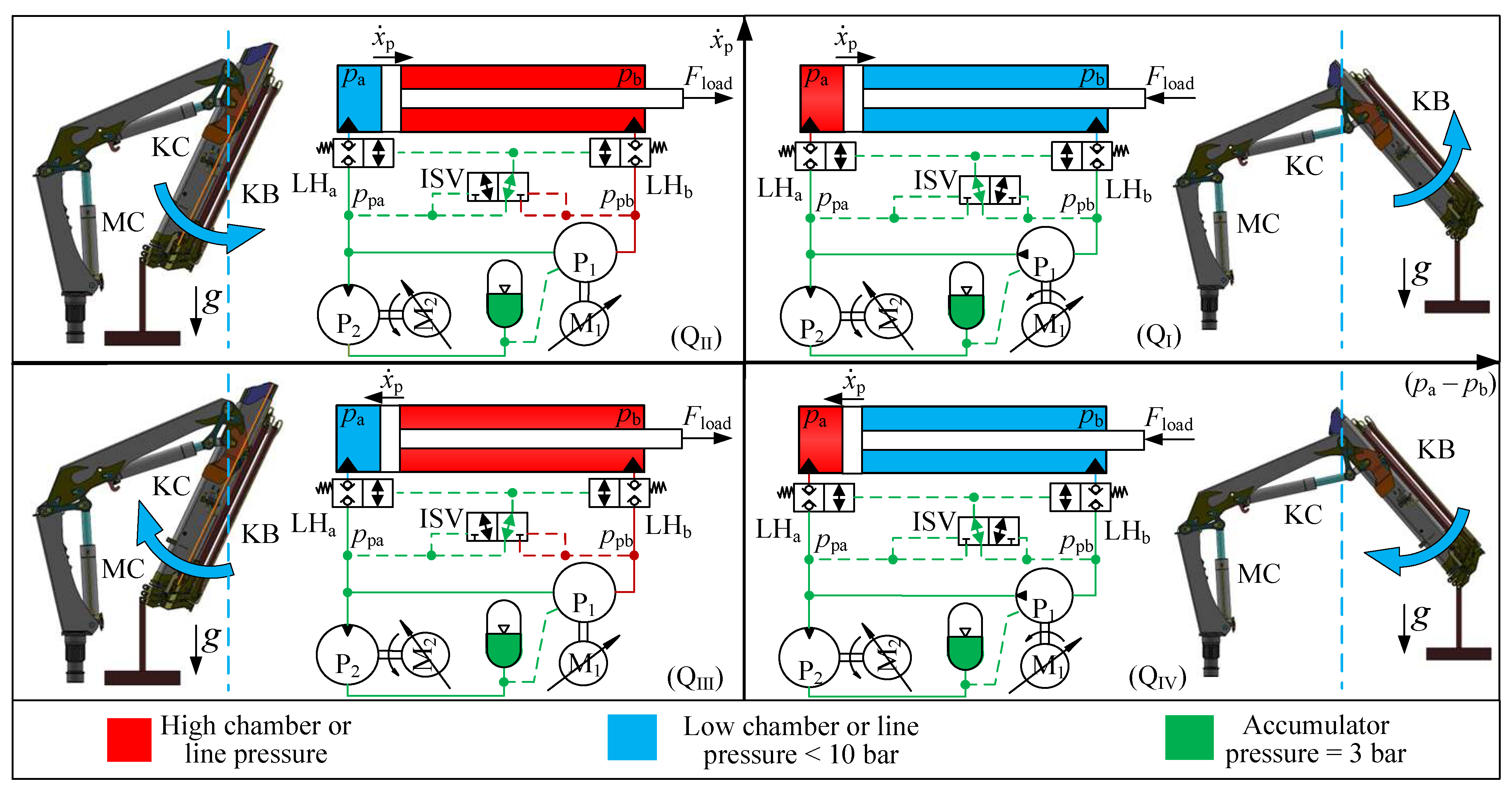

In Figure 5, the status and motions of all components when the load-holding function is activated in all four quadrants are depicted. The blue color represents the low chamber or line pressure. Since the load-holding valve cracking pressure is set at 10 bar, the pressure marked in blue is lower than 10 bar but higher than the accumulator pressure. The system status and component motions exhibit distinct similarities when the load-holding function is engaged in both Q_I and Q_IV, as well as in Q_II and Q_III.

Consequently, the load-holding function activated in Q_I and Q_IV is denoted as bore-side load holding, while that in Q_II and Q_III is referred to as rod-side load holding. It should be noted that ${\dot{x}}_{\mathrm{p}}$ in the figure only represents the piston velocity before the load-holding function is triggered.

In bore-side load holding, the load-holding function is activated by pumping the rod side oil to the accumulator through P₁ and P₂, effectively reducing $p_{\mathrm{pb}}$ below 10 bar. Conversely, in rod-side load holding, the load-holding function is activated by pumping the bore side oil to the accumulator solely through P2, leading to a pressure $p_{\mathrm{pa}}$ below 10 bar.

4. Control Algorithm

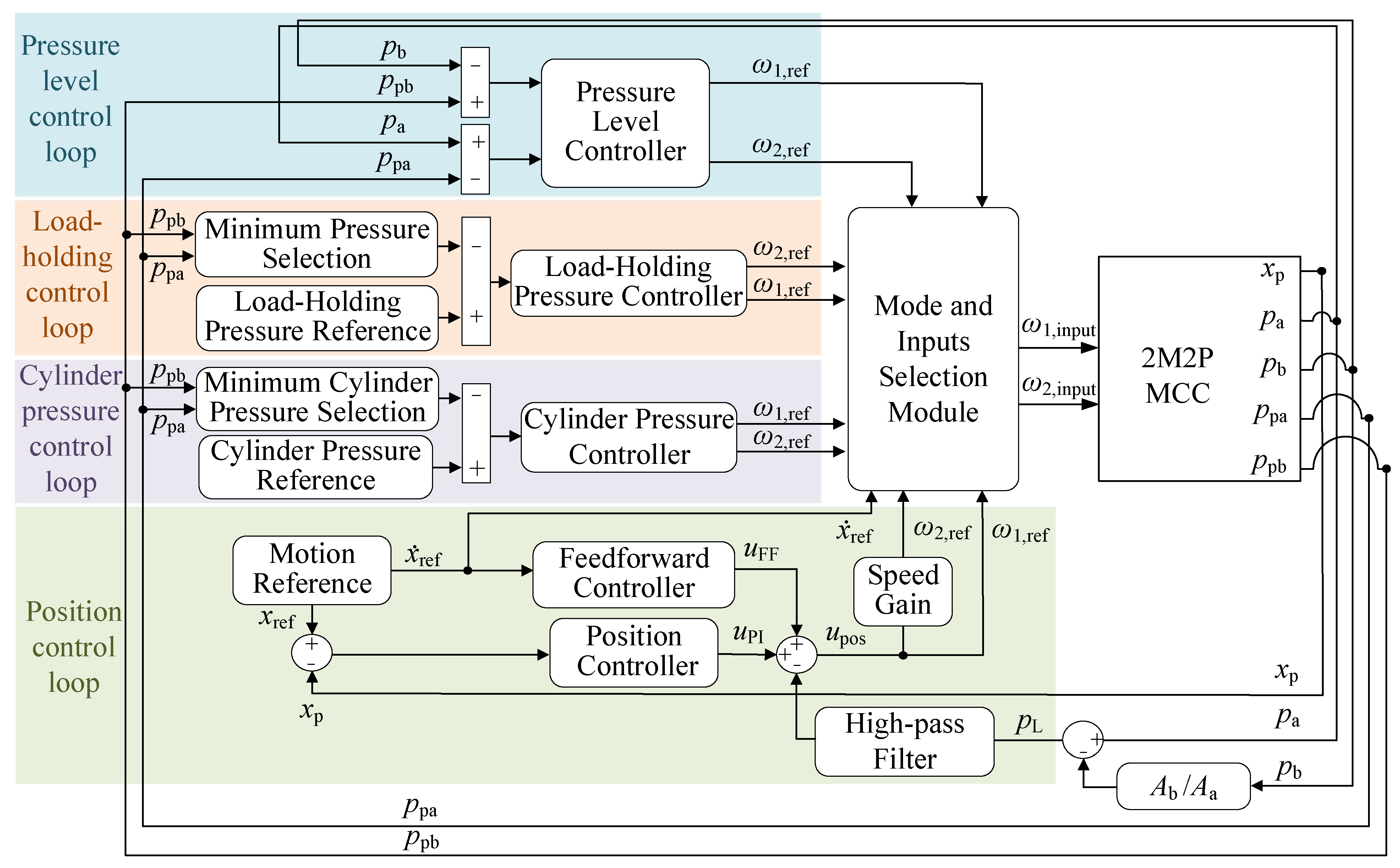

The control algorithm, originally proposed for 2M2P MCCs in [24], is employed in this study. This control algorithm is depicted in Figure 6. It comprises four distinct control loops, namely the position control loop, cylinder pressure control loop, load-holding control loop, and pressure level control loop. The outputs from these four control loops are strategically selected by the mode and inputs selection module module in accordance with the explanations in Section 3.

This approach ensures the realization of four-quadrant operation, passive load-holding functionality, and seamless transitions between these operational states. A thorough explanation of this control algorithm is available in [24]. This control algorithm is implemented and tuned on the experimental setup to facilitate the experiments. The proportional (P) and integral (I) controller gains in the four control loops are detailed in Table 2. The cylinder pressure reference is set to 15 bar. The load-holding pressure reference is set to 3 bar.

5. Results of Experimental Work

5.1. Reference Signals and Experiment Procedures

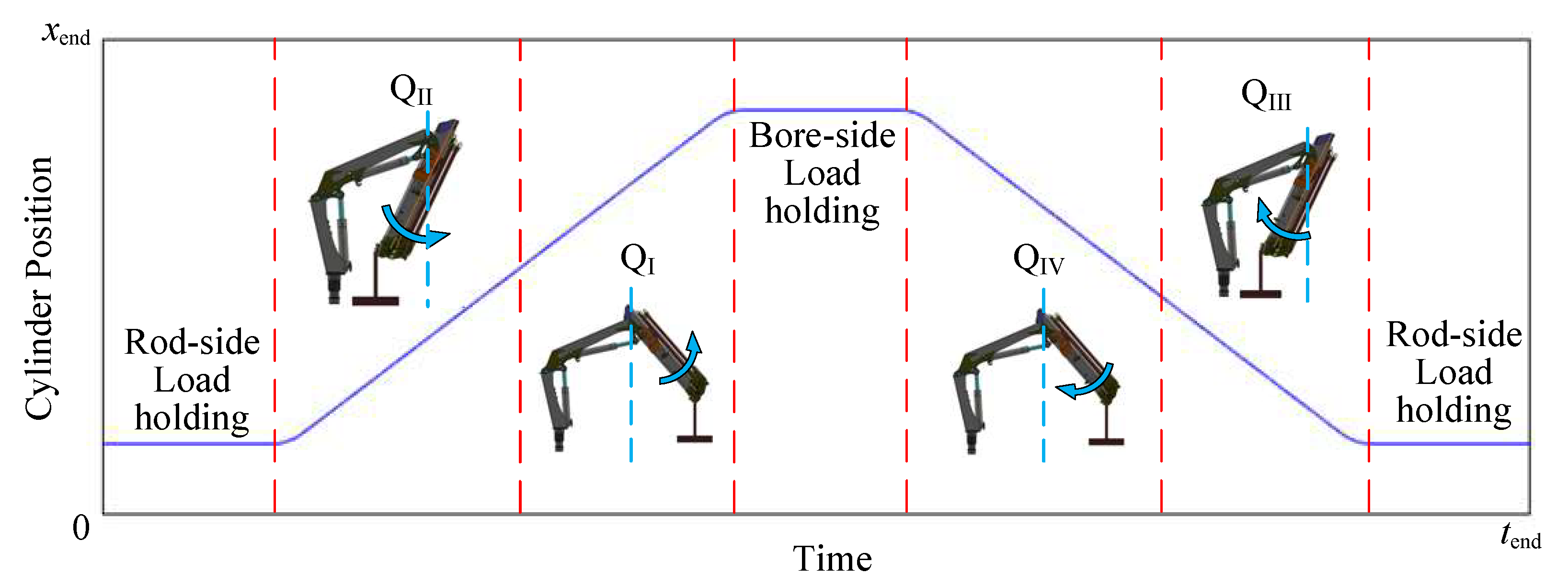

Cylinder position reference signals incorporating operation and load-holding function across four quadrants are required for the experiments. Figure 7 visually depicts a representative position reference signal that fulfills these criteria. Here, $x_{\mathrm{end}}$ denotes the cylinder stroke end, and $t_{\mathrm{end}}$ indicates the end of the experiment. This signal initiates with a rod-side load-holding period, featuring a position close to zero, followed by an extension operation in Q_II.

Upon the knuckle boom crossing the neutral line, the knuckle cylinder operation transitions to Q_I. It continues to extend until the cylinder reaches a position close to $x_{\mathrm{end}}$, at which point it enters a bore-side load-holding period. Subsequently, the cylinder initiates retraction in Q_IV. Following the passage of the knuckle boom across the neutral line, the cylinder operation shifts to Q_III. As the knuckle cylinder retracts to the original position, it enters a rod-side load-holding period, lasting until the end of the experiment.

Three distinct cases are considered in the experiment to thoroughly validate the four-quadrant operation and load-holding function of the proposed system. These three cases are described in Table 3. It should be noted that the prototype approaches its peak power limit in case three. The cylinder position reference signals in different cases, following the general rule illustrated in Figure 7, exhibit variations in stroke length and experiment time. The results described in the following subsections comprise the position reference (Ref) and feedback (FB), the position error and the system pressures. In the figures, the light blue dotted lines separate different quadrants and load-holding periods. Q_I, Q_II, Q_III, and Q_IV denote the first to fourth quadrants, respectively. The rod-side load holding and bore-side load holding are abbreviated as R-LH and B-LH, respectively.

5.2. Case One

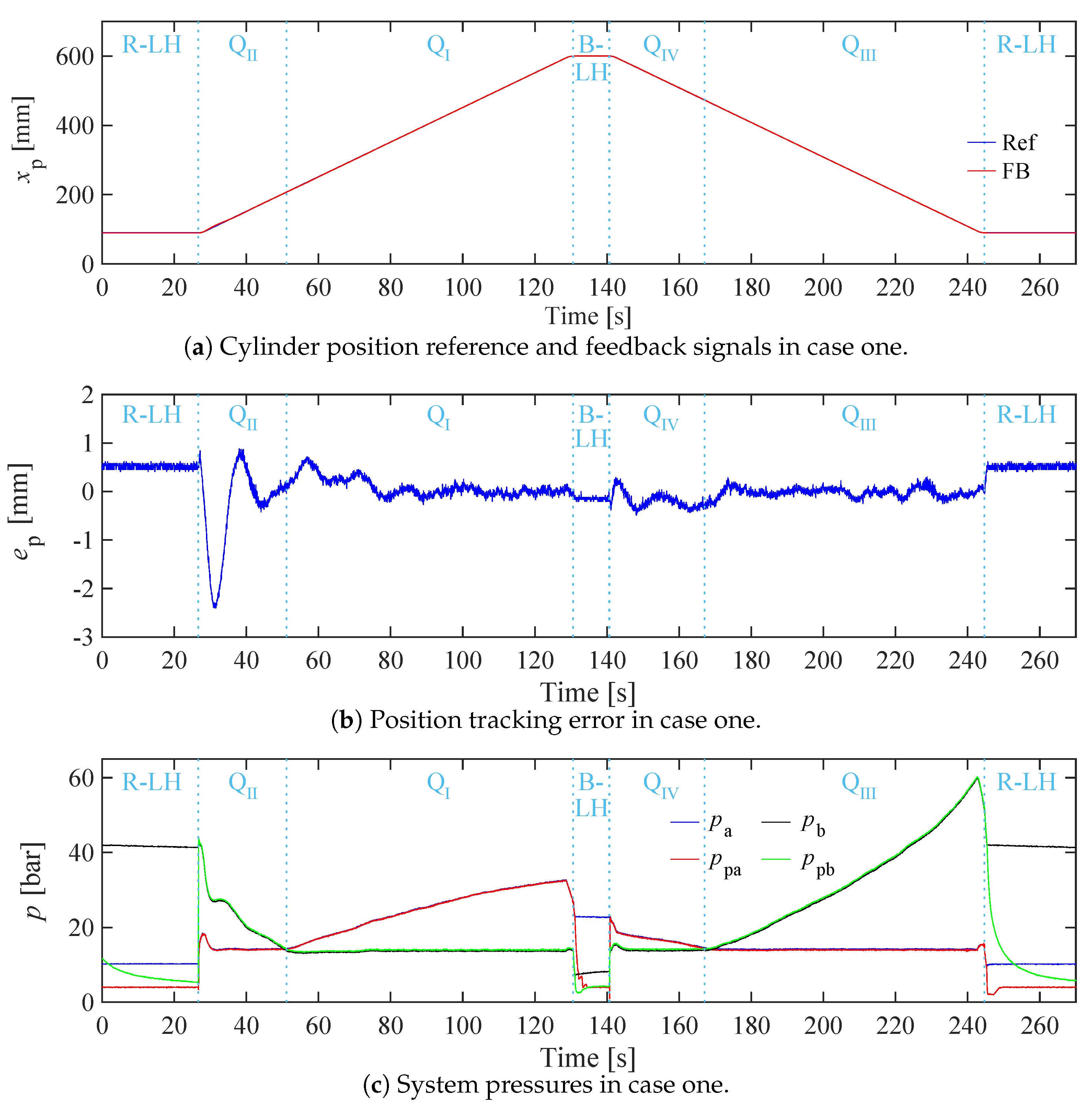

The cylinder position reference and feedback signals are depicted in Figure 8a. These signals exhibit a nearly perfect overlap indicating small tracking errors. The cylinder initiates with a period of rod-side load holding, proceeds to extend through Q_II and Q_I, followed by a bore-side load-holding phase. Subsequently, the cylinder retracts through Q_IV and Q_III before returning to a rod-side load holding phase. The position tracking error for case one is depicted in Figure 8b. The maximum error, approximately -2.5 mm, occurs during the initiation of the cylinder’s extension in Q_II. Throughout the remaining duration of the experiment, especially the transitions between operation and load-holding phases, the tracking error consistently remains within the range of ±0.8 mm.

The bore-side cylinder pressure ($p_{\mathrm{a}}$) and pump pressure ($p_{\mathrm{pa}}$), along with the rod-side cylinder pressure ($p_{\mathrm{b}}$) and pump pressure ($p_{\mathrm{pb}}$) in case one, are illustrated in Figure 8c. In the first rod-side load-holding phase, LH_a and LH_b are closed. $p_{\mathrm{b}}$ holds the load and is about 41 bar. $p_{\mathrm{a}}$ is around 10 bar, which is the cracking pressure of the load-holding valves. $p_{\mathrm{pa}}$ is controlled to the load-holding pressure reference (3 bar) because it is the pressure operating the load-holding valves. Upon the transition to Q_II, LH_a and LH_b valves open, leading to equalization between $p_{\mathrm{a}}$ and $p_{\mathrm{pa}}$ as well as $p_{\mathrm{b}}$ and $p_{\mathrm{pb}}$. In Q_II, precise control maintains $p_{\mathrm{a}}$ around the cylinder pressure reference of 15 bar. As the cylinder extends within Q_II, a gradual descent in $p_{\mathrm{b}}$ is observed. Upon the intersection of $p_{\mathrm{a}}$ with $p_{\mathrm{b}}$, the cylinder operation transitions into Q_I, where $p_{\mathrm{b}}$ assumes the role of the controlled minimum cylinder pressure, stabilized at 15 bar. As the cylinder enters the bore-side load-holding phase, where the activation of the load-holding pressure controller causes a rapid reduction of $p_{\mathrm{pb}}$ to 3 bar. Therefore, the load-holding valves promptly close. The bore-side cylinder pressure $p_{\mathrm{a}}$ is, therefore, maintained at around 21 bar. Concurrently, a gradual decrease in $p_{\mathrm{pa}}$ to 3 bar ensues, attributed to pump leakage. Following the bore-side load-holding phase, the cylinder initiates retraction within Q_IV. During this quadrant, $p_{\mathrm{a}}$ is higher than $p_{\mathrm{b}}$ and gradually declining. $p_{\mathrm{b}}$, as the minimum cylinder pressure, is controlled at 15 bar. As $p_{\mathrm{a}}$ intersects with $p_{\mathrm{b}}$ for the second time, the cylinder transitions into Q_III, with $p_{\mathrm{a}}$ serving as the controlled minimum cylinder pressure, stabilized at 15 bar. Upon completing the retraction and returning to the starting position, the cylinder enters the second rod-side load-holding phase. Here, the load-holding pressure controller rapidly reduces $p_{\mathrm{pa}}$ to 3 bar, prompting the swift closure of the load-holding valves.

5.3. Case Two

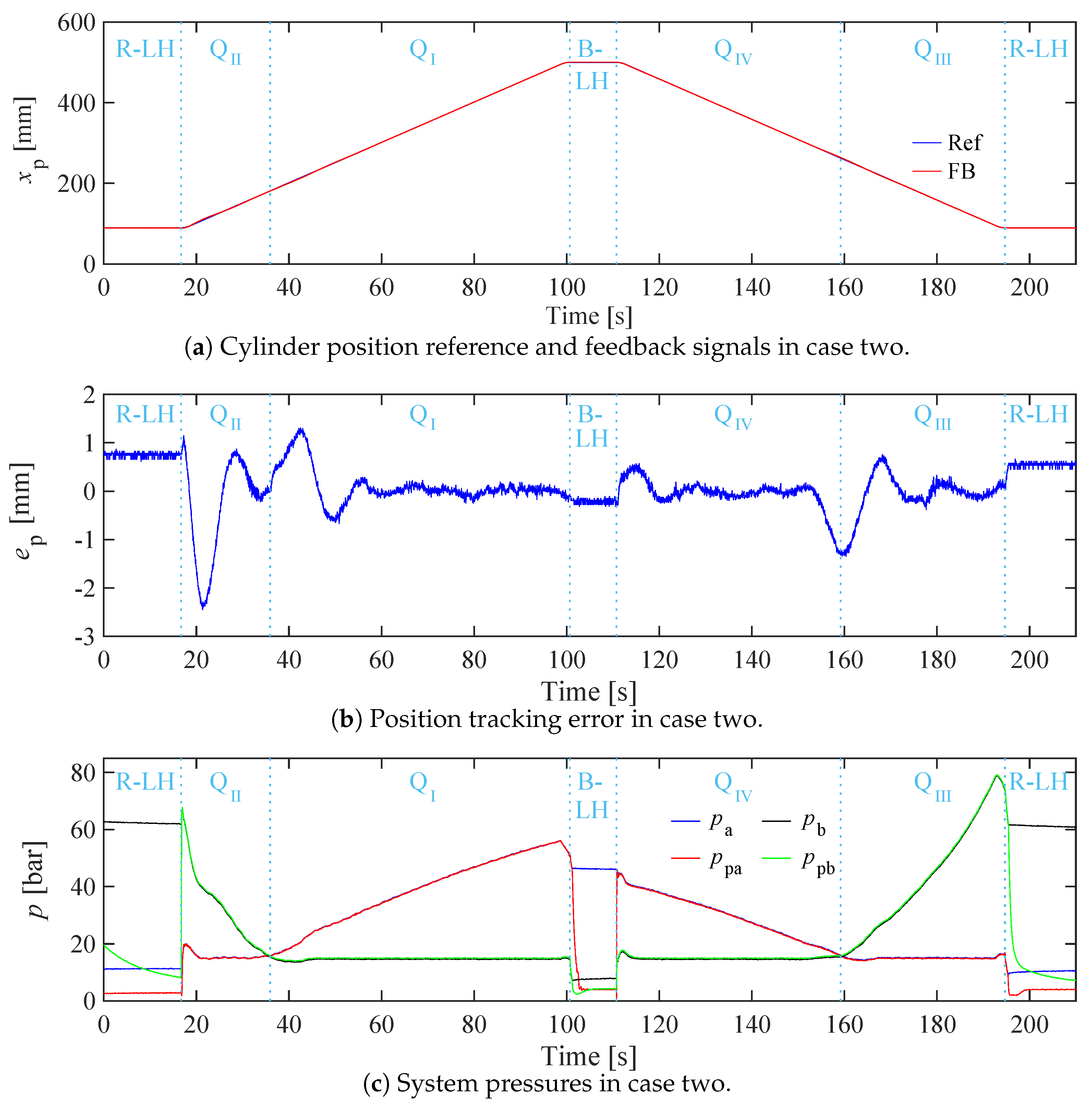

In case two, a payload of 600 kg hangs on the crane tip, and the maximum cruising speed for both extending and retracting is maintained at 5 mm/s. The experimental results of case two are shown in Figure 9. Similar to case one, the cylinder, driving the knuckle boom, demonstrates effective tracking of the position reference signal across four quadrants and two load-holding phases, as illustrated in Figure 9a.

In Figure 9b, the maximum position tracking error (-2.5 mm) also occurs during the initiation of the cylinder’s extension in Q_II. However, in the remaining experiment period, the tracking error in case two exhibits greater amplitudes ($\pm 1.2$ mm) and more noticeable fluctuations compared to case one. These fluctuations mainly occur at the transitions between Q_II and Q_I and between Q_IV and Q_III.

As demonstrated in Figure 9c, the system pressures in the second case show similar trends to those observed in case one as the cylinder operation moves through four quadrants and two load-holding phases. However, the pressure levels in case two are higher than those observed in case one. During the rod-side load-holding phase, $p_{\mathrm{b}}$ is maintained at approximately 61 bar, while in the bore-side load-holding phase, $p_{\mathrm{a}}$ is maintained at approximately 43 bar. The maximum system pressure of 80 bar is reached by the end of Q_III.

5.4. Case Three

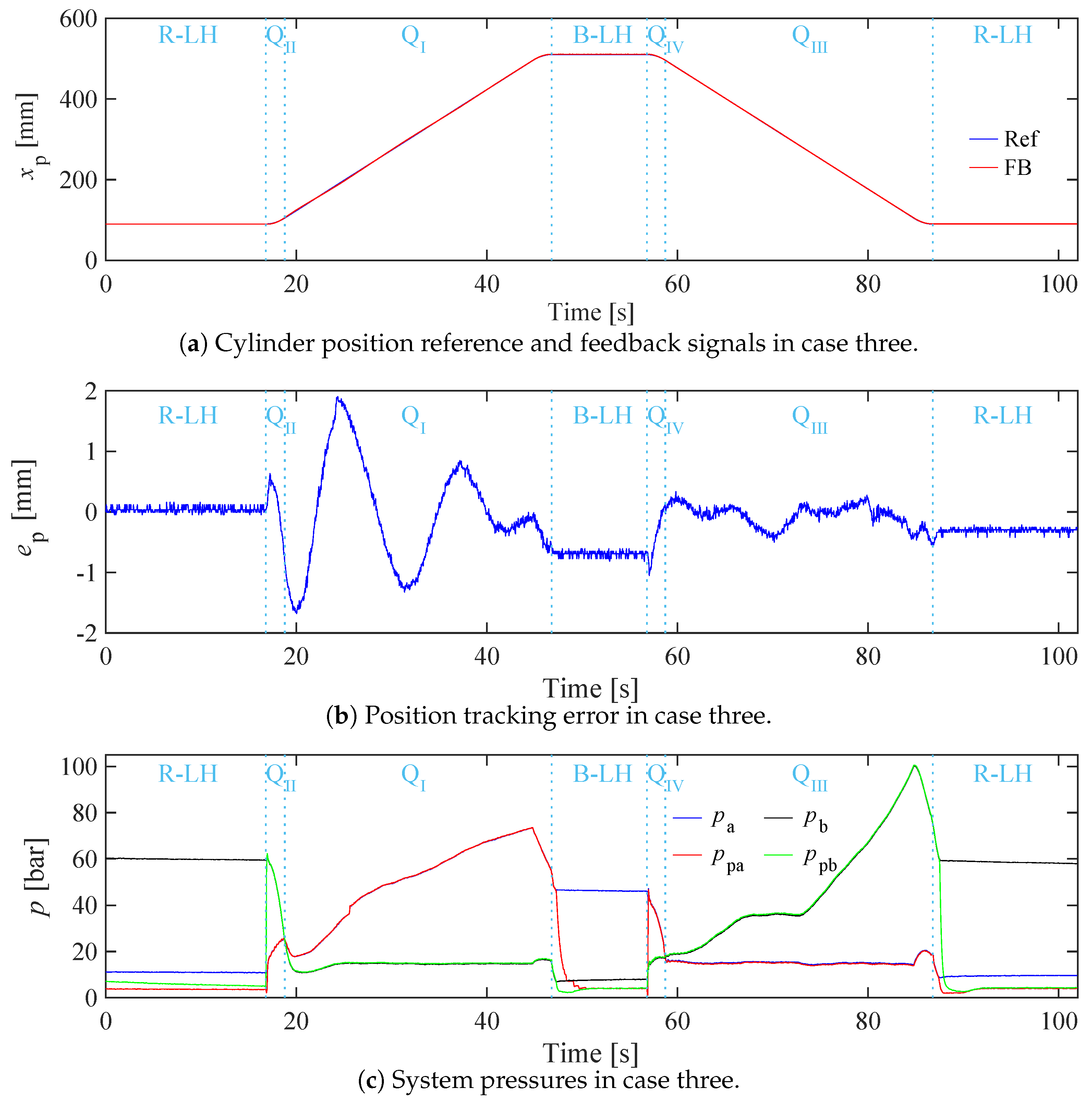

In case three, the payload of 600 kg hanging on the crane tip is retained, and the maximum cruising speed for both extending and retracting is increased to 15 mm/s. It is important to note that the maximum power output of the prototype in case three is close to the rated power. The experimental results of case three are shown in Figure 10. In case three, as depicted in Figure 10a, the cylinder position can effectively track the reference signal across four quadrants and two load-holding phases. According to Figure 10b, the position tracking errors are within ±2 mm in Q_II and Q_I, and ±1 mm in Q_IV and Q_III.

The system pressures in case three are plotted in Figure 10c. Because the payload used in case three is the same as case two, the system pressures during load-holding phases in case three are almost the same as those in case two. The maximum system pressure of 100 bar is reached by the end of Q_III. When the cylinder operates across four quadrants in case three, the system pressures increase or decrease quickly due to the faster motion. Therefore, Q_II and Q_IV in case three last a much shorter period than those in case one and case two.

6. Discussion

In this study, three test cases, featuring some challenging and representative elements similar to ordinary use, are conducted to verify the system’s capability of operating across four quadrants and two load-holding phases. Across these cases, the system output power is increased by adding a 600 kg payload and elevating the maximum speed. Analysis of the position tracking error plots indicates a degradation in position tracking performance from case one to case three. This is expected, given that the output power increases progressively from case one to case three. However, it is worth noting that the tracking error in all three cases remains within a satisfactory range since the maximum position error for hydraulic cranes is typically higher than 15 mm [25].

The minimum cylinder pressure in the three cases are effectively controlled around the reference pressure. Moreover, the successful crossing of the low and high pressures in all three cases demonstrates the switching function in the controllers.

As analyzed in Section 3.3, the system statuses when the load-holding function is triggered in Q_II and Q_III are nearly identical. The same applies to the load-holding function triggered in Q_I and Q_IV. Therefore, only the load-holding functions triggered in Q_I and Q_III have been verified.

7. Materials and Methods

Materials and Methods should be described with sufficient details to allow others to replicate and build on published results. Please note that publication of your manuscript implicates that you must make all materials, data, computer code, and protocols associated with the publication available to readers. Please disclose at the submission stage any restrictions on the availability of materials or information. New methods and protocols should be described in detail while well-established methods can be briefly described and appropriately cited.

Research manuscripts reporting large datasets that are deposited in a publicly available database should specify where the data have been deposited and provide the relevant accession numbers. If the accession numbers have not yet been obtained at the time of submission, please state that they will be provided during review. They must be provided prior to publication.

Interventionary studies involving animals or humans, and other studies require ethical approval must list the authority that provided approval and the corresponding ethical approval code.

8. Conclusion

A critical gap exists in the literature regarding experimental validations encompassing both four-quadrant operation and load-holding function for a 2M2P MCC. This paper bridges this gap through the following key aspects:

• The system status and component motions of the proposed 2M2P MCC are comprehensively analyzed.
• A specialized experimental setup is constructed, comprising a knuckle boom crane and a 2M2P MCC prototype.
• A position reference involving four-quadrant operation and two types of load holding is developed.
• Experiments are conducted across three cases, with satisfactory position tracking performance and seamless pressure intersection during transitions between different quadrants of operation.

In conclusion, the proposed 2M2P MCC demonstrates effective operation and a load-holding function across all four quadrants. This research contributes significantly to the understanding and practical implementation of 2M2P MCCs in various industrial applications.
