Modification and Performance Evaluation of a Biomass Pelleting Machine

1. Introduction

Biomass as an alternative energy source provides substantial socio-economic and environmental benefits for its high availability and carbon-neutral nature [1]. The use of fossil fuels and deforestation are the major contributors to climate change. Biomass is a term for all organic materials that stems from plants, including those residues from wood and agro-processing operations that are discarded as waste [2]. These residues have been highly promoted to be used in various heating systems during the past decades [3,4]. The process of producing solid biofuel from biomass can help in the waste management of agro-residues in a productive way. Densification involves the compression of biomass residues in order to obtain dense fuels with homogenous size and improves its handling characteristics [3]. Bailing, briquetting, extrusion and pelletization are few of the different biomass densification processes that are used globally [5]. The homogenous size of pellets facilitates an automatic or semi-automatic treatment and thus, resolving the disadvantages of the traditional use of biomass [6,7] and the stress involved in the utilization of other methods of densification. While definitions vary, most researchers used the term “Pellet” to describe densify product with diameter ranging between 3–27 mm and the length ranging from 3–31 mm [8,9,10].

Domestically, densified products can be used in small stoves to efficiently reduce cost of cooking [11]. It can replace coal in certain applications like small scale power plants, broilers and many industrial applications. Rising demands for solid biomass fuel and problems ranging from health, economic, environmental and climate change [12] has geared many research into the conversion of agricultural residues as feedstock for solid biofuel products [13] and also improving the quality of these materials [14]. Farm incomes have been improved through trees planted on agricultural land for producing biomass feedstock sustainably for the production of solid biofuel [15].Densification have also been incorporated to increase the quality of animal feeds. Orisaleye et at. [16] studied the effect of preconditioning and die thickness on livestock feed pellets and found that using starch as preconditioner and increasing die thickness improved the durability of pelleted feeds. Several studies [17,18,19] have produced densified biofuel from rice bran, corncob and poplar wood under different operating conditions. The conversion of various biomasses including woods, composts, grasses, straws, crop residues and torrefied materials [20,21,22,23] into solid fuels have also been studied with focus on the impact of feedstock characteristics on pellets quality [24] and in extension products of other biomass conversion processes. A study Jekayinfa et al. [25] to analyze biogas and methane yield concluded that treatment with particle size of 4 mm to an ideal size considering yields methane and biogas.

Samuelsson et al. [19] reports that the final quality of pellets varies depending on the raw material properties and the manufacturing process. Quality parameters of densified products include moisture content, unit and bulk densities, durability index, compressive strength, percent fine and energy value [4]. Orisaleye et al. [4] studied the effect of pressure, temperature, particle sizes and holding time on water resistance properties of corcob briquettes, their result showed that increasing die temperature (from 90 to 120 ^oC) and holding time (from 7.5 to 15 minutes) increases the water resistance of the briquettes. Jekayinfa et al. [17] studied the effects of die geometry and binder addition on quality of rice bran pellets, their results showed that binder quantity and geometry significantly affects bulk density of rice bran pellets. Although, the inorganic and organic components of the different raw materials cannot be modified, certain variables dependent on the pelletization process can be controlled to optimize the production efficiency and enhance the quality of the finished product. The most studied aspect of pelletization is the evaluation of the operating conditions to improve the process and obtain high-quality pellets [27]. This study modified an existing hand operated fish feed pelletizing machine for use in the production of biomass pellets.

2. Materials and Methods

2.1. Description of the Existing Fish Feed Pelletizing Machines

The existing hand operated fish feed pelletizer is designed for small scale commercial operation. The pelletizing unit consist of a compression chamber, an auger, a die plate and a hand driven pulley. The parts are as shown in Plate 1.

a.

Compression Chamber

The compression chamber or barrel (Plate 1A) is the housing where the pressure generated is mounted on the material been pelletized. It is made of cast iron and of 10 mm in thickness with an internal diameter of 80 mm and 200 mm in length. It has a hopper opening of 90 mm in diameter at the top which serve as inlet for materials to be pelletized and support for the attachment of the barrel to the frame of the machine.

b.

Auger

The auger or screw shaft (Plate 1B) conveys material from the bottom of the hopper inside the barrel to the die plate. It is made from cast iron and is 200 mm in length and 25 mm in diameter with nominal diameter of 70 mm, flight of 22.5 mm and pitch of 50 mm. The auger has a clearance of 10 mm between the flight of the auger and the wall of the compression chamber.

c.

Die Plate

The die plate (Plate 1C) serves as the back wall for retaining the pressure exerted by the auger whilst the perforations on the plate or die holes allow the compressed mash to be forced out of the barrel to form pellets. The die plate is made of mild steel plate, 100 mm in diameter and thickness of 6 mm. The die plate contains 48 cylindrical die holes of 6 mm in diameter each bored onto the plate with a key way cut on its edge which fits to a protruding key on the body of the compression chamber, to prevent the die plate from rotating with the auger and also prevent relative motion between the die plate and compression chamber wall.

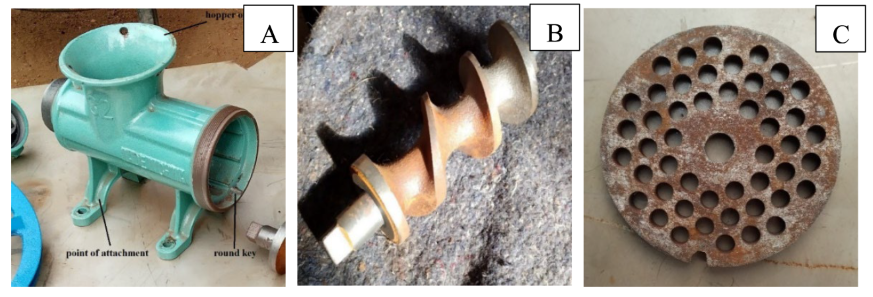

Plate 1: Parts of the existing pelletizing machine; (A) compression chamber (B) Auger of the pelleting unit (C) pelleting die.

2.2. Design of Other Components

The other component parts of the modified machine that were designed and fabricated for incorporation with the pelletizing unit are the hopper, power transmission unit (belt drive) and the frame.

2.2.1. Design of Hopper Extension

The hopper extension was designed in the form of cone frustum to allow the hopper extension fit into the opening on the compression chamber of the pelleting unit, with top diameter of 435 mm, base diameter of 90 mm and a height of 280 mm. The base diameter was selected to allow it fit into the chamber opening and slanting at 60 ⁰ angle of repose for fibrous non-free flowing materials [28]. The volume of the hopper was calculated using Equation 1 [29] for volume of a cone frustum thus;

$$V=\raisebox{1ex}{$\pi h$}\!\left/ \!\raisebox{-1ex}{$3$}\right.\left(R^2+Rr+r^2\right)$$

(1)

Where:

R = top radius = 217.5 mm
r = base radius = 45 mm
h = height of frustum = 280 mm

$$V=\frac{3.142\times 280}{3}\left[{217.5}^2+\left(217.5\times 45\right)+{45}^2\right]=0.0173m^3$$

2.2.2. Power Required to Drive the Screw Conveyor

The power required to drive the machine was evaluated using Equation 2 as presented by Singh (2003).

$$P=\frac{QL\left(W_0+\sin \beta \right)}{3600\eta },$$

(2)

Where:

P = power required to drive the machine, kW

Q = capacity of screw conveyor, kg/h.

L = length of screw conveyor = 200 mm (measured).

W_o = material factor = 2.5

β = angle of inclination of screw to the horizontal, 0^o (horizontal screw conveyor) [30]

ᵑ = efficiency of transmission = 0.92.

The capacity of screw conveyor, Q is calculated from Equation 3 as given by Singh (2003)

$$Q=150\pi D^{2}sn\phi \rho C,$$

(3)

Where:

D = nominal diameter of the screw conveyor = 80 mm (measured)

s = pitch of screw conveyor = 0.08 m (for standard screw pitch, S=D) mm

n = speed of rotation of screw = 250 rpm [31]

$\phi$ = loading efficiency = 0.25

ρ = density of material = 1200 kg/m³ [32]

C = inclination factor =1 (for horizontal conveyors) [30]

Hence, from Equation 3,

Capacity,$Q=150\pi \times {0.08}^2\times 0.08\times 250\times 0.25\times 1200\times 1$

$$Q=18.09kg/h$$

Power required, P from Equation 2

$$P=\frac{18095.574\times 0.2\times \left(2.5+\sin 0\right)}{3600\times 0.92}=2.73kW$$

Recall that 1 hp is equal to 746 W, 2.73 kW is equivalent to 3.76 hp, Therefore, a 4 hp electric motor was selected.

2.2.3. Design of Belt Drive System for Power Transmission

(a)

Speed of driven pulley

A v-belt drive system was designed for the machine and was powered by a 4 hp electric motor with rated speed of 1400 rpm and a driving motor pulley of 100 mm. The pelleting unit has a driven screw conveyor pulley diameter of 300 mm. The speed of the driven pulley is calculated from the velocity ratio of belt drive using Equation 4 [33].

$$\frac{N_1}{N_2}=\frac{d_2}{d_1},$$

(4)

Where:

N₁ = speed of motor pulley, rpm (1400 rpm)

N₂ = speed of screw pulley, rpm

d₁ = diameter of motor pulley, mm (100 mm)

d₂ = diameter of screw pulley, mm (300)

$$\frac{1400}{N_2}=\frac{0.3}{0.1}$$

Speed of the driven pulley, $N_2=466rpm$According to IS:2494-1974 standard, type A belt was selected (Khurmi and Gupta, 2005) for the machine with the following characteristics;

• Power range = 0.7-3.5 kW
• Top width (b) = 0.013 m
• Thickness (t) = 0.008 m
• Cross sectional area= b × t = 0.000104 m²
• Coefficient of friction = 0.25
• Density of rubber belt = 1000 kg/m³
• Permissible stress = 2.8 MPa

(b)

Belt velocity

The velocity, v of the belt is calculated from Equation 5 [33].

$$V=\frac{\pi d_1{N}_1}{60},$$

(5)

Where:

V= velocity of the belt, ms^-1

d₁ and N₁ are as defined in Equation 4

$$V=\frac{\pi \times 0.1\times 1400}{60}=7.33m/s$$

(c)

Centrifugal tension of belt

Centrifugal tension of the belt was calculated from Equation 6 [33];

$$T_c={mv}^2,$$

(6)

Where:

T_c = centrifugal tension, N

m = mass per unit length of belt, kg

v = velocity of belt = 7.33 m/s (form Equation 5)

Mass of belt per unit length is calculated from Equation 7 thus;

$$mass=A\times l\times \rho ,$$

(7)

Where:

A= belt cross sectional area = 0.000104m² (IS:2494-1974 standard)

l = unit length of belt (m)= 1.00 m

$\rho$ = density of belt material = 1000 kg/m³ (IS:2494-1974 standard)

$$mass=0.000104\times 1\times 1000=0.104kg$$

Centrifugal tension, T_c from Equation 6.0

$$T_c=0.104\times {7.33}^2=5.59N$$

(d)

Tension in belt

Tension in the tight side of the belt is calculated from Equation 8;

$$T_1=T-T_c,$$

(8)

Where:

T₁=tension in the tight side of the belt, N

T = maximum tension in belt, N

but maximum tension in the belt is calculated from Equation 9 (Khurmi and Gupta, 2005)

$$T=\sigma \times A,$$

(9)

Where:

σ = permissible stress, 2.8 MPa.

A = cross sectional area, 0.000104 m²

$$T=2.8\times {10}^6\times 0.000104=29.12N$$

Tension in tight side of belt,

$$T_1=29.12-5.59=23.53N$$

Tension in the slack side of the belt is calculated from Equation 10 (Khurmi and Gupta, 2005)

$$2.3\log \left(\frac{T_1}{T_2}\right)=\mu .\theta \csc \beta ,$$

(10)

Where:

T₂ = tension in slack side of belt (N)

µ = coefficient of friction, 0.25

θ = angle of contact, rad.

β = groove angle of belt, 16^o (IS:2494-1974 standard)

Angle of contact, $\theta$ is calculated from Equation 11 [33]

$$\theta =180-2\alpha ,$$

(11)

Where:

$\alpha$ = angle of lap

and α is calculated using Equation 12 thus

$$\sin \alpha =\frac{d_2-d_1}{2C},$$

(12)

Where:

d₁= diameter of driving pulley, 0.1 m

d₂ = diameter of driven pulley, 0.466 m

C = centre distance between the two pulleys, m.

Centre distance between the two pulleys, C is calculated using Equation 13

$${C=\left(2d_2\left(d_1+d_2\right)\right)}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$2$}\right.},$$

(13)

Where:

d₁ = diameter of driving pulley = 0.1 m

d₂ = diameter of driven pulley = 0.466 m

C = Centre distance between pulleys, (mm)

Then, Center distance between the two pulley

$$C=(2\times 0.446\left(0.1+0.446\right){)}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}$$

$$C=0.698m\approx 698mm\approx 700mm$$

From Equation 12,

$$\sin \alpha =\frac{0.466-0.1}{2\times 0.698}$$

$$\alpha ={\sin }^{-1}0.2479={14.35}^o$$

Angle of contact from Equation 11

$$\theta =180-2\left(14.35\right)={151.30}^o=2.64rad$$

Tension in slack side of belt, from Equation 10.0;

$$2.3\log \left(\frac{23.53}{T_2}\right)=0.25\times 2.64\csc 16$$

$$T_2=1.35N$$

(e)

Power transmitted by belt

Power transmitted by the belt is calculated using Equation 14;

$$P=\left(T_1-T_2\right)v,$$

(14)

Where:

P = power transmitted by belt, Nm/s

T₁ = tension in the tight side of belt, 23.53 N

T₂ = tension in the slack side of belt, 1.35 N

v = velocity of belt, 7.33 m/s

$$P=\left(23.53-1.35\right)7.33=162.58Nm/s$$

(f)

Torque transmitted by belt

The torque in the driven pulley shaft is calculated from Equation 15 [33]

$$T=\frac{P\times 60}{2\pi N_2},$$

(15)

Where:

T = torque transmitted by the belt, Nm

N₂= speed of driven pulley, 466 rpm

P = power transmitted by belt, 162.58 W

$$T=\frac{162.58\times 60}{2\pi \times 466}=3.33Nm$$

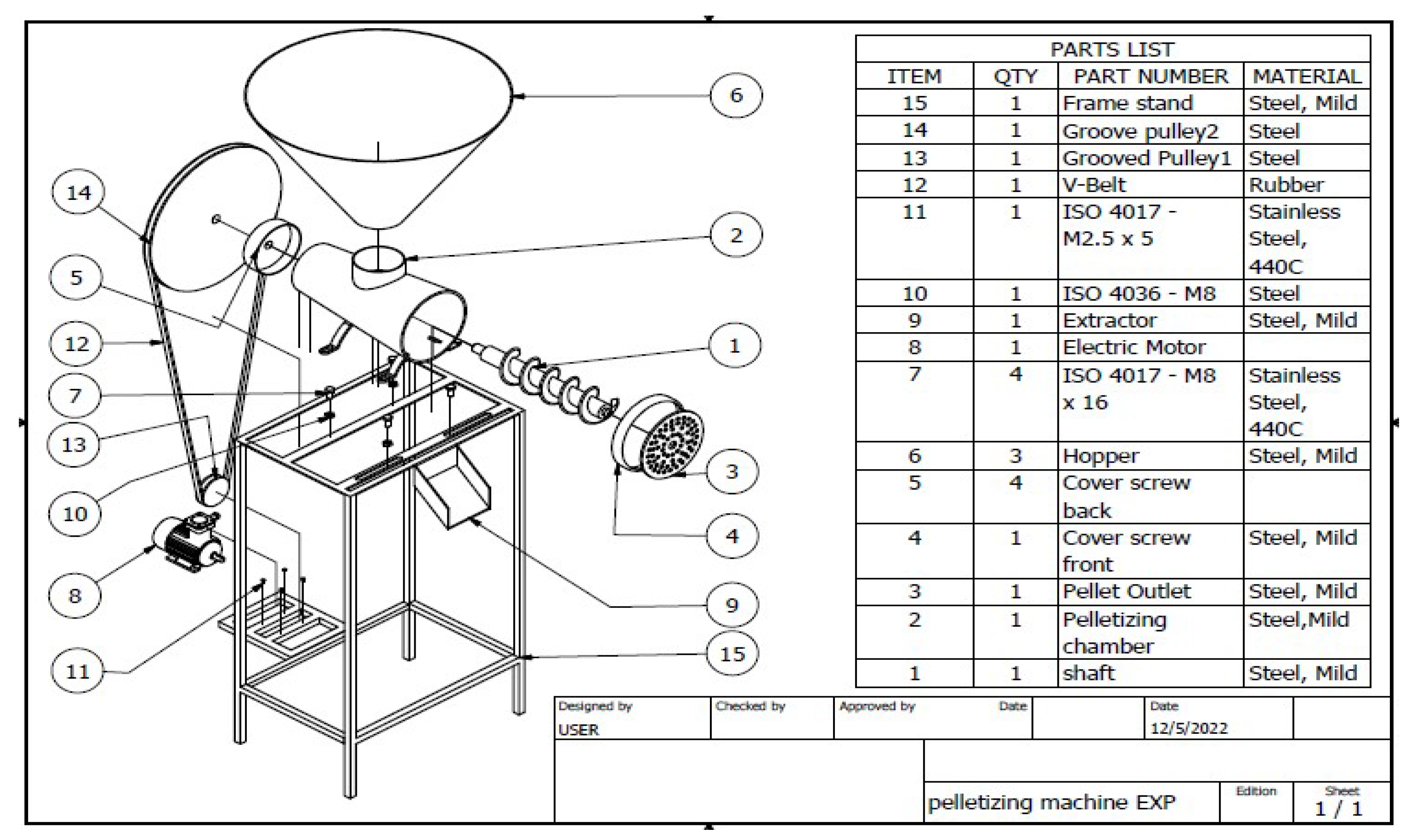

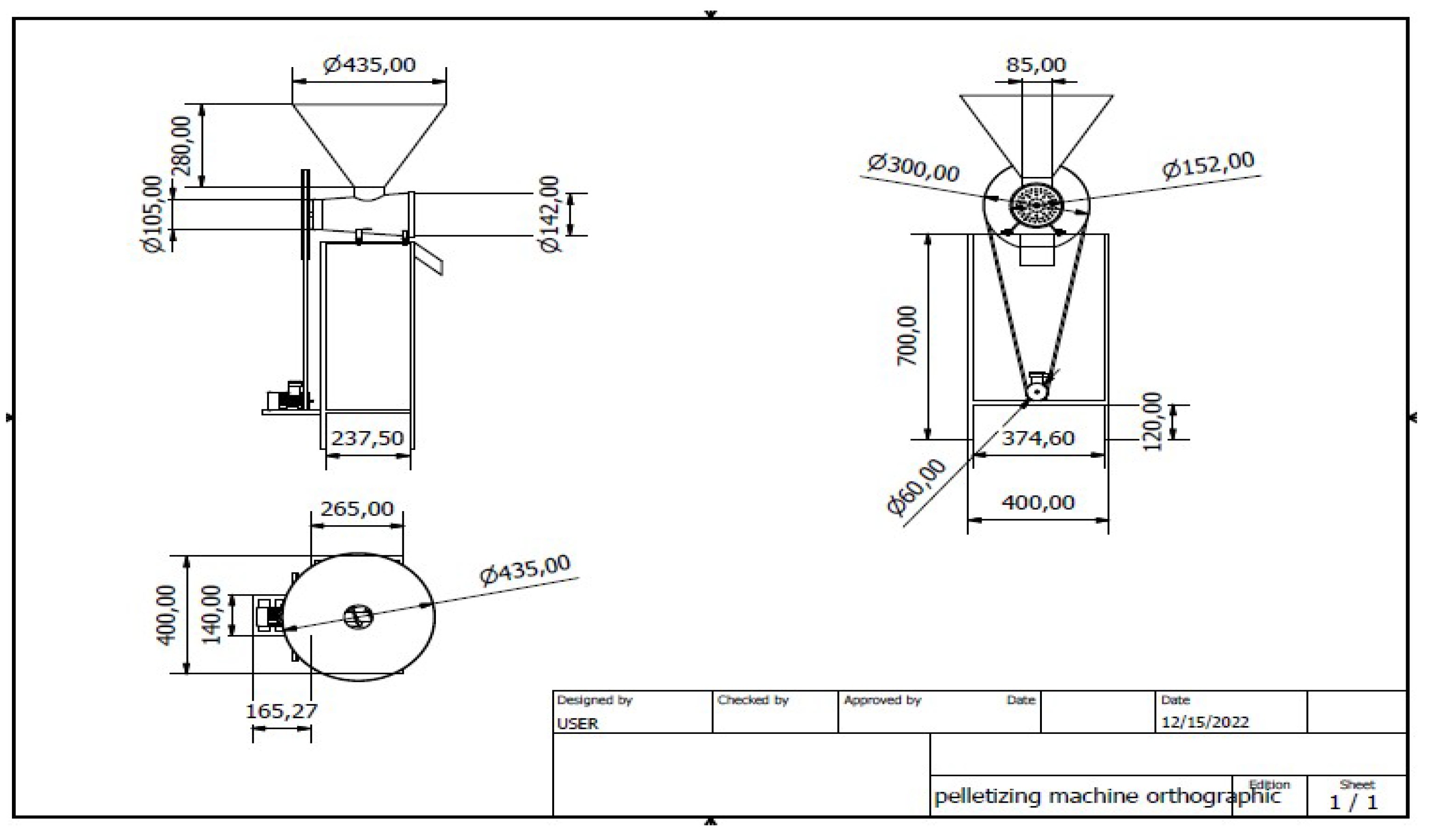

2.3. Fabrication and Assemblage of the Pelleting Machine

The pelleting machine comprises of the frame support, electric motor support, hopper and the pelletizing unit. The frame and electric motor supports were fabricated from 2 mm angle iron. The rectangular frame is 400 x 160 x 700 mm, while the electric motor support of 415 x 200 mm was welded to the back of the frame at a height of 200 mm from the ground such that the centre distance between the motor support and screw shaft of 700 mm can be adjusted for belt tension. The various desired sizes were marked and cut out using a metal hack saw and the component parts welded together using an electric welding machine and electrode. The hopper of the machine was fabricated from steel plate of 1 mm thickness. The shape of the hopper was marked out in the form of a trapezium and its two-ends folded and welded together to form the described shape of a truncated cone frustum. After the fabrication, the pelleting unit was mounted to the top of the frame and bolted with the use of four (4) size 13 bolts and the hopper was bolted with three (3) size 12 bolts to the opening of the pelleting unit compression chamber, while the electric motor was also bolted to the motor support using four (4) size 12 bolts. The frame was scrubbed and painted with green paint to avoid rusting. The belt size needed as calculated was procured and fitted to the machine. Figure 1 and Figure 2 show the first angle orthographic projection and the exploded view, respectively of the fabricated pelleting machine. The bill of engineering measurement and evaluation detailing the various parts, their price and the cost of fabrication of the machine is presented in Table 1.

2.4. Experimental Procedure

2.4.1. Feedstock Collection and Preparation

a.

Corncob

After shelling, corncobs were collected from a private farm in Ogbomoso, Oyo State, Southwest Nigeria. The collected corncobs were crushed using hammer mill and sieved using 3 mm mesh size sieve. The materials that passed through the sieve were retained for the experiment and larger particle sizes were discarded.

b.

Preparation of Binder (cassava starch)

Raw cassava starch was purchased from a local starch processor. A smooth paste was made with 1 g of starch by mixing it with 5 ml of distilled water. Thereafter, 100 ml of boiling water poured into the starch paste and stirred until a thick starch gel was formed. This was cooled to room temperature before being blended with the milled corn cobs.

c.

Mixing of corncobs with binder (Feedstock mixture)

The European standard EN 14961-2 [34] allows a maximum content of 2% binder for woody pellets. For non-woody pellets, EN 14961-6 [35] specifies that there is no limitation to binder content. In this study, the quantities of binder used were in the ratio 0.0, 2.5 and 5.0 wt% of binder to corncobs. The 0.0 wt% served as control and the 2.5 and 5.0 wt% binder were mixed manually with the feedstock materials until a consistent mixture was obtained.

2.4.2. Performance Evaluation Procedure

The modified pelleting machine was evaluated for its efficiency and throughput capacity using the corncob as feedstock and cassava starch as binder. For the pelleting operations, the machine was first connected to a power source and started. Then known weights of the feedstock mixture was fed through the hopper of the machine and the machine allowed to run until the prepared products (pellets) stops flowing out through the collecting point of the machine. The time required for each pelleting operation was taken using a stopwatch and recorded.

The weight (kg) of material feed in to the machine is regarded as the input quantity and the weight of pellets at the collection point is the quantity of pelletized material. Time taken for pelletization is the time recorded during the pelleting operation (h).

(a)

Machine efficiency

Machine efficiency is expressed as the ratio of percentage of weight of pellets collected to the weight of feedstock feed into the machine. It is expressed mathematically in Equation 16 [36].

$$Efficiency,\mathrm{\%}=\frac{quantity pelleted\left(kg\right)}{input quantity\left(kg\right)}\times 100\mathrm{\%}$$

(16)

(b).

Machine throughput (MT)

This is expressed as the ratio of weight of material input to the time take for pelleting. It is expressed mathematically in Equation 17 [36].

$$MT(kg/h)=\frac{inputquantity\left(kg\right)}{time take for pelletizing\left(h\right)}$$

(17)

2.4.3. Evaluation of Pellets Properties

The pellets produced were evaluated for pellet length and bulk density using the methods of Prulovic et al. [37] and ASTM E873-82 [38] Standard;

• The length of pellets were measured using the method of Prulovic et al. [37]. Ten pellets were randomly selected from each experimental sample. The length (L) of each pellet was measured using a digital Vernier caliper and the average length was calculated as the mean of the lengths of the selected pellets.
• The bulk density of pellets were determined according to ASTM E873-82 [31] standard method. Sample weight of pellets was packed in a measuring cylinder. The weight of the sample (g) was divided by the volume (cm³) of the measuring cylinder. The bulk density was measured in triplicate and the average value recorded. The bulk density was calculated from the relationship in Equation 18 [39].

$$B_D=\frac{W_1-W_0}{V}$$

(18)

Where:

B_D = bulk density, g/cm³

W₁ = mass of the container with sample, g.

W₀ = mass of the container, g.

V = volume occupied by pellet, cm³.

2.5. Experimental Design

The experiment was designed using D-optimal design of Response Surface Methodology of the Minitab version 17 software. Two factors; die hole diameter at three levels 5, 6 and 7 mm and binder quantity at three levels 0, 2.5 and 5 wt%, respectively was used to design the experiment. The experimental layout is shown in Table 2. The results obtained were subjected to One-way analysis of variance test at 95% confidence interval.

3. Results and Discusssion

The summary of the results and grouping information of machine performance and pellets properties using Turkey Method are shown in Table 3. From the table, it is shown that the mean values of machine efficiency, throughput, pellet length and bulk density were not significantly different indicating that die hole diameter does not significantly affect either of the properties considered. On the other hand, binder quantity significantly affects machine efficiency, throughput and pellet length as the means of their values differ significantly. However, the mean values of bulk density do not differ significantly, hence, the effect of binder quantity on bulk density was not statistically significant.

3.1. Effect of Die Hole Diameter on Machine Performance

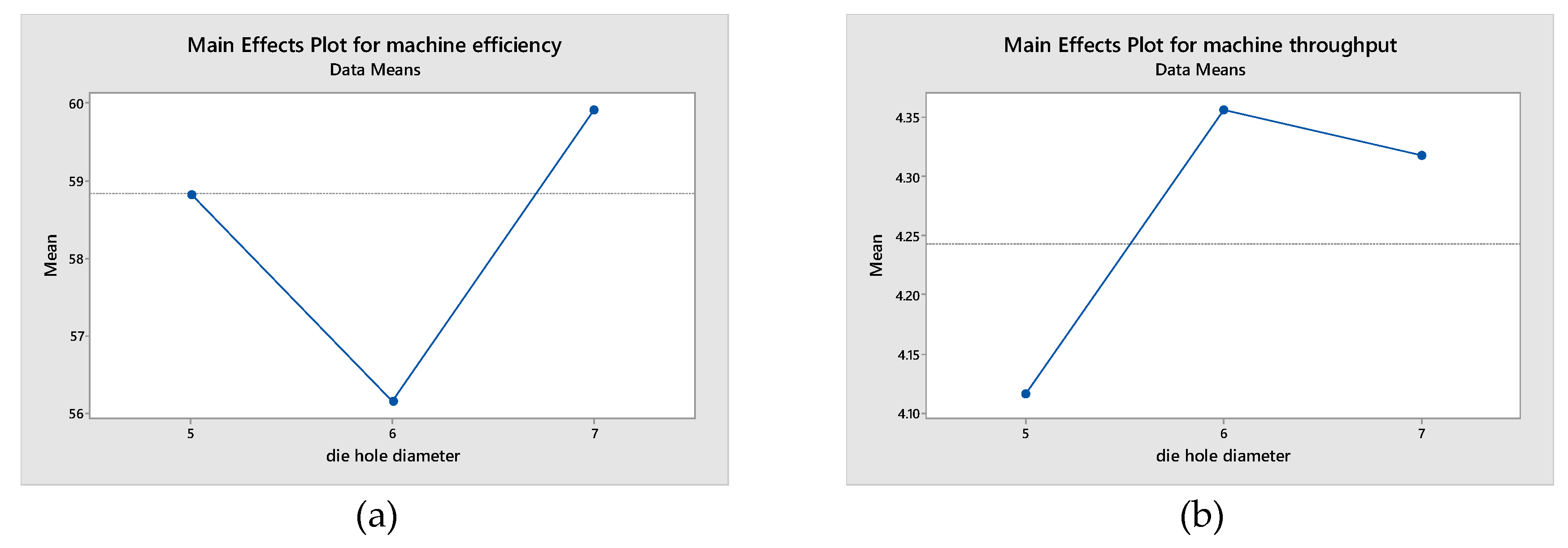

The main effect of die hole diameter on machine efficiency and throughput is shown in Figure 3a,b. Figure 3a shows that machine efficiency decreases with increase in die hole diameter to a minimum of 58.82% and then increase with increase in die hole diameter. The maximum and minimum values of 59.92 and 56.16% for machine efficiency were obtained at 7 and 6 mm die hole diameter, respectively. These values were less compared to the range of 82.09 - 91.50% obtained by Sunmonu et al. [33] for fish feed pelletizer and 91.65% obtained by Abdel Wahab et al. [34] for an aquatic feeds flat-die pelleting machine. The difference in values may be due to the differences in properties of materials used for pelletization. The analysis of variance result in Table 4 shows that die hole diameter has no significant effect on machine efficiency. Figure 3b shows that machine throughput increases with increase in die hole diameter to a maximum and then decrease with increase in die hole diameter. The highest value of 4.36 kg/h was obtained at 6 mm die hole diameter and the lowest value of 4.12kg/h was obtained at 5 mm die hole diameter. These values are comparable to 4.32 and 3.21 kg/h capacity obtained by Orisaleye et al. [35] for feed pelleting machine and lower to 12.80 kg/h recorded by Birania et al. [36] for biomass pellet machine for paddy straw. Similarly, die hole diameter has no significant effect on machine throughput (Table 4).

3.2. Effect of Die Hole Diameter on Pellet Properties

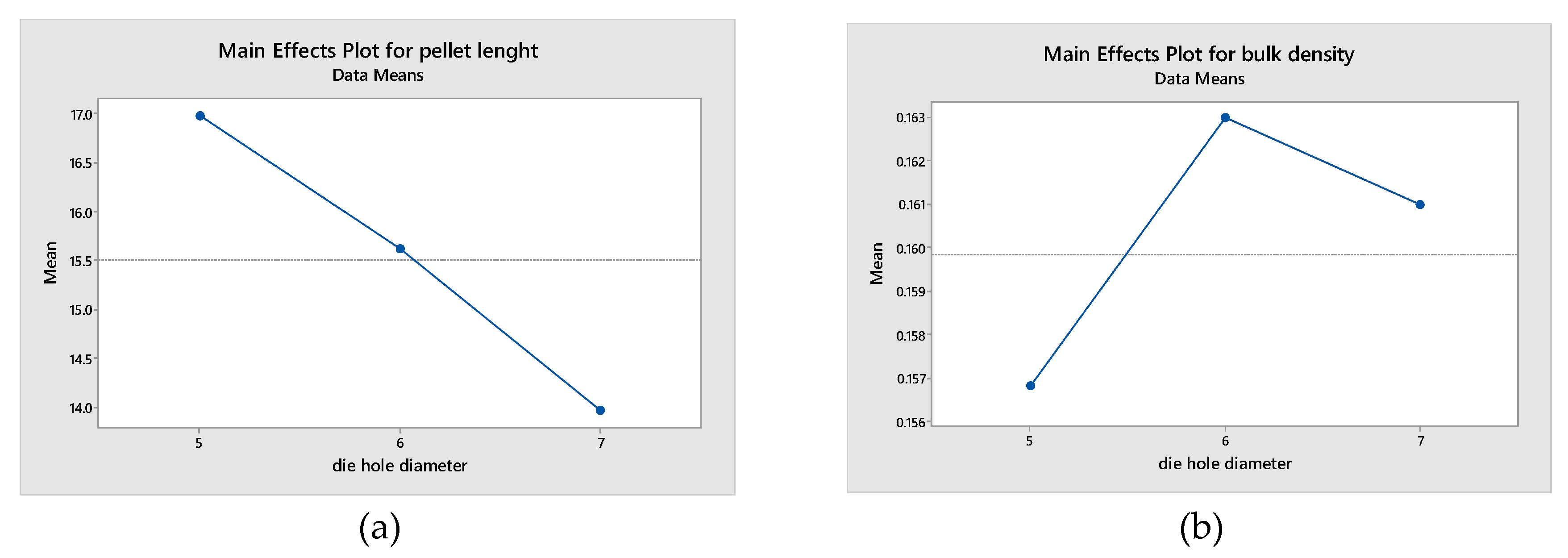

Figure 4a,b showed the effect of die hole diameter on length and bulk density of pellets. Figure 4a shows that pellet length decreases with increasing die hole diameter. The maximum and minimum values of 16.98 and 13.97 mm were obtained at 5 and 7 mm die hole diameters, respectively. The values obtained were in the range of 3 < L ≤ 40 mm (where L is length of pellet, mm) stipulated in the ISO 17829 [37] testing standard for solid biofuels and were close to the range of 13.25 - 14.00 mm obtained by Liu et al. [38] for mixture of bamboo and rice straw pellets lengths. Figure 4b shows that bulk density increases with increase in die hole diameter to a maximum of 0.163 g/cm³ and then decrease with increase in die hole diameter. The values obtained were lower compared to the range of 0.6 – 0.75 g/cm³stipulated by ISO 17225-3 [39] standard for solid biofuels and were also lower than range of 0.30 - 0.9 g/cm³ obtained by Ighodalo et al. [40] for fish feed pellets using a screw type pelletizer. The lower value of bulk density obtained for the pellets may be due to differences in physical properties and fibre orientation of corncob. Table 4 shows that die hole diameter has no significant effect on both length and bulk density of pellets.

3.3. Effect of Binder Quantity on Machine Performance

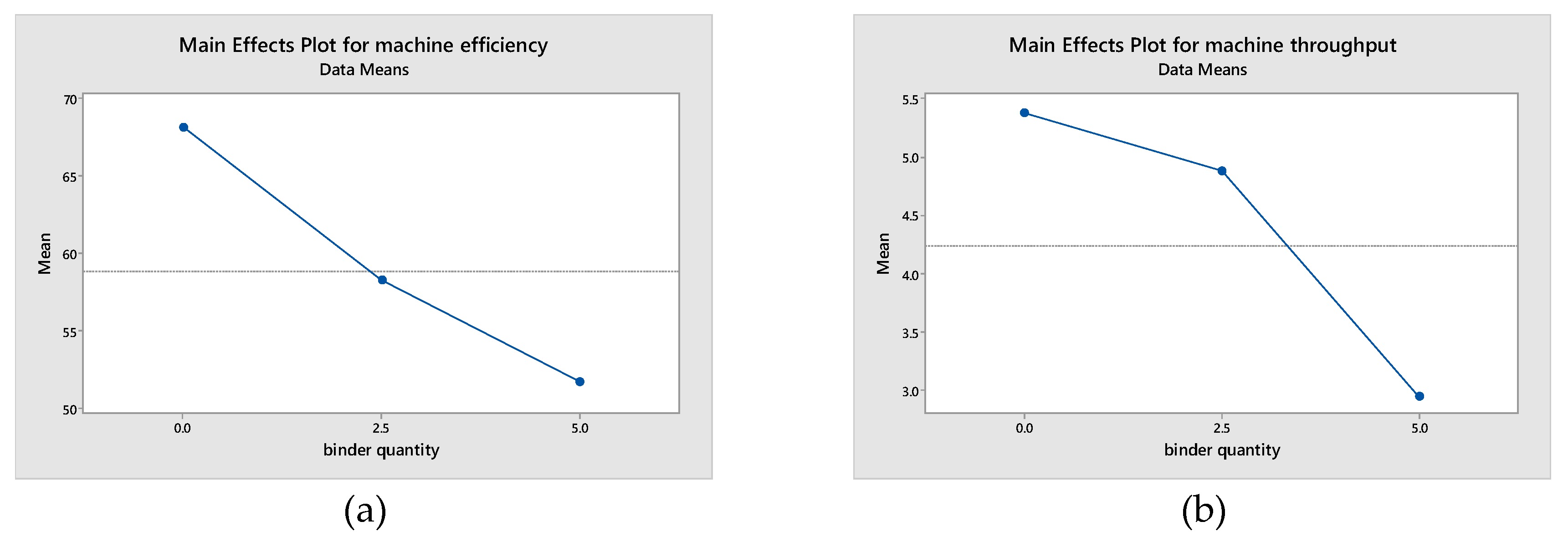

The main effect of binder quantity on machine efficiency and throughput is depicted by the graph in Figure 5a,b, respectively. Figure 5a shows that machine efficiency decreases with increasing binder quantity. The maximum and minimum values of 68.16 and 51.73% efficiency were obtained at 0.0 and 5.0 wt% binder quantity. The values obtained were comparable to 63% efficiency obtained by Tashiwa et al. [41] for a motorized fish feed pelletizing machine and lower to 92.25% obtained by Ikubanni et al. [42] for a screw pelletizer. Figure 5b shows that machine throughput decreases with increasing binder quantity. The maximum and minimum values of 5.39 and 2.95 kg/h throughput were obtained at 0.0 and 5.0 wt% binder quantity, respectively. The values obtained were comparable to 5 kg/h obtained by Olugboji et al. [43] for a poultry feed pelleting machine. The declining values of machine efficiency and throughput might be due to the increase in binder quantity which might cause reduction in frictional forces between the particles and the wall of the compression chamber. From the analysis of variance result in Table 4, it is shown that binder quantity has significant effect on both efficiency and throughput of the pelletizing machine.

3.4. Effect of Binder Quantity on Pellet Properties

Figure 6a,b showed the main effect of binder quantity on length and bulk density of pellets, respectively. Figure 6a shows that pellet length increases with increasing binder quantity. The maximum value of 17.32 mm was obtained at 5.0 wt% and the minimum value of 13.60 was obtained at 0.0 wt% binder quantity. The values obtained were in the range of 16.63-27.83 mm obtained by Carone et al. [12] for pruning residues of Olea europaea L. pellets using single pelletizer unit. Figure 6b shows that bulk density decreases with increasing binder quantity to a minimum and then increase slightly with increase in binder quantity. The maximum and minimum values of 0.161 and 0.158 g/cm³ were obtained at 0.0 and 2.5 wt% binder quantity, respectively. The values obtained were lower compared to the range of 0.30-0.9 g/cm³ obtained by Ighodalo et al. [40] for feed pellets using a screw pelletizer. The lower values of bulk density are due to differences in the physicochemical composition of the feedstocks. It is shown in Table 4 that binder quantity has significant effect on pellet length of corncob pellets.

5. Conclusions

A feed pelleting machine has been modified for the production of fuel pellets from biomass. The machine is found to have an average performance of 58.83% efficiency and 4.24 kg/h throughput. Machine efficiency and throughput were found to decrease with increasing binder quantity. Pellet length decreases with increasing die hole diameter and increases with increasing binder quantity. Die hole diameter significantly affects pellet length. Binder quantity significantly affect machine efficiency, throughput and pellet length. The modified machine will aid in the conversion of biomass into energetically usable pellets.
