Skin Health Benefits and Microbial Consortium of Stevia Fermented with Barley Nuruk

1. Introduction

Fermented foods have a long history and have been developed in various ways around the world, but Korean fermentation is unique in that it is a natural fermentation using complex bacteria. The typical starter for spontaneous fermentation is nuruk, which involves complex microorganisms such as bacteria, yeast, and fungi [1]. The first time nuruk (Japanese: koji, Chinese: Jiuqu) appears in historical records is in the ‘Offices of Summer and Minister of War’ chapter of the ‘Rites of Zhou’ compiled by the Chinese Zhou dynasty in the 2nd century BC. Here, it is recorded that thinly sliced meat was dried in the sun, mixed with salt and nuruk, and aged in jars for 100 days to produce a liquor [2,3,4]. The nuruk used was made from sorghum (millet). The discovery of this nuruk was a monumental event in East Asian food culture, as this fermentation technique became the cornerstone of later fermented food cultures.

Even today, fermented foods such as makgeolli, vinegar, ganjang (soy sauce), soju, and sake are made using nuruk, a complex of microorganisms, as a starter. The reason for using nuruk as a fermentation starter is to produce amylase, a saccharification enzyme secreted by the microbial complex. There are many forms of nuruk, but in the case of makgeolli, a traditional Korean alcoholic beverage, it is usually made from ground wheat and rice [5,6]. It is when they are properly kneaded and agglomerated into a disc-shaped lump, which is then suspended in natural air, that the microorganisms that produce starch-degrading enzymes are cultivated. Since there are countless spores of microorganisms floating in the air, the temperature and humidity can be controlled to selectively cultivate the dominant species and create a stable nuruk [7,8]. As a volcanic island with little fertile farmland and limited access to the mainland, Jeju Island had to rely on food produced on the island itself, so its fermentation culture is quite different from that of the mainland. As a prime example of this, the nuruk is made from barley grown on the island, as opposed to the rice and wheat produced on the mainland [9,10].

Next-generation sequencing (NGS) generates large numbers of sequences at an unprecedented rate. Amplicon analysis is commonly used to study the microbiome and has been used in large-scale projects, including the Human Microbiome Project [11,12]. The 16S rRNA gene, which is used to analyze these microbial communities, is highly conserved among bacteria and is commonly used to distinguish bacteria at the taxonomic level, while internal transcribed spacers (ITSs) in nuclear ribosomal DNA are commonly used in fungal studies [13,14]. Advances in NGS technology are enabling researchers to study and understand the microbial world from a broader and deeper perspective, and indeed, many studies have applied NGS technology to examine the microbiomes of fermented foods such as cheese, kimchi, and sausages. Even now, NGS technology is advancing at a rapid pace, continually improving in terms of quality and cost, and is having a major impact on a wide range of disciplines, including food microbiology [15,16,17,18].

Stevia rebaudiana, commonly known as stevia, is a plant native to South America and is known for containing natural sweetening compounds called steviol glycosides; stevioside and rebaudioside A are the most abundant, and these glycosides are much sweeter than sucrose but contain no calories, making stevia an attractive natural sweetener for people who are trying to reduce their calorie intake or manage their blood sugar levels. They are often used as a natural sweetener to replace sugar in the manufacturing of a variety of foods and beverages. Steviol is the parent of the diterpene compounds found in the leaves of Stevia rebaudiana, acting as a precursor to a variety of steviol glycosides that are responsible for the plant’s intense sweetness, including stevioside, rebaudioside A, rebaudioside O, and dulcoside A [19,20,21].

This study aimed to evaluate the antioxidant, antiobesity, and anti-inflammatory properties of stevia leaves, which are famous as a natural sweetener, by fermenting them using barley yeast, a traditional fermentation starter on Jeju Island, and to identify changes in microbial communities as well as metabolites during the fermentation process. Additionally, for application on human skin, the study also conducted a human skin primary irritation test in accordance with the ethical principles of medical research under the Declaration of Helsinki.

2. Materials and Methods

2.1. Materials

The tryptic soy broth (TSB) medium and sucrose used for stevia fermentation were purchased from BD Biosciences (San Jose, CA, USA) and Sigma-Aldrich Co., Ltd. (St. Louis, MO, USA), respectively, and the fermentation starter, barley nuruk, was purchased from Dongmun Traditional Market, Jeju Island, Korea. The 2,2-disphenyl-1-picrylhydrazyl, 2,2-azino-bis(3-ethylbenzothiazoline-6-sulphonic acid) diammonium salt, potassium persulfate, and L-ascorbic acid used in the antioxidant capacity assay were from Sigma-Aldrich Co., Ltd. (St. Louis, MO, USA). The α-glucosidase, sodium phosphate, pNPG, Na₂CO₃, and acarbose used for antiobesity measurements were from Sigma-Aldrich Co, Ltd. (St. Louis, MO, USA). Murine macrophage RAW 264, used for anti-inflammatory capacity experiments, was purchased from the Korean Cell Line Bank (Seoul, Korea); lipopolysaccharide (LPS) from Escherichia coli and modified Griess reagent were purchased from Sigma-Aldrich (St. Louis, MO, USA), 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT); dimethyl sulfoxide (DMSO) was purchased from Biosesang (Seongnam, Gyeonggi-do, Korea); Dulbecco’s Modified Eagle’s Medium (DMEM) and penicillin–streptomycin were purchased from Thermo Fisher Scientific (Waltham, MA, USA); and fetal bovine serum (FBS) was purchased from Merck Millipore (Burlington, MA, USA). All reagents used were of the highest-quality analytical grade. The instruments used in this experiment were an ELISA reader (Epoch, Biotech Instruments, Vermont IL, USA), a freeze dryer (Ilshin, Korea), a microscope (Olympus Co., Ltd., Tokyo, Japan), a rotary vacuum evaporator (EYELA N-1210B, Sunil Eyela Co., Ltd., Sungnam, Korea), a digital reciprocating shaker (Daihan Scientific Co., Ltd., Gangwon, Korea), and a humidified incubator (NB-203XL, N-BIOTEK, Inc., Bucheon, Korea).

2.2. Preparation of Stevia Ferments and Extracts

Fermentation broth and extract were prepared using organically grown stevia leaves from Jeju Cacao Smart Farm as follows: 10 g of barley nuruk and 10 g of stevia ethanol extract were added to 100 mL of TSB medium or sucrose solution and fermented in an incubator at 30 degrees for 1, 3, and 5 days, and 100 mL of acetone was then added to each fermentation broth to prepare a 50% acetone extract, which was extracted for 24 hours at room temperature, concentrated under reduced pressure, and lyophilized.

2.3. Antioxidant Capacity

The antioxidant capacity of the stevia ferment was tested using 1,1, diphenyl-2-picrylhydrazyl (DPPH) and ABTS free radical scavenging assays as follows: DPPH· is itself a very stable free radical and has a purple color. When DPPH· reacts with substances with antioxidant activity, it turns yellow as the radical is scavenged; therefore, the degree of radical scavenging can be measured spectrophotometrically to indirectly assess the antioxidant capacity of the sample. DPPH radical scavenging activity was measured by applying the Munteanu method [22]. Then, 20 μL of the extract of each concentration of stevia ferment was incubated with 180 μL of 0.2 mM DPPH solution for 10 min, and the absorbance was measured at 515 nm. On the other hand, when ABTS⁺, which is blue-green in color, reacts with substances with antioxidant activity, it is decolorized by scavenging radicals, and the degree of radical scavenging can be measured spectrophotometrically to indirectly evaluate the antioxidant capacity of the sample. ABTS radical scavenging activity was measured by applying the method of Re et al. Prior to the antioxidant capacity measurement, an ABTS⁺ solution was prepared by mixing 14 mM ABTS and 4.9 mM potassium persulfate and diluted with 95% EtOH to 0.65-0.70 at 700 nm after 24 h of dark reaction. The antioxidant capacity was measured by adding 180 μL of ABTS⁺ solution to 20 μL of the extract of each concentration of stevia ferment and dark reacting for 15 min and then measuring the absorbance at 700 nm. Ascorbic acid was used as a positive control for DPPH and ABTS radical scavenging activity. IC₅₀ values (concentration of sample required to inhibit 50% of DPPH radicals) were estimated from a regression analysis. Based on these IC50 values, the antioxidant capacity was evaluated.

2.4. Antidiabetic Capacity

The antidiabetic capacity of the stevia ferment was tested using an α-glucosidase inhibition assay as follows: The inhibition of the α-glucosidase enzyme was measured in a 100 mM sodium phosphate buffer, pH of 6.8, by reacting 750 mU/mL α-glucosidase with 100 μL of 1.5 mM pNPG in the absence or presence of stevia ferment at 37°C in a final reaction volume of 200 μL. The reaction in the presence of acarbose was used as a positive control. The reaction was initiated by adding pNPG, and after a reaction time of 10 min, 60 μL of a stop solution, 1 M Na₂CO₃, was added and the released pNPs were determined by measuring the absorbance at 405 nm using a spectrophotometer. For accurate inhibitory activity measurements, background readings were removed by subtracting the absorbance of the α-glucosidase-free mixture. Inhibition assays (using different concentrations of inhibitor) were also used to determine the concentration of stevia ferment that resulted in 50% inhibition (IC₅₀ value) compared to acarbose. All measurements were performed in triplicate.

2.5. Anti-Inflammatory Capacity

The anti-inflammatory activity of the stevia ferment was tested using RAW 264.7 cells, a macrophage line. RAW 264.7 cells were cultured in Dulbecco’s modified Eagle’s minimal essential medium (DMEM) with 1% penicillin/streptomycin, 10% fetal bovine serum (FBS), and 25% F-12 nutrient at 37°C, 5% CO₂ in a humidified chamber, and passaged every 2 days. Cell viability was assessed by a 3-(4,5-dimethylthiazole-2-yl)-2,5-diphenyl-tetrazolium bromide (MTT) assay as follows: RAW 264.7 cells were seeded at 1.5 x 10⁵ cells/mL in 24-well plates and incubated for 24 hours, then treated with stevia ferment in a concentration-wise manner and incubated for 24 hours. After 24 hours of incubation, 400 µL of an MTT solution (0.4 mg/mL) was treated and reacted for 4 hours, and the cytotoxicity was measured. The cell culture supernatant treated with the MTT solution was removed, and the formed non-aqueous formazan precipitate was completely dissolved by adding DMSO, and the absorbance at 570 nm was measured using a microplate reader. The cytotoxicity was determined by comparing the absorbance values with the untreated sample. The inhibition of nitric oxide production was measured by measuring the amount of NO as nitrite or nitrate in the supernatant of the cells. Cell line RAW 264.7 was seeded in 96-well plates at 1×10⁴ cells/well and incubated in an incubator at 37°C, 5% CO₂ for 24 hours. The cultures were then exchanged to a serum-free DMEM medium and treated with lipopolysaccharide (LPS) to induce an inflammatory response. Ultimately, the cultures were treated with LPS (1 μg/mL) and the respective stevia fermentations by concentration and incubated in an incubator at 37°C, 5% CO₂ for 24 h. Then, 100 μL of the cell culture was transferred to a fresh 96-well plate, 100 μL of Griess reagent was added, the reaction was carried out for 10 min at room temperature, and the absorbance was measured at 570 nm using an ELISA reader.

2.6. Qualitative Analysis of the Stevia Ferments

UPLC analysis was performed using a UPLC-Q-TOF MS (Vion, Waters, Milford, MA, USA) and PDA Primaide detector (Waters, USA), with an Acquity UPLC BEH C18 column (2.1 mm × 100 mm, 1.7 μm; Waters). The mobile phase consisted of water containing 0.1% formic acid (v/v, A) and 0.1% acetonitrile (B) with gradient elution: 0–2 min, 90%–75% A; 2–3 min, 75%–65% A; 3–4 min, 65%–50% A; 4–5.5 min, 50%–45% A; 5.5–7.5 min, 50%–45% A; and 7.5–10 min, 45%–35% A. The flow rate was 0.35 mL/min and 1 μL of stevia ferments was injected. The ESI source was operated in negative ionization mode with a capillary voltage of 2.5 kV, and the cone voltage was set to 20 V. The desolvation temperature was set at 400 ◦C. The desolvation gas flow rate was 900 L/h. The full-scan range of MS data acquisition was 50–1500 m/z. LockSpray and data acquisition software was leucine-encephalin (554.2615 Da) and UNIFI version 1.9.2.045 (Waters), respectively.

2.7. Amplification and Sequencing

After the above, 16S rRNA amplicons for sequencing were prepared by using a Herculase II Fusion DNA Polymerase Nextera XT Index Kit V2 for MiSeq System (Illumina, San Diego, CA, USA) as follows. First, DNA was extracted from the stevia ferment, quality control (QC) was performed, and libraries were constructed with the validated samples. The sequencing library was constructed by the random fragmentation of DNA samples followed by the ligation of 5′ and 3′ adapters, and then the adapter-ligated fragments were PCR-amplified and gel-purified. Next, microbial community analysis was performed by sequencing the templates with Illumina SBS technology with distinct clone clusters generated.

2.8. Human Skin Irritation Test

The primary human skin irritation test of six extracts of stevia ferment was conducted in accordance with the Korean Ministry of Food and Drug Safety (MFDS), Personal Care Products Council (PCPC) guidelines, and the standard operating procedure of Dermapro Inc. (SOP). After 24 h of application of 1 mg concentration of the test product prepared with squalane on the back of the test subjects using Van der Bend, the test product was removed and observed after 20 min and 24 h, and the evaluation criteria were evaluated according to PCPC guidelines. The skin reaction results for each test substep were calculated according to the following formula:

$$\mathrm{R}\mathrm{e}\mathrm{s}\mathrm{p}\mathrm{o}\mathrm{n}\mathrm{s}\mathrm{e}=\frac{\sum (Grade\times No.ofResponders)}{4\left(MaximumGrade\right)\times n\left(TotalSubjects\right)}\times 100\times 1/2$$

(1)

2.10. Statistical Analyses

All the experiment results are expressed as the mean ± standard deviation (SD) of at least three independent experiments. Statistical analyses were performed using Student’s t-tests or a one-way ANOVA using IBM SPSS (v. 20, SPSS Inc., Armonk NY, USA). p-values < 0.05 (*), 0.01 (**), or 0.001 (***) were marked as statistically significant.

3. Results and Discussion

3.1. Antioxidant and Antidiabetic Capacity of Stevia Ferments

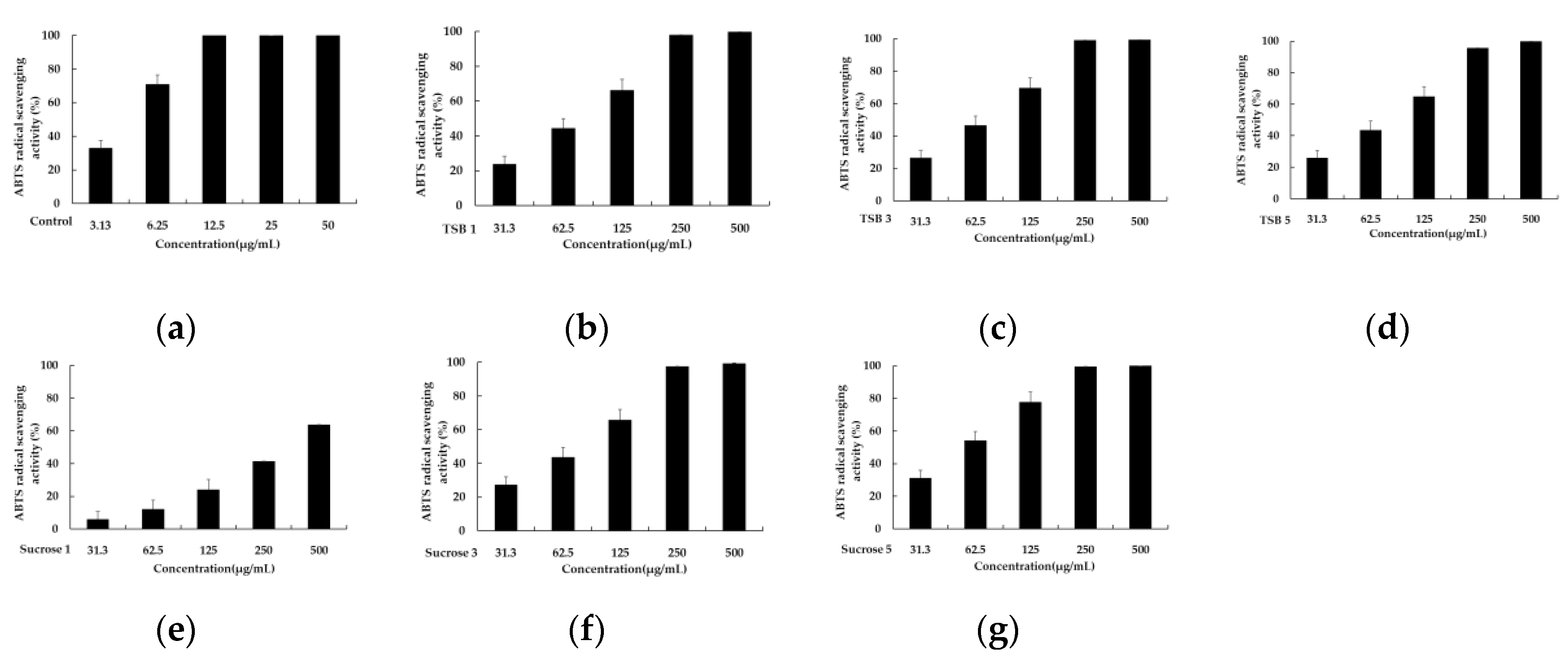

To assess the antioxidant capacity of single substances and complexes, various assays have been developed based on the ability of redox molecules to neutralize free radicals. Among these, ABTS and DPPH assays are widely utilized. These assays employ spectrophotometric measurements, each employing a distinct mechanism with which to evaluate antioxidant activity. The DPPH assay relies on antioxidants donating hydrogen atoms to scavenge DPPH radicals, leading to a color change from purple to yellow. Conversely, the ABTS assay measures antioxidant capacity by assessing the reduction of the ABTS radical cation by antioxidants, resulting in a color change from cyan to colorless. Both methods are popular due to their simplicity, speed, and sensitivity in assessing the antioxidant properties of substances. Differences in the wavelengths used to monitor radical depletion, such as 515 nm for DPPH and 700 nm for ABTS, contribute to variations in antioxidant activity assessment [22,23]; therefore, this study aimed to evaluate the antioxidant capacity of stevia leaf extracts fermented with barley nuruk using TSB and sucrose through ABTS and DPPH assays. Six 50% acetone extracts of stevia ferments obtained after incubation for 1, 3, and 5 days were tested at concentrations of 500, 250, 125, 62.5, and 31.25 μg/mL. As depicted in Figure 1, fermentations with sucrose solution exhibited relatively superior antioxidant capacity compared to those with TSB, with respective IC₅₀ values of 914.44 ± 91.51 μg/mL, 256.56 ± 23.67 μg/mL, and 174.38 ± 16.11 μg/mL for DPPH scavenging. Additionally, the DPPH radical scavenging ability improved as the fermentation progressed. Consistent with the DPPH scavenging results, the comparison of antioxidant capacity, using an ABTS assay, also demonstrated the superiority of stevia fermentation with sucrose. The corresponding IC₅₀ values were 340.02 ± 46.33 μg/mL, 80.88 ± 6.49 μg/mL, and 57.98 ± 6.93 μg/mL, respectively, with ABTS radical scavenging capacity increasing as fermentation progressed (Figure 2).

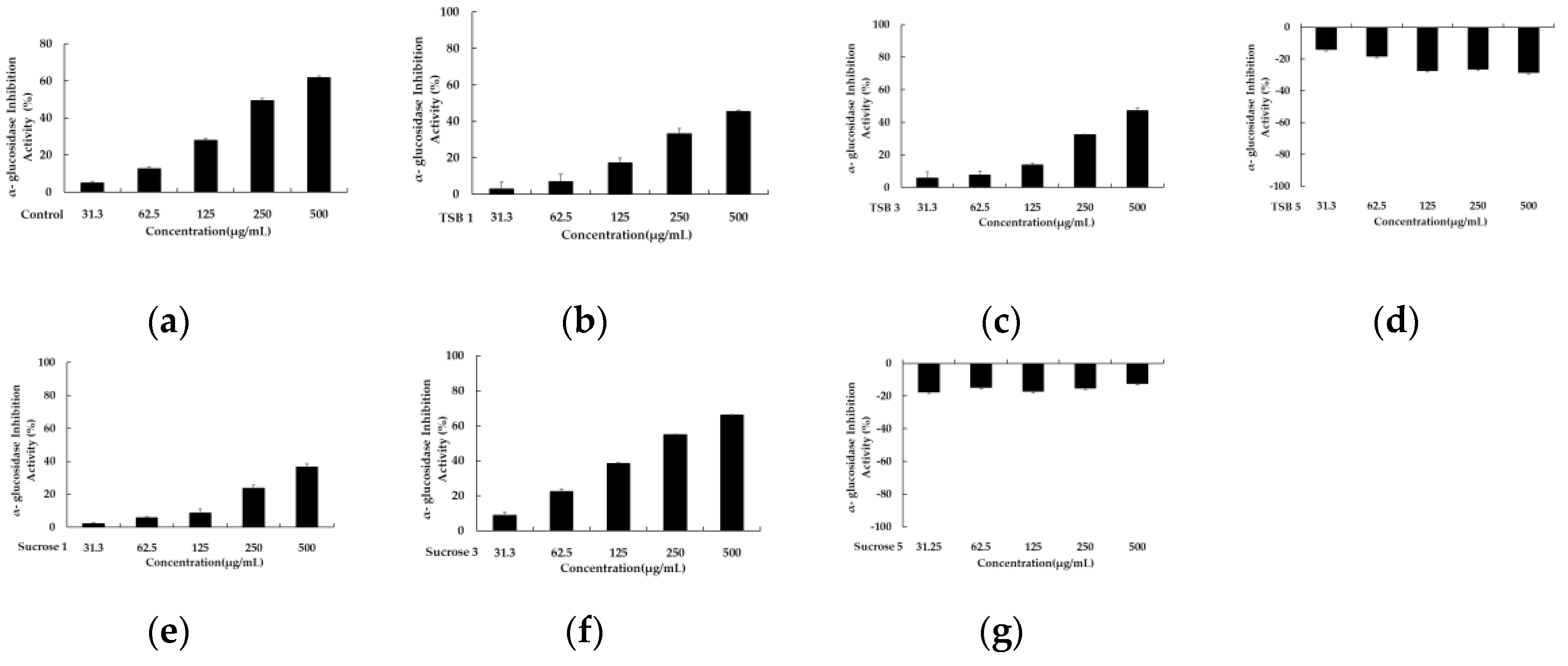

The diabetic population has witnessed a significant increase over the past two decades, establishing it as a global epidemic. One therapeutic approach to managing diabetes involves the development of α-glucosidase inhibitor drugs. These inhibitors work by impeding the hydrolysis of disaccharides into glucose monomers through reversible and competitive inhibition, thereby curtailing glucose absorption and mitigating postprandial hyperglycemic effects. Consequently, α-glucosidase inhibitors have emerged as a promising strategy for treating type 2 diabetes [24,25,26]; however, synthetic α-glucosidase inhibitors often trigger gastrointestinal side effects, such as flatulence, abdominal pain, and diarrhea. Consequently, discovering effective and safe alternative α-glucosidase inhibitors devoid of side effects poses an urgent challenge. On another front, since diabetes contributes to complications stemming from free radical reactions, utilizing antioxidants in diabetes treatment can forestall diabetic complications [27,28,29]. Hence, we assessed the α-glucosidase inhibitory activity of stevia ferments with confirmed antioxidant capacity. As illustrated in Figure 3, among the six stevia ferments, significant α-glucosidase inhibitory activity was only observed in the sample from the third day with sucrose. The IC₅₀ value of the third-day sample with sucrose was 212.81 ± 2.15 μg/mL.

3.2. Anti-Inflammatory Capacity of Stevia Ferments

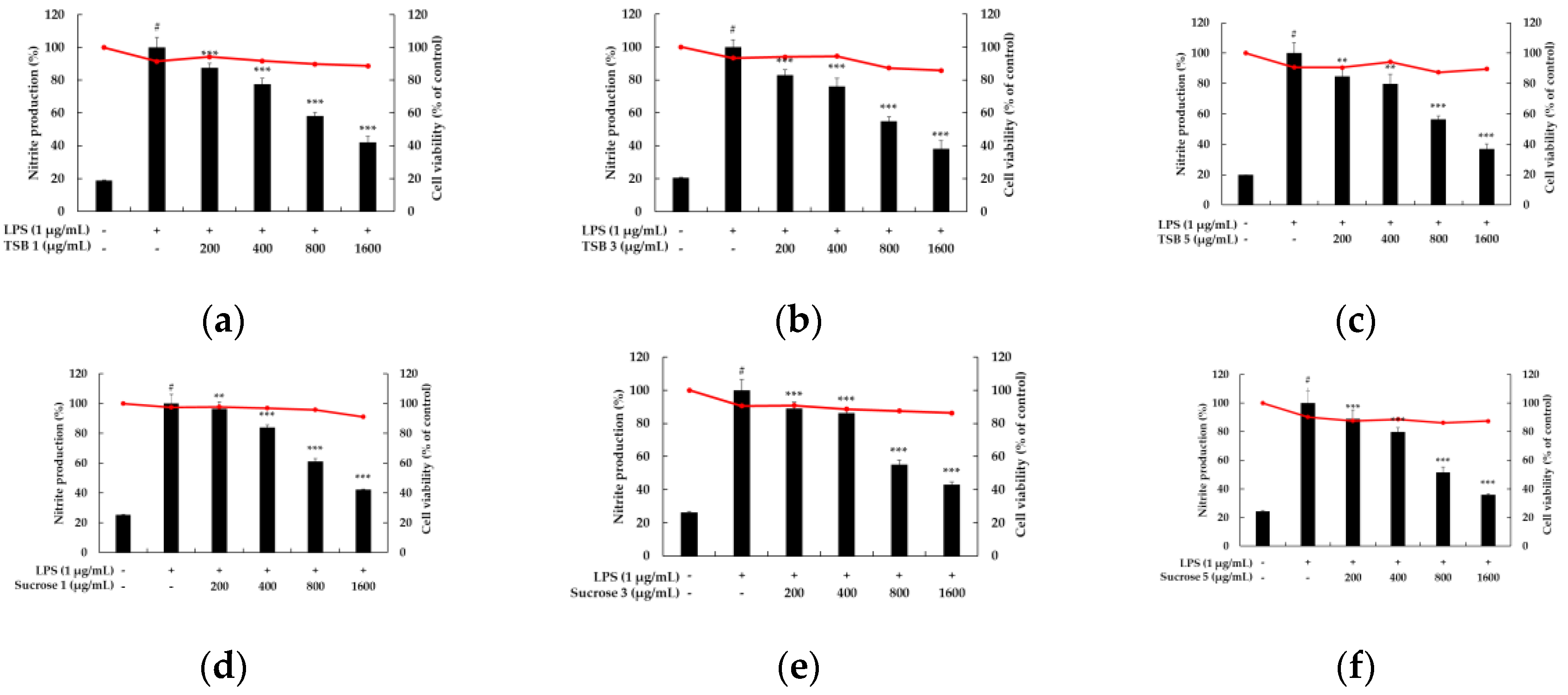

One of the most commonly utilized model systems for assessing the safety and efficacy of anti-inflammatory drugs is the RAW264.7 cell system, a murine-derived macrophage cell line that exhibits a robust inflammatory response upon exposure to inflammatory stimuli like LPS. The popularity of the RAW264.7 model system can be attributed to its commercial availability, ease of culture, and scalability for large-scale screening. Macrophages engaged in the inflammatory response are activated by various stimuli or cytokines secreted by immune cells, leading to the production of proinflammatory cytokines such as NO and prostaglandin E₂ (PGE₂). These cytokines trigger inflammatory responses such as pain, swelling, dysfunction, redness, and fever, and stimulate the migration of immune cells to the site of inflammation. Notably, NO, a highly reactive substance, is synthesized from L-arginine by nitric oxide synthase (NOS), which exists in constitutive and inducible forms (iNOS). Particularly, iNOS expression has been observed in various cells, including hepatocytes, smooth muscle cells, bone marrow cells, monocytes, and macrophages, producing substantial amounts of NO upon stimulation by external factors or inflammatory cytokines [30,31,32,33,34,35,36]. Hence, we employed the RAW264.7 cell system to investigate whether stevia ferments inhibit NO production, which effectively regulates the expression of proinflammatory mediators. Initially, we assessed the cytotoxic effects of six stevia ferments using the MTT assay. For stevia ferment concentrations ranging from 200 to 1600 µg/mL, cell viability after 24 h of treatment with 1 µg/mL LPS remained above 80%, indicating no significant cytotoxicity even at 1600 µg/mL; therefore, subsequent experiments were conducted with stevia ferment concentrations up to 1600 µg/mL, and the impact of stevia ferment on NO production in LPS-induced RAW 264.7 cells was confirmed by using a Griess reagent assay. As depicted in Figure 4, LPS treatment significantly elevated NO levels by up to four-fold. Conversely, treatment with the six different stevia ferments led to a concentration-dependent inhibition of NO production in LPS-stimulated RAW 264.7 cells. Collectively, these findings suggest that stevia ferments possess anti-inflammatory effects and hold potential applications in related diseases.

3.3. Qualitative Analysis of the Stevia Ferments

The stevia ferment was extracted with 50% acetone because acetone is a polar, nonprotonated solvent and can dissolve a wide range of organic compounds, including polar and nonpolar substances, and we decided to further investigate the composition of the stevia ferment extract. An analysis by UPLC-QTOF-MS revealed 23 substances related to terpenoids, flavonoids, and polyphenols. Detailed information, including relative retention time (min), react mass (Da), observed m/z, and MS fragments of chemical substances in the stevia ferment extract, is listed in Table 2. The base peak chromatogram in negative ion mode was displayed in Figure 3. The results indicated the presence of five flavonoids, four phenolic acids, four fatty acids, and ten terpenoids. As expected, from the fermentation with TSB and sucrose, the indicator components of stevia, rubusoside, steviolbioside, and rebaudioside derivatives, as well as dulcoside A and phlomisoside II, eluted and were identified in the chromatogram. In particular, chlorogenic acid, a phenolic compound, eluted prematurely in the chromatograms of stevia fermentations with TSB and sucrose with a reaction mass of 353.0873 Da and 353.0870 Da, respectively, at the same relative retention time of 2.81 min (Figure 4, Table 2). Interestingly, as shown in the figure, fatty acid compounds eluted only from the stevia fermentation with TSB, with 15,16-dihode, 10-ketostearic acid, methyl palmoxirate, and hydroxystearic acid eluting at relative retention times of 5.91 to 7.66 min in the chromatogram. Finally, a tetrahydrocortisol derivative, tetrahydro-11-deoxy cortisol 3-O-β-D-glucuronide, eluted from stevia fermentations using sucrose as a carbon source, but few bioactive studies of this compound have been reported. Tetrahydrocortisol, also known as urocortisol, is a neurosteroid and an inactive metabolite of cortisol, acting as a negative allosteric modulator of the GABAA receptor, similarly to pregnenolone sulfate [37].

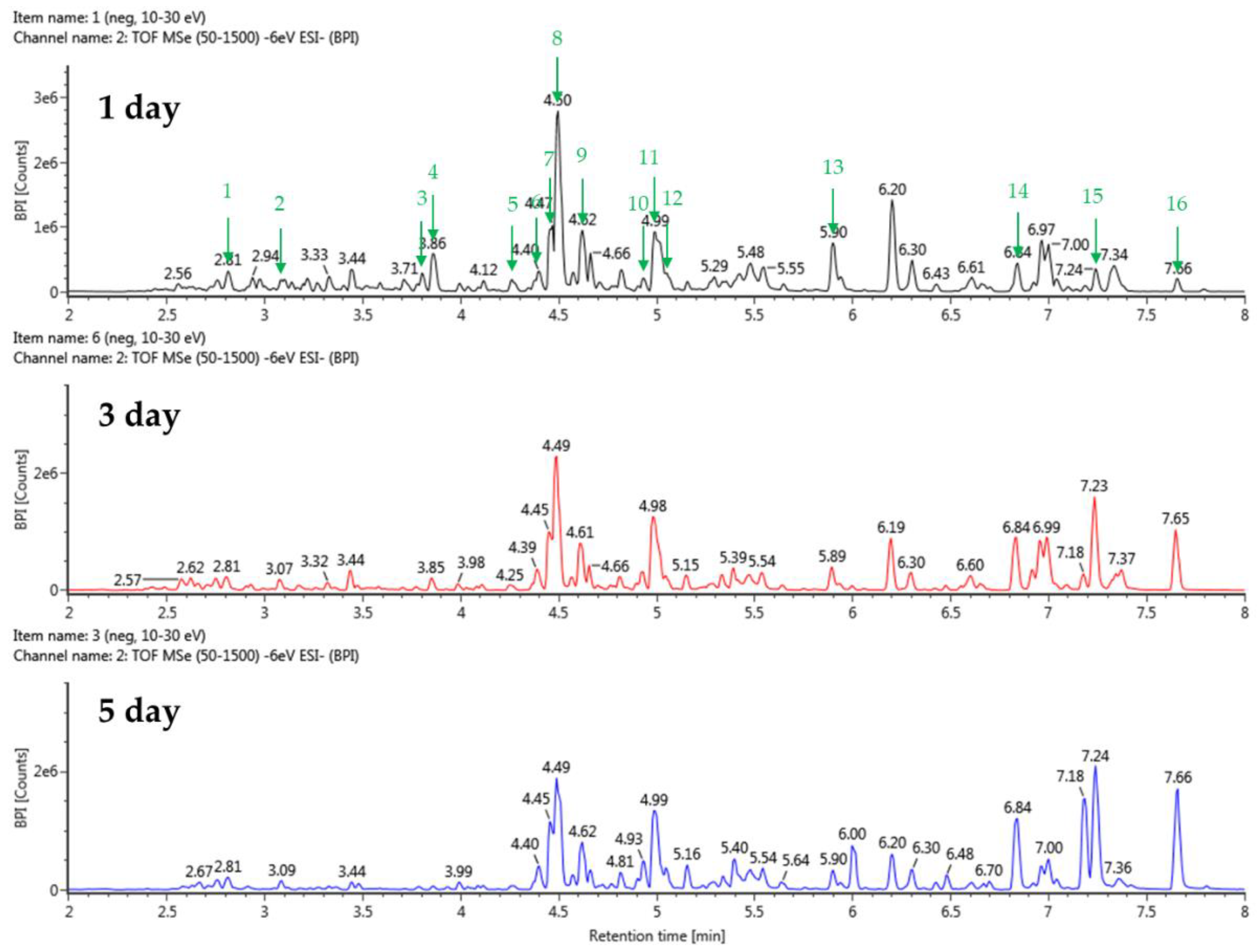

Figure 5. Total ion chromatograms in negative ion mode (from UPLC-Q-TOF-MS) of stevia ferments using barley nuruk and TSB medium.

Figure 5. Total ion chromatograms in negative ion mode (from UPLC-Q-TOF-MS) of stevia ferments using barley nuruk and TSB medium.

Table 1. Identification of major metabolites in stevia ferments using TSB media via UPLC-QTOF-MS.

No.	RT1 (min)	Proposed Compound	Exact Mass (M-H)	MS Fragments
1	2.81	Chlorogenic acid	353.0873	191, 135
2	3.09	Patuletin-3-O-(4″-O-acetyl-α-L-rhamnopyranosyl)-7-O-(2‴-O-acetyl-α-L-rhamnopyranoside)	707.1832	191, 173, 93
3	3.81	Quercitrin	447.0925	300, 151
4	3.87	Cynarine	515.1188	353, 173
5	4.28	3,4,5-Tricaffeoylquinic acid	677.1512	515, 353
6	4.41	Quercetin	301.0346	151
7	4.47	Rebaudioside A	965.4258	623
8	4.50	Rubusoside/steviolbioside	641.3182	479, 317
9	4.63	Rebaudioside C	949.4308	713
10	4.94	Stevioside	803.3720	623
11	5.00	Rubusoside/steviolbioside	641.3180	179, 317
12	5.06	Dulcoside A	787.3773	625
13	5.91	15,16-Dihode/9(S)-Hpode	311.2220	293, 223, 87
14	6.84	9-Hode	295.2271	277, 185
15	7.25	10-Ketostearic acid/methyl palmoxirate	297.2430	279, 185, 167
16	7.66	Hydroxystearic acid	299.2586	281, 253, 141

¹ RT: retention time.

Table 1. Identification of major metabolites in stevia ferments using TSB media via UPLC-QTOF-MS.

No.	RT1 (min)	Proposed Compound	Exact Mass (M-H)	MS Fragments
1	2.81	Chlorogenic acid	353.0873	191, 135
2	3.09	Patuletin-3-O-(4″-O-acetyl-α-L-rhamnopyranosyl)-7-O-(2‴-O-acetyl-α-L-rhamnopyranoside)	707.1832	191, 173, 93
3	3.81	Quercitrin	447.0925	300, 151
4	3.87	Cynarine	515.1188	353, 173
5	4.28	3,4,5-Tricaffeoylquinic acid	677.1512	515, 353
6	4.41	Quercetin	301.0346	151
7	4.47	Rebaudioside A	965.4258	623
8	4.50	Rubusoside/steviolbioside	641.3182	479, 317
9	4.63	Rebaudioside C	949.4308	713
10	4.94	Stevioside	803.3720	623
11	5.00	Rubusoside/steviolbioside	641.3180	179, 317
12	5.06	Dulcoside A	787.3773	625
13	5.91	15,16-Dihode/9(S)-Hpode	311.2220	293, 223, 87
14	6.84	9-Hode	295.2271	277, 185
15	7.25	10-Ketostearic acid/methyl palmoxirate	297.2430	279, 185, 167
16	7.66	Hydroxystearic acid	299.2586	281, 253, 141

¹ RT: retention time.

Figure 6. Total ion chromatograms in negative ion mode (from UPLC-Q-TOF-MS) of stevia ferments using barley nuruk and sucrose.

Figure 6. Total ion chromatograms in negative ion mode (from UPLC-Q-TOF-MS) of stevia ferments using barley nuruk and sucrose.

Table 2. Identification of major metabolites in stevia ferments using sucrose by UPLC-QTOF-MS.

No.	RT1 (min)	Proposed Compound	Exact Mass (M-H)	MS Fragments
1	2.81	Chlorogenic acid	353.0870	191, 135
2	3.09	Patuletin-3-O-(4″-O-acetyl-α-L-rhamnopyranosyl)-7-O-(2‴-O-acetyl-α-L-rhamnopyranoside)	707.1835	191, 173, 93
3	3.78	Cynarine	515.1184	353, 173
4	3.99	Rebaudioside E/rebaudioside A	965.4249	845, 641
5	4.04	Rebaudioside I/rebaudioside D	1127.4772	1111, 803
6	4.27	3,4,5-Tricaffeoylquinic acid	677.1516	515, 353
7	4.38	Luteolin/kaempferol	285.0399	133
8	4.40	Quercetin	301.0346	151
9	4.47	Rebaudioside E/rebaudioside A	965.4256	623
10	4.50	Rubusoside/steviolbioside	641.3181	611, 317
11	4.58	Rebaudioside F	935.4149	611
12	4.63	Dulcoside A	787.3771	625
13	4.67	Phlomisoside II	625.3226	661, 449
14	4.71	Rebaudioside B/rebaudioside G/rubusoside	803.3726	641, 611, 317
15	4.94	Rebaudioside B/rebaudioside G/rubusoside	803.3724	641, 611, 317
16	5.00	Rubusoside/steviolbioside	641.3175	479, 317
17	5.03	(-)-Pinellic acid	329.2329	229, 211, 171, 139
18	5.06	Chrysosplenol D/jaceidin	359.0772	344, 329
19	5.35	Tetrahydro-11-deoxy Cortisol 3-O-β-D-Glucuronide	525.2702	317, 171

¹ RT: retention time.

Table 2. Identification of major metabolites in stevia ferments using sucrose by UPLC-QTOF-MS.

No.	RT1 (min)	Proposed Compound	Exact Mass (M-H)	MS Fragments
1	2.81	Chlorogenic acid	353.0870	191, 135
2	3.09	Patuletin-3-O-(4″-O-acetyl-α-L-rhamnopyranosyl)-7-O-(2‴-O-acetyl-α-L-rhamnopyranoside)	707.1835	191, 173, 93
3	3.78	Cynarine	515.1184	353, 173
4	3.99	Rebaudioside E/rebaudioside A	965.4249	845, 641
5	4.04	Rebaudioside I/rebaudioside D	1127.4772	1111, 803
6	4.27	3,4,5-Tricaffeoylquinic acid	677.1516	515, 353
7	4.38	Luteolin/kaempferol	285.0399	133
8	4.40	Quercetin	301.0346	151
9	4.47	Rebaudioside E/rebaudioside A	965.4256	623
10	4.50	Rubusoside/steviolbioside	641.3181	611, 317
11	4.58	Rebaudioside F	935.4149	611
12	4.63	Dulcoside A	787.3771	625
13	4.67	Phlomisoside II	625.3226	661, 449
14	4.71	Rebaudioside B/rebaudioside G/rubusoside	803.3726	641, 611, 317
15	4.94	Rebaudioside B/rebaudioside G/rubusoside	803.3724	641, 611, 317
16	5.00	Rubusoside/steviolbioside	641.3175	479, 317
17	5.03	(-)-Pinellic acid	329.2329	229, 211, 171, 139
18	5.06	Chrysosplenol D/jaceidin	359.0772	344, 329
19	5.35	Tetrahydro-11-deoxy Cortisol 3-O-β-D-Glucuronide	525.2702	317, 171

¹ RT: retention time.

3.4. Raw Data Statistics

The calculated results for the total number of bases, number of reads, GC content (%), Q20 (%), and Q30 (%) for the 12 stevia ferments are shown below. Interestingly, among the stevia fermentations using a TSB medium and sucrose carbon source, the analysis using ITS primers detected microorganisms with low G + C content starting from the fifth day of fermentation in the TSB application, whereas in the sucrose application microorganisms were detected consistently from the first day of fermentation.

Table 3. The analytical results for two types of barley-nuruk-fermented stevia by period.

Samples	Total Bases (bp)1	Total Reads2	GC (%)3	AT (%)4	Q20 (%)5	Q30 (%)6
TSB 1_16S	62,594,154	207,954	54.85	45.15	90.08	79.46
TSB 1_ITS	60,307,156	200,356	50.84	49.16	88.05	76.64
TSB 3_16S	65,093,056	216,256	54.79	45.21	89.90	79.16
TSB 3_ITS	75,572,070	251,070	58.14	41.86	85.17	72.54
TSB 5_16S	79,682,526	264,726	54.50	45.50	89.50	78.75
TSB 5_ITS	93,429,798	310,398	39.35	60.65	93.20	84.93
Sucrose 1_16S	56,846,258	188,858	55.20	44.80	89.97	79.08
Sucrose 1_ITS	65,697,464	218,264	38.61	61.39	92.81	84.21
Sucrose 3_16S	54,704,944	181,744	53.01	46.99	90.16	79.60
Sucrose 3_ITS	66,342,206	220,406	38.46	61.54	92.36	83.00
Sucrose 5_16S	53,721,276	178,476	51.94	48.06	90.92	80.86
Sucrose 5_ITS	52,744,230	175,230	40.61	59.39	91.34	81.21

¹ Total bases (bp): total number of bases sequenced. ² Total reads: total number of reads. For illumina paired-end sequencing, this value refers to the sum of read 1 and read 2. ³ GC (%): ratio of GC content. ⁴ AT (%): ratio of AT content. ⁵ Q20 (%): ratio of bases that have a Phred quality score of over 20. ⁶ Q30 (%): ratio of bases that have a Phred quality score of over 30.

Table 3. The analytical results for two types of barley-nuruk-fermented stevia by period.

Samples	Total Bases (bp)1	Total Reads2	GC (%)3	AT (%)4	Q20 (%)5	Q30 (%)6
TSB 1_16S	62,594,154	207,954	54.85	45.15	90.08	79.46
TSB 1_ITS	60,307,156	200,356	50.84	49.16	88.05	76.64
TSB 3_16S	65,093,056	216,256	54.79	45.21	89.90	79.16
TSB 3_ITS	75,572,070	251,070	58.14	41.86	85.17	72.54
TSB 5_16S	79,682,526	264,726	54.50	45.50	89.50	78.75
TSB 5_ITS	93,429,798	310,398	39.35	60.65	93.20	84.93
Sucrose 1_16S	56,846,258	188,858	55.20	44.80	89.97	79.08
Sucrose 1_ITS	65,697,464	218,264	38.61	61.39	92.81	84.21
Sucrose 3_16S	54,704,944	181,744	53.01	46.99	90.16	79.60
Sucrose 3_ITS	66,342,206	220,406	38.46	61.54	92.36	83.00
Sucrose 5_16S	53,721,276	178,476	51.94	48.06	90.92	80.86
Sucrose 5_ITS	52,744,230	175,230	40.61	59.39	91.34	81.21

¹ Total bases (bp): total number of bases sequenced. ² Total reads: total number of reads. For illumina paired-end sequencing, this value refers to the sum of read 1 and read 2. ³ GC (%): ratio of GC content. ⁴ AT (%): ratio of AT content. ⁵ Q20 (%): ratio of bases that have a Phred quality score of over 20. ⁶ Q30 (%): ratio of bases that have a Phred quality score of over 30.

3.5. Analysis of Microbial Communities

To track changes in bacterial and fungal communities during the fermentation of stevia extracts with barley nuruk, microbial communities were identified through next-generation sequencing targeting the 16S rRNA gene for bacteria and internal transcribed spacer (ITS) gene sequences for fungi. As indicated in Table 1, Enterococcus hirae, a species seldom isolated from human clinical samples but known to cause animal infections, dominated the stevia ferment (58.93%), while Cronobacter sakazakii prevailed (80.92%) in the day 1 culture using a TSB medium. Cronobacter sakazakii (formerly Enterobacter sakazakii) is a pathogenic bacterium primarily associated with diseases in infants under two months old, premature infants, and individuals with weakened immune systems or a low birth weight; however, notably, both E. hirae and C. sakazakii diminished as fermentation progressed, giving rise to the dominant species, human beneficial bacteria like Pediococcus pentosaceus and Pediococcus stilesii, particularly P. stilesii, which accounted for 0.20%, 40.04%, and 73.37% of the fermentation, respectively. In terms of the fungal community analysis using the ITS region, Saccharomycopsis fibuligera, categorized as a yeast rather than a fungus, dominated stevia fermentations regardless of sample type and fermentation duration, whether fed with a TSB medium or sugar solution. Specifically, fermentation with a sugar solution and barley nuruk was present in over 99% of samples after 1, 3, and 5 days of fermentation (refer to Table 2). S. fibuligera is known to actively accumulate trehalose from starch and secrete significant amounts of amylase, acid protease, and β-glucosidase, showcasing potential for applications in the fermentation industry [38,39]. In addition, 7.88% of Monascus purpureus was present in the TSB 3 ferment. M. purpureus is utilized in the production of red rice, a staple food in Asia, and has been used in traditional Chinese medicine [40]. In conclusion, utilizing a sucrose solution rather than a TSB medium for stevia fermentation with barley nuruk may facilitate the transformation of beneficial bacteria in the human body.

Table 4. The analytical results for 16S rRNA primers of barley-nuruk-fermented stevia by period.

Species	TSB 1 (16S)	TSB 3 (16S)	TSB 5 (16S)	Suc 1 (16S)	Suc 3 (16S)	Suc 5 (16S)
Corynebacterium nuruki Brachybacterium nesterenkovii Saccharopolyspora phatthalungensis Streptomyces cacaoi Aerosakkonema funiforme Bacillus inaquosorum Bacillus velezensis Staphylococcus gallinarum Staphylococcus kloosii Enterococcus gallinarum Enterococcus hirae Enterococcus lactis Pediococcus pentosaceus Pediococcus stilesii Buttiauxella warmboldiae Cronobacter dublinensis Cronobacter sakazakii Enterobacter cloacae Enterobacter mori Klebsiella oxytoca Klebsiella pneumoniae Klebsiella variicola Kosakonia cowanii Phytobacter diazotrophicus Pseudescherichia vulneris Salmonella bongori Erwinia billingiae Erwinia gerundensis Erwinia persicina Mixta calida Pantoea agglomerans Pantoea vagans [Curtobacterium] plantarum Other	0.02% 0.01% 0.05% 0.07% 0.00% 0.00% 0.02% 0.02% 0.04% 0.09% 58.93% 0.55% 1.22% 2.58% 0.83% 0.00% 16.65% 1.04% 1.00% 0.13% 3.78% 4.79% 7.97% 0.00% 0.17% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.02% 0.00%	0.00% 0.00% 0.00% 0.01% 0.00% 0.00% 0.00% 0.00% 0.00% 2.71% 19.24% 0.08% 1.96% 13.77% 0.14% 0.00% 52.21% 0.77% 0.46% 0.03% 2.61% 2.75% 3.23% 0.00% 0.02% 0.01% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%	0.00% 0.00% 0.01% 0.00% 0.00% 0.00% 0.00% 0.00% 0.01% 14.28% 18.06% 0.00% 1.71% 19.89% 0.17% 0.00% 33.07% 0.91% 0.52% 0.02% 4.14% 4.24% 2.86% 0.00% 0.05% 0.00% 0.00% 0.00% 0.00% 0.00% 0.05% 0.00% 0.00% 0.01%	0.00% 0.00% 0.02% 0.01% 0.03% 0.00% 0.05% 0.00% 0.00% 0.00% 0.63% 0.00% 13.25% 0.20% 0.00% 0.15% 80.92% 0.30% 0.17% 0.00% 0.00% 0.01% 1.70% 0.02% 0.00% 0.00% 0.42% 0.02% 0.04% 0.10% 0.08% 1.72% 0.10% 0.01%	0.00% 0.00% 0.00% 0.01% 0.06% 0.04% 0.00% 0.00% 0.00% 0.00% 0.06% 0.00% 29.38% 40.04% 0.00% 0.08% 29.12% 0.18% 0.10% 0.00% 0.21% 0.17% 0.43% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.04% 0.00% 0.05% 0.05%	0.00% 0.00% 0.00% 0.00% 0.01% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 22.71% 73.37% 0.00% 0.00% 2.98% 0.14% 0.05% 0.00% 0.35% 0.39% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.01%

Table 4. The analytical results for 16S rRNA primers of barley-nuruk-fermented stevia by period.

Species	TSB 1 (16S)	TSB 3 (16S)	TSB 5 (16S)	Suc 1 (16S)	Suc 3 (16S)	Suc 5 (16S)
Corynebacterium nuruki Brachybacterium nesterenkovii Saccharopolyspora phatthalungensis Streptomyces cacaoi Aerosakkonema funiforme Bacillus inaquosorum Bacillus velezensis Staphylococcus gallinarum Staphylococcus kloosii Enterococcus gallinarum Enterococcus hirae Enterococcus lactis Pediococcus pentosaceus Pediococcus stilesii Buttiauxella warmboldiae Cronobacter dublinensis Cronobacter sakazakii Enterobacter cloacae Enterobacter mori Klebsiella oxytoca Klebsiella pneumoniae Klebsiella variicola Kosakonia cowanii Phytobacter diazotrophicus Pseudescherichia vulneris Salmonella bongori Erwinia billingiae Erwinia gerundensis Erwinia persicina Mixta calida Pantoea agglomerans Pantoea vagans [Curtobacterium] plantarum Other	0.02% 0.01% 0.05% 0.07% 0.00% 0.00% 0.02% 0.02% 0.04% 0.09% 58.93% 0.55% 1.22% 2.58% 0.83% 0.00% 16.65% 1.04% 1.00% 0.13% 3.78% 4.79% 7.97% 0.00% 0.17% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.02% 0.00%	0.00% 0.00% 0.00% 0.01% 0.00% 0.00% 0.00% 0.00% 0.00% 2.71% 19.24% 0.08% 1.96% 13.77% 0.14% 0.00% 52.21% 0.77% 0.46% 0.03% 2.61% 2.75% 3.23% 0.00% 0.02% 0.01% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%	0.00% 0.00% 0.01% 0.00% 0.00% 0.00% 0.00% 0.00% 0.01% 14.28% 18.06% 0.00% 1.71% 19.89% 0.17% 0.00% 33.07% 0.91% 0.52% 0.02% 4.14% 4.24% 2.86% 0.00% 0.05% 0.00% 0.00% 0.00% 0.00% 0.00% 0.05% 0.00% 0.00% 0.01%	0.00% 0.00% 0.02% 0.01% 0.03% 0.00% 0.05% 0.00% 0.00% 0.00% 0.63% 0.00% 13.25% 0.20% 0.00% 0.15% 80.92% 0.30% 0.17% 0.00% 0.00% 0.01% 1.70% 0.02% 0.00% 0.00% 0.42% 0.02% 0.04% 0.10% 0.08% 1.72% 0.10% 0.01%	0.00% 0.00% 0.00% 0.01% 0.06% 0.04% 0.00% 0.00% 0.00% 0.00% 0.06% 0.00% 29.38% 40.04% 0.00% 0.08% 29.12% 0.18% 0.10% 0.00% 0.21% 0.17% 0.43% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.04% 0.00% 0.05% 0.05%	0.00% 0.00% 0.00% 0.00% 0.01% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 22.71% 73.37% 0.00% 0.00% 2.98% 0.14% 0.05% 0.00% 0.35% 0.39% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.01%

3.6. Human Skin Primary Irritation

Thirty female volunteers, aged 20–50 years (mean age of 43.33 ± 7.03 years, range of 22–50 years), with no history of irritant and/or allergic contact dermatitis, participated in the skin patch test. The study was approved by the Institutional Review Board (IRB) of Dermapro Inc. in accordance with the ethical principles of medical research in accordance with the Declaration of Helsinki, and was conducted after written informed consent was obtained from each volunteer (IRB no. 1-220777-A-N-01-DICN21249). As shown in Table 5, the test results indicated that the high-concentration extracts (1 mg/mL) of the six stevia ferments were hypoallergenic in terms of primary irritation to human skin.

Table 5. The analytical results for ITS primers of barley-nuruk-fermented stevia by period.

Species	TSB 1 (ITS)	TSB 3 (ITS)	TSB 5 (ITS)	Suc 1 (ITS)	Suc 3 (ITS)	Suc 5 (ITS)
Other Stemphylium sp. Aspergillus sp. Aspergillus amstelodami Aspergillus flavus Monascus purpureus Thermomyces sp. Hyphopichia burtonii Millerozyma farinosa Kodamaea ohmeri Issatchenkia orientalis Candida parapsilosis Saccharomycopsis fibuligera Trichomonascus ciferrii Lichtheimia corymbifera Rhizomucor pusillus Rhizopus microsporus	0.03% 0.00% 0.50% 0.60% 0.00% 1.82% 0.00% 0.08% 0.01% 0.07% 0.00% 0.00% 96.37% 0.01% 0.47% 0.05% 0.00%	0.08% 0.02% 1.93% 2.72% 0.00% 7.88% 0.03% 0.14% 0.00% 0.15% 0.00% 0.12% 86.14% 0.00% 0.79% 0.00% 0.00%	0.00% 0.00% 0.14% 0.19% 0.00% 0.12% 0.00% 0.00% 0.00% 0.01% 0.00% 0.00% 99.54% 0.00% 0.01% 0.00% 0.00%	0.00% 0.00% 0.00% 0.09% 0.03% 0.13% 0.00% 0.00% 0.01% 0.00% 0.00% 0.00% 99.69% 0.00% 0.02% 0.00% 0.04%	0.00% 0.00% 0.00% 0.00% 0.00% 0.01% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 99.99% 0.00% 0.00% 0.00% 0.00%	0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.33% 0.00% 99.67% 0.00% 0.00% 0.00% 0.00%

Table 5. The analytical results for ITS primers of barley-nuruk-fermented stevia by period.

Species	TSB 1 (ITS)	TSB 3 (ITS)	TSB 5 (ITS)	Suc 1 (ITS)	Suc 3 (ITS)	Suc 5 (ITS)
Other Stemphylium sp. Aspergillus sp. Aspergillus amstelodami Aspergillus flavus Monascus purpureus Thermomyces sp. Hyphopichia burtonii Millerozyma farinosa Kodamaea ohmeri Issatchenkia orientalis Candida parapsilosis Saccharomycopsis fibuligera Trichomonascus ciferrii Lichtheimia corymbifera Rhizomucor pusillus Rhizopus microsporus	0.03% 0.00% 0.50% 0.60% 0.00% 1.82% 0.00% 0.08% 0.01% 0.07% 0.00% 0.00% 96.37% 0.01% 0.47% 0.05% 0.00%	0.08% 0.02% 1.93% 2.72% 0.00% 7.88% 0.03% 0.14% 0.00% 0.15% 0.00% 0.12% 86.14% 0.00% 0.79% 0.00% 0.00%	0.00% 0.00% 0.14% 0.19% 0.00% 0.12% 0.00% 0.00% 0.00% 0.01% 0.00% 0.00% 99.54% 0.00% 0.01% 0.00% 0.00%	0.00% 0.00% 0.00% 0.09% 0.03% 0.13% 0.00% 0.00% 0.01% 0.00% 0.00% 0.00% 99.69% 0.00% 0.02% 0.00% 0.04%	0.00% 0.00% 0.00% 0.00% 0.00% 0.01% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 99.99% 0.00% 0.00% 0.00% 0.00%	0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.33% 0.00% 99.67% 0.00% 0.00% 0.00% 0.00%

4. Conclusions

Riding the health winds that have been blowing across society during the pandemic and post-pandemic, organic and herbal products, as well as natural functional products that use fermented ingredients to increase absorption and functionality compared to existing products, have gained prominence. Similarly, interest in natural sugars derived from stevia, which is 200 to 300 times sweeter than sucrose and is famous for its low calorie content, is also increasing. In this study, six stevia ferments (TSB 1, TSB 2, TSB 3, Sucrose 1, Sucrose 2, and Sucrose 3) were prepared by fermenting stevia leaf extract with barley nuruk, a traditional fermentation starter on Jeju, and TSB, a commercial medium, for 1, 3, and 5 days, and analyzing the microbial communities and metabolites for their potential to promote human health. TSB 3 and Sucrose 3 were superior in antioxidant efficacy using DPPH and ABTS scavenging capacity, and Sucrose 3 had relatively better radical scavenging capacity than TSB 3. Only Sucrose 2 had anti-obesity efficacy when using an α-glucosiadase inhibition test. Furthermore, all six stevia ferments inhibited the production of NO in a concentration-dependent manner in LPS-induced mouse macrophage 264.3 cells. Further UPLC-QTOF-MS analyses identified 23 compounds, including five flavonoids, four phenolic acids, and four fatty acids, including ten terpenoids, including the stevia indicator rebadioside derivatives and dulcoside A. Interestingly, the sample fermented for 1 day using a TSB medium and sucrose was dominated by the pathogens Enterococcus hirae (58.93%) and Cronobacter sakazakii (80.92%), but as the fermentation progressed, the microbial community changed, with the pathogens disappearing and lactic acid bacteria such as Pediococcus stilesii (73.37%) dominating the stevia ferment. On the other hand, a microbial community analysis using ITS primers showed that Saccharomycopsis fibuligera, which is classified as a yeast, dominated all six stevia ferments regardless of the fermentation period, especially Sucrose 1, Sucrose 2, and Sucrose 3, which were dominated by S. fibuligera by more than 99%. Finally, a skin irritation test was performed for the topical application of stevia ferments to human skin, and the results showed that the high-concentration extracts (1 mg/mL) of all six stevia ferments were hypoallergenic. Taken together, these results suggest that barley nuruk fermentation with sucrose from stevia leaves offers promise as a natural ingredient for functional foods and cosmetics.

Table 6. Results of human skin primary irritation test (n = 30).

No	Test Sample	No. of Responder	20 min After Patch Removal				24 hr After Patch removal				Reaction Grade (R)
			+1	+2	+3	+4	+1	+2	+3	+4
1	TSB 1 (1mg/mL)	0	0	0	0	0	0	0	0	0	0
2	TSB 3 (1 mg/mL)	1	0	0	0	0	1	0	0	0	0.4
3	TSB 5 (1 mg/mL)	0	0	0	0	0	0	0	0	0	0
4	Suc 1(1 mg/mL)	0	0	0	0	0	0	0	0	0	0
5	Suc 3(1 mg/mL)	0	0	0	0	0	0	0	0	0	0
6	Suc 5 (1 mg/mL)	0	0	0	0	0	0	0	0	0	0

Table 6. Results of human skin primary irritation test (n = 30).

No	Test Sample	No. of Responder	20 min After Patch Removal				24 hr After Patch removal				Reaction Grade (R)
			+1	+2	+3	+4	+1	+2	+3	+4
1	TSB 1 (1mg/mL)	0	0	0	0	0	0	0	0	0	0
2	TSB 3 (1 mg/mL)	1	0	0	0	0	1	0	0	0	0.4
3	TSB 5 (1 mg/mL)	0	0	0	0	0	0	0	0	0	0
4	Suc 1(1 mg/mL)	0	0	0	0	0	0	0	0	0	0
5	Suc 3(1 mg/mL)	0	0	0	0	0	0	0	0	0	0
6	Suc 5 (1 mg/mL)	0	0	0	0	0	0	0	0	0	0
