The New Lead-Free Copper Alloy CuAl8Fe5Ni4Zn4Sn1 for Plain Bearings and Its Strengthening Mechanisms

1. Introduction

The family of traditional copper wrought alloys for sliding applications includes a wide range of chemical compositions, including CuNiSi alloys, nickel-aluminium bronze and tin bronze, binary CuZn alloys with and without lead, silicon-brass alloy CuZn31Si1 and special brass alloys [1]. Many of them have been used for decades without significant changes in their chemical composition and microstructure.

For several reasons, these alloys traditionally are alloyed with far more than 0.1% lead by mass. The lead content ranges from 0.1 to 2 mass-% in special brass alloys (e.g. CuZn37Mn3Al2Pb Si), up to 3.5 mass-% in brass alloys for machining [2] and even up to 23 mass-% in lead bronze alloys for sliding applications [3]. As an alternative for these applications a wear resistant layer of tin bronze with PTFE as a solid lubricant can be applied on a different base material, e.g. on aluminium or steel [4,5].

For vehicles, the End-of-Life Vehicles Directive 2000/53/EU restricts the use of hazardous substances such as lead. Although the End-of-Life Vehicles Directive 2000/53/EU still defines exemptions for restricted substances such as lead, no one can be sure that the exemptions will never end. In this context the European Commission (EC) also began setting limits for dangerous substances such as cadmium, mercury and lead around 2000 [6]. In 2018, the European Commission approved the decision to classify lead as toxic to reproduction [7]. After that, the development of new lead-free alloys for sliding applications accelerated substantially.

The latest development in hazardous substances regulation is a proposal to ban the use of PFAS. The result of this would be that an important solid lubricant would also be banned from sliding materials.

Based on the developments described above, it is not surprising that copper alloy manufacturers and consumers are becoming increasingly active in developing and validating alternative lead-free copper alloys (e.g. see [8]).

2. Trends and Development of New Copper Alloys for Sliding Applications

In general, there are two ways to develop new lead-free copper alloys for sliding applications. On the one hand, the inventor can start from an existing alloy and improve them through iterative steps of chemical and processing measures. An example is the alloy CuZn31Si1, which originally contained 0.3 to 0.8% lead by mass. With the only goal to be lead-free, the lead content could be limited to a maximum of 0.1% by mass. But the absence of lead not only deteriorates the machinability of CuZn31Si1 but does not contribute to improve the modest load capacity of the alloy either. Consequently, further improvements of CuZn31Si1 aim to increase its wear resistance by alloying certain amounts of manganese and silicon. Likewise, the wear resistance of special brass alloys of type CW713R can be improved by varying the Al, Mn, Ni and Si content (e.g. see [9]).

On the other hand, the invention of new alloys can be based on completely new concepts. As an example, it has been possible to use new Cu-Al-Mn-Zn-alloys to replace nickel silver in sliding applications [10]. The newest trend are high entropy alloys which go completely beyond existing copper alloy families. This concept is are also being considered for innovative alloys in sliding applications [11].

3. Overview on Recent Copper Materials for Sliding Applications

The family of existing standardized wrought alloys for sliding applications includes several bronze and brass respectively special brass alloys. Typical bronze alloys for this are CuNi2Si, CuNiSn-alloys (e.g. CuNi6Sn6 and CuNi15Sn8), CuSn8 / CuSn8P and CuAl10Ni5Fe4. All of these bronze alloys have a high proportion of alpha phase and alloying elements such as aluminium, nickel or tin. That leads to good mechanical wear resistance, quite high temperature stability and good corrosion resistance. The mechanical strength and fatigue strength depend heavily on the work hardening state of these alloys and can therefore be increased significantly by cold forming [12]. Further properties relate to individual bronze alloys. In the case of CuNi2Si, the specific properties are a combination of excellent mechanical properties with good electrical and thermal conductivity [13]. Another example is tin in CuSn8/CuSn8P. The formation of tin oxide layers in frictional contact promotes the good friction and wear properties of this alloy [14].

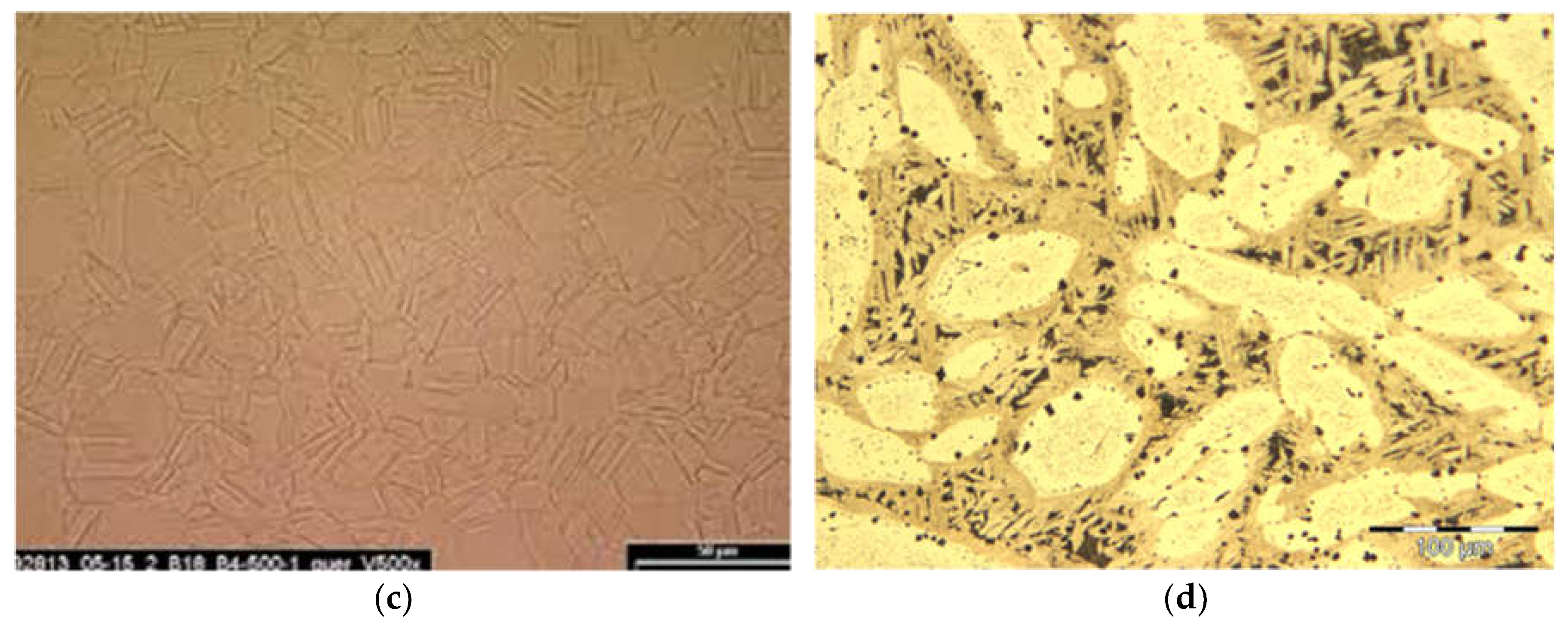

Figure 1. Typical micrographs of different bronze alloys for sliding applications: (a) CuNi2Si; (b) CuNi15Sn8; (c) CuSn8P; (d) CuAl10Ni5Fe4.

Figure 1. Typical micrographs of different bronze alloys for sliding applications: (a) CuNi2Si; (b) CuNi15Sn8; (c) CuSn8P; (d) CuAl10Ni5Fe4.

Typical standardized brass alloys for sliding applications with very low loadings are CuZn40/CuZn42 respectively CuZn39Pb3/CuZn40Pb2 [12]. The microstructures of CuZn40 and CuZn39Pb3 consist of a pure β/α matrix and are free of any hard phases that could protect against wear. That is the reason why such alloys are only used for very moderate loads. CuZn39Pb3 and CuZn40Pb2 are obviously lead-alloyed, but traditionally also CuZn40/CuZn42 contain more than 0.1 mass-% lead for improvement of machinability.

CuZn31Si1 alloys (both lead-alloyed and lead-free, silicon brass) are used as standard for low to medium load sliding applications [12]. These silicon brasses have a structure consisting predominantly of α-brass phase with a smaller proportion of β-brass phase, which is aligned in the direction of hot deformation. Compared to the α phase, the β phase contributes more to the wear resistance of this alloy. Silicon in this alloy is kept in solid solution.

When brass alloys with increased wear resistance are required, normally special brass alloys such as CuZn37Mn3Al2PbSi are chosen [12]. Using the variation of the chemical composition, the resulting zinc equivalent and the temperature treatment of the materials, the brass matrix in such alloys can be adjusted from predominantly α phase to a mixture of α and β phases to pure β phase. In the brass alloys, a higher content of β-phase already leads to a better wear resistance, but the main effect is achieved by the hard phase particles (usually silicides with a length of a few µm to a maximum of several 100 µm) which are distributed homogeneously within the brass matrix to protect the softer brass matrix from wear.

Figure 2. Typical micrographs of different brass alloys for sliding applications: (a) CuZn40Pb2; (b) CuZn31Si1; (c) CuZn37Mn3Al2PbSi.

Figure 2. Typical micrographs of different brass alloys for sliding applications: (a) CuZn40Pb2; (b) CuZn31Si1; (c) CuZn37Mn3Al2PbSi.

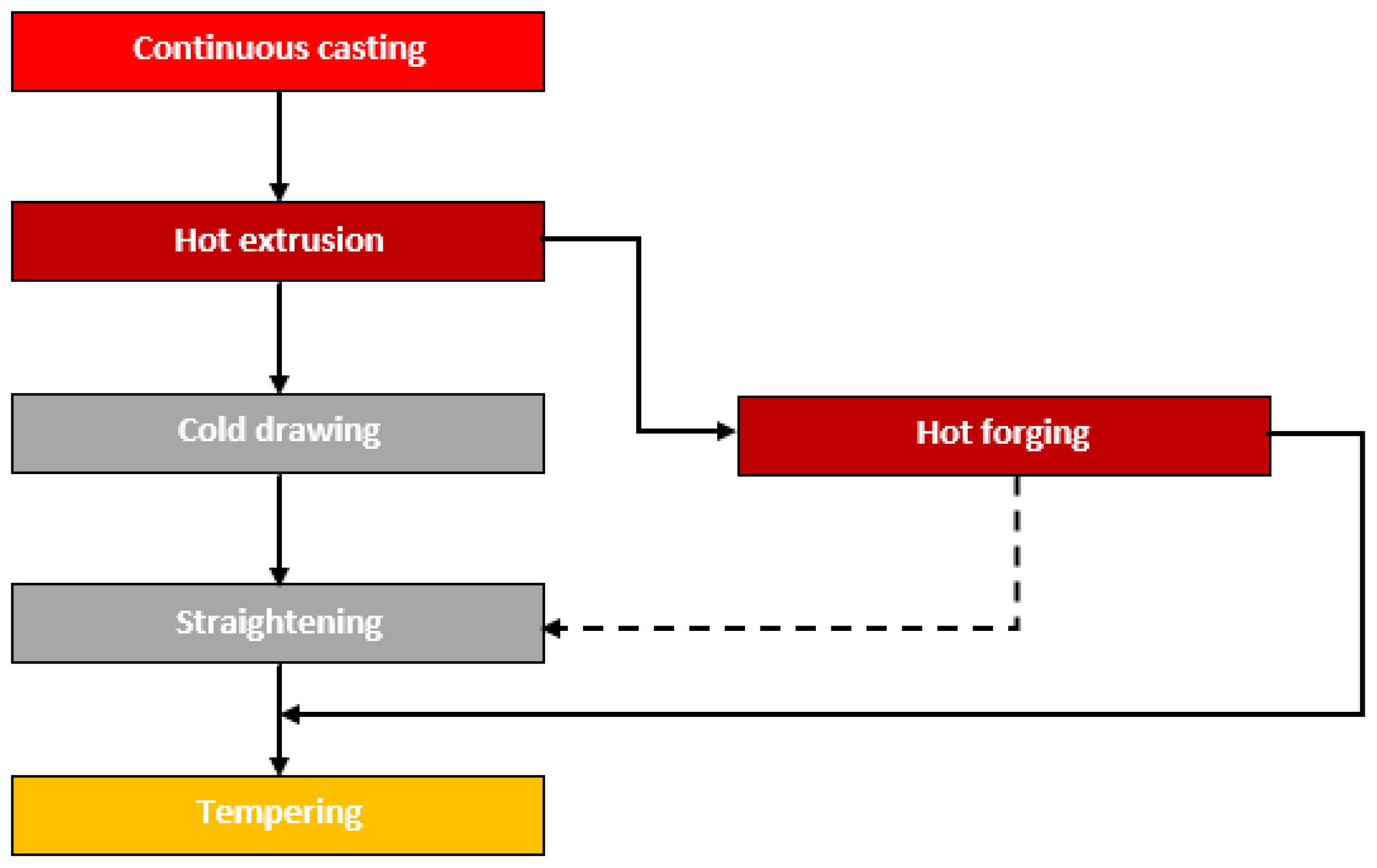

Finally, the alloy composition and α/β-phase mixture also have a strong effect on the production process for manufacturing the semi-finished parts for the sliding applications (Figure 3) [15]. In the hot extrusion and hot forging process, a high β content helps reduce hot forming resistance. For cold forming steps such as cold drawing and straightening of bars, tubes or forgings, cold stamping or flanging a higher α-phase content facilitates the forming process.

To combine all these benefits the concept for the new alloy was to have sufficient β-phase for a good hot formability during extrusion at about 900°C while the β-phase should be transformed to α-phase when the alloy is cooled down to room temperatures after that. The α-phase is needed to support the cold drawing and straightening that follows after hot extrusion.

4. CuAl8Fe5Ni4Zn4Sn1 as a New Lead-Free Copper Alloy for Sliding Applications

This new alloy is the new multi-component bronze alloy with the short name CuAl8Fe5Ni4Zn4Sn1. In this publication, the progress in the further development of the alloy is presented. Compared to the first publication in 2020 [16] a much deeper understanding of the strengthening mechanisms of the new alloy was achieved and will be subject of this publication.

The chemical composition (Table 1) differs from any conventional family of standardized bronze alloys. The basic idea designing the new alloy was to combine the positive effects of the alloying strategy of other bronze alloys such as aluminium bronze, tin bronze and those of CuZn gliding metal. The copper content of CuAl8Fe5Ni4Zn4Sn1 is at least 75 mass-% and the sum of all alloying elements is in the range of 17 to 25 mass-%. With the chosen combination of aluminium, zinc and tin as alloying elements stable tribolyers for improvement of load capacity are achieved [17,18]. An additional advantage of this alloy is to be technically lead-free (maximum 0.1 mass-% lead).

The microstructures of CuAl8Fe5Ni4Zn4Sn1 after complete manufacturing including continuous casting, hot extrusion, cold drawing and tempering consist of a homogeneous α-brass matrix in which numerous fine and individual coarser intermetallic κ-phases are embedded (Figure 4).

According to the various physical, mechanical and technological requirements for the new alloy CuAl 8Fe5Ni4Zn4Sn1 the following characteristic mechanical properties were identified for the pre-material for plain radial bearings which are given in Table 2 and can also be found in the first publication [16] and in the material data sheet [19].

After this general information the publication proceeds to the principal argument and focuses on the strengthening mechanisms by which the excellent properties of the new alloy are achieved.

5. Strengthening Mechanisms of CuAl8Fe5Ni4Zn4Sn1

5.1. Initial Condition after Continuous Casting

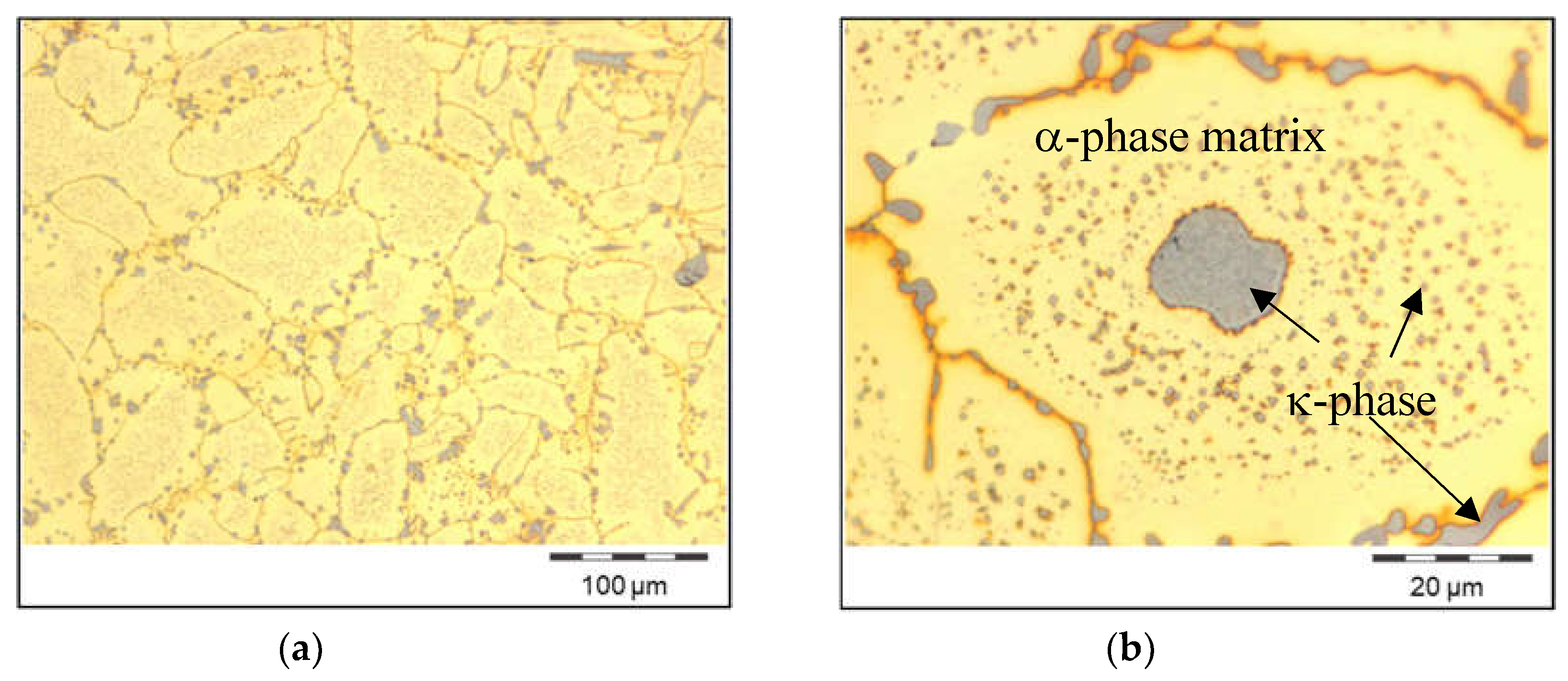

Continuous casting is the first production step in the manufacturing route of OF 2238 pre-material tubes (bigger diameter) respectively rods (smaller diameter) for bushings. Choosing the right casting parameters e.g. in terms of casting temperature and casting speed, these bars already provide very fine-grained and homogeneous microstructures. of α-matrix phase. Only near the outer surface these grains are elongated. The rest of the cross section consists of fine globular matrix grains. In the interior and on the grain boundaries of the α-grains, κ-phase precipitations are present. The distribution of the κ-phase is nearly homogeneous (Figure 5).

These microstructures are different compared to the dendritic morphology typically found in other bronze alloys such as tin bronze or the standard nickel-aluminium bronze. This is caused by several reasons:

• CuAl8Fe5Ni4Zn4Sn1 is a polymorph alloy with β-phase during solidification, which transforms into α- and κ-phases during cooling to room temperature. In such an alloy the solid-solid phase transformation during cooling after solidification has an additional impact on grain refinement. This is because from each mother grain there can result a plurality of daughter grains. The same behaviour can be observed in other polymorph copper alloys such as α/β brass [15].
• The iron content further contributes to the refinement of the microstructures. This effect is related to the iron, which is in solid solution in the copper matrix, as this proportion supports nucleation [20].
• The forementioned aspects count for other bronze alloys such as CuAl10Ni5Fe4 as well. Notwithstanding that, as-cast CuAl10Ni5Fe4 provides also fine grains, but a dendritic grain morphology. In comparison, CuAl8Fe5Ni4Zn4Sn1 does not only provide fine, but also globular microstructures. Therefore, further differences in the chemical compositions must be the reason for the globular microstructures of CuAl8Fe5Ni4Zn4Sn1;
• Most likely, the globular microstructures of CuAl8Fe5Ni4Zn4Sn1 can be explained by the effect of tin which is reported to shift the grain morphology of aluminium bronze to globulitic. This is due to the decline in nucleation temperatures, the reduction in undercooling intensity, and the decrease in cooling rate during solidification [21].

To conclude this paragraph, the fine and globular microstructures of the alloys are the result of solidification behaviour, phase transformations and nucleation effects. To start already with fine casting microstructures is beneficial for promoting fine microstructures also in the finished wrought alloy product and therefore already in the first production step provides to the strength of the raw material bars.

5.2. Hot Extrusion of Tubes

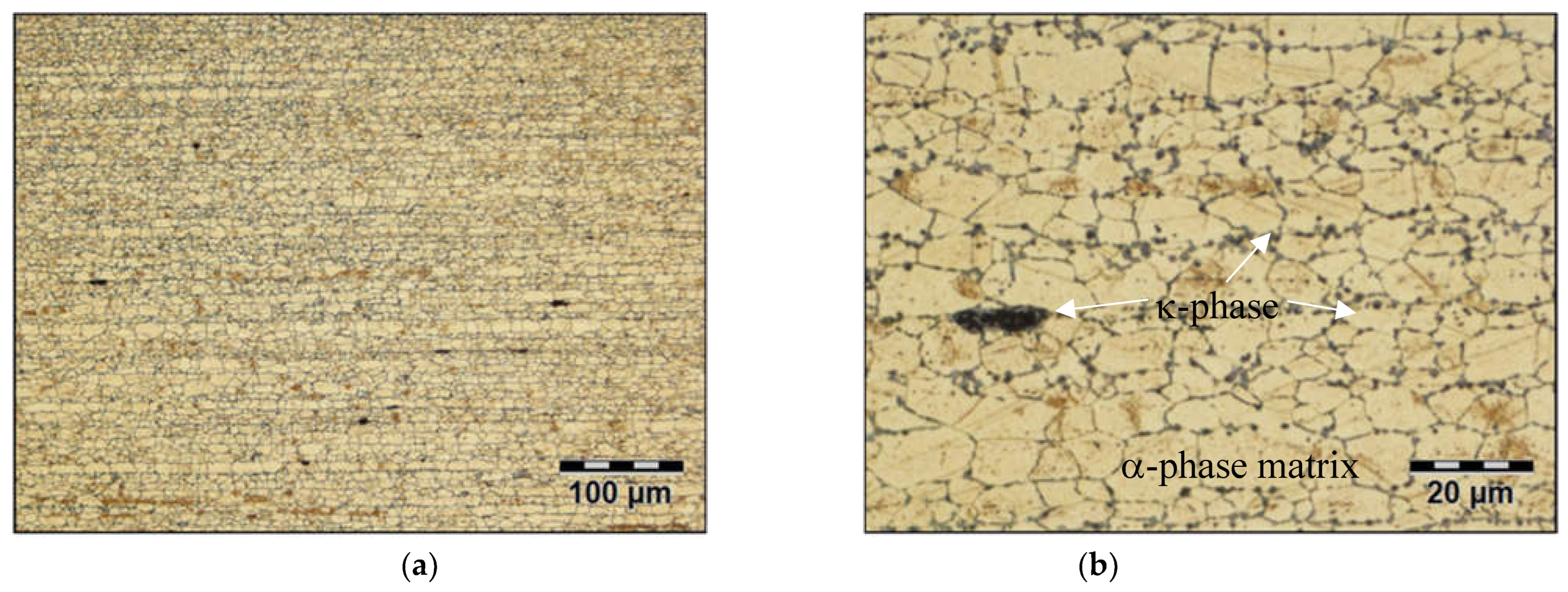

Dynamic recrystallisation during hot extrusion leads to homogenisation and additional refinement of the microstructures from casting. After hot extrusion, the microstructures consist of an α-phase matrix with κ-phase precipitations, the latter with a size of several microns. The grains are elongated longitudinally in the extrusion direction, while the grain size in radial direction is diminished (Figure 6). This decrease is the main reason for the increased strength after hot extrusion (Hall-Petch relationship).

Another strengthening mechanism comes from work hardening during hot extrusion. So there are two mechanisms that result in a higher strength of the extruded product compared to the cast billet.

5.3. Effect of Cold Drawing and Straightening of the Extruded Tubes

After hot extrusion, the tubes are cold drawn and straightened both for dimensional reasons (increasing straightness and reducing diameter tolerance) and to increase mechanical strength. The cold strengthening effect is shown in Figure 7.

Similar to nickel alloys and austenitic steels also in this new bronze alloy the deformation of the fcc lattice of the α-phase generates substantial work hardening. The work hardening effect is enhanced by aluminium, tin and zinc which are in solid solution [12]. By this, CuAl8Fe5Ni4Zn4Sn1 achieves in the cold drawn condition strength values similar or even higher than typically known for other bronze alloys such as CuAl10Ni5Fe4 [22].

5.4. Thermal Treatment after Cold Drawing of CuAl8Fe5Ni4Zn4Sn1

The deformation in the cross section during cold drawing is inhomogeneous. Main reasons are the friction between tool surface and the tube material, heating and local differences of the stress state.

• Due to the friction between the tool surface and the tube material there occurs shear deformation in the near surface zones of the tube material;
• Furthermore, being surrounded by the neighbouring material in all directions this results in a triaxial stress state of the core, but the stress state near the tube surface is nearly plain;
• Bothe forementioned friction and adiabatic heating leads to increasing temperatures in the tube material. Therefore, also the temperature distribution in the tube cross section is inhomogeneous.

After cold drawing most of these stresses remain in the material [23,24]. But depending on the type (tensile or compressive) and magnitude, residual stresses can subsequently have a negative impact on the processing and use of the tubes (distortion, stress cracking, relaxation, Bauschinger effect, to name just a few examples). Thus they must be reduced, which is achieved for CuAl8Fe5Ni4Zn4Sn1 by tempering with air cooling.

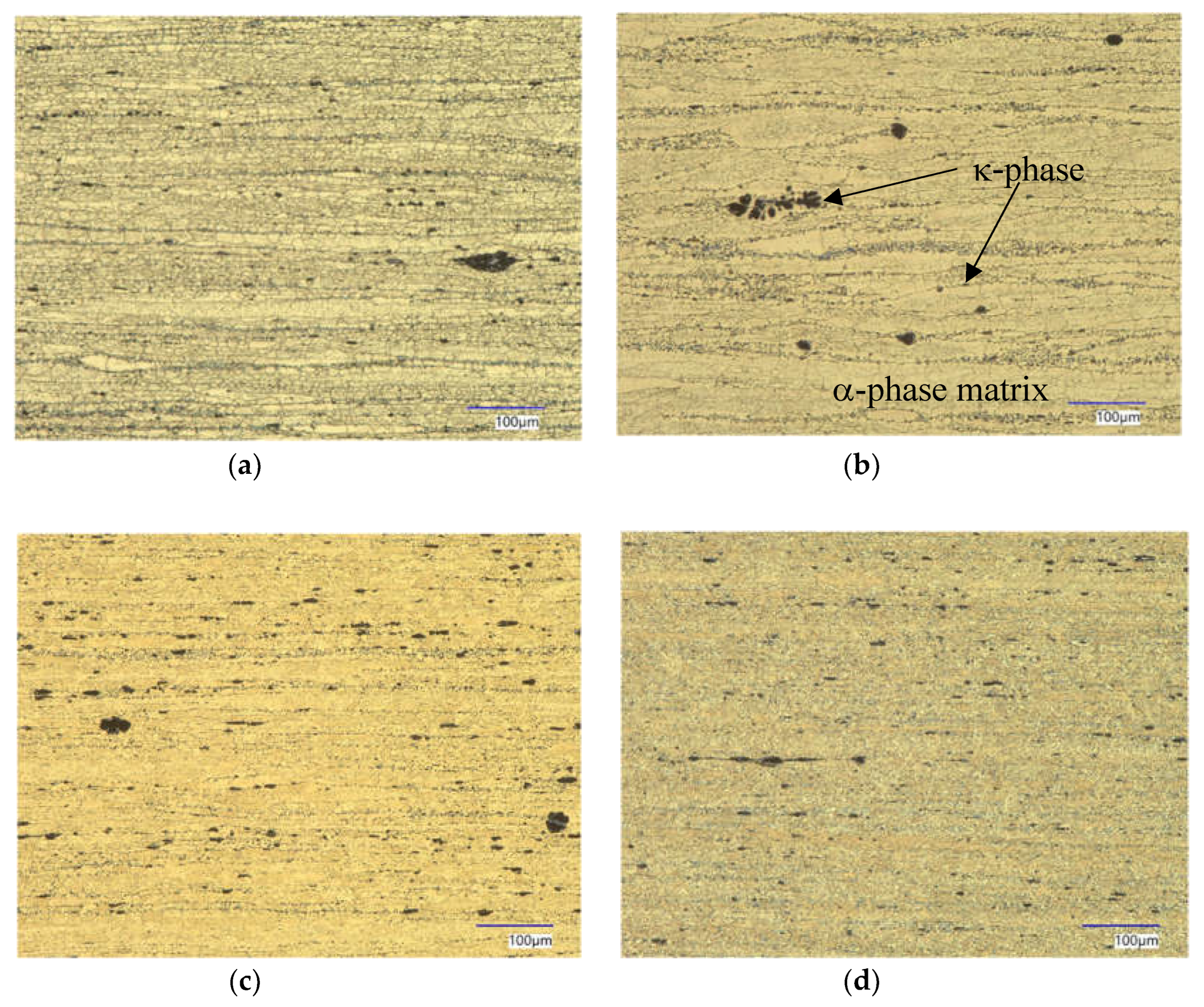

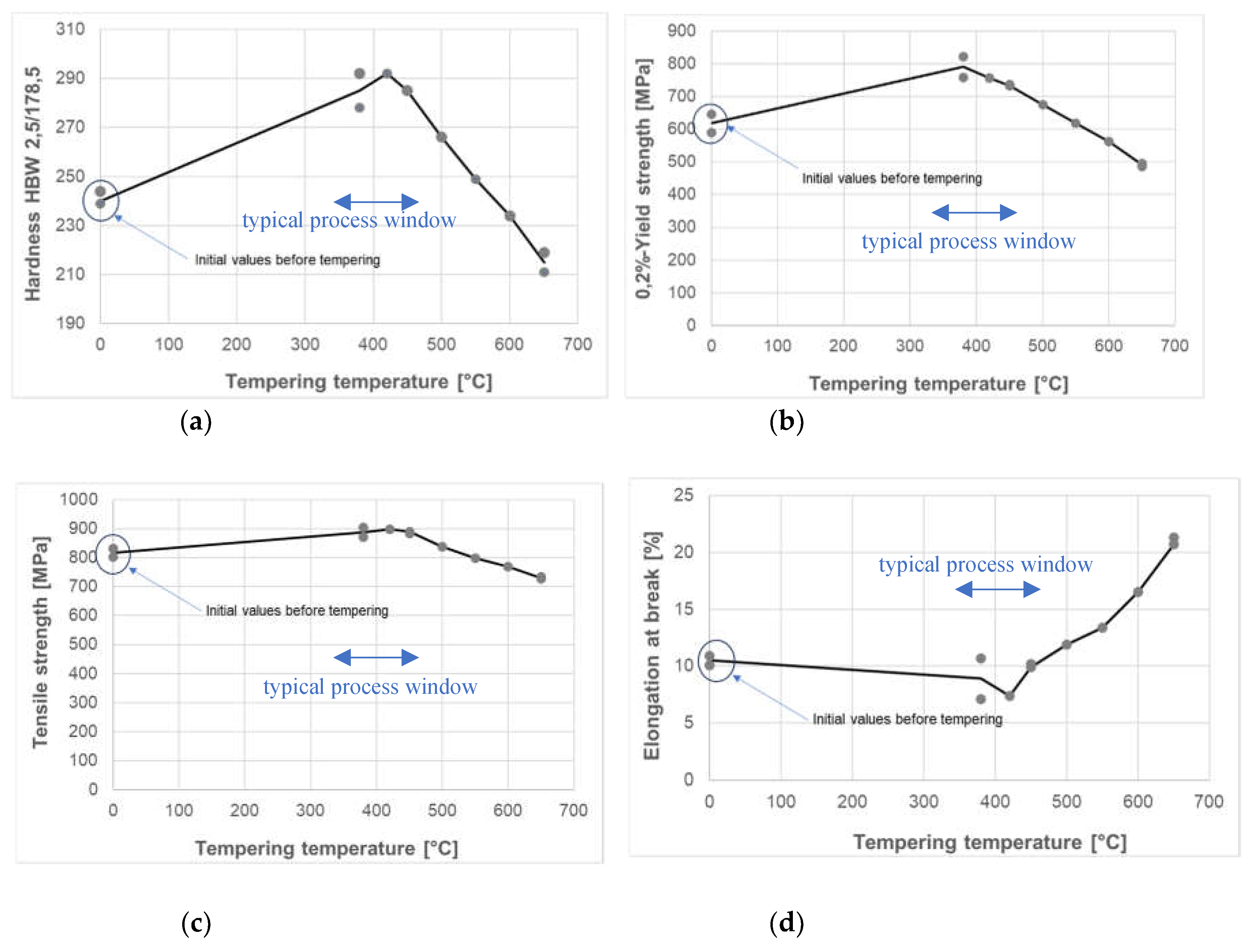

Typically, the tempering temperature for aluminium bronze alloys is between 350 and 650 degrees Celsius. This range was also covered in the tempering tests of CuAl8Fe5Ni4Zn4Sn1 (Figure 8). Considering the light optical micrographs there is found no significant effect on the microstructures after different tempering temperatures (Figure 9).

But the tempering tests had an unexpected result. It can be seen from the diagram that the new alloy provides age hardening. In other aluminium bronze alloys age hardening is only achieved if the material has undergone a solutionizing process previously. For CuAl8Fe5Ni4Zn4Sn1, the age hardening of the alloy can be carried out without this heating process and yet the increase in strength is at least similar or even higher than with solution-annealed CuAl10Ni5Fe4. In order to find the reason for this effect the material has been analysed by surface electron microscopy (Figure 10).

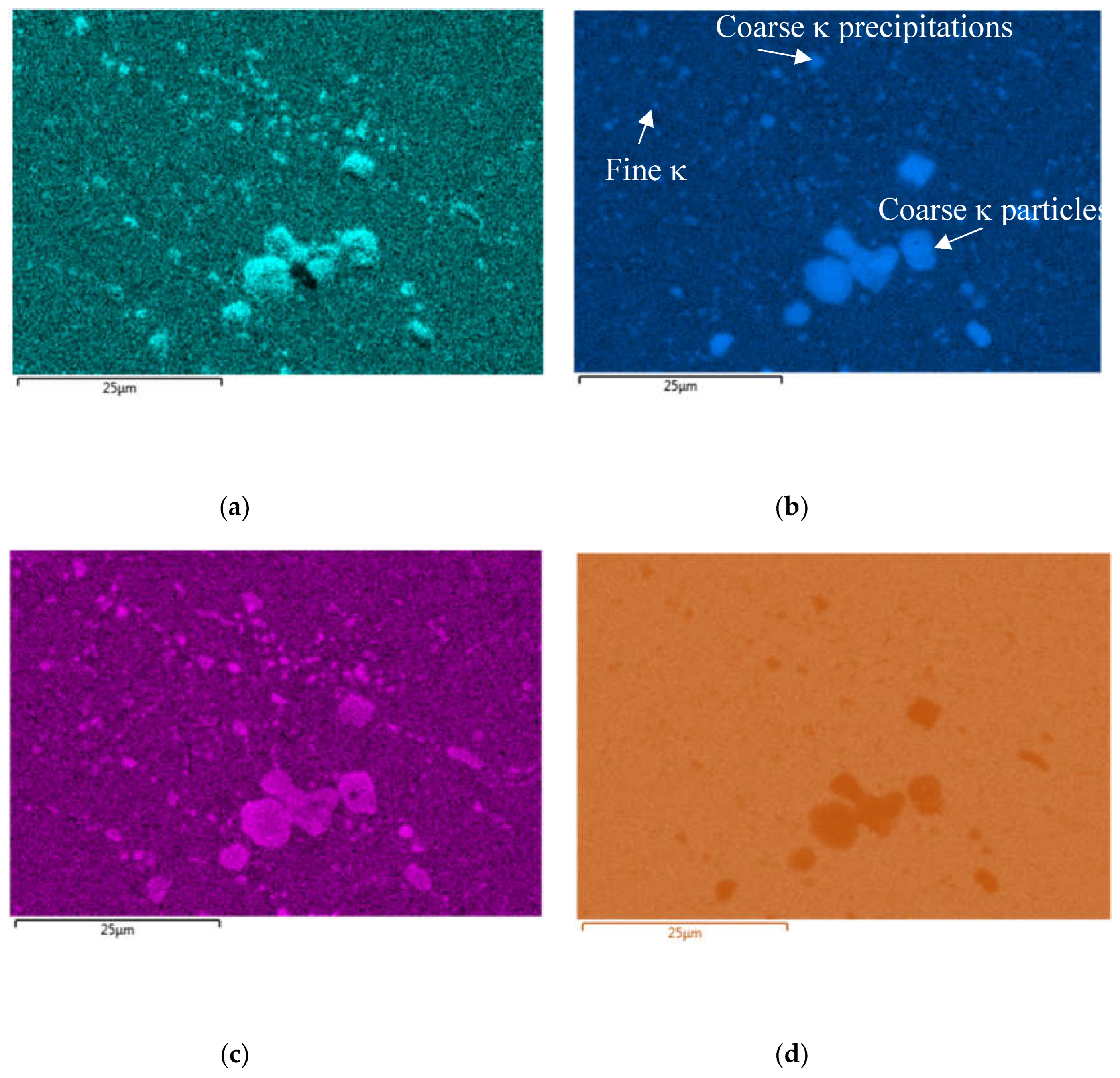

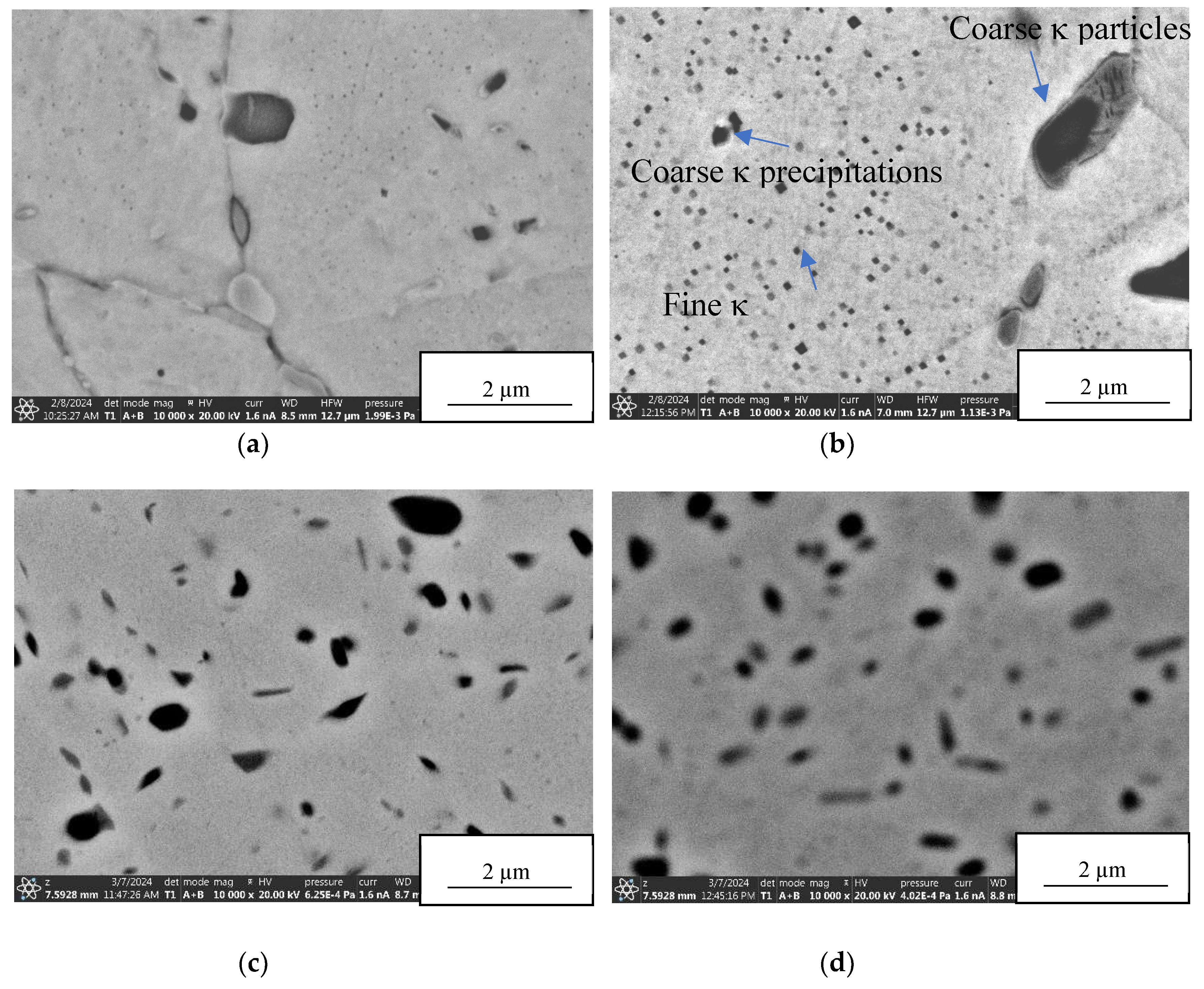

Both coarse and fine precipitations (κ-phases) can be seen and were analysed using EDX mapping (Figure 11) and point analysis. As shown in Table 3 coarse particles are of Fe₃Al type but because of their size of several microns have only little relevance for the strengthening of the material. The size of the fine particles ranges from about 20 to 100 nm and they are of the Fe₃Al, NiAl and Al₃Ni₅-type. With this it is demonstrated that fine κ-phase precipitations are the reason for such strong age hardening in the new alloy.

6. Summary

CuAl8Fe5Ni4Zn4Sn1 is a new copper base alloy for plain bearing bushings where high strength is required. The bushing manufacturing route begins with continuous casting of bars for billets. The following process steps are hot extrusion, cold drawing, straightening and tempering. The authors have shown how the entire manufacturing process contributes to obtain a material with a combination of high strength, ductility and sufficient toughness. Starting with fine microstructures after casting, homogenisation and refinement occurs during hot extrusion. Some work hardening effects are related to hot forming and particularly cold drawing.

But the most unexpected impact on material strength was achieved by tempering the cold formed tubes. Without previous solutionizing there is a strong hardening effect in the new alloy by precipitation formation of κ-phase at temperatures of about 400°C and air cooling.

It can be stated that the new chemistry of CuAl8Fe5Ni4Zn4Sn1 with the chosen amounts of Sn, Fe and Ni together with a carefully designed production process leads to a big advantage in comparison with other aluminium bronze alloys like CuAl10Ni5Fe4 or others. Neither solutionizing prior to age hardening nor quenching is necessary to get these excellent results.

7. Outlook

Copper alloys, that were developed long before, have been used for many years. The situation changed when the banishment of lead from these alloys spurred the development of new copper alloys. As can be seen from the development of CuAl8Fe5Ni4Zn4Sn1 [24], the new copper alloys are a serious alternative to the existing standard alloys. This new development makes clear, that there are many alloy combinations still unexplored that possibly would display further unexpected benefits.
