Modification of Keratin Integrations and the Associated Morphogenesis in Frizzling Chicken Feathers

Hao Wu; Tsao-Chi Chuang; Wan-Chi Liao; Kai-Jung Chi; Hsu-Cheng Cheng; Wen-Tau Juan

doi:10.20944/preprints202404.1808.v1

Submitted:

27 April 2024

Posted:

28 April 2024

You are already at the latest version

Abstract

The morphological and compositional complexities of keratinized components make feathers ingenious skin appendages adapted to diverse ecological needs. Frizzling feathers, characterized by their distinct curling phenotypes, offer a unique model to explore the intricate morphogenesis in developing a keratin-based bioarchitecture over a wide range of morphospace. Here, we investigated the heterogeneous allocation of α- and β-keratins in flight feather shafts of homozygous and heterozygous frizzle chickens by analyzing the medulla-cortex integrations using quantitative morphology characterizations across scales. Our results reveal intriguing construction of frizzling feather shaft through modified medulla development, leading to a perturbed balance of the internal biomechanics and, therefore, introducing the inherent natural frizzling compared to those from wild-type chickens. We elucidate how the localized developmental suppression of the α-keratin in the medulla interferes with the growth of the hierarchical keratin organization by changing the internal stress in the frizzling feather shaft. This research not only offers insights into the morphogenetic origin of the inherent bending of frizzling feathers but also facilitates our in-depth understanding of the developmental strategies toward the diverse integuments adapted for ecological needs.

Keywords:

frizzling feather

;

rachis

;

cortex

;

medulla

;

morphogenesis

;

quantitative morphology field

Subject:

Biology and Life Sciences - Animal Science, Veterinary Science and Zoology

Introduction

Feathers represent one of the most intricate functional integuments found on avian skin, characterized by their complex hierarchical branching patterns and superior biomechanical properties [1-4]. The structural complexity among feathers emerges from the programmed stacking of keratinized components across different scales and regions [5,6]. The multiscale organization of keratin gives rise to a wide range of morphological and material variations [3,7,8], each closely linked to specific functional adaptations [9-13]. Therefore, understanding the keratin integration strategies in feathers uncovers the intricated morphogenesis toward a functional biological material.

The feather morphogenesis is highly regulated and orchestrated by a harmonic interplay of temporal and spatial mechanisms [1,3,7,14-26]. Unlike other branching structures observed in nature, the regeneration of a functional three-dimensional feather starts from the distal end, progressing towards the proximal end, and eventually forms a hierarchical appendage anchoring into the skin [1]. Recent molecular studies have identified primary molecular signals that dictate feather development and regeneration through localized expression patterns [27], marking significant milestones in contemporary research on feather morphogenesis. Furthermore, breakthroughs in understanding how keratins contribute to the intricate structure of feathers [28,29], as well as recent insights into the regional variations in the stacking arrangement of feather keratin fibers [5,6], have deepened our understanding of feather materials through modern methodologies. The superior material features for specific functionalities and their underlying architectural principles of the keratinized feathers have recently been revealed [2,4,30].

As the cortical and the medullary components of a feather consist mainly of β- and α-keratins, respectively, the geometrical and mechanical properties of a feather bioarchitecture can be elegantly tuned by changing the cortex-medulla integration [4,26,31,32]. Previous studies have identified the genetic basis of feather frizzling attributed to mutations in keratin genes [26], but the mechanisms underlying the curling structure remain fully understood. Considering the development of a feather with inherent frizzling implies the cross-scale modification of the keratin integration toward distinct phenotypes, we seek to address this gap by uncovering the morphological characteristics of keratinized components in feather rachises under the diverse expression of the frizzle gene.

We leverage these new techniques to resolve the cortex-medulla integration details of flight feathers from chickens exhibiting distinct frizzling phenotypes, as the recent advances in quantitative imaging analyses have revolutionized our interdisciplinary understanding of diversity in feathers [2,4,30]. By examining the combination between the cortex and medulla morphologically along the rachis, which preserves the considerable developmental clues of the distal to proximal feather regeneration, we aim to elucidate the mechanisms of constructing the rachis toward a frizzling shaft.

Materials and Methods

Feather sample collection. We chose the chicken flight feather as the model specimen for our study. Within avian research, domestic chickens, particularly frizzling chickens, as shown in Figure 1A, have emerged as invaluable model organisms due to the recent comprehensive research across disciplines [26,33-43]. Flight feathers were obtained from mature male chickens representing three phenotypic traits: wild-type, homozygous, and heterozygous for the frizzle gene. Feathers were carefully plucked, cleaned, and air-dried to ensure their integrity for subsequent analyses.

Full-length feather morphology digitizing and characterization. The whole feather morphology projected on the two-dimensional plane was quantified using a flatbed scanner to capture high-resolution images. To describe the spatial structure of feathers, we established a coordinate system centered on the feather (Figure 1B). This system defines three orthogonal axes: Proximal-Distal (P-D), Dorsal-Ventral (D-V), and BarbL-BarbR (BL-BR). Note that, in a typical flight feather, the leading vane against the airflow is narrower than the trailing one. The P-D axis aligns with the curving feather shaft, the D-V axis delineates the outer and inner sides of the shaft, and the BL-BR axis represents the left and right sides when viewed from the distal end towards the proximal end. A custom MATLAB algorithm was developed to quantitatively characterize the curly rachis and identify the backbone trace of a rachis as the rachis coordinates s. Measuring parameters such as total feather length (S), and local width, deflecting angle θ, curvature of the feather shaft χ, as functions of s can be obtained.

Sectioning feather shaft for cross-sectional analyses. Feather shafts were physically sectioned to analyze their internal structure cross-sectionally. Samples were cut into segments, embedded in paraffin blocks, and sliced perpendicularly to the rachis axis across the cross-section. Sections were obtained regularly along the shaft, and care was taken to preserve their orientation and integrity. We performed continuous sectioning of rachis samples to statistically sample and analyzed the rachis cross-sectional morphology. Paraffin-embedded feather shaft samples were continuously sectioned into slices approximately 5μm thick. Sections were mounted on glass slides for microscopy investigation, ensuring a sequential arrangement from the distal to proximal order.

Optical microimaging of rachis cross-section. Feather shaft sections were imaged using Olympus BX51 optical microscopy to visualize their internal structure. Cortical and medullary morphology were recorded using reflected and transmitted light, respectively. Due to the limitation of the view field, images were stitched together to obtain comprehensive two-dimensional representations at high resolution. Further quantitative analyses of the morphology of the cortex-medulla integration, as well as the cellular morphology within the medulla region were then performed.

The cortex morphology, described by the profile between the outer cortex surface and inner medulla contour represented by red and green loops respectively, was quantified using azimuth angles to describe variations in the cortex’s shape around the shaft’s cross-section. MATLAB algorithms were employed to delineate cortical contours and calculate cortical thickness (R_out-R_in) across the range of azimuth angle (θ_r), as illustrated in the cross-sectional image of wild-type flight feather cross-section in the result figure. Medullary morphology was quantified by analyzing the porous structure of the medulla using MATLAB image processing algorithms, termed quantitative morphology field (QMorF) [4,44]. Binary images of the medullary reticulum were generated, and properties of individual pores were extracted. These properties were used to calculate scalar fields representing the distribution of cellular morphology in medulla, visualized using color heatmaps [4,44].

Histology and fluorescent staining of developing feather. A primary flight feather from a wild-type Leghorn chicken’s wing was plucked and allowed to regrow to half of its original length. The growing feather follicle was collected and cut according to the desired developing stages. The cut feather follicle samples were treated with 4% paraformaldehyde-PBS (phosphate buffered saline) solution overnight at 4℃, dehydrated with ethanol series, and embedded in paraffin for further sectioning. Sections with 5μm thick were prepared cross-sectionally from the paraffin-embedded samples along the proximal-distal axis of the feather. The sections were dewaxed with Xylene for 15 minutes twice, then rehydrated with an ethanol series to PBS. The rehydrated sections were treated with citric buffer (10 mM citric acid, 0.1% NP-40, pH 6.0) at 95℃ for 30 minutes and washed off with PBS for 5 minutes three times. Afterward, the sections were stained with DAPI and mounted using Fluoromount Aqueous Mounting Medium. Fluorescent images of the sections were taken by a Nexcope NCF950 laser confocal microscope.

Results

Phenotyping of Frizzle Flight Feathers

The appearance of flight feather morphology exhibits distinct differences among the three phenotypes: wild-type, heterozygous frizzle, and homozygous frizzle chickens. The wild-type chicken flight feather showing normal branching architecture serves as our reference for identifying the morphological changes under the influences of the frizzling gene expression. In wild-type chickens, as shown in the left panel of Figure 1C, a typical flight feather comprises the bilaterally asymmetric lamellar vane and a naturally persistent bending central rachis shaft toward the trailing side. Conversely, flight feathers from heterozygous and homozygous frizzle chickens, as shown in the middle and right panels in Figure 1C, respectively, exhibit sparse lamellar vane structures due to the loss of barbs. Additionally, irregular bending and width variations are found in the frizzle feather rachises.

Full-Length Characterization of the Frizzling Feather Shaft

The rachis shaft, as the structural backbone to mechanically support the feather branches, contributes the primary biomechanical element to introduce the angular deflection and, therefore, the frizzling of a feather. To quantitatively describe the spatially varied rachis bending, we analyzed the local deflection angle θ, curvature χ, and width by tracing the backbone of the rachis along the rachis coordinates s, as illustrated in Figure 2A and B, among the three feather phenotypes. Red curves in Figure 2C show the local deflection angle θ of the rachis backbone along the coordinates of the three representing feathers in Figure 1C, respectively. Despite the initial calamus-to-rachis transition region of the feather shaft at the very proximal end (s < 0.2S), the wild-type flight feather rachis shows a persistent bending toward the ventral side hence the stable curvature over a wide range from 0.2S to 0.75S.

A significant deflection associated with abrupt curvature fluctuation appears at the distal end after 0.75S. In the meantime, the rachis width exhibits exponential-like decay toward the distal direction, suggesting a gradual tapering of the rachis from proximal to distal regions. Compared to wild-type feathers, the rachis structure of frizzle feathers displayed deviations from the wild-type pattern, exhibiting fluctuating shaft curvature and width. As the defection and curvature curves look similar to the wild-type case, the tapering of the heterozygous frizzle feather between 0.2S and 0.6S is less aggressive. It is interesting to note that the homozygous frizzle shows multiple irregular deflections and, therefore, significant curvature fluctuations along s. It even exhibits a dorsal-ward bending near the distal end, as reported in previous literature [26]. The rachis width variation of a homozygous frizzle feather shows certain irregularities around 0.3S and 0.6S. Since the rachis is a natural composite beam of the outer cortex shell and the inner medulla core [2,4,45], investigating the cross-sectional cortex-medulla integration should reveal the distinct constructions of feather shafts for distinct phenotypes.

Morphological Characterization of Cortex from the Rachis Cross-Section

The morphology of the stiff and dense cortex, composed mainly of the β–keratin macromolecule, is crucial in determining the structural integrity and biomechanical properties of feathers. To investigate the cortical morphology of flight feather rachis in wild-type, as well as the heterozygous and homozygous frizzle chickens, we traced the radiuses of the outer (R_out) and inner (R_in) contours of the cortical region with respect to the geometrical center C, and then calculated the cortex thickness (R_out-R_in) azimuthally along the polar coordinate θ_r from the cross-sectional images at different positions of the shaft in Figure 3.

We observed distinct cortex-medulla integration in the proximal half of the flight feather rachis according to the frizzling phenotype. In the position at s = 0.4S, the cross-section of the wild-type rachis (upper panel of Figure 3A) shows a typical proximal rachis configuration of a chicken flight feather [4] with a porous medulla core (the region enclosed by the green contour) surrounded by the outer cortical layer (the region between red and green contours). The internal side of the rounded dorsal cortex (θ between 45-135°, gray shadow region in Figure 3B) shows the periodically arranged seven cortical ridges, which are bi-laterally distributed about the mid-line (see seven spikes in the R_out-R_in curve distributed around θ=90°). The ventral groove exhibited a central depression with relatively smooth cortical thickness variation (indicated by the red arrow). In heterozygous frizzle chickens (the middle panel of Figure 3), internal cortex-medulla integration deviates from the typical wild-type configuration, showing slight irregularities in the arrangement and thickness of cortical ridges in the dorsal region. Additionally, increased cortical thickness was found around the ventral groove compared to the wild-type case.

In the lower panels, we even discovered a more complicated proximal rachis composition of the homozygous frizzle chickens compared to the previous two cases. Unlike the well-distinct cortex medulla regions in the outer shell and inner core of the rachis beam among flight feathers, in the microimage, tips of the dorsal ridges are laterally connected with the dense cortical material and contribute to the isolated inter-ridge medulla chambers. The formation of the intersecting cortical layer within the core region of rachis contributes to the artifacts of the dorsal cortex thickness at around θ=90°. In addition, a strong invasion of the ventral cortex is also observed causing an increased cortical thickness near the ventral groove region. The diverse cortex-medulla integration in the proximal rachis of the flight feather with different frizzling degrees suggests the perturbation of the typical cortical development of the frizzling feather morphogenesis.

In contrast to the distinctive cortex-medulla integration in the proximal half of the rachis, the distal half of the rachis shows subtle differences among frizzling phenotypes, as demonstrated in Figure 4. At the 0.6S cross-section, the cross-sectional geometry of wild-type rachis maintained a characteristic rounded rectangular shape, with three similar-sized cortical ridges arranged around the mid-dorsal. The central depression of the ventral groove was evident, accompanied by a localized slight cortical-thickness change. In heterozygous frizzle chickens, the cortical cross-section at 0.6S closely resembled that of wild-type chickens, displaying a rounded rectangular shape with symmetrically arranged dorsal cortical ridges. However, the two laterally outer ridges are significantly smaller and slightly distorted than the central one. We also found a small-degree discontinuity of the contour, resulting in the tiny spike of the (R_out-R_in) around the ventral groove. The rachis cross-section of the homozygous frizzle chickens also exhibits a rounded rectangular cortical cross-section but seems more laterally flattened compared to the previous two cases. Although dorsal cortical ridges still exist, their spatial ordering and symmetry are severely disturbed. The fluctuating cortical thickness around the ventral groove region is easily seen.

Quantitative Morphology of Cellular Structures in Rachis Medulla

The analysis of cortex morphology along the feather shafts revealed significant differences in cortical structures in both heterozygous and homozygous frizzle chickens from the typical wild-type case. These morphological deviations suggest that the expression of the frizzling gene alleles alters the construction of flight feather rachis, hence the curled feather phenotypes. As the α–keratin-dominated medulla core plays a vital structural role in supporting rachis morphogenesis, we then quantitatively investigated the cellular morphology of the medulla across scales to obtain a constructing principle behind the curling cortex-medulla composite.

We applied the innovative quantitative morphology field (QMorF) analysis to unravel the morphology of cellular structure from the cross-sectional micro-images of the feather shaft medulla [4]. We particularly focused on the positions at 0.4S and 0.6S in the rachis coordinate, for which we conducted thorough cortex morphology analyses showing severe configurational diversities in previous sections.

From the heatmaps representing the distributions of cellular morphology characteristics, such as the size, orientation, and aspect ratio of cellular cross-sections in Figure 5, features of medullary cells revealed by the QMorF show dramatic spatial features at various levels. In the flight feather rachis of the wild-type chicken, the contour of the medulla region exhibited a slightly flattened rectangular shape with rounded corners. According to the heatmap patterns, morphological features of the medullary cells are, in general, bilaterally symmetric. Equidistant sharp depressions of the contour on the dorsal side, aligned with the invasion of dorsal cortical ridges, are in contrast with a wide and shallow depression on the ventral side. Cells on the opposite lateral sides show two distinct zones composed of relatively large cells (reddish color in the size heatmap) with their aspect ratio close to 1 (blueish color in the aspect ratio heatmap). Within the fan-like region between these two large-cell zones, shrinking from dorsal to ventral as marked by the gray dot triangle in Figure 5, striping patterns exist from a wide lateral span of the dorsal region and converge to the ventral depression around the mid-line. The striping pattern exists among all cellular morphology characteristics, i.e., size, orientation, and aspect ratio, and the stripe arrangement exhibits periodicity laterally. The coherences of cell size, orientation, and aspect ratio suggest that keratinized cells in the medulla experienced highly ordered morphological banding. We termed these striping patterns as cell bands reflecting the undulation of the biomechanical field to collectively fold the medullary cells in a spatially organized way during the rachis morphogenesis [4].

In the heterozygous frizzle chickens (Figure 5, mid-column), medulla profiles exhibit distinct features compared to the wild-type case at the same 0.4S region. A flattened oval shape with multiple equidistant depressions on the dorsal side characterizes the medulla contour. A noticeable cell depletion zone in a blub-shape, which has no keratinized medullary cell to retrieve QMorF signal, occupying the core of the medulla is characterized. Elongated cells tilting toward the corresponding dorsal-lateral directions on each side were observed around the cell depletion zone on the ventral side. The cell depletion zone seems to interrupt the periodic cellular stripes extending from the medullary ridge and leaves only localized patches of cells with similar morphological features arranged between the invasions of neighboring cortical ridges. From the coarse-grain pattern of the QMorF, the medulla structure of the heterozygous frizzle chicken feather can be considered as a medulla of the wild-type case after removing the fan-like cell-band zone.

The rachis medulla of the homozygous frizzle chickens in the right column of Figure 5, at first glance, seems a combination of features of the wild-type and heterozygous cases. However, detailed inspections suggest that the medulla configuration could be a stronger developmental modification beyond the heterozygous case. In the homozygous case, the medulla contour is characterized by a shell-like profile with a wider dorsal and a shrunk ventral side, hence a more flattened contour. Similar to the QMorF pattern of the heterozygous case, a notable absence of a fan-like striping pattern between the medullary ridges was observed, replaced instead by a group of small, elongated cells extending from the ventral depression to the center of the medulla (as evidenced by the size and aspect ratio heatmaps). The elongated small cells then arrange laterally and eventually form a T-shaped pattern around a central cell-depletion zone. This morphological feature suggests that the presence of a T-shaped small cell cluster, starting from the mid-ventral along with the central void and then bilaterally spanned, intersects the whole medulla structure and disrupts the typical formation of periodic stripe patterns. It further suggests that the medullary cells not only experienced an invasive biomechanical field toward the dorsal but also turned into a lateral arrangement, presumably under the influence of horizontal mechanical components. This contributes two opposite swirling QMorF patterns on the opposite sides of the medulla, both streaming from the mid-ventral region.

In the distal half of the rachis, the disruption of the medulla structures exhibits minor distinctions among flight feathers between wild-type and frizzle chickens (Figure 6). In the position around 0.6S, the rachis medulla of the wild-type chicken appears as a rounded square with rounded corners, featuring equidistant depressions on the dorsal side corresponding to dorsal medullary ridges. Heterozygous frizzle chickens display similar rachis medulla profiles, with only slightly distorted depressions and periodic arrangements of elongated cells. The medulla of homozygous frizzle chickens presents a flatter oval shape, with variations in the depth of depressions compared to the other phenotypes. As the medulla contours are slightly changed, the QMorF patterns among these three cases all show the simple bilateral symmetric feature and preserve one center cell-band along the D-V direction near the mid-line of the medulla.

According to the position-dependent QMorF features of the medulla, we anticipated the differences of the QMorF patterns should show significant and minor differences in the proximal and distal end of the rachis, respectively, since the ratio of area portions between the medulla and cortex decreases as s increases. This hypothesis is supported by our further QMorF analyses of the more proximal (distal) portion of the rachis medulla at 0.2S (0.8S), compared to the results around the middle rachis at 0.4S and 0.6S in Figs. 5 and 6. Demonstrated by the aspect ratio heatmaps in Figure 7, the proximal rachis at 0.2S of the wild-type chicken flight feather displayed a circular shell-like medulla profile with equidistantly spaced medullary ridges on the dorsal side and a singular depression on the ventral groove. The presence of periodic stripe patterns, resembling leaf veins, indicated a symmetrical fan-shaped arrangement of medulla cells, extending from periodically arranged dorsal ridges to the ventral groove. This morphological pattern is consistent with observations at 0.6S and 0.4S but is more pronounced at the more proximal 0.2S.

The rachis medulla of the heterozygous chicken feather also exhibits shell-like medulla morphology with considerable cell depletion area at the 0.2S section, albeit with a narrower ventral width and irregularly spaced dorsal depressions. The presence of a distinct cell-depletion zone on the dorsal side disrupted the periodic fan-shaped stripe patterns within the medulla, affecting cell orientation distribution and persistency. In the case of homozygous frizzle chicken, periodic stripe patterns are arranged mainly along the lateral direction toward the deeply invasive ventral cortex in the cross-sectional mid-line. On the contrary, in the position near the distal rachis at 0.8S, the contours of the medulla cross-sections are flattening according to the frizzling degrees, from wild-type to heterozygous to homozygous frizzling expression. However, the bilateral symmetric distributions of the cellular aspect ratio with a group of elongated cells occupying the mid-line region of the medulla are simultaneously found among three phenotypes.

Discussion

This study employs a comprehensive approach to unravel the intricate relationship between variations of frizzle gene expression and the morphological changes observed in feather shafts of chickens exhibiting different phenotypes. Using image-based analyses, we systematically quantified the structural features of feather shafts across scales and elucidated the underlying constructing mechanisms driving the variations in the frizzling feather. Our analysis revealed considerable morphological differences in the ventral region of the rachis among flight feathers from wild-type, homozygous, and heterozygous frizzle chickens. The rachis of the wild-type feather rachis is integrated in a highly organized way throughout morphological features, such as the symmetric and periodic distribution of regional cortex structure and patterned cellular morphologies in the medulla. The cortex ridges on the dorsal and ventral sides of the rachis contribute to the material reinforcement against the bending and, therefore, maintain the overall stability of the shaft [4,6]. Additionally, the medulla displayed a highly organized distribution of cells, forming characteristic periodic patterns extending from the dorsal cortex ridges to the ventral groove, suggesting a well-programmed mechanical field sculping the light and resilient cortex-medulla composite beam during the harmonic rachis morphogenesis [4].

Frizzling feathers exhibited drastic morphological changes mainly in the ventral region of the rachis, particularly in the later stages of proximal feather growth. The cortex in this region displayed irregular thickness variations and distortions, which may cause irregular material allocation along the rachis shaft. Such perturbation of keratin accumulation modifies the distribution of the internal stress along the composite feather shaft and cause significant localized deflections. Moreover, the ventral medulla in a frizzling feather rachis shows a severely different configuration than the wild-type case. As the soft keratinized cells in the medulla can be considered as the scaffold for stacking stiff β–keratin of cortical shell during the construction of a feather architecture, the morphological perturbations of the cross-sectional rachis integration, such as the reduction of the rachis thickness, invasion of the ventral cortex, intersecting of the fan-like cell band region, distortion of the dorsal cortical ridge, will make frizzling feather rachis composite significantly different from the typical wild-type flight feather.

These findings underscore the dynamic interplay between cortical and medullary structures in shaping the curly feather shafts. As the cell band revealed by QMorF suggests the architectural details of the dorsal to ventral keratin integration toward a typical rachis shaft, a highly localized perturbation of the developmental blueprint, such as the discovered modification of keratin integration, even on the soft, flexible α–keratin in the ventral rachis medulla, dramatically alters the morphogenetic production of a natural composite and significantly contribute to the biodiversity of feathers for the adaptation. The above idea is illustrated by the progressive dorsal-to-ventral development of the rachis in Figure 8A, which is also supported by recent genetic and developmental studies [26,32]. The rachis morphing models of the wild-type and frizzling feather rachises through modifying the ventral medulla proliferation is illustrated by the conceptual plot in Figure 8B. While our previous study provides quantitative evidence linking genetic mutations in the KRT75 frizzle gene [26,32] to morphological changes in feather shafts, analyzing smaller structural variations, such as changes in keratin fiber arrangement at sub-μm scale, may provide deeper insights into the effects of variations and biological design on feather microstructure.

Inspired by the inherent bending observed in frizzling feather shafts, engineers are able to fabricate composite beams with desired curling features. These composite beams offer compelling advantages for various applications [8]. By combining a stiff outer shell with a lightweight, porous core, the design achieves exceptional specific strength, enhanced resilience, and superior restoring capacity. Furthermore, fabricating these beams in various geometries of ridges and contours allows for tailored designs that optimize performance, integrate seamlessly into assemblies, and minimize material waste. The curly configuration, mimicking the natural bending of frizzling rachis, offers distinct benefits such as reduced stress concentrations, improved fatigue and impact resistance, and enhanced structural stability. Curly composite beams inspired by the frizzling rachis are ideal for applications demanding lightweight yet robust components, spanning aerospace structures, automotive chassis, architectural elements, sporting equipment, and assistive devices.

Conclusions

In conclusion, our study offers an in-depth understanding of how the β–keratin-based cortex and α–keratin-based medulla are integrated in feather shafts under various frizzle gene expressions. By elucidating the complex interplay between genetics and microstructure, we uncover how Aves developed the composite feather shaft, exhibiting unique material and morphological characteristics. Moreover, our analytical approach holds promise for exploring the diverse morphological variations observed in feathers across different bird species, shedding light on the emulation of the keratin-based construction for various functionalities [12,13].

Author Contributions

Conceptualization, Kai-Jung Chi, Hsu-Cheng Cheng and Wen-Tau Juan; Formal analysis, Hao Wu, Tsao-Chi Chuang and Wan-Chi Liao; Investigation, Hao Wu, Tsao-Chi Chuang and Wan-Chi Liao; Project administration, Wen-Tau Juan; Supervision, Wen-Tau Juan; Visualization, Hao Wu; Writing—original draft, Hao Wu and Wen-Tau Juan.

Funding

This work was supported by the National Science and Technology Council, Taiwan (MOST 109-2112-M-039-002-MY3, MOST 109-2311-B-039-002-MY3, MOST 111-2811-B-039-002, and NSTC 112-2112-M-039-001), China Medical University, Taiwan (CMU111-MF-18 and CMU112-MF-01), and partially supported by the iEGG and Animal Biotechnology Center from the Feature Areas Research Center Program within the framework of the Higher Education Sprout Project by the Ministry of Education (MOE-109-S-0023, MOE-110-S-0023) in Taiwan.

Institutional Review Board Statement

The Institutional Animal Care and Use Committee (IACUC) of China Medical University has reviewed and approved the animal use protocol.

Data Availability Statement

The authors confirm that the data supporting the findings of this study are available within the article.

Acknowledgments

The authors would like to thank Cheng-Ming Chuong, Chen Siang Ng, Ping Wu, and Po-Yu Chen for their fruitful discussions and services provided by the Two-photon imaging facility at China Medical University Hospital, Taiwan.

Conflicts of Interest

The authors declare no conflict of interest.

References

Prum, R.O. Development and evolutionary origin of feathers. Journal of Experimental Zoology 1999, 285, 291–306. [Google Scholar] [CrossRef]
Sullivan, T.N.; Wang, B.; Espinosa, H.D.; Meyers, M.A. Extreme lightweight structures: avian feathers and bones. Materials Today 2017, 20, 377–391. [Google Scholar] [CrossRef]
Richard O., Prum; Alan, H. Brush. The Evolutionary Origin and Diversification of Feathers. The Quarterly Review of Biology 2002, 77, 261–295. [Google Scholar] [CrossRef]
Chang, W.-L.; Wu, H.; Chiu, Y.-K.; Wang, S.; Jiang, T.-X.; Luo, Z.-L.; Lin, Y.-C.; Li, A.; Hsu, J.-T.; Huang, H.-L.; et al. The Making of a Flight Feather: Bio-architectural Principles and Adaptation. Cell 2019, 179, 1409–1423. [Google Scholar] [CrossRef]
Lingham-Soliar, T.; Bonser, R.H.C.; Wesley-Smith, J. Selective biodegradation of keratin matrix in feather rachis reveals classic bioengineering. Proceedings of the Royal Society B: Biological Sciences 2010, 277, 1161–1168. [Google Scholar] [CrossRef]
Cai, S.; Han, B.; Xu, Y.; Guo, E.; Sun, B.; Zeng, Y.; Hou, H.; Wu, S. Anisotropic Composition and Mechanical Behavior of a Natural Thin-Walled Composite: Eagle Feather Shaft. Polymers 2022, 14, 309. [Google Scholar] [CrossRef]
Prum, R.O.; Dyck, J. A hierarchical model of plumage: Morphology, development, and evolution. Journal of Experimental Zoology Part B: Molecular and Developmental Evolution 2003, 298B, 73–90. [Google Scholar] [CrossRef]
Lazarus, B.S.; Chadha, C.; Velasco-Hogan, A.; Barbosa, J.D.V.; Jasiuk, I.; Meyers, M.A. Engineering with keratin: A functional material and a source of bioinspiration. iScience 2021, 24, 102798. [Google Scholar] [CrossRef]
Feduccia, A. Aerodynamic Model for the Early Evolution of Feathers Provided by Propithecus (Primates, Lemuridae). Journal of Theoretical Biology 1993, 160, 159–164. [Google Scholar] [CrossRef]
Philip, J.R. The Evolutionary Origin of Feathers. The Quarterly Review of Biology 1975, 50, 35–66. [Google Scholar]
DYCK, J. The Evolution of Feathers*. Zoologica Scripta 1985, 14, 137–154. [Google Scholar] [CrossRef]
Osváth, G.; Vincze, O.; David, D.-C.; Nagy, L.J.; Lendvai, Á.Z.; Nudds, R.L.; Pap, P.L. Morphological characterization of flight feather shafts in four bird species with different flight styles. Biological Journal of the Linnean Society 2020, 131, 192–202. [Google Scholar] [CrossRef]
Terrill, R.S.; Shultz, A.J. Feather function and the evolution of birds. Biological Reviews 2023, 98, 540–566. [Google Scholar] [CrossRef] [PubMed]
Chuong, C.-M.; Homberger, D.G. Development and evolution of the amniote integument: Current landscape and future horizon. Journal of Experimental Zoology Part B: Molecular and Developmental Evolution 2003, 298B, 1–11. [Google Scholar] [CrossRef]
Chuong, C.-M.; Chodankar, R.; Widelitz, R.B.; Jiang, T.-X. Evo-Devo of feathers and scales: building complex epithelial appendages: Commentary. Current Opinion in Genetics & Development 2000, 10, 449–456. [Google Scholar] [CrossRef]
Sawyer, R.H.; Knapp, L.W. Avian skin development and the evolutionary origin of feathers. Journal of Experimental Zoology Part B: Molecular and Developmental Evolution 2003, 298B, 57–72. [Google Scholar] [CrossRef]
Lin, C.-M.; Jiang, T.X.; Widelitz, R.B.; Chuong, C.-M. Molecular signaling in feather morphogenesis. Current Opinion in Cell Biology 2006, 18, 730–741. [Google Scholar] [CrossRef]
Prum, R.O. Evolution of the morphological innovations of feathers. Journal of Experimental Zoology Part B: Molecular and Developmental Evolution 2005, 304B, 570–579. [Google Scholar] [CrossRef] [PubMed]
Prum, R.O.; Williamson, S. Theory of the growth and evolution of feather shape. Journal of Experimental Zoology 2001, 291, 30–57. [Google Scholar] [CrossRef]
Widelitz, R.B.; Jiang, T.X.; Yu, M.; Shen, T.; Shen, J.-Y.; Wu, P.; Yu, Z.; Chuong, C.-M. Molecular biology of feather morphogenesis: A testable model for evo-devo research. Journal of Experimental Zoology Part B: Molecular and Developmental Evolution 2003, 298B, 109–122. [Google Scholar] [CrossRef]
Widelitz, R.B.; Veltmaat, J.M.; Mayer, J.A.; Foley, J.; Chuong, C.-M. Mammary glands and feathers: Comparing two skin appendages which help define novel classes during vertebrate evolution. Seminars in Cell & Developmental Biology 2007, 18, 255–266. [Google Scholar] [CrossRef] [PubMed]
Wu, P.; Hou, L.; Plikus, M.; Hughes, M.; Scehnet, J.; Suksaweang, S.; Widelitz, R.; Jiang, T.X.; Chuong, C.M. Evo-Devo of amniote integuments and appendages. Int J Dev Biol 2004, 48, 249–270. [Google Scholar] [CrossRef] [PubMed]
Yu, M.; Wu, P.; Widelitz, R.B.; Chuong, C.M. The morphogenesis of feathers. Nature 2002, 420, 308–312. [Google Scholar] [CrossRef] [PubMed]
Yu, M.; Yue, Z.; Wu, P.; Wu, D.Y.; Mayer, J.A.; Medina, M.; Widelitz, R.B.; Jiang, T.X.; Chuong, C.M. The developmental biology of feather follicles. Int J Dev Biol 2004, 48, 181–191. [Google Scholar] [CrossRef] [PubMed]
Sawyer, R.H.; Rogers, L.; Washington, L.; Glenn, T.C.; Knapp, L.W. Evolutionary origin of the feather epidermis. Dev Dyn 2005, 232, 256–267. [Google Scholar] [CrossRef] [PubMed]
Ng, C.S.; Wu, P.; Foley, J.; Foley, A.; McDonald, M.L.; Juan, W.T.; Huang, C.J.; Lai, Y.T.; Lo, W.S.; Chen, C.F.; et al. The chicken frizzle feather is due to an α-keratin (KRT75) mutation that causes a defective rachis. PLoS Genet 2012, 8, e1002748. [Google Scholar] [CrossRef] [PubMed]
Chen, C.-F.; Foley, J.; Tang, P.-C.; Li, A.; Jiang, T.X.; Wu, P.; Widelitz, R.B.; Chuong, C.M. Development, Regeneration, and Evolution of Feathers. Annual Review of Animal Biosciences 2015, 3, 169–195. [Google Scholar] [CrossRef] [PubMed]
Filshie, B.K.; Rogers, G.E. An electron microscope study of the fine structure of feather keratin. J Cell Biol 1962, 13, 1–12. [Google Scholar] [CrossRef]
Fraser, R.D.B.; MacRae, T.P.; Parry, D.A.D.; Suzuki, E. The structure of feather keratin. Polymer 1971, 12, 35–56. [Google Scholar] [CrossRef]
Chuang, T.C.; Cheng, J.-W.; Chuong, C.-M.; Juan, W.-T. Autofluorescence microscopy as a non-invasive probe to characterize the complex mechanical properties of keratin-based integumentary organs: A feather paradigm. Chinese Journal of Physics 2023, 86, 561–571. [Google Scholar] [CrossRef]
Ng, C.S.; Wu, P.; Fan, W.-L.; Yan, J.; Chen, C.-K.; Lai, Y.-T.; Wu, S.-M.; Mao, C.-T.; Chen, J.-J.; Lu, M.-Y.J.; et al. Genomic Organization, Transcriptomic Analysis, and Functional Characterization of Avian α- and β-Keratins in Diverse Feather Forms. Genome Biology and Evolution 2014, 6, 2258–2273. [Google Scholar] [CrossRef] [PubMed]
Wu, P.; Ng, C.S.; Yan, J.; Lai, Y.-C.; Chen, C.-K.; Lai, Y.-T.; Wu, S.-M.; Chen, J.-J.; Luo, W.; Widelitz, R.B.; et al. Topographical mapping of α- and β-keratins on developing chicken skin integuments: Functional interaction and evolutionary perspectives. Proceedings of the National Academy of Sciences 2015, 112, E6770–E6779. [Google Scholar] [CrossRef] [PubMed]
Aerts, J.; Crooijmans, R.; Cornelissen, S.; Hemmatian, K.; Veenendaal, T.; Jaadar, A.; van der Poel, J.; Fillon, V.; Vignal, A.; Groenen, M. Integration of chicken genomic resources to enable whole-genome sequencing. Cytogenetic and Genome Research 2004, 102, 297–303. [Google Scholar] [CrossRef] [PubMed]
Burt, D.W. The chicken genome and the developmental biologist. Mechanisms of Development 2004, 121, 1129–1135. [Google Scholar] [CrossRef]
Burt, D.W.; White, S.J. Avian genomics in the 21st century. Cytogenetic and Genome Research 2007, 117, 6–13. [Google Scholar] [CrossRef]
Dodgson, J.B. Chicken genome sequence: a centennial gift to poultry genetics. Cytogenetic and Genome Research 2004, 102, 291–296. [Google Scholar] [CrossRef]
Dequéant, M.-L.; Pourquié, O. Chicken genome: New tools and concepts. Developmental Dynamics 2005, 232, 883–886. [Google Scholar] [CrossRef] [PubMed]
Burt, D.; Pourquie, O. Chicken Genome--Science Nuggets to Come Soon. Science 2003, 300, 1669–1669. [Google Scholar] [CrossRef]
Antin, P.B.; Konieczka, J.H. Genomic resources for chicken. Developmental Dynamics 2005, 232, 877–882. [Google Scholar] [CrossRef]
Burt, D.W. Chicken genomics charts a path to the genome sequence. Brief Funct Genomic Proteomic 2004, 3, 60–67. [Google Scholar] [CrossRef]
Burt, D.W. Comparative mapping in farm animals. Brief Funct Genomic Proteomic 2002, 1, 159–168. [Google Scholar] [CrossRef] [PubMed]
Cogburn, L.A.; Porter, T.E.; Duclos, M.J.; Simon, J.; Burgess, S.C.; Zhu, J.J.; Cheng, H.H.; Dodgson, J.B.; Burnside, J. Functional Genomics of the Chicken—A Model Organism. Poultry Science 2007, 86, 2059–2094. [Google Scholar] [CrossRef] [PubMed]
de Koning, D.J.; Cabrera, C.P.; Haley, C.S. Genetical Genomics: Combining Gene Expression with Marker Genotypes in Poultry. Poultry Science 2007, 86, 1501–1509. [Google Scholar] [CrossRef] [PubMed]
Wu, H.; Chiu, Y.K.; Tsai, J.C.; Chuong, C.M.; Juan, W.T. A quantitative image-based protocol for morphological characterization of cellular solids in feather shafts. STAR Protoc 2021, 2, 100661. [Google Scholar] [CrossRef]
Lucas, A.M. Avian anatomy integument; Avian Anatomy Project, Poultry Research Branch, Animal Science Research …: 1972.

Figure 1. Phenotypes of frizzle chickens and the frizzling feathers. (A) The pictures of the domestic wild-type (left) and the frizzle (right) chickens. (B) The definitions of the coordinates describe the relative position along the rachis (upper panel) and the coordinates and components of the feather rachis shaft (lower panel). (C) The scanning images of the flight feathers collected from the wild-type chicken (left), and heterozygous (middle), homozygous (right) frizzle chickens show three different phenotypes. Blue dots marked on the dorsal surface of the rachis denote the rachis coordinate s corresponding to different positions (indicated by arrows) along a feather shaft using full accumulated length S as the unit from proximal (s=0) to distal (s=1.0S). For details of tracing s, see Figure 2A.

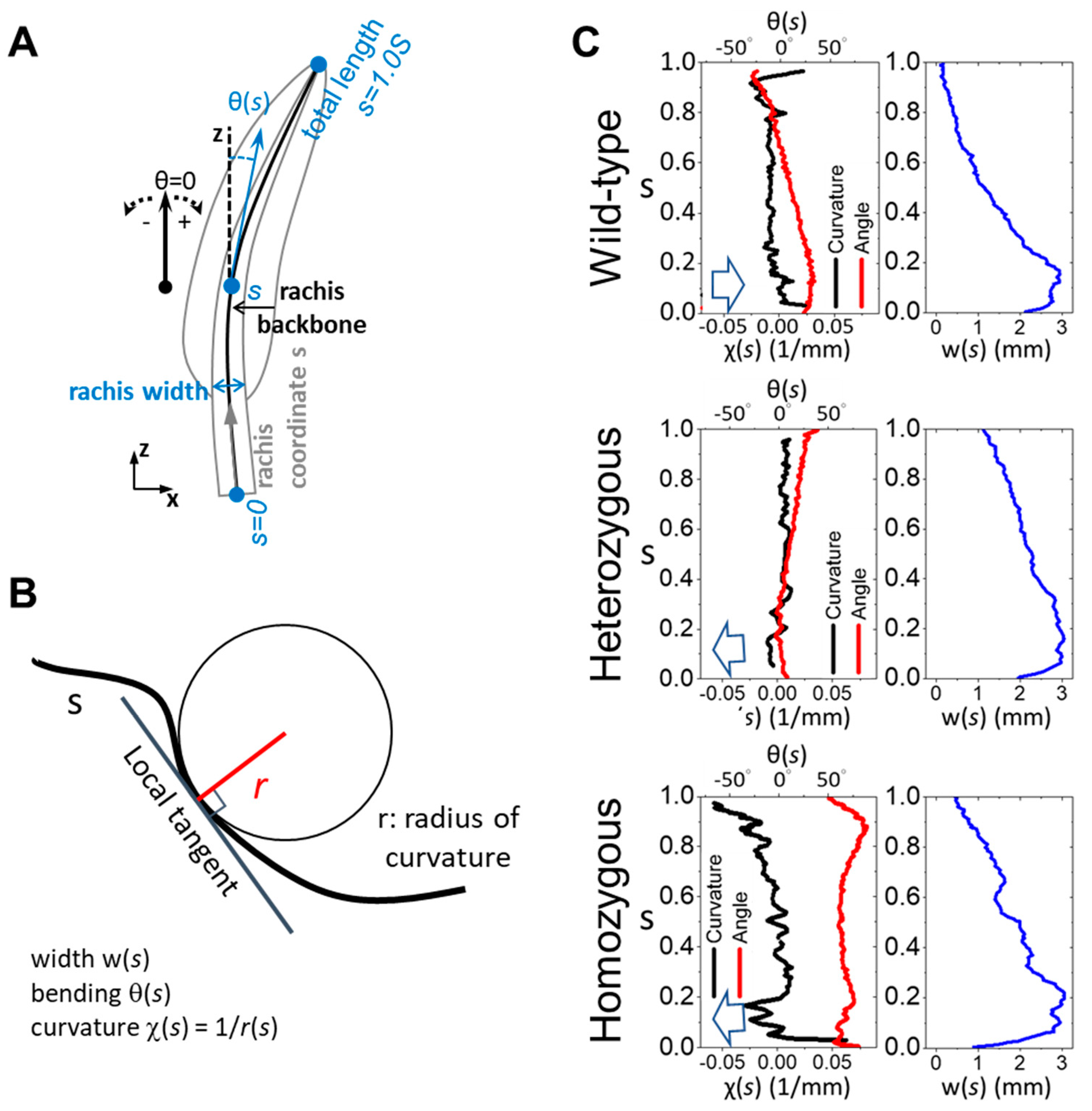

Figure 2. Quantifying the bending of feather shafts. (A) The rachis backbone is obtained by tracing the mid-point between opposite edges of the rachis contour along the feather shaft. Since the feather shaft is composed of the barb-free proximal calamus tube, as well as the barb anchoring rachis above the skin, we define the rachis coordinate s from the proximal end of the calamus as s=0 and the distal end of the feather as s=1.0S, where S is the accumulated full feather length. The local deflection angle θ(s), curvature χ(s) are defined in (B), and the rachis width w(s) along s, can be characterized by analyzing the digital image, as shown in the red, black, and blue curves in (C), respectively. The inset arrow in (C) points toward the corresponding dorsal direction in each panel.

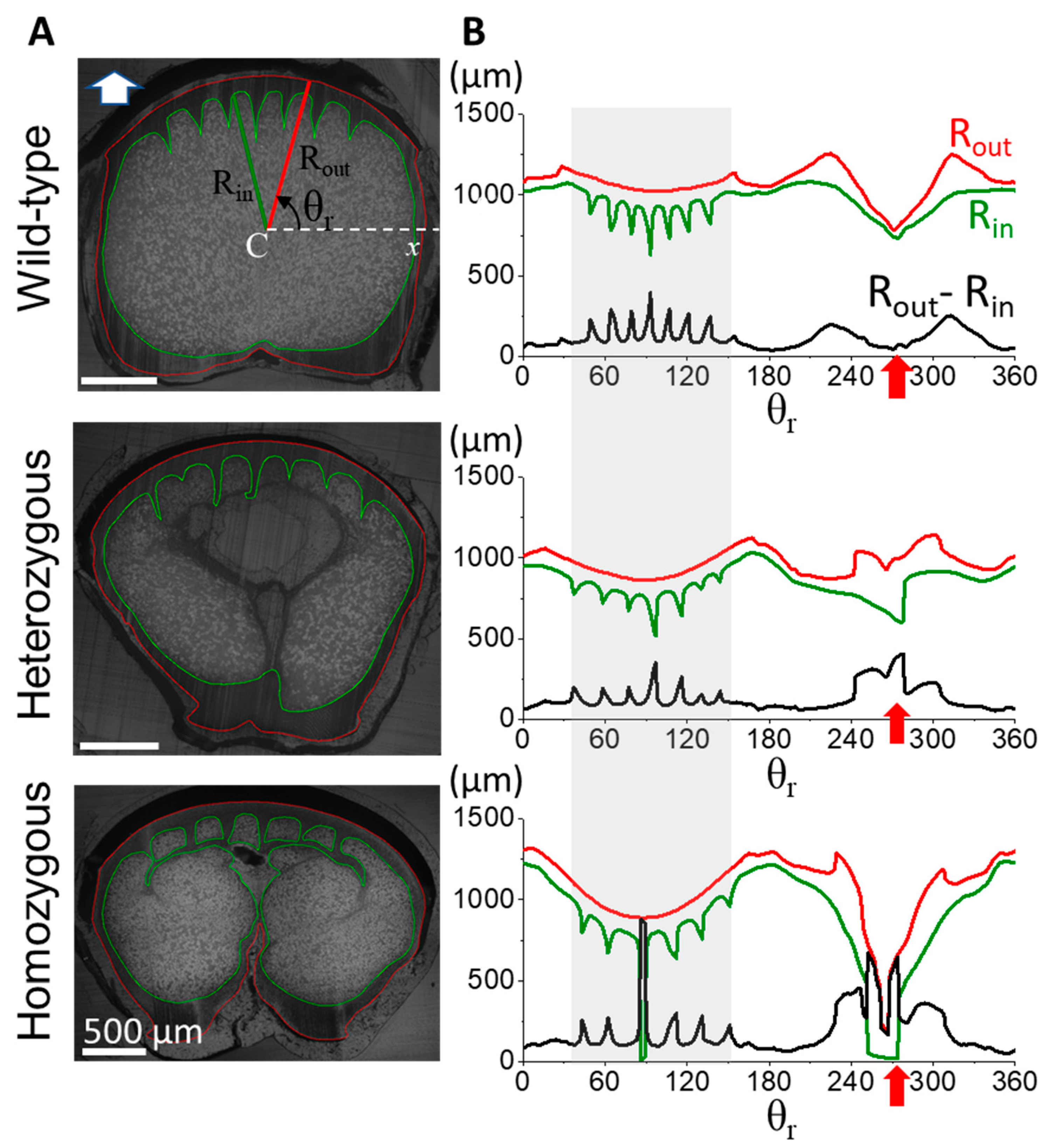

Figure 3. Diverse cross-sectional morphology in the proximal flight feather rachis among different phenotype frizzle chickens. (A) The cross-sectional microimages at 0.4S of the flight feather rachises are taken under an optical microscope. The outer and inner contours of the cortex are marked by the red and green curves respectively. The inner cortex contour is also the cortex-medulla interface. We define the radiuses of outer and inner radiuses as R_out and R_in, respectively, measuring from the geometric center C of the rachis cross-section, to characterize the variation of cortex thickness (R_out-R_in) along the azimuthal (θ_r) direction around the rachis. (B) The measured outer and inner radiuses as R_out (red) and R_in (green), and the calculated cortex thickness R_out-R_in (black) along the azimuthal (θ) direction. Gray shadow regions marked the angular distribution of the dorsal cortex. The red arrow of each panel indicates the location of the ventral groove in each measurement.

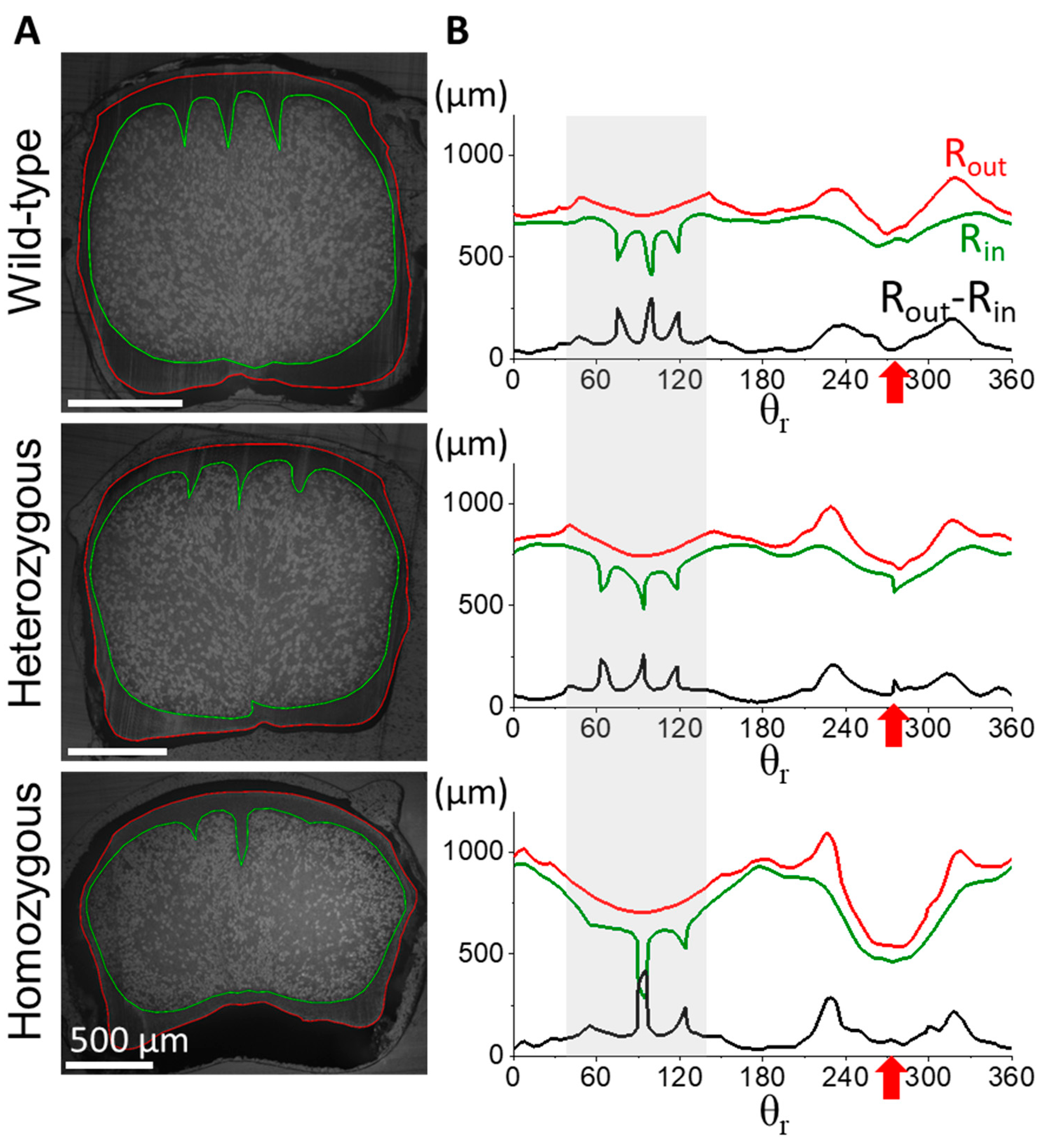

Figure 4. Comparison of cross-sectional morphologies in the distal half of flight feather rachises among different phenotype frizzle chickens. (A) The cross-sectional images at 0.6S of the flight feather rachises are taken under an optical microscope. (B) The measuring traces of the outer and inner radiuses as R_out (red) and R_in (green), and the calculated cortex thickness R_out-R_in (black) along the azimuthal (θ) direction. Gray shadow regions marked the angular range of the dorsal cortex. The red arrow indicates the angular position of the corresponding ventral groove in each case.

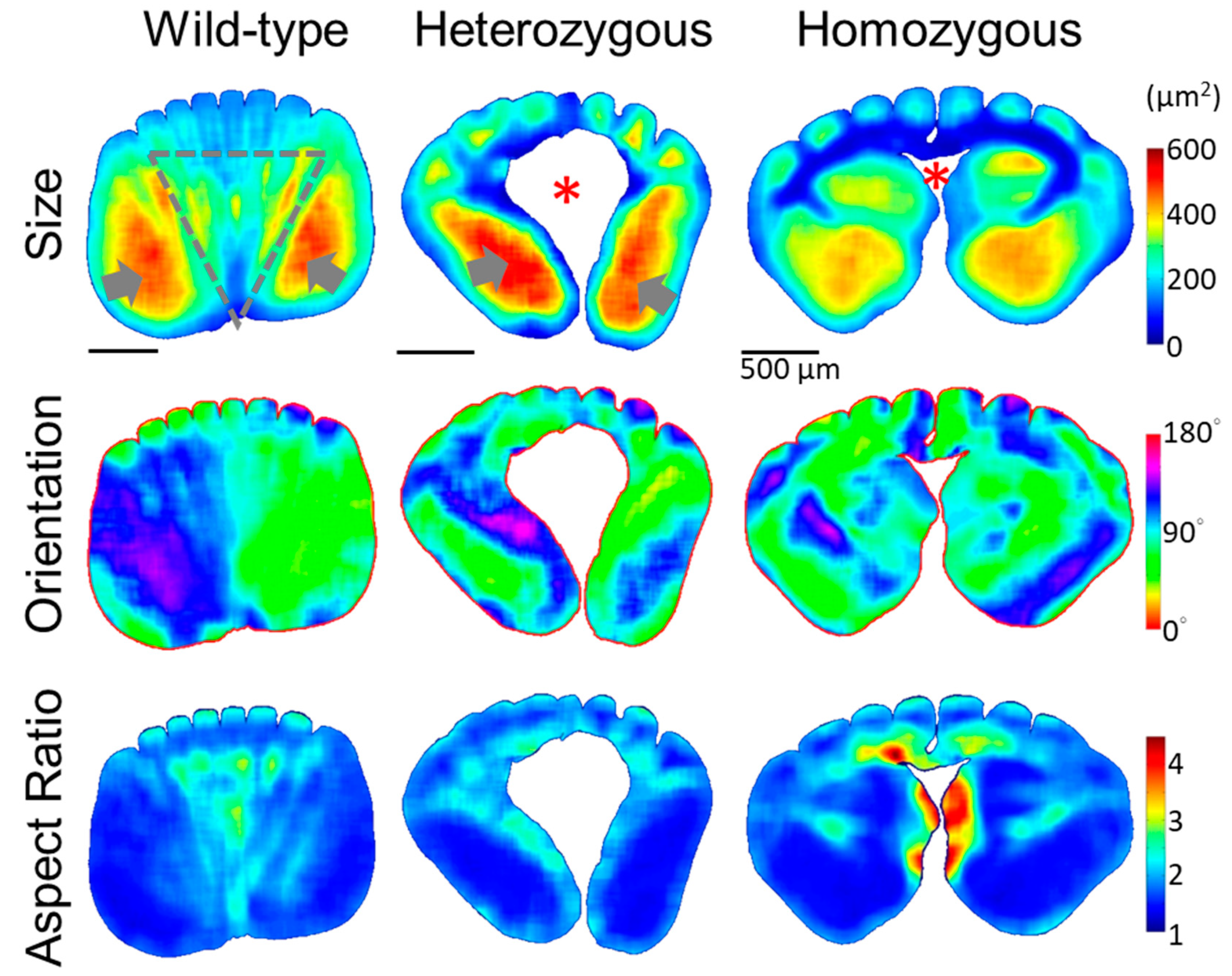

Figure 5. Quantitative morphology field (QMorF) analyses of the cross-sectional cellular structure in the rachis medulla at the proximal half (0.4S) of the flight feathers. The coarse-grain averaging of the quantified morphology of local cellular pores from the microimage of the medulla cross-section reveals the distributions of the cellular morphology features, such as size, orientation, and aspect ratio (from top to bottom) over the entire cross-sectional area of the rachis medulla. The gray arrows indicate the large-cell size zones on opposite lateral sides of the medulla. A gray dot triangle marked the fan-like region with periodically arranged cell bands along the D-V direction, showing alternative colors laterally. The red stars in the signal-free “size” QMorF plots of the heterozygous and homozygous cases indicate the cell depletion zone in the frizzling feather medulla.

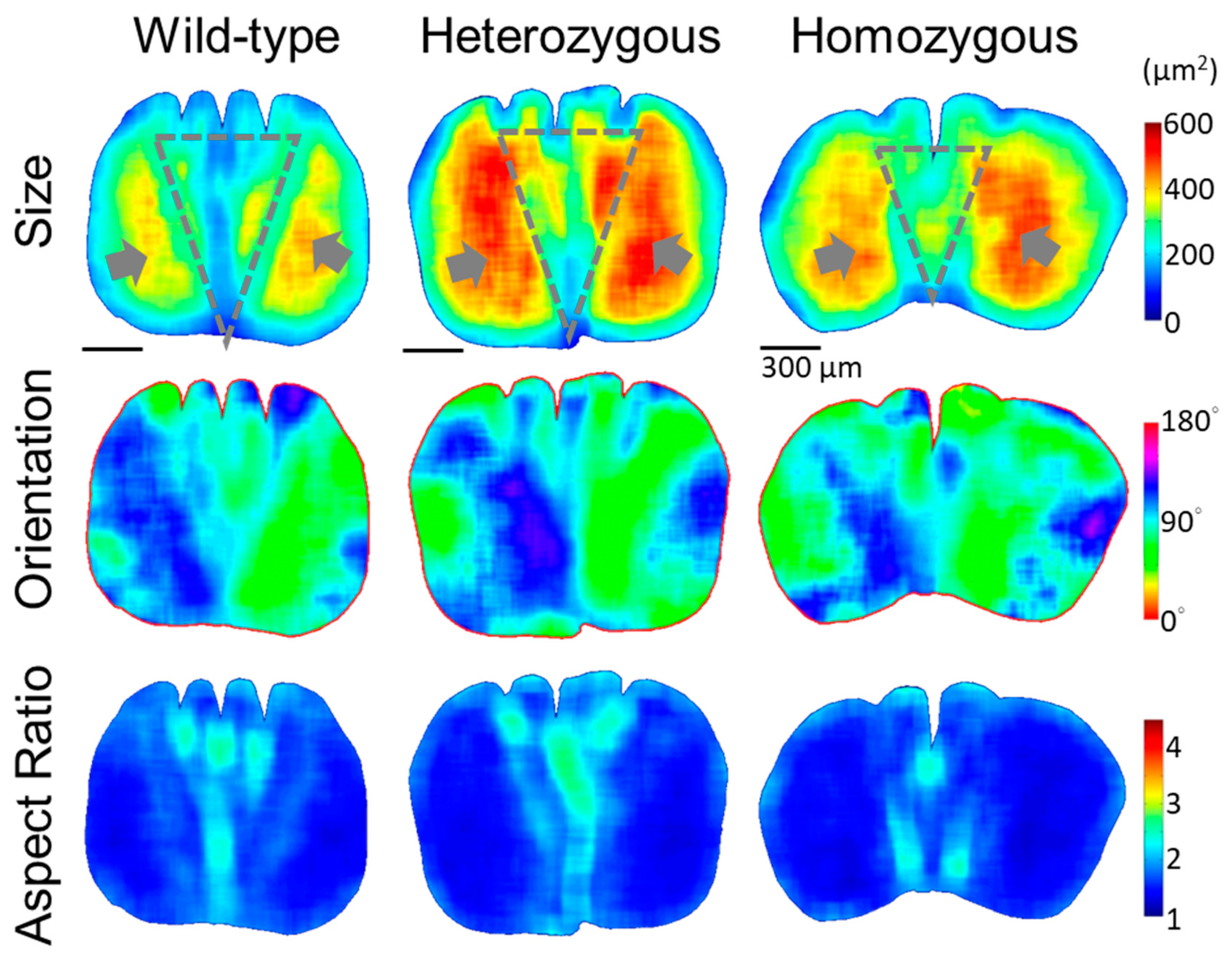

Figure 6. Quantitative morphology field analyses of the cross-sectional cellular structure in the rachis medulla at the distal half (0.6S) of the flight feathers. The quantitative morphology distributions of the medullary cells from the cross-sectional images at 0.6S, such as size, orientation, and aspect ratio are shown from top to bottom, respectively. The gray arrows indicate the large-cell size zones on opposite lateral sides of the medulla. Gray dot triangles mark the fan-like region with periodically arranged cell bands along the dorsal-ventral direction, showing alternative colors laterally. No cell depletion zone is found within the medulla of the distal half of the rachis.

Figure 7. Quantitative morphology field analyses of the cross-sectional cellular aspect ratio in the rachis medulla at the proximal (0.2S) and distal (0.8S) parts of the flight feathers. Laterally arranged elongated cells form horizontal strips from cortical ridges toward the deeply invasive cortex from the mid-ventral in the proximal of the frizzling feather rachis. The gray dash arrow in each panel indicates the representative orientation of the cell band in each cross-section.

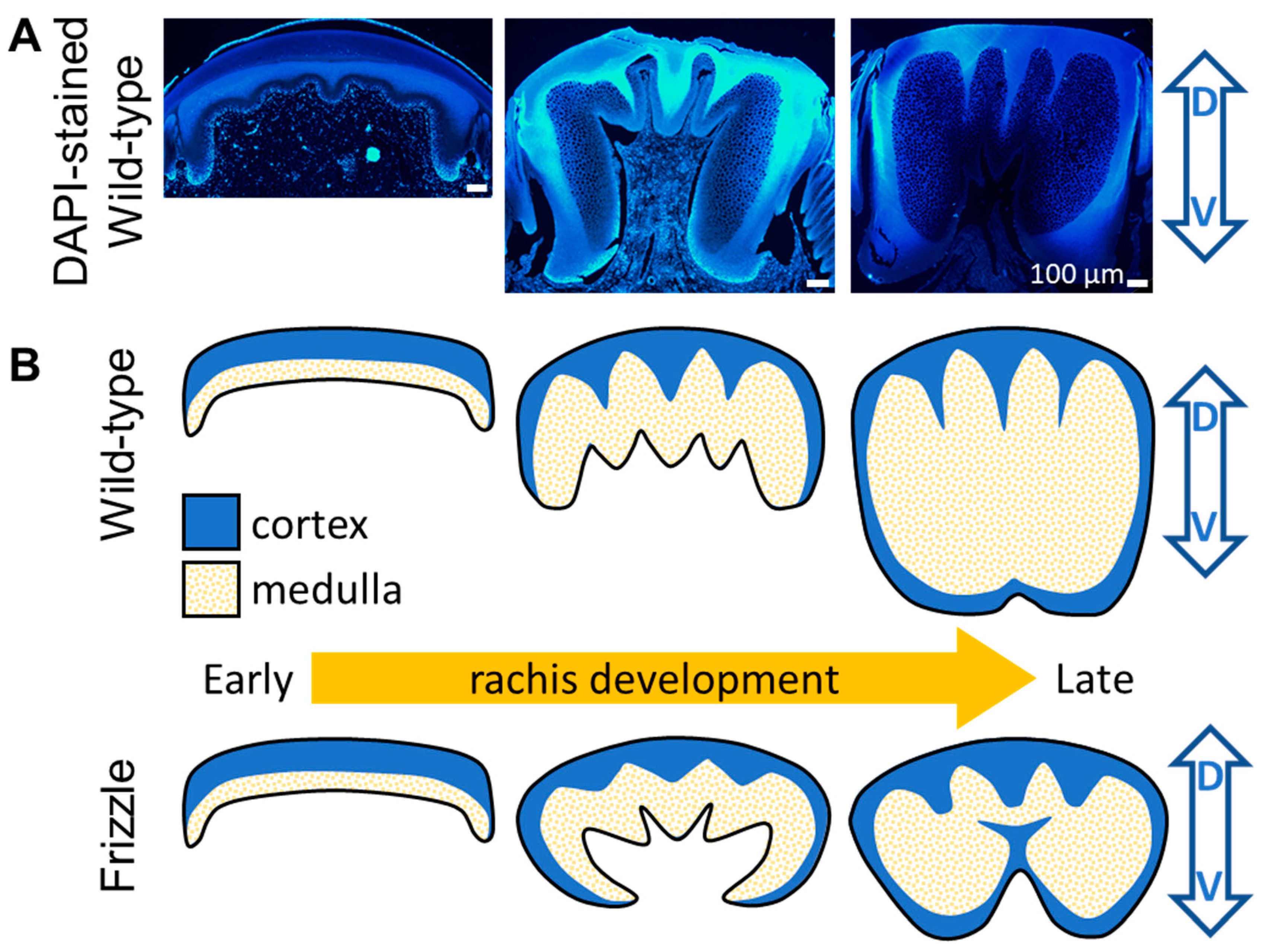

Figure 8. The rachis morphogenesis for different frizzling phenotypes. (A) The fluorescent (DAPI) images sample from the different stages of a developing feather shows the dorsal to ventral rachis morphogenesis. (B) The hypothetical sketches of the morphogenetic process of normal (upper) and frizzling (lower) feather rachises. For frizzling feather, the depression of the α-keratin dominated medullary cells in ventral should provide weak mechanical support for the development of thick rachis and cause the ventral invasion from lateral cortical material toward the medullary core.
