Experimental Investigation on Shear Behavior of Non-stirrup Uhpc Beams under Larger Shear Span-Depth Ratios

1. Introduction

Ultra-high-performance concrete (UHPC) is a cementitious composite consisting of cement, mineral additions, fine aggregates, steel fibers, water reducer, and potable water. Given its extraordinary mechanical properties, superior workability, and durability, UHPC is considered one of the most promising engineering materials [1,2,3,4]. Additionally, UHPC exhibits excellent corrosion resistance and reliability due to its high compactness and self-healing ability [5,6]. Nowadays, it has been widely used in practical engineering, particularly in bridge engineering [7,8,9]. Prominent examples of its application include the first UHPC pedestrian bridge-Sherbrooke Quebec bridge, in Canada in 1997; the first PI-shaped UHPC bridge-Jakway Park Bridge in Buchanan County, Missouri, USA; the world’s first and the largest UHPC arch bridge-Peace Bridge in South Kore; the world’s first UHPC highway arch bridge -Wild Bridge in Austria; the Chinese first largest steel-UHPC truss foot bridge [10]. In addition, there is a significant body of research on the use of UHPC in bridge construction, covering various aspects such as waffle deck panels [11], segmental bridges [12,13], joints [14,15,16,17], connections [18,19] and steel-UHPC composite girders [20,21,22,23,24]. However, the innovation of material also results in high construction costs. To expand the application of UHPC in construction, cost-effective methods must be identified. In 2019, the first prestressed non-stirrup UHPC girder bridge was built in China, reducing its own weight down to about half that of conventional NC beams. The exclusion of stirrups enhances the fluidity of UHPC, resulting in improved mechanical properties, and providing a novel method to cut down the costs.

In normal concrete (NC) beam structures, dense stirrups are typically arranged to resist the shear forces. Generally, shear failure is more hazardous than flexure failure, as it can be catastrophic and often occurs without warning. The incorporation of steel fiber can significantly enhance the mechanical properties of the UHPC matrix [25,26]. Studies have shown that non-stirrup UHPC beams can withstand shear loads due to the ultra-high tensile strength and bridging action of steel fibers with a volume content at 2% in the UHPC mixture [27]. It can be inferred that replacing stirrups with steel fibers is a viable option. Abbas et al. [28] discovered that the addition of steel fibers can enhance the post-cracking shear performance of concrete beams. Amin et al. [29] demonstrated that steel fibers enable better crack distribution, and increasing the volume content of steel fibers can significantly enhance shear strength. But when the volume content of steel fibers exceeded a certain threshold, the mechanical properties of UHPC did not exhibit significant enhancements [30]. Furthermore, it is noteworthy that the UHPC beams, which incorporated less than 0.5% volume of steel fiber, were unable to withstand shear load as the NC beam reinforced with stirrups [31]. Although many researchers have studied the influence of the volume content of steel fibers on the shear behavior of non-stirrup UHPC beams, there are still many issues that require investigation.

In general, steel fibers serve a similar purpose to stirrups in reinforcing concrete structures. By utilizing the exceptional mechanical properties of UHPC, it is possible to remove the stirrups for creating slender, lighter, and more economical structural members. Currently, most of studies in the non-stirrup UHPC beam field focus on prestressing and thin-web I-sections [32,33,34,35]. Jiang et al. [32] conducted four-point bending tests to investigate the shear performance of externally prestressed UHPC beams without stirrups. The study found that the shear strength decreased as the shear span-depth ratios increased. Additionally, the study found that increasing the volume content of steel fibers resulted in higher cracking and shear strength. Lee et al. [33] discovered that the UHPC I-girders without stirrups exhibited good ductility, and the shear strength increasing gradually after initial cracking. The quantity and type of fibers used in reactive power concrete prestressed non-stirrup girders did not significantly influence the cracking load but had a significant impact on the failure load and the rate of crack propagation [34]. Shear cracks in I-section prestressed non-stirrup UHPC beams were distributed significantly through the web before the formation of the critical crack [35]. Moreover, various parameters that can influence the shear behavior of non-stirrup UHPC beams, such as shear span-depth ratio, reinforcement ratio, and the volume content of steel fibers, had been the subject of numerous experimental and numerical studies [36,37,38,39]. The shear behavior of non-stirrup UHPC beams depended not only on the tensile strength of UHPC but also on the prestressing force, fiber orientation, and shape of the cross-section [40]. On average, UHPC beams had a shear capacity approximately 3.5 times greater than their counterparts, and the reinforcement ratio had little influence on the shear capacity of UHPC beams [41].

Larger shear span-depth ratios typically lead to larger bridge spans, which can improve the bridge’s passability and reduce the number of piers required. This simplifies the construction process and reduces construction difficulty. However, a larger shear span-depth ratio can also cause fatal problems to the bridge, such as a remarkable reduction in its load-bearing capacity. This can significantly increase the difficulty of bridge design. External prestressing tendons can improve the shear strength of UHPC beams and make the cross section of components smaller and thinner [42]. However, for small and medium-span bridges, eliminating prestressing tendons is generally preferred due to the harsh environment, high cost, and difficulty in controlling the reverse arch.

In this study, non-stirrup UHPC beams were tested under a larger shear span-depth ratio at different steel fiber volume contents and beam heights to determine the shear behavior. Two NC beams were also used for comparison. None of the tested beams were prestressed. To verify the accuracy of the French standard formula [44], PCI formula [45], and Xu’s formula [46], the experimental results were compared with the calculated values.

2. Experimental Programs

2.1. Specimen Preparation

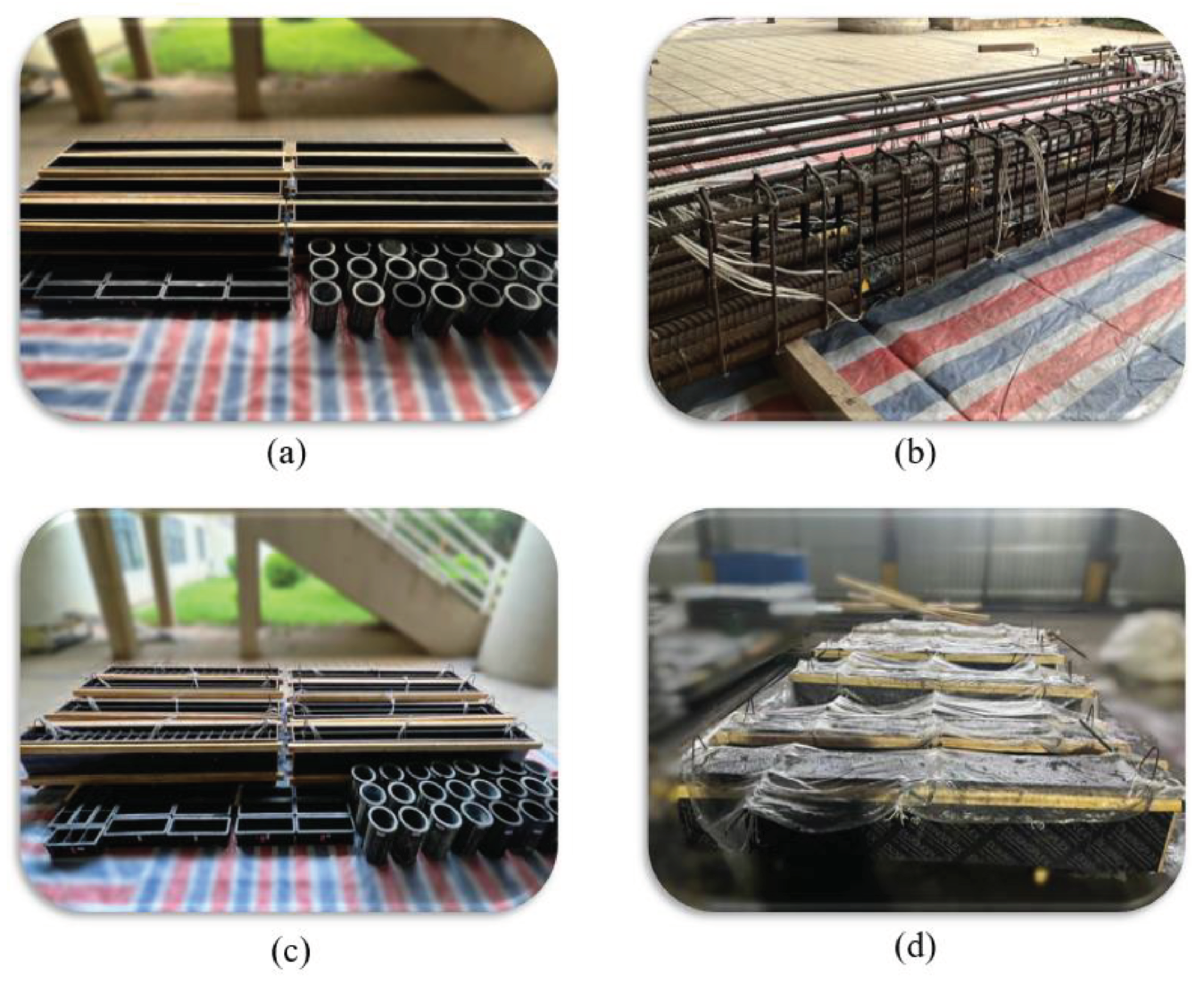

The aim of this research is to determine the effect of beam height and steel fiber volume content on the shear capacity of non-stirrup UHPC beams under a larger shear span-depth ratio (up to 2.8). Eight beams were designed and fabricated, including six non-stirrup UHPC beams and two comparing stirrup-reinforced normal concrete (NC) beams. The dimensions and the layouts of beams are shown in Figure 1. The length of all tested beams (l) was designed to be 2100 mm, with the shear span-to-effective depth ratio ($\lambda$) of 2.8, where $\lambda$ was calculated as $\lambda =a/h_0$, with $a$ and $h_0$ represent the length of the shear span and the effective depth of the beam, respectively. The specific values of $a$ and $h_0$ are listed in Table 1. Furthermore, the cross-sections of the tested beams were rectangular, with a beam breadth (b) of 200 mm, and two beam heights (h) of 350 mm and 400 mm. To ensure shear failure mode, ribbed reinforcements with a diameter of 32 mm and a yield strength ($f_y$) of 419.2 MPa were used, along with double layers of longitudinal reinforcement were placed at the bottom of the tested beams. The NC beams employed double-leg stirrups utilized ribbed reinforcements with an 8 mm diameter arranged at 100 mm intervals. The thickness of the concrete cover was 20 mm.

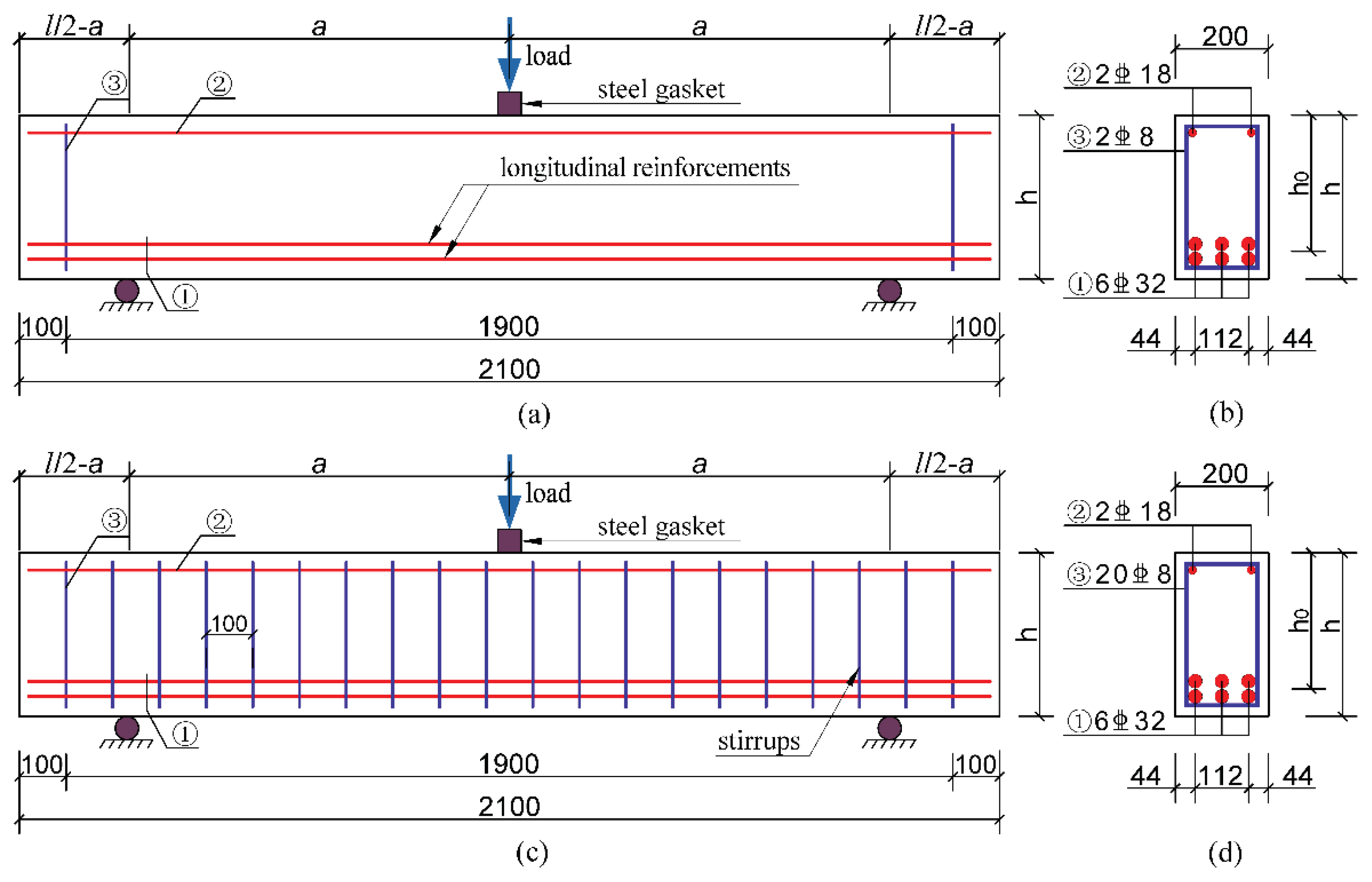

As shown in Table 1, the experimental variables include concrete type, beam height, with stirrups or without stirrups, and steel fiber volume content. To clearly indicate the variables, the specimens were labelled as U-H*-S*-V* or N-H*-S*-V*. The letter “U” represents ultra-high-performance concrete, while “N” represents normal concrete. The beam height was represented by ‘H35’ and ‘H40’ for 350 mm and 400 mm, respectively. “S1” and “S0” indicated whether the beams were constructed with stirrups or without stirrups, respectively. Additionally, “V2.0”, “V1.5” and “V0” indicated the volume content of steel fibers of 2.0%, 1.5% and “0”, respectively. For instance, “U-H35-S0-V2.0” represented a 350 mm high UHPC beam without stirrups with a steel fiber volume content of 2.0%.

2.2. Test Setup and Instrumentation

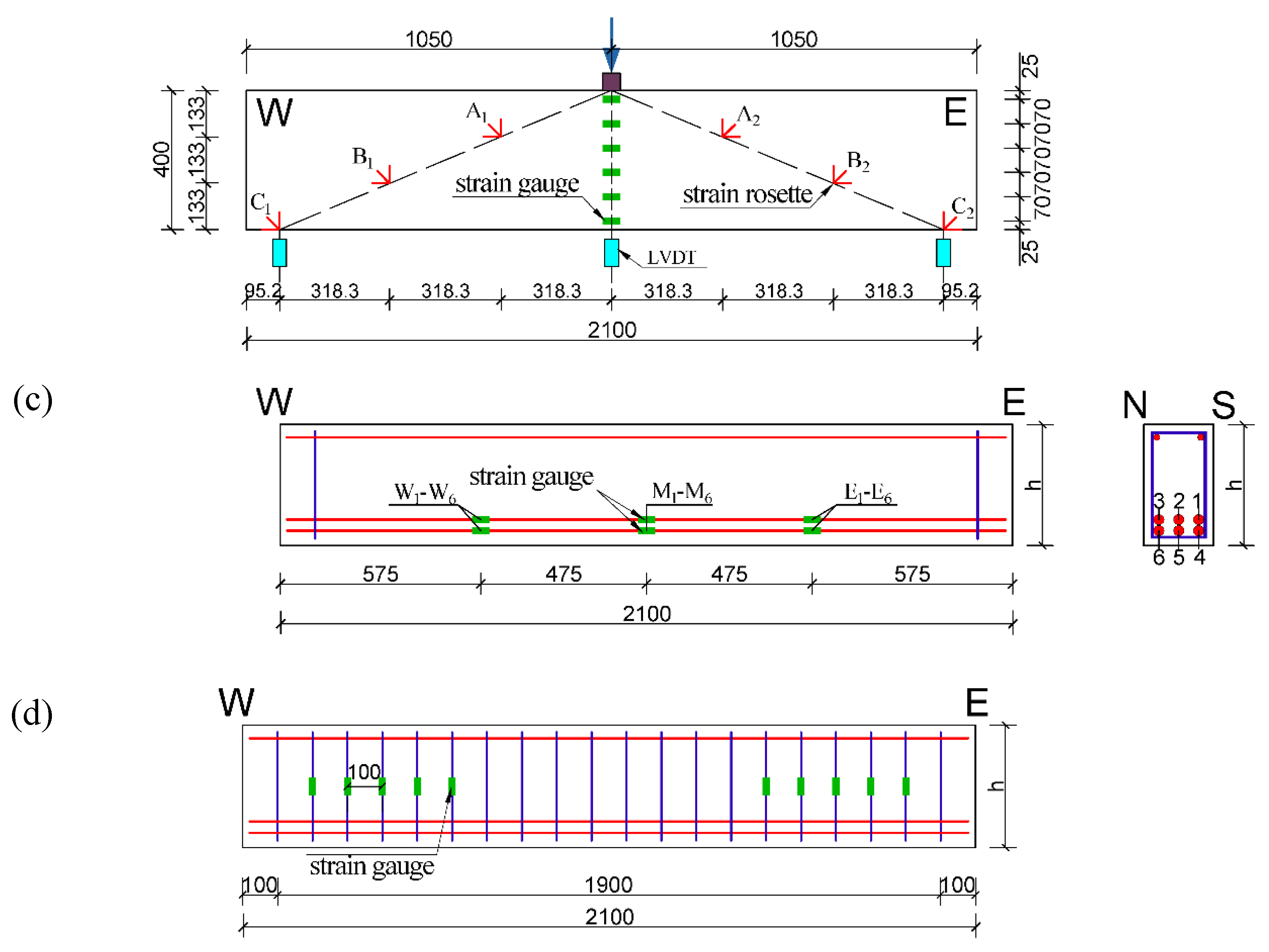

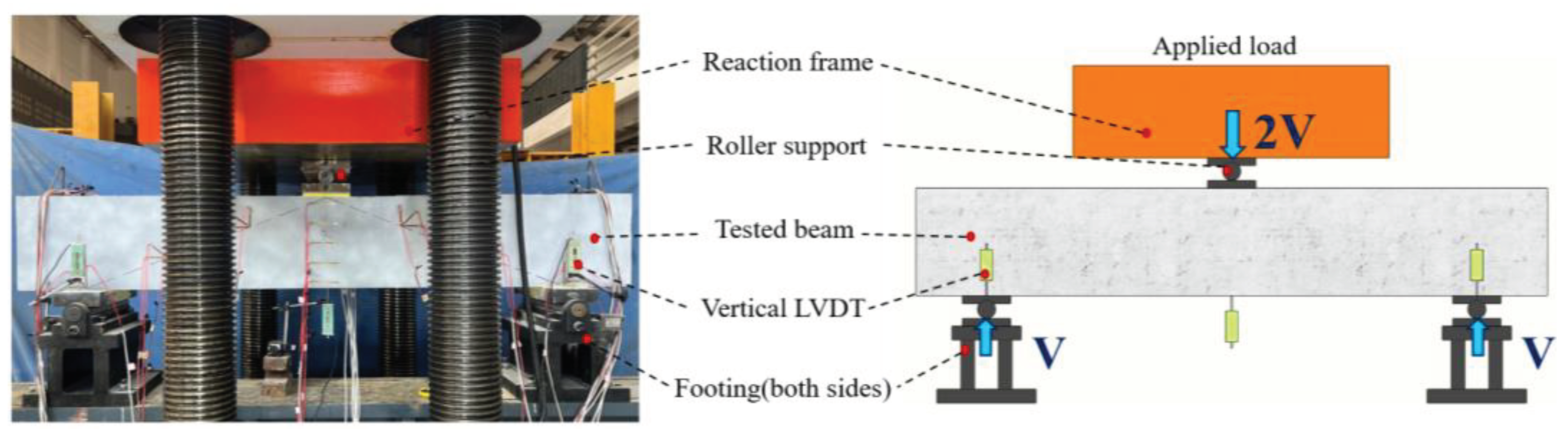

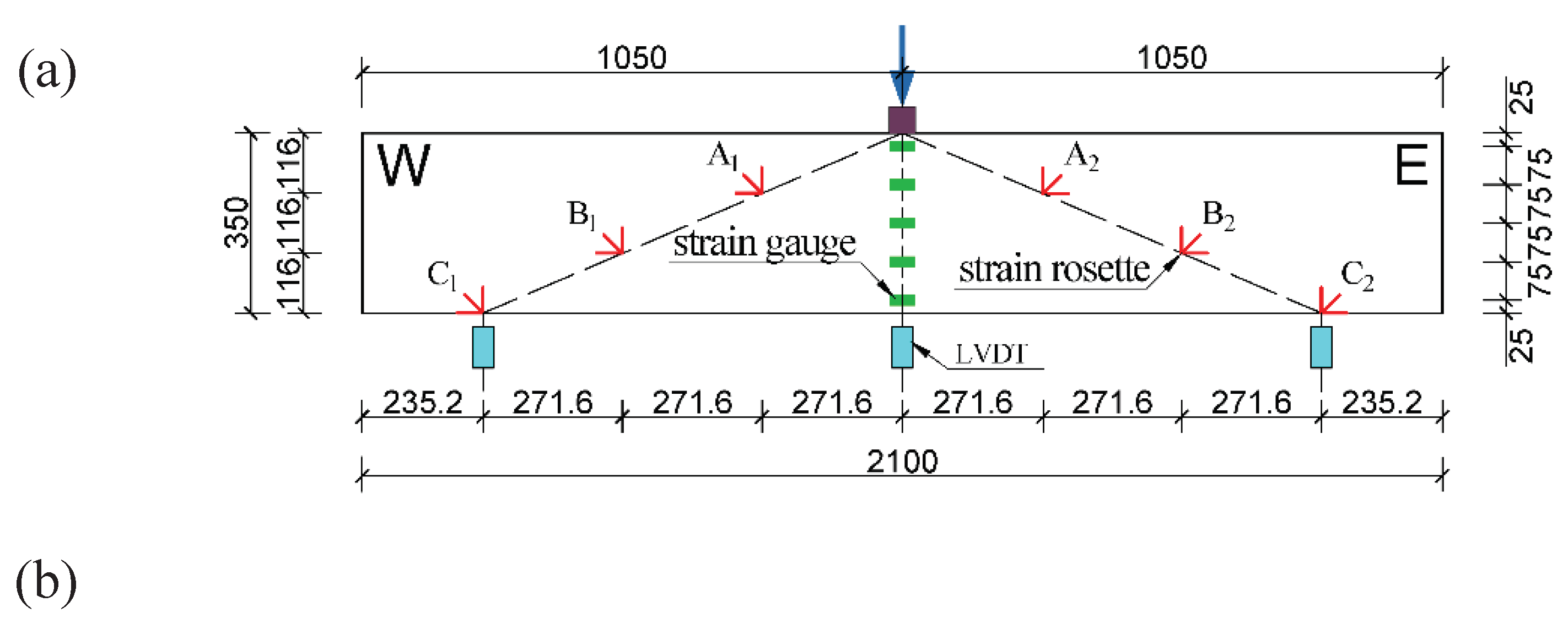

As shown in Figure 3, three-point loading tests were carried out on each specimen to evaluate the shear behavior of the non-stirrup UHPC beams. The specimens were subjected to vertical concentrated load using an electro-hydraulic servo machine with a capacity of 10,000kN. Each specimen was supported by two roller supports. Three Linear Vertical Displacement Transducers (LVDTs) were employed to monitor the deflections of the tested beams, which were positioned at the midspan of each beam and the locations of the roller supports, respectively. Figure 4 shows six groups of strain rosettes labelled A₁ to C₁ and A₂ to C₂ from top to bottom, were evenly spaced along the line extending from the loading point to the supports. Each strain rosette consisted of three strain gauges set at 0°, 45°, and 90°, which were adopted to measure the principal strains. The strains in the longitudinal reinforcements and stirrups were measured by the strain gauges attached to the steel rebars. At the gauge of the rebars, the steel rebars were sanded smooth to facilitate the application of the strain gauges. The strain gauges were also protected with waterproof adhesive and anti-collision block gine. Thereinto, the longitudinal reinforcements were labelled 1-3 and 4-6 from the south side to the north side of double layer reinforcements, respectively, as shown in Figure 4c. The letters “N” and “S” indicate north and south, respectively. The strain gauges attached to the longitudinal reinforcements were labelled W₁-W₆, M₁-M₆, and E₁-E₆ from the west side to the east side. The letters “W”, “M” and “E” indicate west, middle and east, respectively. All the data were collected using the JMTEST static collector, including load force, longitudinal reinforcement strain, stirrup strain, concrete strain, and beam deflection. The detail of the layout of the strains and LVDTs can be seen in Figure 4.

The loading protocol comprises two phases: force-controlled phases and displacement-controlled phases. Before the shear diagonal cracks emerged, the loading was force controlled with an internal force of 50 kN. After that, the displacement-controlled phase was carried out at a loading rate of 0.1 mm/min. When the load was reduced to 60% of the maximum load after peaks, the test was terminated.

2.3. Material Properties

The UHPC mixture used in this study was provided by Zhonglu Dura International Engineering Co. Ltd., which was the same as the mixture used by Feng et al. [42]. The mechanical properties of the UHPC mixtures were tested, including cubic compressive strength, axial compressive strength, splitting tensile strength, flexural tensile strength.

According to French Standard NF P18-710 [44], the tested value of post-cracking strength is given by:

$${\sigma }_{f1}=\frac{1}{w^{*}}{\int }_0^{w*}{\sigma }_f\left(w\right)dw$$

(1)

The post cracking strength considering a fiber orientation factor ($K$) is calculated by:

$${\sigma }_{f2}=\frac{{\sigma }_{f1}}{K}$$

(2)

The post-cracking strength for design is obtained from:

$${\sigma }_{f3}=\frac{{\sigma }_{f1}}{K{\gamma }_{cf}}$$

(3)

where the post-cracking stress ${\sigma }_f$ ($w$) is determined based on the crack opening $w$. The study chose a maximum crack width ($w^{*}$) of 0.3 mm, a fiber orientation factor of 1.25 ($K$), and a partial safety factor (${\gamma }_{cf}$) of 1.3, based on the recommended values of the French standard NF P 18-470 [44].

As per the PCI report [45], the post-cracking residual strength $f_{rr}$ is taken as the first peak cracking value, which is determined by:

$$f_{rr}=0.375f_{fu}$$

(4)

where $f_{fu}$ is flexural tensile strength.

In accordance with Xu’s formula [46], the axial compressive strength $f_c$ was determined from 300 mm $\times$ 100 mm $\times$ 100 mm prisms. The additional information on the properties of the UHPC used are listed in Table 2. As listed in Table 2, it is noteworthy that the ultimate flexural strength ($f_{fu}$) were affected by unknown reasons, which lead to the $f_{fu}$ of UHPC-2.0 was lower than the $f_{fu}$ of UHPC-1.5.

Table 3 presents the test results for the mechanical properties of the stirrups and longitudinal reinforcements. The evaluation was conducted using an electro-hydraulic servo machine.

3. Experimental Results and Observation

3.1. Crack Patterns and Shear Failure Modes

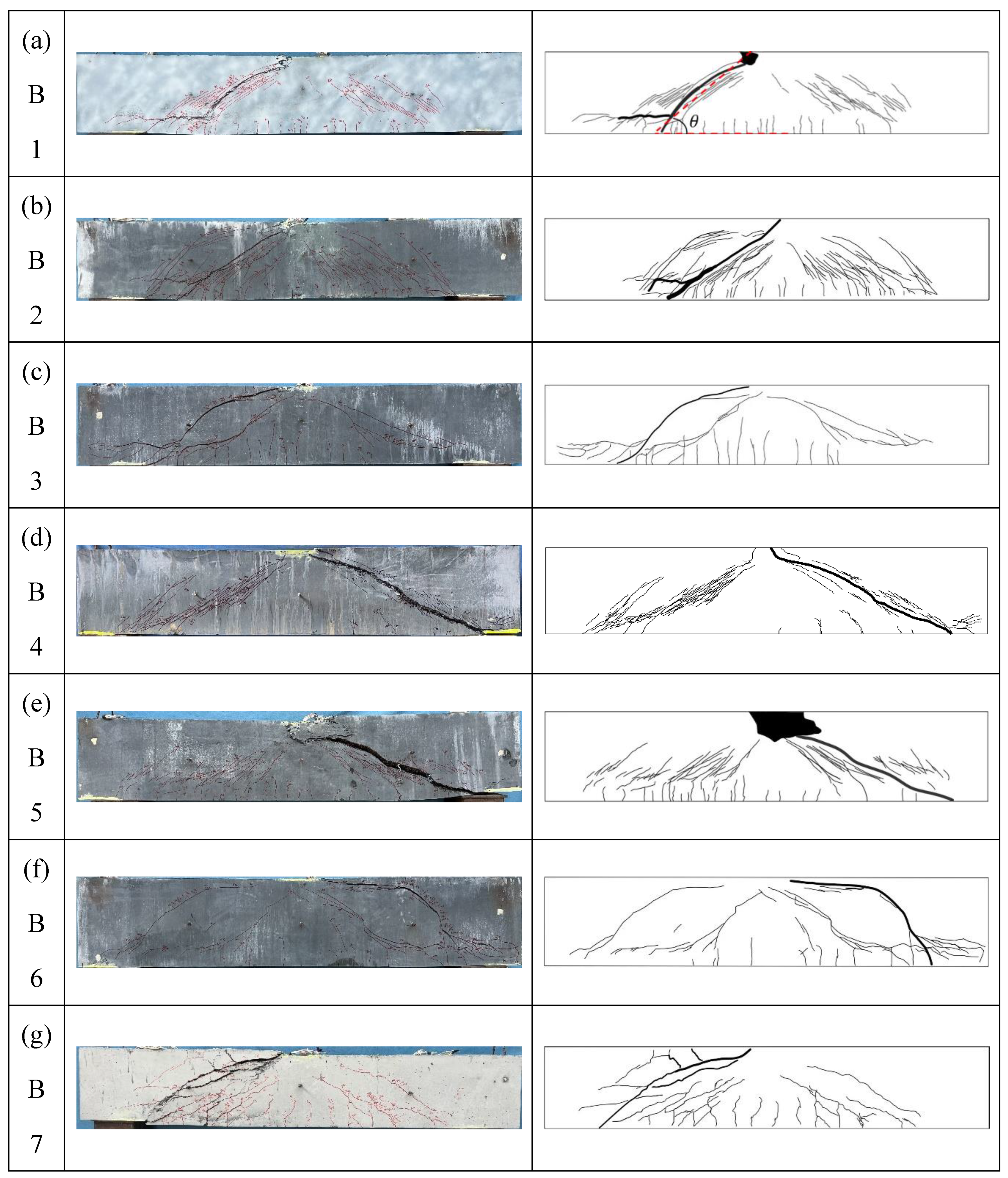

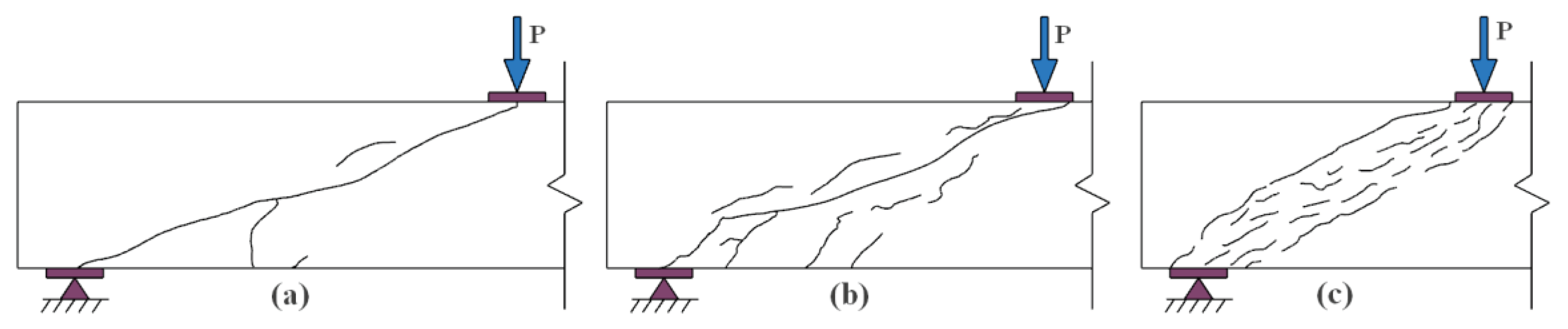

All of the tested beams exhibited shear failures, namely diagonal tension failure (DT), shear compression failure (SC), and diagonal compression failure (DC), which are known as the typical types of shear failures, as shown in Figure 5. The failure modes and crack patterns of all tested beams are depicted in Figure 6. The critical cracks were visually represented by thick block lines, while the areas of severe concrete damage were expressed as black bolded areas. For the stirrup-reinforced NC beams, DC failure occurred. For non-stirrup UHPC beams without steel fibers, there were DT failure. And for non-stirrup UHPC beams with steel fibers, SC failure emerged.

Specimens B1, B2, B4 and B5 exhibited typical shear compression failure patterns. At the beginning of loading, flexural cracks appeared at the bottom of the tested beams. As the load approached approximately 35-55% of the ultimate load, the number of flexural cracks stopped increasing, and the existing flexural cracks gradually extended towards the loading point. Diagonal cracks emerged when the load reached approximately 31-61%. Under increasing load, new diagonal cracks appeared and eventually a critical diagonal crack developed, which extended towards the loading point. When the ultimate load was reached, the concrete near to the loading point was crushed.

For specimens B3 (Figure 6c) and B6 (Figure 6f), as soon as the diagonal cracks appeared in the shear span, the crack width rapidly increased and soon developed into critical diagonal cracks. Eventually, the two beams suddenly lost their load-bearing capacity and split in two, with flat failure surfaces and no concrete crushing. Therefore, it can be concluded that diagonal tension failure occurred at B3 and B6.

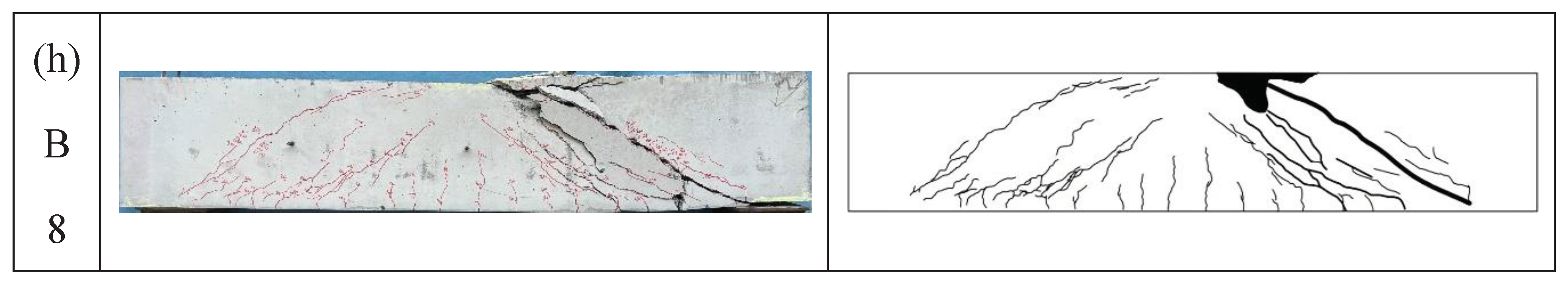

For specimens B7 (Figure 6g) and B8 (Figure 6h), few cracks were observed until the load reached 40% of the ultimate load. As the load increased, several parallel diagonal cracks appeared, dividing the web of the beams into several inclined compression columns. After reaching the ultimate load, the tested beams were suddenly damaged. It can be concluded that the shear failure mode of B7 and B8 was diagonal compression damage.

It is specially noted that beams B1, B2, B4 and B5 exhibited flexural failure due to the longitudinal rebar yielding, concomitantly emerged shear compression failure.

3.2. Load-Displacement Relationships

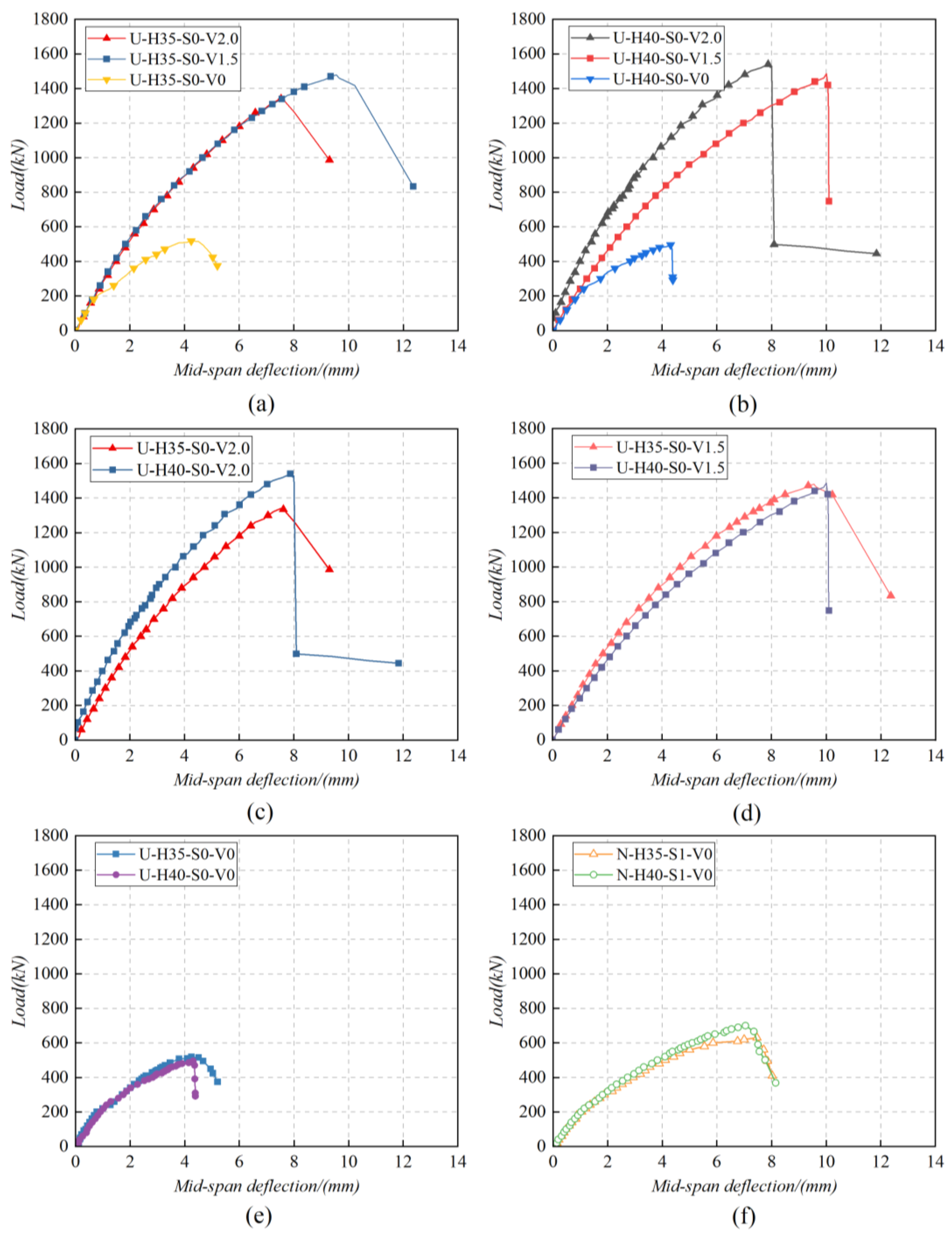

Figure 7 displays the load-mid span deflection curves for all of the tested beams, presenting the results for specimens with different beam heights and steel fiber volume contents. As depicted in Figure 7, the load-midspan deflection curves of the specimens all exhibited a non-linear growth initially, followed by a sudden drop after reaching the ultimate load. No significant yielding phase was observed. It is important to note that the midspan deflections of the ultimate load (${\mathsf{\Delta }}_u$) for U-H35-S0-V2.0 and U-H40-S0-V2.0 beams were reduced by 21.2% and 21.3%, respectively, compared to U-H35-S0-V1.5 and U-H40-S0-V1.5 beams, as shown in Figure 7a-b. These results suggest that the ductility of non-stirrup UHPC beams can be improved by appropriately reducing the volume content of steel fibers.

3.3. Strain Response

3.3.1. Strain Response of Longitudinal Reinforcements

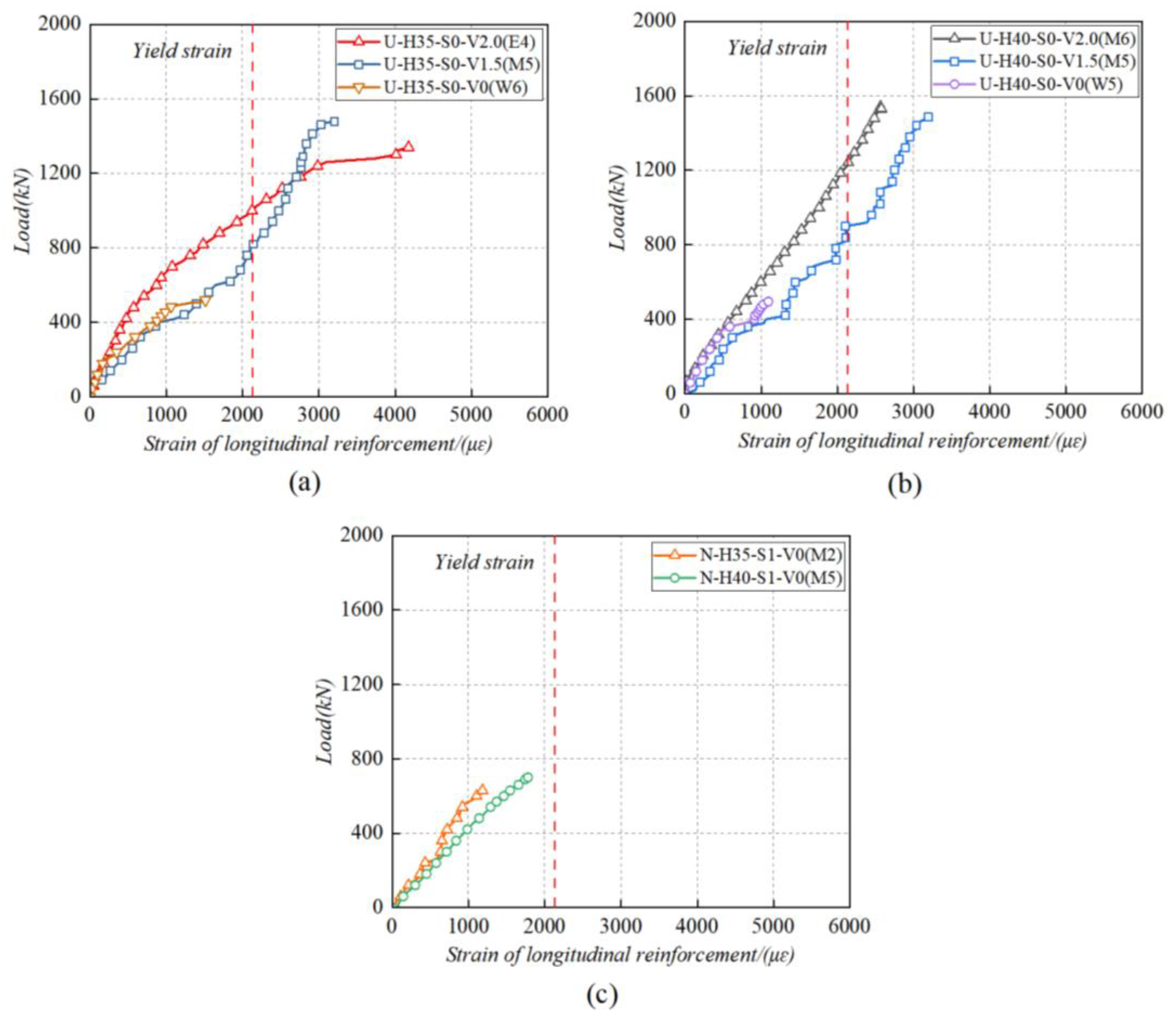

The load-strain relationships of the longitudinal reinforcement for U-H35-S0-V*, U-H40-S0-V* and N-H*-S1-V0 beams are demonstrated in Figure 8a-c. Some of the strain gauges adhered to the longitudinal reinforcements were inadvertently damaged at the start of the tests due to their susceptibility to damage in the concrete. In these cases, a suitable strain gauge was selected from the pre-embedded strain gauges to evaluate the strains of the longitudinal reinforcements. The details were presented in the label of Figure 8. The yield strength and elastic modulus of reinforcement were assumed as 419.2 MPa and 2.0 × 10⁵ MPa. Therefore, the yield strain of the longitudinal reinforcements was approximately 2096 µε, which was also marked as vertical dashed line.

Figure 8 (a-b) show that the longitudinal reinforcement strains for B1 and B2 as well as B4 and B5 reached the yield strain before the ultimate load was reached. However, the longitudinal reinforcement strains for B3 and B6 were far from yielding when reaching the ultimate load, indicating that the lack of steel fibers caused them to quickly fail far from the bending failure after diagonal cracks emerged. It is important to note that as the load increased, the longitudinal reinforcement strains of beams B1, B2, B4 and B5 significantly exceeded the yielded strain, indicating that these beams may have experienced flexural failure. This could be the reason for the abnormal load-bearing capacity of beams B1, B2, B4 and B5 compared to their normal shear capacity. In Figure 8c, the longitudinal reinforcements for B7 and B8 also hadn’t yielded when the ultimate load was reached. For beams U-H35-S0-V2.0 and U-H40-S0-V2.0 beams, the loads at which the longitudinal reinforcements yielded increased by up to 22.0% and 37.9%, respectively, compared to beams U-H35-S0-V1.5 and U-H40-S0-V1.5. From these findings, it can be inferred that the incorporation of steel fibers had definitely improved the strength of UHPC and that steel fibers could carry the load synergistically with longitudinal reinforcements. In addition, increasing the volume content of steel fiber within a certain range is conducive to enhancing the load-bearing capacity.

3.3.2. Strain Response of Stirrups

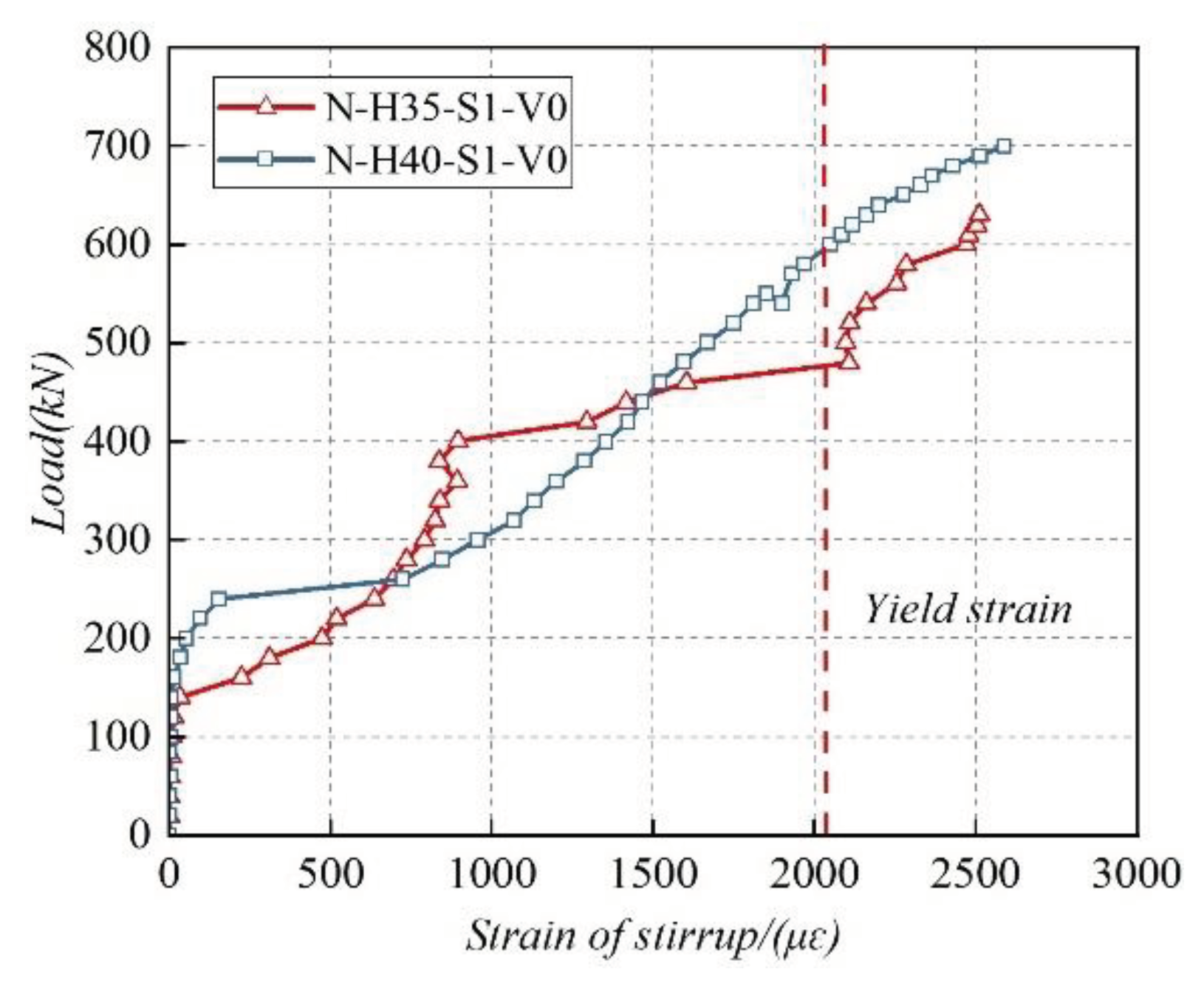

The load-strain relationships of the stirrups for beams N-H35-S1-V0 (B7) and N-H40-S1-V0 (B8) are shown in Figure 9. The yield strength and elastic modulus of stirrup were assumed as 412 MPa and 2.0 × 10⁵ MPa. Therefore, the yield strain of the longitudinal reinforcements was approximately 2060 µε, which was also marked as vertical dashed line. As can be seen, the strain of the stirrups in B7 and B8 had increased slightly with the increase in load before the diagonal cracks emerged. As soon as the diagonal cracks passed through the shear-bending section, the strain of the stirrups showed a turning point and as the load improved, the strain of the stirrups gradually increased and finally exceeded the yield strain. The experimental results presented in Figure 9 suggest that the stirrups experienced minimal stress prior to the onset of the diagonal cracks. After the diagonal cracks traversed the shear-bending section, the concrete in the section lost much of its tensile strength, and the stirrups took over the responsibility of carrying the tensile stress, which was the reason why the strain of the stirrups surged after the appearance of the diagonal cracks. Furthermore, it is evident that the stirrups in both B7 and B8 yielded before the beams reached their ultimate loads. This suggests that the stirrups were fully utilized in resisting the shear force.

3.3.3. Strain Response of Concrete Diagonal Sections

The principal tensile strains ${\epsilon }_t$ and principal compression strains ${\epsilon }_c$ were calculated by Equation (1), where ${\epsilon }_x$, ${\epsilon }_{{45}^{°}}$ and ${\epsilon }_y$, and were the strains of strain gauges set at $0^{°}$, ${45}^{°}$, and ${90}^{°}$. The positive calculation results indicate the principal tensile strain, and vice versa for the principal compressive strain.

$$\left\{\begin{array}{c}{\epsilon }_t\\ {\epsilon }_c\end{array}\right.=\frac{{\epsilon }_x+{\epsilon }_y}{2}\pm \sqrt{{\left(\frac{{\epsilon }_x-{\epsilon }_y}{2}\right)}^2+{\left(\frac{{\epsilon }_x+{\epsilon }_y}{2}-{\epsilon }_{{45}^{°}}\right)}^2}$$

(5)

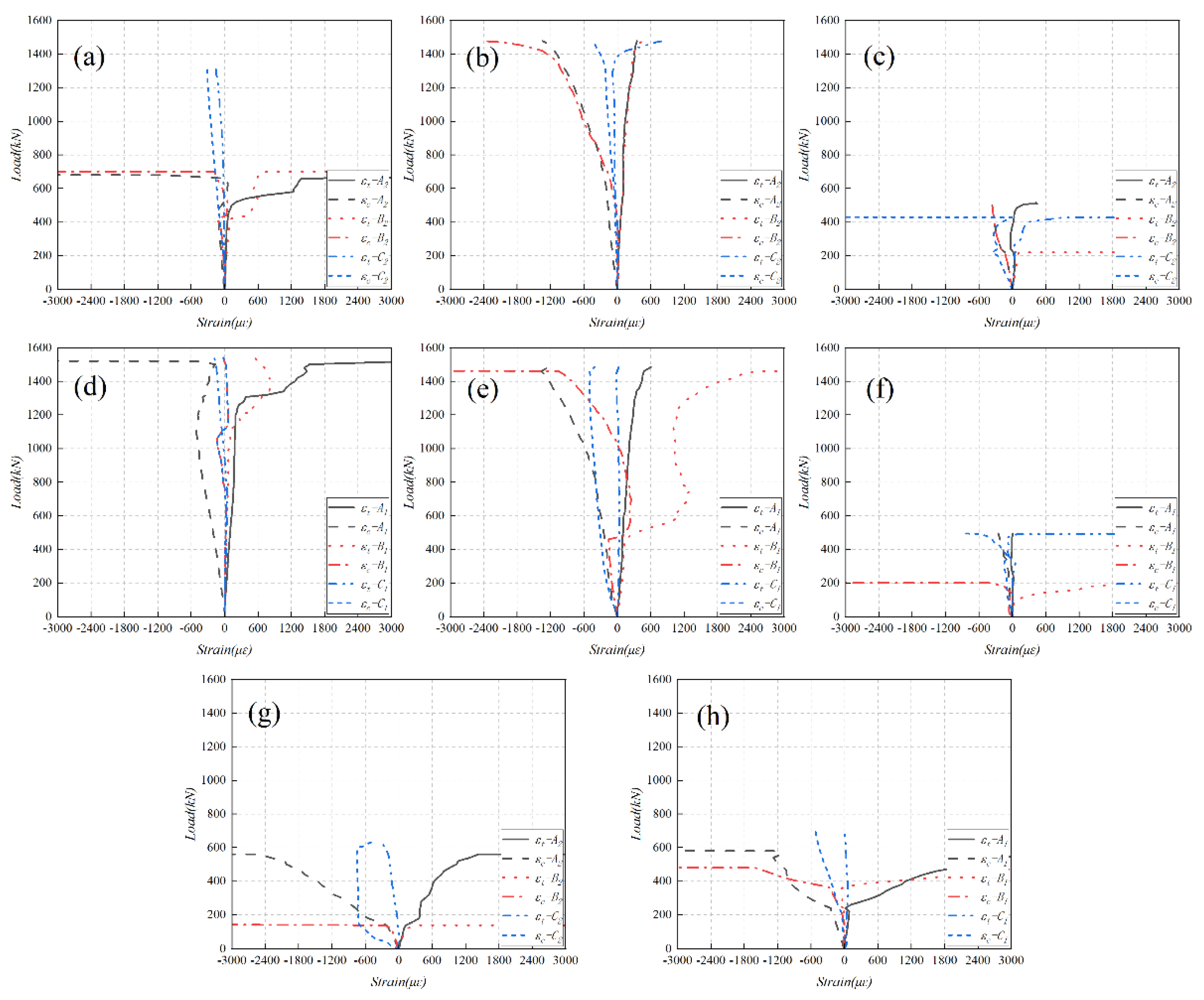

Figure 10 shows the load-principal strain relationships for all the tested beams at different measurement points on the diagonal section on the failure side. As shown in Figure 10, before the diagonal cracks passed through these strain rosettes, the principal strains in the shear-bending section increased linearly with the improvement of load. Generally, once the diagonal cracks appeared on the web section of the beams, the principal tensile strains exhibited sudden increase. Due to the development of diagonal cracks, the stresses in the shear-bending section were redistributed, resulting in irregular variations of the principal strains. It is important to note that the principal tensile strains from the section of strain rosettes A_*to B_* showed more significant changes than the section of strain rosettes C_*. This indicates that the concrete of the web section of the tested beams experienced more significant tensile stresses than the concrete near the support. Figure 10g-h shows that the principal strains of the normal concrete beams had more pronounced variations than those of the UHPC beams. This suggests that the excellent tensile property of UHPC can effectively prevent the concrete cracking.

3.4. Post-Cracking Shear Resistance

The post-cracking shear resistances (PCSR) of the tested beams are determined by Equation (2), which indicates the load-bearing capacity of the tested beams after the onset of the first shear diagonal crack.

$$PSCR=\frac{V_u-V_{ci}}{V_u}\times 100\mathrm{\%}$$

(6)

Table 4 lists the calculated values of all the tested beams. The average value of PSCR for U-H*-S0-V2.0 beams, U-H*-S0-V1.5 beams, U-H*-S0-V0 beams, and N-H*-S1-V0 beams were 56.5%, 64.5%, 44.5%, and 58.5%, respectively.

4. Discussion and Analysis of Experimental Results

4.1. Failure Modes and Crack Patterns

4.1.1. Effect of Beam Height on Failure Modes and Crack Patterns

Table 4 lists the initial diagonal crack load ($P_{ci}$) and the corresponding cracking strength ($v_{ci}$). Increasing the beam height (h) could effectively improve the diagonal cracking strength ($v_{ci}$). As the h increased from 350 mm to 400 mm, the $v_{ci}$ could be increased by up to 16.7% (U-H*-S0-V2.0), 30.4% (U-H*-S0-V1.5), 14.5% (U-H*-S0-V0) and 11.9% (N-H*-S1-V0). However, it should be noted that the ultimate shear strength ${\tau }_u$ of non-stirrup UHPC beams decreased by 2.0% (U-H*-S0-V2.0), 16.6% (U-H*-S0-V1.5), and 22.9% (U-H*-S0-V0), as the h increased from 350 mm to 400 mm.

4.1.2. Effect of Steel Fibers on Failure Modes and Crack Patterns

As shown in Figure 6a-f, the volume content of steel fibers can influence the failure modes of UHPC beams. For example, by comparing the B1, B2 and B3, as well as the B4, B5 and B6 with the same beam height, respectively, due to the lack of the bridging action of steel fibers, specimens B3 and B6 quickly lost their load-bearing capacity and failed suddenly. However, the steel fiber reinforced specimens B1, B2, B4 and B5 retained their excellent ductility. The test results confirmed the role of steel fibers in improving the shear resistance of non-stirrup UHPC beams, which is in accordance with the experimental results of Li et al. [43].

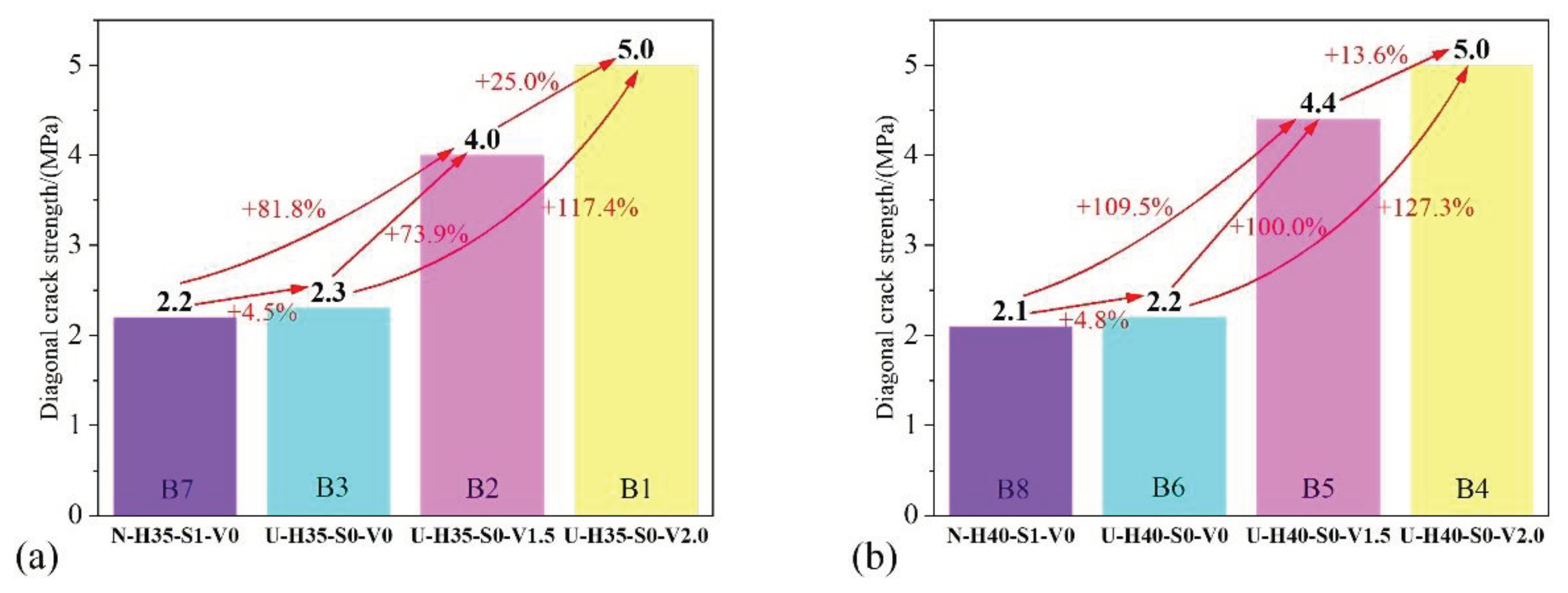

Table 4 shows a positive correlation between the volume content of steel fiber and diagonal crack strength. In U-H35-S0-V1.5(2.0) and U-H40-S0-V1.5(2.0) beams, the diagonal crack strength could be increased by up to 81.8%, 127.3%, 109.5% and 138.1% respectively, compared to N-H35-S1-V0 and N-H40-S1-V0 beams. Compared to U-H35-S1-V0 and U-H40-S1-V0 beams, the incorporation of steel fibers significantly improved the diagonal cracking strength by 73.9%, 117.4%, 100.0%, and 127.3%, respectively. In U-H35-S0-V2.0 and U-H40-S0-V2.0 beams, the diagonal crack strength was increased by up to 25.0% and 13.6%, respectively, compared to U-H35-S0-V1.5 and U-H40-S0-V1.5 beams. The details of the effect of steel fibers on the diagonal cracking strength are shown in Figure 11. From the results, it can be inferred that the incorporation of steel fiber is conducive to delaying the appearance of diagonal cracks, and increasing the volume content of steel fiber within a certain range is beneficial to improving the diagonal cracking strength.

4.2. Post-Cracking Shear Resistance

The calculated values of PSCR listed in Table 4 suggest that U-H*-S0-V2.0 (1.5) beams performed comparable PSCR as N-H*-S1-V0 beams. Additionally, in U-H*-S0-V2.0 beams, the PSCR reduced by 8% compared to U-H*-S0-V1.5 beams. In U-H*-S0-V0 beams, the PSCR reduced by 14% compared to N-H*-S1-V0 beams. This indicates that U-H*-S0-V0 beams cannot achieve comparable PSCR to N-H*-S1-V0 beams. In U-H35-S0-V* beams, the PSCR increased by 13.5% compared to U-H40-S0-V* beams. Basing on the results presented above, it can be concluded that the incorporation of steel fibers provides the non-stirrup UHPC beams with comparable PSCR to the NC beams. By reducing the volume content of steel fibers to a certain extent, the PSCR of the non-stirrup UHPC beams can be increased to a certain extent. In addition, the PSCR increases as the beam height is reduced.

5. Shear Design Recommendations for UHPC Beams

5.1. French Standard Formulae

According to the French standard NF P 18-710-2016 [44], the shear capacity of UHPC beams is determined by three constitutive factors, namely the contributions of the UHPC matrix$V_c$, the stirrups $V_s,$ and the steel fibres $V_f$. Accordingly, the expression for is the shear capacity $V_{u1}$:

$$V_{u1}=V_c+V_S+V_f$$

(7)

The shear load capacity is partly determined by the properties of the UHPC matrix $V_c$, which can be described as

$$V_c=\frac{0.21}{{\gamma }_{cf}{\gamma }_E}{k}_1\sqrt{f_{cu}}b{h}_0$$

(8)

where the comprehensive safety factor ${\gamma }_{cf}{\gamma }_E$ is set at 1.0 here. The prestressing improvement factor $k_1$ is equal to 1.0 as no prestressing was applied to the tested beams in this study. The variables$f_{cu}$, $b$, and $h_0$ represent the cubic compressive strength, web thickness, and effective depth of UHPC, respectively.

The shear load capacity by stirrups $V_s$ is calculated using the following equation:

$$V_s=\frac{A_{sv}}{s}z{f}_{ys}\cot \theta$$

(9)

where $A_{sv}$ represents the cross-sectional area of the stirrups used, $s$ represents the spacing of the stirrups, $z$ is calculated as$z=0.9h_0$ to determine the lever arm of internal forces, $f_{ys}$ represents the yielding strength of the stirrup, and $\theta$ represents the angle between the beam axis and the critical shear diagonal crack with the values listed in Table 4. It is assumed that non-stirrup UHPC beams have zero shear contribution from stirrups.

The equation for calculating the contribution of steel fibers ($V_f$) is as follows:

$$V_f=A_b{\sigma }_{f1}\cot \theta$$

(10)

where $A_b$ represents the effective cross-sectional area of the beam and takes the value of $bz$ in this paper. ${\sigma }_{f1}$represents the post-cracking strength with values listed in Table 4.

5.2. PCI-2021 Formulae

According to the PCI-2021 report [45], the shear load capacity of UHPC beams can be divided into three resistive mechanisms: the tensile strength of UHPC $V_{cf}$, the contribution of effective prestressing force $V_p$acting in the direction of applied shear, and the resistance offered by shear reinforcement $V_s$. Thus, the shear load capacity $V_{u2}$ can be calculated as follows:

$$V_{u2}=V_{cf}+V_s+V_p$$

(11)

$$V_{cf}=\left(\frac{4f_{rr}}{3}\right)b\mathrm{z}\cot \theta$$

(12)

$$V_s=\frac{A_{sv}{f}_{ys}\mathrm{z}\cot \theta }{s}$$

(13)

$$\theta =29°+3500{\epsilon }_s$$

(14)

where the values for longitudinal strain ${\epsilon }_s$ confinement are limited to under $-0.40\times {10}^{-3}$ compressive stress and $6.0\times {10}^{-3}$ under tensile stress, which, respectively, correspond to an angle of $27.6°$and $50.0°$. To ensure the consistency with reality, $\theta =40°$ is taken in this paper. The residual tensile strength ($f_{rr}$) is listed in Table 3. In this paper, the test UHPC beam did not have any prestressing tendons or stirrups, therefore $V_p$ and $V_s$ were taken as zero.

5.3. Xu’s Formulae

Xu’s formulae [46] provide empirical equations for the shear load capacity of UHPC beams, taking into account the influence of prestressing force, steel fibers, and shear span-to-depth ratio. Therefore, the shear load capacity $V_{u3}$ of UHPC beams can be determined using these equations:

$$V_{u3}=V_c+V_s+V_f$$

(15)

$$V_c=k_2(\frac{2}{\lambda -0.7}-0.8)\sqrt{f_c}b{h}_0$$

(16)

$$V_s=(0.18+0.35\lambda ){\rho }_s{f}_{ys}b{h}_0$$

(17)

$$V_f=(0.99-0.12\lambda )\lambda f_{t}b{h}_0$$

(18)

$$f_t=0.0353f_c$$

(19)

where ${\rho }_s$ is stirrup ratio. When $\lambda <1.5$, $\lambda$ is set to 1.5, and when $\lambda >3.0,$ $\lambda$ is set to 3.0. The variable $k_2$represents the prestressing enhancement factor. For UHPC beams that are not prestressed, $k_2$ equals 1.0, whereas for prestressed UHPC beams, its value is 1.25. Due to the absence of stirrup reinforcement in UHPC beams, it is assumed that the corresponding shear contribution from the stirrups is negligible.

5.4. Comparison of Calculated Values

Table 6 presents the calculated values of shear capacity $V_{u1}$ (French Standard formulae), $V_{u2}$ (PCI-2021 formulae), and $V_{u3}$ (Xu’s formulae), along with the corresponding ratios $V_{u1}/V_{u,test}$, $V_{u2}/V_{u,test}$, and $V_{u3}/V_{u,test}$ of the calculated shear capacity to the experimental shear capacity. The calculated values of shear capacity displayed in Table 5 are all in units of kN.

For the French standard formulae, the ratio $V_{u1}/V_{u,test}$ ranged from 0.51 to 1.44, with a mean of 0.91, an STDEV of 0.30, and a coefficient of variation of 0.33. Comparison with Li et al.’s [40] experimental findings suggests that the formulae were more accurate for the UHPC beams with larger shear span-depth ratios.

The ratios of $V_{u2}/V_{u,test}$ for the PCI-2021 formulae ranged from 1.25 to 1.77, with an average of 1.47, an STDEV of 0.17, and a coefficient of variation of 0.12. It is discovered that the calculated values of the PCI-2021 formulae were about 1.5 times the tested results. This demonstrates that the PCI-2021 formulae greatly overestimate the shear capacity of UHPC beams with larger shear span-depth ratios. Additionally, this phenomenon was more apparent when the beam height is 400mm.

For the Xu’s formulae, the ratio $V_{u3}/V_{u,test}$ ranged from 0.33 to 1.14, with an average of 0.81, an STDEV of 0.31, and a coefficient of variation of 0.39. It is found that the Xu’s formulae significantly underestimate the shear capacity of non steel fiber-reinforced UHPC beams. Comparison with Li et al.’s [40] experimental findings indicates that Xu’s formulae are more accurate for the UHPC beams with larger shear span-depth ratios. Moreover, they are more accurate for predicting the shear capacity of steel fiber-reinforced UHPC beams rather than non steel fiber-reinforced UHPC beams.

The comparison of calculated values obtained from the three formulae demonstrates that the French standard formulae are more accurate for the UHPC beams with larger shear span-depth ratios. PCI-2021 formulae greatly overestimate the shear capacity of UHPC beams with larger shear span-depth ratios. Xu’s formulae are more accurate for the steel fiber-reinforced UHPC beams with larger shear span-depth ratios. In summary, French standard formulae are the most suitable formulae for predicting the shear capacity of UHPC beams in this paper.

6. Conclusions

The shear behavior of both non-stirrup UHPC beams and stirrup-reinforced NC beams under larger shear span-depth ratios, subjected to a three-point loading, was investigated in this study, and the following conclusions can be drawn:

(1)

The failure modes of all eight tested beams were shear failures. For stirrup-reinforced NC beams, specimens N-H35-S1-V0 and N-H40-S1-V0 all failed by diagonal compression. For non-stirrup UHPC beams, specimens U-H35-S0-V2.0 (1.5) and U-H40-S0-V2.0 (1.5) exhibited typical shear compression failure mode, while specimens U-H35-S0-V0 and U-H40-S0-V0 failed in diagonal tensile mode. Steel fibers are a crucial factor that affects the failure mode of non-stirrup UHPC beams. They can effectively enhance the crack resistance of the beam.

(2)

As the beam height increased from 350 mm to 400 mm, the diagonal cracking strength $v_{ci}$ could be increased by up to 16.7% (U-H*-S0-V2.0), 30.4% (U-H*-S0-V1.5), 14.5% (U-H*-S0-V0) and 11.9% (N-H*-S1-V0). Increasing the beam height can effectively improve the diagonal cracking strength. The incorporation of steel fiber is conducive to delaying the appearance of diagonal cracks, and increasing the volume content of steel fiber within a certain range is beneficial to improving the diagonal cracking strength.

(3)

The midspan deflections of the ultimate load (${\mathsf{\Delta }}_u$) for U-H35-S0-V2.0 and U-H40-S0-V2.0 beams were reduced by 21.2% and 21.3%, respectively, compared to U-H35-S0-V1.5 and U-H40-S0-V1.5 beams. These results suggest that the ductility of non-stirrup UHPC beams can be improve by appropriately reducing the volume content of steel fibers.

(4)

The longitudinal reinforcements in U-H35-S0-V2.0 (1.5) and U-H40-S0-V2.0 (1.5) beams were fully utilized in resisting the shear force, which had yielded before the beams reaching their ultimate shear strength. The stirrups in N-H35-S1-V0 and N-H40-S1-V0 beams yielded before the beams reaching their ultimate shear strength, which suggests that the stirrups were fully utilized in bearing shear force. The concrete of the web section of the tested beams experienced more significant tensile stresses than the concrete near the support. The principal strains of the normal concrete beams had more pronounced variations than those of the UHPC beams

(5)

The ultimate shear strength ${\tau }_u$ of non-stirrup UHPC beams decreased by 2.0% (U-H*-S0-V2.0), 16.6% (U-H*-S0-V1.5), and 22.9% (U-H*-S0-V0), as the beam height increased from 350 mm to 400 mm.

(6)

The PSCR increases as the beam height is reduced. By reducing the volume content of steel fibers to a certain extent, the PSCR of the non-stirrup UHPC beams can be increased to a certain extent.

(7)

The French standard formulae were more accurate for the UHPC beams with larger shear span-depth ratios. PCI-2021 formulae greatly overestimate the shear capacity of UHPC beams with larger shear span-depth ratios. Xu’s formulae are more accurate for the steel fiber-reinforced UHPC beams with larger shear span-depth ratios. French standard formulae are the most suitable formulae for predicting the shear capacity of UHPC beams in this paper.
