Pediatric Carotid Injury after Blunt Trauma and the Necessity of CT and CTA – a Systematic Literature Review

1. Introduction

Blunt carotid injuries (BCI) in pediatric trauma have not been extensively researched. So far, there are only a few publications on this subject. The reason for this might be that BCI in pediatric trauma is very rare. A study on the US national pediatric trauma registry revealed an overall incidence of 0.03%. Only 15 out of over 57.000 children had a BCI after blunt trauma [1]. As well a study on the TraumaRegister DGU could only register an overall prevalence of 0.5%. 48 BCVI cases on 8128 pediatric patients with blunt trauma were registered [2].

The “Gold Standard” for screening patients with suspected BCI is by computed tomography angiography (CTA) followed by alternatives as magnetic resonance angiography (MRA), digital subtraction angiography (DSA) [3,4]. In addition to those instrumental diagnostic tools, clinical scores like the McGovern Score have been published, which shows a sensitivity of 81% and specificity of 71.3% in blunt cerebrovascular injury (BCVI) prediction [4]. Also, ultrasound was named as an excellent possibility to screen for BCI [5,6]. Because there are no guidelines for routine diagnostic work-up in pediatric BCI, we are in urgent need to establish a new diagnostic standard.

Many studies show that even minimal radiation exposure of children could lead to more cases of pediatric cancer [7,8]. Therefore, we should take a critical look at the routine use of radiation to diagnose BCI.

This review aimed to investigate how often computed tomography scans (CT) are performed in pediatric trauma, how often CTA is used to detect BCI after blunt trauma, how many scans with negative results are performed, and if it is possible to define risk groups based on clinical scores or ultrasound findings to prevent radiation exposure to children.

2. Materials and Methods

Definitions

Blunt trauma is defined as any physical impact on the human body, which may lead to any injury of the whole body. Any penetrating or sharp traumata were excluded from research. BCI/ BCVI is defined as an injury of the internal carotid artery, common carotid artery and vertebral artery forced by longitudinal stretching, acceleration-deceleration, rotation, and hyperextension of the neck, stressing the craniocervical vessels through blunt trauma. Children are defined as any patient under the age of 18. In this study, all other synonyms for children were included.

Search Strategy

Two clinical questions are discussed in this review; Q1: How frequent is BCI/ BCVI on pediatric patients after blunt trauma, and what does routine diagnostics look like?; Q2: Is a CT/ CTA scan on pediatric patients after blunt trauma always necessary and are there any negative health effects?

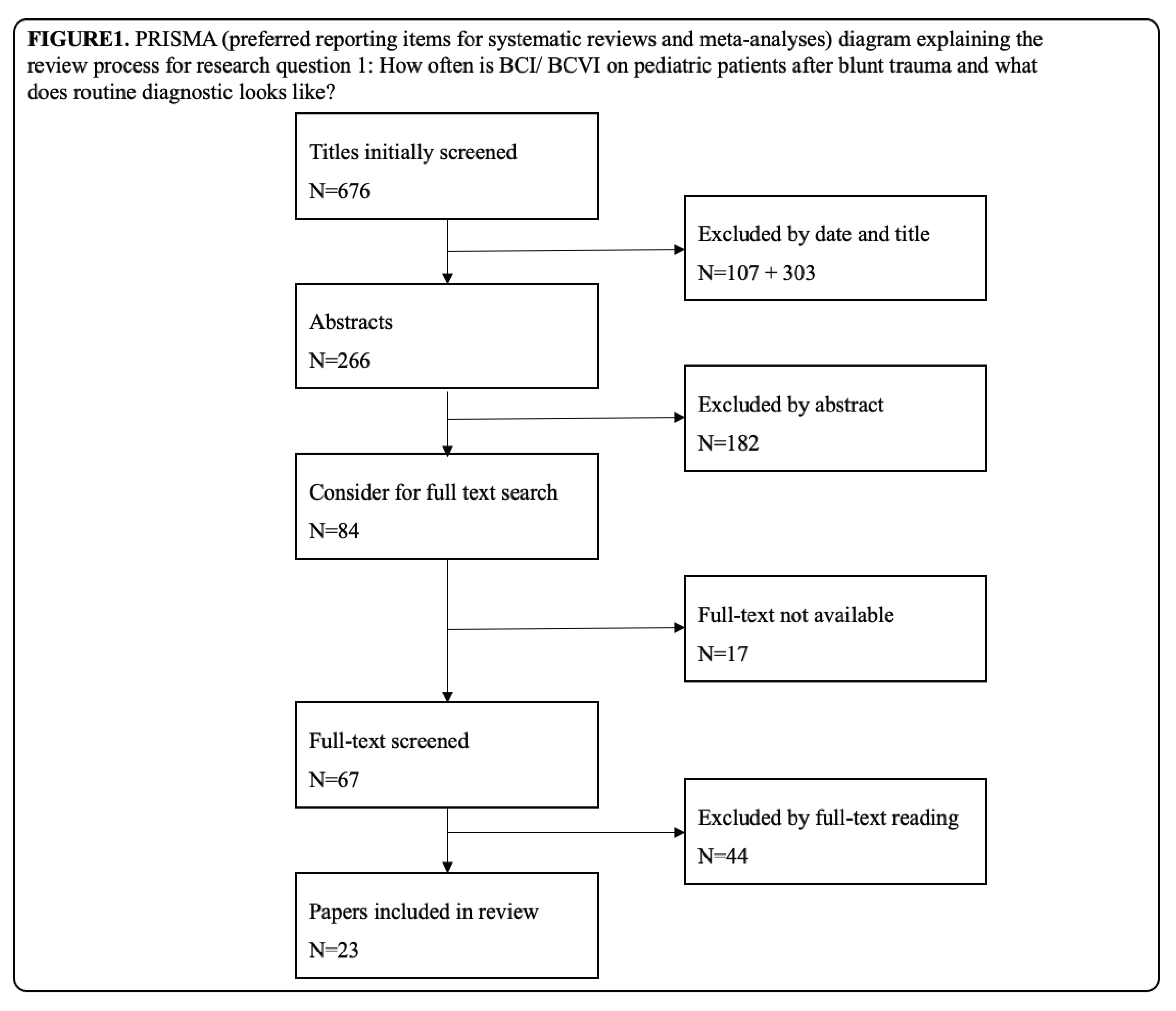

To find an answer to Q1, this literature review included publications, that have dealt with pediatric blunt trauma and the diagnostics of BCI and BCVI. Publications dealing with non-pediatric BCI/ BCVI patients were included to check whether there are any diagnostic or therapy guidelines for adults. For literature research, Medline (PubMed) and the Cochrane library were used. MeSH-Terms “Blunt carotid injury” (BCI) AND “pediatric blunt trauma” were used on Medline research. Cochrane library was used to check if there are more potential interesting publications on this topic, which are not included in Medline.

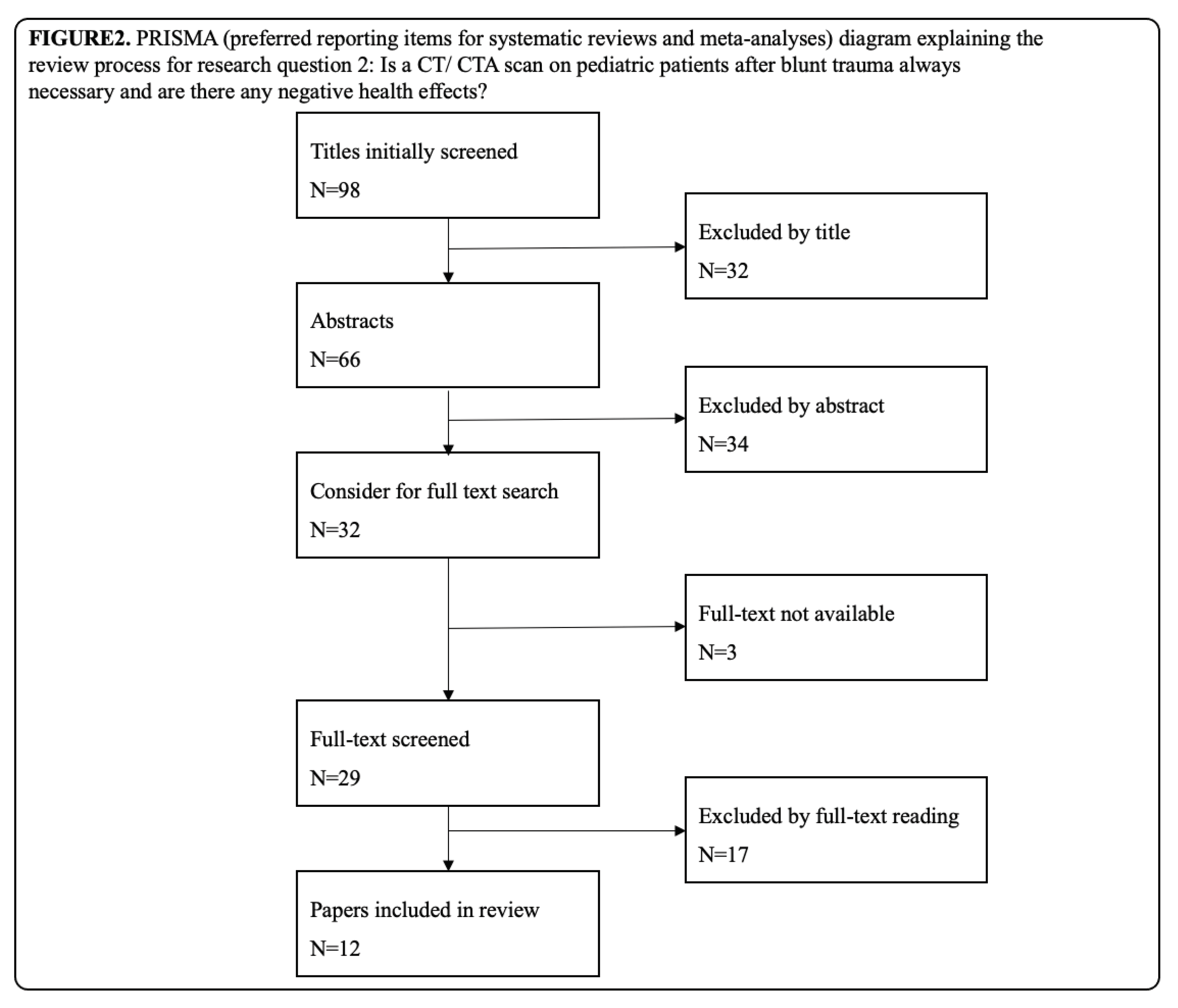

Furthermore, for answering Q2, publications on the risk of radiation exposure on children were included in the study: Different diagnostic modalities were correlated with ultrasound and clinical scores (e.g.,: CTA, MRA, DSA,). We aimed to determine whether risk group stratification based on clinical scores and ultrasound can reduce radiation exposure in children. MeSH-Terms were “pediatric blunt trauma” AND “CT”, OR “CTA”; “radiation dose” AND “radiation risks” AND “carcinogenesis”; and additionally “ultrasound”.

Selection Criteria

Due to lack of research articles, we included reviews, systematic reviews, case reports and original studies for this systematic review. Literature research included all publications in the English language between 1999 and 2020. Due to an enormous change in imaging diagnostics, publications prior to 1999 were excluded. Publications with titles that were irrelevant were excluded immediately. After that, all abstracts of included publications were read, and irrelevant publications were excluded again. For all relevant publications, the full-text version was considered. If the full-text version was not available, the publications were excluded. For an overview of the review process, see the preferred reporting items for systematic reviews and meta-analyses (PRISMA) in Figure 1 and Figure 2.

3. Results

After analyzing all included papers dealing with pediatric BCI/ BCVI, most publications showed an overall incidence between 0.03 – 0.5% of confirmed BCI/ BCVI cases due to pediatric blunt trauma [2,3,9,10,11,12,13]. Only two individual studies found a higher incidence of up to 0.9% and 1.1% [14,15].

About 1.1 – 3.5% of pediatric blunt trauma patients underwent CTA to detect BCI [3,4,16]. Only a few patients underwent other diagnostics like MRA or DSA [3]. Only 0.17 – 1.2% of all CTA scans resulted in the diagnosis of a BCI [3,4,16]. Often, carotid and vertebral arteries were restudied with arteriography 7 - 10 days after the injury [17].

Publications before 2018 mainly used modified Memphis criteria (screening criteria based on adult patients) to screen pediatric patients and decide whether CTA is necessary or not. Modified Memphis criteria classify basilar skull fracture with involvement of petrous bone, basilar skull fracture with involvement of the carotid canal, Le Fort II or III fracture pattern, cervical spine fracture, Horner’s syndrome, neck soft-tissue injury (like seatbelt sign, hanging or hematoma) and focal neurologic deficit not explained by imaging as screening criteria for BCVI (Tabl. 1). If one of those screening criteria is met, the recommendation to perform further workup with angiographic imaging is given [18]. However, those studies showed that carotid or vertebral imaging was performed only in 16.5% of cases with at least one risk factor. Nevertheless, imaging was performed in 1.69% of cases even though no risk factors were detected, and 3 out of 44 scans (6.8%) detected a BCI [3]. Other clinical scores like the Denver [19], EAST [20], and Utah score [21] use other screening tools to detect BCVI. Screening tools are also summarized in Table 1. A study from the University of Missouri-Columbia has shown that modified Memphis criteria misclassified 28.6% of all pediatric trauma cases. Also, other scores like the Denver, EAST, or Utah score misclassified 28.6%, 33.3%, and 47.6%, respectively. Based on the Utah score, the newly created McGovern score was presented with a sensitivity of 81% and a specificity of 71.3% to detect BCVI correctly. The McGovern score includes six elements that were identified as risk factors for BCVI: Glasgow Coma Scale <8, focal neurological deficit, carotid canal fracture, petrous temporal bone fracture, cerebral infarction on CT, and a motor vehicle accident as a mechanism of injury (MOI) [4]. Other risk factors like a seatbelt sign were not associated with BCI [22]. Until now, the McGovern score has not been validated by a second study. Another study of 2019 even showed that the recently added MOI of a motor vehicle accident had no significant correlation with BCI [23].

A CT is often used for diagnostics after blunt trauma to identify injuries because of its fast, extensive, and precise results. 52.5% of all pediatric polytrauma patients get a CT for primary diagnostic work-up [24]. A study on the TraumaRegister DGU has shown that in the control and BCVI groups, children underwent immediate head/neck CT in 85.3% vs. 94.4%, or whole-body CT in 64.6% vs. 86.1% [2]. As diagnosis by imaging is included in almost all scores, a CT of the head and neck is necessary for every patient to screen. Scores that do not require CT or DSA to screen for BCI have not been published so far.

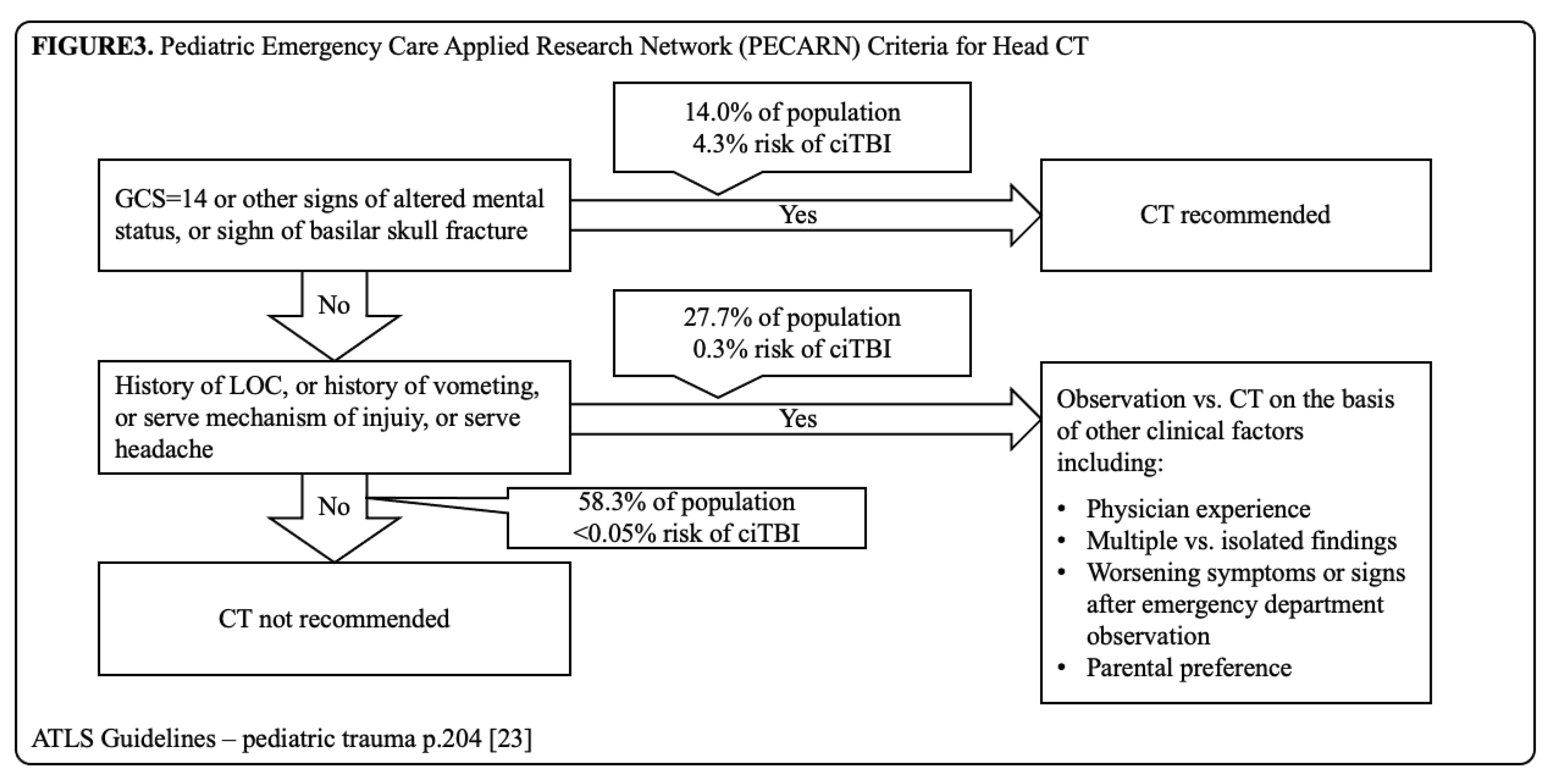

The Advanced Trauma Life Support (ATLS) has released new guidelines (2018) when CT scans on pediatric trauma should be done in its tenth edition. Following this algorithm, 58.3% of the population should not get a CT at all. A group of 27.7%, including patients with a history of loss of consciousness (LOC), or history of vomiting, severe mechanism of injury, or severe headache, should be observed first, and the decision to perform a CT should be taken based on other clinical factors. The indication could be based on physician experience, multiple vs. isolated findings, worsening symptoms or worsening signs after emergency department observation, and parental preference. Only patients with GCS = 14, other signs of altered mental status, or basilar skull fracture signs should get a CT immediately. This group includes only 14% of all pediatric traumata [25] (Figure 3).

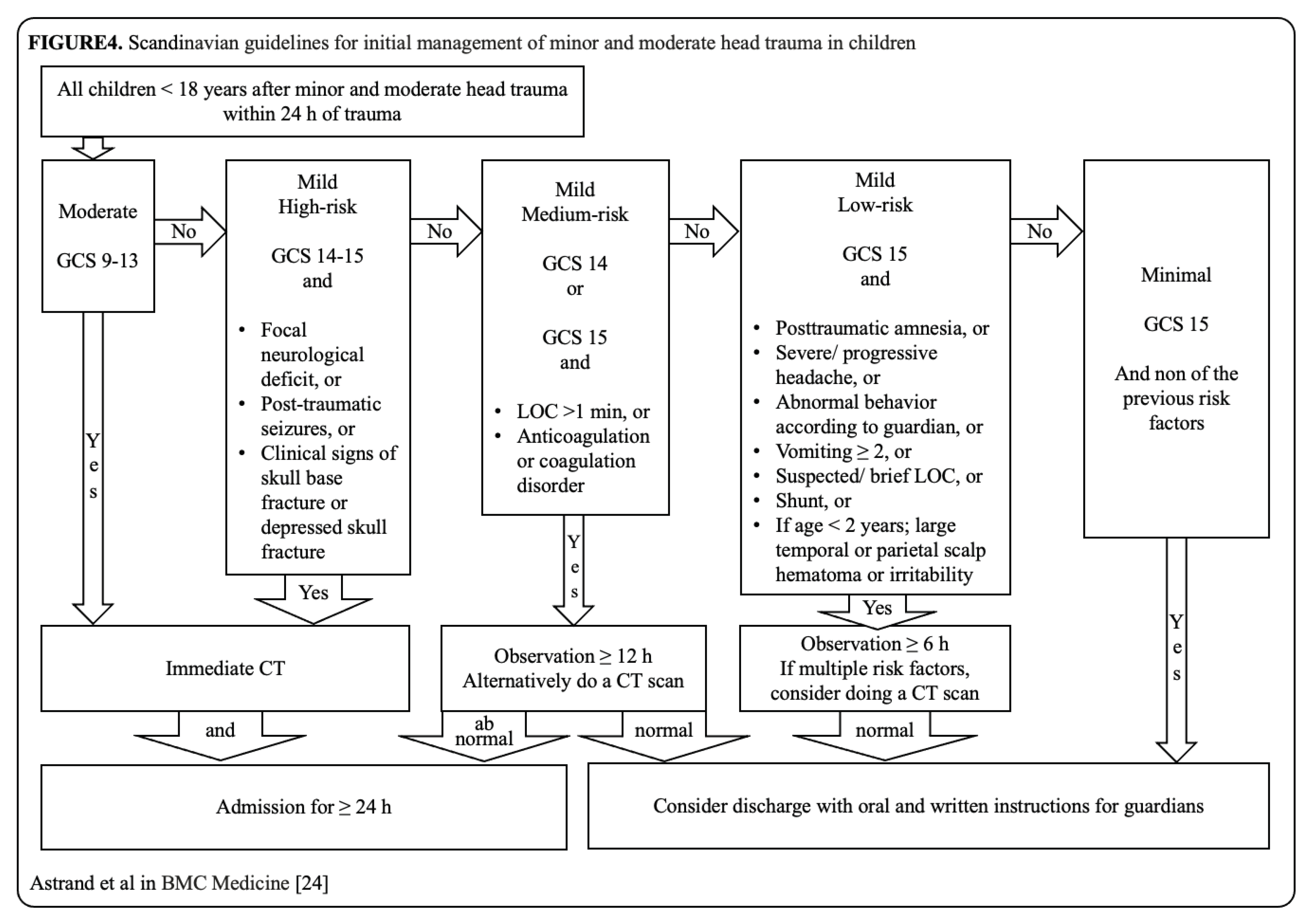

Astrand et al. have published a Scandinavian guideline for initial management of minor and moderate head trauma of children in 2016. Following the flow chart, pediatric patients with moderate head trauma, GCS 9-13, should get a CT scan immediately. Patients with mild head trauma are divided into risk groups. The high-risk group is defined as a GCS 14-15 and focal neurological deficit, or post-traumatic seizures, or clinical signs of skull base fracture or depressed skull fracture. The high-risk group should also get a CT scan immediately. Medium-risk is defined as a GCS 14 or GCS 15 with a LOC >1 min, or anticoagulation or coagulation disorder. The medium-risk group should be clinically observed for over 12 hours. CT scan is only considered as an alternative in this group. Low-risk is defined as a GCS 15 with post-traumatic amnesia, or severe/ progressive headache, or abnormal behavior according to guardian, or vomiting ≥ 2, or suspected/brief LOC, or preexisting cerebral shunt, or if age < 2 years, a large temporal or parietal scalp hematoma or irritability. A clinical observation for 6 hours is considered in the low-risk group, and a CT scan is only advised for patients with multiple risk factors [26] (Figure 4).

As a restricted use of diagnostic radiation in children should be standard, we need to take a look at the dose of radiation exposure of CT scans, the radiation risk, and the alternatives to CT. In children, the median volume CT dose index on a non-contrast head CT is 33 milligray (mGy) [27]. A CT of the skull or facial bones needs 27 – 37 mGy, a scan of the neck 19 – 26 mGy, and a scan of petrous bones 42 – 67 mGy depending on the age group [28]. A computed tomography angiography needs at least 138 mGy [29]. Radiation exposure is associated with a higher cancer incidence. In 2007, the Center for Radiological Research, Columbia University Medical Center, New York, found direct evidence from epidemiologic studies that the organ doses of a standard CT correspond to an increased risk of cancer [7]. A study from the Netherlands described that the cumulative brain dose of a pediatric brain CT scan was 38.5 mGy and was statistically significantly associated with brain tumors risk [30]. The Institute of Health and Society and Northern Institute of Cancer Research Newcastle noted the correlation between radiation dose from CT scans and leukemia and brain tumors. The use of CT scans in children with cumulative doses of about 50 mGy almost triples the risk of leukemia, and doses of about 60 mGy triples the risk of brain cancer [31]. Furthermore, age at the time of exposure and the lifetime attributable risk for children could be identified as an essential risk factor that makes them more vulnerable to radiation exposure than adults [32]. In cases where children received CTs at hospitals without a pediatric trauma center, the median effective radiation dose was two times higher [33].

In a case report on a 12-year-old boy, duplex ultrasound was mentioned as a possible imaging tool to detect BCI. Before treatment, a CTA was conducted to confirm the diagnosis made by ultrasound and detect the injuries’ extent [5]. The same publication illustrates a diagnostic algorithm by ATLS from 2005 for asymptomatic pediatric BCI patients. There, duplex ultrasound is shown as the first diagnostic step on asymptomatic patients. This algorithm can no longer be found in the newest edition (2018) of ATLS. It could be shown that transcranial doppler measurement was significantly associated with the adult blunt cervical vascular injury status. It was suggested that transcranial doppler sonography could be a viable bedside screening tool for trauma [34]. A study on the meaningful use of ultrasound on pediatric BCI has not been published yet.

4. Discussion

Taking these results into consideration, it is confirmed that pediatric BCI is a rare injury. The number of publications on adult BCI after blunt trauma is low and on pediatric BCI even lower. Nevertheless, it could be shown that BCI diagnostic work-up mostly follows the same routine. After patients reach the hospital, an extensive physical examination should be conducted. Asymptomatic patients could be screened by duplex ultrasound to detect BCI and prevent them from unnecessary radiation exposure. Due to better anatomic and physical conditions in pediatric patients, ultrasound should be easier to perform than in adult patients. A positive BCI suspicion on duplex ultrasound needs clarification via CTA. According to the ATLS guidelines, only patients with GCS=14, other signs of altered mental status, or basilar skull fracture signs should get a CT scan immediately. All other patients should be observed, and indications for a CT scan should be set narrowly [25]. If patients show neurological symptoms, a CT scan is irreplaceable.

Assuming that a patient could have a BCI, suspected by clinical examination, ultrasound, or CT scan, the indication for a CTA scan should be checked carefully. Currently, the McGovern score is the only score with a good sensitivity and specificity for BCVI detection. As one study raises concerns about the correlation of the MOI of a motor vehicle accident and BCI’s incidence additional studies’ independent validation of the McGovern score is necessary prior to implementation in routine diagnostics.

Considering the data regarding radiation exposure and the risk of cancer, many publications have proven the correlation between radiation exposure and the probability of the appearance of cancer. Because a cumulative radiation dose of about 50 mGy is sufficient to triple the risk of leukemia and a dose of about 60 mGy to triple the risk of brain cancer, one CTA or two CT scans are enough to reach or even exceed the cumulative radiation threshold dose in children [31]. Taking a critical look at the analyzed studies, only 1.1 – 3.5% of all pediatric blunt trauma patients underwent CTA to detect BCI. Due to the low number of performed CTA scans, the indication for CTA scans was mainly done after careful consideration. Whether these indications were derived by scores or just by expert’s opinion is unclear. Nevertheless, only 0.17 – 1.2% of these CTA scans allowed for a positive BCI diagnosis.

Following the ATLS guidelines, only 14% of all trauma patients should get a CT scan immediately. Another 27.7% of all trauma patients might get a CT scan at a later point after careful observation. In reality, 52,5% of pediatric patients get a CT scan after trauma exceeding the recommendation by ATLS significantly. The stringent use of CT guidelines in the management of pediatric trauma could reduce this number to 42.8% [24].

Validation of the Scandinavian guidelines was recently achieved in 2020. Results have shown that the guidelines have a very high negative predictive value of 99.9% to identify children without traumatic brain injury (TBI), and high sensitivity of 92.3% for detection of TBI. It was proven that the use of the Scandinavian guidelines would potentially reduce the use of CT. In this study 25.0% of the CTs were performed in children with minimal head injury. It was also shown that the guidelines have a high negative predictive value of 96.9% for traumatic findings on CT. The study validation also showed that unnecessary CT scans could be avoided in the mild low-risk head injury group, which accounts for 51.1% of the CT scans. Furthermore, following the guidelines could have saved 76.1% of all CTs performed on those patients [35].

The slim database published so far makes it challenging to reach a generally applicable statement. Almost all published studies, except the Scandinavian guidelines, were conducted in the U.S., making it difficult to refer the results to other countries and health care systems. Other guidelines, expert opinions, and other legal statuses may affect the results analyzed in other countries.

5. Conclusions

We have shown again that BCI in pediatric trauma is rare. The “Gold Standard” diagnostic tool for trauma patients is the plain CT scan, and for BCI, it should be the CTA. As there are many negative and unnecessary scans, radiation containing imaging should be used with caution and should be significantly minimized. Duplex ultrasound and the clinical McGovern score could help to identify risk groups for BCI and could contribute to a less number of unnecessary CTA scans. The McGovern score needs to be validated by other studies. CT guidelines for the management of pediatric trauma and BCI could reduce the number of radiation containing scans, especially in hospitals without a pediatric trauma center.
