Wafer-Scale Characterization of 1692-Pixel-Per-Inch Blue Micro-LED Arrays with an Optimized ITO Layer

A peer-reviewed article of this preprint also exists.

Submitted:

20 March 2024

Posted:

20 March 2024

You are already at the latest version

Abstract
Wafer-scale blue micro-light-emitting diode (micro-LED) arrays are fabricated with a pixel size of 12 μm, a pixel pitch of 15 μm, and a pixel density of 1692 pixels per inch, achieved by optimizing the properties of e-beam-deposited and sputter-deposited indium tin oxide (ITO). Although the sputter-deposited ITO (S-ITO) films exhibit a densely packed morphology and lower resistivity compared to those of the e-beam-deposited ITO (E-ITO) films, the forward voltage (VF) values of a micro-LED with the S-ITO films are higher than those with the E-ITO films. The VF values for a single pixel and for four pixels with E-ITO films are 2.82 V and 2.83 V, respectively, while the corresponding values for S-ITO films are 3.50 V and 3.52 V. This was attributed to ion bombardment damage and nitrogen vacancies in the p-GaN layer. Surprisingly, the VF variations of a single pixel and of four pixels with the optimized E-ITO spreading layer from five different regions are only 0.09 V and 0.10 V, respectively. This extremely uniform VF variation is suitable for realizing micro-LED displays to be used in AR and VR applications, circumventing the bottleneck in the development of long-lifespan and high-brightness organic LED devices for industrial mass production.
Keywords:
micro-light-emitting diode
;
indium tin oxide
;
wafer-scale characterization
;
high pixel per inch
Subject:
Chemistry and Materials Science  -   Materials Science and Technology

1. Introduction

Micro-light-emitting diode (Micro-LED) technology continues to attract strong interest due to the high resolutions, outstanding luminous efficiency, remarkable brightness, and impressive durability it can offer. These features make these types of diodes a most promising platform in high-end display applications such as mobile phones, wearable watches, and augmented reality (AR)/virtual reality (VR) displays, which require high luminance, high refresh rates, and high pixel-per-inch (PPI) values [1,2,3,4,5,6]. Specifically, displays beyond eye-limiting resolutions have attracted substantial interest as a key enabler of AR/VR displays [7,8]. Given that next-generation displays require high optical contrast levels, sub-12 μm pixels must be used to achieve highly saturated images and flicker-free images with minimal screen-door effects. This enhances the overall clarity of the image and alleviates eye strain [9,10]. Also, for application to near-eye displays, the resolution should exceed 1500 PPI. A high-resolution display provides enhanced immersion, a diminished screen door effect, a sharply projected enlarged image, and heightened visual comfort during use [11].
With the increasing demand for micro-LEDs currently, the need for optimization research on indium tin oxide (ITO), considered to be a promising electrode for the p-type GaN layer among various current-spreading layers, has also increased [12,13,14,15]. ITO films with high transparency, low resistivity, and the ability to form reliable ohmic contacts with p-GaN are highly suitable for use as extended electrodes in micro-LED applications [16]. There are various deposition methods that can be used to obtain high-quality ITO films, such as electron-beam (e-beam) evaporation [17,18,19], magnetron sputtering [20,21], pulsed laser deposition (PLD) [22,23], sol-gel methods [24,25], and spray pyrolysis [26,27]. Among these, e-beam evaporation and sputtering techniques are widely used for ITO film deposition [28]. Additionally, magnetron sputtering presents distinct advantages, including high deposition rates, low deposition pressures, the production of high-quality films, enhanced adhesion, and superior uniformity across expansive surfaces [29]. The deposition method used for ITO can affect the surface roughness and electrical properties of the film. ITO optimization based on the deposition method is crucial for achieving high-resolution micro-LED arrays, especially those with high pixel densities and those capable of operating at high current densities.
Despite the advancements in micro-LED technologies, several issues hinder their widespread application. As an example, the application of near-eye displays to industrial mass production requires comprehensive wafer-scale characterization of blue micro-LED arrays [30]. To the best of our knowledge, wafer-scale characterization of the blue micro-LED arrays has not yet been reported in detail. In addition, we still need to improve the optimization of ITO films. This is associated with high power consumption resulting from the high forward voltage, attributed to the weakened optical and electrical properties of the ITO films [31]. These motivations drove us to undertake the four-inch wafer-scale characterization of high-performance blue micro-LED arrays with a resolution of 1692 PPI to realize micro-LED displays with a high-density resolution.
This study presents the four-inch wafer-scale fabrication of blue micro-LED arrays on a sapphire substrate with a resolution of 1692 PPI, accomplished by optimizing the properties of e-beam-deposited and sputter-deposited ITO as a current-spreading layer ultimately to realize high-performance micro-LED displays.

2. Experimental Section

Wafer-scale blue micro-LED arrays were fabricated with a pixel size of 12 μm and a pixel pitch of 15 μm, reaching 1692 PPI. InGaN/GaN-based epilayer structures were grown by metal-organic chemical vapor deposition (MOCVD) on a sapphire substrate. The InGaN/GaN-based epilayer structure is composed of a four-μm-thick undoped GaN layer, a 2.5-μm-thick Si-doped n-GaN layer, ten-period InGaN/GaN multi-quantum wells (MQWs), a 20-nm-thick p-AlGaN electron blocking layer, and a 200-nm-thick Mg-doped p-GaN layer.
First, 200-nm-thick ITO films were deposited using an e-beam evaporator or by sputtering as the ohmic contact layer of a p-type GaN. The mesa-structure was formed by inductively coupled plasma-reactive ion etching (ICP-RIE), reaching a pixel size of 12 µm X 12 µm. Subsequently, the sample was placed in a HCl : H2O = 1 : 10 solution for one minute to minimize the damaged to the dry-etched sidewalls of the pixels. To ensure proper ohmic contact, the sample was annealed at 600 °С for 120 sec by rapid thermal annealing (RTA). Then, multilayer deposition with Cr (20 nm) /Au (500 nm) onto the ITO and the n-GaN layer was conducted to form individual p-electrodes and a common n-electrode, respectively. Also, the mesa-sidewall of each micro-LED pixel was passivated by a 500-nm-thick SiNx layer using chemical vapor deposition (CVD) to reduce the leakage current. To drive the passive matrix (PM)-type blue micro-LED arrays, the SiNx passivation layer was selectively etched using a buffer oxide etchant (BOE) until the individual p-electrodes and common n-electrode were exposed, after which Cr (20 nm) and Au (500 nm) p-pad and n-pad line layers were deposited, respectively. Because the corresponding pixel size and pixel pitch are 12 and 15 μm, the formed p-pad line layer passed over the pixels, with the p-electrodes of each micro-LED then selectively connected in a row for matrix-addressable driving. Samples labeled “E-ITO” were ITO films deposited by the e-beam evaporator and samples termed “S-ITO” were ITO films deposited by sputtering.
To realize various light-emitting images for the fabricated micro-LED arrays with hundreds of individual pixels, PM-type micro-LED arrays were achieved, as shown in Figure 1. According to the selective formation of the p-electrodes for the micro-LED arrays, each pixel could be individually turned on and off to demonstrate various monochrome images with a resolution of 1692 PPI. While a pixel with a p-electrode is a light-emitting pixel, a pixel without a p-electrode does not emit light.
The surface morphologies of the ITO films were studied using field emission scanning electron microscopy (FE-SEM) (Hitachi, S-4800) and atomic force microscopy (AFM) (PSIA, XE100). Current density-voltage (J–V) measurements of the LEDs were obtained with a parameter analyzer (Keithley, 4200-SCS). Wafer-scale characterization of the electroluminescence (EL) was conducted using a semi-auto LED prober at normal incidence (Opto System, WPS3100).
Preprints 101835 g001

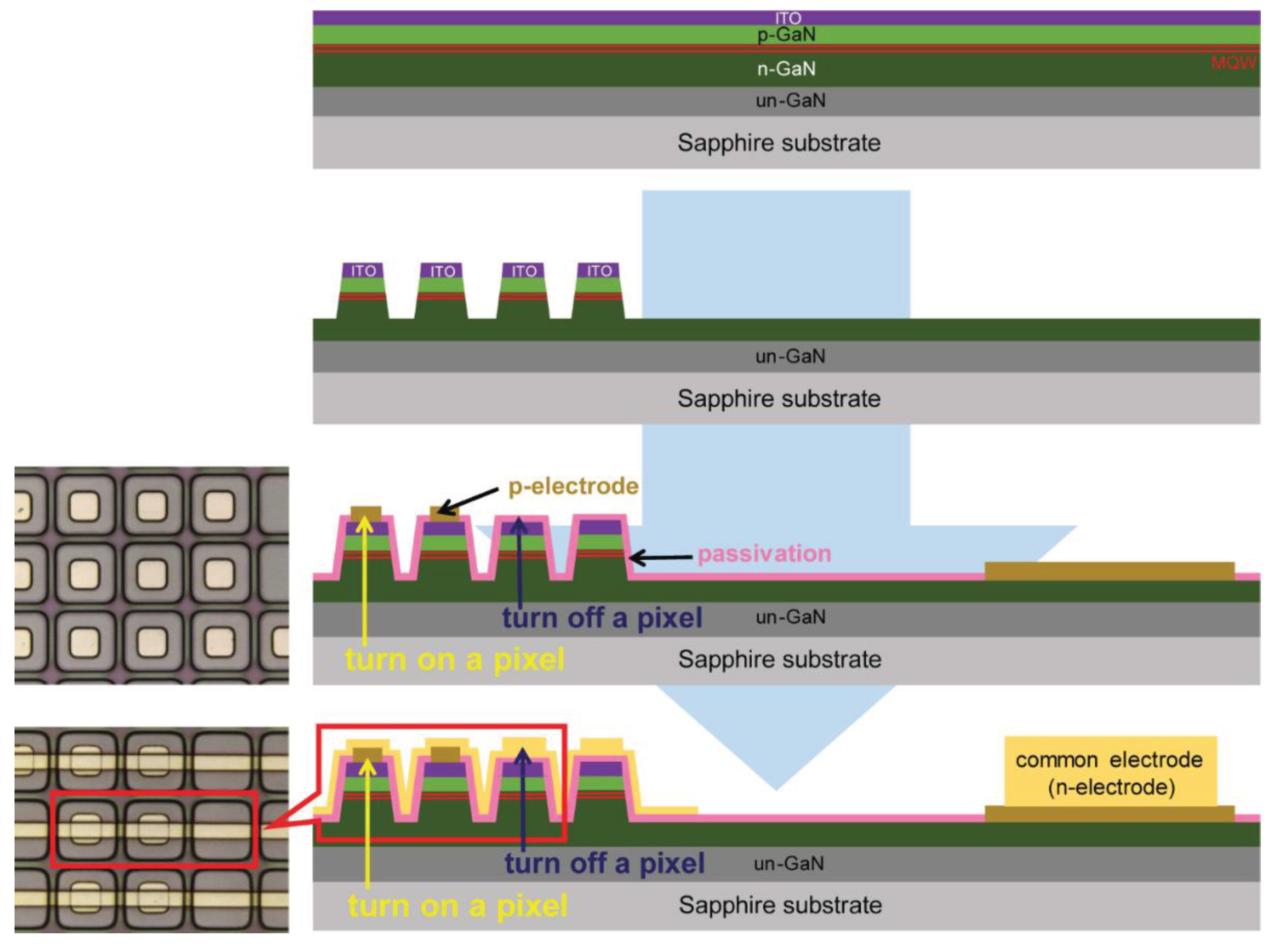

Figure 1. Schematic diagram of the fabrication process used to create the blue micro-LED arrays.
Figure 1. Schematic diagram of the fabrication process used to create the blue micro-LED arrays.
Preprints 101835 g001

3. Results and Discussion

Quantitative analyses were conducted to determine the grain size distributions in the different ITO films deposited by e-beam evaporation and sputtering. The surface morphology and the grain size of the ITO films were measured by examining top-view SEM images, as shown in Figure 2a-d. The surface morphology of the S-ITO film was relatively smooth and dense, while that of the E-ITO films was rather rough. Grain size distribution histograms of the E-ITO films and the S-ITO films are correspondingly shown in Figure 2e and f. The grain size distribution of the E-ITO films was found to have a broad size range from 9 to 54 nm, while that of the S-ITO films showed a much narrower range (9 - 30 nm). The grain size distribution of the S-ITO films was significantly narrower compared to that of the E-ITO films. In addition, the average grain size of the E-ITO films was measured and found to be 24.8 nm, whereas that of the S-ITO films was 18.2 nm. The average grain size of the E-ITO films showed an incremental trend compared to that of the S-ITO films. In general, when particles are deposited at a high energy level with a substantial amount of migration present, the resulting grain size tends to be smaller. Conversely, if there is reduced migration during particle condensation on the substrate, the grain size will be larger [32]. In our case, in that sputtering is a relatively high-energy process, the S-ITO films show a much narrower size distribution compared to the E-ITO films.
The surface morphologies of the p-GaN layer and the ITO films deposited on the p-GaN layer with two different deposition methods were observed by AFM; these results are shown in Figure 3. The measured RMS roughness values of the p-GaN layer, the E-ITO films, and the S-ITO films are 0.175, 5.187, and 0.824 nm, respectively. To investigate only the surface morphology of ITO films processed with two different deposition methods, the films were calculated to eliminate the influence of the roughness of the sub-layer, in this case the p-GaN layer. The S-ITO film has a lower RMS roughness value of 0.649 nm compared to that of the E-ITO films, which have a RMS roughness value of 5.012 nm. The roughness of the E-ITO films is approximately 7.72 times higher than that of the S-ITO films. The S-ITO films exhibit smooth surfaces and have small grains, while the E-ITO films have grains with increased sizes, creating a rougher morphology. The difference in the surface morphology could be reflected in the corresponding film resistivity. The measured resistivity of the S-ITO films is 4.86 X 10-4 ohm·cm, much lower than that of the E-ITO films (5.96 X 10-3 ohm·cm). The surface AFM observation suggests that the different ITO films, deposited by the e-beam evaporation and sputtering, have a distinct effect on the resistivity as well as the surface morphology, consistent with the surface SEM observations.
Figure 4 shows the J-V characteristics of blue micro-LEDs fabricated with the E-ITO films and S-ITO films. The forward voltage (VF) values of a single pixel and of four pixels with the E-ITO films are 2.82 and 2.83 V at 30 A/cm2, while those of a single pixel and four pixels with the S-ITO films are 3.50 and 3.52 V at 30 A/cm2, respectively. Interestingly, although the S-ITO films exhibited a densely packed morphology and lower resistivity compared to the E-ITO films, the VF values of the micro-LED created with the S-ITO films were higher than those of the micro-LED created with the E-ITO films. The higher VF values of the S-ITO films could be related as follows. Son et al. reported that the ion bombardment damage introduced by sputtering significantly increases the VF values [33]. Sputtering involves the bombardment of the target material (ITO) with ions, which can damage the underlying layers. In this case, ion bombardment during the sputtering of ITO causes damage to the p-GaN layer in the micro-LED structure. The plasma-induced damage to the p-GaN is associated with a notable increase in the VF values, suggesting changes in the electrical properties of the p-GaN layer. In addition, Tian et al. reported that surface damage to the p-GaN layer was specifically attributed to nitrogen vacancies on the p-GaN surface [34]. The sputtering process, during which negative voltage is applied to the ITO target, generates O2- sputtering ions with a greater bombardment effect on the p-GaN crystal surface. This results in the loss of more nitrogen atoms on the p-GaN crystal surface, causing surface damage and potentially altering the electrical characteristics of the p-GaN layer. The presence of nitrogen vacancies at the ITO/p-GaN interface has been identified as a factor contributing to the higher VF values in micro-LEDs with S-ITO films [35]. Consequently, both ion bombardment damage during sputtering and surface damage with nitrogen vacancies on the p-GaN layer could lead to higher VF values in micro-LEDs created with S-ITO films, despite their densely packed morphology and lower resistivity compared to E-ITO films.
For industrial mass production, uniformity of micro-LED pixel electrical parameters, such as the VF characteristics, is a very important factor for high-quality displays. As shown in Figure 5, the VF values of a single pixel with the optimized E-ITO spreading layer from region 1 to region 5 on a four-inch wafer are 2.88, 2.81, 2.81, 2.82, and 2.79 V at 30 A/cm2, respectively. Also, with four pixels, the corresponding VF values of the five different regions are 2.89, 2.83, 2.83, 2.83, and 2.79 V at 30 A/cm2. Surprisingly, the VF variations for a single pixel and for four pixels with five different regions are only 0.09 V (3.13 %) and 0.10 V (3.46 %), respectively. These VF variation values are very low, and they show a narrow distribution on the four-inch wafer. This extremely uniform VF variation is suitable for improving the quality and performance of displays created via industrial mass production.
Inefficient micro-LEDs can induce self-heating of the micro-LED device, which can further deteriorate the performance of the micro-LEDs, particularly the emission wavelength. The variation in the emission wavelength of 120 pixels with the optimized E-ITO spreading layer from region 1 to region 5 on a four-inch wafer was measured as the current density was increased from 30 to 1500 A/cm2, as shown in Figure 6a-b. The values of the emission wavelength for 120 pixels from region 1 to region 5 on a four-inch wafer are 448.9, 449.1, 448.1, 448.9, and 447.5 nm at 30 A/cm2, respectively. The variation in the emission wavelength at 30 A/cm2 with five different regions is only 1.6 nm. As the current density was increased from 30 to 1,500 A/cm2, the blue shifts in the EL peaks wavelength were approximately 8.2, 7.5, 6.4, 8.2, and 6.3 nm from region 1 to region 5, respectively. These blue shifts can be attributed to the screen effect on the quantum-confined stark effect (QCSE) and to the enhanced carrier-band filling effect with an increase in the injection current density, during which excess carriers would occupy the higher energy level states [36,37,38]. In addition, the variation of the full width at half maximum (FWHM) for 120 pixels with the optimized E-ITO spreading layer from region 1 to region 5 was analyzed, as shown in Figure 6c. As a function of the injection current density, the variation of the FWHM values from regions 1 to 5 are approximately 10.5, 9.9, 9.8, 8.9, and 11.2 nm, respectively. The FWHM of a GaN-based LED can be affected by the quality of the quantum well, the well width, and by any indium fluctuations [39]. The emission wavelength and the FWHM of 120 pixels at different injected current densities from region 1 to region 5 are summarized in Table 1. These variations of the emission wavelength and the FWHM are very low, and they show a narrow distribution on a four-inch wafer. This high-performance blue micro-LED pixel with the optimized E-ITO spreading layer provides a promising and practical solution to realize micro-LED displays for use in AR and VR applications, circumventing the bottleneck in the development of long-lifespan and high-brightness organic LED devices.
Figure 7 shows emission images of PM-type blue micro-LEDs created with the optimized E-ITO films. Zoomed-in images of the PM-type blue micro-LEDs showing the light-emitting outcomes at 583 pixels and 847 pixels simultaneously demonstrate good display uniformity and brightness. Optical microscope images of the light emission result highlight the uniformity and confirm the overall excellent image quality, validating the applicability of these micro-LEDs for use in high-performance display technologies. This demonstration emphasizes the tremendous potential of these blue micro-LEDs for display applications requiring high-performance capabilities. This observation has significant implications with regard to the advancement and potential commercial viability of micro-LED displays, indicating their capacity to meet stringent criteria for image quality in practical applications.

4. Conclusions

We successfully demonstrated the four-inch wafer-scale fabrication of high-resolution blue micro-LED arrays created using optimized e-beam-deposited and sputter-deposited ITO layers on a sapphire substrate, achieving a density level of 1692 PPI. The surface morphology of the S-ITO film was relatively smooth and dense, while that of the E-ITO films was rather rough. The roughness of the E-ITO films is approximately 7.72 times greater than that of the S-ITO films. Also, the measured resistivity of the S-ITO films is 4.86 x 10-4 ohm·cm, much lower than that of the E-ITO films, at 5.96 x 10-3 ohm·cm. Interestingly, although the S-ITO films exhibited a densely packed morphology and lower resistivity compared to the E-ITO films, the VF values of a micro-LED created with the S-ITO films were higher than those of a micro-LED created with the E-ITO films. The VF values of a single pixel with the optimized E-ITO layer from region 1 to region 5 on a four-inch wafer are 2.88, 2.81, 2.81, 2.82, and 2.79 V at 30 A/cm2, respectively. Also, with four pixels, the corresponding VF values of the five different regions are 2.89, 2.83, 2.83, 2.83, and 2.79 V at 30 A/cm2. Surprisingly, the VF variations of a single pixel and of four pixels with five different regions are only 3.13 % and 3.46 %, respectively. As the current density was increased from 30 to 1,500 A/cm2, the blue shifts in the EL peaks wavelength were approximately 8.2, 7.5, 6.4, 8.2, and 6.3 nm from region 1 to region 5, respectively. In addition, the corresponding variations of the FWHM values on a four-inch wafer were approximately 10.5, 9.9, 9.8, 8.9, and 11.2 nm, respectively. The values of VF, the emission wavelength, and the FWHM are very low and show a narrow distribution on the four-inch wafer. Also, various emission images of PM-type blue micro-LEDs utilizing the optimized E-ITO spreading layer at 583 pixels and 847 pixels simultaneously demonstrate good display uniformity and brightness. These observations highlight the immense potential of blue micro-LEDs for demanding display applications, showcasing their ability to meet rigorous criteria for superior image quality in practical applications.

Author Contributions

Conceptualization, E.-K.C., E.J.Y. and H.-H.P.; methodology, E.-K.C. and E.J.Y.; validation, H.W.K., B.D.P. and H.G.S.; formal analysis, H.W.K. and B.D.P.; investigation, H.-H.P.; data curation, H.G.S.; writing—original draft preparation, E.-K.C. and E.J.Y.; writing—review and editing, E.-K.C., E.J.Y. and H.-H.P.; supervision, H.-H.P.; project administration, H.-H.P.; funding acquisition, H.-H.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Technology Innovation Program (No. 20017391, No. RS-2023-00257784 and No. RS-2024-00417436) funded by the Ministry of Trade, Industry & Energy (MOTIE, Korea).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Huang, Y.; Hsiang, E.-L.; Deng, M.-Y.; Wu, S.-T. Mini-LED, Micro-LED and OLED displays: present status and future perspectives. Light. Sci. Appl. 2020, 9, 1–16 . [CrossRef]
  2. Chen, Z.; Yan, S.; Danesh, C. MicroLED technologies and applications: characteristics, fabrication, progress, and challenges. J. Phys. D: Appl. Phys. 2020, 54, 123001 . [CrossRef]
  3. Wu, T.; Sher, C.-W.; Lin, Y.; Lee, C.-F.; Liang, S.; Lu, Y.; Chen, S.-W.H.; Guo, W.; Kuo, H.-C.; Chen, Z. Mini-LED and Micro-LED: Promising Candidates for the Next Generation Display Technology. Appl. Sci. 2018, 8, 1557 . [CrossRef]
  4. Lin, J.Y.; Jiang, H.X. Development of microLED. Appl. Phys. Lett. 2020, 116, 100502 . [CrossRef]
  5. Qi, L.; Zhang, X.; Chong, W.C.; Li, P.; Lau, K.M. 848 ppi high-brightness active-matrix micro-LED micro-display using GaN-on-Si epi-wafers towards mass production. Opt. Express 2021, 29, 10580-10591.
  6. Lu, S.; Li, J.; Huang, K.; Liu, G.; Zhou, Y.; Cai, D.; Zhang, R.; Kang, J. Designs of InGaN micro-LED structure for improving quantum efficiency at low current density. Nanoscale Res. Lett. 2021, 16, 99.
  7. Xiong, J.; Hsiang, E.-L.; He, Z.; Zhan, T.; Wu, S.-T. Augmented reality and virtual reality displays: emerging technologies and future perspectives. Light. Sci. Appl. 2021, 10, 1–30 . [CrossRef]
  8. Bae, J.; Shin, Y.; Yoo, H.; Choi, Y.; Lim, J.; Jeon, D.; Kim, I.; Han, M.; Lee, S. Quantum dot-integrated GaN light-emitting diodes with resolution beyond the retinal limit. Nat. Commun. 2022, 13, 1–9 . [CrossRef]
  9. Jin, S.X.; Li, J.; Li, J.Z.; Lin, J.Y.; Jiang, H.X. GaN microdisk light emitting diodes. Appl. Phys. Lett. 2000, 76, 631–633 . [CrossRef]
  10. Day, J.; Li, J.; Lie, D.Y.C.; Bradford, C.; Lin, J.Y.; Jiang, H.X. III-Nitride full-scale high-resolution microdisplays. Appl. Phys. Lett. 2011, 99, 031116 . [CrossRef]
  11. Liu, Y.; Feng, F.; Zhang, K.; Jiang, F.; Chan, K.-W.; Kwok, H.S.; Liu, Z. Analysis of size dependence and the behavior under ultrahigh current density injection condition of GaN-based Micro-LEDs with pixel size down to 3 μm. J. Phys. D: Appl. Phys. 2022, 55, 315107.
  12. Chen, J.; Brewer, W.D. Ohmic contacts on P-GaN. Adv. Electron. Mater. 2015, 1, 1500113.
  13. Zahir, N.H.; Talik, N.A.; Harun, H.N.; Kamarundzaman, A.; Tunmee, S.; Nakajima, H.; Chanlek, N.; Shuhaimi, A.; Abd Majid, W.H. Improved performance of InGaN/GaN LED by optimizing the properties of the bulk and interface of ITO on p-GaN. Appl. Surf. Sci. 2021, 540, 148406.
  14. Horng, R.-H.; Wuu, D.-S.; Lien, Y.-C.; Lan, W.-H. Low-resistance and high-transparency Ni/indium tin oxide ohmic contacts to p-type GaN. Appl. Phys. Lett. 2001, 79, 2925–2927 . [CrossRef]
  15. Sheremet, V.; Genç, M.; Elçi, M.; Aydınlı, A.; Altuntaş, I.; Ding, K.; Avrutin, V.; Özgür, .; Morkoç, H. The role of ITO resistivity on current spreading and leakage in InGaN/GaN light emitting diodes. Superlattices Microstruct. 2017, 111, 1177–1194 . [CrossRef]
  16. Zhanghu, M.; Hyun, B.-R.; Jiang, F.; Liu, Z. Ultra-bright green InGaN micro-LEDs with brightness over 10M nits. Opt. Express 2022, 30, 10119–10125 . [CrossRef]
  17. Leonard, J.T.; Cohen, D.A.; Yonkee, B.P.; Farrell, R.M.; DenBaars, S.P.; Speck, J.S.; Nakamura, S. Smooth e-beam-deposited tin-doped indium oxide for III-nitride vertical-cavity surface-emitting laser intracavity contacts. J. Appl. Phys. 2015, 118, 145304 . [CrossRef]
  18. Gandrothula, S.; Kamikawa, T.; Shapturenka, P.; Anderson, R.; Wong, M.; Zhang, H.; Speck, J.S.; Nakamura, S.; Denbaars, S.P. Optical and electrical characterizations of micro-LEDs grown on lower defect density epitaxial layers. Appl. Phys. Lett. 2021, 119, 142103 . [CrossRef]
  19. Fallah, H.R.; Ghasemi, M.; Hassanzadeh, A.; Steki, H. The effect of annealing on structural, electrical and optical properties of nanostructured ITO films prepared by e-beam evaporation. Mater. Res. Bull. 2007, 42, 487–496 . [CrossRef]
  20. Tuna, O.; Selamet, Y.; Aygun, G.; Ozyuzer, L. High quality ITO thin films grown by dc and RF sputtering without oxygen. J. Phys. D Appl. Phys. 2010, 43, 43 . [CrossRef]
  21. Ghorannevis, Z.; Akbarnejad, E.; Ghoranneviss, M. Structural and morphological properties of ITO thin films grown by magnetron sputtering. J. Theor. Appl. Phys. 2015, 9, 285–290 . [CrossRef]
  22. Zuev, D.A.; Lotin, A.A.; Novodvorsky, O.A.; Lebedev, F.V.; Khramova, O.D.; Petuhov, I.A.; Putilin, P.N.; Shatohin, A.N.; Rumyanzeva, M.N.; Gaskov, A.M. Pulsed laser deposition of ITO thin films and their characteristics. Semiconductors 2012, 46, 410–413 . [CrossRef]
  23. Socol, M.; Preda, N.; Rasoga, O.; Costas, A.; Stanculescu, A.; Breazu, C.; Gherendi, F.; Socol, G. Pulsed Laser Deposition of Indium Tin Oxide Thin Films on Nanopatterned Glass Substrates. Coatings 2018, 9, 19 . [CrossRef]
  24. Cho, H.; Yun, Y.-H. Characterization of indium tin oxide (ITO) thin films prepared by a sol–gel spin coating process. Ceram. Int. 2011, 37, 615–619 . [CrossRef]
  25. Hammad, T.M. Effect of annealing on electrical, structural, and optical properties of sol-gel ITO thin films. Phys. Status Solidi A 2009, 206, 2128–2132.
  26. Marikkannu, S.; Sanjeeviraja, C.; Piraman, S.; Ayeshamariam, A. Studies on the structural, optical, and electrical properties of jet-nebulized spray pyrolysis ITO thin films. J. Mater. Sci. Mater. Electron. 2015, 26, 2531–2537 . [CrossRef]
  27. Aouaj, M.A.; Diaz, R.; Belayachi, A.; Rueda, F.; Abd-Lefdil, M. Comparative study of ITO and FTO thin films grown by spray pyrolysis. Mater. Res. Bull. 2009, 44, 1458–1461 . [CrossRef]
  28. Hsu, S.-C.; Wuu, D.-S.; Zheng, X.; Horng, R.-H. Electron-Beam and Sputter-Deposited Indium–Tin Oxide Omnidirectional Reflectors for High-Power Wafer-Bonded AlGaInP Light-Emitting Diodes. J. Electrochem. Soc. 2009, 156, H281–G27 . [CrossRef]
  29. Shakiba, M.; Kosarian, A.; Farshidi, E. Effects of processing parameters on crystalline structure and optoelectronic behavior of DC sputtered ITO thin film. J. Mater. Sci. Mater. Electron. 2016, 28, 787–797 . [CrossRef]
  30. Liu, Z.; Lin, C.-H.; Hyun, B.-R.; Sher, C.-W.; Lv, Z.; Luo, B.; Jiang, F.; Wu, T.; Ho, C.-H.; Kuo, H.-C.; et al. Micro-light-emitting diodes with quantum dots in display technology. Light. Sci. Appl. 2020, 9, 1–23 . [CrossRef]
  31. Lin, Y.-S.; Li, C.N.; Chang, Y.-C.; Tseng, C.-L.; Shen, C.-H. Improved output power and low forward voltage for GaN-based light emitting diodes with an annealed ITO transparent conducting layer. J. Mater. Sci: Mater. Electron. 2016, 27, 6265–6270.
  32. Visher, G.S. Grain Size Distributions and Depositional Processes. J. Sediment. Res. 1969, 39 . [CrossRef]
  33. Son, K.J.; Kim, T.K.; Cha, Y.-J.; Oh, S.K.; You, S.-J.; Ryou, J.-H.; Kwak, J.S. Impact of plasma electron flux on plasma damage-free sputtering of ultrathin tin-doped indium oxide contact layer on p-GaN for InGaN/GaN light-emitting diodes. Adv. Sci. 2018, 5, 1700637.
  34. Tian, L.; Cheng, G.; Zheng, R.; Tian, K.; Yan, X.; Hu, Z.; Wang, H. Effect of sputtering deposition process of indium tin oxynitride on surface damage of gallium nitride film. Superlattices Microstruct. 2017, 109, 750–757 . [CrossRef]
  35. Foster, G.M.; Koehler, A.; Ebrish, M.; Gallagher, J.; Anderson, T.; Noesges, B.; Brillson, L.; Gunning, B.; Hobart, K.D.; Kub, F. Recovery from plasma etching-induced nitrogen vacancies in p-type gallium nitride using UV/O3 treatments. Appl. Phys. Lett. 2020, 117, 082103 . [CrossRef]
  36. Gîrgel, I.; Edwards, P.R.; Le Boulbar, E.; Coulon, P.-M.; Sahonta, S.-L.; Allsopp, D.W.E.; Martin, R.W.; Humphreys, C.J.; Shields, P.A. Investigation of indium gallium nitride facet-dependent nonpolar growth rates and composition for core–shell light-emitting diodes. J. Nanophotonics 2016, 10, 016010 . [CrossRef]
  37. Bi, Z.; Gustafsson, A.; Lenrick, F.; Lindgren, D.; Hultin, O.; Wallenberg, L.R.; Ohlsson, B.J.; Monemar, B.; Samuelson, L. High In-content InGaN nano-pyramids: Tuning crystal homogeneity by optimized nucleation of GaN seeds. J. Appl. Phys. 2018, 123 . [CrossRef]
  38. Senawiratne, J.; Chatterjee, A.; Detchprohm, T.; Zhao, W.; Li, Y.; Zhu, M.; Xia, Y.; Li, X.; Plawsky, J.; Wetzel, C. Junction temperature, spectral shift, and efficiency in GaInN-based blue and green light emitting diodes. Thin Solid Films 2010, 518, 1732–1736.
  39. Kim, K.; Schmidt, M.C.; Sato, H.; Wu, F.; Fellows, N.; Saito, M.; Fujito, K.; Speck, J.S.; Nakamura, S.; DenBaars, S.P. Improved electroluminescence on nonpolar m -plane InGaN/GaN quantum wells LEDs. Phys. Status solidi (RRL) – Rapid Res. Lett. 2007, 1, 125–127 . [CrossRef]
Preprints 101835 g002

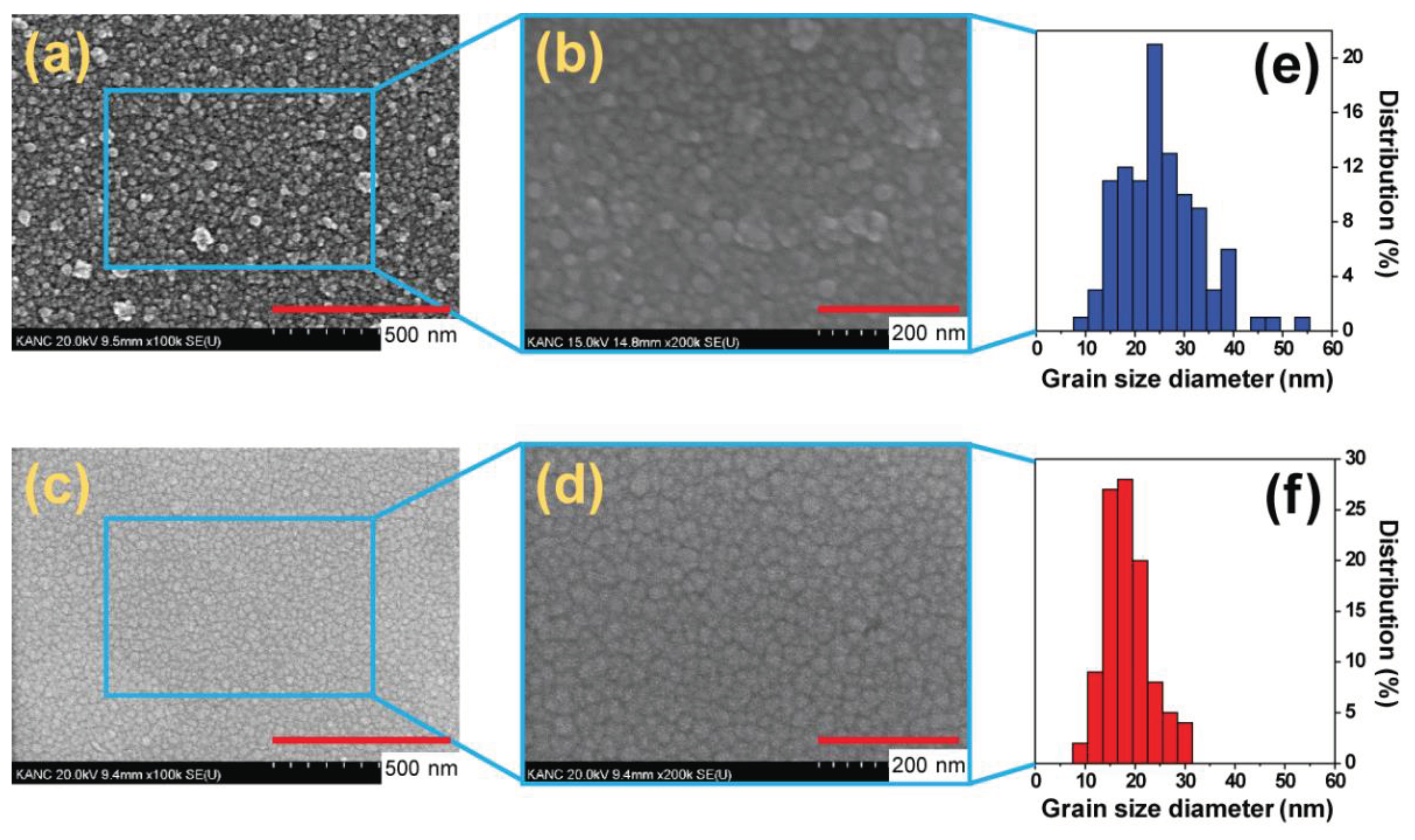

Figure 2. Top-view SEM images of E-ITO films: ((a) at 100,000 X and (b) at 200,000 X) and S-ITO films ((c) at 100,000 X and (d) at 200,000 X), and histograms showing the grain size distributions of (b) for (e) the E-ITO films and (d) for (f) the S-ITO films.
Figure 2. Top-view SEM images of E-ITO films: ((a) at 100,000 X and (b) at 200,000 X) and S-ITO films ((c) at 100,000 X and (d) at 200,000 X), and histograms showing the grain size distributions of (b) for (e) the E-ITO films and (d) for (f) the S-ITO films.
Preprints 101835 g002
Preprints 101835 g003

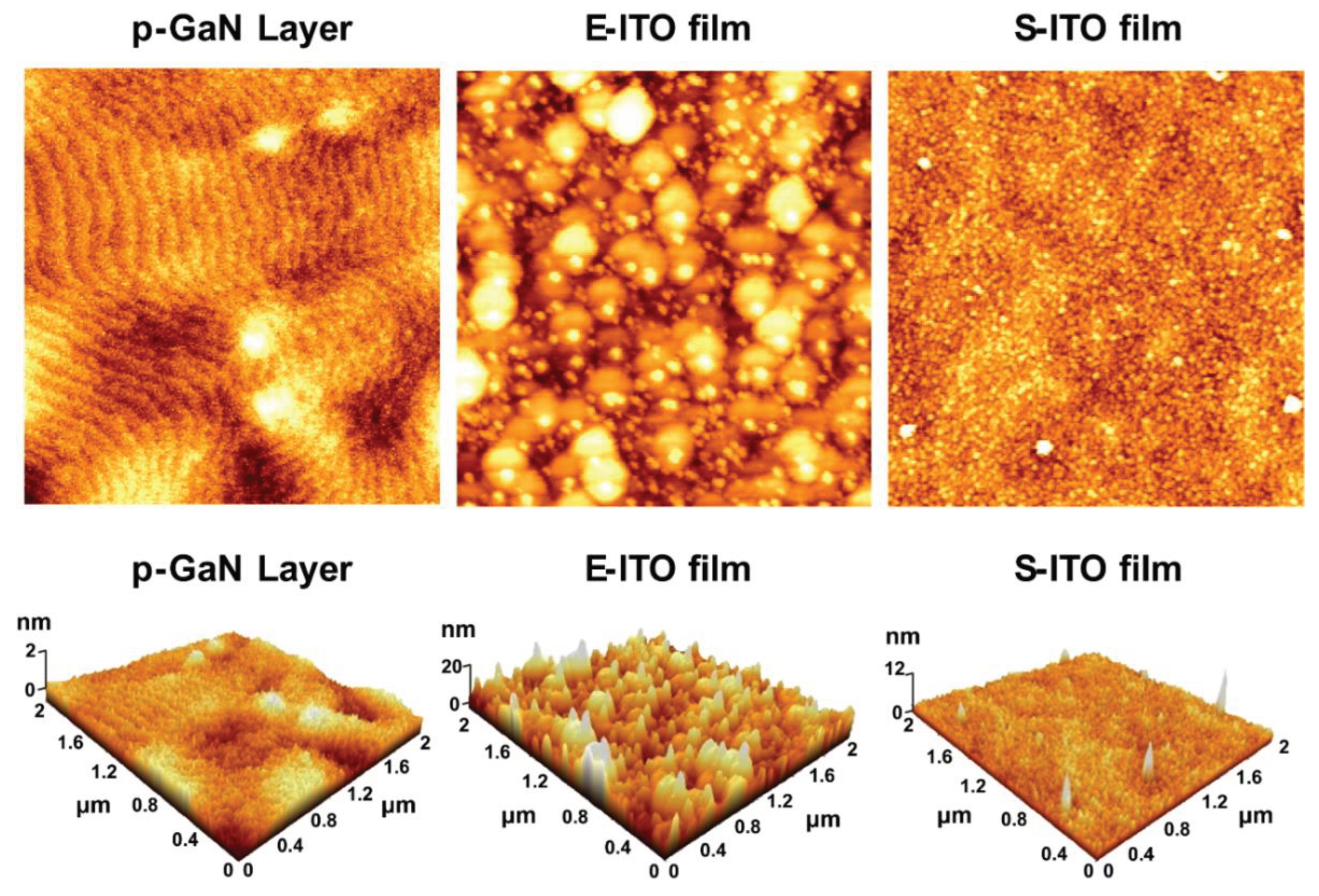

Figure 3. Two-dimensional (2D) and three-dimensional (3D) AFM images of a p-GaN layer, and 2D and 3D AFM images of E-ITO film and S-ITO film deposited onto a p-GaN layer.
Figure 3. Two-dimensional (2D) and three-dimensional (3D) AFM images of a p-GaN layer, and 2D and 3D AFM images of E-ITO film and S-ITO film deposited onto a p-GaN layer.
Preprints 101835 g003
Preprints 101835 g004
Figure 4. J-V characteristics of blue micro-LEDs for a single pixel and for four pixels with the E-ITO films and S-ITO films.
Figure 4. J-V characteristics of blue micro-LEDs for a single pixel and for four pixels with the E-ITO films and S-ITO films.
Preprints 101835 g004
Preprints 101835 g005

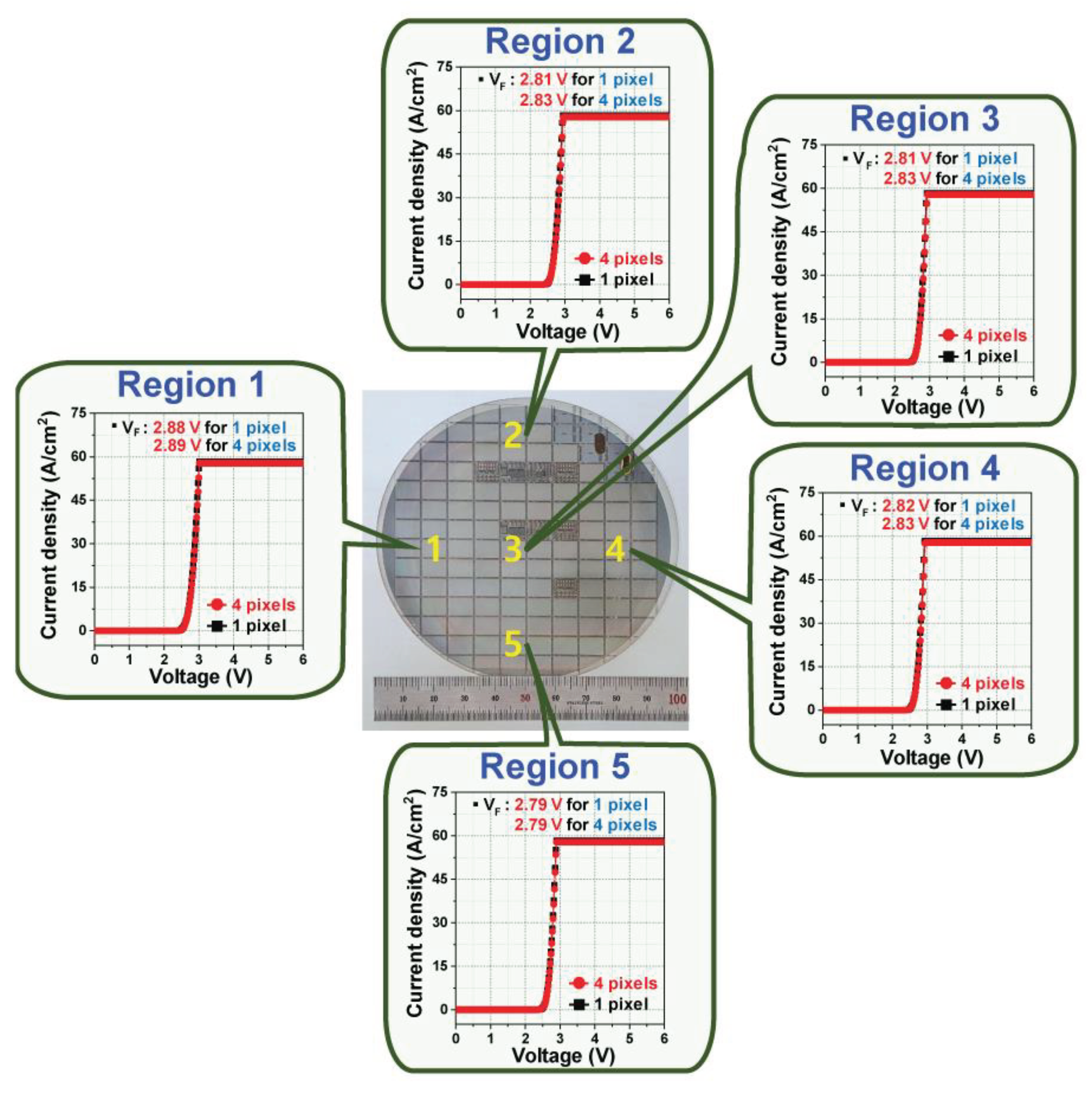

Figure 5. Wafer-scale uniformity of the VF characteristics of blue micro-LED arrays for a single pixel and for four pixels using an E-ITO spreading layer with five different regions.
Figure 5. Wafer-scale uniformity of the VF characteristics of blue micro-LED arrays for a single pixel and for four pixels using an E-ITO spreading layer with five different regions.
Preprints 101835 g005
Preprints 101835 g006

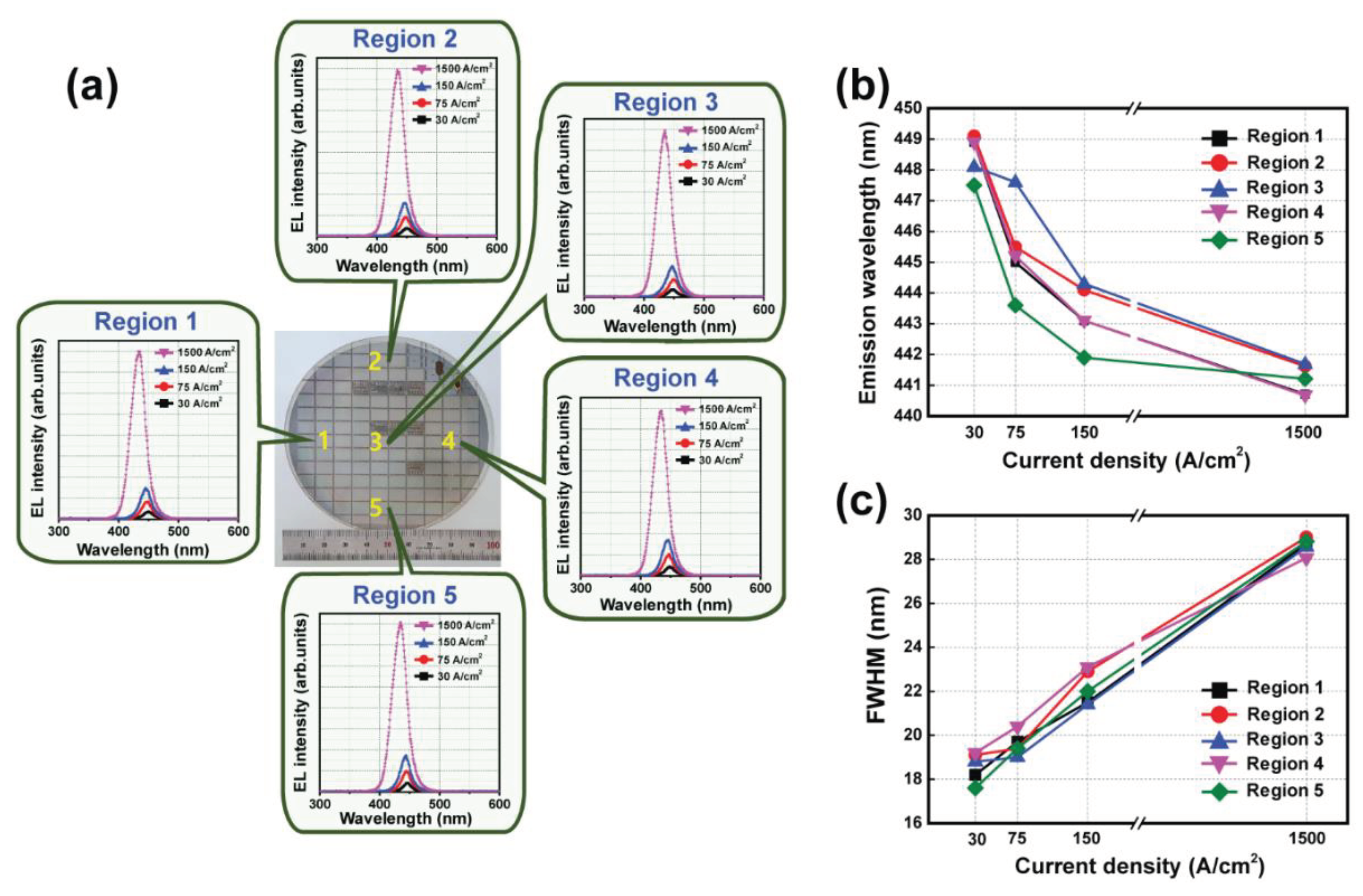

Figure 6. Wafer-scale uniformity of (a) the EL spectra, (b) the emission wavelength, and (c) the FWHM of blue micro-LED arrays for 120 pixels using an E-ITO spreading layer with five different regions on a four-inch wafer as the current density was increased from 30 to 1500 A/cm2.
Figure 6. Wafer-scale uniformity of (a) the EL spectra, (b) the emission wavelength, and (c) the FWHM of blue micro-LED arrays for 120 pixels using an E-ITO spreading layer with five different regions on a four-inch wafer as the current density was increased from 30 to 1500 A/cm2.
Preprints 101835 g006
Preprints 101835 g007

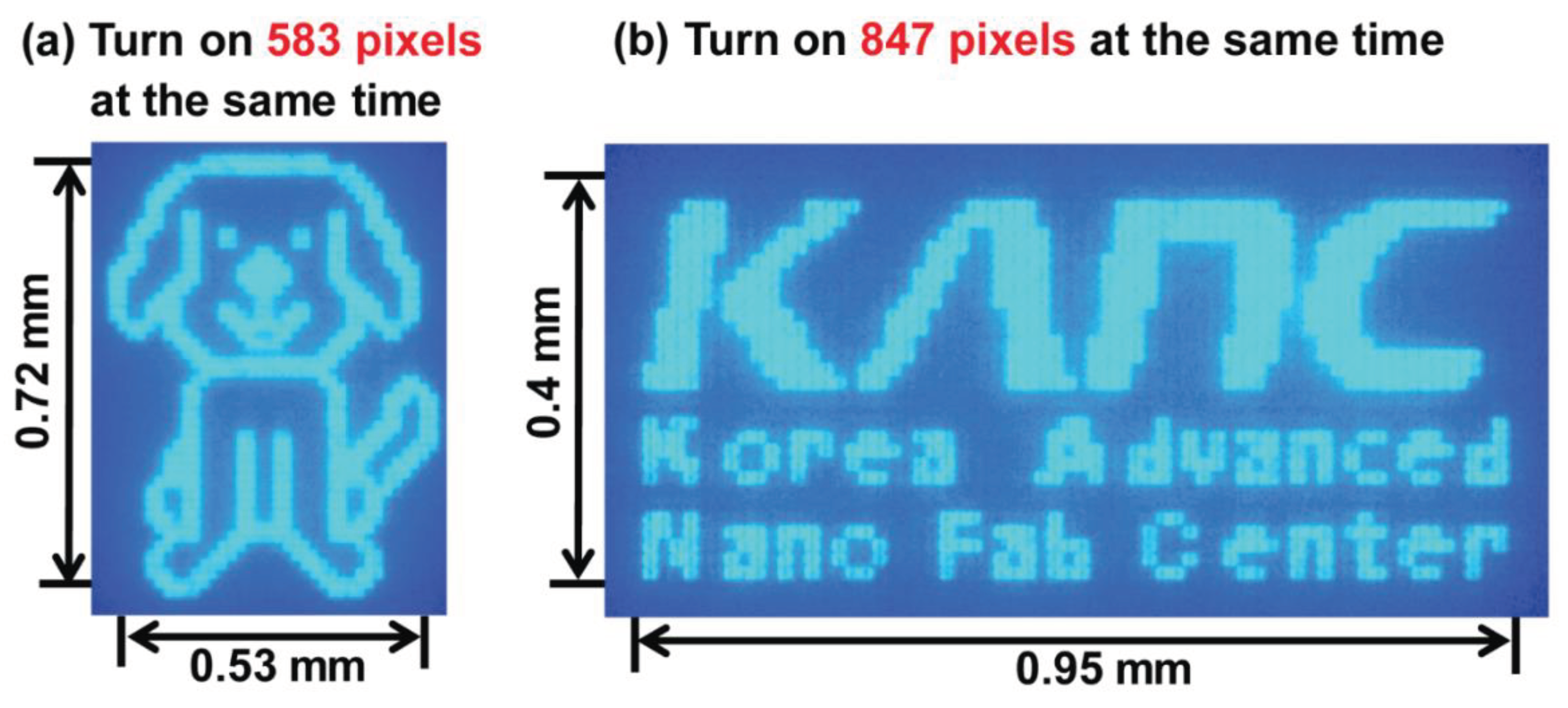

Figure 7. Photographs of zoomed-in images of PM-type blue micro-LEDs with light-emitting images at the same time: (a) 583 pixels and (b) 847 pixels.
Figure 7. Photographs of zoomed-in images of PM-type blue micro-LEDs with light-emitting images at the same time: (a) 583 pixels and (b) 847 pixels.
Preprints 101835 g007
Table 1. Variations of the emission wavelength and the FWHM of blue micro-LED arrays for 120 pixels with five different regions as the current density was increased from 30 to 1500 A/cm2.
Table 1. Variations of the emission wavelength and the FWHM of blue micro-LED arrays for 120 pixels with five different regions as the current density was increased from 30 to 1500 A/cm2.
Position EL property Current density
30 A/cm2 75 A/cm2 150 A/cm2 1500 A/cm2
Region 1 Emission wavelength [nm] 448.9 445.0 443.1 440.7
FWHM [nm] 18.2 19.7 21.5 28.7
Region 2 Emission wavelength [nm] 449.1 445.5 444.1 441.6
FWHM [nm] 19.1 19.4 22.9 29.0
Region 3 Emission wavelength [nm] 448.1 447.6 444.3 441.7
FWHM [nm] 18.8 19.0 21.4 28.6
Region 4 Emission wavelength [nm] 448.9 445.2 443.1 440.7
FWHM [nm] 19.2 20.4 23.1 28.1
Region 5 Emission wavelength [nm] 447.5 443.6 441.9 441.2
FWHM [nm] 17.6 19.4 22.0 28.8
