Experimental and Numerical Analysis of the Assembling Stresses in Parabolic Leaf Springs for Railway Freight Wagons

1. Introduction

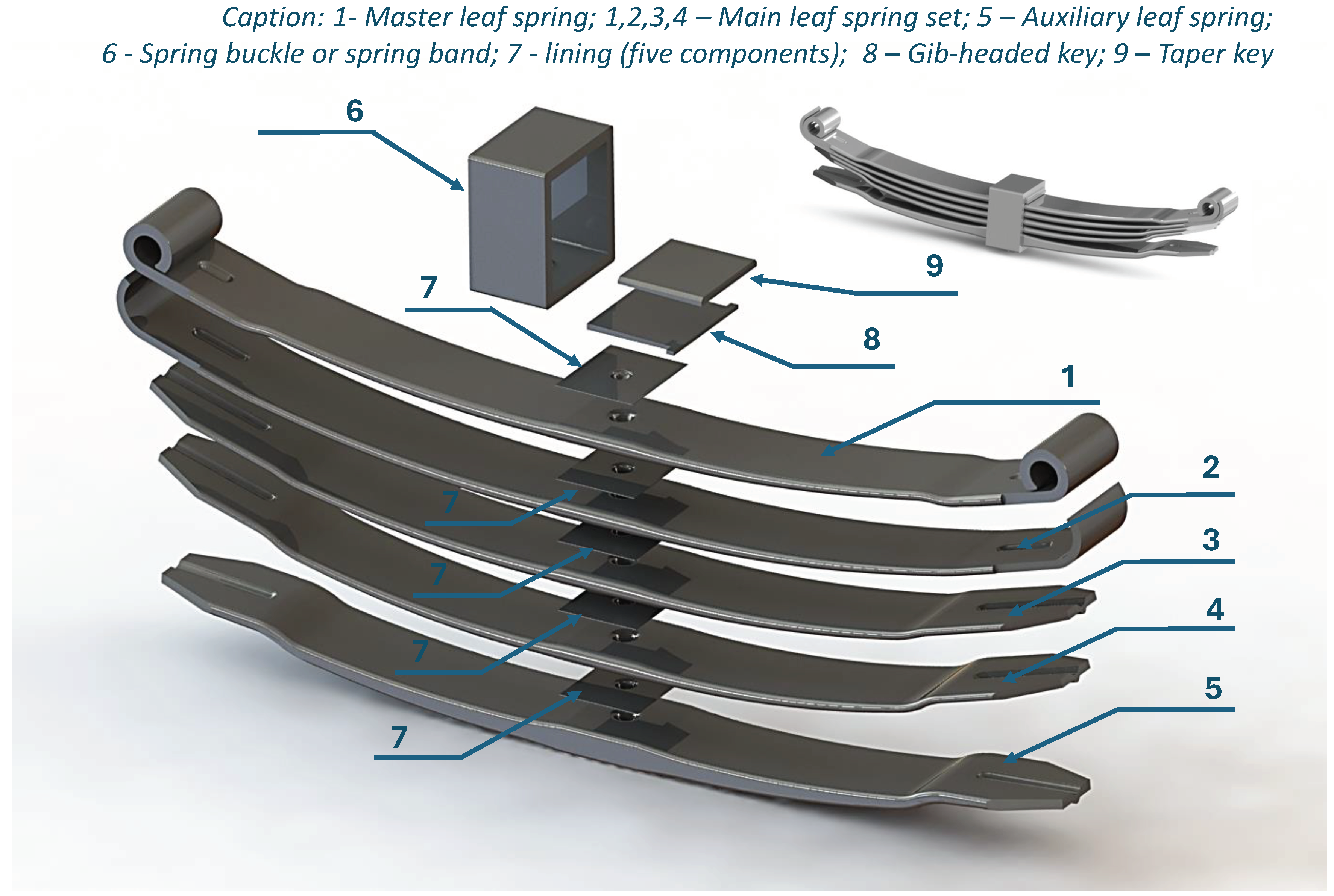

Leaf springs are constituted by several structural and assembly elements, which can be employed by different mounting methods, depending on the application sector of the leaf springs. These elements have an important role in providing structural stability to the component. Examples of connection elements are spring buckles, clamps, or threaded rods [1,2,3,4,5]. Assembling leaf springs by threading are most often found in road freight vehicles, light and heavy vehicles [1,2,3,5,6]. This assembling method requires that during the manufacturing process of the leaves, a through hole is produced. The production of this hole for mounting has brought problems in terms of fatigue fracture in this type of leaves [7,8,9,10,11]. Additionally, the usage of retaining clamps applied on the ends of leaf springs is often found in the road industry.

On the other hand, leaf springs connected with a spring buckle are usually found in the railway sector [12,13,14,15,16]. For leaf springs standardised by the International Union of Railways (UIC) [17], two spring buckle assembly processes can be considered. Nevertheless, taper-key is inserted between the spring buckle and the leaf springs, regardless of the assembling process. Introducing the taper-key, the gap existing between spring buckle’s inner face and leaf spring’s top surface is removed (see Figure 1). Additionally, the central area of the leaf spring (connection area) is strengthened. Concerning the description of the assembling methods, in the first method, the spring buckle surfaces are expanded thermally. In the second mounting method, the taper-key and gid-headed key are introduced between the master leaf and the spring buckle under cold pressure [18].

In the case of UIC leaf springs, they do not have fastening clamps at the ends, and hence their good operational stability will rely on the pre-stress induced by the assembly process [17]. Pre-stress is understood as the initial deformation of the leaves which increases the contact forces on the mating surfaces. Taking into account the existence of this initial deformation caused by the assembling process and the importance that the effect of residual stresses has in the good prediction of the maximum yielding and fatigue resistances, an analysis for understanding the initial stress level presented in the parabolic leaf springs for freight wagons is carried out.

The analysis procedure consists of experimental and numerical investigations. In the experimental part, the stress relief method is used, which consists of relieving the stresses of the leaf caused by assembling by incrementally removing the spring buckle. An experimental setup is used to allow the incremental pre-strain relief of the leaves, while an acquisition system collects surface strain readings from installed electric strain gauges. This method guarantees the safety of lab people and equipment, contrary to the direct method of assembly by deforming the leaves. Regarding the computational component, a numerical model based on the finite element method is developed to simulate the assembly process. Here, a direct process is considered where the leaves are deformed incrementally until the gap between the components becomes null. Lastly, the numerical and experimental results are compared to each other for posteriorly the numerical model be used to collect a distribution of the surface bending stress over the leaf spring length. Since the distribution profile over the leaf length is determined, this profile can be used in the structural design of parabolic leaf springs for railway freight wagons.

2. Material and Methods

In determining the stress profile on the surface of the parabolic leaf spring master leaves, two approaches, experimental and numerical, are carried out. In the experimental approach, electrical strain gauges are used in the stress relief method to measure the surface deformations of the master leaf that are generated due to the assembly of the spring leaves. The stress relief method essentially consists of evaluating the variation in surface stresses throughout the spring buckle opening test until all leaves are completely relieved. In the case of the numerical approach, the method consists of numerically simulating the assembly of all the leaves up to the maximum closing displacement, which is given by the sum of the gaps between each of the leaves.

2.1. Experimental Details

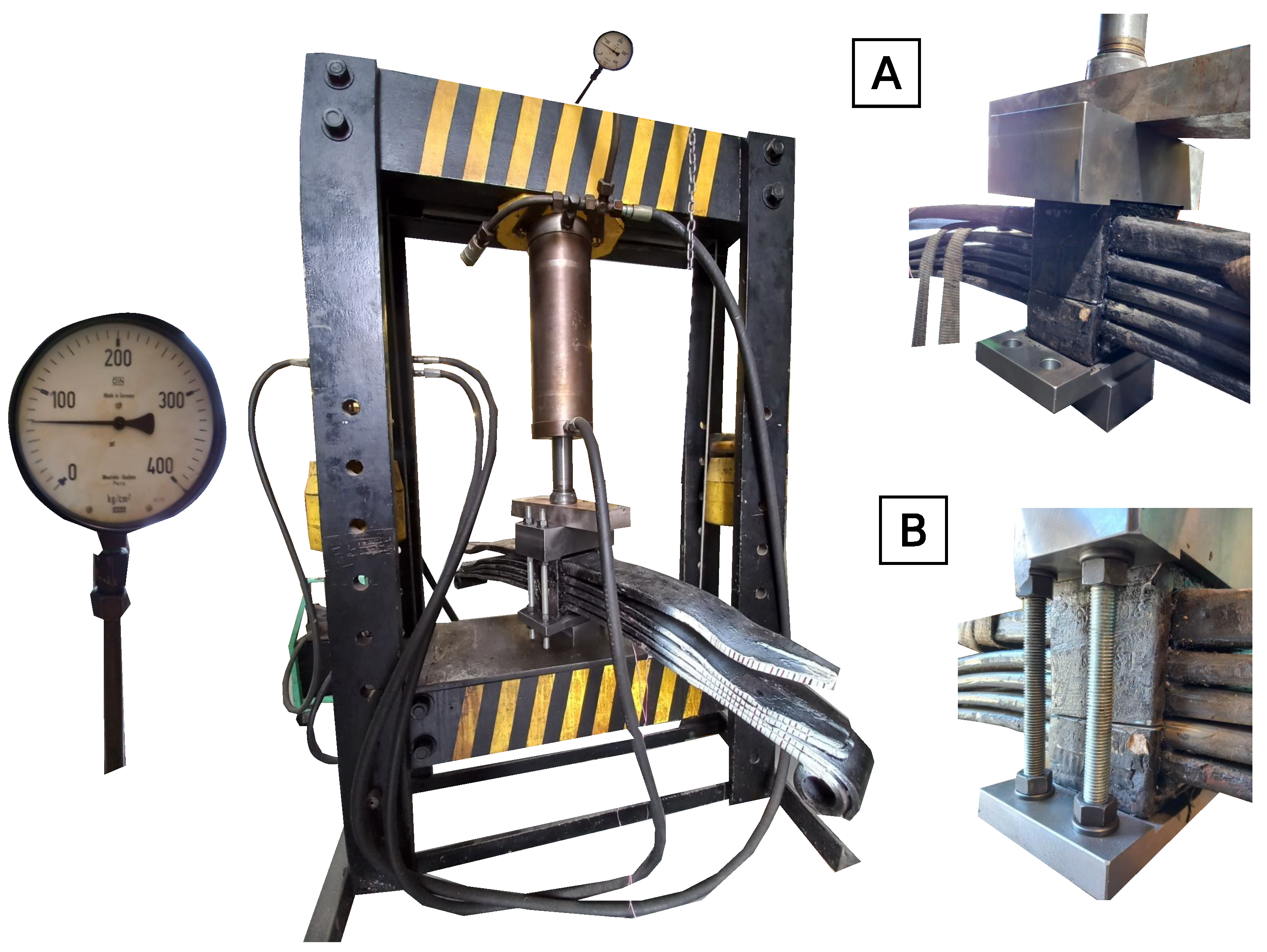

When carrying out the stress relief method, it is initially required to use a cage system that is fixed to the spring buckle of the leaf springs. This cage system is constituted of two blocks (upper and lower) and four threaded rods that fix the two blocks. Once the cage system is assembled, it is necessary to prepare the test sample. The preparation consists of creating a through-thickness cut on both sides and along the entire width of the spring buckle. In order to maintain the initial pre-stress conditions, the spring buckle tightening pressure is kept constant by applying a pressure of 70 kg/cm² by the hydraulic press, as shown in Figure 2 - Left. While the hydraulic press presses the leaf spring, the two threaded rods are removed from one side. With the threaded rods removed, the spring buckle is cut. The cut is carried out in an area above the master leaf in order to prevent any damage (see Figure 2 - A). After cutting, the two threaded rods are placed and well tightened (see Figure 2 - B). The same procedure is performed for the other side of the spring buckle.

After the pre-preparation is done, strain gauges are glued on the main leaf surface and connected to a CATMAN SPIDER 8 acquisition system. Strain gauges with designation CEA-06-250UN-120 with 120 $\Omega$± 0.3 %, and with a gauge factor of 2.105 ± 0.5% were used. These strain gauges have a gauge length, an overall length, and a matrix length of 6.35, 10.54, and 13.2 mm, respectively. Concerning their width, they have grid, overall, and matrix widths of 3.05, 3.05, and 5.6 mm, respectively. Gluing strain gauges requires prior preparation of the installation surface. The material protector, anti-corrosive paint and zinc coating (if any) and the initial surface layers were roughed with 80-grit sandpaper. A sandpaper SCP-1 Silicon Carbide Paper, 220-grit is used later for a better finish of the surface. In the strain gauge bonding procedure, a CSM-3 Degreaser was initially used, followed by MCA-1 M-Prep Conditioner and MN5A-1 M-Prep Neutralizer 5A, and finally glued with the M-bond 200 set (catalyst liquid plus adhesive liquid). After bonding the strain gauges, wire cables are welded to the terminals.

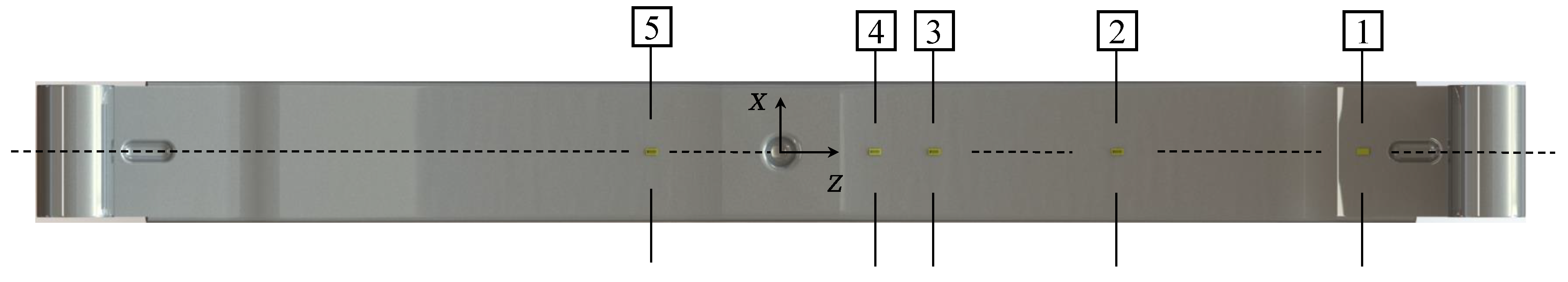

A set of 5 strain gauges were installed in specific locations to evaluate the longitudinal stress distribution with the vertical displacement imposed on the spring. The locations for bonding the strain gauges on the master leaf were decided based on the percentage of occurrence of fatigue failure (70 % in the middle zone and the remaining 30% close to the spring buckle overlap and in the central zone of the geometric notch) [20]. Following this premise four strain gauges are glued longitudinally along the upper surface of the master leaf, in the geometric centre. An extra strain gauge is glued to the other side of the master leaf to assess the symmetry conditions (see Figure 3). Table 1 presents the value of the thicknesses at the strain gauges’ glue points.

2.2. Geometrical Model

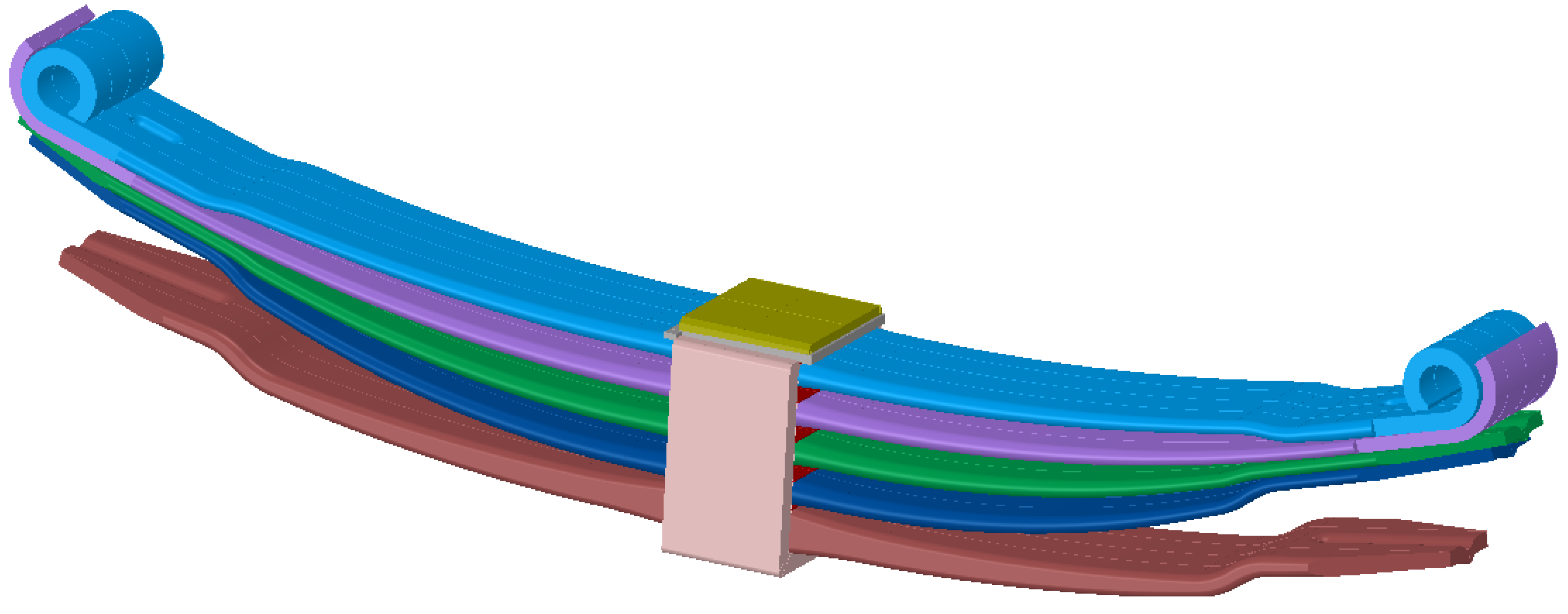

In the creation of the finite element model to simulate the assembly process, the geometric information obtained after the disassembly process is used. This information essentially consists of determining the spacing between each leaf, the camber value, or radius of curvature, in addition to the geometry of the leaves. Figure 4 presents the leaf spring geometry before the assembling process.

The effect of the different camber values, p, of each of the leaves can be seen in Figure 4, which shows the position of the leaves before the assembly process, with spacing between them. According to the UIC 517 standard [17], the curvature radius of the spring leaves can be calculated using the information of the camber value. Table 2 shows the camber value, distance p and respective curvature radius, $R_c$, for each of the leaves, measured using the ground as a reference for the height measurement and its ends for the measurement of the longitudinal length.

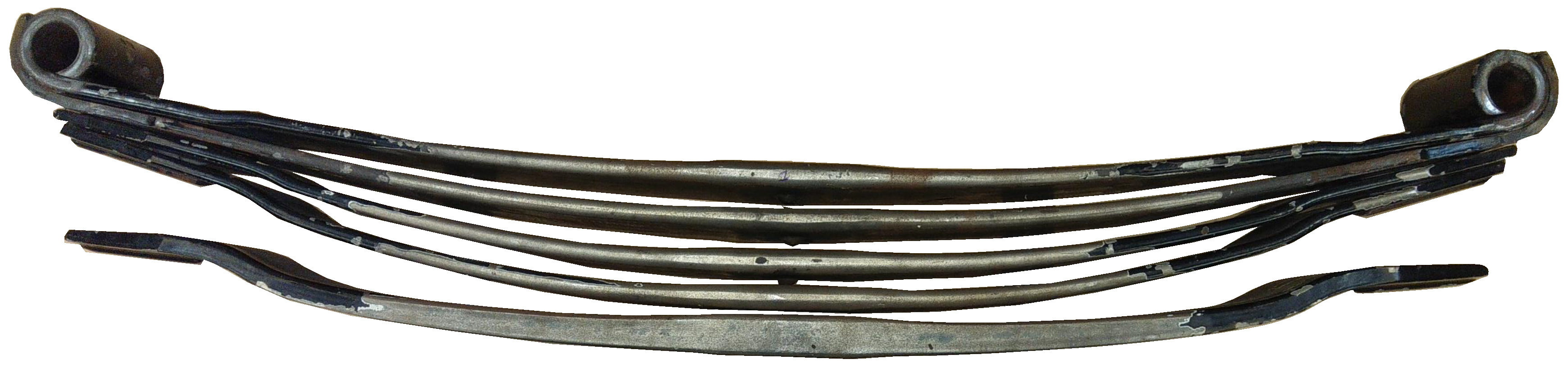

Finally, all the leaves were placed together and properly aligned without any tightening to assess the gap between them (see Figure 4). It was verified that the gap size was in the order of tens mm, which resulted in around 28 mm, a greater value than inner surfaces of the spring buckle, as shown in geometrical model represented in Figure 4. Combining the geometry information provided by Figure 4 and Table 2, the geometrical CAD model is of a disassembled leaf spring is developed (see Figure 5).

2.3. Numerical Details

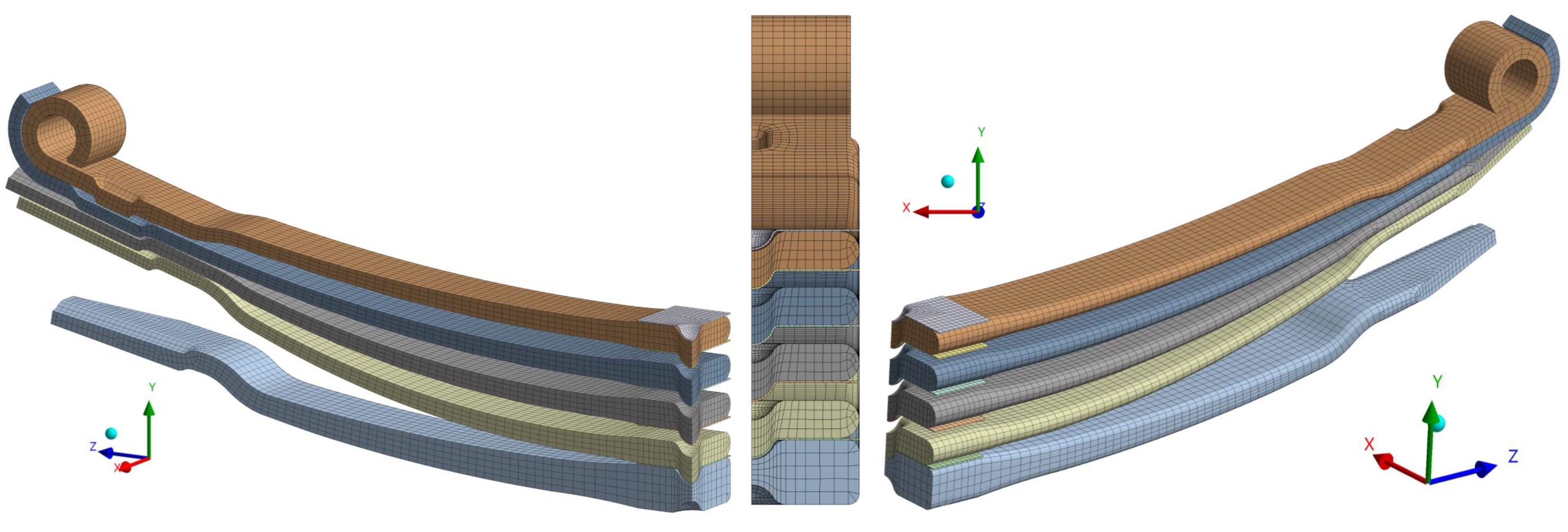

The computational model is developed in ANSYS FEM code to evaluate the distribution of the longitudinal stresses due to the assembling process. The developed numerical model only considers the five spring leaves and the spacers (linings) between them, excluding the spring buckle, taper key, and gid-headed key from the analysis to reduce the number of contact pairs (see Figure 6).

For the investigation of the structural behaviour, the analysis problem is solved via static analysis solver with line search [26], whose global differential equation system is written as

$$\left[{\mathbf{K}}_t^{\left(n\right)\left(i\right)}+{\mathbf{K}}_c^{\left(n\right)\left(i\right)}\right]\Delta {\mathbf{u}}^{\left(n\right)\left(i\right)}={\mathbf{F}}_{ext}^{\left(n\right)\left(i\right)}+{\mathbf{F}}_c^{\left(n\right)\left(i\right)}-{\mathbf{F}}_{int}^{\left(n\right)\left(i\right)},$$

(1)

with n, denoting the number of time step increments, i denoting the iteration of the convergence process. Vectors $\mathbf{u}$, ${\mathbf{F}}_{ext}$, ${\mathbf{F}}_{int}$, ${\mathbf{F}}_c$, denote respectively, the displacement vector, the external force vector, the restoring force, and the nodal contact force vector. Matrices ${\mathbf{K}}_t$ and ${\mathbf{K}}_c$ are referred to as the tangent stiffness matrix and the contact stiffness matrix, respectively. The solution of the equation system (1) is obtained by LDLT factorization using the Sparse direct method and a Newton-Raphson procedure. The convergence criteria for the iterative process are evaluated according to the $L2$-Norm.

The element finite formulation for a problem in analysis is assumed to be a linear elastic material with elastic constants, Young’s modulus, E = 202.5 GPa (according to [27]), and Poisson ratio, $\nu$ = 0.29 . Geometric itineraries are represented by the contribution of the shape stiffness matrix, and the stress stiffness matrix in the tangent stiffness matrix using a corotational approach [21,22]. The tridimensional iso-parametric elements are brick (SOLID186), tetrahedral, and pyramidal (SOLID187) elements, and they are formulated in the displacement field with quadratic shape functions and uniform reduced integration scheme by Gauss method [23,24,25]. For leaves, between 2 and 5 elements across thickness are considered whereas for the spacers, only 1 element across thickness is considered (see Figure 6).

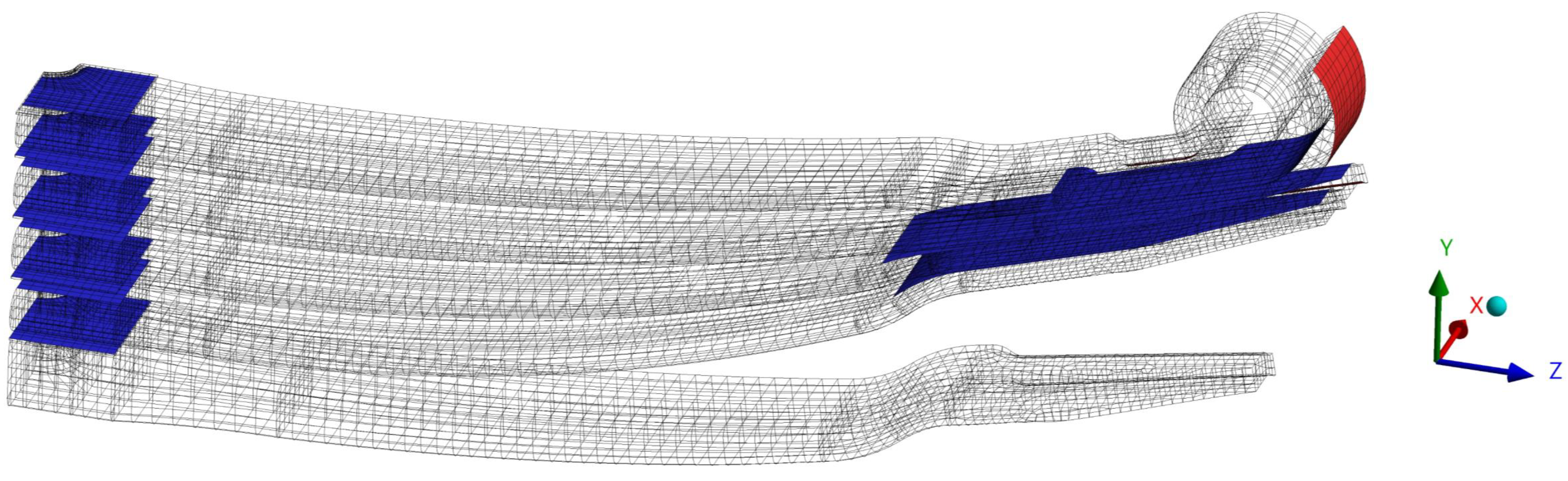

Regarding the contact element formulation, mating surfaces are considered to have a large deformation and sliding. Each contact pair is assigned a symmetric contact pair with surface-to-surface contact quadrilateral and triangular elements (elements CONTA174 and TARGE170 with 8 and 6 nodes), whose integration is made to the Gauss points of the element [28,29]. The contact symmetric numerical problem is solved via the nested augmented Lagrangian method [30,31] with gap function defined via pinball algorithm [32]. The penetration tolerance is assumed to be 0.1% of the dimension perpendicular to the contact surface of the finite element and the penalty stiffness is initially assumed to be 0.1 with updating according to an adaptative scheme for each iteration i. Figure 7 illustrates the mating surfaces considered in the contact model of the assembling analysis.

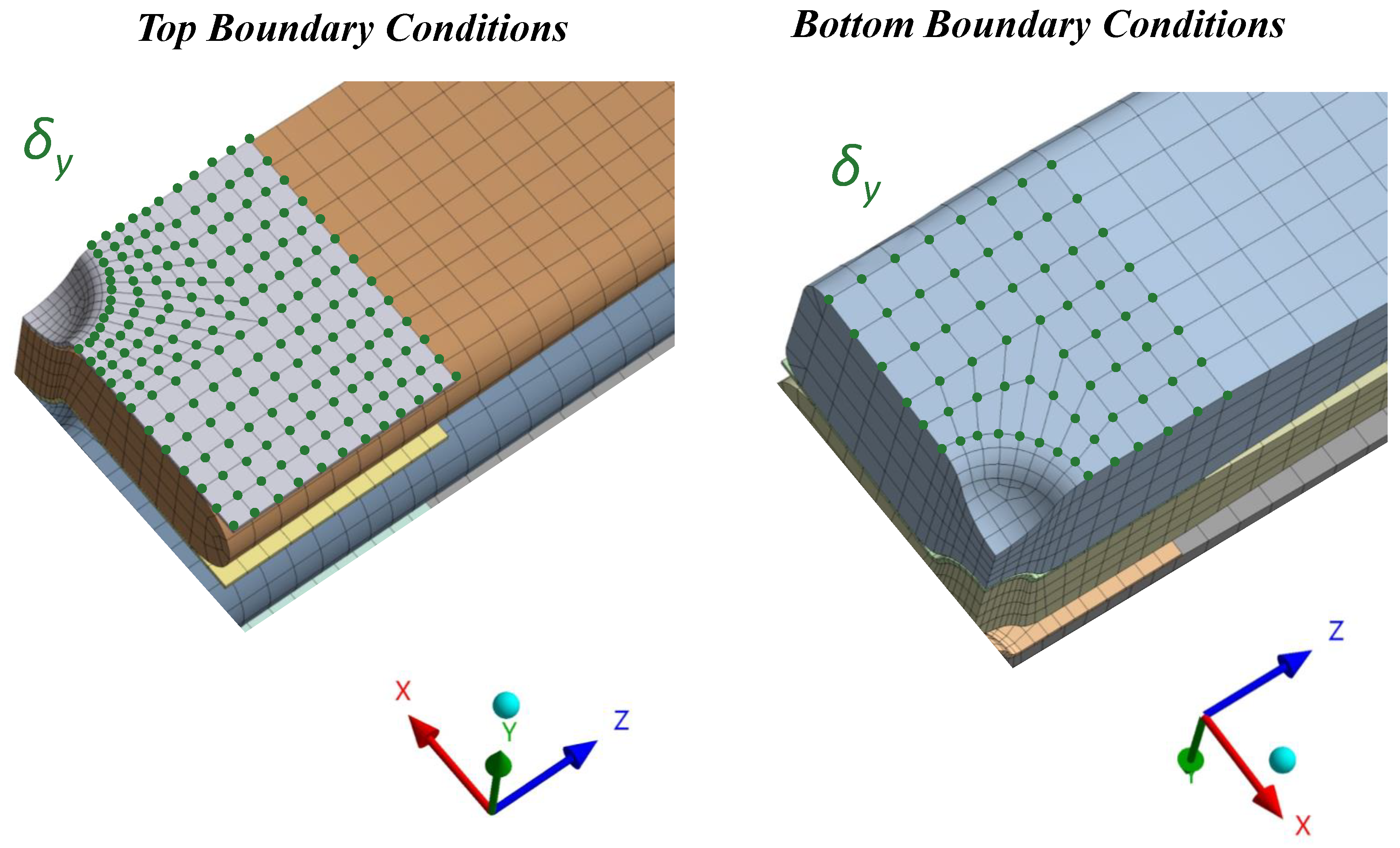

Due to the geometric and physical symmetry of the experimental model, the kinematic and boundary conditions of the numerical are represented by a 1/4 of the model, with XY and YZ symmetry planes (Figure 8). On the top surface of master leaf and the bottom surface of the auxiliary leaf are imposed a displacement, $\delta$, with opposite directions and with a perpendicular direction to XZ plane (see Figure 8 - "Top Boundary Conditions" and Figure 8 - "Bottom Boundary Conditions", respectively).

3. Results and Discussion

3.1. Stress Relief Experimental Results

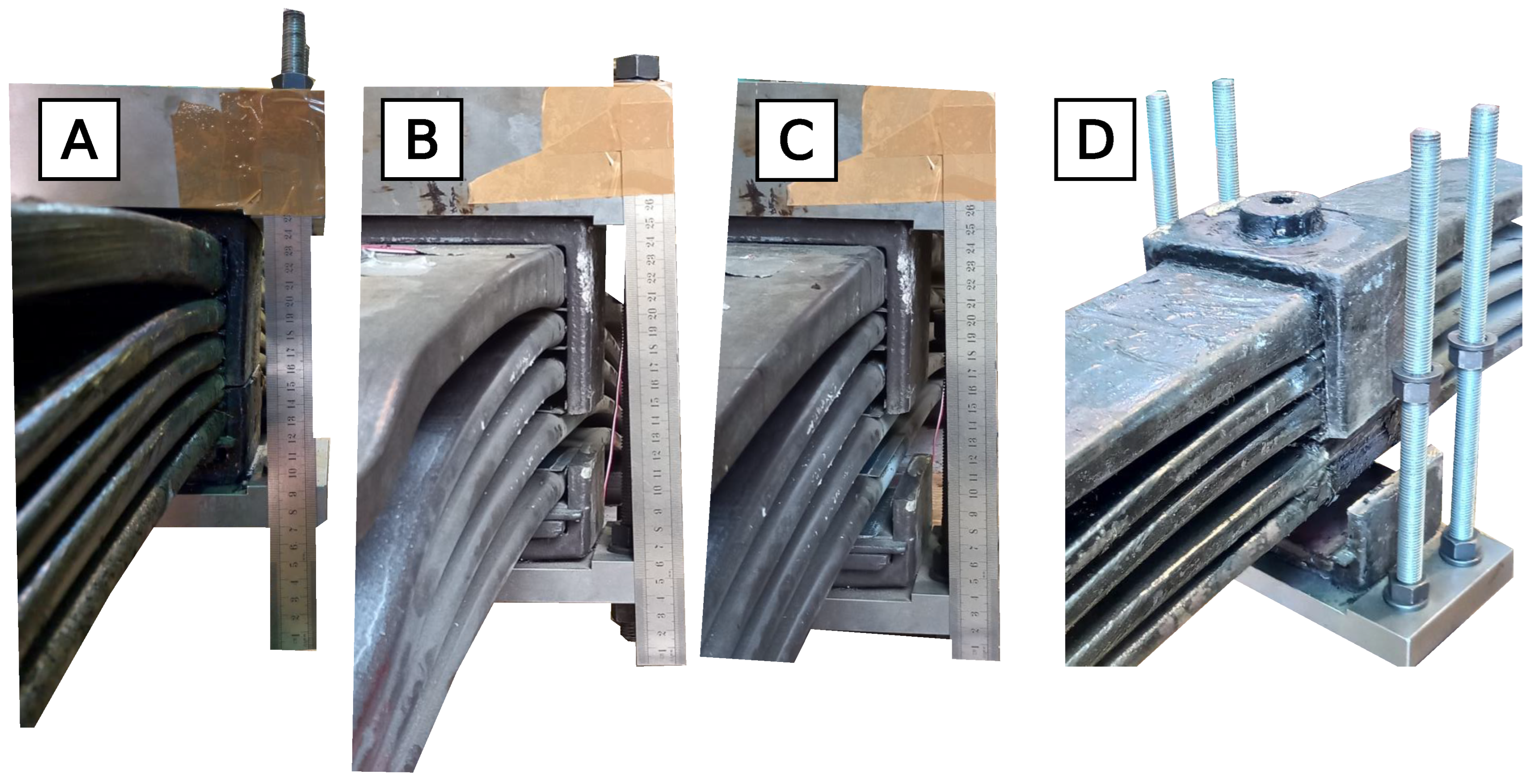

The experimental test by the stress relief method was carried out to determine the magnitude of the surface stresses caused by the leaf spring assembly method. Figure 9 shows four steps related to the disassembly process of the leaf spring. In each image, a ruler is placed to identify the assembly displacement that the leaf springs are subjected to. As shown in Figure 9 - A and C, the reference zero point corresponds to 25 mm with a maximum displacement greater than 55 mm.

Figure 10 show the evolution of surface stress during the disassembling process. The instant time, $t_i$, was normalised by the maximum test time, $t_f$, performed in the unscrewing operation. The instant stress, ${\sigma }_i$, is obtained by applying the Hooke’s law to the surface strain, assuming the same Young’s modulus considered in the numerical model (E = 202500 MPa). From the analysis of Figure 10 and taking into account Figure 9, it can be seen that in the initial opening phase (point A), longitudinal stresses have less variation than in the second phase (point B). This occurs due to the high elastic energy absorbed in the spring assembling and that is exerting pressure against the cage system. As the threaded rods are loosened, the leaves have more space to recover its to its original (undeformed) position, resulting in an increase in compressive strain in the strain gauges. The smallest variation in the final stages (points C and D) corresponds to the moments of removal of the upper and lower blocks and when the spring leaves are almost completely relieved.

According to the analysis based on Figure 10, the strain gauge Sg.1 exhibited a much lower deformation than the other strain gauges, around 28.74 MPa. On the other hand, the Sg.3 strain gauge proved to be the one with the highest deformation level during the disassembly process, with a longitudinal stress in the order of -226.62 MPa. In addition, strain gauges Sg.4 and Sg.5 exhibited very close surface stresses, -177.25 and -152.19 MPa, respectively. The result provided by Sg.4 and Sg.5 shows that the disassembly process was carried out almost uniformly. In addition, the results seem to be consistent with a structural beam model, where its ends have lower stress levels than the intermediate zones.

3.2. Assembling Procedure by Numerical Methods

The computational model described previously was used to determine the surface stress profile over the main spring leaf length. Initially, the results obtained by the computational method were compared with the experimental results of the stress relief method for the locations measured by the strain gauges. This comparison was performed considering virtual strain gauges created in the computational model with a gauge length of 6.35 mm and an overall width of 3.05 mm according to the strain gauges data sheet used in the experimental work.

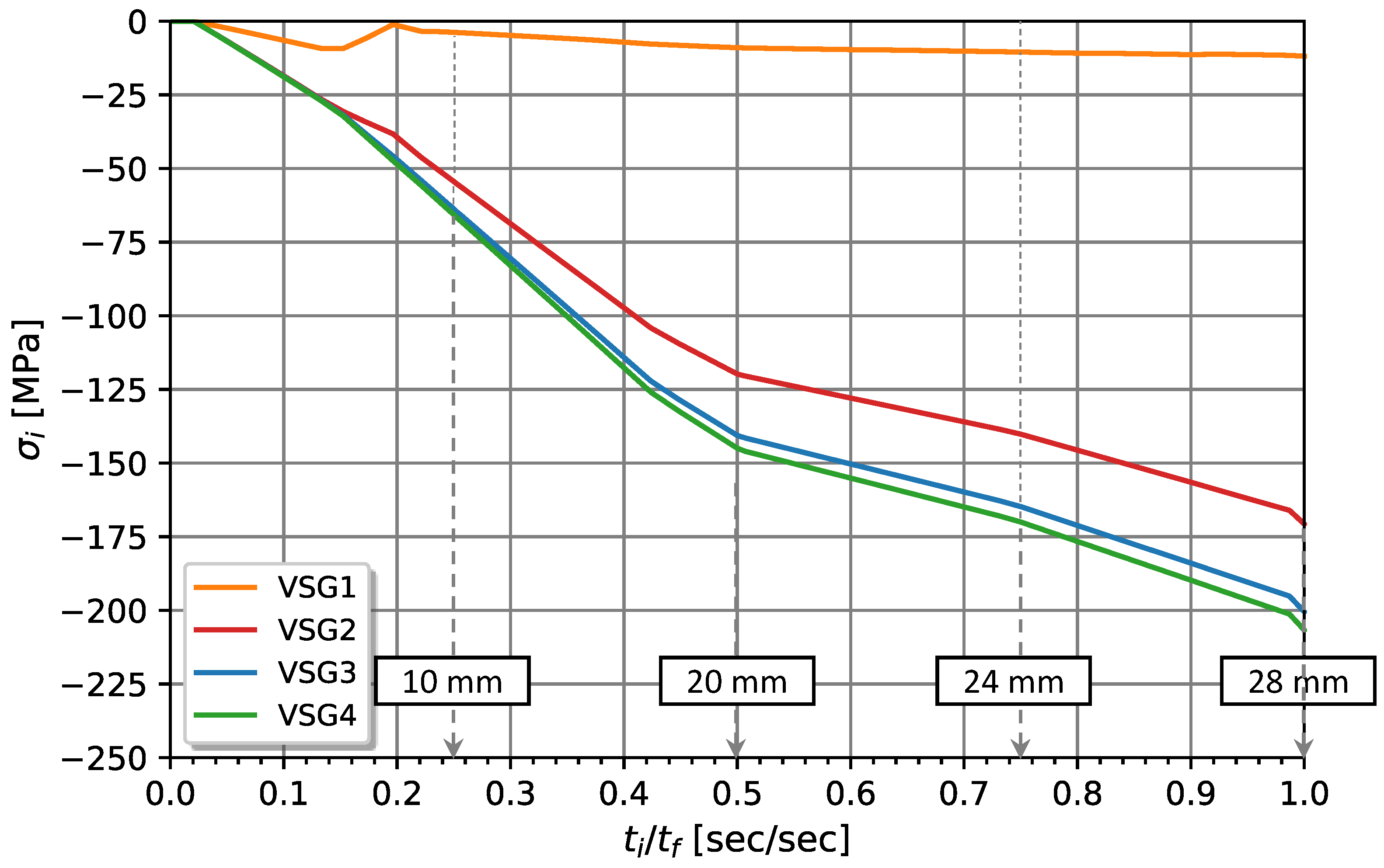

Figure 11 presents the surface stress variation by assembling along testing time evaluated considering virtual strain gauges. According to the results presented in Figure 11, Sg.1 is the virtual strain gauge that undergoes the lowest stress level. On the other hand, the virtual strain gauges closer to the geometric centre of the leaf exhibited the highest stress level.

Table 3 presents the results obtained via the experimental model, the results obtained via the computational model, and the comparison of assembling stress values in the different positions of the strain gauges applied to the master leaf spring. From the analysis of Table 3 it is verified that the strain gauge Sg.1 is effectively one that exhibits less deformation. The relative difference between numerical and experimental models for Sg.1 is 59.57 %. On the other hand, the strain gauges furthest from the end of the master leaf were those that exhibited the lowest difference between the analysis methods, with the extremes occurring at Sg.4 (-16.63 %).

3.3. Assembling Surface Stress Profile

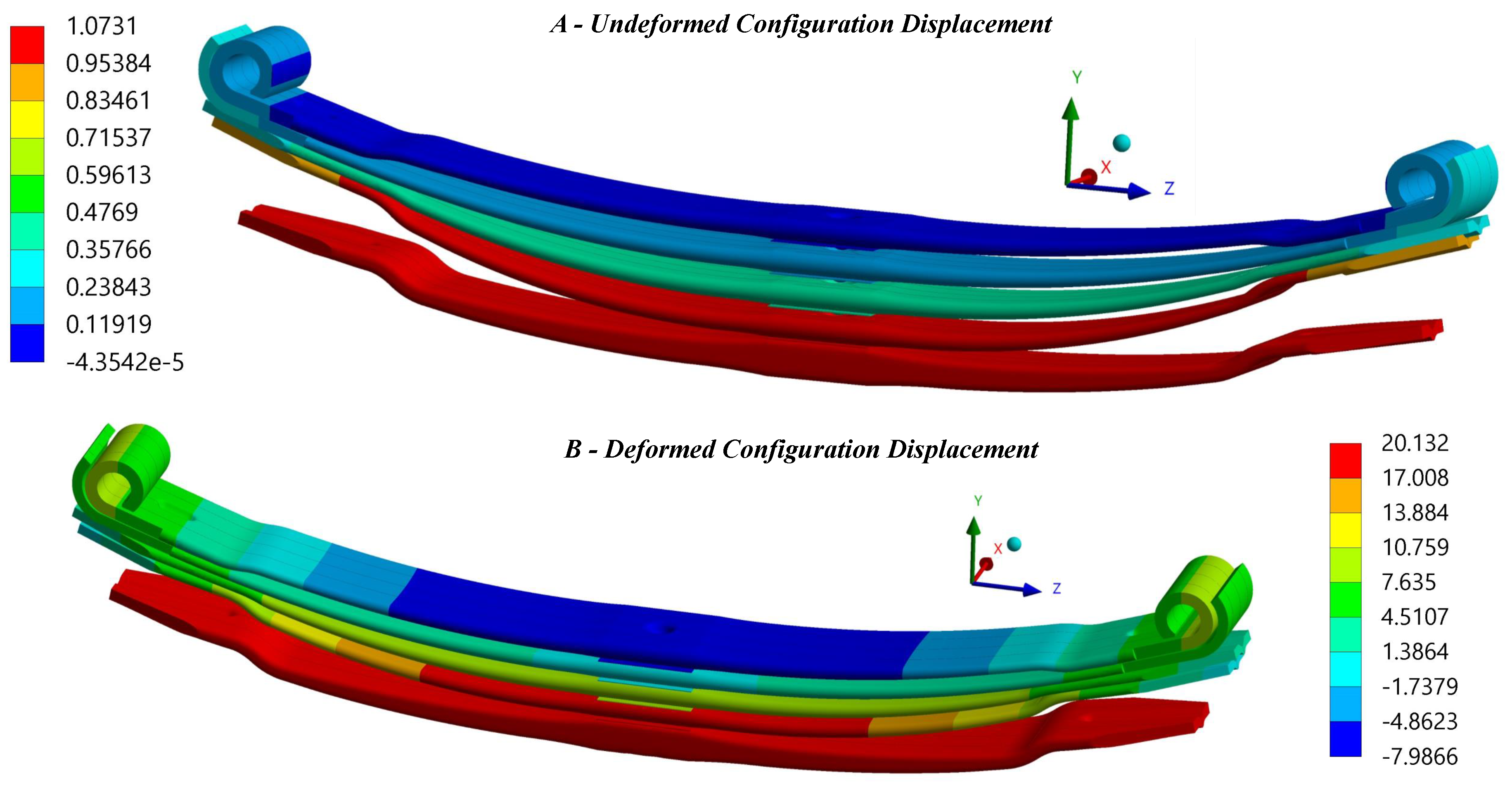

Once the computational model is validated by the experimental model, it is possible to consider the computational model to provide additional information. Figure 12 shows the deformed configuration of the leaf spring after assembling the leaves in contrast to the undeformed configuration before the assembling procedure.

The imposed assembling displacement induces different bending stresses in the spring leaves. For example, in the outermost leaf, indicated as number 1 and number 4, the bending effect is more pronounced than in the central leaves, number 2 and number 3. Regarding leaf 4, the top surface is usually stressed under tension, as opposed to leaf 1, whose top surface is subject to compression. Notice that this compressive effect on the master leaf was verified in the results obtained experimentally. Furthermore, the same structural behaviour for leaves 1 and 4 was observed in [33].

Figure 13 presents the longitudinal stress magnitude in the leaves at the end of the assembling test. It is interesting to point out that the maximum and minimum stresses verified in the plot are of the same order of magnitude, namely above 200 MPa, both for compressive and tension states. Figure 13 illustrates the variation of stress along the thickness and length of the master leaf.

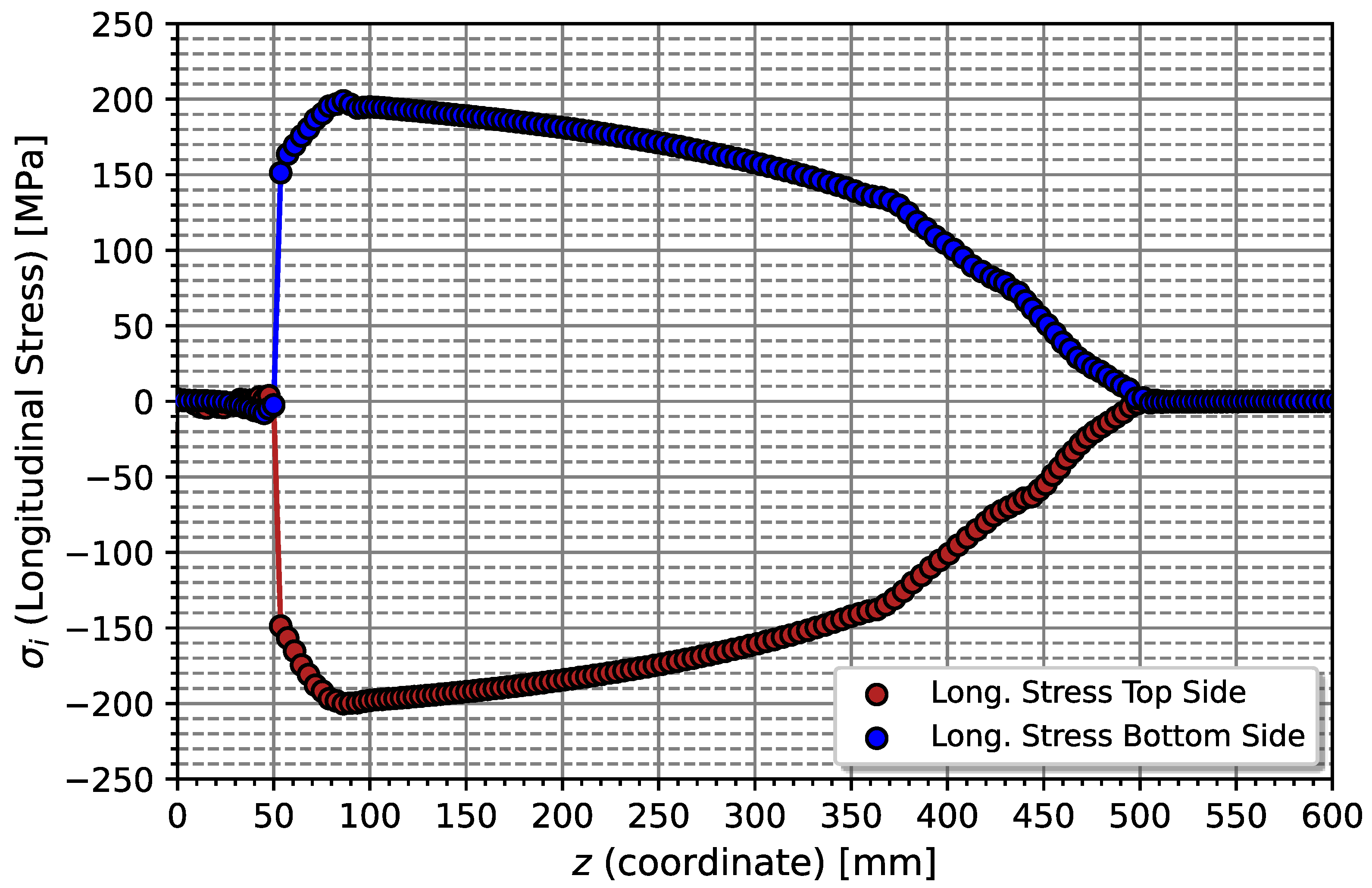

In order to analyse the profile of assembly stresses on the master leaf, the magnitude of the surface stress on the top and bottom surface of the master leaf is compared as shown in Figure 14. It is possible to state that there is a symmetrical effect of the magnitude of surface stress. Furthermore, the maximums and minimums occur in the zone close to the initiation of the spring buckle overlap and geometric shape change, [50 - 100 mm]. For length coordinate values less than 50 mm, the stress level is practically null due to the compressive displacement boundary conditions applied to this zone. On the other hand, for values of coordinates of $z>50$ mm, the surface stress on both sides tends to decrease, in magnitude up to the point of z = 500 mm. For values of z greater than 500 mm, the surface stress remains zero. A similar stress profile of a Bernoulli’s cantilever beam was observed in an experimental test rig of single parabolic leaf springs. In [34,35], spring leaves were clamped with rigid blocks not allowing deformation of the leaf in the clamped zone.

4. Conclusions

The initial state of stresses due to the assembly process of the leaf springs was investigated. The determination of stresses generated by the assembly process was analysed using an inverse stress relaxation method denominated as the stress relief method. Strain gauges were used to measure surface deformations in the leaf spring. The master leaf was considered for analysis because it is the leaf with the highest probability of failure and because of the ease of installation of the strain gauges. Five strain gauges were placed in different positions along the length of the spring master leaf. The fifth strain gauge was glued on the opposite side to identify the symmetry of stresses associated with the assembly process.

The results obtained by the experimental model were used to validate the numerical model. The numerical model developed simulated the assembly of the leaf springs from their undeformed configuration to their deformed configuration. Thus, the consideration of two methods of opposing procedures allowed the reciprocal validation of numerical and experimental results.

According to the experimental results, the data collected by strain gauges showed that the highest deformation values occur for the positions of 285 mm in relation to the geometric centre that corresponds to the middle zone of the leaf. However, the strain gauge placed in this position showed some measurement anomalies at the beginning of the test. In addition, the electric strain gauges showed the existence of stress symmetry.

As regards the comparison with the numerical results, it was demonstrated that the highest stress measurement error is located in the zone closest to the ends. However, for the zones closest to the geometric centre, a maximum error of -16.63 % was exhibited. The numerical model proved to be in agreement with that presented in the literature, showing that upper leaves set undergo a greater deformation than inner leaves and the stress level also relies on the pre-deformed curvature of the leaf. Additionally, it was verified that the top surface of the fourth leaf is subjected to a tension state whereas the top surface of the master leaf is subjected to compression. Thus, the validated numerical model allows obtaining a stress state profile along the length of the master leaf, such that it is verified a null stress in the overlapped zone and a maximum stress occurs in the geometric change (to parabolic shape), approximately 100 mm from the centre. For greater lengths, bending stress tends to decrease.
