The Quantum Ratio

1. Introduction: the quantum ratio

The concept of quantum ratio emerged during the efforts to understand the conditions under which the center of mass (CM) of an isolated macroscopic body possesses a unique classical trajectory. It is defined as

$$Q\equiv \frac{R_q}{L_o},$$

(1.1)

where $R_q$ is the quantum fluctuation range of the CM of the body under consideration, and $L_0$ is the body’s (linear) size. The criterion proposed to tell whether the body behaves quantum mechanically or classically is [1]

$$Q\gg 1,\left(\mathrm{quantum}\right),$$

(1.2)

or

$$Q\lesssim 1,\left(\mathrm{classical}\right),$$

(1.3)

respectively.

Let us assume that the total wave function of the body has a factorized form,

$$\Psi ({\mathbf{r}}_1,{\mathbf{r}}_2,\dots {\mathbf{r}}_N)={\Psi }_{CM}\left(\mathbf{R}\right){\psi }_{int}({\widehat{\mathbf{r}}}_1,{\widehat{\mathbf{r}}}_2,\dots {\widehat{\mathbf{r}}}_{N-1}).$$

(1.4)

where ${\Psi }_{CM}$ is the CM wave function, the N-body bound state is described by the internal wave function ${\psi }_{int}$. $\{{\widehat{\mathbf{r}}}_1,{\widehat{\mathbf{r}}}_2,\dots {\widehat{\mathbf{r}}}_{N-1}\}$ are the internal positions of the component atoms or molecules, $\mathbf{R}$ is the CM position and ${\mathbf{r}}_i=\mathbf{R}+{\widehat{\mathbf{r}}}_i$ ($i=1,2,\dots ,N$). In the case of a macroscopic body N can be as large as $N\sim {10}^{25},{10}^{50},$ etc.

1.1. The size of the body

$L_0$ is determined by ${\psi }_{int}$. A possible definition of $L_0$ is

$$L_0={\mathrm{Max}}_i{\overline{r}}_i,{\overline{r}}_i\equiv (\langle {\psi }_{int}|{\left({\widehat{\mathbf{r}}}_i\right)}^2|{\psi }_{int}{\rangle )}^{1/2},$$

(1.5)

but the detailed definition is not important here. $L_0$ is the spatial support (extension) of the internal wave function describing the bound state 1. It is the (linear) size of the body. Even though $L_0$ might somewhat depend on the body temperature T (the average internal excitation energy) it is well defined even in the $T\to 0$ limit. It represents the extension of the ground-state wave function of the bound state describing the body.

For an atom the definition (1.5) gives correctly the outmost orbit in the electronic configuration. $L_0$ varies from $0.5$Å to hundreds of Å for atoms and molecules. The atomic nuclei (composed of protons and neutrons) which are bound more strongly by short-range nuclear forces, have smaller size $L_0$ of the order of Fermi $\sim {10}^{-13}$ cm. As for mesoscopic to macroscopic bodies $L_0$ varies vastly, depending on their composition, types of the forces which bind them and their particular molecular or crystalline structures. For the earth (the radius) $L_0\sim 6400$ km. An exception is the case of the elementary particles: they have $L_0=0$. This has a simple implication, according to (1.2) having $Q=\infty$, the elementary particles are quantum mechanical. One might argue that the length scales (i.e., small or large) are relative concepts in physics: at distance much larger than $L_0$, any body looks pointlike. More generally, changing the scales of distances or energies, physics might look similar. A more rigorous formulation of this idea (the scale invariance) is that of the renormalization group in relativistic quantum field theories in four dimensions (e.g., theories of the fundamental interactions [2,3,4,5]), or in lower dimensional models of critical phenomena [6].

Scale invariance holds if the system possesses no fixed length scale 2. From the point of view of the theory of the fundamental interactions, the absence of a fixed length scale means that physics at low energies does not depend on the ultraviolet cutoff $\Lambda$ we need to introduce to regularize (and renormalize) the theory because of the ultraviolet divergences present. In other words, the theory is of renormalizable type, that is, a quantum field theory without any a priori mass (or length) parameter. For the questions of interest in the present work, however, it is important, and we do know, that the world we live in has definite length scales, such as Bohr’s radius, and the size of the atomic nuclei. In other words, the terms such as microscopic (from elementary particles, nuclei, atoms, to molecules) and macroscopic (much larger than these) have a well-defined, concrete meaning. These fixed sizes (or length scales) characterizing our world are set by the fundamental constants of Nature (ℏ, e, c) and by the parameters in the theory of the fundamental (strong and electroweak) interactions [2,3,4,5], namely, the quark and lepton masses, W and Z masses. See Section 2.1 more about this.

1.2. Quantum range $R_q$

The quantum fluctuation range $R_q$ is determined by ${\Psi }_{CM}\left(\mathbf{R}\right)$. In principle, it is just the (spatial) extension of the pure-state wave function ${\Psi }_{CM}\left(\mathbf{R}\right)$ describing the CM of the body. But it is a much more complex quantity than $L_0$: it depends on many factors. In quantum mechanics (QM) there is no a priori upper limit to $R_q$ 3. Take for instance the wave function of a free particle, $\psi$. It might be thought that the normalization condition $\left|\right|\psi \left|\right|=1$ necessarily sets a finite quantum fluctuation range, but it is not so. As is well known (Weyl’s criterion), a particle can be in a state arbitrarily close to a plane-wave state,

$$\psi \propto e^{i\mathbf{p}·\mathbf{r}/\hslash },$$

(1.6)

i.e., in a momentum eigenstate, which has $R_q=\infty$.

Given a body, $R_q$ will in general depend on the internal structures, excitation modes and on its body-temperature. These cause the self-induced (or thermal) decoherence, due to the emission of photons which carry away information, and seriously reduce $R_q$. If the body is not isolated, its $R_q$ is severely affected by the environment-induced decoherence [9,10,11,12,13,14], on the surrounding temperature, flux, etc. $R_q$ also depends on the external electromagnetic fields, which may split the wave packets as in the Stern-Gerlach set-up, or on possible quantum-mechanical correlations (entanglement) among distant particles. $R_q$ may depend also on time.

An important question concerns the width of the wave packet of the CM of an isolated (microscopic or macroscopic) particle, ${\Delta }_{CM}$. It should not be confused with $L_0$. Being the spread of a single-particle wave function, ${\Delta }_{CM}$ is a measure of the quantum fluctuation range

$$R_q\gtrsim {\Delta }_{CM},$$

(1.7)

but $R_q$ can be much larger than ${\Delta }_{CM}$ in general.

As for the relation between ${\Delta }_{CM}$ and $L_0$, ${\Delta }_{CM}$ corresponds to the uncertainty of the CM position of the body. For a macroscopic body, an experimentalist who is capable to measure and determine its size $L_0$ with some precision, will certainly be able to measure the CM position R with

$${\Delta }_{CM}\lesssim L_0,\mathrm{or}\mathrm{even}\mathrm{with}{\Delta }_{CM}\ll L_0.$$

(1.8)

Nevertheless, such a relation neither holds necessarily nor is required in general. A macroscopic body, especially at exceedingly low temperatures near $T=0$, may well be in a state of position uncertainty (the width of the wave packet)

$${\Delta }_{CM}\gg L_0.$$

(1.9)

Such a system is seen, by using (1.7), to have $Q\gg 1$, so is quantum mechanical. Many attempts to realize macroscopic quantum states experimentally, bringing the system temperatures down to close to $T=0$, have been made recently [15,16,17,18,19,20,21,22,23,24,25,26].

Vice versa, a well-defined CM position (1.8) set up at time $t=0$, does not in itself tell whether the system will behave quantum-mechanically or classically.

A free wave packet of an atom or molecule with the initial position uncertainty ${\Delta }_{CM}$, will quickly diffuse (the diffusion rate depends on the mass) and will acquire $R_q\sim {\Delta }_{CM}\gg L_0.$ See Table 1 taken from [1]. In the Stern-Gerlach set-up, with an inhomogeneous magnetic field, the (transverse) wave packet of an atom or a molecule with spin will be spilt in two or more wave packets, which can get separated even by a macroscopic distance ($R_q$), such that $R_q\gg L_0$, $Q\gg 1$ (see Section 2.3 for more about it).

On the other hand, a macroscopic body does not diffuse (see Table 1). Its CM wave packet does not split under an inhomogeneous magnetic field, either [1]. Therefore, if the CM position of a macroscopic body is measured with precision (1.8) at time $t=0$, the relation $R_q\lesssim L_0$ ($Q\lesssim 1$) is maintained in time. Such a body evolves classically, with a well-defined trajectory, obeying Newton’s equations [1].

1.3. The microscopic degrees of freedom inside a macroscopic body are quantum mechanical

The present discussion on the quantum ratio is concerned with the question how classical behavior for the CM of a macroscopic body emerges from QM. An important fact to be kept in mind is the following. Even if a macroscopic (or a mesoscopic) body, as a whole, might behave classically, due to environment-induced or self-induced (or thermal) decoherence and due to its large mass [1], the internal microscopic degrees of freedom, the electrons, the atomic nuclei, and the photons, remain quantum mechanical (see Section 2.1, Section 2.2, Section 3). All sorts of quantum-mechanical processes (e.g., tunnelling) continue to be active inside the body, even if various decoherence effects may be significant. These quantum phenomena constitute the essence of the physics of polymers and of general macromolecules, therefore of biology. They hold the key to the answers to many questions in biology, genetics and in neuroscience, unanswered today (see for instance [27,28]). The consideration of the present note has nothing to add, directly, to these questions. See however a few more related general comments below, in Section 3.

2. The quantum ratio illustrated

In this section the quantum ratio will be illustrated in several examples.

2.1. Elementary particles

The elementary particles known today (as of the year 2024) are the quarks, leptons (electron, muon, $\tau$ lepton), the three types of neutrinos, and the gauge bosons (the gluons, W, Z bosons and the photon), with masses listed below.

Table 2. The quark masses in MeV/$c^2$; the errors not indicated. 1 MeV$/c^2\simeq 1.782661·{10}^{-27}$ g

$2.16$ (u)

$4.67$ (d)

$93.4$ (s)

$1.27·{10}^3$ (c)

$4.18·{10}^3$ (b)

$172.7·{10}^3$ (t)

Table 2. The quark masses in MeV/$c^2$; the errors not indicated. 1 MeV$/c^2\simeq 1.782661·{10}^{-27}$ g

$2.16$ (u)

$4.67$ (d)

$93.4$ (s)

$1.27·{10}^3$ (c)

$4.18·{10}^3$ (b)

$172.7·{10}^3$ (t)

Table 3. The lepton masses. The e, $\mu$ and $\tau$ masses given in MeV$/c^2$.

$0.51099895$ (e)

$105.658$ ($\mu$)

$1776.86$ ($\tau$)

$m_{\nu }\ne 0$;   $m_{\nu }<0.8$ eV$/c^2$

Table 3. The lepton masses. The e, $\mu$ and $\tau$ masses given in MeV$/c^2$.

$0.51099895$ (e)

$105.658$ ($\mu$)

$1776.86$ ($\tau$)

$m_{\nu }\ne 0$;   $m_{\nu }<0.8$ eV$/c^2$

Table 4. Gauge bosons and their masses

photon	gluons	$W^{\pm }$ (GeV$/c^2$)	Z (GeV$/c^2$)
0	0	$80.377\pm 0.012$	$91.1876\pm 0.0021$

Table 4. Gauge bosons and their masses

photon	gluons	$W^{\pm }$ (GeV$/c^2$)	Z (GeV$/c^2$)
0	0	$80.377\pm 0.012$	$91.1876\pm 0.0021$

The fact that the processes involving these particles are very accurately described by the local quantum field theory $SU{\left(3\right)}_{QCD}\times {\{SU{\left(2\right)}_L\times U\left(1\right)\}}_{GWS}$ up to the energy range of $O\left(10\right)$TeV, means that

$$L_0\lesssim O\left({10}^{-18}\right)\mathrm{cm}.$$

(2.1)

In future, these elementary particles might well turn out to be made of some constituents unknown today, bound by some new forces yet to be discovered. For the present-day physics their size can be taken to be 4

$$L_0=0{.}^{.}.Q=\infty .$$

(2.2)

The elementary particles are quantum mechanical. This notion is generally taken for granted by physicists, even if no justification is (was) known, as such. Here, as we are enquiring whether certain “particle", be it an atom, molecule, macromolecule, a piece of crystal, etc., behaves quantum-mechanically or classically, and under which conditions, it perhaps makes sense to ask whether or why an elementary particle is quantum mechanical 5. Introduction of the criterion of quantum ratio offers an immediate (affirmative) answer to the first question, and explains the second. By definition the elementary particles have no internal structures, hence no internal excitations. There is no sense in talking about their body-temperature or thermal decoherence. The observation that the elementary particles are quantum mechanical in the light of quantum ratio (2.1), (2.2), might sound new, but it is not really so. Actually, it reflects the common understanding matured around 1970 in high-energy physics community (e.g., ’t Hooft, Cargese lecture [30]) that the law of Nature at the microscopic level is expressed by a renormalizable, relativistic local gauge theory (a quantum field theory) of the elementary particles. Such a theory describes pointlike particles ($L_0=0$) 6. The scale or dilatation invariance of this type of theories is broken by the necessity of introducing an ultraviolet cutoff, a mass scale ${\Lambda }_{UV}$, to regularize, renormalize and define a finite theory (quantum anomaly). Remarkably, the scale invariance is restored by the introduction of the renormalized coupling constants, defined conveniently at some reference mass scale $\mu$, and giving them an appropriate $\mu$ dependence (the renormalization-group equations). See e.g., Coleman’s 1971 Erice lecture [31]. The fixed length or mass scales of our world, mentioned in Section 1.1, concern the infrared fate of such dilatation invariance. These fixed scales can be, ultimately, traced to (i) the vacuum expectation value $\langle {\varphi }^0\rangle \simeq 246\mathrm{GeV}$ of the Higgs scalar field in the $SU\left(2\right)\times U\left(1\right)$ Glashow-Weinberg-Salam electroweak theory and (ii) the mass scale ${\Lambda }_{QCD}\simeq 150\mathrm{MeV},$ dynamically generated by the strong interactions (Quantum Chromodynamics). They break the scale invariance. All fixed length scales from the microscopic to macroscopic world we live in follow from them and from some dimensionless coupling constants in the $SU{\left(3\right)}_{QCD}\times {\{SU\left(2\right)\times U\left(1\right)\}}_{GWS}$ theory 7.

2.2. Hadrons and Atomic nuclei

The atomic nuclei, together with various hadrons (the mesons and baryons), are the smallest composite particles known today. Until around 1960, the mesons ($\pi$, K, ...) and baryons (p, n,...) used to be part of the list of “elementary particles", together with leptons. As the theory of the strong interactions (the quark model, and subsequently, the quantum chromodynamics, a nonAbelian $SU\left(3\right)$ gauge theory of quarks and gluons) was established around 1974 - 1980, they were replaced by the quarks and gluons, as more fundamental constituents of Nature.

The atomic nuclei are bound states of the nucleons, i.e., protons (p) and neutrons (n). They are bound by the strong interactions and their size is of the order of

$$L_0\sim A^{1/3}\mathrm{fm},1\mathrm{fm}\equiv {10}^{-13}\mathrm{cm}={10}^{-5}\AA ,$$

(2.3)

where A is the mass number. The Coulombic wave functions in the atoms and molecules have extension ($R_q$) of the order of $O\left(\AA \right)$, thus

$$Q=\frac{R_q}{L_0}\gtrsim O\left({10}^5\right).$$

(2.4)

The atomic nuclei are quantum mechanical.

To say that the atomic nuclei are quantum mechanical because of the atomic extension (2.4), is however certainly too reductive. The atomic nuclei indeed may appear without being bound in atoms. For instance the $\alpha$ particle is the nucleus of the helium atom, but may come out of a metastable nucleus through the $\alpha$ decay, and propagate as a free particle. It possesses the size of the order of (2.3), much larger than the typical size of an elementary particles, (2.1), but still for the processes typically involving the distance scales much larger than 1 fm, it behaves as a pointlike particle, i.e., quantum mechanically, just as any elementary particle. Similarly for the proton, the nucleus of the hydrogen atom, with $L_0\sim 0.84$ fm.

2.3. Stern-Gerlach experiment

The next smallest composite particles known in Nature are the atoms. They are Coulombic composite states made of the electrons moving around the positively charged atomic nuclei, almost pointlike (at the atomic scales) and $O({10}^3\sim {10}^5)$ times heavier than the electron.

Let us consider the well-known Stern-Gerlach process of atoms with a magnetic moment in an inhomogeneous magnetic field. To be concrete, we take as an example the very original Stern-Gerlach experiment with the silver atom [32], $Ag$, with mass and size,

$$m_{Ag}\simeq 1.79·{10}^{-22}\mathrm{g},L_0\simeq 1.44\AA .$$

(2.5)

Having the electronic configuration and the global quantum number 8,

$$\left[Kr\right]4d^{10}5s^1,{ }^2{S}_{1/2}.$$

(2.6)

the magnetic moment of the atom is dominated by the spin of the outmost electron,

$$\mu =\frac{e\hslash }{2m_{e}c}g\mathbf{s},$$

(2.7)

where g is the gyromagnetic ratio $g\simeq 2$ of the electron.

The question is whether the silver atom, which is certainly a quantum-mechanical bound state of 47 electrons, 47 protons and 51 neutrons and with mass $\sim 100$ times that of the hydrogen atom, behaves as a whole (i.e., its CM) as a QM particle with spin $1/2$ or a classical particle of magnetic moment $\mu$.

The beam of $Ag$ is sent into the region, long $3.5$ cm, of an inhomogeneous magnetic field, $\mathbf{B}=(0,0,B(z\left)\right)$, $dB\left(z\right)/dz\ne 0$, as it proceeds in the e.g., $\widehat{x}$ direction. The beam width, which reflects the apertures of the two slits used to prepare the well collimated beam, is about $\sim 0.02-0.03$ mm wide 9. After passing the region of the magnetic field, the image of the atoms on the glass screen shows two bands clearly separated about $0.2$ mm in the direction of $\widehat{z}$. In other words, at the end of the region with the magnetic field, the atom is described by a split wave packet of the form,

$$\psi ={\psi }_1\left(\mathbf{r}\right)|\uparrow \rangle +{\psi }_2\left(\mathbf{r}\right)|\downarrow \rangle ,$$

(2.8)

with the centers of the two subpackets ${\psi }_1$ and ${\psi }_2$ at $\mathbf{r}={\mathbf{r}}_1$ and $\mathbf{r}={\mathbf{r}}_2$, respectively, where $|z_1-z_2|\simeq 0.2$ mm. The spatial support of the wave function $\psi$ can be taken as about that size. It follows that

$$Q=\frac{R_q}{L_0}\gtrsim \frac{0.2mm}{1.4\AA }\simeq {10}^6\gg 1:$$

(2.9)

the $Ag$ atom, as a whole, is behaving perfectly as a quantum-mechanical particle.

Actually, the fact that the wave packets are divided in two by an inhomogeneous magnetic field does not necessarily mean that the system is in a pure state of the form (2.8). The wave function of the form (2.8) corresponds to a 100% polarized beam, where all incident atoms are in the same spin state

$$c_1|\uparrow \rangle +c_2|\downarrow \rangle =\left(\begin{array}{c}{c}_1\\ c_2\end{array}\right),|c_1{|}^2+{\left|c_2\right|}^2=1.$$

(2.10)

If the beam is partially polarized or unpolarized, the spin state is described by a density matrix $\rho$. The pure state (2.10) corresponds to the density matrix

$${\rho }^{\left(pure\right)}=\left(\begin{array}{cc}|c_1{|}^2& c_1{c}_2^{*}\\ c_2{c}_1^{*}& |c_2{|}^2\end{array}\right),$$

(2.11)

whereas a general mixed state is described by a generic, Hermitian $2\times 2$ matrix $\rho$ with

$$Tr\rho =1,{\rho }_{ii}\ge 0,i=1,2.$$

(2.12)

In an unpolarized beam, $\rho =\frac{1}{2}\mathbf{1}$.

What the Stern-Gerlach experiment measures is the relative frequency that the atom arriving at the screen happens to have spin $s_z=\frac{1}{2}$ or spin $s_z=-\frac{1}{2}$. Let

$${\Pi }_{\uparrow }=|\uparrow \rangle \langle \uparrow |=\left(\begin{array}{cc}1& 0\\ 0& 0\end{array}\right),{\Pi }_{\downarrow }=|\downarrow \rangle \langle \downarrow |=\left(\begin{array}{cc}0& 0\\ 0& 1\end{array}\right)$$

(2.13)

be the projection operators on the spin up (down) states; the relative intensities of the upper and lower blots on the screen are, according to QM,

$${\overline{\Pi }}_{\uparrow }=Tr{\Pi }_{\uparrow }\rho ={\rho }_{11};{\overline{\Pi }}_{\downarrow }=Tr{\Pi }_{\downarrow }\rho ={\rho }_{22},{\rho }_{11}+{\rho }_{22}=1.$$

(2.14)

The prediction about the relative intensities of the two narrow atomic image bands from the wave function (2.8) and from the density matrix, (2.14) is in general indistinguishable, as is well known. In other words, what the Stern-Gerlach experiment has shown is not whether the atom is in a pure state of the form, (2.8), or in a generic (spin-) mixed state, (2.14), but that the silver atom is a quantum-mechanical particle.

Indeed, the prediction for a classical particle is qualitatively different. Each atom, if classical, would move depending on the orientation of its magnetic moment, tracing a well-defined trajectory,

$$m\dot{\mathbf{r}}=\mathbf{p},\frac{d{p}_x}{dt}=\frac{d{p}_y}{dt}=0,\frac{d{p}_z}{dt}=F_z=-\frac{\partial }{\partial z}\mu ·\mathbf{B}.$$

(2.15)

It would arrive at some generic point on the screen. If the initial orientation of the magnetic moment is random, after many classical atoms have arrived they would leave a continuous band of atomic images, instead of two narrow, well separated bands, as has been experimentally observed and as QM predicts.

Vice versa, if the orientation of the magnetic moment / spin is fixed (and the same) for all incident atoms, the classical atoms will produce only one narrow band, whereas QM atoms will leave two separate image bands. These considerations clearly tell that the concepts of mixed state and classical particle should be distinguished. We extend these discussions further in Section 3, taking into account also the effects of environment-induced decoherence, as well as the large spin limit, and their relations to the classical limit, (2.15).

2.4. Atomic and molecular interferometry

Many beautiful experiments exhibiting the quantum-mechanical feature (wave character) of atoms and molecules have been performed (or proposed), by using various types of interferometers [33,34,35,36,37,38,39,40,41,42]. One of the most powerful approaches uses the Talbot-Lau interferometry [33,36,37,38,39].

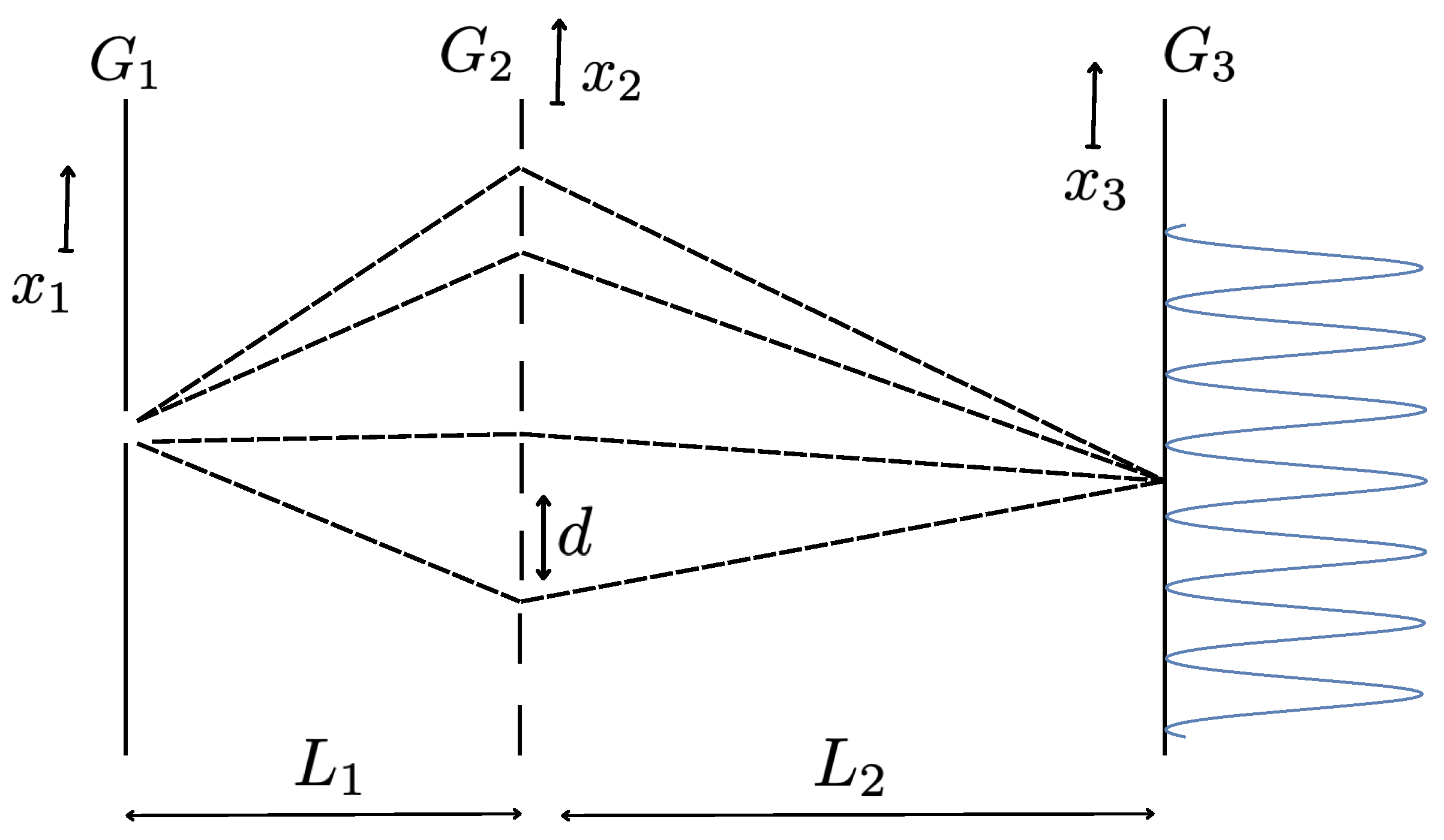

The essential part of all these experiments makes use of the so-called Talbot effect [43]. In a typical setting, an atomic or molecular beam, passing through the first slit is sent to the diffraction grating ($G_2$ in Figure 1), consisting of many slit apertures set with period d. After the passage of the diffraction grating, the wave function of the atom or molecule, which originated from a point source, has the form,

$$\psi \left(x_2\right)\simeq \sum _i{\psi }_i\left(x_2\right),$$

(2.16)

where ${\psi }_i\left(x_2\right)$ is the (transverse) wave packet of the atom (molecule) which has passed through the i-th slit. Just behind the diffraction grating, the distribution of the atom (molecule) has a modulation such as in Figure 2, each peak corresponding to the position of a slit opening.

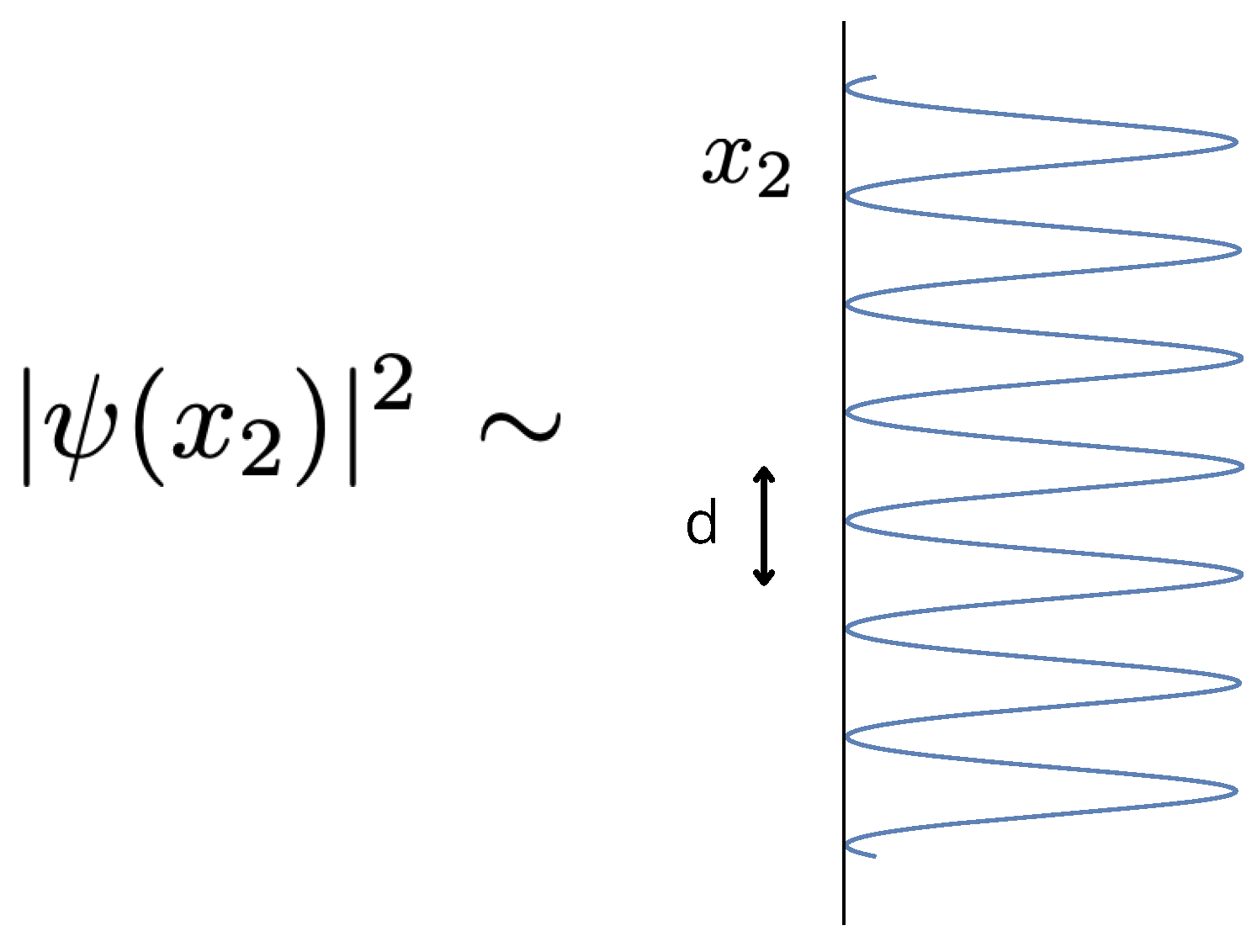

The coherent components of the wave function, (2.16), corresponding to different paths shown in Figure 1, interfere constructively or destructively, depending on the vertical position $x_3$ on the imaging screen, set at a distance $L_2$ from the diffraction grating. In the so-called near-field diffraction - interference effects, the intensity modulation behind the diffraction grating (Figure 2) is reproduced (self-imaging) on the screen $G_3$ [33,36,37,38,39,43], when $L_2$ takes definite values, related to the Talbot length 10,

$$L_T=\frac{d^2}{{\lambda }_{dB}},$$

(2.17)

as shown in Figure 1. The details of the calculation on the sum over paths can be found in [36]. By introducing the geometrical magnification factors, $M_1\equiv (L_1+L_2)/L_2$; $M_2\equiv (L_1+L_2)/L_1$, the sum over the different paths of Figure 1 is shown to give, for instance at $L_2=2M_2{L}_T$, the intensity pattern ${\left|\psi \left(x\right)\right|}^2$ behind the diffraction grating reproduced at $G_3$, with an enlarged period, $M_{2}d$. For $L_2=M_2{L}_T$, instead, the same intensity pattern appears but shifted by a half period, $x_3\to x_3+M_{2}d/2$.

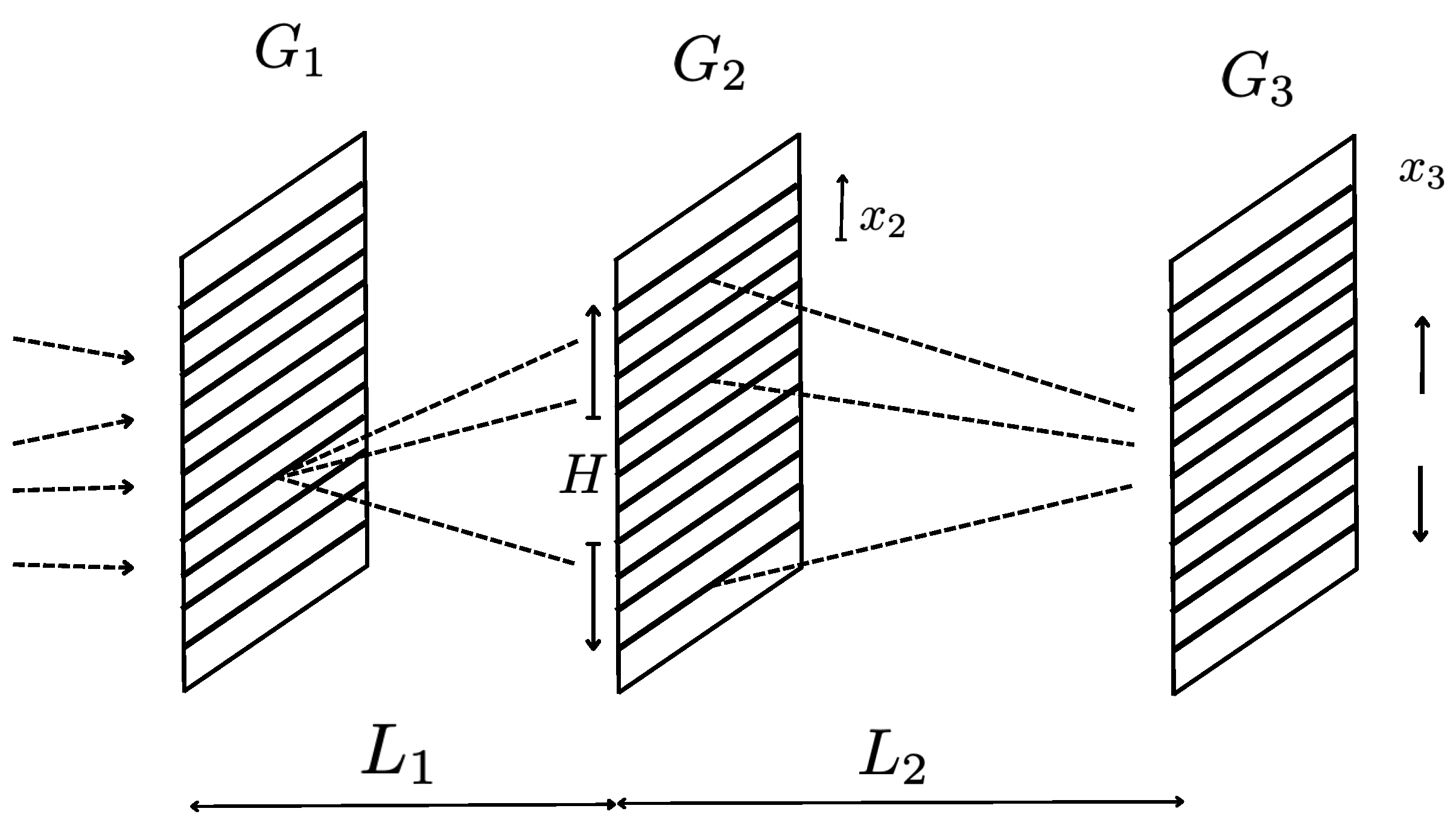

In the Talbot-Lau interferometer, which is a variation of the above, the imaging screen is replaced by a vertically (i.e., in the $x_3$ direction) movable transmission-scanning grating, with an appropriate period $d^{\prime }$. See Figure 3. This way, the occurrence of the interference fringes - the Talbot self-imaging - is converted to the total transmission rate of the molecules (atoms) which varies periodically as a function of the vertical ($x_3$) position of the scanning grating $G_3$ as a whole. Another advantage of the Talbot-Lau interferometer is the possibility of introducing the incoherent source beam hitting the first grating. Even though the coherence sum over paths is relevant only for the atoms (or the molecules) which have originated from a definite source slit, the use of an incoherent source can increase the total counts after the third, transmission grating, improving significantly the statistics of the experiments.

For the purpose of discussing the quantum-fluctuation range and the quantum ratio, these details of the set-up are not really fundamental. We need simply to know the transverse, spatial extension of the wave function, (2.16). This in turn can be taken as the height of the diffraction grating $G_2$, H, of Figure 3. The detection of the Talbot effect or Talbot-Lau fringe visibility, is a proof that the transverse wave packets in (2.16) are indeed in coherent superposition: i.e., that it is a pure state. We thus take the quantum fluctuation range $R_q$ in Table 5 from the experimental total height H of the diffraction grating $G_2$, Figure 3.

A large quantum ratio implied by such a quantum range (and their size) is certainly an indication that these atoms and molecules are quantum mechanical, even though such an observation does not supersede the direct evidence of quantum coherence and interference effects presented in [33,36,37,38,39].

2.4.1. On the “matter wave"

A familiar word used in the articles on the atomic and molecular interferometry [34,35,36,37,38,39,40,41,42] is “matter wave". It might appear to summarize well the characteristic feature of quantum-mechanics: “wave-particle duality". Actually, such an expression is more likely to obscure the essential quantum mechanical features of these processes, rather than clarifying them. It appears to imply that the beams of atoms or molecules somehow behave as a sort of wave: that is not quite an accurate description of the processes studied in [34,35,36,37,38,39,40,41,42].

The wave-particle duality of de Broglie, the core concept of quantum mechanics, refers to the property of each single quantum-mechanical particle, and not to any unspecified collective motion of particles in the beam 11. This point was demonstrated experimentally by Tonomura et. al.[44] in a double-slit electron interferometry experiment à la Young, with exemplary clarity.

Exactly the same phenomena occur in any atomic or molecular interferometry. For each single incident atom or molecule, it amounts to the position measurement at the third, imaging screen. For each incident particle, the result for the exact final vertical position at $G_3$ is not known: it cannot be predicted, in accordance with QM. Only after the data with many incident particles are collected, one observes the interference effect reflecting the coherence among the components of the extended wave function, (2.16), in accordance with the QM laws.

From the data given in [34,35,36,37,38,39,40,41,42] it is not difficult to verify that the average distance between the successive atoms (or the molecules), as compared to the size of their longitudinal wave-packet (which can be deduced from the momentum uncertainty $\Delta p$), is many orders of magnitudes larger. For instance, in the case of the sodium-atom experiment [39], their ratio is about $6cm/47\AA \sim {10}^7$. In the case of the $C_{70}$ [38] this ratio seems to be even greater. The atoms or molecules do arrive one by one.

As the correlation among the atoms or molecules in the beam is negligible (as it should be), and the position of each final atom/molecule is apparently random, the resulting interference fringes such as manifested in the Talbot (or the Talbot-Lau) interferometers, is all the more surprising and interesting. What these experiments show goes much deeper into the heart of QM, than the words, “matter wave" or “wave-particle duality", might suggest.

3. Decoherence versus classicality

The atomic and molecular experiments discussed in Section 2.3, Section 2.4 are all performed in a high-quality vacuum [32,33,34,35,36,37,38,39,40,41,42]. This is necessary, lest the scattering of the atom or molecule under study with the environment particles, e.g., air molecules, destroy their pure quantum-state nature and let them lose the ability of exhibiting typical quantum phenomena such as diffraction, coherent superposition, and interferences. These processes are known as the environment-induced decoherence [9,10,11,12,13,14]. Under environment-induced decoherence the object under consideration becomes a mixture. Diffraction, coherent superposition, and interference phenomena typical of pure quantum states get lost.

But it does not necessarily mean that the system becomes classical. Being in a mixed state is necessary for the system to behave classically, but is in general not sufficient [1]. Unfortunately, there seems to be a widespread and inappropriate identification in the literature of these two concepts: mixed (decohered) states and classical states. Consider the free electron. Its decoherence rate / time, has been studied under various types of environments [9,10,11,12,13,14]. For instance, in the $300K$ atmosphere at 1 atm pressure, a free electron decoheres in ${10}^{-13}$ s [11]. But when it interacts subsequently with other systems, it does so quantum mechanically, not as a classical particle. Once it comes out of the region with “environment", it emerges as a free particle, a pure quantum state. The same can be said of the photon (as of any other elementary particle). A related remark may be made about the cosmic rays. The gamma ray (photons), neutrinos, protons, etc., which are produced in hot and dense interiors of stars, once out, travel in cosmic space (a good approximation of vacuum) as free, quantum particles in pure states. In the experiment of [38], $C_{70}$ molecules are excited by a laser beam, before they enter the interferometry. When the average temperature of the molecules exceeds 3000K, the Talbot-Lau interference fringe signals are found to disappear, showing that the molecules became mixed states, in agreement with the decoherence theory 12. The quantum fluctuation range $R_q$ becomes of the order of the diffraction grating period, d. This value is given in Table 5. But this does not mean that the $C_{70}$ molecules have become classical: what one can conclude from [38] is that the thermal decoherence renders the molecule incoherent, mixed state. Below we consider two more test cases where the difference among the pure state, decohered mixed state, and the classical state, is seen very clearly. These considerations can have far-reaching consequences. For instance, they may indicate a way out of the “no-go" verdict for the relevance of quantum mechanics in the brain dynamics [12]. They may be fundamental in all microscopic processes underlying biological systems (see Section 1.3) [27,28].

3.1. Stern-Gerlach set-up, decoherence and classical limit

The original Stern-Gerlach (SG) process was discussed already (Section 2.3). What the experimental result shows is that the silver atom behaves as a quantum-mechanical particle, either in a pure or (spin-) mixed state.

Here we discuss the SG process again, in more detail, in three different regimes, (i) a pure QM process; (ii) the environmental decoherence (an incoherent, mixed state); and (iii) for a classical particle. The main aim of this discussion is to hilight the differences between these different physics situations as sharply as possible.

3.1.1. Pure QM state

For definiteness let us take the incident atom with spin $s=\frac{1}{2}$ directed in a definite, but generic, direction, $\mathbf{n}=(sin\theta cos\varphi ,sin\theta sin\varphi ,cos\theta )$, i.e.,

$$\Psi =\psi (\mathbf{r},t)|\mathbf{n}\rangle ,$$

(3.1)

where

$$|\mathbf{n}\rangle =c_1|\uparrow \rangle +c_2|\downarrow \rangle ,c_1=e^{-i\varphi /2}cos\frac{\theta }{2},c_2=e^{i\varphi /2}sin\frac{\theta }{2},$$

(3.2)

and $\psi (\mathbf{r},t)$ describes the wave packet of the atom, moving towards the $\widehat{x}$ direction, before entering the region with an inhomogeneous magnetic field $\mathbf{B}$. The Hamiltonian is given by

$$H=\frac{{\mathbf{p}}^2}{2m}+V,V=\mu ·\mathbf{B},$$

(3.3)

$$\mu =\frac{e\hslash }{2m_{e}c}g\mathbf{s},\mathbf{B}=(0,0,B\left(z\right)),dB\left(z\right)/dz\ne 0.$$

(3.4)

and the time evolution of the system is described by the Schrödinger equation

$$i\hslash {\partial }_t\Psi =H\Psi$$

(3.5)

where the total energy is conserved.

After the atom enters the inhomogeneous field $\mathbf{B}$, the upper and lower spin components of the wave function split, so let us write

$${\Psi }_{\uparrow }={\psi }_1(\mathbf{r},t)|\uparrow \rangle +{\psi }_2(\mathbf{r},t)|\downarrow \rangle .$$

(3.6)

The upper and down-spin components ${\psi }_{1,2}$ satisfy the Schrödinger equation 13

$$i\hslash \frac{\partial }{\partial t}{\psi }_{1,2}=\left(\frac{{\mathbf{p}}^2}{2m}\pm {\mu }_{B}B\left(z\right)\right){\psi }_{1,2}.$$

(3.7)

We assume that the wave function $\psi (\mathbf{r},t)$, before entering the region with the magnetic field, is a compact wave packet (e.g., a Gaussian with width a), moving towards the $\widehat{x}$ direction.

From (3.7) and their complex conjugates, the Ehrenfest theorems for spin-up and spin-down components follow separately,

$$\begin{array}{ccc}& & \frac{d}{dt}{\langle \mathbf{r}\rangle }_1={\langle \mathbf{p}/m\rangle }_1,\frac{d}{dt}{\langle \mathbf{p}\rangle }_1=-{\langle \nabla \left({\mu }_{B}B\left(z\right)\right)\rangle }_1;\hfill \end{array}$$

(3.8)

$$\begin{array}{ccc}& & \frac{d}{dt}{\langle \mathbf{r}\rangle }_2={\langle \mathbf{p}/m\rangle }_2,\frac{d}{dt}{\langle \mathbf{p}\rangle }_2=+{\langle \nabla \left({\mu }_{B}B\left(z\right)\right)\rangle }_2,\hfill \end{array}$$

(3.9)

where ${\langle \mathbf{r}\rangle }_1\equiv \langle {\psi }_1\left|\mathbf{r}\right|{\psi }_1\rangle$, etc. Namely, for a sufficiently compact initial wave packet, $\psi (\mathbf{r},t)$, the expectation values of $\mathbf{r}$ and $\mathbf{p}$ in the up and down components $\psi {(\mathbf{r},t)}_{1,2}$ follow respectively the classical trajectories of a spin-up or spin-down particle. At the end of the region with the magnetic field $\mathbf{B}$ 14 it is described as a split wave packet of the form, (2.8). Even though the two subpackets might be well separated by a macroscopic distance $|{\mathbf{r}}_1-{\mathbf{r}}_2|$, they are still in coherent superposition. Its pure-state nature can be verified by reconverging them by using a second magnetic field of opposite gradients, and studying their interferences (the quantum eraser).

A variational solution of (3.7) in the case of a linear potential, $B\left(z\right)=b_{0}z$, is given in Appendix A. The splitting of the wavepacket is illustrated in Figure 4 (a).

3.1.2. Environment-induced decoherence

Let us now consider the SG process (3.1)-(3.4) again, but this time in a poor vacuum, e.g., in the presence of non-negligible background. The decoherence of a well separated split wave packet as (2.8) due to the interactions with the environment particles has been the subject of intense study [9,10,11,12,13,14]. The upshot of the results of these investigations is that the environment-induced decoherence causes the pure state (2.8) to become a mixed state at $t\gg 1/\Lambda$, described by a diagonal density matrix

$$\psi \left(\mathbf{r}\right)\psi {\left({\mathbf{r}}^{\prime }\right)}^{*}\to {\psi }_1\left(\mathbf{r}\right){\psi }_1{\left({\mathbf{r}}^{\prime }\right)}^{*}|\uparrow \rangle \langle \uparrow |+{\psi }_2\left(\mathbf{r}\right){\psi }_2{\left({\mathbf{r}}^{\prime }\right)}^{*}|\downarrow \rangle \langle \downarrow |,|{\mathbf{r}}_1-{\mathbf{r}}_2|\gg \lambda ,$$

(3.10)

where $\Lambda$ is the decoherence rate [9,10,11,12,13,14] and $\lambda$ is the de Broglie wavelength of the environment particles. The density matrix (3.10) means that each atom is now either near ${\mathbf{r}}_1$ or near ${\mathbf{r}}_2$. The prediction for the SG experiment is however the same as the case of spin-mixed state (partially polarized source atoms), (2.14): it cannot be distinguished from the prediction $|c_1{|}^2:{\left|c_2\right|}^2$ for the relative intensities of the two image bands, in the case of the pure state. Actually, the study of the effects of the environment particles on any given quantum process is a complex, and highly nontrivial problem, as it involves many factors, such as the density and flux of these particles, the pressure, the average temperature, kinds of the particles present and the type of interactions, etc. [9,10,11,12,13,14]. A simple statement such as (3.10) might sound as an oversimplification.

Without going into the detailed features of the environment, we may nevertheless attempt to clarify the basic conditions under which the result such as (3.10) can be considered reliable. Following [11], we introduce the decoherence time ${\tau }_{dec}\sim 1/{\Lambda }_{dec}$, as a typical timescale over which the decoherence takes place. Also the dissipation time${\tau }_{diss}$ may be considered, as a timescale in which the loss of the energy, momentum of the atom under study due to the interactions with the environmental particles, become significant 15. We need to consider also a typical quantum diffusion time, ${\tau }_{diff}$, and finally, the transition time, ${\tau }_{trans}$, the interval o f time the atom spends between the source slit to the image screen (or anyway the final, reference position in the direction of motion).

First of all, we assume that the velocity of the incident atom, its mass, and the size of the whole apparatus are such that the free quantum diffusion (the spreading of the wave packets) is negligible, during the process under study. Furthermore, the environment is assumed to be sufficiently weak so that the effects of energy loss, the momentum transfer, etc. can also be neglected to a good approximation. As shown in [9,10,11,12,13,14], the loss of the phase coherence is a much more rapid process than the dynamical effects affecting the motion of the particle considered.

In other words, we consider the time scales

$${\tau }_{dec}\ll {\tau }_{trans}\ll {\tau }_{diff},{\tau }_{diss}.$$

(3.11)

The first inequality tells that the motion of the wave packets is much slower than the typical decoherence time. Consider the atom at some point, where it is described by a split wave packet of the form (2.8), with their centers separated by

$$|{\mathbf{r}}_1-{\mathbf{r}}_2|\gg a,$$

(3.12)

where a is the size of the original wavepacket. We may then treat such an atom as if it were at rest, and take into account the rapid decoherence processes studied in [9,10,11,12,13,14] first (a sort of Born-Oppenheimer approximation). Furthermore, let us also take the environment particles with a typical de Broglie wavelength $\lambda$ such that

$$a\ll \lambda \ll |{\mathbf{r}}_1-{\mathbf{r}}_2|:$$

(3.13)

the environment particle can resolve between the split wave packets, but not the interior of each of the subpackets, ${\psi }_1\left(\mathbf{r}\right)$ or ${\psi }_2\left(\mathbf{r}\right).$

In conclusion, under the conditions (3.11)-(3.13), each of the split wave packets proceeds just as in the pure case (no environment) reviewed in Sec. (2.10), whose average position and momentum (i.e., the expectation values) obey Newton’s equations, (3.8), (3.9). Each of the subpackets describes a quantum particle, in a (position) mixed state, that is, either near ${\mathbf{r}}_1$ or ${\mathbf{r}}_2$. After leaving the region of the SG magnets, it is just a (pure-state) wave packet ${\psi }_1\left(\mathbf{r}\right)$ or ${\psi }_2\left(\mathbf{r}\right)$. The two possibilities no longer interfere, in contrast to the pure split wave packet studied in Sec. (2.10). See Figure 4 (b).

Needless to say, if any of the conditions (3.11)-(3.13) are violated, the motion of the atom would be very different. For instance, ${\tau }_{diss}\ll {\tau }_{trans}$ would mean a totally random motion for the atom. Even in such a case, though, the effects of the environment-induced decoherence/disturbance are quite distinct from the motion of a classical particle, with a unique, smooth trajectory, discussed below.

3.1.3. Classical (or quantum?) particle

A classical particle, with the magnetic moment directed towards

$$\mathbf{n}=(sin\theta cos\varphi ,sin\theta sin\varphi ,cos\theta ),$$

(3.14)

is described by Newton’s equation, (2.15). The way the unique trajectory for a classical particle emerges from quantum mechanics has been discussed in [1], where the magnetic moment is an expectation value

$$\sum _i\langle \Psi |({\widehat{\mu }}_i+\frac{e_i{\widehat{\ell }}_i}{2m_{i}c})|\Psi \rangle =\mu ,$$

(3.15)

taken in the internal bound-state wave function $\Psi$ and ${\mu }_i$ and $\frac{e_i{\ell }_i}{2m_{i}c}$ denote the intrinsic magnetic moment and one due to the orbital motion of the i-th constituent atom (molecule); $i=1,2,\dots ,N$. Clearly, in general, the considerations made in Section 3.1.1 and Section 3.1.2 for a spin $1/2$ atom, with a doubly split wave packet, cannot be generalized simply to (or compared with) a classical body (3.15) with $N\sim O\left({10}^{23}\right)$.

Nevertheless, logically, one cannot exclude particular systems (e,g, a magnetized metal piece) with all spins directed in the same direction, for instance. One might thus wonder how a quantum-mechanical particle of spin S behaves under an inhomogeneous magnetic field, in the large spin limit, $S=\frac{N}{2}$, $N\to \infty$.

The question is whether the conditions, discussed in [1], for the emergence of classical mechanics (with a unique trajectory) for a macroscopic body (see also Section 5 below), are sufficient, or whether some extra condition or a mechanism is needed to suppress possible, wide spreading of the wave function into many subpackets (see Figure 5) under an inhomogeneous magnetic field.

The answer is simple but somewhat unexpected. Consider the state of a spin S directed towards a direction, $\mathbf{n}$,

$$\left(\mathbf{S}·\mathbf{n}\right)|\mathbf{n}\rangle =S|\mathbf{n}\rangle ,\mathbf{n}=(sin\theta cos\varphi ,sin\theta sin\varphi ,cos\theta ).$$

(3.16)

Assuming that the magnetic field (and its gradients) is in the z direction, we need to express $|\mathbf{n}\rangle$ as a superposition of the eigenstates of $S_z$,

$$|\mathbf{n}\rangle =\sum _{k=0}^N{c}_k|S_z=M\rangle ,M=-\frac{N}{2}+k,(k=0,1,\dots ,N).$$

(3.17)

The expansion coefficients $c_k$ are known 16:

$$c_k={\left(\genfrac{}{}{0pt}{}{N}{k}\right)}^{1/2}{e}^{-iM\varphi /2}{\left(cos\frac{\theta }{2}\right)}^k{\left(sin\frac{\theta }{2}\right)}^{N-k},\sum _{k=0}^N{\left|c_k\right|}^2=1,$$

(3.18)

where $\left(\genfrac{}{}{0pt}{}{N}{k}\right)$ are binomial coefficients, $N!/k!(N-k)!$. By using Stiring’s formula, one finds at large N and k with $x=k/N$ fixed, the distribution in various $S_z=M$,

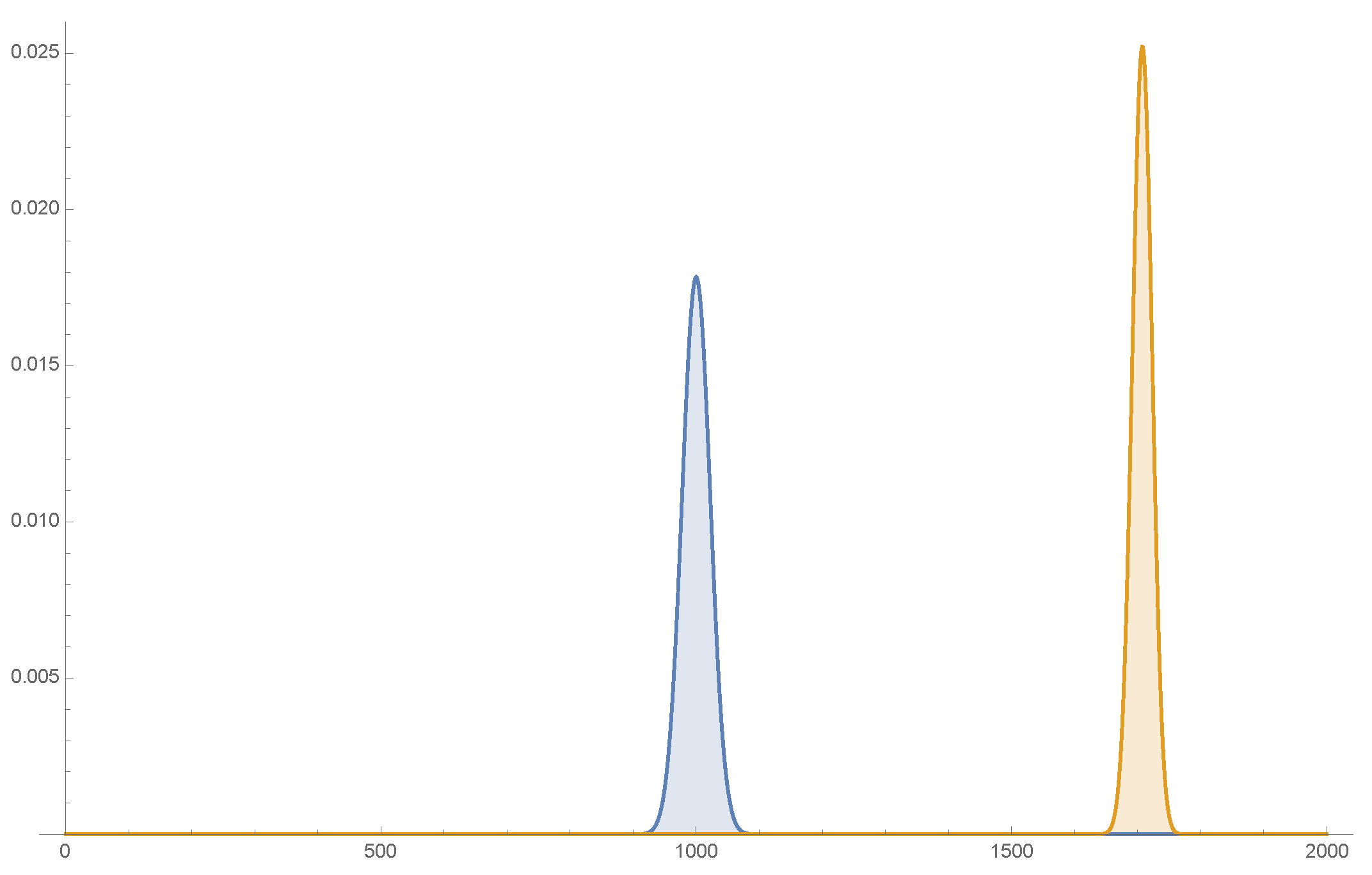

$$|c_k{|}^2\simeq e^{Nf\left(x\right)},x=k/N,$$

(3.19)

with

$$f\left(x\right)=-xlogx-(1-x)log(1-x)+2xlogcos\frac{\theta }{2}+2(1-x)logsin\frac{\theta }{2}.$$

(3.20)

The saddle-point approximation, valid at $N\to \infty$, gives

$$f\left(x\right)\simeq -\frac{{(x-x_0)}^2}{x_0(1-x_0)},x_0={cos}^2\frac{\theta }{2}.$$

(3.21)

and thus

$$|c_k{|}^2⟶\delta (x-x_0)$$

(3.22)

in the $N\to \infty$ ($x=k/N$ fixed) limit. The narrow peak position $x=x_0$ corresponds (see (3.17)) to

$$S_z=M=N(x-\frac{1}{2})=S(2{cos}^2\frac{\theta }{2}-1)=Scos\theta .$$

(3.23)

Thus a large spin ($S\gg \hslash$) quantum particle with spin directed towards $\mathbf{n}$, in a Stern-Gerlach setting with an inhomogeneous magnetic field, $\mathbf{B}=(0,0,B(z\left)\right)$, moves along a single trajectory of a classical particle with $S_z=Scos\theta$, instead of spreading over a wide range of split subpacket trajectories covering $-S\le S_z\le S$! See Figure 5 and Figure 6.

This somewhat surprising result means that QM takes care of itself, in showing that a large spin particle ($S/\hslash \to \infty$) follows a classical trajectory 17 consistently with the known general behavior of the wave function in the semi-classical limit ($\hslash \to 0$) 18.

3.2. Tunnelling molecule

As another example, let us consider a toy version of an atom (or a molecule) of mass m moving in the z direction with momentum $p_0$, but with a split wave packet in the transverse ($x,y$) plane,

$$\Psi =e^{i{p}_{0}z/\hslash }\psi (x,y),\psi (x,y)=c_1{\psi }_1(x,y)+c_2{\psi }_2(x,y),$$

(3.24)

where ${\psi }_1$ and ${\psi }_2$ are narrow (free) wave packets centered at ${\mathbf{r}}_1=(x_1,y_1)$ and ${\mathbf{r}}_2=(x_2,y_2)$, respectively. This is somewhat analogous to the wave function of the silver atom (2.8) or of the $C_{70}$ molecule (2.16). Actually, we take also for the longitudinal wave function a wave packet, ${\chi }_{p_0}(p,z)$, by considering a linear superposition of the plane waves $e^{ipz/\hslash }$ with momentum p narrowly distributed around $p=p_0$. For instance a Gaussian distribution in p, $\sim e^{-{(p-p_0)}^2/b^2}$, yields a Gaussian longitudinal wave packet in z of width $\sim 2\hslash /b$. At times much smaller than the characteristic diffusion time $t\ll \frac{2m\hslash }{b^2}$ 19, the particle is approximately described by the wave function,

$${\Psi }_{asymp}\sim e^{i{p}_{0}z/\hslash }{e}^{-i{p}_0^{2}t/2m\hslash }{e}^{-\frac{b^2}{4{\hslash }^2}{(z-\frac{p_{0}t}{m})}^2}\psi (x,y).$$

(3.25)

Assume that such a particle is incident from $z=-\infty$ ($t=-\infty$), moves towards right (increasing z), and hits a potential barrier (Figure 7),

$$V=\left\{\begin{array}{cc}0,\hfill & \left|z\right|>a,\hfill \\ V\left(z\right),\hfill & -a<z<a\hfill \end{array}\right.$$

(3.26)

whose height is above the energy of the particle, approximately given by the longitudinal kinetic energy, $E\simeq \frac{p_0^2}{2m}$. As the longitudinal and transverse motions are factorized, the relative frequencies (probabilities) 20 of finding the particle on both sides of the barrier (barrier penetration and reflection) at large t can be calculated by the standard one-dimensional QM. The answer is well known: the tunnelling frequency is given, in the semi-classical approximation, by

$$P_{tunnel}={\left|c\right|}^2,c\sim e^{-{\int }_{-a_0}^{a_0}dz\sqrt{2m\left(V\right(z)-E)}/\hslash },$$

(3.27)

($V\left(z\right)-E>0,-a_0<z<a_0$). The particle on the right of the barrier is described by the wave function

$${\Psi }_{penetrated}\simeq c{\Psi }_{asymp}=c{e}^{i{p}_{0}z/\hslash }{e}^{-i{p}_0^{2}t/2m\hslash }{e}^{-\frac{b^2}{4{\hslash }^2}{(z-\frac{p_{0}t}{m})}^2}\psi (x,y),$$

(3.28)

where c is the transmission coefficient of (3.27). The transverse, coherent superposition of the two components (sub wavepackets), (3.24), remains intact. See Figure 7.

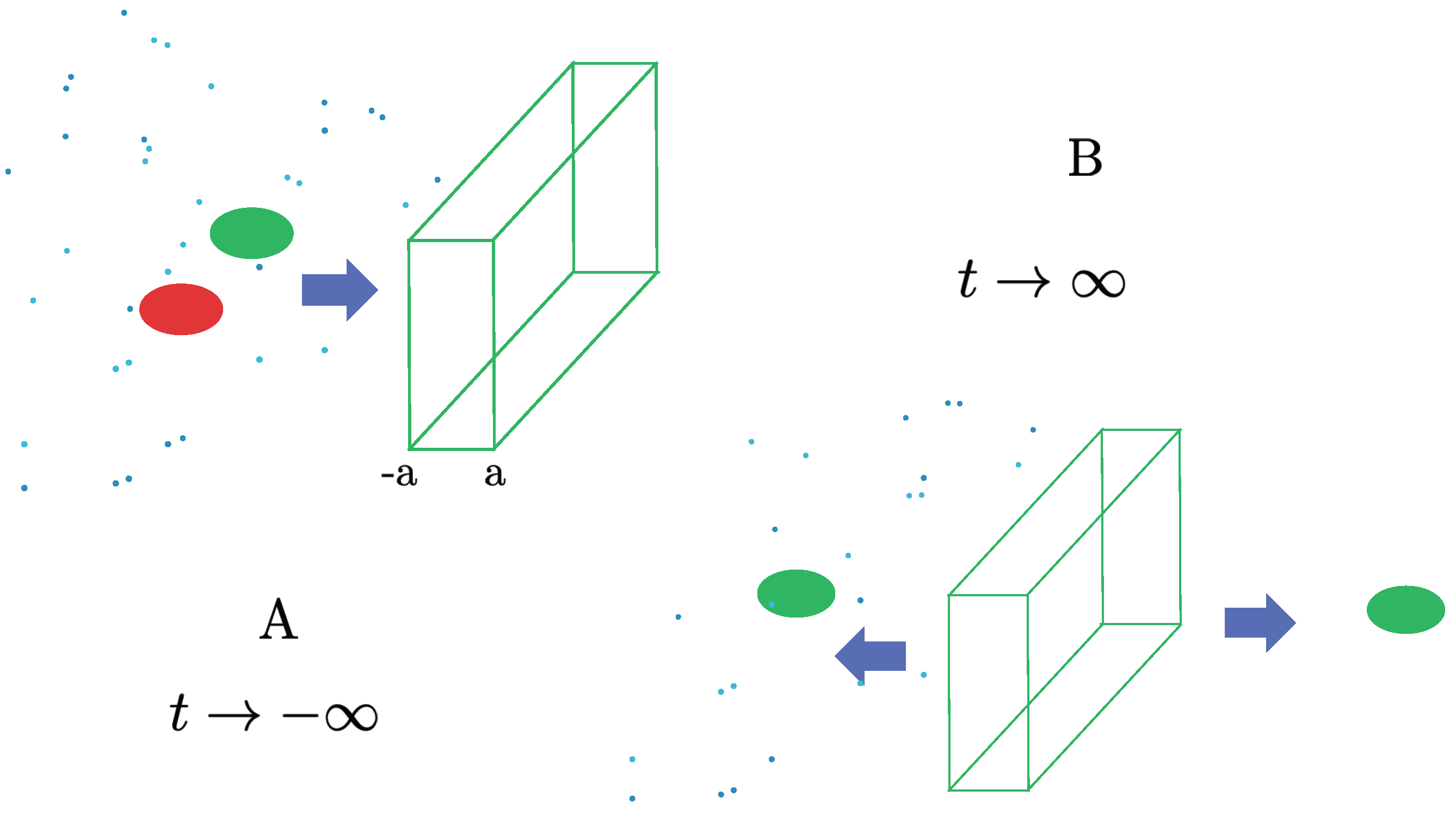

Now reconsider the whole process, with the region left of the barrier ($z<-a$) immersed in air 21. The precise decoherence rate depends on several parameters, but the incident particles get decohered in a very short time in general, as in (3.10) [9,10,11,12,13,14]. The particle at the left of the barrier 22 is now a mixture: each atom (molecule) is either near ${\mathbf{r}}_1=(x_1,y_1)$ or ${\mathbf{r}}_2=(x_2,y_2)$ in the transverse plane. But when it hits the potential barrier it will tunnel through it, with the relative frequencies (3.27), and will emerge on the other side of the barrier as a free particle. It has the wave function, (3.28), with $\psi (x,y)$ replaced by ${\psi }_1(x,y)$, with relative frequency $|c_1{|}^2/\left(\right|c_1{|}^2+|c_2{|}^2)$, and by ${\psi }_2(x,y)$, with frequency $|c_2{|}^2/\left(\right|c_1{|}^2+{\left|c_2\right|}^2$). It is a statistical mixture, but each is a pure quantum mechanical particle. See Figure 8.

Our discussion above assumes that the air molecules (the environment particles) are just energetic enough (their de Broglie wave length small enough) to resolve the transverse split wave packets (see (3.10)), but are at the same time much less energetic than the longitudinal kinetic energy $\frac{p_0^2}{2m}$ and that their flux is sufficiently small. In writing (3.28) we assumed that the effects of the environment particles on the longitudinal wave packet are small, even though the tunnel frequency may be somewhat modified, as it is very sensitive to its energy.

Obviously, in a much warmer and denser environment the effects of the scatterings on our molecule would be more severe, and the tunnelling rate would become considerably smaller. Even then, our atom (or molecule) remains quantum mechanical 23.

4. Abstract concept of “particle of mass m"

It is customary to consider an otherwise unspecified “particle of mass m", to discuss model systems, both in quantum mechanics and in classical mechanics. We will see that the consideration based on such an abstract concept of a particle cannot be used to discriminate classical objects from quantum mechanical systems, or as a way to explain the emergence of classical mechanics from QM.

Let us consider a $1D$ particle of mass m, moving in a harmonic-oscillator potential

$$H=\frac{p^2}{2m}+\frac{m{\omega }^2}{2}{x}^2.$$

(4.1)

The coherent state is defined by $a|\beta \rangle =\beta |\beta \rangle ,$ where a is the annihilation operator. Its well-known solution, in the coordinate representation, is just the Gaussian wave packet 24

$$\psi \left(x\right)=\langle x|\beta \rangle =\mathcal{N}exp\left[-\frac{{(x-x_0)}^2}{4D}+i\frac{p_{0}x}{\hslash }\right],$$

(4.3)

with

$$D=\langle {(\Delta x)}^2\rangle =\frac{\hslash }{2m\omega }.$$

(4.4)

The Schrödinger time evolution can be expressed as the time variation of the center of mass and its mean momentum, $x_0\to x_0\left(t\right),p_0\to p_0\left(t\right),$

$$x_0\left(t\right)=Acos(\phi +\omega t)p_0\left(t\right)=m\omega Asin(\phi +\omega t).$$

(4.5)

while the wave packet shape and size (4.4) remain unchanged in time. This looks exactly like the motion of a classical oscillator of mass m and size D!

It is sometimes thought that such a behavior of the coherent states carries the key to understand the emergence of classical mechanics from QM. There are however reasons to believe that this may not be quite the correct way of reasoning.

In order to see that such an identification/analogy cannot be pushed too far, consider the quenching, i.e., turning off the oscillator potential suddenly, setting $\omega =0$, at $t=t_0$. The particle starts moving freely, with the initial condition, $(x_0\left(t_0\right),p_0\left(t_0\right))$.

The problem is that there is no way to tell what happens at $t\ge t_0$. A quantum mechanical particle would diffuse, with the rate depending on mass, as in Table 1. A classical particle does not diffuse. The expression “a particle of mass m" does not tell if it is a quantum or a classical particle, and what the true size of the body, $L_0$ (unrelated to D) is.

Note that by describing this body as a “particle", one has tacitly assumed that its physical size is irrelevant (i.e., $L_0=0$) to the model harmonic-oscillator problem. But the physical size of the particle, $L_0$, does matter. If its (unspecified) size were truly zero, it would be quantum mechanical, as $Q=R_q/L_0=\infty$. The lesson one draws from this discussion is that a model system based on an abstract “particle" concept, in which the information about $L_0$ is lacking, cannot be used to study the emergence of classical physics from quantum mechanics. Allowing for the decoherence effects, and selecting particular class of the mixed states as privileged ones by introducing some criteria, may not lead to a satisfactory understanding of how classical physics emerges from QM.

5. Discussion

An immediate implication of the introduction of the concept of quantum ratio is that the elementary particles are quantum mechanical. This is so even if under certain conditions such as envirornment-induced decoherence, they may be reduced to mixed states. They remain quantum mechanical. The distinction between the concept of mixed (quantum) states and classical states is essential. As the electron and photon are elementary particles they remain quantum mechanical even in warm and dense environment of biological systems.

We have studied the quantum ratio of some larger particles, atoms and molecules, via examination of various interferometry experiments, which indeed show that these particles behave quantum-mechanically, in the vacuum.

We discussed extensively in Section 3 several real and model examples involving atoms, molecules and elementary particles, to highlight the reasons why the environment-induced decoherence [9,10,11,12,13,14], in itself, does not make the particle affected classical, as often stated or assumed tacitly.

Though in a slightly different context, the so-called negative-result experiments or null measurements [48,49] tell us a similar story. There, the exclusion of some of the possible experimental outcomes (a non-measurement), by use of an intentionally biased measurement set-up, implies the loss of the original superposition of states. But the predicted state of the system is still perfectly a quantum-mechanical one, though it now lives in a more restricted region of the Hilbert space. See [45] for a recent review and for a careful re-examination of the interpretation of these negative-result experiments.

All these discussions lead us naturally back to the recurrent theme in quantum mechanics: mixed state versus pure quantum states. As is widely acknowledged, there are no differences of principle. As famously noted by Schrödinger, a complete knowledge of the total, closed system $\Sigma$ (its wave function, the pure state vector) does not necessarily mean the same for a part of the system ($A\subset \Sigma$).

Only in exceptional situations in which the interactions and correlations between the subsystem of our interest (“local", A) and the rest of the world (“rest", $\Sigma /A$) can be neglected, and therefore the total wave function has a factorized form

$${\Psi }^{\Sigma }\simeq {\psi }^A\otimes {\Phi }^{\Sigma /A},$$

(5.1)

can we describe the local system A in terms of a wave function. Whenever the factorization (5.1) fails, system A is a mixture, described by a density matrix.

The quantum measurement is a process in which the factorized state (5.1), where ${\psi }^A$ is the quantum state of interest, and the measurement device ${\Phi }^0$ is part of ${\Phi }^{\Sigma /A}$, is brought into an entangled state, triggered by a spacetime pointlike interaction event [7,45,46].

Even a macroscopic system can be brought to the pure-state form ${\psi }^A$ as in (5.1), at sufficiently low temperatures. At $T=0$ any system is in its quantum mechanical ground state. See [15,16,17,18,19,20,21,22,23,24,25,26] for the efforts to realize such macroscopic quantum states experimentally by going to very low temperatures.

Vice versa, classical equation of motion describes the CM of a macroscopic body at finite temperatures. When three conditions

(i)

that for macroscopic motions (i.e., $\hslash \simeq 0$) the Heisenberg relation does not limit the simultaneous determination - the initial condition - for the position and momentum;

(ii)

the lack of quantum diffusion, due to a large mass (a large number of atoms and molecules composing the body); and

(iii)

a finite body temperature, implying the thermal decoherence and mixed-state nature of the body,

are met, the CM of a body has a unique trajectory [1]. Newton’s equations for it follow from the Ehrenfest theorem. If the quantum fluctuation range $R_q$ is not larger than the size of the body, i.e., $Q=R_q/L_0\lesssim 1$, then such a trajectory can be regarded as the classical trajectory of that body.

To summarize, introduction of the quantum ratio is an attempt to go beyond the familiar ideas on the emergence of classical physics from QM, such as the large action, semiclassical limit (or $\hslash \to 0$) and Bohr’s correspondence principle, or the environment-induced decoherence [9,10,11,12,13,14]. Clearly, there is no sharp boundary between where or when QM or Classical mechanics describes a given system more appropriately. The quantum ratio is a proposal for an approximate, but simple, universal criterion for characterizing the two kinds of physical systems: quantum ($Q\gg 1$) and classical ($Q\lesssim 1$).
