Oleogel-Based Nanoemulsions for Beverages: Effect of Self-Assembled Fibrillar Networks on Stability and Release Properties of Emulsions

1. Introduction

Beverage emulsions are unique and challenging, as they should be stable in both concentrated and diluted forms for at least six months [1,2]. Such a high stability is achieved by adding high concentrations (~20-30 %) of weighting agents and hydrocolloids are added to stabilize the dispersed oil and continuous water phases, respectively [3,4]. Brominated vegetable oil, sucrose acetate isobutyrate, ester gum and damar gum are the commonly used weighting agents in the industries [2]. In case of hydrocolloids, amphiphilic polysaccharides such as Gum Arabic and modified starches (Octenyl-succinated starch) are most commonly used [5,6]. Along with high amounts of stabilizers and surfactants, addition of flavors, preservatives and colors make beverage emulsions very complex. Reducing the surfactant and stabilizer concentration is one of the main challenges of beverage industry. This challenge has been addressed by mixing variety of stabilizers, synthesizing novel emulsifiers, changing process parameters [5,7,8,9,10]. However, there is scope for new approaches as complexity of beverage emulsions is still needed to be reduced.

Oleogels have emerged as structured fats that can potentially replace hard fats in bakery, meat, dairy, etc (Marangoni & Garti, 2015; R. Patel et al., 2014). Recently, there is a growing interest in developing novel oleogel-based emulsions for food applications [11], by using them as lipids’ modulators. Crystals of monoglycerides [12], wax crystals [13], modified cellulose fibers [14], self-assembled fibrous networks (SAFiNs) of oleogelators [15] have proven their efficiency as emulsion stabilizers in spreaders [13], creams [16], salad dressings [17], and etc. However, these gel-based emulsions use additional surfactants and stabilizers. We are aware of only one publication, where surfactant-free oleogel-based emulsions were prepared [18]. This recent work used homogenization of lecithin/ceramide oleogels to prepare the emulsions and studied their digestion.

Inspired by the above, we were encouraged to design oleogel-based nanoemulsions (NEs) for beverages. The preparation of beverage emulsions traditionally involves two stages of high pressure and high energy homogenization. In this work, a systematic study was conducted to optimize sonication parameters for preventing the excess and insufficient homogenization. Sunflower oil was structured using biocompatible gelators, lecithin (L) in combination with either stearic acid (Sa) or sorbitan tristearate (St). To our knowledge, emulsification ability of lecithin-St (LSt) has never been explored before. We put a significant emphasis on stability of the prepared NEs aiming to achieve the six-month stability. required for beverages application. We also check the NEs potential as controlled delivery carriers of bioactive agent, curcumin. In vitro release studies were conducted under simulated gastric and intestinal buffers containing pepsin and pancreatin, respectively. Since beverages are stored and transported under different conditions, the controlled release of curcumin was conducted at three temperatures (25, 37, 50 ℃).

We hypothesize that the self-assembled fibrous networks (SAFiNs) of oleogels would stabilize emulsions by structuring the dispersed oil and by increasing viscoelasticity, therefore emulsifying mechanism of SAFiNs was identified. Thus, this study would bring new knowledge in the fields of lipids and colloid science and expected to be useful for designing novel food and beverage emulsions with improved properties.

2. Materials and Methods

2.1. Materials

Analytical grade reagents were used in this study. Soy lecithin, Sa, and St were purchased from Acros Organics, thermos scientific, Agene international Ltd, respectively. Composition of soy lecithin is heterogeneous with a total phospholipid content of 97.7 wt%, specifically, 55.3% phosphatidylcholine, 25.3% phosphatidylethanolamine, and 17.1% phosphatidylinositol. Na2HPO4, KH2PO4 NaCl, KCl, and sodium azide were purchased from Fisher Scientific, U.K. Pure curcumin (99 %), Trypsin (1:250), pepsin (3000 Unit/g) and lipase (activity eq. to 1 NF) were purchased from Sigma Aldrich, Israel. Sunflower oil was purchased from local supermarket. Ultrapure (type 1) water was from a Merck Milli-Q Synergy® UV water purification system with a resistivity of 18.2 MΩ·cm (Darmstadt, Germany).

2.2. Preparation of Oleogel-Based Nanoemulsions

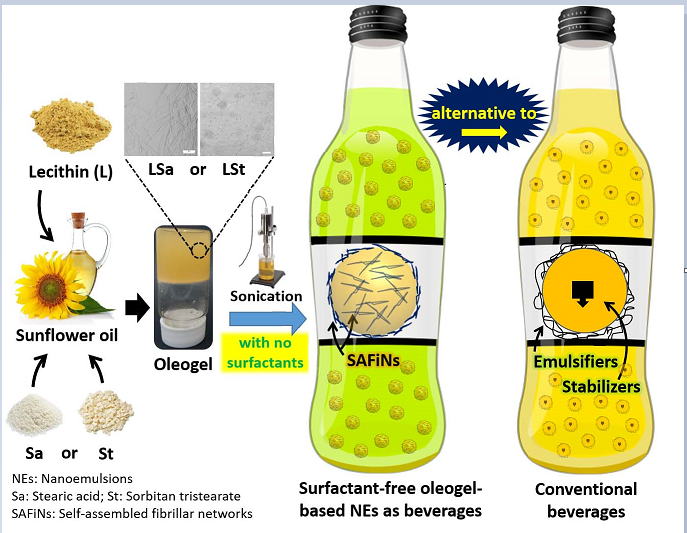

The oleogel-based NEs were formulated by a simple two-step approach, where oleogels were prepared, followed by ultrasonication. In the first step, gelators (1:1 lecithin:stearic acid (LSa) or 1:1 lecithin:sorbitan tristearate (LSt)) were solubilized in sunflower oil by heating at 80 °C and stirring at 500 rpm for 30 min. After complete dissolution, the mixture was allowed to cool to room temperature. Formation of oleogels was tested after 24 hours by inverted vial method. In case of curcumin-loaded oleogels, the curcumin and molten gelator mixture stirring was continued an hour before cooling.

In the second step, nanoemulsions were formed. Oleogels were pre-sheared at 1,000 rpm for 10 min to achieve uniform emulsification and mixed with aqueous phase (ultrapure water and 0.01 % w/w sodium azide to prevent microbial growth) at the same speed for another 15 min to form a coarse emulsion. Then the mixture was transferred to an ice bath and sonicated using a probe sonicator (Vibra-Cell, Sonics & Materials, Inc. USA) under pulse mode of 10s ON and 5s OFF. The resulting emulsion was stored at 4 °C.

The process and formulation variables were optimized as per Table 1. The acronyms for oleogels were given according to their gelator concentrations. For example, 10LSa and 10LSt represents 10 % (w/w) 1:1 LSa and 1:1 LSt in sunflower oil, respectively. For NEs, the added water concentration was used. For e.g., 10LSaW30 denotes the emulsion of 10LSa oleogel with 30 % (w/w) water.

2.3. Characterization of Oleogel-Based Nanoemulsions

2.3.1. Emulsion Stability Studies

Stability of the oleogel-based nanoemulsions (NEs) was evaluated periodically for every month by examining their physical appearance over a period of six months. The dynamic stability of NEs was tested by an analytical centrifuge, LUMiSizer® (LUM, GmbH, Berlin, Germany). 400 µl sample was carefully loaded along the walls of the polycarbonate cuvettes to avoid air bubbles. The cuvettes were centrifuged at 3000 RPM for three hours at 25 ℃. The obtained data was analyzed using SEPView software v 4.1 of the instrument.

2.3.2. Average Particle Size, PDI and ζ-Potential

The average particle size (D_avg), polydispersity index (PDI) and ζ-potential of the emulsions were determined by the dynamic light scattering (DLS) method using a Zetasizer Nano ZS90 (Malvern Instruments Ltd, Worcestershire, UK) [19]. The instrument was equipped with a He-Ne laser (Power: 4.0 mW) working at 633 nm with a backscatter detector stationed to detect scattering angle of 173° at 25 ℃. Prior to the analysis, the test samples were diluted (dilution factor: 1:4000) and then used.

2.3.3. Microscopy

Light microscopy was performed on oleogels and coarse emulsions using Olympus BX53, Tokyo, Japan. The confocal micrographs were taken using a Nikon C2 microscope (Nikon Inc., Mississauga, ON, Canada). For this, 0.01 wt% Nile red (excitation at 543 nm and detection in the range of 573-613 nm) was mixed with molecular gelators (Sa and St) and incubated at 70 ℃ and 200 RPM for overnight in an orbital shaker incubator. The Nile red stained gelators were then used for preparing oleogels and emulsions for confocal microscopy. The choice of Nile red was made based on the fact that it is less sensitive to high temperature [20].

2.3.4. Rheometry

Rheometer (HAAKE MARS 40, Thermo Scientific, Germany) equipped with parallel plate geometry (diameter 25 mm, gap 1 mm) was used [12]. An oscillatory shear from 0.0001 to 1 s^-1 at a constant frequency of 1 Hz was applied on oleogels and emulsions. After finding the linear viscoelastic region (LVR) from amplitude sweep, oscillatory frequency sweep was carried out from 0.1 Hz to 10 Hz at a constant shear of 0.001 s^-1. Presence of gelator network within the NEs was verified by subjecting them to temperature ramp from 25 to 75 ℃ at 5 ℃/min at constant oscillatory shear (5 rad) and frequency (0.5 Hz). Apparent viscosity of the samples was determined by increasing the rotational shear rate from 0 to 50 s^-1 under continuous ramp mode. All the tests were carried out after equilibrating the samples at a shear of 0.0001 s^-1 for 2 min at 25 ℃.

2.4. Curcumin Release Studies

2.4.1. Determination of Curcumin Solubility

Curcumin solubility was determined by an incremental addition method [21]. Curcumin was added with 5 mg increments to 5g of either pure oil or molten oleogel with varied gelator proportions, at 80 ℃, 500 rpm for 1 h. Solubility was assessed by checking the precipitation after centrifugation at 5,000 rpm for 5 min. Curcumin solubility in the supernatant was determined by measuring the absorbance at 430 nm using UV-visible spectrophotometer (UV-1800 Shimadzu, Germany). The highest curcumin concentration at which neither opalescence nor precipitation was observed was noted as its maximum solubility in the tested systems.

2.4.2. Determination of Curcumin Entrapment Efficiency

The amount of curcumin entrapped within the dispersed oleogel particles of the NEs was determined as previously described [22]. Briefly, samples were centrifuged at 5,000 rpm for 5 min. An aliquot of 30 µl supernatant was diluted in 1 ml isopropanol, vortex for 30 s, and sonicated for 10 min. After that, the sample was centrifuged at 10,000 rpm for 10 min. The supernatant was collected, and curcumin absorbance was measured at 430 nm. A calibration curve of curcumin in isopropanol was generated using a serial dilution from 0.008 to 0.001 mg/mL (R² = 0.997). The entrapment efficiency (EE) was calculated using the following equation.

$$EE\left(\%\right)=\frac{Amountofloadedcurcumin}{Initialamountofcurcuminintheformulation}\ast 100$$

2.4.3. In Vitro Release Studies

The suitability of NEs as controlled carriers was studied in simulated gastric fluid (SGF) and simulated intestinal fluid (SIF) conditions [12,23]. The SGF mixture (125 mM NaCl, 7 mM KCl, 45 mM NaHCO₃ and 0.32% pepsin) was added to the curcumin emulsion in the ratio of 3:1 and adjusted to pH 1.2 ± 0.1. The mixtures were placed in a shaking incubator (100 rpm) at 37 °C for 3 h. Further, the intestinal conditions were simulated by mixing equal volumes of gastric digested samples and SIF (10 mM phosphate-buffered solution (PBS), pH 7.2 ± 0.1, containing 1% (w/v) pancreatin) and incubated in shaker incubator (100 rpm) at 37 °C for 6 h. While incubation sampling (0.5 ml) was done for every 30 min, followed by centrifugation at 10,000 rpm and 4 °C (to stop the digestion process) for 10 min and then the released curcumin was spectrophotometrically measured at 430 nm. The effect of temperature on the release of curcumin was studied by following the same procedure in phosphate buffer, pH 7.0 at 25 and 50 ℃.

2.5. Statistical Analysis

All experiments were performed in triplicate and the results were reported as the mean ± standard deviation. The results were evaluated using one-way analysis of variance (ANOVA) at a significance level of 0.05 using Origin® software (ver. 8.5, OriginLab Corporation, Northampton, MA, USA).

3. Results and Discussion

3.1. Preparation and Optimization of NEs

The oleogel-based NEs were formulated by a simple two-step approach, where oleogels were prepared, followed by ultrasonication with aqueous phase. The crystal morphology of oleogels was identified after checking their physical stability. All LSt and LSa oleogels were stable, except 5LSt (the oleogel with 5 % LSt in sunflower oil) that showed the flow of oil (Figure 1a). Light microscopy revealed large interconnected fibers and small, hair-like fibers in LSa and LSt oleogels, respectively (Figure 1a). The formation of independent small fibers with no interconnections created sparse gelator networks in LSt oleogels (insert in Figure 1a). This kind of microarchitecture seems responsible for the poorer gelation of LSt compared to LSa. Amongst the stable oleogels, 10LSa and 10LSt (oleogels with 10% LSa and LSt, respectively) were chosen to make NEs (Figure 1b). Once the emulsifying ability of oleogels was identified, process conditions were optimized according to the levels given in Table 1 (Details of optimization studies are given in supporting information). The optimized parameters to obtain stable NEs were found to be as follows, 50% sonication amplitude for 5 min, 70% w/w water fraction and 10-30% oleogel fraction (Table 2). At higher oleogel fraction, emulsions could not form because of non-uniform homogenization.

3.2. Determination of Emulsification Mechanism

The influence of lecithin has been different on both oleogels, evident from their microstructures. For better understanding, microscopy was conducted upon controls that contain oil with pure gelators (lecithin, Sa, St). The concentration of gelators in controls was maintained identical to the concentrations in the sTable 10LSa and 10LSt oleogels. The inverted vials in Figure 2 (on the left) shows that lecithin and St lack the capability to structure sunflower oil, while Sa demonstrated this capability. Light microscopy could not identify the micellar structures of lecithin, whereas Sa oleogels showed needle-like thin fibers (Figure 2b), which is in agreement with the published literature [24,25]. In the presence of lecithin, Sa fibers diameter increased and formed thick, birefringent fibers (Figure 2d, 1a). The effect of lecithin on St oleogels is even more pronounced. Pure St formed small crystals, appeared as dark spots (Figure 2c). In the presence of lecithin, small hair-like fibers were formed with no branching (Figure 1a and Figure 2e). This indicates that lecithin is acting as crystal habit modifier as the size and shape of Sa and St crystals was altered. The change in gelators’ microstructure and increased gelation efficiency indicates the synergetic action of lecithin with Sa and St gelators. In addition to the role of crystal habit modifier, lecithin performs a secondary function of promoting weak and transient junctions between the SAFiNs and water by forming hydrogen bonds [26,27]. These junctions create additional stabilizing networks within and around the dispersed oil with water, thereby facilitating the gelled-oil dispersions.

The emulsifying ability of gelators was studied using confocal microscopy at each stage of emulsification, before (coarse emulsions) and after (fine emulsions) sonication. Irrespective of gelator type, both the emulsions showed sunflower oil dispersion (red) in aqueous (dark background) medium. Either pure or in association with lecithin, St showed better emulsification, having smaller and uniform droplets in comparison to Sa. The coarse emulsions of Sa and LSa showed fibers in water phase, indicating the phase partitioning of fibers during homogenization. Since Sa fibers are hydrophobic, in control sample it can be seen that some of them aggregate (indicated by arrows in Figure 2b) to minimize their contact area with the surrounding aqueous phase. Notably, in LSa-based coarse emulsions, such fiber aggregation is minor, since lecithin stabilizes LSa fibers in water by forming hydrogen bonding. In case of St and LSt coarse emulsions, St fibers were too small to be seen under the microscope. This indicates that the interfacial and/or phase partitioned self-assembled fibril networks (SAFiNs) provide steric stabilization. This type of colloidal stability was seen with the fibers of Quillaja saponin and ethyl cellulose [14,28]. Unlike Sa fibers, St have polar sorbitol moiety, therefore aggregation was not manifested. The effect of SAFiNs was more evident after sonication, where 10LSa and 10LSt formed stable nanoemulsions but not the controls (vials of fine emulsions in Figure 2). In nanoemulsions, some of the dispersed oil droplets showed fluorescence indicating the presence of gelator fibers within them. Along with the fluorescent droplets, dark colored oil droplets are also seen (indicated by arrows in Figure 2d,e). This could be because of the loss of fibers to the surrounding aqueous phase during sonication. As the majority of the droplets showed fluorescence, confocal microscopy confirms the retention of gelator networks in the dispersed oil.

Both SAFiNs within the oil phase and phase partitioned SAFiNs in the aqueous phase are responsible for the stability of the emulsions. The phase partitioned SAFiNs provide the steric stabilization and SAFiNs within the oil phase prevent the phase separation by enhancing the viscoelasticity of oil phase.

Figure 2. Micrographs and vials of oleogels and emulsions of (a) lecithin (b) Sa, (c) St, (d) 10LSaW70 and (e) 10LStW70 Left to right: Light micrograph of each gelator is followed by confocal micrographs of coarse and fine emulsions. The scale bars in oleogels (left), coarse (middle) and fine (right) emulsions denotes 100 µm, 20 µm and 10 µm, respectively.

Figure 2. Micrographs and vials of oleogels and emulsions of (a) lecithin (b) Sa, (c) St, (d) 10LSaW70 and (e) 10LStW70 Left to right: Light micrograph of each gelator is followed by confocal micrographs of coarse and fine emulsions. The scale bars in oleogels (left), coarse (middle) and fine (right) emulsions denotes 100 µm, 20 µm and 10 µm, respectively.

3.2.1. Size and ζ-Potential of the NEs

The stability was further estimated by DLS on both fresh and diluted NEs with 70 % w/w water fraction. The freshly prepared 10LSaW70 and 10LStW70 were diluted 10x and stored at 4 ℃. Light microscopy showed polydispersed droplets in all the coarse emulsions (Figure 3). The notable difference is that 10LSt emulsions have smaller droplets. DLS upon NEs showed that D_avg was less in both concentrated emulsions (Figure 3e). The larger D_avg and PDI of diluted emulsions can be attributed to the lack of sufficient amount of stabilizing gelators. ζ-potential values were found to be in the range of -18 to –32 mV for all the concentrated and diluted emulsions (Figure 3e). When tested after six months of storage, an insignificant decrease in the ζ-potential values (-29 to -16 mV) was observed in the NEs (Figure S4). This indicate that SAFiNs have prevented the oil droplets coalescence and stabilized the NEs. The insignificant change in droplets size was also evident from the D_avg and PDI values (Figure S4).

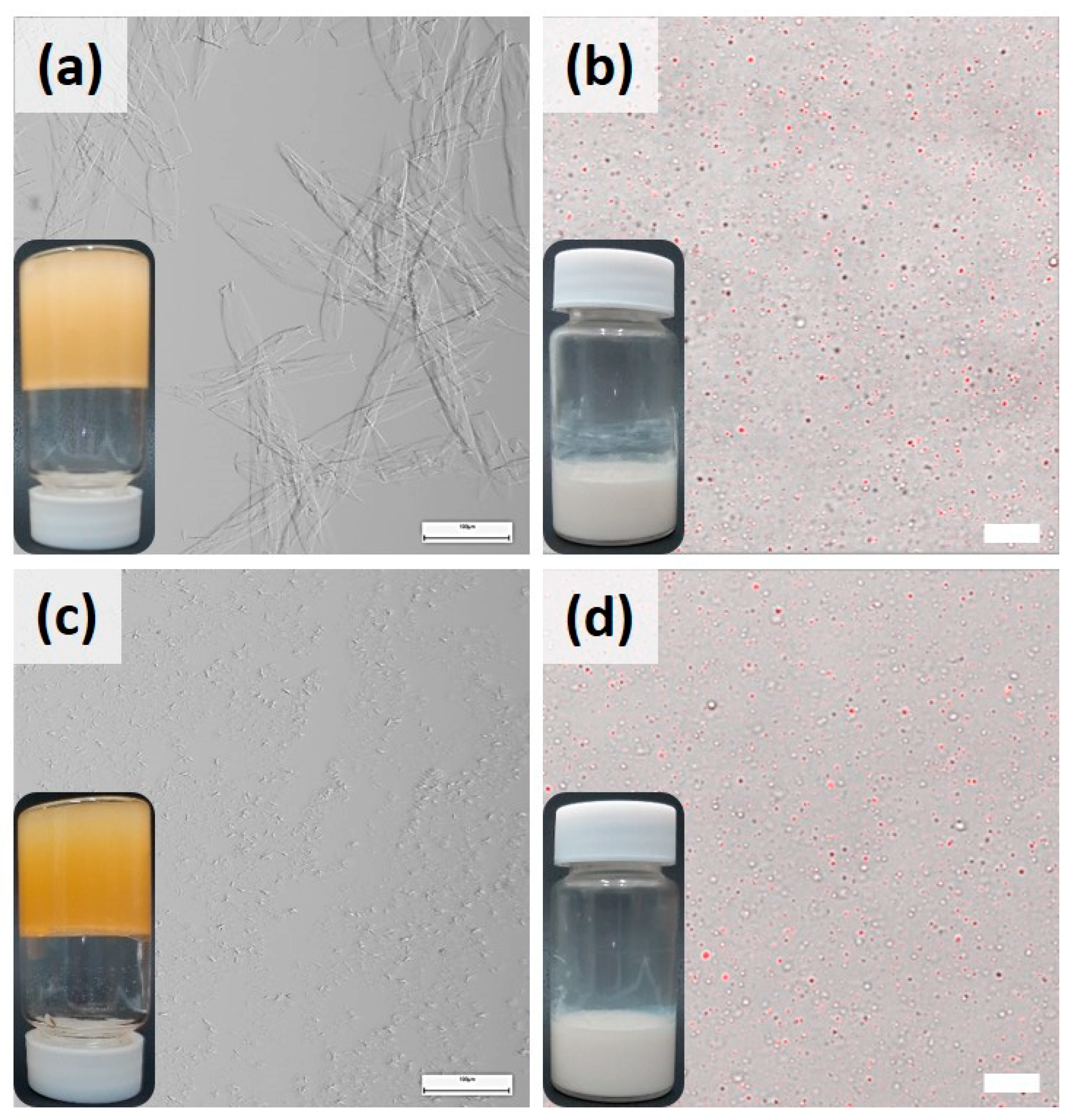

Confocal micrographs also confirmed the stability of stored NEs by showing distinct dispersed oil droplets (Figure 4b,d). The structural integrity of SAFiNs after the storage was proved by conducting light microscopy upon the corresponding oleogels (Figure 4a,c). Their microstructure remained same as that in the fresh oleogels (Figure 1a), henceforth, NEs stability was maintained during the storage. Though the concentrated emulsions remained stable (Figure 4), faint phase separation was seen in the diluted 10LSaW70 emulsion (Figure S5). This indicates the weak emulsification efficiency of LSa’s large SAFiNs. Based on the obtained results, it was inferred that stable NEs for long term use can be prepared using 10LSa and 10LSt oleogels without adding additional surfactants. This study also proves the higher emulsification efficiency of LSt’s short fibers against LSa’s long fibers.

3.2.2. Oil Syneresis from NEs

The emulsifying efficiency of SAFiNs was further understood by observing the phase separated oil (oil syneresis) from NEs. This study was conducted upon NEs with 30, 50 and 70% w/w water. The emulsions with higher oleogel fraction (10LSaW30, 10LStW30) showed the oil syneresis (Figure S5). At higher concentration of gelators, the SAFiNs might have aggregated to minimize the interfacial tension with water, which in turn lead to the oil droplets coalescence and phase separation. The aggregation of SAFiNs was noticed in 10LSaW70 too (Figure 2d). This process seems intensified in the emulsions having higher SAFiNs fraction. The emulsifying efficiency of SAFiNs was understood by quantifying the oil syneresis in 10LSaW30 and 10LStW30 for six months (Figure S6). Oil syneresis was higher in the first two months and then reached plateau in both the emulsions. Higher syneresis in 10LSaW30 indicate that long fibers of LSa have poor emulsifying efficiency compared to the short fibers of LSt.

3.2.3. Dynamic Physical Stability of the NEs

The long-term stability and underlying destabilizing mechanism of NEs phase separation was determined using Lumisizer, a photocentrifuge. The test was conducted upon liquid NEs (10LSaW70, 10LStW70, 10LSaW90 and 10LStW90) as the transfer of thick emulsions (e.g. 10LSaW30, 10LStW30) into the Lumisizer cuvettes was tedious. Figure 5 shows the profiles of diluted NEs (10x), as it was difficult to decipher the destabilizing phenomenon using the data obtained from the original NEs (Figure S7). The initial high transmission of near 85 % due to empty cuvette (shaded region) was dropped to almost zero at about 110 to 115 mm, indicating the top surface of the turbid emulsions. The initial profiles (red colored bottom lines) of the emulsions remained close to zero, meaning that no light transmitted through the tubes due to the homogeneous distribution of the dispersed oleogel in the emulsions. As the centrifugation progresses, movement of transmission (indicated by arrow in 10LStW50 profile of Figure 5) towards the left of the graph was seen and ended with green colored lines for the final transmission. This kind of transmission progression indicates that creaming as the mode of destabilization mechanism. Oil syneresis study for six months also showed this mode of phase separation.

The stability of NEs was quantified by calculating the emulsion instability index (EII) (Detloff, Sobisch, & Lerche, 2013). Briefly, EII quantifies the clarification in transmission based on particle size and separation at a given time during centrifugation divided by the maximum clarification possible (Yerramilli & Ghosh, 2017). Higher EII indicates that higher creaming occurred in 10LSa-based emulsions (Figure 5). Also, higher EII was observed with 10LSaW90 and 10LStW90, but the differences are not significant (P>0.05) compared to 10LSaW70 and 10LStW70, respectively. The higher EII of 10LSaW90 and 10LStW90 confirms the lack of sufficient gelator network for stabilizing the dispersed phase. The increase in thickness of the cream layer could also be due to the migration of gelator fibers along with the oil droplets. The phase separation behavior can be corroborated with the dispersed particle size distribution of the NEs. D_avg of the dispersed oleogel particles in the NEs (from DLS study) was also plotted in Figure 5, and has followed the similar trend as that of EII. The accelerated or dynamic stability studies infer that LSt emulsions are more stable compared to LSa emulsions. Additionally, the emulsions with 70 % w/w water tend to be more stable than the emulsions with 90 % w/w water fraction.

Thus, phase partitioned SAFiNs have provided steric stabilization to NEs. The difference in emulsification behavior of LSa and LSt oleogels is due to the presence of different sized SAFiNs. Short fibers of LSt are found to be effective emulsifiers compared to the long fibers of LSa. DLS studies (evident from D_avg, PDI and ζ-potential values), oil syneresis and dynamic stability studies (evident from EII values) have confirmed the emulsifying efficiency of SAFiNs.

3.3. Rheology Studies

3.3.1. Temperature Ramp

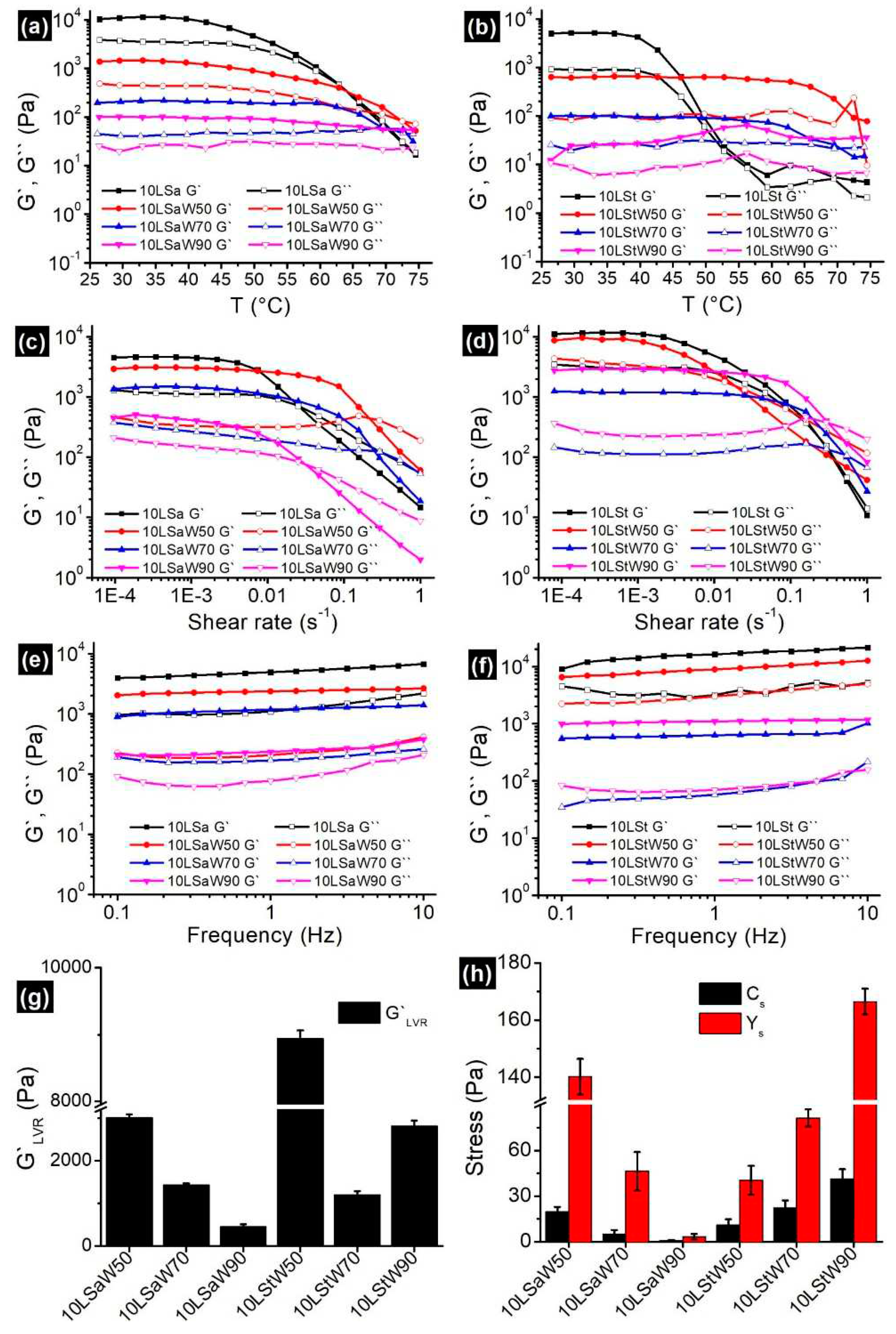

Oleogels are thermosensitive materials, a linear increase in temperature from 25 to 75 ℃ would divulge the information about the gelator networks in NEs. Both oleogels and NEs showed typical gel-like behavior by having G`>G`` (Figure 6a,b). In case of oleogels, decrease in G` was started at ~45 ℃. Disruption of junction zones was initiated at this temperature and this process continued until the complete breakdown of the gelator network. The gel-to-sol phase transition temperature (T_gs, the temperature at which the G` meets G``) for 10LSa and 10LSt are 62 ℃ and 55 ℃, respectively. Higher T_gs indicates that 10LSa is having higher thermal strength compared to 10LSt. The variation in T_gs can be attributed to the presence of more junction zones and interconnected long gelator fibers in 10LSa compared to 10LSt (evident from the oleogels micrographs in Figure 1 and Figure 2).

The observed solid-like behavior (G`>G``) can be attributed to the gelator networks in NEs. Unlike oleogels, the viscoelastic moduli of NEs were parallel to each other for longer duration of time. The decreasing distance between G` and G`` curves with increasing temperature indicates the loss of solid-like nature. The longer LVR in NEs indicates the decreased influence of temperature on SAFiNs. The lowered temperature effect is due to the random distribution of SAFiNs in the oil dispersion and also in aqueous phase (as phase partitioned SAFiNs). Higher thermal stability of NEs is also evident from higher T_gs (~70 ℃) in 10LSaW50 and 10LStW50 compared to their corresponding bulk oleogels. This kind of phase transition was not seen with the emulsions having higher water fraction (10LSaW90 and 10LStW90 in Figure 6a,b). The gel-to-sol transition in such emulsions might have gone undetected due to the presence of small amount of gelator network. Though thermal strength increased, the gel strength of NEs (G`_LVR, firmness) was decreased compared to bulk oleogels. The phase partitioning of gelators from oil droplets to the aqueous phase (seen in coarse emulsions, Figure 2) might lead to a reduction in gel strength and shift in T_gs [12]. Though the strength of NEs compromised, gelator partitioning prevented the phase separation by steric stabilization.

3.3.2. Amplitude Sweep

Both oleogels and the NEs showed LVR at lower shear rates, followed by an exponential decrease and then the cross-over of G` and G`` (Figure 6c,d). G′<sub>LVR</sub> (Figure 6g) and the distance between G` and G`` curves (Figure 6c,d) were found to be decreasing with the water fraction in NEs. Except 10LStW90, all the NEs followed the same pattern. The presence of shorter LVR length and smaller distance between the G` and G`` curves indicate that LSa NEs possess more rigidity compared to LSt NEs. The prevalent gelator junction zones in LSa emulsions have broken quickly at higher shear rates and led to shorter LVR compared to LSt emulsions. The sparse gelator networks in LSt oleogels and the corresponding NEs facilitated the prolonged reduction in elasticity. Interestingly, critical stress (C_s) and yield stress (Y_s) decreased with the increased water fraction in LSa emulsions; on the contrary, C_s and Y_s increased with the water fraction in LSt emulsions (Figure 6h). With the increase in water fraction, 10LSa-based NEs showed consistent decrease in the rheological parameters (G`_LVR, C_s and Y_s) that define the strength of the material. On the other hand, 10LSt-based NEs showed inconsistency to understand the influence of water addition to oleogels. The non-homogeneous and sporadic gelator fibers seem to be responsible for the inconsistency in rheological properties of LSt-based gelled-oil NEs.

3.3.3. Frequency Sweep

Predominant elastic gel-like behavior (G`>G``) with minimal dependency on the angular frequency (Figure 6e,f) was found in all the oleogels and NEs. The G` and G`` curves are almost parallel to each other and to the X-axis over the entire frequency range. The NEs with higher water volume showed positive slope, especially for G`` curves in both kinds of NEs, indicating their increasing viscous nature. Nearly independent viscoelastic nature can be attributed to the high inter-particle interactions, that prevent the coalescence of dispersed gelled-oil particles and impart stability to the emulsions [29]. Similar results were reported for oleofoams and emulsions for cosmetic and food applications [30].

3.3.4. Flow Ramp

A linear decrease in viscosity with the increasing shear rate without reaching the plateau indicates the power law relaxation mechanism (Figure S8a,b). The flow curves exhibited a typical shear thinning behavior with near constant viscosity at lower shear rates. The flow behavior of the NEs was understood by fitting the data (η_app: apparent viscosity, γ: Shear rate) in the modified Power law model, ${\eta }_{app}=K.{\gamma }^{n-1}$. This model confirms that NEs exhibited pseudoplastic shear thinning behavior. The flow behavior index (n) was found to be less than 1, confirming the non-Newtonian, pseudoplastic nature of the NEs (Figure S8c,d). The consistency index (K) values indicated that NEs stability decreased with the increase in water fraction.

3.4. Loading of CURCUMIN

The solubility of curcumin in pure sunflower oil was found to be 3.10 ± 0.1 mg/g and it aligns with the literature [31,32]. The solubility increased progressively with gelators’ concentration, reaching ∼125 % when LSt was 20 % w/w (Figure 7a). The increment was also seen with LSa (~35 %), but not as high as LSt. When St was added, curcumin forms complex through both polar hydrogen bonds and non-polar interactions [21]. However, only hydrophobic interactions occur between Sa and curcumin. Because of the differences associated with these mechanisms, the maximum solubilized curcumin was 5.5 ± 0.3 and 4.0 ± 0.2 mg/g in 10LSt and 10LSa oleogels, respectively. Based on this, uniform curcumin concentration (4mg/g) was chosen for encapsulation and in vitro release studies. The encapsulation efficiency (EE) of curcumin was in the order of 10LStW70>10LSaW70>Control (Table 2). The highest EE of LSt NEs is because of hydrogen bonds between the phenolic groups of curcumin and hydroxyl groups of lecithin and St [33].

3.5. In Vitro Release of Curcumin

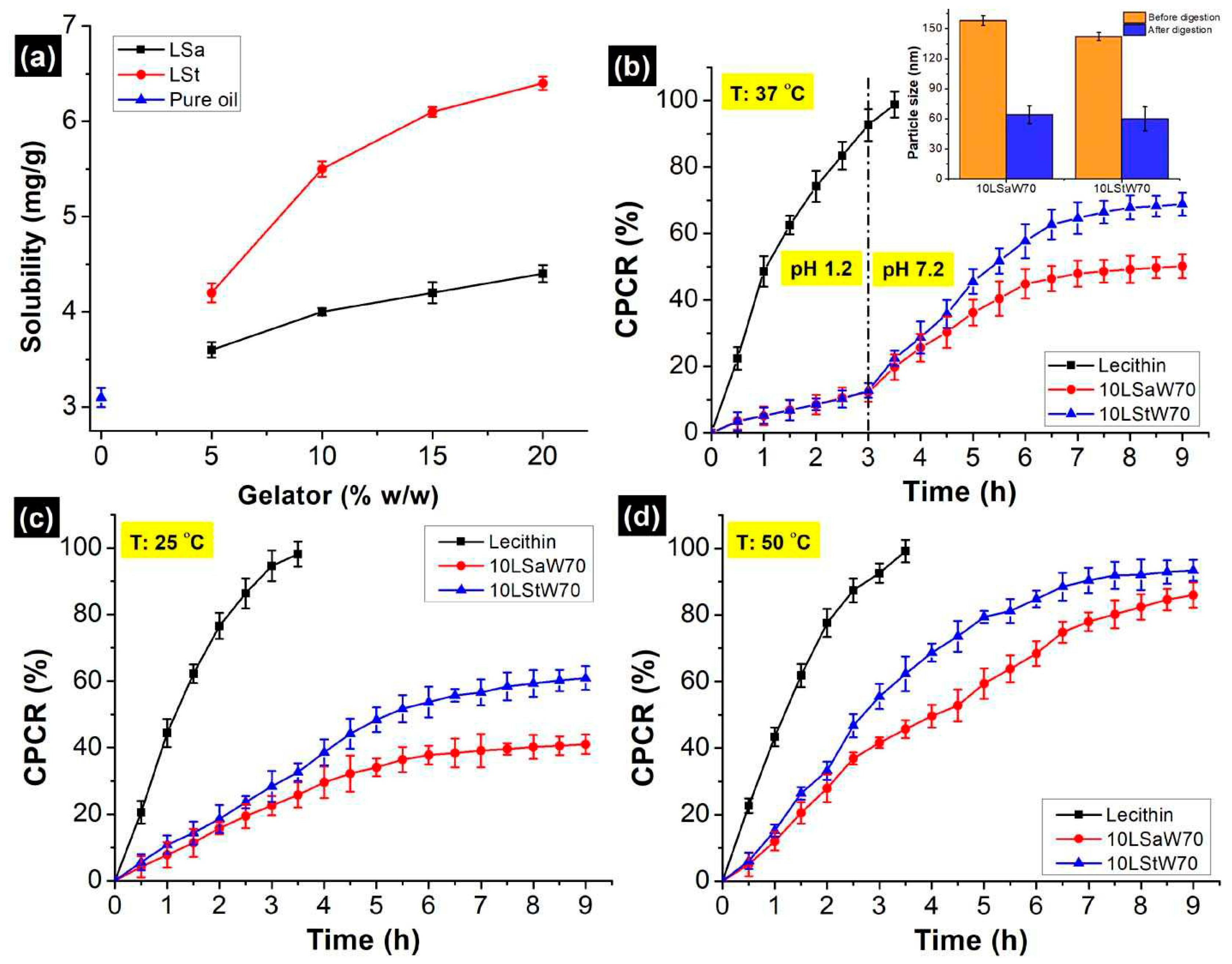

Curcumin release from the stable NEs (10LSaW70 and 10LStW70) and control (lecithin) was studied under in vitro gastric and small intestinal conditions. The control, a simple emulsion that do not consist gelator network, showed highest CPCR (cumulative percentage of curcumin release). After 3 h of gastric digestion, the observed CPCR from LSa, LSt and control emulsions are 7.72 %, 9.86 % and 85.4 %, respectively (Figure 7b). Higher retention can be corroborated to the gelator network within the oil droplets and the interfacial gelator fibers. Steric hindrances and lipophilic activity of the gelator self-assemblies might have created competitive environment for pepsin and prevented its adhesion on the oil droplets surface.

When the medium was changed to simulated intestinal fluid, more curcumin released in the same fashion (control > LSt > LSa). Since ~95 % of the curcumin was released within 4 h of digestion, further sampling was stopped from the control. After 6 h, the CPCR was 68.3 %, and 75.4 % from 10LSaW70 and 10LStW70 emulsions, respectively (Figure 7b). Though Sa and St are stable at intestinal pH, they are susceptible to pancreatin as the enzyme can digest fatty acids [34]. However, after 9 h of digestion, ~32% and ~25% of curcumin was still remained in the LSa and LSt emulsions, respectively. Pancreatin breaks lipids into small fat coacervates in the bolus [35,36]. In the present study, oleogels were also digested in the similar fashion and curcumin was trapped within the undigested gelator networks of oil coacervates. Formation of such particles was confirmed by DLS. This was done after passing the in vitro digested samples through 0.45 µm PTFE (polytetrafluoroethylene) syringe filters. The size of the oleogel particles was significantly lower compared to the undigested samples (insert in Figure 7b). The release profiles and curcumin retention after digestion indicates that better entrapment of curcumin was achieved within LSa and LSt networks of the NEs. The gelators’ networks acted as a physical barrier during curcumin release [12].

Temperature effect on gelator networks by releasing curcumin at 25 and 50 ℃ in neutral PBS (pH 7). Under both temperatures, a higher rate of release was observed initially and then plateau was reached (Figure 7c,d). The initial high release can be attributed to the release of unentrapped curcumin or release from the phase partitioned gelator fibers. The slow release of curcumin from the gelled-oil dispersion resulted plateau phase. Higher CPCR at 50 ℃ indicates that gelator networks are susceptible to high temperature. Destabilization of gelator network and increased solubility of curcumin at higher temperature are the probable reasons for the elevated CPCR. The higher CPCR from 10LStW70 suggest its weaker thermal strength against 10LSaW70 (evident from temperature ramp studies). It was shown that both the emulsions started losing linear viscoelasticity at ~45 °C. This suggest that the emulsions might have destabilized at the operated temperature (50 °C). Though the NEs are thermosensitive, the gelator networks have not completely lost their structural integrity, evident from the sustained curcumin release at 50 °C. This is because of the higher melting points of Sa (69.3 ℃) and St (53 ℃) with respect to the operated temperature.

4. Conclusions

LSa and LSt oleogels were used as the precursors for preparing stable nanoemulsion (NEs) without additional surfactants. It was found that the self-assembled fibrillar networks (SAFiNs) have dual function by structuring the dispersed oil and stabilizing the dispersion by stearic hindrance, performing similar role as the conventional emulsifiers and stabilizers. The presence of SAFiNs within the gelled-oil dispersions was confirmed by CLSM and rheological temperature ramp studies. The better performance of LSt was attributed to their sparsely distributed small fibers that result in more efficient self-assembled fibrillar networks. On the other hand, LSa formed large needle-like fibers.

The developed NEs demonstrated remarkable physical and thermal stability and were able to perform controlled release of curcumin, at three temperatures (25, 37 and 50 ℃) relevant to beverages use. Since reducing the use of surfactants and stabilizers is one of the main challenges in food emulsions, the developed oleogel-based NEs can become a promising platform for delivery of bioactive agents in beverages and other food applications.
