Spatial Distribution Characteristics of Soil C:N:P:K Eco-Stoichiometry of Farmland and Grassland in the Agro-Pastoral Ecotone in Inner Mongolia, China

1. Introduction

Ecological stoichiometry (ES) is a hot topic in the current biogeochemical cycle research [1], which combines the basic principles of chemistry, physics and biology to study the proportional relationship and the fluxes of various chemical elements in ecological processes. By analyzing the driving force and mechanism of element balance on ecological interaction, the research theories on elements and biosphere at different levels are organically unified [2]. Soil eco-stoichiometry is an important predictive index to reflect the composition of organic matter, biogeochemical cycle and soil quality, and also an important index to judge the mineralization and fixation of C, N, P, K elements [3]. Soil C:N ratio (R_CN) is a sensitive index reflecting the change of soil environment or soil quality. It can be used as an index to measure the mineralization ability of soil C and N, the decomposition rate of organic matter and the status of nutrient balance. Generally speaking, soil R_CN is inversely proportional to the decomposition rate of organic matter. Soil C:P ratio (R_CP) is a characterization parameter of phosphorus availability. The smaller the soil RCP, the higher the phosphorus availability in the soil. The N:P (R_NP) in soil is used as an indicator of nutrient-constrained productivity and general biogeochemical status. As a necessary element for plant growth, potassium (k) plays a very important role in the material chemical cycle of the earth, and it has gradually attracted the attention of ecological researchers [1]. C, N, and P chemometrics play an active role in ecosystem interactions and is an important way to understand the nutrient regulation factors of plant-litter-soil interaction [4,5,6]. The analysis of the spatial differentiation pattern of regional soil eco-stoichiometric characteristics is helpful to the comprehensive management and utilization of soil nutrients. However, the spatial and temporal variation pattern of soil C:N:P is not completely clear [7].

Land use change is a local environmental issue of global importance [8], Human beings have changed biogeochemical cycles at different scales through farmland reclamation, and the differences in the stoichiometric ratios of C, N and P in space and time have different impacts on biota [9,10,11]. Located between semi-humid and semi-dry areas, the agro-pastoral ecotone in Internal Mongolian is a transitional belt for farmland and grassland ecosystems and is the most sensitive and unstable area associated with the surrounding environment. From 1947 to 2021, the cultivated land area in the Inner Mongolia Autonomous Region increased from 3967,000 hm² to 11567,000 hm² (Statistics Bureau of Inner Mongolia Autonomous Region, 2023), and the change of cultivated land is mainly transformed from woodland and grassland [12]. At present, the research on the eco-stoichiometry of soil in the agro-pastoral ecotone of Inner Mongolia is mainly focused on the county level (such as Dalate Banner [13], Yijinhuoluo Banner [14], Duolun County [15], Wengniute Banner [16], etc.) or land types (such as wetlands [17], sandy land [18,19], grassland [20]), but there are few studies on large-scale in space. However, due to the large longitude span of the agro-pastoral ecotone in Inner Mongolia, there are differences in topography, soil characteristics and agricultural planting structure among the agro-pastoral areas.

This study innovatively compared the stoichiometry of soil C:N:P:K between farmland and grassland at different scales in the agro-pastoral ecotone of Inner Mongolia, aim to clarify the spatial distribution of eco-stoichiometry of soil C:N:P:K of different land use types, analyze soil nutrient deficiency in different regions, and the influence of environmental factors on stoichiometry. This provides a theoretical basis for revealing the interaction and balance between C, N, P and K elements, and has important practical significance for understanding the impact of human activities on ecosystem processes and services, and exploring agricultural production strategies according to local conditions.

2. Materials and Methods

2.1. Study Site

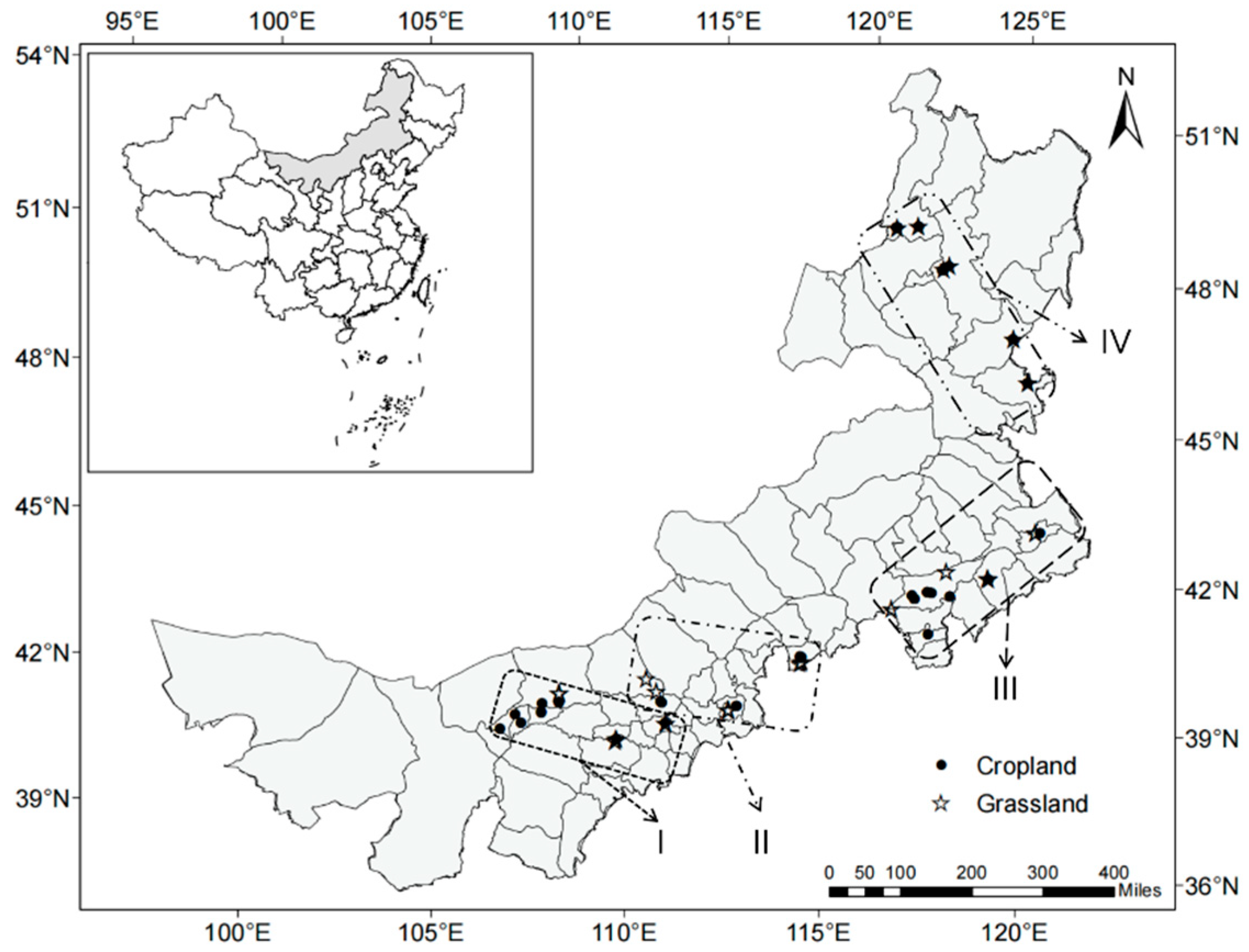

This study area is located in the agro-pastoral ecotone from Hulunbuir to Bayannur in Inner Mongolia, China (105°53'–115°31' E, 40°51'–53°20' N). According to the Land and Spatial Planning of Inner Mongolia Autonomous region (2021-2035), the agro-pastoral areas along the Yellow River mainstream plain (I), the foothills of Yinshan Mountain (II), the West Liaohe River Basin (III) and the foothills of Daxing'an Mountains (IV) are respectively from west to east.

The mean annual precipitation in I area is 150-380 mm, and the mean annual temperature is 3.7-7.6℃. The topography of this area is dominated by plateaus, mountains, hills and plains, with an elevation of 986-2280 m. Irrigation and silt soil, saline-alkali soil, chestnut soil and meadow soil are the main soil types, and the main crops are wheat, sunflower and corn [21,22]. The mean annual precipitation in II area is 150-500 mm, and the mean annual temperature is 0-6.7℃. The topography of this area is dominated by plateaus, mountains and hills, with an elevation of 1150-2350 m. Cinnamon soil and chestnut soil are the main soil types, and the main crops are wheat, rape, sunflower, potato and miscellaneous grain [23,24]. The mean annual precipitation in III area is 305-485 mm, and the mean annual temperature is 0-7℃. The topography of this area is dominated by plateaus, mountains, hills and plains, with an elevation of 300-2000 m. Soil types include brown soil, black soil, irrigation and silt soil, meadow soil, aeolian sandy soil and alkaline soil, and the main crops are corn, sunflower, potato, miscellaneous grains and beans [25,26]. The mean annual precipitation in IV area is 270-467 mm, and the mean annual temperature is -2-6℃. The topography of this area is dominated by plateaus, hills and plains, with an elevation of 150-1800 m. Black soil is the main soil type, and the main crops are corn, soybean, wheat and rape [27].

2.2. Data Collection and Sample Analysis

In the flourishing period of plant growth, soil samples were taken from typical farmland and nearby grassland in the agro-pastoral areas of Inner Mongolia. The sampling time of wheat samples in area I was June, and that of other samples were from August to September. The samples of Hangjinhou Banner, Linhe District, Wulatezhong Banner, Wuchuan County, Wengniute Banner, Keerqin District, Zhalantun City, Yakeshi City and Labudalin farm ranch were sampled in 2019, the samples of Wuyuan County, Dalate Banner, Tumotezuo Banner, Kalaqin Banner, Naiman Banner, zhalaite Banner and Sanhe Hui Township were sampled in 2020, and the samples of Taipusi Banner and Chahaeryouyiqian Banner were sampled in 2021. There were 36 farmland sampling sites and 14 grassland sampling sites (Figure 1). In each plot, 4 points with similar terrain and environmental conditions were selected by diagonal sampling method, and soil samples were collected at 0~20 cm and 20~40 cm soil depths. A total of 288 farmland samples and 112 grassland samples were obtained. Air-dried and carefully selected soil samples to remove organic matter and fine roots for soil property analysis. Each mixed soil sample was divided into four parts according to the quartering method, and one part was selected to pass the 80-mesh sieve to determine the soil pH value and electric conductivity (EC), and the other part was selected to pass the 100-mesh sieve to determine the contents of soil organic carbon (SOC), total nitrogen (TN), total phosphorus (TP) and total potassium (TK). The determination of soil properties follows all standard schemes [28]. Meteorological factors were obtained from the records of 18 national weather stations near each sampling site, and annual mean temperature (MAT), annual mean precipitation (MAP), annual mean relative humidity (MARH), annual mean sunshine duration (MASD) (1981-2021) were regarded as climate factors. And the data of longitude and latitude for each sampling site were determined using Global Positioning system (GPS).

2.3. Data Analysis

The ratio of C, N, P and K (R_CN, R_CP, R_CK, R_NP, R_NK, R_PK) were calculated on a molar mass ratio [29]. The data were tested by Shapiro-Wilk normal test with SPSS (version 26, IBMSPSS, Somers, NY, USA ), and the differences were analyzed by nonparametric test. The box chart was drawn by origin (version 2023) to show the data of nutrient contents and stoichiometric ratios, and then all the indexes were plotted by Spearman correlation analysis.

3. Results

3.1. Comparison of C, N, P and K Contents between Farmland and Grassland

Soil nutrients in farmland and grassland were significantly different among agro-pastoral areas (P < 0.05) (Figure 2). On the whole, the contents of SOC and TN in farmland were lower than those in grassland, while the contents of TP and TK were higher than those in grassland, and the difference of TP content in 0-20 cm soil layer in I area was significant (P < 0.01). Compared with the grassland, SOC, TN and TK contents in farmland were significantly lower in I area than in other areas, and TP contents were significantly higher than in other areas (P < 0.05). SOC, TN and TP contents in III area were significantly lower than those in other areas, while TN and TK contents in IV area were significantly higher than those in other areas (P < 0.05).

3.2. Eco-Stoichiometric Characteristics of Soil C:N:P:K in Farmland and Grassland

The differences in the eco-stoichiometric ratios of farmland and grassland (except R_CN) among agro-pastoral areas were significantly (P < 0.05) (Figure 3). The change trend of farmland and grassland were the same among areas, except R_PK, other indexes showed “N” changes from west to east. On the whole, R_CN, R_CP, R_NP and R_NK of farmland were lower than those of grassland, and R_PK of farmland was higher than that of grassland. R_CK of I area and III area were higher than that of grassland, and the opposite was true of II area and IV area. Compared with grassland, the R_CP, R_CK and R_NK of farmland in I area were significantly lower than those in other areas, RPK was significantly higher than that in other areas (P < 0.05), R_CP, R_CK and R_PK of farmland in II area were significantly higher than those in other areas, R_NP and R_NK of farmland in III area were significantly lower than those in other areas, and R_CN in IV area was significantly higher than that in other areas (P < 0.05).

3.3. Comparison of Nutrient Content and Stoichiometry in the Study Area with Other Scales

Overall scale of agro-pastoral ecotone in Inner Mongolia, the levels of SOC and TN of farmland ware lower than that of grassland, but the level of TP was higher, the nutrient of farmland was in the middle level, and the level of grassland was in the upper-middle level. The level of TP in farmland in I, II and III areas was higher than that in grassland, while the levels of SOC and TN in II area and III area were lower than those in grassland. The nutrient level of III area was in the middle and lower level, and the nutrient level in IV area was the highest (Figure 4).

Compared with the global soil C:N:P, the R_CN of overall area and four regions in this study was higher, except the farmland in III area, and the R_CP and R_NP of the farmland in I area and III area and the grassland in all regions were lower. In the whole area of this study, compared with the northwest agro-pastoral ecotone, the C:N:P of farmland was higher, and the grassland was on the contrary, compared with the yellow soil area of western Shanxi, the R_CN of farmland was lower and the others were higher, compared with Hebei Province, the R_CN of grassland was lower and the others were higher, compared with Qinghai Province, the R_CP and R_NP of farmland were higher and the others were lower. Compared with the study in the same region, the R_CN in II area was lower, and the R_CP and R_NP were higher. Compared with the research in the same region, R_CN in III area was higher, R_CP and R_NP were lower, R_CN and R_NP in farmland were lower than those in northern wind-sandy area, conversely, R_CP in farmland and grassland was higher (Figure 5).

3.4. Relationships between Soil C:N:P:K Stoichiometric and environmental Factors

In the spearman correlation between soil stoichiometry and climate factors (Figure 6), farmland stoichiometry in I area was significantly correlated with MAP, MARH and MASD (P < 0.05), while C:N:P of grassland was significantly correlated with MAT and MARH (P < 0.05). Farmland stoichiometry except R_CK in II area was significantly correlated with climate factors (P < 0.05), and the stoichiometry of grassland was significantly correlated with MAT, MAP and MARH (P < 0.05), and MAT was consistent with MASD, and MAP was consistent with MARH. R_CP and R_NP of farmland in III area were significantly correlated with climate factors (P < 0.01), and stoichiometry of grassland was significantly correlated with MAT and MASD except R_CN (P < 0.01), and MASD was opposite to other climate factors in this region. In IV area, R_CN of farmland was significantly correlated with MARH and MASD (P < 0.01), R_CK was significantly correlated with MASD (P < 0.05), R_NK was significantly correlated with MAT and MAP (P < 0.05), and R_CN, R_CK, R_NK and R_PK of grassland were significantly correlated with climate factors (P < 0.05), and MARH was opposite to other climate factors in this region. In areas I, II and III, the correlation between stoichiometry and soil electric conductivity was more significant than pH. The correlations between the contents of C, N, P, K and soil stoichiometry of farmland in I area and II area and grassland in III area were significant (P < 0.05).

4. Discussion

4.1. The Spatial Difference of C:N:P:K Soichiometry Was More Significant than That of Land Use Patterns

On the whole region scale of the agro-pastoral ecotone, SOC, TN, R_CN, R_CP and R_NP of grassland were higher than that of farmland, while TP, TK and R_PK were on the contrary, indicating that grassland had stronger nutrient accumulation capacity than farmland. This was similar to the research results of other scholars in the agro-pastoral eczones [15,18,36,37,38]. However, it was inconsistent with previous results in the windy and sandy areas of northern China and the yellow soil area of western Shanxi(Figure 4 and Figure 5), which may be due to the single soil type and low nutrient contents in the study areas. Soil microorganisms in farmland need nutrients to supply their own propagation, and soil available nitrogen content was lower, so R_CN was higher than that in grassland.

Li et al. showed that soil C and N were more sensitive to grassland transformation than P, through meta analysis of 92 studies [39]. It was believed that crop harvest leads to the reduction of soil C in farmland ecosystem, tillage destroys soil structure, accelerates N loss, and fertilization leads to higher P and K content in farmland. Historically, soils have lost 40-90 Pg C through tillage and disturbance in the global [40]. Studies in agro-pastoral ecotone of northern China [41], northeast China [42,43] and Castelluccio di Norcia (centralItaly) [44] areas have also shown that the conversion of grassland to farmland will result in the loss of SOC and the decrease of soil chemical characteristics and basic soil fertility. But in our study, land use types only had significant effects on TP content, R_CP and R_PK (P < 0.05), while spatial environmental heterogeneity in the agro-pastoral ecotone of Inner Mongolia had more significant effects on soil nutrient contents and eco-stoichiometric ratios (Figure 2 and Figure 3).This is because soil eco-stoichiometry is jointly regulated by land use patterns, soil properties, human disturbance, climate and topography factors [45]. The spatial variation coefficient of SOC and TN content in farmland and grassland soil was higher (Table A2), while the variation coefficient of TP and TK was lower, because the accumulation of C and N elements were related to the decomposition of organic matter and self-reproduction ability of soil microorganisms, so it was greatly influenced by environmental factors. P and K elements were mainly affected by fertilization and soil parent materials, so the variability was small [46].

4.2. Stoichiometric Characteristics Indicated the Constraints on Agricultural Production in Each Region

The 0-40 cm soil C:N:P:K values of farmland and grassland on the whole scale in the agro-pastoral ecotone of Inner Mongolia were 44:3:1:25 and 82:6:1:36, respectively. The C:N:P of farmland is lower than that of Chinese soil (60:5:1), while that of grassland was the opposite [47]. The R_CN ratio between 12 and 16 indicated that organic matter was well decomposed. At the same time, the study of forest soil showed that R_CN < 25 indicated high risk of nitrate leaching. The R_CP < 200 indicated net mineralization, and R_NP < 10 represented N limitation [48,49]. The ranges of R_CN, R_CP and R_NP in this study area were 12.2-15.44, 24.49-145.09 and 2-9.99, respectively, indicated that soil organic matter in farmland and grassland in this study area could be decomposed well on a global scale, and the phosphate mineralization rate was high, but nitrogen was limited.

The C:N:P:K values of farmland and grassland in I area were 23:2:1:15 and 37:3:1:24 respectively, which were lower than the C:N:P of the national soils, but the R_CN was higher than the global level, and the R_CP and R_NP were lower , which was similar to the results of Dalat Banner [13]. This indicated that compared with other research areas, the decomposition rate of soil organic matter in farmland of I area was slower, and the availability of nitrogen was lower, but the availability of phosphorus was higher [50]. In addition, compared with grassland, the TP content of farmland was 2 grades higher, and the contents of C, N, and K were at a lower than medium level. This may be due to the loss of nitrogen caused by flood irrigation and soil leaching in the Yellow River, and the increase of phosphorus caused by over-fertilization, resulting in soil N limitation and P saturation. Therefore, the rational application of phosphorus fertilizer and the management measures to improve the efficient use of soil nitrogen are more conducive to the effective use of agricultural resources in this area, so as to achieve soil element balance.

The soil C:N:P:K of farmland and grassland in II area were 62:5:1:26 and 100:8:1:36, respectively. The C:N:P values were higher than the national soils, the R_CN were higher than the global level, and the R_CP and R_NP of grassland were lower than the global level. The soil nutrient contents of farmland were at a medium level, C and N were one grade lower than that of grassland, and P was one grade higher. The results indicated that the soil mineralization rate was higher, but it was still limited by a lesser degree of nitrogen. The study at the northern foot of Yinshan showed that grassland reclamation changed soil physical structure and increased microbial activity, thereby increasing soil respiration, accelerating mineralization and decomposition of organic matter, and accelerating nitrogen loss rate [33]. However, compared with our study, the R_CN was lower and the R_NP was higher. This may be because our study included the southern and northern foothills of Yinshan Mountain. The wind erosion intensity of soil in the southern foothills was weaker than that in the northern foothills, and the soil available nitrogen content was generally higher than that in the northern foothills. Therefore, cultivation measures to improve soil carbon sequestration capacity and available nitrogen are more beneficial to the stoichiometric balance of the region.

The soil C:N:P:K of farmland and grassland in III area were 39:3:1:40 and 87:6:1:81 respectively. The C:N:P of farmland was lower than that of the whole country, while that of grassland was higher. The R_CN of grassland was higher than the global level, R_CP and R_NP were lower, the R_CN, R_CP and R_NP of farmland were lower than the global level. The nutrient content of farmland was in the lower level, and the TP content was 1 grade higher than that of grassland. The results showed that the decomposition rate of soil organic matter in this area was fast, which was not conducive to the accumulation of organic carbon, and the net mineralization rate of phosphorus was fast, but there was still a strong nitrogen limitation, and the degree of nutrient deficiency was N > C > P. But the results were at odds with other studies on sandy land, which may be because our research scope was the whole West Liaohe River basin, included Horqin sandy land and Yanshan hilly area, while the water and fertilizer retention of soil in Yanshan hilly area were better than that of sandy land, so the content of soil organic carbon and phosphorus was higher. Therefore, reasonable fertilization combined with cultivation measures to improve the ability of soil water and fertilizer retention are more beneficial to the material circulation of farmland ecosystem in this region.

In the agro-pastoral area along the foothills of Daxing'anling Mountains, the R_CN of farmland in 0-20 cm soil layer was higher than that of grassland, which may be due to the low average temperature in this area, little difference in microbial activity between grassland and farmland, and little change in organic carbon [42]. At the same time, due to the short frost-free period, less fertilizer application in farmland, and the cultivation measures such as fallow rotation, stubble and organic fertilizer application adopted by farms, the organic carbon retention capacity of farmland soil is strong. The R_CN, R_CP and R_NP of farmland in 0-40 cm soil layer were higher than the global level, while the R_CN and R_CP of grassland soil were higher than that of global level, and the R_NP was lower. It showed that the decomposition and mineralization rate of organic matter in natural soil in this area was slow, which was beneficial to the accumulation of organic carbon, but the availability of phosphorus is low.

The soil C:N:P:K of farmland and grassland in IV area were 102:7:1:28 and 141:10:1:29, respectively. The C:N:P was higher than the national soil, and the grassland C:N:P (134:9:1) was higher than the national 0-10 cm soil layer. The R_CN, R_CP and R_NP of farmland soil layer were higher than the global level, and the R_CN and R_CP of grassland soil were higher, but the R_NP was lower. The contents of C, N and K in farmland and grassland soil were at an upper level, and the contents of P were at a medium level. The results indicated that there was no nutrient deficiency in this area, but the net phosphorus mineralization rate was relatively lower. The R_CN of 0-20 cm soil layer in farmland was higher than that in grassland, which may be due to the low average temperature in the region and the slow decomposition of organic carbon [42,47], and combined with measures such as crop rotation, fallow and residue, the surface soil has a strong ability to retain organic carbon.

Early research in Brigelo, Queensland found that continuous tillage and planting can maintain the availability of soil nitrogen better than continuous grazing [51]. Recent studies in Hokkaido, Japan [52] and Bavaria, Germany showed that the short-term conversion of grassland to cultivated land increased the diversity of soil bacterial community structure, and combined with the nitrogen fixation of leguminous plants, the soil organic carbon increased. Therefore, the dry farming areas in the agro-pastoral ecotone of Inner Mongolia should advocate grain-grass rotation, increase the application of organic fertilizer and straw returning to the field, and rationally allocate fertilizer according to the vegetation types and the actual situation in the growth stage, which will help to balance the soil eco-stoichiometry.

4.3. Effects of Environmental Factors on Eco-stoichiometry of Farmland and Grassland

Through Spearman correlation analysis, we found that the effects of C, N, P and K contents on soil ecostoichiometry in this study area followed the law of geographical correlation [53] (Figure 4). N and K contents in grassland I and III had significant effects on elemental ecological cycles (p < 0.05), and K was negatively correlated with R_CP and R_NP, while P contents in III and IV areas had significant effects on C, N, K cycles (p < 0.05). It may be because I area was adjacent to II area, III area was adjacent to IV area, and I area and III area were river basins, so the soil properties between regions were similar. Too little or too much elements in farmland had no significant effect on the ecological cycle of other elements. C content in III area and IV area significantly affected N, P, K cycle. K content significantly affected C, N, P cycle only in I area and II area. However, N and P content significantly affected element ecological cycle in the whole region, and R_CN decreased with the increase of P content, it was not conducive to the accumulation of organic matter. Therefore, the ecological chemical cycle of elements in grassland soil was mainly controlled by C and N, while farmland was mainly controlled by N and P, R_CN, R_CP and R_NP were the limiting indexes of soil nutrient content. Similar results had been obtained of Yellow River Wetland in Baotou [13], Horqin Sandy Land [18] and Chongqing Mountain [54]. In this study, soil pH was only significantly correlated with R_NP, R_NK and R_PK, which was inconsistent with the research results of paddy fields [55] and in the alpine region of the Loess Plateau [56], but fertilization caused soil stoichiometry in farmland to be greatly affected by soil pH [57]. This may be related to the land type, geographical environment and research scale in the study area, so the conclusions drawn have regional limitations.

The effects of MAT and MAP on soil eco-stoichiometry also had geographical gradients. Soil eco-stoichiometry in I and II areas was affected by MAT and MAP on the contrary, while MAT and MAP in III and IV areas had the same effects on soil eco-stoichiometry. It may be because I and II were along the Yinshan Mountains in the east-west direction, while III and IV were along the Daxing'anling Mountains in the north-south direction , so the climate and environment of I and II areas and III and IV areas were similar. At the same time, temperature and precipitation were significantly correlated with soil stoichiometry in farmland and grassland, this was inconsistent with the findings of the Northeast black land study [58], compared with the mean value of a single year, the average temperature and precipitation in the long-term series of this study can better reflect the long-term climate pattern. Moreover, the influence of temperature and precipitation change on soil stoichiometry in different ecosystems is inconsistent, which is inconsistent with the studies on forest and grassland [59]. This may be because farmland is a semi-natural ecosystem, which is different from the natural ecosystem due to human factors.

5. Conclusions

There is no single Redfield-like ratio [60] in farmland and grassland soils across Inner Mongolia agro-pastoral ecotone , and the R_CN, R_CP and R_NP of farmland are lower than those of natural grassland. Land use pattern has a significant impact on the cycle of P elements. The stoichiometric relationship between farmland and grassland follows the geographical gradient in the agro-pastoral ecotone, and the trend is consistent. The difference of stoichiometric spatial distribution is more significant than that of land use pattern.

The deficiency degree of soil nutrients in farmland is C > N, but P is saturated in the agro-pastoral area along the Yellow River mainstream plain, and N > C > P in the agro-pastoral area along the foot of Yinshan Mountain and the West Liaohe River Basin. The effect of agricultural production on the accumulation of C, N, P and K in soil was not obvious in the agro-pastoral area along the foothills of Daxing'anling Mountains.

The effect of grassland nutrient content on stoichiometry is related to the similarity of soil properties, while the man-made input of chemical elements destroys the stoichiometric balance of farmland soil, so the stoichiometric relationship of farmland soil is greatly affected by element content. The effect of MAT and MAP on soil stoichiometry is related to the environmental heterogeneity between regions. Farmland is more significantly affected by MAP, while grassland is more significantly affected by MAT.
