Image-Guided Adaptive Brachytherapy in Cervical Cancer: Integration of Ultrasound

1. Introduction

Brachytherapy was used for the first time in the treatment of gynaecological malignancies in 1960. Since then, brachytherapy has been constantly an integrated part of the cervical cancer treatment plan. Brachytherapy, following concurrent chemo radiotherapy, is an integral part of the standard of care for cervical cancer. Advances in the last decade have increased the dose to the target volume and limited the doses to the organs at risk (OAR), with the introduction of the dose volume histogram analyses. These developments have led to the improvement of the technique from 2-dimensional (2D) to 3-dimensional (3D) through IGABT based on MRI or CT. For many radiation oncologists around the word, IGABT represents the standard practice for cervical cancer, irrespective of the form of MRI or CT. The GYN GEC-ESTRO working group developed the concepts of target volume in the era of 3D and after that International Commission on Radiation Units and Measurements (ICRU) reported the recommendations and supported the implementation of the IGABT technique in many institutions. This technique has many benefits: the guided placement of the applicator, optimization of the treatment planning, without compromising target coverage, and decreasing the dose to OAR [4,5,6,7,8,9,10,11].

Outcomes data utilization of IGABT allows target volume dose escalation, whilst decreasing the dose to normal tissue. Doses over 80 Gy in a biologically equivalent dose of 2 Gy per fraction for D90 of high-risk clinical target volume (CTVHR) show a local control in the 90% range. In retro-EMBRANCE study which included 592 patients, the local control rate at 95% for a D90 to the CTVHR was over 92 Gy [4,9].

With the implementation and development of the image-guided adaptive brachytherapy techniques in cervical cancer patients, the application of radiation inserts was also reviewed. For the safety of the applicator insertion, transabdominal ultrasound (TAUS) is used. Ultrasound (US) is a method that allows guiding the dilatation of the uterine canal, measuring the depth of the uterine cavity and the safely placing the applicator.

TAUS is simple to use, not expensive, and achieved without great effort. TAUS gives treatment precision, reproducibility, and adaptability to each case. There are some brachytherapy planning systems that integrated US as the unique modality of imaging. US is used at the time of applicator insertion and at treatment planning for cervical cancer, prostate cancer, and anal canal cancer. It is also useful in placing brachytherapy catheters in skin cancer, breast cancer, and head and neck cancers.

Imaging advances such as 3D-US and contrast US are superior to traditional US, giving us greater accuracy of brachytherapy guidance. According to van Elburg [12], 3DTVUS imaging enhances the visualisation of tumours and vaginal walls during gynaecologic perineal template interstitial needle implantation. This imaging technique has been found to be effective in assessing implants in a surgical setting, based on feedback from primary users and a small group of initial patients.

Considering the current practice of the US in brachytherapy in various cancer sites, and the extreme situation of cervical cancer in Romania, which occupies the second place in Europe both as mortality and incidence rate [13], we conducted a review of international databases in order to find relevant material and evaluate the role of US in brachytherapy treatment cervical cancer. In Romania, the combination between the low level of knowledge about cervical cancer and specific preventive methods, the perceived cost of diagnostic and therapeutic procedures (despite the fact that in Romania access to healthcare is free and the state provides new drugs, therapies and screening measures through national programs free of charge [14,15,16,17,18,19,20,21]) and the non-functional national screening and HPV-vaccination programs leads to an extremely low number of women being screened or HPV-vaccinated [22]. This situation is well known and is responsible for the diagnosis of most cases in advanced stages [23] where radiotherapy plays a predominant role. Cervical cancer and other HPV-related diseases remain important health issues worldwide [24], determining the World Health Organization (WHO) to reiterate its recommendation for HPV vaccinations to be included in national immunization programs and for adequate screening programs.

2. Materials and Methods

In 27 July 2023, we conducted a survey of international data base PubMed for materials relevant to IGABT in cervical cancer. The advanced search function was used and the following combination of keywords/phrases and Boolean operators were used: (((image guided brachytherapy or image guided adaptive brachytherapy or ultrasound guided brachytherapy or transabdominal ultrasound guided brachytherapy or IGABT)) AND (cervical or cervix)) AND (tumour or tumour or malignancy or cancer). We placed no filters for language, type of research item, year of publication or text availability. The search returned 766 results, published between 1994 and 2023 – 29 presented case reports or series of cases, 93 presented data from clinical trial or studies, 6 were clinical guidelines or recommendations, and 115 were literature reviews, systematic reviews and meta-analyses. Other searches were conducted on 27 July 2023 and 14 December 2023 using the same parameters as before on www.sciencedirect.com (returned 4 results) and www.scopus.com (returned 583 results – 334 articles, 70 books or book chapters and 145 reviews).

3. Results

Brachytherapy is the radiotherapy technique that offers the most conformal dose distribution, through the applicator of the source in contact with the target volume. Brachytherapy has been for a very long time, before the development of the external radiation techniques and of surgical procedures, an important therapeutic for various deep-seated tumours of soft tissue, head and neck region or breast [25]. Although, the role brachytherapy occupies has slowly and steadily decreased over the years, it continues to play a key role in the treatment of cervical cancers. Given the current situation of cervical cancer in Romania [26], there is a renewed interest for brachytherapy and its easily affordable and available options.

The radiation method, first described in the early 1900s, was based on the approximation of target volume by using a regular shape and pre-calculated tabular data for the position of applicators, source strength and time of exposure. Although, an adequate radiation dose was delivered to the target volume, the organs at risk (OAR) were exposed to higher doses than necessary; the method had a limited planning possibility by usage of two-dimensional X-ray projection images which allowed for limited correction of source positioning [25]. Over the years, different predictive dosimetry systems for both interstitial and intracavitary brachytherapy were developed (Manchester, Manchester-Paterson-Parker, Quimby, Stockholm, Memorial, Fletcher and Paris), but the fundament was nothing more than clinical experience and simple dose calculation. These systems did not take into account tumour response to radiation and tumour volume extension and delineation, leading either to under dosing part of the target volume, or to a higher load on the surroundings OAR [27,28]. But even with all these limitations they constituted an important step forward towards standardizing brachytherapy treatments and provide a way of validating new advances in radiation therapy as they are introduced [29,30]. Among the technologies validated using historical dosimetry systems that provided huge improvements in the treatment especially for tumours requiring very high doses of radiation (like cervical or prostate cancers), we can name delivery systems such as after loads, applicator technology, 3-D visualization using modern imaging with 3D target volume determination and various computerized algorithms for dose calculation [25].

Advances in the last decade have increased the dose to the target volume and limited the doses to the organs at risk (OAR), with the introduction of the dose volume histogram analyses and the incorporation of various imaging techniques (magnetic resonance - MRI, computer tomography - CT, ultrasound - US and even Positron emission tomography) have led to the improvement of brachytherapy and the birth of IGABT and facilitated the transition between two-dimensional to three-dimensional [31]. This led to a better understanding of target volume topography [25] and the individualization of treatment planning [32,33,34,35] and reporting [36].

For locally advanced cervical cancer brachytherapy remains essential. In low-middle income countries (LMIC), where most of the burden associated with the disease occurs, the integration of the image modality for guidance of brachytherapy is extremely dependent of existing infrastructure and resources [37] (that do not always provide access to MRI or CT). In LMIC, X-rays remains the most used image-guidance modality for insertion of applicator and for ensuring the safe and correct placement of the applicator in the uterine canal. Although not credited with the same accuracy and characteristics as MRI, CT or other sophisticated imaging modalities (Table 1. Comparison between imaging modalities used for treatment planning in cervical cancer) and not yet recommended in guidelines for use in conformal planning [38,39], ultrasound guidance has a wider availability and can enhance cervical cancer treatment planning especially in its state-of-the-art form (3-dimensional contrast enhanced ultrasound) and improve outcomes [40], but does require specialized training [41,42].

Table 2. Comparison between imaging modalities, used for treatment planning, in cervical cancer.

Imaging modality	X-ray	Ultrasound	Tomography	Magnetic resonance	Positron emission tomography
Soft-tissue resolution	Poor	Good	Good@	Excellent	Good
Geometric accuracy	Good	Good	Good*	Good#	Excellent
Image quality	Protocol dependent	Operator and protocol dependent	Sequence and protocol dependent	Sequence and protocol dependent&	Sequence and protocol dependent&
Artifacts	Metal	Multiple types and causes	Multiple types and causes	Multiple types and causes	Multiple types and causes
Slice orientation	Single planar	Multi planar	Trans axial	Multi planar	Trans axial
Usage in cervical cancer	Yes	Yes	Yes	Yes	Rarely used
Accurate visualization and reconstruction of brachytherapy applicators	Yes	Yes	Yes	Yes	Yes
Type of applicators	Metal or plastic with metal X-ray guides	Metal, plastic	Metal, Plastic	Metal%, Plastic	Metal, Plastic
Possibility of radiation dose calculation	No	NA	Yes	NA	Yes
Portability (potential for intraoperative use)	Yes	Yes	Sometimes available	Sometimes available	No
Time to obtain image	Seconds	Minutes	Seconds	Hour	Hours
Availability	Low	Low	Medium	High	High
Cost of equipment	Low	Low	High	High	High
Cost of scan	Low	Low	High	High	High

@ can be enhanced by use of contrast; *but relies human factor for accurate focalization of region of interest; ^# the accuracy decreases away from the magnet core; ^& requires adequate patient cooperation; ^% limited types of metal due to MRI safety issues; NA – no data available, but studies are underway to produce electron density estimates for applications for radiotherapy.

Table 2. Comparison between imaging modalities, used for treatment planning, in cervical cancer.

Imaging modality	X-ray	Ultrasound	Tomography	Magnetic resonance	Positron emission tomography
Soft-tissue resolution	Poor	Good	Good@	Excellent	Good
Geometric accuracy	Good	Good	Good*	Good#	Excellent
Image quality	Protocol dependent	Operator and protocol dependent	Sequence and protocol dependent	Sequence and protocol dependent&	Sequence and protocol dependent&
Artifacts	Metal	Multiple types and causes	Multiple types and causes	Multiple types and causes	Multiple types and causes
Slice orientation	Single planar	Multi planar	Trans axial	Multi planar	Trans axial
Usage in cervical cancer	Yes	Yes	Yes	Yes	Rarely used
Accurate visualization and reconstruction of brachytherapy applicators	Yes	Yes	Yes	Yes	Yes
Type of applicators	Metal or plastic with metal X-ray guides	Metal, plastic	Metal, Plastic	Metal%, Plastic	Metal, Plastic
Possibility of radiation dose calculation	No	NA	Yes	NA	Yes
Portability (potential for intraoperative use)	Yes	Yes	Sometimes available	Sometimes available	No
Time to obtain image	Seconds	Minutes	Seconds	Hour	Hours
Availability	Low	Low	Medium	High	High
Cost of equipment	Low	Low	High	High	High
Cost of scan	Low	Low	High	High	High

@ can be enhanced by use of contrast; *but relies human factor for accurate focalization of region of interest; ^# the accuracy decreases away from the magnet core; ^& requires adequate patient cooperation; ^% limited types of metal due to MRI safety issues; NA – no data available, but studies are underway to produce electron density estimates for applications for radiotherapy.

Regarding the association between different methods of treatment monitoring, the existing imaging combination strategies primarily include MRI/CT, US/CT, MRI/US, and MRI/PET. The use of two imaging tools may be employed for the purpose of guiding applicator implantation, reconstructing applicators, contouring target and organs at risk (OAR), optimising dosage, evaluating prognosis, and more. This approach offers a more appropriate selection of imaging for brachytherapy, according to a study signed by Zhang [43].

4. Discussion

US in brachytherapy practice is an image guidance modality, with the following advantages: portable, cheap, and easy to use. The US allowed the precision, conformal, reproducible, and adaptive treatments.

The US gives information about the different echogenicity of the tissues, helping to delineate the tumours and to distinguish the surrounding normal tissues. In the new planning system brachytherapy used the US as the single method of imaging.

European Society for Radiotherapy and Oncology (ESTRO) acknowledges the importance of the US as an imaging method in the brachytherapy process for the next three steps: image-assisted temporary treatment planning, image-guided application, and image-assisted final treatment planning. Nevertheless, the use of imaging in the brachytherapy technique has four steps. To those recognized by ESTRO is added image image-assisted quality control.

The current use of the US in brachytherapy is in different types of cancer but with great interest in the incoming in gynaecological cancer [44]. Gynaecological brachytherapy used the US since 1970. The US was successfully integrated into the treatment planning for intracavitary application [44,45,46].

TAUS is used in real-time at the time of brachytherapy insertion for placement of uterine tandem and ovoids and allows the measurement of thickness. This method offers high probability and safety in the application of tandem and ovoids and provides information about placing the applicator in various sections (Figure 1).

The information provided through the US can be corroborated with orthogonal radiographs for the calculation of the dosimetry for the bladder and the real-time calculation of the surrounding organs.

Brachytherapy insertion consists of placing the applicator in the cervix and in the uterine cavity. When the application is made without guidance, a suboptimal application can occur.

This can lead to inadequate tumour coverage, poor local control, and higher doses to the organs at risk. It can also result a uterine perforation, which is not desirable. Although not a common practice, the US guidance of the brachytherapy application reduces these risks of improper placement. The radiation oncologist ensures that the uterus is not perforated. The resistance feels at the bottom of the uterus it is a landmark that the applicator/tandem is in the uterine cavity. The risk of uterine perforation at blind insertion reported in studies was 2–4%.

Following some studies, the further risk factors associated with inadequate tandem insertion have been reported: age over 60 years, history of surgery, cervix with distorted anatomy, retroverted uterus, and tumour growth. Moreover, after receiving initial pelvic and tumour irradiation with external beam radiation therapy (EBRT), the vagina and/or Endocervical canal might become completely blocked due to subsequent tissue fibrosis. Between 30% and 88% of women will have stenosis to some extent, with total stenosis occurring in up to 11% of patients. This makes it difficult and risky to reach the uterine canal for the insertion of brachytherapy applicators. Addley [47] used a combination of real-time ultrasonography and direct hysteroscopy guidance to successfully insert the IUBT applicator in a patient with stage IIa1 SCC cervix. This patient had previously had a failed insertion attempt because to severe narrowing of the Endocervical canal. The performed study further illustrated the safe navigation of post-radiation alterations, hence preventing morbidity caused by procedural problems and guaranteeing a satisfactory conclusion.

The real-time verification technique with the US is made at the time of the applicator insertion. TAUS helps to measure the size, shape, and thickness of the cervix, uterus, and tumour invasion. The guidance of the tandem placement with US reduces the risk of uterine perforation and increases the local control. Even if the utilization of this method gives benefits for application insertion in brachytherapy cervical cancer, in America is used only in 42%. In the developing countries, it is much less used [38,48,49,50,51,52].

The first experiences reported about the use of US in gynaecological treatment were in interstitial brachytherapy. The study included 12 patients and the authors related the utility of US identifying the target and the organs at risk [53].

Further another group reported the practice of transrectal ultrasound (TRUS) in placing the needles to the tumour volume, without perforating the rectum or bladder [54]. Investigators from other groups show the safety and usefulness of the placement of the needles at the brachytherapy insertion with the US.

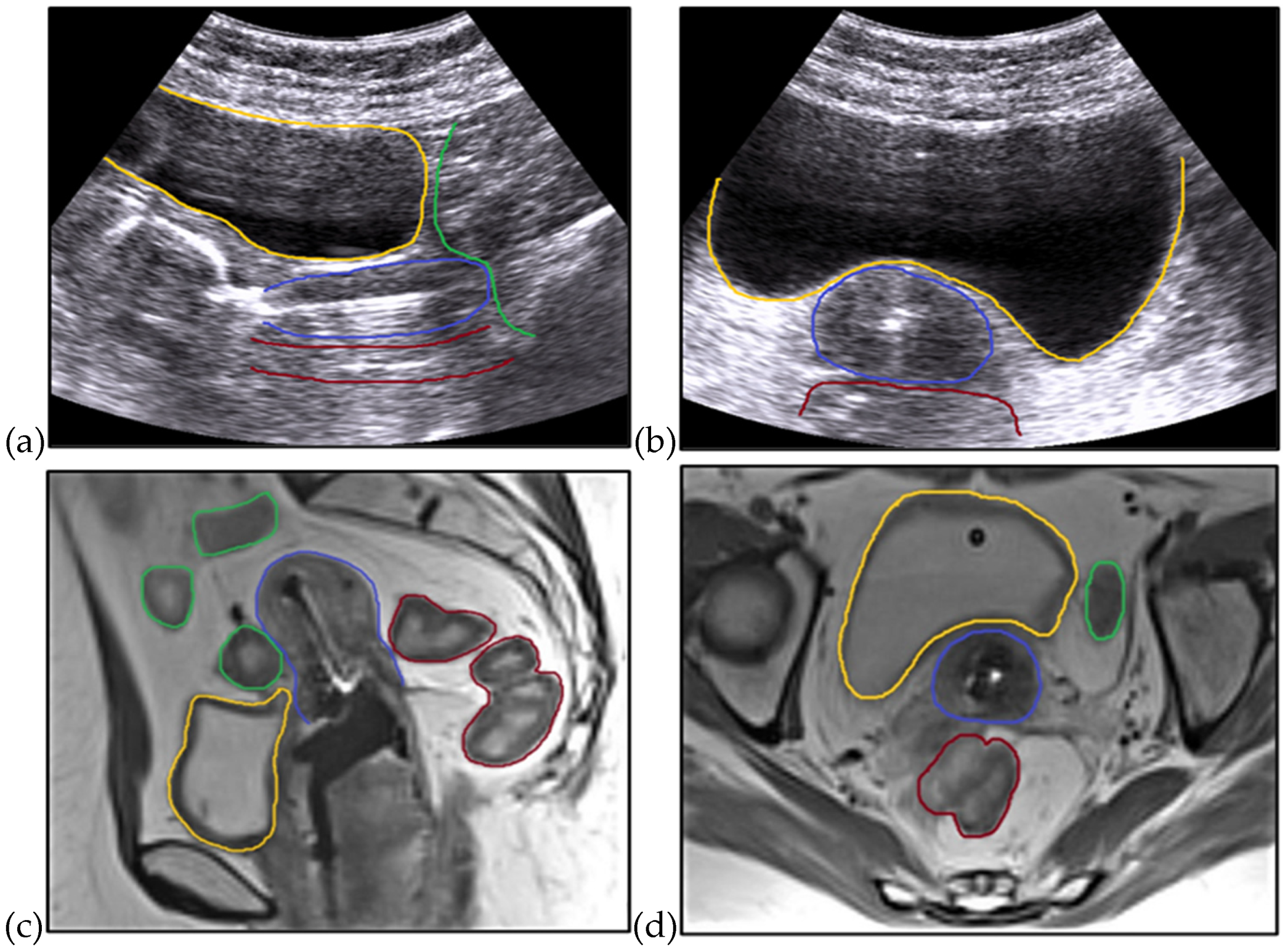

Mahantshetty et al. reported their experience in the use of TAUS and they established a correspondence between the US and MRI on the treatment planning [55].

In a study of 292 cervical cancer patients, the US was used as the only method that assists the guidance and the treatment plan in intracavitary cervical brachytherapy. The five-year local control was 87.5% and no significant toxicity was reported [46].

The GEG-ESTRO claims that the US can be used for needle placement and the delineation of CTVHR. However, the US cannot be used safely in treatment planning in complicated interstitial brachytherapy. The Vienna team maintains that in the future TRUS could become a method of delineation of CTVHR [46].

Trans-cervical endo sonography (TRACE) is a recent concept described for use in pre-planning, real-time guidance, and treatment planning in cervical cancer patients treated with IGABT. This concept can bring additional information to existing imaging methods [56].

Brachytherapy is a radiotherapy technique that delivers a high dose of radiation, considered to be a rival of the new radiotherapy techniques such as intensity-modulated radiotherapy (IMRT) and stereotactic body radiotherapy. It can also be an alternative to external radiation.

In order to compete with modern radiotherapy techniques, delivering high doses of radiation in contact with the tumour, limiting the dose to surrounding organs, and limiting movement uncertainties, brachytherapy must be done according to recommendations using modern imaging in the guidance and application of brachytherapy.

However, there are several risks of the brachytherapy technique: the risk of moving the needles from the time of application to the time of treatment, the presence of metallic needles caused by visible CT, which is difficult to delimitate the tumour volume, and the risk of bleeding by perforating vessels near the tumour. To avoid the presence of artefacts caused by metal needles on CT, MRI compatible applicators and metal needles are recommended.

In thin patients, the bowel is lowered into the pelvis and it is often difficult to obtain a good image due to artefacts and it is more difficult to identify the cervix and uterus. In this situation, it is considered that the bladder is filled with serum so that there is no risk of damage to the bowel in case of uterine perforation.

During TAUS, in order to achieve the best possible image and to bring the uterus into a vertical position, the bladder is filled with physiological serum. The amount of serum introduced into the bladder can vary from 200 ml to 500 ml. In patients with a retroverted uterus, the bladder will be filled with a larger amount of serum 400-500 ml to bring the uterus into a vertical position. Depending on the position of the uterus identified in the US, the bladder filling is decided. The images obtained with the US are axial and sagittal sections.

As for obese patients, there are also limitations, and images offered by the US have reduced visibility. In the case of patient with a history of subtotal hysterectomy, it is important to obtain the best possible US image because there is a higher risk of perforation.

For interstitial BT, US guidance is important when inserting the needles at the level of the parameters but also paravaginal, avoiding pushing the needles into the bladder or bowel. Guiding the needles for interstitial brachytherapy at the parameters can also bring information, especially in the situation where the ureters are dilated, these are visible on ultrasound.

Several practitioners have studied the usefulness of the US for applicator insertion and brachytherapy treatment for cervical cancer, but there is no defined protocol in this regard.

The utility of TRUS for treatment planning in cervical cancer was evaluated by the Vienna working group. The images obtained with TRUS identify the target volume at the time of brachytherapy. They discovered that there are limitations regarding the focal distance and the visual field obtained with the endorectal probes [57,58].

In a research conducted by Hu [56], the efficacy and safety of ultrasound-CT guided 3D intracavitary and interstitial brachytherapy (US-CT-3D-IGBT) were investigated for the treatment of large cervical tumour cases accompanied by haemorrhage.

Pintakham [60] conducted a research to assess the dosimetry comparison of brachytherapy treatment planning using two different methods: a volume-based plan using computed tomography (CT) and a point-based plan utilising transabdominal ultrasonography (TAUS) in CT datasets for brachytherapy. The findings indicated that the point-based plan implemented by TAUS demonstrated superior values for both targets and organs at risk compared to the volume-based plan executed by CT. TAUS’s point-based strategy resulted in a proximity of D98 to HR-CTV.

Brachytherapy in prostate cancer used US imaging to plan treatment before application, in real-time at the time of needle insertion, correlated with CT planning, which led to the progress of the treatment planning of brachytherapy based on imaging. This concept was later used in other type of cancers. The US has been used in brachytherapy to guide the placement of needles and for the treatment plan when combined with other imaging modalities.

US imaging evolution such as 3D US, contrast-enhanced US, and high-frequency US entered practice with diagnostic, interventional, and therapeutic roles. In 3D interventional procedures, the US offers the benefit of precision and the possibility of visualization in several planes. The 3D US decreases the necessity of the operator and increases the reproducibility.

US imaging is not that hard to learn and handle. In an Indian study in which 2-month surgery residents were trained in US abdominal manoeuvring, compared to radiology residents they accumulated similar knowledge [57].

While there are standards for brachytherapy dosage and fractionation regimes, there is a scarcity of data on actual practice patterns. The objective of a recent research by Hsieh [62] to assess the current use of cervical cancer brachytherapy in the United States and its correlation with patient demographics and facility features.

The use of 3D US in cervical cancer as a unique practice for treatment planning is limited, due to difficult visualization of organs at risk and low reproducibility. There are still studies to validate some of these challenges in cervical cancer and in other types of cancer. Given the progress made in prostate cancer, scientific advances will overcome these technical limitations [58].

The use of 3D printing is viable in brachytherapy and tele therapy for both electron and photon treatments due to the enhanced treatment delivery quality resulting from higher dose administration to target volumes. The previous research signed by Lee [64] highlighted the possibility of decreasing the need for repeat computed tomography (re-CT) and successfully achieved time efficiency for both patients and oncologists.

Another important factor in the discussion about brachytherapy is its non-uniform use, influenced by various factors. Kumar’s research [65] indicated that there is a noticeable decline in the use of brachytherapy (BT) for cervical cancer. This decline has resulted in a fall in both local control and overall survival rates. Furthermore, numerous national and state-based registries have found a significant discrepancy in both the availability of healthcare services and the use of BT boost among patients with cervical cancer in the United States.

Regarding the future perspectives in which concerns brachytherapy and cervical cancer, we mention the existence of two clinical trials. The first one [66] entitled “Phase 0 Clinical Trial of Molecular Biomarkers in Women With Uterine Cervix Cancer” is a phase 0 clinical trial investigating molecular biomarkers in women diagnosed with uterine cervix carcinoma. Women get standard radio-chemotherapy treatment followed by brachytherapy. Obtaining blood samples is necessary to identify the presence of deoxyribonucleotides, human papillomavirus DNA, and circulating tumour cells. Another research, entitled” Comparison of Clinical Response and Toxicity of Hypo-fractionated Chemo radiation With Standard Treatment in Patients with Uterine Cervix Cancer” is developed in the following scientific context: the treatment for uterine cervix cancer involves definitive therapy by the use of concurrent chemo radiation, which combines external beam irradiation and chemotherapy, followed by high dose rate brachytherapy. Therapy time may be decreased by raising the dosage per fraction of therapy which can minimize expenses and patient exposure. The study aims to establish the non-inferiority of hypo fractionated radiation in comparison to conventional treatment.

5. Conclusions

Brachytherapy is one of the most conformal radiotherapy techniques. With the implementation of the IGABT technique in the world, the use of US during applicator insertion has also developed, bringing multiple advantages and improving the quality of the implants. In terms of benefits, we mention: the precision of the brachytherapy insertion, the guidance of the dilatation of the uterine canal, the measurement of the depth of the uterine cavity, noticing the changes in the position of the uterus, and, of course, the placement of the applicator and needles. The use of US in brachytherapy for cervical cancer can help define the treatment volumes and the treatment plan, especially in LMIC, where more sophisticated imaging guidance modalities are not always available to clinicians. In this review, we want to highlight the importance of practical use of the US in brachytherapy for cervical cancer, as an integrated part of a successful treatment. In the future, the IGABT technique will be extended to more institutions, and, therefore, incorporating the US in brachytherapy treatment for cervical cancer could improve the local control of the disease and also reduce toxicity.
