Understanding the Epidemiological Patterns of Animal Trypanosomosis in Spain: A National Atlas of Surra

1. Introduction

Trypanosomes are flagellated protozoa that belong to the family Trypanosomatidae and the genus Trypanosoma, encompassing a wide range of haemoparasitic protozoa that primarily affect vertebrates [1,2,3,4,5]. Several species, such as Trypanosoma brucei, T. vivax, T. congolense, T. evansi and T. equiperdum, are able to cause disease in domestic mammals, resulting in a substantial socio-economic impact and decreased animal productivity globally [6,7,8,9]. Livestock can also serve as a reservoir for human-infective trypanosomes, such as T. brucei rhodesiense and possibly T. brucei gambiense, significantly contributing to the transmission of sleeping sickness in humans [8,10,11,12,13].

The occurrence of Trypanosoma species in Europe has, up until now, solely been associated to the travel or immigration history of human patients or the introduction of infected animals [4,5,14,15]. However, there is limited information available on the epidemiological situation of trypanosomes that naturally infect mammals in Europe [4,7,16,17].

With the exception of T. equiperdum, which is sexually transmitted, these parasites are mainly transmitted by haematophagous insects. In Africa, these are mainly Diptera belonging to the Glossina genus, commonly known as tsetse flies, and part of the parasites' life cycle occurs within these insects. However, one pathogenic species, T. evansi, is unique in that it does not undergo any development or replication within the tsetse flies [5,8,17,18]. Therefore, the transmission of the parasite is mechanically mediated, allowing it to extend its vector range to species from the Stomoxys, Tabanus and Hippoboscidae genera, as well as some species of bats (e.g. Desmodus rotundus) in certain parts of South America [1,19,20,21]. Additionally, other forms of transmission, such as horizontal (direct mucosal contact with parasitized secretions), vertical (transplacental), or iatrogenic (reusing or poorly cleaning material), have also been reported [1,3,22].

T. evansi is hypothesized to have originated from the species T. brucei, which is native to Africa. This species diverged as a result of the loss of the maxicircle kinetoplast DNA (kDNA), which likely restricted its biological cycle within different Glossina species. T. evansi expanded its range though animal transportation, such as dromedaries or equids from Africa[23]. Indeed South America was reached through equids brought by Spanish conquistadors [2,24]. As a result, the geographic distribution of T. evansi shifted, originally being limited to north-western, central, and eastern Africa, and now extending to Asia and South America. , 17 African nations, 7 South American nations and 4 European nations [1,2], but new countries continue to be added to the tally as more detailed investigations are carried out reviews on the topic indicate that cases of surra have been recorded in 20 Asian nations [25,26].

Griffith Evans identified this pathogenic trypanosome in mammals in 1880 [1,2]. It can cause “surra” disease in equids, bovids, canids, and humans, although humans may not develop any apparent symptoms [1,24,27,28]. Atypical infections in humans have been reported in Sri Lanka, India, Egypt, and Thailand [29]. However, it is widely accepted that the dromedary camel is the primary host of this parasite [1,30].

In the 1990s, surra was first reported in Spain when it was detected in a dromedary camel in the Canary Islands [31]. The hypothesis that T. evansi was introduced to the islands from abroad is supported by the historically imported dromedaries from North African regions such as Morocco and Mauritania for agricultural and transport-related activities [32]. Following the discovery of T. evansi in the Canary Islands, several epidemiological studies were conducted to assess the prevalence of the disease in the local dromedary population [33].

Collaboration between the Institute of Tropical Medicine (Antwerp, Belgium) and the University of Las Palmas de Gran Canaria (ULPGC) was undertaken to examine a large part of the dromedary population on the islands (1012 dromedaries). From these, 745 animals were tested in 1999 with the Card Agglutination Test for T. evansi (CATT/T. evansi) and 36 resulted positive. Seven samples also tested positives on parasitological tests, mainly Giemsa-stained blood smears and micro-Haematocrit Centrifugation Technique (m-HCT) [7,33,34,35,36]. Subsequently, in 2000s, an antibody Ab-ELISA (Enzyme-Linked ImmunoSorbent Assay) seroprevalence study was conducted on 444 samples of dromedaries from the islands of Fuerteventura, Lanzarote, Tenerife and Gran Canaria. The results showed a prevalence of 10 % in Gran Canaria, 9.7 % in Lanzarote, 7.5 % in Tenerife and 7.8 % in Fuerteventura [34]. Treatment of positive animals with melarsomine (Cymelarsan ®) resulted in 0 % prevalence on all tested islands, except in Gran Canaria. In a study on the latter island, approximately 200 animals (5% of the population) tested positive serologically and parasitologically. In 2002, numerous abortions in dromedaries were associated with the parasite, which was identified through Giemsa-stained blood smears and m-HCT and treated with melarsomine. Changes in the biochemical parameters of the affected animals were further studied, yielding results described by Gutierrez et al. [25,26].

In 2008, T. evansi was detected in a camel and horse farm of the province of Alicante, mainland Spain, following the importation of a dromedary from the Canary Islands six months earlier. This animal presented clinical symptoms, including weight loss, weakness, and anaemia. After treating the dromedary with melarsomine, samples were taken from the other animals on the farm. As a results, 18 animals (16 camels and 2 horses) tested positive for CATT/T. evansi, with 12 of them (all camels) also testing positive through a parasitological test. Consequently, the affected animals were isolated and received the same treatment, effectively controlling the outbreak and eradicating the disease [14,37,38]. Similarly, in the department of Aveyron, France, another outbreak of T. evansi occurred in dromedaries due to the importation of dromedaries from the Canary Islands [39].

In 2014, there was another outbreak of the disease in the same location in Gran Canaria where eradication had not been fully achieved previously. Several hypotheses were suggested to explain why the disease persisted, such as ineffective treatment of the animals or the presence of a reservoir in the affected area. To investigate this, the prevalence of the disease in domestic ruminants and equids was assessed, as well as the potential involvement of Diptera, such as Stomoxys spp. and rodents in its transmission [40,41,42]. Consequently, in 2017, the Department of Agriculture, Livestock and Fisheries of the Government of the Canary Islands established a monitoring and control system. This involved a yearly sampling of the entire dromedary population on the island and testing for CATT/T. evansi and Polymerase Chain Reaction (PCR) of those animals positive to CATT/T. evansi. Positive animals were isolated, and in some cases, euthanized to prevent further transmission. The results of this programme were satisfactory, with only 4 animals testing positive serologically for T. evansi and no positive cases observed via PCR as of March 2022 [33].

In the light of the various outbreaks of the disease reported in animals exported from the Canary Islands, there is a potential risk of spreading the disease to other territories. In order to better manage the existing and future information on surra occurrence in Spain and gain insight into the epidemiological history of the disease and the current situation in the Canary Islands, the creation of a centralized database/information system was deemed necessary. To achieve this, a national 'atlas' was developed to compile and organize all available documents and data detailing the trypanosomosis caused by T. evansi since its initial detection in Spain.

The atlas was developed by the University of Las Palmas de Gran Canaria (ULPGC) in collaboration with the Department of Agriculture, Livestock and Fisheries of the Government of the Canary Islands. The government provided datasets collected for the purpose of controlling the incidence of this disease in dromedaries. Methodological guidance and supportive training were provided by the Food and Agriculture Organization of the United Nations (FAO). The tool was developed in the framework of the COMBAT project (Controlling and Progressively Minimizing the Burden of Animal Trypanosomosis) [34], which directly involves 21 institutions across different countries in Africa and Europe.

2. Materials and Methods

The atlas of surra in Spain was developed by broadly following the methods developed by the FAO for the continental atlas of African Animal Trypanosomosis (AAT) and tsetse flies [43]. This approach has already been adapted and implemented by veterinary authorities in various African countries, resulting in the creation of several national atlases of AAT and tsetse occurrence [44,45,46,47,48,49]. These national databases are regarded as crucial tools for evidence-based planning of field interventions in the framework of the “progressive control pathway” for AAT [50].

For the surra atlas in Spain, data were collected from multiple sources, mainly reports of investigations from various different livestock farms. In these investigations blood was sampled from various animal species, including dromedaries, goats, sheep, cows, horses, and donkeys. The primary purposes of these investigations were the targeting of veterinary treatment and academic research on the disease's epidemiology, as well as ensuring its control and monitoring since its initial detection in Gran Canaria in the 1990s.

For diagnosis, several parasitological and serological methods were utilized, including CATT/T. evansi (Institute of Tropical Medicine, Belgium), ELISA [51], PCR [52], Woo technique [36], lymph node aspirate (LNA) [53], blood smears and MIT (Mice Inoculation Test) [54].

Animal samplings were conducted in different ways, with the initial ones (late 1990s and early 2000s) being driven by clinical suspicion. Subsequently, a random and representative approach was adopted for certain studies to facilitate research, followed by an effort to cover a majority of the animal population (particularly dromedaries) through sources derived from control and monitoring efforts.

2.1. Data sources and development of the atlas

In 2021, the process of acquiring documents and datasets related to surra in Spain began. Each acquired document and dataset was added to a digital repository, and then, the most relevant information was extracted from the sources and included in a database. The data used for the development of this atlas were generated over a period of 25 years, from 1997 to 2022. They consist of 14 scientific publications, 7 conference proceedings, 1 PhD thesis and 4 documents of animal samples linked to the aforementioned scientific publications. Additionally, the atlas includes 5 unpublished datasets collected by the Department of Agriculture, Livestock and Fisheries of the Government of the Canary Islands. These datasets were gathered as part of their disease control efforts, including a comprehensive dromedary census on the islands conducted since 2018 [33]. All these sources cover specific regions of the Canary Islands, mostly the eastern islands, as well as a particular area of the Iberian Peninsula where surra was diagnosed.

These documents were mainly obtained in PDF and Microsoft Excel formats, but older documents were initially only available in hard copy and so they had to be scanned and digitized. Sources were mostly identified by the main author's surname and the date of publication or production. During this process, some papers were discarded, primarily those that detailed experimental inoculations of T. evansi in goat, which were performed to assess various diagnostic approaches and treatments.

The geographical coordinates of various sampling locations were obtained by utilizing various applications, such as Google Earth and the Spatial Data Infrastructure of the Canary Islands (IDE Canarias). Subsequently, maps indicating the presence or absence of surra in different target regions of Spain were generated and visualized via ArcGIS® software by Environmental Systems Research Institute, Inc. (ESRI), Redlands, California.

2.2. Data repository and database

Data sources were archived in a digital repository, while relevant and pertinent information was extracted, standardized, and imported into a spreadsheet file to create the atlas database. The database was divided into three sheets, following the general approach utilized by FAO for constructing the continental atlas [43]. The first sheet includes details on the documents utilized as sources to create the atlas, the second contains the locations and the georeferencing information required for mapping, and the third encompasses the epidemiological data on the various surveys and surra cases. Here below is a more detailed summary of the spreadsheet/database, while the column-by-column description of the three tables is provided in Additional file 1.

In the first sheet, a distinct numeric code (“Source_ID”) was assigned to each document, which was used to identify the data extracted from it in the other sheets. Data concerning the authors of the document (“Initials”, “Main_Author” and “Authors”), as well as its full title, country of origin, and year of publication (“Source_Name”, “Country”, “Year”) were also included. Furthermore, the type of document (“Report_type”), the presence of animal trypanosomosis information (“AT_Data”) and a note concerning whether the document is unpublished/grey literature (“Grey_document”) were included. Details such as journal, publisher, type of access (e.g., open or restricted), and external URL and availability (“External_link”, “Journal”, “Publisher”, “Access” and “Availability”) were recorded, alongside the access date and the name assigned to the file in the repository (“Accesed_on”, “File_name”).

In the second sheet, the different locations were included for each “Source_ID” in the first sheet. These locations were assigned unique identifiers (“Location_ID”) and were associated with their respective “Location_name”, “Province”, “District_island”, “Municipality”, “Geo_source” (i.e., the source of the geographical information) and “Area” (if applicable). While the exact coordinates of the surveys and surra cases were obtained and entered into the database, they could not be included in this article for privacy reasons.

The last sheets link the various documents and locations from the previous sheets through their “Source_ID” and “Location_ID” to the results of the epidemiological surveys. Each survey was identified by a unique a numeric code (“Survey_ID”). The period of sampling, including start and end month (“Month_ST” and “Month_END”) and year (“Year_ST” and “Year_END”) was recorded, as well as the sample size (“Sample_size”). If available, the animal species sampled was indicated alongside breed, age and sex (“Species_AN”, “Breed_AN”, “Age_AN” and “Sex_AN”) and the type of farm/holding or husbandry system (“Husb_AN”). The presence or absence of T. evansi, the number of positive animals and prevalence (“T_evansi_Presence” and “T_evansi”) were identified. Finally, the diagnostic methods used (“Diagnostic”) were recorded, and, when applicable, the treatment given to the animals before sampling (“Chemotherapy”).

3. Results

Between 1997 and 2022, a total of 12,433 animal samples were analysed for T. evansi, and all results for the different diagnostic methods and the different animal species are summarized in Table 1. Five categories of animal species were included in these samples, with dromedary camels being the most frequently tested (63.1% of the total), followed by equids (16.4%, primarily horses and donkeys), goats (11.3%), sheep (6.7 %), and cattle (2.5%). Furthermore, annual testing of dromedaries on certain islands was conducted as part of the surra control measures implemented by the Department of Agriculture, Livestock and Fisheries of the Canary Islands.

Of the total number of samples, 61.2% were analysed with CATT/T. evansi method. The second most frequently used technique was the Woo method (23.9%), followed by blood smears (7%), ELISA (3.6%), PCR (3.2%), LNA (0.6%) and MIT (0.5%).

Regarding CATT/T. evansi, dromedaries represented the most sampled hosts (70.7%), followed by equids (13.1%), goats (9%), sheep (5.2%), and cattle (2%). Similarly, dromedaries were the most commonly tested species for PCR (67.7%), followed by sheep (11.3%), equids and goats (8.5% each) and cattle (4%). In contrast, the Woo technique was predominantly targeted at equids (33.7%), followed by dromedaries (25%), goats (23.1%), sheep (13.2%) and cattle (5%). Finally, for blood smear, ELISA, MIT and LNA tests, all samples were obtained from dromedaries.

The total number of positive samples for T. evansi was 601, representing 4.8% of the total number of samples tested. Given the significant variations in sensitivity among the different diagnostic tests, it is necessary to specify the number of positives samples found by each test. Specifically, for CATT/T. evansi, 72% of the positive samples were detected, followed by 8.65% for ELISA, 8.48% for the Woo technique, 5.6% for blood smear, 4.8% for PCR, 0.3% for LNA, and 0.17% for MIT.

Similarly, it´s necessary to differentiate between each tested animal species, as the corresponding number of positive samples varies considerably. For instance, the total number of positive dromedary samples was 477 (79.5% of the total number of positives), which is considerably higher compared to the other species. The number of positive from sheep was 7.5%, followed by goats with 5.6%, equids with 4.8%, and cattle with 2.6%.

All positive samples from sheep, goats and cattle were detected by CATT/T. evansi. However, positive samples in equids and dromedaries were found using different techniques: for equids, 89.6% of the samples tested positive by CATT/T. evansi, followed by PCR with7 % and Woo technique with 3.4%. In dromedaries, the range of techniques used differed even more, with CATT/T. evansi yielding the highest number of positive at 65.3%, followed by ELISA at 10.9%, Woo technique at 10.5%, blood smear at 7.1%, PCR at 5.6% and finally lymph node aspirate and MIT at 0.4% and 0.2%, respectively.

Most of the data presented in Table 1 were collected in the context of disease control and monitoring activities (between 2015-2022), accounting for 62% of the total. The remaining 38% is the result of scientific investigations carried out in the framework of academic and research activities (between 1997-2013) (More details in Figure 2).

A total of 99 locations from different sources have been investigated, and the exact coordinates of each one has been obtained and included in the atlas database. The majority of these belong to the province of Las Palmas (85 locations), mainly on the islands of Gran Canaria, Fuerteventura, and Lanzarote, followed by the province of Santa Cruz de Tenerife (13 locations), mainly Tenerife Island, and the province of Alicante (1 location). Positive samples were found in 19% of the surveyed locations, with the majority being located in the province of Las Palmas (Figure 1).

Database completeness

A high level of completeness was achieved in this atlas. We managed to obtain a comprehensive overview of the different cases of surra and their location over time, as well as specific information on their hosts. In most cases (approximately 90% of the records), all the required data for the atlas could be identified. For example, information on animal sampling duration, number of samples and positive cases, diagnoses, and treatment after diagnosis in a few cases, among others has been obtained. Additionally, over 90% of the locations of the different sources have been identified at the farm level, with the remaining 10 % mapped at the village/location level.

4. Discussion

In the atlas on animal trypanosomosis for Spain described in this paper, only studies and data on T. evansi were included, while atlases previously published in a few African countries focus on nagana (i.e. Sudan [44], Kenya [49], Mali [46], Zimbabwe [45], Burkina Faso [48] and Ethiopia [47]). This decision was motivated by the fact that in Spain only the presence of this species of trypanosome has been described. According to the results of this study and our knowledge, no other species of trypanosomiasis has ever been observed in Spain.

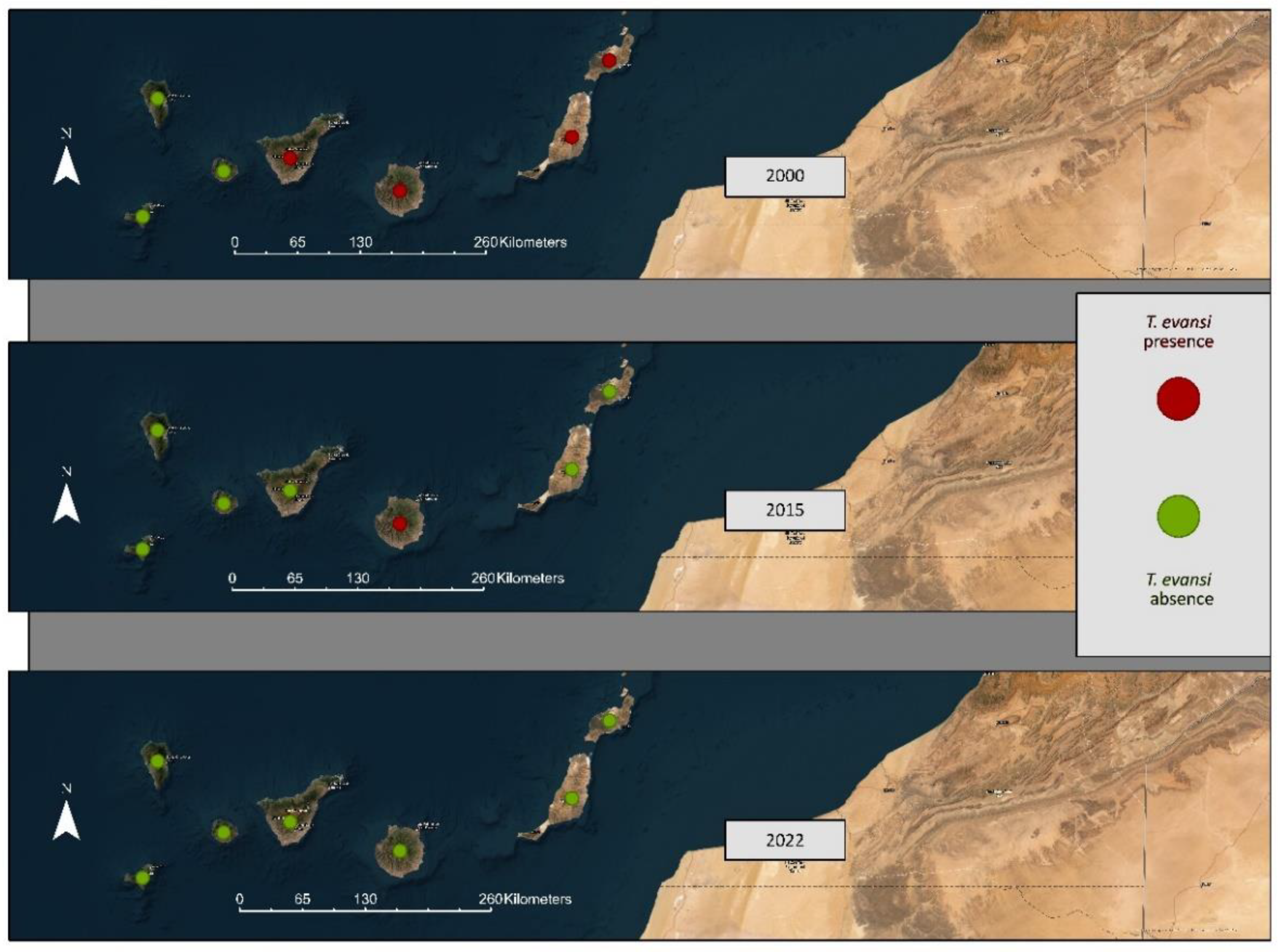

Through the development of this atlas, a better understanding of the epidemiology of Surra in the Canary Islands has been achieved. As mentioned previously, the first identification of this parasite was done in the island of Gran Canaria [31]. Apart from the outbreak diagnosed and eradicated in the province of Alicante, which originated from the exportation of apparently healthy dromedaries carrying the disease from the Canary Islands [14,38]; the Canary Islands is the only region in Spain that has consistently reported cases of Surra throughout the study period. Similarly, it can be seen that the main cases of the disease have been concentrated in the eastern part of the Canary Islands.

Therefore, after collecting a large number of samples throughout various studies, we can conclude that among all potential hosts present in Spain, the dromedary, historically with a large population in the Canary Islands, is the main host of T. evansi, with cases appearing in other species being derived from those already present in them.

However, several limitations can be found in this atlas. For example, despite obtaining various specific locations (mainly camel farms) where investigations for the parasite have been conducted and positive animals have been found, the maps created and included in this document do not include these specific locations, mainly due to privacy reasons.

In addition, the exact sampling location has not been always available in the specific documents analysed. In these cases, an approximate area was estimated based on a specified longitude and latitude and included in the atlas database. This allows us to highlight the importance of knowing and documenting specific locations in future studies, with the aim of having the maximum possible information in this regard.

Sampling has predominantly focused on dromedaries, one of the various species that could potentially serve as hosts for T. evansi, given their high vulnerability [17] and the occurrence of Surra cases in the Canary Islands. However, although studies with other possible hosts have been mainly conducted in academic circles [41,55], it is imperative to carry out exhaustive research in other species (especially those from areas close to dromedary populations or regions with historical records of positive animals) to obtain a representative sample that aligns with the studied dromedaries.

Regarding the diagnostic samples used, the most utilized method to detect animals positive for surra has been CATT/T. evansi. This diagnostic method primarily detects a specific antigen of T. evansi, specifically the A variant [7,56]. However, literature describes the existence of a B variant that lacks this specific antigen, raising controversy over the use of CATT/T. evansi as the primary detection method. In some studies, PCR was subsequently performed to confirm the presence of the parasite in animals that tested positive with this assay. However, without complementary tests such as parasitological techniques (Woo technique, blood smear examination, etc.), there is a possibility that the B variant may be present. This should be considered and investigated in future studies to ensure accurate determination of the presence or absence of T. evansi in the samples. The correct detection of these pathogenic trypanosomes is becoming increasingly important, as despite not currently classified as a zoonosis due to its asymptomatic nature, several studies suggest that it could potentially be considered as one [29,57]. Another important limitation to consider is the absence of sample collection and entomological studies. Due to the mechanical nature of T. evansi transmission, it is crucial to identify various vectors responsible for sustaining and propagating the disease. Only Rodriguez et al. [40] reported the presence of Stomoxys calcitrans as a potential primary vector in surra transmission in the Canary Islands. However, this hypothesis remains unverified due to the absence of genetic tests for confirmation.

5. Conclusions

Given the lack of a comprehensive database on the occurrence of surra and other pathogenic trypanosomes in Spain, this study represents a milestone in understanding the disease and its distribution in space and time. Not only does it provide insight into the events to date, but it also serves as a tool for disease control in the future.

It is necessary to continue obtaining more data from animals and new entomological samplings in order to achieve a better understanding of the disease in Spain and the Canary Islands. By using new data and publications from these future investigations, the atlas of trypanosomosis in Spain will be continually updated and improved. The upcoming inclusion of entomological study results from different islands in the Canary archipelago, where Surra has been present in the past, is a good example of the usefulness of the atlas as a tool for disease control and monitoring. Additionally, this atlas will allow to target a comprehensive study of trypanosomosis in other animal species, different from the dromedary, that are susceptible to Surra, aiming to fill in the current information gaps. This atlas intends to be a useful tool for the official animal health authorities, primarily in the Canary Islands, to improve monitoring and control activities, mainly through risk analysis and consideration of at-risk herds on the different islands. Furthermore, in the case of new disease outbreaks, this atlas can provide information and guidance for implementing proper prophylaxis and control measures in affected regions of Spain.
