Chronic Morphine Treatment and Antiretroviral Therapy Exacerbate HIV-Distal Sensory Peripheral Neuropathy and Induce Distinct Microbial Alterations in the HIV Tg26 Mouse Model.

1. Introduction

Distal Sensory Peripheral Neuropathy (DSP) is a prevalent neurologic complication that frequently arises in individuals afflicted with Human Immunodeficiency Virus (HIV). It represents a significant source of morbidity [1,2]. HIV-DSP, characterized by symptoms of neuropathic pain such as stabbing, numbness, and tingles [3], afflicts at least 50% of individuals living with HIV [4]. While combination antiretroviral therapy (cART) has mitigated several HIV-associated complications, sensory neuropathies endure as a common neurological ailment linked to both HIV infection and its management with ART [5,6]. HIV-DSP arises from the degeneration and demise of distal axons and small unmyelinated sensory fibers, followed by larger myelinated ones [7]. Consequently, the primary etiology of pain in HIV-DSP is rooted in damage to peripheral ascending nerves and central descending nerves. In particular, the excitation of damaged ascending sensory neurons underlie heightened sensitivity to pain, resulting in sensations of burning or tingling [3,7].

Currently, no medications approved by the FDA specifically target the treatment of HIV-DSP. Clinical efforts have predominantly revolved around pharmaceutical interventions, including the use of opioids, to alleviate patients' pain [8]. However, emerging data suggest that chronic administration of opioid analgesics in individuals living with HIV/AIDS, particularly those undergoing ART, may paradoxically exacerbate chronic pain states and contribute to increased adverse effects [9,10]. Notably, our previous research has underscored the impact of chronic opioid usage, which induces gut microbial dysbiosis characterized by compromised mucosal immunity, microbial translocation, and sustained systemic inflammation [11]. Importantly, HIV infection itself is associated with dysregulation of the intestinal barrier [12], and opioid use exacerbates this dysbiosis. Gut microbial dysbiosis has emerged as a pivotal contributor to the progression of HIV disease, as evidenced by the presence of microbial products in the peripheral blood of HIV-infected individuals, which has been implicated in immune activation and heightened morbidity and mortality [13,14]. Consequently, in any investigation concerning HIV and its attendant complications, whether in the presence or absence of opioid utilization, the role of the gut microbiome demands consideration.

Several transgenic rodent models have been devised to simulate the impact of HIV infection, with the aim of elucidating the pathogenesis of the disease. Among these models, the HIV Tg26 mouse has been designed to emulate contemporary HIV-1-infected individuals receiving ART [15]. Constructed utilizing non-infectious HIV-1 proviral DNA and possessing a C57BL/6 background, these mice serve as a valuable tool for investigating the neurological repercussions of HIV-1 infection [15,16]. Although this model is touted for its capacity to facilitate research into the neurological consequences of chronic, long-term HIV infection, behavioral assessments and the comprehensive characterization of its gut microbiome are at nascent stages of exploration. Data pertaining to neurocognitive function and sensory systems are only beginning to emerge [16,17].

Hence, in this study, our objective was twofold: first, to evaluate the integrity of the nociceptive sensory system in the Tg26 mouse model and to investigate the progression of HIV-DSP within this model, particularly in the context of opioid administration and ART treatment. Second, we aimed to comprehensively profile the gut microbiome of the Tg26 mouse model, recognizing the significant role that microbial dysbiosis plays in HIV progression and its associated comorbidities. We hypothesized opioid and ART interventions to exacerbate the development of HIV-DSP and to lead to distinctive alterations in the gut microbiota of the Tg26 mice when compared to their wild type (WT) counterparts.

2. Materials and Methods

2.1. Animals

All animal care and procedures were approved by Institutional Animal Care and Use Committee at the University of Miami to ensure ethical treatment of animals. The animal subjects used in this study were 4–6 months old adult male transgenic HIV Tg26 mice of C57BL/6 background [18] and age-matched littermate wild type (WT) mice. Given the nature of this study involving non-human animals, a formal consent procedure, as typically applied in human studies, was not applicable. Transgenic Tg26 mouse expresses a 7.4 kb transgene containing the genetic sequence for the HIV-1 tat, env, rev, nef, vif, vpr and vpu genes, which are transcriptionally regulated by the long terminal repeat promoter [19]. All mice were genotyped from tail biopsies collected at the time of weaning. All animals were housed two to five per cage in SPF conditions with ad libitum access to food and water.

2.2. Animal treatments

Morphine Treatment:

Morphine sulfate obtained from the National Institutes of Health [NIH]/National Institute on Drug Abuse [NIDA] located in Bethesda, MD, was dissolved in sterile saline. Mice received constant dose of 15mg/kg of morphine or saline intraperitoneal (IP) injection twice a day for a duration of ten days. Nociceptive response was evaluated on the days 0 and 11 after morphine treatment. To evaluate analgesic tolerance to morphine, the same morphine regiment was done where mice received constant dose of 15mg/kg of morphine or saline IP injection twice a day for a duration of ten days. On day 11, analgesic tolerance to a test dose of morphine (3mg/kg) was evaluated.

ART treatment:

The antiretroviral treatment (ART) included Elvitegravir 30mg/kg (integrase inhibitor), Tenofovir 50 mg/kg (nucleotide reverse transcriptase inhibitor) and Emtricitabine 30mg/kg (nucleotide reverse transcriptase inhibitor) dissolved in sterile saline. Mice received the ART trough oral gavage (200ml per mouse) once a day for a duration of ten days.

2.3. Nociceptive testing

Pain-like behavior and nociception were assessed with the tail flick assay to evaluate thermal pain thresholds and the Von Frey assay to evaluate mechanical pain thresholds.

Tail flick

During the tail flick assay, rodents were loosely restrained, and heat stimulus was applied unto the tails of mice. The radiant heat stimulus, emitted by a high intensity lamp, was applied onto the mid-region of the tail, with a maximum cutoff of 10 seconds to minimize tissue damage. The time taken for the tail to ‘‘flick’’, or twitch was recorded. The latency to tail-flick was determined in one trial.

Von Frey

During the Von Frey assay, animals were placed individually in small cages with a mesh bottom. The “ascending stimulus” method was used to determine the mechanical paw withdrawal threshold. A monofilament was applied perpendicularly to the plantar surface of the hind paw until it bends, delivering a pre-determined force from 0.4g to 11g for 2–5 s. A response was considered positive if the animal exhibited any nociceptive behaviors, including brisk paw withdrawal, licking, or shaking of the paw, either during application of the stimulus or immediately after the filament is removed [20].

2.4. 16S rRNA gene sequencing

To evaluate the gut microbiome, contents of colon were collected under aseptic conditions from all mice after sacrificing. Sequencing was performed by the University of Minnesota Genomic Center, MN. DNA was isolated using DNeasy PowerSoil® kits (Qiagen) modified to include a bead-beating step.

2.5. Microbiome sequencing data analysis

For the analysis of microbiome sequencing data, the Bioconductor platform with a specific emphasis on the dada2 version (3.17) package was employed [21]. The dada2 pipeline provides a comprehensive platform tailored for high-resolution analysis of amplicon sequencing data, such as the 16S rRNA gene data that is pivotal in microbiome studies. A quality profile check was done using the plotQualityProfile function. Raw reads were then subjected to filtering and trimming based on criteria including truncation length, maximum expected errors, and quality score. Post filtering, the error rates for both forward and reverse reads were estimated. Subsequent steps included dereplication to collapse identical sequences, denoising to model and correct amplicon errors, and the merging of paired reads. A sequence table was constructed to tabulate the frequency of each sequence variant in the samples. Notably, potential chimeras were identified and removed. For taxonomic assignment, the Silva database, specifically the silva_nr99_v138.1_wSpecies_train_set.fa.gz reference, was utilized to match our sequences [22,23].

2.6. Statistical analysis and diversity metrics

All behavioral data was analyzed with a student t test or a One-way ANOVA for multiple group analysis using PRISM. For the microbiome data, the LEfSe (Linear Discriminant Analysis Effect Size), a tool adept at identifying taxa that are statistically different between groups, was used [24]. The threshold for considering differential abundance was set at an LDA score of 2, ensuring robustness in our findings. In assessing diversity, the t-test was employed for alpha diversity comparisons. Beta diversity, representing differences between microbial communities, was evaluated using the PERMANOVA test, a non-parametric multivariate analysis of variance. For multiple testing corrections in our t-tests, the Bonferroni method was used to ensure stringency in the p-value adjustments.

3. Results

3.1. Chronic morphine treatment worsened the development of peripheral neuropathy through mechanical pain pathways in Tg26 mice compared to WT

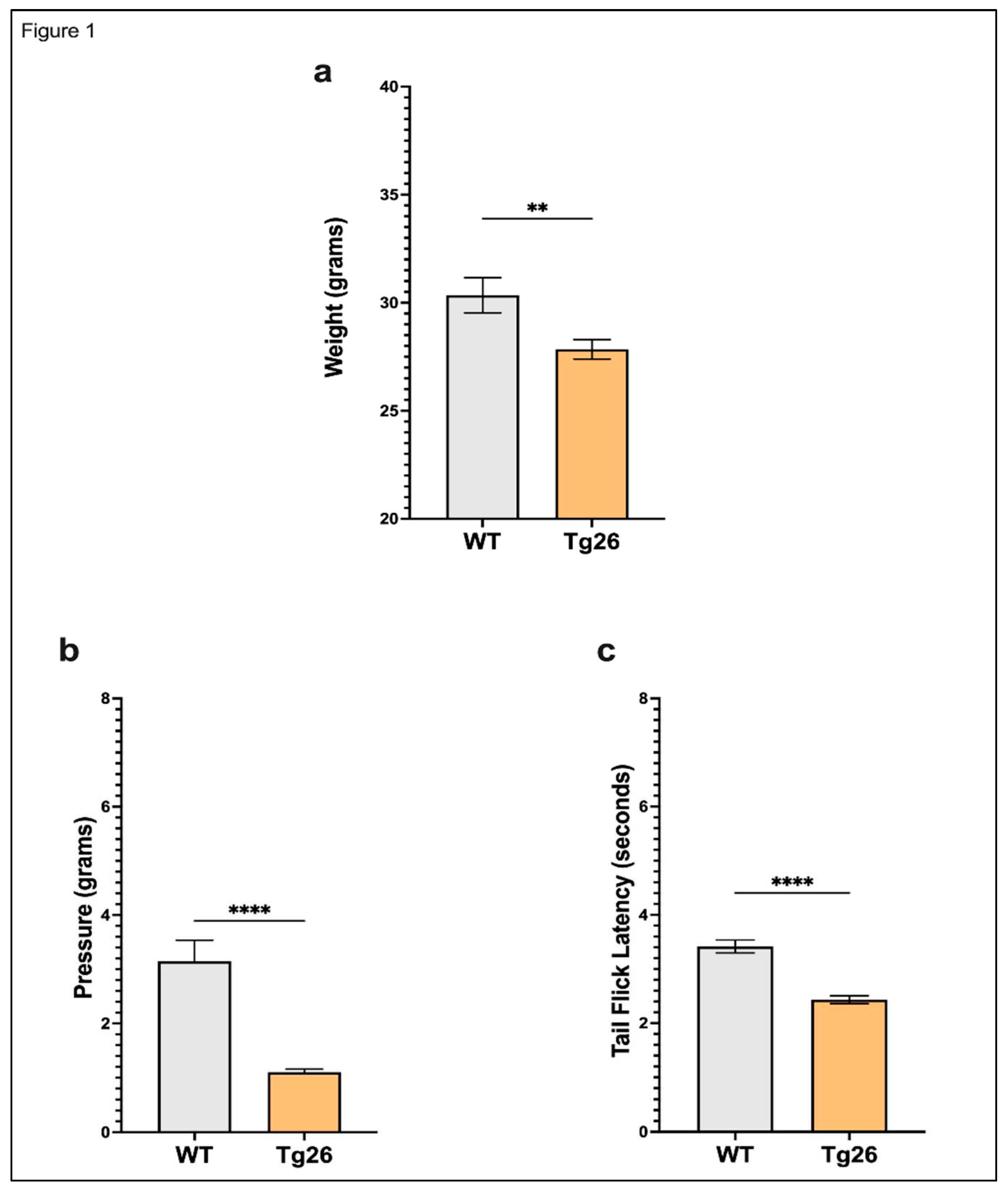

We first examined body weight and nociceptive thresholds in Tg26 mice compared to WT to establish these responses in the context of HIV alone (Figure 1). Age matched Tg26 mice weighted significantly less than WT (Figure 1a). When compared to WT, Tg26 mice displayed significant mechanical pain hypersensitivity and thermal hyperalgesia assessed with Von Frey filaments and the tail flick assay respectively (Figure 1b,c). These results established that the expressed HIV proteins in Tg26 mice significantly impact the body weight and decreased mechanical and thermal pain thresholds.

Next, to assess the nociceptive sensory system in the context opioid use, Tg26 mice and WT mice were exposed to morphine at a concentration of 15mg/kg or saline for 10 days (Figure 2a). Results show morphine treatment to exacerbate weight loss (Figure 2b) and mechanical pain sensitivity (Figure 2c), in WT as well as Tg26 mice. However, a significant decrease in thermal hyperalgesia (Figure 2d) was only observed in WT mice and not in Tg26 mice post morphine treatment.

3.2. ART induced peripheral neuropathy through mechanical pain pathways and worsened analgesic tolerance to morphine in Tg26 mice.

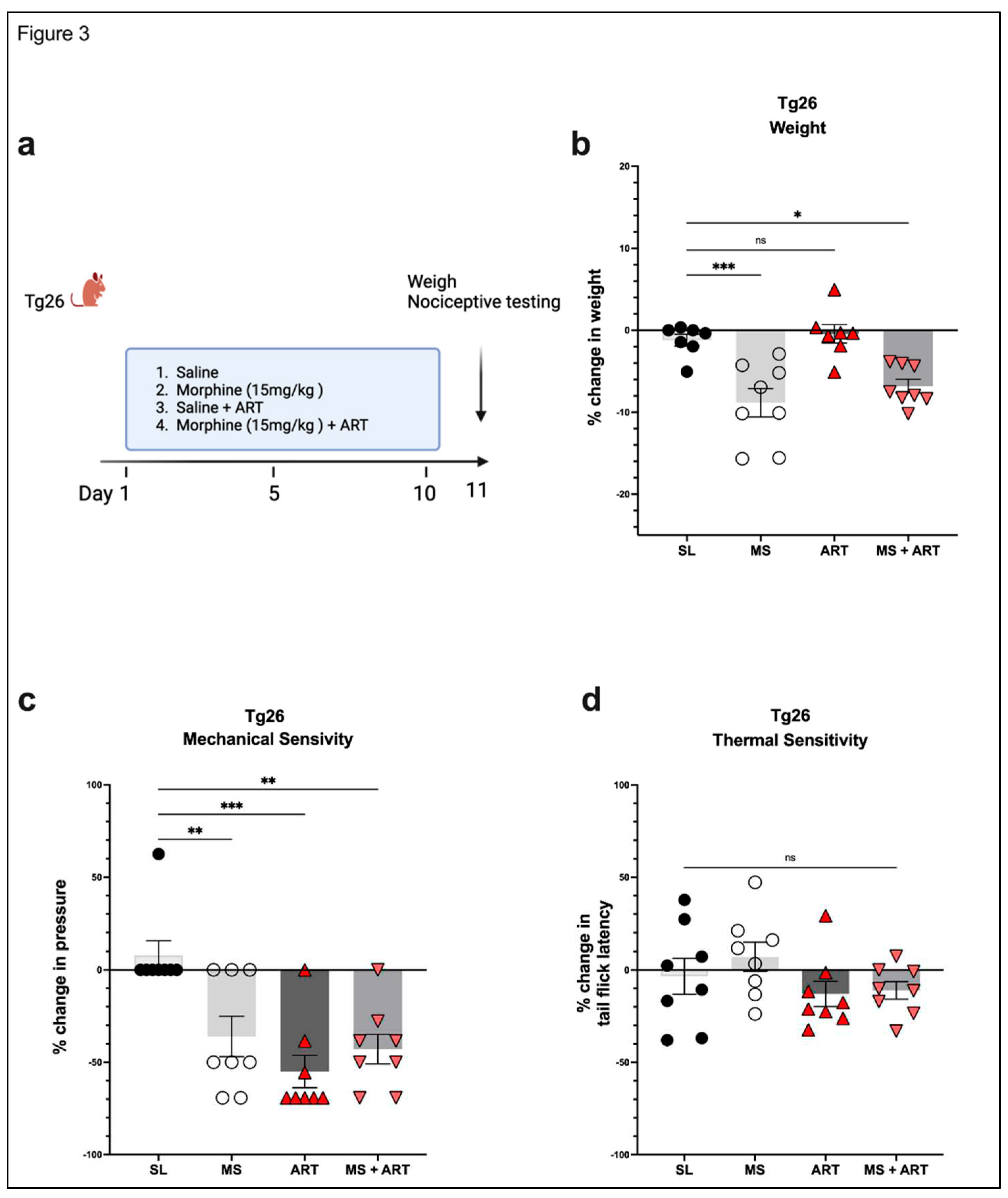

Accumulating evidence implicates ART treatment as a contributing factor in several HIV-induced comorbidities. Thus, to explore the role of ART treatment in the development of peripheral neuropathy in the context of HIV and opioid use, Tg26 mice were given ART through oral gavage once a day for a duration of 10 days along with the morphine treatment. ART treatment alone had no impact on body weight (Figure 3a) but induced peripheral neuropathy by significantly decreasing mechanical pain thresholds in Tg26 mice (Figure 3b). Morphine treatment alone resulted in significant weight loss and mechanical pain hypersensivity, however, the addition of ART did not further exacerbate these responses (Figure 3a,b). While morphine and ART treatment significantly decreased mechanical thresholds, they had no significant impact on thermal pain thresholds (Figure 3c,d) when compared to saline treatment in the Tg26 mice. Consequently, these results show morphine and ART treatments to induce peripheral neuropathy mainly through mechanical pain pathways.

To further investigate the nociceptive sensory system of Tg26 mice and assess their response to repeated opioid exposure, tolerance to morphine at a concentration of 3mg/kg was evaluated in Tg26 and WT mice treated with either repeated 15mg/kg dose of morphine alone (Figure 4a) and with ART (Figure 4c) for 10 consecutive days. WT and Tg26 mice showed significant tolerance to morphine on day 11 compared to saline controls (Figure 4b). Similarly, following repeated morphine exposure along with ART, WT and Tg26 mice showed significant tolerance to morphine on day 11 compared to saline controls (Figure 4d). However, Tg26 mice, but not WT mice, showed exacerbated tolerance to morphine with ART treatment when compared to morphine treatment alone (Figure 4e,f). Thus, these results suggest ART treatment to exacerbate the development of morphine analgesic tolerance in the context of HIV.

3.3. Distinct bacterial community are observed between WT and Tg26 mice before and after morphine treatment.

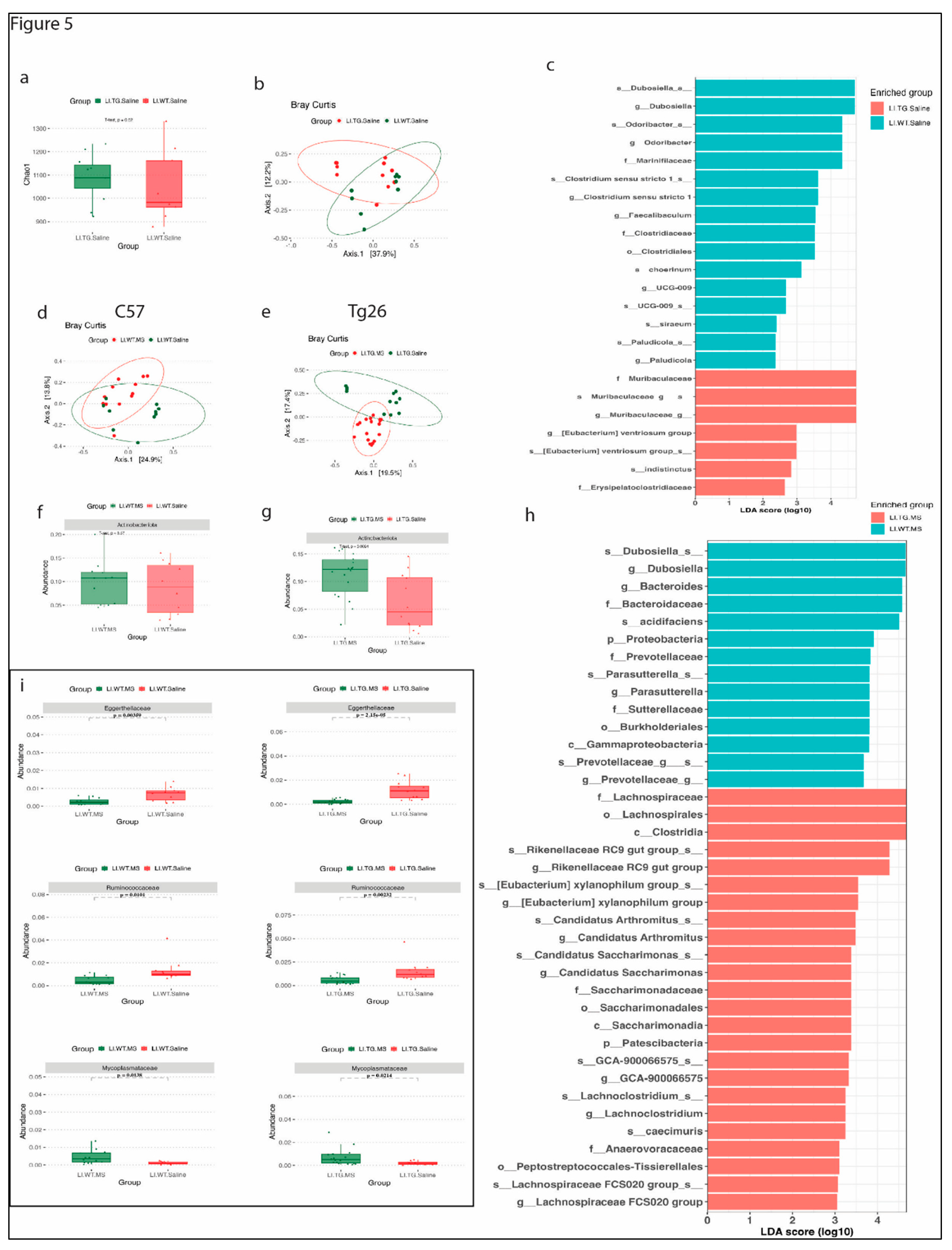

16S analysis on colonic samples were done in various study groups to understand the role gut microbiome in peripheral neuropathy and opioid analgesic tolerance. Like our previous findings [25], we did not observe a significant difference in the alpha and beta diversity as shown by Chao-1 index and Bray-Curtis PCoA plot between WT and Tg26 mice (Figure 5a,b). Further analysis showed a significant enrichment of bacteria belonging to family Muribaculaceae and depletion of bacterial family Marinifilaceae and Clostridiaceae in Tg26 mice compared to WT control (Figure 5c, Supplementary Figure 1a).

Morphine treatment did not cause any significant change in alpha diversity in WT and Tg26 mice (supplementary Figure 1b) compared to saline control. However, unlike WT mice, morphine treatment resulted in a significant shift in the beta diversity in Tg26 mice (Figure 5d,e). We observed a significant increase in phylum Actinobacteriota after morphine treatment in Tg26 mice but not in WT mice (Figure 5f,g). LEfSe comparison between morphine treated WT and Tg26 mice highlighted several significant bacterial changes (Figure 5h). A family level comparison showed increase in Bacteroidaceae, Erysipelotrichaceae, and Sutterellaceae family and a decrease in Lachnospiraceae family in WT morphine treated mice compared to Tg26 morphine treated mice (Supplementary Figure 1c). While at species level, only Bacteroides acidifaciens and Bacteroides caecimuris were significantly altered between morphine treated WT and Tg26 mice (Supplementary Figure 1d). Additionally, a consistent decrease in Eggerthellaceae and Ruminococcaceae bacterial family and a consistent increase in Mycoplasmataceae bacterial family was in both WT and Tg26 group after morphine treatment (Figure 5i).

3.4. ART treatment modulates the gut microbiome in WT and Tg26 mice.

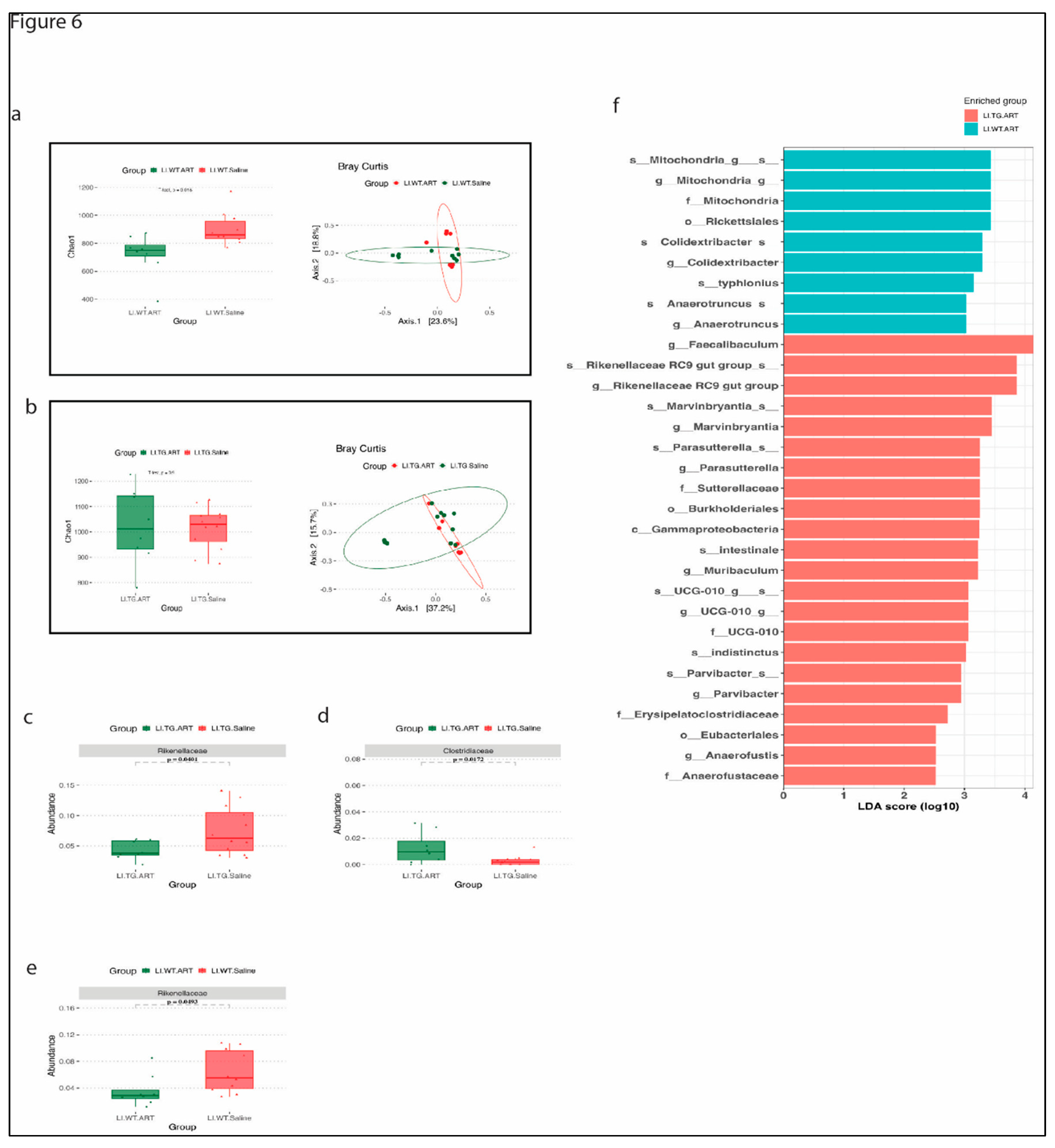

Next, we analyzed the 16S data from ART treated WT and Tg26 mice. We observed a significant decrease in alpha diversity followed by ART treatment in WT mice but not Tg26 mice (Figure 6a,b). However, Bray-Curtis’ dissimilarity index show overlapping bacterial communities between saline and ART treated mice in WT as well as Tg26 mice (Figure 6a,b). Rickenellaceae family was significantly depleted in both WT and Tg26 mice after ART treatment (Figure 6c,e), while a significant increase in Clostridiaceae was observed only in case of Tg26 mice after ART treatment. A groupwise comparison between ART treated WT and Tg26 mice revealed a significantly lower richness in ART treated WT mice compared to ART treated Tg26 mice (Supplementary Figure 2a) with no difference in the beta diversity (Supplementary Figure 2b). A LEfSe plot shows all the significant differences between WT and Tg26 mice after ART treatment (Figure 6f) including Muribaculum and Parasutterella genus.

4. Discussion

DSP is a well-documented condition that develops in individuals living with HIV, even in those undergoing ART [4]. DSP significantly impairs the quality of life for affected patients, primarily manifesting as persistent pain symptoms [4]. Consequently, patients with HIV often require pain relief medications, including opioids. Paradoxically, opioid use can exacerbate pain symptoms and contribute to disease progression through opioid-induced microbial dysbiosis [9,26]. The Tg26 mouse model has been employed to study the pathogenesis of HIV infection [15,16]. As the characterization of the Tg26 mouse model is still in its nascent stages, our study aimed to investigate the development of HIV-DSP and assess alterations in the gut microbiota in the Tg26 HIV mouse model, particularly in the context of opioid use and ART treatment. In our present study, both morphine and ART treatments not only exacerbated the development of HIV-DSP in the Tg26 mouse model, primarily through mechanical pain pathways, but also led to distinctive microbial changes when compared to WT mice.

In the context of HIV alone, our data indicate that Tg26 mice develop HIV-DSP, characterized by mechanical and thermal pain hypersensitivity when compared to WT mice. Similarly, HIV-DSP development has been observed in other HIV mouse models, including those infused with the HIV-1 coat protein Gp120 [27,28] resulting in mechanical and thermal hypersensitivity, and those infused with the HIV-1 Tat protein [29], leading to mechanical pain hypersensitivity. It is noteworthy that several reports showed no changes in thermal hyperalgesia in the HIV-1 Tat model [29,30,31]. These observations are consistent with numerous reports of HIV-DSP development in HIV patients [4]. For example, a study involving 1044 people living with HIV found that over half of the participants experienced HIV-DSP, with 38% reporting painful distal neuropathies and 24% experiencing non-painful symptoms [32].

Since many HIV patients, including those on ART, experience persistent pain, opioids are often prescribed. In the context of opioid treatment, our data reveal that Tg26 mice exhibit increased weight loss and mechanical pain hypersensitivity, although thermal hyperalgesia remained unaffected, following seven days of chronic morphine treatment, with or without ART. Consistent with this work, a previous study using an HIV Gp120 mouse model demonstrated that repeated morphine administration led to increased hypersensitivity to mechanical stimulation [33]. Although ART did not exacerbate opioid-induced weight loss and mechanical pain hypersensitivity, it did worsen tolerance to morphine in the Tg26 mice compared to WT mice. Morphine tolerance is the primary cause of reduced pain control and necessitates dose escalation, making pain management more challenging [34,35]. Thus, heighted morphine tolerance results in increased opioid use and makes the related side effects more serious. Overall, our results in the Tg26 mouse model align with the findings of clinical studies indicating that chronic use of opioid analgesics exacerbate pain in HIV patients [36,37].

We extended our investigation of the Tg26 mouse model to include the gut microbiome, given that opioid-induced microbial dysbiosis has been implicated in HIV-1 disease progression [38]. Our data revealed distinct differences in the bacterial communities between WT and Tg26 mice both before and after morphine treatment. Before morphine treatment, Tg26 mice exhibited an enrichment of bacteria belonging to the Muribaculaceae family and a depletion of those belonging to the Clostridiaceae family compared to WT controls. Similarly, a previous study found that HIV Tat expression in 12-month-old female mice caused severe dysbiosis, characterized by a significant increase in Muribaculaceae, while showing a decrease in Lachnospiraceae and Ruminococcaceae [39]. Regarding opioid use, our data showed that morphine treatment induced a significant shift in the bacterial community in Tg26 mice, as indicated by the beta diversity, leading to a substantial increase in the Actinobacteriota phylum compared to saline treatment. When compared to WT mice, at the genus level, morphine treatment resulted in a decrease in Dubosiella and Prevotellaceae, which have been correlated with an anti-inflammatory response in the gut in the context of dextran sulfate sodium-induced colitis [40]. Additionally, morphine treatment resulted in a significant increase in the genera Lachnospiraceae, Candidatus Saccharimonas, and Rikenellaceae. Specifically, the increased abundance of Lachnospiraceae has been linked to potentially triggering an excessive immune response and intestinal inflammation [41], while Candidatus Saccharimonas has been denoted to be a pathogenic bacterium [42]. The expansion of Candidatus Saccharimonas has been linked to inflammatory diseases such as gingivitis and other periodontal dysfunctions [43]. In summary, our data demonstrate that morphine treatment results in distinctive dysbiotic microbial changes in the Tg26 mice compared to WT mice, consistent with our earlier findings indicating that morphine treatment induces gut microbial dysbiosis and impairs intestinal epithelial repair in the Tg26 transgenic mouse [25].

Furthermore, we observed that ART treatment led to a decrease in alpha diversity in WT mice but not in the Tg26 mice. Recent studies involving HIV-infected individuals have reported a decrease in alpha diversity following ART treatment [44,45,46]. ART also significantly depleted the Rickenellaceae family in both WT and Tg26 mice while significantly increasing the Clostridiaceae family in the Tg26 mice. Increased bacterial species within the Clostridiaceae family have been associated with systemic levels of bacterial translocation and inflammation, which have been successfully reduced in HIV patients through probiotic treatment with Saccharomyces boulardii [47]. Additionally, the Rikenellaceae RC9 gut group, belonging to the Rikenellaceae family, plays an essential role in crude fiber digestion [48,49] and is depleted in HIV patients receiving ART, leading to reduced butyrate synthesis and disrupted metabolism in the context of obesity [50]. Moreover, previous studies investigating markers of microbial translocation and systemic inflammation in HIV patients receiving ART also found the Rickenellaceae family to be significantly depleted in the HIV-positive patients compared to HIV-negative controls [51,52]. Consequently, our results in the Tg26 mice are consistent with findings that patients living with HIV and receiving ART exhibit distinct microbial alterations, potentially associated with sustained systemic inflammation and disease progression.

Limitations exist in our study, necessitating further investigation. Our study primarily focused on the impact of morphine and ART on the development of HIV-DSP in the Tg26 model and the characterization of its gut microbiome. As a result, interventions aimed at preventing HIV-DSP development were not explored. Future work will delve into treatments designed to prevent or mitigate HIV-DSP development. Furthermore, now that the Tg26 mouse model's microbiome is well characterized, future research will examine the direct role of the gut microbiome in HIV-DSP development and investigate whether probiotic interventions aimed at restoring the gut microbiome can attenuate HIV-DSP development.

5. Conclusions

Our research highlights the interaction between chronic morphine treatment, ART, the development of HIV-associated chronic pain, and alterations in the gut microbiome using the Tg26 mouse model. The findings demonstrate that both morphine and ART exacerbate the development of HIV-DSP, resulting in increased pain sensitivity, while also inducing distinct changes in the gut microbiota. These insights are of significant clinical importance, given the challenges that HIV-DSP presents to affected individuals. While our study has made substantial progress in understanding these interactions, it also points to the need for further investigation, including the exploration of preventative measures and potential interventions. Future research will delve into treatments that can mitigate HIV-DSP development and directly assess the role of the gut microbiome in this process. Overall, our work emphasizes the value of the Tg26 mouse model in unraveling the complex mechanisms behind opioid and ART-induced exacerbation of HIV-associated pain and the implications of opioid and ART-induced gut microbial dysbiosis.
