The Effect of Bulk Modification of the Mf-4SK Membrane with Phosphorylated Hyper-Branched Dendrimer Bolthorn H20 on the Mechanisms of Electroconvection/Dissociation of Water and Specific Selectivity to Divalent Ions

1. Introduction

The problem of creating ion exchange membranes with pronounced specific selectivity is one of the oldest and major problems in membrane electrochemistry. Moreover, with the increasing number of applications of electromembrane systems in recent years, the need to increase the selective permeability between counter-ions and co-ions, as well as counter-ions with different (e.g., Na⁺ and Ca²⁺) or identical (e.g., NO₃^– and Cl^–) charges, is growing. In particular, processes such as redox flow batteries, diffusion dialysis, microbial fuel cells, and ion exchange membrane bioreactors require high membrane selectivity between counter-ions with different charges [1].

Within the scope of this study, we will refer to “selectivity” as the preferential transport of one of the ions with the same charge. Whereas typically, the selectivity of an ion-exchange membrane is understood as its ability to transport ions of the same charge sign without differentiation between them. In this sense, ion-exchange membranes can exhibit charge selectivity (based on the magnitude of the charge, for example, Li⁺ and Mg²⁺), as well as specific selectivity (for example, based on the chemical nature of ions with the same charge).

Generally, ion-exchange materials exhibit more pronounced selectivity towards double- and multiple-charged ions [2]. To enhance selectivity towards single-charged ions, studies have been conducted on altering the configuration of the membrane stack [3,4,5], including the use of nanofiltration membranes instead of cation-exchange membranes [5]. However, the overwhelming majority of research in this field is dedicated to modifying the properties of ion-exchange membranes through surface modification [6].

Sata et al. extensively investigated the possibilities of modifying ion-exchange membranes to impart selectivity towards monovalent ions and examined the impact of this modification on the resulting characteristics of the electrodialysis process in the 1970s-1980s. These studies were summarized in two reviews dedicated to anion-exchange [7] and cation-exchange [8] membranes. A review [9] compiled patents on methods for obtaining monovalent-selective cation-exchange membranes. The topic of the selectivity of ion-exchange membranes is also briefly discussed in the review by Ran et al. [10] and in detail in the review by Luo et al. [1]. Ge et al. [11] published a monograph on monovalent-selective cation-exchange membranes, focusing on traditional and new methods for obtaining/modifying these membranes. A graph depicting the trade-off between ion flux and selectivity for several pairs of single-/double-charged cations is presented. In a more general sense, in relation to other membrane processes, this compromise – permeability-selectivity – is well-known and widely discussed in the scientific literature, for example in the review [12].

The potential for separating counter-ions opens up new directions for the application of electrodialysis, such as selectrodialysis [3] and metathesis electrodialysis [13]. It may also lead to the emergence of new niche applications for electrodialysis, including demineralization of whey [14], extraction of nutrients (particularly phosphorus) from wastewater [15], as well as the production of high-purity casein isolate [16], among others.

A commonly used technique for producing membranes with high selectivity involves depositing a layer of ion-polymer with a charge opposite to the charge of the ion-exchange matrix of the membrane-substrate onto the membrane-substrate surface [7,8,17]. The charge of the deposited layer matches the charge of the ions being separated. Recently, there has been a shift towards the deposition of multiple layers, in which the polymer matrix charges alternate [1,11,18,19].

When a layer of ion-polymer with a charge opposite to the matrix charge of the membrane-substrate is applied onto the later, the ions being separated act as counter-ions for the membrane-substrate but as co-ions for the modifying layer. Hence, this process will be referred to as co-ion separation. The mechanism of co-ion separation differs somewhat from the process of counter-ion separation. Primarily, in the case of co-ion separation, the main mechanism involves the stronger electrostatic interaction of multi-charged ions with the polymer matrix of the modifying layer, while the physicochemical interaction between ions and the ion-polymer material plays a subordinate role (although it is not entirely excluded). A second difference is the reduction in the magnitude of the limiting current in the electromembrane system, caused by the transition from outer-diffusional kinetics of ion transport to inner-diffusional kinetics [20].

The transition to inner-diffusional kinetics not only significantly reduces the current density range in which separation of ions is possible but also leads to a transition in the ion-exchange membrane's operation from a "selective mode" to the "water-splitting mode," i.e., the membrane acts as an asymmetric bipolar membrane [20]. This particular phenomenon was noted by various researchers [18,21,22].

To avoid the transition to the inner-diffusional limiting current while ensuring high specific selectivity of ion-exchange membranes, bulk modification can be employed [23]. In this approach, no charged layers are deposited on the membrane surface, and the increase in specific selectivity arises either from the physicochemical interaction of ions with the modifier particles [24] or from the "reduction" of ionic channels in the transport-channel structure of the membrane [25,26,27].

In a previous study [28], a methodology was developed for obtaining phosphorylated dendrimer Boltorn H20 (referred to as P-H20 hereinafter) and for producing a bilayer (asymmetric bipolar) membrane based on it. Due to its chelating properties, the phosphoric acid ionogenic group can be highly effective in altering the specific selectivity for certain metal cations (primarily rare earth and d-elements).

As of today, the authors have successfully developed a method for producing thin films from sulfonated polytetrafluoroethylene (referred to as SPTFE hereinafter) and the copolymers of N-diallyl-N,N-dimethylammonium chloride and ethyl methacrylate, which are used as modifiers to create bilayer membranes [20,29], membranes with high specific selectivity [17,30], as well as standalone films [31]. In these studies, the films were obtained by pouring a specified amount of ionomer solution onto the surface of the substrate membrane (for producing bilayer membranes) or directly onto glass plate (for producing individual films). A promising approach for obtaining volumetrically modified membranes involves introducing phosphorylated Boltorn H20 into the solution of sulfonated polytetrafluoroethylene, followed by casting the resulting ionomer mix to form a cation-exchange membrane.

The objective of this study is to determine the influence of the quantity of introduced P-H20 into the matrix of sulfonated polytetrafluoroethylene on the physicochemical and electrochemical properties of the resulting film, as well as on the ion transport process through such membranes.

2. Materials and Methods

In the conducted study, the following chemicals were used: isopropyl alcohol, 99.9%, CAS-No 67-63-0; sodium chloride 99.9%, CAS-No 7647-14; calcium chloride, CAS-No. 10043-52-4; nitric acid with a standard titer, CAS-No. 7697-37-2. All reagents were manufactured by JSC "VEKTON," Russia.

The synthesis of phosphorylated hyperbranched polymer was based on the Boltorn H20 hyperbranched polymer with 16 hydroxyl end groups per molecule, from Polymer Factory Sweden AB (www.polymerfactory.com), Switzerland. The product's purity was 99.9%.

To produce membrane films (SPTFE), a solution of perfluorinated sulfonated polymer in isopropyl alcohol at a 10% mass concentration was used, produced by JSC "Plastpolimer," St. Petersburg, Russia.

2.1. SPTFE membrane

The membranes under investigation were obtained using the casting method, by pouring a polymer solution onto a specially prepared form made of inorganic glass. The polymer solution was poured at room temperature (25±2 °C) and left to stand for 24 hours until completely dry.

The sulfonated perfluoroethylene membranes are basicaly the same in polymeric structure as Russian MF-4SK membrane. The latter is Russian analogue of the Nafion membrane. MF-4SK and Nafion are derived from copolymers of tetrafluoroethylene and perfluorovinyl ether that terminate in a sulfonic acid group. The Nafion membrane specifically is a random copolymer with an electrically neutral semicrystalline polymer backbone (polytetrafluoroethylene) and randomly tethered side-chains with pendant ionic groups (polysulfonyl fluoride vinyl ether) associated with specific counterions (e.g., SO^3– + H⁺ → SO₃H).

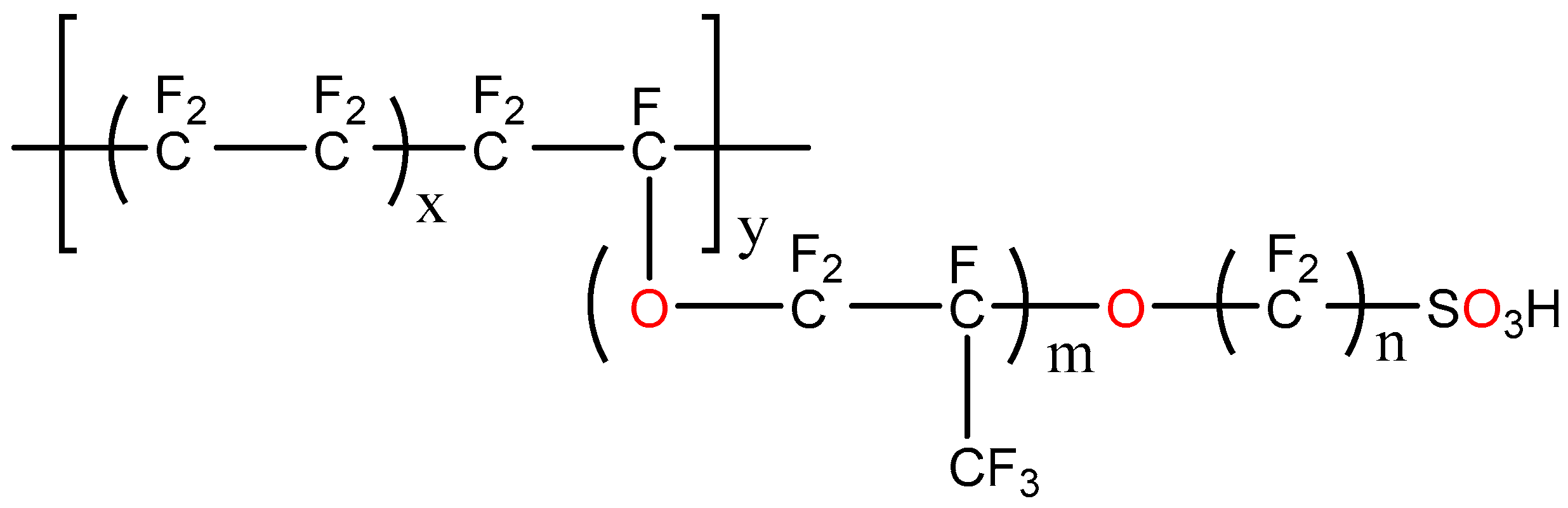

Figure 1. Structural unit of the Nafion membrane.

Figure 1. Structural unit of the Nafion membrane.

These membranes exhibit natural phase separation due to the dissimilar nature of the covalently bonded pendant groups and the backbone, which is further enhanced by solvation (introduction of water or solvent molecules). The microphase separation is a key structural feature, involving clustering of ionomer groups.

The Gierke’s cluster-channel model, based on X-ray diffraction studies, provides a fundamental model for the structure of the Nafion membrane [32]. According to this theory, the sulfonic-acid-side chains in Nafion are organized in clusters of approximately 4 nm. The transfer of H⁺ protons occurs through narrow, water-filled channels by means of the sulfonic-acid-terminated side chains (Figure 2).

2.2. P-H20 synthesis

The solution of Boltorn H20 (4.37 g, 40.0 mmol hydroxyl groups) in dioxane was treated with stoichiometric amounts of POCl3 (3.75 ml, 40.0 mmol). The reaction mixture was heated to 75 °C for 1 hour with triethylamine as the catalyst, yielding phosphorylated polyether. The reaction mixture was then treated with distilled water, and the resulting product was precipitated from the solution and dried in a vacuum desiccator. The obtained phosphorylated hyperbranched polymer was dissolved in isopropyl alcohol to obtain a 20 % mass fraction solution.

To produce the investigated SPTFE membranes with different phosphorylated dendrimers, a 10 % SPTFE solution in isopropanol was mixed with a 20 % solution of phosphorylated BOLTORN H20 in different ratios. Complete mixing of the solutions was achieved by immersing the polymer mixture in an ultrasonic bath and keeping it there for 5 hours. The membranes were obtained using the casting method. The content of hyperbranched phosphorylated dendrimer in the volume of the membrane varied from 2 % to 20 % of the dry membrane mass.

2.3. Mechanical properties

The mechanical properties of the experimental membranes were examined at a room temperature of 25±2°C and a relative humidity of 20±2%. Before the measurements, the samples were stored in a desiccator with a constant humidity of 95% for two days. Three strips, each 50 mm long and 10 mm wide, were cut for each type of membrane under investigation. The thickness of each strip was measured using a micrometer immediately before the experiment, taking the average of five points along the entire length of the strip. The distance between the grips of the tensile testing machine was 30 mm, and the stretching speed was 5 mm/min, with a pre-load of 1 N. The Young's modulus was determined from the slope of the stress-strain curve in the elastic deformation range (2-4%). The yield strength was identified as the point of intersection of the tangents to the elastic and plastic deformation sections. The values of Young's modulus, yield strength, stress, and strain at rupture were obtained for each sample of the tested membranes. The average values for each set of samples were computed, and the measurement error was gauged as the standard deviation within the sample.

2.4. Ion-exchange capacity and water uptake

The ion-exchange capacity is a critical characteristic of ion-exchange membranes that quantifies the amount of ion-conducting functional groups per gram of the membrane. This property directly influences factors such as ion conductivity, swelling ratio, water uptake, and water/gas permeance. The total capacity can be expressed as mol-eq/ml (volumetric) or mol-eq/gm (based on weight).

The total ion-exchange capacity values of membranes were determined using standard back-titration methods. The cation exchange membranes total ion-exchange capacity were determined by immersing the membrane in H⁺ ionic form in NaOH solution for 24 hours to fully neutralize the H⁺ ions in the membrane. The unreacted NaOH was titrate by a standardized HCl solution.

The total ion-exchange capacity (totIEC) values were calculated as:

$$totIEC=\frac{V_{\mathrm{NaOH}}{C}_{\mathrm{NaOH}}-V_{\mathrm{HCl}}{C}_{\mathrm{HCl}}}{m_{wet}},$$

(1)

where V_HCl and C_HCl are the volume and concentration of the standardized HCl solution; V_NaOH and C_NaOH are the volume and concentration of the standardized NaOH solution; and $m_{wet}$ is the weight of dry or wet membrane.

The water content of ion-exchange membranes is a factor that influences their performance by governing their mechanical rigidity, ionic conductivity, and degradation rates. The drying method is commonly employed to measure water content [33].

$$W=\frac{m_h-m_d}{m_d}\cdot 100\%,$$

(2)

is the water content of the membrane, where m_d and m_h denote the mass of the dry membrane and the mass of the same membrane after hydration, respectively.

2.5. Conductivity and diffusion permeability measurememnt

Standattized methods were used were used to determine the diffusion permeability coefficient and specific conductivity measurements [34,35,36], with all experiments conducted at a constant temperature of 25 °C and repeated at least 3 times.

In the framework of the microheterogeneous model [37] the membrane can be presented as two separate conducting phases: the gel phase and electroneutral solution (intergel). The gel phase (with volume fraction f₁) comprises the polymer matrix of the ion exchanger, condensed ion pairs, counterion-fixed group, solution inside the electric double layer, reinforcing fabric, and inert binder. The intergel phase (with volume fraction f₂) consists of a solution that mainly fills the macro- and partially mesopores in the ion-exchange membrane phase. In the case of Nafion-type membrane the electroneutral solution fills central parts of clusters. It is generally accepted that the physicochemical properties of such a solution do not differ from the properties of an equilibrium external solution.

Heterogeneity of membrane structure significantly influences the characteristics of ion exchange membranes. Homogeneous membranes are characterized by a very low electroneutral solution fraction (f₂ = 0.02 – 0.1), lacking macropores and cavities. Conversely, for heterogeneous membranes, this value is notably higher (f₂ = 0.2 – 0.3) owing to the presence of cavities and caverns between different particles.

2.6. Current-voltage curves and specific permselectivity measurement

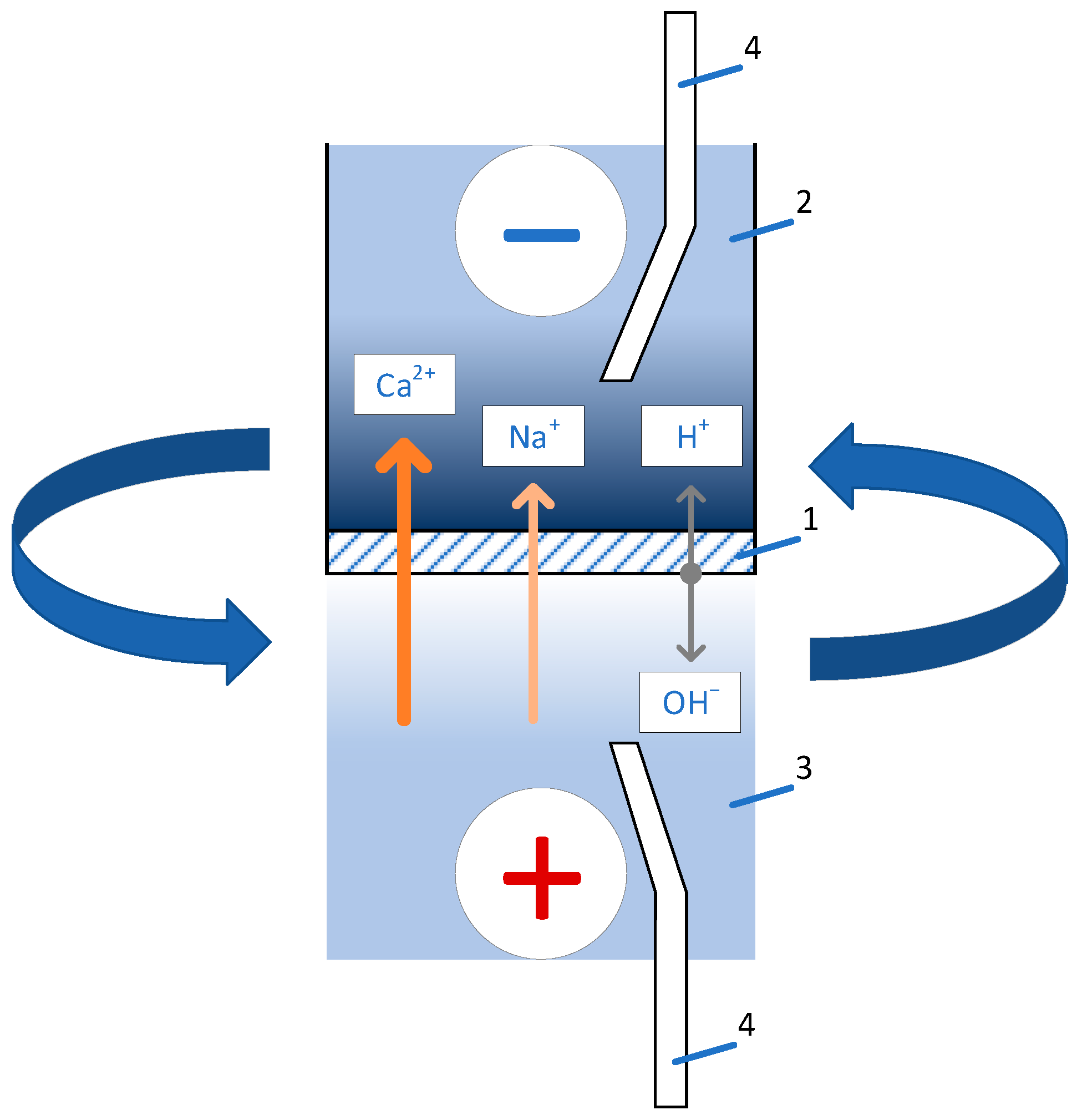

The current-voltage characteristics and effective transport numbers of ions through the membrane ($T_j$) were studied by the method of a rotating membrane disk [38]. The application of this method for electromembrane systems is described in detail in several works [39,40]. Scematic depiction of the is shown in Figure 3

The voltammetric characteristics of the membranes were recorded in a galvanostatic mode, with a stepwise increase in current density. The membrane disk was rotated at a speed of 100 rpm. The solution was fed into the cathode chamber at a rate of 7.5±0.1 ml/min. The initial solution used was either 0.03 M NaCl or a mixed solution of 0.015 M NaCl and 0.0075 M CaCl₂. The variation in the concentrations of Ca²⁺ and Na⁺ ions was analyzed using an Aquilon Stayer ion chromatograph.

The effective transport numbers (T_j) were calculated by the equation:

$$T_j=\frac{\Delta c_{j}VF}{It}.$$

(3)

Based on the dependences of the effective transport numbers of Ca²⁺ and Na⁺ ions on the current density ($T_j\left(i\right)$), the permselectivity coefficients ($P_{\mathrm{1,2}}(i$)) were calculated using Eq. (4):

$$P_{1,2}=\frac{T_1{z}_2{с}_2}{T_2{z}_1{с}_1}.$$

(4)

3. Results and discussion

3.1. Dopant distribution, mechanical and physico-chemical properties

The casting technique for applying a mixture of two ionpolymers provides a certain advantage in creating materials with a uniformly distributed modifier compared to known methods of sequential diffusion or in situ synthesis in commercial membrane [23,29,41]. In the latter case, a high concentration of modifier particles is observed on the surface or in a thin layer near the membrane surface, which decreases away from the surface.

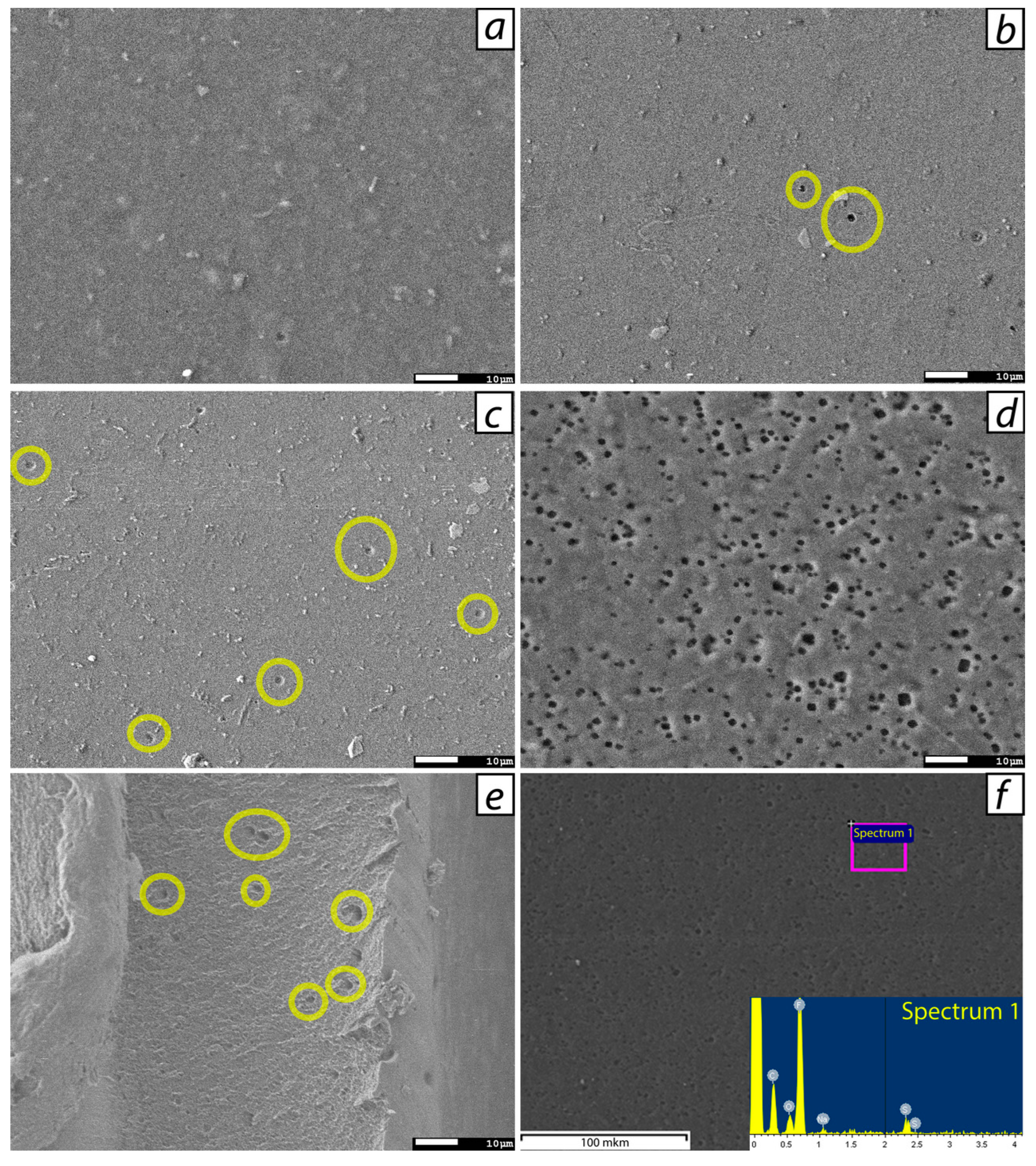

The SEM images shown in Figure 3 presents the surface of a polytetrafluoroethylene membrane obtained using the casting method, as well as a membrane with a 20% (by volume) P-H20 content. Void spaces on the surface ranging in size from units to tens of micrometers are clearly visible. Presumably, the phosphorylated dendrimer was located within these cavities; however, during the sample preparation for analysis (vacuuming the electron microscope chamber), P-H20, not bound to the membrane matrix, evaporated. This assumption is also supported by the visible absence of phosphorus in the spectra of local X-ray microanalysis conducted for several areas of the surface. It is worth noting that the sulfur signal (ionogenic groups within the sulfonated polytetrafluoroethylene) is insignificant in these areas compared to the signals of fluorine and carbon. Similar voids are observed in the images of the surface of membranes with lower modifier content (Figure 3). Furthermore, with decreasing volume fraction of the modifier, the quantity of such areas on the membrane surface also decreases. A similar formation can also be observed on the cross-section image of the membrane containing 20 % P-H20, indicating that the modifier is uniformly distributed throughout the membrane volume, forming micelles through the formation of hydrogen bonds between dendrimer molecules [42].

Despite the impossibility of direct confirmation of the presence of P-H20 in the matrix of the cation exchanger, a number of physicochemical characteristics, in addition to the formation of cavities on the surface, indirectly confirm its presence.

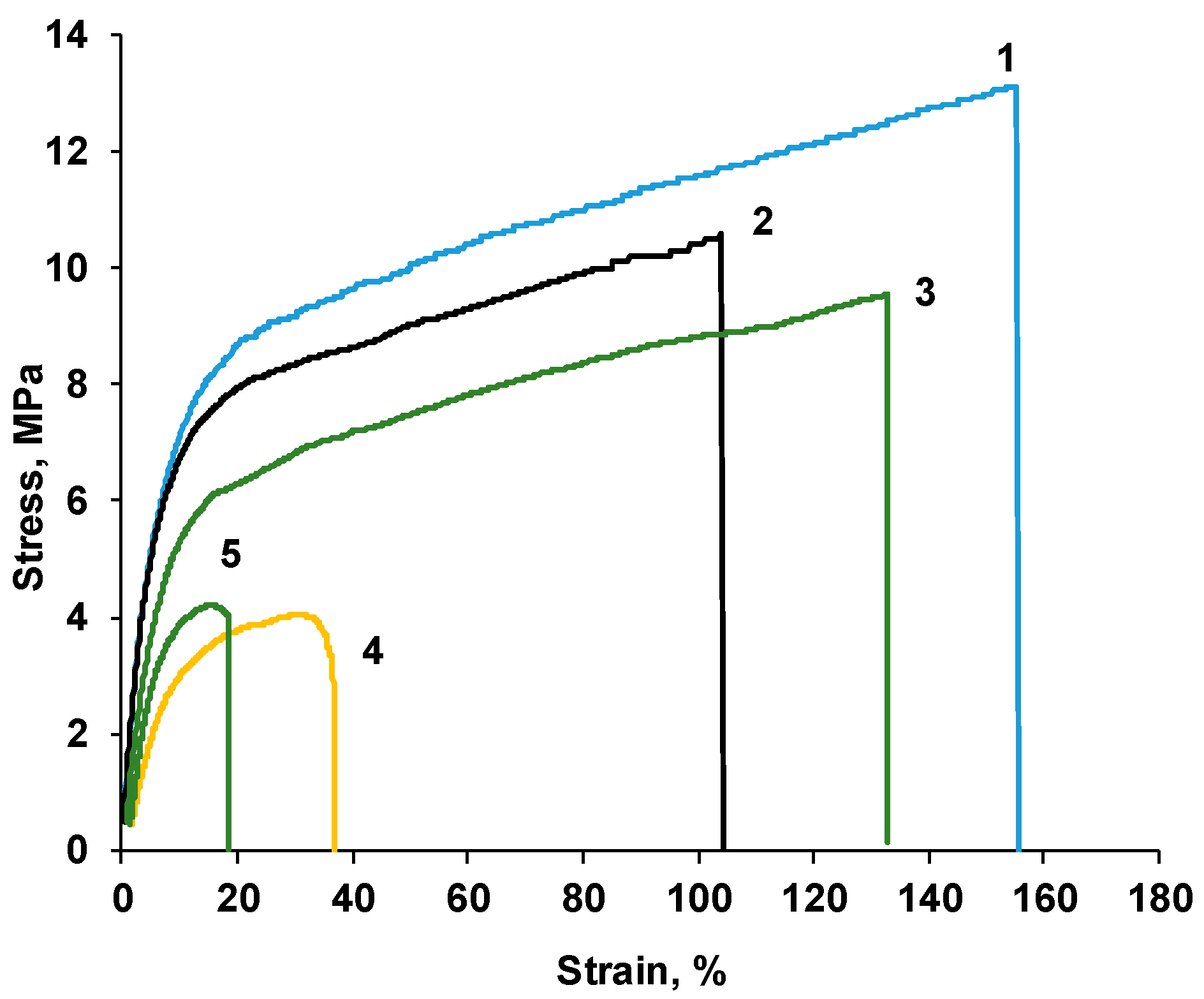

The first of these characteristics is the mechanical strength of the obtained samples (Figure 4), and numerical values of the mechanical parameters are given in Table 1.

The mechanical strength and Young's modulus of the obtained membranes decrease with increasing volume fraction of P-H20. With a P-H20 content of over 30%, it is not possible to obtain mechanically stable films. Such mixtures, after solvent evaporation, resembled a honey-like substance, which is easily disintegrated under external influence.

The reduction in mechanical properties can be explained by two mechanisms of modifier particle localization. In the first case, particles are localized in the hydrophilic cluster area (Figure 5). If the size of the modifier particles is smaller or comparable to the size of the clusters, then, considering the non-sewn nature of the SPTFE matrix, it is possible to increase not only the cluster size, but also the ionic channels connecting individual clusters. This explanation is often encountered within the framework of the pseudo-elasticity model of pores in Nafion-type membranes proposed in the work [43]. In the second case, large modifier particles localize in the area of the hydrophobic perfluorocarbon matrix (backbone). In this case, the forming P-H20 micelles can reach significant sizes of several micrometers, as clearly seen by SEM results. The formation of microscale areas unbound to both the sulfonated polytetrafluoroethylene material and to each other leads to a substantial reduction in the strength of the resulting membrane. When these modifier particles are localized, the cluster-channel structure of the SPTFE membrane may also change, for example, through the "contraction" of clusters by the macro particles of the modifier or the rupture of the conducting channels network of the hydrophobic part of the membrane.

From the results of the measurement of mechanical strength and examination of SEM membrane cross-section images, it can be inferred that the first type of P-H20 incorporation into the SPTFE matrix is characteristic for low modifier quantities (2-5 %), while the second type is more characteristic for membranes with a volume fraction of 10-20% of P-H20.

The results of the measurement of other physicochemical characteristics (ion-exchange capacity, water content, gel phase conductivity, electroneutral solution fraction, integral coefficient of diffusion permeability) are provided in Table 2.

The table indicates a monotonic change in properties with the increase in the modifier quantity in the SPTFE membrane: ion-exchange capacity, water content, and gel phase conductivity decrease, while the electroneutral solution fraction and diffusion permeability increase.

The most likely reason for the decrease in ion-exchange capacity is the change in sample density with the increase in the volume fraction of the modifier. The authors of the studies [29] (in the case of surface modification of SPTFE with a layer of polyaniline with a gradient distribution) and [41] (in the case of bulk modification with cerium oxide particles) have already noted this fact.

The reduction in water content may be linked to the removal of some free water from the region of hydrophilic clusters by the modifier particles. For small modifier quantities, the reduction, although following the overall trend, is within the statistical error of the experiment. For membranes with a higher modifier content, the change in water content is more significant and may be associated with the fact that large modifier aggregates occupy a significant portion of the membrane volume and their localization (at least partial) in the hydrophobic part of the membrane may result in reduced hydration compared to the clusters of sulfogroups in the SPTFE membrane.

The decrease in the gel phase conductivity may also be associated with the disruption of the transport channel structure of the membrane. In the case of membranes containing 2 and 5 % modifier, partial ion transport blockage may occur within the membrane clusters due to the overlap of the double electrical layers of the cluster walls and modifier particles (Figure 5a). For membranes containing 10 % or more modifier, as previously mentioned, the rupture of the continuous transport channel structure of the membrane may occur (Figure 5b). Interestingly, the decrease in conductivity coincides with an increase in the electroneutral solution fraction and a significant (practically by an order of magnitude) increase in the membrane's diffusion permeability. Typically, an increase in the electroneutral solution fraction leads to an increase in the membrane's conductivity, especially in concentrated solutions. Since the conductivity of the membrane is mainly determined by the counterions and the diffusion permeability by co-ions, such a relationship may indicate that a large number of pathways for co-ion transport are formed in the membrane, with the areas of localization of large modifier particles observed in SEM results (Figure 3). Substance transport in this case occurs through a mixed mechanism—alternation of gel phase and electroneutral solution. An unusual mobility-conductivity relationship for Li+ ions in perfluorinated matrix was noted in the study [44]. In the study, it was found that samples of perfluoropolyether electrolytes with high diffusivities sometimes exhibited low conductivity. The authors introduced a nondimensional parameter (β), which accounts for both microscopic diffusivities and conductivity, revealing that β is sensitive to the end-group chemistry. For ethoxylated electrolytes, parameter approaches unity – the expected value for electrolytes adhering to the Nernst–Einstein equation. Conversely, perfluoropolyether electrolytes lacking ethoxy groups show parameter values significantly lower than one, suggesting a considerable discrepancy between microscopic and continuum transport numbers for Li⁺, potentially due to the electrostatic coupling of the cation and anions (fixed groups).

3.2. Current-voltage curves and mechanisms of ion transport

The current-voltage curves of ion exchange membranes are typically divided into three regions: the underlimiting current region (also known as the ohmic region or linear region), the limiting current plateau, and the overlimiting current region.

Let's consider the ion transport mechanisms corresponding to each of these regions. In underlimiting current regimes, it is conventionally assumed that ion transport is purely electrodiffusive, and the ion flux through the membrane linearly depends on the current density. However, recent studies have noted that, in addition to electrodiffusion, underlimiting current regimes may exhibit effects of equilibrium electroconvection [31,45,46,47], characterized by an excess of the experimentally determined limiting current in an electromembrane system over the theoretically calculated value. This ion transport is associated with the electroosmosis of the first kind (as per the classification of Dukhin-Mishchuk [48]) and is not electrodiffusive. The ability of ion exchange membranes to exhibit equilibrium electroconvection is determined by the magnitude and sign of the surface charge, its hydrophobicity, and the presence of geometric or electrical heterogeneities [49,50,51].

The limiting current plateau corresponds to a state where the concentration of charge carriers (ions) at the interface of the depleted diffusion layer/membrane decreases to very low levels, approaching zero. The appearance of a sufficiently thin layer in which mobile charge carriers are effectively absent leads to an increase in the potential drop in the system with practically no increase in current. Analogous to classical electrode systems, this state is referred to as the limiting current. In contrast to electrode systems, in electromembrane systems, the growth of the potential drop at the interface of the depleted diffusion layer/membrane leads to the appearance of conjugated effects of concentration polarization. Two main phenomena that arise with the increase in the potential drop are the water-splitting [52,53] and non-equilibrium electroconvection (electroosmosis of the second kind according to the Dukhin-Mishchuk classification [54]). These phenomena lead to the appearance of charge carriers at the membrane surface and to the deviation of the current-voltage curve from the linearity of the limiting current plateau, transitioning the system into an overlimiting current mode.

Depending on the chemical nature of the ion exchange membrane, the primary mechanism of ion transport in the overlimiting state may be either electroconvection [55,56] or a process known as "water-splitting" [10,53,57]. There are also studies demonstrating the potential transition from one mechanism to the other [58]. Typically, water-splitting is considered an undesirable process because, firstly, it alters the pH in the pre-membrane space, and secondly, the transport of hydrogen and hydroxide ions does not significantly increase the ion transport of salt (except for a slight increase in useful mass transfer due to the exaltation effect [59]). Occasionally, this effect can be utilized to involve initially electroneutral particles in mass transfer through protonation/deprotonation reactions [60]. On the other hand, the development of electroconvection is seen as a positive process because it allows for an increase in the salt ion flux beyond the limiting value [55,56]. However, the applicability of this phenomenon is limited by the fact that the required potential drop (and consequently, the energy consumption) often far exceeds the increase in the ion flux.

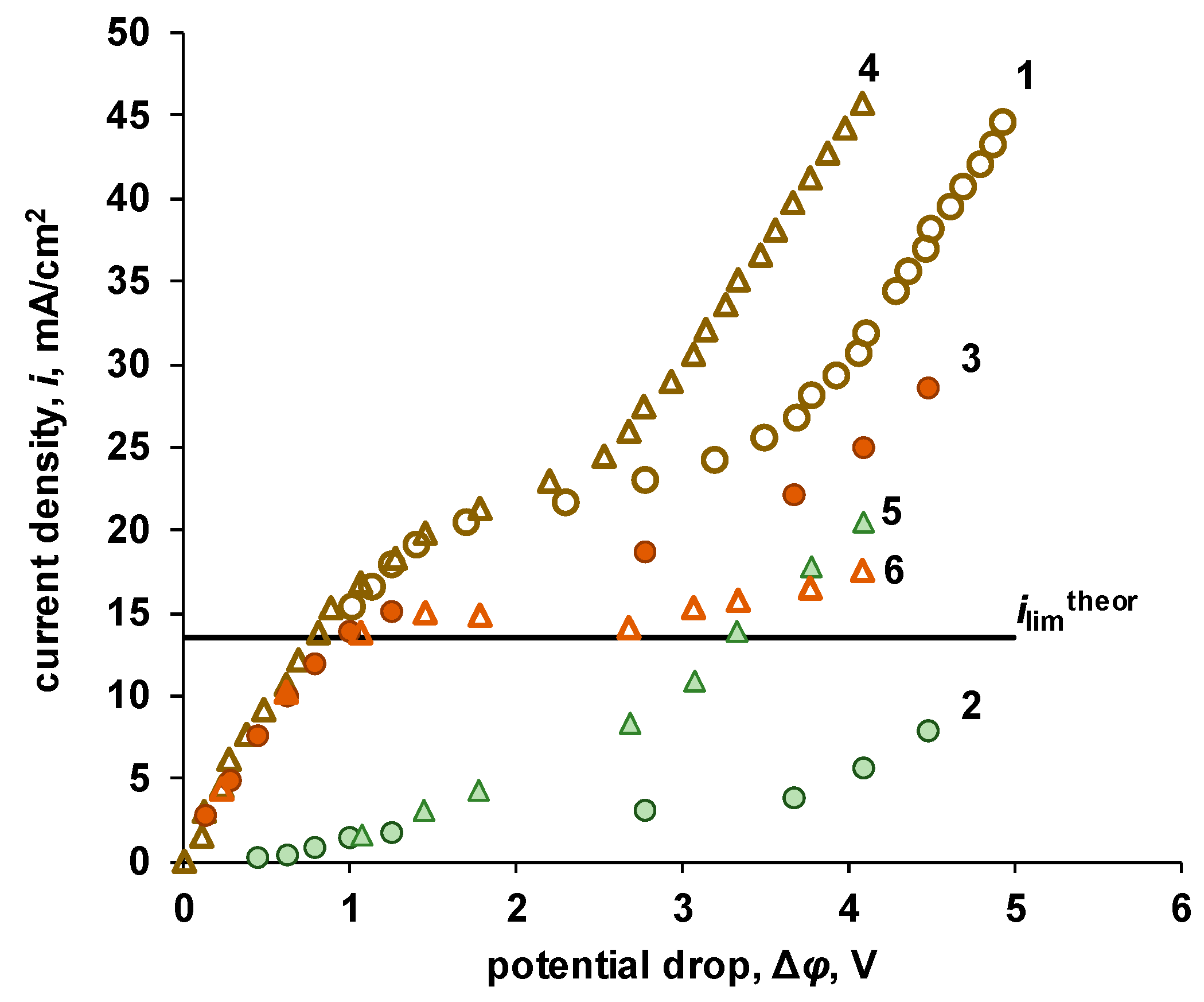

Consider how the introduction of phosphorylated dendrimer affects the ion transport processes. The current-voltage characteristics of the SPTFE membrane and a modified membrane containing 10% P-H20 in a 0.03 M NaCl solution are presented in Figure 7.

The current-voltage curves presented in the figure show that volumetric modification does not have a significant impact on the magnitude of the limiting current in the electromembrane system. The original membrane exhibits a limiting current of 18 mA/cm2, while the modified membrane shows a limiting current of 17 mA/cm2. In both cases, the experimentally determined limiting current exceeds the value theoretically calculated using the Pierce equation. This particular peculiarity of membranes made of sulfonated polytetrafluoroethylene has been previously reported in [61,62,63] The theoretical value of the limiting current for the studied system is 13.5 mA/cm².

The modified membrane has a smaller limiting current plateau and enters the overlimiting state earlier. However, the ion transport mechanism in the overlimiting state differs for the investigated membranes. For the SPTFE membrane, the contribution of water-splitting is lower compared to the modified membrane, while the fraction of current carried by salt ions is higher. This indicates that electroconvection is the primary ion transport mechanism in the overlimiting state for the SPTFE membrane. In contrast, the modified membrane exhibits a significant contribution of water-splitting to overall mass transfer, and the salt ion flux, even taking the exaltation effect into account, is lower compared to the SPTFE membrane.

The increase in the contribution of water-splitting to overall mass transfer in the modified membrane can be explained by the presence of modifier particles on the membrane surface. The phosphoric acid groups contained in these particles are among the most active catalysts for the water-splitting reaction, as indicated by a range of catalytic activity of ionogenic groups [53].

In the study [47], a methodology was proposed to assess the contribution of different mechanisms to overall mass transfer in an electromembrane system. Assuming that in the underlimiting current regime, ion transport occurs either solely through electrodiffusion or through both electrodiffusion and equilibrium electroconvection, the contribution of the latter to the limiting current can be found as the difference between the experimental limiting current and the theoretical value calculated using the Pierce equation:

$${\beta }_{\mathrm{eq}}=\frac{i_{\lim }^{\exp }-i_{\lim }^{\mathrm{theor}}}{i_{\lim }^{\exp }}.$$

(5)

In the limiting and overlimiting states, the contribution of non-equilibrium electroconvection can be assessed, taking into account the partial current of water-splitting products and the exaltation current:

$${\beta }_{\mathrm{n}-\mathrm{eq}}=\frac{i-i_{\lim }^{\exp }-i_{\mathrm{w}}-i_{\mathrm{exz}}}{i}.$$

(6)

The exaltation current was assessed using the Kharkats equation[59]:

$$i_{\mathrm{exz}}=\frac{D_{+}}{D_{{\mathrm{OH}}^{-}}}{i}_{\mathrm{w}}.$$

(7)

The total current of salt ions in the overlimiting current mode consists of the experimental limiting current, the exaltation current, and the current resulting from electroconvection.

$$i_{\mathrm{s}}=i-i_{\mathrm{w}}.$$

(8)

By using the Eq. (5), it was determined that the equilibrium electroconvection's contribution to the overall mass transfer in the SPTFE membrane is 25 %, and for the modified membrane, it is 20 %. The slight observed difference in the contributions of equilibrium electroconvection corresponds to the observed difference in the magnitudes of the limiting currents (18 and 17 mA/cm²). It can be concluded that the presence of P-H20 particles on the surface of the SPTFE membrane slightly reduces its ability to develop equilibrium electroconvection, leading to a decrease in the magnitude of the limiting current in the electromembrane system. This phenomenon may be due to a decrease in the hydrophobicity of the SPTFE surface caused by the appearance of P-H20 particles. We hypothesize that P-H20 particles should have sufficiently low hydrophobicity, given that the micelles formed by the molecules of phosphorylated Boltorn H20 contain hydroxyl and phosphonate groups capable of forming hydrogen bonds with water molecules. The observed effect is contrary to the effect shown in work [64], where the application of a hydrophobic non-conductive modifier to the membrane surface led to the development of equilibrium electroconvection and an increase in the limiting current.

Bulk modification also alters the overlimiting current transfer. An assessment of the contribution of various mechanisms to the overall mass transfer in the electromembrane system at fixed potential drops is presented in the Table 3.

Data shown in the table reveals that the total current on the modified membrane is higher, while the current of salt ions (useful mass transfer) is lower. This difference increases with increasing potential drop. Moreover, for the SPTFE membrane, the contribution of non-equilibrium electroconvection begins to manifest earlier; already at a potential drop of 2 V, it accounts for 8 % of the total current. The contribution of exaltation current for the SPTFE membrane is extremely low, not exceeding 5%, attributed to the low current of water-splitting products. Conversely, for the modified membrane, there is an increase in the current of H⁺/OH^– ions, caused by the high catalytic activity of phosphoric acid groups of the modifier deposited at the surface of the membrane in the water-splitting reaction. As a result of the water-splitting reaction occurring on the surface of the SPTFE+P-H20 membrane, hydroxide ions enter the solution. In addition to practically not leading to the physical transport of water molecules within hydrated shells (which, according to work [65], is one of the factors enhancing ion transport under the action of electroconvection), these ions also "blur" the space-charge region, reduce the electric field strength, and lead to a decrease in the volumetric electric force. All these factors contribute to a decrease in electroconvective transport at overlimiting currents. While for the SPTFE membrane, the contribution of non-equilibrium electroconvection to overlimiting mass transfer begins to manifest already at a potential jump of 1.5 V, for the modified membrane, it requires a potential drop >3.2 V.

Hence, the addition of phosphorylated dendrimer into the volume of the SPTFE membrane leads to a reduction in the contribution of non-equilibrium electroconvection in overlimiting current regimes and an increase in the water-splitting reaction rate (resulting in an increase in the current of water-splitting products). Meanwhile, there is a minor change in the magnitude of the limiting current due to the decreased contribution of equilibrium electroconvection on the modified membrane. This latter phenomenon is likely associated with a modification of the membrane's surface hydrophobicity due to the localization of some proportion of the modifier particles on it.

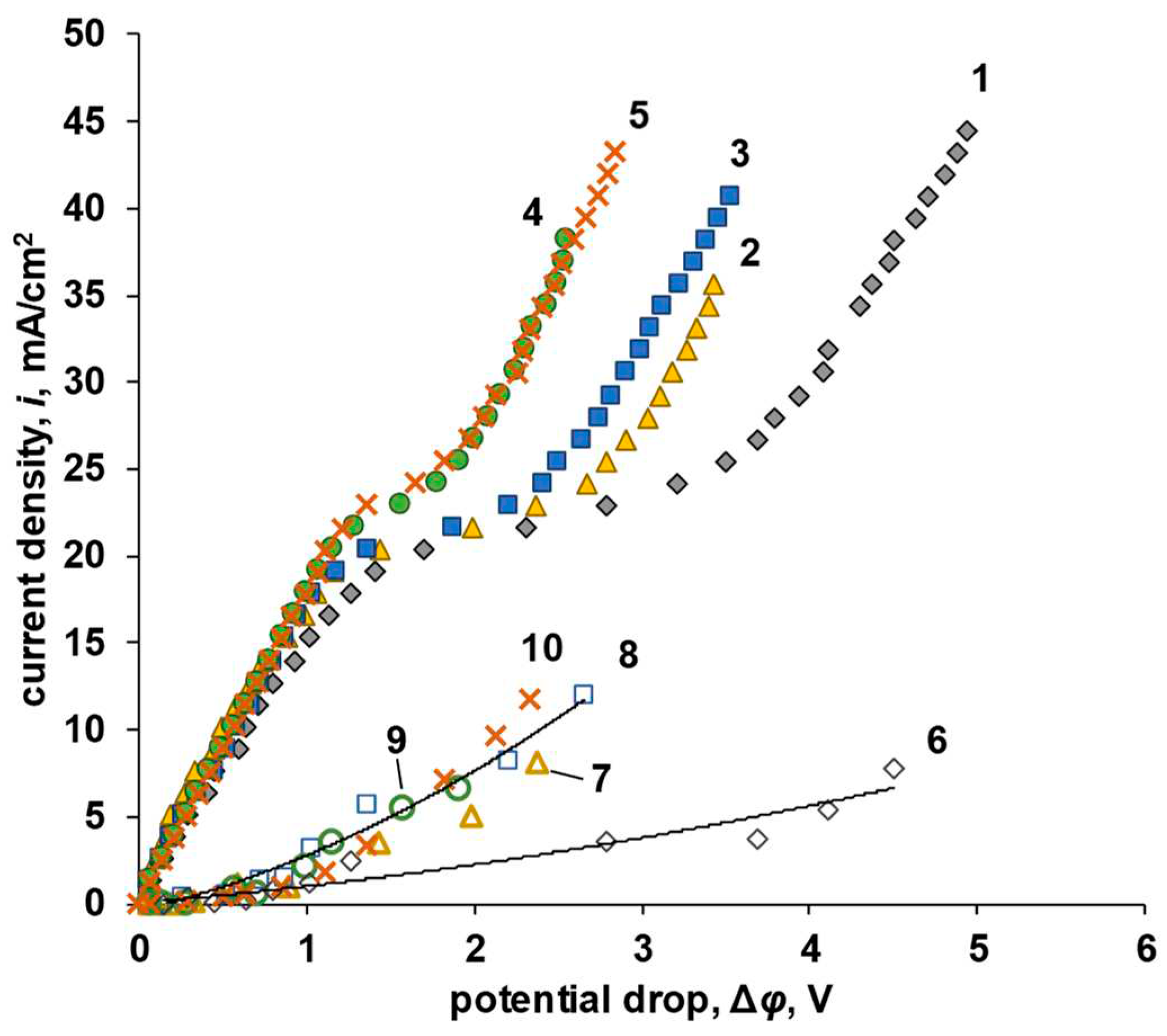

The current-voltage characteristics of the SPTFE membrane and modified membranes with different bulk content of phosphorylated dendrimer obtained in a mixed electrolyte of 0.015 M NaCl + 0.0075 M CaCl2 are presented in the Figure 8.

The observed patterns during the investigation of membranes in a sodium chloride solution persist when transitioning to ternary electrolytes containing a mixture of sodium chloride and calcium chloride: the introduction of P-H20 into the SPTFE membrane reduces the length of the limiting current plateau; an increase in the flux of water-splitting products is observed for the modified membranes. However, no correlation with the volumetric fraction of the modifier is observed for the latter. One possible reason for this is that the water-splitting product flux depends on two factors: the electric field strength at the boundary of the depleted diffusion layer/membrane and the concentration of catalytically active groups. With the increase in the volumetric fraction of the modifier, the number of catalytically active centers on the membrane surface increases, while the potential for transitioning to the overlimit state decreases, meaning the intensity of the electric field at a fixed current density decreases. These two effects offset each other.

One should also take into account the possibility of super-equivalent absorption of calcium ions from solution, discovered in the work [66]. The specific adsorption of Ca²⁺ ions leads to a change in the membrane surface charge density from negative to positive. The latter causes a delay in the onset of unstable electroconvection, that is, a reduction in membrane performance.

The contribution of various mechanisms to the overall mass transfer at a fixed potential drop and at a fixed current density is presented in Table 4 and Table 5.

As can be seen from Table 4, at a fixed potential drop close to or slightly exceeding the potential drop at the limiting current on the modified membranes, the water-splitting reaction actively occurs. Moreover, with the increase in the volumetric fraction of the modifier, the flux of water-splitting products increases. This dependency directly indicates that the quantity of modifier particles on the membrane surface increases with the growth of the volumetric fraction of P-H20. Under these conditions, there is no electroconvection development on the modified membranes, and the useful mass transfer slightly increases due to the exaltation effect.

Interestingly, in the mixed solution containing sodium chloride and calcium chloride, the limiting current slightly increases with the increase in the volumetric fraction of the modifier compared to the original membrane, rather than decreasing as in the case of a solution containing only sodium chloride.

When considering the transport mechanisms in the membranes at a constant current density (Table 5), the following regularities are observed: the introduction of the modifier leads to an almost twofold reduction in the salt ion flux. Meanwhile, as the volumetric fraction of the modifier increases, there is an increase in useful mass transfer and a decrease in the portion of the current carried by water-splitting products. Additionally, the total potential drop in the electromembrane system decreases. Similar to the conditions of a constant potential drop, there is no contribution of non-equilibrium electroconvection to the overall mass transfer on the modified membranes under these conditions.

Under conditions of constant current density, the modified membranes can be divided into two groups. Membranes containing a modifier with a volumetric fraction of less than 10% demonstrate larger potential drops and a greater contribution of the water-splitting reaction to the overall mass transfer. Membranes with a volumetric fraction of P-H20 > 10% show a greater contribution of salt ion transport to the overall mass transfer and smaller potential drops. The high concentration of P-H20 on the membrane's surface may explain this, allowing the water-splitting reaction on such membranes to occur with a smaller potential drop, and additional charge carriers appear earlier.

Thus, under constant current density, the concentration of modifier particles on the membrane surface plays a more significant role. In contrast, when operating in a potentiostatic mode, the magnitude of the potential drop itself is more crucial. This is because at equal values of the potential drop, membranes with a higher volumetric fraction of the modifier will more actively participate in the water-splitting reaction.

An important characteristic that can largely determine the feasibility of using specific ion-exchange membranes is the energy consumption for substance transport. From the obtained data, the specific energy consumption can be calculated as follows:

$$E=\frac{i}{i_{\mathrm{s}}}\Delta \phi F.$$

(9)

The first factor essentially represents the effective number of transports of all counterions through the membrane. The calculated values of the specific energy consumption at a constant current density of 15 (underlimiting state) and 25 (overlimiting state) mA/cm² are presented in Figure 9.

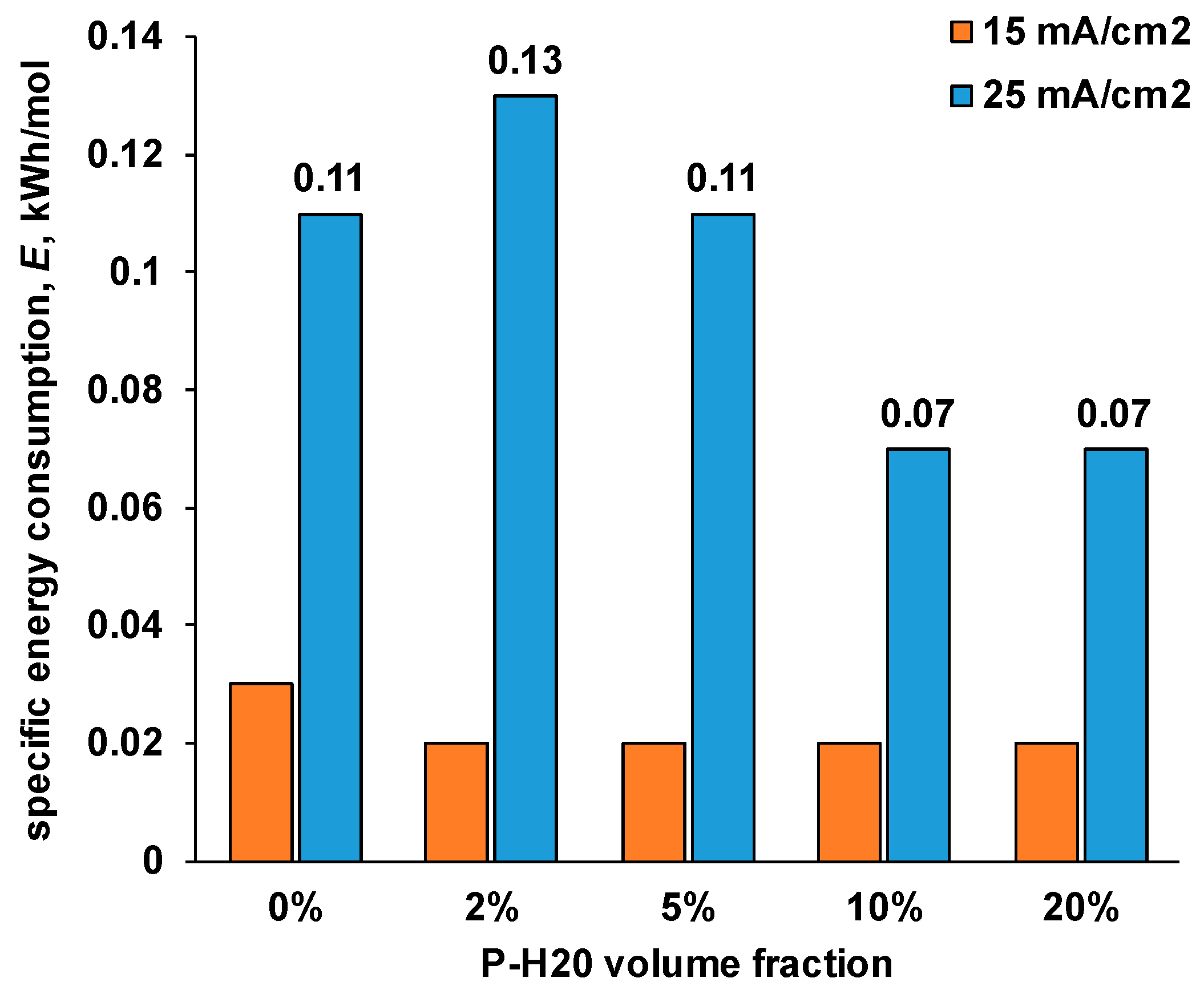

At a deliberately underlimiting current density (15 mA/cm²), the specific energy consumption for the original membrane is 0.03 kWh/mol, while for all modified membranes, it is 0.02 kWh/mol.

More interesting results are obtained when considering the results obtained at a current density of 25 mA/cm² (a slight excess of the limiting current for all the studied membranes). For membranes containing 2 % and 5 % of the modifier, there is a certain increase in specific energy consumption, directly related to the relatively high potential drop and the low effective counterions transport number. In contrast, for modified membranes containing 10 % and 20 % of the modifier, there is a 40 % reduction in energy consumption compared to the SPTFE membrane, despite the overall reduction in salt ion transport. This phenomenon is associated with the reduction in the potential drop in the system.

Thus, these membranes can be used in the electrodialysis process when the processed solution is not highly sensitive to changes in pH.

3.3. Prospects for application

3.3.1. Monovalent/divalent selectivity

The study of the specific selectivity of the membranes was conducted in a mixed solution containing 0.015 M NaCl and 0.0075 M CaCl₂. The results of the investigation of the dependence of the Specific permselectivity coefficient on the dimensionless current density are presented in Figure 10.

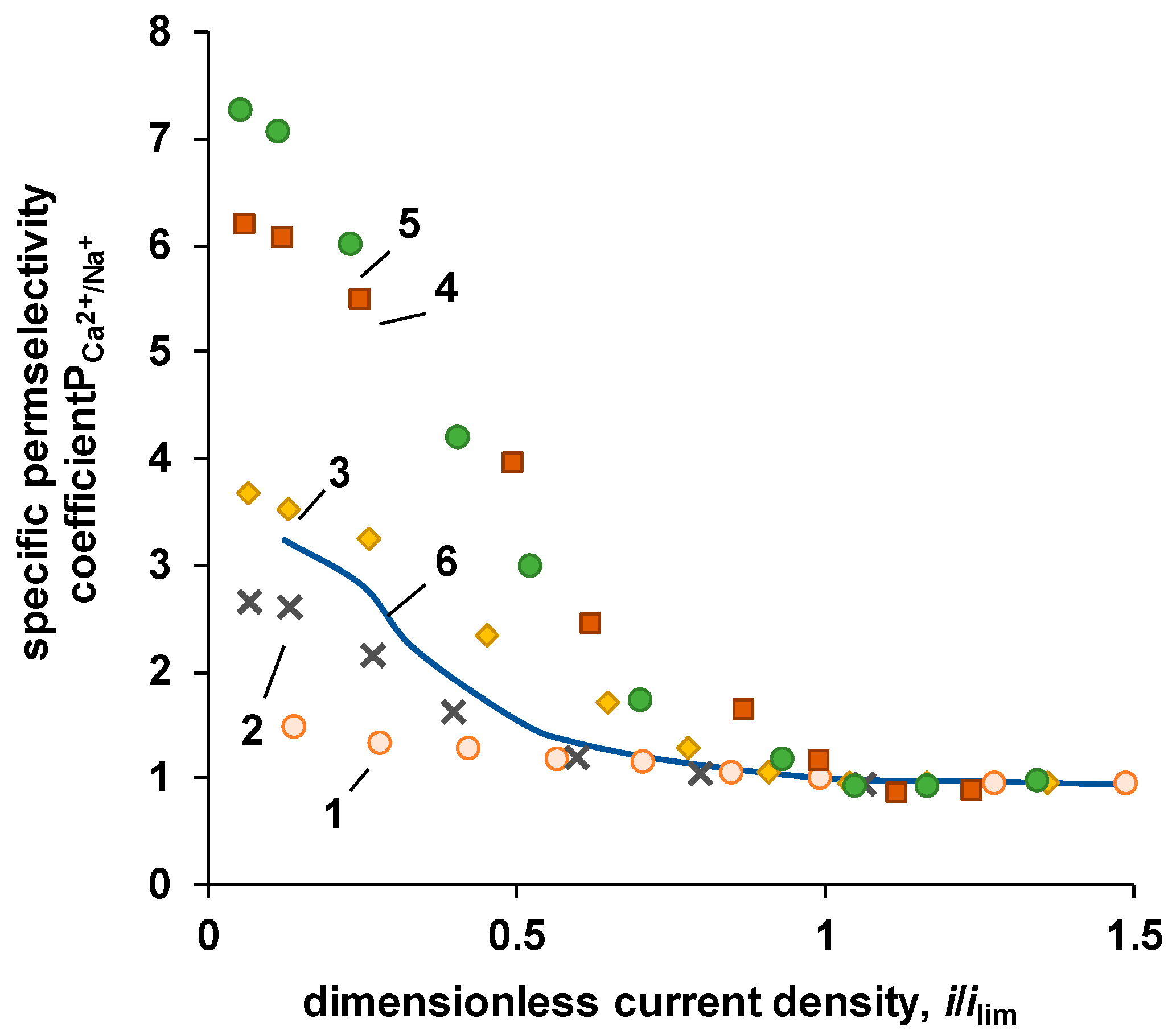

As can be seen from the figure, the original SPTFE membrane exhibits weak selectivity towards divalent ions. For comparison, the research results of the heterogeneous MK-40 membrane, with an ion exchange matrix related to polystyrene-divinylbenzene resins (divinylbenzene serves as a crosslinking agent), are presented. Detailed reasons for the differences in specific selectivity between membranes based on non-crosslinked ion polymers and membranes based on polystyrene-divinylbenzene matrices are detailed in [17].

The introduction of P-H20 with a volumetric fraction of 2 % and 5 % leads to an increase in selectivity towards divalent ions to a level comparable to that of the MK-40 membrane. Introducing a greater amount of the modifier further increases specific permselectivity. For the membrane with a volumetric fraction of P-H20 at 20%, the maximum value of the specific permselectivity coefficient is 7.2, which is five times higher than the value for the SPTFE membrane, which is 1.5. According to theoretical considerations of the dependence of the specific permselectivity coefficient on the dimensionless current density, as the current approaches the limiting value, the coefficient decreases. However, for membranes containing 10 % and 2 0% of the modifier, it remains sufficiently high, up to a value of i/i_lim = 0.5.

The high values of the specific permselectivity coefficient, together with the practically unchanged value of the limiting current, enable the use of modified membranes with a volumetric fraction of phosphorylated dendrimer at 10–20% for the separation of single and multivalent ions.

3.3.2. Bipolar membranes

The high catalytic activity of membranes containing phosphorylated Boltorn H20 in the water-splitting reaction suggests that they could be effectively used as the cation-exchange layer of a bipolar membrane. The anion-exchange layer, in turn, could be made of a copolymer of DADMAC and ethyl methacrylate (this material is extensively described in [31]), as previously developed by the authors. The thickness of the anion-exchange layer and the thickness of the cation-exchange layer were 200 micrometers.

Since the cation-exchange and anion-exchange layers of the bipolar membrane are made of polymers of different natures, the layers were cast using the same solvent – isopropyl alcochol - to enhance adhesion between them. This method allows for partially dissolving the solidified polymer during the application of the cation-exchange layer onto the anion-exchange layer, enabling the intertwining of the chains of the cation-exchange and anion-exchange layers.

For comparison, a bipolar membrane was prepared in which the cation-exchange layer was made of unmodified SPTFE.

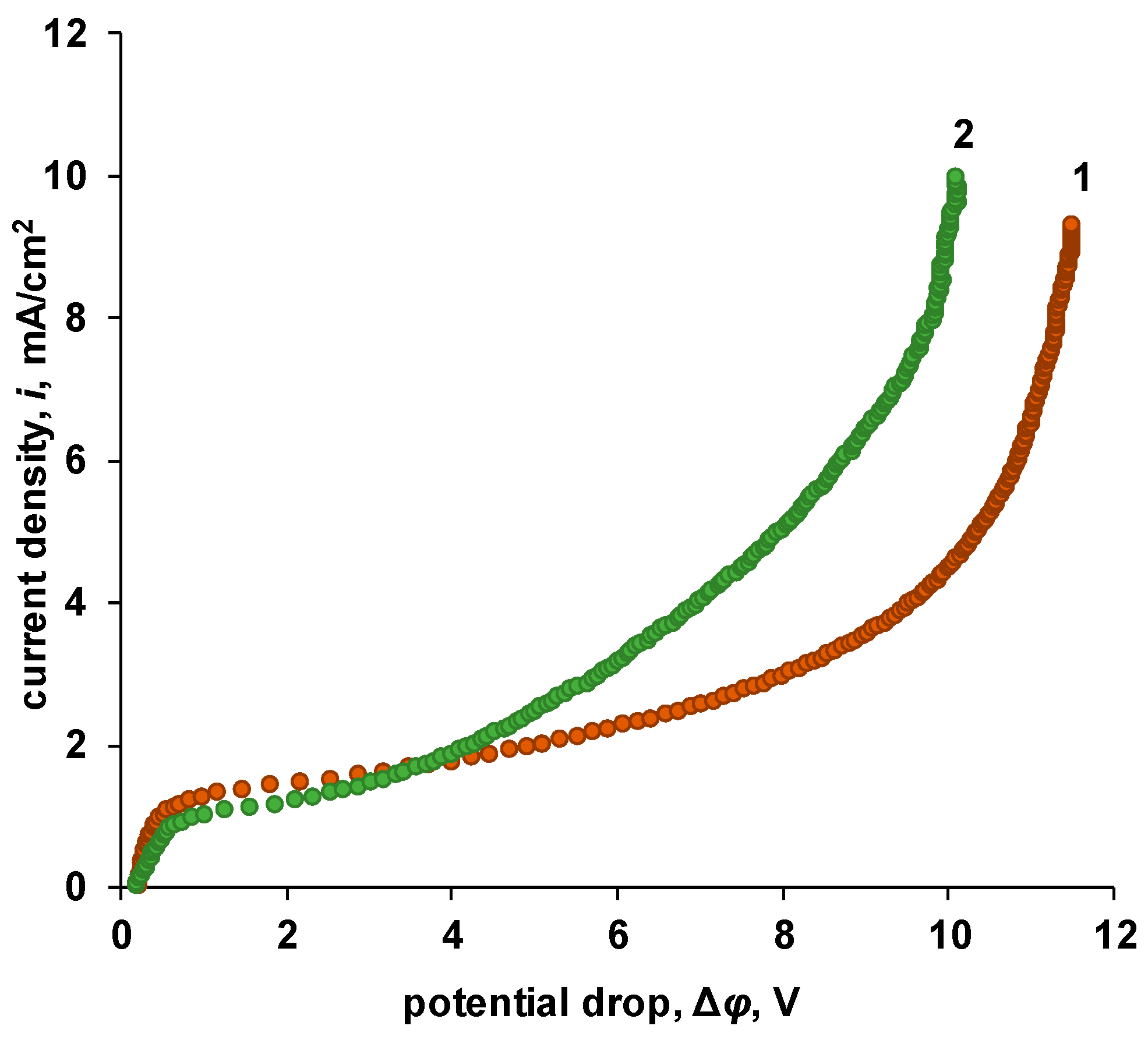

The current-voltage characteristics of the obtained bipolar membranes in 0.5 M NaCl are shown in Figure 11.

As seen in the figure, using a membrane modified with P-H20 as the cation-exchange layer of the bipolar membrane allows for a reduction in the operating voltage on the bipolar membrane from 11.3 V to 9.8 V at a current density of 8 mA/cm². However, both obtained membranes have a high voltage that precludes their use in real processes.

The high voltage for the homogeneous membrane is due to the low initial activity of the ionogenic groups in the anion-exchange and cation-exchange layers. The results obtained for the membrane with the cation-exchange layer made of SPTFE are comparable to the MB-2 membrane [67]. At the same time, when using the modified membrane, the fraction of phosphorylated dendrimer particles in contact with the anion-exchange layer is insufficient for the effective progression of the water-splitting reaction. Additionally, two other factors play a role. Firstly, during the production of membranes, the interpenetration of polymer chains causes the area of the bipolar interface to "blur," which typically leads to a reduction in the intensity of the electric field at the cation-exchange/anion-exchange boundary. As a result, the water-splitting process occurs later in such systems than in systems with a "sharp" boundary [67]. Secondly, membranes with a high fraction of P-H20 are characterized by high diffusion permeability. The influx of co-ions (salt ions) to the bipolar boundary also reduces the intensity of the electric field and slows down the water-splitting process.

Therefore, to use modified membranes as the cation-exchange or intermediate catalytic layer in bipolar membranes, it is necessary to refine the method of producing bipolar membranes, as well as increase their catalytic activity and decrease diffusion permeability.

4. Conclusions

In the present work, cation-exchange membranes made of sulfonated polytetrafluoroethylene and bulk-modified membranes with the phosphorylated dendrimer Boltorn H20 were obtained and characterized using various methods, including mechanical, physico-chemical, and electrochemical analyses. Due to the presence of the phosphoric acid group in the modifier, the obtained membranes exhibit high specific permselectivity for calcium ions, and possibly other multivalent metals. The introduction of the modifier into the membrane volume leads to the localization of some of its particles on the membrane surface, which, also due to the presence of phosphoric acid groups, results in a change in the mechanisms of overlimiting mass transfer in the electro-membrane system. While for the SPTFE membrane, the dominant mechanism of overlimiting mass transfer is the non-equilibrium electroconvection, for the modified membranes, the primary current carriers in the overlimiting state are the water-splitting reaction products. The water-splitting reaction results in a reduction of the potential drop at which the membrane transitions into the overlimiting state, leading to a decrease in specific energy consumption, despite the reduction in the current carried by the counterions. Another important aspect for the effective application of the obtained membrane materials is the high experimental limiting current density, which sets these membranes apart from many known specimens in the literature.

Despite their high activity in the water dissociation reaction, it has not been possible to apply the modified membranes as a catalytic or cation exchange layer in bipolar membranes to date. The homogeneous bipolar membranes obtained have a high operating voltage, thus preventing their effective use in real processes.

Therefore, the bulk-modified membranes can be effectively applied in the separation processes of mono- and multivalent ions with high specific permselectivity coefficient and high ions fluxes.
