Structural, Optical and Photocatalytic Properties of Aluminium Scrap from End – of – Life Vehicles Modified TiO2 Nanoparticle

1. Introduction

End-of-life vehicles (ELVs) have become an emerging challenge associated with the rapid growth in the world economy and industrial development because of their large and increasing production volumes. Aluminium alloys are widely used in the automotive and aerospace industries due to their high specific strength and corrosive resistance. Because this alloys can no more satisfy the increasing requirements of the market, aluminium – matrix composite materials reinforced with solid particles, have attracted extensive attention, becoming more extensive studied [1,2,3] and aluminium scrap (old and new) [4,5,6,7] become the most widely recycled non-ferrous metals in the world [3,8,9].

End-of-life vehicles (ELVs) have become an emerging challenge associated with the rapid growth in the world economy and industrial development because of their large and increasing production volumes. Aluminium alloys are widely used in the automotive and aerospace industries due to their high specific strength and corrosive resistance. Because this alloys can no more satisfy the increasing requirements of the market, aluminium – matrix composite materials reinforced with solid particles, have attracted extensive attention, becoming more extensive studied [1,2,10] and aluminium scrap (old and new) [11,12,13,14] become the most widely recycled non-ferrous metals in the world [3,15,16].

2. Results

2.1. Precursor solution analysis

2.1.1. Thermal analysis

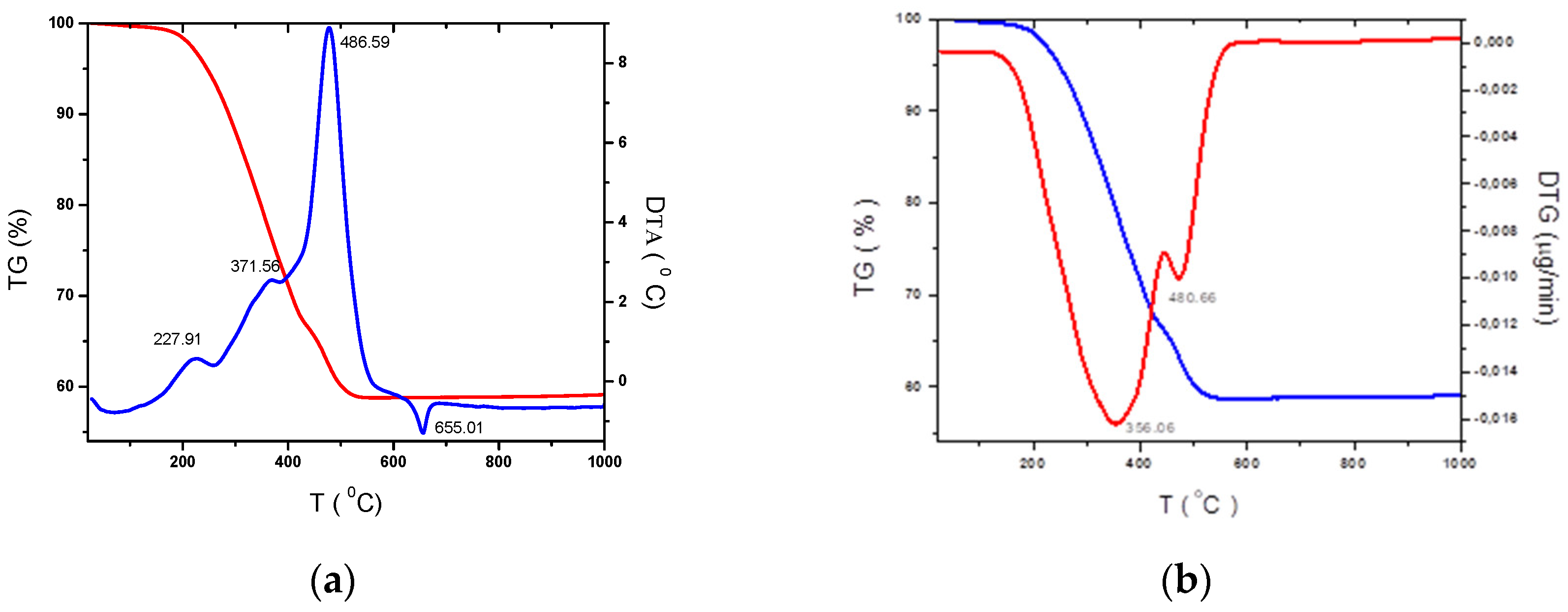

The thermal analysis TG–DTA–DTG was performed on the dried at room temperature, for 10 days and heat treated at 150°C for 2h on 2.5%Al doped titanium precursor’s solution in the temperature range 20 – 1000°C at a heating rate of 10°C/min in an airflow (Figure 1) in order to establish the optimum crystallization temperature for the corresponding oxides. From the TGA curves weight loss is in majority characterized by two different zones. First, weight loss falling in the range 0 – 350°C due to moisture removal, decomposition of amorphous carbon from Tween 80 and acetylacetone. The second zone in the range 350 – 1000°C is due to several structural changes, such as conversion of the anatase phase of TiO₂ in rutile, aluminium melting.

2.2. Nanopowder solution analysis

2.2.1. X–ray diffraction analysis

The XRD patterns of TiO₂ Degussa P25 and Al – TiO₂ composites after calcination at 500°C for 2h, are shown in Figure 2. XRD diffraction patterns illustrate the fact that all titania samples contain the tetragonal anatase crystalline phase (PDF card 00-021-1272), rutile (PDf card 01-076-0318) and Al (PDF card 00-004-0787). The presence of this phases in the materials indicate the absence of a chemical reduction mechanism [17]. The absence of other peaks, specially of Al₂O₃ thin film which can be formed on surface due to easily oxidation of Al, means that formed alumina on the Al surface is non-crystalline [18].

The Lee at el. [19] observed reduction of grain size and presence a lower crystallinity weaking intensity of the anatase (101) peak with increasing de Al contents, confirmed by Rietveld rafination.

In order to determine the effective crystallite mean size (D_eff) the Warren - Averbach X-ray profile Fourier analysis of the (101) (2θ = 25.209°), (004) (2θ = 37.527) and (200) (2θ = 47.874°) anatase peak profiles were processed by the XRLINE [20] computer program. The crystallite size distribution function was determined from the second derivative of the strain corrected Fourier coefficients [21].

By single X-ray profile Fourier analysis of Ag - TiO₂ nanoparticles, the microstructural information such as the effective crystallite mean size, D_eff (nm), the root mean square (rms) of the microstrains averaged along the real space distance, ${\langle {\epsilon }^2\rangle }_{hkl}^{1/2}$ were obtained [22].

Rietveld type refinement for determination of elementary parameters of the cell was performed with the Powder Cell program [25], developed by Werner Kraus & Gert Nolze (BAM Berlin).

The cell parameters of sample are close, due to the structural distortions that break the crystal continuity induced by Al³⁺ addition [26], but the a and c parameter change slightly, as results the cell volume changes. According with literature the influence of Al on the cell volume and unit cell are contradictory [27]: introduction of Al increase in the crystal lattice parameters a and c [28] or have opposite effect, depending on the sources of aluminium (salts, metallic aluminium …).

Table 1. The effective crystalline mean size, ${\mathrm{D}}_{\mathrm{e}\mathrm{f}\mathrm{f}}$(nm), the root mean square (rms) of the microstrains averaged along the real space, ${\langle {\mathsf{\epsilon }}^2\rangle }_{\mathrm{h}\mathrm{k}\mathrm{l}}^{1/2}.$

Sample	Precent [%]			Unit cell parameter		Cell volume [Å3]	Effective crystalline mean size, ${\mathit{D}}_{\mathit{e}\mathit{f}\mathit{f}}$(mm)	Microstrains averaged along the real space, ${\langle {\mathit{\epsilon }}^2\rangle }_{\mathit{h}\mathit{k}\mathit{l}}^{1/2}$x 103
	Al	TiO2 anatase	TiO2 rutile	a [Å]	c [Å]
TiO2 Degussa P25	-	88.1	11.9	3. 8019	9.5353	137.83	24.805	7.54
0.5% Al	1.607	87.9	10.49	3.800	9.5346	137.67	24.72	7.69
1.0% Al	3.515	87.735	8.75	3.7935	9.5368	137.15	24.65	7.73
1.5% Al	5.241	87.21	7.54	3.7936	9.5268	137.10	24.51	7.82
2.0% Al	7.097	87.183	5.72	3.7838	9.5206	136.52	24.38	7.92
2.5% Al	9.12	86.76	4.12	3.7863	9.5122	136.36	24.22	8.03

Table 1. The effective crystalline mean size, ${\mathrm{D}}_{\mathrm{e}\mathrm{f}\mathrm{f}}$(nm), the root mean square (rms) of the microstrains averaged along the real space, ${\langle {\mathsf{\epsilon }}^2\rangle }_{\mathrm{h}\mathrm{k}\mathrm{l}}^{1/2}.$

Sample	Precent [%]			Unit cell parameter		Cell volume [Å3]	Effective crystalline mean size, ${\mathit{D}}_{\mathit{e}\mathit{f}\mathit{f}}$(mm)	Microstrains averaged along the real space, ${\langle {\mathit{\epsilon }}^2\rangle }_{\mathit{h}\mathit{k}\mathit{l}}^{1/2}$x 103
	Al	TiO2 anatase	TiO2 rutile	a [Å]	c [Å]
TiO2 Degussa P25	-	88.1	11.9	3. 8019	9.5353	137.83	24.805	7.54
0.5% Al	1.607	87.9	10.49	3.800	9.5346	137.67	24.72	7.69
1.0% Al	3.515	87.735	8.75	3.7935	9.5368	137.15	24.65	7.73
1.5% Al	5.241	87.21	7.54	3.7936	9.5268	137.10	24.51	7.82
2.0% Al	7.097	87.183	5.72	3.7838	9.5206	136.52	24.38	7.92
2.5% Al	9.12	86.76	4.12	3.7863	9.5122	136.36	24.22	8.03

2.2.2. FT – IR spectroscopy

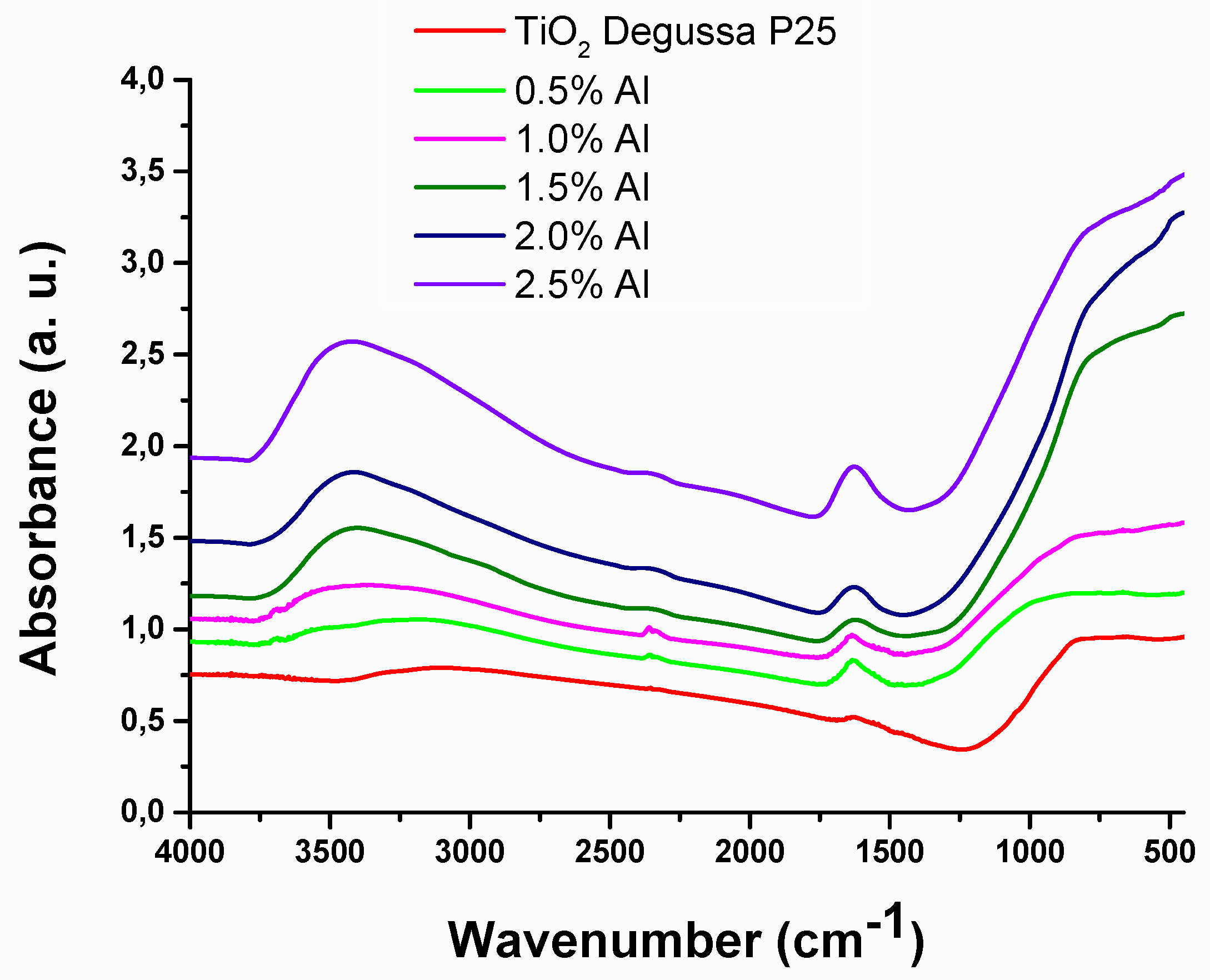

FT – IR spectroscopy in the 4000 – 450cm^-1 region (Figure 3) was carried out to estimate the variation in the functional groups, which influence the interface formed with the absorber layer and the electronic structure [27]. The vibrational mode peak present around 3000 to 3650cm^-1 attributed to the hydroxy functional groups, which is present on the surface of TiO₂ and / or bonded to Al³⁺ [28]. The peak around 1600 cm^-1 is associated with anatase phase or Me – O, Ti – O, and Ti – O – Me stretching vibration [27,29,30]. The broadband between 450-1000cm^-1 is related to the stretching vibration of Ti – O – Ti [31].

2.2.3. UV -Vis spectroscopy

Figure 4 reveals the infrared spectra of the samples. The absorption range of Al – TiO₂ samples shows a red shift compared with undoped TiO₂ due to Al incorporating into the titania framework and reduction of band – gap caused by the transition of sp electron of aluminium to the conduction band of TiO₂ [32].

2.2.4. Optical band gap energy, E_g determination

Based on the optical absorption edge obtained from the UV – Vis spectra, the energy band gaps (E_g) for the synthesized samples were estimated using the Tauc’s equation by plotting (Ahν)ⁿ, where A is the absorption coefficient, and hν is the photon energy. The value of $n=\frac{1}{2},\frac{3}{2},2or3$depending on the nature of the electronic transition responsabile for absorption. Based on the obtained results that are given in Figure 5. The nedoped titania posses a band gap almost equal with the pure titania anatase $\left(E_g=3.0-3.2eV\right)$ [33]. This difference is due to the presence in this case of two crystal structure: anatase and rutil, which broaden the range of the absorption for TiO₂ [34]. After de Al addition the indirect band gap (n = 2) is reduced from 2.98 to 2.82eV and for $n=\frac{1}{2}$(direct band gap) is 2.99 to 2.81eV, respectively. The shift in the absorbance implies a reduction in the bandgap due to the narrowing of the bandgap energy by Al addition and formation of intermediates states between the valence bands and conduction bands [3,27,35,36].

2.2.5. Morphology of nanocomposites

The morphology of the as prepared samples is shown in Figure 6. The agglomeration was present due to strong van der Waals interaction, as was observed by Ray [37].

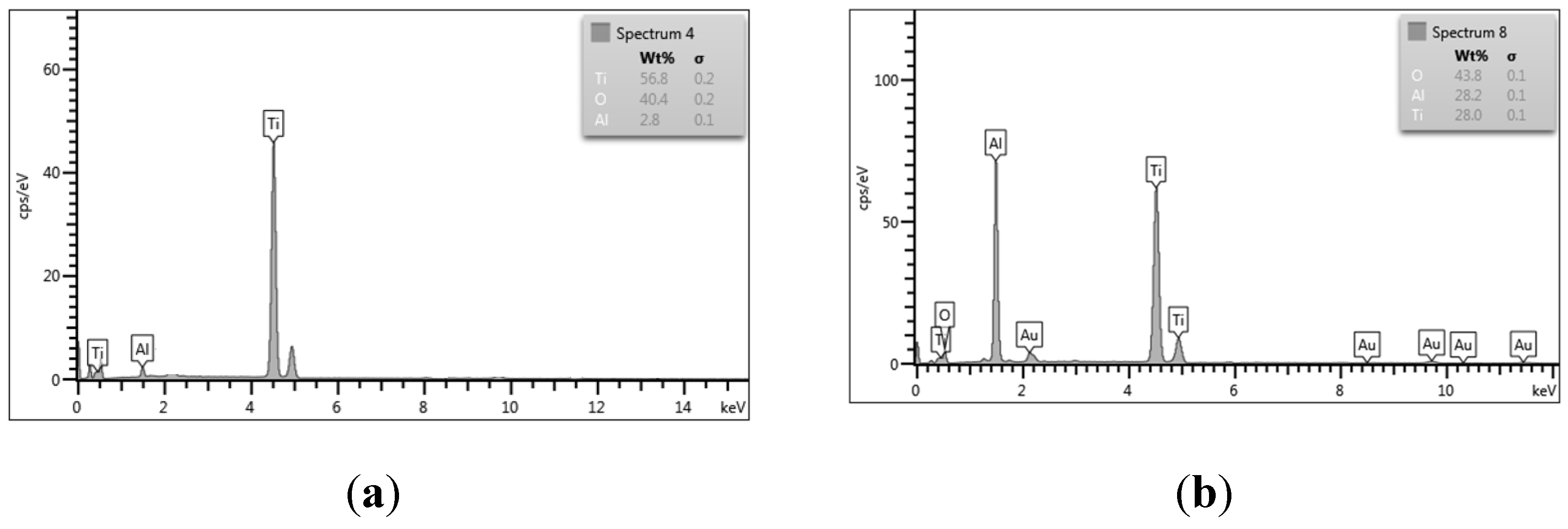

The elemental composition of the 0 – 2.5% Al was determined through energy dispersive X-rays analysis (EDX, Figure 7). EDX analysis revealed that amount of introduced aluminium varied in the range 2.8 to 28.2 wt% for all samples (Table 2).

2.2.6. Photoluminescence spectroscopy

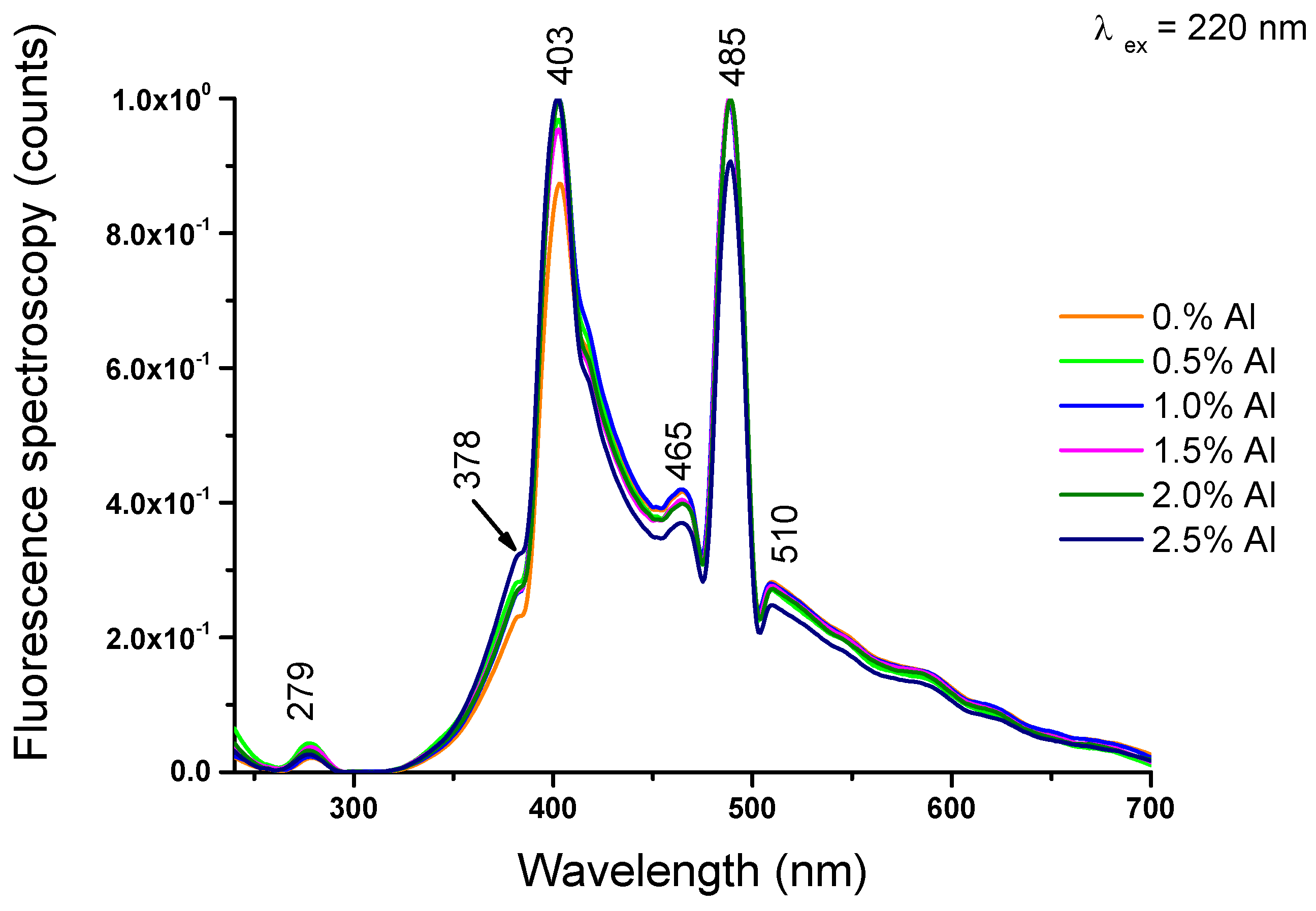

The PL spectra of Al – TiO₂ nanoparticle with different amount of Al particles is illustrated in Figure 8. The emission band at 378nm is attributed to band – to – band excitation [38,39]. Emission around ~465nm is related to defect stress formed by oxygen vacancies [ ] and defect levels below the conduction band of titania nanoparticles [40] and blue-green emission at 485nm can be attribute the charge transfer from Ti³⁺ to oxygen anion in a ${\left[{TiO}_6\right]}^{8-}$complex associated with oxygen vacancies at the surface. This presence is originating from the intrinsic state rather the surface state [41].

Additional peaks at 510 nm belongs to oxygen vacancies on the surface of titania nanoparticles [42].

2.2.7. Photocatalytic activity determination

In order to evaluate the photocatalytic activity of the Al modified TiO₂ nanoparticles, the degradation of Allura Red in aqueous solution was carried out at room temperature under UV irradiation (365nm). To obtain a good dispersion and ensure absorption – desorption equilibrium, the solution was stirred for 1h in a dark position inside the photo-reactor before light irradiation.

The efficiency of the photocatalysts for selected Allura Red degradation was calculated according to equation: $F\left(\%\right)= \frac{C_o- C_t}{C_0} x 100$, where c_o is the initial dye concentration and C_t is the concentration of dye at time t (Figure 9).

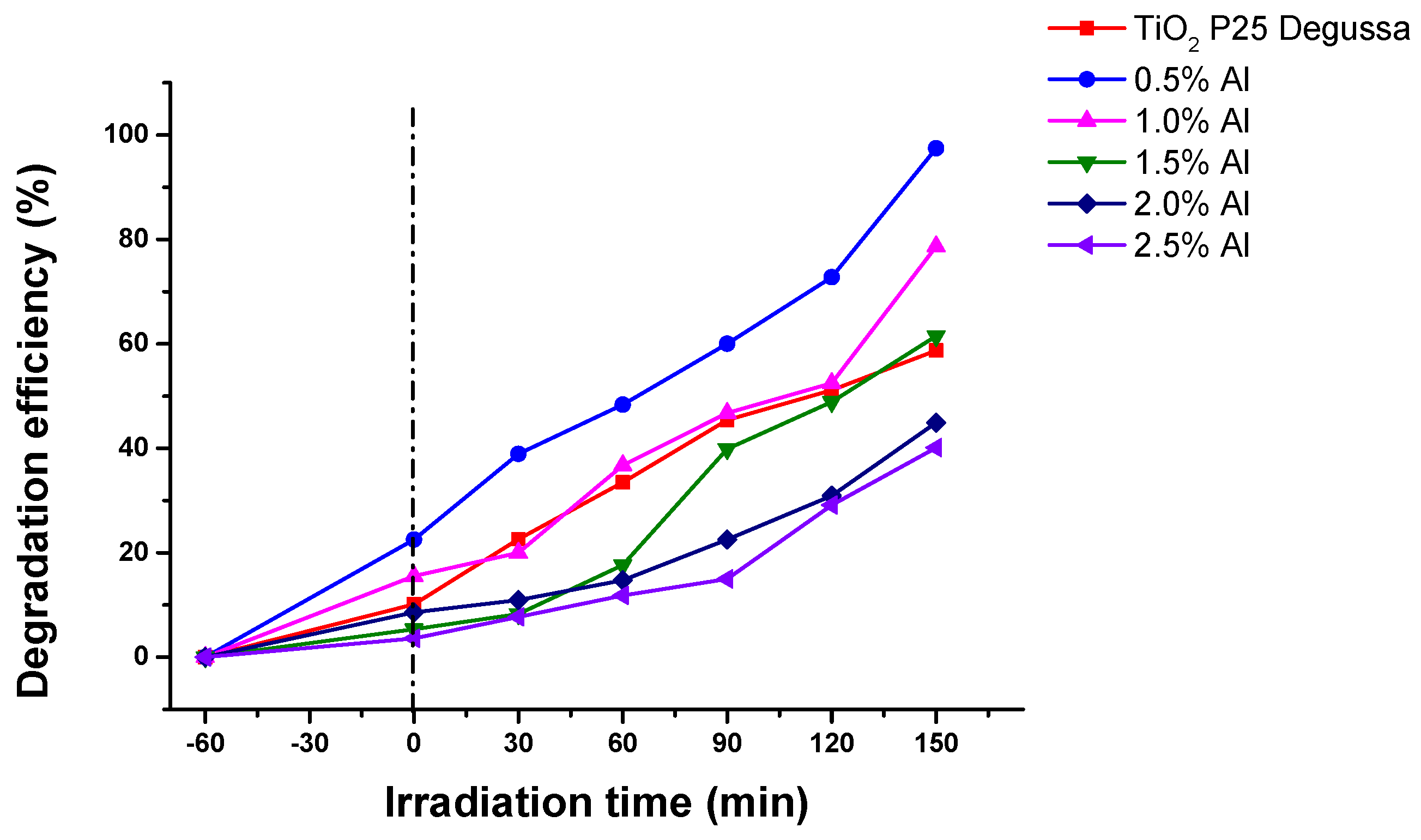

As can be seen in Figure 9, 97.46% of Allura Red was photodegraded in the presence of 0.5 Al sample after 150 min, i. e. 1.65% times higher than commercial TiO₂ P25 Degussa. The Degradation efficiency of all the samples are presented in Table 3.

The photocatalytic process can be evaluated by the Langmuir –Hinselwood expression: $-ln \left(\frac{C_t}{C_o}\right) =kt$,, unde $C_0$ and $C_t$are the dye concentration at time 0 and t (after irradiation), k (min-1) is the pseudo - first order rate constant. The calculated rate constants and correlation coefficients corresponding to Figure 10 are presented in Table 3. The acquired k values suggest that the best performance was obtained using 0.5% Al.

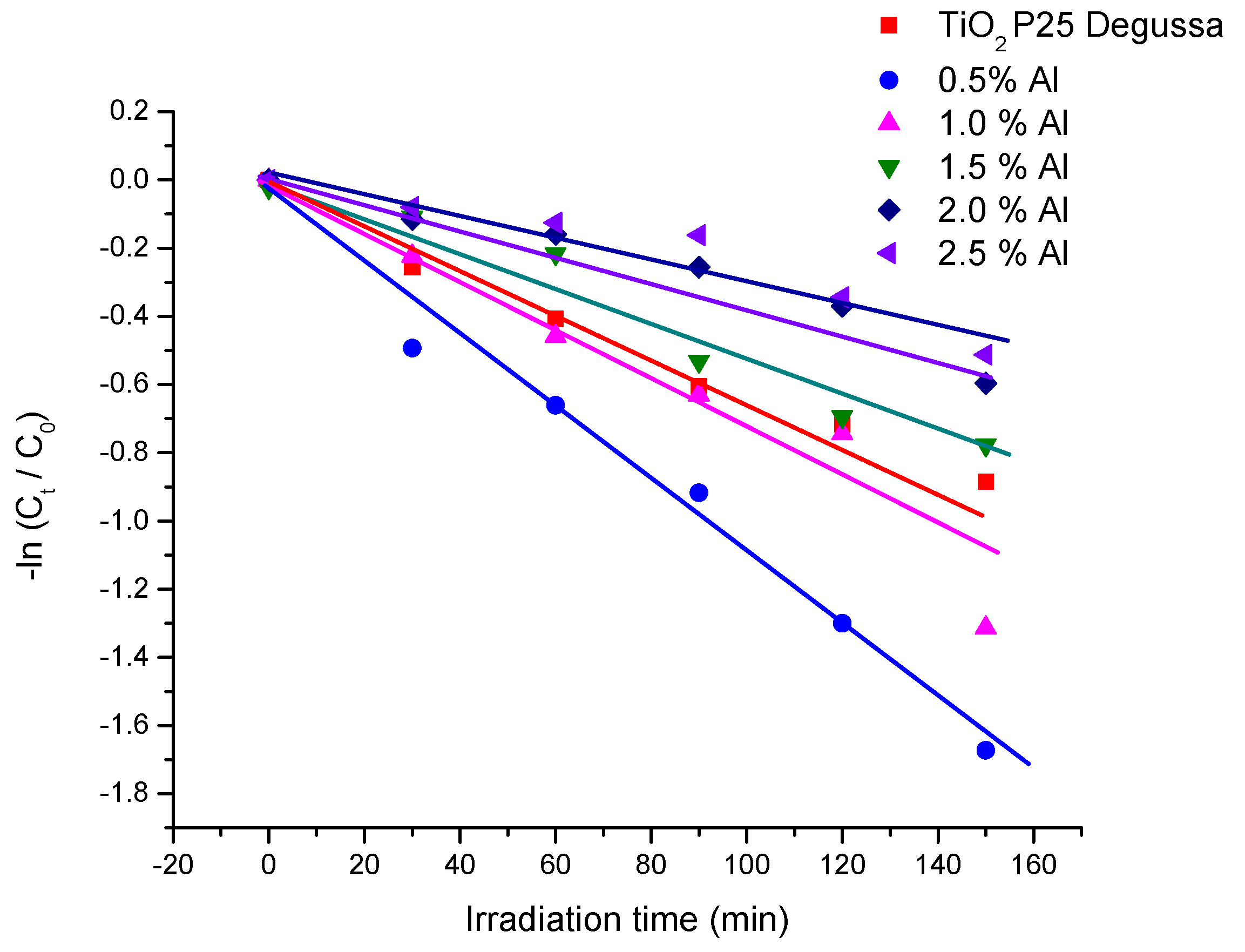

The calculated rate constants and correlation coefficients corresponding to Figure 10 are presented in Table 3. As can be see, 97.46% of Allura Red was photodegraded after 150 min, i. e. 1.65% times higher than commercial TiO₂ Degussa P25. The acquired k values suggest that the best performance was obtained using 0.5% Al.

Habibpanah et al. [43] reported also the reduction in titania photocatalytic activity due to increasing oxygen deficiency, which induce a faster rate of electron – hole recombination and leads to a reduced photocatalytic activity.

Scavanger experiments

To carry out this experiment, scavengers were added to the test solution under optimal conditions obtained as previous was descripted.

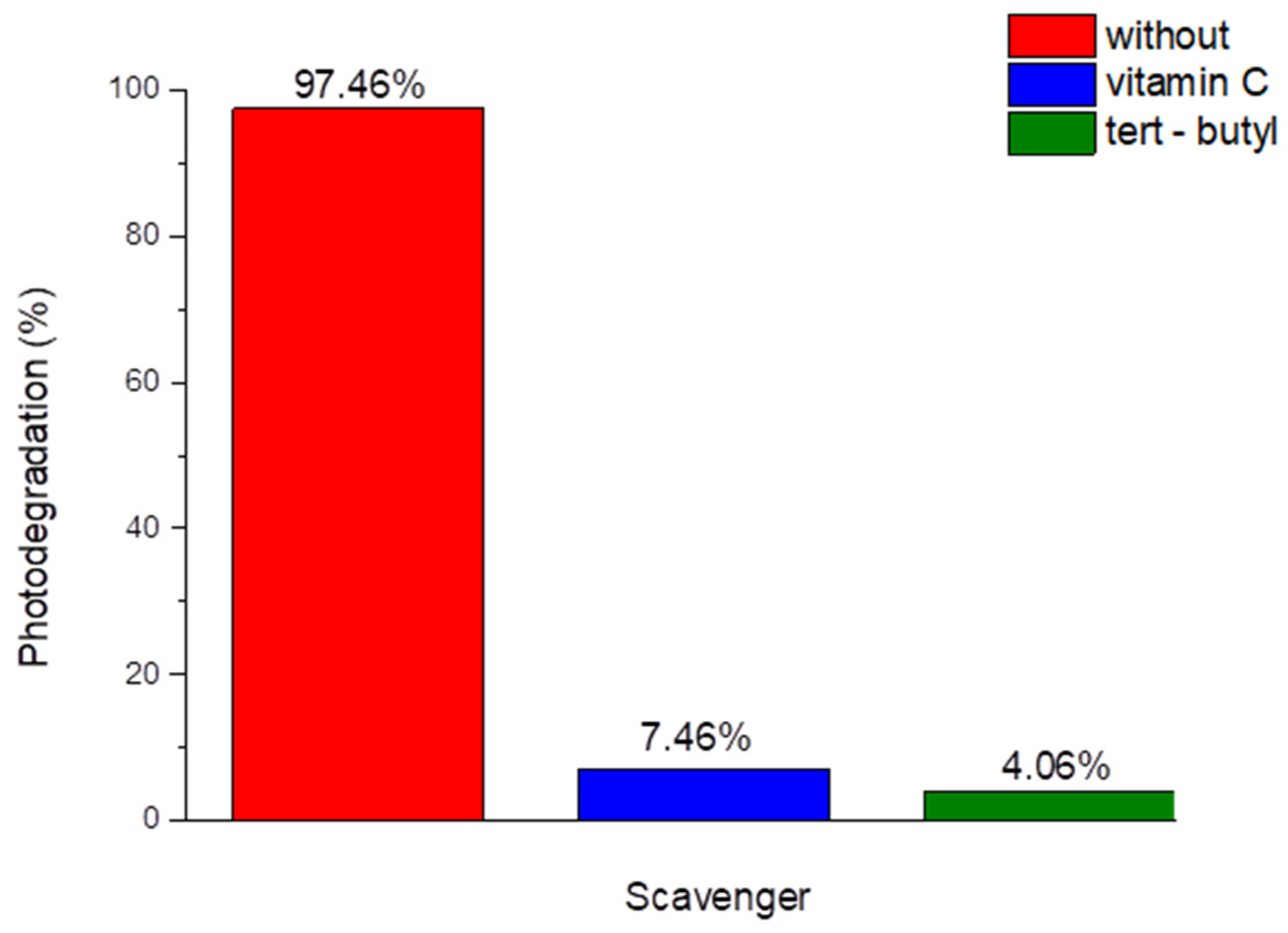

Figure 11 shows the addition of vitamin C for $O_2^{-}$ and tert butanol for ${OH}^{-}$, act as a scavengers exhibit photodegradation efficiency within 150 min. the percentage of Allura Red degradation after 150 min in the presence of vitamin C was 7.46%, and for tert-butanol was 4.06% (Figure 11), demonstrating the relevance of hydroxyl and single oxygen radicals to Allura Red.

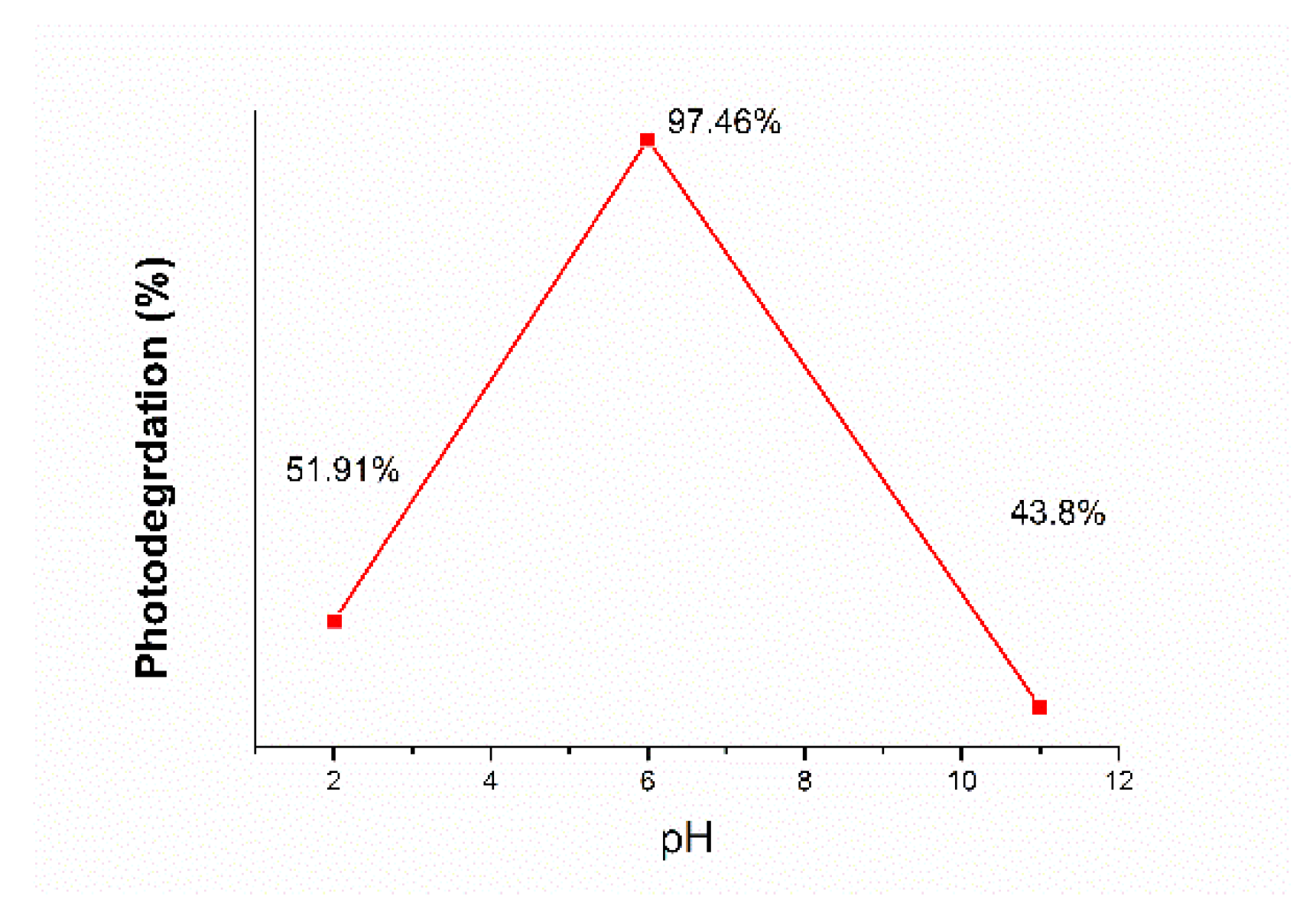

Effect of the solution pH on pollutant eliminations

The acidity and basicity of the wastewater produced by industrial entities has an important role during heterogeneous photocatalysis since it affects the surface of TiO₂ and the charge of substrates [44]. To examine the influence of pH value, NaOH and HCl were used to adjust de activity of the Allura Red – dispersed solution. Figure 12 indicates the photocatalytic degradation of Al – TiO₂ nanostructure at different initial pH value of 2, 6 and 11 under UV irradiation as a function of test time.

Photocatalytic cycling experiments

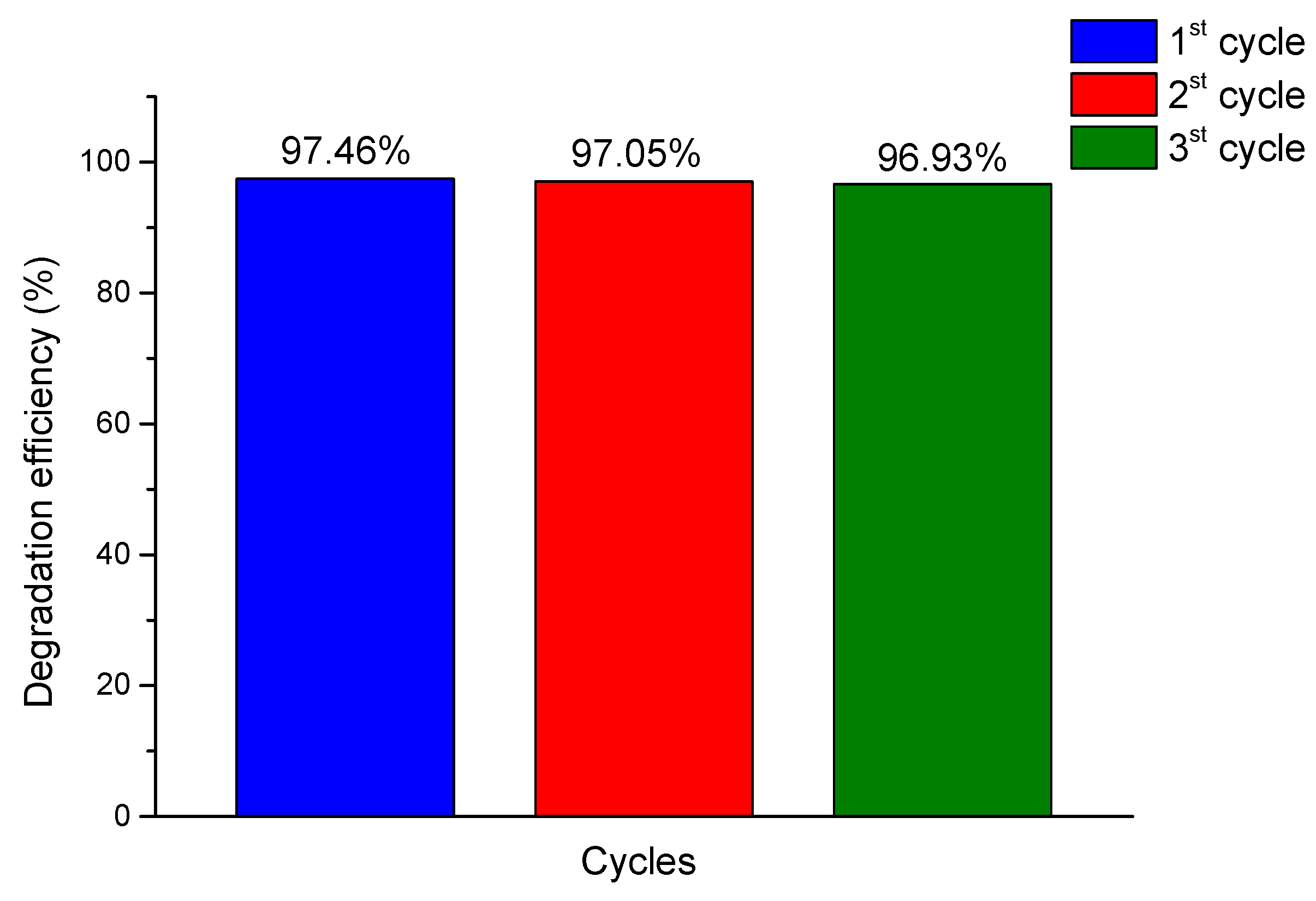

To evaluate the stability and reusability of the Al modified TiO₂ based nanoparticles photocatalyst in Allura Red dye, the recycling experiments were carrier out for 3 runs. After each cycle the recovered photocatalyst was separated from the solution, and after washing several times with deionized water and dried, and reused in the degradation for the next time. As show in Figure 13. the photodegradation efficiency reduced from 97.46% to 93.93%. The main reason behind this descending trend is the weight loss of the photocatalytic during the each run. This fact indicates that the samples still maintain a relatively high photodegradation capacity and good reusability after 3 runs under visible light irradiation and constant experimental conditions. The Allura Red dye degradation efficiency is well – preserved above 96.93%, as mentioned, even three cycles, indicating excellent stability of the photocatalyst in the degradation of Allura Red.

Photocatalytic mechanism. Reactiv Oxigen Species (ROS) Generation

To identify the reactive species generated by 0.5%Al sample, EPR coupled with spin trapping technique was used. After 25 min of irradiation with UV light a complex spectrum was obtained. To separate contribution of generated ROS, a simulation of the spectrum was performed. The best simulation contain a linear combination of the following spin adducts: •DMPO‒CH₃ (aN = 13.2 G, aH = 8.2 G, , aH = 1.8 G, g = 2.0098 relative concentration 58%), •DMPO‒O^2- (aN = 12.7 G, aH = 10.2, aH = 0.8 G, g = 2.0098, relative concentration 19%), and nitroxide-like radical (aN = 13.6 G, g = 2.0098, relative concentration 23%). The •DMPO‒CH₃ adduct is form by the interaction between the produced •OH radical and the DMSO solvent. Consequently, the sample generates both •OH and •O^2- radicals, the main species being •OH.

The other specie observed is the nitroxide radical resulted by cleavage of the N-C bond and ring opening of DMPO [45].

3. Materials and Methods

3.1. Materials and sample preparation

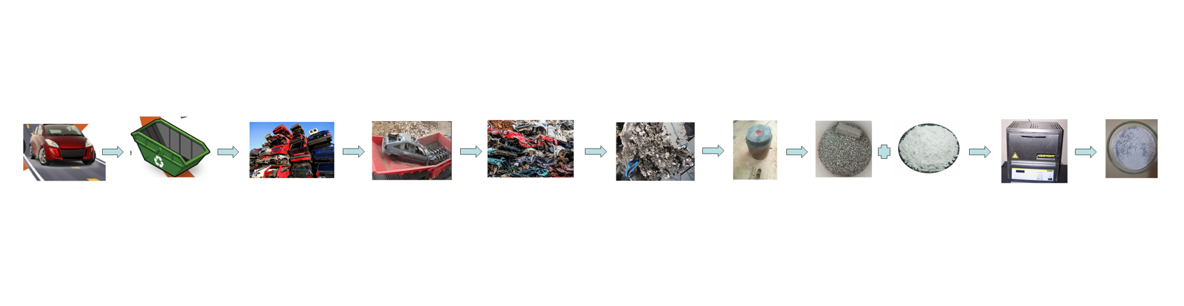

This novel method can be divided in two basic steps: (i) obtaining of aluminium waste from end – of – life vehicles, (ii) pure and TiO₂ modified materials preparation.

3.1.1. Aluminium waste from end – of – life vehicle

The shredding phase was obtained, after car collecting and dismantling, using the Shredding installation, Lindemann mark.

The shredder installation is specifically for the processing of large metal waste, parts, and sub-assemblies from end-of-life vehicles. For testing, the shredded phase resulting from the chopping plant was used with average dimensions of 3x4 mm in cross section and 50-60 mm in length.

The preparation of the crushed phase consisted of the removal of foreign bodies and their compactation using a manual press. Molds of easy-to-handle material with a small specific surface were obtained, to avoid losses through oxidation.

The melting of the aluminum waste thus prepared was carried out in a flame furnance, with a crucible of 3 kg capacity. The time of a processing batch to obtain recycled aluminum were 2.5 h. To avoid contamination of the liquid alloy bath with oxides and gases from the environment were used specific covering materials. The slag formed during melting was removed twice: the first time when the melt was completely formed and the last time before exiting the furnance, for an alloy as clean as possible. The aluminum alloy was cast at a temperature of 720 °C, in molds from the forming mixture resulting in simple parallelepiped samples 20x22 mm and 300 mm long. The cast and cooled samples were debited and prepared for machining.

Aluminum powder was obtained by cold machining process of the sample on a universal milling machine.

3.1.2. Preparation of Al – TiO₂ nanoparticle.

The TiO₂ based materials were produced by solide state reaction. As starting chemical were used: P25 TiO₂ commercial powder (Degussa AG, Germany), acetylacetone (Merck, Germany) and Tween 80 (Merck, Germany). Titania nanopowder (5g) was dispersed into 10ml deionized water, adding then 1.2 ml mixture of acetylacetone : Tween 80 (1:2 volumetric ratio) in order to obtain a better dispersion and particle uniformity and Al waste in the ration of n(Ti) / n(Al) = x (x = 0.0; 0.5; 1.0; 1.5; 2.0 and 2.5). The homogenous obtained by mixing the reagents with a magnetic stirrer is keeped 5 days at 20° and the is sintered using a conventional furnance at 500°C, 2h, with a temperature ramp of 10°C/min.

3.2. Characterization

Thermal analysis (TG–DTA–DTG) was recorded with a Mettler-Toledo Thermogravimeter 851e equipment. The TG–DTA–DTG was performed in air, in the temperature range 20–1000°C using upgraded computer controlled equipment. About 38,679 mg of sample was heated in Pt-holder with another Pt-holder containing a-alumina as reference material. The sample was heated at a rate of 10°C/min from ambient temperature to 1000°C in static air.

The XRD was recorded on the BRUKER D8 Advance X-ray diffractometer, working at 45kV and 45mA. The CuKα radiation, Ni filtered was collimated with Soller slits. A germanium monochromator was used. The data of the X-ray diffraction patterns were collected in a step-scanning mode with steps of Δ2θ = 0.01°. Pure silicon powder (standard sample) was used to correct the data for instrumental broadening. The Warren - Averbach X-ray profile Fourier analysis of the (101), (004) (200) and (204) anatase peak profiles were processed by the XRLINE [20] computer program in order to determine the effective crystallite mean size (D_eff). The crystallite size distribution function was determined from the second derivative of the strain corrected Fourier coefficients [21]. FT-IR spectra of the powder samples using KBr pellet technique, in the absorbance mode have been recorded using JASCO FT/IR-6100 Fourier Transform Infrared Spectrometer in the 400 - 4000cm^-1 wavenumber range with a resolution of 2cm^-1.

For the morphology of samples, a Scanning Electron Microscope Hitachi SU8230 scanning electronic microscope (Tokyo, Japan), using 30 kV, 15 mm working distance. The instrumental analysis of the sample composition was determined by Oxford Instruments EDS System (Oxford, UK) and AZtech software (Greeley, CO, USA).

Optical UV–VIS absorption spectra were recorded on the PERKIN-ELMER LAMBDA 45 spectrophotometer (JASCO International Co., Ltd., Tokyo, Japan), equipped with an integrating sphere assembly of 200–900 nm. This characterisation method was used to determine the band gap energy of the Al – TiO₂ samples and to know its relationship with the amount of Al used. The band gap was estimated from the Tauc’s equation.

Photocatalytic measurements were performed by immersing the 0.5 mg samples in the Allura Red solution (c_o = 2 x 10^-5) irradiated with UV lamp (15 W) emitting at 365 nm.

The absorbance of the Allura Red solution was measured using a T80+ UV–VIS, Pro Instruments Ltd. Spectrophotometer (Leicestershire, UK). The effect of the initial 2–11 pH solution on the degradation of Allura Red, under a UV lamp (15 W) emitting at 365 nm for 150 min was also determined.

5,5-dimethyl-1-pyrroline N-oxide (DMPO, Sigma-Aldrich, Merck, KGaA, Darmstadt, Germany) was used as a spin-trapping reagent. The nanoparticles (10 mg) were dispersed in DMSO (1 mL) and homogenized in an ultrasound bath (30 min) before use. DMPO of 0.2 mol/ concentration was added to the suspension. The samples were prepared immediately before measurements and transferred into the quartz flat cell optimized for liquid measurements.

5. Conclusions

Aluminium scrap from end – of – life vehicles modified TiO₂ nanoparticle was succesfully synthesized by solid state reaction and its capability to photodegrade the Allura Red dye was evaluated in different conditions in therms of pH value, in presence of scavengers and the recycling experiments for 3 runs.

XRD calculations also showed that the a and c parameter of TiO₂ anatase change slightly, as results the cell volume changes. The opto-electronic properties shows that Al addition shifted the absorption spectra toward the visible range. The highest photocatalytic activity (79.99%) was achieved for the sample containing 0.5% Ag. A higher concentration of Al particles shields the active centers of the semiconductor, thus reducing its catalytic activity. The Langmuir – Hinselwood kinetic model can be efficiently applied for describing the Allura Red photodegradation under UV irradiation. The •OH are the main species generated and responsible for Allura Red degradation.
