A Korean Cattle Weight Prediction Approach Using 3D Segmentation-Based Feature Extraction and Regression Machine Learning from Incomplete 3D Shapes Acquired from Real Farm Environments

1. Introduction

The agricultural sector plays a pivotal role in meeting human food needs, with livestock farming serving as a vital source of meat, milk, and related products. To effectively manage and promote sustainable livestock production, accurate weight estimation of livestock holds a critical position. Traditional livestock weighing methods often involve labor-intensive processes that cause stress to the animals, consequently negatively impacting overall productivity.

The development of an algorithm for livestock weight estimation without direct contact with the animals is essential. This approach addresses ethical concerns by minimizing stress and discomfort during the weighing process.

In today's era of rapid technological advancements, the integration of computer vision-based techniques in livestock farming aligns perfectly with the movement towards smart and precision agriculture. The application of computer vision in livestock weight estimation represents a significant leap forward for automation and data-driven decision-making in agriculture.

Leveraging this technology, farmers can gain real-time insights into livestock weight and health, allowing for more efficient resource allocation, early disease detection, and improved breeding strategies. This has the potential to increase productivity, reduce costs, and contribute to sustainable agricultural practices.

The development of algorithms to predict livestock weight through computer vision-based techniques has garnered significant attention, with various research studies in this area. There are two main approaches: 2D image analysis and 3D image analysis.

First, we review 2D image analysis approaches. Tasdemir and Ozkan [1] conducted a study to predict the live weight of cows using an Artificial Neural Network (ANN) approach. They captured cows from various angles, applied photogrammetry to calculate body dimensions, and predicted live weight using ANN-based regression. Anifah and Haryanto [2] proposed a fuzzy rule-based system to estimate cattle weight, extracting body length and circumference as features to feed the fuzzy logic system for weight estimation. Ana et al. [3] conducted a study to predict live sheep weight using extracted features and machine learning. They captured sheep images from top view, created masks of the top view, and measured six distances in the mask as features to feed a random forest regression model. Weber et al. [4] proposed a cattle weight estimation approach using active contour and regression trees bagging. They first segmented the image, then created a hull from the segmented image, then extracted features, and predicted weight using a random forest model.

Compared to 2D image processing approaches, 3D image processing approaches have gained more research attention in recent years. Jang et al. [5] estimated body weight for Korean cattle using 3D images, capturing them from the top view. After extracting body length, body width, and chest width, they built a linear function to calculate cattle weight. Na et al. [6] proposed a solution to predict cattle weight using depth images, capturing images from the top view, segmenting them, and extracting characteristics of shape and size for cattle weight prediction using machine learning model. Kwon et al. [7] reconstructed a pig 3D model, created distances along pig’s body as features, and utilized neural networks to predict pig weight. Hou et al. [8] collected data using LIDAR (Light Detection and Ranging) sensor, segmented 3D beef object models using PointNet++ [9], measured body length and chest girth, and calculated weight using a pre-defined formula. Ruchay et al. [10] proposed a model for predicting live weight based on augmenting 3D clouds in the form of flat projections and images with regression deep learning. Na et al. [11] developed a pig weight prediction system using Raspberry Pi, capturing RGB-D images from the top view of pigs, extracting body characteristics and shape descriptors after segmenting the image, and applying various regression machine learning models to predict pig weight. Le et al. [12] calculated body sizes, surface area, length, and morphological traits from completed 3D shapes acquired using a laser scanning device to feed into a regression model for dairy cow weight estimation. Cominotte et al. [13] captured 3D images of cattle from the top view, extracted features from segmented images, and used linear and non-linear regression models to predict beef cattle weight. Martins et al. [14] also captured 3D images from top view and side view, measuring several distances to feed into the Lasso regression model for body weight estimation.

In all the studies mentioned above, whether employing 2D or 3D image processing approaches, a common formula is followed: the extraction of features for subsequent weight prediction. However, the feature extraction process often relies on 2D segmented images or projection masks of 3D images, which can make it challenging to accurately represent 3D spatial elements, such as chest girth (chest circumference). Research has shown that chest girth is a critical factor in weight calculation [15].

In this study, we propose an approach that extracts features based on 3D segmentation, enabling us to measure features with precision, incorporating 3D spatial elements accurately. Furthermore, while previous studies were primarily conducted in controlled laboratory or fenced environments, our research predicts weights using 3D shapes acquired from real farm environments.

The main contributions of this proposal are as follows:

• We introduce an effective approach for predicting Korean cattle weight using vision-based techniques.
• We present a straightforward method for extracting cattle dimensions through 3D segmentation.
• We explore multiple regression machine learning algorithms for Korean cattle weight prediction.
• Our approach not only predicts Korean cattle weight but also automatically measures three essential body dimensions, facilitating further analysis.

2. Materials and Methods

2.1. Data Acquisition

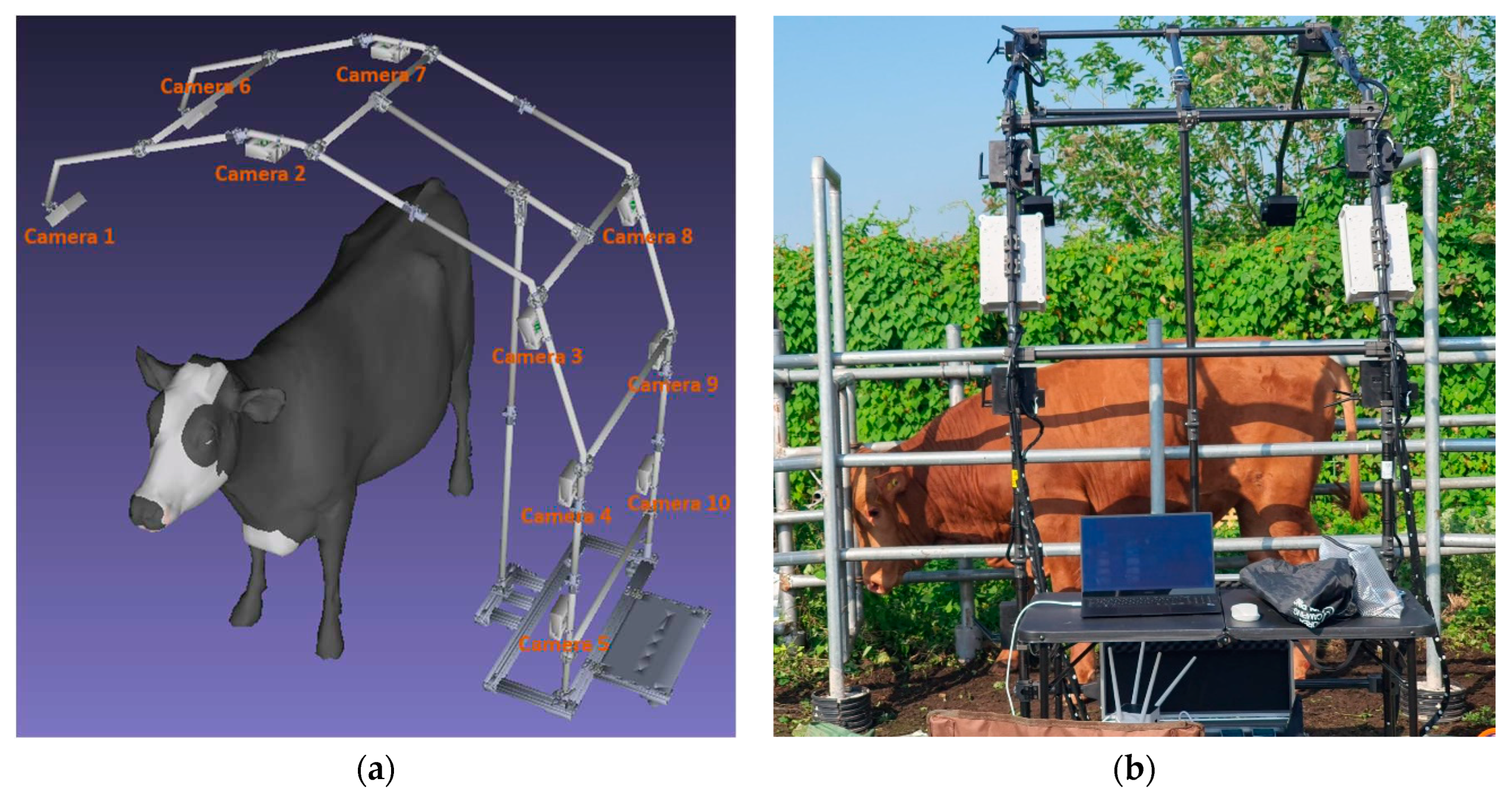

To collect 3D Korean cattle data, we designed a specialized multiple-camera system, which is illustrated in Figure 1. In Figure 1a, you can see the system’s design, and in Figure 1b, you can observe the actual setup.

The system comprises ten stereo cameras arranged in a half-ring configuration, maximizing the coverage of Korean cattle as they pass by. Ideally, an imaging system should form a symmetrical U-shape to capture data from all angles. However, practical considerations, such as bulkiness, mobility issues, and animal fear, make such a design unfeasible. Our mechanical design, in contrast, is lightweight, flexible, and collapsible when not in use. This approach ensures efficient data acquisition without causing distress to the livestock.

The relative translation and rotation between all cameras remained constant throughout the data collection process. We employed stereo cameras, allowing each camera to capture two infrared images: a left infrared image and a right infrared image. Figure 2 provides an example featuring ten left infrared images from our proposed camera system. The ten right images captured by the system exhibit similar characteristics.

We generated 3D data from the left and right images of each camera using stereo matching, as described in [16]. Subsequently, guided by the pre-defined relative distances and rotation angles of the cameras, we aligned the 3D images from each individual camera. The 3D mesh data was then reconstructed using the Poisson surface reconstruction algorithm [17] to construct a comprehensive 3D representation of the entire scene featuring the Korean cattle.

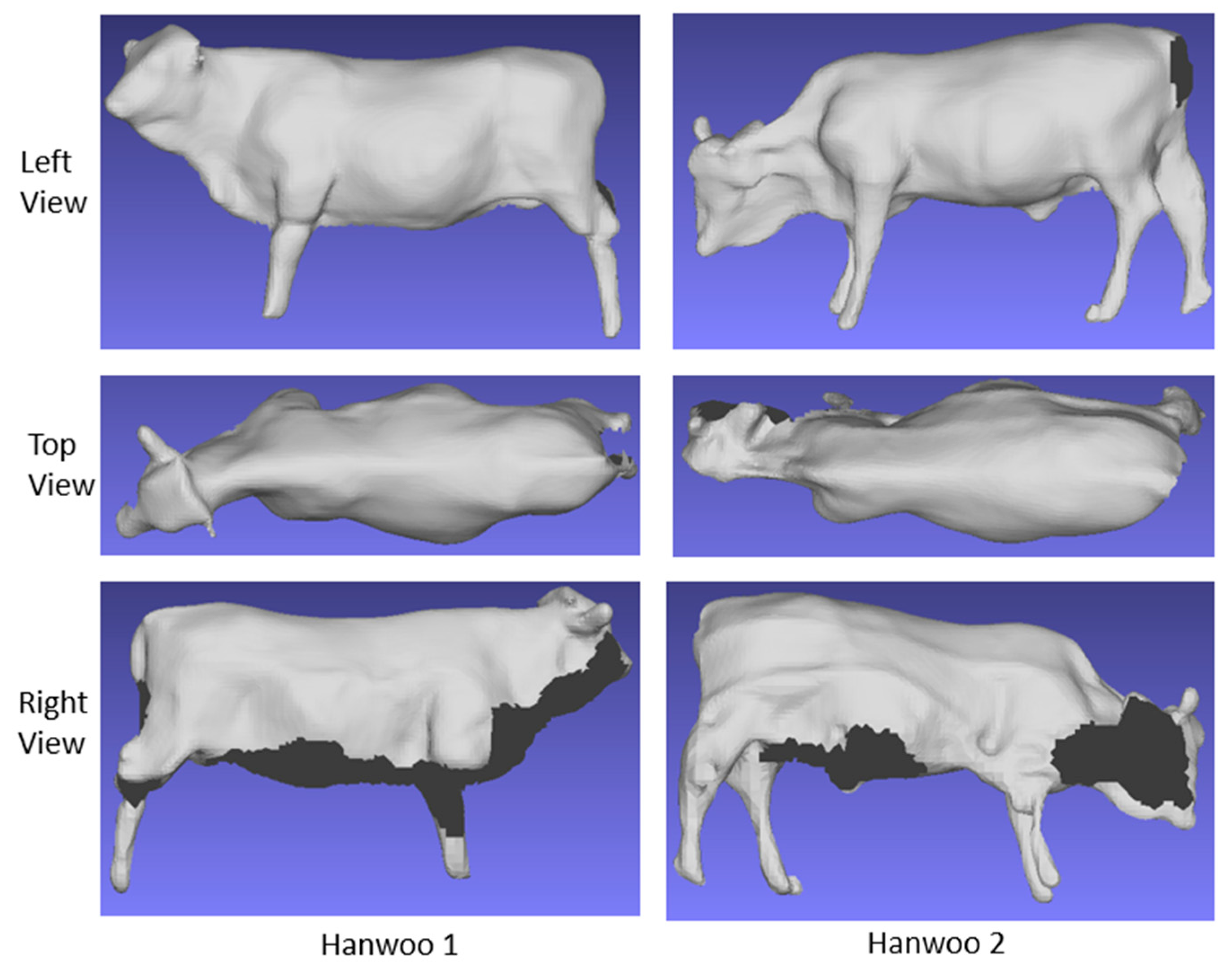

Once this was complete, we subtracted the fixed fence and background scene, resulting in the creation of the 3D mesh data specifically depicting the Korean cattle, as exemplified in Figure 3. In Figure 3, each row displays the left view, top view, and right view of a Korean cattle. Notably, the mesh data on the right side and the under area of the cattle appears incomplete due to our system's flexible design, which is designed to adapt to the unpredictable conditions of a real-world farm environment.

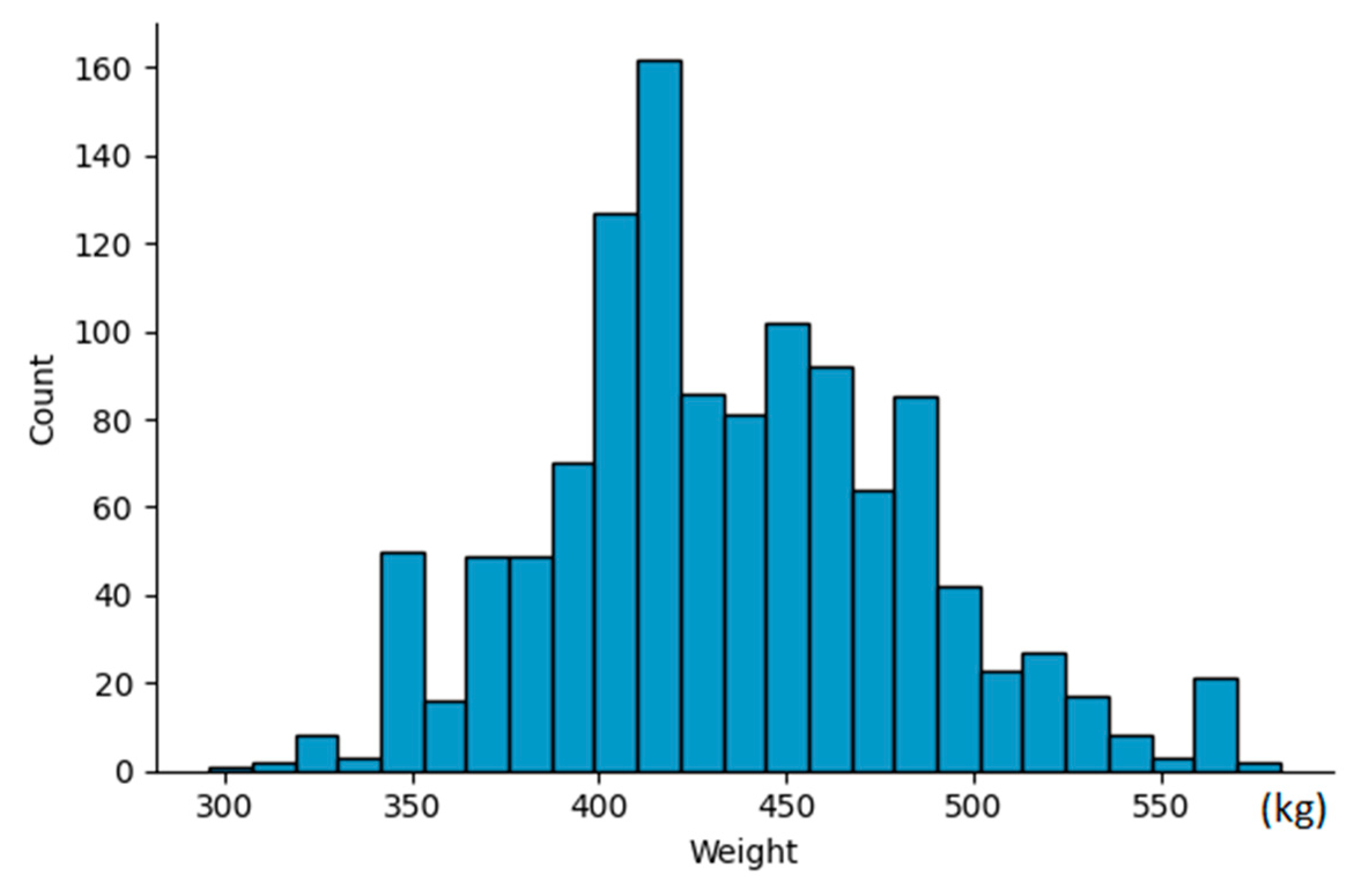

We conducted data collection on two separate occasions, in August 2023 and September 2023, at two distinct farms located in Seosan province, South Korea. Our dataset consisted of a total of 270 cattle, ranging in age from 9 months to 12 months. For each individual cattle, we captured between 3 to 5 shots in various poses, resulting in a collection of 1190 3D data files. Concurrently, we recorded the weight of each cattle during the data capture process. The weight of the cattle in our dataset varies within the range of 300kg to 600kg. The weight distribution is visualized in Figure 4.

2.2. Proposed Pipeline Overview

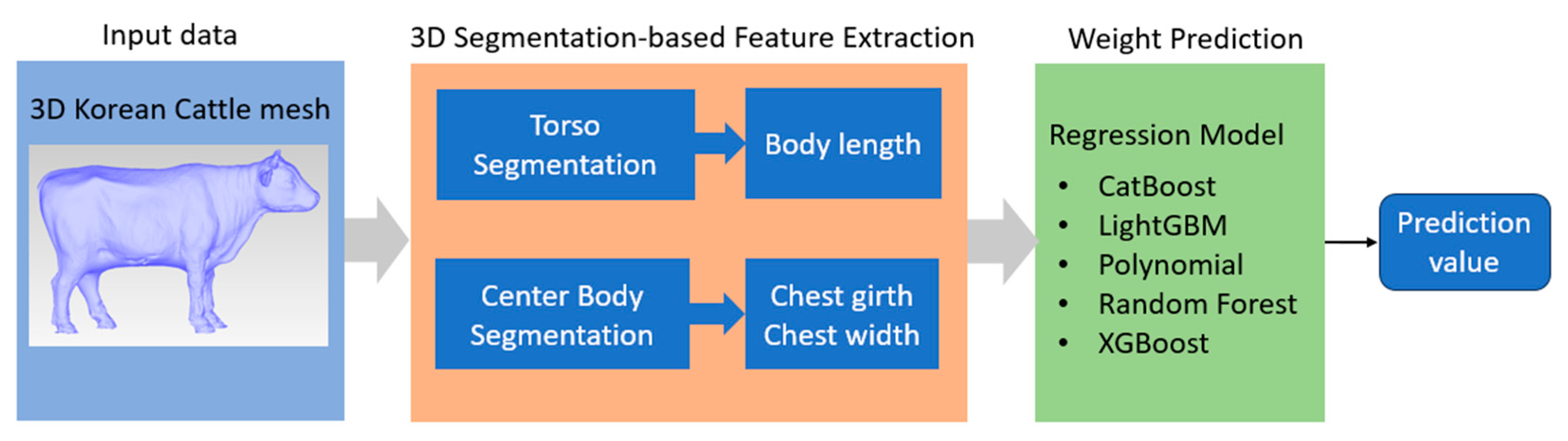

The overall diagram of the proposed pipeline is depicted in Figure 5. After reconstruction process, the 3D image of Korean cattle was saved as 3D mesh files. 3D mesh is sampled into multiple point cloud data for 3D segmentation process. Two segmentation models are designed for this project: torso segmentation and center body segmentation.

The output of the torso segmentation is used to measure the body length, while the output of the center body segmentation was used to extract the chest girth and chest width. After three important dimension characteristics are extracted, a regression machine learning model is developed to predict Korean cattle weight with these three dimensions as input. We applied five of the most advanced regression machine learning models: CatBoost, LightGBM, Polynomial, Random Forest, and XGBoost.

2.3. 3D Segmentation-Based Feature Extraction

2.3.1. Definition of Korean Cattle Body Dimensions

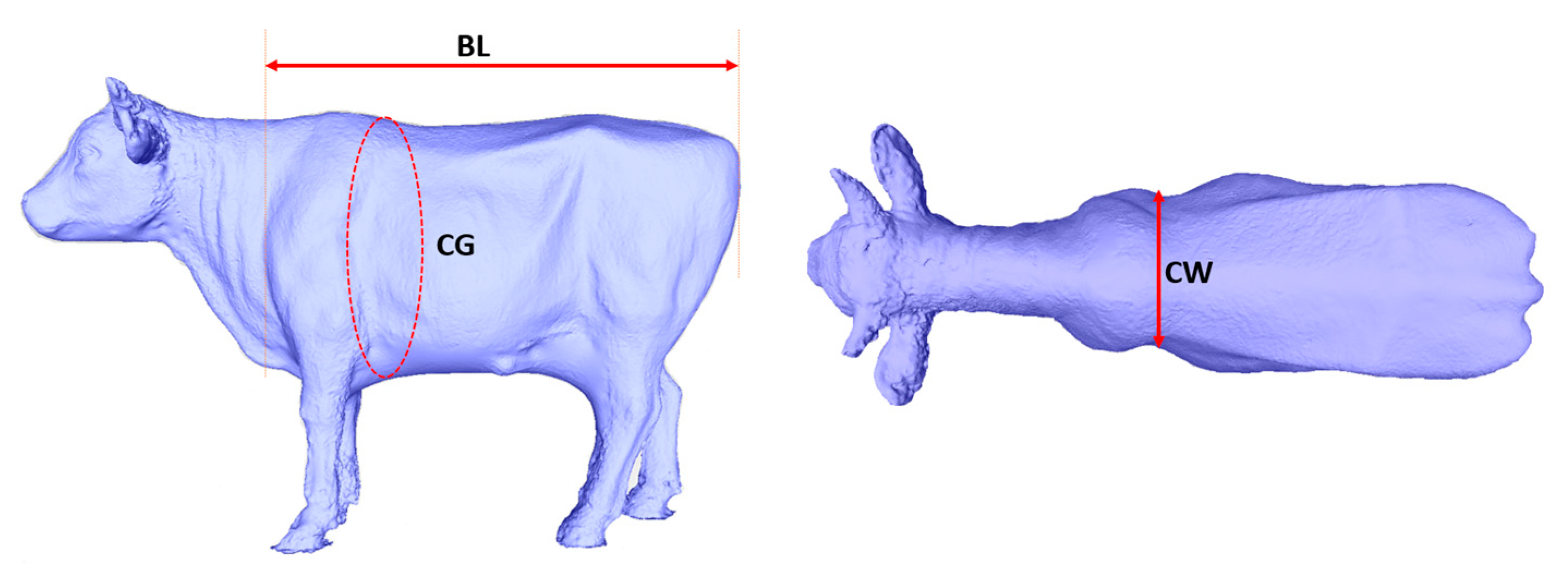

Recent studies [15] have demonstrated the feasibility of determining cattle weight by measuring specific distance parameters. However, it's important to note that among the ten parameters used for determining these distances, each parameter possesses varying levels of significance. In this study, we propose a solution that automates the measurement of three body dimensions with the highest weight ratios, upon which we base our weight prediction model. These three critical dimensions are body length, chest girth, and chest width. Detailed measurement definitions for these body dimensions are provided in Table 1, and the corresponding measurement sites for each body dimension are visually represented in Figure 6.

2.3.2. 3D Segmentation-Based Feature Extraction

Automatically extracting body dimensions from Korean cattle data acquired in 3D can be a challenging task. To overcome this, we employed a segmentation approach to isolate the specific parts of the cattle for measurement. We conducted two distinct segmentation processes: one for cattle torso segmentation to measure body length and another for center body segmentation, which allows us to measure chest girth and chest width, as illustrated in Figure 7.

The advancement of artificial intelligence (AI), particularly in deep learning techniques, has introduced powerful tools for 3D data analysis. One such network, PointNet [18], specializes in 3D data analysis and offers the advantage of learning both global and local features. It can be effectively applied to various 3D tasks, including 3D classification, 3D segmentation, and 3D part segmentation. In this project, we adopt the PointNet network for 3D cattle part segmentation. To streamline the data labeling process while maintaining high accuracy, we exclusively use binary 3D segmentation, simplifying the model's complexity. Consequently, we implemented two models with identical architecture but distinct labeling data: one for cattle torso segmentation and the other for center body segmentation.

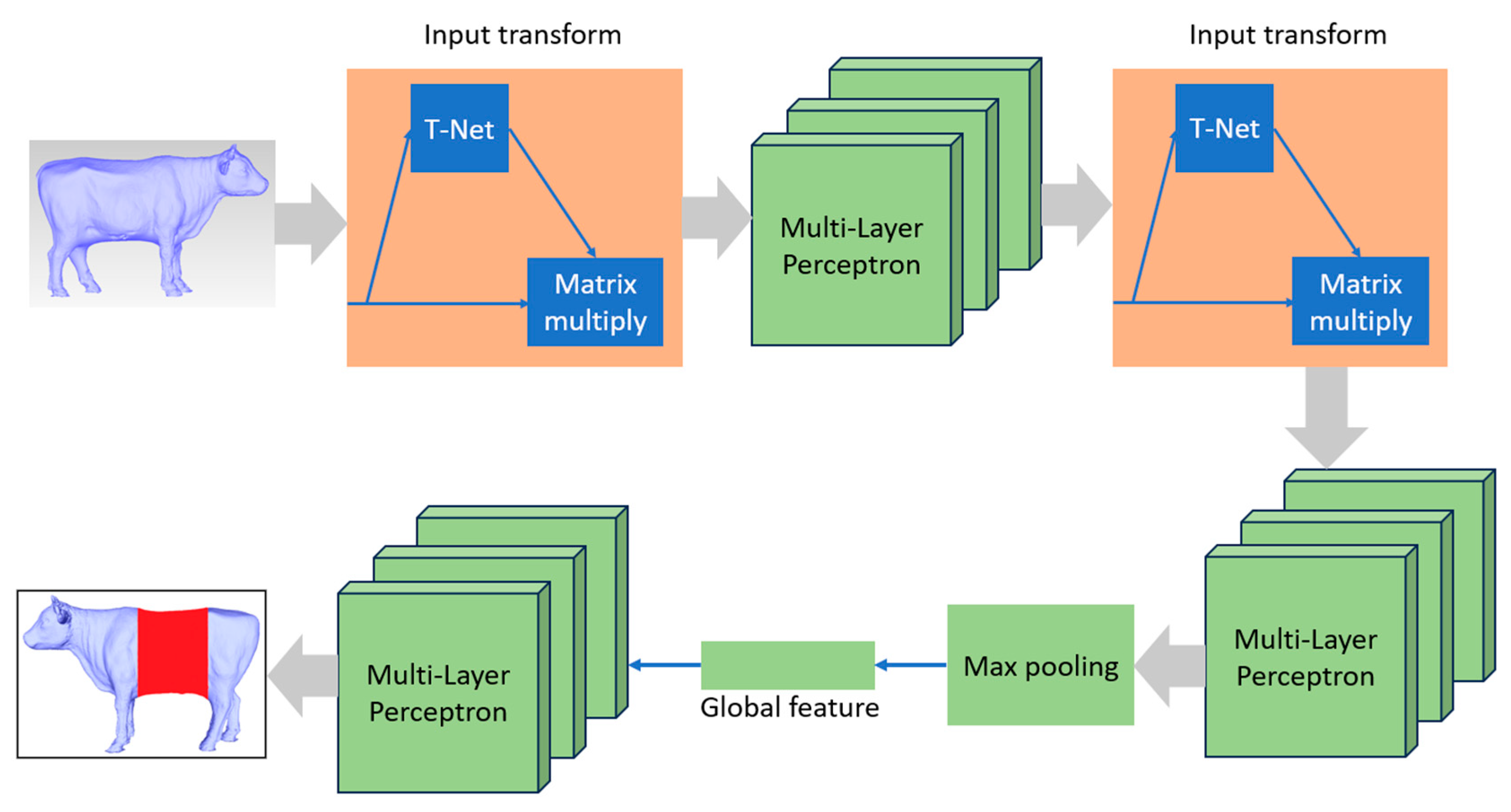

The architectural overview of PointNet, designed for point cloud segmentation tasks, is presented in Figure 8. It incorporates an Input Transform network (T-Net) followed by a series of Multi-Layer Perceptrons (MLPs) for local feature extraction. The Input Transform network captures transformations to ensure the network's robustness to input point permutations, rotations, and translations. Subsequently, a Feature Transform network (T-Net) enhances the network's capacity to handle diverse point orderings. After local feature extraction, a global feature vector is derived through max pooling, enabling the network to aggregate information from the entire point cloud. This global feature vector is further processed by a set of MLPs to produce the final segmentation mask, which assigns class labels to each point. The combination of Input and Feature Transform networks empowers PointNet to effectively segment complex 3D data.

2.4. Regression Machine Learning

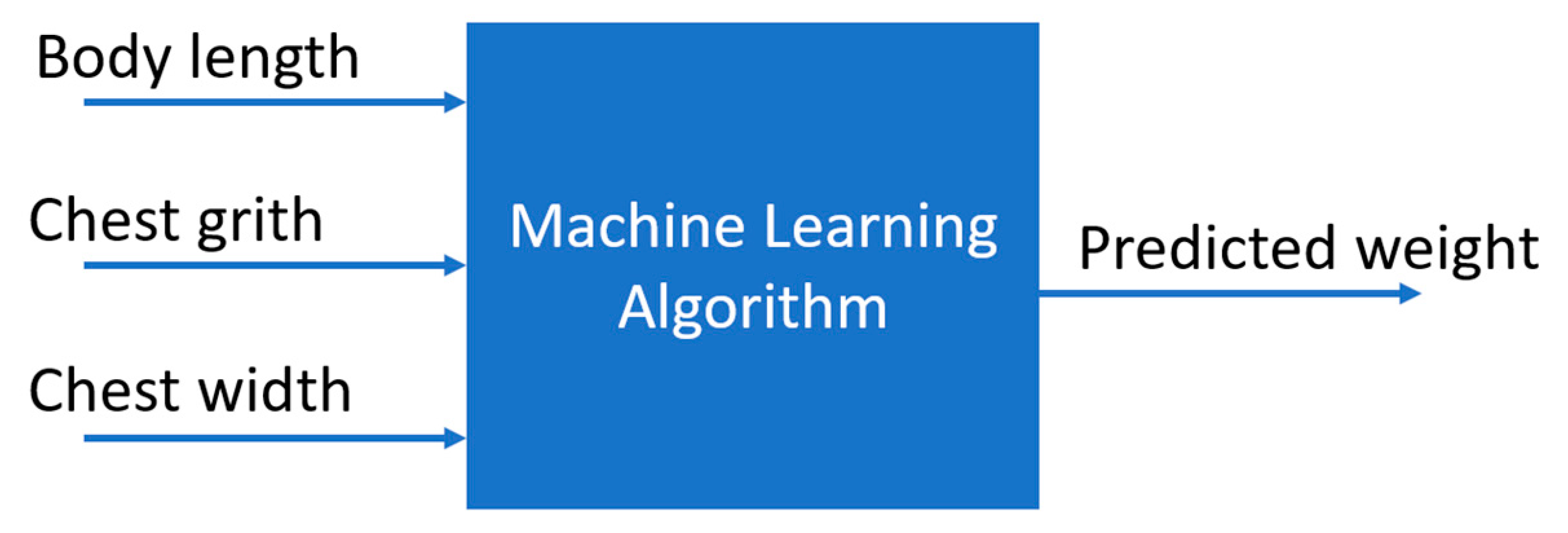

With three numeric inputs (body length, chest girth, chest width) and the numeric output of cattle weight, as illustrated in Figure 9, regression models are the most appropriate choice. In this project, we have selected five prominent regression machine learning models for Korean cattle weight prediction, CatBoost regression, LightGBM, Polynomial regression, Random Forest regression, XGBoost regression.

2.4.1. CatBoost Regression

CatBoost [19] is a renowned ensemble machine learning algorithm, particularly effective in regression tasks. It employs category-based optimization to enhance predictive accuracy and utilizes gradient boosting to iteratively construct decision trees, effectively reducing errors. Notable features of CatBoost include its intrinsic handling of categorical data, adept feature selection, and strategies to prevent overfitting. The algorithm also demonstrates efficiency in real-world applications, offering support for parallel computation and fine-tuned hyper parameter optimization.

2.4.2. Light Gradient Boosting Machine

Grounded in gradient boosting techniques, LightGBM [20] meticulously constructs decision trees to iteratively correct errors. Its innovation lies in histogram-based algorithms and leaf-wise tree growth, ensuring computational efficiency. LightGBM further employs gradient-based one-side sampling and exclusive data filtering to enhance robustness and mitigate overfitting. Its parallel processing capabilities make it an excellent choice for regression tasks.

2.4.3. Polynomial Regression

Polynomial regression [21] extends linear regression by incorporating basic mathematical functions. This algorithm is particularly useful for handling nonlinear data by employing linear factors. It demonstrates the capability to work effectively with a wide range of nonlinear data while maintaining efficiency comparable to linear functions.

2.4.4. Random Forest Regression

Random forest [22] is an ensemble learning technique based on decision tree models. During training, it builds a collection of decision trees, with each tree constructed independently and accessing a random subset of the training data. The use of random subsets of data and features helps prevent overfitting, contributing to the model's robustness.

2.4.5. Extreme Gradient Boost Regression

Extreme Gradient Boost Regression (XGBoost) [23] is another ensemble learning technique rooted in the gradient boosting framework, primarily applied to regression tasks. XGBoost iteratively refines predictive models by constructing a series of decision trees, each correcting the errors of the previous iteration. It is distinguished by its incorporation of sophisticated L1 and L2 regularization techniques to mitigate overfitting and maintain model parsimony. XGBoost is also known for its robust handling of missing data.

2.5. K-Fold Cross-Validation

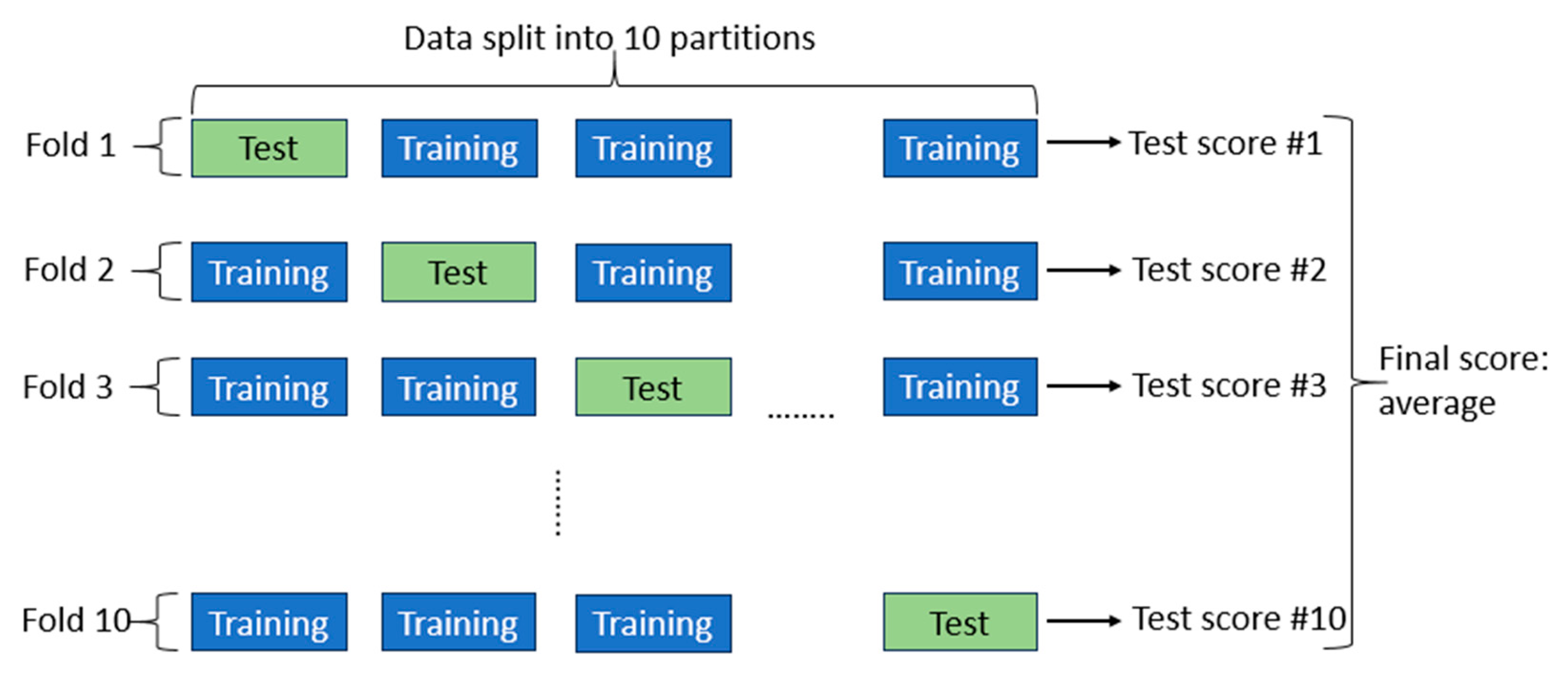

To assess the performance of the chosen machine learning models, we employed K-fold cross-validation. The data were randomly divided into ten partitions of equal size (k=10). For each partition (p), we trained the selected machine learning models on the remaining nine partitions and subsequently tested the models on partition (p). The final score was computed as the average of all ten scores obtained. The schematic of K-fold validation with k=10 is depicted in Figure 10.

3. Experiments

3.1. Segmentation

3.1.1. Cross-Sampling Augmentation

Building deep learning models always necessitates a substantial number of labeled samples for train process. In the case of 3D PointNet networks, achieving high model accuracy demands training on thousands of samples. However, manual labeling of thousands of samples is an exceedingly labor-intensive task. To address this challenge, we have introduced an augmentation method named as cross-sampling.

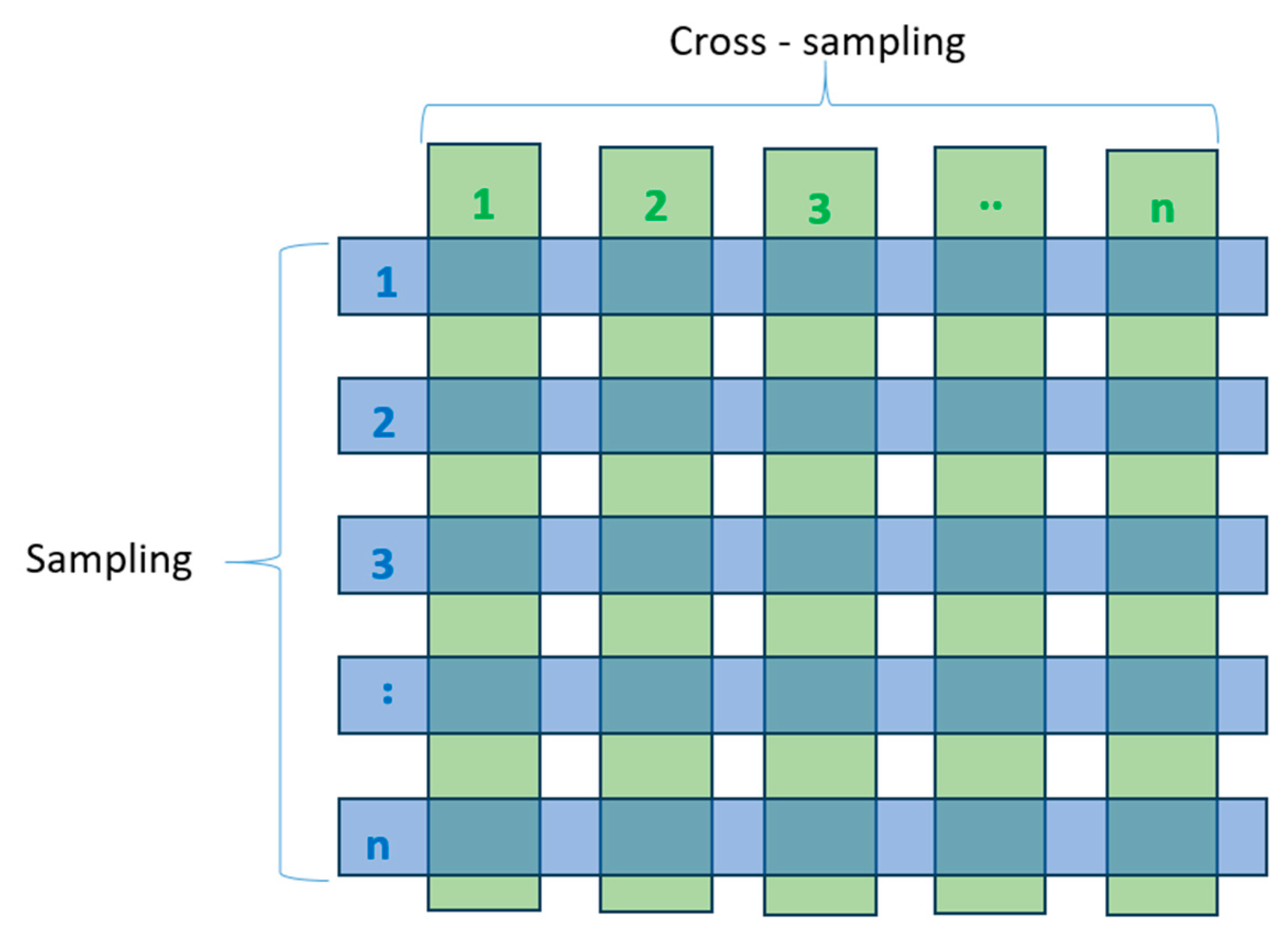

The cross-sampling process is illustrated in Figure 11. Starting with each 3D Korean cattle data sample, we conducted down-sampling with a resolution of 0.1 mm. Following down-sampling, each the 3D cattle data typically contains between 11 thousand to 12 thousand points. We partitioned it into ten segments, each consisting of 1024 points (PointNet with 1024 input was selected for this project). This process yielded ten sparse point clouds for each original sample. Subsequently, we further divided each sparse point cloud into ten segments and recombined them to create an additional ten samples, distinct from the previous set. Through this approach, with each original 3D mesh data, we generated twenty sparse point cloud samples, each consisting of 1024 points.

The segmentation process unfolded in the following manner. We manually labeled 100 cattle models. By employing cross-sampling augmentation, we expanded our dataset to include 2000 samples.

3.1.2. Feature Extraction

To verify the accuracy of segmentation process, we employed global accuracy metric [24], which is defined as below:

Global accuracy:

$$GlobalAccuracy=\frac{Numberofcorrectprediciton}{Totalnumberofprediction}$$

(1)

The experiments were conducted on a computational workstation equipped with a CPU Core-i9 3.5GHz and an NVIDIA 3060Ti GPU with 8GB of memory. For deep learning, we chose the TensorFlow 2.1.0 framework [25] and CUDA 11.0. The network parameters included the use of the adaptive moment estimation optimizer (Adam), a batch size of 64, 1000 training epochs, and a learning rate of 0.001. Only the best weights were saved during training. The records of the training history are displayed in Figure 12 and Figure 13, and the accuracy results are summarized in Table 2.

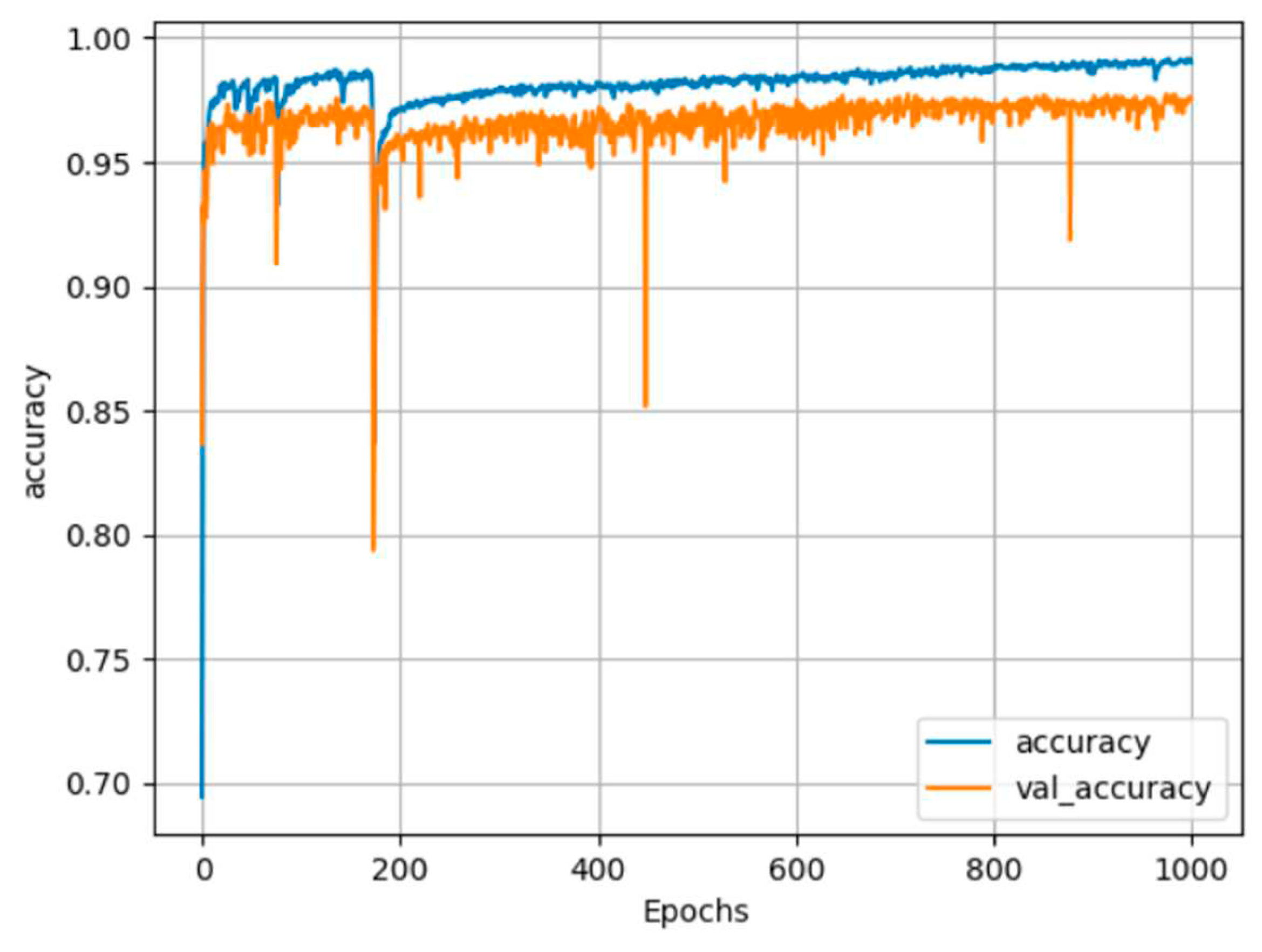

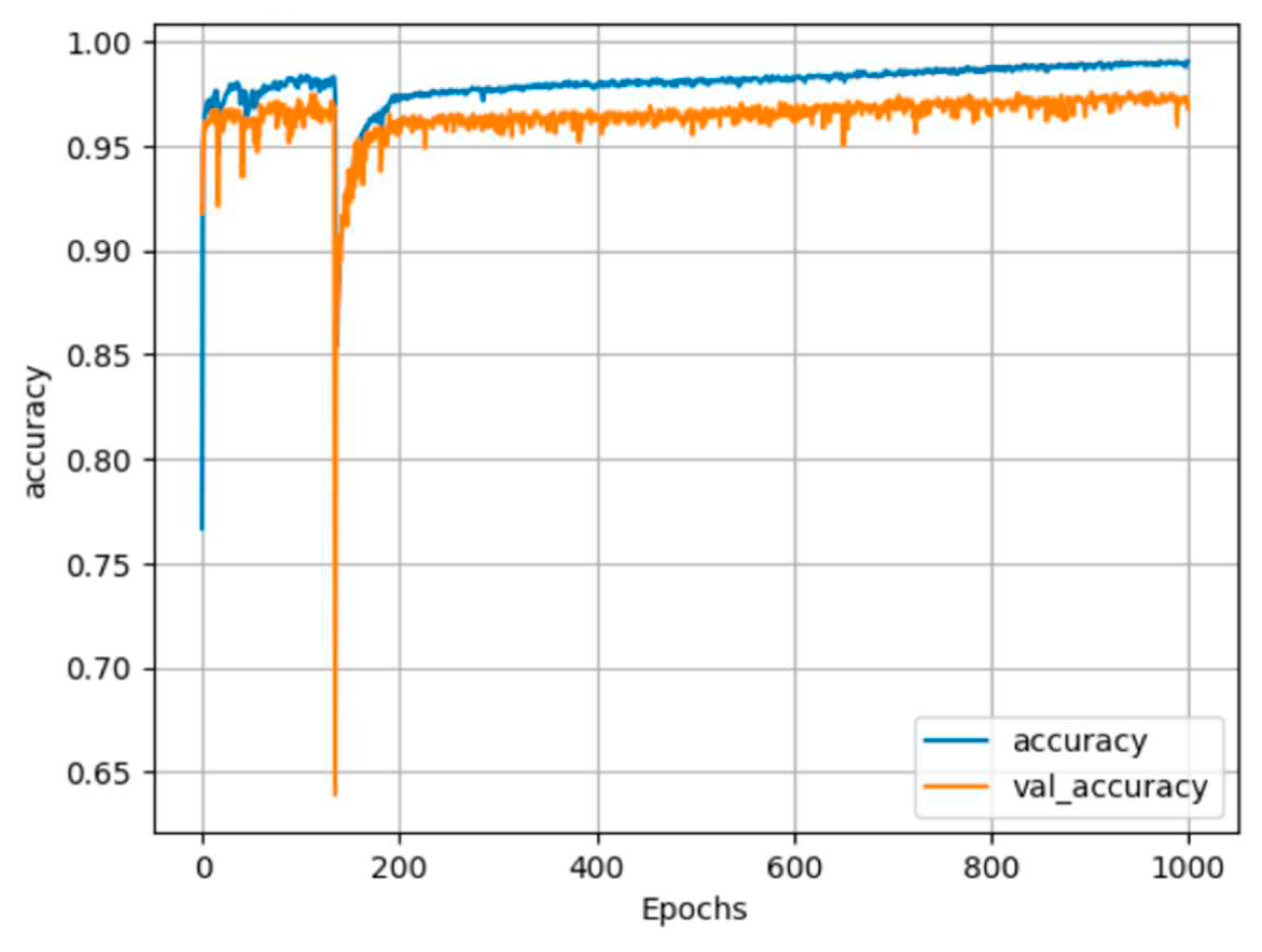

In Figure 12 and Figure 13, the blue line represents the training process, while the orange line represents the testing process. The training process stabilized after approximately 400 epochs, resulting in a training accuracy of 99% and a testing accuracy of 97% for both segmentation cases. We applied the trained segmentation models to perform 3D cattle segmentation, and the results are visualized in Figure 14 and Figure 15.

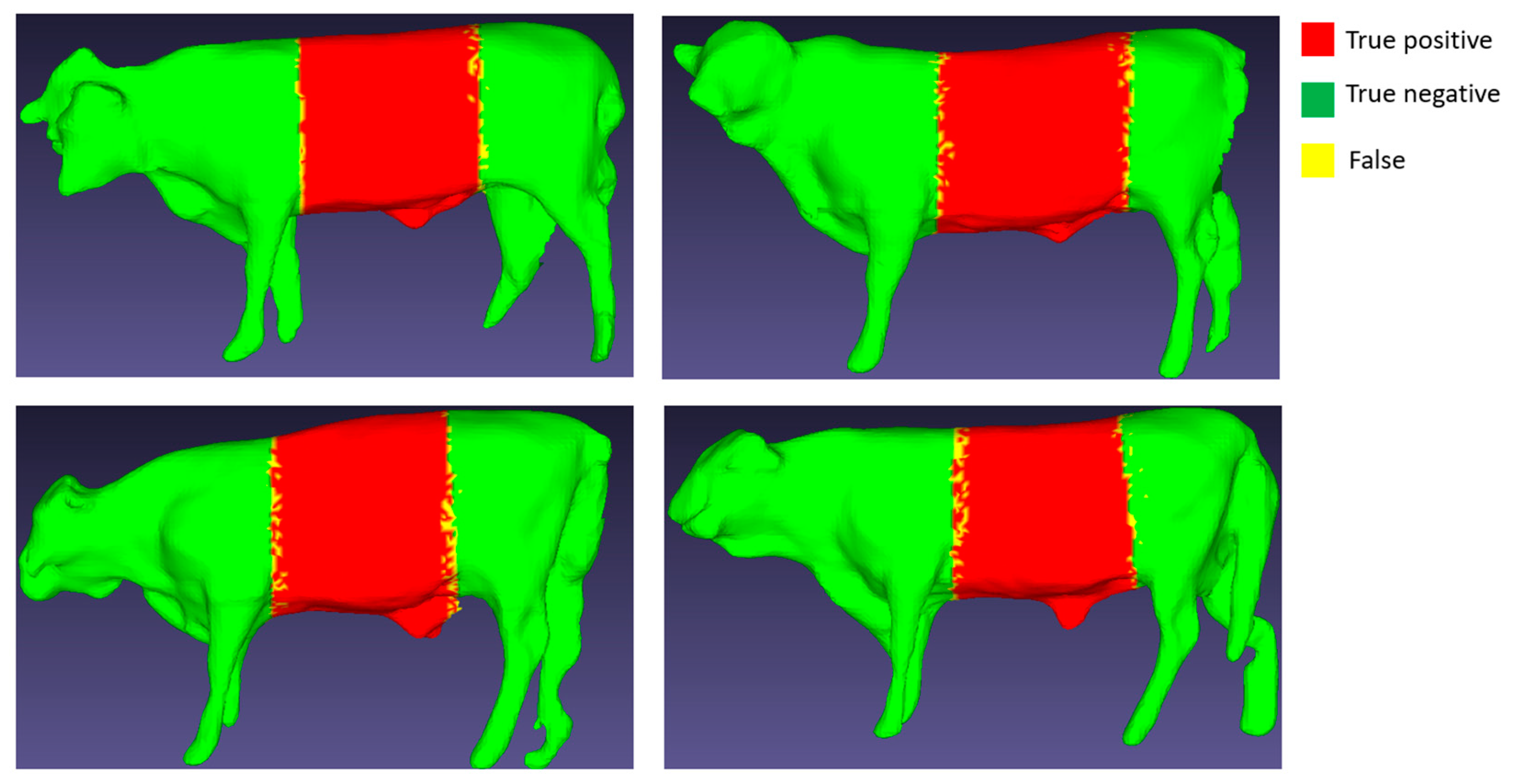

In Figure 14 and Figure 15, the red area represents “True positive”, the green area represents “True negative”, and the yellow region indicates False (“False positive” or “False negative”). It's noteworthy that the yellow area occupies a very small proportion at the border between the red and green areas, which has a negligible impact on the subsequent size measurement.

To achieve accurate measurements of Korean cattle's body dimensions, it's essential for the cattle to be in an upright position from head to tail. However, in reality, cattle often stand in a tilted position. To address this, we corrected the cattle's posture both horizontally and vertically using rendered silhouettes derived from the 3D segmented torso.

We employed the Principal Component Analysis (PCA) method [26] for posture correction. The process involved extracting contour points from an image, calculating the centroid of these points to center the data, creating a covariance matrix to understand the relationship between x and y coordinates, and computing the eigenvalues and eigenvectors of the covariance matrix. The eigenvector with the largest eigenvalue signified the principal axis, aligning with the contour's orientation in both the vertical and horizontal views. The results of orientation correction are illustrated in Figure 16.

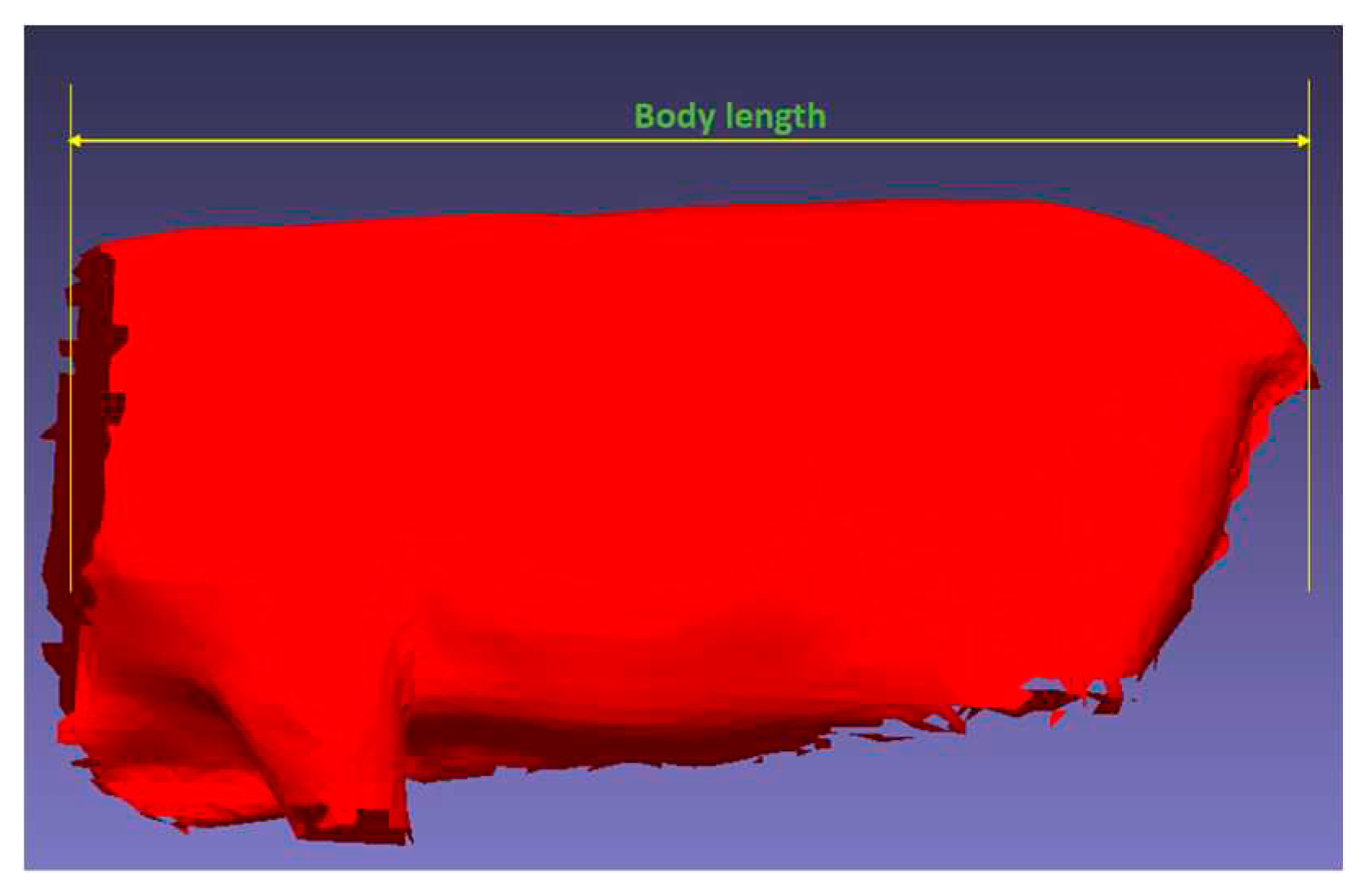

Posture correction allowed us to measure body length by capturing the horizontal length of the segmented torso as in Figure 17.

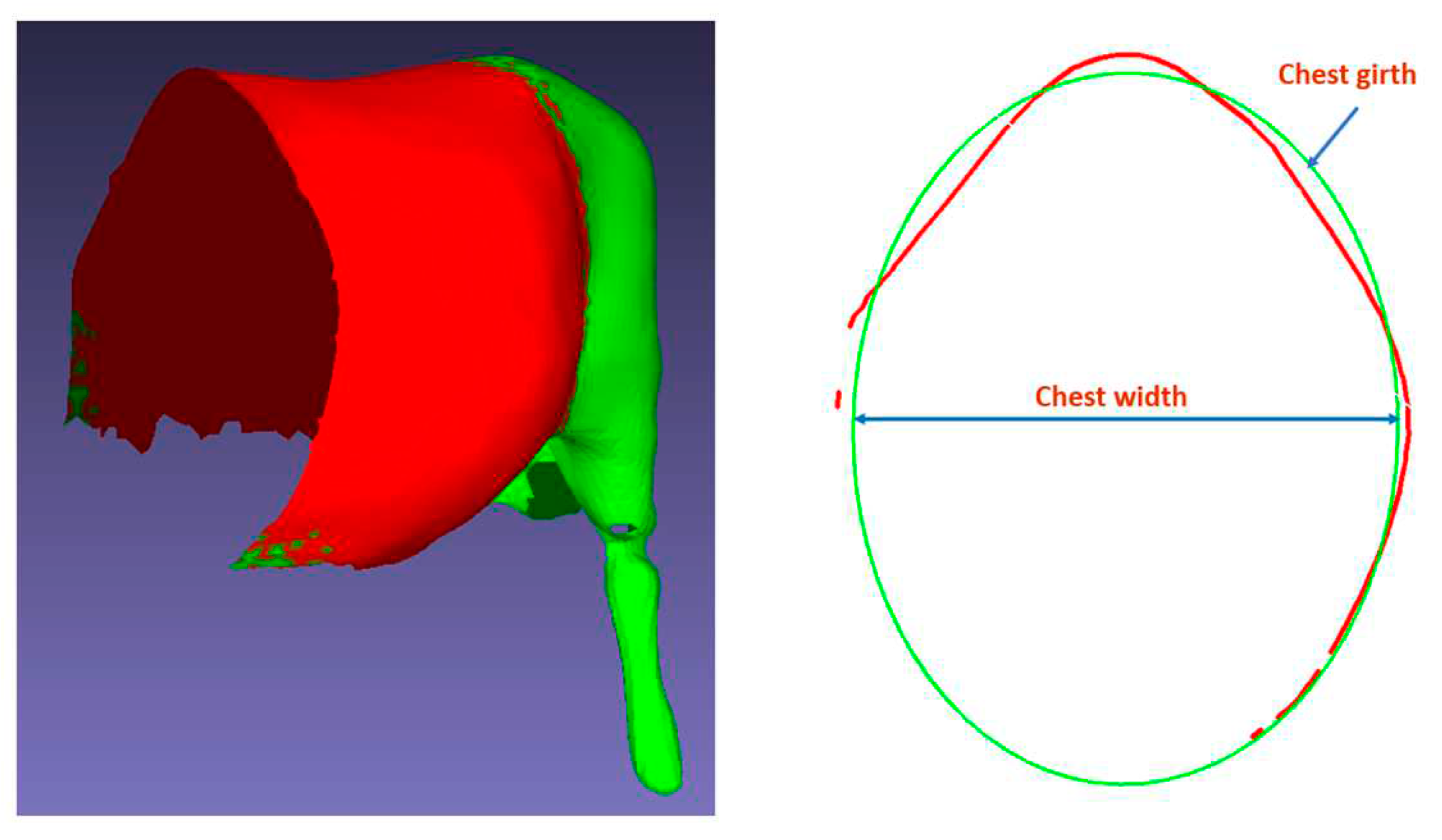

To extract chest girth and chest width, we followed these steps. First, we corrected the cattle’s posture both horizontally and vertically. Then, we cut planes perpendicular to the cattle’s body axis to delineate the boundary surrounding the cattle’s chest. Despite not obtaining a closed contour due to the limitations of the 3D data collection system, the achieved contour encompassed over 60% of the cattle’s chest, facilitating interpolation of a circle. We fitted an ellipse to the achieved contour, with the perimeter of the fitted ellipse measuring chest girth and the minor axis of the ellipse measuring chest width. Figure 18 on the left displays a 3D image of cattle after center body segmentation, and Figure 18 on the right depicts the extraction process.

3.2. Weight Prediction

Having extracted the three dimensions from 1190 3D Korean cattle samples in the previous step, we delved into examining the relationship between body sizes and cattle weight within the dataset. Figure 19 presents a scatter plot showcasing the relationship between the cattle weight and each dimension. As depicted in the graph, a cattle’s weight demonstrates a close correlation with these dimensions.

To evaluate the performance of the proposed approach, two standard evaluation metrics are used. We used the mean absolute error (MAE) and mean absolute percentage error (MAPE).

MAE:

$$MAE=\frac{1}{n}\sum _{i=1}^n\left|yi-pi\right|$$

(2)

Where:

$n$is a number of tested samples.

$yi,i=1,\dots ,n$is a known value of cattle weight.

$pi,i=1,\dots ,n$ is a predicted value of the cattle weight.

MAPE:

$$MAE=\frac{1}{n}\sum _{i=1}^n\left|\frac{yi-pi}{yi}\right|$$

(3)

Where:

$n$is a number of tested samples.

$yi,i=1,\dots ,n$is a known value of cattle weight.

$pi,i=1,\dots ,n$ is a predicted value of the cattle weight.

The experiments aimed to estimate Korean cattle weight using the five proposed machine learning models: CatBoost regression, LightGBM, Polynomial regression, Random Forest regression, and XGB regression. These experiments were conducted across ten folds. The results are displayed in Table 3 through Table 7, respectively, and the average performance across the ten folds is summarized in Table 8.

Table 3. CatBoot Regression result.

Fold	Evaluation metrics
	MAE (kg)	MAPE (%)
Fold 1	27.800	6.529
Fold 2	27.116	6.320
Fold 3	27.767	6.380
Fold 4	25.776	6.014
Fold 5	26.432	6.371
Fold 6	26.164	6.031
Fold 7	25.775	5.980
Fold 8	26.572	6.175
Fold 9	29.491	6.924
Fold 10	25.296	5.880
Average	26.819	6.260

Table 3. CatBoot Regression result.

Fold	Evaluation metrics
	MAE (kg)	MAPE (%)
Fold 1	27.800	6.529
Fold 2	27.116	6.320
Fold 3	27.767	6.380
Fold 4	25.776	6.014
Fold 5	26.432	6.371
Fold 6	26.164	6.031
Fold 7	25.775	5.980
Fold 8	26.572	6.175
Fold 9	29.491	6.924
Fold 10	25.296	5.880
Average	26.819	6.260

Table 4. LightGBM Regression result.

Fold	Evaluation metrics
	MAE (kg)	MAPE (%)
Fold 1	26.268	6.124
Fold 2	24.656	5.712
Fold 3	26.193	6.094
Fold 4	24.284	5.731
Fold 5	25.383	6.033
Fold 6	26.272	6.045
Fold 7	24.096	5.537
Fold 8	25.042	5.844
Fold 9	26.560	6.191
Fold 10	26.760	6.173
Average	25.551	5.948

Table 4. LightGBM Regression result.

Fold	Evaluation metrics
	MAE (kg)	MAPE (%)
Fold 1	26.268	6.124
Fold 2	24.656	5.712
Fold 3	26.193	6.094
Fold 4	24.284	5.731
Fold 5	25.383	6.033
Fold 6	26.272	6.045
Fold 7	24.096	5.537
Fold 8	25.042	5.844
Fold 9	26.560	6.191
Fold 10	26.760	6.173
Average	25.551	5.948

Table 5. Polynomial Regression result.

Fold	Evaluation metrics
	MAE (kg)	MAPE (%)
Fold 1	25.302	5.903
Fold 2	26.085	6.078
Fold 3	26.187	6.066
Fold 4	24.871	5.805
Fold 5	25.594	6.116
Fold 6	23.714	5.433
Fold 7	25.017	5.790
Fold 8	25.301	5.858
Fold 9	27.933	6.527
Fold 10	26.233	6.080
Average	25.624	5.966

Table 5. Polynomial Regression result.

Fold	Evaluation metrics
	MAE (kg)	MAPE (%)
Fold 1	25.302	5.903
Fold 2	26.085	6.078
Fold 3	26.187	6.066
Fold 4	24.871	5.805
Fold 5	25.594	6.116
Fold 6	23.714	5.433
Fold 7	25.017	5.790
Fold 8	25.301	5.858
Fold 9	27.933	6.527
Fold 10	26.233	6.080
Average	25.624	5.966

Table 6. Random Forest Regression result.

Fold	Evaluation metrics
	MAE (kg)	MAPE (%)
Fold 1	25.256	5.903
Fold 2	24.293	5.649
Fold 3	26.749	6.181
Fold 4	25.786	5.994
Fold 5	24.264	5.755
Fold 6	24.318	5.559
Fold 7	24.955	5.682
Fold 8	25.294	5.890
Fold 9	26.856	6.282
Fold 10	24.269	5.622
Average	25.204	5.852

Table 6. Random Forest Regression result.

Fold	Evaluation metrics
	MAE (kg)	MAPE (%)
Fold 1	25.256	5.903
Fold 2	24.293	5.649
Fold 3	26.749	6.181
Fold 4	25.786	5.994
Fold 5	24.264	5.755
Fold 6	24.318	5.559
Fold 7	24.955	5.682
Fold 8	25.294	5.890
Fold 9	26.856	6.282
Fold 10	24.269	5.622
Average	25.204	5.852

Table 7. XGBoost Regression result.

Fold	Evaluation metrics
	MAE (kg)	MAPE (%)
Fold 1	27.257	6.393
Fold 2	27.150	6.285
Fold 3	27.359	6.277
Fold 4	27.252	6.370
Fold 5	26.066	6.188
Fold 6	27.299	6.296
Fold 7	25.569	5.830
Fold 8	27.052	6.274
Fold 9	28.070	6.538
Fold 10	26.401	6.108
Average	26.948	6.256

Table 7. XGBoost Regression result.

Fold	Evaluation metrics
	MAE (kg)	MAPE (%)
Fold 1	27.257	6.393
Fold 2	27.150	6.285
Fold 3	27.359	6.277
Fold 4	27.252	6.370
Fold 5	26.066	6.188
Fold 6	27.299	6.296
Fold 7	25.569	5.830
Fold 8	27.052	6.274
Fold 9	28.070	6.538
Fold 10	26.401	6.108
Average	26.948	6.256

Table 8. Average result.

Model	Evaluation metrics
	Average of MAE (kg)	Average of MAPE (%)
CatBoost Regression	26.819	6.260
Light GBM Regression	25.551	5.948
Polynomial Regression	25.624	5.966
Random Forest Regression	25.204	5.852
XGBoost Regression	26.948	6.256

Table 8. Average result.

Model	Evaluation metrics
	Average of MAE (kg)	Average of MAPE (%)
CatBoost Regression	26.819	6.260
Light GBM Regression	25.551	5.948
Polynomial Regression	25.624	5.966
Random Forest Regression	25.204	5.852
XGBoost Regression	26.948	6.256

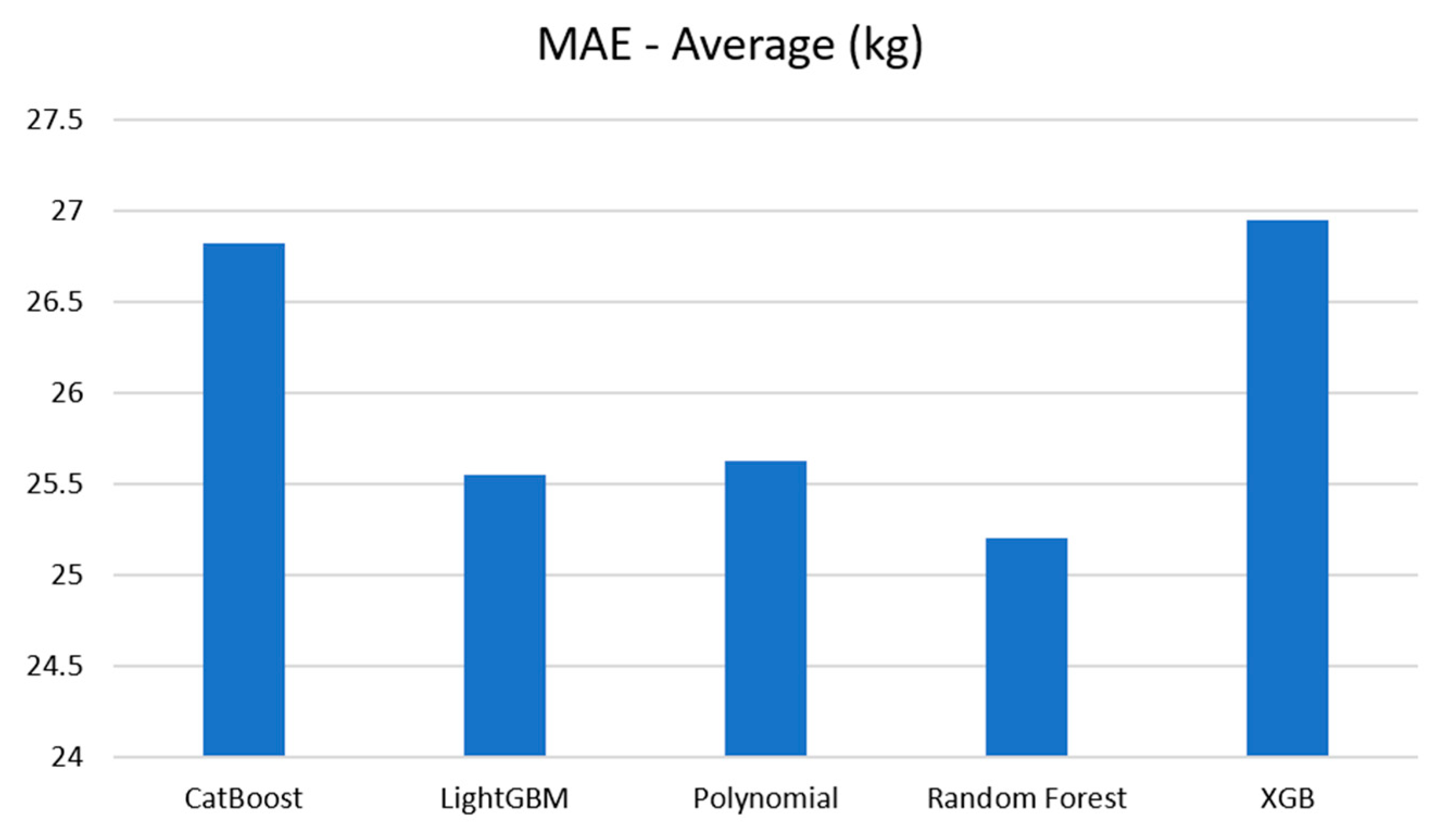

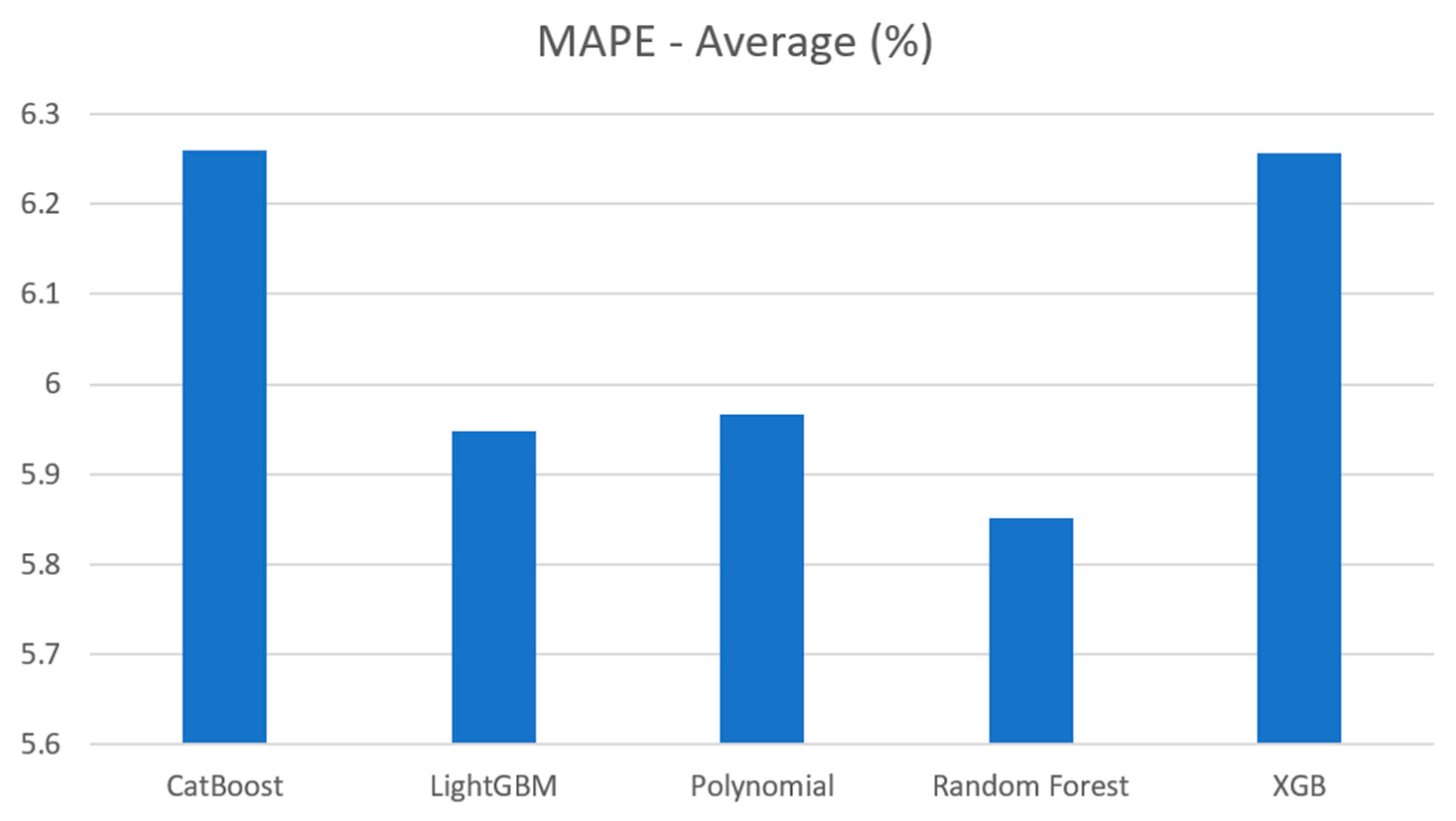

The average MAE and MAPE for these algorithms are visualized in Figure 20 and Figure 21. As depicted in the bar graphs, the Random Forest model exhibited the highest performance, achieving an MAE error of 25.2 kg and a MAPE of 5.852%. It was followed by Polynomial and LightGBM. XGBoost and CatBoost also performed well among the models.

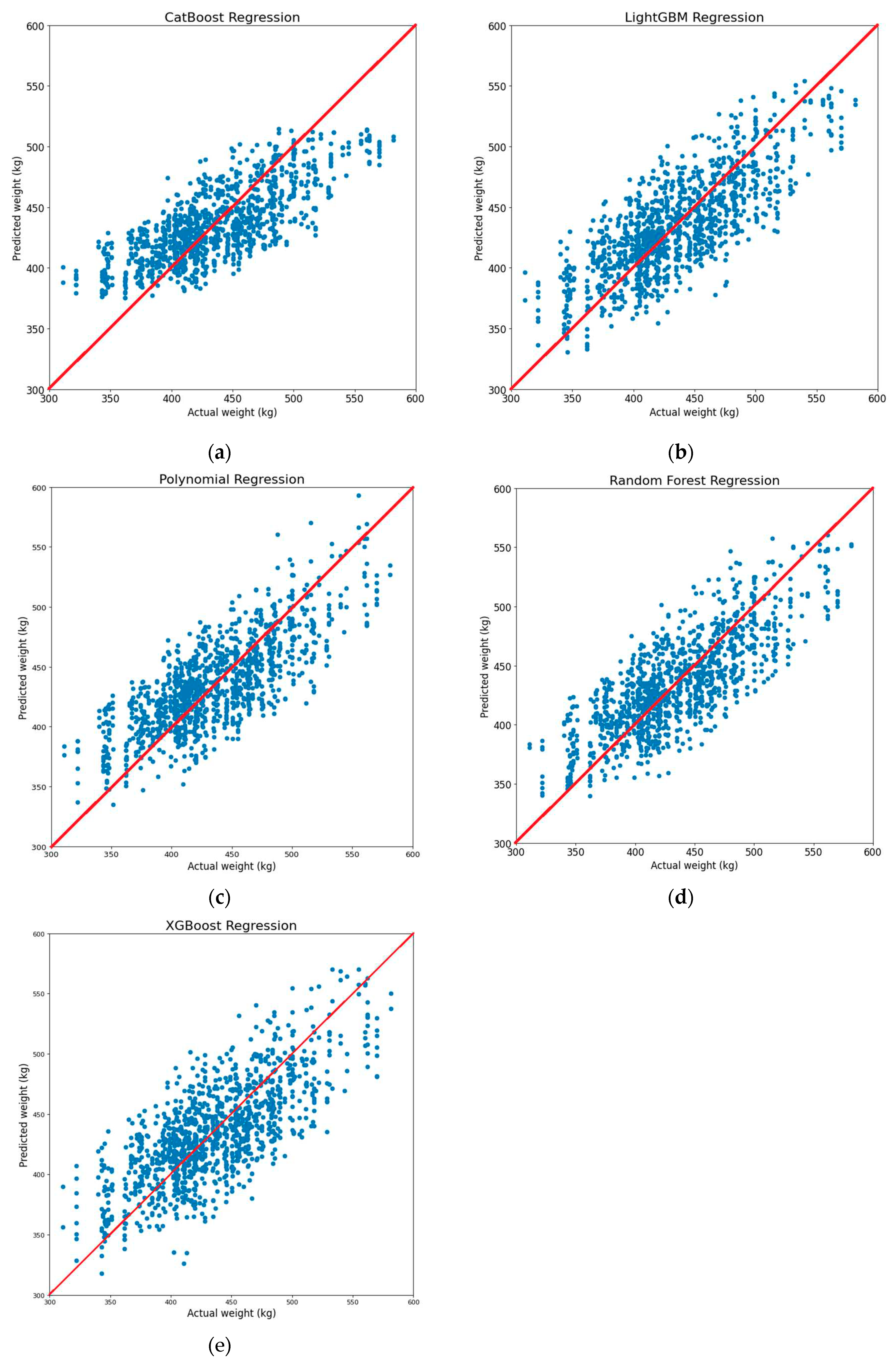

To assess the effectiveness of estimating Korean cattle weight using the proposed dimensions, we analyzed the estimation results in comparison to the actual cattle weight for each machine learning model. Figure 22 illustrates the correlation between predicted weight and actual weight. The results indicate that, with the exception of the CatBoost model, which exhibited slightly lower performance than the other models, all the remaining models provided quite accurate weight prediction.

4. Conclusions

In this paper, we have presented a vision-based solution for predicting the weight of Korean cattle using 3D segmentation and regression machine learning. After acquiring data from the multi-camera system, we used PointNet for 3D segmentation, we employed PointNet for 3D segmentation, conducting two distinct cases: one to segment the torso for extracting body length and another to segment the center body for extracting chest girth and chest width. Finally, we applied five machine learning algorithms to estimate cattle weight based on the three extracted dimensions. We conducted experiments on 1190 3D Korean cattle samples, captured from various poses of 270 Korean cattle. The results of these experiments demonstrated an accuracy of 25.2 kg in terms of MAE and 5.81% in terms of MAPE. Our approach not only showcases the effectiveness of weight prediction for Korean cattle but also holds the potential for broader applicability to other tetrapod species.
