Acupoints, Channels and Organs

1. Modern Discoveries in Morphology of Acupuncture Points

According to many researchers, there are no unique structures at the acupuncture points that are not present in other areas. However, the acupoint has an unusual combination of common structures, which allows it to be distinguished as a particular formation.

1.1. Acupuncture points exist in humans, animals and plants

The morphological and functional heterogeneity of human skin is described in TCM as “acupuncture points” and “skin zones.” A similar morphological and functional heterogeneity is typical for warm-blooded animals, [3,4] such as elephants and dogs, [5,6] sheep, [7] goats, [7,8] donkeys, [7] rabbits, [7,9,10] cats, [7] horses, [6,11,12] pigs, [7,13] monkeys, [14] and birds, [15] as well as for frogs, [16] insects, [17] and plants [18,19].

At the end of the XIX century, a Russian doctor, Grigory Zahar’in, and an English physician, Henry Head, discovered that internal organs diseases were accompanied by skin hyperesthesia in a particular location. Later, hypersensitive skin regions related to sick organs were called Zahar’in-Head’s zones [20,21]. It was subsequently found that hyperesthesia zones may turn into hypoesthesia zones [22]. For example, it is known that in most patients an acute appendicitis is accompanied by hyperesthesia and vasodilatation in the projection area whereas the destructive form of appendicitis is marked by hypoesthesia and zone of dermal vascular constriction [23].

Among the other discoveries of the reflex zones we can name the points of McBurney, Lanz, Vaquez, Boas, etc. Most of the “modern” reflex zones have a segmental innervation in common with the sick organ [24,25,26]. When it comes to the motor points known in neurology, only a few of them are also acupuncture points [27,28].

In the fifties of the last century, a physician, Janet Travell, started actively using procaine injection into painful points to treat myofascial pain syndrome [29,30]. By the mid-80s, Janet Trevell, jointly with David Simons, came up with the theory of trigger points widely used by osteopaths, chiropractors, physiotherapists, and massage therapists for treating musculoskeletal system diseases. Unlike oriental medicine, based on the concept of vital energy (Qi) and its circulation in the human body, the theory of trigger points was based on the principles of European conventional medicine [31].

In the middle of the 20th century G. Soulié de Morant wrote that the modern Chinese name of an acupuncture point sounds as xue [穴] or kong xue [孔穴] translated as “depression” or “entrance to the cave.” [32,33]. Around the same time A. Podshibyakin found that acupuncture points have increased oxygen consumption and increased temperature; he proposed to call them “biologically active points” (BAP) [16,34,35]. Both definitions suggest that an acupuncture point is an area on the skin surface with the access to the active structure located inside the body.

According to some scholars, there is a mathematical model for the distribution of BAPs on the body, so the localization of each point can be calculated [36,37].

1.2. Palpation of acupuncture points

Surface palpation of the BAP area will reveal a loosened-up tissue and an insignificant indent in the skin and the muscle [16,34] due to the thinning of the epidermis and a different areolar structure of the connective tissue in that area [38,39]. The location of BAP on the skin of cadavers manifests itself by small retractions that correspond histologically to the fibers of connective tissue positioned perpendicular to the skin surface and containing neurovascular elements stretching through all layers of the skin and reaching the epidermis [40].

Relatively looser surface epithelium in the BAP area permits identification by palpation or by a metal probe with a rounded 2-3 mm diameter tip, as well as with an acoustic instrument that detects the changes of sound produced by the friction of the instrument against the skin surface [41].

A feeling of soreness often accompanies a deep palpation of the point [42,43,44]. According to some authors, the soreness at a BAP point is present only in the case of a disease associated with that point because, after the recovery, sensitivity returns to normal [45].

1.3. General morphology of acupuncture points

Morphological studies around the acupuncture points have not revealed any unusual structures that cannot be found in other parts of the body, [26,46,47,48] which sometimes leads to the conclusion that BAPs do not exist de facto and are nothing but topographic or reference points on the skin surface [49].

According to other authors a BAP may be defined both as a functional unit and as a morphological formation where the effect of therapy with acupuncture is different from the effect outside the point [44].

As a general rule the elements of the nervous and vascular system, as well as various cells are identified around the acupuncture points. J. Bossy, studied the morphology of numerous BAPs and in 42% of cases found subcutaneous nerves; in 40% the veins with subcutaneous perivascular nerve plexus, and in 18% cases found subcutaneous arteries [50]. In other laboratories, subcutaneous nerves, veins, and arteries were found in the area of BAPs in 80% of the cases [51,52]. P. Rabischong et al. reported the usual presence of spiral-shaped vascular plexus surrounded by nerve fibers of cholinergic type lacking myelin in BAP areas [39].

Some authors have attempted to correlate acupuncture points with specific nerves, blood vessels, or their branches [53]. However, the analysis of a wide variety of morphological studies makes one doubt that the nerves, the blood vessels, or specific cells form the basis of an acupuncture point.

In 1959, G. Novinsky found that an areolar connective tissue with increased hydrophilic properties is typical for BAP projection area [54]. For that reason it is easier to separate the skin of cadavers from the underlying tissue in the BAPs than in other parts of the body [41]. Furthermore the epithelium around BAPs is thinner and looser and the fibers of the connective tissue are perpendicular to the skin surface [26,55].

A special role is attributed to the morphological peculiarity of BAP in fascia in the places where neurovascular bundles or nerve fibers are reaching out from the depths to the surface layers of the skin [40,56,57].

Fibers of connective tissue are located alongside such structures in such a way that the surface layers of the skin are connected to the parts deep inside the body. All cutaneous branches of spinal nerves perforate skin at least once and that area precisely coincides with a particular BAP [38,58] The feeling that the needle is “falling through” in the acupuncture point familiar to all practitioners is most likely due to the needle hitting such perforation of surface fascia [44].

According to N. Verzhbitskaya et al., BAP includes two morphologic-functional components: “channel of the point” and “locus” or the active area of the point [59,60].

“Channel of the point” linking the skin’s surface with a locus is formed by the epithelium and connective tissue fibers. There are few cellular elements, nerves, and blood vessels within a channel compared to the surrounding tissue, which makes penetration of the needle easy and painless to the depth of the “locus” located in subcutaneous fat tissue or between muscles and tendons [59].

The “locus,” or an active area of the point, is formed by loose connective tissue reminiscent of a polymorphic flask. A high content of nerves, vessels, and cells with a high content of heparin, histamine, acetylcholine, serotonin, catecholamines, and other active substances characterizes it [59,60,61]. The estimated schematics of the acupoints are shown in Figure 1 [62].

According to morphologic studies, different nerve receptors and free nerve ends are abundantly represented in acupuncture points [48,63]. The presence of a certain receptor depends on the localization of the points. The encapsulated receptors include Meissner’s and Pacini’s corpuscles, bulbos terminales Krause, muscle spindles, and spindle tendon (Golgi tendon organ) [26,38,63,64].

The number of nerve fibers per section of the tested dermis in the auricular points exceeds about two to three times the number of them in the dermis of the control skin areas [64,65]. Examination of BAP areas with ultrasound demonstrated that the receptors and the nerve structures presented within these areas and outside are different [66].

A comparison of the acupuncture points along the pericardium channel revealed increased nerve structure density in the distal direction [64]. Other studies found that the number of sensory fibers in a distal part of an arm eleven times exceeds that of a forearm and almost twenty times that of a shoulder [67]. The receptor apparatus of the acupuncture points is similar to the reflexogenic zones of Zahar’in - Head, McBurney, Mac-Kenzie, Vidal, and others [68,69].

The Laser Doppler flowmetry revealed that the blood flow through the microcirculatory vessels in the area of acupuncture points (GI-4 and V-64) is significantly higher than in the surrounding tissue [70].

Fibroblasts, histiocytes, leukocytes, and mast cells may be discovered at the active area or “locus.” [60,61]. The number of mast cells is more significant in the area of acupuncture points than in the areas outside the points. Mast cells found in the area of acupuncture points have a high content of biologically active substances such as histamine, serotonin, and heparin, which affect vascular permeability, microcirculation, tissue metabolism, and skin conductivity. The number of cells with signs of degranulation increases after acupuncture treatments, and a preliminary blockade of degranulation of mast cells leads to the decreased effect of acupuncture [71].

In the area of acupoints, many gap junctions are detected. Gap junctions connect cells to ensure intercellular transporting cytoplasm and dissolved substances, including c-AMP, RNA, and low molecular weight proteins. Increased concentration of gap junctions leads to high electrical conductivity of skin at acupoints area [72,73,74].

The evaluation of a microwave signal reflected from the skin surface led to the conclusion that BAPs are more hydrated as compared to the control skin areas [75].

Modern diagnostic methods permit specifying the shape and macroscopic localization of the point’s active areas. For example, X-ray fluorescence analysis revealed that the acupuncture points of the extremities are elliptical with elongated axis alongside the meridians [76]. In another experiment, acupuncture needles were introduced in Bl-25 (Da Chang Shu) and Bl-26 (Guan Yuan Shu) points with subsequent manipulation to achieve sensory reactions propagated along the channel. Computer tomography revealed that the localization of the above points corresponds to the intermuscular septum between the spinal erector (m. Erector spinae) and transversospinal muscle (m. Transversospinalis) [77].

2. Modern discoveries in physiology of acupuncture points

Morphological differences in acupuncture points suggest functional differences between the acupoints and the surrounding skin. These distinctive features are reduced electrical resistance of the skin, increased electrical capacity, high thermal conductivity, low-frequency electrical signals, and other “abnormalities.”

2.1. Reduced skin resistance of the areas of the acupuncture points

In the early 1950s, a Japanese doctor, Yoshio Nakatani, found a reduced electrical resistance around the points and developed a diagnostic method based on conductivity measurements at specific points of each channel [78,79,80]. Around the same time, similar studies were conducted by other scientists, including A. Podshibiakin in the USSR, [35] J.E.H. Niboyet in France, [81,82] and R. Voll in Germany [83,84,85]. Subsequently, the electrical “anomalies” of the skin in the area of BAP were studied by T. Ischikava, [86] C. Ionescu-Tirgoviste, [87] I. Dumitrescu), [88,89] F. Portnov, [90] P. Chan, [91] and numerous other researchers.

The electrical resistance of the skin for indifferent areas varies from 250 Kilo-Ohm to 1 or 2,74 or 10 Mega-Ohm,[55,88] but in the area of the acupuncture points, it could be reduced up to 20 ÷ 60 Kilo-Ohm [55,81,92]. In the studies of A. Podshibiakin, the resistance at acupuncture points with the negative active electrode was 20 ± 10 Kilo-Ohm. With a positive electrode, it initially went down but subsequently increased within 20-60 seconds to 0.4 ÷ 0.5 Mega-Ohm [16]. Due to low resistance in acupuncture points, they may be visualized in the high-frequency corona discharge of AcuVision device [62,93] (Figure 2).

Localization of the electrically conductive spot in the same person may be displaced in any direction to a distance of up to 1 cm and even more; [16,94] however, the localization of the electroconductive points predominantly coincides with the localization of the acupuncture points.

The size of an electrically conductive spot varies from 1mm to 10 mm. During sleep and after creative workload, the diameter of the point is reduced to 1 mm; after waking, it may increase to 10 mm. During a disease, the size of conductive spots may increase so that individual “points” overlap and form vast areas [16,95].

The highest electrical conductivity was found at the points located on the head. In the central part of the body (for example, around the sacrum), the conductivity is higher than on the limbs, where it decreases as it approaches the fingertips and toes [96].

In the case of certain conditions, the conductivity of a point may be the same as that of the surrounding skin areas or even lower [96]. In some studies of healthy individuals, no points with reduced conductivity were found; therefore, some authors argue that there is no difference in electrical resistance between acupuncture points and surrounding skin [97]. However, in most cases, there are more points with reduced electrical resistance than the known acupuncture points [98].

Given the fact that it is not always possible to find the complete correlation between the detected points of electrical conductivity and the “acupuncture points” [98,99,100], it is possible to assume that this is due to the functional displacement of the conductive patch only. However, the main component of the point (locus) most likely remains at the standard location without any displacement.

Transplanted skin loses its original properties immediately after separation from its original location and acquires the electrical characteristics of the skin area of the new location. As a result, lowered resistance typical for the “points” appears in the skin transplanted from an indifferent area to an acupuncture point [101,102]. Conversely, low resistance is no longer observed when skin is transplanted from the BAP region to a common area. Given the above, some authors assume that an “acupuncture point” is a complex unit associated with specific deep structures [103].

Even though electrical parameters in acupuncture points are susceptible to fluctuations depending on many internal and external factors, the average daily indexes of electrical resistance in specific “points” registered under constant conditions are relatively stable and reflect the individual characteristics of the subjects [104].

The study of the semi-conductivity of the points revealed the coincidence of the changes with the daily dynamics of atmospheric electrical conductivity. At maximal conductivity of the atmosphere (as a general rule at night), the electrical conductivity of the points goes down and increases with the change of weather [105].

Electrical conductivity in men and women reduces to minimal at night between 2:00 a.m. and 5:00 a.m. and coincides with a deep sleep. In the daytime, the dynamics of electrical conductivity depend on the gender of the subjects. In men, maximum values were found between 11 a.m. and 2:00 p.m., and in women, between 4:00 p.m. and 9:00 p.m. [106].

In the days of high geomagnetic activity (high K-index), the resistance at the points was 40-80% higher than the daily average calculated for the days with low K-index [104]. Conductivity is maximal in the periods of low geomagnetic activity [107]. Long-term observations found a decrease in electrical conductivity in winter and an increase in summer correlating with average monthly air temperature [106].

Note: Geomagnetic activity indices are intended to describe the variations of the Earth’s magnetic field. K-index - is a quasi-logarithmic index (incremented by 1 with disturbance increasing approximately two times). It is calculated according to the data of a specific Observatory for the three-hour periods. The index was introduced by J. Bartels in 1938 and ranges from 0 to 9 for each three-hour interval (0-3, 3-6, 6-9, etc.) of the Greenwich Mean Time. In order to calculate the index, the change of the magnetic field within a three-hour interval is taken, and a regular part (determined by calm days) is subtracted from it. The resulting value is converted into a K-index according to a special table [108].

Numerous authors have reported that the electrical conductivity of specific points depends on the changes in physiological and pathological conditions of the associated channels, organs, and the body as a whole [80,85,109]. It was found that the Bl-64 (Jing-Gu) point’s electrical conductivity increases when the person wakes up and decreases during sleep. It is reduced in case of a reduction of overall reactivity, but it does not change with psycho-emotional stress [110].

Electrical resistance in the BAPs also depends on the autonomic nervous system condition. It increases when the activity of the sympathetic division of the autonomic nervous system is below the normal condition [46].

The change in conductivity is observed in the presence of macroscopic structural changes in the skin. In patients with psoriasis, the resistance around the papules is lower than in the surrounding skin and even lower, closer to acupuncture points in the area of the papules [9]. The study of the location of birthmarks, moles, and nevi revealed that they frequently coincide with the acupuncture points. In both cases, the reduced electrical resistance of the skin was observed [111]. However, nevi, birthmarks, and moles do not possess high thermal conductivity, which is typical for acupuncture points [111].

Electrical heterogeneity of the skin persists from several days to one week after death. This phenomenon was revealed in the parts after the dissection of cadavers and for the whole cadavers [81,88,112,113,114]. Skin heterogeneity on amputated limbs is observed for up to three days [9,59] The difference in resistance between the points and the surrounding skin is far more considerable on the cadavers than on living humans and animals [82,92,115,116]. Electrical heterogeneity in cadavers disappears gradually due to autolytic processes that cause the physical parameters of the skin to align [40,81,82,92,115,116]. They concluded that the structures located in the area of electrically abnormal points are more stable than in the surrounding skin area [9].

However, one can assume that the high electrical conductivity of the skin in the area of acupuncture points is associated with the absence of insulating structures. Thus, the conductivity function does not require metabolic activity, so it creates an impression of stability of the acupoints after death.

2.2. Electrical potential and action potential in the “acupuncture points”

In 1825, professor of Physics Claude Pouilett was the first to use a galvanometer to discover the electrical potential between the needle inserted into the acupuncture point and an oral mucosa [117].

The study of electrical potentials (EP) in different skin areas revealed differences in potentials between the centers of the acupuncture points and the surrounding skin. EP may vary from 2 to 300 mV, decreasing with the distance from the center. Average values of the difference in potential may vary during the day, reflecting the moderate fluctuations in the functional activity of internal organs [16,35,96,118].

Thus, an increase of the EP in the urinary bladder meridian points is observed when the bladder is full and returns to normal after emptying. An increase in EP of the Stomach meridian points will follow if a patient is suggested under hypnosis that he had eaten well. Novocaine blockade causes a decrease in the EP [35].

Some authors have noted slow, low-amplitude irregular fluctuations of the electrical potential ranging from 0.1 to 1.0 Hz with amplitude from 50 to 500 mV. This biological potential is constant and subject to the general laws of galvanic skin response [119].

An above-normal difference of (electrical) potentials may indicate the presence of a disease, a predisposition to one, or the presence of a residual pathology in a relevant organ [16,35,118,120,121,122]. Electrical potential in the point has a tendency to decrease as recovery progresses [122].

When acupuncture is used on the points with deviated electrical potential, a reflex reaction is observed in the corresponding internal organ. According to A. Podshibiakin, a positive effect from treatment, was observed when electrical potentials in the active points of the skin exceeded 25 mV. Treatment of the acupoints with electrical potential under 10 mV (especially – 1 mV) has a negative effect on the analogous electrical current used for treatment [118].

The pattern of electric potential distribution on the skin persists for several days after death until autolytic processes reduce the difference to a minimal one that can no longer be recognized [118].

Apart from an electrical potential at the BATs, they also can register an action potential (AP) of a high-frequency impulse activity. AP fluctuations’ frequencies vary from 0.5 Hz to 400 Hz and have amplitude from 0.1 to 1.5 mV and duration of 0.3 – 1.25 milliseconds. AP in the “point” is registered only alongside certain sensations and may last 20-30 minutes [123]. The frequency characteristics of AP are higher with active pain syndrome and go down with pain relief. The maximum values of AP are recorded at inspiration [123,124,125,126].

Action potential in auricular points is detected only in the presence of a pathological process in the relevant organ and disappears as recovery progresses [46].

2.3. Other Electrical Characteristics of “Acupuncture Points”.

Study of the volt-ampere characteristic in BAP areas revealed nonlinear curves including an S-shaped curve with a part of a negative differential resistance. This data suggest that the tissues surrounding BAPs may possess generating properties and may convert a direct electric current into alternating [127].

Apart from high conductivity the acupuncture points have capacitive characteristics that permit them to accumulate and keep an electrical charge much longer than the surrounding tissues. According to the research of I. Dumitrescu the capacity in the area of the points may reach 0.5 microfarad whereas the capacity elsewhere does not exceed 0.01 microfarad [128,129].

Periodic low-frequency electrical signals ranging from 0.1 to 100 Hz are also found in the “points” in contrast to the noise-like signals in the surrounding skin areas [130,131]. These signals differ from the periodic processes in the nervous system that reach up to a thousand Hz [131].

2.4. Skin temperature parameters around acupuncture points

Studies by A. Podshibyakin in the mid-20th century found high activity of metabolic processes and an increase in local temperature in acupuncture points. Other authors confirmed his results [16,132].

A comprehensive study of the BAP’s functional condition indicates that the activated points are hot, and the non-active ones are cold. Therefore, the “points” condition may prompt the treatment technique [133]. Specific pathologies cause the increase of hot “point” or zone size alongside the heat emission [134].

A change in temperature sensitivity around acupuncture points was noted alongside the temperature changes. A Japanese doctor Kobe Akabane, was one of the first to discover this phenomenon. In 1952, K. Akabane treated the right side tonsillitis with hot foot baths. During one of these procedures, he noted that the little finger of the right foot was not as sensitive to hot water as the little finger of the left foot. After the recovery, he noted that the sensitivity was normal and symmetrical. Several experiments led Akabane to the conclusion that the functional activity of a meridian affects the thermal and pain sensitivity of the endpoints of the meridians (Jing) [135]. Subsequently, N. Bogdanov found the changes in the thermal sensitivity of auricular points corresponding to specific pathological processes [124,136].

The high thermal conductivity of skin around the acupuncture “points” led to the hypothesis that the “points” serve as a kind of sluice channel for heat exchange between the body and the ambient environment [42,94,137].

The high thermal conductivity of skin in the area of the points can be used to determine the location of the “points accurately.” When a metal probe moves slowly and without pressure around an acupuncture point, a patient feels something like a “drop of cold water” on the skin (with increased thermal conductivity) at the acupoints. Individual temperature sensitivity differs, so using several probes of different heat capacities is necessary.

Acupuncture and moxibustion permit the change of a natural heat transfer. The needles have an effect similar to cold and increase heat emission from the points to the environment [42,137,138]. Within the first minute after a needle is inserted into a point, the radiation temperature in that area increases by 0.4 - 2.3 ° C, and at a distance of 5 cm from the needle, it is reduced by 0.6 - 3.0 ° C. The temperature on the needle handle fluctuates between the values in the BAP zone and those at a distance of 5 cm from the BAP. 2-6 minutes after insertion of the needle, the radiation temperature of the skin around it continues to increase as it goes down on the farther skin areas. If a needle is not extracted for the next 30-40 minutes, the temperature of the BAP area gradually goes down and becomes significantly lower than it was initially [138].

2.5. Relationship between electrical, temperature, and other point parameters

According to A. Wein, a skin temperature indirectly reflects the condition of the parasympathetic division of an autonomic nervous system, and electrical conductivity reflects the condition of the sympathetic division of an autonomic nervous system [139].

Some studies found the relationship between conductivity, temperature, and pain sensitivity in acupuncture points. As a general rule, an increase in temperature in the points is accompanied by an increase in conductivity, [96] and an increased conductivity in the points correlates with the intensity of pain [140,141]. However, A. Nechushkin found no direct correlation between pain sensitivity, electrical conductivity, and temperature at the points [142].

2.6. Other “physical anomalies” of acupuncture points

Other peculiarities of the acupuncture point areas have also been identified apart from the electrical and thermal “anormalies” that distinguish such areas from the surrounding skin.

According to A. Podshibyakin, BAP areas have increased oxygen absorption and release of carbon dioxide. Initially, the increased molecular oxygen tension starts to drop right after achieving the “De Qi” or “De Chi” phenomenon, which is observed at the treated point and other points of the same channel [16,143]. High functional activity of the BAP area is accompanied by increased incorporation of radioactive phosphorus (Р32) [144,145,146].

Research with laser instruments detected mechanical vibrations of the needle’s handle inserted into acupuncture points. The oscillation frequency was within two ranges: from 7 to 10 Hz and 15 to 20 Hz, in contrast to the surrounding skin, where only noise spectrum vibrations were found [147]. Periodic mechanical activity at points was not related to the pulsation of the arteries [148].

Feeble spontaneous visible light (ultra-weak photon emission) was detected around the end (Jing) points of the channels, with the intensity of such light increasing mainly on the channels associated with a sick organ [149]. Measurement of the light diffusing properties found a more intense absorption in the visible light around BAPs compared to indifferent skin areas [150,151]. The values of the light diffusion coefficient at the points reach maximum at noon, at 6:00 p.m., at midnight, and at 3:00 a.m. The values are minimal at 6:00 a.m., 9:00 am, 3:00 pm, and 9:00 pm [151]. The diseases of internal organs change the diffusing properties of the points. A short laser exposure (under 60 seconds) reduces light diffusing properties, and after a long-term exposure (60-120 seconds) returns it to the initial level [152]. Increased skin sensitivity to high-frequency electromagnetic radiation was also observed in BAP areas [75,153].

Due to the variety of the above properties of “acupuncture points,” some authors suggest that the “points” play the role of multifunctional receptors, [52] capable of responding to signals of different natures, including electric, magnetic, and electromagnetic fields [132,154,155,156,157]. In this case, the inserted acupuncture needle can be an antenna that captures electromagnetic waves of a specific range [158].

Summarizing the above and taking into account the Chinese characters 孔穴 (Kong Xue), used for acupoints and translated as a “aperture”, “cavity” or a “hole,” [159,160,161] we may conclude that the acupuncture point is a locus in the skin where a loosening of surface epithelium and specific connective tissue organization create an invisible “hole” which provides “access” to the inside the body. A large number of active elements discovered inside the “hole” turn the acupoint into a complex functional unit that facilitates interaction between the internal and external environment of the body. (Figure 1).

3. Modern discoveries in morphology of channels and collaterals

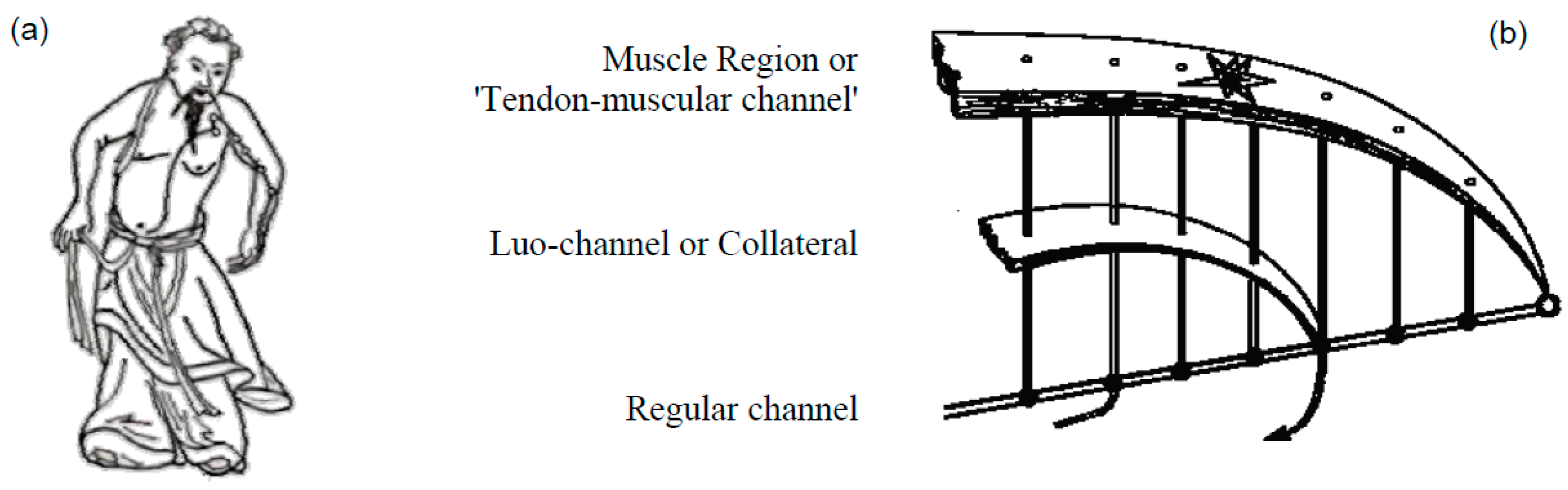

According to TCM theory, Qi and blood circulate along specific paths called “channels and collaterals.” There are twelve Regular channels and the associated secondary vessels, including tendon-muscular channels (or sinews, or muscle regions), Luo channels or collaterals, and divergent channels as well as extra-channels (Figure 3).

Centuries ago, a famous Chinese doctor, Li Shizhen, wrote: “... there are tunnels within the body and the one turning his mental gaze into himself may illuminate them...” [162].

European anatomists and physiologists have been trying to unravel the nature of channels for several centuries. The results of these studies and suggested hypotheses, which may be divided into the following groups:

• Denial of the possibility of the existence of the system of channels and collaterals;
• The theory of channels describes nervous and vascular systems;
• The theory of channels describes muscles and subcutaneous tissue;
• The theory of channels describes a system of electrical conductors and semiconductors;
• The theory of channels describes a system of the conductors of the heat;
• Channels are “immaterial pathways” transmitting electromagnetic waves;
• Channels are independent and previously unknown bodily systems;
• The theory of channels describes the physiology and pathology of connective tissue;
• The theory of channels describes interstitial openings and bodily cavities;
• Other hypotheses that explain the transmission of signals along the channels.

Despite the difference in the viewpoints on the nature of the channels, most acupuncturists agree that the concept of channels makes it easier to represent the system and the locations of the acupuncture points and improves the efficacy of acupuncture diagnostics and treatment [44,49,163].

3.1. The denial of the possibility of the existence of the system of channels and collaterals

Many reputable experts in the field of neurophysiology and acupuncture are categorically against recognizing channels as separate functional and morphological formations [46,48,49,163,164]. Some voice an opinion that the channels are strictly a functional concept, and the regularity of linear positioning of acupuncture points can be explained by the presence of interneuron connections formed during embryogenesis at different levels of the central nervous system [44,53,165]. According to Erich W. Stiefvater, the system of channels and collaterals in its classical sense is too primitive from the viewpoint of modern biology [69].

The term “meridian” (meaning an imaginary line conditionally connecting functionally similar acupuncture points) was introduced in the middle of the 20th century thanks to Soulié de Morant, a founder of the French school of acupuncture [33].

3.2. Theory of channels describes nervous and vascular systems

The assumption about the likeness between channels, nerves, and vessels can be made due to similarities between the paths of the channels and the topography of neurovascular bundles [33,166,167].

The first Latin translations of literature on Traditional Chinese Medicine published in Europe used the term “paths” that circulate “the blood and the spirit” to convey the meaning of Jing-Luo (“channels and collaterals”). However, the dissertation of Willem ten Rhijne described channels and collaterals as blood vessels, which resulted in an erroneous view that identified TCM channels with the blood vessels known to European medicine [168,169]. Later, a Russian doctor, A. Tatarinov (1853), wrote that the Chinese doctors used the term “Jing” (channels) sometimes to describe the nerves and sometimes to describe the tendons [170]. Similar views were expressed by other researchers who studied acupuncture points and channels, or practiced acupuncture.

G. Soulié de Morant (1957) and Fr. Hübotter (1929) associated nerve stems with Yang-related channels and the vessels with Yin-related channels [33,171]. H. Goux (1955) suggested that the channel theory describes the physiology and the pathology of the autonomic nervous system (ANS), with the sympathetic section of the system belonging to the Yang channels and the parasympathetic belonging to the Yin channels [172]. R. de La Fuÿe and H. Shmidt (1952), [173] held a similar view in their joint work, as well as G. Bachmann. (1959) [174].

Dr. R. de La Fuÿe explained the mechanisms of acupuncture from the viewpoint of establishing skin-visceral connections in embryogenesis, noting that the nervous system and the skin have ecto-dermal origin. In contrast, the internal organs have meso- and endo-dermal origin. Communication between the internal organs, the nervous system, and the skin is realized during the process of organogenesis as the elements of the nervous system grow into the internal organs [175]. Dr. J. Hu (1975), in the article “Neural basis of meridians and acupuncture points,” noted the closeness of the channel trajectory and the distribution of dermatomes [176].

Gong Qihua et al. (1979) made a note of the topographical closeness of the paths of the meridians and lymphatic vessels, as well as of the fact that the spread of lymphangitis is triggered by trauma of a thumb in the L-1 (Shao Shang) area alongside the path of the lung meridian. In the experiments on cadavers, when a colorant was introduced in the region of Yin meridian distal points, such as the L-1 (Shao Shang) point, it spread along the lymphatic paths alongside the relevant meridians [177]. A close relationship between the meridians and lymphatic vessels was also pointed out by R. Voll (1966), who had even singled out a particular lymphatic meridian [83].

Summarizing the data available in the early 1960s, V. Vogralik described meridians as nervous conductors within integuments that weave around lymph and blood vessels and muscles and then transition into the nerve plexus, spinal cord, and brain, and then to the nerves going to internal organs [53].

3.3. Theory of channels describes muscles and subcutaneous tissue

In the mid-50s, a Japanese physician, R. Fujita (1955), noted that the outer pathway of the meridians coincides with the lines of muscle contraction. He described the painful points as nodes of densification that appear in subcutaneous tissue in case of disease of internal organs [178,179]. American author F. Warren (1981) noted that the foci of neuro-myofibrosis coincide with the acupuncture points [180].

Even though up to 70% of trigger point coincides with the localization of the BAPs used for pain treatment, R. Melzack et al. (1977) believed that the concept of “acupuncture point” is much broader than of the “trigger point.” [181] Some doubts were expressed about the very existence of any independent trigger points that are not acupuncture points [182].

3.4. The theory of channels describes a system of electrical conductors and semiconductors

As electrical conductivity within the points of the same channel is higher than between the points of different channels, it was suggested that the theory of channels and collaterals describes the physiology and pathology of the system of electrical conductors and semiconductors.

In 1950s, Dr. Y. Nakatani measured the electrical conductivity of the skin of a patient with chronic nephritis and found on his back a point with an increased electrical conductivity. As suggested by Prof. K. Sasagawa of the Department of Physiology, University of Kyoto, the points with increased conductivity were called riodoten. The line along which they were found was called ryodoraku: (ryo) - good, (do) - conductivity, (raku) - line or meridian [79,80,183]. Later, the results of Y. Nakatani were confirmed by modern scientists [184].

Similar findings confirming lower resistance between the points within the same channel were discovered by a Soviet scientist A. Podshibyakin, [35] a French scientist J. Niboyet, [81,92] a German physician R. Voll), [83,84,85] and many others.

A Nobel Prize Winner in Physiology and Medicine (1937), A. Szent-Györgyi was one of the first to point out the possibility of semiconductor effect in the human body. In 1941, he suggested that the migration of electrons in the conduction zones of protein structures with properties similar to those of semiconductor crystals may play an essential role in some biological processes [185]. Given that the effect is present in nucleoproteins (rather than in the proteins or the nucleic acids), the active protein structure should be compared to an impure molecular crystal [186].

In 1976, V. Nikiforov repeated the hypothesis that a living organism is a giant bio-semiconductor containing numerous zones of conductivity and semiconductivity. The channels (meridians) are conductors presented in the body’s integument that weave around lymphatic and blood vessels, muscles, and internal organs. The system of conductors or channels is the essential system that integrates all the other regulatory systems and the body as a whole. End portions of the meridians have the highest functional activity and are the points of the highest electrical conductivity [105].

H. Schuldt (1976) measured electrical potential on the surface of the human body and concluded that the meridians are located along the lines of maximum concentration of electrical fields [187].

After a series of experiments with the electrical conductivity of the channels, R. Becker (1987) suggested that the transfer of energy and interaction within the meridian system goes along the glial cells of the nervous system according to semiconductor principles. The glial cells transmit direct electrical current of small amplitude at low speed, unlike the neuron that transmits high-frequency electrical signals at high speed. According to R. Becker, that particular weak direct electrical current is the manifestation of simple electrophysiological mechanisms ensuring regeneration and restoration of the function of nerve fibers in case of trauma [188].

Research of the channel conductivity with the electrode located by ultrasound suggests that the reduced resistance along the channels is due to the loose connective tissue that fills the gaps between the muscles or between the muscles and the bones [189].

Thus, we can assume that in a multicellular organism, the channels serve as conductors of electric current [96].

3.5. The theory of channels describes a system of the conductors of the heat

Due to the high thermal conductivity of the skin in the acupuncture “points” and between the points within the same channel, A. Romodanov, O. Butenko, D. Lyaschenko, and some other authors suggested that the channels represent a system of thermal field conductors, and the “acupuncture points” serve as the gateway for heat exchange between the body and the environment [42,94,138,190].

3.6. Channels are “immaterial pathways” transmitting electromagnetic waves

Alexander Gurwitsch (1922) and George Lakhovsky (1929) were the first to describe the function of the cells based on radiophysical theory. G. Lakhovsky even applied electromagnetic fields to treat plants, animals, and humans [191,192,193]. In 1932, Harold Burr, observing the proliferation of nerve cells in the water lizard (Ambystoma mexicanum Hope), designed a theory of electrodynamic development of the living body [194].

The wave model that explains the growth and development, physiology, and pathology of living subjects was later used in the works of A. Leontowitsch (1933), [195] S. Turlygin,(1942), [196] F.Popp (1978), [197] and many others.

As the efficacy of acupuncture was confirmed over many centuries of practice, however, no morphological substrates of channels were identified, some scientists attempted to explain the channels as “immaterial” ways of transmitting electromagnetic waves [107]. For example, A. Lebarbier (1975) stated that the meridians were the power lines of an electromagnetic field that are not defined by the anatomy but are detected by electronic instruments [198]. Sergey Sit’ko, one of the developers of microwave resonance therapy, suggested that the meridian system of living subjects has an electromagnetic nature and may be regarded as a mathematical solution of some limit cycles, both periodic and stable over time and space. In other words, the points and the channels are the projections of the solution of these limit cycles on a three-dimensional living object [199,200].

3.7. Channels are independent and previously unknown bodily systems

Various authors assumed the presence of an independent self-regulating system within a body. According to N. V. Quan (1936), channels are real rather than imaginary lines with the properties different from such known anatomical entities as nerves and blood vessels [45]. Though normal functioning of channels is associated with the nervous system, they are not a nervous system in the ordinary sense. Probably, in terms of evolution theory, the system of channels and collaterals is simpler and more “ancient” as compared to the nervous and vascular systems [96].

Russian scientists A. Zhirmunsky (1979) and L. Savina (1983) voiced the opinion that there existed the 3rd regulatory system of the body [107,201]. A. Zhirmunsky assumed that the main function of that system is the transfer of information from the peripheral parts of the body associated with the environment to the body, as well as information transfer within the internal organs and to its periphery [201].

In 1961-1962, North Korean biologist Kim Bong Han (Figure 4), invented the method of coloring living and actively functioning tissues and discovered the previously unknown anatomic-histological “Kyung-Rak” system that differs from the nervous, circulatory, and lymphatic systems [202].

According to Dr. K. Han, Kyung-Rak system consists of specific Bonghan’s corpuscles located in the area of biologically active points, linked with each other by the Bonghan’s ducts, with circulating viscous liquid containing high concentrations of DNA and RNA molecules. Bonghan’s corpuscles are surrounded by connective tissue with a relatively high content of tissue fluid [202] (Figure 5).

Kim Bong Han’s discovery was confirmed by Japanese scientists only [203]. Scientists from other countries were unable to confirm the Kyung-Rak system [51,204,205]. According to G. Kellner, who also researched that matter, the structure identified by Kim Bong Han was an artifact [26]. Due to the absence of Kyung-Rak system confirmation by scientists from other countries, the research in North Korea was stopped, and the laboratory was disbanded. The further fate of Kim Bong Han is not known.

In 2002, a South Korean scientist Jiang Xiaowen et al., described the technique that allowed them to identify the structures previously described by Kim Bong Han. It turned out that these intravascular channels of a diameter under 50 μm are restricted with a whitish, semi-transparent, soft, and flexible wall that is easily destroyed during a conventional histological examination. In order to identify, it is necessary to introduce intravenously in a live subject a 10% dextrose solution and cause blood coagulation and blood depositing around the studied intravascular channels [206,207].

Subsequently, there came a series of publications on the morphology, physiology, and pathology of the Kyung-Rak system. A newly re-discovered structure got the name of “Primo Vascular System” [208,209,210,211,212,213]. “Bonghan” ducts and tubes were found in blood and lymph vessels, [209,214,215] in fat tissue, [215] and on the surfaces of internal organs [216]. The flow rate of Bonghan fluid within the tubes is 0.3 mm/sec, which is significantly lower than the movement of blood or lymph [217].

It is assumed that this system plays an important role in the process of tissue regeneration and metastasis [218,219,220,221].

3.8. The theory of channels describes the physiology and pathology of connective tissue

The hypotheses presuming that the elements of areolar and fibrous connective tissues made of proteins with semiconductor properties that transmit various kinds of energy are the morphological base of the meridians are in a separate group [222].

In the eighties of the last century, a Japanese physician, H. Motoyama (1980), investigated the electrical conductivity of acupuncture points and concluded that it is a highly hydrated phase of the connective tissue of the skin that plays a leading role in the conductivity of electrical current. Therefore, connective tissue serves as the physical basis of the so-called system of channels and collaterals [223,224].

A. Umanskaya (1984) stated that the channels are the terminal formation of connective tissue with countless bilateral connections (both between the elements and the peripheral parts of the central nervous system, organs, and organ systems). Acupuncture points are the locations for the filtration of a complex range of external inputs and their transformation into the signals appropriate for the nervous system [225].

At the end of the 1980s, Chinese authors, J. Yuchi (1986) and X Du (1989), noted a strong correlation between the connective tissue and the channels [226,227]. Around the same time, the famous Swedish radiologist, Dr. B. Nordenstrom (1989), suggested that a vascular–interstitial system transferring ion fluxes may be regarded as a morphological base of a channel [228]. French scientist P. de Vernejoul et al. (1992) came to a similar conclusion after studying the migration of radioactive isotope solution introduced into acupuncture points [229]. According to Japanese researcher, P. Hashimoto (2005), the perineurium of connective tissue and perineural vessels may serve as the morphological basis of the channels [230].

Scientists from Romania, S. Ionescu-Tirgoviste et al. (1987), measured electrical potentials in acupuncture points and concluded that the system of channels is a network of electrical conductors formed by interstitial tissue stretching between other known anatomical structures [231,232]. According to A. Ahn et al. (2005) that reduced resistance along a channel is due to the loose connective tissue that fills the gap between individual muscles or between muscles and bones [189].

In 1996-1998, M. W. Ho et al. developed the theory of liquid crystal organization of living objects. According to that theory, collagen and water molecules form a liquid crystal structure that pervades the entire body. This ‘crystal’ is the basis of the channels. In acupuncture points, hydrated collagen fibers are perpendicular to the skin and form a passage linking the internal and the external environment. It is assumed that this aqueous collagen crystal is a semiconductor for protons. It functions as a unit and serves as the environment that ensures the existence of the cells of a multicellular organism. Dr. M. Ho considered collagen crystal to be a peripheral “body consciousness” that interacts with the “central consciousness” localized in the brain [233,234,235].

According to Yu. Ignatov et al. (1990), the stimulation caused by the needle may be transmitted to a certain distance along the fibers of the connective tissue due to the ability of muscle fascia to transfer vibrations caused by its tension or perforation [46].

H. Langevin et al. (2001) studied the phenomenon of needle retention during acupuncture treatments. It appeared that the needle retention was due to the reaction of connective tissue structures that twist and untwist around the needle rather than to a muscle spasm reaction. The force that has to be applied to remove the retained needle is more significant when the needle is in the acupuncture point than when the needle is introduced in a random skin area [236]. The studies suggested that fibrous connective tissue can conduct signals at long distances as mechanical waves propagate along the fascia covering muscles [237].

Chinese scientists L. Yuan et al. (2004) suggested that the anatomical basis of the channel system is a branching network of fibrous connective tissue represented by various fascia [238].

According to J. Kim et al. (2009), a channel is a subcutaneous connective tissue layer with an interstitial fluid passing through it. These channels ensure the redistribution of tissue fluid pressure between different body portions in motion. Acupuncture points are the locations for control of the redistribution of interstitial fluid [239]. P. Fung (2009) came up with a similar idea and added that mast cells and membrane calcium pumps are essential for the functioning of the channel system [240].

3.9. The theory of channels describes interstitial clefts and bodily cavities

In 1952, doctor Rokuro Fujita, proposed the hypothesis that the channels represent a system of inter-muscular slots where interstitial fluid moves due to muscle contraction [178,179]. According to a doctor S. Takano (1985), interstitial clefts filled with a liquid with a high concentration of ions cause the “ruodoraku” phenomenon, which means high electrical conductivity of channels [241].

In 1966, G. Kellner analyzed scores of layered skin preparations aiming to confirm or refute the results of Kim Bong Han. He found unique slots in the borderline zone between the papillary and reticular layers that made him suggest the existence of an autonomous intradermal system capable of transferring interstitial fluid and possibly responsible for the transfer of energy through the skin surface [26].

In 1980, D. Draehmpaehi et al. studied tissue samples of four-month-old human fetuses and discovered linear subcutaneous cavities stretching in the sagittal direction of the localization corresponding to the description of the “channels.” [242].

In 2003, a group of Chinese researchers analyzed the structure and function of perivascular space and suggested that the area around blood vessels could explain the phenomenon of channels and collaterals [243]. In 2008, doctor B. C. Lee et al. published an article describing the channel as longitudinal slots in subcutaneous muscles. Unlike the Kyung-Rak system, these channels have no covering membrane. They are not associated with acupuncture points, although fluid moves along these channels, like Bong Han tubes [210].

W. B. Zhang (2008) used a special technique that permits the measurement of interstitial fluid pressure. He found areas of low pressure under the skin different from those in the surrounding tissues. These longitudinally oriented regions of low hydraulic pressure coincide with the path of the so-called “channels.” Limited areas with low hydraulic resistance coincide with the points of lower electrical resistance. Radioactive isotope helped visualize the channel trajectory with low hydraulic resistance. A coloring agent (Alcian blue) determined a more accurate location. The speed of interstitial fluid in the channel is significantly lower than that of blood and lymph in the vessels. It is presumed that low hydraulic pressure and resistance areas belong to a previously unknown system described in the TCM [244,245,246].

A study of the migration of coloring agents injected in the area of acupuncture points on the back (Bl-18, Bl-20, Bl-23) was conducted in 2009. The magnetic resonance imaging method found that the substance was not transmitted along the blood or lymph vessels but via interstitial gaps towards the direction of corresponding internal organs [239].

3.10. Other hypotheses that explain the transmission of signals along the channels

Among the other hypotheses explaining transmission of signals along the channels is the one that assumes that the gap junctions participate in the process. They play an important role in the metabolic communication and in the integration of cells and tissues. It is believed that the system of gap junctions is capable of receiving and integrating information from skin surface and transmitting it to nearby and remote areas of the living organism [127]. The mechanism of signal transmission via gap junctions is working as follows: each stimulated excretes biologically active substances that stimulate neighboring cell which in turn is accompanied by mechanical vibrations. An introduced needle causes vibrating biomechanical processes that spread due to gap junctions along the chain of cells transmitting the information to the destination [147].

Doctor S. Y. Lo (2001) suggested that channels are formed by the various polarized molecules gathered into large clusters, where water molecules play an essential role due to their permanent dipole moment [247].

4. Modern discoveries in the functioning of channels and collaterals

This section is devoted to the research related to the specific functions of the tissue along the assumed pathways of the channels, namely:

• The high electrical conductivity;
• The high thermal conductivity;
• The conducting of the electromagnetic waves;
• The conducting of the radioactive isotopes;
• The conducting of the contrast media;
• The propagating of the specific sensations along the channel.

4.1. The high electrical conductivity of the channels

The most significant number of studies in channel physiology is dedicated to measuring their electrical conductivity. The resistance between the points belonging to (lying on) the same channel is lower than between the points belonging to different channels [52,79,115,116,248,249]. It is noteworthy that the conductive properties of the channels maintain their properties on the skin of cadavers and transplants [114,115,250,251]. According to F. Kracmer (1962), the electrical properties of the channels prove they have specific intermolecular bindings [252].

Stimulation of the points of a particular channel causes a change in the conductivity of the points of the same channel [96]. For example, when the Pc-6 (Nei Guan) acupuncture point is stimulated, a significant decrease in the resistance to electric current is observed in the Pc-3 (Qu Ze) acupuncture point, which is located on the pathway of the same channel [253].

In the experiment, bipolar electrical signals of a sine-shaped wave with a frequency of 2.5 Hz were applied to the points of the Lungs channel. It was found that the signal was transferred better in a distal direction from the point L-3 (Tian Fu) to the point L-11 (Shao Shan), that is, ”in the direction of Qi flow along the channel and worse – in the opposite direction, i.e., “against Qi flow” [248].

There is an opinion that the change in the electrical activity of the channel reflects the change in the intensity of an electromagnetic field within the body, [96] blood filling of the capillaries, and the amount of interstitial fluid [253]. The experiments on the gel model suggested that the function of electrical conductivity of the channel is associated with interstitial fluid containing water, salt, and proteins [254].

4.2. The high thermal conductivity of channels

Experimental and clinical work of A. Romodanov, O. Butenko, D. Liaschenko, A. Ovechkin, and other authors indicated that a thermal field spreads along the pathways of the channels. That led to the presumption that the channels represent the system of conductors of heat fields [42,94,137,158,255].

The studies of the Chinese authors registered temperature inhomogeneity of the face with an infrared imager. It was present in the volunteers and patients with facial nerve palsy. The temperature increase along the urinary bladder channel was observed in 95 out of 444 subjects. The width of the “hot” line reached 1-1.5 cm, and the temperature gradient ranged from 0.2-0.3 to 1.5 degrees. As a general rule, the temperature gradient increased after acupuncture [256]. Acupuncture in LI-4 (He Gu) point caused an increase in temperature in the facial area along the projection of the colon [257].

In another study, applying moxibustion at acupoints caused the lines of high temperature coinciding with the channel path to appear on the patient’s body [258]. After a moxibustion of the point GV-4 (Ming Men), 70% of the volunteers noted an increase in the temperature along the midline of the back. After moxibustion of the points CV-12 (Zhong Wan), 56% of the volunteers had an increase in temperature along the median line of the abdomen and chest. It is assumed that the mechanism of linear propagation of the thermal field along the trajectory of the channel is associated with a change of local microcirculation or an increased thermal conductivity along a compactly organized connective tissue [259].

Using an infrared thermal imager during acupuncture permits observing the change of temperature spreading along the projection of channels. For example, acupuncture of the point GB-37 (Guang Ming) in a patient with paralysis of a facial nerve caused increased temperature around the eyes. In contrast, acupuncture at the point LI-4 (He Gu) caused an increase in temperature around the mouth [260]. Acupuncture at the point LI- 4 (He Gu) caused a more pronounced temperature reaction on the face than at the point St-36 (Zu San Li) [261]. Thus, the change of thermal fields during acupuncture further confirms the specific effect of different acupuncture points.

However, it should be noted that the distribution of the thermal field along the trajectory of the channel was not observed in all experiments [262]. This negative result may be due to the peculiarities of the subjects, which were healthy volunteers, or the moxibustion technique applied as far as no initial abnormalities were diagnosed. Acupoints were selected randomly but not according to the patient’s condition, which means the experiment did not follow classic recommendations used in traditional Chinese acupuncture.

4.3. The conducting of the electromagnetic waves

In 1984, an article was published by D. F. Mandoli and W. R. Briggs dedicated to waveguide-like structures of plants capable of conducting light along the branches, the stems, and the roots [19]. Other scientists conducted similar research work [263].

In the laboratory of V. Kaznacheev, acupuncture points were exposed to the visible light emitted by a conventional incandescent lamp. A photomultiplier tube measured the intensity of photon radiation emitted by neighboring acupuncture points. It was found that the emission intensity by points located on the same channel as the irradiated point was several hundred times higher than the background radiation detected from the points of the adjacent channels; thus, the channel’s ability to conduct electromagnetic waves of the visible band was detected. It is believed that the system of channels permits the light to penetrate and reach the deepest sections of the living body [264]. The ability of the channels to conduct light was confirmed and studied by the laboratory in China [265].

4.4. The conducting of the radioactive isotopes

The first study of radioactive isotope (RAI) migration after its introduction into the acupoints was conducted by a North Korean scientist, Kim Bong Han, who published his findings in 1964 [202].

In 1981, Romanian scientists Tiberiu Räibulet et al. reported the migration of isotopes in the distal direction of the limb, i.e., opposite to the proximal direction expected if the isotopes were moving through veins or lymphatic vessels [266].

The following publications were from the French scientist P. de Vernejoul et al. [267,268,269,270]. Technetium-99m [99mTc] in the form of sodium pertechnate was administered subcutaneously to a depth of 3-5 mm to a group of patients and healthy volunteers, volume of 0.05 ml containing a single dose of 10 MBq. Introduction of the RAI into the point K-7 (Fu Liu) located on the inside surface of the leg led to linear migration of the isotope to 30 cm from the injection site (Figure 6b). A local diffusion in different directions was observed (Figure 6a) when it was introduced outside the point.

When RAI was introduced into point St-43 (Xian Gu), located on the dorsum of the foot, the isotope migrated in proximal and distal directions along the tendon-muscular channel of the Stomach [267]. When RAI was administered in GB-36 (Wai Qiu) point located on the outer surface of the tibia and point St-41 (Jie Xi), located on the borderline between the foot and shin, a linear migration of the isotope in the distal and proximal directions was observed. When RAI was administered to a point LI-18 (Fu Tu) in the center of the sternocleidomastoid muscle, the isotope migration was observed toward the upper lip on the opposite side, i.e., alongside the Large Intestine channel [268].

When RAI was introduced into the left and the right points of the Kidney channel K-7 (Fu Liu) of the patients with unilateral renal pathology, it turned out that the speed of propagation of the isotope was higher on the affected side than on the unaffected one [267].

In the subsequent experiments, RAI was administered bilaterally at the point K-7 (Fu Liu). Then, point K-2 (Zhang Gu) was exposed to impulses of the helium-neon laser. The pulse frequency of 24 Hz changed the RAI migration speed. The pulse frequency of 48 Hz caused no change in the rate of RAI migration [268].

Pertechnetate sodium and rhenium sulfide labeled by technetium isotope [99mTc] were used to exclude migration of the isotope via (or through) the lymphatic system. Iisotopes were administered to the acupuncture points or into the webbing between the toes according to the classical method of lymphography. After introducing rhenium sulfide into the webbing between the toes, it was accumulated in the lymph node. However, no RAI accumulation in the lymph nodes was observed when sodium pertechnetate and sulfur rhenium were administered at the acupuncture point. The assumption of the distribution of RAI by veins was also excluded, as the isotope migration went on in a longitudinal direction (not in the transverse direction typical for the location of the veins on the back of the foot [267,269,270].

The average speed of RAI linear migration did not exceed 3-5cm/minute, i.e., it was significantly lower than in the case of migration along the veins or lymph vessels. Thus, apart from the typical trajectory of the isotope propagation, there was another essential peculiarity of the isotope migration: a slow onset of the migration and a slow disappearance, unlike rapid onset and disappearance in the case of isotope migration along lymphatic or venous vessels [268]. It is believed that RAI migrates along areolar connective tissue surrounding neurovascular bundles [268].

The Spanish scientists of F. M. Kovacs’s laboratory performed similar studies on dogs. In the first experiments, radioactive technetium (99mTc) was administered subcutaneously at a low electrical resistance point on the dog’s paw; after that, the linear isotope migration (LIM) was observed in the proximal direction as a narrow line. The isotope propagated along the same line in different experiments with an average 2cm/minute speed. The isotope distribution was not associated with the movement along nerves, blood, or lymph vessels [271].

Further experiments clarified that the migration of radioactive technetium is possible only in case of skin integrity both in the path of the migration and on the opposite extremity [272].

If a skin incision is made in the path of the radioactive isotope, the migration continues around the wound. After stitching the wound, LIM was restored, and the isotope ceased moving around the wound. LIM was also restored if an unstitched wound was filled with silicone gel or a gel for ultrasound diagnostics and was covered with a solid silicone sheet parallel to the skin surface. LIM was absent if the wound remained unstitched but was filled with Vaseline or a whole silicone layer. Thus, the LIM process was observed even before restoring the integrity of the traumatized tissue. The experimental results suggest that the mechanism of linear isotope migration is similar to the capillary electrophoresis [273].

Despite the obvious character of the above results, some authors are still arguing that the leading role in the process of elimination of the radioactive isotope is not played by the “channels,” but rather by the well-known venous and lymphatic vessels [274,275].

4.5. The conducting of the contrast media

Studies with non-radioactive contrast agents administered at the points of different channels were also conducted. According to MRI, the migration of contrast matter was linear along the trajectory of the channels. It was also noted that the transfer of the contrast matter was not related to the movement of the blood or lymph among the vessels. Linear movement of the contrast matter was not observed when it was administered outside the acupuncture points [276].

Similar results were demonstrated by J. Kim et al. (2009) in their studies of colorant migration when administered to the dorsal acupuncture points (Bl-18, Bl-20, Bl-23). According to MRI, the substance was transferred neither by the blood or lymphatic vessels but via interstitial gaps in the direction of the respective internal organs [239].

The studies of W. B. Zhang (2008) detected longitudinal regions of lower pressure in the subcutaneous areas of guinea pigs. The speed of interstitial fluid through these lower pressure channels was significantly lower than that of blood and lymph within vessels [245].

Solutions of medications introduced into points with low flow resistance are eliminated from the area of the points much faster than when administered to control skin areas. Rapid absorption of the medication means a quicker onset of the pharmacological effect [277].

5. The “channels and collaterals” theory describes the physiology and pathology of intercellular space

In 1989, after analyzing the literature on acupuncture points and channels, and considering the results of the therapeutic application of the EMR MM range, it was suggested that the channels are interstitial gaps [290].

After further discussion, attention was drawn to modern research methodology that usually suggests the connections of specific functions to specific structures of a biological object. However, in some cases, the absence of a structure provides an additional conductive function, for example, a window or door opening, a riverbed or drainage system, etc. Thus, the channels can be represented as gaps stretching between the other well-known anatomical structures. Surfaces of muscles, blood vessels, nerves, bones, and other structures also form the outer walls of the so-called channels. These gaps are filled with longitudinally oriented fibrous connective tissue, ground substance, electrolyte solutions, and structured water. Perhaps, this is enough to ensure the Qi conductivity function. This interpretation of the channels corresponds to the functional and morphological data discussed above and to the description of the channels in the writings of the Chinese master Li Shi Zhen: “... there are tunnels within a body and the one turning his mental gaze there may illuminate them ...” [162].

The theory and the experimental data proven that direct intercellular information exchange is carried out with the participation of electromagnetic fields of the frequency ranging from 10¹¹ to 10¹⁴ Hz [264,291]. According to radio physics, such frequencies are transmitted by dielectric waveguides. Nerve fibers are suitable transmitters of low-frequency signals, whereas high-frequency signals may be transmitted only through the channels serving as a waveguiding structure. Therefore, the system of channels is the leading candidate for transmitting high-frequency signals generated by the cells. Theoretical and experimental studies confirm that the channels can be waveguides transmitting electromagnetic waves of various ranges [19,264,287,291].

The channels likely are an independent and the most ancient (in phylogenetic and ontogenetic sense) regulatory system of the body. However, being the basic one, it unites all other more sophisticated and the younger systems of macro-organism and provides interaction of the bodily interior with the environment [107,201,292].

For the above reason, in 2003, the hypothesis was first proposed that physicians of ancient China designed the theory of channels and collaterals to describe the physiology and pathology of intercellular space, gaps, and cavities of the human body [62,293] (Figure 7).

Analyses of the channel trajectory may prompt us to find a correlation between the channels and specific anatomical structures, but the relationship will be functional rather than morphological. The nature of the disease and its effects may help to determine the relationship of a specific disease with a particular regular channel or its secondary vessel.

For example, skin and subcutaneous tissue inflammation accompanied by redness, swelling, increased local sensitivity, and temperature may serve to diagnose the excess syndrome of the tendon-muscular channel passing through the affected area. Suppose there is a contraction of a specific group of muscles or tendons, or a keloid scar or non-healing wound persists after recovery; in that case, one can suggest the involvement of Luo-channel (collateral) in that affliction. If there are general manifestations of the disease with the signs of general adaptation syndrome and symptoms of the organs, it signifies the presence of the pathology of the regular channel and perhaps an organ [294].

However, if we analyze the pathway of the Governing Vessel and the Conception Vessel, we can conclude that the first one corresponds to the spinal canal and cranial cavity, and the second one corresponds to the thoracic and abdominal cavities [62].

6. The theory of Organs describes the physiology and pathology of cells

TCM identifies 12 main organs. There are six organs classified as Yin, or solid organs with parenchyma inside (Lungs, Spleen-Pancreas, Heart, Kidneys, Pericardium, Liver), and there are six organs classified as Yang, or hollow organs with internal cavities (Large and Small Intestines, Stomach, Gall bladder, Urinary bladder, and Triple heater).

Solid and hollow organs combined in pairs. There are small cavities inside the solid organs, for example, bronchi in the lungs, pyelocaliceal system in the kidneys, pancreatic ducts in the pancreas, bile ducts in the liver, etc., which resemble hollow organs. The hollow bodies are surrounded by parenchymal walls which can be attributed to a solid organ. Therefore, a stone in a kidney is located in the Urinary bladder, and a peptic ulcer located in the Stomach is a manifestation of the pathology of the Spleen-Pancreas [62].

The term ”organ” in TCM has a broader meaning than in anatomical formation. Most cells have standard organelles such as the nucleus, Golgi apparatus, endoplasmic reticulum, mitochondria, etc. Each organelle is responsible for specific functions. Mitochondria are responsible for oxidizing-phosphorylation and ATP synthesis. Golgi apparatus synthesizes proteins, polysaccharides, and other complex molecules and accumulates various minerals and biologically active substances. The cell nucleus is responsible for the development, constant shape, and death of the cell.

The essential functions of the main organs may be localized in specific organelles of every cell; for example, mitochondria are in charge of breathing (~ lungs), the endoplasmic reticulum is responsible for digestion and nutrient transportation (~ pancreas); the Golgi apparatus is responsible for the accumulation of biologically active molecules (~ liver); the cell nucleus maintains homeostasis and is in charge of development and death (~ kidney). The centrioles play an essential role in the process of cell division. Microtubule pulsing discovered in centrioles suggests that centrioles are most likely the intracellular analogs of the heart [295] (Figure 8).

All said above suggests that the TCM concepts of the organs are related to certain features and pathological processes in the human body’s cells [62]. For example, the term Lungs stands for the system of organs and tissues responsible for synthesizing Qi, or energy accumulated in ATP molecules. This system includes a respiratory center that regulates the complete process of respiration: the Lungs, which are involved in external breathing, red blood cells transport gases, and mitochondria perform ATP synthesis. (Figure 9).

Essentially, this complex circuit converts the energy stored in food into energy stored in the binding between the ribose molecule and phosphoric acid molecule. Therefore, whenever dyspnea is present, it is necessary to work with the points of the Lung channel regardless of the etiology, pathogenesis, and true localization of the disease. Inspiratory dyspnea and cough that aggravates at exhalation indicate the syndrome of lung deficiency and require activation of the relevant points. Expiratory dyspnea and cough that aggravates at inspiration indicate the syndrome of lung excess and require sedation of the relevant points [62].

In the same way, all other main organs have their essential functions and specific symptoms. For example, headache and dizziness points to a disease of the ‘Liver,’ insomnia and poor memory point to a disease of the ‘Heart,’ digestive problems point to a disease of the ‘Pancreas,’ and so on [96].
