Repertoire of Food Acquisition Behaviors in Shorebirds (Aves, Charadriiforme)

1. Introduction

Shorebirds are iconic examples of the partitioning of food resources through use of contrasted morphological structures (e.g., bills, legs) to capture prey. Shorebirds forage mainly on the land-water borders of fresh, brackish, or marine waters where they feed mostly on invertebrates, but vegetal material are also ingested by many species, and can constitute a predominant part of their diet during certain periods of the year (e.g., in Calidris pugnax [1]. Differences in bill lengths provide shorebird species with the opportunity to catch food particles at various sediment depths. Similarly, contrasted leg lengths allow species to forage at distinct water depths. Despite these morphological differences, shorebirds appear to use a small number of stereotyped food acquisition behaviors (e.g., [2,3]. A seminal interspecific comparative study introduced a classification of these foraging-feeding species-specific stereotyped behaviors [4]. This classification was subsequently used in numerous studies investigating the diet or the food acquisition behaviors of shorebirds (e.g., [5,6,7,8,9,10,11,12,13].

Here we propose to revisit this classification, by defining a functional and integrative analysis of behaviors associated with food acquisition in shorebirds. More precisely, based on our filmed observations, food acquisition can be divided in three successive stages: foraging, feeding, and swallowing. The foraging stage concerns the different behaviors associated to food detection and capture: locomotion behaviors (how do birds move in suitable foraging habitats) and capture behaviors (how do birds locate and catch food particles. The feeding stage encompasses the behaviors used to possibly stun or kill the food particle: handling behaviors (how do birds manipulate the food particle to extract edible parts) and transport behaviors (how do birds bring it to the pharynx). In the swallowing stage, the edible part of the food particle enters the digestive tractus. By doing this deconstruction of food acquisition, we assume that the evolution of morphological structures associated with the partitioning of food resources in shorebirds may covariate with the selection of behaviors specific to each of these three stages, as predicted by the concept of neuroethological morphology [14].

This association is rather obvious for capture behaviors: the pecking behavior of a golden plover (Pluvialis apricaria) that hunts prey by sight on the surface of the substrate is very different from the probing behavior of a long-billed snipe (Gallinago gallinago) that locates its prey by touch deep into the sediments [2]. But our hypothesis is that the two following stages of food acquisition can also be affected by the structure of the beak: the opening of the valves of shellfish by oystercatchers (Haematopus ostralegus) and the transport of their flesh out of the shell towards their buccal cavities all along their long, robust beaks [15] engenders constraints that are very different from those faced by red phalaropes (Pahaloropus fulicarius) handling very small preys that birds enclose in drops of water to move them along their narrow beaks to their buccal cavities [16,17]. The solidly bony structure of the decurved bills of curlews obliterates the lumen for much of its length and brings about great reduction in relative size of the tongue. The bird is obliged to remove a worm from the mud before it can transport it back to the mouth and swallow it; this is achieved by head jerking, coordinated with opening and shutting of the jaws. By contrast, snipes (Gallinago gallinago) and woodcocks (Scolopax rusticola), which have the lumen open and long tongues, are able to transport a worm along the bill while it is still inserted in the substrate, by a combination of a rapid series of retractions of the rhynchokinetic upper jaw tip and tongue action [2,18]. Godwits (Limosa spp.), although showing some bill reinforcement and tongue reduction, are often able to do the same [2,18].

Here we approach in a more quantitative way the stereotyped behaviors involved in each of the three stages of food acquisition, by analyzing video sequences of ca. two dozen species of Western Palearctic shorebirds, during migration or wintering. This procedure makes it possible to standardize and quantify observations of stereotyped behaviors, and to summarize them in a comprehensive repertoire that is as complete as possible. In addition to introducing three stages in the study of shorebird food acquisition, we will revisit the existing state of the art. Descriptions of several stereotyped behaviors involved in the foraging stage in shorebirds do exist in the literature (e.g., [2,3], and Barbosa & Moreno [4] provided the outline of a first classification recently rearranged by Angarita-Baez & Carlos [13]. Whereas we do not doubt the heuristic importance of these descriptions and classification, here we want to reassess and quantify the foraging stage by using our video analysis method. Besides, we improve the descriptions of the feeding and the swallowing stages that are not explicitly addressed in the literature (but see [13,16,17,19,20] and especially [21] for behaviors associated to food transport from the beak to the pharynx).

Overall, our study provides insights on the interspecific variations and on the evolution of food acquisition behaviors in shorebirds. We look for stereotyped behaviors for each species during each of the three stages of food acquisition and investigate the relationships between these behaviors. We also provide a glimpse on the development of these behaviors, both by putting these relationships into a phylogenetic context using the dated phylogeny of Cerny & Natale [22] and by exploring the ontogeny of these behaviors.

2. Materials and Methods

2.1. Behavioral data collection

Shorebird food acquisition behaviors were opportunistically recorded during field trips in a variety of locations in Western and Southern Europe between 2021 and 2023. Data were collected as follows: observers avoiding bird disturbance were positioned at distances ranging from 5 m (in cars or hides) to 60 m, and filmed using two cameras: either an Olympus OMD-EM1x with a M.Zuiko Digital ED 150-400 mm F4.5 lens, which provides magnification up to 40 times, or a Nikon RX 100 with a Tamron 600 150-500mm F/5.6-6.3 lens, with a magnification up to 10 times. Focal individuals were selected (among flocks when necessary) and recorded during at least 1 minute at speed of 25fp, 60fp or 120fp. Species identity, recording location, and number of individuals are shown in Supplementary Table 1. Altogether, we gathered data on 26 species belonging to two of the three suborders of Charadriiformes: 18 Scolopaci and 8 Charadri species according to [22].

2.2. Phylogenetic tree

The phylogenetic relationships between the 26 shorebird species of our data set were drawn from the consensus tree of Cerny and Natal [22], which is the most comprehensive non-supertree phylogeny of shorebirds to date, based on a total-evidence dataset comprising 90% of all extant or recently extinct species. This phylogeny is inferred from 27 genes and 69 morphological characters, and time-scaled using 14 vetted fossil calibrations. The time-calibrated consensus tree [22] was pruned to our 26 study species using iTOL [23].

2.3. Behavioral data analyses

We used BORIS (Behavioral Observation Research Interactive Software, [24] to annotate our records, i.e., to assign behaviors associated to foraging, feeding, and swallowing by a focal individual to specific video bouts. We looked for stereotyped behaviors associated to foraging, feeding, and swallowing that were repeated from one video to another, on the same individual, from one conspecific individual to another, and between individuals of different species. We looked for stereotyped behaviors by accepting some variations on the same theme, particularly during interspecific comparisons. We thus ended with a behavioral repertoire of food acquisition, in which each behavior was well characterized by reliable diagnostic criteria. The verbal description of this repertoire we provide here is completed by excerpts drawn from our videos, in which we provide representative sequences of each behavior.

3. Results

Our videos of food acquisition in shorebirds provided us with hours of observations. Here we begin by an attempt to organize this extensive material in a logical, hierarchical manner (Figure 1), which would constitute a behavioral repertoire of food acquisition that could be generalized to all shorebirds, with the possible addition of behaviors from species that we have not studied. Next, we assess the phylogenetic relationships within our data set by pruning the tree of Cerny and Natale [22] pruned to our 26 study species. Finally, for each of these 26 species, we propose an overview of their species-specific behavioral repertoire as drawn from our filmed observation.

3.1. Repertoire of behaviors associated to food acquisition in shorebirds

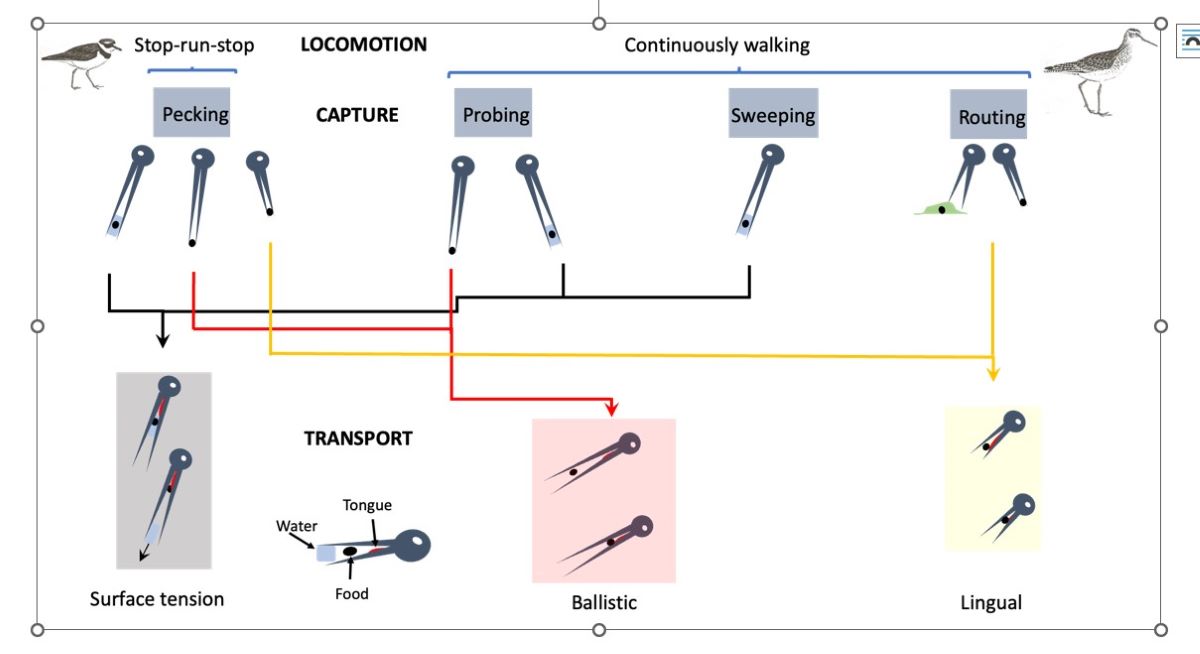

As previously mentioned, we propose to deconstruct food acquisition in three successive stages, each composed of one or more behavioral sequences, which follow one another in time (Figure 1). Each sequence involves the use of stereotyped or non-stereotyped behaviors, as it will be explicitly mentioned. The first stage is foraging, in which birds move in suitable habitats looking for food and catch food with their beak. Foraging encompasses thus two different behavioral sequences, locomotion, and capture. The locomotion sequence primarily involves the appendicular postcranial musculo-skeletal system and the sensory organs, while capture involves the cranial and axial postcranial musculo-skeletal systems, and still the sensory organs. The capture of a food particle in the beak ends the foraging stage and begins the second stage of food acquisition, which we call the feeding stage. Feeding also encompasses two different behavioral sequences, food handling and food transport. In food handling, the bird manipulates the food particle so that it can be in a state and in a position that can allow its transport into the pharynx. This sequence of course involves the sense organs, as well as the cranial and postcranial axial musculoskeletal systems. During this food handling sequence, the birds sometimes start moving again to look for locations suitable for manipulation (hard or wet substrate), which then also involves the locomotory system. Note that this food handling sequence is facultative: when the food particle is small, directly usable, and defenseless, it can be transported directly into the beak without handling. The transport sequence involves movements of the head, beak, and tongue to bring the food particle into the pharynx, and therefore recruits the cranial and axial post-cranial musculoskeletal systems, and always the sense organs. The entry of the food particle into the pharynx marks the end of the feeding stage and the beginning of the third stage, which we call swallowing. During swallowing, the food particle is swallowed and begins its digestion process. This stage involves the hyo-lingual musculoskeletal system and the sense organs. The salient point is that behavioral sequences and behaviors associated to foraging and feeding can be considered as performances, i.e., quantifiable measure of how well an organism performs an ecologically relevant task that is crucial for its fitness [25]. The measurability of these performances ensures the possibility of evaluating their inter- and intra-specific variations, and thus to better understand their evolvability.

3.2. Foraging

The two behavioral sequences involved in foraging each have variations corresponding to stereotyped behaviors that can be found in different species. Locomotion takes four different forms, in which birds move their legs to find food. The bird can walk continuously and regularly in the habitat to locate food particles. We call this locomotion behavior "continuously walking" and notice that it corresponds to the widely foraging strategy as described by Pianka [26]. It should be noticed that shorebirds using this behavior most often stop while capturing, transporting, and swallowing food particles, and only then resume walking. In a variant of this sequence, swimming shorebirds forage continuously in deep water, so we call this behavior “continuously swimming”. In the third strategy, motionless birds suddenly head towards a prey that they possibly catch. This “stop, run, stop” behavior is like the sit and wait strategy of Pianka [26]. Some shorebirds as the lapwing (Vanellus vanellus) or the little ringed plover (Thiornis dubius) using this stop, run, stop behavior sometimes wiggle one of their feet while standing still. By doing this, the birds entice prey buried in the substrate to come out of their holes, allowing to capture them. This foot trembling behavior is reputed to be practiced when preys are not very active [1,27]. Foot trembling entails a strong coordination between the appendicular postcranial musculo-skeletal system, the sensory organs, and the cranial and axial postcranial musculo-skeletal systems.

Capture is carried out using four different, very stereotypical behaviors. “Pecking” consists in capturing a food particle either at the surface of the substrate, either on plants, bare soil, mud, water or at the bottom of the water. Pecking is accomplished by a rapid spring of the head and the neck, directed towards the food particle (Figure 2). It can be repeated in case of capture failure. Species that practice pecking with their heads completely submerged such as the black-winged stilt (Himantopus himantopus) keep their eyes open underwater (Figure 3).

“Probing” is realized by the insertion of the beak into soft sediments (silt or mud). The depth to which the beak is sunk in the sediments is very variable, from the culmen to just its tip. Probing is usually done by repeated (almost) vertical pounding movements of the head and neck, which are interrupted when a food particle is detected (Figure 4).

Variants of probing exist in which the beak is repeatedly pushed obliquely forward into the substrate (Figure 5), which corresponds to the “ploughing” of oystercatchers (Haematopus ostralegus) [15]. The beak can also be or inserted rather vertically, but in a series of side-swiping movements (Figure 6). Depending on how deep the beak is inserted and the nature of the substrate, probing can occur with the head fully emerged or fully submerged. In this last case, in most species the eyes are closed during the whole probing process and open when the bird moves the head and the prey out of water. The only exceptions in our data set are the oystercatcher (Haematopus ostralegus), which always keeps the eyes open, and the snipes (Gallingo gallinago and Lymnocryptes minimus) that only close their eyes when they are fully submersed. The opening of the beak during probing is variable.

“Sweeping” corresponds to capture of food particles by rapidly turning the neck and head from right to left and vice versa with the beak held in the water (Figure 7). During these scything movements, the food particles are retained in the space between the upper mandible and the lower mandible while most of the water is allowed to run off freely. The head can be fully emerged or fully submersed, with all intermediaries possible.

In our view and in contrast to other works [13], sweeping differs from lateral probing by the fact that the beak of the sweeping bird searches in open water or on the surface of the substrate, and does not sink into the substrate. In avocets (Recuvirostra avosetta), eyes are closed if the head is submersed during sweeping (Figure 8).

“Routing” is a behavior in which birds moving continuously from side to side suddenly stop to search for food by turning with their beak stones, shells, or kelps littering on an emerged substrate. Routing behavior involves rapid and powerful movements of both rotation and elongation - retraction of the neck and head, as well as beak lifts and tractions. Food particles unearthed in this way are then captured by pecking.

3.3. Feeding

Handling, the first behavioral sequence involved in the feeding stage, consists in behaviors that are generally less stereotyped, probably because they are pretty dependent on the context (i.e., size, shape, and possibly defense of food particles) and on the condition of the birds, particularly their experience. The final stage of this handling stage is to have a food particle that can be transported into the beak to the pharynx. Birds must therefore find idiosyncratic solutions to the various situations they face, ranging from killing and shredding bulky prey, eliminating potentially injurious parts, or removing indigestible extraneous bodies. Oystercatchers (Haematopus spp.) are rather exceptions: they have two main stereotypical handling behaviors to open the bivalves they preferentially feed on, associated with differences in beak morphology [15]. In oystercatchers, “Stabbing” involves the rapid section of shell retractor muscles when the bird finds a slightly open bivalve (Figure 10), whereas “Hammering” is a behavior in which birds pound bivalves with their beak on a hard substrate to destroy the shell and extract the flesh. Oystercatchers, and some other species sometimes move the prey they have caught several meters or more. It is then a question of finding a substrate which is suitable for handling, hard to be able to effectively hammer a bivalve, wet to moisten food particles, or on the contrary dry to effectively shred preys. It may also involve leaving an immediate socially threatening environment (theft of food by conspecific or heterospecific individuals).

Transport sequences (the transfer of food particles from the tip of the beak to the pharynx) can be achieved in three different ways. In “ballistic transport”, a backward linear movement of the head or a backward rotation of the head launches the food particle from the tip of the bill towards its distal extremity and induce a straight-draw transport, or a parabolic trajectory, respectively. These movements can be repeated until the food particle encounters the tongue, and from this time onwards lingual transport leads the prey to the pharynx (Figure 11).

In “surface tension transport”, small food particles are enclosed within a drop of water that progressively advances along the beak. The movement of the drop is induced by successive openings and closings of the beak, until the drop encounters the tongue (Figure 12). The tongue then controls the transport of the food particle, while the water is expelled in the form of either a drop or several droplets at the tip of the beak. Larger food particles glide along the lumen of the beak, aided by the lubricating properties of the water along the smooth walls of this tube, until the food particle encounters the tongue, which here again takes the control of the end of the transport.

In snipes probing with the beak vertically in the sediments, the progression of the prey along the long beak is facilitated by the adoption of a posture during which the bird takes its beak out of the water and places it at an angle approximately 45° relative to the surface (Figure 13).

“Lingual transport” is always the final stage of ballistic or surface tension transports, but it can also serve as a sole means of transport. The tongue then directly contacts the prey at the tip of the beak and brings it in the pharynx (Figure 14).

3.4. Swallowing

The swallowing stage is the end point of the food acquisition process that is characterized by the entrance of the food particle within the pharynx. Whereas the beginning of this stage is usually well defined, the detail of processing of food within the pharynx is difficult to study and to quantify in our observations. This is the reason why we do not consider here swallowing as a performance, i.e., a quantifiable measure of how well an organism performs an ecologically relevant task that is crucial for its fitness [25].

3.5. Phylogenetic relationships between our study species

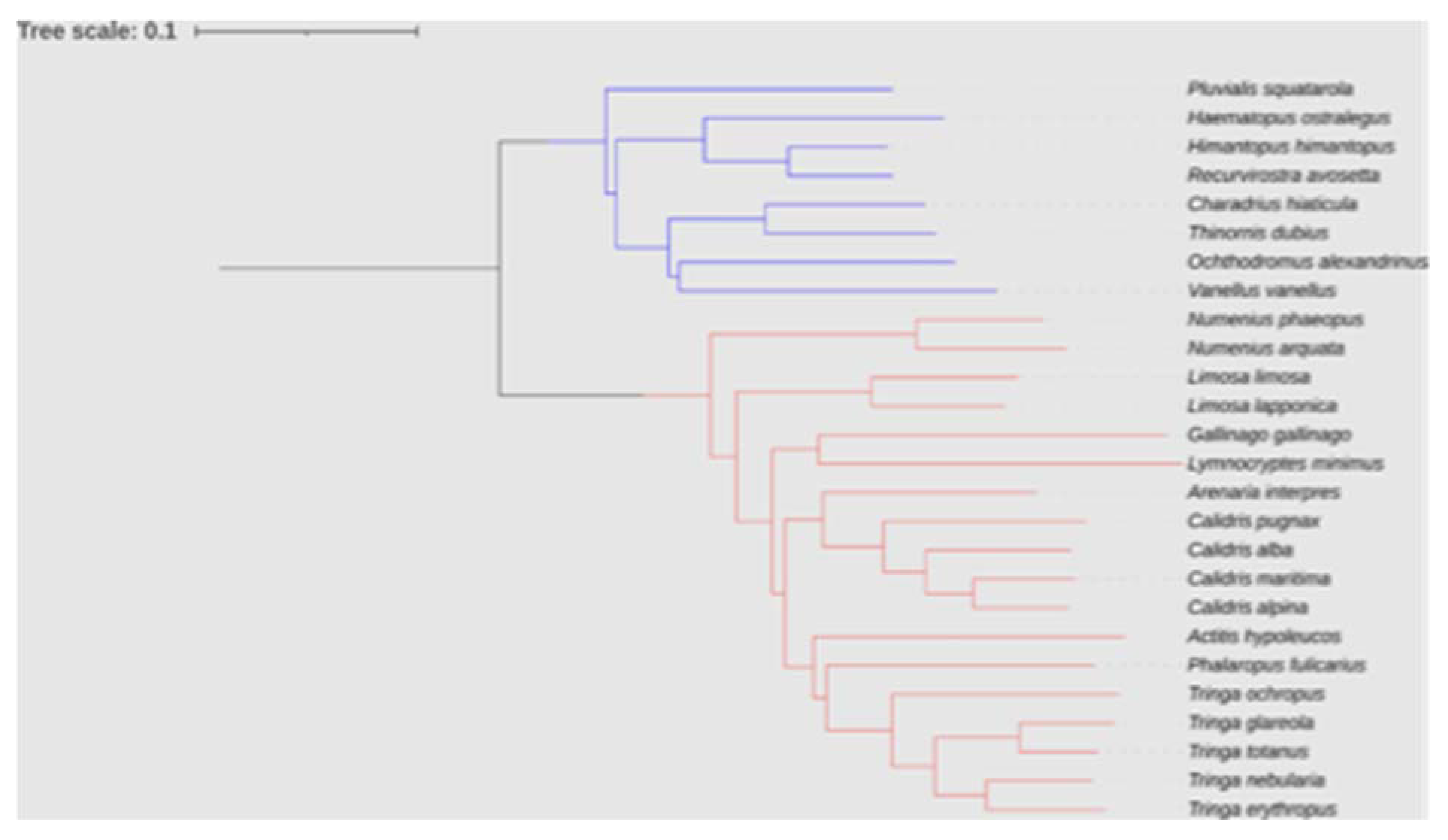

Figure 15 shows the phylogenetic relationships among our study 26 species, as inferred from the dated consensus tree [22]. Our dataset includes representatives of the two Charadriiforme suborders that make up the shorebird group. Oystercatcher, avocet and stilt, plover and lapwing are representative of the three families of the suborder Charadri, namely Haematopoidae, Recuvirostridae and Charadriidae. The suborder Scolopaci is only represented by members of the Scolopacidae family, the other family of this suborder (Jacanidae) having no representative in the western Palearctic. The diversity of the Scolopacidae family of the western Palearctic is however well sampled, with sandpipers, shanks, snipes, godwits and curlews.

3.4. Overview of the behavioral repertoire of Western Palearctic shorebirds

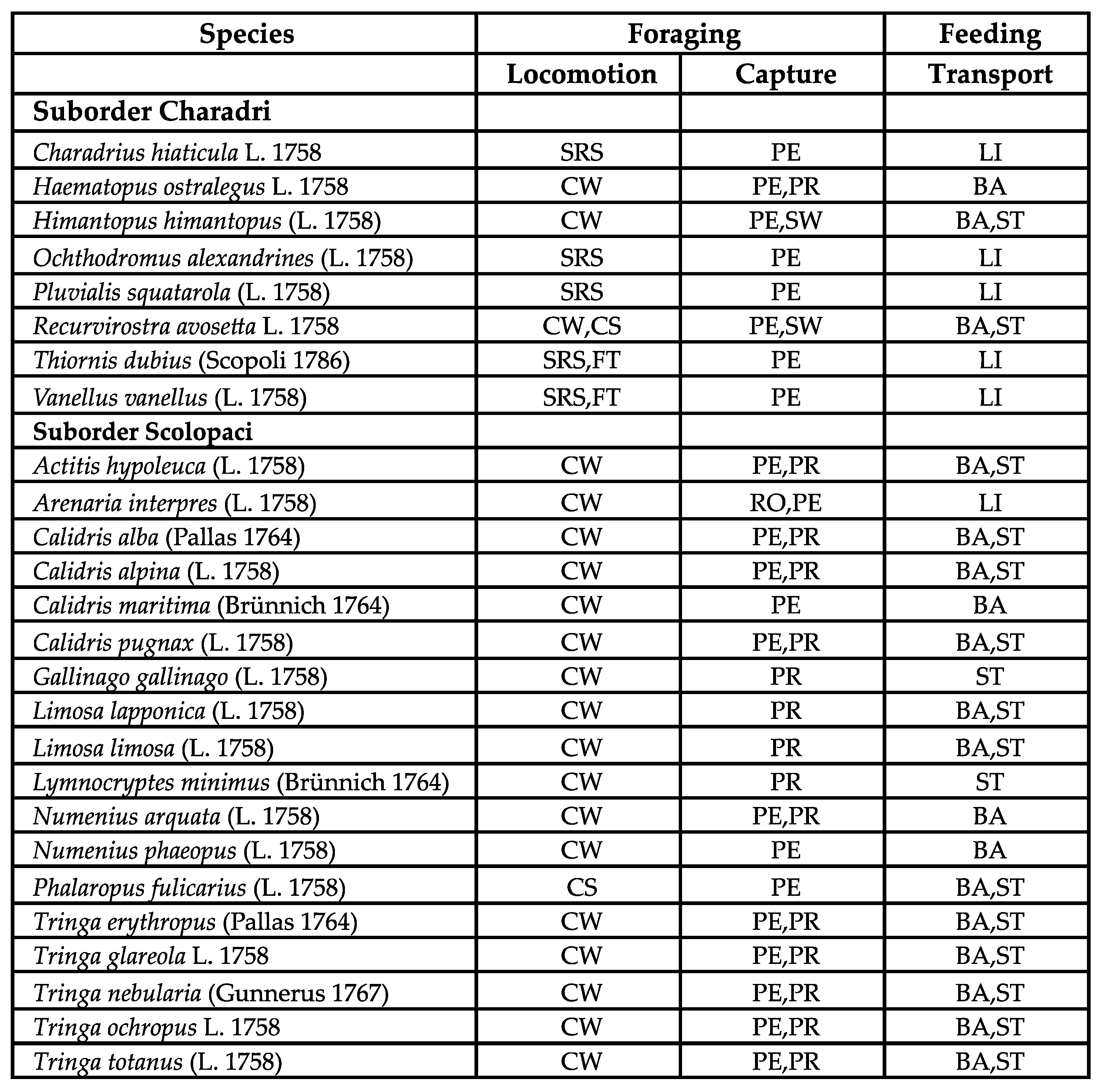

The stereotyped behaviors of food acquisition observed in our set of 26 shorebirds species are summarized in Table 1, and their associations in figure 16. Each species uses usually one, rarely two locomotion behaviors. Stop-run-stop is used by Charadri only, but not by all Charadri species, and the foot trembling behavior is always associated with it, but only in two species of our dataset (the little ringed plover Charadrius hiaticula and the lapwing Vanellus vanellus), as already noticed by Simmons [26] and Cramp & Simmons [1]. Continuous walking is the only locomotion behavior for species that use it, except for the avocet (Recuvirostra avosetta), which can also do continuous swimming. In our dataset, the red phalarope (Pahaloropus fulicarius) uses continuous swimming as the only locomotion behavior. These birds grasp their preys while swimming in shallow water, without their legs touching the ground. This mode of locomotion provides them with great maneuverability and allows them to feed at sea in the area where the waves are beating, where the ebb and flow causes their prey to move up and down in the water column. Pecking is the most frequently used capture behavior: it is recorded in 22 out of 26 species. In 13 species out of these 22, it is associated with another capture behavior (probing in 11 species, sweeping in 2 species, routing in 1 species). Probing is used by 15 species, as unique capture behavior in 4 species and in association with pecking in 11 species. Sweeping is only used by the avocet (Recuvirostra avosetta) and the black-winged stilt (Himantopus himantopus). The turnstone (Arenaria interpres) is the only species to use routing as a capture behavior. Ballistic transport is the most used transport behavior, by 18 out of 26 species. It is associated with the surface tension transport behavior in 14 species. Only two species use surface tension as their sole transport behavior, i.e., the common snipe (Gallinago gallinago) and the jacksnipe (Lymnocryptes minimus). Altogether, these results indicate species-specific preferences in the use of behaviors associated with the three performances mobilized by food acquisition in shorebirds.

Figure 16. The frequency and association of the stereotyped behaviors in the 26 studied species, represented as the numbers of species using pairs of transport-capture behaviors. SRS locomotion behavior is systematically associated with LI transport and PE capture behaviors, and present only in the basal clade of Charadri.

Figure 16. The frequency and association of the stereotyped behaviors in the 26 studied species, represented as the numbers of species using pairs of transport-capture behaviors. SRS locomotion behavior is systematically associated with LI transport and PE capture behaviors, and present only in the basal clade of Charadri.

4. Discussion

Our data set is restricted to shorebird species living in Western Palearctic. We sampled behaviors of 26 species, which represent the majority of shorebirds that breed, migrate and/or overwinter in this area. For most species, we monitored the behaviors of at least 10 adult individuals using video sequences during at least 1 minute each. Given the methodology used, including repeated observations in space and time, we have a good coverage of food acquisition behaviors for the studied species, although the attribution of one or the other behavior of our repertoire to a given species may be missing. In this sense, our repertoire is a first step towards a more complete final product. Besides, it is possible that our subset of shorebirds uses other behaviors than those that we present here. Literature data indeed indicate that some Calidris species graze on biofilm, i.e., a surface layer (~0.01–2 mm) of organic detritus, unicellulars, benthic invertebrates, and sediments bound together by extracellular polymeric substances secreted by diatoms and bacteria [28,29]. We did not have the opportunity to observe this behavior, although the dunlin (Calidris alpina), which is recorded in our dataset was observed practicing it in North America. This might be due to the fact that C. alpina is a polytypic species, with 10 subspecies described [30], and the individuals on which biofilm grazing behavior was observed belong to a subspecies (C. a. pacifica) [28] that differs from the subspecies which overwinters in the Western Palearctic. Finally, we do not pretend that we have recorded all possible behaviors used by shorebirds. Beside biofilm grazing, we can expect that species with extravagant bills like the aptly named spoon-billed sandpiper (Calidris pygmaea), which has a dorso-ventrally flattened beak, or the wrybill (Anarhynchus frontalis) with its thin elongate (for a plover) and especially right bended beak would use unusual behaviors to acquire food [31]. Moreover, the Tuamotu sandpiper (Prosobonia parvirostris), which is the only living representative of an almost extinct clade of South Pacific sandpipers, is reputed to be nectarivorous [31]. The surprising diet specialization of this insular bird suggests the use of particular behaviors of food acquisition.

4.1. Postcranial system and locomotor behavior

In all vertebrates [32], any foraging and feeding behaviors is the result of integrative motor actions of various skeletal and muscular systems (e.g., fixed-action-pattern sensu Tinbergen and Lorenz in the 1930th [33,34,35] or modal-action-pattern [36]). During the last decade, the functional integration between the cranial and postcranial muscular and skeletal systems for determining the characteristics of the foraging and feeding behaviors has been largely emphasized in a large diversity of vertebrates including aquatic birds [37,38,39]. But such integration has not yet been studied in Aves as shorebirds living at the limit of both aquatic and terrestrial environments, although food resources with highly different ecological, physiological, morphological and behavioral traits are available in various habitats (e.g., prey living at the water surface, on sediments, and within sediments at various depths). Heiss et al. [38] did not discussed the shorebirds in their exhaustive comparative analysis of Sauropsida because they primarily considered foraging and feeding behaviors targeting freely moving aquatic preys (e.g., filtration, skimming, suction, and ram feeding). Our data demonstrate that the foraging stage of food acquisition in all studied shorebirds relies on the combination of two motor patterns integrated with various sensory controls: locomotion and capture. The salient point is that during evolution successfully foraging strategies involve either coupled or decoupled postcranial and cranial motor patterns to achieve food capture. In our integrative approach to determine the foraging behaviors, we thus propose a major alternative method to the classification of Barbosa and Moreno [4] in which both patterns are mixed. Indeed, a strong difference was recorded in shorebirds that use three major locomotor behaviors: (i) stop-run-stop, (ii) continuous walking, and (iii) swimming. The stop-run-stop behavior is always associated with a visual detection of the prey and a pecking capture behavior (Figure 1). Birds using the continuous walking or swimming locomotion behavior can also detect their preys by sight, but they most often do not interrupt their walk or swim: the prey is picked up by the beak at the surface of the sediment or of the water while the bird remains in motion. Locomotion is thus interrupted in the first case, whereas it is a continuous process in the other cases. This is a key finding because it implies that birds using the stop-run-stop locomotion behavior decouple the appendicular postcranial musculoskeletal system involved in locomotion from the cranial and axial postcranial musculoskeletal systems involved in capture. This decoupling occurs in the basal clades of the sub-order Charadri (plovers, lapwing) in our data set that are considered as the most ancient shorebirds according to the dated phylogeny of Cerny & Natale [22]. On the contrary, in birds that use continuous locomotion behaviors (walking or swimming), there is no decoupling between the different musculoskeletal systems. It is interesting to notice that this absence of decoupling concerns all Scolopaci, but also those recent Charadri in our dataset (avocet, stilt, and oystercatcher) that use continuous walking or swimming locomotion behaviors.

4.2. Cranial system and food capture

Pecking is considered as the ancestral capture behavior in birds, from which probing and sweeping are derived by progressive modification of the beak length, shape, and internal structure according to the seminal works of Zweers and colleague [40,41,42,43]. All the five species of our data set that are in the basal clades of the sub-order Charadri (plovers, lapwing) according to the dated phylogeny of Cerny & Natale [22] indeed use pecking as the only capture behavior. The three species of Scolopaci using only pecking have each a particular feeding habitat or diet. Purple sandpipers (Calidris maritima) feed on preys that they peck from hard substrates on rocky coasts and breakwaters. Red phalaropes (Phalaropus fulicarius) capture invertebrates that they peck on the surface or in shallow water. Eurasian whimbrels (Numenius phaeopus) feed on crabs that they capture on sandy soils. These three species have in common that they capture their prey on sight, just like the five species belonging to the basal clades of Charadri. Another argument indicating that pecking behavior is indeed an ancestral character is provided by the ontogeny of foraging. Preliminary observations indicate that pulli of sandpipers, shanks, stilts and avocets use pecking exclusively to capture their prey, whereas adults mix pecking and either probing or sweeping capture behaviors. In oystercatchers and snipes, adults capture small preys and present them to pulli, which peck the prey at the tip of the adult’s beak.

As mentioned by Zweers and colleagues [40,41,42,43], the transition from pecking to other capture behaviors involves the use of touch sense. Mechanoreceptors located in the bill skin that convert pressures and vibrations into electric signals allow the location of prey by direct touch and even by remote touching [44,45]. In shorebirds, increased sensitivity is obtained by enlarging the dermal area available for mechanoreceptor positioning. Extra space is gained by a dermis invading the bone, in the form of depressions of the premaxilla and mandible [41]. The number of these depressions, also called sensory pits has been used by certain authors to try to quantify the more or less prober character of different species of shorebirds. But this approach seems unreliable, because (1) there seems to be a very large variation, at least geographically in the number of sensory pits for a given species, (2) there are currently no data on the density of mechanoreceptors in these depressions, and (3) it seems that in at least one case the depressions are present on the beak, but the mechanoreceptors are no longer active. In their classification of food acquisition behaviors, Barbosa & Moreno [4] used the work of Hoerschelmann [46] to infer the number of sensory pits located in the distal portions of maxillae and mandibles of several shorebird species. However, the number of sensory pits reported by Hoerschelmann [46] on shorebirds probably collected in Germany differs considerably from those figured in Bolze [47] or more recently published by Lin [48] on shorebirds from Australia and New Zealand. Lin’s Master’s thesis presents the number of sensory pits of 14 shorebird species corroborated by photographs of beak skeleton with the sensory pits located there, for the ruddy turnstone (Arenaria interpres), the common greenshank (Tringa nebularia) and the bar tailed godwit (Limosa lapponica). In all cases the number of pits is much higher than those mentioned by Hoerschelmann [46] for the same species. At this stage it is not possible to determine whether this difference comes from a different geographical origin of the birds, from a possible temporal variation, or from differences in the definition of sensory pits. We therefore think that it is better to establish a standardized measurement methodology before using the number of sensory pits as indicators of a bird’s tendency to efficiently practice probing behavior.

To be rigorous, however, it will be necessary to investigate which types of mechanoreceptors are present in the pits, and what are their respective densities. Four distinct morphological types of mechanoreceptors are ordered according to size and complexity: free nerve endings, Merkel cells (often arranged into Merkel corpuscles), Grandry corpuscles, and Herbst corpuscles. All are involved with different facets of mechanoreception: the majority is rapidly adapting, while Merkel cells detect amplitude, Grandry corpuscles velocity and Herbst corpuscles acceleration components in mechanical stimuli [41,49]. Accordingly, the identification and the quantification of the mechanoreceptors in the pits are keys to assess the species-specific efficiency of probing behavior. The presence of numerous sensory pits on the beak of the ruddy turnstone (Arenaria interpres) is intriguing as birds belonging to this species do not use probing as a capture behavior. This particularity encourages Carla du Toit [50] to consider these sensory pits as a plesiomorphic character in this species. Turnstones would have lost the use of touch but kept the corresponding beak structure. This potential loss of function of the touch organ would have occurred relatively recently ([22], and further investigations of A. interpres could be carried out to check if these birds lack the hypertrophy in the regions of the brain associated with the processing of tactile information from the beak.

Many species (11) in our data set use a mixed pecking-probing strategy, which means shifting from sight to touch organ for prey detection. Eye closure seems a good indicator of the preeminent use of touch sense over visual stimuli. All species using probing behaviors close their eyes even before eye submersion, with the exception of snipes (Gallinago gallinago and Lymnocryptes minimus) that close their eyes at submersion, and the oystercatcher (Haematopus ostralegus) that keeps its eyes open underwater. Careful examination of the transport stage indicates that in species using ballistic transport, individuals close their eyes when the prey encounters the tongue at the end of the transport process (Figure 11C,D). We suggest that at this time the touch stimuli become super important so that the prey is oriented in a good way to enter the pharynx. At this point, all of the bird’s attention would be focused on the stimuli coming from the mechanoreceptors, causing the eyes to be "turned off."

The use of visual vs. touch stimuli during capture in shorebirds can look somewhat controversial. It is clear that many probing individuals do not randomly probe the substrate, but rather use visual stimuli to guide their research during foraging in such a way that their locomotion behavior is oriented. Many visual cues are left by buried preys on the surface of the substrate e.g., on mudflats (see [44] for excellent illustrations), and oystercatchers (Haematopus ostralegus) for instance are experts in their use and will probe by digging with their beak around these cues [15]. However, locomotion and capture are clearly two distinct facets of foraging, so here we consider that the sensory organ that guides the prey capture is the very last one used by the bird before its beak closes on the prey. The recent work of Ersoy et al. [51]on a wintering population of red knots (Calidris canutus) very convincingly demonstrates that there is intraspecific variation in a personality trait, namely a bimodal distribution of individuals’ ability to explore their environment. The exploration abilities of a sample of individuals were scored in an experimental setting and both their food acquisition behavior and their diet were monitored by video recording and stable isotope analyses of droppings, respectively. Scores of slow and fast explorer individuals were shown to remain consistent over time. Results show that slow explorers fed mainly on deeply buried prey that they detect by random probing, whereas fast explorers fed on preys caught near the substrate surface that they detected by probing near visible cues of prey presence. There is thus a difference in the probing behavior, either random or guided by sight. However, the examination of the capture phase on the videos published by Ersoy et al. [51] indeed confirms that both slow and fast explorers caught their preys by probing.

4.3. Food handling and transport

Prey handling and transport follow prey capture. As previously mentioned, handling is an extremely plastic behavior that depends both on the environmental and social context, and on the condition of each individual (e.g., age, personality, sex). Accordingly, we believe that this behavior is not only very difficult to categorize, but it remains difficult to quantify, which therefore means that it cannot be divided in standardized performances (sensu Irshick & Higham [25]). However, we think that it is perhaps possible to find invariants as to the maximum size of piece of prey that constitutes a mouthful for an individual, or as to the maximum time that it will invest in attempts to cut pieces (e.g., appendices of crabs) or to access soft consumable flesh (e.g., mollusks). Finding these invariants requires accumulating more precise data than we currently have. It would of course be necessary here to rely on the many very interesting studies which demonstrate the usefulness of Optimal Foraging Theory in understanding the choices made by individuals depending on the environmental context (energy intake and density of prey, presence of potential competitors) and their condition (sex, age, physical condition) (see e.g., [44] for a clever introductory review to this topic).

Immediately after prey capture, a successful individual may encounter attempts at kleptoparasitism, both by conspecifics and heterospecifics. We did not measure the frequency of occurrence of these behaviors, which seem rather infrequent. However, it would be interesting to measure their success rates, and to see to what extent they generate an intra- and interspecific hierarchy. During kleptoparasitism attempts, individuals move with their prey in their beaks to escape their competitors. Such movements are also observed when birds search for a particular substrate. It can be a hard substrate for shredding the prey, like oystercatchers looking for “anvils”, i.e., hard rocks to hammer mussels [15]. It may also be a search for water, perhaps to wash the prey as is often indicated in the literature, but more likely to take advantage of a lubricant that facilitates the transport of the prey from the tip of the beak to the pharynx [2] by surface tension [16,17,19,20]. This use of water as lubricant during transport seems however not restricted to small preys enclosed in a drop of water but may also occur with larger preys – this point deserves further investigation. Another black box at this point is the use of the tongue during transport.

Here we demonstrated that shorebirds use three major prey transport: (i) lingual feeding, (ii) surface tension, and (iii) ballistic transport. This is the first time that this last transport mechanism is recorded in shorebirds although a lot of pictures in the literature clearly demonstrate this feeding pattern primarily determined in birds exploiting fruits and large invertebrate and vertebrate prey [52]. The prey is freely moved between the upper and lower beaks by one or several transport cycles regardless their size, volume and mass. The prey is generally brought to the tongue, and as soon as contacts with the tongue occurs it is moved toward the pharynx by lingual cycles. Despite a large diversity of shapes [2], the tongue plays a key role in food transport either being the only one involved during lingual transport, or at the final phase of ballistic transport and also surface tension [54]. Surface tension and capillarity have been determined a one specialized mechanism relatively widespread in a lot of shorebirds exploiting small prey at the surface of the water and captured in water and humid sediments [16,17,19,20]. Alternatively, some species (e.g. Phalaropus sp.) are able to use ballistic transport for large food items (see supplementary Material in Bels et al. [21] For those species that use ballistics or surface tension, it should be noted that the length of their tongue is less or even much less than the size of the beak [2], as if the elongation of the beak had occurred in a decoupled manner, independent of tongue size and shape, forcing these birds to either “invent” a novel transport behaviors or use one of ancestral prey transports involving (i) ballistic transport and (ii) lingual transport. This suggests an adaptive functional response to the properties of the prey. However, two major properties limit the use of surface tension and capillarity: (i) size/volume of the prey, and (ii) the need to evacuate the water used as lubricant, in the form of drops or droplets that are ejected as soon as the lingual prey transport occurs. Water ejection seems based on gravitational mechanism, and either falls on the substrate or is mixed with water as soon as the bird enters again the beak in water for the next pecking/probing event. For those species using surface tension transport, and especially snipes, to what extent the tongue could act as a piston generating a pump effect remains to be determined.

5. Conclusions

Careful examination of Table 1 and Figure 16 indicates the existence of behavioral syndromes of food acquisition in shorebirds. There are indeed covariations between the three behaviors that can be associated with performances sensu Irshick & Higham [25], i.e., locomotion, capture and transport, and there is support for some phylogenetic origin for these syndromes. All the species using a stop-run-stop locomotion behavior (5) use pecking as capture behavior and use lingual transport. These species are all belonging to the Charadri suborder, and to the Charadriidae family, which seems a basal clade according to the time-dated phylogeny of Cerny and Natale [22]. The three remaining Charadri species of our data set use continuous walking as locomotion behavior. The two of them that are the only ones in our dataset to use sweeping as capture behavior are the two representatives of the Recuvirostridae family, which have the most recent origin according to the time-dated phylogeny of Cerny and Natale [22]. All species members of the Scolopaci suborder using a mixed capture strategy combining pecking and probing (10) move using continuous walking as locomotion behavior, and all but one (Numenius arquata) use a mixed transport strategy combining ballistic and surface tension transport behaviors. The snipes that are the two species using exclusively probing as capture behavior are also the two species using exclusively surface tension as transport behavior.

Documenting such patterns of covariation among behaviors belonging to the different stages of food acquisition offers a key framework to understand the evolution of shorebirds. The huge variation in morphological structures associated with food acquisition among shorebird species, especially beak length and shape does not translate into a huge variety of behaviors. Besides, this variation in morphological structures (beak and legs) occur similarly in recent Charadri and in Scolopaci that share locomotion, capture and transport behaviors. The existence of behavioral syndromes involving a small number of behaviors we highlight here provides evidence of differences between the evolution speed of morphological structures and behaviors involved in food acquisition. It is as if rapid evolution could occur on some morphological structures like the beak or the legs that are obviously the key innovations of shorebird adaptive radiation, while the evolution of neuro-sensory, hormonal, and muscular circuits involved in behaviors, and of other morphological structures like the tongue, was much more constrained, and therefore slower. This point might be elucidated by (1) collecting morphological and behavioral data on a larger sample of species and (2) performing in-depth quantitative comparisons of morphological structures in a phylogenetic context.
