Analyzing Convolutional Neural Network Performance on an Edge TPU with a Focus on Transfer Learning Adjustments

1. Background and Related Work

In the following sections, we discuss the relevant background on neural network architectures and tensor processing units. We also highlight related work.

1.1. Deep Neural Networks

Deep neural networks offer promise as flexible, nearly "off-the-shelf" solutions to machine learning problems that can perform adequately even for non-expert users or those who lack significant technical domain knowledge. [18,19]. By using deep neural networks, less experienced practitioners can apply machine learning to their domain-specific problem. Common deep neural network structures include fully connected neural networks and convolutional neural networks.

Neural networks (a.k.a. artificial neural networks) are a type of machine learning model inspired by the biological neurons in the human brain [20]. They comprise multiple layers of interconnected nodes, known as neurons, that work together to process information and make predictions. In a feed-forward neural network, information flows in one direction, from the input layer through one or more hidden layers, to the output layer. In a fully connected feed-forward neural network, each neuron in a layer receives input from all of the neurons in the previous layer, performs a calculation using weights and biases, and then passes the result to the neurons in the next layer. By adjusting the weights and biases of the neurons, the network can learn to recognize patterns in data and make accurate predictions. Fully connected neural networks have been successfully applied to a wide range of tasks, including image recognition, speech recognition, and natural language processing.

Convolutional neural networks (CNNs) are a type of deep (i.e., large number of layers) neural network model that excels in image processing tasks [21], among others. The name convolutional comes from the use of convolutional kernels. A kernel is feature map that represents each node in a given layer as its weighted inputs from the same number and arrangement of neurons in the previous layer. In other words, the inputs to each node differ only by the shifting of a common weight vector (and bias term) at the previous layer. CNNs were inspired by the way the visual cortex in the brain processes visual information. A typical CNN consists of multiple layers of interconnected neurons, including convolutional layers, pooling layers, and fully connected layers. For an image processing CNN, in a convolutional layer, a set of filters is applied to the input image, the effect of which is to extract features such as edges and textures. The output of the convolutional layer can then be passed through a pooling layer to reduce the dimensionality of the features and make the model more efficient. Finally, the output of the pooling layer is typically fed into one or more fully connected layers, which perform classification or regression on the extracted features. CNNs have been shown to be very effective at a variety of image processing tasks, including object recognition, face detection, and image segmentation. They have also been applied in other domains such as natural language processing and speech recognition.

Transfer learning is a technique used in machine learning where a pre-trained model is used as a starting point for a new task [17]. Instead of training a model from scratch, which can be computationally expensive and require large amounts of labeled data, a pre-trained model is fine-tuned to the new task by updating its weights and biases using a smaller dataset. The intuition behind transfer learning is that the features learned by the pre-trained model on a large dataset are likely to be useful for a new, related task, even if the input datasets are not identical in nature. Transfer learning has been successfully applied in a wide range of domains, including computer vision, natural language processing, and speech recognition. It is particularly useful when there is limited labeled data available for the new task or when training from scratch would take too long. Transfer learning is commonly performed by replacing the input and output layers of the pre-trained model with layers that fit the target problem. Small changes may also be made to the existing model in an attempt to improve accuracy on the target problem.

1.2. Tensor Processing

Tensor Processing Units are domain-specific hardware specifically designed for neural networks, with extensive optimization for matrix multiplication [5,6,7,12,14]. For this reason, they often outperform CPU and GPU architectures in speed while minimizing power consumption. When compared against the Haswell CPU and NVIDIA K80 GPU, for example, the TPU used the lowest power per die but had the highest energy per area, while the CPU, although it had the highest power usage, had the best energy proportionality. The TPU had a 14-16 times better performance per watt than the NVIDIA K80 GPU and 17-34 times better than the Haswell CPU [7]. Furthermore, algorithms have been proposed to utilize the embedded processor with lower voltage and frequency without compromising runtime performance [12].

To perform inferences using neural networks, the primary task of the Edge TPU is matrix processing. Therefore, the chip design features thousands of multiply-accumulate units in a so-called systolic array [1]. In contrast, a CPU, even with vector instructions, can only execute a small number of add or multiply instructions per cycle. For convolutional neural networks, which generally require a large number of multiply-adds per inference, the TPU architecture greatly accelerates the computation.

The Coral Edge TPU provides on-device, low-power hardware for AI applications that can perform around four trillion operations per second using 0.5 W for each tera-operation per second [6,14]. Benchmarking tests of the Coral Dev board on various model architectures show that the on-board TPU inference time far outperforms its CPU counterpart by a magnitude of at least 5 times, ranging up to 100 times faster for certain network models [6,10].

Given the high interest in edge machine learning, prior work has studied the performance of edge tensor processors. In [14], the authors evaluate the performance of convolutional networks from the NASBench-101 benchmark suite on three Edge tensor processors with the goal of training a performance and energy model for exploring new tensor processor architectures. In a similar study [35], the authors evaluate fully-connected and convolutional neural networks on an edge TPU. DeepEdgeBench [10] evaluates five edge processors on the MobileNtV2 benchmark. Prior work has also evaluated the performance of edge tensor processors in the context of specific applications, including network intrusion detection [36], animal activity classification [34], and object classification [37]. Our work differs from prior studies by generating modified network models based on real-world examples and evaluating transfer learning techniques.

2. Methodology

We measured the runtime performance and the energy usage of the Coral Edge TPU for various deep neural network architectures. We compared the runtime performance of the Coral Edge TPU to the mobile CPU included with the Coral development board. The specifications of these devices can be found in Table 1.

For runtime performance measurements, we recorded the runtime of the interpreter.invoke() method from the tflite Python library using Python’s time.perf_counter_ns() method. This performance measurement captures the runtime performance of an inference using the machine learning model. For all experiments, we recorded the runtime of 10,000 inferences, and we report the average runtime for a single inference in each graph.

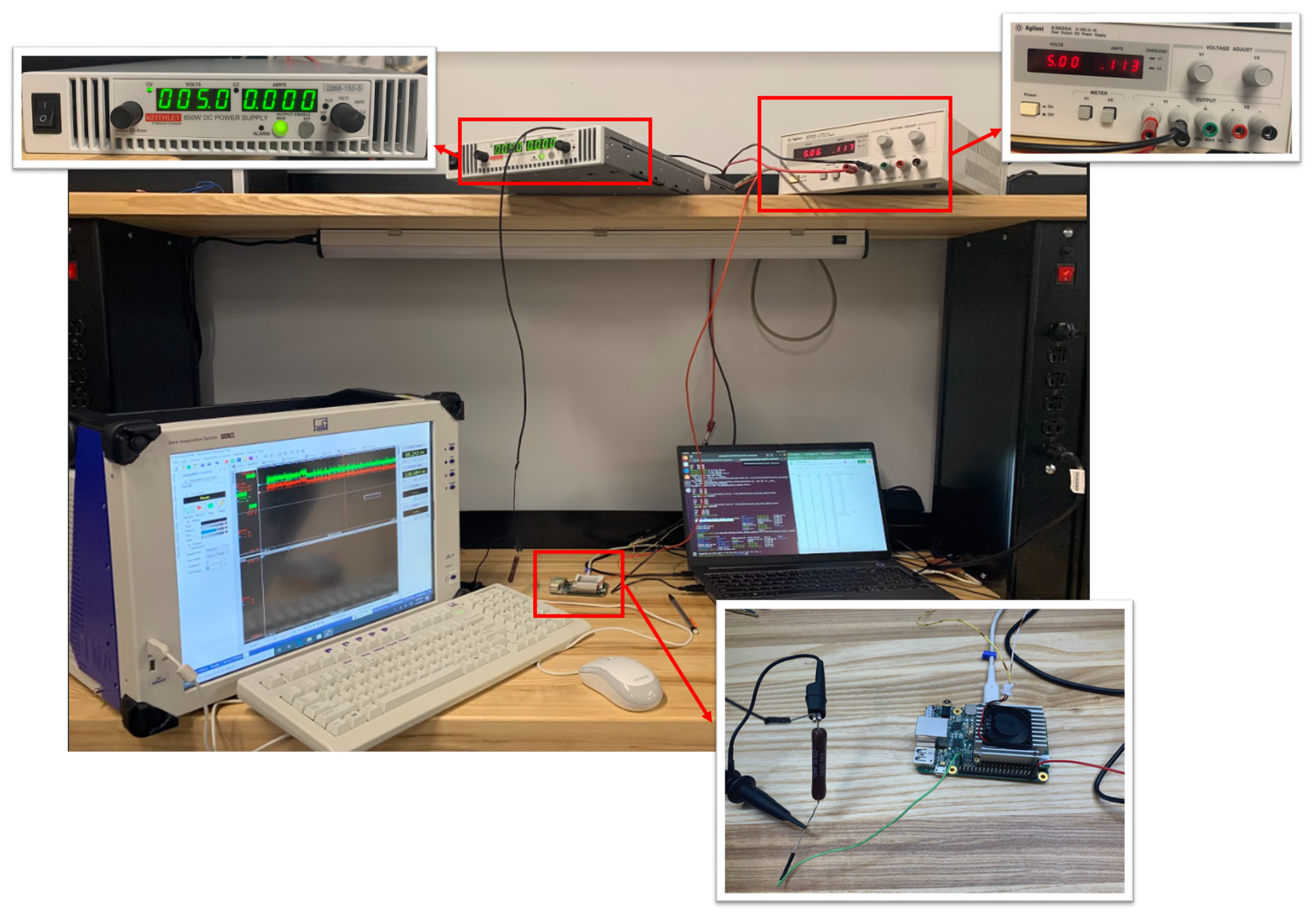

For energy measurements, we powered the Coral development board with a 5V, 3A power supply. We connected the ground pin via a 0.1 ohm resistor to a Gen7i data acquisition system that includes a high-resolution oscilloscope (as seen in Figure 1). The data acquisition system measured the voltage across the resistor at a sampling rate of 100 kHz. The data acquisition system begins taking samples based on a trigger from a GPIO pin on the development board that is set to high just prior to invoking the inference. The GPIO pin is set to low as soon as the inference ends. The energy required to complete an inference, E, is then computed as in (1), where $v_S$ is the supply voltage, R is the resistance, $v_R$ is the voltage across the resistor, $f_s$ is the sampling rate, and K is the duration, in samples, required to complete the inference.

$$E=\sum _{k=1}^K(v_S{v}_R\left[k\right]-v_R^2\left[k\right])\frac{1/f_s}{R}$$

(1)

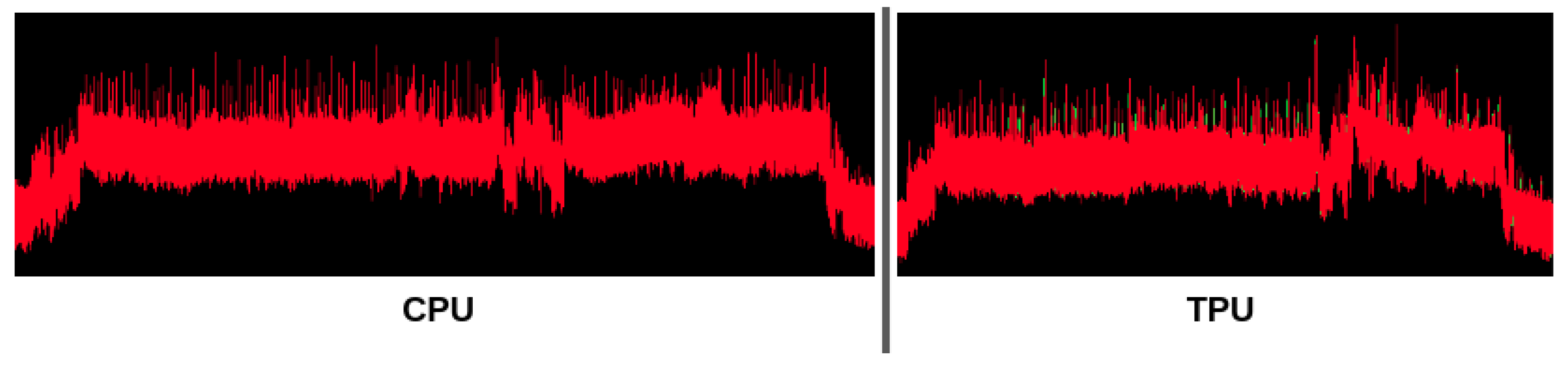

Figure 2 shows sample voltage traces for the CPU and TPU on the MobileNet1.0 convolutional neural network. These traces are processed using a Matlab script that outputs the total energy (J) recorded during the inference.

2.1. Convolutional Neural Networks

For baseline experiments on convolutional neural networks, we started with a set of CNN models, described in Table 2, built for the edge TPU [16]. These models use deep neural networks to assist in image classification, object detection, and semantic segmentation. Many of these models are modified versions of the same base models: EfficientNet, Inception, and MobileNet.

Table 2 provides metrics that give insight into the performance impact of performing an inference with these neural networks. GFLOP shows the total number of floating point operations required to execute the model. GFLOP indicates how much total work must be performed by a processor to perform an inference, from input to output, with each model. We calculated the floating-point operations per model by executing the model, profiling the runtime per layer, and multiplying the runtime by the floating-point operations per second for the processor. GFLOP is not a perfect analog of the total runtime required to perform an inference with each model because, as shown in Figure 3, models differ in terms of how many layers can be executed in parallel throughout the model. For example, the MobileNet1.0 computes an inference using a serial chain of layers, while the InceptionV1 model computes an inference using multiple layers in parallel. These parallel layers may use different filters to extract different characteristics from the input data. The amount of parallel work in a model also depends on the sizes of the inputs, filters, and other parameters for each layer. For their Cloud TPUs, Google recommends tiling data into 128x8 chunks [3]. If the computation does not exactly fit that chunk size, the compiler will pad the tensors to match. This can lead to increases in the amount of memory required to store a tensor.

The Layers column shows the total number of high-level Tensorflow operations performed by each model, and the % Parallel Layers column shows the number of these operations, or layers, that can be executed in parallel. We calculated the number of Parallel Layers by traversing the graph and counting the steps required to execute the entire graph under the assumption that if the inputs to a layer were ready, the layer could be executed. We note that this calculation assumes an infinitely large matrix multiplication unit that can fit the entire calculations required for multiple layers concurrently. For example, in Figure 3, the InceptionV1 model could execute as follows. First, the MaxPool2D layer executes. Once the MaxPool2D layer finishes, the next three Conv2D operations and the next MaxPool2D operation can execute in parallel using the output from the first MaxPool2D layer. At this point, the output from the leftmost chain is ready for the Concatenation operation, but the rest of its inputs are not ready, so it must wait. The three remaining Conv2D operations can execute, and, finally, the Concatenation operation can execute once all of its inputs are ready. In total, the 9 layers in this part of the model will execute in 4 steps. Therefore, we would calculate that this part of the model has $(9-4)/9=55.6\%$ Parallel Layers. In Table 2, we see that the total % Parallel Layers for InceptionV1 is slightly lower, at 53%, because other parts of the model have less parallel work available. We also note that speculative execution techniques may be able to exploit additional parallelism not considered by this calculation.

In combination, the Layers and % Parallel Layers columns indicate how deep or wide the baseline models are. A deeper model requires more serial steps to perform an inference. For example, MobileNet1.0 requires 31 steps, and EfficientDet320 requires $266\times .36\approx 96$ steps. Therefore, we would consider EfficientDet320 to be a deeper model than MobileNet1.0. A wider model performs more work per step. This can be derived from both % Parallel Layers, which shows how many of the layers can be executed in parallel, and by dividing GFLOP by Layers to find, on average, how many floating-point operations are performed per layer. For example, DLV3MobileNet is wider than DLV3DM05MobileNet because it requires more floating-point operations for the same number of total layers, which indicates that the layers must perform more work. This difference is due to the use of 2x larger filters in DLV3MobileNet.

Overall, the baseline models that we examined cover a variety of input and output sizes, total number of floating-point operations required to perform an inference, and model architectures in terms of serial versus parallel work. As a reference point, we also provide these metrics for a fully-connected feed-forward neural network with 240 layers and 810 nodes per layer (FNN240L810N). In general, performing an inference with this feed-forward network requires fewer floating-point operations and has less parallel work available, compared to the CNN models.

2.2. Exploring Adjustments to CNN Models

We analyzed the structure of the CNN models to identify common modifications to produce different versions of the same model. In many cases, the baseline model features a repeated subgraph of convolution operations, as shown in Figure 4. Deeper versions of the model repeat this subgraph in order to extend the model. Wider versions of the model add convolution or other operations to the subgraph. Aside from additional convolutions, models may also add a fully-connected layer at the end of the CNN.

Starting with a subset of the CNN models, we generated deeper, wider, and otherwise modified versions of these CNN models to evaluate the performance impact of such modifications. For our experiments, we used the EfficientNetS, InceptionV1, and MobileNet1.0 models as a baseline.

2.2.1. Extracting the Baseline Models from Tensorflow Lite

To create deeper and wider CNNs for performance analysis, we first needed to extract the baseline models into a modifiable format because pre-existing Tensorflow Lite models, the model format required by the Edge TPU, are not easy to modify. In practice, a model designer will generate a Tensorflow Lite model from a Tensorflow model or by converting from another model format. We extract a modifiable model from the Tensorflow Lite model in two steps. First, we run Analyzer.analyze from the Tensorflow Lite Python library to extract the model architecture. This tool provides both the order and types of layers in the model and the input and output tensor sizes for each layer. However, this tool does not provide all of the required information to reproduce the model, including the filter sizes and strides. Next, we run flatc, which is the FlatBuffer compiler, to produce a json file with specific model parameters, including filters and strides. We combine these two sources of information in a Python script that generates a new model using Keras to match the input Tensorflow Lite model. For each extracted model, we verified that the extracted model’s performance and energy characteristics match the original model.

2.2.2. Generating Deeper Models

Once we had the extracted model, we created deeper models by identifying the main repeated subgraph within the original model and further repeating that subgraph. We created shallower models by removing repetitions of the subgraph. In practice, both the shallow and deep versions of each model were created in a single run of our Python script that removed all of the repeated subgraphs from the original model and then re-added one subgraph at a time to generate models with zero to N repeated subgraphs.

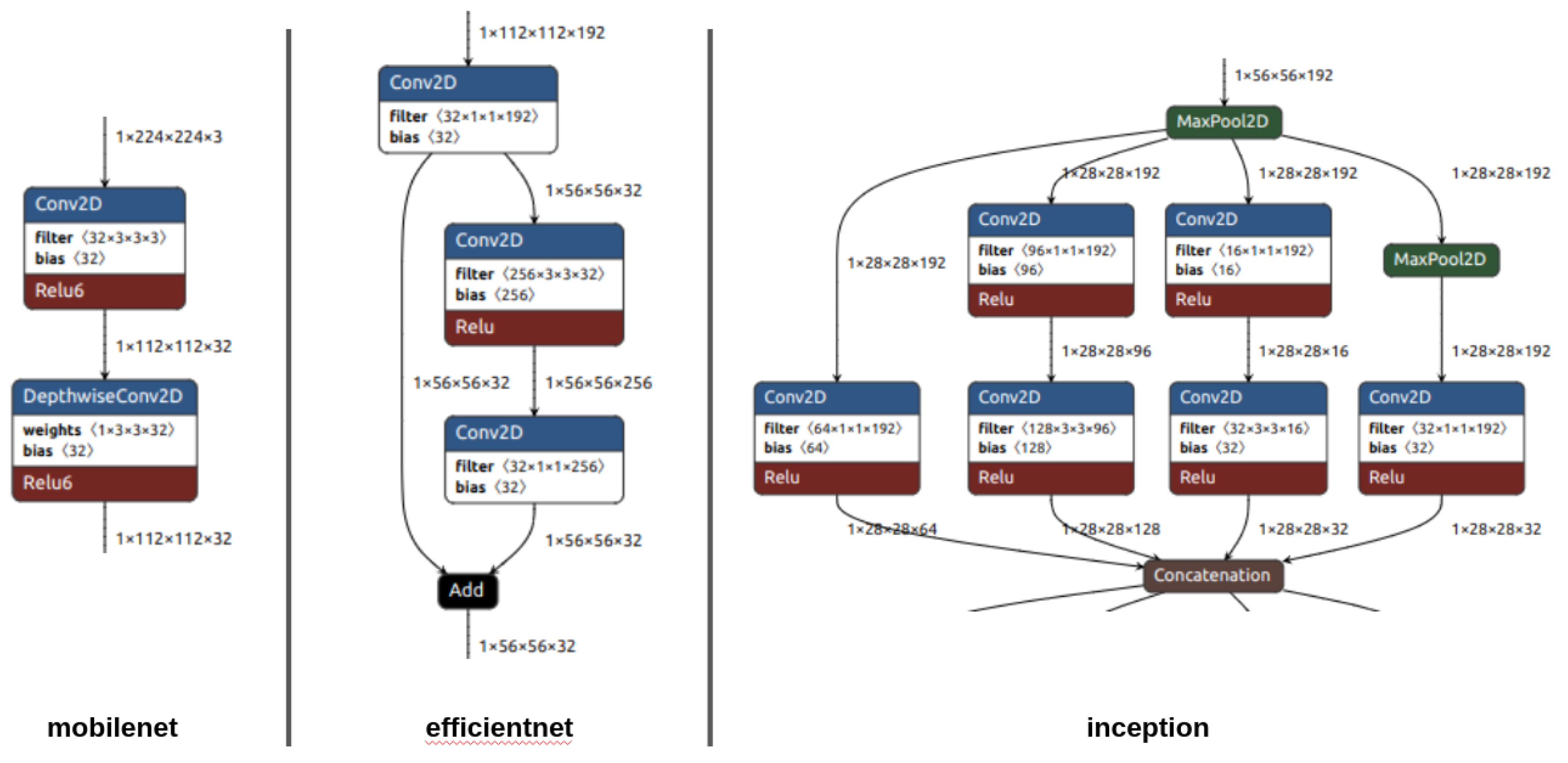

To create shallower and deeper versions of these models, we used the subgraphs shown in Figure 3. In EfficientNetS, the main subgraph is a 2D convolution that is added to the result two further 2D convolutions. The main subgraph in IncepionV1 performs parallel 2D convolutions with different filter sizes. In one of the parallel branches, a 2D max pooling operation is performed. For MobileNet1.0, the main subgraph is a 2D convolution followed by a depthwise 2D convolution.

2.2.3. Generating Wider Models

We explored multiple avenues for generating wider models from the baseline CNNs by both increasing the number of layers that could be executed in parallel and increasing the total amount of work per layer.

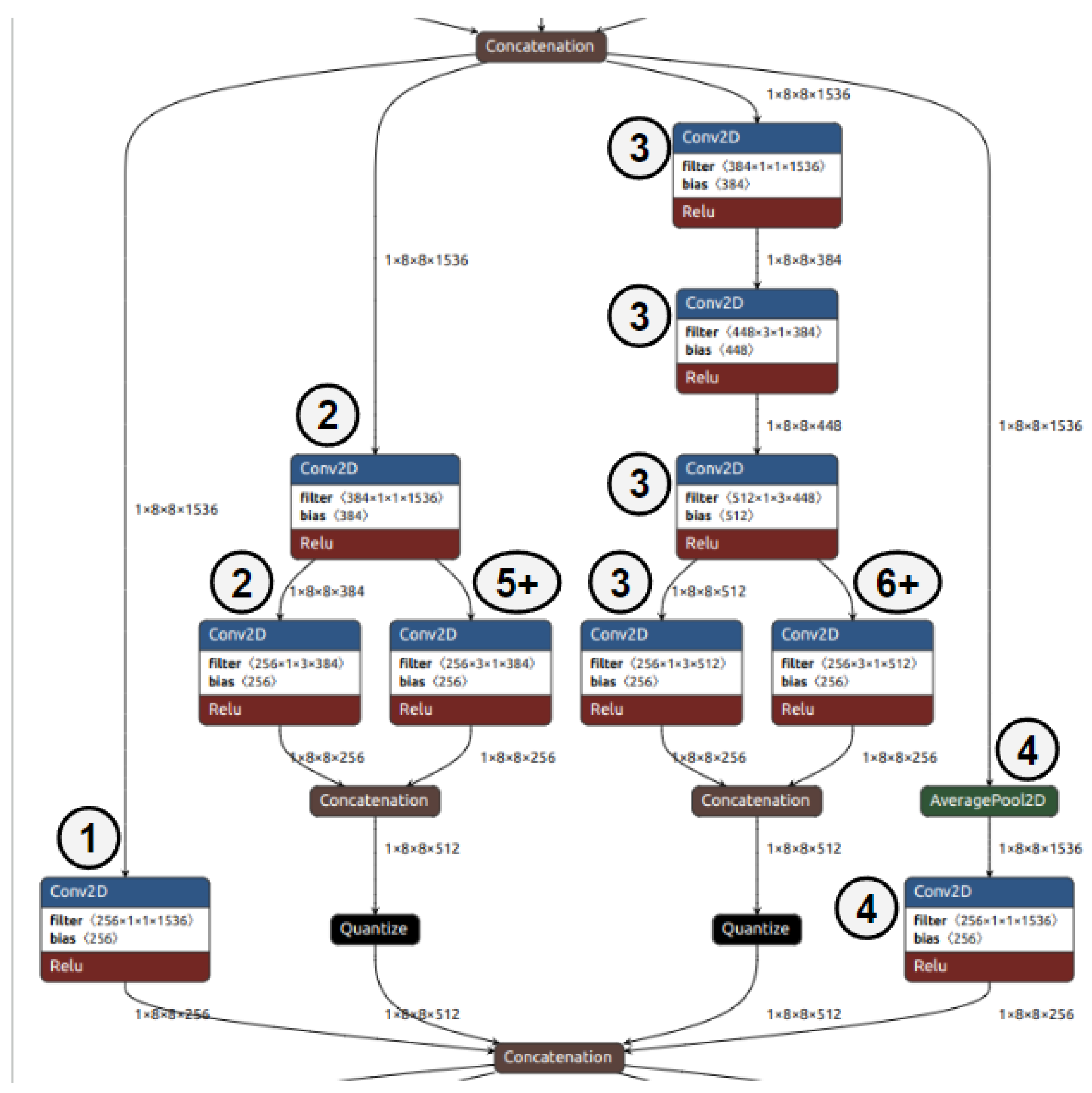

To increase the number of layers, we drew inspiration from the evolution of the Inception model from InceptionV1 to InceptionV4. Figure 4 shows the main subgraph of InceptionV4. InceptionV1, InceptionV2, and InceptionV3 all use portions of this subgraph. Each layer in the subgraph attempts to derive additional information from the data by using different bias and filter sizes.

For experiments on increasing the number of parallel layers, we created wide versions of the EfficientNetS and MobileNet1.0 models because these models have 0% parallel layers in the original model. We did not expand the other baseline model from previous experiments (InceptionV1) using this methodology because it already has multiple parallel layers. We expanded existing 2D convolution layers in the numerical order shown in Figure 4. To further explain, the baseline version of the model only had the original 2D convolution (1). The first expansion of the layer adds two 2D convolutions in parallel with the original 2D convolution (2). The second expansion adds a chain of four 2D convolutions in parallel (3). The third expansion adds an average pooling operation followed by a 2D convolution (4). Finally, additional expansions add parallel layers in the two middle subgraphs (5+ and 6+).

We also examined the performance impacts of increasing the total amount of work per layer by expanding the dimensions of the 2D convolutions throughout the baseline models. We attempted to align these experiments with common transfer learning techniques. First, we widened the model at two points: after the input layer and before the output layer. We also performed an experiment with wider layers at both the input and output layers. Second, we scaled up the width of the entire model. We performed these experiments on all three of the baseline models (EfficientNetS, MobileNet1.0, and InceptionV1).

3. Experimental Results

We performed a number of experiments in order to analyze the runtime performance and energy usage of the CPU and TPU on convolutional neural networks. We first examine the runtime and energy performance of the baseline CNNs on the CPU and TPU and characterize the performance based on the structure of the network. We then examine the performance impact of modifications to a set of CNNs that might be applied to a model as part of the process of transfer learning. We examine transformations such as the input and output sizes, adding a fully-connected layer after the input, and making the models deeper and wider. All experiments were performed on the Coral Edge TPU development board.

3.1. Convolutional Neural Networks

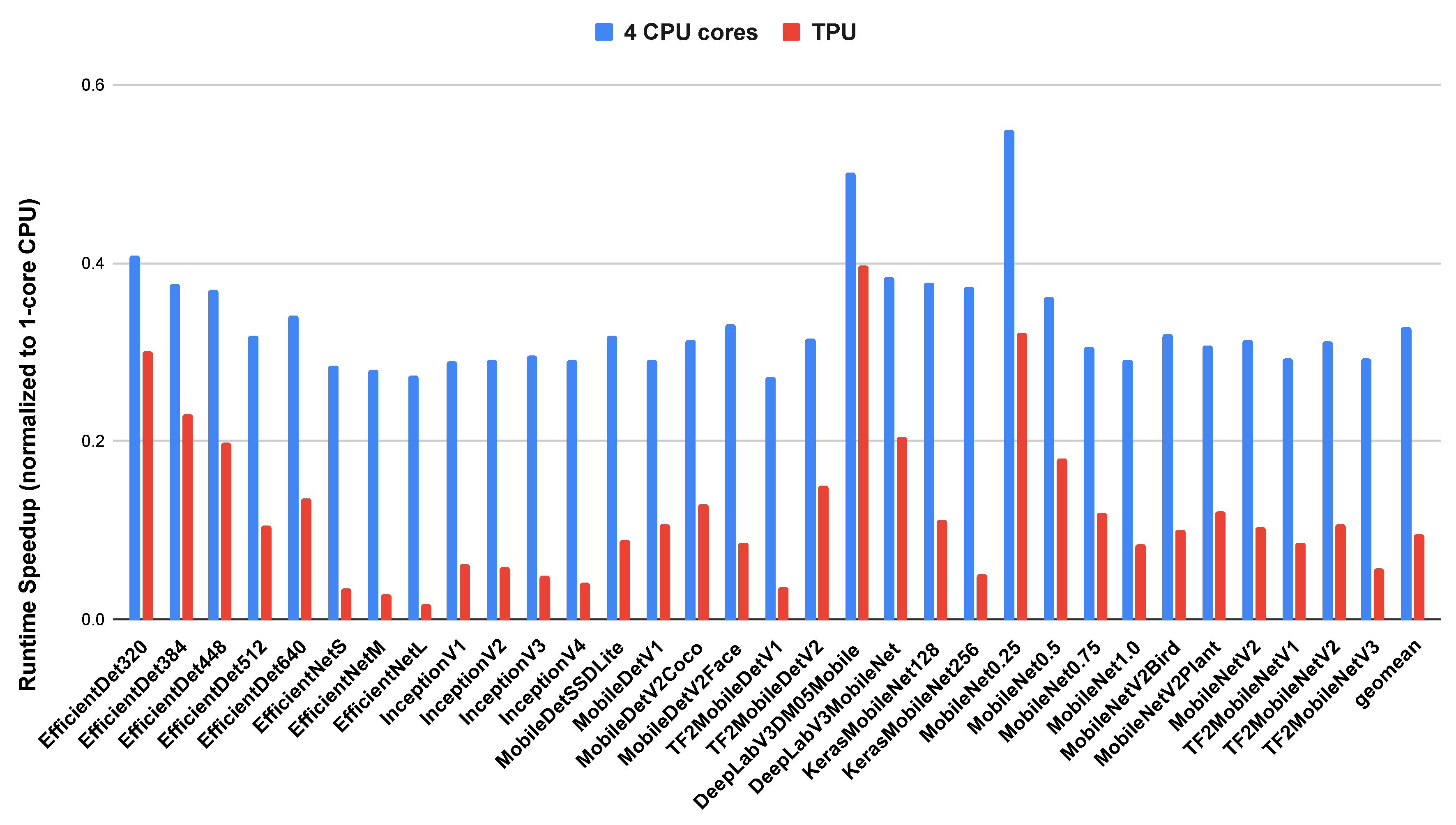

We measured the runtime performance of the Edge CPU and Edge TPU using the baseline models described in Table 2. Figure 5 shows the runtime speedup for a single inference on the Coral development board compared to the single core baseline. The baseline measurement was performed on a single CPU core. We then measured the runtime performance on an inference using 4 CPU cores and the TPU. As shown, the TPU consistently outperforms the CPU, even with 4 CPU cores, on all of the CNN models. The rightmost bars (geomean) show the geometric mean of all speedups for the 4-core CPU and the TPU. On average, these CNNs execute an inference on the 4-core CPU in 33% of the time it takes to execute the same model on a 1-core CPU. On the TPU, it takes 10% of the time it takes to execute the same model on a 1-core CPU.

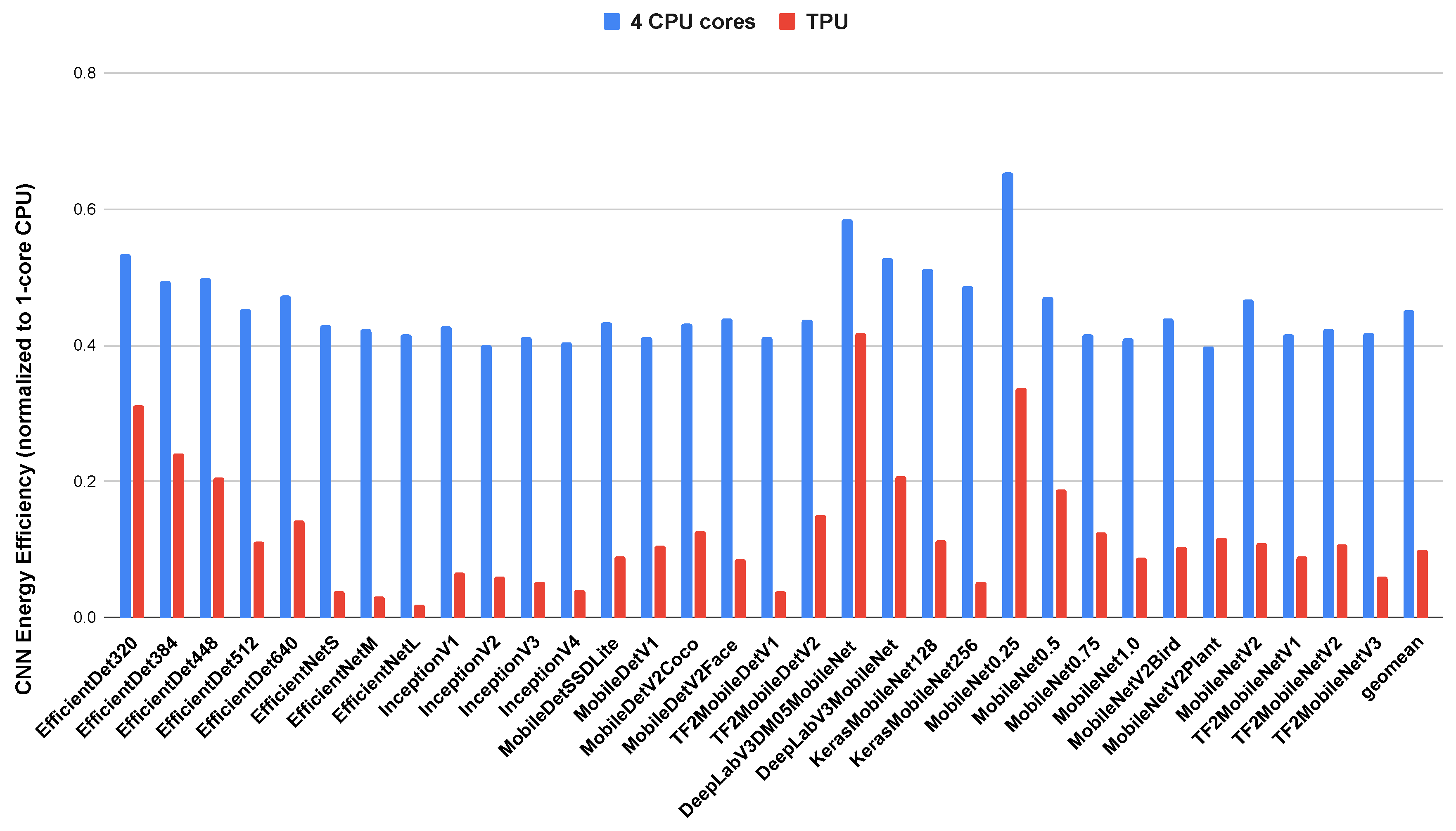

We also compared energy per inference for the CNN models. The results of this experiment are shown in Figure 6. The energy results are similar to the runtime results for the CNN models, with the TPU consistently outperforming both the 1 core and 4 core CPU. One notable difference is that the 4-core CPU only uses 45% less energy to perform an inference than the 1-core CPU. Given that the 4-core CPU executes an inference in 33% of the time it take to execute on the 1-core CPU, the power consumption of 4 cores slightly outweighs the runtime speedup from running on 4 cores. However, the significant improvement in runtime performance still leads to lower energy usage per inference. In low-power environments, using a 1 core CPU will provide better long-term energy usage if inferences are being run frequently. The TPU uses 10% of the energy required to perform an inference on the 1-core CPU.

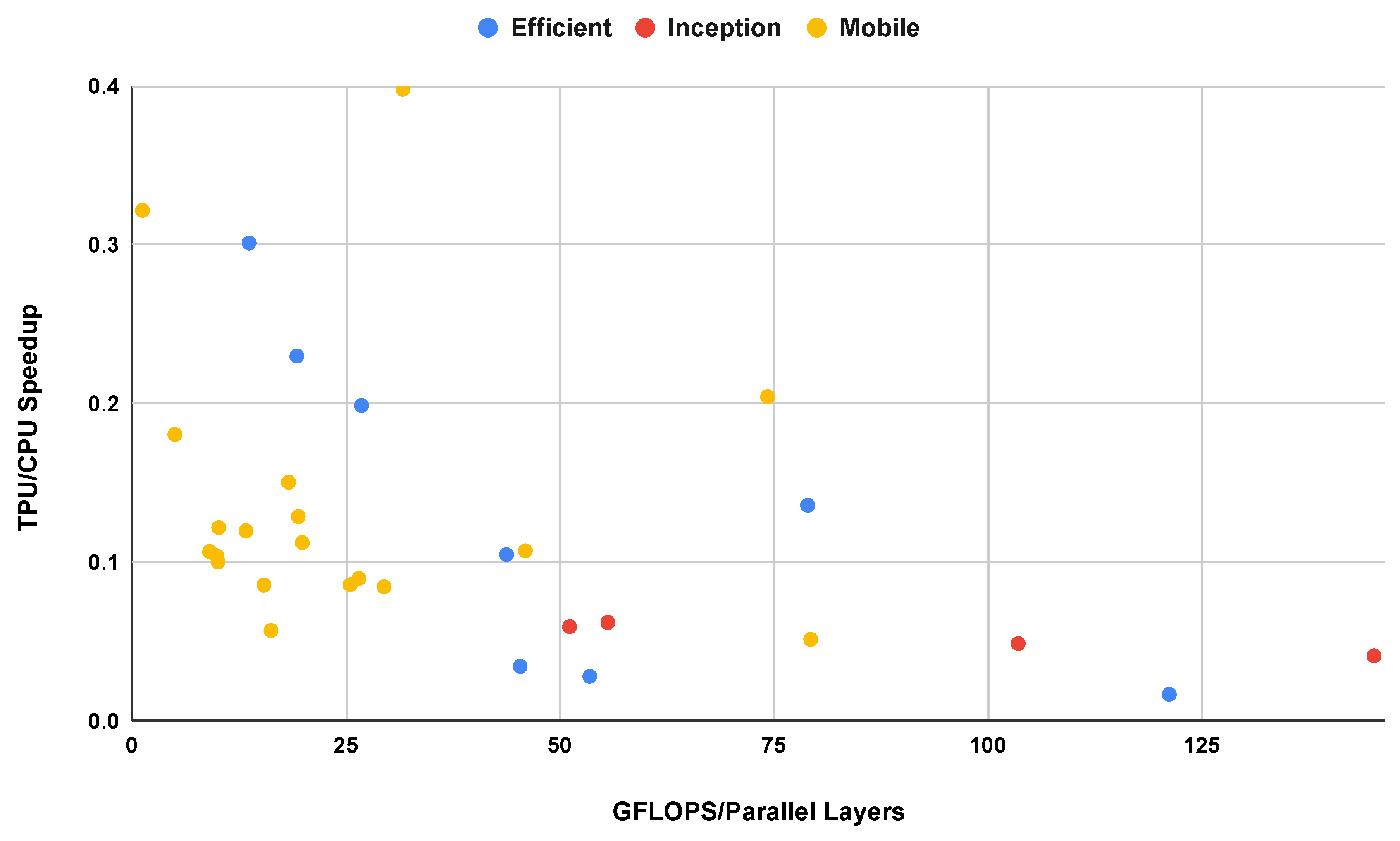

Figure 7 breaks down the performance speedup of the TPU over the single core CPU with reference to the floating-point operations per parallel layer for each model. In general, more available parallel work leads to a larger performance improvement on the TPU. However, other factors prevent this speedup from being monotonic compared to the available parallel work. The TPU’s matrix multiplication unit may not be completely utilized at all times due to the fixed hardware structure (128x128 on TPU version 3) and various sizes of filters used in these CNNs. Furthermore, the TPU must load model parameters from memory, which takes additional time, especially for larger models. Other hardware factors, such as cache line sizes, associativity, and prefetching, may also impact performance. Overall, we find that floating-point operations per parallel layer is a reasonable, though certainly not perfect, indicator of the runtime performance of a CNN on the Edge TPU.

3.2. Transfer Learning

Transfer learning involves applying an existing model, potentially with small modifications, to a new problem. This may require modifying the input and output layers to match the new problem’s inputs and outputs. In some cases, practitioners may wish to make small modifications to the existing model to improve its accuracy on the new problem. We are interested, specifically, in the runtime performance impact on inferences performed with modified CNN models. We do not evaluate the accuracy of such models or the impact on training time. In the following sections, we evaluate the runtime performance metrics of modifications that might be made to a model while applying transfer learning on the edge TPU.

3.3. Input and Output Size

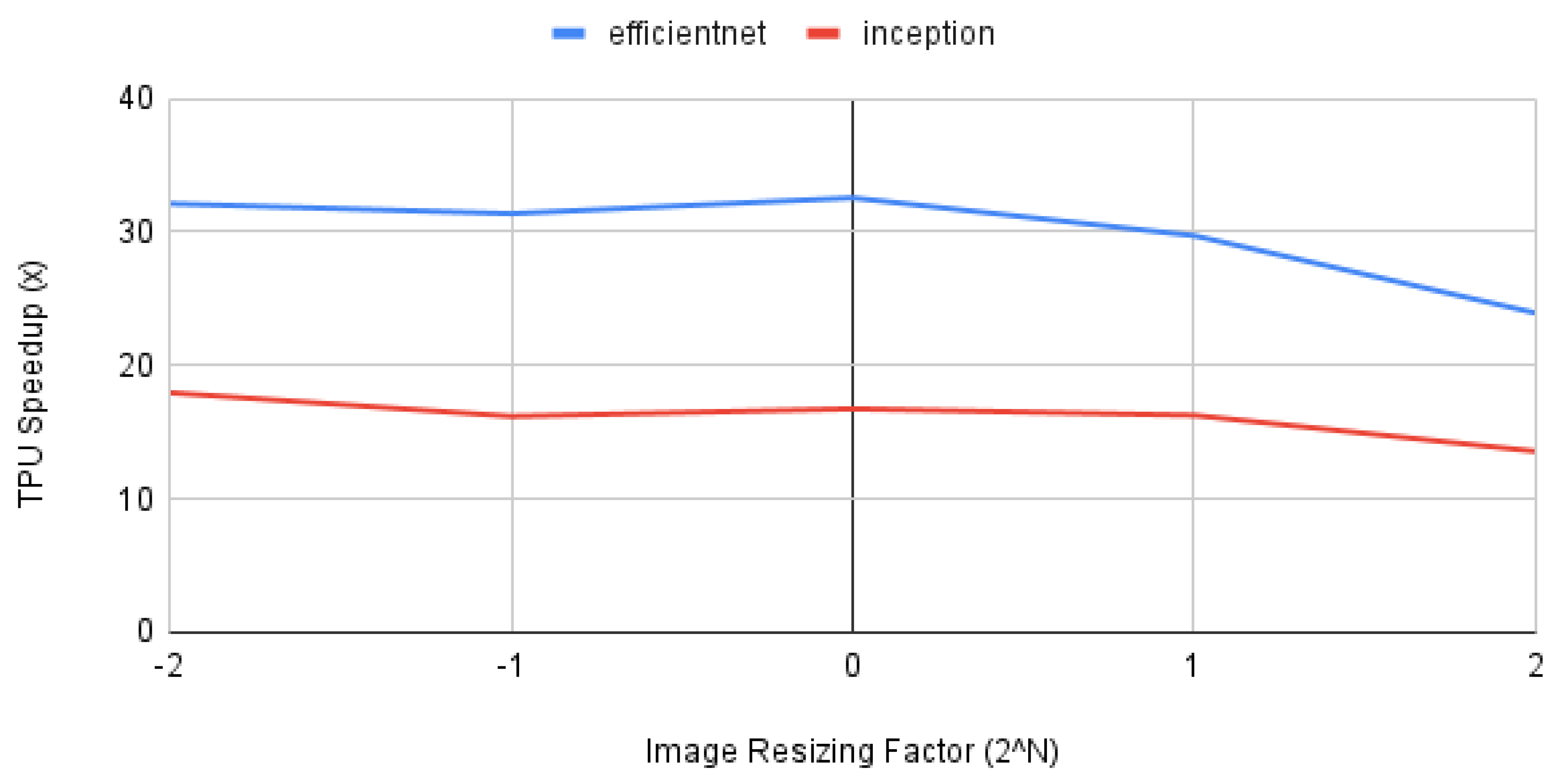

Transfer learning often requires changing the input size of the machine learning model to match the target problem’s input characteristics. We perform two experiments to assess the performance impact of modifying the input size. For problems with image inputs, we simply vary the size of the input by resizing the image. We chose to scale the image inputs by factors of 2 (.25x, .5x, 1x, 2x, and 4x). Figure 8 shows the performance impact of resizing the input images to the CNN models. As the image input size grows, the TPU speedup over the CPU decreases.

For problems with 1 dimensional inputs, we apply a fully-connected layer to expand the number of input parameters to more closely match the expected number of inputs from an image. We then reshape the 1 dimensional data into 2 dimensional data with 3 channels. Finally, we resize the shaped inputs to match the expected image size for the model. Figure 9 demonstrates this procedure. With powerful enough hardware to train the models, it may be possible to skip the resize operation and simply reshape the output of the fully-connected layer. On our hardware, we were unable to produce a working Tensorflow Lite model with a fully-connected layer that could be reshaped to the 224x224x3 input of the models 1.

Table 3 shows the speedup of the TPU over the CPU on the CNN models using a fully-connected layer to expand the 1D inputs into the 2D image size expected by the CNN. As shown, with a small fully-connected layer, the performance benefit of the TPU on a CNN outweighs the work required to execute the fully-connected layer. As the size of the fully-connected layer increases, the CPU begins to outperform the TPU, despite the TPU’s performance advantage on the CNN.

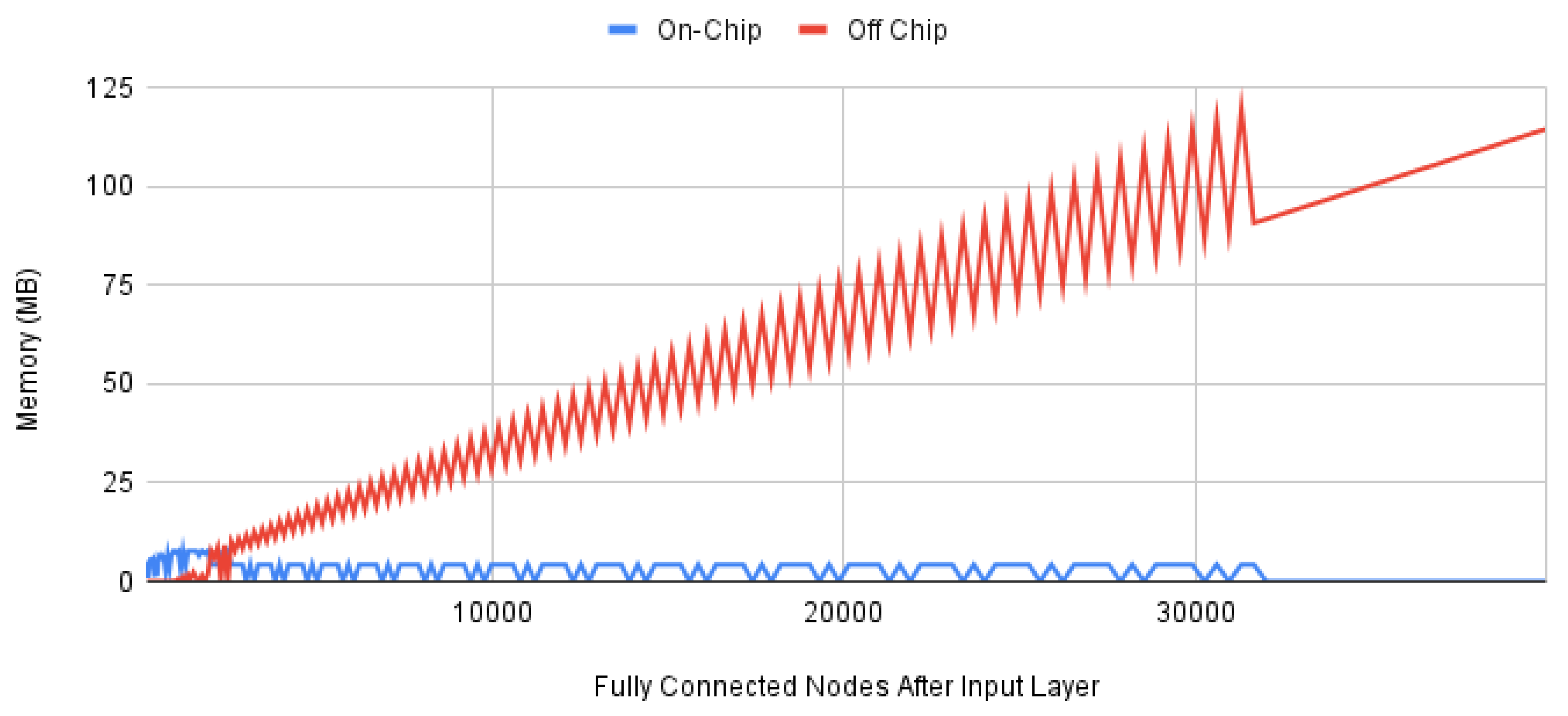

Figure 10 shows the on-chip and off-chip memory assigned to parameters for the mobilenet CNN model with a fully-connected layer of size N used to expand the 1D inputs into a 2D image. For this experiment, we explored fully connected input sizes of M where $14\le M\le 50176$ and the original CNN input size is 224x224x3. These bounds were derived from the original input size of 224x224x3 using $14\approx \sqrt{224}$ and $50176=224\times 224$. We compiled each generated model with the edgetpu compiler and recorded the amount of memory used for on-chip and off-chip model parameters. For up to 900 nodes in the fully-connected layer, the edgetpu compiler uses only on-chip memory. At 3025 nodes in the fully-connected layer, we notice the first instance in which the edgetpu compiler only uses off-chip memory for model parameters. In the graph, we can see that this phenomenon occurs semi-regularly when the on-chip memory falls to zero and there is a sharp spike in the off-chip memory. Above 32,041 fully-connected nodes, the edgetpu compiler no longer uses on-chip memory for model parameters. In short, it may be beneficial to test multiple potential sizes for a fully-connected layer to determine which fits best into on-chip memory.

3.3.1. Depth Extensions

To further evaluate the performance implications of transfer learning on an edge TPU, we generated altered CNNs, based on the original models for efficientnet, inception, and mobilenet, with more or fewer subgraphs of the main computational component of the network. Figure 4 demonstrates the main subgraph of InceptionV1. For each of the three models, we identify the main subgraph, extract that subgraph, and generate models with 1 to 50 repetitions of that subgraph. Each of the generated models also reproduces the rest of the original model.

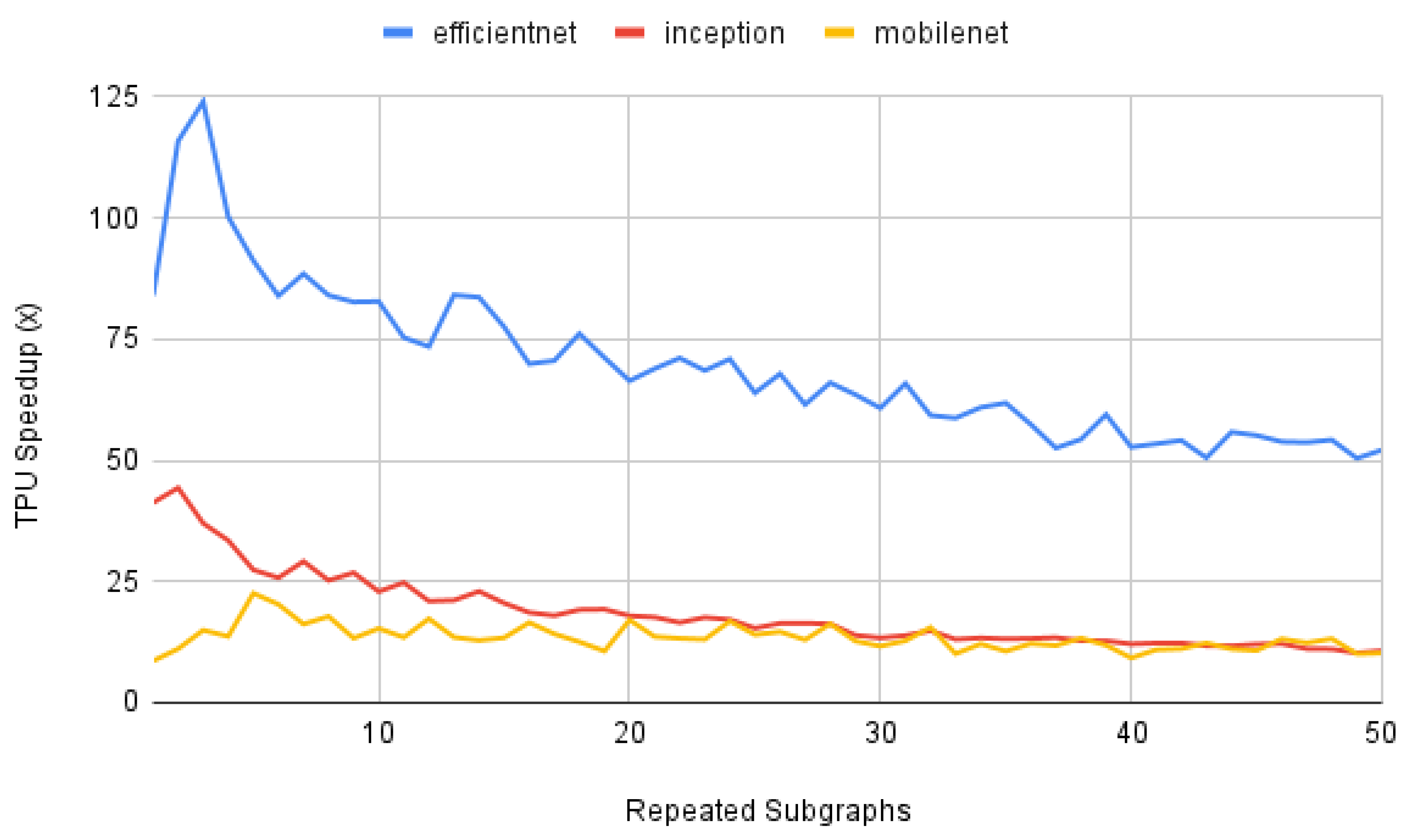

Figure 11 shows the results of this experiment. As shown, the performance gap between the CPU and TPU decreases as the subgraph is repeated more, but the gap remains at over 10x on these CNN models. On both the CPU and TPU, adding repeated subgraphs may be a potential avenue to improve the accuracy of the model for a problem in transfer learning without significantly impacting performance. The difference between the worst performing and best performing generated models on the TPU was 2.5x, 4.7x, and 2.24x, respectively, for EfficientNetS, InceptionV1, and MobileNet1.0. For the CPU, the difference between the worst performing and best performing generated models was 1.06x, 1.15x, and 1.38x, respectively. We expect that cache locality and data transfer explain the CPU’s relative efficiency as the depth of the model increases, but we would need to investigate further to definitively show this. We leave a more in-depth study of the performance of deep models to future work.

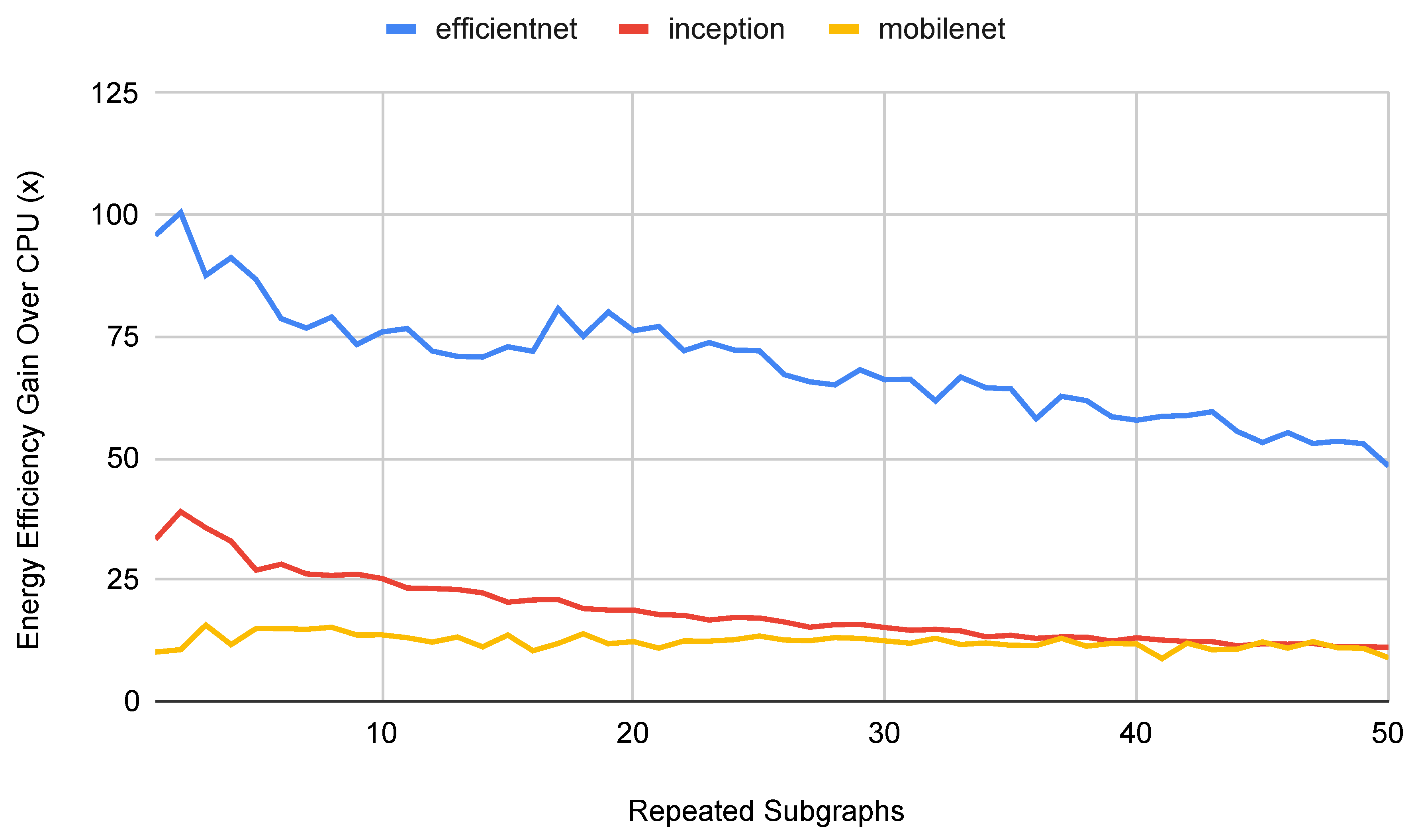

Figure 12 shows similar results for the energy efficiency of the TPU on generated deep CNN models. The TPU consistently outperforms the CPU, but the gap gets smaller as the depth of the model increases.

3.3.2. Wide Extensions

We also generated wider versions of efficientnet, inception, and mobilenet, and we analyzed the runtime performance of these generated models. We explored two procedures for generating wider models.

In the first procedure, we widened the models by scaling up the bias of convolution operations in the models based on a factor from 1.1x to 5x, which was the limit of generating Tensorflow Lite models on our training hardware. Increasing the bias provides more parameters for the model to learn and increases the amount of parallel work available when performing inference with the model. We examined the effects of scaling at the input and output layers because practitioners of transfer learning may increase the model size to account for a different number of inputs and outputs for their targeted problem.

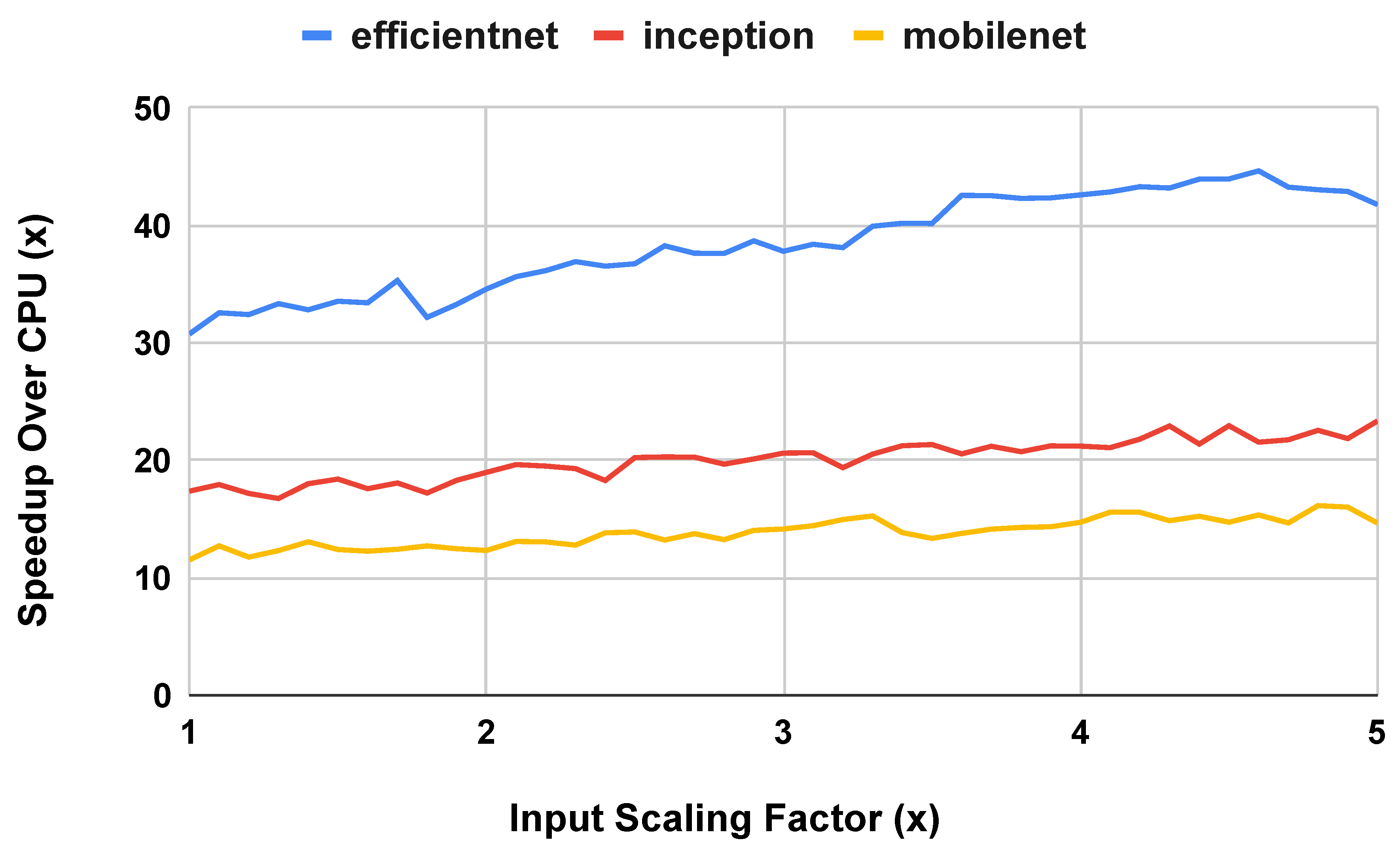

Figure 13 shows the runtime performance of the TPU compared to the CPU with scaled input size. In this graph, we can see that the TPU’s speedup compared to the CPU increases as the width of the model increases. We note that scaling the width of the input layer increases the width of the entire model as the larger output tensor from the scaled layer serves as an input to the rest of the model, which we scaled accordingly. We observe similar results when comparing the energy efficiency of performing an inference on the TPU as compared to the CPU as the model gets wider.

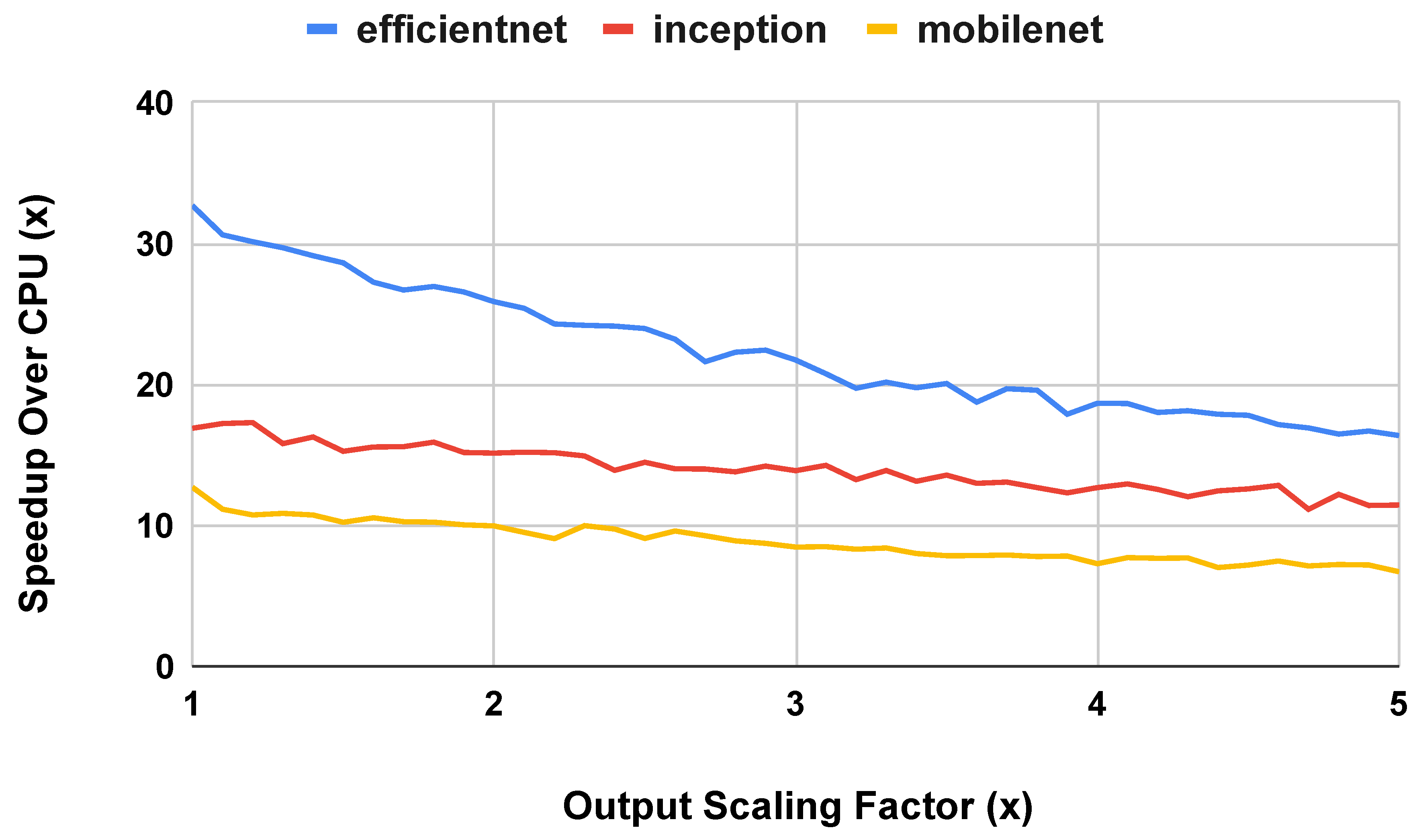

Figure 14 shows the runtime performance of the TPU compared to the CPU with scaled output size. As the width of the model was increased at the output layers, the gap decreased between the runtime performance on the TPU compared to the CPU. We expect that this occurs due to the increased size of the input to the SoftMax operation at the end of each model. Compared to scaling the width of the input, there is less parallel work for the TPU to take advantage of throughout the model, leading to a declining performance benefit for using the TPU. We observe similar results for energy efficiency in that the TPU’s energy efficiency benefit over the CPU decreases as the width of the output layer increases.

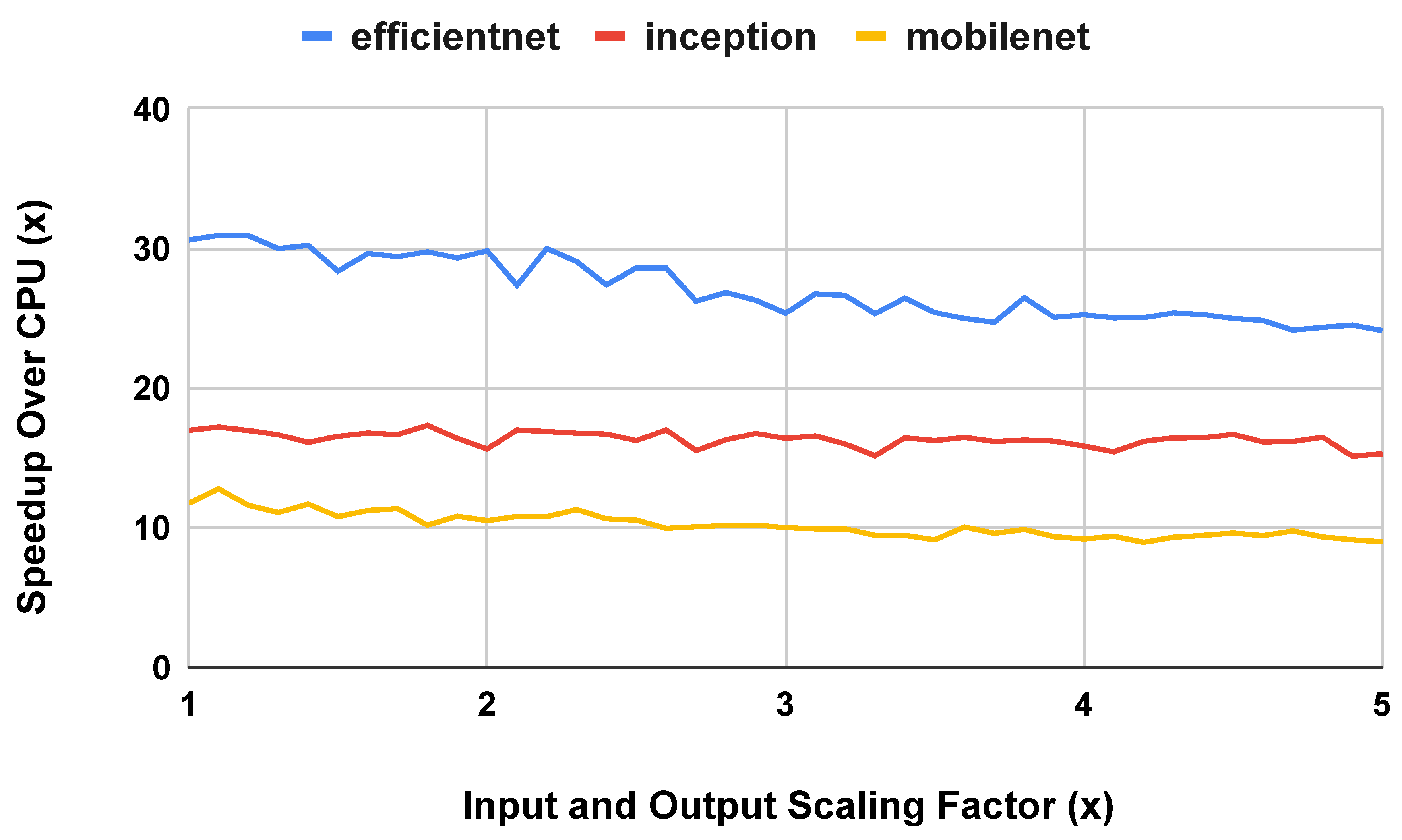

Figure 15 shows the runtime performance of the TPU compared to the CPU with scaled output size. From the graph, it appears that the effect of scaling up the output size slightly outweighs the effect of scaling up the input size. For all three benchmarks, the TPU maintains a similar runtime speedup over the CPU at all scaling factors.

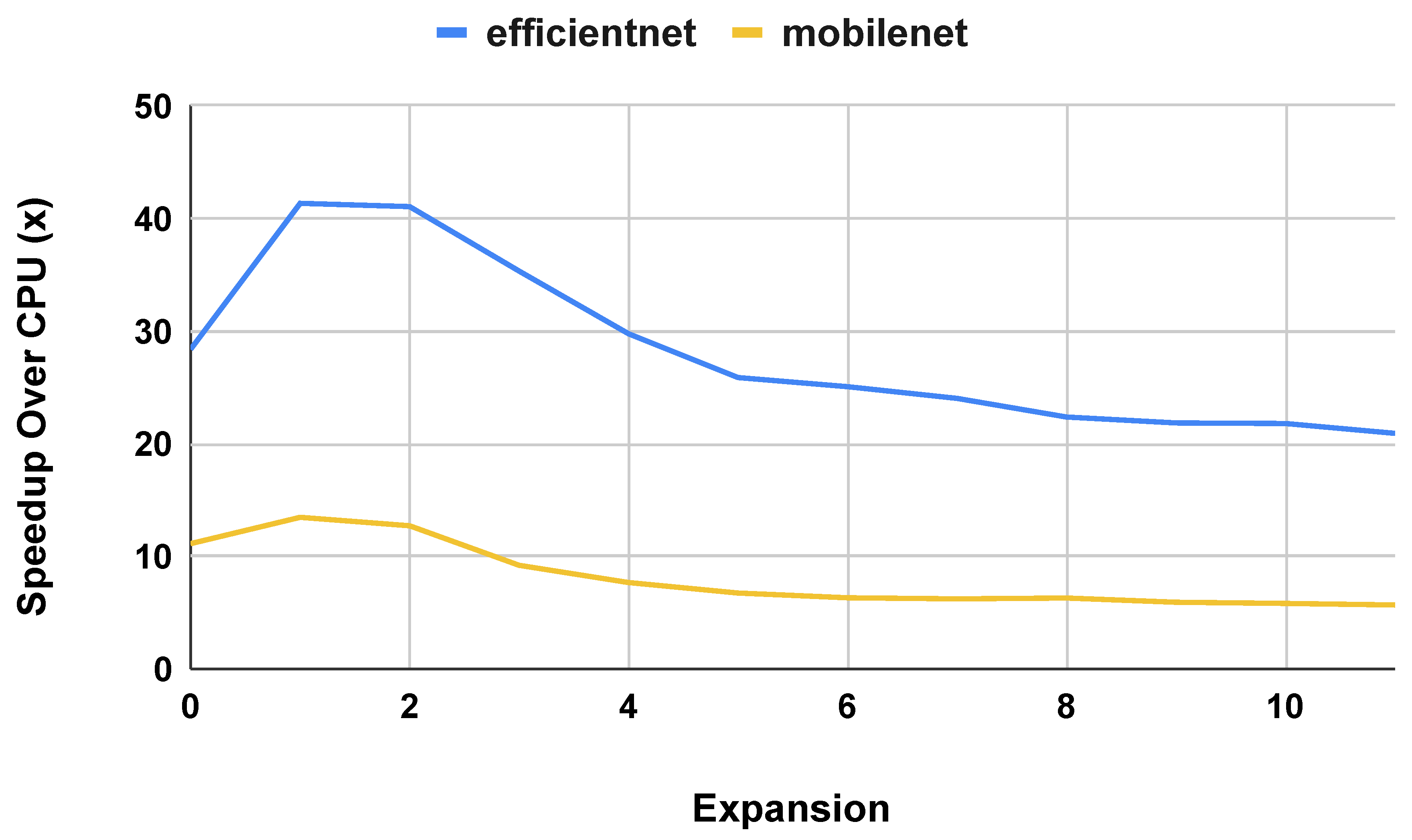

In the second procedure, we increased the width of the models by expanding convolution layers based on insights from the main subgraph in the Inception V1-V4 models, as described in Figure 4. We performed this expansion on the EfficientNetS and MobileNetV1 models. We excluded the InceptionV1 model because we already had data on expanding the Inception model from versions 1 through 4 in our baseline experiments. Figure 16 shows the results of this experiment on widening the model by adding parallel layers. As parallel layers are initially added to the model to increase it’s width, the TPU provides an increased performance gain over the CPU. However, as more parallel layers are added, the TPU reaches the limit of its ability to exploit parallel work, and the speedup over the CPU reaches a steady state. Similar to prior experiments, the energy efficiency results mirror the runtime performance results.

3.3.3. Off-Chip Memory

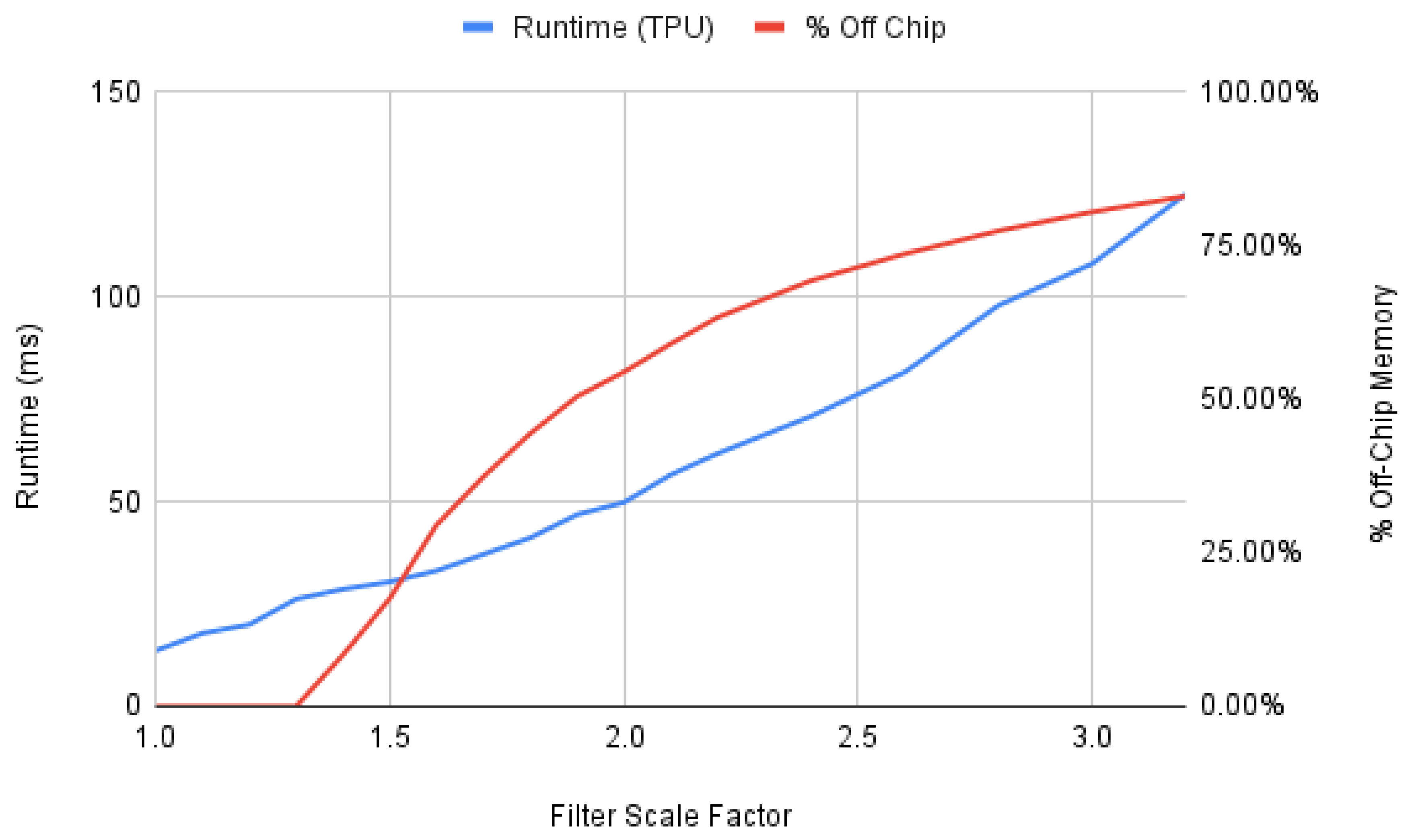

As previously observed for fully-connected, feed-forward neural networks [38], the runtime performance of convolutional neural networks is also affected by the percentage of parameters stored off-chip. Figure 17 shows the TPU runtime performance per inference compared to the percentage of off-chip memory used to store model parameters. We perform this experiment on the models generated from the baseline mobilenet CNN model with scaled filter sizes to increase the width of the model. As the width of the model increases, so does the amount of memory required for parameters, and therefore the amount of off-chip memory used to store parameters also increases. Compared to the results demonstrated in prior work on feed-forward neural networks, CNN runtime scales linearly, instead of in a stepwise manner, due to the increased amount of computation required for CNNs that hides the memory cost of storing parameters off chip.

4. Discussion

Building from the data in Section 3, we have the following practical recommendations for designing machine learning models for edge devices.

4.1. Prefer Single-Core for Long Term Energy Efficiency but Multi-Core for Energy Efficiency Per Inference

On the baseline CNNs, using a 4-core CPU provided a runtime performance and energy efficiency advantage compared to the 1-core CPU. However, the increase in energy used per inference outweighed the decrease in runtime. Therefore, if inferences will be run continuously in an edge environment, a 1-core CPU will be more energy efficient over time. For bursts of inferences, the 4-core CPU should provide better energy efficiency due to the decrease in runtime.

4.2. Prefer a TPU for Convolutional Neural Networks

For all of the convolutional neural networks evaluated in this paper, the TPU outperformed both the single core and 4 core CPU in both runtime performance and energy efficiency. As we scaled the CNN models, both in depth and in width, the TPU continued to consistently outperform the CPU. The only case in which the CPU outperformed the TPU occurred when we added a large fully connected layer to map 1 dimensional inputs to the 2 dimensional image input expected by the CNN for transfer learning. This case concurs with our findings on the performance degradation of fully connected neural networks on the TPU as the percentage of off-chip memory usage increases.

4.3. For Edge TPUs, prefer model depth when possible for convolutional networks

Due to the width of convolution operations, there is more parallelism inherent to CNNs, and further increasing the width may overload the hardware’s capacity. Table 2 provides a comparison point to a fully connected network with 240 layers and 810 nodes per layer, and all but the smallest CNNs require more floating-point operations to perform an inference.

To mitigate this challenge, it is advisable to focus on expanding the depth of the network instead. By increasing the depth, the network can effectively capture complex hierarchical features [30]. Early convolutional neural networks [29] used as few as 5 layers, but more recent convolutional neural networks, such as Inception-Resnet at 572 layers [28] and the Residual Attention Network at 452 layers, have become significantly deeper. With more data available to train networks, deeper networks can be well-supported by the edge TPU.

4.4. Avoid performance cliffs for transfer learning with fully-connected input layers

As shown in our experiments on transfer learning, the size of a fully-connected layer for mapping 1 dimensional input data to a 2 dimensional image may significantly affect performance. As the number of nodes in the fully-connected layer increases, the edgetpu compiler may choose to place all of the model parameters in off-chip memory, leading to degraded performance. In our dataset, these performance cliffs were not easy to predict based on the number of nodes in the fully-connected layer. However, the performance cliffs occurred infrequently enough that testing the performance of a few fully-connected layer sizes should be sufficient to avoid them.

Performance cliffs are common pitfalls for hardware accelerators. NVIDIA provides an occupancy calculator for general-purpose GPU applications (GPGPU) [33] to help application developers choose the correct number of threads and amount of memory to use. We recommend that edge TPU designers provide similar tools to help application developers choose the parameters for their neural networks. However, we note that this is a more complex issue to solve due to the process of developing a neural network model for execution on the edge TPU. The application developer must design the higher level model in a framework like Keras or Tensorflow, then convert the model to Tensorflow Lite, and finally compile the model using the edgetpu compiler. It may be difficult to develop a calculator that accounts for the nuances of this entire process.

4.5. Scale Width at Input Layers to Exploit Parallelism on the Edge TPU

Scaling the width of a Convolutional Neural Network (CNN) at the input layers can be a strategic choice to exploit parallelism and enhance the network’s performance. By increasing the width, or the number of channels or filters in the initial convolutional layers, the network gains the ability to capture a broader range of low-level features and patterns from the input data. This enables the CNN to distribute the processing of different features across multiple parallel pathways. Consequently, scaling the width of the network at the input layers can lead to more efficient and effective feature extraction, making it a beneficial strategy for enhancing CNN performance. We observe that the Edge TPU effectively exploits the increased parallelism found in the model by increasing its width at the input layers. Therefore, scaling the width at the input layers may increase model accuracy and can be efficiently executed by the Edge TPU.

4.6. Limitations

The experiments outlined in this study were performed on the Coral development board. This development board provides features for developing and testing IoT applications, but it is not optimized for deployed applications. For example, the development board runs Mendel Linux, which allows the developer to run programs in a familiar command-line environment. In a deployed IoT application, functionality, like the operating system, that is provided for developer convenience would not be included, leading to performance and energy improvements. We attempted to factor out the energy cost of these convenience features by measuring the resting energy used by the development board, but this may not perfectly model the energy usage of a custom IoT device using a tightly integrated TPU. For custom devices, the methodology presented in this paper can serve as a guide for analyzing the runtime and energy performance of the device on potential network models.

We analyze a wide variety of neural network models in this paper, but there are infinitely many ways to structure a neural network. This paper does not evaluate recurrent neural networks such as long short-term memory models, or transformer networks, or other commonly used models. The runtime and energy performance evaluation of additional model structures is left to future work.

We have not evaluated the machine learning algorithm accuracy of these modifications to CNNs. The accuracy of the algorithm is highly dependent on the problem for which machine learning is being applied and on the availability of training data. We leave experimentation on accuracy up to practitioners with a specific problem to solve and hope that the guidance on runtime and energy performance in this paper can assist them in finding an efficient CNN model.

5. Conclusions

In conclusion, this paper has provided an evaluation of the runtime and energy performance of Convolutional Neural Networks (CNNs) when executed on an Edge TPU. Our findings underscore the remarkable efficiency gains achieved by leveraging TPUs over traditional CPU architectures. Notably, we have demonstrated that extending the depth of a CNN has a comparatively limited effect on runtime performance in contrast to expanding its width. This insight can guide practitioners in optimizing their model architectures for TPU deployment, emphasizing the potential benefits of deeper networks.

We have analyzed various adjustments to CNNs that might be made by practitioners during the process of applying transfer learning. We find that simply resizing an image input to a different size has little impact on the runtime performance. However, adding a fully-connected layer to bridge the gap from a small number of real inputs to the larger number of expected inputs for a CNN may have a significant performance impact on an edge processor.

Furthermore, our investigation has shed light on the role of off-chip memory storage in CNN performance on TPUs. In line with our expectations, the impact of off-chip memory storage appears to be less consequential in the context of convolutional neural networks. This observation highlights the substantial computational requirements inherent to convolution operations, which tend to dominate the overall execution time.

In light of these findings, it is evident that the Edge TPU stands as a compelling platform for deploying CNNs, offering not only improved runtime efficiency but also energy savings. As the demand for efficient edge computing solutions continues to rise, our research contributes valuable insights that can aid in the development of optimized models and hardware configurations for real-world applications, especially for practitioners considering an application of transfer learning.
