Template-free Manufacturing of Defined Structure and Size polymeric Microparticles

1. Introduction

The production of polymeric microparticles of defined size and shape plays a pivotal role in various industries, encompassing pharmaceuticals, biotechnology, and materials science [1]. These microparticles serve essential functions in drug delivery, diagnostics, and as functional materials [2,3]. There are numerous techniques proposed so far for manufacturing polymeric microparticles. Obviously, every of these techniques have advantages and limitations. Broadly, these methods of shape controlled particle fabrication can be categorized into two main groups: template-free and template-based.

Template-free approaches primarily rely on the surface tension forces of polymer solutions or suspensions to create spherical-like structures, while template-based methods necessitate the use of specially crafted molds with surface geometries that dictate the shape and size of the microparticles. In this concise introduction, we will explore some, though not an exhaustive list, of the common and well-established techniques for producing polymeric microparticles.

Emulsion/Solvent Evaporation

This is one of the most widely used method for microparticle production [4,5,6]. It involves dissolving a polymer in an organic solvent and then emulsifying it in an aqueous phase. Microparticles are formed as the solvent evaporates, leaving behind solid polymer particles.

Pros: allows control over microparticle size and morphology; suitable for both hydrophilic and hydrophobic polymers; can encapsulate a variety of payloads, including drugs and nanoparticles.

Cons: use of surfactants what can be hard to remove; encapsulation efficiency may vary; batch-to-batch variability can be an issue.

Spray Drying/Electrospray/Electrospinning

A polymer solution or suspension is atomized into fine droplets or thin fibers and dried rapidly either by using mechanical energy like ultrasound or electrical field energy [7,8,9,10,11]. A core-shell variant of such techniques allows the increase of encapsulation efficiency. Defined sizes of microcapsules can be achieved by varying the energy of the atomization and the amount of the polymer in the solution/suspension. In the case of electrospinning, the fibers are collected as a nonwoven mat or chopped into microparticles. It offers high surface area and is used in tissue engineering and filtration applications.

Pros: rapid and continuous production; high encapsulation efficiency for certain materials in the core-shell variant; suitable for thermally sensitive compounds; scalable for medium to large-scale production.

Cons: limited control over particle/fiber size distribution; substance dependent encapsulation efficiency; it can be sensitive to environmental factors, which might affect the repeatability of the resulted particles/fibers; requires specialized and dangerous equipment, like high voltage sources or high-energy ultrasonic atomizers.

Microfluidics

Microfluidic devices can precisely control fluid flow to generate monodisperse microparticles. Continuous and highly controlled production is possible. Resulted particles are suited for drug delivery and device calibration purposes [12,13,14].

Pros: high precision and control over microparticle characteristics; allows for the creation of multifunctional microparticles; suitable for encapsulating delicate payloads.

Cons: requires microfabrication expertise and equipment; complex setup and maintenance; limited to low production rates; potential clogging issues in microfluidic channels.

Template-based methods

These methods usually utilized hard on semi-hard templates with defined geometry of a given size and shape to from polymeric microparticels. In some approaches, micro structures like vaterite particles, micelles or other micro particulates can serve as a template on which polymer coating could be deposited by the electrostatic or other bonding forces [15,16,17,18,19,20].

Pros: precise control over microparticle size and shape; can create complex and non-spherical microparticles; versatile, with various template materials and fabrication techniques available; high encapsulation efficiency.

Cons: templates can be challenging to remove for specific geometries; production can be time-consuming, especially for intricate designs; template fabrication may require specialized equipment.

The manufacturing of polymeric microparticles is a critical step in various applications, and the choice of method depends on specific requirements. Emulsion-solvent evaporation and spray drying offer simplicity and scalability but may lack precision. Template-based methods combine control with versatility but involve template removal challenges and scalability issues. Each method has its own set of advantages and limitations, highlighting the importance of selecting the most suitable technique based on the desired microparticle characteristics and production scale. Aim of this study was to develop a novel method for manufacturing particles on low surface energy substrates (18-20 dynes/cm). At its core, this proposed technique combines the simplicity and natural occurrence of microcapsule formation driven by surface tension forces with precise control over their size and shapes in a deterministic manner.

2. Materials and Methods

Following components were obtained from Sigma-Aldrich: Polycaprolactone (PCL, M_w = 80000 Da), Polyvinylpyrrolidone (PVP, M_w = 55000 Da), Methylene blue, Oil Red O, Ethyl Acetate. Fluorinated Ethylene Propylene Copolymer sheets (FEP, thickness 100 µm) were purchased from PLASTPOLYMER company. Trichloromethane (TCM, chloroform) were ordered from EKOS.

2.1. Solutions preparation

A set of blank (cargo-free) solutions were prepared as follows: 0.19 g of PCL were added into a 2.98 g of TCM. In addition to that, a mixture was stained using 0.005 g of Oil Red O to allows for laser cutting. Solutions were vigorously stirred for 2 hours until complete dissolution of their components. To prepare solutions containing Methylene blue, its crystals were first grounded in a ball mill for an hour to reduce their average size. Fine dye powder was added into the blank solutions in quantities equals to 5, 10 and 15% of the PCL mass and dispersed using ultrasonic homogenizer. To make a solution for semi-permeable outer layer, a 0.19 g of PCL and 0.19 g of PVP were added into the 2.98 g of TCM. Same as for blank solution, a 0.005 g of Oil Red O was added for staining superpose. The mixture was intensively stirred for 12 hours.

2.2. Film application

A house-made film applicator machine was used to create a thin polymer films on the FEP substrate. The substrate itself was fixed in place using vacuum table. A 100 µL of each solution was placed at the begging of the substrate using pipette and spreaded with 25 µm gap baker applicator moving at 20 mm/s. Due to high viscosity of casted solutions and high evaporation rate of the TCM, the wet film behind the baker applicator dries almost immediately, preventing the solution from beading on a non-wettable fluorinated substrate.

2.3. Multilayered films for complex structured particles

For complex structure particles it is required to create a master film containing several layers with distinct properties. For example, a particle may consist of pure PCL baser layer, cargo-loaded intermediate PCL layer, and semi-permeable outer PCL layer. At its core, each layer is a thin polymer film formed on a separate FEP substrate. To combine those layers in a single master film, a lamination technique was utilized. Films were heat-fused together in the right order using commercial laminator machine at 65°C and feed rate of 3 mm/s.

2.4. Laser cutting

In order to cut a master film into a defined size blank, the high precision laser cutter was used. The substrate movement in the XY plane with a high accuracy (±1) was achieved by a pair of high precision linear stage made by STANDA (8MT167M-25BS1 and 8MTL1301-170-LEn1-100). The linear velocity of the substrate was 5 mm/s. Cutting was performed using Cobolt Tor XS pulsed laser (532 nm, 50 µJ, 1kHz pulse repetition rate). Laser beam was expanded by a pair of lenses to fill the back aperture of the focusing lens (LOMO micro-objective, x3.5 NA 0.1, estimated spot size 6.5 µm) for diffraction limited performances.

2.5. Heat application

To finalize the particles manufacturing procedure the substrate with cutted PCL blanks was placed into the accurate oven (Stegler VAC-24, ±0.1°C) at 90°C for 3 min for melting and beading. The temperature inside the oven was deliberately set above the typical melting point of the PCL (60°C) to reduce its viscosity and speed up the beading process.

2.6. Elution kinetics measurement

The monitoring of cargo elution was assessed by placing the known amount of particles on the substrate into the 1 mL of saline (0.9% NaCl in water) at 37°C. Each day the substrate was moved into the fresh volume of the saline. This cycle was repeated for one week. To measure the absolute amount of Methylene blue eluted each day, an absorbtion spectrum of 150 µL of the corresponding saline was measured by the TECAN Infinite® 200 Pro M Nano Plus reader. Using the calibration curve, the absorption value at 664 nm was transformed into the absolute amount of the Methylene blue eluted each day.

2.7. Surface inspection of the particles

Visual inspection of samples was done using optical transmission microscope Olympus CX-33 and scanning electron microscope (SEM) TESCAN Vega 3.

3. Results

3.1. General description of proposed manufacturing method

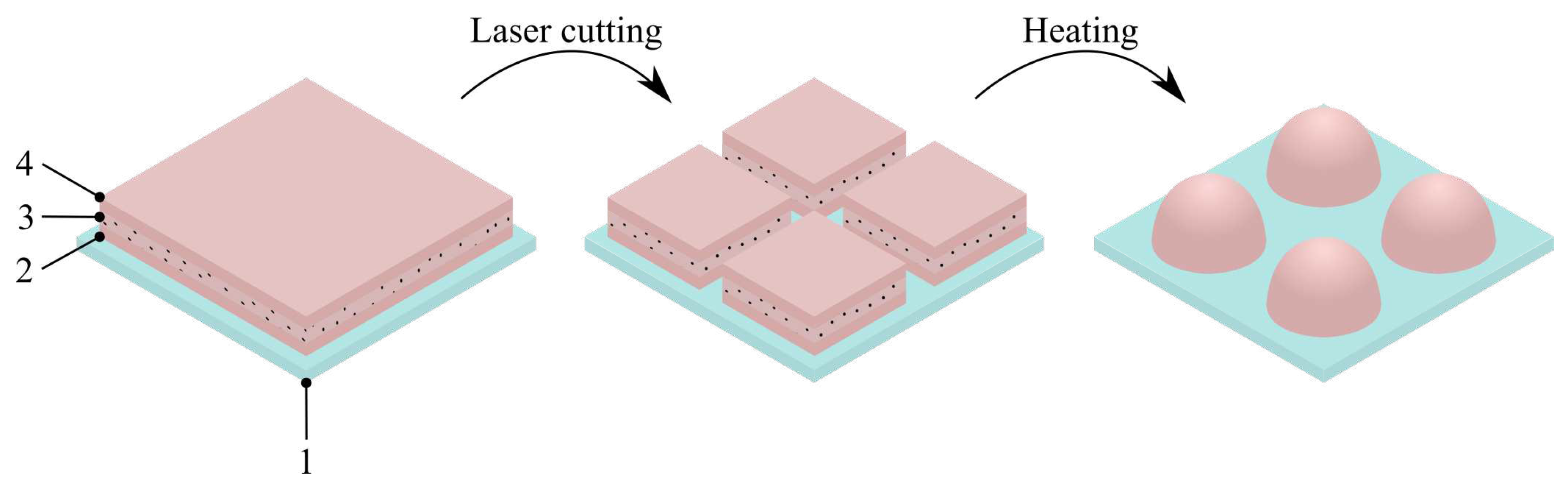

The described process involves applying a single layer or multiple layers of a master film onto the low surface energy substrate. The number of layers, their arrangement, and their properties collectively determine the internal structure and function of the capsules. Through precise, rapid, and deterministic laser cutting, an array of uniformly sized blanks can be generated. By utilizing low-melting-point polymers like polycaprolactone (PCL), a relatively modest increase in temperature, up to 60+°C, causes the polymer to melt. This enables surface tension forces to rapidly shape the particles into semi-spherical and other forms, depending on their internal composition and the initial shape of the blank. This approach facilitates the efficient and precise manufacturing of various particle types, including single-polymer composites, biopolymers, core-shell structures, and more. Furthermore, the elution profile of cargo can be finely tuned by adjusting the properties of the outer layer of the master film. The described approach holds the potential to unlock new opportunities in highly reproducible, predictable, and customizable particle manufacturing, suitable for applications ranging from controlled drug delivery to calibration purposes. For a visual representation of the proposed approach for heat-induced particle synthesis on low surface energy templates, please refer to Figure 1.

3.2. Beading of the PCL blanks on the FEP substrate under the heat

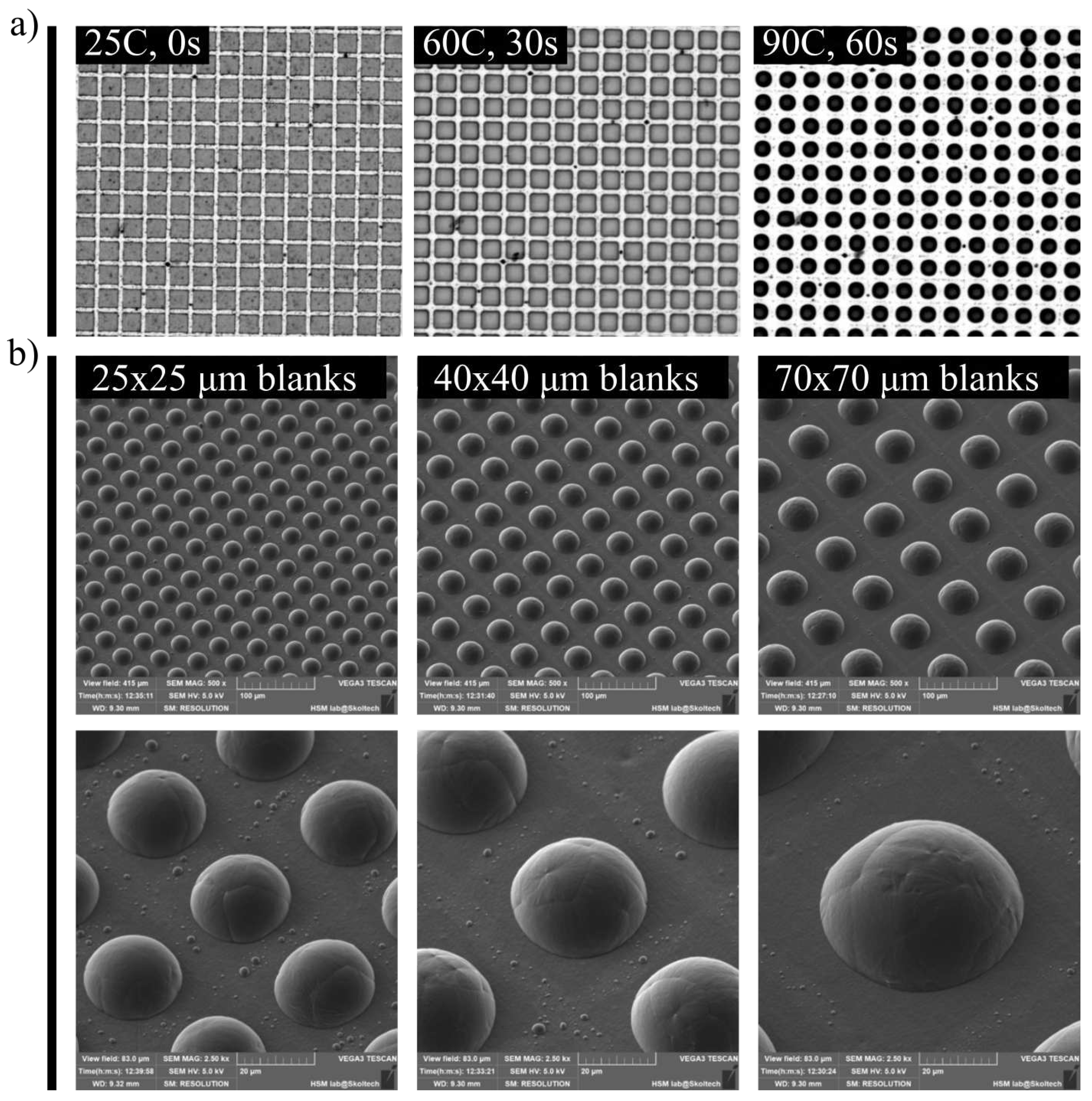

To validate the proposed idea for particle manufacturing, a thin master film of PCL was created on the FEP substrate following the procedures outlined in the second section of the Methods. This master film was then laser-cut into blanks measuring 70x70 µm, with a measured thickness of approximately 4 µm. Figure 2a displays a time-lapse sequence illustrating the application of heat and the corresponding beading of PCL blanks. As the substrate temperature approached 60°C, the blanks began to take on a rounded shape due to melting. A further increase in temperature significantly reduced the viscosity of the PCL, facilitating efficient beading on the non-wettable FEP substrate. When the temperature reached 90°C, all blanks were transformed into beads with flat bottoms. By adjusting the cutting parameters, such as the dimensions of the blanks, it was possible to produce beads of varying sizes. This is demonstrated in Figure 2b, which showcases beads generated from blanks measuring 25x25 µm, 40x40 µm, and 70x70 µm, respectively.

3.3. The influence of crystalline cargo on a beading process

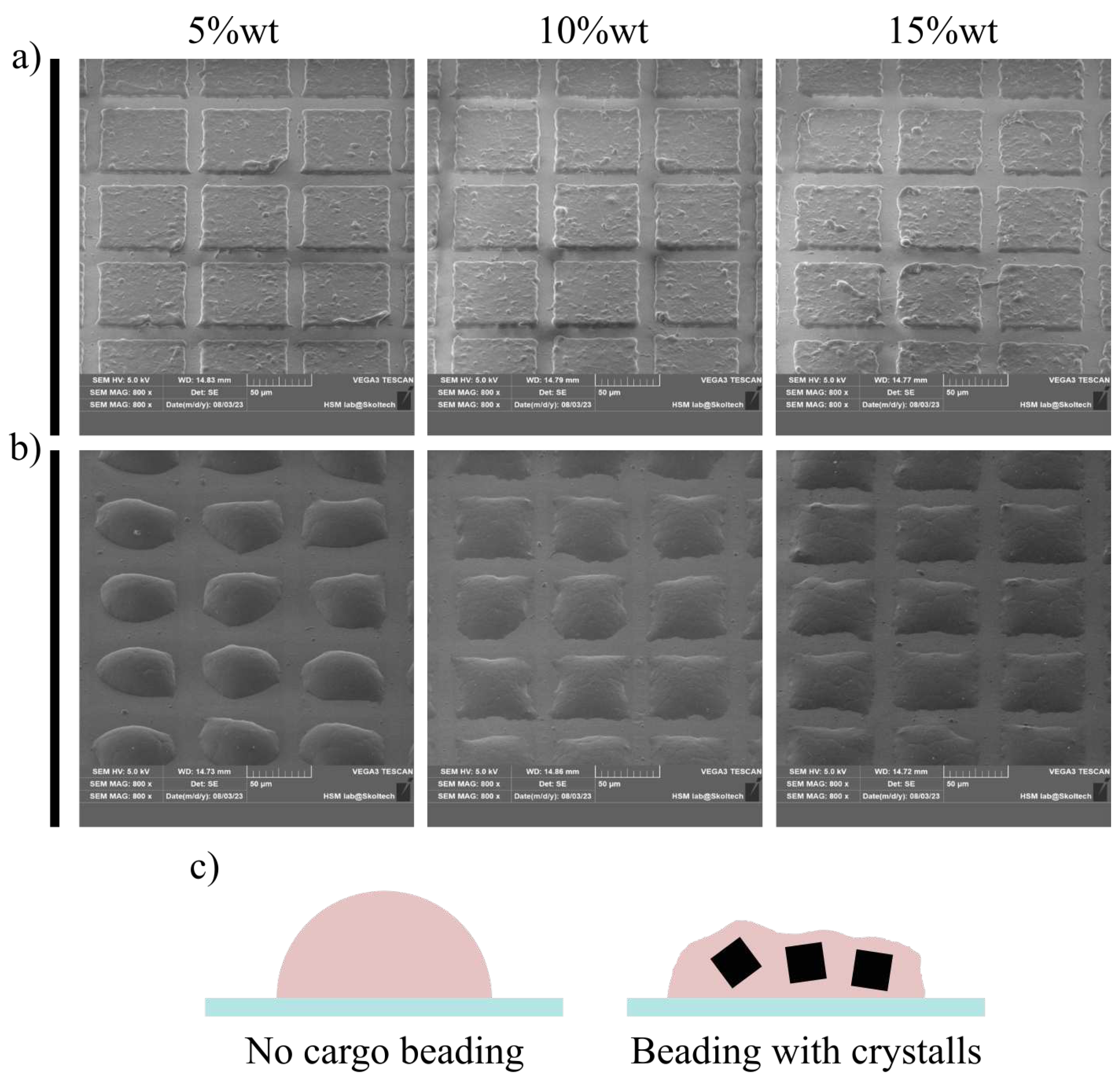

The addition of a crystalline component (Methylene blue) to the polymer is expected to alter the kinetics of bead formation and their geometry. To investigate this effect, a series of PCL solutions containing 5%, 10%, and 15 wt.% of Methylene blue crystals relative to the mass of PCL were prepared following the procedures outlined in the first section of the Methods. These solutions were then applied to the FEP substrate, as described in the second section, and laser-cut into 70x70 µm blanks. SEM analysis of these blanks, as presented in Figure 3a, revealed that they all had a consistent thickness of approximately 4.5 µm, regardless of the Methylene blue content. This observation can be attributed to the fact that the initial PCL solution, before the addition of Methylene blue, had sufficient viscosity to ensure a proper application process. Consequently, the addition of cargo microcrystals, which thickens the solution, resulted in a practically negligible change in the thickness of the resulting film [21]. Upon the application of heat, a noticeable difference in bead geometry was observed in relation to the amount of added cargo, as shown in Figure 3b. As the quantity of added cargo increased, it became more evident that the melted polymer tends to interact more with the wettable cargo crystals and less with the non-wettable FEP substrate, causing it to lose its ability to form round beads. Figure 3c illustrates a schematic representation of this phenomenon.

3.4. Multilayered particles

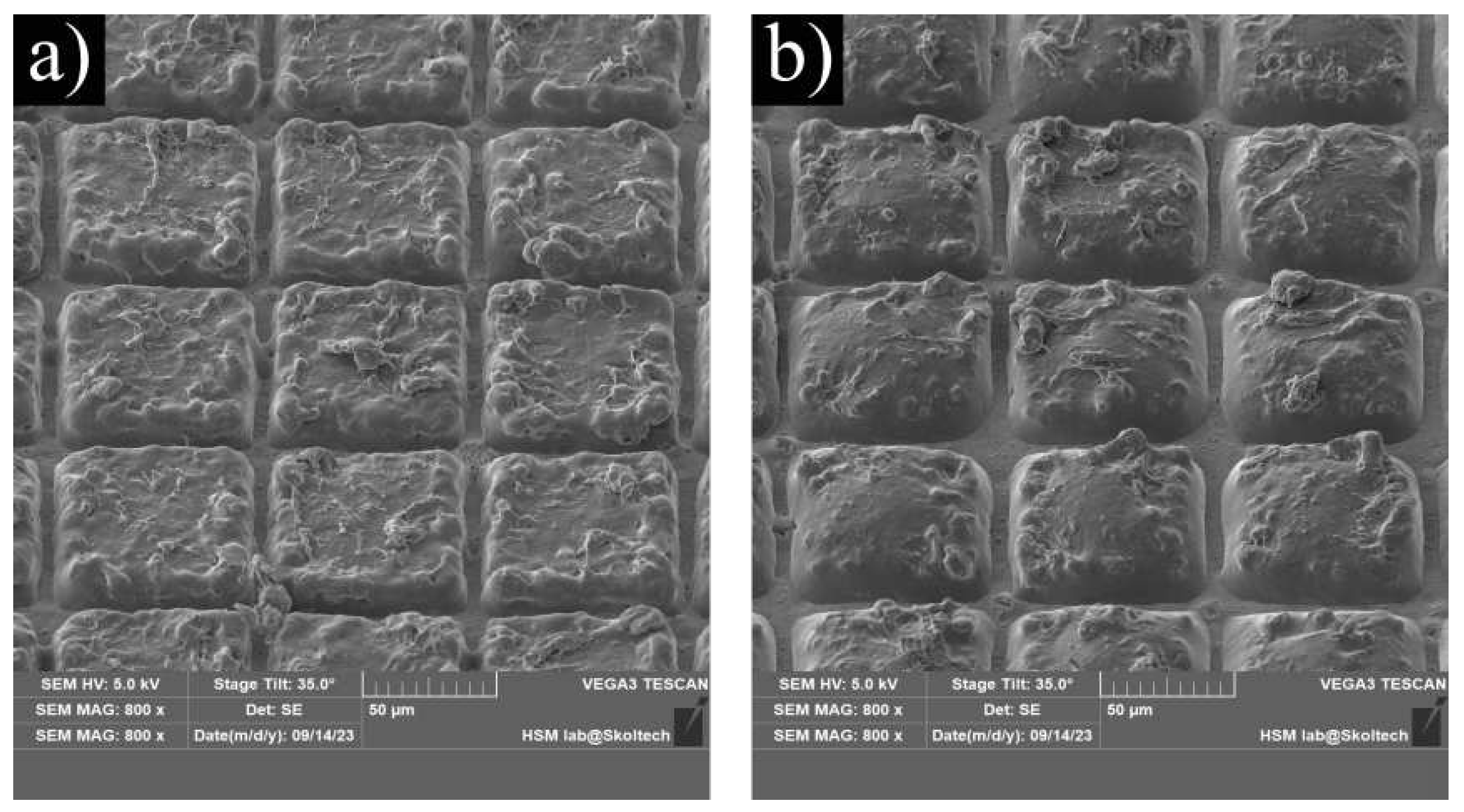

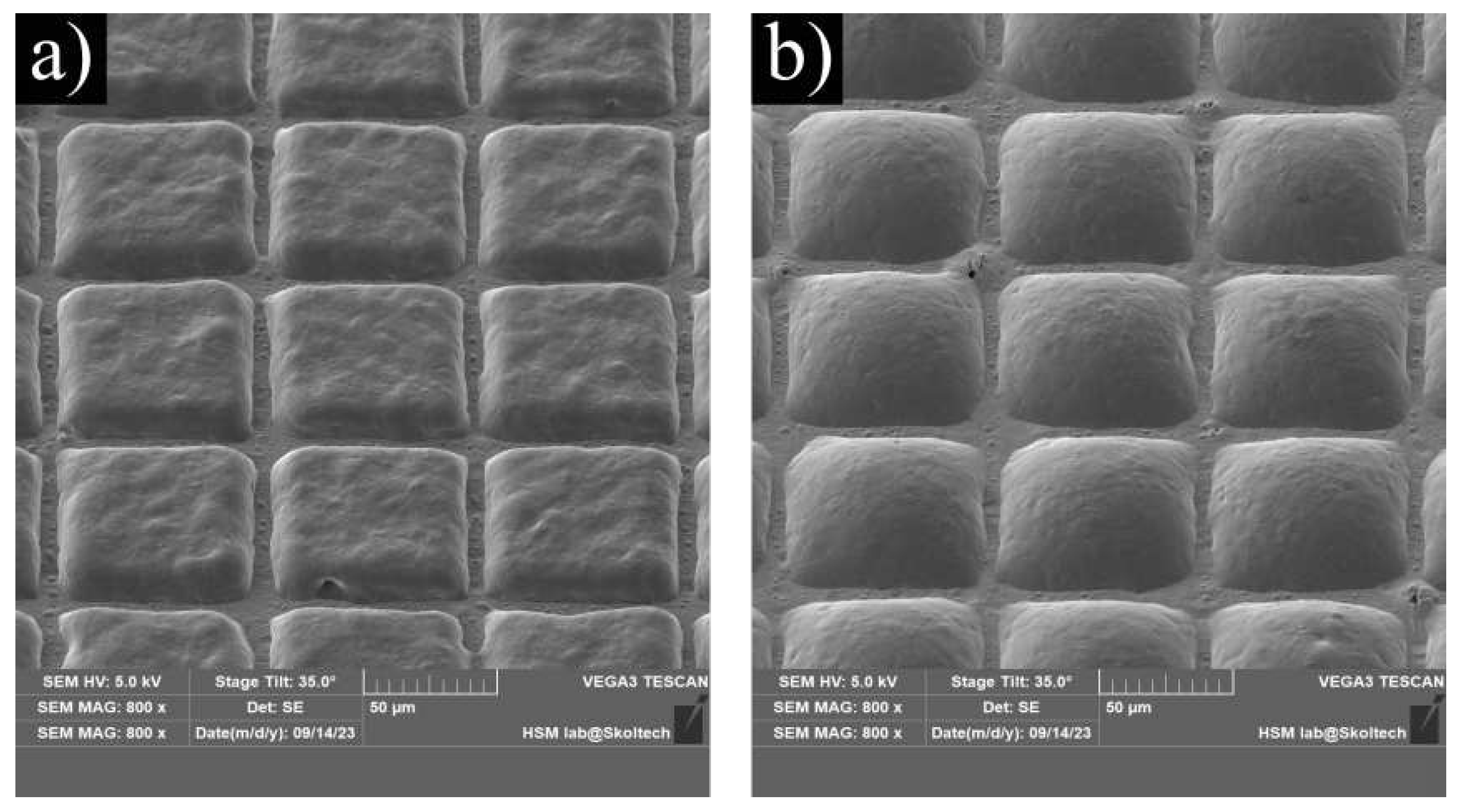

Emanated from single layer blanks enable production of simple polymeric particles the proposed approach is also capable to go over sophisticated layered structures what then results on "core-shell"-like particles. While each polymer forming a layer has different characteristics one can manipulate the properties of each layer in the pre-cut film. Hence, it exerts control over various aspects of particle behavior, including elution dynamics and hydrophilicity. In order to demonstrate this capability, two master films were prepared in accordance with the procedures outlined in the third section of the Methods. The first master film was composed of the following layers (from bottom to top): a blank PCL layer, a PCL layer loaded with Methylene Blue crystals (10 wt.%), and another blank PCL layer. The intent was to create a core containing cargo, surrounded by a protective shell that would impede the elution process until it either biodegrades or is damaged by physical stimuli. Figure 4a displays 70x70 µm blanks created through laser cutting, while Figure 4b presents the same blanks after undergoing heat treatment at 90°C for 3 minutes.

The second master film was constructed with a blank PCL layer at the bottom, an intermediate PCL layer loaded with Methylene Blue (10 wt.%), and an upper layer comprising blended polymers (PCL:PVP mass ratio at 1:1). Since PVP is water-soluble and immiscible with PCL, it has the ability to dissolve upon contact with water, creating physical pathways through which cargo can elute into the environment. In Figure 5a,b, we observe 70x70 µm blanks from this film before and after heat treatment (90°C for 3 minutes). While the high melting point of PVP (180-200°C) prevents it from melting at the specified temperature, resulting in minimal visual differences before and after heat treatment at the top of the capsules, the melted PCL effectively seals the cargo inside.

3.5. The influence of cargo content and particle structure on elution kinetics

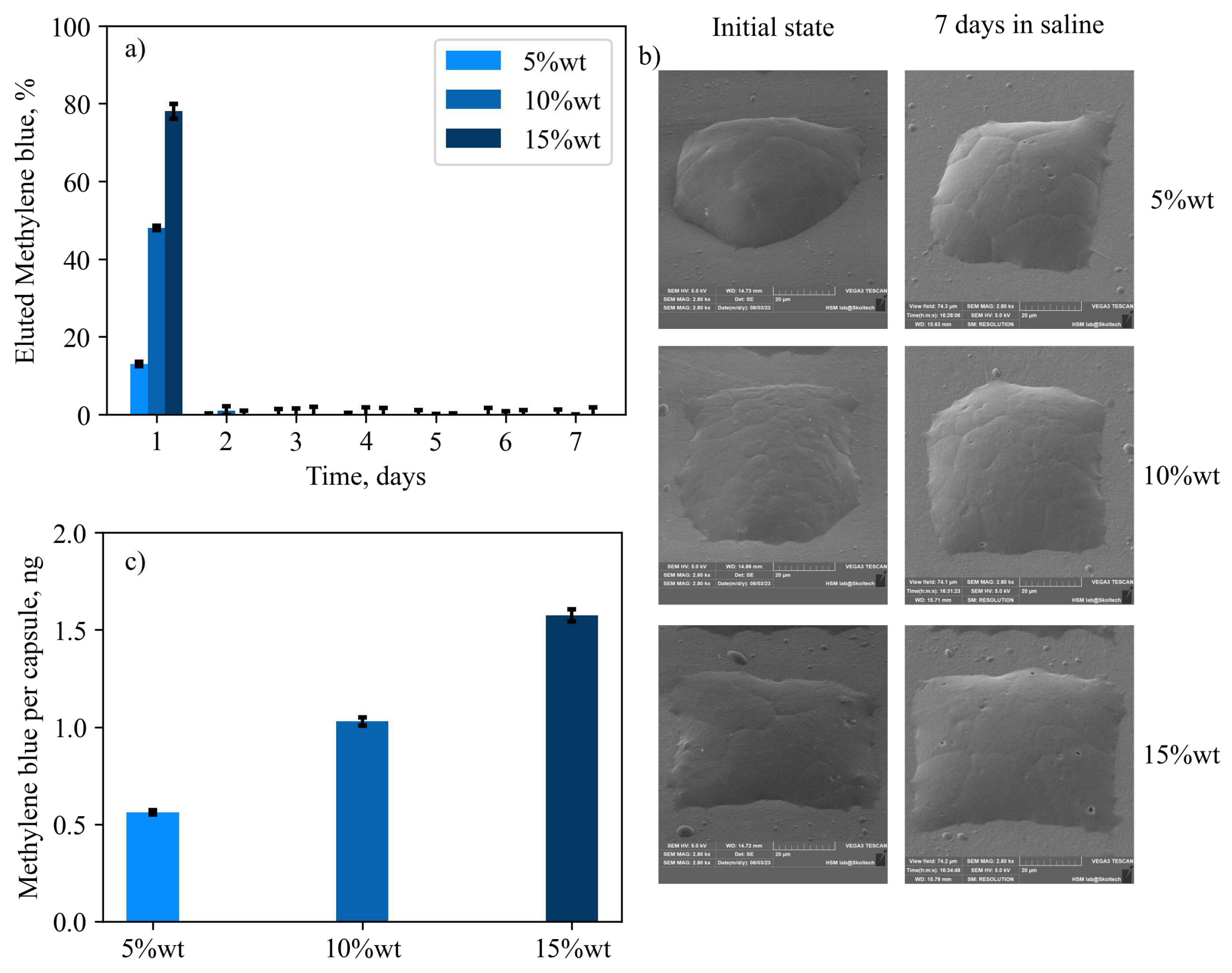

To quantitatively assess the elution kinetics in relation to the cargo amount, a series of simple particles composed of PCL doped with 5%, 10%, and 15 wt.% of Methylene Blue (MB) were created using the proposed approach. Figure 6a displays the day-by-day MB release profiles for each set of particles. On the first day, an initial elution burst was observed in every group, and this burst was directly proportional to the amount of loaded Methylene Blue. However, SEM analysis of the particle’s morphology before and after incubation in saline, as shown in Figure 6b, did not reveal any significant changes in surface quality. This can be explained as follows: it was observed that some amount of Methylene Blue dissolves in chloroform during the manufacturing process. As a result, a certain portion of the cargo exists in the form of large crystals surrounded by the polymer matrix, while another part consists of water-soluble molecules trapped within the polymer chains. Upon contact with water, these entrapped molecules rapidly escape from the capsules, likely accounting for the substantial substance release observed on the first day, without significant erosion of the capsule surface (Figure 6b). The remaining cargo remains entirely entrapped within the capsules, with no further elution over the subsequent week. The proposed capsule manufacturing method enables precise control over the number of particles produced on the substrate. This simplifies the estimation of the average cargo content in a single particle without the need for sophisticated or less accurate concentration estimation methods. To determine the average cargo content, four thousand particles with varying amounts of cargo (5%, 10%, and 15 wt.%) were immersed in 200 µL of distilled water. Subsequently, 100 µL of ethyl acetate was added to the mixture to dissolve the polymer and extract the Methylene Blue into the aqueous phase. Carefully collecting 150 µL of the water from the bottom of the vial, spectroscopic analysis was performed to estimate the absolute amount of the dye. Figure 6c illustrates the average cargo per capsule for different amounts of Methylene Blue added to the initial polymer solution. The loading capacities were found to be 0.56±0.1 ng/capsule, 1.02±0.12 ng/capsule, and 1.57±0.1 ng/capsule, which closely corresponded to the ratios of 5%, 10%, and 15 wt.% of the dye, respectively.

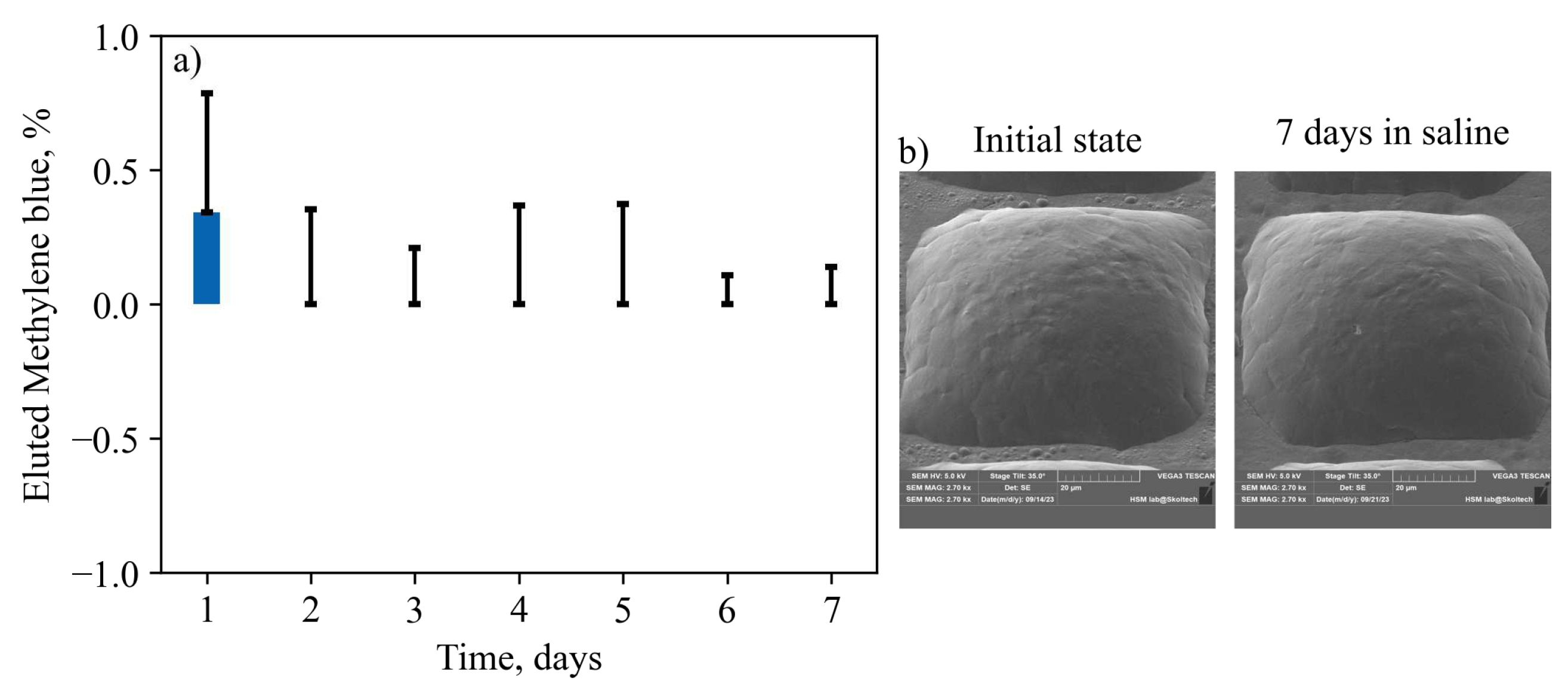

In Figure 7a,b, daily elution profiles and SEM images of particle morphology before and after one week of incubation in saline are presented for core-shell structured particles with an impermeable PCL shell. It is evident that the addition of the impermeable shell effectively blocks the elution of the cargo. This property could be harnessed for on-demand drug release triggered by external physical stimuli. Achieving such behavior could involve incorporating specific sensitizers into the shell, such as magnetic or gold nanoparticles, which can convert the energy from alternating magnetic fields or photons into heat, thereby rupturing the shell for the on-demand therapy [22,23,24].

In order to elaborate formulation with prolonged drug release, we examined test particles with a semi-permeable PCL-PVP shell. As observed in Figure 8a, the addition of a permeable shell reduced the initial day’s elution by approximately 10% compared to plain composite PCL particles containing Methylene Blue crystals. Unlike simple PCL composite particles, there was continuous elution of Methylene Blue for up to 4 days. Although the elution kinetics are not reflecting normal release decay curves (Figure 8a) due to a noticeable difference in the amount of cargo eluted on the first day compared to the rest of the period. By this experiment we demonstrate the capacity to alter the release profile by modifying the properties of the shell. Figure 8b provides a visual representation of the effect of PVP addition on the capsule’s surface before and after incubation in saline.

3.6. Bi-polymer (Janus or asymmetrical) particles

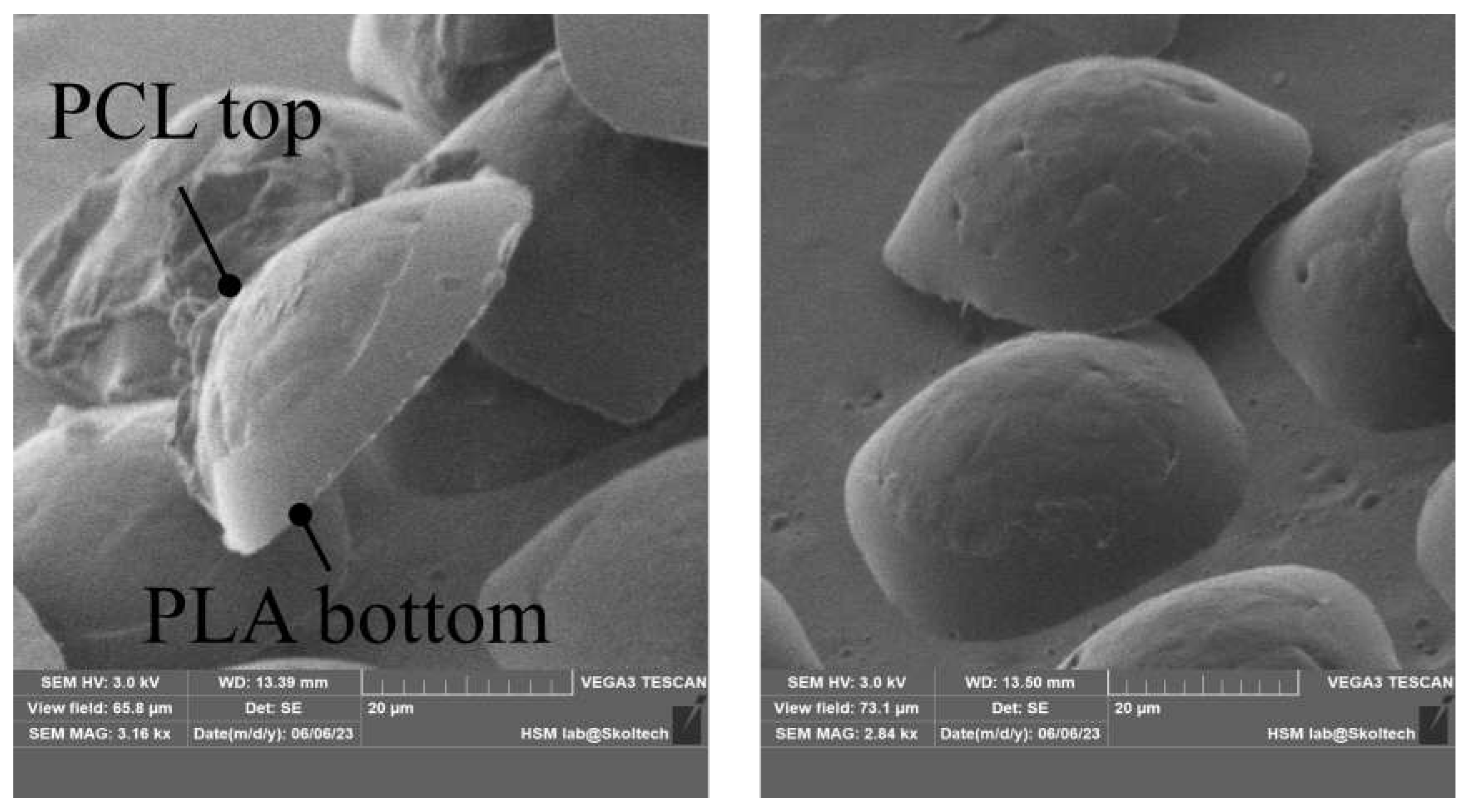

To highlight the versatility of using polymers other than the low-melting-point PCL, we created a set of asymmetric or Janus particles [25]. These particles were fabricated from a two-layer master film consisting of PLA and PCL layers. At 90°C, the PLA base of the particles did not melt, but the PCL top layer completely melted and, due to differences in density, floated to the top. Combination of unique discrete features (materials) within the single anisotropic particle significantly expands it’s functionality. Particles of this kind may be in demand not only in the field of targeted drug delivery, but also in the field of biotechnology, micro-manipulation and other industries where precise control over the properties of the environment or the amount of substances involved in the reaction is necessary [26,27,28]. The authors suggest that the proposed method can significantly facilitate and speed up the procedure for manufacturing asymmetric particles based on biodegradable thermoplastic polymers, which in turn will invariably lead to their wider and accelerated implementation for solving various problems.

Figure 9. Illustrates particles made from two distinct polymers with varying crystallinity, degradation rates, and numerous other properties. This further underscores the flexibility and simplicity of the proposed method for producing particles with well-defined structures and properties, while maintaining minimal defects.

Figure 9. Illustrates particles made from two distinct polymers with varying crystallinity, degradation rates, and numerous other properties. This further underscores the flexibility and simplicity of the proposed method for producing particles with well-defined structures and properties, while maintaining minimal defects.

4. Discussion

In this study, we have presented a straightforward yet highly effective approach for producing an array of particles with predefined structures and properties. The throughput of this method relies entirely on the linear speed of the translation stages and the pulse repetition rate of the laser. In our case, the production rate was constrained by the 1 kHz repetition rate of the laser system. To create four thousand particles, our system required over two minutes to cut the master film. It’s worth noting that current industrial lasers can reach tens of kHz or even higher repetition rates, potentially speeding up production by an order of magnitude or more. The authors of this work envision significant potential for scaling this technique, as it does not require specialized templates or specific environmental conditions. This process can be carried out continuously using roll-to-roll and slot-die coating approaches, either with a single-layer master film or multiple layers.

The proposed approach is highly robust because the manufacturing of a simple flat film on a web substrate is a well-established and predictable method for creating thin films with minimal defects. By combining several layers with predefined properties, functionally distinct particles can be easily generated. Additionally, the laser cutting parameters control the size of the resulting particles, making it possible to create a precise quantity of particles with different sizes and predefined ratios on a single substrate. This capability could prove useful for calibration purposes or for studying the biodistribution of these particles based on their size [29,30].

The minimal adhesion between the low-energy FEP substrate and the master film have to be considered. During cutting this film with a pulsed laser, micro-explosions occur due to the ablation phenomenon, attempting to dislodge the blanks from the substrate. In our work, we were unable to reduce the blank size below 25x25 µm, as doing so resulted in a high number of defective blanks (turned, flipped, or displaced). In perspective, one can look forward for exploit this technique for particle formation to extend over different polymers, such as PLA, PLGA, or other commonly used biopolymers for medical applications. However, their relatively high melting points (180+°C for PLA and 200+°C for PLGA) raise concerns about the thermal stability of the cargo.
