H2S Removal via Sorption Process on Activated Carbon-Metal Oxide Composites Derived from Different Biomass Sources

1. Introduction

The continuous growth of industrial processes in combination with the increasing demand for clean energy sources, have led to a substantial rise in the emission of hazardous gases into the atmosphere. Among these harmful emissions, hydrogen sulfide (H₂S) poses significant environmental and health risks due to its corrosive nature and toxic properties [1,2]. Anthropogenic activities such as waste landfilling, home heating, and biogas production contribute substantially to H₂S emissions. Industrial processes, such as petroleum refining, pulp and paper manufacturing, and wastewater treatment, are some sources which release H₂S to the atmosphere [3]. Consequently, there is a growing urgency to develop efficient and sustainable processes for H₂S removal from industrial flue gases, biogas, and natural gas streams.

There are several procedures for H₂S removal such as biological processes, oxidation, physical separation, solid-phase reactions, dry scrubbing, chemical absorption and adsorption [3,4,5]. Each method has its own benefits and challenges, and the selection of the appropriate method depends on the specific requirements of the application, efficiency considerations, and cost-effectiveness [5].

However, among the various techniques, adsorption has emerged as the most widely applied approach for H₂S removal, due to its favorable balance between cost and effectiveness for large and small scale applications even at low concentrations and temperatures [1,5,6]. Different adsorbent materials have been used for this purpose such as zeolites, activated carbons, and metal oxides [5]. Among these materials, activated carbons are very promising materials as effective adsorbents for H₂S because exhibit interesting surface chemistry, high surface area and tunable porosity, which enhances their sorption capacity [3,7,8]. Such materials, act both as catalysts for oxidation of H₂S by air and as adsorbents effectively eliminating sulphur and its oxides from the fuel gas stream[8]. Moreover, biomass-derived activated carbons which are products from carbonized biomass waste are very attractive and environmentally friendly materials for H₂S adsorption applications because of their natural waste origin [9,10,11,12,13,14].

In the recent years, porous carbon/metal oxide composites have emerged as promising materials for H₂S sorption due to their unique combination of properties [15,16,17,18,19]. The incorporation of metal oxides into the carbon matrix enhances the chemical reactivity, improving the overall sorption performance. Metal oxides, such as iron oxide (Fe₂O₃), zinc oxide (ZnO), and manganese oxide (MnO₂), can chemically react with H₂S to form stable metal sulfides, increasing the overall sorption capacity and efficiency [3]. Among various metal oxides, ZnO seems to exhibit the highest equilibrium constant for sulfidation, reducing H₂S levels to fractions of 1 ppm [20] and several studies have been reported about desulfurization using ZnO [3,21,22]. The combination of activated carbon and zinc oxide in composites could exhibits synergistic effects in H₂S capture [23,24]. High surface area and micropore hierarchical pore structure of activated carbons, support and enhance the physical and/or chemical adsorption of H₂S molecules. Zinc oxide reacts chemically according to the exothermic reaction presented below and leading to the chemisorption of H₂S.

ZnO + H₂S ↔ ZnS + H₂O

(1)

This combined mechanism, results in higher H₂S sorption capacities and faster kinetics compared to individual components. Continued research and innovation in this field will lead to advance technologies and will address the challenges posed by H₂S pollution.

In this study, high porous activated carbons derived from three different kinds of biomass waste materials (spent coffee, Aloe-Vera waste leaves and corncob) have been investigated as effective matrices for zinc oxide incorporation and for hydrogen sulfide removal application. Inspired from Geng et al. [25] who adopted the novel melt infiltration technique to fabricate ZnO-based adsorbents, we produced novel composite ZnO@AC materials for H₂S sorption, meeting the demands of modern times, fulfilling the criteria for simplicity, cost-effectiveness, and environmental friendliness. Overall, this study presents a promising possibility for the development of efficient H₂S sorbents, emphasizing the significance of activated carbon/zinc oxide composites as potential candidates for mitigating H₂S emissions in various industrial processes and environmental applications.

2. Materials and Methods

2.1. Materials

Spent coffee (sc) was collected from the student café of the University of Ioannina and dried at 80 °C for 24 h. Aloe-Vera (av) waste leaves were supplied by the Greek Industrial Company, Hellenic Aloe, Ethnikis Antistasews 21, Heraklion, Crete, 71306, Greece, whereas Corncob waste (cc) was supplied by Agricultural Cooperative Agrinio Union, Agrinio, 30100, Greece. Both of them were washed with tap water and dried at 80 °C for 24 h. The dried Aloe-Vera leaves and corncob were milled in order to produce fine brown powder. Potassium hydroxide (KOH, 85%), hydrochloric acid (HCl, 37%), and Zinc nitrate (Zn(NO₃)₂·H₂O, 98%), were purchased from Merck (Darmstadt, Germany) and used without further purification.

2.2. Preparation of Activated Carbons

Activated carbon (AC) were produced via the pyrolysis and chemical activation processes of, spent coffee, Aloe-Vera leaves, and corncob. A certain amount of each biomass was pyrolyzed at 500 ^oC for 2 h under argon flow. The produced chars were grounded and mixed with KOH (1/1 wt/wt) and pyrolyzed again under argon flow at 800 ^oC for 2h. The pyrolysis process took place in a tubular furnace with a temperature increasing rate of 5 °C/min. The produced activated carbon was stirred for 24 h in an HCl solution (1 N), washed with deionized water to approximately neutral pH of 7, and finally was dried at 80 °C for 24 h.

2.3. Preparation of ZnO@AC composites

ZnO@AC composites were synthesized by melt impregnation method [25], using Zn(NO₃)₂·H₂O as metal precursor. An amount of 150 mg of pure AC, was mixed and grounded with 108 mg Zn(NO₃)₂·H₂O, placed inside a 5 ml closed glass vial, and heated at 42 ^oC for 24 h to melt the zinc salt which then intruded to the porous carbon. The mixture further heated at 400 ^oC for 4h under vacuum with heating rate 5 ^oC/min to produce zinc oxide molecules inside activated carbon pores.

2.4. Characterization techniques

For the chemical and structural characterization of the ZnO@AC composites as well as of the initial activated carbon matrices, X-ray Diffraction (XRD), ThermoGravimetric analysis (TG%), Fourier Transformer-InfraRed spectroscopy (FT-IR), nitrogen (N₂) porosimetry, Scanning Electron Microscopy (SEM), and EDX analysis were used. The XRD patterns were determined via powder X-ray diffraction technique using a D8 Advance Bruker diffractometer equipped with Cu Kα (40 kV, 40 mA, λ=1.541 78 Å) radiation source and a secondary beam graphite monochromator (measuring conditions: 2 to 80° 2θ range, 0.02° steps, 2s/ step). The FT-IR spectra were collected using an FT/IR-6000 JASCO Fourier transform spectrometer in the wavenumber range of 4000–400 cm^-1 and 4 cm^-1 resolution. The samples were in powder form and dispersed in KBr to produce pellets. TG% analysis was performed using a Perkin Elmer Pyris Diamond TG/DTA instrument. About 5 mg of each sample was heated in air from 25 ^oC to 850 ^oC, with a temperature increasing rate at 5 ^oC/min. N₂ adsorption-desorption isotherms were collected via porosimetry measurements at 77 K using a Quantachrome Autosorb iQ porosimeter. Before the analysis the sample was outgassed at 150 °C for 20 h under a high vacuum (10^-6 mbar). Brunauer-Emmett-Teller (S_BET) [26] Langmuir (S_Lang.), and Corrugated Pore Structure Model (CPSM) [27,28], methods were applied to determine the specific surface area. Pore volume distribution of the material was estimated by applying the Density Functional Theory (DFT) [29] and the Corrugated Pore Structure Model (CPSM)[27,28]. The total pore volume was calculated by transform the overall (i.e. at around P/P₀=0.998) adsorbed gas nitrogen STP volume to liquid nitrogen volume. The micropore volume fraction estimation were carried out using the Dubinin-Radushkevich and the CPSM model [30,31] while the pore number (population) distribution were estimated using the CPSM model [27]. Finally, Scanning electron microscopy (SEM) images were obtained using a JEOM JSM 6510-LV instrument (Ltd., Tokyo, Japan) equipped with an X-Act EDS-detector from Oxford Instruments, Abingdon, Oxfordshire, UK (an acceleration voltage of 20 kV was applied). EDX measurements were also carried out.

2.5. H₂S sorption experimental measurements

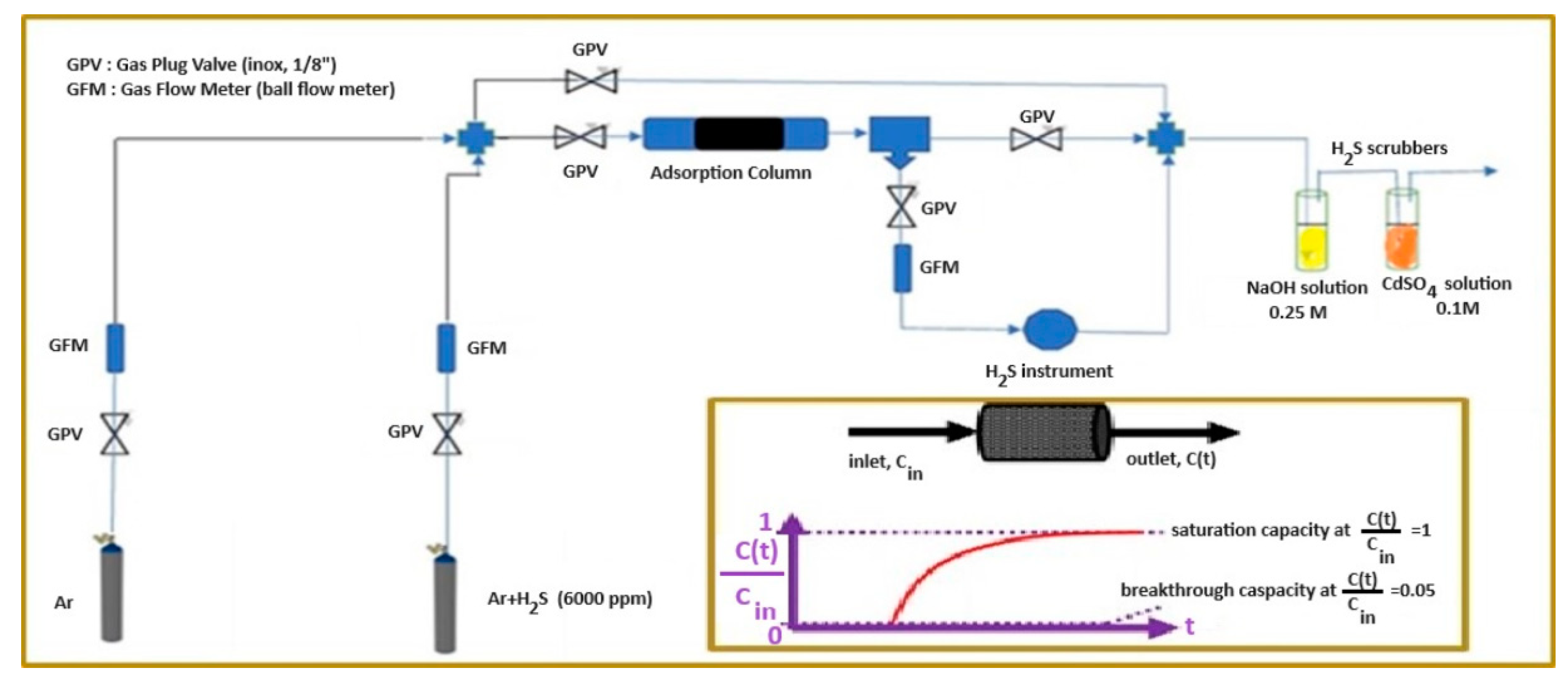

The H₂S removal capacity of the prepared AC samples was estimated via experiments in an i.d.=4.4 mm inox 316 adsorption column, total length of 22 mm, mounted on a handmade apparatus presented in Figure 1.

For the construction of this apparatus, we used PARKER 13HE inox 316 gas plug valves 1/8” (GPV), 172 bar, 38 °C, Parker Hannifin Sales Company Germany, Pat-parker-platz 1, 41564 Kaarst, Germany, AALBORG calibrated ball gas flow meters (rotameter), Aalborg Instruments & Controls, Inc., 20 Corporate Drive, Orangeburg, New York 10962 USA, an electrochemical instrument, CROWCON Xgard Bright, Ribble Enviro Ltd., Unit 4, Gisburn Business Park, Gisburn, Nr Clitheroe, BB7 4JP, UK for H2S sensing, and outlet concentration recording using a akYtec MSD200 4-20 mA Modbus Data Logger, GmbH, Vahrenwalder Str. 269 A, 30179 Hannover, Germany, recorder. The instrument is tuned to operate in the range of 0-6000 v/v ppm H₂S (ml/m³) outlet concentration. Experiments were carried out under ambient conditions of temperature and pressure. After the adsorption column, the outlet H₂S was firstly captured by a NaOH aqueous solution 0.25M and secondly by a CdSO₄ aqueous solution 0.1 M. The AC sample was placed in the adsorption column supported by glass wool in front and back of the solid fixed bed. The length of this bed is measured before the experimental measurement starts for Gas Hourly Space Velocity (GHSV) calculations. Outlet (v/v) ppm concentrations (ml/m³) versus time in (min) were recorded and values exported in an excel file at the end (fully saturated AC) of each experiment. Concentration values were normalized with the maximum value, i.e. 6000 v/v ppm (ml/m³), and the breakthrough integral of equation 2 and the saturation integral of equation 3 were calculated numerically (Simpson or Trapezoid rule).

$$breakthroughintegral=I_b\left(min\right)={\int }_0^{t_b}\left(1-\frac{C\left(t\right)}{C_{in}}\right)·dt$$

(2)

$$saturationintegral=I_s\left(min\right)={\int }_0^{t_s}\left(1-\frac{C\left(t\right)}{C_{in}}\right)·dt$$

(3)

where t_b (min) was the breakthrough time, i.e., time where C(t)/C_in=0.05, and t_s (min) was the fully saturation time, i.e., time where C(t)/C_in=1.

The breakthrough adsorption capacity q_b (mg_H2S/g_ads.) was calculated using equation (5) while the fully saturation adsorption capacity q_s (mg_H2S/g_ads.) was calculated using equation (6). For such calculations we assumed the ideality of the inlet gas and the inlet maximum concentration, i.e., 6000 v/v ppm (ml/m³), was converted to mg_H2S/L_gas according to equation 4.

$$C_{in}\left(\frac{{mg}_{H2S}}{{ml}_{gas}}\right)=\frac{{MW}_{H2S}\left(\frac{g_{H2S}}{{mol}_{H2S}}\right)}{22400\left(\frac{{ml}_{H2S}}{{mol}_{H2S}}\right)}·{{10}^{-6}\frac{m_{gas}^3}{{ml}_{gas}}·C}_{in}\left(\frac{{ml}_{H2S}}{m_{gas}^3}or\frac{v}{v}ppm\right)$$

(4)

$$q_b\left(\frac{{mg}_{H2S}}{g_{ads.}}\right)=\frac{C_{in}\left(\frac{mgH2S}{mlgas}\right)·\dot{V}\left(\frac{{ml}_{gas}}{min}\right)}{m_{ads.}\left(g_{ads.}\right)}·I_b\left(min\right)$$

(5)

$$q_s\left(\frac{{mg}_{H2S}}{g_{ads.}}\right)=\frac{C_{in}\left(\frac{mgH2S}{mlgas}\right)·\dot{V}\left(\frac{ml}{min}\right)}{m_{ads.}\left(g_{ads.}\right)}·I_s\left(min\right)$$

(6)

where C_in is the inlet gas concentration, MW_H2S is the H₂S molecular weight, 22400 is the molecular volume of ideal gasses, is the gas volume flow rate, I_b and I_s the breakthrough and fully saturation integral respectively, m_ads. the adsorbent (AC) mass in the adsorption column, q_b the breakthrough adsorption capacity of the adsorbent (AC), and the q_s the fully saturated adsorption capacity of the adsorbent (AC).

3. Results and Discussion

3.1. XRD Analysis of pure AC and ZnO@AC composites

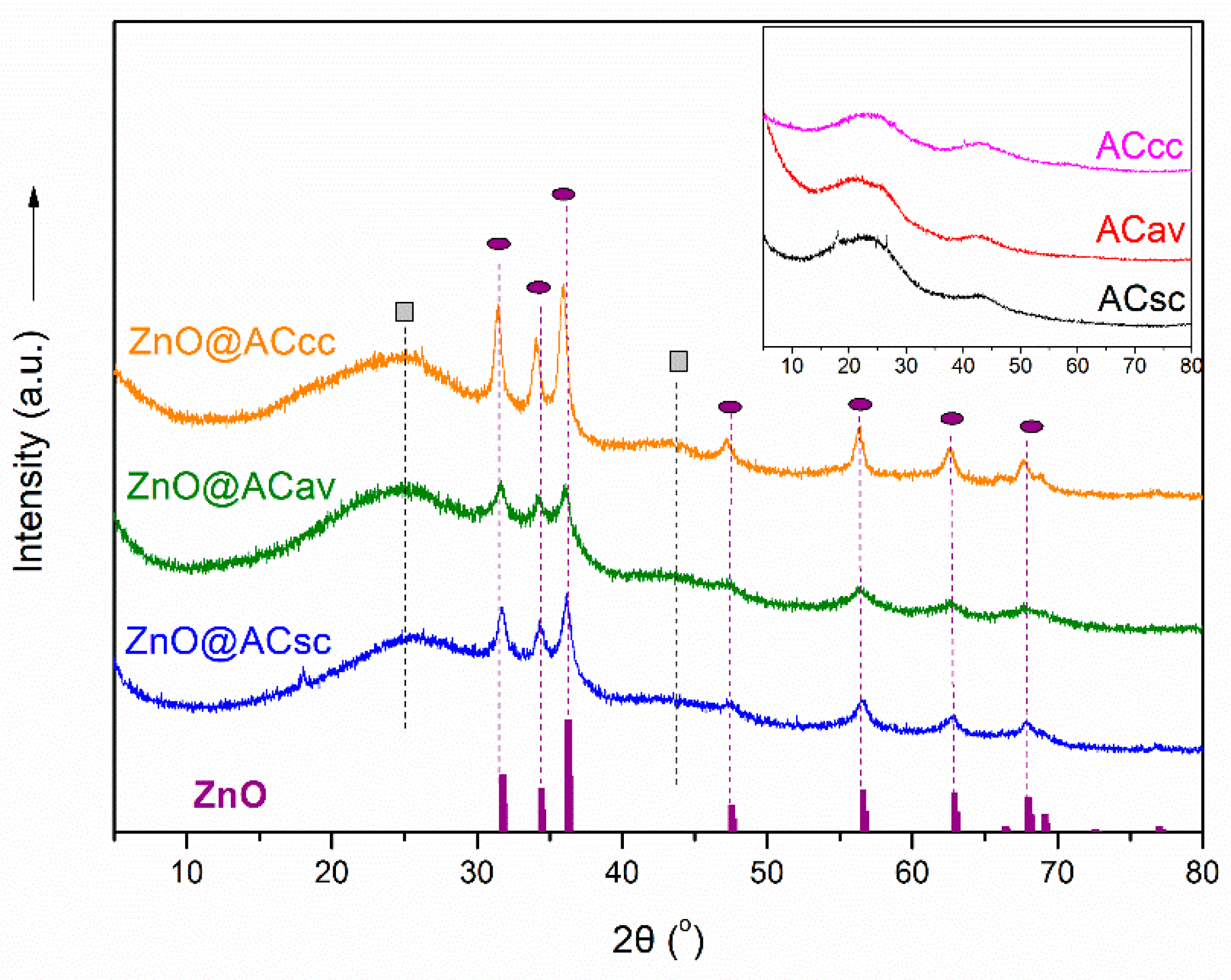

The X-ray diffraction (XRD) analysis was performed on the ZnO@AC composites to investigate their structural properties and phase composition. The obtained XRD pattern are shown in Figure 2 in comparison with the patterns of initial activated carbon matrices (Figure 2-inset). The XRD patterns of composite materials exhibit crystalline diffraction peaks (marked with purple circles in Figure 2), due to the presence of crystalline phases of ZnO particles (JCPDS 96-230-0113) within the composite. The presence of ZnO within the activated carbon matrix is further confirmed by the overlapping of the characteristic peaks of both materials. The characteristic broad peaks at 2θ ~24^o and 44^o (marked with grey squares in Figure 2) become from the amorphous nature of the three activated carbon matrices as it shown in Figure 2 inset. This suggests successful incorporation and dispersion of ZnO nanoparticles into the activated carbon structure. By analyzing the full width at half maximum (FWHM) of the peaks, it is possible to estimate the average crystalline size of ZnO nanoparticles within the composites, using Scherrer’s equation [32,33] at 2θ ~36^o, the more intense peak for ZnO phase. The average crystalline size for ZnO particles is calculated equal to 11, 8.3 and 13.4 nm for spent coffee, aloe leaves, and corncob ZnO@AC composites respectively. Overall, the observed XRD patterns confirm the successful formation of ZnO@AC composite materials.

3.2. FTIR Spectroscopy of pure AC and ZnO@AC composites

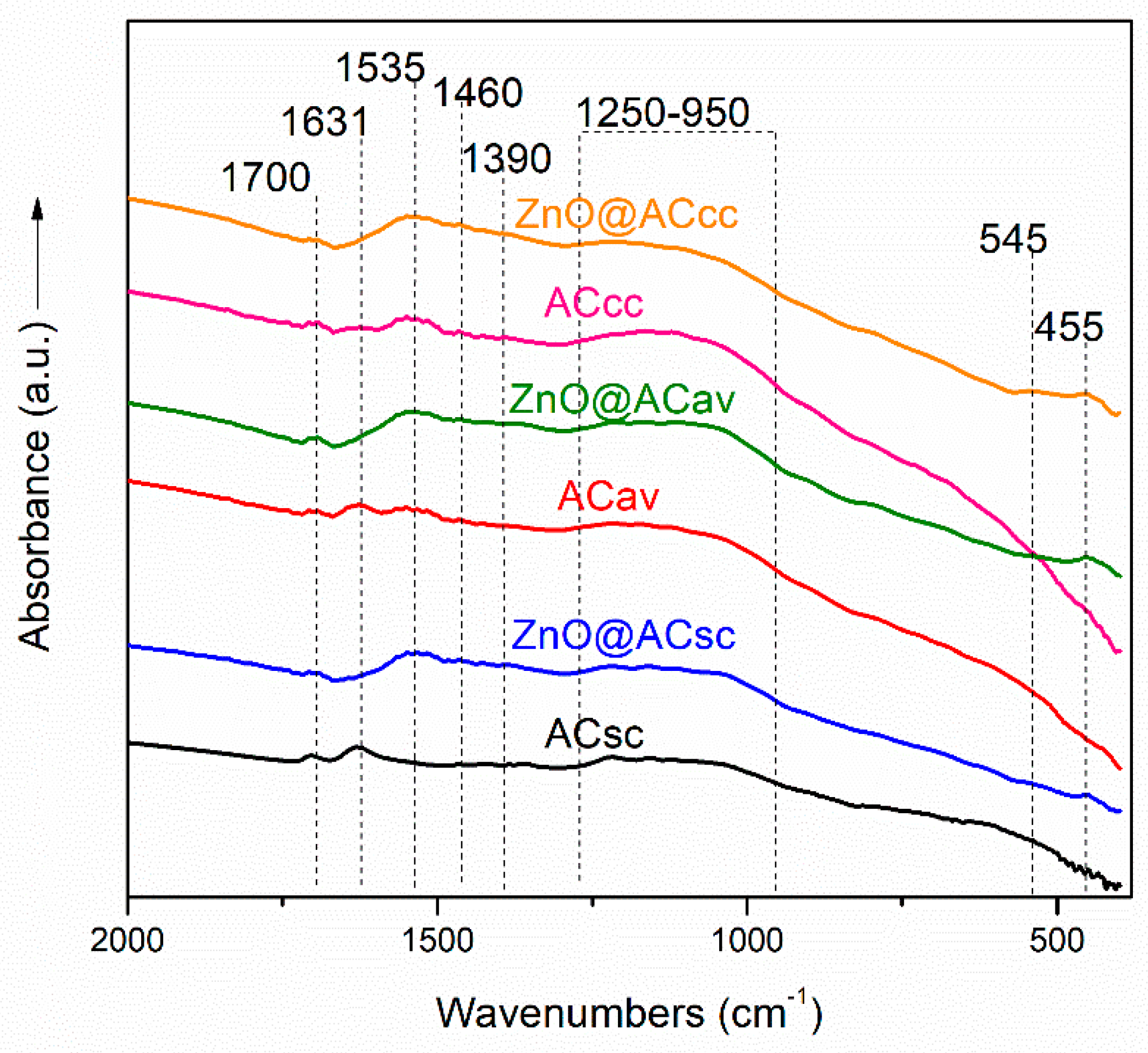

The FT-IR spectroscopy analysis was conducted to examine the chemical bonding and functional groups present in the ZnO@AC composites. The FT-IR spectra of the ZnO@AC composites (Figure 3) exhibited a combination of characteristic absorption bands from both activated carbon and ZnO components. The bands observed in the composite spectra were compared with the individual spectra of activated carbon to identify any shifts or new band, indicating potential chemical interactions. The band observed at 1700 cm^-1 in all spectra, is attributed to the C=O stretching vibration, indicating the presence of carbonyl groups. This band may arise from the surface functional groups of activated carbon, such as carboxylic acids or ketones [34]. The absorption bands at 1460, 1535 and 1631 cm^-1, can be attributed to bending vibrations of CH₂, stretching vibrations of C=C groups in aromatic rings, and/or to –COO^- groups as well as physically adsorbed water molecules [34,35,36]. The band at 1631 cm^-1, is shifted at 1535 cm^-1 in the composite’s spectra, probably due to the interaction of COO^- groups with ZnO nanoparticles[37]. Also, in the composite’s spectra, it is observed an increase to the intensity of the weak band at 1390 cm^-1 which could be assigned to C-OH vibration modes of activated carbon’s functional groups probably once more, due to the interactions of ZnO nanoparticles with these groups [37,38]. The broad absorption band at ~1250-950 cm^-1 region, in all spectra can be assigned to the overlapping of C-O-O stretching, C-O stretching and O-H bending modes of alcoholic, phenolic and carboxylic groups [10,39]. Furthermore, the FT-IR spectra of the composites show two weak bands at low frequency range, at 545 and 455 cm^-1, which can be assigned to the characteristic stretching vibration of the Zn-O bond in ZnO nanoparticles [40]. This peak indicates the successful incorporation of ZnO into the activated carbon matrix. The FT-IR analysis confirmed that the ZnO@AC composite basically, retains the characteristic functional groups of activated carbons, indicating the coexistence of its surface chemistry with ZnO particles in the composite structure without any significant chemical degradation or transformation during the synthesis process.

3.3. Thermogravimetric TG% analysis of pure AC and ZnO@AC composites

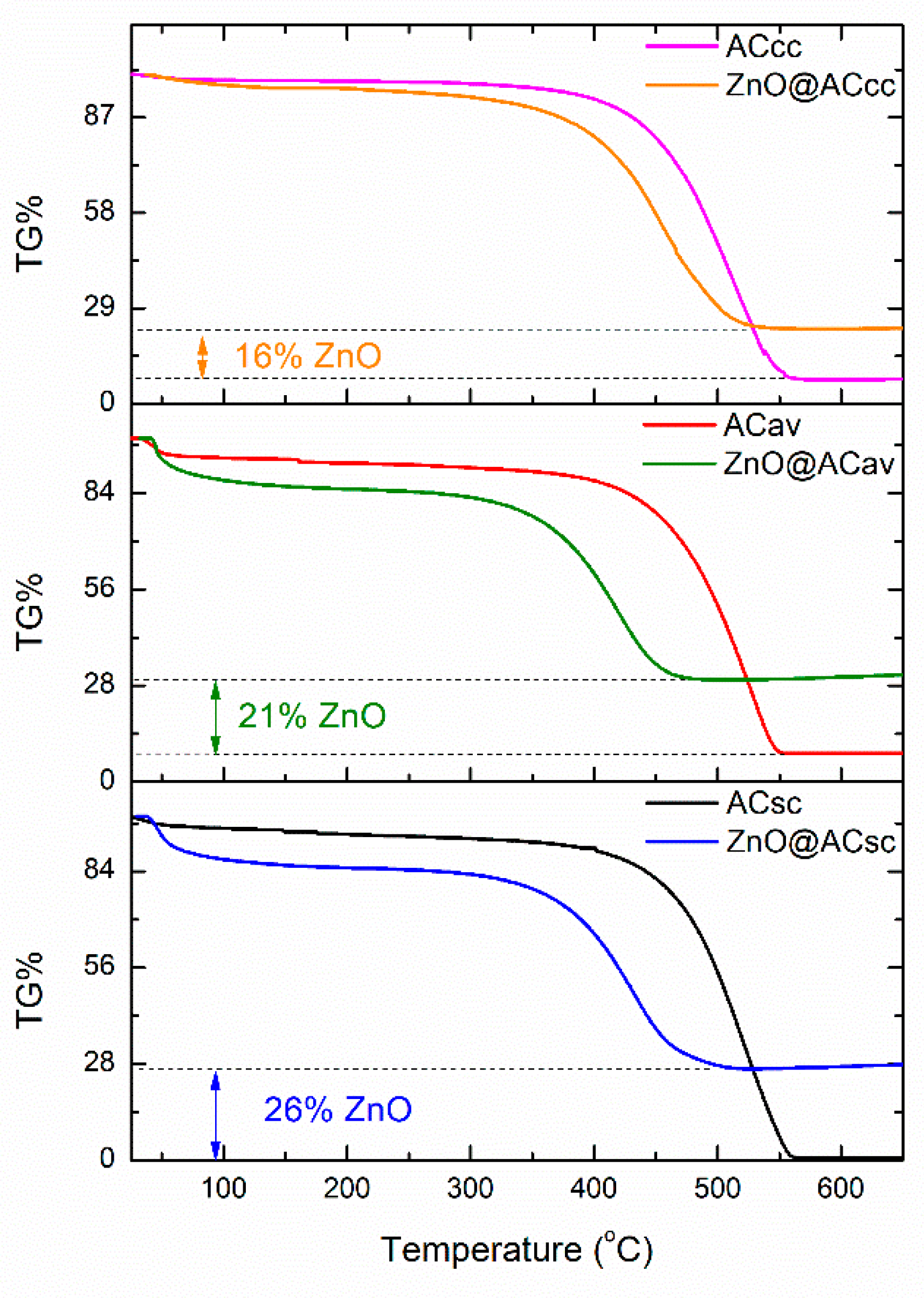

The TG% curves obtained for the ZnO@AC composites in comparison with the corresponding curves of the initial activated carbon matrices, are presented in Figure 4. All TG% curves show a small initial weight loss of approximately 4-15% in the temperature range of 30°C to 120°C due to the removal of adsorbed moisture on the surface of the materials. A significant weight loss of approximately 55-70% is observed between 300°C and 560°C due to thermal degradation/combustion of activated carbon. The residual mass at this point, in the case of the ZnO@AC composite materials is attributed to the presence of inorganic components, particularly ZnO, which has a higher thermal stability compared to activated carbon. This mass is calculated equal to 26%, 21% and 16% for spent coffee, aloe leaves, and corncob derived ZnO@AC composites, respectively.

3.4. Nitrogen porosimetry for pore structure analysis of pure AC and ZnO@AC composites

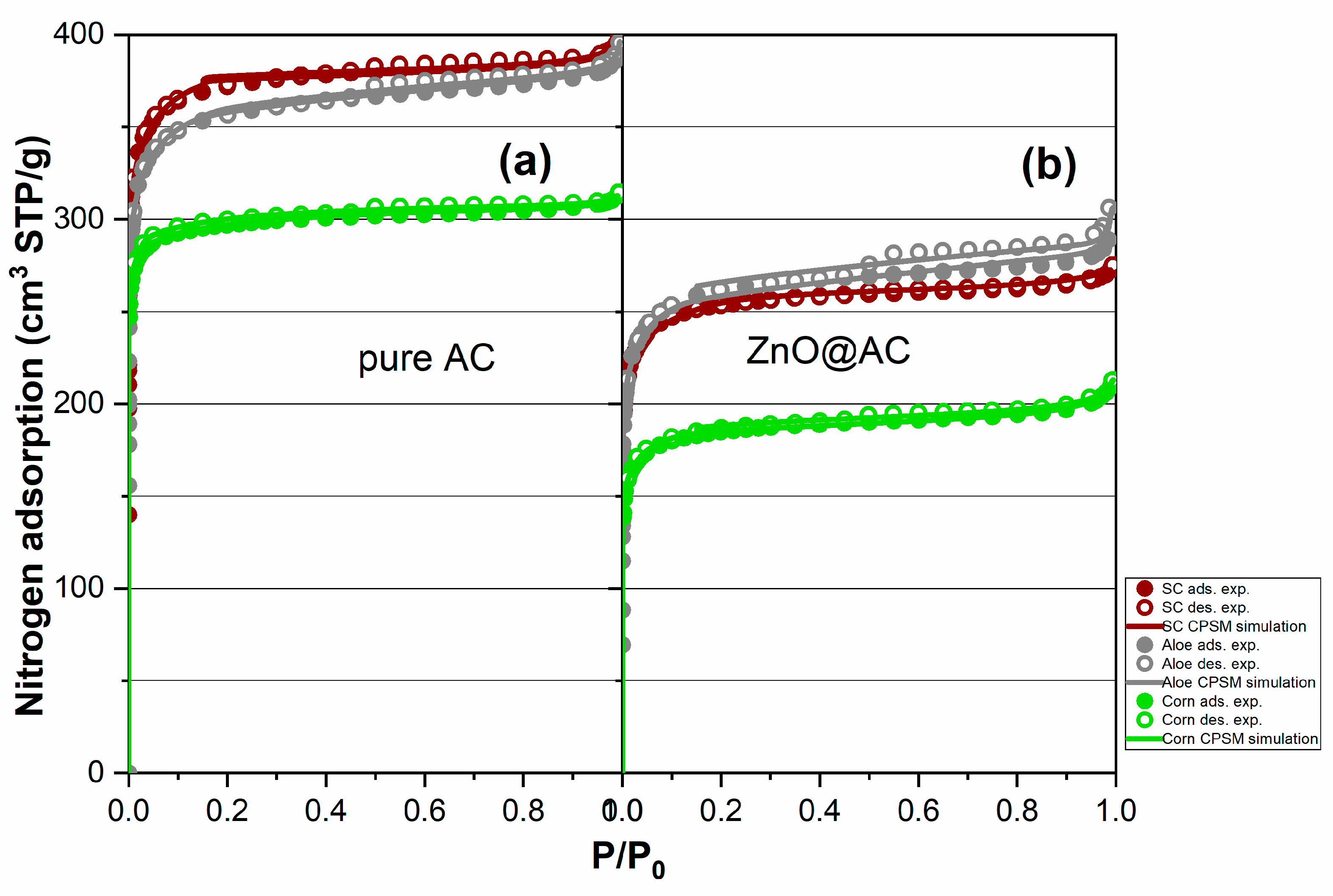

The N₂ adsorption-desorption isotherms were measured to investigate the pore structure properties and porosity of the AC and the Zn@AC composites. The resulted hysteresis loops for all materials as well as the simulation of nitrogen adsorption-desorption process using the CPSM model free code downloaded from [41] are shown in Figure 5. Such results can provide us some first general results. The isotherms of all the materials are type I, showing steep increase in adsorption at low relative pressures (P/P₀), suggesting the existence of a mainly microporous structure [42]. There is a significant decrease of the total sorbed volume in the isotherms of Zn@AC composites, in comparison with the corresponding AC matrices. However, the isotherm’s shape which remains similar, suggests that ZnO nanoparticles did not significantly alter the textural properties of the materials and are well-dispersed within the porous framework [24]. For more detail information CPSM and DFT pore size distributions were obtained and presented in Figure 4. It is obvious from this Figure that the two methods indicated lower micropores in the range of 1-1.5 nm. The ZnO addition seems to block slightly the very low micropores while new microporosity is formed due to the ZnO lay down in mesopore and higher micropore structure and the relevant diameters were reduced. This could be probably an explanation for the shift of corncob microporous distribution peak from the 1.20 nm for pure AC to 1.30 nm to ZnO@AC composite. Also, the same explanation could be fit to the aloe material for the shift of the microporous distribution peak from the 1.29 nm for pure AC to 1.24 nm for ZnO@AC and to the spent coffee material for the shift of the microporous distribution peak from the 1.37 nm for pure AC to 1.29 nm for ZnO@AC. This hypothesis is also supported by the higher micropores peak shift which is presented in Figure 6(c) and Figure 6(d).

Numerical details for pore specific surface area according to BET, Langmuir, and CPSM model are presented in Table 1. The negative C_BET values indicates a strong effect of the microporosity to BET specific surface area calculation. This was expected because of the strong pore curvature effect in such cases which is explained in detail in literature[43] where calculations shown that BET underestimates the specific surface close to 100%. Thus, in our case herein the values of Langmuir and CPSM specific surface seems to be more realistic.

It is obvious from Table 1 that in all cases the underestimated specific surface areas according to the BET equation were around 1000-1100 m²/g when the real values seem to be around 1350-1600 m²/g. The ZnO addition in the AC matrix mostly affected the corncob derived porous carbon and least the aloe leaves derived porous carbon. Although in the case of pure AC the higher specific surface area belongs to spent coffee derived matrix, in the case of composites it belongs to aloe leaves.

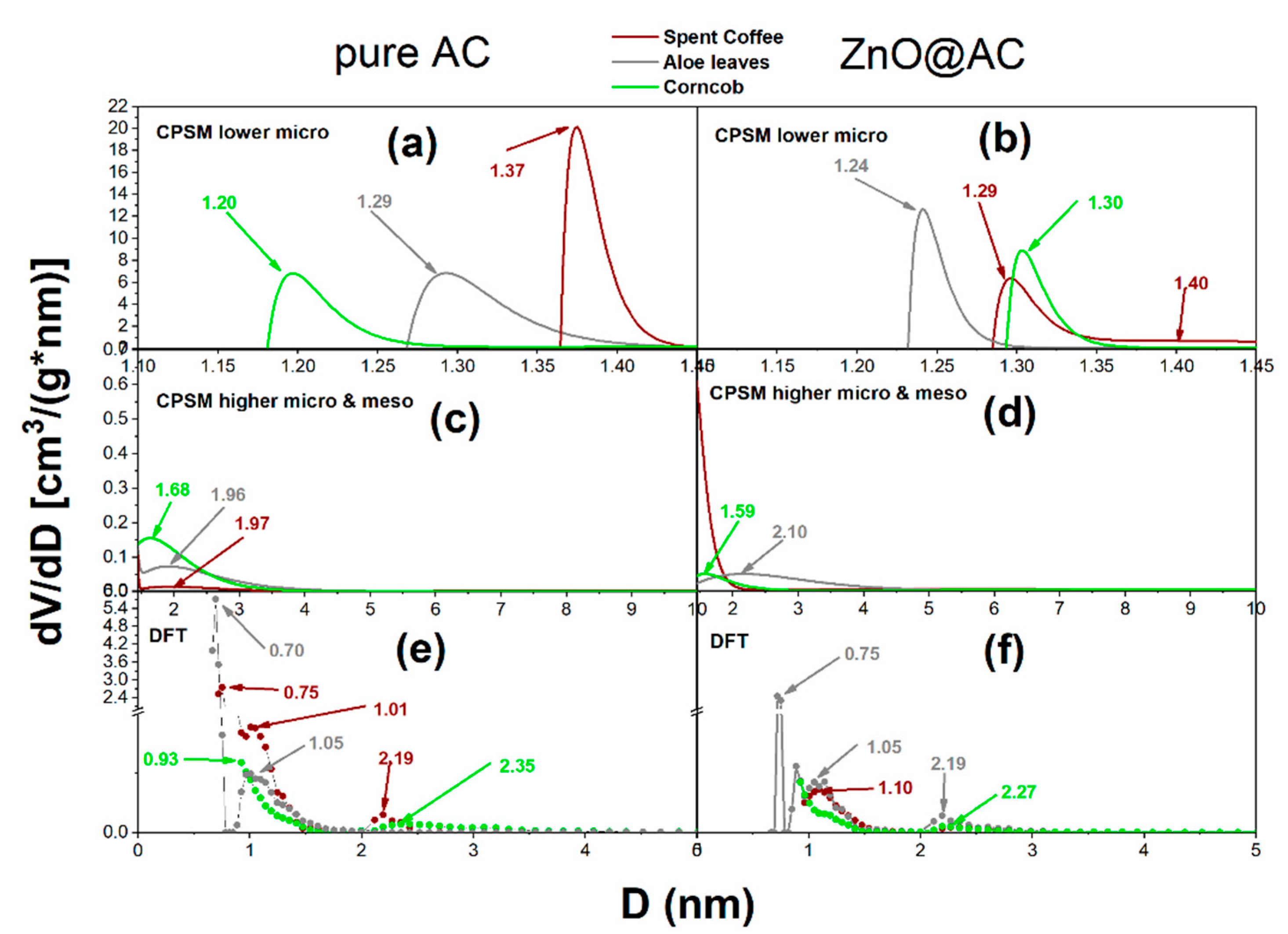

The micropore fraction as well as the mean pore diameter in low microporous region and the total pore volume of all the tested materials are presented in Table 2. Micropore fraction was estimated via two independent models i.e., the Dubinin-Radushkevich and the CPSM model. It is obvious from such values that the main portion of the pores is microporous while according to Figure 4(c) and 4(d) a very small fraction is mesoporous. Furthermore, according to hysteresis loops of Figure 3 there is an extremely small fraction of macropores. The combination of these three observations could be supported by the hierarchicity of the activated carbons which is reported extensively in literature [44,45,46]. Finally, the mean values of low micropores (i.e., from 1.0 nm to 1.5 nm) diameter is around to 1.30 nm for all cases.

3.5. SEM-EDS images analysis of pure AC and ZnO@AC composites

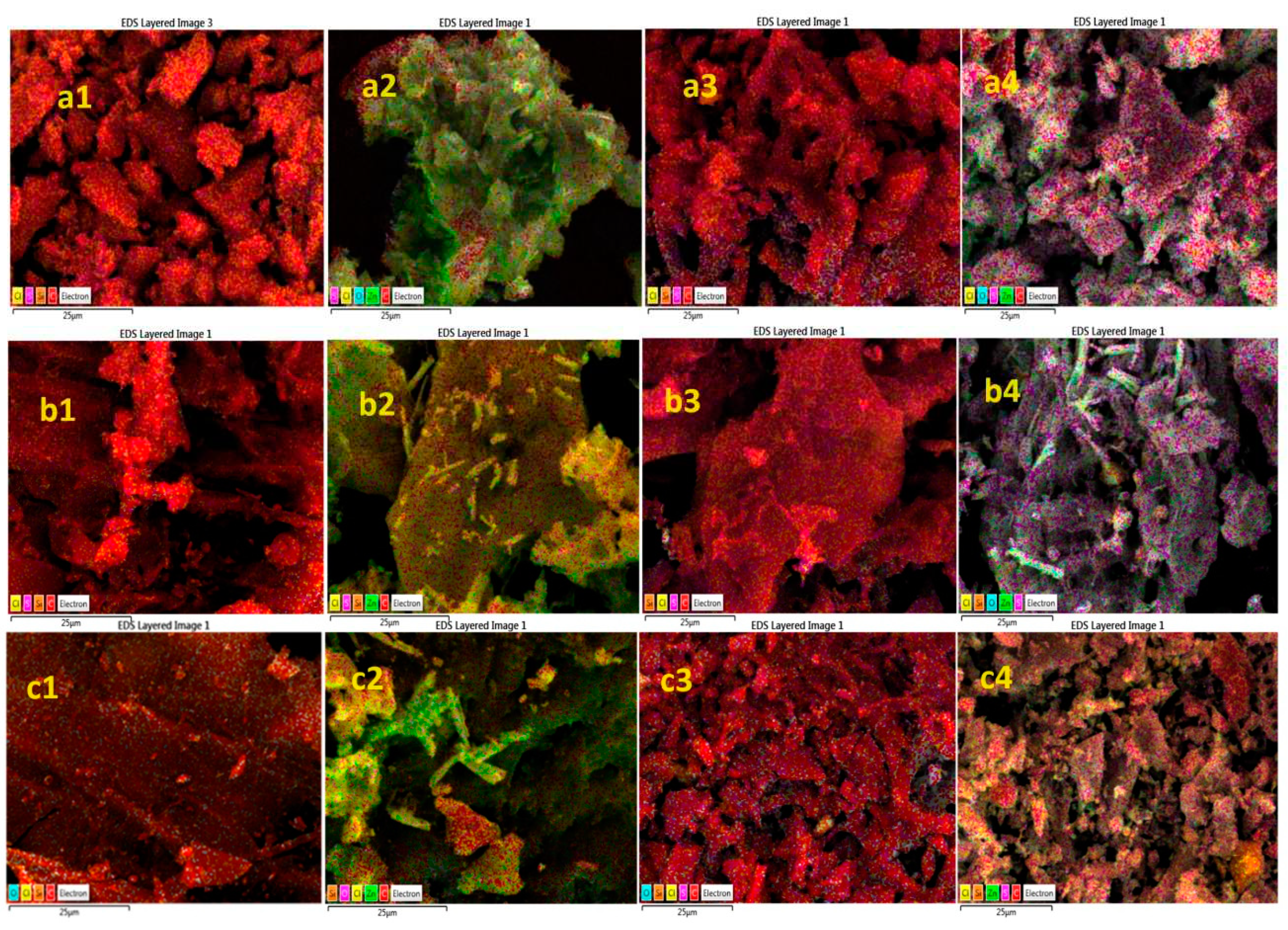

Figure 7 shows SEM-EDS elemental mapping images from the AC matrices and ZnO@AC composites, before and after the H₂S sorption process while Figure S1 displays the corresponding SEM images. It is obvious qualitatively from the change of color of Figure 7 columns 1(pure) and 2(composite) that the ZnO (green-yellow color) was spread homogeneously on the surface and inside the pores of the AC matrix. From the same figure, from columns 4(composite), we can observe that the sulfur (purple color) is much more abundant on composite materials surface compared to the relevant from columns 3 of pure AC. Thus, the composites were far more active for H₂S removal compared to the pure AC probably because of the chemical reaction equation (1). Finally, from a4 and b4 images, spent coffee and aloe leaves composites ZnO@AC seems to be the most active materials.

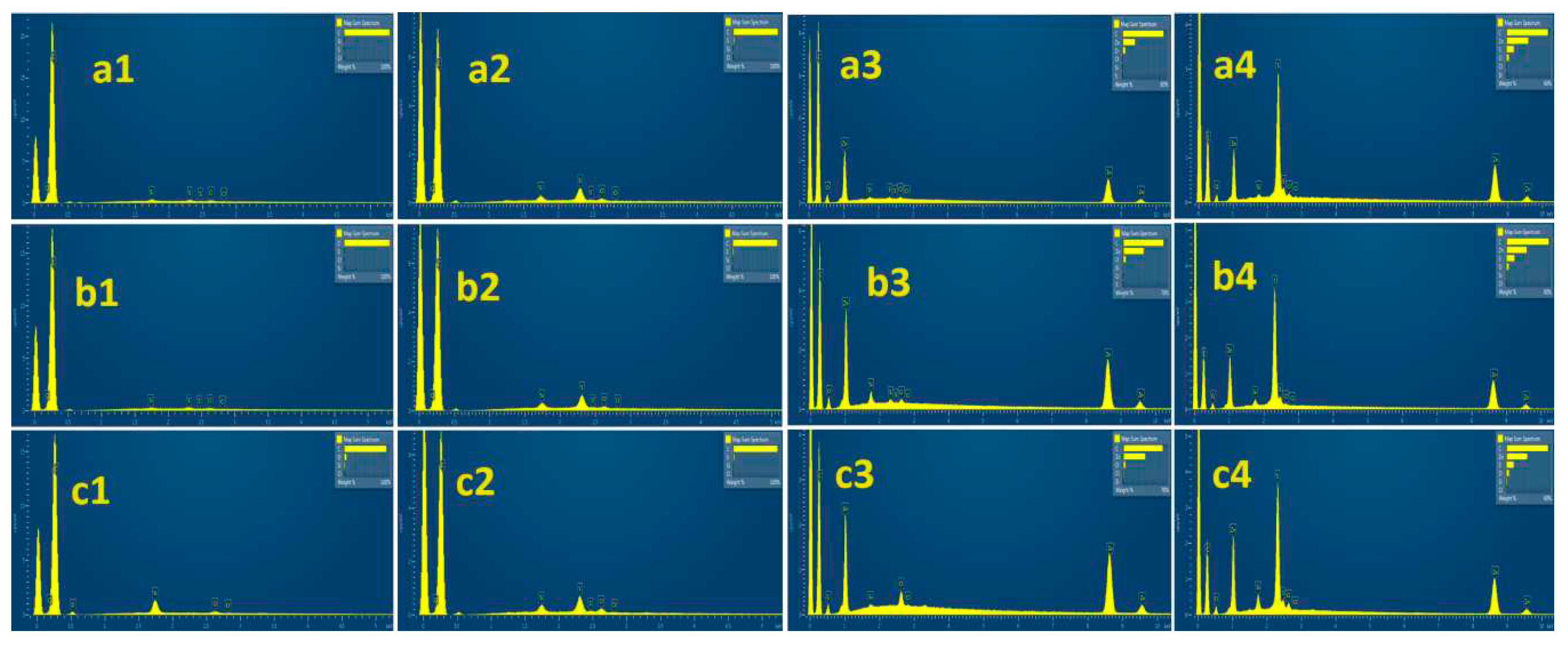

These results are also supported by the EDS spectrum presented quantitatively in Figure 8. It is obvious columns 1(pure before) and 3(composite before) that no sulfur exists in materials before the H₂S removal process. It is also obvious from columns 2(pure after) and 4(composite after) that all materials exhibit an activity on H₂S removal process more or less. According to inset images, pure AC materials clearly exhibit lower sulfur concentration compared to AC composites. Thus, it is confirmed that ZnO@AC composite materials are more active compared to pure AC materials.

Table 3 reports the EDS analysis values of the % wt. presence on materials surface area. It is shown by the differences between fresh and used materials, that sorption and probably chemical reaction processes occur in all cases. Furthermore, despite the fact that, according to Table 1, the addition of ZnO decreases the pore surface area, the H₂S removal activity is enhanced by this addition and aloe leaves originated composite was the most active.

3.6. Hydrogen sulfide (H₂S) removal experiments

Hydrogen sulfide sorption experiments were carried out using a handmade apparatus described in section 2.5. Measurements were treated with equations 2 to 6 and the total sorption capacity of each sample was calculated and presented in Table 4. All AC matrixes were prepared and activated via a pyrolysis process, using KOH as activator, and under identical conditions. All ZnO@AC composites were developed via a melt-intrusion process under exactly the same conditions again. The sorption experiments were executed at ambient conditions of temperature and pressure.

Considering the column %yield, which refer to the % yield of AC using an amount of initial biomass, it is shown that corncob was the most productive source for AC. Aloe leaves was the least productive biomass probably because of the gel content which produces more gasses. Considering Table 1, the arrangement according to the specific surface area for the three sources, was almost in reverse order compared to the %yield. Moreover, the H₂S removal capacity of the pure AC originated from the corncob source is a little higher than the relevant of the spent coffee. The highest is that of pure AC produced from Aloe leaves. When the porous carbon matrixes were impregnated with Zn salt and the composites ZnO@AC were formed, the composite originated from Aloe leaves was again the most active material for H₂S removal. The total capacity of 106 mg_H2S/g_ads. is higher than values referred to other activated carbons and different types of ZnO composite materials (Table 5).

Also, total capacities of the other two ZnO@AC composites i.e., 66 mg_H2S/g_ads. for spent coffee and 47 mg_H2S/g_ads. for corncob, they are remarkable. Although the specific surface was decreased because of the ZnO presence, this oxide was boosting the AC activity 6.5 times in the case of spent coffee, 5.8 times in the case of aloe leaves, and 3.8 times in the case of corncob. This indicates the presence of the chemical reaction presented in the introduction section as equation (1). It is obvious that the results about H₂S removal activity obtained from SEM-EDS analysis agree with the results obtained from sorption experiments. Finally, even though the specific surface area and the pore structure values of the spent coffee and the aloe leaves derived ZnO@AC composites were close, there was a gap between the respective H₂S sorption capacities. This observation could be explained assuming different surface chemistry effect.

5. Conclusions

In this study, we successfully synthesized and characterized biomass derived pure AC and ZnO@AC composites from three different biomass sources for efficient H₂S removal. Using spent coffee, Aloe-Vera waste leaves, and corncob as biomass sources, three different activated carbon matrices were obtained by pyrolysis and chemical activation process. Their ZnO@AC composites were also synthesized, and all the prepared materials exhibited mainly microporous structure with high specific surface area values. XRD results revealed the formation of crystalline zinc oxide particles inside the pore structure with average crystallite size 11, 8.3 and 13.4 nm for ZnO@AC derived from spent coffee, aloe leaves and corncob respectively. The H₂S sorption measurements were confirmed the results of the SEM-EDS analysis that the presence of ZnO significantly enhanced the material activity during this process. Moreover, from the overall study we can conclude that surface chemistry of materials plays a key role in this process.

Overall, the proposed biomass derived ZnO@AC composites, seems to be a very promising cost-effective and eco-friendly solution for H₂S removal process and the aloe leaves derived material, with 106 mg_H2S/g_ads. adsorption capacity, was the most functional for this process. Future research should focus on scaling up the production of these composites and exploring their performance under real-world conditions to accelerate their practical implementation.
