Gene Expression Analysis Reveals the Regulatory Effect of Ficus carica Latex on Cell Cycle Progression in Human Papillomavirus Positive Cervical Cancer Cell Lines

1. Introduction

Cervical cancer is a prevalent malignancy in women with a staggering incidence of 604.127 new cases and 341,831 deaths globally reported in 2020 [1]. Among the myriad factors contributing to the development and progression of this disease, infection by high-risk Human Papillomaviruses (HPVs) emerges a key player [2]. Although the majority of HPV infections are resolved by the host immune system within several months of exposure, viral lesions persist and gradually escalating into cancerous growths in certain cases [3,4]. High-risk HPV strains, particularly types 16 and 18, play a significant role in driving the development of cervical cancer [5,6]. Their oncoproteins, E6 and E7, are key factors in orchestrating the intricate process of cellular transformation into a malignant state [6]. Specifically, E6 oncoprotein undermines the function of the tumor suppressor protein p53, impairing its role in orchestrating apoptosis and contributing to the evasion of cell death [7,8,9,10,11]. In parallel, E7 disrupts the interaction between the retinoblastoma (Rb) protein and the transcription factor E2F, tilting the G1/S cell cycle transition off balance and fostering uncontrolled proliferation [12,13,14].

Despite the availability of preventive HPV vaccines and advances in screening and early detection, the clinical landscape of advanced cervical cancer treatment remains ensnared in challenges largely driven by the complex interplay of HPV oncoproteins [15,16]. While conventional therapeutic modalities like surgical intervention, radiation therapy, and chemotherapy play pivotal roles, their utility is marred by a spectrum of unfavorable side effects [17]. Therefore, there is a growing demand for new drugs to improve the treatment of cervical cancer, particularly for patients with advanced disease who have failed standard therapies [18,19].

Recently, natural compounds have garnered substantial scientific interest for their potential therapeutic efficacy against various cancer types [20,21]. These compounds are of particular interest due to their ability to induce apoptosis, inhibit cellular proliferation and module crucial cellular signaling pathways [22]. Within this context, fig latex, extracted from Ficus Carica species stands out for compelling anticancer properties. Recent studies have shed light on the cytotoxic effects of fig latex on a wide range of cancer cell lines including those associated with cervical, gastric, and colorectal cancers [23,24,25]. Importantly, our previous research has shown that fig latex suppressed cervical cancer cell growth and induced apoptosis by downregulating E6 and E7 oncoproteins while upregulating tumor suppressor proteins P53 and Rb. These findings firmly establish fig latex as promising candidate for cancer therapy [25].

Based on earlier findings above, we conducted an in-depth analysis of fig latex on genes related to cellular growth in HPV positive cervical cancer cell lines by using RNA sequencing. Our results clearly demonstrated that fig latex suppressed the growth in HPV positive cervical cancer cell lines, specifically CaSki and HeLa without any observed cytotoxic effects on normal/ non-cancerous cervical cells (HCKT1). Analysis of RNA Seq data unveiled fig latex’s regulatory role in the expression of genes crucial for various cancer related pathways, particularly those involved in “Nonsense Mediated Decay (NMD) “, “Cell cycle “and “Transcriptional Regulation by TP53”. This selective impact of fig latex on cancer-related pathways suggests a potential novel therapeutic approach for HPV-related cervical cancer.

2. Results

2.1. Fig Latex inhibits the growth of HPV positive cervical cancer cell lines

To explore the effect of fig latex on the growth of distinct cervical cell lines, we conducted experiments using three cell types: normal human cervical keratinocytes (HCKT1) and two HPV-positive cervical cancer cell lines (HeLa HPV18+ and CaSki HPV16+). These cells were subjected to varying concentrations of fig latex (5 μg/ml, 10 μg/ml, 50 μg/ml, 100 μg/ml, 200 μg/ml) for a duration of 72 hours. The viability of these cells was assessed using the Sulforhodamine B (SRB) colorimetric assay.

Notably, fig latex demonstrated no cytotoxic effects on normal human cervical keratinocytes when contrasted with cervical cancer cells. Remarkably, IC50 values for whole fig latex after 72 hours on HeLa and CaSki cells were determined to be 106 μg/ml and 110 μg/ml, respectively (Figure 1B-C). These observations underline the potential of specific fig latex concentrations to selectively induce cytotoxicity in HPV-positive cervical cancer cells without any adverse effect on normal cells. (Figure 1A).

2.2. Fig latex induces cell cycle arrest at sub G1 in HPV positive cervical cancer cell lines

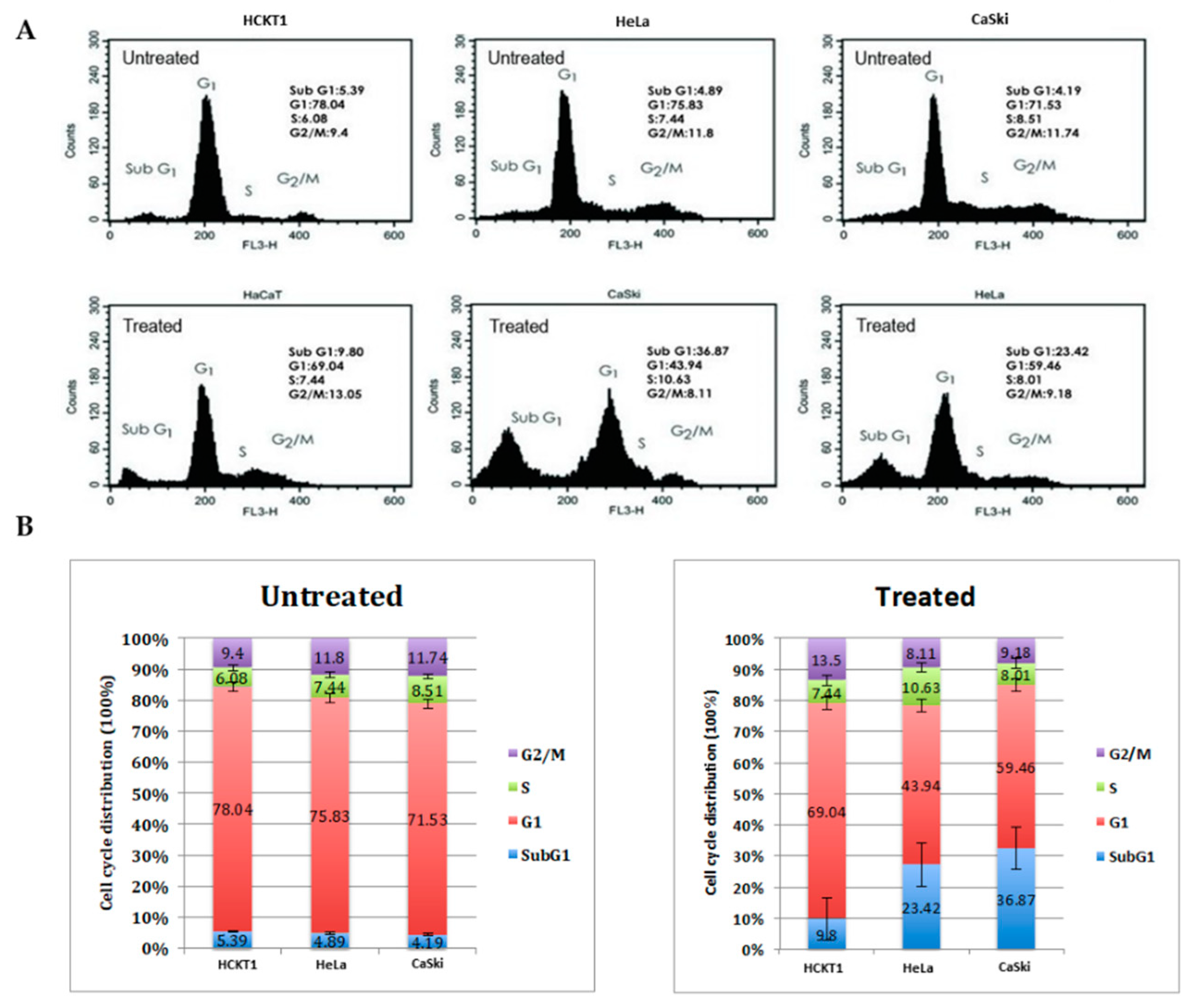

To investigate whether the growth inhibitory effect of fig latex on HeLa and CaSki cells is related to the cell cycle arrest, changes in cell cycle progression of those cancer cells were determined after 100 μg/ml of fig latex treatment using flow cytometry. As shown in Figure 2A-2B, cells in sub-G1 phase were increased under fig latex treatment. This suggests that fig latex inhibited the cellular proliferation of human cervical cancer cell lines, HeLa and CaSki via arrested G1 phase of the cell cycle. In contrast, HCKT1 cells treated with fig latex showed approximately the same ratio in the all phases of cell cycle.

2.3. Transcriptomic profiling of different HPV positive cervical cancer cells upon whole fig latex treatment

To investigate the gene expression profile HPV positive human cervical cancer cells upon fig latex treatment, the cells, HeLa (HPV18 positive) and CaSki (HPV16 positive) were subjected to treatment with 100 ug/ml of fig latex that was a concentration closely aligned with IC50 value. we performed RNA Sequencing (RNA Seq) to decipher the changes in gene expression profiles of human cervical cancer cells upon treatment.

The subsequent analysis of differential gene expression uncovered a total of 149 genes that exhibited significant differences in expression levels within the HPV-positive cancer cell lines. Among these genes, 65 demonstrated consistent downregulation, while 84 displayed consistent upregulation upon exposure to fig latex treatment. This dynamic shift in gene expression profiles paints a comprehensive picture of the genetic responses triggered in HPV-positive cervical cancer cell lines following exposure to fig latex (Supplementary Table S1).

2.4. Analysis of differential expressed genes in HPV positive cervical cancer cell lines upon fig latex treatment using KEGG pathway enrichment analysis.

Pathway enrichment analysis were employed to scrutinize the effects of fig latex treatment on differentialy expressed analysis within HPV positive cervical cancer cell lines. The results indicated that the genes modulated by fig latex treatment were crucial for several cell processes including “ Nonsense – Mediated Decay (NMD) “ , “ Cell Cycle “ and “ Transcriptional Regulation by TP53 “(Table 1). Noteworthy, a cluster of genes were overlapped across these pathways, implying their indeispensable role in regulation of cell cycle and mRNA stability. These collective findings suggest that fig latex holds the potential to regulate pivotal signalling cascades intricately linked to cell growth and genomic instability, thereby extending its potential therapeutic significance to the management of HPV associated cervical cancers.

2.5. Analysis of differentially expressed genes by Kinase Enrichment and Chromatin Enrichment Analysis

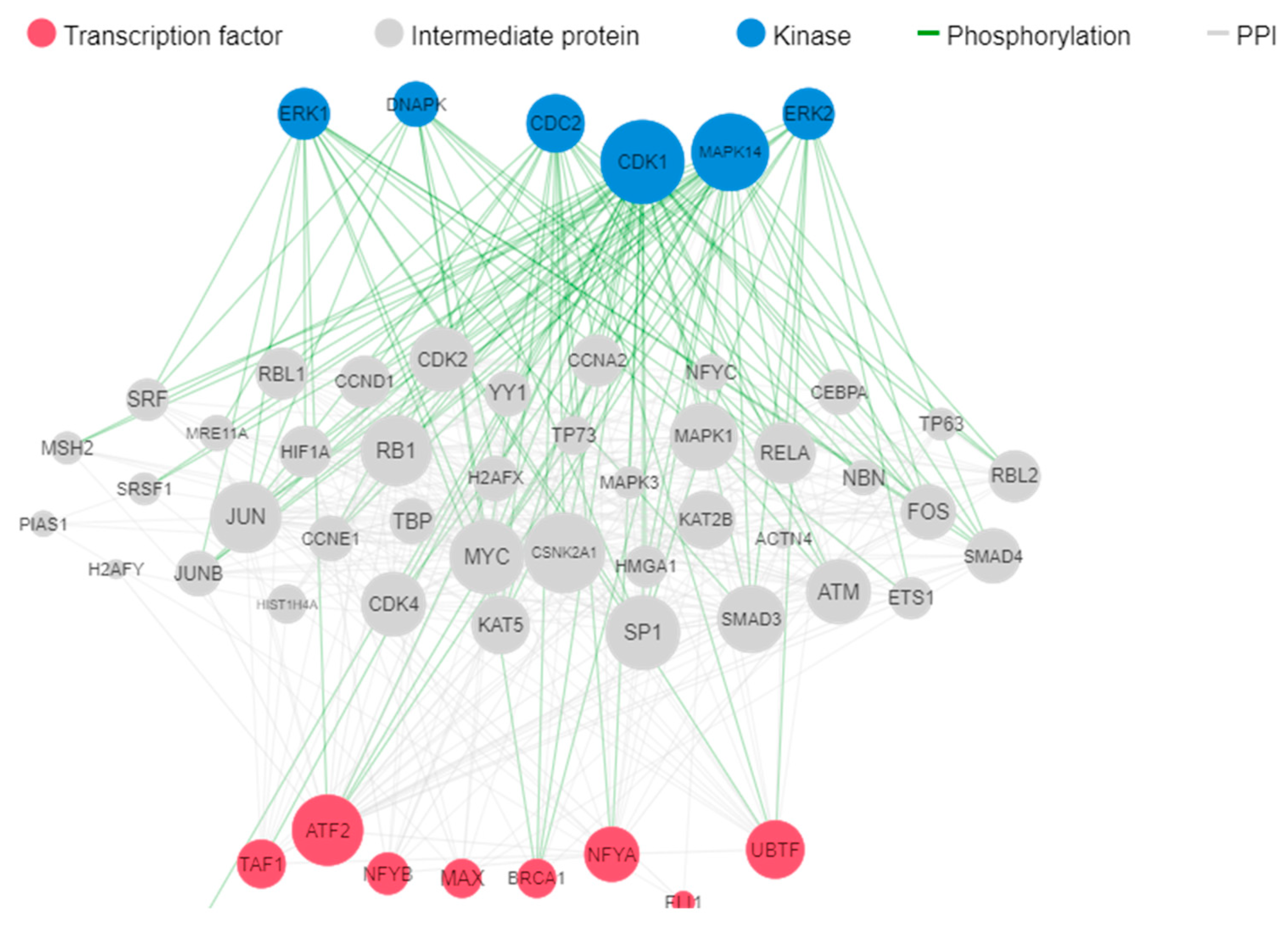

To identify the transcription factors and kinases that regulate downregulated genes upon fig latex treatment, we employed in silico methodologies, including Chromatin Enrichment Analysis (CheA) and Kinase Enrichment Analysis (KEA). Our analysis underscores the prominence of transcription factors such as NFYB, NFYA, MAX, and TAF1, alongside kinases CDK4, CDK1, and MAPK1 (Table 2A-2B). These molecules play pivotal roles in orchestrating the observed gene expression changes induced by fig latex, illuminating the complex interplay between the fig latex treatment and cellular regulatory networks. Furthermore, a comprehensive upstream pathway analysis of enriched transcription factors and kinases revealed that fig latex treatment impacts key proteins involved in cell cycle regulation. Specifically, the regulation of MAPK1, CDK2, and MYC proteins, which are crucial for cell growth, by enriched transcription factors was observed (Figure 4). The discovery of these key transcription factors and regulatory kinases as the regulators of downregulated genes in cell cycle reveals that fig latex holds potential for combatting HPV-positive cancers at the molecular level.

3. Discussion

Cervical cancer, primarily instigated by high-risk human papillomavirus (HPV) infection, poses a substantial global health burden [1,17]. A pivotal challenge in combating cervical cancer is rooted in the tumor cell’s aggressive growth, primarily orchestrated by HPV oncoproteins E6 and E7 [16]. These oncoproteins play a pivotal role in overriding cellular control mechanisms, leading to carcinogenesis [26]. This not only leads to progression of the cancer but also contributes to resistance against current therapies and resulting in poor clinical outcomes [18,27]. Consequently, there is a pressing need to develop novel therapeutic strategies[17]. The realm of natural products has emerged as a promising area of interest in cancer research due to their potential anticancer activity [22]. Our prior investigation highlighted the therapeutic potential of Ficus carica latex, a natural product derived from figs, in the context of HPV positive cervical cancer cell lines [25]. However, the precise molecular mechanisms through which it impacts HPV-positive cervical cancer cells, particularly its ability to counteract the carcinogenic effects mediated by HPV oncoproteins E6 and E7, remain to be elucidated. In the light of this, our current study aimed to unravel the potential of fig latex as a therapeutic approach to counteract the effect of HPV oncoproteins E6 and E7 in cervical carcinogenesis.

To address this objective, we treated HPV-cervical cancer cells with fig latex and investigated the cellular growth-related gene expression patterns and signaling pathways. Through an extensive RNA seq analysis, we meticulously scrutinised the transcriptome of fig latex treated cells in comparison to the control group. This methodology allowed us to pinpoint genes with varying expression levels and provided insights into the precise molecular modifications triggered by fig latex treatment.

Our investigation showed the growth inhibitory effects of fig latex on HPV positive cervical cancer cells, in consistent with our earlier observations [25]. Treatment of fig latex resulted in a significant inhibition of cell growth in HeLa and CaSki, with calculated IC50 values of 106 and 110 μg/ml, respectively. Importantly, treatment with fig latex had no discernible effect on normal human cervical keratinocytes (HCKT1), indicating the selective cytotoxicity of fig latex toward HPV positive cervical cancer cells. Furthermore, our investigation looked into the cell cycle dynamics, revealing intriguing outcomes. The data from this analysis indicated that fig latex induces cell death in sub G1 phase in both HeLa and CaSki cells. These findings further emphasise the potential of fig latex to disrupt viral cell cycle checkpoints, thereby contributing to its selective cytotoxic effects on cervical cancer.

Beyond the growth inhibitory effect of fig latex, this study also reports that fig latex exhibits anti-cancer effects by orchestrating intricate signaling pathways in cervical cancer development and progression within HPV positive cervical cancer cells. These pathways are Nonsense Mediated Decay (NMD) pathway (p-value:2.21E-07), Cell Cycle pathway (p-value:3.02E-03) and Transcriptional regulation by P53 pathway (p-value: 3.42E-05). NMD pathway is known for its role, specifically in degrading transcripts harboring premature termination codons (PTCs) [28,29,30,31]. Notably, several key genes of this pathway including RPS27A, RNF111, RPS6 were consistently upregulated with fig latex treatment. HPV infection has been implicated in perturbing normal gene expression by promoting the degradation of specific cellular transcripts [32]. In particular, HPV E6 and E7 oncoproteins can disrupt normal cellular processes, including the regulation of mRNA stability[33]. In line with this, recent studies have demonstrated that the NMD pathway can target and degrade viral oncogenes, thereby exhibiting tumor suppressive properties [34,35,36]. These findings suggest that by activating the NMD pathway, fig latex may contribute to reducing the expression of HPV oncogenes, thereby suppressing their tumorigenic potential.

Furthermore, our analysis of HPV-positive cancer cell lines treated with fig latex showed a significant enrichment of the Cell Cycle pathway, indicating a potential link between fig latex and cellular growth. Key genes involved in cell cycle regulation were downregulated, including PCNA, POLD3, PRIM1, ORC2. Dysregulation of the cell cycle is a hallmark of cancer, including HPV-associated cervical cancer [37]. HPV oncoproteins, particularly E6 and E7, disrupt the normal cell cycle control mechanisms, promoting uncontrolled proliferation and genomic instability [38,39,40]. Our findings suggest that fig latex treatment may inactivate the Cell Cycle pathway in HPV-positive cervical cancer cells. These findings are also consistent with our previous studies showing that fig latex treatment has been shown to inhibit the expression of HPV E6 and E7 oncoproteins, thereby leading to suppression of cancer cell growth [25].

Lastly, our pathway enrichment analysis of RNA-Seq data from HPV-positive cancer cell lines treated with fig latex revealed a significant enrichment of the Transcriptional Regulation by TP53 pathway (p-value: 3.42E-05). This finding unveils a potential connection between fig latex and anti-cancer response by highlighting the upregulation of key genes, including RPS27A, RAD1, YWHAQ. Transcriptional Regulation by TP53 pathway is essential for the control of cell cycle arrest, DNA repair, apoptosis, and senescence [41,42]. The TP53 gene, also known as p53, is a tumor suppressor that plays a crucial role in maintaining genomic stability and preventing the development of cancer [43]. In HPV-associated cervical cancer, the HPV E6 oncoprotein promotes the degradation of p53, leading to the dysregulation of TP53-dependent transcriptional regulation [44]. Moreover, it is worth noting that our previous study demonstrated that fig latex treatment rescued the activity of P53 [25]. In line with this, by inhibiting E6-mediated p53 degradation, fig latex treatment may contribute to the restoration of TP53 transcriptional regulation in HPV-positive cervical cancer cells.

To uncover further molecular networks modulated by fig latex, transcription factors and kinase enrichment analysis was performed. The identification of prominent transcription factors (NFYB, NFYA) and regulatory kinases (CDK4, CDK1, and MAPK1) that govern the expression of downregulated genes following fig latex treatment highlights the potential of this natural remedy in targeting and modulating key players in cancer progression [45,46,47,48,49,50].Particularly , our upstream pathway analysis reveals the impact of fig latex on essential proteins involved in cell cycle regulation, including MAPK1, CDK2, and MYC, which are integral to cell growth [45,46,47,48,49,50,51,52,53]. These findings signify fig latex's potential in disrupting critical pathways associated with cancer cell proliferation. The ability to influence such regulatory networks at the molecular level holds promise for the development of novel, precision-driven therapies for HPV-positive cancers.

In conclusion, our findings provide valuable insights into the molecular mechanisms underlying fig latex's action and its potential in combating HPV-positive cervical cancer by inhibiting cancer cell growth. By targeting key pathways associated with cell proliferation, fig latex or its active components hold promise for the development of novel therapeutic strategies against cervical cancer.

4. Materials and Methods

4.1. Chemicals and Reagents

Cell Culture medium, Dulbecco’s modified Eagle medium (DMEM) and Keratinocyte serum-free medium (SFM) with supplements including EGF (Epidermal Growth Factor) and Bovine Pituitary Extract (BPE, penicillin-streptomycin, trypsin, Dulbecco’s Phosphate Buffered Saline (DPBS) and Sodium pyruvate were purchased from Gibco (ThermoFisher, UK). Y-27632, Rho kinase inhibitor and Sulforhodamine B (SRB) assay kit were purchased from Abcam, UK. Dimethyl sulfoxide (DMSO) and fetal bovine serum (FBS) were purchased from Sigma, UK. GenElute RNA/DNA/Protein Purification Plus kit was purchased from Sigma-Aldrich, UK.

4.2. Collection and Purification of Whole Ficus Carica Latex

Ficus Carica latex was collected drop by drop without squeezing over summer months from unripe fruits of fig trees in the suburb of Antalya, Turkey. We performed the purification of whole fig latex, as described in our previous study[25]. Briefly, the latex was initially filtered using a Whatman No. 1 filter from Fisher Scientific, UK. After filtration, it was then centrifuged at 13000 rpm and a temperature of 4°C to separate the polymeric gum from the liquid filtrate. The aqueous part was further purified by filtration using a disposable filter membrane with a pore size of 5 µm from Sigma, UK. It was stored at -20 oC for further analysis.

4.3. Cell Lines and Cell Culture Conditions

HPV-positive human cervical cancer cell lines, specifically CaSki with HPV type 16 and HeLa with HPV type 18, were procured from the American Type Culture Collection (Manassas, VA, USA). HPV-negative human cervical keratinocytes, known as HCKT1 and generously provided by Prof. Tohru Kiyono from Japan National Cancer Center, were also included in the study. To sustain the growth of HeLa and CaSki cells, a culture medium of DMEM supplemented with 10% heat-inactivated fetal bovine serum (FBS) and 100 μg/mL penicillin-streptomycin was employed. In contrast, HCKT1 cells were nurtured in a serum-free medium supplemented with 20 μg/mL BPE, 0.2 ng/mL EGF, and 10 μM Y-27632. All cell lines were cultivated in a controlled environment with 5% CO2 at 37°C to maintain optimal humidity and conditions.

4.4. SRB Cell Viability Assay

In order to investigate the effect of whole fig latex on cell growth, Sulforodamine B (SRB) assay was performed. For cell viability analysis, the aqueous part of the plant extract was subjected to freeze-drying to obtain a powder form. The freeze-dried powder was then dissolved in DMSO to prepare a 1 mg/ml stock solution. Several concentrations were pre-pared by diluting the stock solution with cell culture medium. Human cervical cancer cells (HeLa and CaSki) and normal HCKT1 cells were cultured at concentration of 5 x 104 in 0.1 mL of medium, in a 96 well plate. The following day, cells were treated with various concentrations (5,10,50,100,200) of fig latex. After 72h of treatment, cells were fixed by fixation solution for 1h. After 3 washes with distilled water, cells were stained with SRB solution for 15 mins and rinsed with washing solution 3 times. Protein-bound dye was solubilized, and the optical density was determined at 545 based on manufactures recommendations. For all the experiments, the percentage of cytotoxicity was calculated as: [(O.D. vehicle) × (O.D. sample)/O.D. vehicle] × 100. Background correction was carried out by subtracting the O.D. of culture media. The percent of proliferation in each treated cell line was normalised based on their control wells. All experiments were performed at least in triplicate. All treatments were adjusted to equal concentrations of DMSO between 0.1~0.2%.

4.5. Cell Cycle Analysis

Cell cycle distribution was assessed by flow cytometry. Cells were treated with 100 μg/ml of fig latex or equivalent amount of PBS for 72 hrs. Approximately (1 × 106) cells were harvested from both control and treated flasks. Cells were then washed in PBS and fixed in 70% ice-cold ethanol for 1 hr. Then 500 µl of PI/RNase (Thermofisher, UK) was added to samples and were kept in the dark for 20 minutes at 37 °C. Stained cells were then excited at 488 nm using the FL-3 detector (620 nM) of a BD FACs Calibur flow cytometer (Becton-Dickinson). Acquired data was analysed using CellQuest software (Becton-Dickinson).

4.6. RNA Preparation

Total RNA exraction from fig latex treated and untreated cell lines was performed using Gen Elute kit according to the manufacturer’s instructions. The quality of total RNA was assessed using The Agilent 2100 bioanalyzer (Agilent, Palo Alto, CA, USA) with RNA 6000 Nano LabChip kit. All RNA samples selected for sequencing had a RIN value of greater than 7.5.

4.7. RNA Sequencing (RNA Seq)

RNA samples were sent to CeGaT GmbH, Germany for library preparation, sequencing and bioinformatic analysis. Libraries were prepared using the SMART-Seq Stranded Kit (Takara). Multiplexed libraries were sequenced on the Illumina NovaSeq 6000 platform, at 100bp paired end reads. The sequencing depth for each sample was >20 million reads. All samples were passed quality control based on manufacturer’s standards.

4.8. Bioinformatic Analysis

The sequence reads were analyzed further by using diverse bioinformatic tools. Demultiplexing of the sequencing reads was performed with Illumina bcl2fastq (vs 2.20). Adapters were trimmed with Skewer (vs 0.2.2) [54]. Trimmed raw reads were aligned to hg19-cegat using STAR (version 2.7.3) [55]. Pseudoautosomal regions (PAR) were masked on chromosome Y (chrY:10001-2649520, chrY:59034050-59363566). Reads originating from these regions can be found at the respective location on chromosome X. Normalized counts have been calculated with DESeq2 (version 1.24.0) in R (version 3.6.1)[56]. DESeq2 uses a negative binomial generalized linear model to test for differential expression based on gene counts.

For functional enrichment analysis, the RNA sequencing (RNA-Seq) data obtained from drug-treated and untreated cells was used. Gene Set Enrichment Analysis (GSEA) was performed using the GSEA software (version 4.3.0) [57,58]. The RNA-Seq data sets were preprocessed and normalized, and the resulting gene expression profiles were analyzed against a comprehensive collection of gene sets derived from public databases, such as MSigDB [57]. The GSEA algorithm computed an enrichment score for each gene set, indicating the extent to which the gene set was overrepresented among the differentially expressed genes.

Moreover, EnrichR, an online platform for comprehensive gene set enrichment analysis, was utilized [59,60,61]. The preprocessed RNA-Seq data sets were uploaded to EnrichR, and the analysis was conducted by following the provided instructions. EnrichR integrates multiple pathway and gene set databases, such as KEGG and Reactome, to identify enriched pathways associated with the differentially expressed genes. The analysis generated enriched pathway results with corresponding statistical significance. The results obtained from both GSEA and EnrichR (version 3.2) were used to gain insights into the biological processes and pathways affected by the drug treatment in the cells [57,58,59,60,61]. Kinase enrichment analysis was performed by usiong Expression2 Kinases (X2K) software (version 0.0.4)[62,63]

4.9. Statistical Analysis

The data were collected from at least three independent experiments and presented as the mean ± standard deviation for each group. Statistical analyses, including one-way analysis of variance (ANOVA) followed by post hoc Tukey's test, were conducted using R Studio software with the 'stats' package for ANOVA and the 'agricolae' package for post hoc testing. A significance level of P < 0.05 was considered to indicate a statistically significant difference.
