Endothelial Effects of Simultaneous Expression of Human HO-1, E5NT, and ENTPD1 in a Mouse

1. Introduction

Transplantation is an effective approach to managing patients with organ failure, but it is still a challenge for modern medicine. The increasing incidence of vital organ failure, combined with their insufficient availability, results in an extremely long time for patients on waiting lists [1]. A revolution in the treatment of organ failure seems to be the transplantation of vascularized organs across the species barrier. Xenotransplantation, i.e. replacing human failing organs with animal organs, could effectively solve organ shortages [2]. Despite the many similarities between human and porcine organs regarding size and physiology, the main obstacles to clinical application are among others immune rejection between species [3].

The vascular endothelium, which lies at the interface between the recipient's blood and the transplanted donor organ, bears the full brunt of the immunological processes [4]. Endothelial cells (ECs) create a single cell layer that lines the inside of all lymphatic and blood vessels and controls the exchange of oxygen and nutrients between blood and tissues/organs. The vascular endothelium is a very active organ involved in the regulation of cellular migration and adhesion, vascular tone, vessel wall permeability, coagulation, and various inflammatory processes [5]. Moreover, endothelium participates in the transport of immune cells across the organism to reach organs and tissues regulating immune surveillance in physiological conditions as well as infectious complications and metastasis [6]. In the physiological state, EC tight junctions regulate the homeostasis of tissues and organs and paracellular diffusion. However, during inflammation, crucial changes occur to the junction ultrastructures, which allows the entry of immune cells [4].

One approach, that seems promising in the context of xenotransplant rejection, is to genetically modify the donor organs to prevent or reduce attack by the human immune system, and thus achieve compatibility with the human organism. Over the years several genes, whose induction or over-expression can regulate the inflammatory response and preserve the transplanted organs’ metabolism were identified [7]. Due to their immunosuppressive, cytoprotective, and anti-inflammatory properties, extracellular adenosine may be of particular interest in the field of xenotransplantation. Extracellular adenosine is produced in the pathway controlled mainly by ectonucleotidases, including ecto-nucleoside triphosphate diphosphohydrolase 1 (ENTPD1 or CD39), and ecto-5’-nucleotidase (E5NT or CD73). ENTPD1 converts the extracellular Adenosine Triphosphate (ATP)/ Adenosine Diphosphate (ADP) to Adenosine Monophosphate (AMP) and E5NT hydrolyzes ATP to adenosine [8]. Many reports, as well as our results, support the concept of the crucial role of the maintenance of the extracellular adenosine optimal concentration in endothelium homeostasis [9,10]. E5NT activity is crucial for proper endothelium functioning because the E5NT gene deletion leads to the development of age-dependent endothelial dysfunction in mice [9]. ENTPD1 has a protective role against platelet aggregation and vessel occlusion by terminating the proinflammatory and prothrombotic effects of ATP and ADP [11]. In turn, heme oxygenase 1 (HO-1) was shown to be critical for the endothelium as it is engaged in the conversion of heme to carbon monoxide (CO), free iron, and biliverdin, which have anti-inflammatory, anti-apoptotic, and antioxidant effects [12]. In addition to its known role in protection against oxidative stress, HO-1 inhibits the expression of proinflammatory genes associated with endothelial cell activation [13].

This work aimed to evaluate the protective effects of the simultaneous expression of a novel combination of anti-inflammatory human genes, HO-1, E5NT, and ENTPD1, in in vivo mice model using F2A technology [7,14].

2. Results

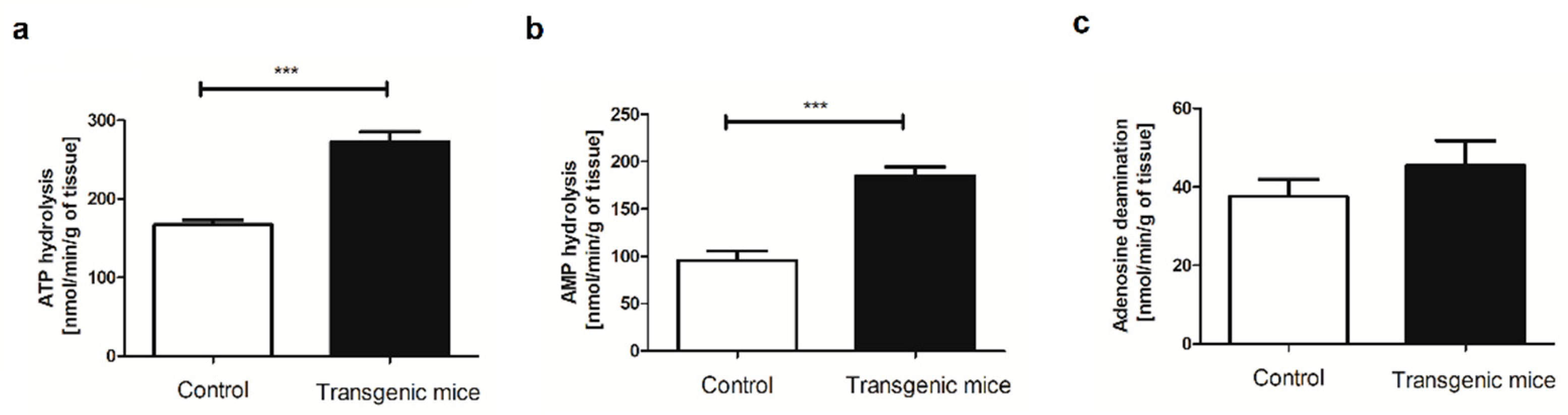

To evaluate if the simultaneous expression of hHO-1, hE5NT, and hENTPD1 affects the vascular metabolism of adenine nucleotides, the rates of ATP and AMP hydrolysis and adenosine deamination on the aortas of transgenic and control mice were measured (Figure 1).

The ATP and AMP hydrolysis rates on the aortic surface of the transgenic mice were approximately two times higher in comparison with the control (Figure 1a,b), which was an expected effect due to the genetic modifications of these animals. There was no statistically significant change in the vascular adenosine deamination rate between both study groups (Figure 1c).

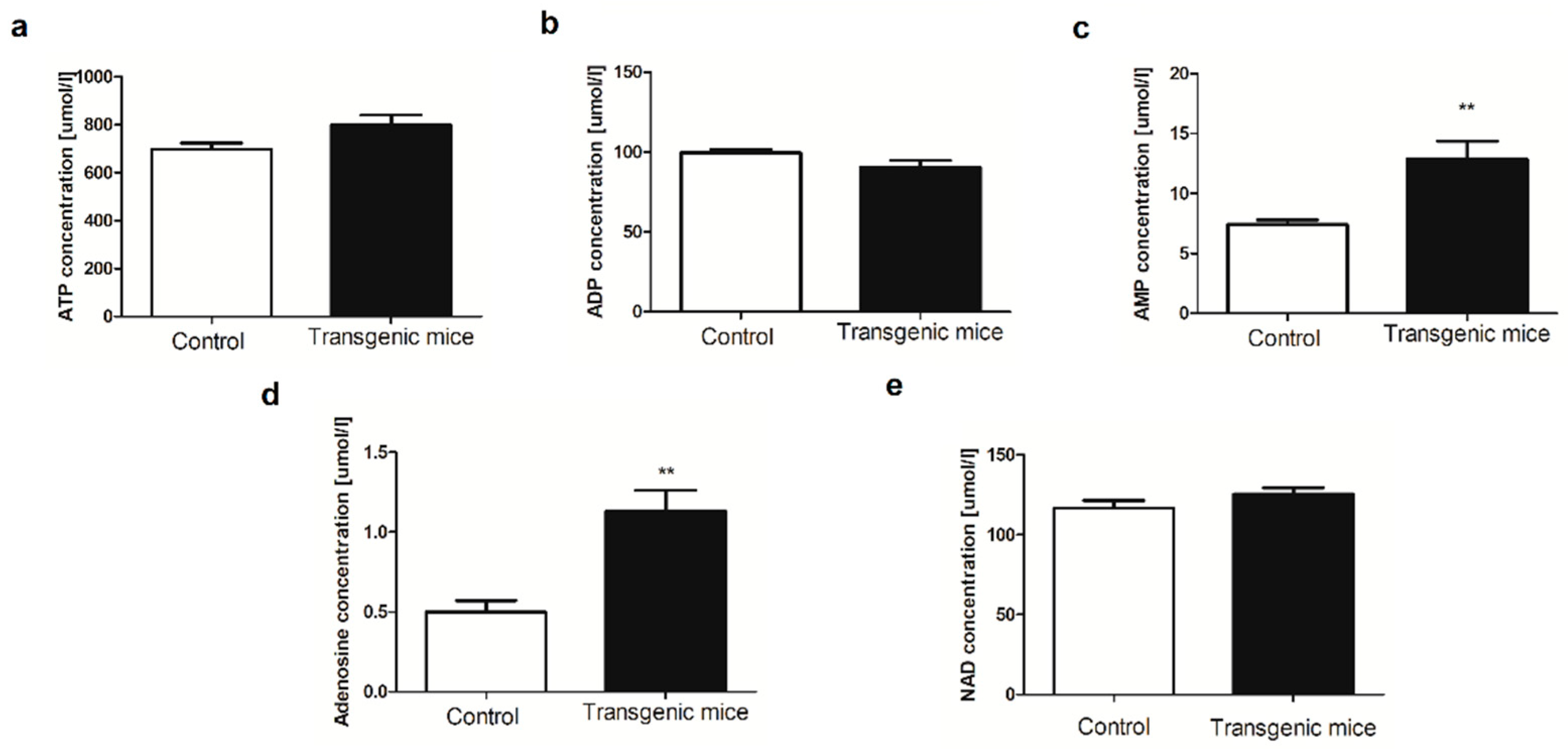

To assess the cell energy balance changes, the blood nucleotide concentration was measured (Figure 2). There were no significant changes in blood ATP, ADP, but also nicotinamide adenine dinucleotide (NAD) concentration in transgenic mice in comparison to the control (Figure 2a,b,e). However, we observed approximately two-fold increased concentration of AMP and adenosine in transgenic mice as compared to control (Figure 2c,d).

To check, if the application of exogenous hHO-1, hE5NT, and hENTPD1 proteins in mice affects the metabolism, especially in the context of the endothelium, the concentration of plasma L-arginine and its metabolites and derivatives were evaluated. There was a tendency to higher L-arginine concentration and decrease in its analogs - asymmetric dimethyl L-arginine (ADMA) and L-NG-monomethyl arginine (L-NMMA) in transgenic mice as compared to control. Although there were no differences in plasma ornithine and citrulline between study groups of animals (Table 1), there was also a tendency to lower Ornithine/Arginine and Ornithine/Citrulline ratios in transgenic mice in comparison to controls.

Considering that the activities of the three, used in this model, proteins have been reported to exert anti-inflammatory effects [15,16,17], their potential role in protection against acute LPS-induced inflammation was investigated. The level of both adhesion molecules, associated with the endothelium activation - ICAM-1 and VCAM-1, as well as IL-6, were increased in both study groups of animals, regardless of their genotype as compared to non-treated animals. However, we observed a considerable decrease in IL-6, ICAM-1, and VCAM-1 in LPS-treated transgenic mice in comparison to LPS-treated controls (Figure 3).

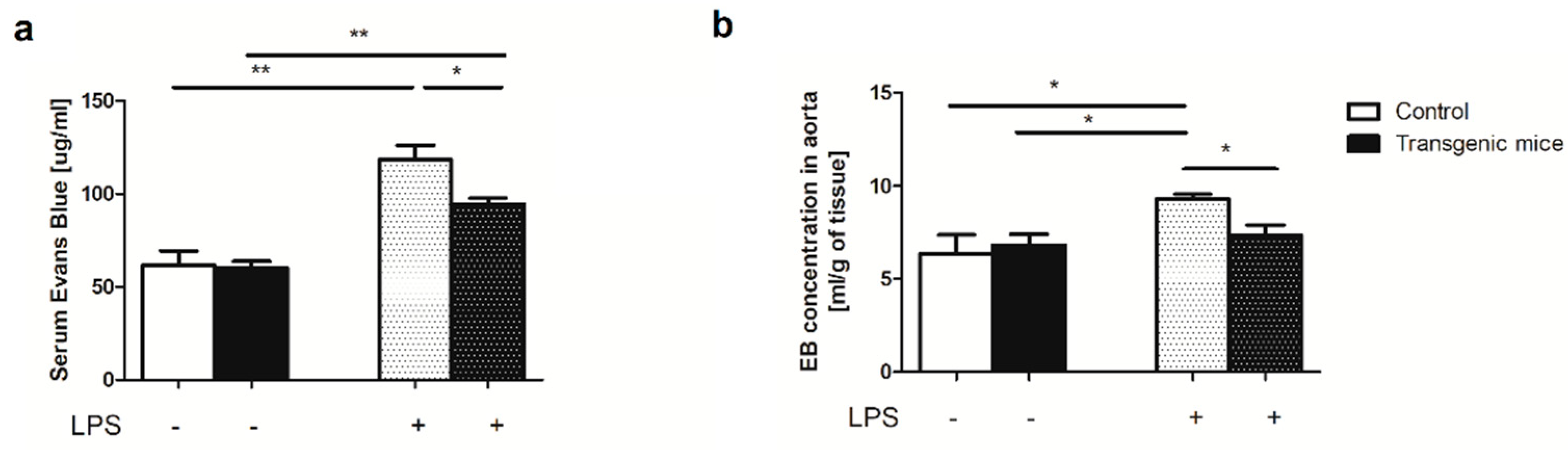

Furthermore, vascular endothelial function was assessed by Evans Blue (EB) permeability assay. The EB concentration was significantly increased in serum but also in the aortas of LPS-treated mice, both transgenic and controls, as compared to non-treated animals. Interestingly, LPS-treated transgenic mice were characterized by considerably lower EB concentration in serum and aortic tissue extract in comparison to LPS-treated controls (Figure 4).

3. Discussion

This work validated strategy for combined expression of three human genes, HO-1, E5NT, and ENTPD1 in transgenic animals and proved benefits for the function of vascular endothelium. We have shown attenuation of the effect of the LPS-induced inflammation on the parameters associated with endothelial function such as concentration of adhesion molecules or endothelial permeability. Each human gene used in this work has been reported to have anti-inflammatory, anti-apoptotic, or antioxidant properties when overexpressed or induced in the cells or organisms.

The three human genes coding sequences were included in an expression cassette that allowed the simultaneous translation of all proteins starting from a single mRNA by the application of the F2A technology. In earlier work, De Giorgi M et al. verified the activity of the vector. They demonstrated that the three proteins encoded by the multi-cistronic cassette were fully functional and allowed the increased formation of their enzymatic products [7].

However, the most important finding of this work is that the transgenic mice with the simultaneous expression of the human HO-1, E5NT, and ENTPD1 are characterized by the decreased proinflammatory IL-6 and lower levels of adhesion molecules (ICAM-1 and VCAM-1) linked with the activation of ECs, as well as diminished Evans Blue concentration in the serum and aortic tissue extract after induction of the acute inflammation with LPS. One of the possible, protective for the endothelium, mechanisms in this model is the orientation of the extracellular metabolism of adenine nucleotides to the increased production of adenosine. The animals used in this work were characterized by an increased ATP hydrolysis rate, corresponding to higher ENTPD1 activity [18] and AMP hydrolysis, for which E5NT is responsible [19]. Moreover, there were no differences in vascular adenosine deamination rate between study groups, which may additionally contribute to maintaining high concentrations of E5NT-derived adenosine on the vascular surface of these transgenic animals.

Extracellular adenosine is considered an important signaling molecule, which exerts its effects by the activation of the P1 receptors: A1, A2A, A2B, and A3. Each of these receptors acts via various signal transduction mechanisms [20]. Thompson et al. demonstrated that decreased production of extracellular adenosine is associated with a dramatic vascular leakage, most likely resulting from diminished activation of the A2B receptor on the endothelium. They suggested that the adenosine released at sites affected by the inflammation may contribute to the reduction of the swelling that is prominent at inflamed sites [21]. It is well known, that E5NT-derived adenosine diminishes leukocyte recruitment, inhibits activated neutrophil adhesion to the endothelium, as well as neutrophil-induced injury to the vascular endothelium [22]. Moreover, adenosine exerts regulatory effects on M1 macrophages, which are mediated by A2A and A2B receptors [23]. It has been shown, that adenosine inhibits TNF-alfa, but also IL-6 and IL-12 production and augments anti-inflammatory IL-10 release by LPS-or bacteria-activated macrophages mostly via A2A receptors [24]. However, adenosine reduced LPS-induced TNF-alpha formation even in A2A deficient mice, with stimulation of A2B receptors [23]. Furthermore, adenosine promotes M2 macrophage activation, which is considered an anti-inflammatory factor [25].

Furthermore, it has been reported that E5NT deficiency affected endothelial permeability. The exacerbation of hypoxia-induced vascular leak in e.g. lungs and kidneys in response to the E5NT activity reduction was observed [26]. It also has been shown that in vitro co-culture experiments with ECs and T lymphocytes indicated that genetic deletion of E5NT leads to the transendothelial migration of T lymphocytes and enhanced the expression of TNF-alpha, VCAM-1, and IFN-Y [27]. In addition, C. St Hilaire et al. observed a significant increase in vascular calcification in patients with NT5E gene mutation encoding E5NT [28]. Our earlier studies support these findings. We have previously shown, that the E5NT deletion contributes to the development of age-dependent endothelial dysfunction in mice. This damage was related to disturbances in L-arginine metabolism [9]. We also observed the development of aortic valve dysfunction in E5NT-deficient mice, evidenced by the functional and structural changes consistent with aortic stenosis [19]. Moreover, Lee SC. et al successfully produced two healthy hE5NT transgenic cloned piglets with normal reporoductive ability for next generation. They assumed that these pigs may be useful for the production of "multi-gene" hybrid transgenic animals, which will be more effective model to use in research for controlling hyperacute and acute vascular rejection after xenotransplantation [29].

Besides induced E5NT activity, also stimulation of ENTPD1 activity leads to the maintenance of the extracellular adenosine on the vascular endothelium. This ecto-nucleotidase has been lately reported as an important molecule in the regulation of maintaining the antithrombotic properties of the endothelium [30]. Through hydrolyzing ATP to ADP and to AMP, ENTPD1 reduces ADP levels at the inflammation site and regulates both, P2 and P1 receptor activation. Thus, it has been considered a crucial modulator of thrombus formation. ENTPD1-deficient mice demonstrated a strong prothrombotic phenotype and in the model of ischemia-reperfusion injury, that develop a large infarct size [31,32]. Moreover, mice lacking ENTPD1 activity develop pulmonary arterial hypertension, and remodeling, as well as ventricular hypertrophy, following hypoxia [33]. Knight J. S et al. also suggested that ENTPD1 may have a protective role in vascular disease associated with lupus. In the experimental mice model of lupus, the suppression of neutrophil extracellular trap release mediated by ENTPD1 was observed [34]. All of these findings support the hypothesis, that both of the extracellular ecto-nucleotidases, ENTPD1 and E5NT, represent an important regulation point of the inflammation, contributing to maintaining endothelial permeability and anti-thrombotic properties.

In this work, we focused our studies on the protective role of overexpression of ecto-nucleotidases and extracellular adenosine in the context of endothelial protection. However, our mice were also characterized by the induction of hHO-1 activity. He Y et al. demonstrated a protective role of HO-1 in renal ischemia-reperfusion injury. HO-1 deficient mice were characterized by the upregulation of VCAM-1 together with the augmentation of leukocyte recruitment and inflammatory damage. HO-1 knockout also increases neutrophil adherence and vascular membrane basement migration in vitro [35]. Kang L et al. also indicated the upregulation and vasoprotective effects of HO-1, as well as the vasorelaxant effects of CO in the partial carotid artery ligation model of pathological shear stress [36]. Moreover, in children without a functional HO-1 allele, increased development of atherosclerosis was observed [37]. It was also noticed, that both HO-1 products - CO and biliverdin inhibit neointima formation [38,39]. Considering these data, HO-1 induction may also be responsible for the protective effects of our tricistronic vector, used in transgenic animals. Additionally, hHO-1 has already been successfully used in xenotransplantation. Singh AK et al. described clinical cardiac transplant of "multi-gene" pig heart with hHO-1 and other 9 gene edits, along with the use of a novel non-ischemic continuous perfusion preservation system. Genetics of donor pig was GTKO, B4GalNT2KO, CMAHKO, GHRKO, hCD46, hDAF, hTBM, hEPCR, hCD47 and hHO-1 [40]

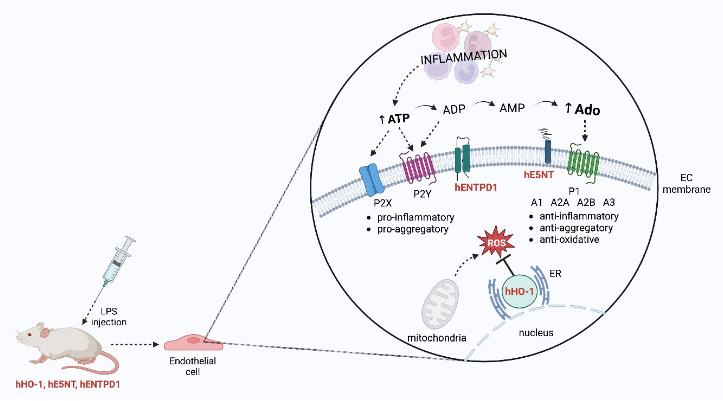

In conclusion, this study provides the first experimental evidence for the anti-inflammatory effects of the combination of three human genes: HO-1, E5NT, and ENTPD1 simultaneously expressed in a mice model through an F2A system-based multicistronic technique. The application of this tricistronic vector in vivo exerts protective effects on the vascular endothelium, such as diminished levels of adhesion molecules linked with endothelial cell activation and decreased endothelium permeability in inflammatory conditions. This genetic modification may be beneficial to preserve endothelial function in the context of xenotransplantation.

4. Materials and Methods

4.1. Reagents

Adenosine (A4036), AMP (01930), ATP (A26209), Evans blue (E2129), HBSS (H9269), LPS (E. coli 055:b5, L2880) and phosphate-buffered saline (PBS) (P5493), as well as the soluble ICAM-1, VCAM-1, and IL-6 serum levels (RAB0220, RAB0506, RAB0308, RAB0477) were purchased from Sigma-Aldrich/Merck (Saint Louis, MO, USA).

4.2. Triple cistronic plasmid construction and transgenic mice production

Transgenic mice overexpressing hHO-1/hE5NT/hENTPD1 were produced by Takis, genetically modified mice were then housed for a few generations at Allevamenti Plaisant mouse facility and then transferred to Department of Biochemistry, Medical University of Gdansk for colony expansion and experimental procedures. A triple cistronic plasmid containing the coding sequences of exogenous human Heme Oxygenase 1 (hHO-1), Ecto-5'-nucleotidase (hE5NT) and, Ecto-nucleoside triphosphate diphosphohydrolase 1 (hENTPD) was assembled by a series of PCR reactions and cloning steps as previously reported [7]. The final triple cistronic vector thus produced was named pCX-TRI-2A (Addgene plasmid #74674; http://n2t.net/addgene:74674; RRID:Addgene_74674). The pCX-TRI-2A construct was tested in stably transfected murine embryonic fibroblast, NIH3T3 cells [7]. Before DNA microinjection, the pCX-TRI-2A construct was digested to excise the tricistronic cassette from the vector backbone and the transgene fragment was microinjected on FVB/N mouse strain zygotes for the production of transgenic animals. For genetic characterization, diagnostic PCRs analyses were performed on genomic DNA extracted from mouse tail biopsies. Each founder mouse has been crossed with wild-type FVB/N mice to produce hemizygous transgenic mice. Diagnostic PCRs were performed on 75 ng of genomic DNA to investigate the presence or absence of exogenous construct integrated into the mice genome. Specific oligonucleotides, targeting transgenic hE5NT (Intern-hCD73Fw, TGTTGGTGATGAAGTTGTGG; hCD73Rev, CGCCAACTTGAGAAGGTCAAAA) and hHO1 (5’hHO1Fw, CTGGAGGAGGAGATTGAGCG; hHO1Rev, CGCCAACTTGAGAAGGTCAAAA) sequences, were designed either manually or using Primer3 express software [41] to allow discrimination between transgenic and wild-type mice. PCR products were run under electric field on 1,2 % agarose gel for amplicon size analysis. Only animals positive for both PCR reactions were considered transgenic and employed for subsequent crosses.

4.3. Animal maintenance and treatment

FVB Wild Type (Control) and FVB hHO-1/hE5NT/hENTPD1 overexpressing (Transgenic) mice, both aged three months, were used in this study. Water and a standard chow diet were provided ad libitum. All experiments were conducted following the Guide for the Care and Use of the Laboratory Animals published by the European Parliament, Directive 2010/63/EU, and after approval of the Local Ethical Committee for animal experiments in Bydgoszcz (27/2016). Animals were housed in individually ventilated cages with environment control (55 ± 10% humidity, 23 ± 2 °C), with a light/dark 12 h/12 h cycle. At the end of the experiment, mice were anesthetized with ketamine (100 mg/kg) and xylazine (10 mg/kg) intraperitoneally. Blood and serum samples were collected and immediately frozen in liquid nitrogen. Then, after opening the chest, the thoracic and abdominal aortas were removed, placed in physiological saline, and dissected from the surrounding tissues. For a detailed analysis of transgenic mice response to inflammatory stimuli, in additional experiments, 3-month-old Control and Transgenic mice (n=5) were used. Animals were then divided into four experimental groups: control and transgenic and LPS-treated control and transgenic mice. Animals were intraperitoneally injected with 10 mg/kg LPS solution (E. coli 055:b5) and the control groups were intraperitoneally injected with an amount of saline equal to the volume of LPS solution used in the experimental groups. At 24h after the LPS injection, mice were anesthetized and intravenously injected with EB. Blood and serum samples, as well as aortic fragments, were collected.

4.4. Evaluation of extracellular catabolism of adenine nucleotides on the aortic surface

The aortas were harvested, rinsed with 0.9% NaCl and dissected from the surrounding tissues. Aortic fragments were cut longitudinally to expose the endothelial surface and analyzed for the extracellular adenine nucleotide catabolism enzymes activities as previously described [42]. Aortic sections were placed in wells of 24-well plates with 1 ml of Hanks balanced salt solution (HBSS) and preincubated at 37 °C for 15 min. Substrates appropriate for each enzyme were sequentially added to the medium: 50 µM adenosine triphosphate (ATP) for ecto-nucleoside triphosphate diphosphohydrolase (ENTPD1), 50 µM adenosine monophosphate (AMP) for ecto-5′-nucleotidase (E5’NT) and 50 µM adenosine for ecto-adenosine deaminase (EADA). After 0, 5, 15, and 30 min of incubation (37 °C), 50 µl samples were collected. Following incubation with each substrate, the medium was removed and replaced with a fresh one. During the determination of ATP and AMP hydrolysis rates, 5µM erythro-9-(2-hydroxy-3-nonyl) adenine (EHNA) - was added to the buffer. Before the analysis, samples were centrifuged (20,800 × g/10 min/4 °C). The conversion of the substrates into the products was measured by HPLC as previously described [43]. Data are shown in nmol/min/g of tissue.

4.5. Determination of blood nucleotides and metabolites concentration

To determine nucleotide and metabolite concentrations, the whole blood samples were immediately frozen in a liquid nitrogen, extracted with 1.3 M HClO4 (ratio 1:1) followed by a centrifugation (×20,800 g/15 min/4 °C). Supernatants were then collected and brought to pH 6.0–6.5 with 3 M K3PO4 solution. After 15 min of incubation on ice, samples were centrifuged again (×20,800 g/15 min/4 °C), and the supernatants were analyzed using high performance liquid chromatography (HPLC) as previously described [43].

4.6. Determination of amino acids and derivatives concentration

To evaluate the concentration of plasma amino acids and l-arginine analogs, an aliquot of serum (50 µl) was extracted with acetonitrile (ratio 1:2.4) and centrifuged (×20,800 g/10 min/4 °C). Supernatant were collected and freeze dried. The precipitate was dissolved in water at a volume equal to the initial plasma volume. Amino acids and derivatives concentration were determined using high performance liquid chromatography–mass spectrometry (LC/MS) [9].

4.7. Intracellular adhesion molecule-1 (ICAM-1), vascular adhesion molecule-1 (VCAM-1), interleukin 6 (IL-6) measurements

The soluble ICAM-1, VCAM-1, and IL-6 serum levels were determined using enzyme-linked immunosorbent assay kits according to the manufacturer’s protocols.

4.8. Evaluation of Endothelial Permeability

Endothelial permeability was quantified by the extravasation of Evans blue (EB) [44]. A 0.5% solution of EB in PBS was injected intravenously. The stain was allowed to circulate for 1h minutes. Mice were sacrificed using an approved injectable anesthetic overdose procedure. Blood and aortas were collected. Blood samples were centrifuged (x 3,000 g/10 min/4°C) and serum were immediately frozen in liquid nitrogen. Aorta fragments were weight and placed in formamide and incubated at 55°C for 48 h. Aortic tissue extracts were centrifuged (x 3,000 g/10 min/4°C). Evans Blue stain was measured spectrophotometrically at a wavelength of 610 nm. The results are presented as (µg of Evans Blue stain)/(ml of serum or g of tissue).

4.9. Statistical Analysis

The results are presented as mean ± SEM. The statistical analysis was performed using Prism 8 (GraphPad Software). The unpaired and paired Student t-test was used for comparisons between two groups. Two-way analysis of variance with post hoc Tukey’s test was used for comparisons of more than two groups. A p-value < 0.05 was considered a significant difference.
