Simulation and Experimental of Infiltration and Solidification Process for Al₂O_3(3D)/5083Al Interpenetrating Phase Composite Prepared by Low-Pressure Infiltration

1. Introduction

Metal/ceramic interpenetrating phase composites (IPCs), also referred to as co-continuous composites and 3-3 composite materials [1]. In Metal/ceramic IPCs both phases are topologically co-continuous and three-dimensionally percolating, exhibiting an intertwining network structure. The continuous metallic network ensures efficient crack-bridging, whereas the ceramic network aids in the decentralization of stress and efficient load transfer and offers dimensional stability at elevated temperatures[2]. Metal/ceramic IPCs display an excellent strength, toughness, lower thermal expansion coefficient, fatigue, wear and corrosion resistant[3]. The fabrication of metal/ceramic IPCs typically involves processing of an open-porous ceramic preforms and infiltration of metallic melt in the pores of preforms [4]. The ceramics with open-porous, spherical pores and directional rod-shaped pores have been prepared by replica templates methods, direct foaming, freeze-casting use of sacrificial pore-forming agents, bio-templating and the sacrificial template, etc.[5]. Liquid metal was pushed through a porous ceramic preforms by an external pressure, yielding IPCs after solidification in LPIP. The low-pressure infiltration process (LPIP) is a simple method that is often used for making metal/ceramic IPCs in which liquid metal or alloy is injected and solidified in a mold packed with open porous ceramic preforms[6, 7]. However, LPIP for preparing IPCs of is complicated, which involved such as heat transfer, fluid mechanics with phase change and occurrence of a series of defections, including shrinkage, porosity, etc. [5]. Several factors affect the quality of metal/ceramic IPCs prepared by LPIP, including the geometry of open porous ceramic preforms, applied pressure, pouring velocities (PV) of infiltrating, pouring temperatures (PT) and the transport phenomena of the liquid metal[8].

Predicting and avoiding the appearance of infiltration and solidification defections are essential to ensure the quality of IPCs. The infiltration and solidification processes become more complex than in traditional foundry because the presence of the open porous ceramic preform slows down the circulation of the liquid metal thus helping the appearance of microporosities. To provide a better understanding of the infiltrating and solidification processes of IPCs produced by LPIP, numerical simulation was employed to investigate the infiltrating open-porous ceramic preforms with metallic alloys and predicting solidification defects of IPCs. J. Du used volume of fluid method and porous medium model to describe the flow phenomenon during infiltration process of HCCI/ZTAP composites by infiltration casting [9]. C.Y. Chang simulated of the pressure infiltration of fibrous preforms during MMC processing[10] and he also simulated of liquid metal through a unidirectional fibrous preform during MMC processing[11]. J.t. Guan reported threshold pressure and infiltration behavior of liquid metal into fibrous preform [12]. W. Regulski studied the pressure drop in flow across ceramic foam using numerical and experimental method [13]. N. Zabaras studied flow in porous media and binary alloy solidification processes using a stabilized volume-averaging finite element method [14]. G.D. Wehinger reported an artificial structure modeler for 3D CFD simulations of catalytic foams[15]. Z. Nie investigated of pressure drop and heat transfer through open cell foams with 3D Laguerre-Voronoi model[16]. Despite the existence of many idealized geometric models, such as the Cube model, face-centered model, volume-centered model, Phelan's cell model, Laguerre-Voronoi model and tetrahedral model, the Kelvin's quadric dihedral model is widely used in the numerical study of liquid in foam[17] . Buonomo et al. accomplished a numerical study on metal porous structures with Kelvin cell and nanofluids at different values of cell per inch (CPI) and porosity. To better represent the real microstructure of mesh ceramics, W. Regulski et al. used computed tomography (CT) to obtain the actual geometry of mesh ceramics and then conducted numerical simulations to study its permeability properties. While Petrasch's method provides more accurate geometries, it requires complex characterization and extensive computational efforts[13].

According to literature reports, LPIP is one of the most important techniques used for making metal/ceramic IPCs with a high reinforcement content. The LPIP has a direct effect on the formation and quality of IPCs, but the detailed information about the penetration of liquid metal inside the open-porous ceramic preforms is difficult to be obtained experimentally. However, there have been only a few simulations that study the LPIP process of solidification at the microscopic level. In simulation of LPIP, a preform is generally viewed as a single-scale porous medium. The numerical simulation models developed so far are only capable of describing the governing phenomena during LPIP infiltration in simple configurations. Therefore, it is necessary to develop 3D models to take into account the free surface tracking and the solidification phenomena for the infiltration of open-porous preforms.

The 5XXX series Al-Mg alloys are commonly applied in top-structure and hulls of ships due to their excellent properties, including good mechanical properties, light weight, corrosion resistance and weldability[18]. 5083Al alloys usually contain supersaturated Mg (>3.5 wt%) to optimize solid solution strengthening[19].

In previous work, we prepared Al₂O₃ three-dimensional reticulated porous ceramic (Al₂O_3(3D) RPC) preforms using replica methods and studied corrosion resistant of Al₂O_3(3D)/5083 IPCs and found the perfect combination of interfaces of Al₂O_3(3D) RPC preforms and the 5083Al matrix promotes excellent corrosion resistance[20]. It was found the rheology of the impregnating Al₂O₃ ceramic slurry, its adhesion with the organic sponge replica, and the cell size of the replica were the most critical parameters. In order to combine the interface between Al₂O_3(3D) RPC and 5083Al denser, reduce Al₂O_3(3D)/5083 IPCs defects, it is essential to study the infiltration and solidification processes and corresponding mechanism during the manufacture of IPCs. Although significant works have been done to model the metal infiltration and solidification processes, relatively less research has been conducted on modeling the evolution of Al₂O_3(3D)/5083 IPCs. In this work, Al₂O_3(3D) RPC preforms were simplified to periodic arrays of geometric shapes models with Kelvin cell. Infiltration and solidification processes of liquid 5083Al infiltrating into Al₂O_3(3D) RPC in LPIP were simulated based on the ProCAST software. The factors that affect the infiltration and solidification processes of Al₂O_3(3D)/5083 IPC were investigated by combining the simulated results of the defect analysis and experiment. Based on these analyses, the processes of LPIP were optimized.

2. Materials and Methods

2.1. Experimental Materials

The Al₂O_3(3D)/5083 IPCs three-dimensional models in Figure 1 have been generated with the software SolidWorks 2018. The Kelvin cell model was utilized to represent Al₂O_3(3D) RPC preforms, as illustrated in Figure 1a. The cell length, pore size and struct diameter of the Al₂O_3(3D) RPC preforms is 3 mm, 2.3 mm (approximately equivalent to 15 PPI) and 3 mm, respectively. The infiltration domain of Al₂O_3(3D) RPC model was made up with 32 Kelvin cells obtained by array processing of the infiltration cell along the x, y, z-direction, respectively [21]. Al₂O_3(3D) RPC Kelvin cells represented as a network of open cells with typical 12-14 pentagonal or hexagonal faces. The infiltration unit with blue was combined with 5083Al with pink to form a single infiltration unit as depicted in Figure 1c. The Al₂O_3(3D)/5083 IPCs model was obtained by array processing of the infiltration unit as depicted in Figure 1d. The chemical composition of 5083Al is presented in Table 1.

A three-dimensional model generated with the software SolidWorks 2018 was used to simulate the infiltration and solidification process of Al₂O_3(3D)/5083 IPCs during LPIP as depicted in Figure 2. Figure 2a shows the Al₂O_3(3D) RPC of Kelvin model with dimensions of 12×12×6 mm³. Figure 2b displays the Al₂O_3(3D) RPC of Kelvin model was placed in graphite upper mold with dimensions of 16×16×5 mm³. Figure 2c presents a schematic diagram of the infiltration process. The blue purple part represents 5083Al. After merging the upper and lower molds with dimensions of 16×16×10 mm³ was represented in Figure 2d. The clamping model in Figure 2d includes an impregnation mouth at the bottom with a diameter of 10 mm and two vents at the top with a diameter of 2 mm.

2.2. Governing equations

The transient temperature distribution and solidification velocities were calculated by finite volume method using the momentum conservation equation, mass conservation equation, and energy conservation equation expressed in the literatures[9, 15, 22]. In order to achieve a complete description of the infiltrating process, the flow velocities of liquid 5083Al at various positions were provided by solving the Navier–Stokes equations given in Ref [9]. The heat exchange between the graphite mould, Al₂O_3(3D) RPC and liquid 5083Al resulted in decreasing temperature during LPIP, which changed the liquid 5083Al thermophysical parameters, such as specific heat and viscosity. The thermophysical parameters material data of 5083Al, graphite mould and Al₂O_3(3D) RPC were obtained directly from the database of PROCAST software [23, 24]. The governing equations given of the heat and mass transfer in REF [21] were solved using ProCAST software in this paper.

2.3. Mesh and boundary condition

Figure 3 shows the boundary and mesh of Al₂O_3(3D)/5083 IPCs models during LPIP. The integrity surface mesh was composed of triangles, which was divided into 160×160×100 cells, resulting in 25, 600 more surface cells and 16, 000 less surface cells shown in Figure 3a and Figure 3b. The model was divided into approximately 180, 000 volume mesh cells, which provides sufficient calculation accuracy shown in Figure 3c and Figure 3d. The inlet was defined with a uniform velocity boundary condition, while all other solid surfaces were set as nonslip and nonpenetrating boundaries. As showed in Figure 3e and Figure 3f, the pouring velocities (PV) of liquid 5083Al was set to 0.4 m/s, corresponding to an infiltration pressure (inlet pressure) of about 0.3 MPa, which was the pressure commonly used in low-pressure casting machines [12]. The outlet pressure is 0 Pa (absolute pressure minus atmospheric pressure is 0 Pa). The initial temperature and heat transfer coefficients (HTC) applied to each volume and boundary are listed in Table 2. Pouring temperature (PT) of liquid 5083Al was set to 740–800 °C. Initial temperature of graphite inlet, graphite gate, and graphite mold were set to 250 °C. Initial temperature of Al₂O_3(3D) RPC was set to 540 °C. Liquid 5083Al was considered an ideal fluid for density calculations, and the effect of gravity was included in the momentum equation. Due to the low PT of liquid 5083Al, the radiation of liquid 5083Al into infiltrating Al₂O_3(3D) RPC preform was not considered. The tip resistance can be ignored for liquid 5083Al flow in the pores is in the form of steady-state flow. Considering the liquid 5083Al as an incompressible homogeneous fluid and assuming the 5083Al flow in Al₂O_3(3D) RPC preforms was a laminar flow. There was no residual air in the Al₂O_3(3D) RPC preform, so the gas anti pressure was not considered. Fluid properties were defined as variables, and the momentum equation was coupled to the energy equation. The simulation employed a double precision coupling algorithm to couple the velocities. The second-order upwind advection model was used for the momentum equation, turbulent kinetic energy equation, and turbulent energy dissipation equation. The convergence criterion was set to 10^-5.

2.4. Material Preparation

Al₂O_3(3D) RPC was prepared using replica methods in this paper. Replica methods often referred to as the lost mold process or Schwartzwalder method, have been frequently utilized to produce reticulated porous ceramics with large interconnected pores[25]. The detailed steps are as follows: (1) A three-dimensional mesh polyurethane sponge from Shenzhen Lvchuang Environmental Protection Filter Materials Co., Ltd. was immersed in a NaOH solution for 18 hours to remove the interlayer film and increase surface roughness. The purpose is to improve the adhesion between the polyurethane sponge surface and the Al₂O₃ slurry. (2) The sponges used as templates were cut into a circle with a diameter of 100 mm and a thickness of 8 mm. (3) The sponge was impregnated into Al₂O₃ slurry. The impregnated sponge body was then passed through rollers to drain the surplus slurry and maintain the ceramic content in the infiltrated body. (4) The ceramic-coated template was subsequently dried in a microwave oven for 15 minutes to obtain a green alumina mesh porous body with a well-defined structure. (5) The pyrolyzed through careful heating to 400 °C for 2 hours decomposed or burned out the polyurethane sponge templates. (6) In a graphite resistance furnace from Jinzhou Santai Electric Furnace Factory, China, with argon gas as the sintering atmosphere at 1600 °C for 3 hours, the ceramic layers were sintered to obtain Al₂O_3(3D) RPC with the same morphology as that of the original cellular polyurethane sponge template, which was approximately 15 PPI (pores per inch).

Figure 4 shows the schematic diagram of liquid 5083Al infiltrating into Al₂O_3(3D) RPC using LPIP. The 5083Al was in the form of nuggets and placed in the graphite crucibles and heated from 25 °C to 800 °C for 2 hours in the crucible furnace from Zhengzhou Xinhan Instrument Equipment Co., Ltd.). The liquid 5083Al in the graphite crucible was regularly stirred to ensure a uniform composition. Al₂O_3(3D) RPC were heated to 540 °C. The Al₂O_3(3D) RPC was placed on the liquid 5083Al, and pressurized gas was applied for about 20 minutes, as shown in Figure 4a. The liquid 5083Al completely infiltrated the Al₂O_3(3D) RPC and cooled to obtain Al₂O_3(3D))/5083 IPCs in Figure 4b. The simulation results obtained from ProCAST were compared and verified.

2.5. Material Characterization

The obtained samples of Al₂O_3(3D)/5083 IPCs were subjected to X-ray diffraction (XRD) analysis using Cu Kα radiation at 40 kV and 100 mA, employing a computer-controlled diffractometer (PANALYTICL B.V/PW3040/60, Netherlands). The XRD data were recorded in continuous scanning mode with a scanning angle (2θ) ranging from 10° to 90° and a scanning rate of 0.02°/s. The microstructure of the samples of Al₂O_3(3D)/5083 was characterized using scanning electron microscopy (SEM) at 15 kV and 10 mA. The composition of the material was analyzed using energy-dispersive spectroscopy (EDS).

3. Results and Discussion

3.1. Effect of pouring temperature on infiltration depth

Figure 5 shows the simulated results of infiltration depth of liquid 5083Al with pouring velocities (PV) of 0.4 m/s infiltrating and pouring temperature (PT) of 740 °C into Al₂O_3(3D) RPC with different times in infiltrating stage using LPIP. During the initial infiltrating stage, the liquid 5083Al flowed freely upward along the vertical inlet under the influence of pressurized gas. At 0.767s, the mold was filled to about 25%, the temperature of liquid 5083Al was 696 °C (Figure 5a). At 1.505 s, the mold was filled to about 50%, temperature of liquid 5083Al was higher than 644°C (Figure 5b). The black arrow indicated the position where the 644 °C isotherm was located showed in Figure 5b, Figure 5c and Figure 5d. Temperature of liquid 5083Al was still above its solidus temperature, and the infiltrating process could continue. However, at 1.922s, the mold was filled to about 70%, temperature of the liquid 5083Al was below 644 °C (Figure 5c). Temperature of liquid 5083Al was lower than the solidus temperature, and liquid 5083Al began to solidify. The mold infiltrating could not continue. The final infiltration depth was defined as the maximum length of Al₂O_3(3D) preform which liquid 5083Al can percolate before the channel was completely blocked by liquid 5083Al solidification. It was evident that overall fill time was approximately 1.984 s, full impregnation was not achieved at 740 °C as well as the final infiltration depth was about 70% (Figure 5d).

Figure 6 shows the simulated results of infiltration depth of liquid 5083Al with PV of 0.4 m/s and PT of 760 °C infiltrating into Al₂O_3(3D) with different times in infiltrating stage using LPIP. The black arrow indicated the position where the 644 °C isotherm was located. Compared with infiltration depth of 644 °C isotherm of liquid 5083Al with filling 20%, 50%, 70% indicated by black arrow in Figure 5, the infiltration depth of 644 °C isotherm of liquid 5083Al in Figure 6 in infiltration direction was increased by about 10%, 20%, and 30% with filling 20%, 50%, 70%, respectively. At 0.715 s, the mold was filled to about 25% (Figure 6a). At 1.559 s, the mold was filled to about 50% (Figure 6b). However, at 2.852 s, the mold was filled to about 70% (Figureure6c). The overall fill time was about 3.018 s, the final infiltration depth was about 100%, complete impregnation was achieved (Figure 6d). The microporosities of infiltration gaps at the interface between 5083Al and Al₂O_3(3D) RPC or the segregation of the 5083Al matrix were observed during infiltration.

Figure 7 shows the simulated results of infiltration depth of liquid 5083Al with PV of 0.4 m/s and PT of 800 °C infiltrating into Al₂O_3(3D) with different times in infiltrating stage using LPIP. Compared with the depth of the 644 °C and 592 °C isotherms of liquid 5083Al with filling 20%, 50%, 70% indicated by black arrow in Figure 6, the depth of the 644 °C and 592 °C isotherms of liquid 5083Al in Figure 7 in the infiltration direction was increased by about 5%, 10%, and 12% with filling 20%, 50%, 70%, respectively. At 0.834 s, the mold was filled to about 25% (Figure 6a). At 1.488 s, the mold was filled to about 50% (Figure 6b). However, at 2.279 s, the mold was filled to about 70% (Figureure6c). The overall fill time was about 2.913 s and the final infiltration depth was about 100% (Figure 6d). Comparing the infiltration effects at these temperatures 740 °C and 760 °C, no obvious defects, and full impregnation was obtained at 800 °C. It can be observed that, the lower the PV, the more significant solidification and the lower the final infiltration depth. Increasing PT to 800 °C, predicting results showed that the interfaces of Al₂O_3(3D) RPC–liquid 5083Al, and liquid 5083Al–mold experience higher temperature gradients. The viscosity of liquid 5083 decreased, result in higher infiltration velocities and shorter fill completion time.

3.2. Flow field and temperature field of liquid 5083Al at PT 800 °C

Figure 8 illustrates the infiltration velocities along the flow direction of liquid 5083Al with PV of 0.4 m/s and PT of 800 °C infiltrating into Al₂O_3(3D) using LPIP. Liquid 5083Al was Infiltrated continuously through the bottom face of the channel at constant PV of 0.4 m/s and at constant PT of 800 °C. Because the placement of Al₂O_3(3D) preform was not close to the wall of mold, the infiltration process was actually a three-dimensional multi-directional infiltration. Due to the viscous loss caused by the porous medium, the flow front became very flat. The infiltration process was relatively stable with small fluctuation, and Al₂O_3(3D) preform was infiltrated completely in a very short time. During the infiltration process, the smaller the pore size of Al₂O_3(3D) preform would cause the more work of resistance, the more loss of the energy of liquid 5083Al and the smaller PV. This correlation favors filling of larger pore prior to the smaller pores when the Al₂O_3(3D) and liquid 5083Al system was poorly wetting. The PV decreased to 0.27 m/s at the place with the smallest pore size of the Al₂O_3(3D) preform. Before liquid 5083Al reached the Al₂O_3(3D) preforms, the flow front had tiny fluctuations and was not flat. This kind of flow can easily cause gas entrapment and casting defects.

Figure 9 presents the temperature along the flow direction. The results indicate PV and PT played a crucial role in determining the velocity of liquid 5083Al through the clearance and the degree of pore shrinkage at the end of infiltration. Temperature of the liquid 5083Al decreased along the flow direction in Figure 9a. The section view in Figure 9b shows the temperature in the middle was higher, while the temperature around the Al₂O_3(3D) dropped. This temperature distribution may affect the different solidification rates between the middle and the surrounding parts of the casting, resulting in defects in the middle of the casting. The viscosity and flow velocity of the liquid 5083Al undergo significant changes when there is a large temperature gradient in the region.

3.3. Effect of porosity of Al₂O_3(3D) on liquid 5083Al with PV 0.4 m/s and PT 800 ⁰C in LPIP

The mesh numbers for 1, 2, 3, and 4 times Al₂O_3(3D) RPC impregnating body were divided into 3,836,942, 3,514,000, 3,407,296, and 3,442,287, respectively. The impregnation time for 1, 2, 3, and 4 times was 3.00 s, 2.84 s, 2.94 s, and 3.490 s show in Figureure.10. In most tests, the penetration rate of the whole cavity can be completed at around 0.4 m/s. The infiltration rate is calculated using equation (1)

V = F/T (1)

Where V is the infiltration rate, F is the infiltration percentage, and T is the infiltration time. When the porosity is greater than 80%, the volume rate changes at 86.4%, 91.3%, and 95.1%, and the infiltration time is 3.13 s, 3.26 s, and 3.21 s, respectively, with infiltration rates of 26.8 %/s, 27.9 %/s, and 29.5 %/s. The optimal porosity exists in the range of 65% to 80%, with the volume rate changes at 65.1%, 73.3%, and 80.4%, the infiltration time 2.28 s, 2.51 s, and 2.83 s, and the infiltration rate 28.5 %/s, 29.1 %/s, and 28.3 %/s at an infiltration rate of 0.4 m/s. Al₂O_3(3D) RPC with 5 PPI pores, infiltration becomes easier. However, it gradually loses its guiding effect on liquid 5083Al, leading to turbulent phenomena in Figure 10b. Al₂O_3(3D) RPC with positively influences infiltration, improving the infiltration effect[15]. Using porosity of 65 % ~ 80 % improved the infiltration effect and better prepare Al₂O_3(3D)/5083Al.

Figure 11 of Al₂O_3(3D) with 15 PPI and 5 PPI and infiltration. Al₂O_3(3D) RPC porosity closely related to the infiltration rate. at PT 800 °C, laminar flow and turbulent flow were observed in Figure 10a and Figure 10b, respectively. Al₂O_3(3D) with 15 PPI in in Figure 11a could guide the infiltration, which is conducive to Al₂O_3(3D)/5083 infiltration forming and reducing infiltration defects[26]. The infiltration decreases first and then increases using Al₂O_3(3D) RPC with 5 PPI in Figure 11b.

Figure 12 shows the temperature changes of graphite model with liquid 5083Al at PV of 0.4 m/s and PT of 800 °C during LPIP. The temperature change of Al₂O_3(3D) RPC was slower than that of the graphite mold. The thermal conductivity of the graphite mold was better than that of the Al₂O_3(3D) RPC, resulting in the Al₂O_3(3D) RPC having a thermal insulation effect on liquid 5083Al compared to the graphite mold. The liquid 5083Al was divided into zones A, B, C, and D. The liquid 5083Al temperature in zone A was 644 °C, in zone B was 592 °C as shown in Figure 12a, and in zone C was 592 °C compared to zone D as shown in Figure 12b. The liquid 5083Al in zone A had high temperature, low viscosity, and fast infiltration rate, while the liquid 5083Al in zones B, C, and D had lower temperature, higher viscosity, and lower infiltration rate. The velocity field exhibited large fluctuations, leading to turbulence and low porosity. It is expected the results with PV of 0.4 m/s and PT of 800 °C during LPIP would help to improve the quality of combination of interfaces of Al₂O_3(3D) and the 5083Al matrix.

3.4. Solidification process

Figure 13 shows the simulation result of mold temperature fields during solidification process with liquid 5083Al at PV of 0.4 m/s and PT of 800 °C. When infiltration was completed, the temperature of the whole mold dropped. The casting was divided into zones A and B according to the temperature zone. At the completion of infiltration, the temperature of Al₂O_3(3D) RPC in zone A was 384 °C, and in zone B was 332 °C. The maximum temperature of the mold surface was 228 °C. The inner temperature of the casting was higher than that of the casting.

Figure 14 shows the simulation changes of infiltration time and temperature after infiltration completion with liquid 5083Al at PV of 0.4 m/s and PT of 800 °C. Both the infiltration time and the infiltration temperature presented a layered transition as shown in Figure 14a and Figure 14b. The infiltration time could be divided into 15 layers in Figure 14a. The first five layers of infiltration time were short, corresponding to the 0 s~0.98 s stage of stable infiltration. The middle five layers from 0.98 s to 1.97 s showed a certain upward bulge in the two layers near the top, indicating that the liquid 5083Al flow velocity slowed down in this region. At 1.79 s~2.96 s, the overall infiltration time bar has a large deformation and bulges upward, and the infiltration time bar thickens, indicating slower infiltration at this time. The infiltration rate of liquid 5083Al decreased under the influence of gravity, making shrinkage and loosening phenomena more likely to occur. Infiltration temperature divided into three layers as shown in Figure 14b. The temperature at the bottom where 5083Al was impregnated dropped rapidly and was close to the preset temperature of Al₂O_3(3D) RPC. The middle layer maintained a stable temperature between 614 °C and 598 °C, indicating stable 5083Al infiltration. The top layer had a temperature ranging from about 566°C to 582°C, closed to the solidification temperature of liquid 5083Al. At this stage, liquid 5083Al became sticky, and the infiltration rate decreases rapidly. The velocities of liquid 5083Al at the bottom could not meet the stable infiltration at the top, resulting in faster infiltration time in the middle than on both sides.

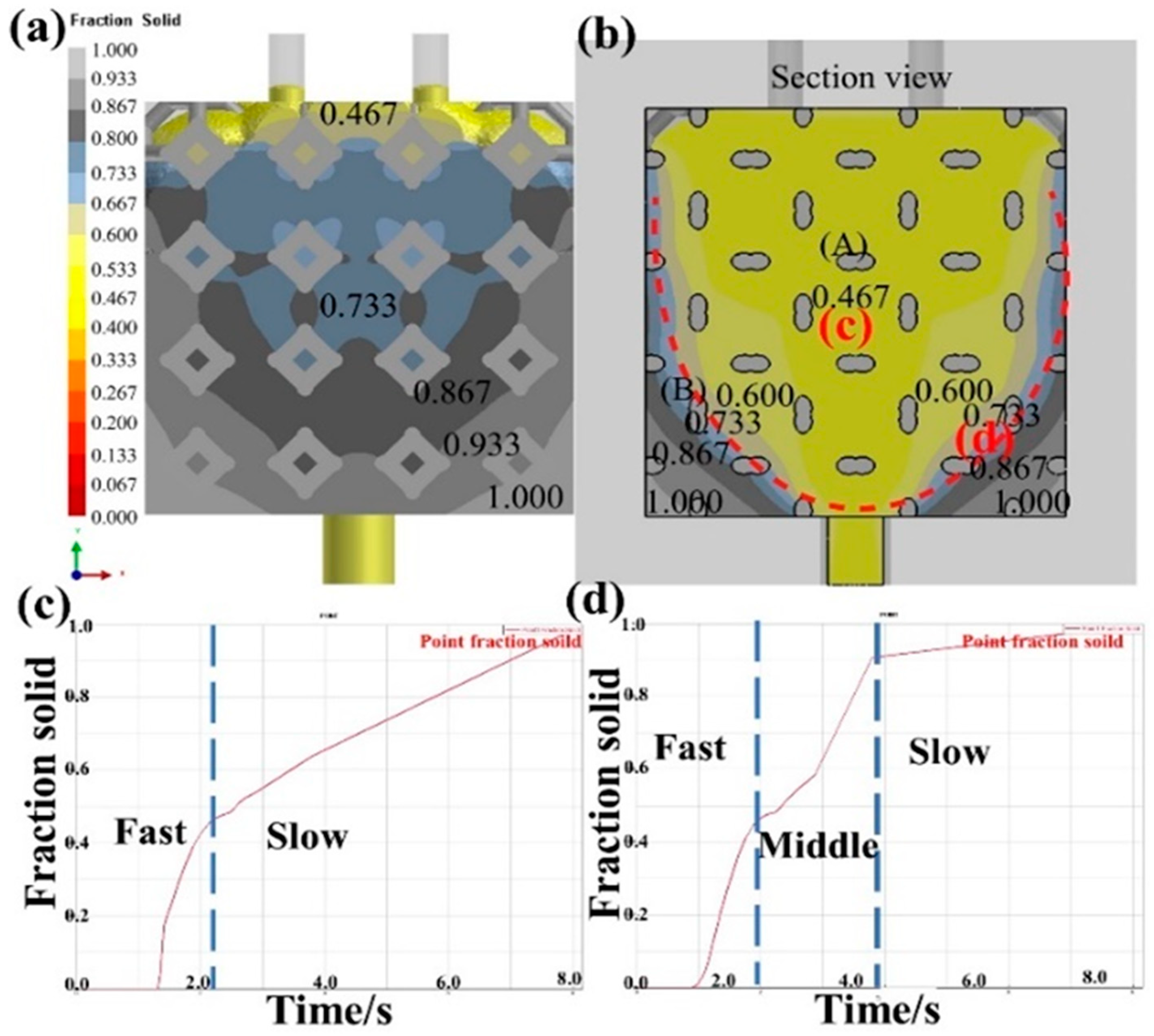

Figure 15 shows the solidification velocities of different parts and the solidification curve with liquid 5083Al at PV of 0.4 m/s and PT of 800 °C. The iteration step size was 1100, and the solidification state was centered towards the periphery. During infiltration, liquid Al flows from the bottom center to the periphery[27]. As liquid 5083Al infiltrated upward, the flow rate of liquid 5083Al slowed down. Solidification rate of the Al liquid near the inner wall of the model with heat conduction of the graphite model was faster than that of the Al liquid under Al₂O_3(3D) RPC insulation. This resulted in funnel-shaped solidification of liquid 5083Al. Figure 15c and Figure 15d show the solidification temperature curves of marked points (c) and (d) in Figure 15b, respectively[28]. The solidification temperature curve in Figure 15c shows two changes in velocities, and the driving force of solidification was temperature change. As the solidification developed from the inner wall of the model to the center of the casting, the solidification in Figure 15c was controlled by the heat transfer of Al₂O_3(3D) RPC, resulting in a faster solidification rate[29]. When Al₂O_3(3D) RPC temperature was consistent with the temperature of the aluminized liquid, the solidification changed to be controlled by the air cooling of the outer mold[2]. Figure 15d shows in the first stage, when the liquid Al contacted the Al₂O_3(3D) RPC, it was controlled by the heat transfer of the Al₂O_3(3D) RPC, resulting in a faster solidification rate. In the second stage, because the temperature of Al₂O_3(3D) RPC was not consistent with that of liquid 5083Al, solidification was controlled by the air cooling of Al₂O_3(3D) RPC and outer mold. In the third stage, the temperature of Al₂O_3(3D) RPC was the same as that of liquid 5083Al, and the solidification changed to be controlled by the air cooling of the graphite mold[30].

Figure 16a and 16b present a comparison of the solidification time and solid-phase transition completed time, revealing that the solidification time in the center was longer than that around it. The overall solidification process was influenced by Al₂O_3(3D) RPC, resulting in a concentration of solidification time and solid-liquid phase in the center, forming a spherical diffusion pattern. The solid-liquid phase could be divided into three distinct parts[31]. The central part of the solidification processed and the time taken for the liquid phase to solidify were relatively long, indicating that the velocities of liquid 5083Al in this region was insufficient, and there was a probability of incomplete solidification leading to porosity. In contrast, the solidification time was more uniform in the peripheral regions due to the influence of the input of liquid Al and Al₂O_3(3D) RPC. As a result, the time range for solid-liquid phase transition was larger than the solidification time range. Specifically, the second layer experienced a solidification time ranging from 3.7 s to 4.0 s, and the transition time from solid-liquid phase to solid was from 4.4 s to 4.7 s for the entire solidification process, which aligned with the characteristics of this part. The third layer was mainly affected by the inner wall of the model, and the infiltration rate had little impact. At about 5.0 s, solid phase transition completed Additionally, Al₂O_3(3D) RPC resulted in a shorter solidification time, and the transition from solid-liquid phase to solid occurs earlier in this region[16].

Figure 17 shows simulated prediction of porosity and shrinkage with liquid 5083Al at PV of 0.4 m/s and PT of 800 °C. Shrinkage pore distribution was more uniform, and the probability of shrinkage pore occurrence was small. The shrinkage porosity distribution is low and concentrated in Al₂O_3(3D)RPC center[17]. There was a probability of shrinkage at interface of Al₂O_3(3D) RPC and 5083Al matrix, as well as certain probability of shrinkage in 5083Al matrix. The largest probability of shrinkage was the inlet part of liquid 5083Al. Due to the influence of many factors, such as residual stress concentration, the solidification temperature of liquid 5083Al in Al₂O_3(3D) RPC, the increase of viscosity of liquid Al₂O_3(3D) RPC, the shrinkage percentage was 13.33%, and the probability of shrinkage is small [1].

3.5. Experimental

Liquid 5083Al was infiltrated into the as-prepared Al₂O_3(3D) RPC preforms with high uniform open porosity (58–74%), pore size (3.5 mm) to fabricate Al₂O_3(3D)/5083Al IPCs by LPIP. For successful melt infiltration to prepare Al₂O_3(3D)/5083Al IPCs, the Al₂O_3(3D) RPC preforms must be predominantly open porous and sufficiently strong struts without cracks or other defects. It was observed that the infiltration of the liquid 5083Al at PV of 0.4 m/s and PT of 740 °C was incomplete, and a significant amount of liquid 5083Al remained trapped inside the Al₂O_3(3D) RPC. This was likely due to the excellent heat dissipation ability of Al₂O_3(3D) RPC, as depicted in Figure 18a, which resulted in rapid cooling of the liquid inside Al₂O_3(3D) RPC. Consequently, the infiltration inlet was obstructed by the cooled 5083Al, preventing further infiltration, as shown in Figure 18b. To address this issue, Al₂O_3(3D)/5083 IPCs were prepared by LPIP with liquid 5083Al at PV of 0.4 m/s and PT of 800 °C, and the infiltration process was repeated. Test sample was successfully obtained in Figure 20c. The test sample exhibited certain characteristics, such as a considerable weight, a reflective silver luster, and a solid sound without any hollow sensation upon gentle tapping. After the successful infiltration, the obtained sample, Al₂O_3(3D)/5083Al, was further polished, as shown in Figure 20d. The surface of the polished sample exhibited distinct features: the gray parts corresponded to Al₂O_3(3D) RPC, while the metal luster indicated 5083Al.

Figure 19 X-ray Diffraction (XRD) testing was conducted on Al₂O_3(3D)/5083Al IPCs. The results were compared with standard reference cards. The XRD analysis confirmed that the Al₂O_3(3D)/5083Al IPCs was composed of Al₂O₃ and Al alloy.

Figure 20 shows the SEM of surface morphology of Al₂O_3(3D)/5083Al. The dark color was Al₂O_3(3D) RPC, which contains fine pores. The Al₂O_3(3D)/5083 appeared to be well bonded with no large pore defects, and the interface between the two phases was closely bonded[13]. The infiltration and solidification defects were reduced under air pressure of 0.3 MPa (corresponding to an inlet pressure of about 0.3 MPa or PV of 0.4 m/s) during LPIP. In addition, the Al₂O_3(3D) RPC exhibited excellent affinity and good wettability with the liquid 5083Al under pressure, fine air bubbles were effectively minimized at the interface between the two materials until solidification crystallization completed. As the result, the interface between Al₂O_3(3D) RPC and 5083Al demonstrated a strong bonding. This reduction in air bubbles helped to eliminate voids, leading to a more homogenous and structurally sound Al₂O_3(3D)/5083Al composite[13]. This property made it suitable for low-pressure casting applications.

Figure 20. SEM images of Al₂O_3(3D)/5083Al from Al₂O_3(3D) porosity of 15 PPI with liquid 5083Al at PV 0.4 m/s and PT 800 °C; (a) SEM of Al₂O_3(3D)/5083Al; (b) zoom of Al₂O_3(3D)/5083Al; (c) interface ; (d) zoom of interface.

Figure 20. SEM images of Al₂O_3(3D)/5083Al from Al₂O_3(3D) porosity of 15 PPI with liquid 5083Al at PV 0.4 m/s and PT 800 °C; (a) SEM of Al₂O_3(3D)/5083Al; (b) zoom of Al₂O_3(3D)/5083Al; (c) interface ; (d) zoom of interface.

Figure 21 shows EDS map scanning shows the element distribution in Al₂O_3(3D)/5083 Al. Al element was clearly divided at the phase interface[31]. Mg element was enriched in Al₂O_3(3D) RPC compared to 5083Al, indicating Mg diffusion towards Al₂O_3(3D) RPC. Si element was precipitated on 5083, and O element formed a full and uniform oxide film on the Al₂O_3(3D)/5083 surface[33].

Figure 22 shows SEM images and EDS results of Al₂O_3(3D)/5083 from Al₂O_3(3D) porosity of 15 PPI with liquid 5083Al at PV 0.4 m/s and PT 800 °C. Point 1 contains 98.49% Al and 1.51% Mg, indicating that the material tested is an Al-Mg. Point 2, 50.18% Al, 23.19% C, 20.78% Fe, 4.1% Si, 0.82% Cu, and 0.94% Mn, indicating the presence of precipitates mainly containing Fe[34]. Infiltration kinetics was better in the case of the RMP route with liquid 5083Al with PV 0.4 m/s at PT 800 °C. The reactive infiltration was carried out at PV 0.4 m/s to prepare IPCs by reactive infiltration of liquid 5083Al into Al₂O_3(3D) at 800 °C. The free surface tracking and the solidification phenomena for the infiltration of open-porous preforms was studied using both numerical simulation and experimental methods. The results provided insights into the optimal parameters for successful infiltration [35].

4. Conclusions

1. The infiltration and solidification defects of materials were reduced and nearly fully dense Al₂O_3(3D)/5083Al IPCs were prepared successfully from Al₂O_3(3D) RPC porosity of 15 PPI with liquid 5083Al at PV 0.4 m/s and PT 800 °C using LPIP.

2. During the infiltration process, the smaller the pore size of Al₂O_3(3D) preform would cause the more work of resistance, the more loss of the energy of liquid 5083Al and the smaller PV.

3. The porosity of 65%~80% obtained better infiltration effect, indicating infiltration rate could be improved with reasonable porosity, leading to better preparation of Al₂O_3(3D)/5083 IPCs.
