Suturing in Gynaecological Laparoscopic Surgery: A Systematic Review of Loop and Knot Security, Varying with the Suture and Sequences, Throws, Rotation and Destabilisation of Half-Knots or Half-Hitches

1. Introduction

Suturing and knot-tying are essential skills in surgery. The choice of the suture material and knots was based on common sense until the loop and knot securities were measured with a dynamometer [1].

Understanding loop and knot security is important for the laparoscopic surgeon who cannot use two-hand knot tying for loop security as done in open surgery. Knowledge of loop and knot stability permits the surgeon to choose the most appropriate suture and knot combination, and secure knots allow using thinner sutures and cutting the tails shorter with less postoperative adhesion formation. More importantly, secure knots will prevent postoperative complications by knots opening inadvertently or not being leakproof after sealing a vessel. Since still poorly documented [2,3,4], we planned to review what is known about loop and knot security in laparoscopic gynaecological suturing.

2. Materials and Methods

Pubmed was searched for ("2000/01/01"[Date - Publication]: "2023/08/01"[Date - Publication]) AND knot[Title] AND surgery AND English [Language] NOT (orthopaedic OR orthopedic) NOT video NOT Gordian. The titles of the 544 articles found were screened, and the PDFs or, if not available, the abstract of the 53 articles retained were reviewed. Finally, only 37 articles were found to be useful. A subsequent search of 'knot security'[Title/Abstract] NOT orthopaedics NOT education NOT learning found 144 articles, and after screening and checking, two more articles were included. The review was submitted to Prospero with ID 450731.

Only suture diameters between 2.0 and 1 are discussed. Only one article reported larger [5] sutures, but without changing the message.

3. Definitions and the basics of knot tying

3.1. Knots are sequences of half-knots and half-hitches

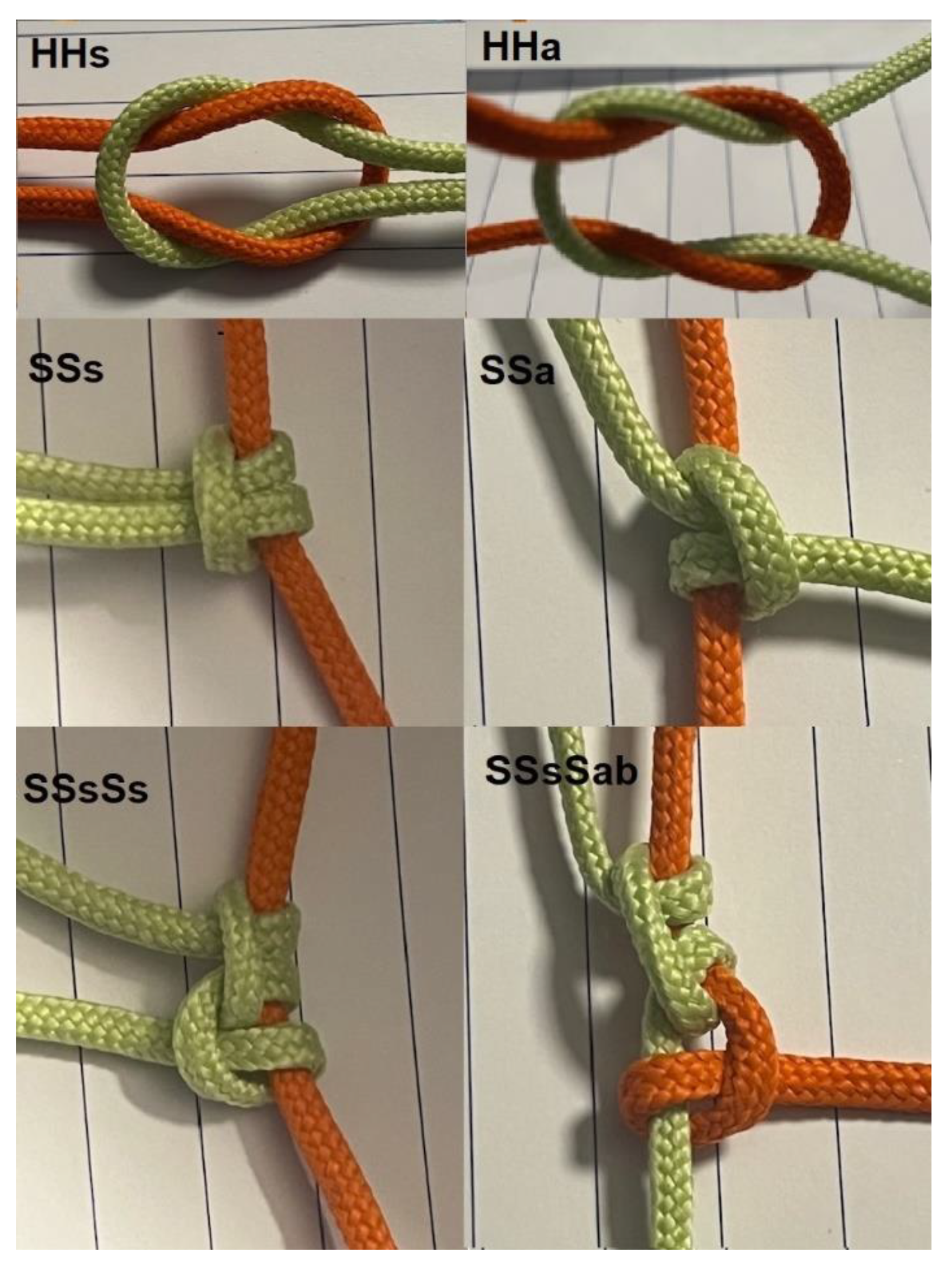

In surgery, most knots (for an overview [6]) are sequences of half-hitches (S) or half-knots (H) (Figure 1) Half-hitches result from pulling one end of the suture, called the passive end. Half-knots (H) require symmetrical pulling of both ends. Half-knots are easily converted into half-hitches and vice-versa.

Half-hitches usually consist of 1-throw and half-knots of 1 to 3 throws.

Besides the number of throws [7], rotation is essential. Compared to the previous one, alternate rotation of the same active end improves clinically§ knot security [7,8,9,10,11]. Half-knot sequences with alternate rotation result in a flat square knot, visually recognised as symmetrical [8]. Half-hitch sequences with opposite rotation stronger squeeze the passive end, and both ends stay on the same side. Similar rotation generally results in less secure knots, with the poor granny knot resulting from two 1-throw similar rotation half-knots, as an example.

Important to realise, is that changing the active and passive ends, as done in bimanual laparoscopic suturing [12] and blocking half-hitches, is similar to changing rotation [13]

A different class of knots are cinch knots [14,15], which are complex sliding knots that can be blocked when in place, such as the Röder knot.

3.2. Nomenclature of knots and historical perspective

The terminology or nomenclature of half-knots was described in 1976 [16] and of half-hitches in 1984 [11] (Table 1). Half-knots were indicated as 'H' and half-hitches as 'S' since sliding, followed by the number of throws. For subsequent half-knots or half-hitches, the rotation compared to the previous one was indicated by an '=' of 'x' to indicate a symmetric or asymmetric knot sequence. This terminology felt confusing since '=' is often called 'similar' without specifying that it means an alternate rotation resulting in a symmetric knot and not a similar rotation. For half-hitches, blocking was indicated by //[17].

To avoid ambiguity, we prefer to emphasise rotation since this is what the surgeon does when tying knots. [7,8,18]. It is intuitive for the surgeon who has to decide the number of throws and the sense of rotation for each half-knot or half-hitch. Therefore, the H or S is followed by the number of throws and the knot structure, which can be symmetric 's' or asymmetric 'a', when rotation of the same active thread compared to the previous one had been alternate or similar. For half-hitches, an 's' is added for sliding and a 'b' for blocking after changing active and passive ends. It should be clear that a second sliding half-hitch made with similar rotation, or SSas, can be changed into a blocking half-hitch, or SSab, by pulling the active end. However, it should be equally clear that changing the active and passive ends has the same effect as changing rotation and that SSab thus indicates a symmetric half-hitch on the new active end. However, for the surgeon, the rules are straightforward: always use alternate rotation for half-knots and sliding half-hitches. Only for blocking half-hitches similar rotation is used. This terminology can be simplified by omitting the number of throws if one and the 's' of sliding to avoid confusion with the (s) of symmetric. The surgeon also should realise the difference between mono-manual and bimanual suturing since similar rotation results in symmetric knots after changing the active and passive ends. Half-hitches remain sliding as long as the passive end remains the same. However, reorganisation might block some sequences when 6 or more half-hitch sequences are used. To summarise, SSsSsbSab indicates a second symmetrical and sliding, a third symmetrical (alternate rotation) and blocking and a fourth asymmetrical (similar rotation) and blocking half-hitch.

3.3. Testing and definitions of loop and knot security

Security of knots is mostly evaluated with a dynamometer increasing forces at a constant speed and measuring the force when a suture breaks or slides open. Dynamic testing of security will not be discussed since not yet useful in gynaecology.

Loop security or holding strength is the first aspect to consider when suturing [19]. This is the force needed to open the first loop, which can be the first half-knot, one or more sliding half-hitches, a sliding granny knot [20], or a cinch knot. Loop security keeps the tissues approximated or sutured arteries leakproof until additional half-knots or half-hitches are added, securing the knot. Loop security, thus, is essential for making tight knots. The importance of inadequate loop security is illustrated by the incidences of postoperative bleeding, which was reported as high as 4% to 10% after hysterectomy in animals [21].

The definition of knot security is variable. Knot security is mostly described as the mean force to slide open the final knot or break the suture. Another definition is the percentage of knots sliding open. A third definition is the percentage of dangerous and insecure knots. Based on clinical experience, these were defined in abdominal and gynecologic surgery as opening with less than 10N and between 10 and 30 Nexton, respectively. However, the values of insecure and dangerous knots might be much higher for knots on the abdominal fascia or when fixing a mesh to the promontory, especially during coughing. A fourth definition is the percentage of knots sliding for over 3mm before blocking and breaking the suture. This sliding reflects reorganisation when force is applied, but instead of reorganising into opening the knot, the knot 3-D structure blocks and the suture breaks. This sliding for a few mm is important for sealing vessels leakproof and in orthopaedic surgery requiring tight knots. Although not investigated in gynecologic surgery, the importance today seems to be limited to not cutting sutures shorter than 3mm. Besides these definitions, knot security after being soaked in water for some time [22] can differ slightly from dry sutures.

4. Understanding knot and loop security

4.1. Loop security

Although not measured precisely, loop security can be handled in open surgery by correct two hands knot tying, with constant tension on both suture ends [23,24]. In laparoscopic surgery, loop security only varies with the friction characteristics of the suture in the tissue and in the knot, reflecting the 3-D geometry in the knot (for mathematical models [23]).

The forces needed in abdominal surgery and gynaecology for loop security have not been documented. The only guidance is clinical experience [25], and we (the authors) estimate that the approximation of the abdominal fascia following a laparotomy or the approximation of the myometrium following a myomectomy requires loop security between 30 to 50 Newton (N). Loop security is not an issue for promontofixation since knots are secured without tension. Loop security for pulsatile arteries has not been measured. The need for much higher loop security forces in orthopaedic surgery have stimulated the development of cinch knots, or knots sliding on the passive end, that can be blocked by reorganisation by traction on the active end. These will not be discussed, being a different class of knots with unclear importance in gynaecological surgery.

Besides the friction forces of the suture in the tissue, loop security varies with the friction forces of the suture in the knot, varying with the number of throws and the 3D geometry.

For polyfilament sutures, such as polyglactin 2-0 (Vicryl), loop security of half-knots increases with the number of throws being 6, 10 and 18 Newton, for an H1, H2 or H3, respectively [7]. Loop security of symmetrical half-hitch sequences is twice as high as asymmetrical sequences [15,26] and increases with the number of half-hitches, being 24 and 48N for 2 and 4 symmetric (alternate rotation) half-hitches [13]. Although forces were not measured, the unstable granny knot (H1H1a) and H2H1a can be used to secure veins [27] or for wound closure [20].

For monofilament sutures, such as polyglecaprone 2.0 (Monocryl), loop security is lower than for Polyfilament sutures. Loop security of half-knots was 3 and 15 N for two and three throw half-knots. For half-hitch sequences, loop security was 15 N and 28 N for SSsand SSsSsSs and did not improve when 6 half-hitches were used (SSsSsSsSsSs) or 2 half-knots as H1H1s [28].

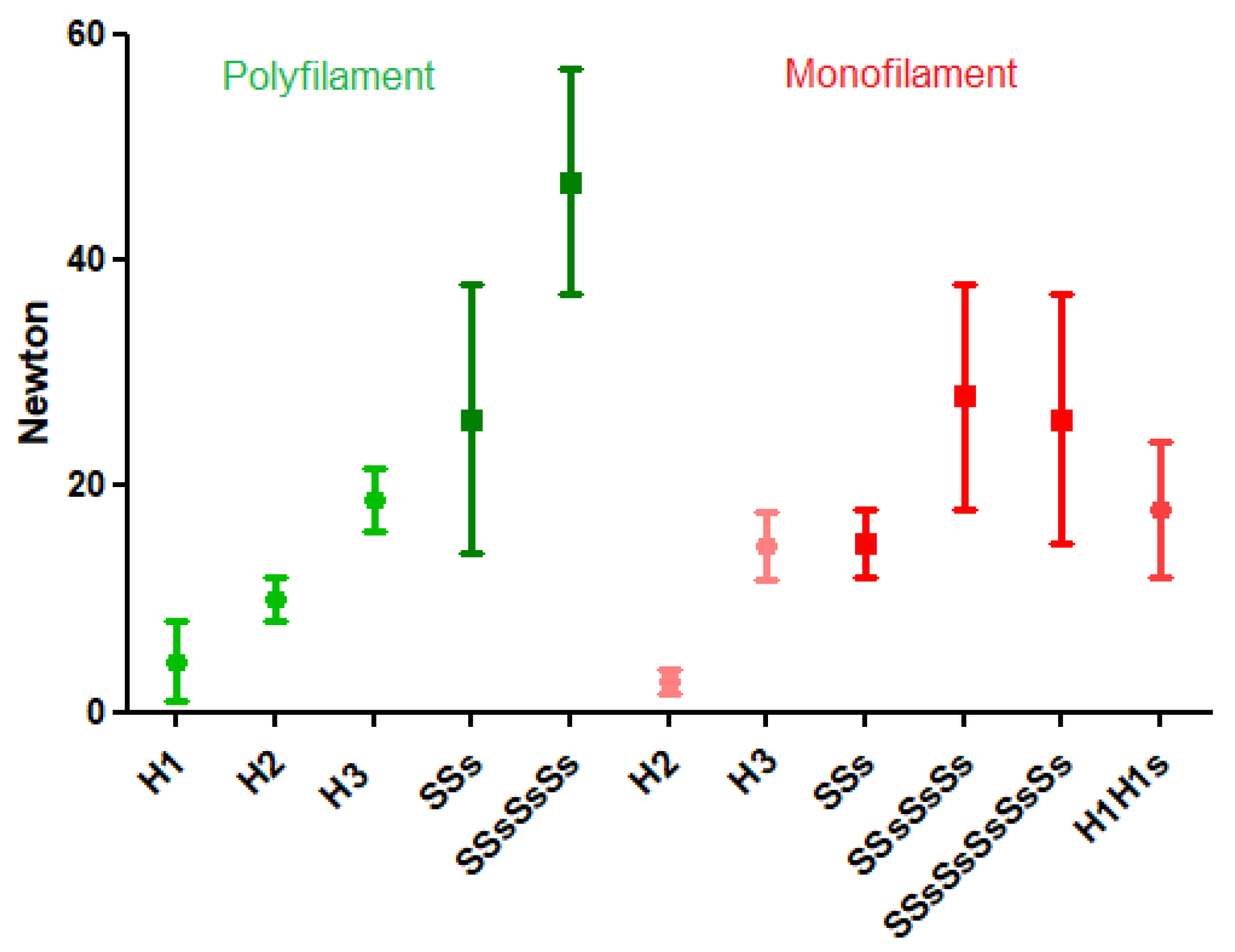

Figure 2. Loop security of polifilament (Vicryl) and monofilament (Monocryl) sutures. Mean and SD’s are indicated. Constructed from [7].

Figure 2. Loop security of polifilament (Vicryl) and monofilament (Monocryl) sutures. Mean and SD’s are indicated. Constructed from [7].

Figure 4 shows the variability of the loop security of half-hitch sequences, indicated by the large standard deviations caused by differences in forces of tying and duration of time till tested. Only recently, the surgical flexibility of half-hitch sequences was realised. If the loop security of 2 symmetrical half-hitches (SSs) is insufficient to keep tissues with stronger opening traction approximated as can occur when closing a myomectomy, a third and eventually a fourth half-hitch can be added. In addition, the last or fourth half-hitch can be transformed into a blocking half-hitch by quickly pulling the active end. If the surgeon anticipates this, the fourth half-hitch is preferably asymmetric, made by similar rotation.

The loop security of cinch knots [29,30], although overall much higher than for sliding half-knots or half-hitches, will not be discussed since rarely needed in gynaecological surgery. Cinch knots are still under active development to find the best balance between a less complicated knot, high loop security, and how to secure the knot afterwards. Also, the superiority of Millers knot [31,32] or constrictor knot [33] for sealing vessels leakproof will not be discussed.

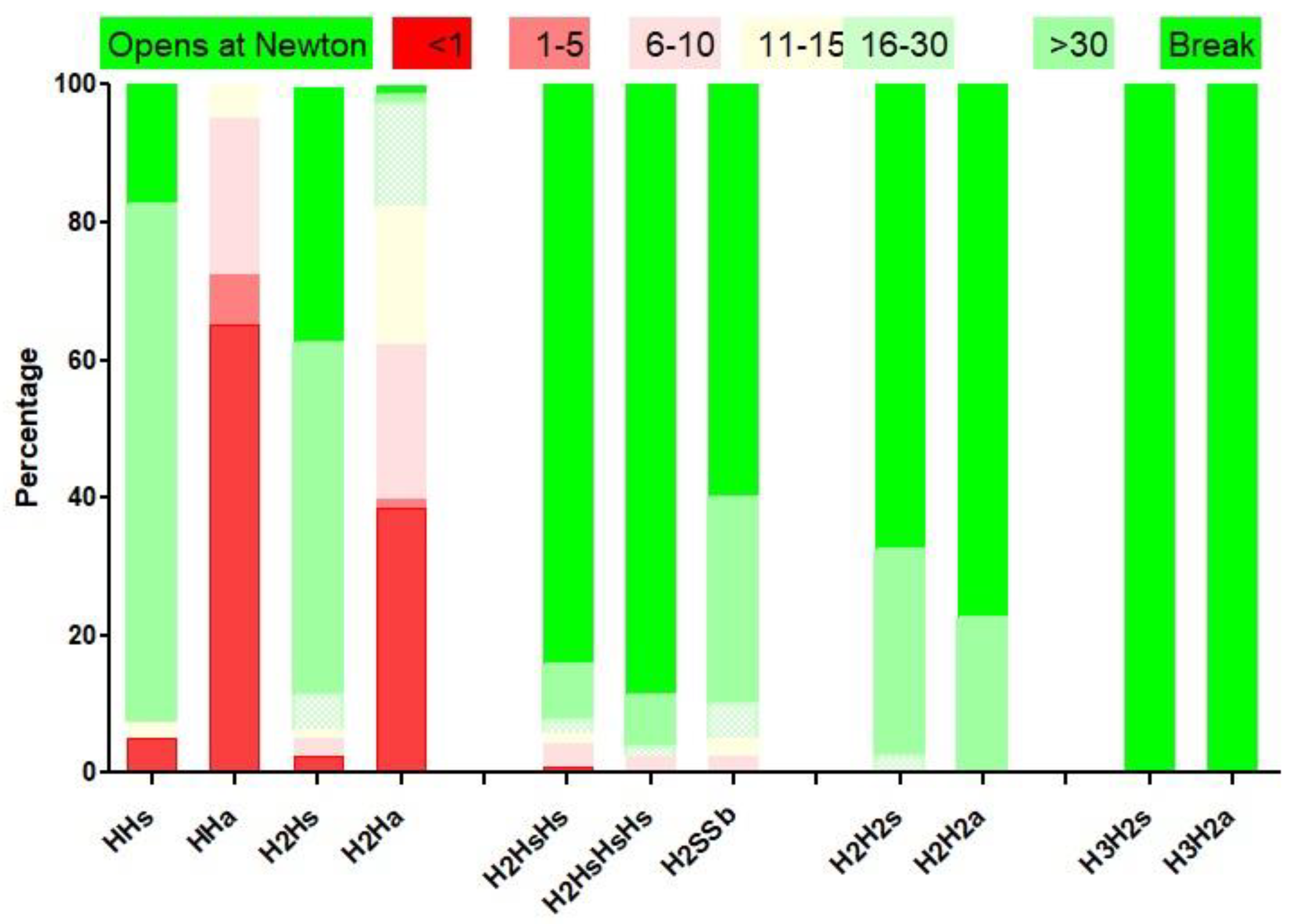

Figure 2. Half-knots security, defined as the percentage of dangerous knots, opening at less than 10N, and of insecure knots that open between 10 and 30N. Constructed from [7].

Figure 2. Half-knots security, defined as the percentage of dangerous knots, opening at less than 10N, and of insecure knots that open between 10 and 30N. Constructed from [7].

4.2. Knot security

Knot security varies with the type and diameter of the suture, the knot configuration or sequences and rotation of the half-knots or half-hitches, and the number of throws [2,7,13,34]. Knot security is generally slightly lower than the breaking forces of the tread, the knot being the weakest point of a suture [4,7]. This lower breaking force is believed to be caused by angulation forces in the knot. Knot security in vivo can be slightly less because of the wet environment and resorption. Knot security is believed to decrease exponentially over time, halving every 20 days. These considerations are not clinically relevant, considering tissue repair results in 50% of its final strength within a week. Knot security is for most knots occasionally variable because of reorganisation [7,35,36]. Therefore tradional statistics using the mean and standard deviations, are not adequate to evaluate the mean forces breaking or opening the suture. For most knots some slide open with lower forces up to becoming insecure knots when opening between 10 and 30N. Occasionally, knots can open at much lower forces below 10N and are considered dangerous knots. This unpredictable behaviour is explained by the reorganisation of knots when forces are applied during tying the knot or when tissue forces try to open the knot. The consequence of reorganisation is evident when an H1H1s is transformed into a sliding SSs. The reorganisation is also illustrated by the very different reorganisation of a double-throw half-knot followed by a symmetric or asymmetric double-throw half-knot (Figure 3). Clinically reorganisation is unpredictable if the first half-knot is slightly destabilised by insufficient loop security, inadvertent traction when making the second half-knot, or asymmetric traction when tying the second half-knot. Unpredictable reorganisation resulted for the excellent surgical knot (H2H1sH1s) in more than 5% insecure knots and 5% dangerous knots [7].

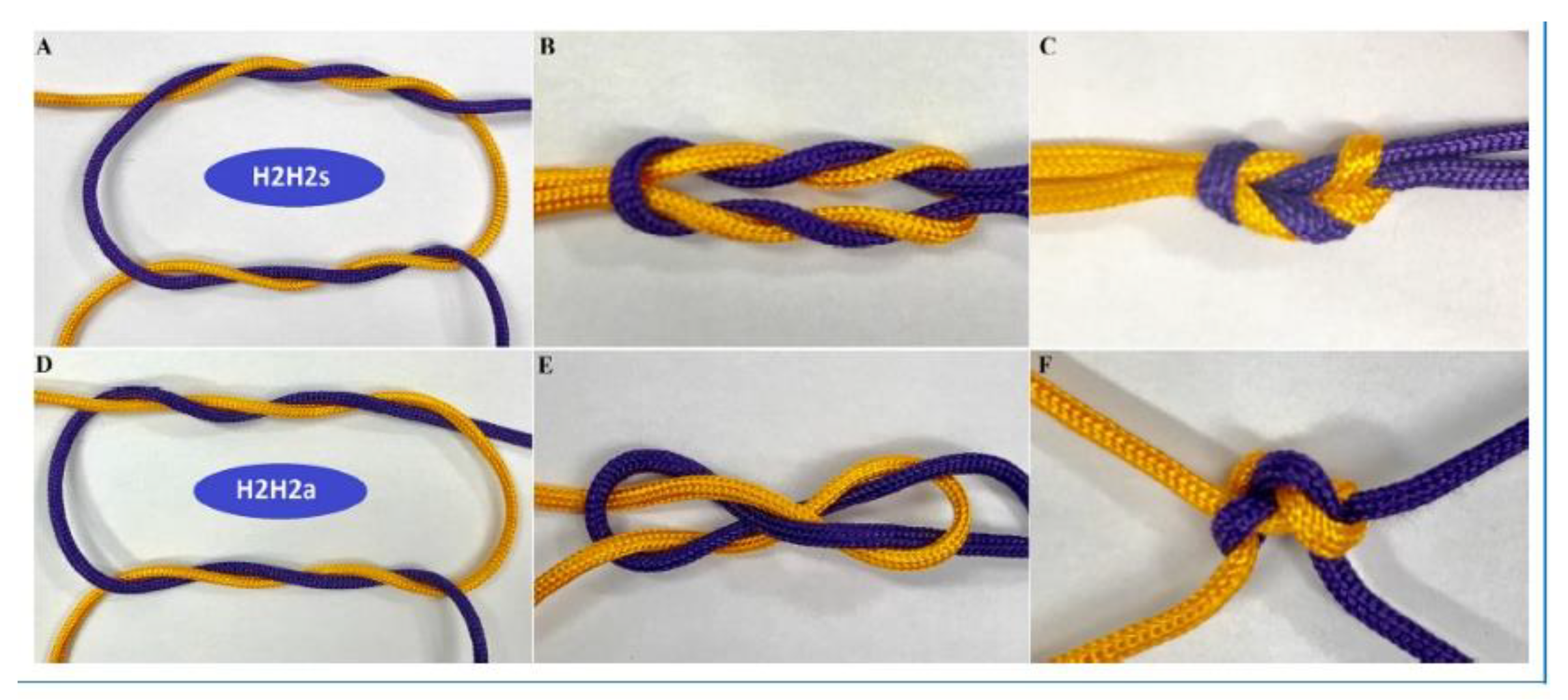

Figure 3. Rotation changes knot reorganisation. The symmetric knot remains in 1 plane. The asymmetric knot is in 2 perpendicular planes. From [7].

Figure 3. Rotation changes knot reorganisation. The symmetric knot remains in 1 plane. The asymmetric knot is in 2 perpendicular planes. From [7].

Figure 4. Knot security and number of throws. From [7] with permission.

Figure 4. Knot security and number of throws. From [7] with permission.

Clinically the (occasional) risk of insecure or dangerous knots is more important than the mean breaking force of a knot. This variability of knot security is caused by the reorganisation of the knot sequences when forces are applied. Equally important is the surgeon who ties the knot. He ties each half-knot or half-hitch with a specific force and maintains this force for a variable time. This introduces the poorly explored memory of the suture or knot as an additional variable. His skills are fundamental for not increasing the risk of accidentally destabilising a half-knot when making or tying the second half-knot. Also, his training and understanding of knot security are necessary since training and the mental 3-D understanding of a knot structure improve knot tying. An indirect argument is that the relatively high frequency of insecure and dangerous knots, observed in 2018 [7], disappeared progressively with the awareness of the risk of destabilisation, the importance of precision in forces used, and the duration of force and suture memory.

Unfortunately, for a risk of a few per cent insecure or dangerous knots, a high number of knots has to be tested. Using a Poisson approximation, 40 and 120 knots will detect 5% abnormality with 95% confidence intervals of 0.6% to 18.0% and 1.8% to 10.9%, respectively [37].

Knot security varies with the number of throws, the rotation and sequences of half-knots or half-hitches, the force of tying [8,38], and the type and diameter of suture used. [4,7].

For polyfilament sutures, secure knots require 5 throws, whether defined as the percentage opening [4,7,39] or as the percentage insecure and dangerous knots [7]. Knot security, defined as breaking forces, obviously increases with suture diameter. However, security also improves with rotation, with symmetric knots made by alternate rotation being more secure [15]. For example, the asymmetric granny knots (H1H1a) and even the H2H1a [20] are so unstable that they can be considered sliding knots with monofilament sutures. Secure half-knot sequences require 4 or 5 throws, and only H2H2 and H3H2 sequences are secure without insecure or dangerous knots. Rotation is clinically unimportant for these complex knots, although asymmetrical sequences have a slightly higher breaking force than symmetrical ones. Surprisingly, the surgical knot (H2H1sH1s) was published as dangerous in 5% and insecure in 15%. However, this was subsequently understood as the risk of destabilising the first loop by little involuntary traction on one of the ends when making or tying the subsequent half-knots: an H1H1 easily transforms into an S1S1, and an H2H1 into a sliding S2S1, irrespective of rotation. This risk increases with the surgeon's inexperience when threads are short and knot-tying is difficult because of location.

Secure sequences of half-hitches require at least 2 symmetrical sliding and 2 or preferably 3 asymmetrical blocking half-hitches for polyfilament sutures. Monofilament sutures require at least 6 half-hitches, 2 symmetrical sliding and 4 asymmetrical blocking [28].

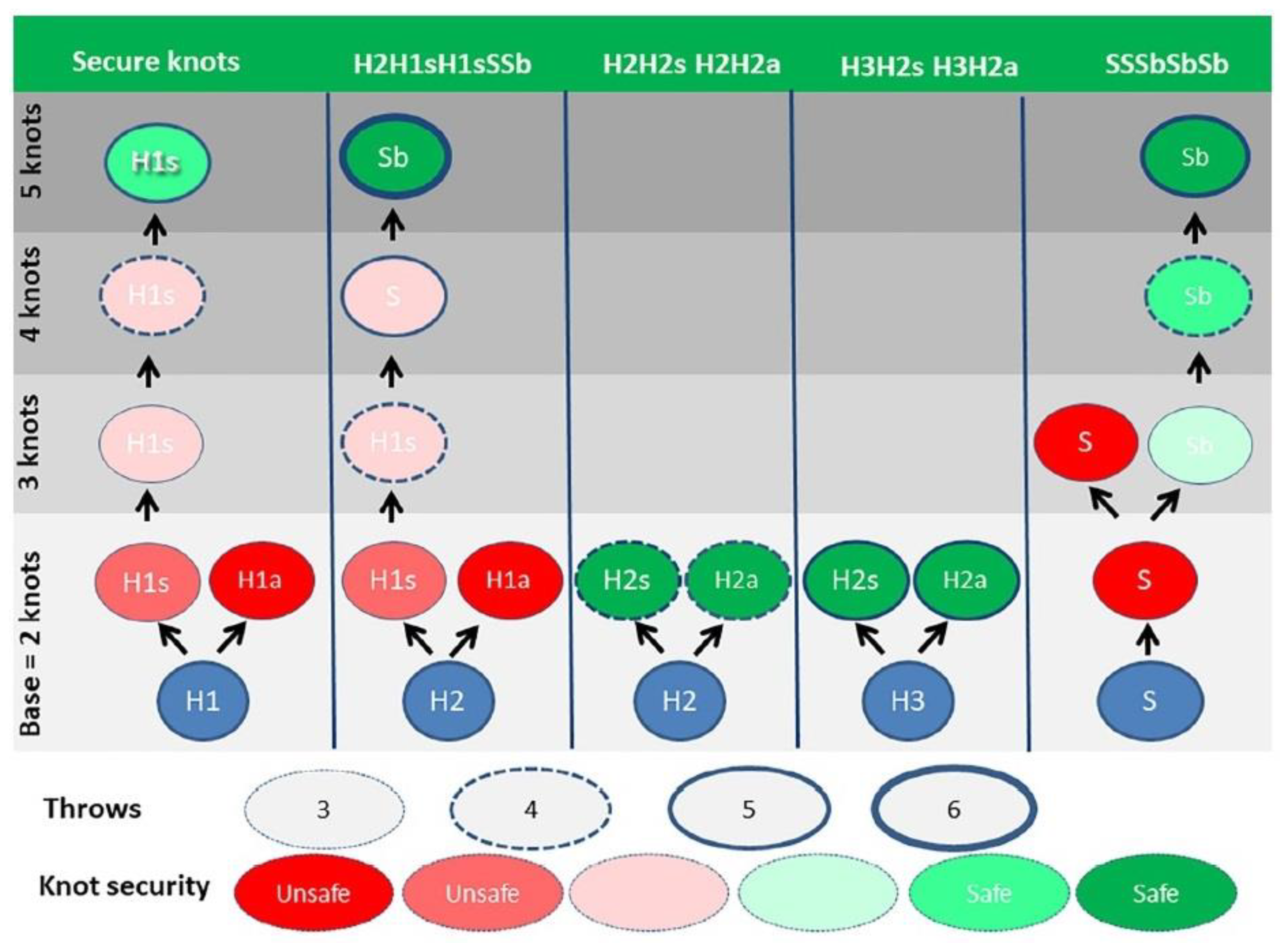

Figure 5. Which knos to use in laparoscopical gynaecological surgery. Secure knots are indicated in black, more secure or preferred knot sequences knots in red.

Figure 5. Which knos to use in laparoscopical gynaecological surgery. Secure knots are indicated in black, more secure or preferred knot sequences knots in red.

5. Which knots to use in laparoscopic surgery

5.1. Considering loop security

Estimating that loop security of more than 15N is rarely required in laparoscopic gynaecological suturing, an H3, H1H1a and SSs are acceptable choices for polyfilament sutures. However, with monofilament sutures, loop security of these sliding knots and of H1H1s (which easily transforms into SSs might be insufficient. Therefore, we suggest using symmetric half-hitch sequences permitting a third and a fourth half-hitch, eventually blocking if needed. A first double throw half knot should be avoided, especially with monofilament sutures.

5.2. Considering knot security

Secure knots require a minimum of 5 throws for polyfilament and 6 throws for monofilament sutures and correct rotation, which is alternate rotation of the same active end or similar rotation if active and passive ends are changed.

Knot reorganisation during traction can result in an unpredictable, insecure or dangerous knot opening with forces of less than 10N. The risk for this unpredictable behaviour increases when the first loop is destabilised because of insufficient loop security or involuntary asymmetric traction on the first half-knot when less experienced or when sutures are short when making or tying the second half-knot. Therefore, as a general rule, we suggest avoiding starting with a double-throw half-knot, especially with monofilament sutures. Replacing half-knot sequences with half-hitch sequences is always advantageous because of higher loop security, more flexibility for loop security if needed and better or at least equal knot security. This holds for all 4, 5 and 6 throw knots. For most surgeons, this feels counter-intuitive since the surgeon’s knot (H2H1sH1s), and the H2H2 and H3H2, symmetric or asymmetric, are excellent knots.

Secure sequences of half-hitches require at least 2 symmetrical sliding and 2 or preferably 3 asymmetrical blocking half-hitches for polyfilament sutures. Monofilament sutures require at least 6 half-hitches, 2 symmetrical sliding and 4 asymmetrical blocking [28].

With our knowledge of today, knots as 5 sequential half-knots only have historical significance by demonstrating that a 2-throw half-knot followed by 3, 1-throw half-knots is slightly superior [4].

5.3. Knots and postoperative adhesion formation

Abdominal surgery is frequently associated with postoperative adhesion formation in men and women. Postoperative adhesions are a clinical burden for the patient and society since they cause 30% of postoperative pain, 30% of infertility and nearly 100% of postoperative bowel obstructions. Peritoneal repair is typically completed within three days, but adhesion formation will occur if repair is delayed by inflammation or a foreign body. Therefore suture material needing to be resorbed over more than a week is always adhesiogenic. Postoperative Adhesions thus increase with the duration of resorption, the suture characteristics, the length of the remaining tails and the volume of the knot (for review [40]), and thus with the diameter of sutures and the number of throws and half-hitches or half-knots.

Therefore, we wanted to review what is known about loop security since important in laparoscopic surgery and knot security. Knot security will permit the surgeon to choose the most appropriate knot and a thin suture with a low knot volume and to cut tails short.

6. Discussion

In open surgery, loop security was taken care of with two-hand suturing permitting constant traction of both ends. In laparoscopic surgery, the importance of loop security only became fully realised with the development of laparoscopy in orthopaedic surgery [41], requiring high loop security and tight knots. This has led to the development of a series of sliding cinch knots [42] that can be blocked when in place and subsequently secured with additional half-knots of hitches. Loop security is important for suturing vessels larger than > 5mm leakproof, introducing surgeon's throw, millers knot, and strangle knots [43], and even this year, an H3 was suggested to initiate an inverted mattress suture in dermatology [44].

In gynecologic laparoscopic surgery, loop security has received little attention since a high loop security is rarely necessary. However, when needed, such as after a large myoma resection, the surgeon should know that monofilament sutures should be avoided and that for polyfilament sutures, an H3 or better 2 symmetric half-hitches made with alternative rotation should be used. Especially for monofilament sutures, half-hitch sequences have the advantage of being flexible by permitting a third sliding and a fourth sliding half-hitch to be transformed after tying into a securing blocking Half-hitch, if needed.

Knot security should be defined by the risk of dangerous or insecure knots, not by the mean breaking forces of the knot. Therefore the clinical importance of most publications based on mean opening forces of knots can be questioned. Today's evidence can be summarised as follows: symmetric sequences are overall superior, and knot security increases with the number of throws, requiring 4 or 5 for polyfilament sutures and 6 or more throws of monofilament sutures. With polyfilament sutures, secure half-knot sequences are the 4-throw H2H2, the 5-throw H3H2 irrespective of rotation, and the surgical knot (H2H1sH1s). However, with monofilament sutures, these half-knot sequences are often insecure, and security does not improve by adding one or more half-knots. Only Half-hitch sequences are secure, provided at least 4 asymmetrical (symmetric on the new passive tread) are used. This indirectly confirms the difference in behaviour of monofilament sutures [3]. Considering the risk of reorganisation and variability of half-knots, 5 asymmetrical half-hitches seem a safer option.

This translates into a clear message for the surgeon: always use alternate rotation except for blocking half-hitches. Experienced surgeons can consider H2H2 and H3H2, irrespective of rotation, provided the first loop is not destabilised and has enough security. Half-hitch sequences are superior, especially in gynaecology, with often suturing deep in the pelvis, since the loop security is way superior to half-knots, and because of the benefit of flexibility, permitting a third and eventually a fourth half-hitch, eventually to be transformed into a blocking half-hitch, ff 2 half-hitches do not have sufficient loop security to keep the edges of the tissues approximated.

Variable knot security because of reorganisation and destabilisation is an insufficiently recognised but serious problem, requiring training, teaching and individual monitoring. Considering that more than 50 knots need to be evaluated to detect 5% unstable knots, a personal assessment of the knots made by a trainee seems mandatory. As already suggested in 1993 [45], a simple spring portable tensiometer would be welcomed to permit the trainee to check the security of their knots. Another approach is pre-training of laparoscopic psychomotor kills [46], visual force feedback [47], and the use of a knot-tying board with measurement of the vertical and lateral forces exerted [48]. Also noteworthy is the importance that a trainer cannot be replaced by a video [49], that telementoring and training on-site are equally effective [50], that video registration and artificial intelligence can help in the evaluation of trainees [51], and the importance of the mental image of knots [52] and of fatigue [53]. Ideally, a surgeon should demonstrate minimal skills and knowledge before operating on women, and a structural pre-training [38] and assessing knot security of 50 to 100 knots with a dynamometer might be a straightforward and reproducible way to evaluate this.

Understanding loop and knot security is also important for training, and expert instruction presents an advantage compared with video-based self-study [49].

Understanding suturing and knot tying are important for loop and knot security and postoperative adhesion formation. Understanding knot security permits using thinner sutures without excessive throws of half-hitches or half-knots out of prudence, and cutting threads shorter results in less adhesion formation. Since 2.0 sutures already have tensile strengths around 80 to 100 Newton, larger diameters are rarely needed in gynaecology. Although exact data of forces during coughing are not available, we only can conclude that for securing the mesh to the promontory during promontofixation, sutures with a higher tensile strength might be indicated.

These conclusions are consistent with, but change our understanding of, previous reports. Since the importance of rotation for blocking half-hitches was not clear, it is not surprising that it was concluded that six throws are needed [17,39]. We also begin to understand reports that multiplying sequences of half-knots does not lead to more secure knots, as demonstrated that 4 throw half-knots (H1H1sH1sH1s) [4] with PDS opened in 10%, and suggestions to use 5 and 6 throw half-knots such as H2H1sH1sH1s and H3H2sH1sH1s. [22].

The resorption of sutures is estimated to decrease tensile strength by half over three weeks [54,55]. This is not a concern considering that a tissue repair has 50% of its final resistance after 1 week.

A discussion of modifications and improvements of barbed sutures and of cinch knots, being too complex for intracorporeal suturing [14] is beyond this review since.

7. Conclusions

In laparoscopic gynaecological surgery, loop security is more important for holding tissues together until the knot is secured than in open surgery, permitting 2 hand knot-tying with constant traction on the sutures. Loop security of half-knots is low, resulting in many being accidentally transformed into half-hitches with the risk of changing half-knot sequences in sliding half-hitch sequences.

Knots with a very high loop and knot security, as required in ortopedic surgery, are not reviewed. These knots invariably start with a cinch knot reinforced by a series of half-knots or half-hitches, up to Double-stranded knot configurations with a loop on one side [56,57] such as the racking hitch knot [58], TSOL knots [59] and Strangler knots.
