Investigating the Biochemical Stability and Kinetic Performances of SiO2@AuNPs Nanocomposite as High Throughput Peroxidase Alternatives

1. Introduction

Importance and practical application of nanotechnology in modern life lead to design and synthesis of different nanomaterials with optical [1,2,3], catalytic [4,5], medical [6], anti-cancer features [7], or anti-bacterial [8,9] characteristics such as carbon and quantum dots [10,11], metal-based nanoparticles [12,13], magnetic nanoparticles [14], metal oxide nanoparticle [15], and metal-organic frameworks [16,17], etc. Among various nanoparticles with different properties, recently, nanomaterials with enzyme-like properties, called nanozymes have been widely utilized for catalyzing industrial, clinical, and environmental enzyme-mediated reactions under harsh conditions [18,19,20,21]. The most significant advantage of these nanozymes compared to the native enzymes is their lower cost, higher efficiency, and especially, their high cycling stability and recyclability [19,22]. Up to now, different nanoparticles with intrinsic peroxidase-like activity were designed and synthesized, for instance, Mn₃ O₄ nanozymes [23], Cu-CuFe₂O₄ nanozymes [24], BSA-stabilized manganese phosphate nanoflower [25], BSA-stabilized manganese dioxide nanoparticles [26], silica-coated-magnetic nanoparticles [27], carbon nanozymes [28], MnO₂ nanoparticles [29], self-cascade pyrite nanozymes [30], Fe₃O₄ nanozymes [31], metal-organic frameworks [32], gold nanozymes [33], S/N codoped carbon nanozymes [34], and silver nanoparticles [35]. Among the different nanomaterials with excellent peroxidase-like activity, gold-based nanozymes had been widely for developing nanozyme-based sensors [36,37], nanozyme-based cancer treatment [38], and nanozyme-mediated dye degradation [39]. Hence, evaluation of their biochemical features and enzyme-like properties is important for developing nanozyme-based systems with better figures of merit. In this regard, recently, our research group reported a research article on the investigation of biochemical behaviors of BSA-stabilized gold nanoparticles [40]. Considering our best knowledge, there is no report on the specific enzyme-like activity, biochemical stability, and kinetic performances of SiO₂@AuNPs nanocomposites. Hence, herein, the biochemical properties (pH-, cycling-, & shelf- stability) and kinetics parameters of SiO₂@AuNPs nanocomposite as the high throughput peroxidase alternatives were evaluated. The as-synthesized nanocomposite was characterized by the TEM imaging method. Besides, the peroxidase-like activity of the as-prepared SiO₂@AuNPs nanocomposite was quantified using the standard peroxidase assay. Considering the high peroxidase-like activity of the SiO₂@AuNPs nanocomposite, their biochemical properties including, pH stability, cycling stability, shelf stability, and kinetic parameters were investigated. Based on the results of this work, the as-prepared SiO₂@AuNPs nanocomposite with intrinsic peroxidase-like activity shows high substrate affinity and catalytic efficiency along with excellent cycling- and shelf-stability, making them suitable for application in peroxidase-mediated reactions instead of the native enzyme.

2. Experimental

2.1. Synthesis of SiO₂@Au nanocomposite

In a typical experiment, 1.0 mL of HAuCl_4, 10.0 μL tetrakis(hydroxymethyl)phosphonium chloride, and 500.0 μL NaOH (2.0 M) were introduced in 50.0 mL deionized water. The resulting mixture was stirred for about 1.0 hour to prepare the colloidal gold solution. To synthesize the amino-functional SiO₂ NPs, 1.5 mL of TEOS was added into 40.0 mL of pure ethanol, followed by the addition of 3.0 mL of NH₄OH. The mixture was stirred for about 20.0 hours. Afterward, 20.0 mg of the resulting precipitate was treated with 600.0 μL of APTES for preparation of the final product. Afterward, 10.0 mg of the amino-functional SiO₂ NPs were incubated with a solution of colloidal gold (prepared in section 2.3) for about 12.0 hours. Afterward, the product was separated from the reaction media upon centrifuge at 10000 rpm for 30.0 min. The resulting product was dispersed in 1 mg mL^-1 of PVP (stabilizer) aqueous solution, followed by the addition of 60.0 μL of HAuCl₄ (10.0 mM) and 120.0 μL of 10.0 mM ascorbic acid (reducing agent) into the reaction media. The synthesis process was followed by stirring the above-mentioned mixture for about 5 min. Afterward, the resulting SiO₂@AuNPs nanocomposite was collected, washed, and then dried at room temperature.

2.5. Nanozyme activity assay

In a typical assay, 100.0 µL of 1.0 mM TMB was introduced into 1.0 mL acetate buffer (pH=4.0) containing the SiO₂@Au nanocomposite, followed by adding 100.0 μL of 100 µL of 2.0 M H₂O₂ solution, The reaction mixture was incubated at ambient conditions for about 0.5 hours and then the oxidation reaction was terminated by addition of sulfuric acid into the reaction media. Afterward, the spectrum of the colored product was recorded and the λ_max at 450.0 nm of the resulted TMB dimine was utilized for calculating the enzyme activity in μM min^-1, considering that the molar absorption coefficient of TMB dimine at 450.0 nm is about 5.9 × 10⁴ mol^-1 cm^-1. It is mentionable that the relative and residual nanozymatic activity of the as-prepared nanocomposite was calculated by the following formulas [41,42];

Residual activity (%) = (Activity/Activity of control) ×100

Relative activity (%) = (Activity/Maximal activity) ×100

3. Results and discussion

3.1. pH stability of SiO₂@Au nanocomposite

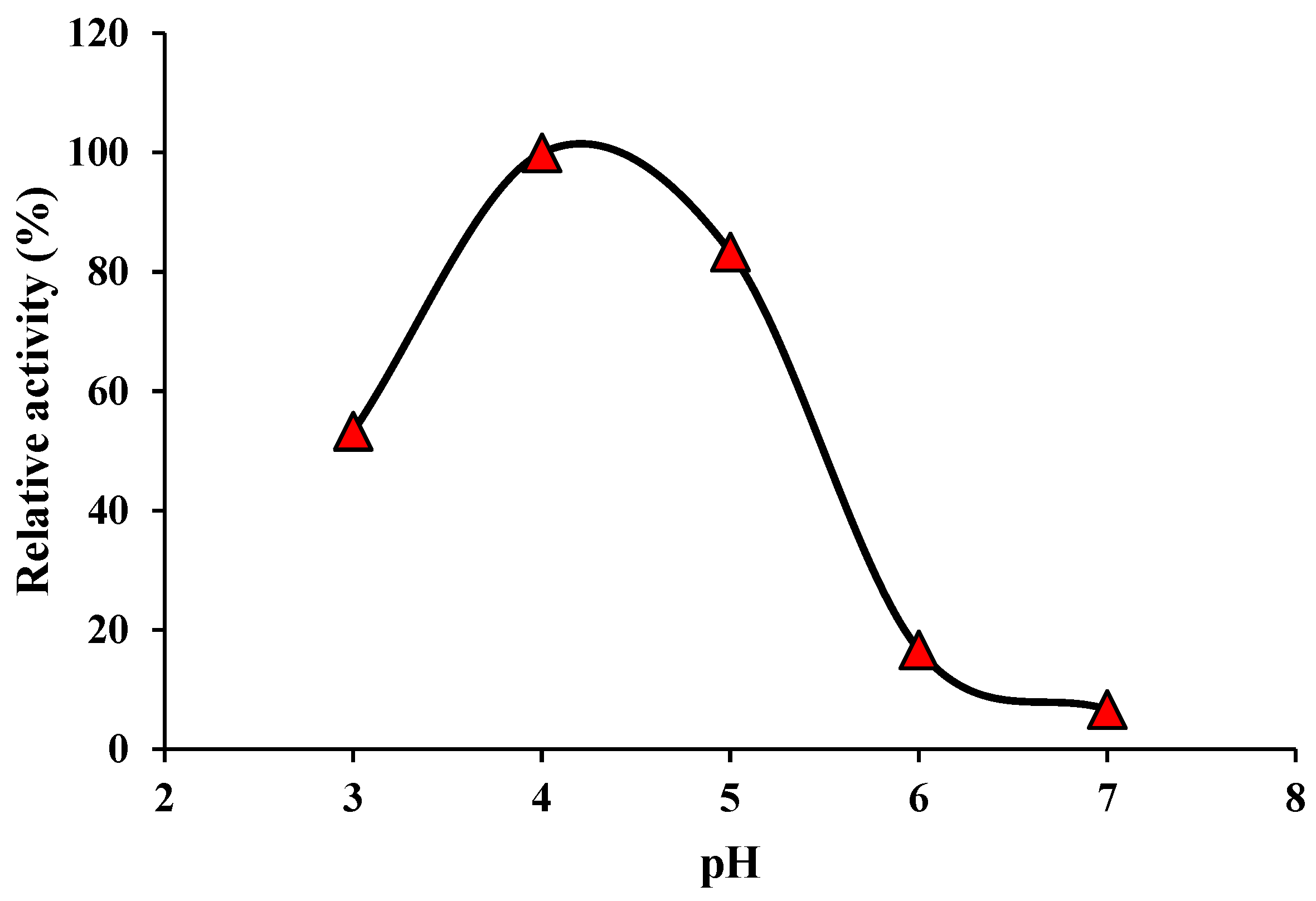

The pH effect on the enzyme-like activity of the as-prepared SiO₂@AuNPs nanocomposite was evaluated by measuring its relative activity over a pH range of 3.0-7.0. The above-mentioned studies were performed to provide insight into the stability of the enzyme-like the as-prepared SiO₂@AuNPs nanocomposite against environmental pH changes (Figure 1). The results shown in this figure exhibited that the as-prepared SiO₂@AuNPs nanocomposite show its maximum enzyme-like activity at pH =4.0 and then its activity was slightly decreased by increasing the pH of media, reaching 83.3% at pH=5.0. The activity of the as-prepared SiO₂@AuNPs nanocomposite reached 6.6% of its maximum value at pH=7.0.

3.2. Cycling stability of SiO₂@Au nanocomposite

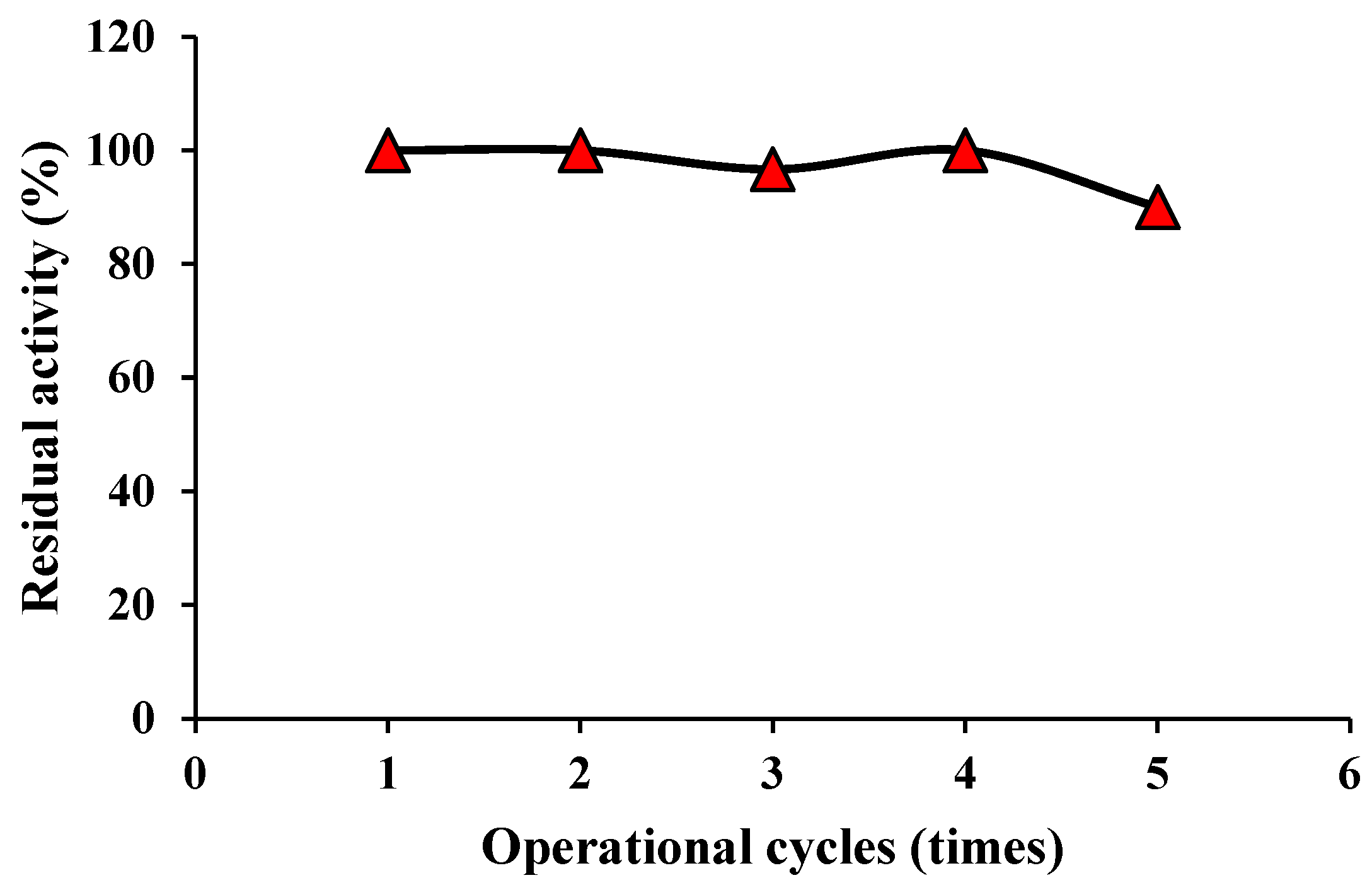

To evaluate the cycling stability of the as-prepared SiO₂@AuNPs nanocomposite, the reusability studies were performed as a reliable way for proving the recoverability and cycling stability of nanocatalysts [5]. To do this, the activity of the as-prepared nanocomposite in the first operational time was considered 100% and used as the control for calculating the residual activity of nanocomposite in successive operational cycles. The plot of the residual activity of the nanocomposite as a function of operational times was shown in Figure 2, as shown in this figure, the as-prepared nanozymes can save their initial activity during 4 operational cycles. After that, their activity slightly decreased and reached 90% of their initial activity at the 5th operational cycle. Considering these results, it can be concluded that the as-prepared SiO₂@AuNPs nanocomposite can be utilized as a high-throughput nanozymes with excellent reusability and cycling stability.

3.3. Storage stability of SiO₂@Au nanocomposite

The shelf-life (shelf stability) of the as-prepared SiO₂@AuNPs nanocomposite was investigated upon their storage in acetate buffer (pH=4.0) at ambient conditions for about one month. The activity of the as-prepared nanocomposite on the first day of storage was considered 100% and used as the control for calculating the residual activity of the nanocomposite. Thereafter, the residual activity of the nanozymes was determined in different time intervals during the storage as an index for estimating their shelf stability. The plot of residual activity of the nanocomposite as a function of storage time (day) was shown in Figure 3, revealing that the as-prepared SiO₂@AuNPs nanocomposite save 100% of their initial activity after 30 days of storage at ambient conditions. Considering these results, it can be concluded that the as-synthesized SiO₂@AuNPs nanocomposite can be used as excellent enzyme alternatives with high shelf stability as a significant advantage from a practical point of view.

3.4. Kinetic performances of SiO₂@AuNPs nanocomposite

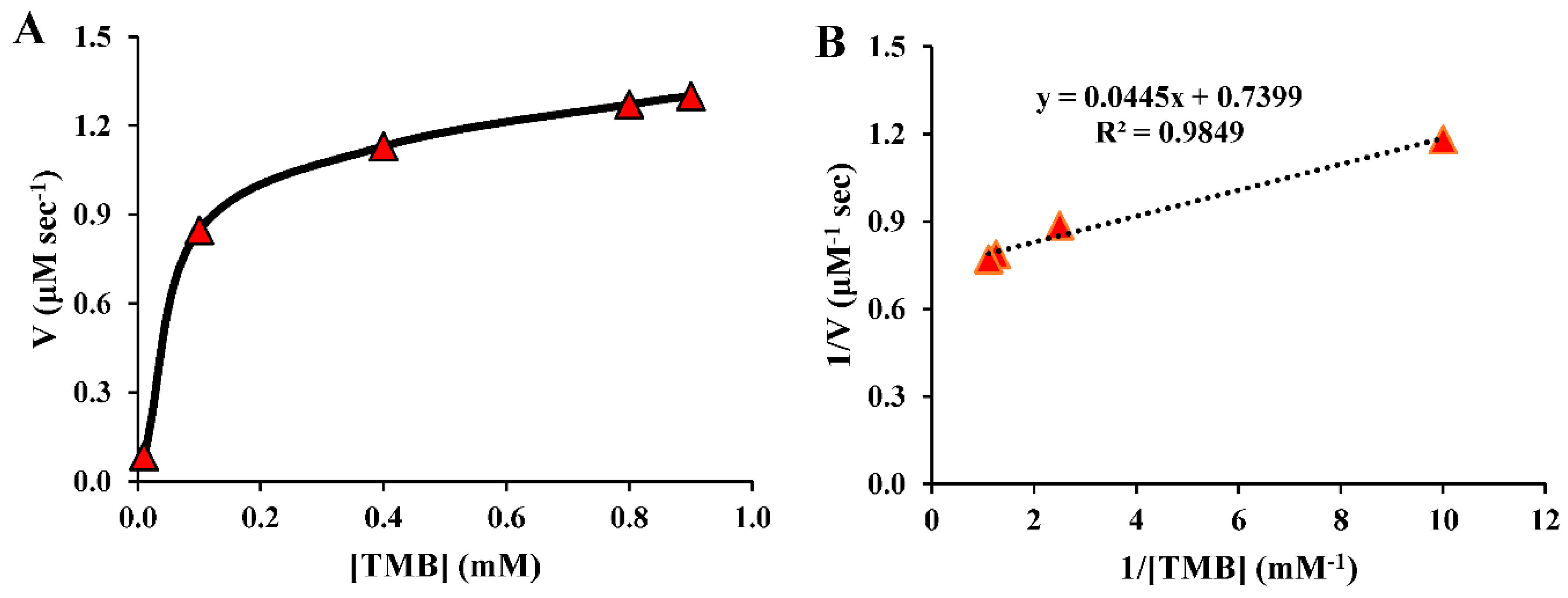

Kinetic studies were carried out to calculate the kinetic parameters of the as-prepared SiO₂@AuNPs nanocomposite toward 2-electron reversible oxidation of TMB. In fact, the kinetic parameters of an enzyme were previously well defined with numeric values including affinity constant (K_m) and maximum enzymatic velocity (V_max) utilizing the Michaelis–Menten steady-state kinetics model. The V_max value reflects the intrinsic properties of an enzyme or nanozyme and is defined as the highest possible rate of the nanozyme-catalyzed reaction when all enzyme molecules or all nanozyme particles are saturated with the substrate which pointed to the catalytic efficiency of an enzyme or nanozyme. Hence, the higher value of V_max for an enzymatic/nanozymatic reaction can be assigned to the higher catalytic efficiency of the enzyme or nanozyme [40,41,42]. In contrast, the affinity of the substrate of an enzyme or nanozyme for interaction with its active site is represented by the K_m, as reported [40]. In fact, the lower values of K_m pointed to the higher affinity of the substrate for binding to the enzyme/nanozyme active site/nodes [17,40]. Therefore, to quantify the kinetics parameters of the as-prepared SiO₂@AuNPs nanocomposite, the Michaelis–Menten saturation curve was obtained via plotting the nanozymatic reaction velocity as a function of the substrate (TMB) concertation (Figure 4A). As seen in Figure 6A, the reaction rate of the SiO₂@AuNPs nanocomposite-mediated oxidation reaction was increased by increasing the TMB concertation and then reaching a steady-state condition. For accurate estimation of K_m and V_max of the SiO₂@AuNPs nanocomposite-mediated oxidation reaction, the Lineweaver–Burk plot was also constructed for the SiO₂@AuNPs nanocomposite-mediated reaction (Figure 4B). The results revealed a V_max of 1.35 µM min^-1 and a K_m as very low as 0.06 mM for the SiO₂@AuNPs nanocomposite. Considering the low K_m value of the as-synthesized nanocomposite, it can be concluded that the as-prepared nanocomposite shows high substrate affinity, as reported [17,41]. Besides, obtaining a V_max of 1.35 µM min^-1, revealed that the as-prepared nanocomposite has a very good catalytic efficiency.

4. Conclusions

In this study, considering the peroxidase-like activity of the SiO₂@AuNPs nanocomposite, their biochemical properties including, pH stability, cycling stability, shelf stability, and kinetic parameters were investigated. The results revealed that the as-mentioned SiO₂@AuNPs nanocomposite reveal its maximal activity at pH=4.0 along with saving 83.3% of its maximal activity at pH=5.0. Besides, the reusability and shelf-storage studies exhibited that the SiO₂@AuNPs nanocomposite retained 90% and 100% of its initial activity after 5 operational cycles and 30 days of storage, in order. The kinetic parameters of the as-prepared nanozymes were calculated using Menten kinetic model, revealing a V_max of 1.35 µM min^-1 and a K_m as low as 0.06 mM for the SiO₂@AuNPs nanocomposite. Based on the results of this work, the as-prepared SiO₂@AuNPs nanocomposite with intrinsic peroxidase-like activity shows high substrate affinity and catalytic efficiency along with excellent cycling- and shelf-stability, making them suitable for application in peroxidase-mediated reactions instead of the native enzyme.
