Endocrine Mucin-Producing Sweat Gland Carcinoma: Case Presentation with a Comprehensive Review of the Literature

1. Introduction

Endocrine Mucin-Producing Sweat Gland Carcinoma (EMPSGC) is an entity described recently, in 1997, by Flieder A. et al [1] and considered a low-grade neuroendocrine neoplasm, homologous to solid papillary/endocrine ductal carcinoma in situ (DCIS) of the breast in the World Health Organization (WHO) 2018 classification [2]. Epidemiologically, EMPSGC is more common in women than men and the median age at presentation is 70 years (range 36–84 years) [3]. For a long time, EMPSGC was considered to pertain exclusively to the eyelid region (around the eye, peri-ocular) but, albeit rarely, cases in extra-eyelid localizations have been reported, for example, by Tsai J.H. et al [4] and Raquena L. and Sangueza O. [3] in their book "Cutaneous Adnexal Neoplasms"; in particular, while the former case was discussed as it was localized in the areolar region [4], the case presented in [3] was localized at the level of a man's scalp, casting doubt on the possible extra-eyelid localization. Various authors and even the WHO classification recognize that EMPSGC may be a precursor of mucinous carcinoma of the skin, and, therefore, it should be discussed in the differential diagnosis [5]. Histologically, EMPSGC appear as rather well-circumscribed uni/multi-nodular tumor with solid, cystic and papillary areas. The nodular areas usually show a solid growth pattern with small scattered cysts and, in addition, in some areas, a cribriform arrangement is present, in which the tumor cells grow on a lacelike network and/or a pseudo-rosette pattern [3,4].

From an immunohistochemical point of view, EMPSGC is usually positive for Cytokeratin 7 (CK7), CK8, CK8/18, CKAE1/AE3, CK-CAM5.2, Epithelial Membrane Antigen (EMA), Gross Cystic Disease Fluid Protein-15 (GCDFP-15), WT1, Estrogen Receptor (ER) and Progesterone Receptor (PgR), but it is very important to underline the positivity for Synaptophysin (Syn) and/or Chromogranin A (CgA), Neuron-Specific Enolase (NSE), CD56 [3,4,5], markers of neuroendocrine differentiation.

In this paper, we present a new extra-eyelid localization of EMPSGC in a 71-year-old female, discuss the morphological and immunohistochemical features, with a brief mention on the molecular biology information, and, finally, we conduct an extensive and exhaustive review of the world literature with a focus on future perspectives.

2. Case Presentation

A 71-year-old woman presented to the Complex Plastic Surgery Unit with an unspecified history of a non-itchy, tan-to-pink nodule, 2,5 cm, on her scalp. The woman denied the presence of any symptoms and reported only high blood pressure that had been treated with Telmisartan for many years without other disease or concomitant treatment. After physical examination, it was decided to remove the nodule which, after fixation in 10% buffered formaldehyde, was sent to the Complex Operative Unit of Pathological Anatomy.

Histologically, the neoplasm was multinodular, with solid and sometimes cystic areas (Figure 1A), containing mucin (Figure 1C). Usually, the epithelial aggregates of neoplastic cells were well circumscribed and separated by scant stroma (Figure 1A-B), and there was the possibility to appreciate also areas of cribriform arrangement (Figure 1C), with lacelike network and/or pseudo-rosette pattern of growth (Figure 1D).

From an immunohistochemical point of view, neoplastic cells were positive for CK8/18 and CK7, with higher positivity for the first one (Figure 2A-B); Synaptophisin was almost positive in a cytoplasmatic pattern, while Chromogranin A was partially positive (Figure 2C-D). Estrogen Receptor (ER) and Progesterone Receptor (PgR) were almost totally positive in the nuclei of the neoplastic cells (Figure 2E-F).

Follow-up data up to 7 months after removal were negative for disease recurrence/metastasis.

In order to recognize and summarize all data present in literature, we performed also a comprehensive review using the following keywords: “Endocrine mucin-producing sweat gland carcinoma” and/or “EMPSGC” and/or “skin” AND “cutaneous neoplasms”, on PubMed, Scopus and Web of Sciences (WoS) databases with particular attention to the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines. Only articles in English language were selected and entity discussion articles have been eliminated, favouring case reports and case series, limiting the discussion of other types of information to our ‘discussion’ section.

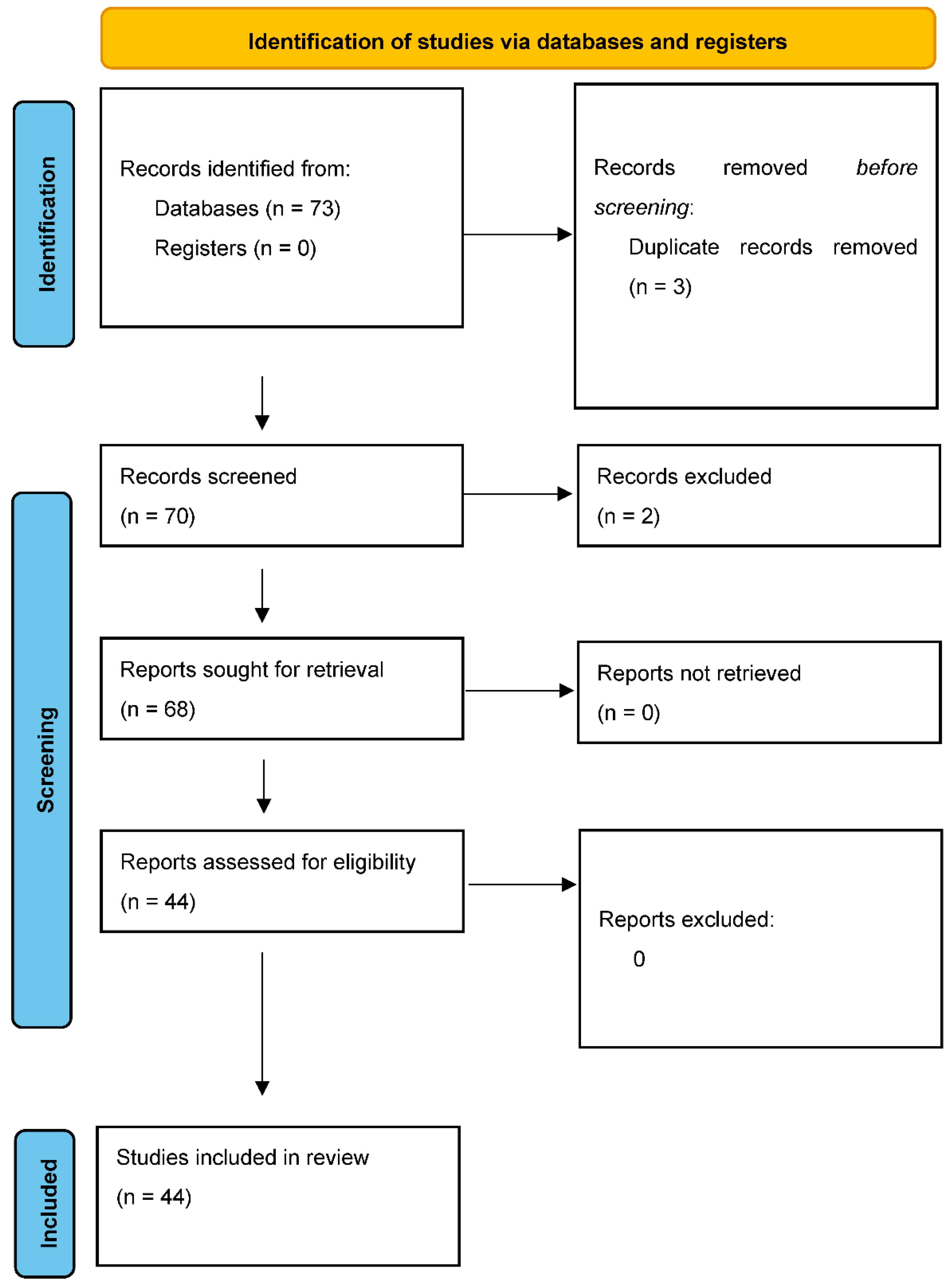

Figure 3 presents the features of our review process.

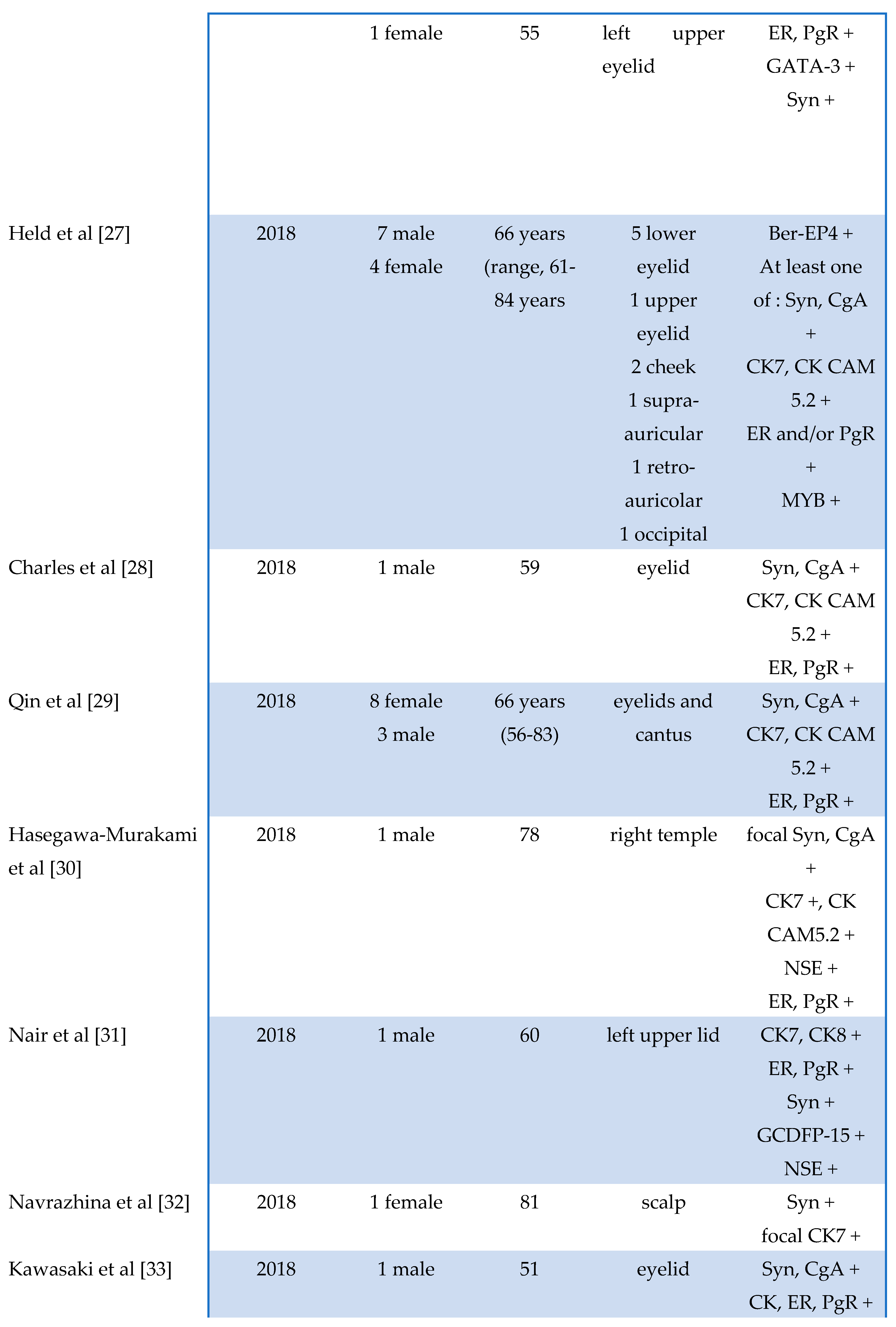

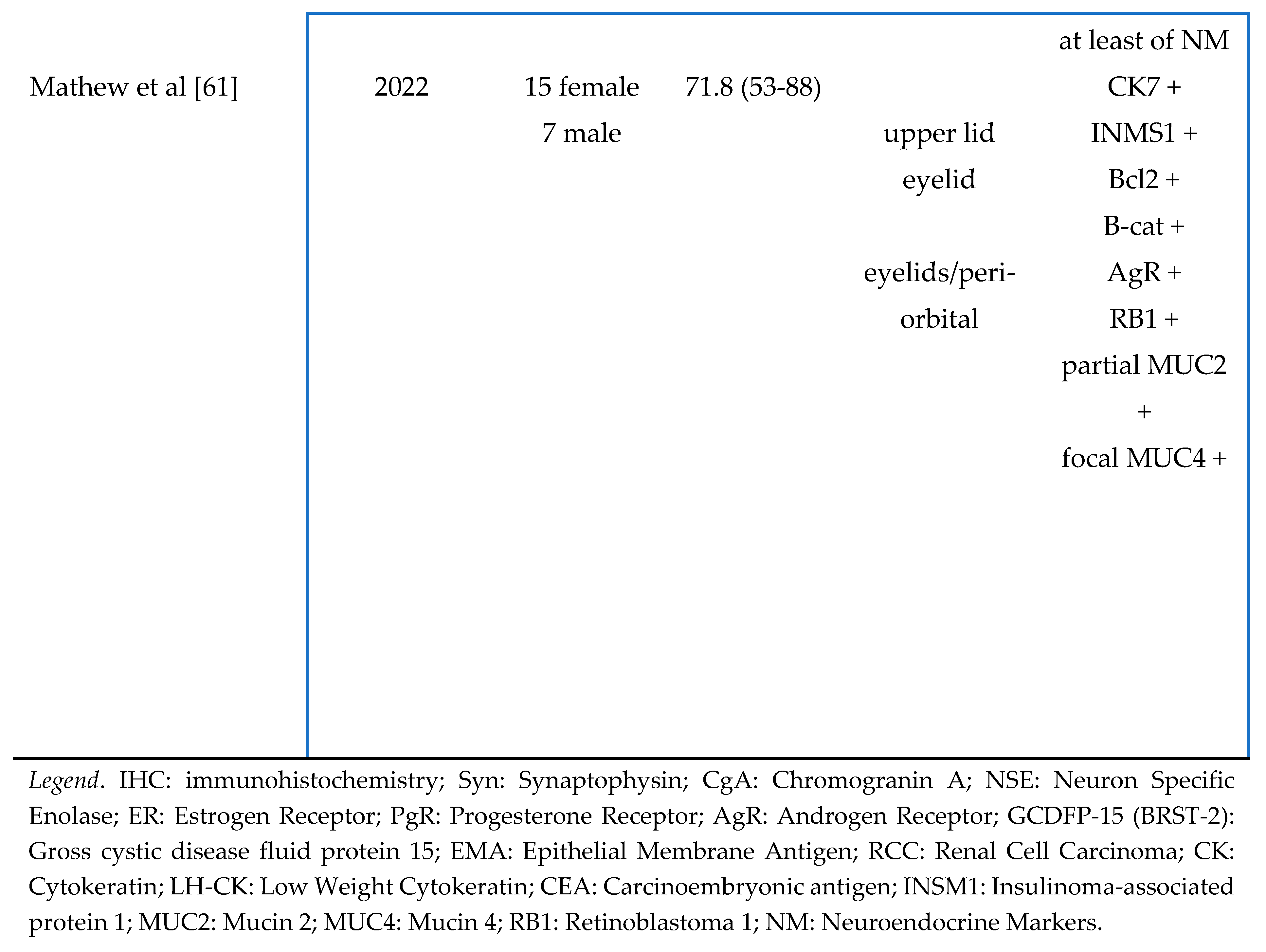

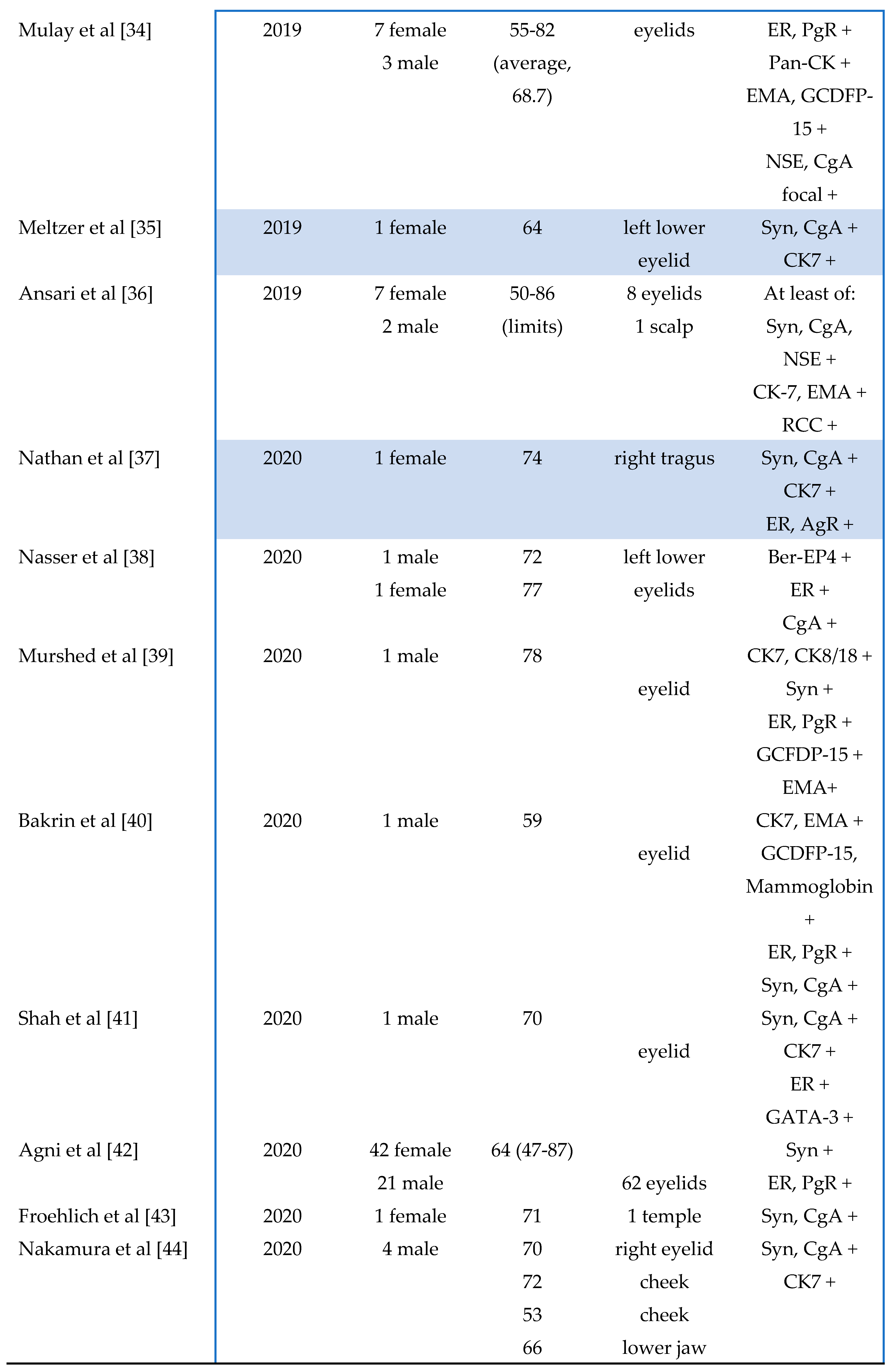

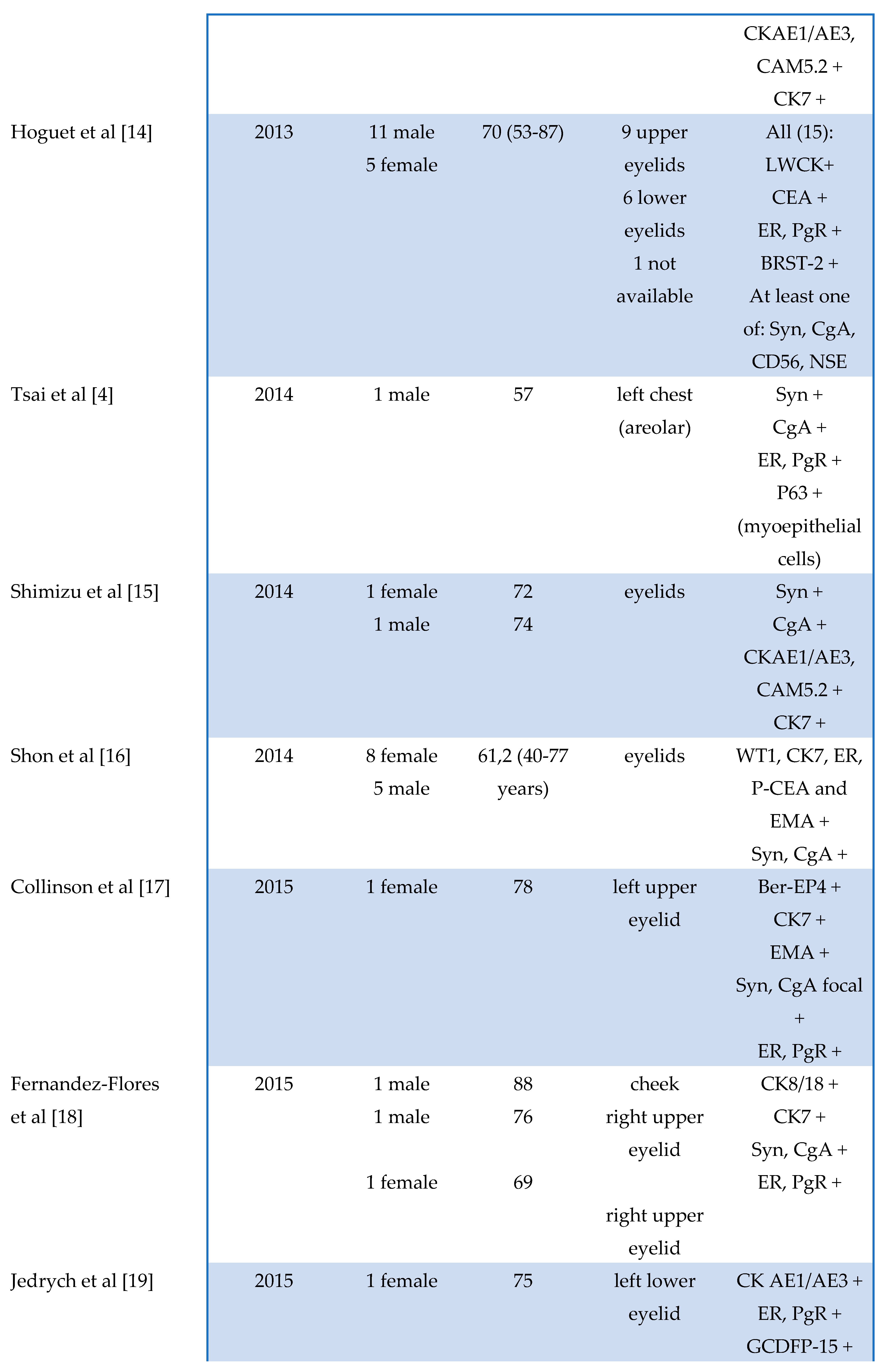

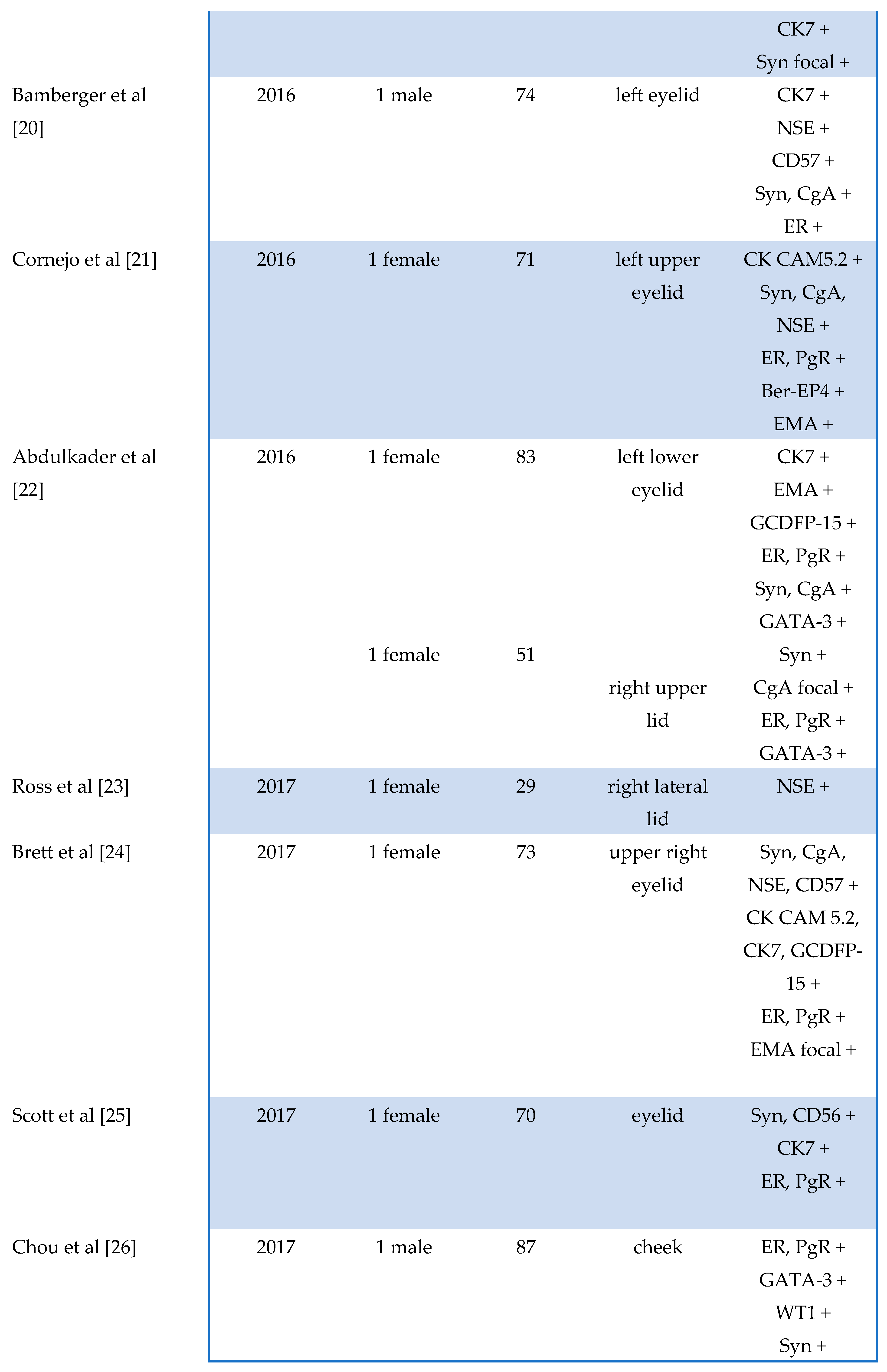

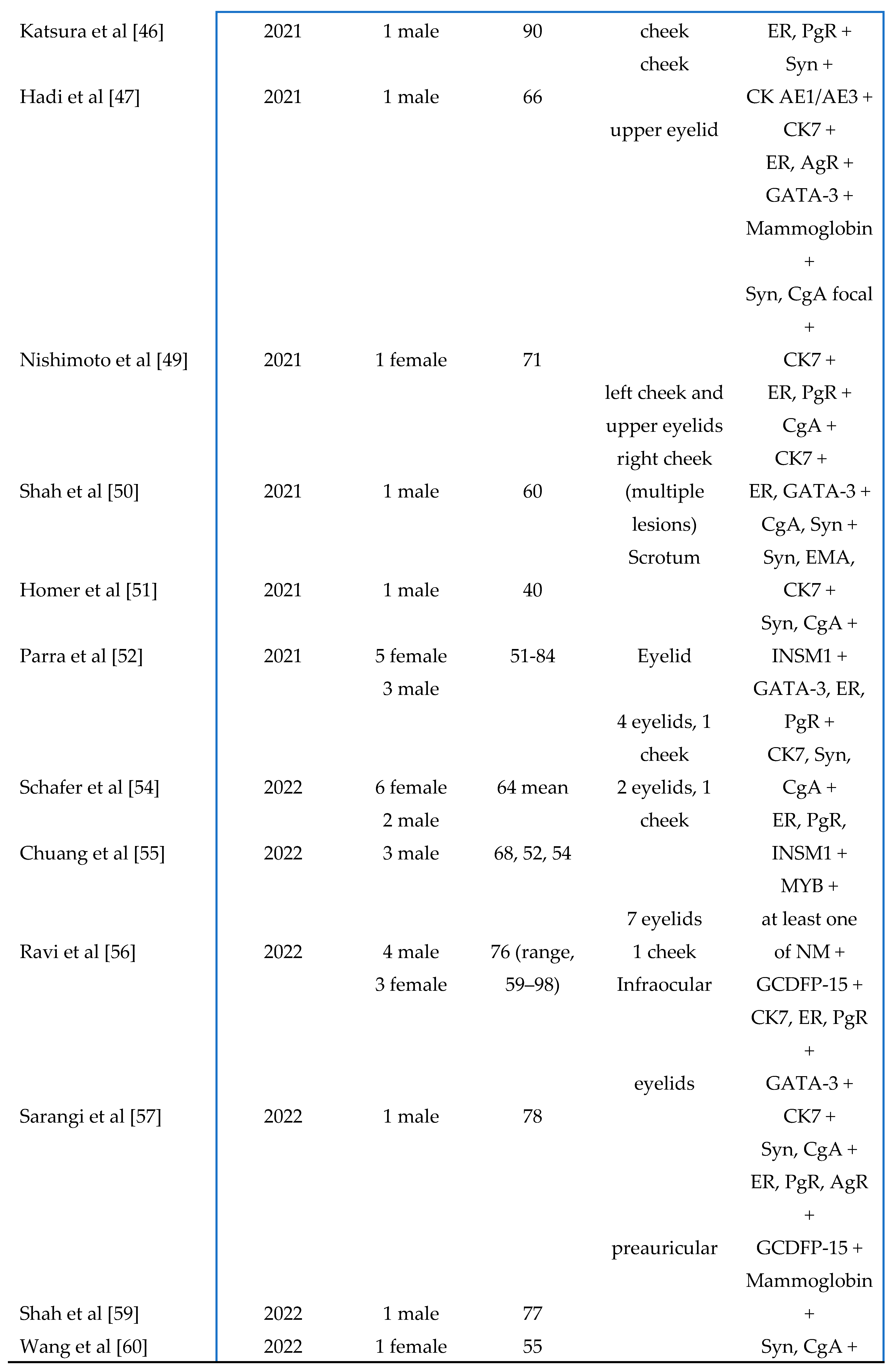

Table 1 summarize all studies reviewed and analyzed in this paper, with particular attention to year of publication of the papers, number of patients and gender, age of presentation of EMPSGC, localization and immunohistochemical features. A total of 248 patients were recorded with the majority, 146 females (58,8%) and 102 males (41,1%). The vast majority of the lesions were in the elides (peri-ocular region) and only a minority of cases involved the cheeks, supra-auricular, retro-auricular and occipital region, with very rare cases in the scalp, to which the present is also added. The average age was reported to be between the sixth and seventh decade, with some cases present before the age of 60 and some present after the age of 80. The most representative immunohistochemistry stains were CK7, CK AE1/AE3, CAM5.2, EMA and, in terms of neuroendocrine markers, Syn, CgA and NSE, with some cases tested with CD56 (less specific). Furthermore, markers such as GCDFP-15 and Mammoglobin were positive in a good percentage of published cases. With regard to hormone receptors, almost all EMPSGC lesions were positive for at least one of ER, PgR and AgR. In almost all published cases, immunostaining for p63 and/or SMA was performed to allow the study of the myoepithelium and to understand whether the lesion was in situ or invasive. In a paper [27] the diagnostic usefulness of immunohistochemical staining for MYB in 11 cases was reported, while a very recent paper [52] analyzed the use of a new neuroendocrine differentiation marker, Insulinoma-associated protein 1 (INSM1), which was extremely specific and more sensitive than the routinely used neuroendocrine markers such as Syn and CgA. Finally, in a paper by Mathew et al [61], immunostaining data were presented on 5 cases of EMPSGC in which INSM1, AR, BCL2, MUC2, MUC4, RB, Beta-Catenin and MCPyV were tested, of which INSM1 and MUC2 were positive with 4+ intensity and MUC4 showed 2+/3+ staining mainly at the periphery of the tumor.

4. Discussion

EMPSGC represents a very peculiar entity in dermatopathology and ophthalmopathology, and only in the last decade has there been an increasing number of scientific papers studying and shedding light on its histopathological, immunohistochemical and, moreover, molecular features. Since its initial description [1] up to the latest version of the WHO Skin Tumours [2], the histological and immunophenotypical similarity to its counterpart referred to as endocrine ductal carcinoma in situ carcinoma (eDCIS) of the breast/solid papillary breast carcinoma was emphasized, assuming that the very similar embryological nature of the mammary and eccrine gland was the basis for these similarities [3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18].

Epidemiologically, our review of the literature confirm that EMPSGC is more frequent in females, between the sixth and seventh decade, with more frequent localisation in the peri-ocular region, although there are also reports of other skin sites, such as the cheeks [6,10,18,26,27,44,46,52,54], the scalp [32,36] and other very rare localisations such as the skin of the scrotal region, reported in the paper by Shah et al [50], in which the course of EMPSGC was aggressive, with lymph node, visceral and bone metastases. A careful analysis of the literature seems to indicate that, although initially the published cases of EMPSGC were of the female sex, in the last 10 years numerous cases have also been published in the male sex, almost in contrast to previous years.

Clinically, it is important to emphasize that EMPSGC does not have a clear profile that allows it to be easily recognized, so much so that in the papers in the literature the main suspected clinical diagnoses range from basal cell carcinoma (BCC) to squamous cell carcinoma (SCC) but also Merkel cell carcinoma (MCC) or an innocent inclusion epidermal cyst, hidroadenoma, chalazion or dermatofibroma (DF). In this regard, Hasegawa-Murakami et al [30] analyzed the dermoscopic pattern of the case presented in their paper, pointing out that the lesion presented aggregation of pink to reddish globules (pink ovoid nests), with each globule that was separated with white to pink meshes of bands (pink network). Furthermore, the red/blue globules were seen in pink ovoid nests of the tumor and, also, some very fine linear-irregular disrupted vessels were recognized. So, usually, EMPSGC presents such as a slowly growing skin-colored nodule, that can be cystic, multiple, or pigmented [3,39].

In any case, it seems plausible to state that the clinical diagnosis of EMPSGC does not yet have standardized dermoscopic criteria and that histological examination is always mandatory for the diagnosis.

From a histopathological point of view, the morphological features of EMPSGC are well delineated, with many scientific papers having clearly and comprehensively described the peculiarities of this neoplasm, focusing in particular on the well-circumscribed growth, uninodular or even multinodular, with the possibility of having a solid, cystic and papillary component. In various case reports, it is emphasized that it is possible to find scattered small cysts, and also cribriform aspects, in which the cells are arranged in a pseudo-rosette and/or lacelike patterns. Cytologically, the cells constituting the tumor are monomorphic, round to oval, and of medium/small size. The nuclei have fine granular or stippled chromatin imparting a "salt-and-pepper" appearance, and their cytoplasm is large and eosinophilic. In addition, it is important to emphasize the possibility of secreting mucins, both intracellularly and into the extracellular environment, a characteristic that over time has suggested a possible placement of EMPSGC in a spectrum of neoplasms that at the extreme would have primitive cutaneous mucinous carcinoma (PCMC) [1,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39].

Although morphology is very important, immunohistochemistry plays a paramount role in the correct diagnostic framing of EMPSGC. All papers published so far show that, with exceptions due to pre-analytical variables, EMPSGC expresses with high concordance Cytokeratin AE1/AE3, CAM 5.2, CK7, EMA but also GCDFP-15 and E-cadherin, together with at least one neuroendocrine differentiation marker such as Synaptophysin, Chromogranin A, Neuron-specific Enolase and/or CD56. Furthermore, it is important to emphasise that this entity expresses Estrogen receptors (ER) and Progesterone receptors (PgR) in the vast majority of cases. [1,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39]. Our case presented immunohistochemical expression for CK8/18 and partially for CK7; it also presented diffuse and strong immuno-expression for Syn and focally for CgA. Finally, it had nuclear expression for ER and PgR.

Molecular data concerning EMPSGC are still limited, although more and more evidence has been published in recent years. For example, Murshed et al [39] performed Next Generation Sequencing (NGS) analysis on their case of a 78-year-old man with an EMPSGC of the right inferior eyelid. The analysis conducted on genomic DNA of tumour extracted from formalin-fixed paraffin-embedded (FFPE) tissue, targeting frequently mutated 59 genes (including EGFR, KRAS, ALK, ROS1, BRAF, HRAS, NRAS, NTRK, AKT1, PIK3CA, KIT and PDGFRA), no gene mutations or fusions disclosed. On two cases of EMPSGC, Cornejo et al. used NGS with a focused panel of 50 frequently altered genes [21]. The genes EGFR, KRAS, and GNAS, which are frequently involved in mucinous neoplasms, were not found to have alterations in that study. AKT1 and PIK3CA gene alterations, which are typically found in papillary carcinomas of the breast, were also not found. In another two cases of EMPSGC, Qin et al. [29] used array comparative genomic hybridization (aCGH), which revealed a 6p11.2 to 6q16.1 deletion in one of the cases. Held et al [27] performed a MYB antibody staining of 10 cases of EMPSGC [9] revealing that all of the cases displayed significant nuclear MYB expression; furthermore, the expression of MYB was found negative in primary mucinous cutaneous carcinomas and mucin-rich basal cell carcinomas and, also, they found that MYB might be a helpful surrogate measure, particularly in EMPSGC cases with low mucin levels. However, the authors underscore that fluorescent in situ hybridization (FISH) testing on each case in that research came out negative for MYB gene translocation or amplification is preferable.

Our comprehensive review of the literature confirms the already widely established data regarding the almost non-existent recurrence and/or distant metastasis of EMPSGC, with very few cases of this one [43,57]. Interestingly, Froehlich et al [43] reported a case of EMPSGC of the right eyelid in a patient who had not wanted to undergo surgery after an initial diagnosis and who, upon recurrence, developed a metastasis in 2/9 excised intra-parotid lymph nodes. It is reasonable to state that this result was not due to the (in itself low) potential of the neoplasm, but to the failure to undergo surgery for therapeutic purposes. In another paper by Hadi et al [47], a case is presented of a 66-year-old subject who developed several recurrences of EMPSGC over a period of nine years, with a metastatic lesion on the ipsilateral parotid gland and a rib. This anecdotal case is of extraordinary importance as the authors emphasise that the histological and immunohistochemical evaluation of EMPSGC must be very detailed and careful, as potential foci of invasion can easily be overlooked, and not correctly framed within the rarer but aggressive PCMC. Precisely in this regard, several papers analysed in the literature have proposed to always perform an immunolabelling with Smooth Actin muscle (SMA), or p63 p CK5/6 to study the continuity of the myoepithelium, similarly to what happens in the evaluation of breast cancer. Although the data presented are in agreement with this solution to understand whether there is reduction/disappearance of the myoepithelium with consequent potential invasiveness of EMPSGC, a paper by Saggini et al [48] critically addresses the use of IHC markers for the myoepithelium, as they are prone to error. In particular, referring to the breast, the authors caution against defining as 'invasive' an EMPSGC that, while losing myoepithelial IHC markers, always grows in an expansive pattern, in the absence of clear tongues of infiltration.

More recently, an interesting paper by Parra et al discussed a novel immunohistochemical marker called Insulinoma-associated protein 1 (INSM1) that is a transcriptional repressor that plays an essential role in neuroendocrine differentiation [52]. The authors demonstrated that its nuclear expression is stronger and more diffuse than traditional neuroendocrine markers such as Syn and CgA, and its staining is cleaner and non-aspecific than the aforementioned markers.

As far as the etiopathogenesis is concerned, in the current state of knowledge, it is not possible to characterize the carcinogenesis exactly, although a paper by Nishimoto et al [49] reports a very rare case of multiple EMPSGC/MCS in the same 71-year-old patient, who simultaneously developed a primary mucinous carcinoma of the breast and had a history of unspecified carcinoma of the uterus body some 24 years earlier. The authors correctly hypothesise that the multiple occurrence of hormone-responsive carcinomas (estrogen and progesterone) could be the explanation for why EMPSGC occurs more in the female sex, through a genetic alteration of the receptors.

5. Conclusions

In conclusion, EMPSGC represent a rare low-grade cutaneous adnexal tumour, recognised for the first time with such nomenclature and entity specificity in the 2018 WHO classification. Although in the early years after the initial description by Flieder et al, there had been few cases reported in the literature, mainly on the elides of olders women, over time they have also been described in male subjects, in not only extra-eyelid localizations (such as the case we present here) but also extra-facial topography. The morphological and immunophenotypical features are essential both for the correct diagnosis and to be able to classify this lesion among the corresponding eDCIS/solid papillary carcinoma of the breast, with neuroendocrine differentiation. Recent papers have attempted to shed light on the molecular features of EMPSGC and much remains to be done in the attempt to subtype the molecular profiles of these entities. Future studies with large case series, and especially with molecular biology techniques, will be needed to further add information about EMPSGC and its relationship in the PCMC spectrum.
