Splicing Measurement and Compensation of Straightness Errors for Ultra-Precision Guideways

1. Introduction

With the continuous development of industrial technology, long distance and high precision hydrostatic linear guideways are increasingly being applied in advanced manufacturing fields, such as large-diameter ultra-precision turning machines, ultra-precision grinder, coordinate measuring systems [1], etc. Straightness error is one of the most important geometric errors of the guideway, which not only affects the machining accuracy, but also affects the reliability and stability of the equipment during long-term operation [2]. In the process of equipment manufacturing, there are many methods which can effectively reduce the straightness error of the guideway, such as improving the flatness of the working surface [3], optimizing the fluid parameters in the slider [4], reducing hydraulic oil temperature fluctuations [5]. During the equipment debugging stage, by accurately measuring the straightness error of the guideway and compensating it in the CNC system, the straightness error of the guideway can be further reduced [6]. For machine tools such as ultra-precision lathes and grinders, the straightness error of the guideway will be copied onto the surface of the component, which affect the machining accuracy [7]. Therefore, measuring the straightness error accurately, analyzing the influence of straightness error on machining accuracy, establishing compensation algorithm for straightness error, and error compensating during the machining process are effective means to improve the machining accuracy of components [8].

There are many methods for measuring the straightness error of guideway. Ahmed Elmelegy measured the geometric error of machine with autocollimator and laser interferometer respectively, and analyzed the influence of different methods on the measurement results [9]. Vladas Vekteris researched the non-contact optical device for two-dimensional straightness measurement of machine, and presented the measuring principle and measuring transversal displacements of machine parts in two directions during their linear longitudinal motion [10]. Wang presented a simple and light-weight two-dimensional straightness measurement configuration based on optical knife-edge sensing, and analyzed the physical model of the configuration and performs simulations. The experiments results indicated that the configuration could achieve ±0.25µm within a ±40µm measurement range along a 40mm primary axial motion [11]. Zhang proposed a three-degrees-of-freedom measurement system based on the Faraday effect for simultaneously measuring two-dimensional straightness errors and their positions and analyzed the influence of angle error of the semitransparent mirror on straightness measurement [12]. Wang proposed a novel method for testing straightness error of long guideway by laser tracker, and researched the basic principle and testing processing, whose testing precision was about 0.4 µm/m [13]. Because of airflow disturbances, there were significant errors by optical interference for straightness measurement if the guideway was two long. Liu proposed a method for noise attenuation of straightness measurement based on laser collimation, and the signal noise was reduced by about 90% [14]. Li proposed a new straightness splicing method using the stable characteristic of angle between two adjacent sub-guide rails for long guideway when measuring straightness error by interferometer [15]. Yun proposed a rail corrugation measurement method based on coarse-to-refine data splicing method, which could acquire the wavebands of corrugation varied from 10 mm to 1 m [16].

In order to measure the straightness error of the long guideway in ultra-precision grinder accurately, a splicing measurement method using high-precision flat mirror and displacement sensor was proposed in this paper, and the mathematical model for straightness data stitching was established. By measurement experiments, the correctness and accuracy of the stitching model were verified. In order to further improve the machining accuracy of component, the straightness error compensation model was established. By the error compensation method, the flatness error of a large scale optics was grinded to 2.98µm.

2. Splicing measurement of straightness error

2.1. Principle of Splicing Measurement

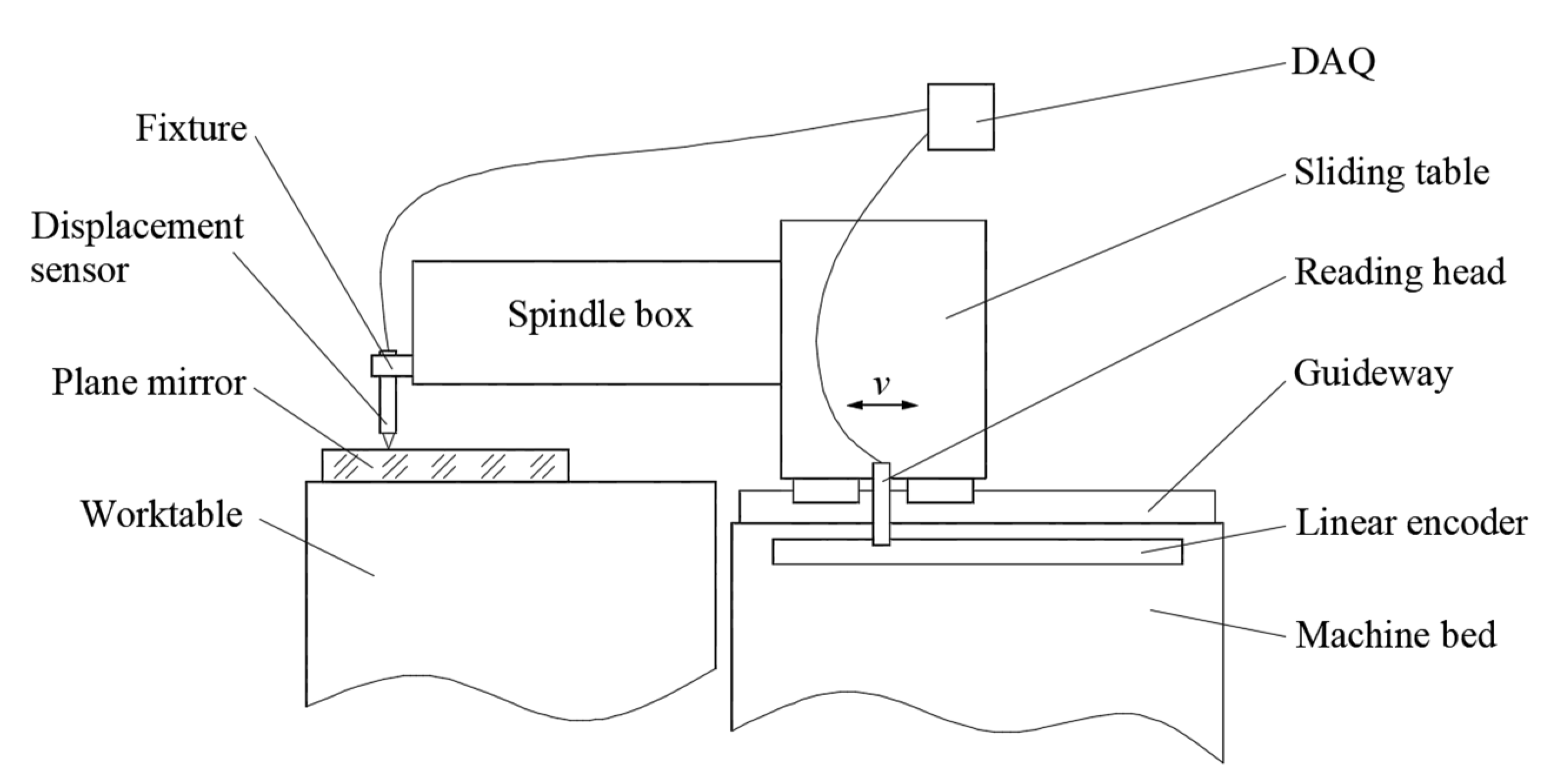

The measurement process of guideway straightness error using high-precision flat mirror and displacement sensor is shown in Figure 1. The high-precision displacement sensor is fixed on the spindle and moves along the guideway with the slide table. The flat mirror is fixed on the machine table, and the displacement sensor measures on the surface of the mirror. If the flatness error of the mirror is much smaller than the straightness error of the guideway, the data acquired by the displacement sensor could be considered as the straightness error. To accurately obtain the straightness error at different positions of the guideway, a synchronous data acquisition card is used to collect the signal output by the displacement sensor and the grating ruler reading head.

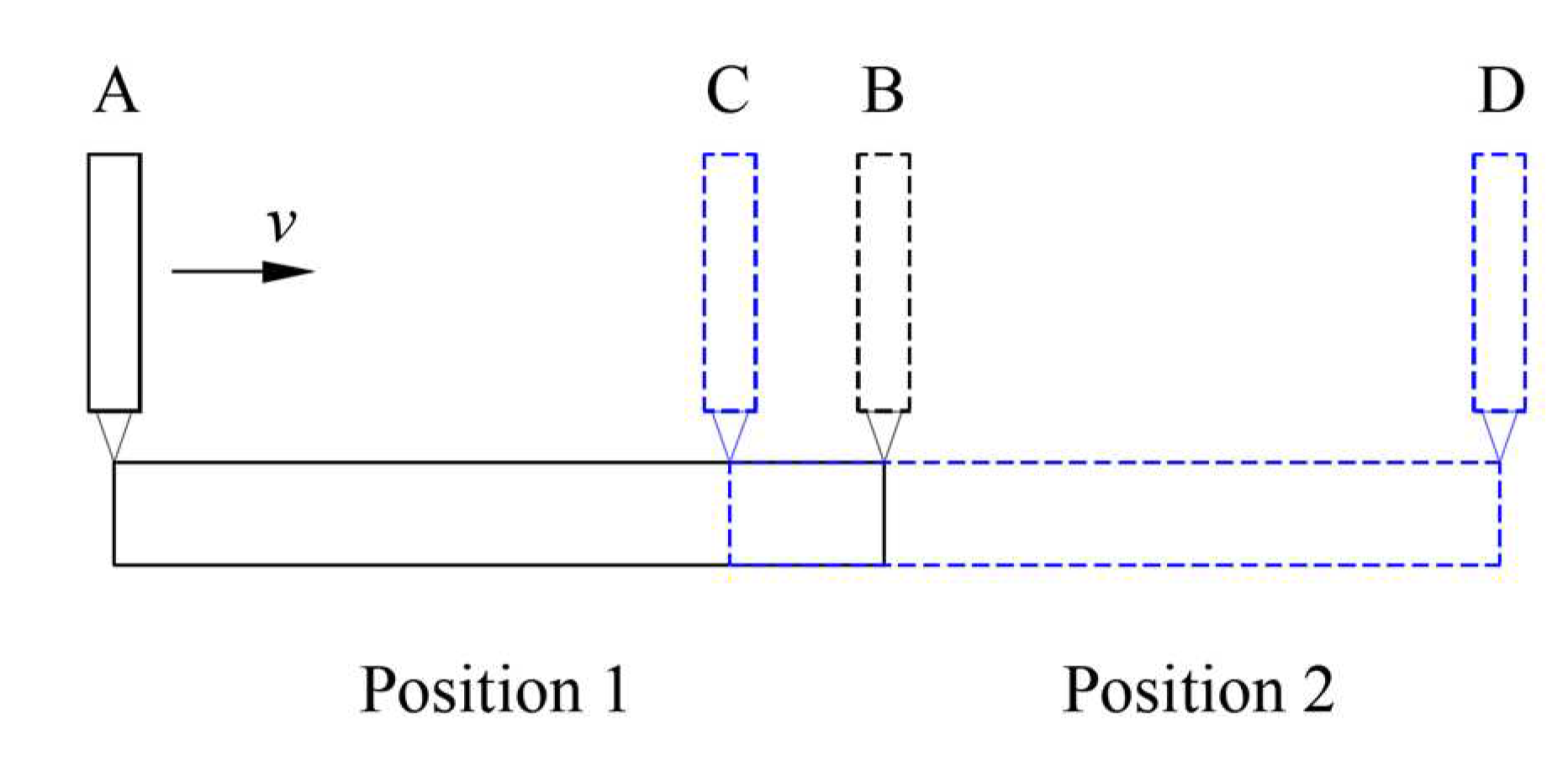

It’s difficult to manufacture large size and high-precision flat mirror, so it’s almost impossible to directly measure the straightness of long guideway. In order to accurately measure the straightness error of long guideway, a segmented measurement method of the straightness error at different positions of the guideway was proposed. And the straightness error of the whole guideway was calculated by stitching algorithm based on coordinate transformation. The schematic diagram of segmented measurement of straightness error was shown in Figure 2. Firstly, the flat mirror was fixed at position 1, and the displacement sensor was moved along the mirror surface from point A to point B. In this process, the straightness error within the AB range was acquired, which could be represented by a data series (x_i, y_i) in the measurement coordinate system O₁X₁Y₁, where i=1, 2, 3, …, n. Then the flat mirror was fixed at position 2, with a certain overlap area between position 2 and position 1. And the displacement sensor was moved along the mirror surface from point C to point D. Meantime the straightness error within the CD range was acquired, which could be represented by a data series (x_j, y_j) in the measurement coordinate system O₂X₂Y₂, where j=1, 2, 3, …, m. Within the CB area, the straightness errors of the two measurements were consistent. As shown in Formula 1, after rotation and translation transformation, straightness error (x_j, y_j) of CB area measured with flat mirror fixed at position 2 was consistent with straightness error (x_i, y_i) of CB area measured with flat mirror fixed at position 1, where i=k, k+1, k+2, …, n, j=1, 2, 3, …, q. Bringing the measured data series (x_i, y_i) and data series (x_j, y_j) into formula 1, the rotation angle α and translation vector (a, b) could be solved based on the least square method. After rotation transformation by angle α and translation transformation by vector (a, b), the straightness error (x_j, y_j) of BD area was combined with the straightness error (x_i, y_i) of AB area, where i=1, 2, 3, …, n, j= q +1, q +2, q +3, …, m. And the combined data was the straightness error of full AD area.

$$\left[\begin{array}{c}{x}_i\\ y_i\end{array}\right]=\left[\begin{array}{c}{x}_{jT}\\ y_{jT}\end{array}\right]=\left[\begin{array}{cc}\cos \alpha & \sin \alpha \\ -\sin \alpha & \cos \alpha \end{array}\right]\left[\begin{array}{c}{x}_j\\ y_j\end{array}\right]+\left[\begin{array}{c}a\\ b\end{array}\right]$$

(1)

2.2. Experiments on measuring straightness error of guideways

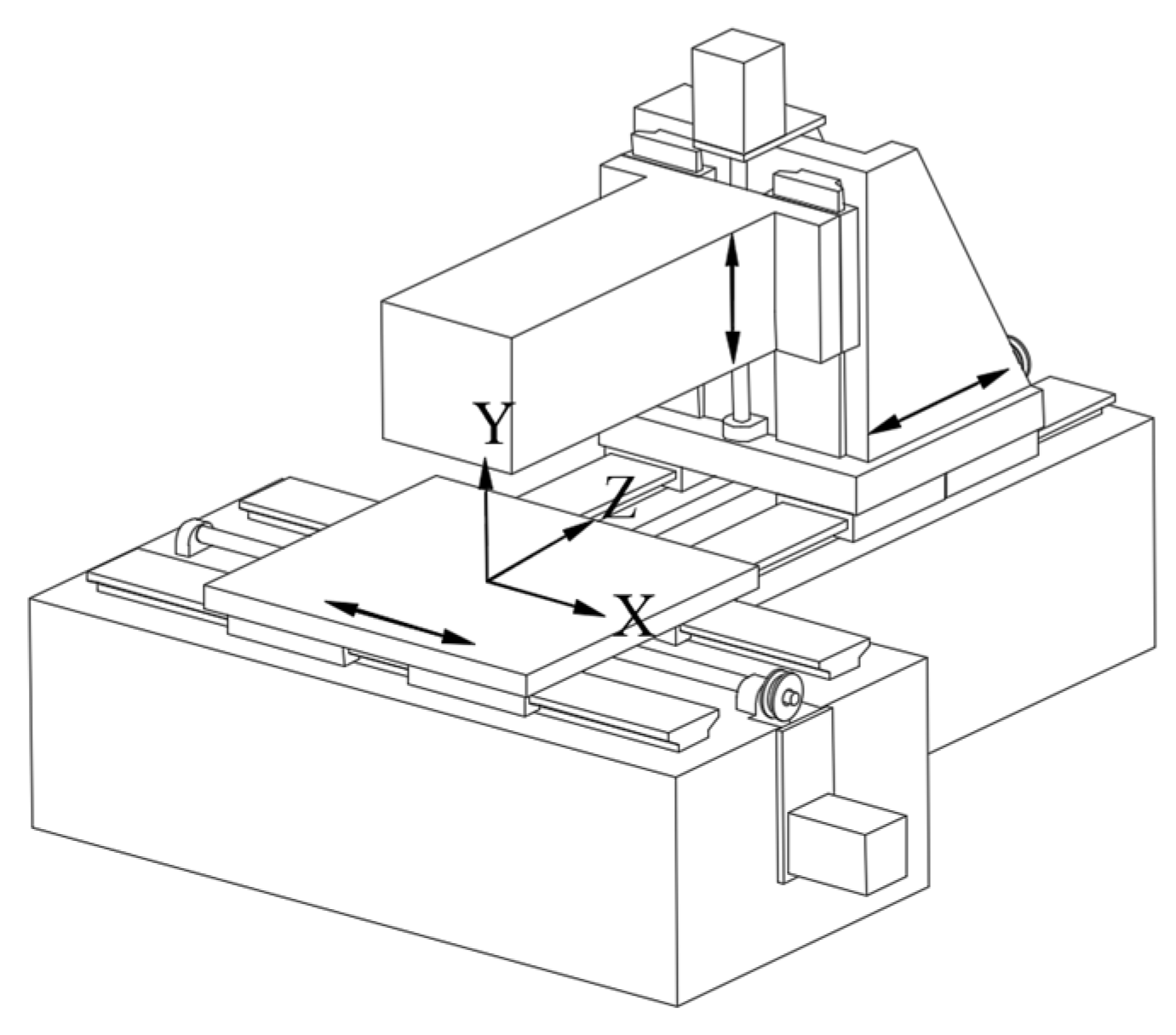

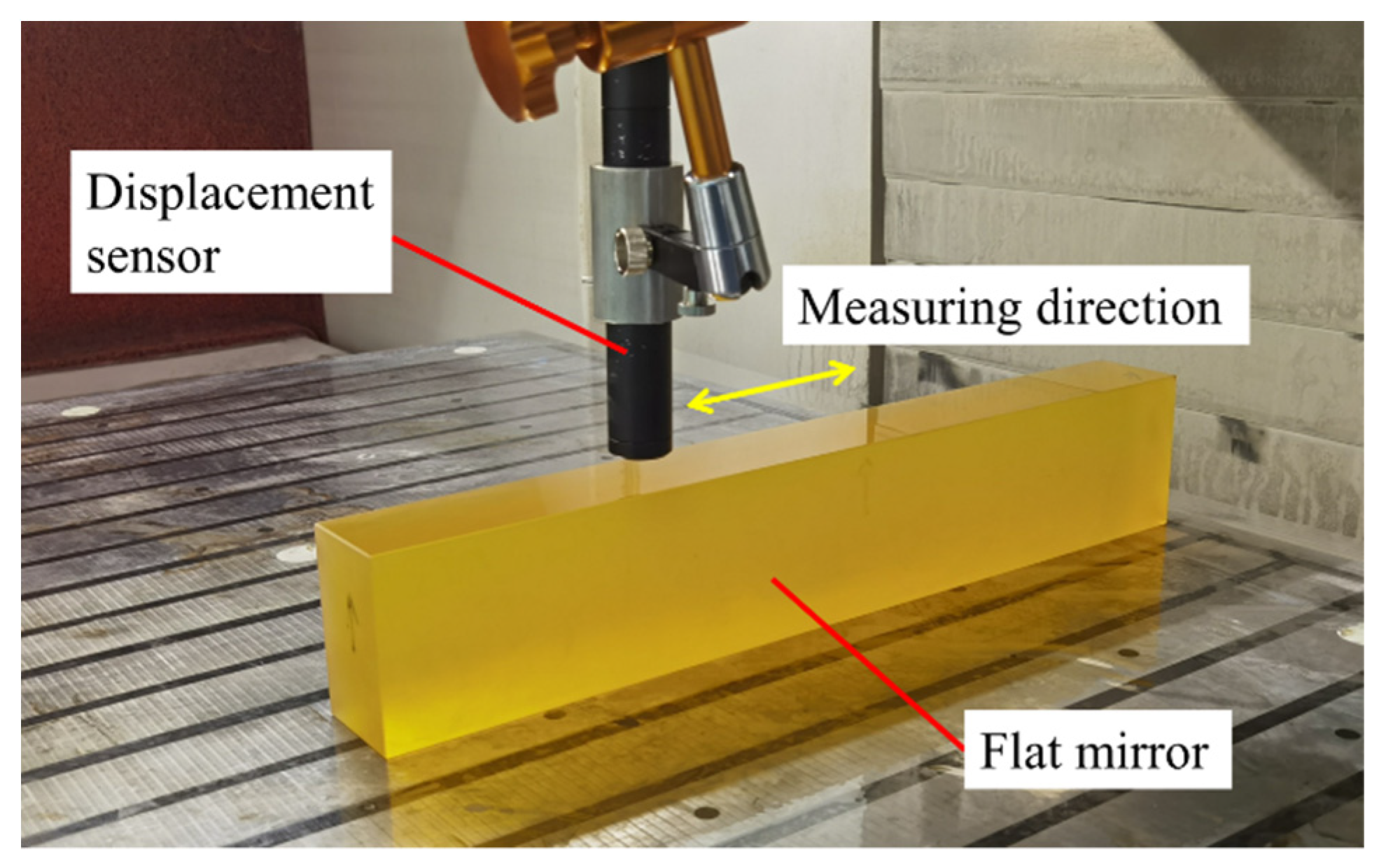

In order to verify the correctness of the splicing measurement method, experiments of measuring straightness error were carried out on an ultra-precision grinding machine with hydrostatic guideways and position closed-loop feedback control. As shown in Figure 3, the length of X-axis, Z-axis and Y-axis were 1400mm, 800mm and 550mm, respectively. Firstly, the straightness error of Z-axis at Y-axis direction was measured using a flat mirror (No. 1) with size of 440mm × 40mm and flatness error of 0.08µm (Figure 4) and a spectral confocal displacement sensor with accuracy of 60nm, as shown in Figure 5. The flatness error of the mirror was much smaller than the straightness error of the guideway, so the influence on the measurement results could be ignored. The Z-axis was longer than the length of the flat mirror. It was necessary to measure the straightness error of the Z-axis guideway at two positions, which were -800mm~-360mm and -440mm~0mm in the machine coordinate system.

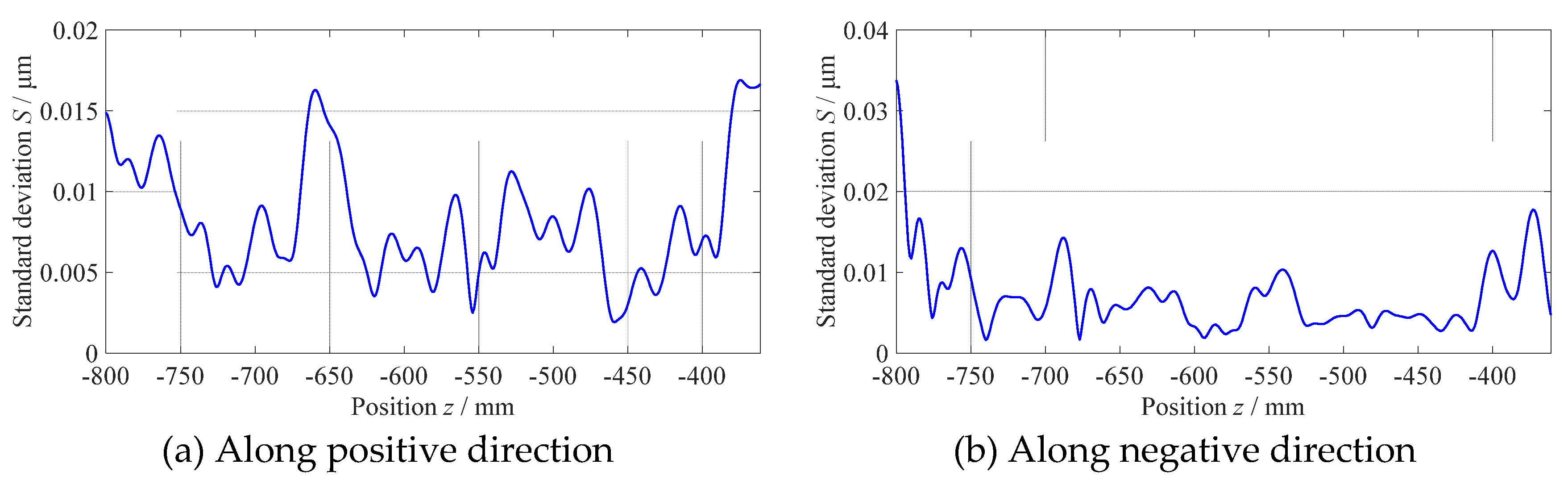

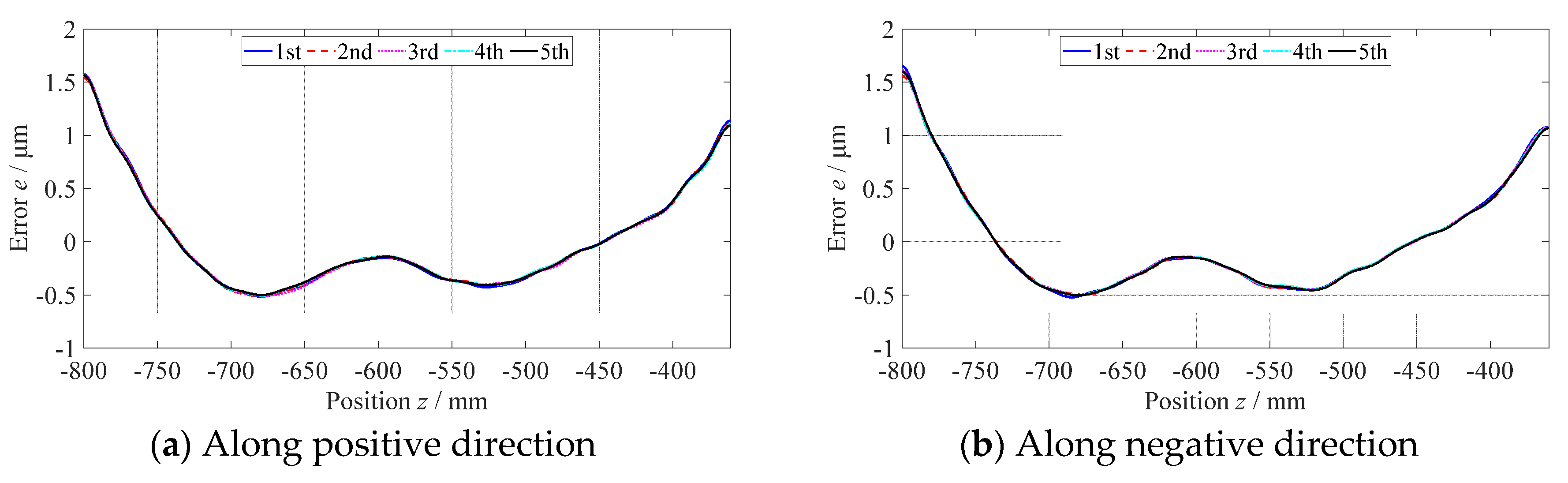

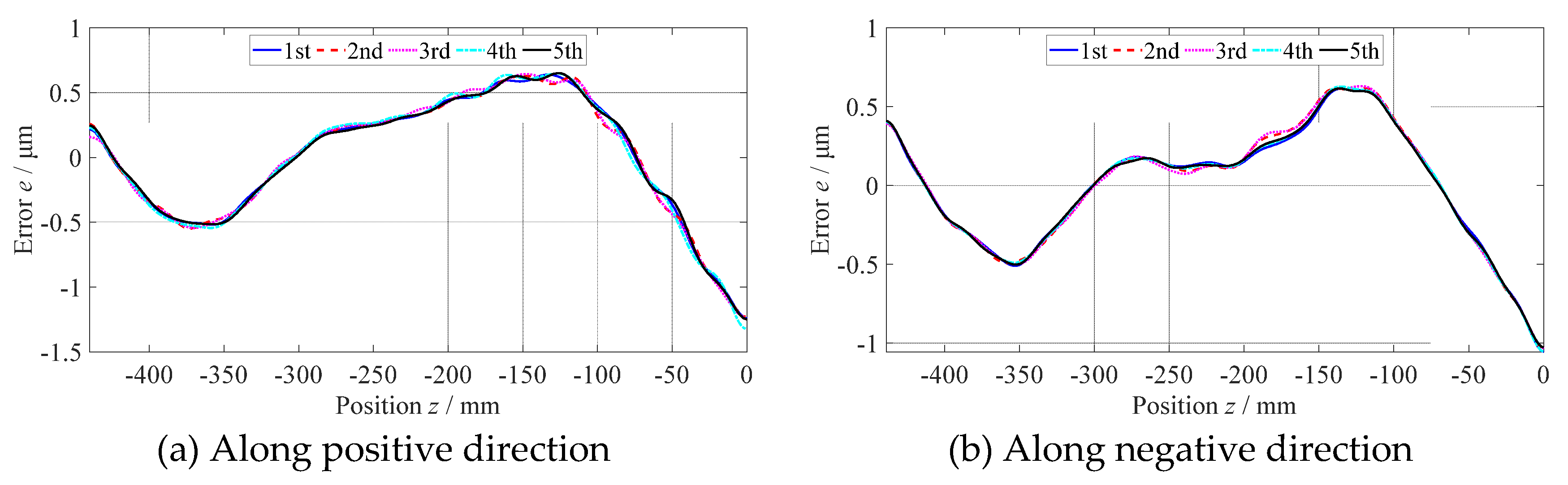

As shown in Figure 6, the straightness error of Z-axis at -800mm to -360mm position was measured for 5 times along the positive and negative directions respectively, with measuring velocity of 600mm/min and data sampling period of 100ms. When measuring along single direction, the results of five measurements of straightness error were consistent. According to formula 2, the repeatability standard deviation curve for 5 measurements was calculated and shown in Figure 7. The maximum repeatability standard deviation was not exceeding 0.04 μ m, which was far less than the straightness error. Using the same method, the straightness error at -440mm~0mm position was measured, as shown in Figure 8.

(a) Along positive direction

(b) Along negative direction

$$S\left(z\right)=\sqrt{\frac{1}{n-1}{\displaystyle \sum _{i=1}^n{\left[e_i\left(z\right)-\overline{e\left(z\right)}\right]}^2}}$$

(2)

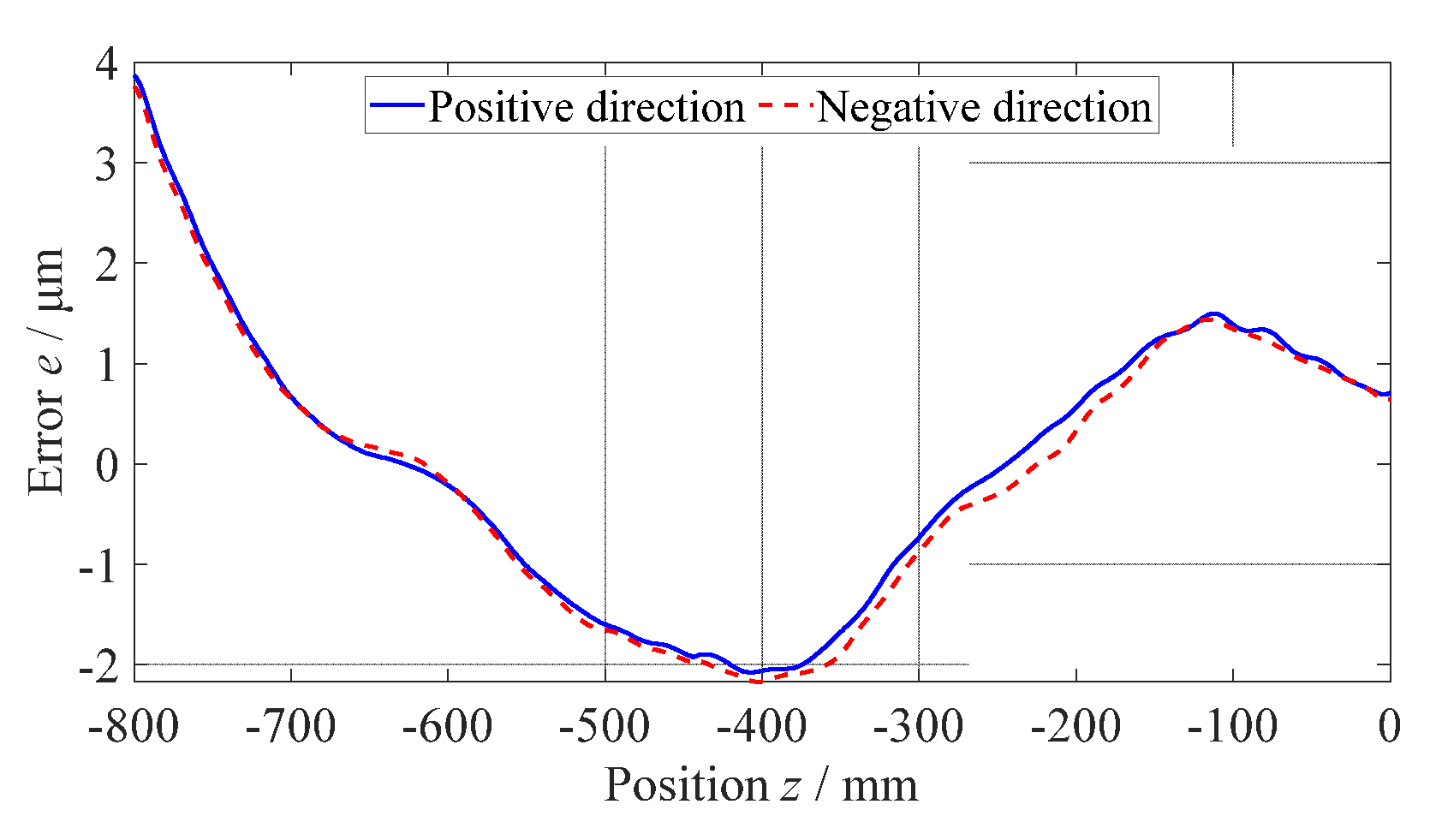

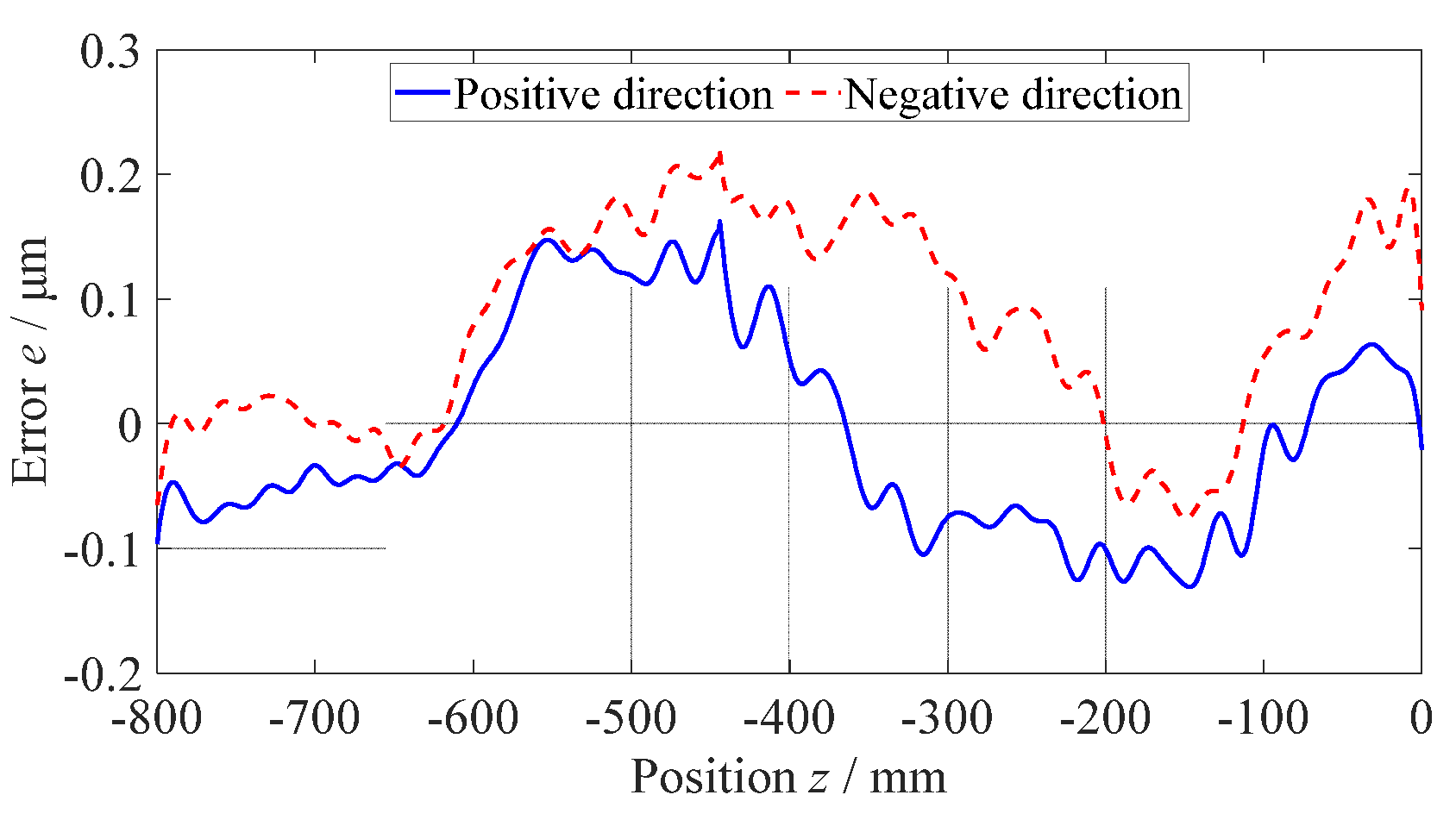

According to the above stitching processing algorithm, the straightness errors measured at position -800mm~-360mm and position -440mm~0mm were processed, as shown in Figure 9. Then the straightness error of whole Z-axis was directly measured by No.2 flat mirror with size of 840mm×40mm and flatness error of 0.12µm, as shown in Figure 10. The straightness error curve measured using the splicing method was the same as the straightness error curve directly measured. As shown in Figure 11, the maximum difference of straightness error between two measurement methods was approximately 0.3µm, which was far less than the straightness error of the guideway 5.8µm. Therefore, the segmented measurement and data splicing processing algorithm could be used for straightness error measurement of long guideway precisely.

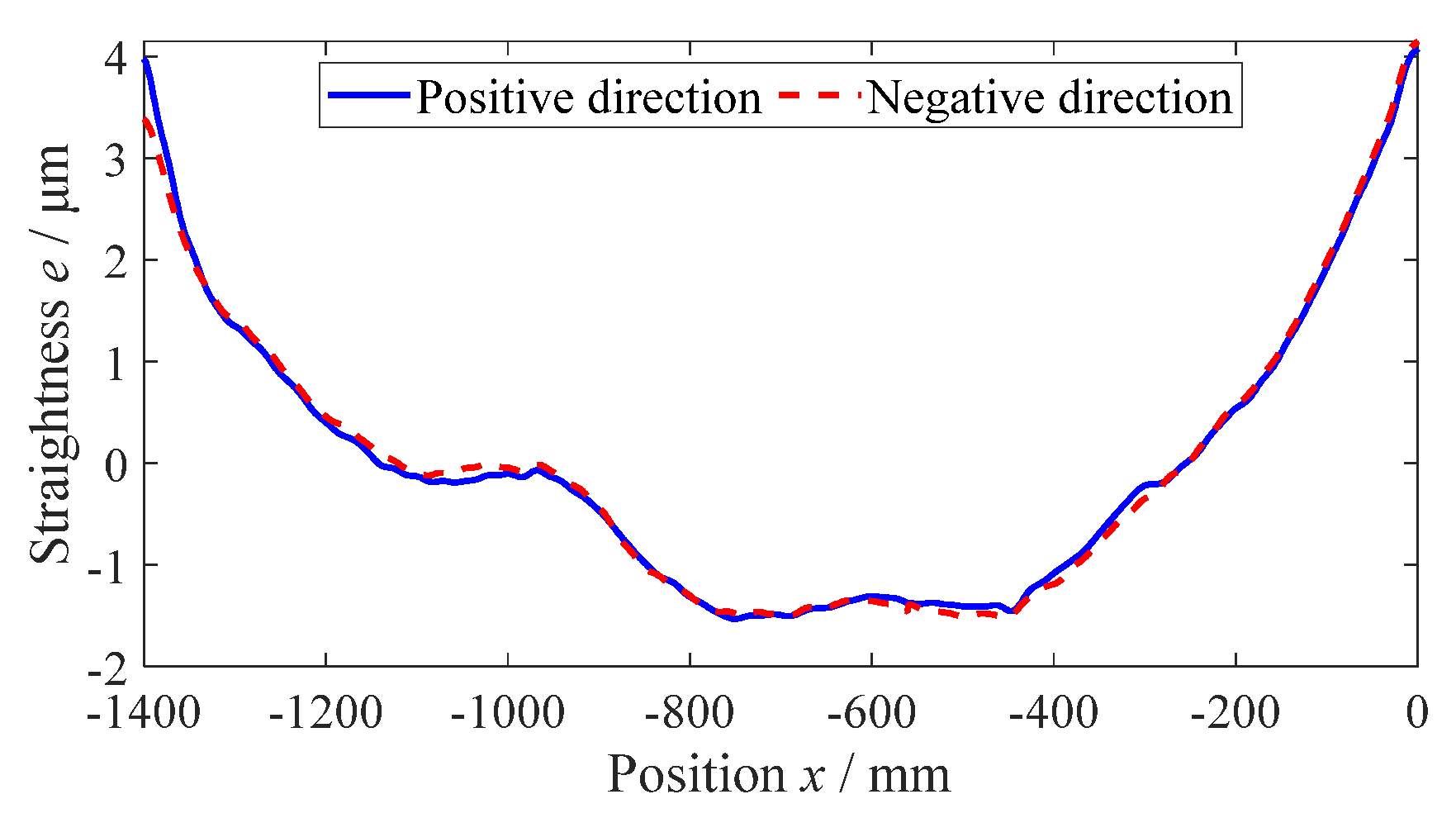

The straightness error of X-axis was measured using No.2 flat mirror. The length of X-axis was 1400 mm, but that of flat mirror was 840 mm. It was necessary to measure the straightness error of the X-axis guideway at two positions, which were -1400mm~-560mm and -840mm~0mm in the machine coordinate system. After segmental measurement and data splitting process, the straightness error of whole X-axis was calculated, whose PV was approximately 5.5µm, as shown in Figure 12.

3. Compensation for Straightness Error of Guideways

3.1. Analysis of Straightness Error Compensation

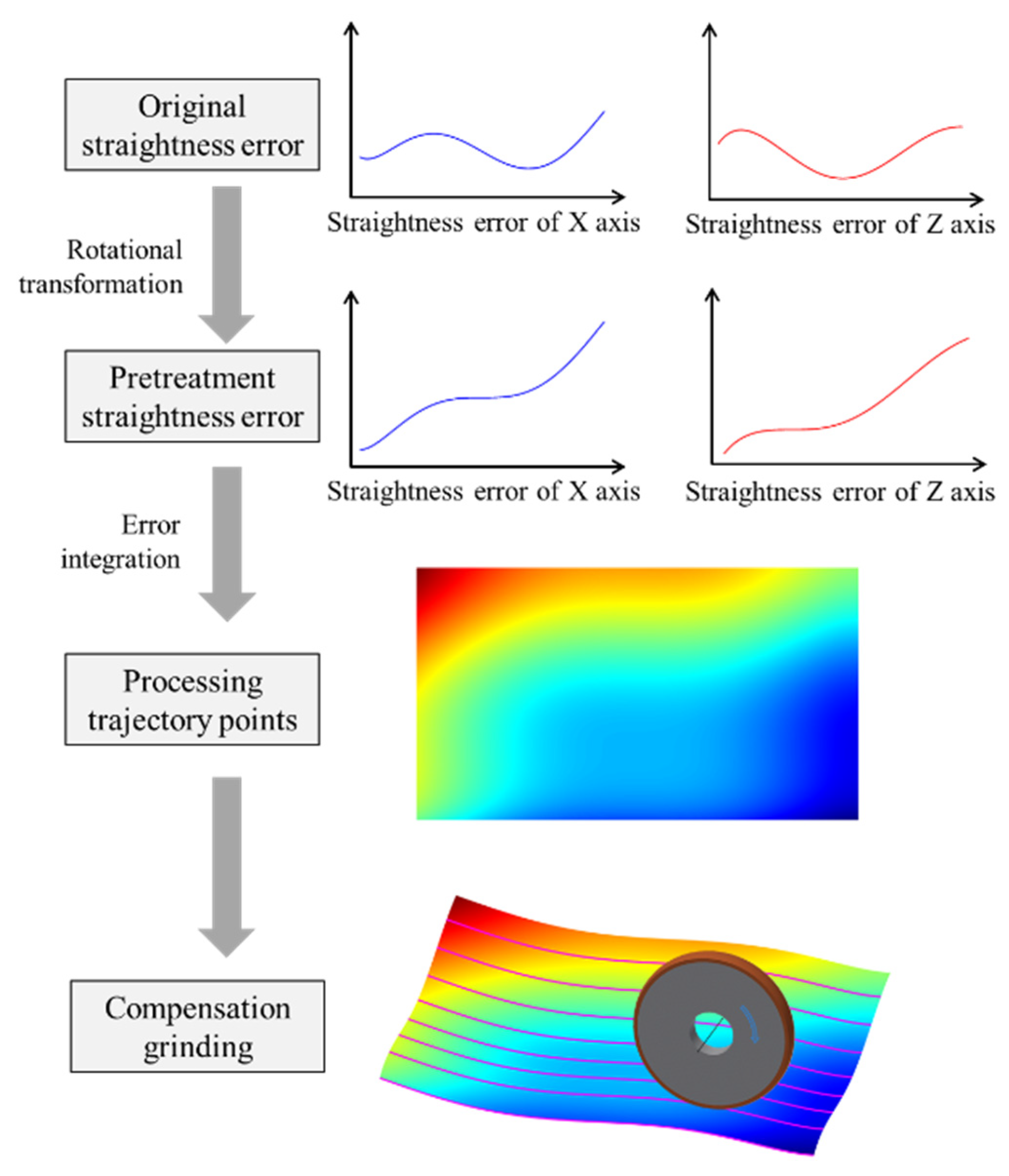

In the grinding process, the machined surface is formed according to the distance between the component and grinding wheel [17]. The straightness errors of the feed axes will be 1:1 copied on the component surface and reduce machining accuracy [18]. There are high-precision grating rulers for position measurement and closed-loop feedback control in ultra-precision machine, and the positioning errors of the feed axes are usually much smaller than the straightness errors. Therefore, it is possible to compensate the straightness errors of the X-axis and Z-axis by correcting the position of the Y-axis during processing [19], which can improve the machining accuracy of the component. In the compensation grinding process of flat optical element, due to that the straightness curves are not monotonic, the grinding wheel will move up and down with the distribution of straightness errors, and the reverse motion error of the Y-axis will reduce the compensation effect. To prevent the influence of reverse motion error on the component accuracy, a novel straightness error compensation method as shown in Figure 13 was proposed. Firstly, the straightness error curve would be rotated to be monotonic. Then, according to Formula 3, the error matrix E(i, j) of the whole machining area was calculated, where e_X(i) was the rotated X-axis straightness data, and e_Z(j) was the rotated Z-axis straightness data. Finally, according to the component positions in the machine coordinate, the error matrix E_S(i, j) within the component area was cut out from error matrix E(i, j), which was used to 1:1 calculate the relative positions of the grinding wheel and the component in the grinding process. After grinding, the straightness error should be compensated.

$$E(i,j)=e_X(i)+e_Z(j)$$

(3)

3.2. Compensation grinding experiment

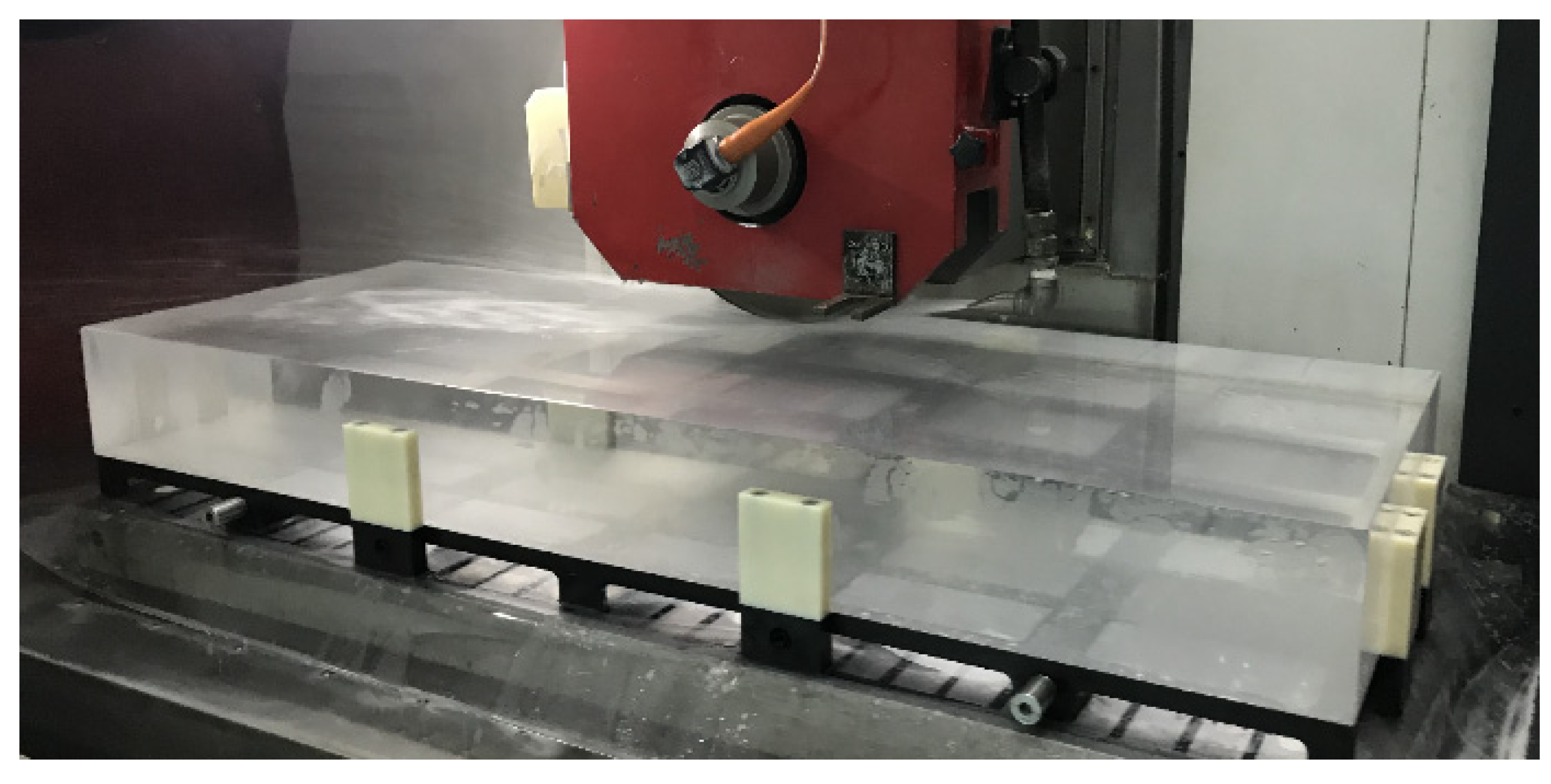

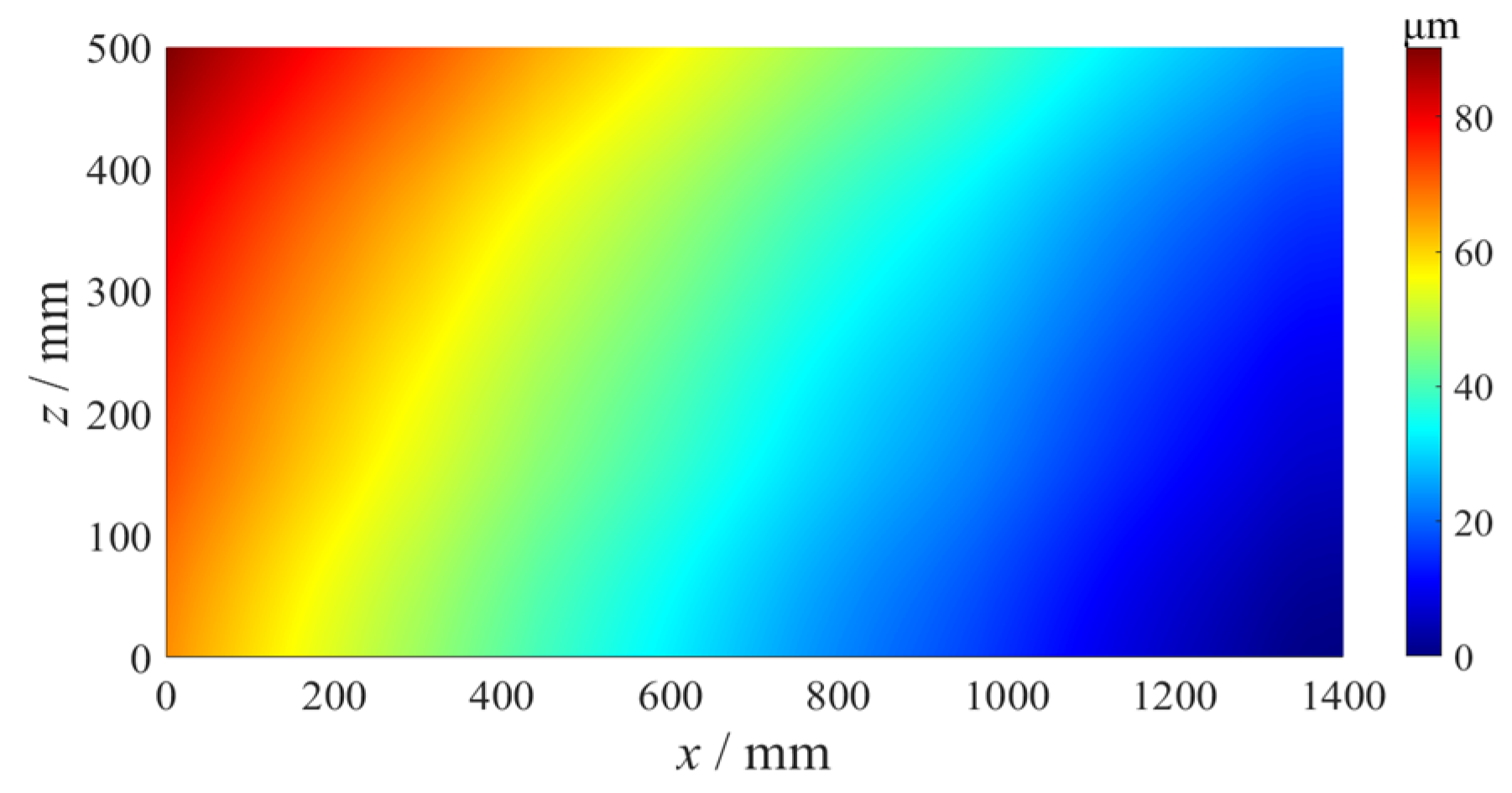

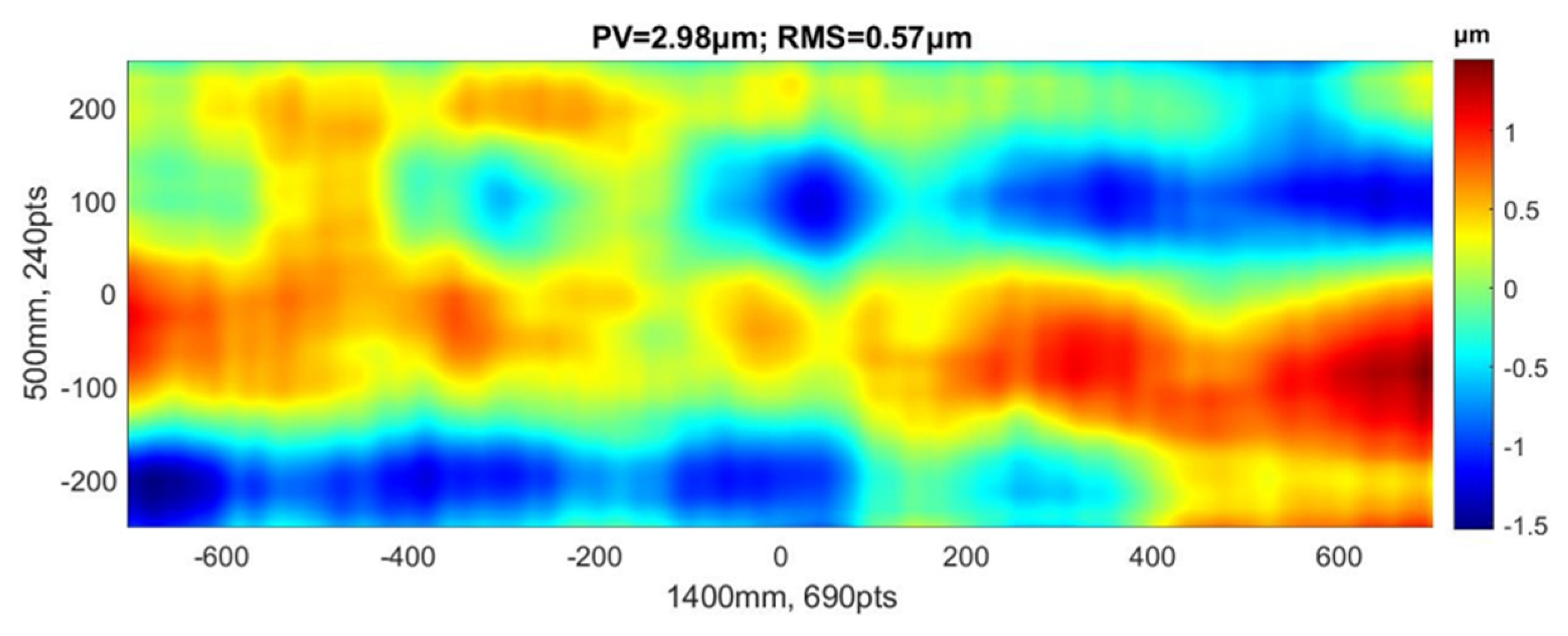

The straightness errors compensation grinding experiment of flat fused quartz optical element with size of 1400mm × 500mm was carried out on the ultra-precision grinder, whose positioning error of the Y-axis was about 1.2µm measured by laser interferometer. The grinding parameters were shown in Table 1. According to the X-axis straightness error and Z-axis straightness error as shown in Figure 12 and Figure 9, the error matrix of the component area was calculated by Formula 3, as shown in Figure 15. After compensation grinding, the flatness error of optical element was measured by the above confocal displacement sensor, and the P-V value of flatness error was about 2.98µm as shown in Figure 16. The straightness error of the X-axis and Z-axis of the grinder had been well compensated.

4. Conclusions

In this paper, a segmented measurement method for straightness error of long distance guideway in ultra-precision grinder was proposed, as well as error data splicing algorithm based on coordinate transformation. Comparative measurement experiments of guideway straightness errors were carried out on an ultra-precision grinder. The maximum difference between the straightness errors of splicing measurement and direct measurement was about 0.3µm, which was far smaller than the straightness error of 5.8µm. It was accurate enough to measure guideway straightness error by the segmented measurement and data splicing algorithm. To reduce the influence of guideway straightness error on machining accuracy, the straightness error compensating method based on error curve rotation and Y-axis position correction was proposed. At the last, compensation grinding experiment of a flat fused quartz optical element with size of 1400mm × 500mm was carried out, and the P-V value of flatness error after grinding was about 2.98µm, which indicated that the compensation method had a well suppressive effect on the guideway straightness errors.
