Wave Behavior Characteristics of Elastically Supported Fluid-Conveying Carbon Nanotubes under the Influence of Magnetic Fields

1. Introduction

Carbon nanotubes (CNTs) have drawn the extensive interest researchers since their discovery because of their superior electrical, thermal, mechanical, and physical attribute [1,2,3,4,5]. Due to these excellent properties, CNTs are widely used in the development of nano-electro-mechanical systems (NEMS) [6,7,8,9]; The structural properties of CNTs can be used for nanofluid fluid conveying and hydrogen storage [10]. Additionally, CNTs can be used to make composites with metals, cements, and glass fibers to compensate for the inadequacies of each material and create high strength, high performance composites [11,12]. Therefore, it is very significance to study the mechanical attribute of carbon nanotubes. Since experimental methods can only measure some basic mechanical constants of carbon nanotubes, Losts of researchers have used molecular dynamics simulations (MDS) and continuum mechanics methods to simulate and calculate the kinetic properties of more complex CNTs. However, MDS calculations of the molecular forces between each carbon atom are time and resource consuming, in general, continuum mechanics theory has become the primary method for studying the kinetic properties of CNTs [13,14].

Classical continuum mechanics ignores small-scale effects, surface effects and intermolecular interactions at the microscopic level, but in the microscopic case these factors play an important role in material properties and cannot be ignored. Therefore, most scholars have adopted the non-local theory of elasticity proposed by Eringen et al. [15]. This theory can effectively model the mechanical properties of carbon nanostructures at the microscopic level. Yoon et al. [16,17] studied the fluid conveying of CNTs dynamic response characteristics and flow velocity induced chattering instability of cantilevered nanobeams. Wang et al. [18,19] investigated the shear and flexural waves behaviour of moving fluids on SWCNT in complex physical environment. the results illustrate that changes in magnetic field and temperature have a large effect on wave frequency Li et al. [20,21] discusses the free vibration and small-scale effects of CNTs under varying boundary conditions. Bahaadini et al. [22,23] constructed a nonlocal strain gradient Timoshenko(NSGT) model, and investigated the influence of cantilevered carbon nanobeam chattering instability due to the flow velocity.

Lim et al. [24] combined strain gradient theories and Eringen’s nonlocal theories to obtain a new nonlocal strain gradient higher order continuum theory. deriving Timoshenko beam wave equations in the context of a new theory. Some new dispersion relations for wave propagation are obtained by arithmetic examples. Li and Hu et al. [25,26,27] studied surface effects on the wave behaviour of viscoelastic SWCNT. the numerical results indicated that increasing the magnetic field and decreasing the damping can lead to an increasing phase velocity, and that the frequency value increases when surface effects are considered. Wang and Bian [28] analysed vibration behaviour of SWCNT in fluid forces and magnetic field change, It was indicated that non-local parameters, fluid velocity and magnetic field change have a remarkable influence on the vibration frequency SWCNT. Rajendran et al. [29] investigated the non-linear vibrational response of embedded CNTs in temperature and magnetic fields. Ebrahimi et al. [30,31] investigated the wave behaviour of non-linear functionally graded beams in temperature change.

Amiri et al. [32] considered the dynamic characterisation of instability fluid conveying nanotube system based on NSGT flexoelectricity nanobeams model. Yang et al. [33] studied on the kinetic characterization of non-local stress fields in microfluidic channels and the material parameters effects of carbon nanotube wave propagation. Zhen et al. [34,35] studied wave behaviour of fluid-conveying viscoelastic SWCNT in longitudinal magnetic field, temperature change and surface effect. the numerical results indicated that increasing the magnetic field and decreasing the temperature can lead to an incre asing phase velocity. Arani et al. [36] investigated that surface effects and initial stresses have important Influence on the wave behaviour characteristics of CNTs. Bahaadini and Ghane et al. [37,38] constructed a NSGT cantilevered Timoshenko nanobeam to analyse dynamic flutter instability of fluid moving CNTs in magnetic field change, It was revealed that the magnetic field effect leads to an increase in the critical flow velocity, resulting in an increasingly stable system.

There is little discussion of the influence of the combined longitudinal magnetic field and fluid velocity on the phase velocities and surface effects of SWCNT in the available papers, this work mainly considered fluid conveying SWCNT with surface effects in longitudinal magnetic fields and embedded elastic foundations, and constructed a non-local strain gradient Timoshenko beam model, Using Hamilton principle, the control equations are derived. The influence of nonlocal coefficients, strain gradient coefficients, fluid flow, fluid density, magnetic flux, foundation medium and surface effect on the waves behaviour of CNTs are discussed in detail.

2. Non-local strain gradient constitutive equation theory

According to the nonlocal strain gradient higher order continuum theory by Lim[24], the classical nonlocal stress${\sigma }_{xx}$, the higher-order nonlocal stress ${\sigma }_{xx}^{\left(1\right)}$ and the total stress can be denoted as:

$${\sigma }_{xx}={\displaystyle {\int }_0^{L}E{\alpha }_0}\left(x,x^{\text{'}},e_{0}a\right){\epsilon }_{xx}^{\text{'}}\left(x^{\text{'}}\right)d{x}^{\text{'}}$$

(1)

$${\sigma }_{xx}^{\left(1\right)}=l^2{\displaystyle {\int }_0^{L}E{\alpha }_1}\left(x,x^{\text{'}},e_{1}a\right){\epsilon }_{xx,x}^{\text{'}}\left(x^{\text{'}}\right)d{x}^{\text{'}}$$

(2)

$$t_{xx}={\sigma }_{xx}-\frac{d{\sigma }_{xx}^{\left(1\right)}}{dx}$$

(3)

In the above equation, $L$ represent the length of the beam, $e_0$ and $e_1$ are both material-related constants, $a$ stand for the length of the internal C-C bond of the carbon nanotube, ${\alpha }_0(x,x^{\text{'}},e_{0}a)$ and ${\alpha }_1(x,x^{\text{'}},e_{1}a)$ are non-local decay functions, and $l$ denotes the material scale coefficient.; according to the NSGT developed by Lim[24], the internal material size instanton equation for CNTs can be presented as:

$$\left[1-{\left(e_{1}a\right)}^2{\nabla }^2\right]\left[1-{\left(e_{0}a\right)}^2{\nabla }^2\right]t_{xx}=E\left[1-{\left(e_{1}a\right)}^2{\nabla }^2\right]{\epsilon }_{xx}-E{l}^2\left[1-{\left(e_{0}a\right)}^2{\nabla }^2\right]{\nabla }^2{\epsilon }_{xx}$$

(4)

Here ${\nabla }^2=\frac{{\partial }^2}{{\partial x}^2}$ stand for the one-dimensional laplace operators, $e_{1}a$ and $e_{0}a$ are nonlocal parameters; $l$ denote the material related parameter, and if $e_1$=$e_0$=$e$, then the Eq .(5) can be simplified as:

$$\left[1-{(ea)}^2{\nabla }^2\right]t_{xx}=E\left(1-l^2{\nabla }^2\right){\epsilon }_{xx}$$

(5)

3. Timoshenko beam theory

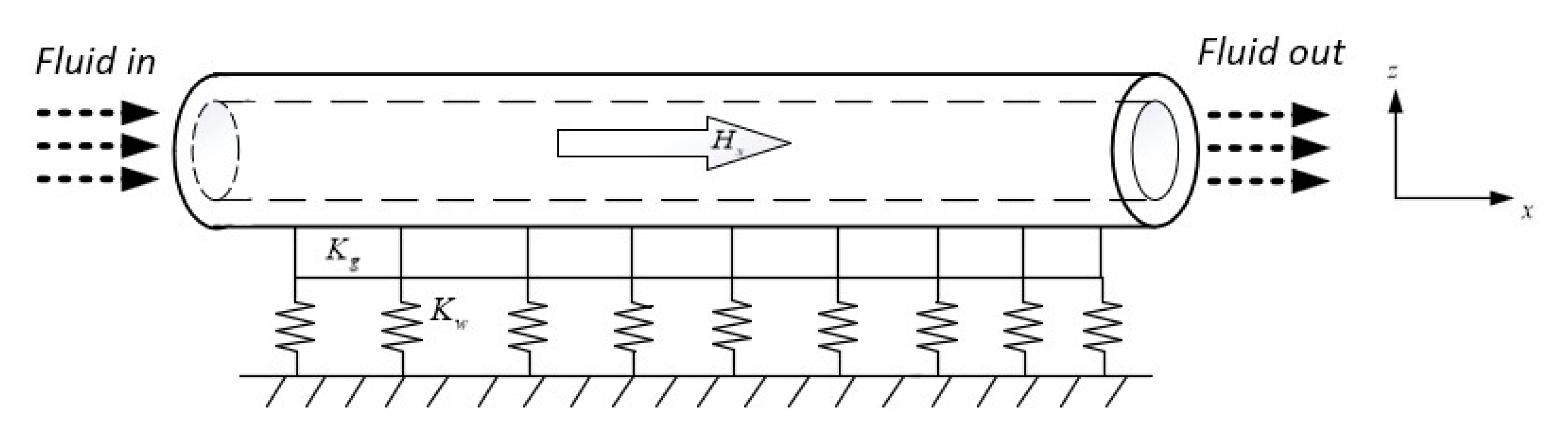

To better understand the fluid conveying carbon nanotube wave behaviour of SWCNT under the action of magnetic fields and foundations, the Timoshenko beam model illustrated in Figure 1 is used, Assuming that the fluid inside the nanobeam is considered to be ideally incompressible and flowing uniformly, It is also assumed that the beam is not axially loaded and that the magnetic field strength inside and outside is the same in SWCNT, The geometric properties of SWCNT are taken as: Outer radius $R_o$, inner radius $R_i$,, density $\rho$, length $L$ and simply supported Timoshenko beams embedded in Pasternak elastic foundation with elastic stiffness coefficient $K_w$ and shear stiffness coefficient $K_g$.

According to the Timoshenko beams theory, their axial and transverse displacements can be expressed as:

$$u_1(x,z,t)=u(x,t)+z\phi (x,t)w_2(x,z,t)=w(x,t)$$

(6)

where $u\left(x,t\right)$denote the axial displacements, and $w(x,t)$ denote transverse displacements on the middle axis, and $t$ and $\phi (x,t)$ denote the time and the rotation of the cross section, respectively.

According to the theory of Timoshenko beams, Axial and shear strains are written as:

$${\epsilon }_{xx}=\frac{\partial u}{\partial x}+z\frac{\partial \phi }{\partial x}\hspace{1em}{\gamma }_{xz}=\frac{\partial w}{\partial x}+\phi$$

(7)

The kinetic energy generated by the fluid flow internal to the CNTs is given by:

$$T_f=\frac{1}{2}{m}_f{\displaystyle {\int }_0^L{\left(\frac{\partial u}{\partial t}\right)}^2}dx+\frac{1}{2}{m}_f{\displaystyle {\int }_0^L{\left(\frac{\partial w}{\partial t}+V\frac{\partial w}{\partial x}\right)}^2}dx+\frac{1}{2}{J}_f{\displaystyle {\int }_0^L{\left(\frac{\partial \phi }{\partial t}\right)}^2}dx$$

(8)

where $m_f$ represent the mass of fluid per unit length within CNTs, $V$ denote the mean flow velocity and $J_f$ denote the fluid mass moment of inertia.

The kinetic energy of a carbon nanotube is given by:

$$T_c=\frac{1}{2}{m}_c{\displaystyle {\int }_0^L\left[{\left(\frac{\partial u}{\partial t}\right)}^2+{\left(\frac{\partial w}{\partial t}\right)}^2\right]}dx+\frac{1}{2}{J}_c{\displaystyle {\int }_0^L{\left(\frac{\partial \phi }{\partial t}\right)}^2}dx$$

(9)

where $m_c$ represent the mass per unit length of carbon nanotube and $J_c$ represent the mass moment of inertia of CNTs.

Carbon nanotube strain energy is given by:

$$U_s={\displaystyle {\int }_0^L{\displaystyle {\int }_A\left(t_{xx}{\epsilon }_{xx}+t_{xz}{\gamma }_{xz}\right)}}dAdx={\displaystyle {\int }_0^L\left[N_x\frac{\partial u}{\partial x}+M_x\frac{\partial \phi }{\partial x}+Q_x\left(\frac{\partial w}{\partial x}+\phi \right)\right]}dx$$

(10)

where $A$ denotes the cross-sectional area of the CNTs, $N_x$ denotes the normal resultant force, $Q_x$ denotes transverse shear force and bending moment $M_x$ can be defined as:

$$N_x={\displaystyle {\int }_A{t}_{xx}}dA\hspace{1em}{Q}_x={\displaystyle {\int }_A{t}_{xz}}dA\hspace{1em}M={\displaystyle {\int }_{A}z{t}_{xx}}dA$$

(11)

The work done by the external load can be denoted as:

$$W=\frac{1}{2}{\displaystyle {\int }_0^L\left[-K_w{w}^2-K_g{\left(\frac{\partial w}{\partial x}\right)}^2\right]}dx+{\displaystyle {\int }_0^L\left(F(x,t)+F_s\right)}wdx$$

(12)

where $F(x,t)$ denotes the magnetic field force per unit length in the z direction, and $F_s$ represents the transverse distributed load caused by residual stresses on the surface.

The magnetic field force per unit length in the z direction can be expressed as:

$$F(x,t)=\eta A{H}_x^2\frac{\partial {(x,t)}^2}{\partial x^2}$$

(13)

where $\eta$ denotes the magnetic fields permeability of CNTs material-related, and $H_x$ denotes the component of magnetic flux in the $x$ direction.

According to the literature [35] the transverse distribution force due to the effect surface tension of SWCNT can be denoted as:

$$F_s=H_s\frac{\partial w^2}{\partial x^2}$$

(14)

where $H_s$ denote a constant, defined as $H_s=2\tau (d+h)$ where $\tau$ denotes the surface residual stress, $d$ denotes the diameter of the CNTs, and $h$ denotes the wall thickness. due to surface elasticity effects the effective flexural stiffness is given by ${\left(EI\right)}^{*}=EI+Q_s{E}_s$, where $E_s$ denotes the surface Young’s modulus of CNTs, $Q_s=\pi {(d+h)}^3/8$.

Hamilton’s variational principle can be obtained as:

$$\delta {\displaystyle {\int }_{t_1}^{t_2}\left(T_f+T_c+W-U_s\right)}dt=0$$

(15)

By substituting Eqs.(9), (10), (11) and (13) into Eq (16).integrating by parts and taking the coefficients of $\delta u,\delta w$ and $\delta \phi$ to vanish, the differential equation of motion for the CNT is expressed as:

$$\delta u:\frac{\partial N}{\partial x}-m_f\frac{{\partial }^{2}u}{\partial t^2}-m_c\frac{{\partial }^{2}u}{\partial t^2}=0$$

(16a)

$$\delta w:\frac{\partial Q}{\partial x}+F(x,t)+F_s-m_f\frac{{\partial }^{2}w}{\partial t^2}-2m_{f}V\frac{{\partial }^{2}w}{\partial x\partial t}-m_f{V}^2\frac{{\partial }^{2}w}{\partial x^2}-k_{w}w+k_g\frac{{\partial }^{2}w}{\partial x^2}=0$$

(16b)

$$\delta \phi :\frac{\partial M}{\partial x}-Q-\left(J_c+J_f\right)\frac{{\partial }^2\phi }{\partial t^2}=0$$

(16c)

The axial displacement of the carbon nanotubes is neglected, the shear force $Q$ in equation (17) above is expressed as:

$$Q=\beta GA\left(\frac{\partial w}{\partial x}+\phi \right)$$

(17)

where $\beta$ denotes the shear correction factor, and $G$ denotes the shear modulus.

By submitting Eqs.(6) and (8) into Eq (12).the bending moment $M$can be obtained:

$$M-{\left(ea\right)}^2\frac{{\partial }^{2}M}{\partial x^2}=E{I}^{\ast }\left(1-l^2\frac{{\partial }^2}{\partial x^2}\right)\frac{\partial \phi }{\partial x}$$

(18)

To take the first order partial derivative of $x$ in equation (19) gives:

$$\frac{\partial M}{\partial x}-{\left(ea\right)}^2\frac{{\partial }^{3}M}{\partial x^3}=E{I}^{\ast }\left(1-l^2\frac{{\partial }^2}{\partial x^2}\right)\frac{{\partial }^2\phi }{\partial x^2}$$

(19)

By submitting Eqs. (18) and (20).The final equation for the control equation of the Eq.(17) fluid-conveying SWCNT can be obtained as:

$$\begin{array}{l}\beta GA\left(\frac{{\partial }^{2}w}{\partial x^2}+\frac{\partial \phi }{\partial x}\right)-\left(m_c+m_f\right)\frac{{\partial }^{2}w}{\partial t^2}-2m_{f}V\frac{{\partial }^{2}w}{\partial x\partial t}-m_f{V}^2\frac{{\partial }^{2}w}{\partial x^2}-k_{w}w+k_g\frac{{\partial }^{2}w}{\partial x^2}\\ +\eta A{H}_x^2\frac{{\partial }^{2}w}{\partial x^2}+H_s\frac{{\partial }^{2}w}{\partial x^2}=0\end{array}$$

(20a)

$$\begin{array}{l}\beta GA\left(1-{\left(ea\right)}^2\frac{{\partial }^2}{\partial x^2}\right)\left(\frac{\partial w}{\partial x}+\phi \right)-E{I}^{\ast }\left(1-l^2\frac{{\partial }^2}{\partial x^2}\right)\frac{{\partial }^2\phi }{\partial x^2}\\ +\left(J_c+J_f\right)\left(1-{\left(ea\right)}^2\frac{{\partial }^2}{\partial x^2}\right)\frac{{\partial }^2\phi }{\partial t^2}=0\end{array}$$

(20b)

4. Wave Propagation Analysis

The solution to the wave equation of Eqs. (21) can be stated as:

$$w=W{e}^{i(kx-\omega t)}\phi =\Phi e^{i(kx-\omega t)}$$

(21)

where $W$ and $\Phi$ denote the amplitude of the vibration of the simple harmonic and the amplitude of the angular vibration, respectively, $k$denotes the wavenumber, and $\omega$denote the excitation frequency, and$i=\sqrt{(-1)}$.

By substituting Eqs.(22) into Eq (21), The matrix equation for $W$ and $\Phi$ can be obtained as:

$$\left[\begin{array}{cc}{a}_{11}& a_{12}\\ a_{21}& a_{22}\end{array}\right]\left[\begin{array}{c}W\\ \Phi \end{array}\right]=0$$

(22)

Where

$\begin{array}{l}{a}_{11}=\left(m_c+m_f\right){\omega }^2+2m_{f}ikV\omega +m_f{V}^2{k}^2-k_w\\ -k_g{k}^2-\eta A{H}_x^2{k}^2-H_s{k}^2-\beta GA{k}^2=0\end{array}$$a_{12}=\beta GAik$, $a_{21}=\beta GAik\left(1+{\left(ea\right)}^2{k}^2\right)$$\begin{array}{l}{a}_{22}=\beta GA\left(1+{\left(ea\right)}^2{k}^2\right)+E{I}^{\ast }\left(1+l^2{k}^2\right)k^2\\ -\left(J_c+J_f\right)\left(1+{\left(ea\right)}^2{k}^2\right){\omega }^2\end{array}$

For a system of linear equations with non-singular solutions, let the coefficient matrix determinant (23) to zero:

$$\left|\begin{array}{cc}{a}_{11}& a_{12}\\ a_{21}& a_{22}\end{array}\right|=0$$

(23)

The four solutions of frequency $\omega$ can be obtained by solving the determinant, according to the literature [39]; the low frequency of the real part represents the flexural wave; the high frequency of the real part represents the shear wave, this paper mainly studies the propagation characteristics of the flexural behaviour, the wave frequency is known, we can get the phase velocity of the carbon nanotube can be expressed as:

$$c=\omega /k$$

(24)

5. Numerical results and discussions

Through the above derivation and analysis, the propagation vibration equation of SWCNT bending wave is solved, The effect of different factors on the wave frequency of the fluid-conveying SWCNT wave propagation is discussed in the next. Material parameters for CNTs in the calculation can be obtained as:the Young’s modulus $E=1TPa$, the outer radius $R_o=2.5nm$, the inner radius $R_i=2.16nm$, the effective thickness of SWCNT $h=0.34nm$, the Poisson’s ratio $\nu =0.3$, the density of CNTs ${\rho }_c=2.3\times {10}^3(kg/m^3)$, Shear factor $\beta =5/6$, the magnetic permeability $\eta =4\pi \times {10}^{-7}$, the surface Young’s modulus $E_s=35.3N/m$, the surface residual tension $\tau =0.31N/m$, the length of nanotube $L=50nm$.

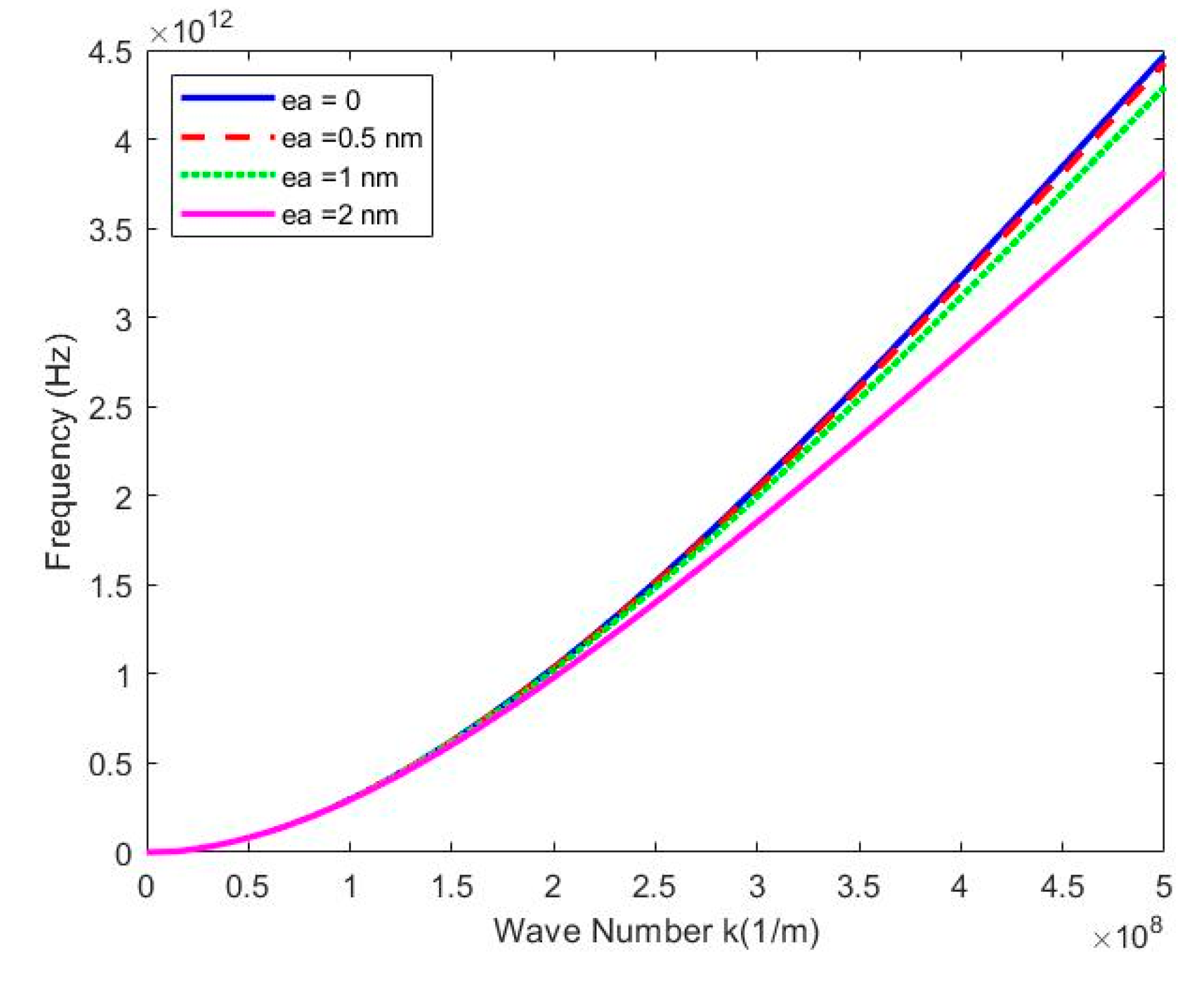

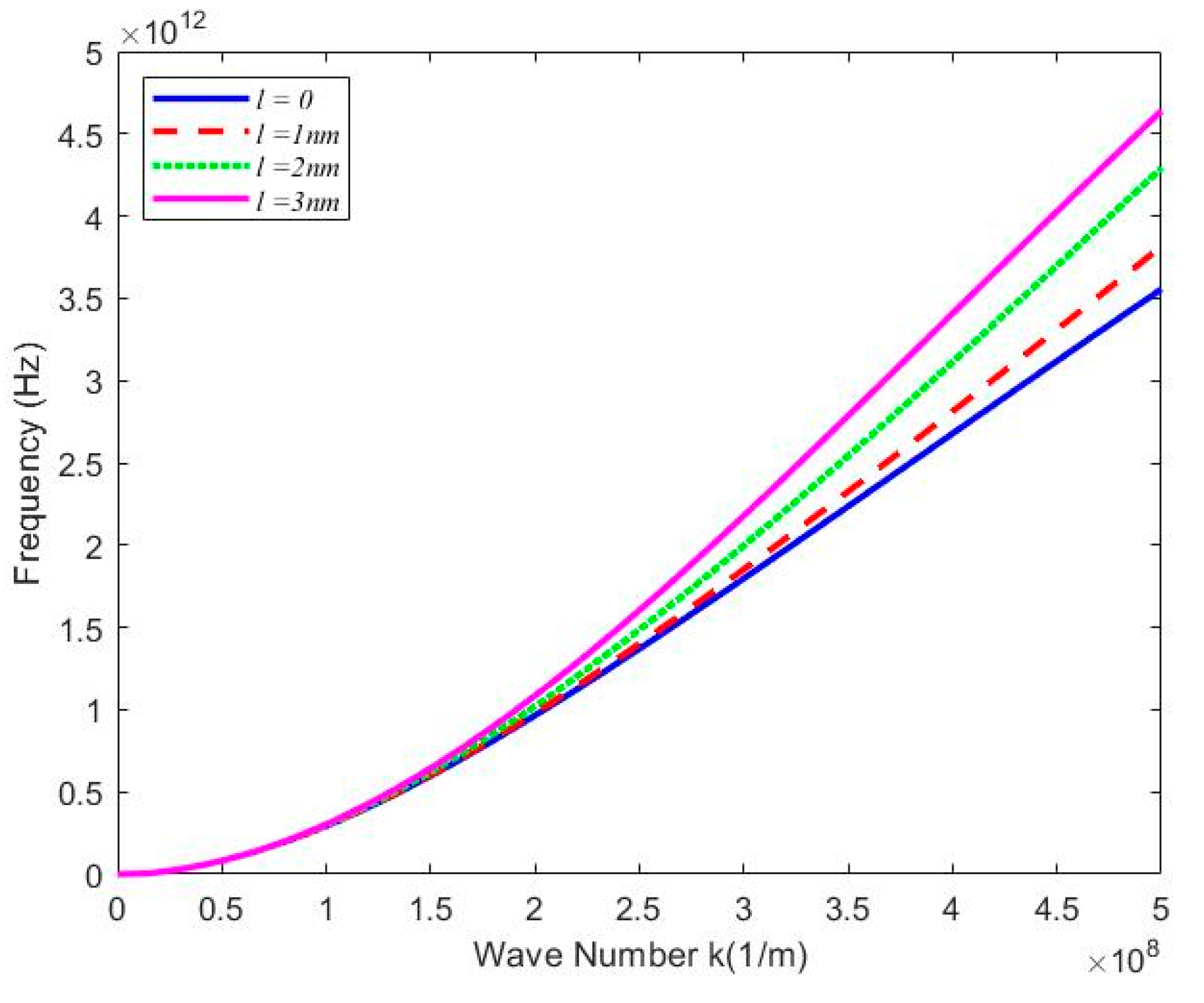

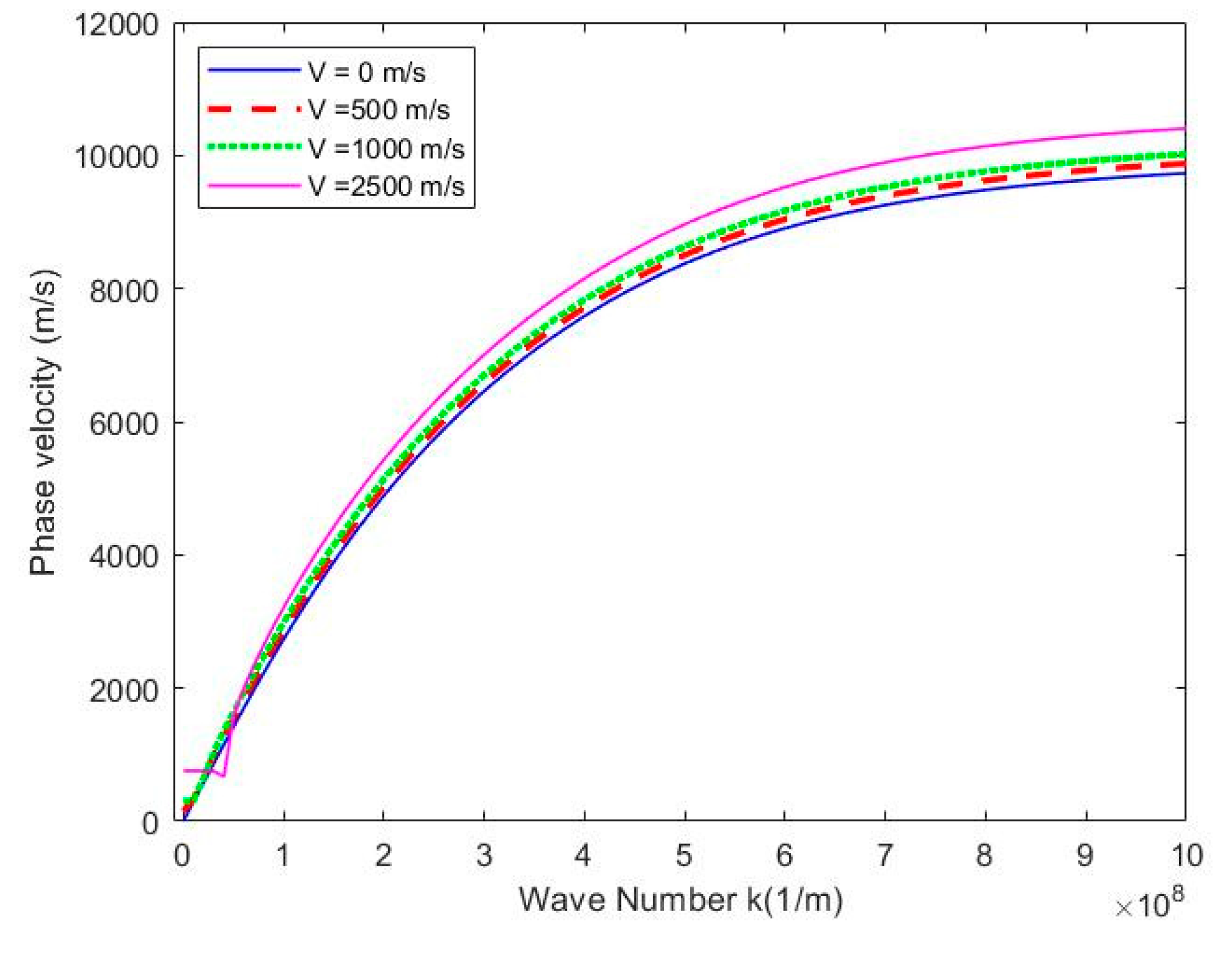

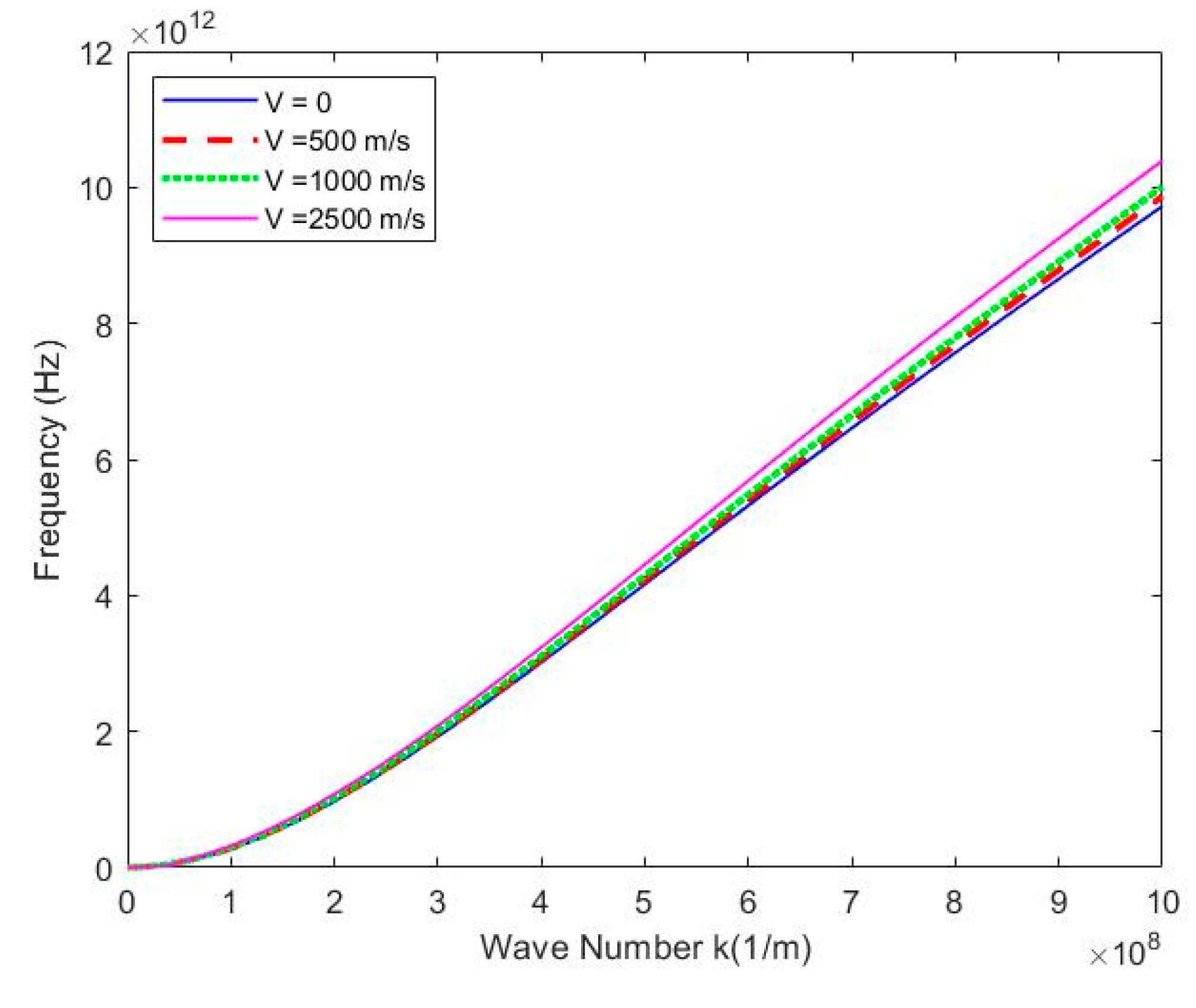

SWCNT with strain gradient coefficients $l=2nm$ are considered, neglecting magnetic field and influence of surrounding elastic medium;With $H_x=k_w=k_g=E_s=\tau =0$. $V=1000m/s$, and fluid density $1000kg/m^3$, The correlation between the flexural frequency and the wavenumber k for different values of the nonlocal coefficient is shown in Figure 2, SWCNT wave frequency increases as wavenumber $k$ increases, it is observed that for the same numberwaves $k$, the wave frequency of CNTs decreases as the nonlocal coefficients increases, which means that increasing the nonlocal coefficients hinders wave propagation. As shown in Figure 3, nonlocal parameters $ea=1nm$, other parameters are the same as above, SWCNT wave frequency increases with the increase of wavenumber $k$, as the strain gradient increases, the flexural frequency increases; which implies that the wave propagation is reinforced owing to strain gradient effect. When the wave number $k>3\times 10^8/m$, this variation will be more apparent. The conclusion is the same as that reached by Yu et al. [40].With $H_x=k_w=k_g=E_s=\tau =0$. small scale parameters $ea=1nm,l=2nm$. $V=1000m/s$, and fluid density $1000kg/m^3$, Figure 4 and Figure 5 represent the variation of flexural frequency with and phase velocity with different flow velocity, As the fluid flow velocity increases, the flexural frequency of SWCNT are gradually increasing. When wave number $k<5\times 10^8/m$, the influence of increasing wavenumber on the phase velocity of CNT is noticeable.

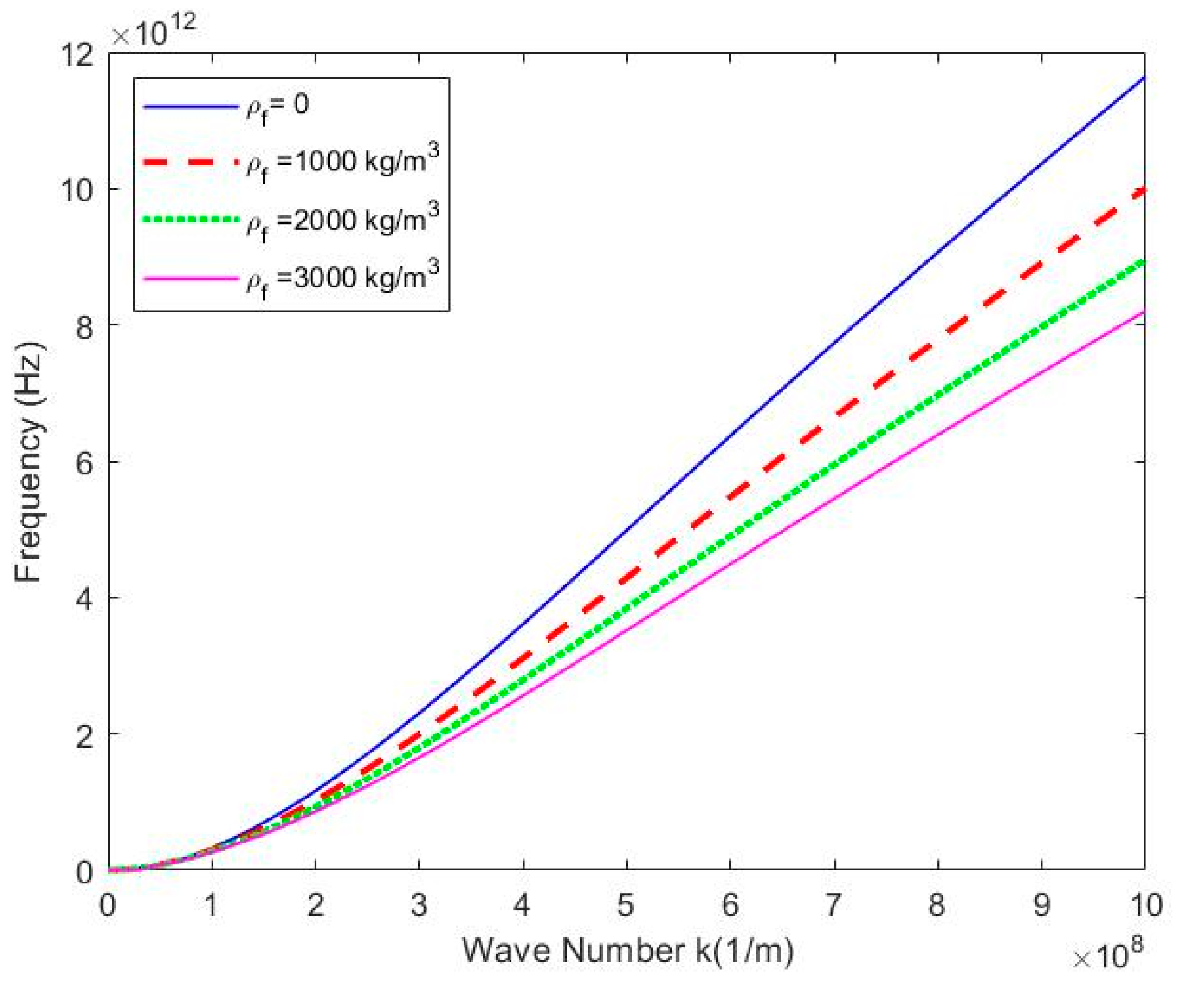

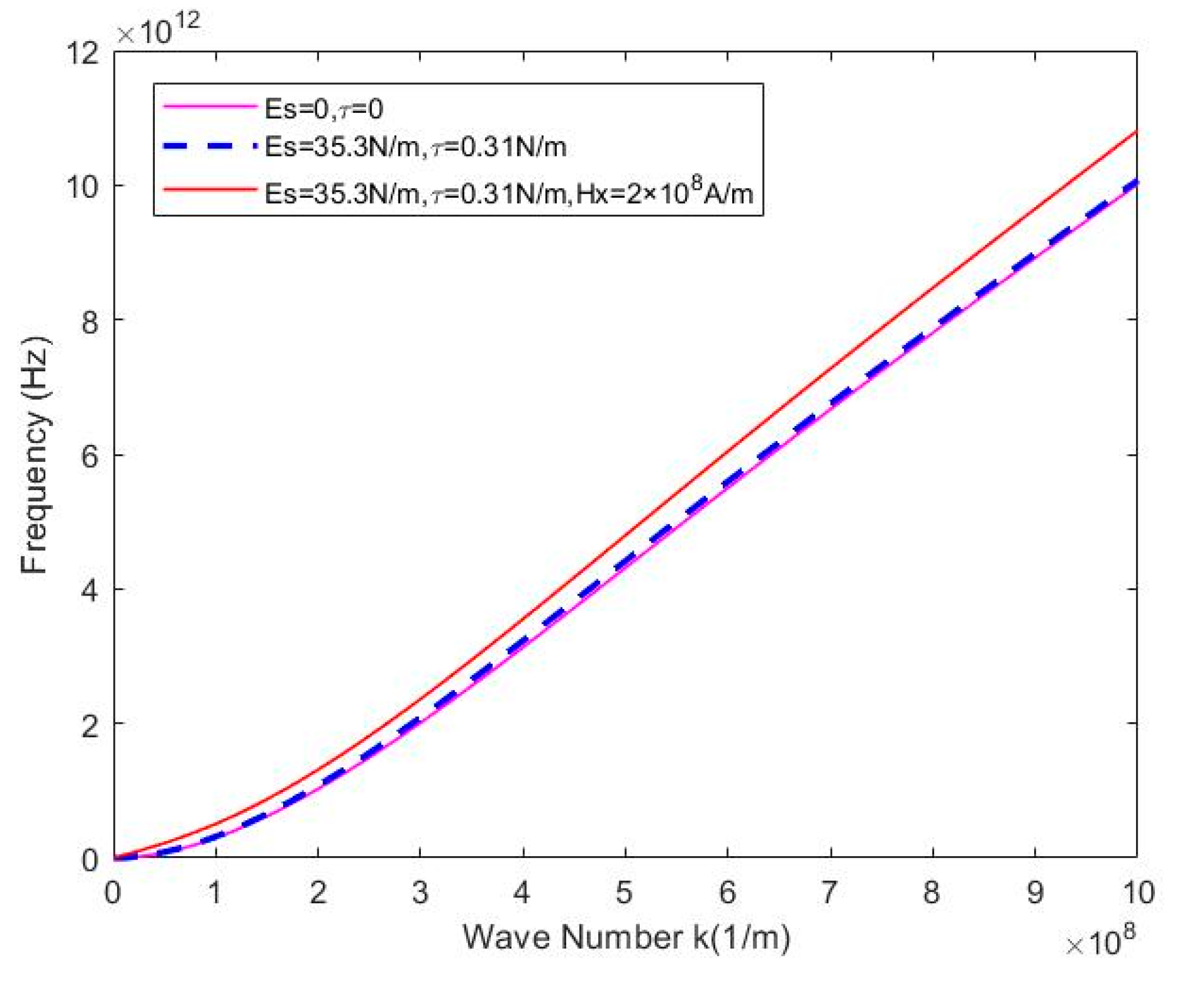

Figure 6 and Figure 7 shows the effect flexural frequency and phase velocity variations of SWCNT under different fluid density respectively. Wih small scale parameters $ea=1nm,l=2nm,V=1000m/s$, If not specified, the other physical parameters are neglected when a parameter variable is considered. It is worth noting that for the same wavenumber $k$, with the increases of the density of fluid, both the flexural frequency and phase velocity decrease, which indicates that the increase in fluid density can make the SWCNT stiffer. Figure 8 depicts the influence of with or without surface effect on the wave frequency characteristics, With $H_x=2\times {10}^{8}A/m,V=1000m/s,{\rho }_f=1000kg/m^3,ea=1nm,l=2nm,E_s=35.3N/m,\tau =0.31N/m$, the surrounding elastic medium is neglected. From Figure 8, it can be concluded that the frequency of waves with surface effects is higher than the frequency of waves without surface effects. In addition, in the presence of both magnetic fields and surface effects, the wave frequencies increases significantly.

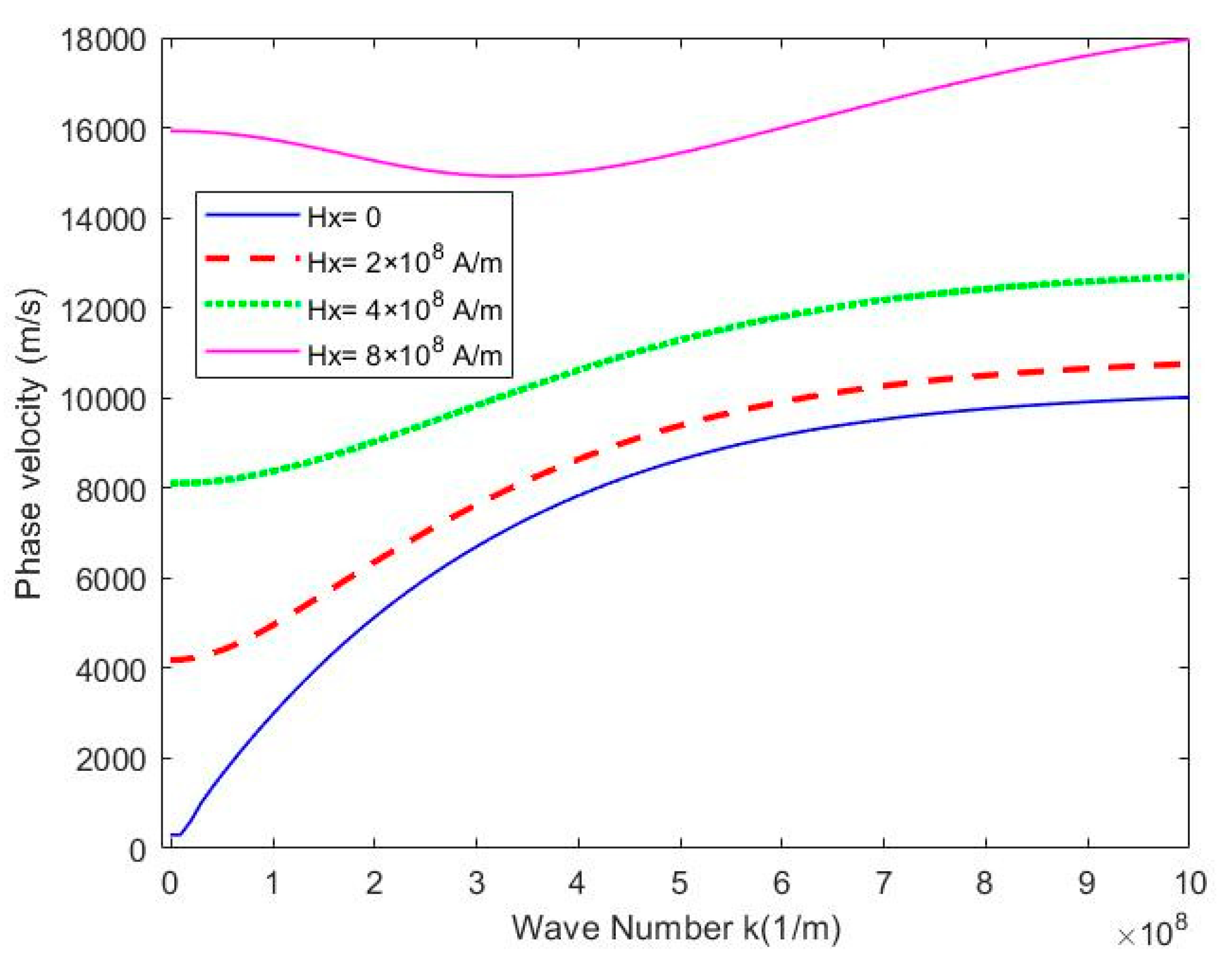

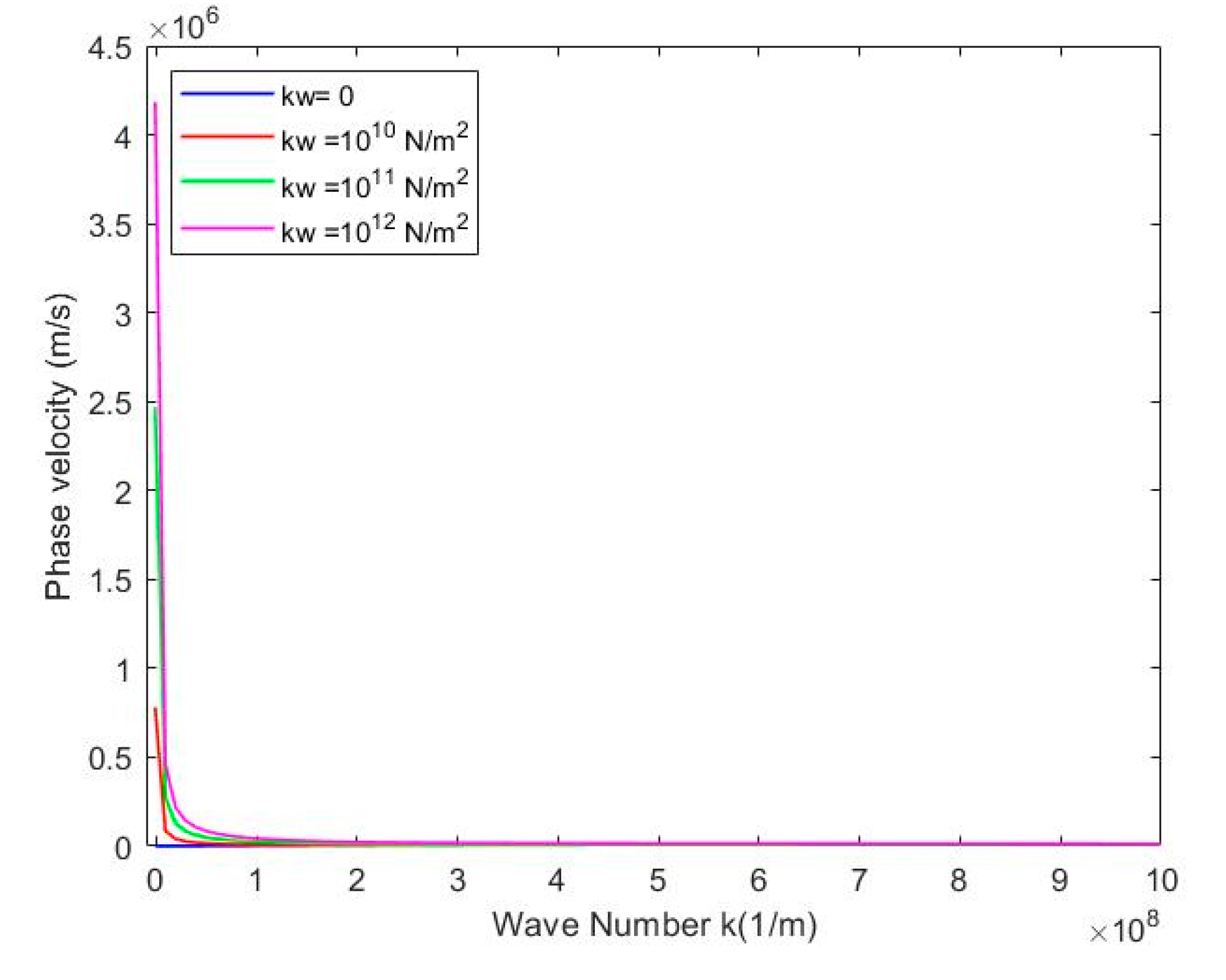

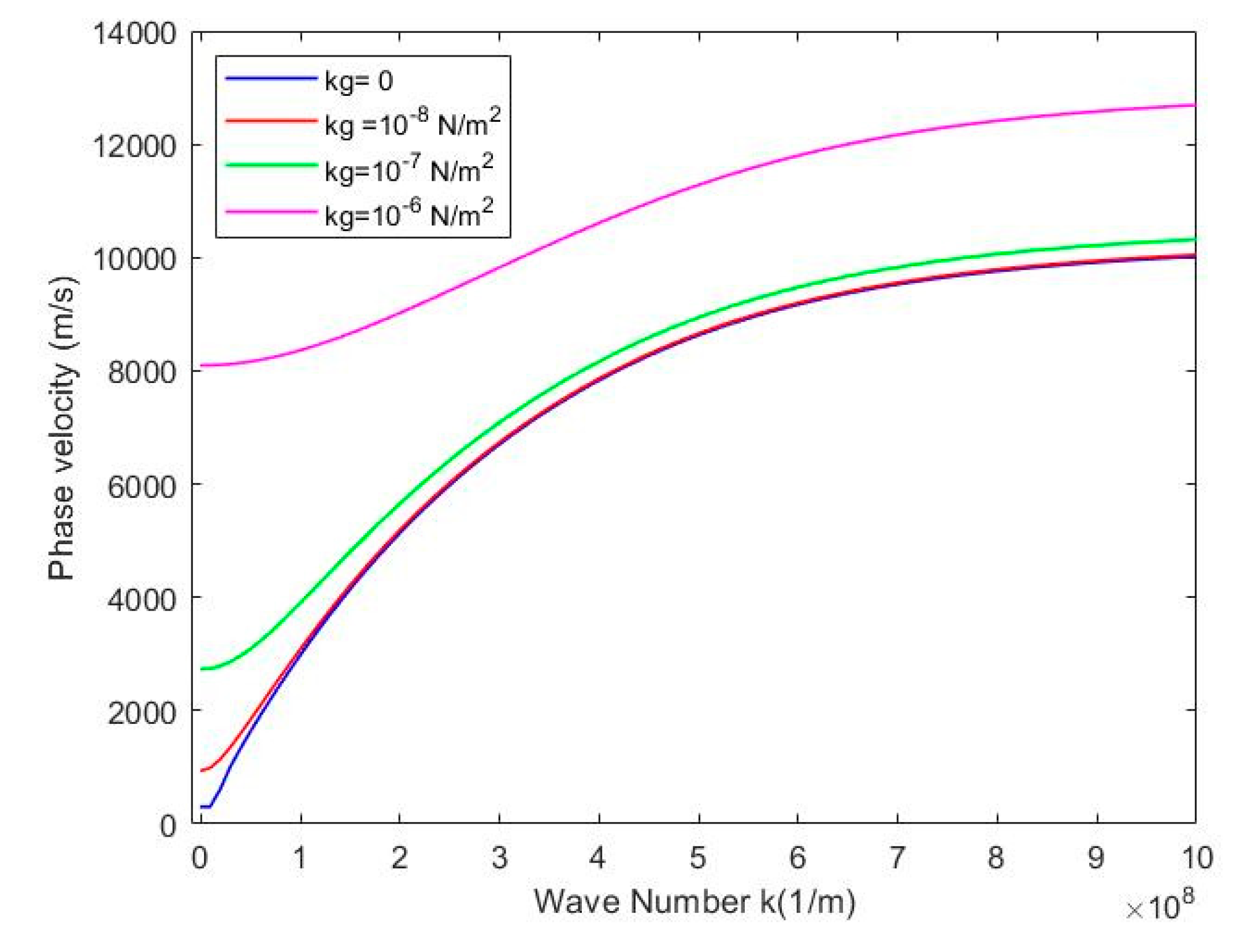

Figure 9 illustrates the SWCNT phase velocity variation with different magnetic field fluxes, With $V=1000m/s,{\rho }_f=1000kg/m^3,ea=1nm,l=2nm$, the shear stiffness coefficients, elastic stiffness coefficients and surface effect are neglected. as the wavenumber increases, the phase velocity gradually increases. It is not difficult to find that with the increase of magnetic field flux, the SWCNT phase velocity also increases. Figure 10 and Figure 11 represents the effect of the elastic stiffness coefficient $k_w$and the shear stiffness coefficient $k_g$ on the dynamic response, respectively. From Figure 10, it can be found that when the wavenumber started to increase, the phase velocity decreases sharply, and eventually it comes close to a minimum value; as shown in Figure 11, with an increases of shear stiffness coefficient, the phase velocity increases.

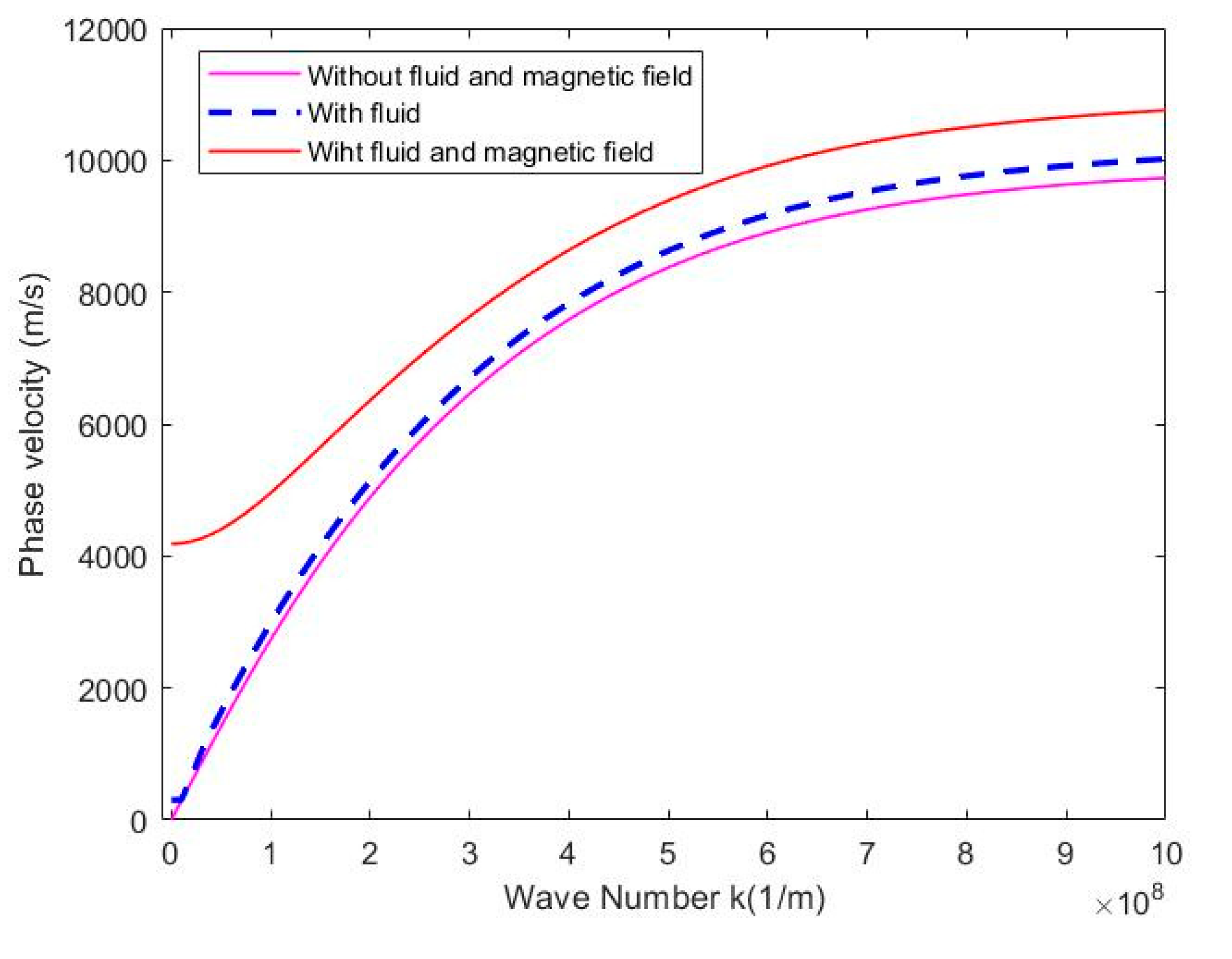

Figure 12 describes the phase velocity propagation characteristics of the SWCNT with and without magnetic field or fluid velocity, With $V=1000m/s,{\rho }_f=1000kg/m^3,ea=1nm,l=2nm,H_x=2\times {10}^{8}A/m,$the elastic stiffness $k_w,$ the shear stiffness $k_g$, and surface effect are neglected. as shown in Figure 12, It is noted that at the same wavenumber, In the presence of the magnetic field, the phase velocity of the CNT increases with the increase of the fluids flow.

6. Conclusion

Based on the theory of non-local strain gradients, this paper investigates the wave behaviour characteristics in the complex physical environment, Using Timoshenko beam theory and the Hamiton’s variational principle to derive the control equations for the fluid-conveying SWCNT, The influence of flow velocity, fluid density, small-scale parameters, magnetic field change, shear stiffness coefficients, elastic stiffness coefficients and surface effects on the elastic waves of carbon nanotubes is discussed and analysed.

The research indicates that: For the fluid-conveying SWCNT increasing the non-local coefficients hander carbon nanotube wave propagation, however, increasing the strain gradient coefficients promotes wave propagation. the phase velocity gets larger for CNTs due to the increase in magnetic flux strength and the existence of surface effects, the density of fluid increases make the stiffness of the CNTs, .In addition, The fluid velocity and surrounding elastic medium also play an noticeable role in the flexural frequency and phase velocity of the fluid-conveying SWCNT. The above derivative study can provide some theoretical support for nanodevice design and development.
