NADP-Dependent Malic Enzyme Genes in Sweet Pepper Fruits: Involvement in Ripening and Modulation by Nitric Oxide (NO)

1. Introduction

NADPH (reduced nicotinamide adenine dinucleotide phosphate) is a central cofactor in a wide range of biosynthetic pathways that are essential in the metabolism of the plant cells such as the Calvin cycle, carotenoids, fatty acids or the aromatic amino acids (Phe, Tyr, Trp) as well as proline [1,2,3]. Furthermore, NADPH also sustains cellular detoxification and defense, for example, it is necessary to support the glutathione reductase activity as part of the ascorbate-glutathione cycle, or the generation of superoxide radical by the NADPH oxidase (NOX), also designated as respiratory burst oxidase homolog (Rboh) [4,5,6]. But also NADPH is necessary for the nitric oxide (NO) generation through the L-arginine-dependent NO synthase-like activity [7].

The NADP-dependent malic enzyme (NADP-ME, EC 1.1.1.40) is one of the NADPH-generating dehydrogenases that catalyzes the reversible oxidative decarboxylation of L-malate using NADP⁺ as a coenzyme, to generate pyruvate, CO₂ and NADPH, in the presence of a bivalent cation either Mg²⁺ or Mn²⁺. NADP-ME plays a multirole in plants [8,9] including seed germination [10], development [11], and fruit physiology [12,13,14,15,16], but also in the mechanism of response against diverse environmental stresses [17] including salinity [18,19,20], water stress [21,22], mechanical wounding [23], arsenic [24,25,26], chromium [27], herbicides [28], low-temperature [29], and potassium deficiency [30,31].

Pepper (Capsicum annuum L.) is an important horticultural crop whose fruit is worldwide consumed. It is characterized to contain a significant quantity of vitamin C, provitamin A, and mineral such as calcium as well as other compounds with healthy properties [32]. Recently, it has been shown that during the ripening of pepper fruits, there is an noteworthy metabolism of reactive oxygen and nitrogen species (ROS and RNS, respectively), which has associated a physiological nitro-oxidative stress, where different ROS-generating and antioxidant systems are differentially modulated [33,34,35,36,37,38,39,40]. Previous studies have described that NADP-ME activity is modulated during the ripening of pepper fruit [41,42] but, to our knowledge, there is not any information about the modulation of genes that code for NADP-MEs in pepper fruits. Therefore, the main goal of this study was to identify the NADP-ME genes in pepper fruits and how they are modulated during ripening and by the effect of the exogenous application of NO. Additionally, four CaNADP-ME isoenzymatic activities were detected in fruits.

2. Results

2.1. Identification of the NADP-ME Genes in Pepper (Capsicum annuum L.): Sequence and Cis-Regulatory Elements

Based on the available NADP-ME sequences in Arabidopsis thaliana, the analysis of the Capsicum annuum L. genome has allowed us to identify five NADP-ME genes designated CaNADP-ME1 to CaNADP-ME5, each one distributed in chromosomes (Chr) 3, 5, 8, 9, and 12, respectively. On the other hand, from data-mining of the transcriptome obtained in sweet pepper fruits [33], four of these genes, CaNADP-ME2 to CaNADP-ME5, were identified, indicated in red color inTable 1. Some properties of these five genes and their corresponding encoded proteins including the number of amino acids (aa), molecular mass (kDa), and their putative subcellular localization were also recapitulated (Table 1).

The analysis of the genomic organization indicated that CaNADP-ME1, CaNADP-ME3, and CaNADP-ME5, comprise 20 exons and 19 introns, whereas CaNADP-ME2 and CaNADP-ME4 have 19 exons and 18 introns. What is remarkable is that the length of the introns is very different (see for example CaNADP-ME1 and CaNADP-ME4), what makes the length of the corresponding genes oscillate between 5000 and 9000 nucleotides (Figure 1).

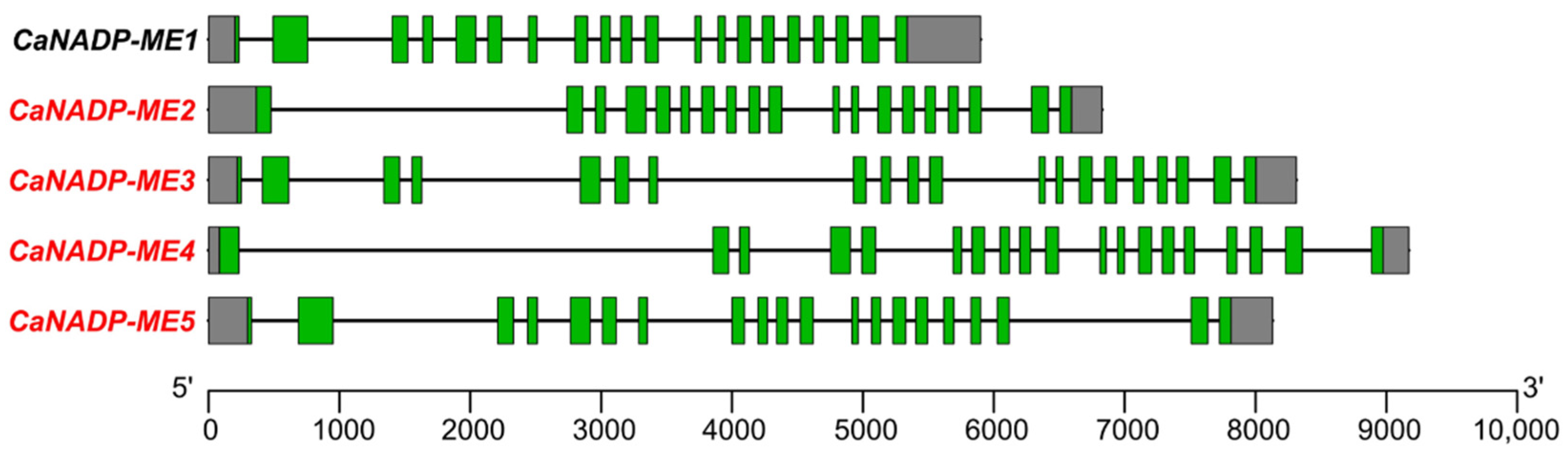

Figure 1. Genomic organization of the pepper CaNADP-ME gene family. The structure of the genes is shown with exons indicated by green boxes, and introns shown as black lines. Untranslated regions are shown by grey boxes. Exon–intron regions are drawn at scale.

Figure 1. Genomic organization of the pepper CaNADP-ME gene family. The structure of the genes is shown with exons indicated by green boxes, and introns shown as black lines. Untranslated regions are shown by grey boxes. Exon–intron regions are drawn at scale.

As part of the characterization of these genes, the identification of cis-regulatory elements in 1500 upstream regions from the transcription starting point of the CaNADP-ME genes was accomplished. Figure 2 displays the Heatmap analysis of 24 cis-regulatory elements of several families of elements involved in various processes including (i) light responsive; (ii) stress; and (iii) phytohormones. Nevertheless, ABRE (ACGT-containing abscisic acid response element) which is involved in the abscisic acid (ABA) responsiveness, was the cis-regulatory element that exert the most remarkable positive effect on CaNADP-ME4. This was followed by Box4, as part of the light-responsive family that affected positively CaNADP-ME2 and CaNADP-ME5.

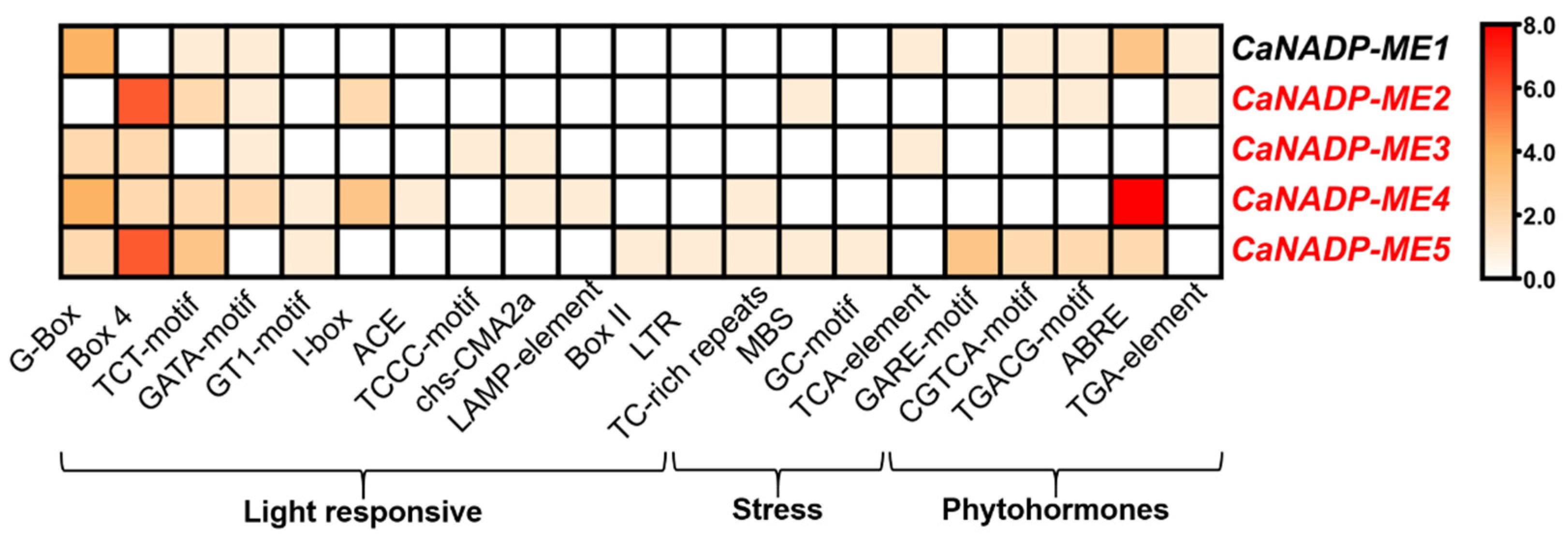

Figure 2. Heatmap of cis-regulatory elements corresponding to the 1500 bp upstream region from the transcription start point of CaNADP-ME genes. The cis-regulatory elements were grouped according to their functional implications including DNA, regulation and cell cycle, light responsive, stress and phytohormones. Motifs were identified in the PlantCARE database.

Figure 2. Heatmap of cis-regulatory elements corresponding to the 1500 bp upstream region from the transcription start point of CaNADP-ME genes. The cis-regulatory elements were grouped according to their functional implications including DNA, regulation and cell cycle, light responsive, stress and phytohormones. Motifs were identified in the PlantCARE database.

2.2. NADP-ME Proteins from Pepper: Sequence, Phylogenetic Analysis and Modeling

The protein analysis of the identified CaNADP-MEs (Table 1) indicates that the subunit molecular mass ranged from 64 kDa to 71 kDa, and they were distributed in the plastid and cytosol. The analysis of the primary structure of these CaNADP-MEs and their alignment allowed discriminating ten amino acid motifs. Figure 3a shows the distribution of these motifs in the different isozymes and Figure 3b illustrates the sequence of amino acids motifs where the height of each amino acid symbol is proportional to the degree of conservation in the consensus sequences. Based on previous information on the plant NADP-ME family [43,44,45], motif 1 contains the sequence VYTPTVGEAC which corresponds to the NADP-binding site 1. Nevertheless, a second putative NADP binding site recognized in maize NADP-ME corresponds to the sequence ILGLGDLGC, and it is also present in motif 2. On the other hand, motif 3 includes three residues involved in the metal binding which are E229, D330, and D354 (using the numbering of NADP-ME1). Figure S1 shows the amino acid alignment of these 5 CaNADP-MEs. The conserved residues involved in the binding of NADP and metal (Mg²⁺ or Mn²⁺) are remarked with boxes.

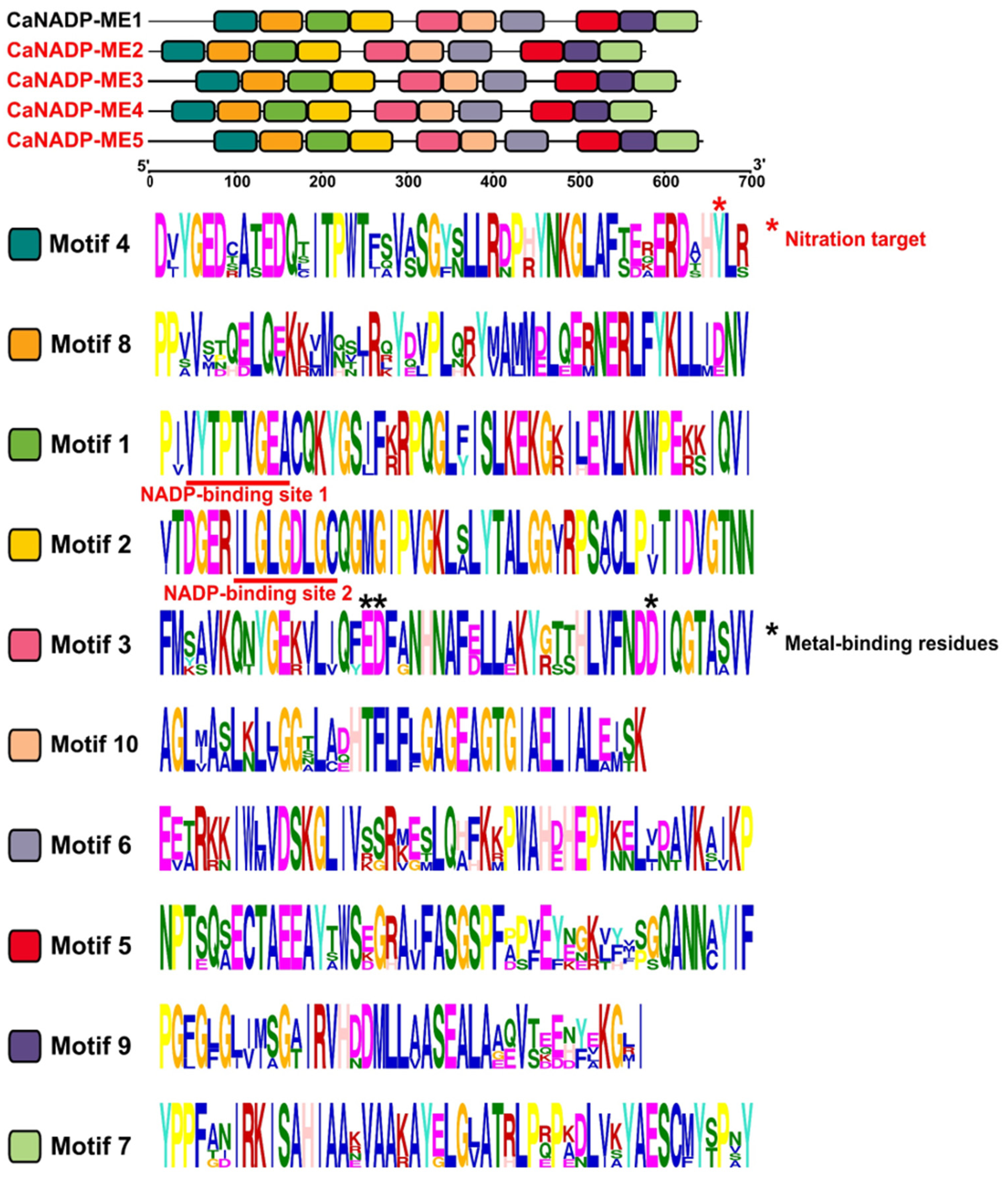

Figure 3. Identification and position of consensus amino acid motifs for pepper CaNADP-MEs. (a) Distribution of conserved motifs. The distribution of conserved motifs, numbers 1–10, are represented by boxes of different colors. (b) Amino acids sequence of the motifs. Ten amino acid motifs with various sizes were identified. The height of each amino acid symbol is proportional to the degree of conservation in the consensus sequences depicted in the ten motifs. Sequence logos of conserved motifs were created by MEME.

Figure 3. Identification and position of consensus amino acid motifs for pepper CaNADP-MEs. (a) Distribution of conserved motifs. The distribution of conserved motifs, numbers 1–10, are represented by boxes of different colors. (b) Amino acids sequence of the motifs. Ten amino acid motifs with various sizes were identified. The height of each amino acid symbol is proportional to the degree of conservation in the consensus sequences depicted in the ten motifs. Sequence logos of conserved motifs were created by MEME.

The phylogenetic analysis among the NADP-MEs from several plant species including pepper (Capsicum annuum), Arabidopsis thaliana, maize (Zea mays), grape (Vitis vinifera), bean (Phaseolus vulgaris), and rice (Oryza sativa subs. japonica), among others, allowed the finding of four main groups designated as I, II, III, and IV which are represented by different colors in Figure 4. The CaNADP-MEs found in pepper fruit are indicated in red. Group I, which includes CaNADP-ME2 and CaNADP-ME4, consists of both monocot and dicot plants. Groups III (CaNADP-ME1 and CaNADP-ME5) and IV (CaNADP-ME3) comprise dicot plants. On the other hand, group II is exclusive of monocots.

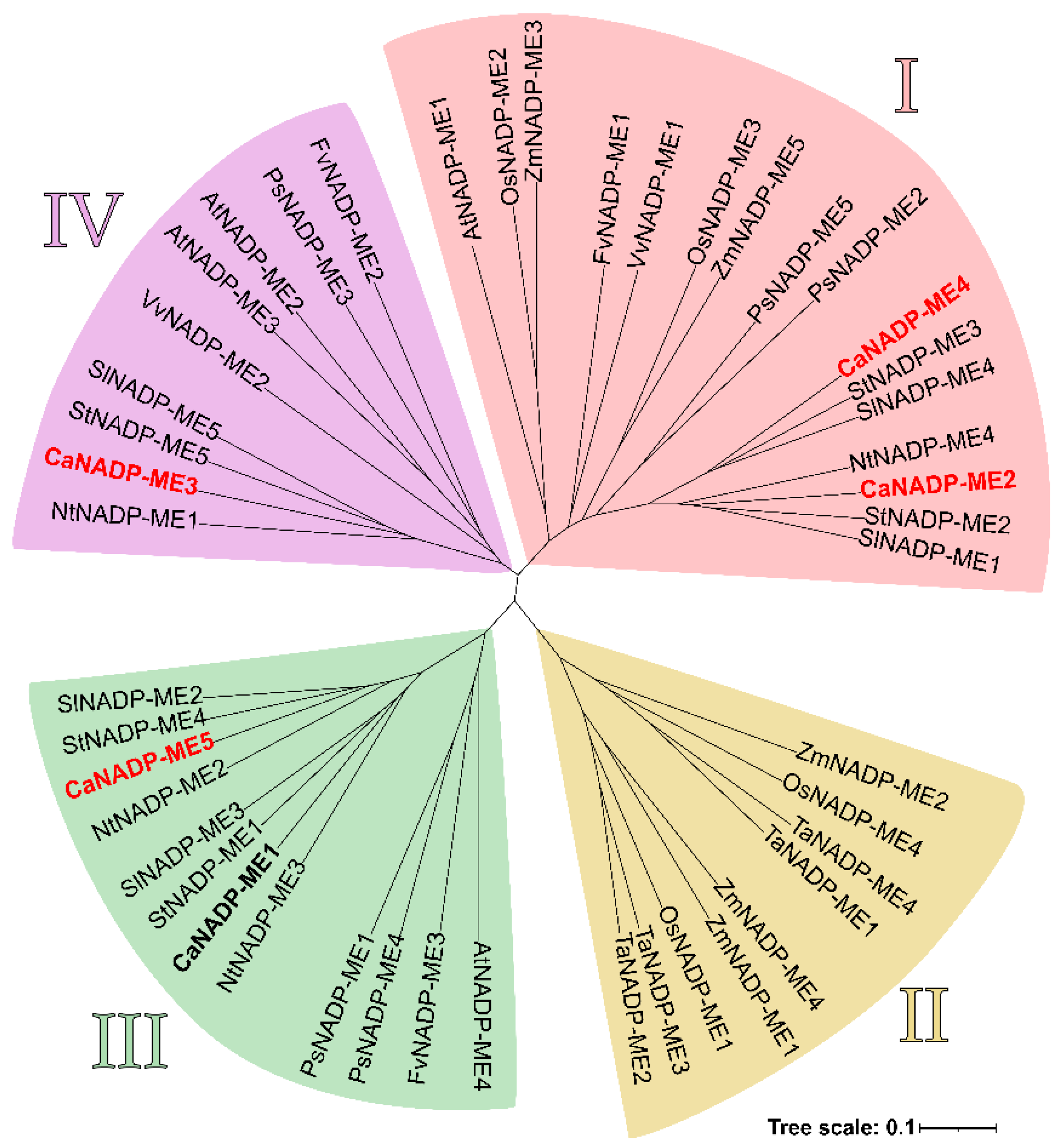

Figure 4. Phylogenetic relationships among NADP-MEs from different plant species. Clusters (I-IV) are displayed using different colors. The NADP-MEs identified in pepper are highlighted in bold. Those found specifically in the sweet pepper fruit are indicated in red. Species abbreviations: At (Arabidopsis thaliana), Ca (Capsicum annuum), Fv (Fragaria vesca subs. vesca), Nt (Nicotiana tabacum), Os (Oryza sativa subs. japonica), Ps (Pisum sativum), Sl (Solanum lycopersicum), St (Solanum tuberosum), Ta (Triticum aestivum), Vv (Vitis vinifera), and Zm (Zea mays).

Figure 4. Phylogenetic relationships among NADP-MEs from different plant species. Clusters (I-IV) are displayed using different colors. The NADP-MEs identified in pepper are highlighted in bold. Those found specifically in the sweet pepper fruit are indicated in red. Species abbreviations: At (Arabidopsis thaliana), Ca (Capsicum annuum), Fv (Fragaria vesca subs. vesca), Nt (Nicotiana tabacum), Os (Oryza sativa subs. japonica), Ps (Pisum sativum), Sl (Solanum lycopersicum), St (Solanum tuberosum), Ta (Triticum aestivum), Vv (Vitis vinifera), and Zm (Zea mays).

NADP-ME is considered to be a tetrameric enzyme [46], and Figure 5 depicts the model of the quaternary structure of plastidial CaNADP-ME3 present in pepper fruits where it is remarked the binding sites for NADP and metals in each one of the subunits which are colored in yellow, green, cyan, and dark blue.

Figure 5. Model of the quaternary structure of CaNADP-ME3 present in pepper fruits. Subunits are colored in yellow, green, cyan, and dark blue. On the left, the amino acid residues involved in the binding of NADP and metals in one of the subunits are shown in detail. On the right, the binding site of the subunits is shown highlighting the Tyr107 residues which are considered as nitration targets.

Figure 5. Model of the quaternary structure of CaNADP-ME3 present in pepper fruits. Subunits are colored in yellow, green, cyan, and dark blue. On the left, the amino acid residues involved in the binding of NADP and metals in one of the subunits are shown in detail. On the right, the binding site of the subunits is shown highlighting the Tyr107 residues which are considered as nitration targets.

2.3. Fruit CaNADP-ME Genes: Expression during Ripening and by Exogenous NO Treatment

The analysis of the RNAseq of sweet pepper fruits of the four CaNADP-ME genes was carried out at different ripening stages and after the exposition to exogenous NO gas. Supplementary Figure S1 illustrates the experimental design which includes green immature (G), breaking point (BP1), and red ripe (R) fruits. Also, for the exposition to exogenous NO gas, two additional groups were established: fruits treated with 5 ppm NO for 1 h (BP2 + NO) and another group that was not treated with NO (BP2 − NO) corresponding to the control group. Figure 6 shows the time-course analysis of the four genes identified in pepper fruits. CaNADP-ME3 and CaNADP-ME5 were upregulated during fruit ripening whereas CaNADP-ME2 and CaNADP-ME4 were downregulated. Exogenous NO treatment of fruit caused the downregulation of CaNADP-ME4 but the other genes were unaffected.

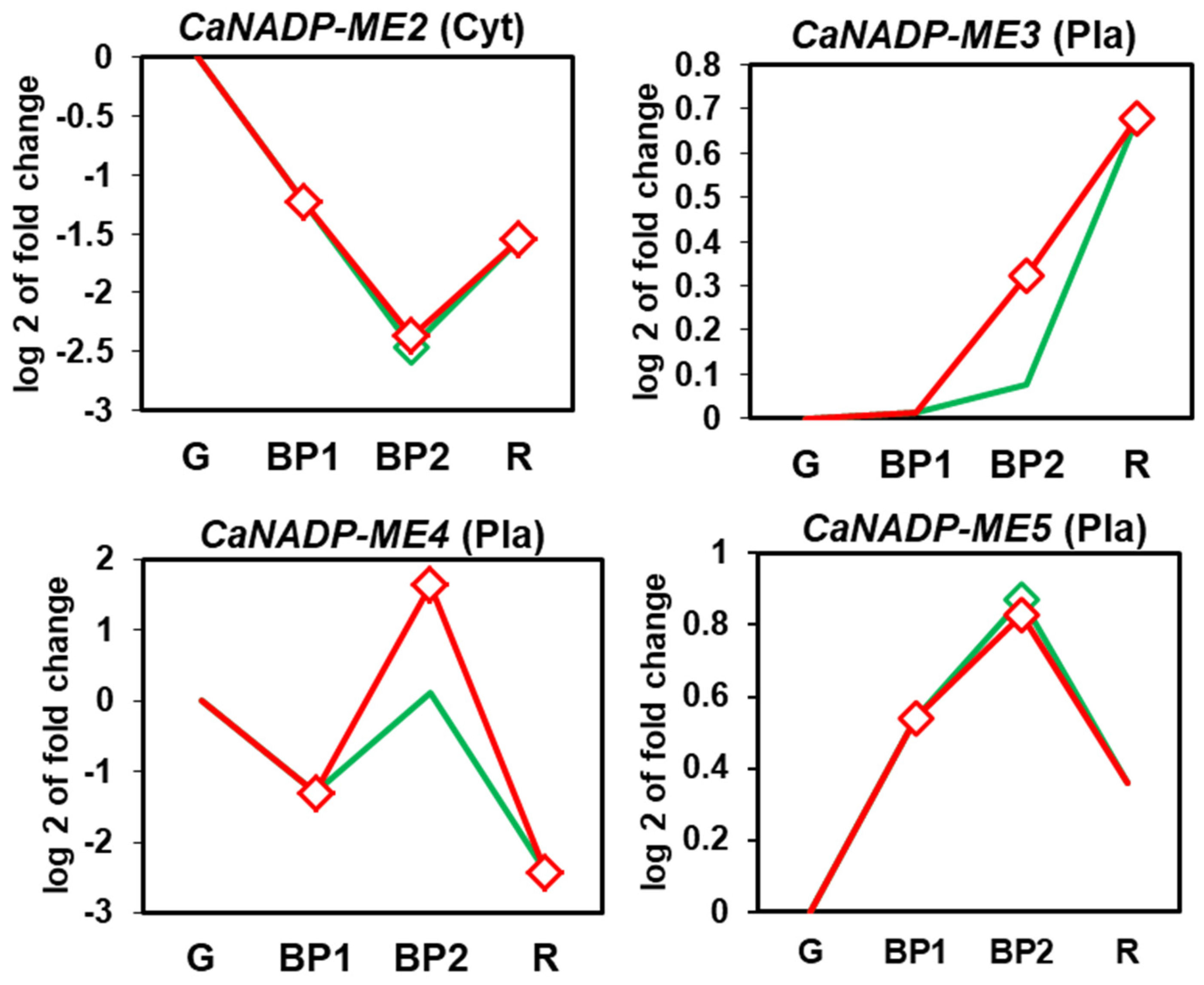

Figure 6. Time-course expression analysis of four CaNADP-ME genes (RNA-Seq) under natural ripening conditions and after exogenous NO treatment. Samples of sweet pepper fruits at different ripening stages correspond to immature green (G), breaking point 1 (BP1), breaking point 2 with (green line) and without (red line) NO treatment (BP2 + NO and BP2 – NO, respectively) and ripe red (R). Statistically significant changes in expression levels (p < 0.05) compared to green fruit (G) were indicated with diamonds.

Figure 6. Time-course expression analysis of four CaNADP-ME genes (RNA-Seq) under natural ripening conditions and after exogenous NO treatment. Samples of sweet pepper fruits at different ripening stages correspond to immature green (G), breaking point 1 (BP1), breaking point 2 with (green line) and without (red line) NO treatment (BP2 + NO and BP2 – NO, respectively) and ripe red (R). Statistically significant changes in expression levels (p < 0.05) compared to green fruit (G) were indicated with diamonds.

2.4. Identification of the CaNADP-ME Isozymes in Pepper Fruits

To get deeper insights into the characterization of the CaNADP-ME enzyme system in pepper fruits, an in-gel analysis of the activity was accomplished. Due to previous assays showing the presence of very weak activity bands in crude extracts from pepper fruits, it was accomplished an enriched 50–75% ammonium-sulfate protein fractionation. Figure 7 illustrates the enzymatic pattern of the CaNADP-ME isozymes detected in green pepper fruits. Using more than 240 μg protein of this enriched fraction, four isozymes were detected in polyacrylamide gels and were designated as CaNADP-ME I to CaNADP-ME IV, according to their increasing electrophoretic mobility. CaNADP-ME III and IV were the most abundant isozymes, representing 33 and 26%, respectively. This was followed by CaNADP-ME II (24%), and CaNADP-ME I (17%).

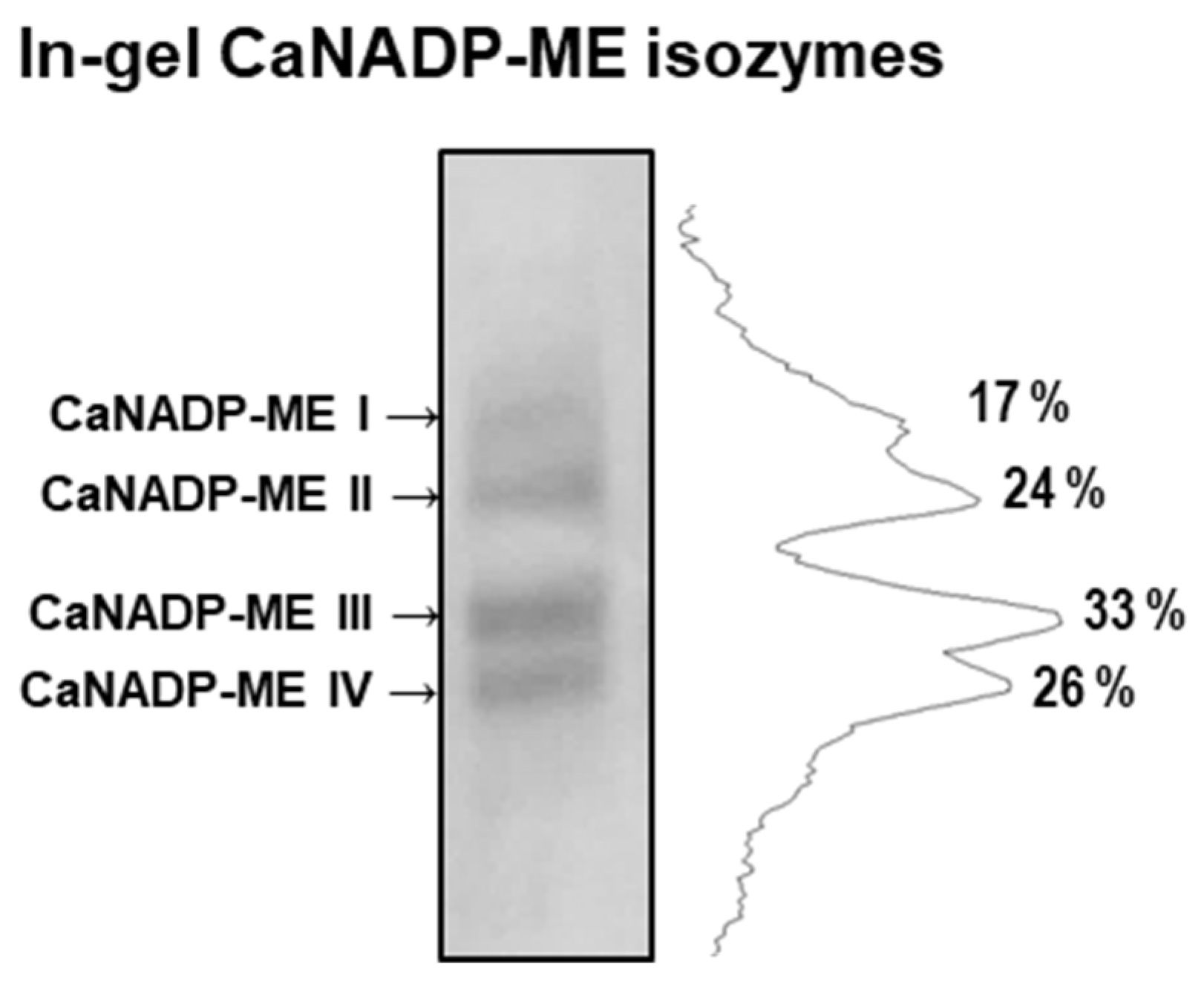

Figure 7. Isoenzymatic NADP-ME activity in green sweet pepper fruits in an enriched 50–75% ammonium-sulfate protein fraction. Protein samples (240 µg per lane) were separated by non-denaturing polyacrylamide gel electrophoresis (PAGE; 8% acrylamide), and activity was detected by the NBT method (left). NADP-ME isozymes were labeled I–IV. Densitometric analysis of these isozymes and their relative quantification (%) were made by the ImageJ program according to the isozyme profiles obtained (right).

Figure 7. Isoenzymatic NADP-ME activity in green sweet pepper fruits in an enriched 50–75% ammonium-sulfate protein fraction. Protein samples (240 µg per lane) were separated by non-denaturing polyacrylamide gel electrophoresis (PAGE; 8% acrylamide), and activity was detected by the NBT method (left). NADP-ME isozymes were labeled I–IV. Densitometric analysis of these isozymes and their relative quantification (%) were made by the ImageJ program according to the isozyme profiles obtained (right).

3. Discussion

Higher plants contain several NADP-ME isozymes with different subcellular locations which play different functions. Usually, they are split into photosynthetic and non-photosynthetic isozymes according to their main physiological functions. Perhaps the best well-known function of chloroplast NADP-ME is the participation in the photosynthesis in the bundle sheath cells of C₄ plants which fix CO₂ into a molecule with four carbon atoms before starting the photosynthetic Calvin-Benson cycle [9,47,48], and also in Crassulacean acid metabolism (CAM) plants [49]. On the other hand, the designated non-photosynthetic NADP-MEs are present in the plastid and cytosol of all types of plants (C₃, C₄, and CAM). Other functions of the NADP-MEs are related to their involvement in malate equilibrium for stomatal movement [50] or pH regulation [51]. However, the generated NADPH is also needed for redox homeostasis [52,53] and in the mechanism of defense against diverse environmental stresses [1,29,54]. For example, in the response of Arabidopsis to the necrotrophic bacterium Pectobacterium carotovorum, it has been shown recently that NADP-ME2 is phosphorylated by the RPM1-INDUCED PROTEIN KINASE (RIPK) to increase the content of cytosolic NADPH, and this allows producing superoxide radical by the respiratory burst oxidase homolog D (RbohD) [6]

3.1. Pepper Genome Contains Five CaNADP-ME Genes but only Four Genes (CaNADP-ME2 to ME5) Are Expressed in Fruits

In previous studies, the presence of NADP-ME in pepper fruits was detected, where the activity increased during the fruit ripening. This suggested that this activity might cooperate with the supply of NADPH during this process [41,42], although it is also necessary for other enzymatic systems such as the Rboh whose activity increases [34], as well as for the lipid biosynthesis. However, to our knowledge, there is no information about the number of genes and isozymes of NADP-ME present in this non-climacteric fruit. The obtained data indicate that among the five CaNADP-ME genes detected in the pepper genome, only 4 were expressed in fruits that were differentially regulated during ripening and under an enriched NO atmosphere.

The number of exons/introns found in pepper CaNADP-ME genes is quite similar to those described for other higher plants. In the case of cytosolic NADP-ME from beans (Phaseolus vulgaris L.), the DNA sequencing of the unique gene allowed the identification of 20 exons [55]. In Arabidopsis thaliana, which contains four NADP-ME genes, it was found that AtNADP-ME1 and AtNADP-ME2 have 19 exons, but AtNADP-ME3 and AtNADP-ME4 have only 18 exons [56]. In maize (Zea mays), the NADP-MEs showed 19 encoding exons, except cNADP-ME2 which has eight, because exons 12–19 are fused [45]. Intron sequences have multiple functions such as regulating alternative splicing, enhancing gene expression, control mRNA transport or chromatin assembly, among others [57,58]. However, in mammal genomes it has been suggested a alternation between the oldest exons, that is, the most conserved, and shorter introns. Conversely, longer introns tend to be between exons that are more contemporary [57]. In pepper, it is remarkable the observed difference in the intron length among the CaNADP-ME genes which can be until 4000 nucleotides. Considering the previous idea, it could be proposed that CaNADP-ME1, which contains the shortest introns, could have the oldest exons.

The encoding NADP-ME enzymes have a high degree of identity with other plant NADP-MEs and they have distinctive domains [45]. Furthermore, the predicted localization of the four identified CaNADP-MEs in fruits was one in the cytosol (CaNADP-ME2) and three in the plastids (CaNADP-ME5), what is analogous to other plant species [9,47,59,60]. Thus, in the model plant Arabidopsis, its genome contains four NADP-ME genes, and three encode for cytosolic isozymes (NADP-ME1 to NADP-ME3), whereas NADP-ME2 is located in plastids [61].

The available information on the NADP-ME in edible fruits is scarce. In the climacteric tomato fruits, the occurrence of NADP-ME has been associated with the relevance of malate in starch metabolism, thus affecting the fruit aging and postharvest softening [12,16,62]. In grape berries (Vitis vinifera L.) fruit, the NADP-ME contributes to the accumulation of malate during ripening [63]. In zucchini fruits, the storage at 15 °C for 2 days, followed by storage at 4 °C for 14 days, attenuates the chilling injury in the fruits, and the analysis of NADP-ME gene expression showed an increase which was accompanied by a concomitant enhancement of G6PDH (glucose-6-phosphate dehydrogenase) gene expression as well as an increase of the battery of antioxidant enzymes [64].

Metabolic analyses have shown that organic acids including malate and citrate are accumulated on a broad range of climacteric and non-climacteric fruits [65]. Thus, in some climacteric fruits malate is used as a substrate during the respiratory burst, whereas in non-climacteric malate is continually accumulated during ripening [66]. During hot pepper (Capsicum chinense) fruit development and ripening, malate content decreased during later developmental stages but it then increases during ripening [67]. Thus, it was suggested a correlation between malate levels and genes involved in the synthesis of starch [68]. A similar correlation was observed to genes associated with cell wall pathways and protein degradation [16]. Although these studies did not analyze the NADP-ME activity, however, it could be assumed that this activity should be involved in the total malate pool considering that the reaction catalyzed by this enzyme is reversible (L-malate ↔ pyruvate). Furthermore, these analyses could be puzzling if it is also considered the malate/oxaloacetate shuttles, a mechanism that involves several dicarboxylate translocators and malate dehydrogenase isozymes that catalyze the reversible interconversion of malate and oxaloacetate using either NAD or NADP, and are located in chloroplasts, mitochondria, and peroxisomes, thus allowing to modulate the ATP/NAD(P)H ratio [69]. Furthermore, malate metabolism also connects chloroplasts and mitochondrial ROS production [70]. All these organelles undergo drastic metabolic changes during pepper fruit ripening [71,72,73].

3.2. During Fruit Ripening, the Expression of the CaNADP-ME2 and ME4 are Downregulated whereas CaNADP-ME3 Are Upregulated. Exogenous NO Gas Exerts a Negative Modulation of CaNADP-ME3 and ME4

To our knowledge the available information about NO and NADP-ME at gene level is unknown. However, in a previous study, we found by in vitro assays that the NADP-ME activity of sweet pepper fruit was inhibited to a different degree in the presence of NO as well as by hydrogen sulfide (H₂S) donors [42]. This suggested that this enzyme could undergo posttranslational modifications mediated by these two molecules, including nitration, S-nitrosation, and persulfidation [74]. This was supported by proteomic studies in Arabidopsis where NADP-ME was identified to be a target of S-nitrosation [75] and persulfidation [76], although in any case the effect on the enzyme activity has been investigated.

More recently, using a recombinant protein of the Arabidopsis cytosolic NADP-ME2 protein (NP_196728.1), mass spectrometry analyses corroborated that the Tyr73 could be nitrated and, consequently, it provoked the disruption of the interactions between the specific amino acids responsible for protein structure stability [29]. This equivalent Tyr residue is present in all the CaNADP-MEs and corresponds to the Tyr103 in the CaNADP-ME3; however, in a previous study, the preincubation of a 50–75% enriched (NH₄)₂SO₄ protein fraction, obtained from green pepper fruits containing the NADP-ME activity, with the nitrating peroxynitrite did not show any inhibitory effect [42], as it did in the Arabidopsis NADP-ME2. However, this apparent contradictory behavior can be explained by the fact that the enriched fruit fraction contains other NADP-MEs, and therefore each of them can be affected to a different degree. To corroborate it, it would be necessary to obtain the corresponding recombinant NADP-ME from pepper fruits and perform the corresponding assays, an issue which is being addressed in our laboratory.

4. Materials and Methods

4.1. Identification of the NADP-ME Genes in Pepper (Capsicum annuum L.), Chromosomal Location and Synteny Analysis

Different methodologies were used to ascertain the different NADP-ME-encoding genes in pepper. First, pepper proteome was downloaded from the NCBI database (Assembly UCD10Xv1.1; BioProject PRJNA814299; accessed on February 10, 2023). The amino acid sequences of NADP-MEs described in Arabidopsis thaliana were downloaded from the UnirProtKB database. These sequences were used as a query to search for NADP-MEs in the complete pepper proteome using the BLASTP tool. Second, the InterProScan tool was used [77] to confirm the presence of the conserved regions of the malic enzyme, an N-terminal domain (IPR012301) and the NAD(P) binding site (IPR012302).

Location coordinates of the identified CaNADP-MEs in the pepper genome were obtained from the NCBI database.

4.2. Phylogenetic and Conserved Motif Analyses of NADP-ME Protein Sequences

The identified NADP-ME protein sequences in pepper were used to construct a phylogenetic tree using the NADP-ME present in several plant sapecies (see Supplemental Table 1). The alignment of NADP-MEs was performed using the CLUSTALW method [78]. Then, the aligned sequences were subjected to MEGA11 [79] to perform an unrooted maximum likelihood phylogenetic tree with default parameters. Finally, the resulting phylogenetic tree was modified using the online tool Evolview v3 [80]. Conserved motifs of CaNADP-MEs were analyzed using the MEME tool [81] and visualized using TBtools software v1.108 [82]. The protein localization based on their amino acid sequences was predicted using several predictors: WoLF PSORT [83] and Plant-mSubP [84].

4.3. Introns/Exons and Cis-Regulatory Elements Analysis of the CaNADP-ME Genes

The distribution of introns and exons in the CaNADP-ME genes was obtained from the NCBI database. This information was drawn using the 'Basic Biosequence View' tool of the TBtools v1.108 software [82].

To predict putative promoter sequences of the identified CaNADP-ME genes obtained from the NCBI Nucleotide database (https://www.ncbi.nlm.nih.gov/nucleotide/; accessed on February 10, 2023), 1,500 bp upstream from the transcription starting point of each gene were considered. These sequences were searched for possible cis-acting regulatory elements using the PantCARE tool [85]. These results were manually processed and visualized using the 'Basic Biosequence View' function of TBtools v1.108 software [82].

4.4. Plant Material and Exogenous Nitric Oxide (NO) Gas Treatment

Sweet pepper (Capsicum annuum L. cultivar Melchor, California-type) fruits were collected from plants grown in commercial plastic-covered greenhouses (El Ejido, Almería, Spain). Fruits without any external apparent injury were selected at three developmental stages: green immature (G), breaking point (BP1), and red ripe (R). The harvested fruits were placed in black plastic bags, transported to the laboratory at room temperature, washed with distilled water, and kept at a low temperature (about 7 °C ± 1 °C) for 24 h. To evaluate the effect of the exogenous NO gas treatment, we set two additional groups: fruits treated with 5 ppm NO for 1 h (BP2 + NO) and another group that was not treated with NO (BP2 − NO). After 3 days at room temperature, all fruits were chopped into small cubes (5 mm/edge), frozen under liquid nitrogen, and stored at -80 °C until use. Supplementary Figure S2 shows the experimental design followed in this study with the representative phenotypes of sweet pepper fruits at the different ripening stages and subjected to NO treatment [33].

4.5. Library Preparation and RNA-Sequencing

All procedures were performed as previously described in [33] with minor modifications. Briefly, libraries were prepared using an Illumina protocol and were sequenced on an Illumina NextSeq550 platform using 2 × 75 bp paired-end reads. These reads were preprocessed to remove low-quality sequences. Useful reads were mapped against the set of transcripts available for Capsicum annuum species in the NCBI database (assembly UCD10Xv1.1; accessed on February 10, 2023) using Bowtie2 [86]. Transcript counts were obtained using Samtools [87].

Differential expression analyses were done using DEgenes-Hunter [88]. This R pipeline examined the relative change in expression between the different samples using different algorithms (EdgeR, DESeq2, Limma, and NOISeq) which apply their own normalizations and statistical tests to validate the whole experiment. On the other hand, an analysis of the time course of CaPODs gene expression was performed considering as reference the expression levels found in green fruits (G). Raw data are accessible at the Sequence Read Archive (SRA) repository under the accession PRJNA668052. This reference pepper fruit transcriptome and differentially expressed (DE) genes among the analyzed ripening stages and the NO treatment involved the analysis of 24 biological replicates corresponding to 5 replicates of each stage, except for green fruits that involved 4 replicates.

4.6. Fruit Extracts, Protein Assay, Protein Enrichment by Ammonium-Sulfate [(NH₄)₂SO₄] Fractionation and In-Gel Isozyme Profile of NADP-ME Activity

To obtain the crude extracts, fresh and intact green pepper fruits were used. The pericarps of the fruits were manually cut into longitudinal strips, and then into small pieces of approximately 0.5 cm³. The pericarp sample was homogenized with a mortar and pestle in the presence of the extraction buffer in proportions 1:1 (w/v). Extraction buffer contained 50 mM Tris-HCl, 0.1 mM EDTA, 1 mM MgCl₂, 0.1% (v/v) Triton X-100, and 10% (v/v) glycerol. After homogenization, the extracts were filtered through two layers of nylon and centrifuged at 30,000 g for 20 min at 4°C. Protein concentration was determined using the Bio-Rad protein assay (Hercules, CA), with bovine serum albumin as standard.

Protein enrichment by ammonium-sulfate was done as previously described in [42]. Briefly, solid (NH₄)₂SO₄ was slowly added to the 30,000 g supernatant for 30 min of green pepper crude extracts up to a saturation of 50% (w/w). The solution was kept at 4 °C for about 30 min and then re-centrifuged at 30,000×g for 30 min, and the supernatant obtained was 75% (w/w) saturated by the slow addition of solid (NH₄)₂SO₄. The mix was centrifuged again, and the protein-enriched pellet obtained (50–75% fraction) was re-suspended in 0.1 M Tris-HCl buffer, pH 8.0, 1 mM EDTA, 0.1% (v/v) Triton X-100, 10% (v/v) glycerol. For 12 ml of original pepper extract the corresponding pellet was suspended in 1 ml. The enriched 50–75% protein fraction was loaded on a PD-10 desalting column containing Sephadex™ G-25 which enables high molecular weight substances (Mr > 5000) to be separated from

Non-denaturing PAGE was carried out in 6% acrylamide gels (19:1, acrylamide:bis-acrylamide ratio) using a Mini-Protean Tetra Cell (Bio-Rad, Hercules, CA, USA). Pepper fruit crude extracts were added 0.006% (w/v) bromophenol blue dye and then loaded onto gels. The NADP-ME isozymes were visualized by incubating the gels in a solution consisting of 50 mM Tris-HCl, pH 7.6, 0.8 mM NADP, 5 mM EDTA, 2 mM MgCl₂, 0.24 mM nitroblue tetrazolium, and 65 mM phenazine methosulfate containing 10 mM malate. When blue formazan bands appeared, the reaction was stopped by immersing the gels in 7% (v/v) acetic acid.

5. Conclusions

In a previous study on sweet pepper fruits, we studied the presence of NADP-ME activity as well as its regulation during ripening and in the presence of certain modulating molecules [41,42]. However, to our knowledge, there is no information on the number of genes that code for the pepper NADP-ME isozymes, which of them are expressed in fruits, and how they are modulated during ripening. Accordingly, the present data responds to these questions. Thus, pepper fruits express 4 CaNADP-ME genes that are differentially regulated during ripening and in the presence of exogenous NO. Likewise, four NADP-ME isoenzymes were identified in green fruits (NADP-ME I to NADP-ME4), where NADP-ME III and IV are the most prominent. However, future studies are necessary to unravel the role of each NADP-ME isoenzyme during fruit ripening, considering that both malate and the reducing power generated during their reaction in the form of NADPH are involved in numerous metabolic processes that undergo continuous adaptive changes during the fruit ripening.
