Experimental Investigation of Polymer Reinjection in Long Conduits for Material Sustainability and Cost Reduction of Enhanced Oil Recovery

1. Introduction

Different chemical methods are used to enhance oil recovery based on the basic principles of improving sweep and displacement efficiencies. Chemical methods used are: polymer augmented waterflooding [27,29]; surfactant flooding [28]; alkaline flooding [30]; CO₂-augmented water flooding [31]; and Miscible/immiscible CO₂ displacement [32]. Polymers have been utilized in the hydrocarbon industry for many years [27,29]. Their applications have also been expanding rapidly due to their superior qualities and wide range of selectivity. Regardless of the direction of their application in the oil and gas industry, one of the main ongoing challenges in polymers is their injection in the reservoir and propagation through the formation [9]. In order to inject the polymer it undergoes very high shear rates and also it needs to be able to withstand very high pressure differentials and temperatures [10,34]. This usually results in severe degradation of the polymer structure which results in a reduction in operational efficiency, and the inability to reuse the injected polymer for material sustainability [10,34]. One of the main methods by which this can be overcome is by characterizing the polymer and understanding its behavior under different conditions to evaluate the severity of polymer degradation.

Many researchers have conducted core flooding and simulation experiments to investigate the ability of polymers to increase oil recovery and reduce polymer adsorption to different formation types. Core flooding experiments were aimed at understanding the behavior of polymer injection [19,20,21], multi-phase flow [21], the oil recovery potential [16,18], and the residual oil concentration after polymer injection [2,4,5,6]. Some core flooding experiments also focused on the ability of the polymer to displace extremely heavy oil, with viscosity values up to 25,000 cp [23]. Reservoir simulation studies utilized fine-grid simulation [26], and numerical simulation to examine large-scale polymer injection and the impact of several parameters including crossflow and heterogeneity [1,3,22,23,24,25].

Polymer injection has also been coupled with other EOR methods [27,28,29,30,31,32,33]. In most of the researches, polymer injection was combined with other chemical EOR methods, such as alkaline or surfactant flooding. When combining the polymer with alkaline, both the macroscopic and microscopic sweep efficiencies may be improved. The alkaline was used to react with the crude oil downhole and create an in situ surfactant, which can reduce the residual oil saturation, while the polymer was used as a mobility control agent [30]. Surfactant flooding was also combined with polymer flooding to reduce surfactant adsorption to the reservoir by sacrificing the polymer [23]. Researchers have also investigated polymer flooding with low salinity water flooding and thermal injection methods [17,22].

Polymer is also used in conformance control processes and in hydraulic fracturing as a crosslinked polymer. There are more than 100 different types of crosslinked polymers present. These vary in the type of polymer used, and the type of crosslinker. They are generally classified as organic or inorganic depending on the origin of the chemical. The selection of the polymer and crosslinker is based on the reservoir fluid properties such as total acid number, oil viscosity, formation water pH and salinity, and concentration of monovalent and divalent cations. The reservoir thermodynamic conditions also govern the selection of the chemical since many chemicals are limited in terms of temperature and pressure conditions [18,19,20,21,22].

Based on the aforementioned, polymers are an extremely popular chemical in the oil and gas industry for many applications. In order for the polymer to be injected into the formation, it will undergo shearing and will be subjected to very high pressure gradients. This will result in a degradation of the polymer structure, which may limit the ability to reinject the polymer. This research investigates the degradation of the HPAM polymer under different conditions and assesses the ability to reinject the polymer into the formation for chemical sustainability and cost reduction during the application of the polymer in different processes.

2. Experimental Description

2.1. Experimental Materials Used

The experimental materials used to conduct all experiments in this research are as follows.

Acrylamide: The acrylamide monomer, used to synthesize the polymer, was commercially available and was provided as a white powder with 99.99% purity.

Initiator: The initiator used to polymerize the acrylamide was potassium persulfate (K₂S₂O₈). It was commercially available and was provided as a white powder with 99.99% purity.

Argon: Argon was provided as a high pressure cylinder with 99.99% purity.

High Temperature Oven: The oven was used to partially hydrolyze the polymer. The oven maximum temperature could reach up to 250 °C. The degree of hydrolysis of the polymer ranged between 10-15%.

Distilled Water: Distilled water was used to displace the fluids during the experiments, and also to create the polymer solutions with different concentrations.

Pressure Transducers: High accuracy pressure transducers were used to record the pressure values during polymer injection. The transducers recorded one pressure reading every second.

Magnetic Stirrer: The magnetic stirrer was used to mix the polymer powder with the distilled water and to ensure that the mixture was homogenous.

Stainless Steel Tubes: High Pressure stainless steel tubes were used to mimic the small diameter conduits that represent porous media. The tubes had an ID of 1/16 and 1/8 inch.

2.2. Polymer Synthesis

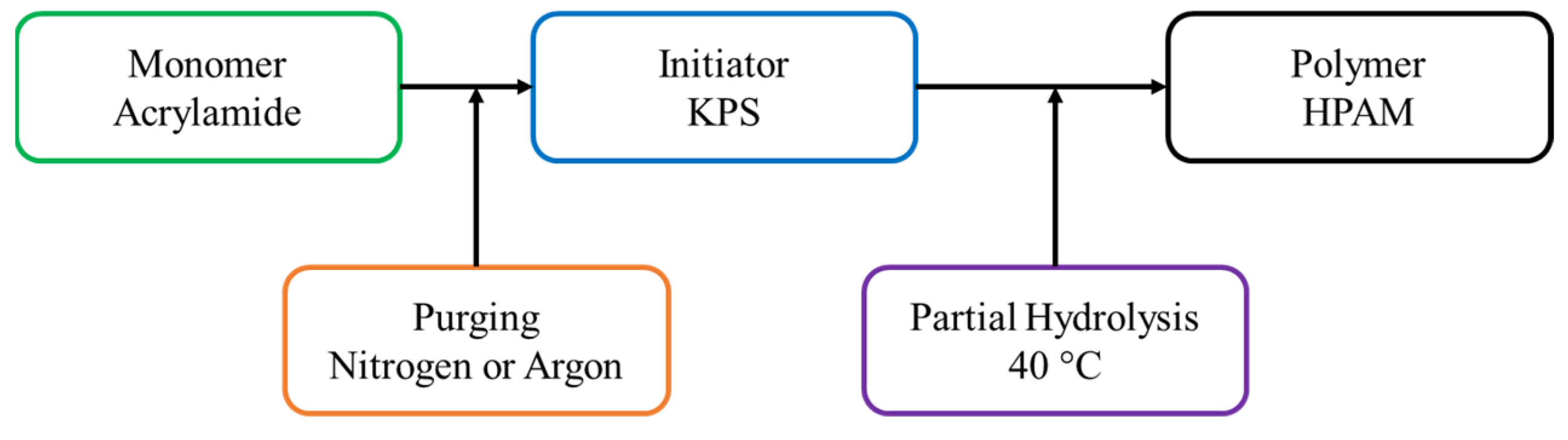

In order to synthesize the hydrolyzed polyacrylamide (HPAM), its original constituent was used. HPAM is fundamentally composed of the monomer acrylamide. The monomer is dissolved in distilled water. The polymerization process is illustrated in Figure 1. The polymerization reaction is a must to create long chains of the monomer, the reaction involves the addition of a chemical agent to link the monomers to each other; this chemical agent is referred to as an initiator. The initiator used in this research was potassium persulfate (KPS). The initiator creates long chains of the monomer, which is essentially the polymer polyacrylamide (PAM). During polymerization, an inert gas (Nitrogen or Argon) is introduced into the solution to purge any oxygen presence to avoid significant damage of the structure of the polymer by oxygen. Although the PAM can be used in this phase as a polymer, hydrolyzing the PAM to create HPAM is much more preferable. The process of polymer hydrolyzing introduces the carboxylate group which improves the performance of the polymer greatly. Hydrolysis is done through different methods depending on the polymer used. In this case, the PAM was partially hydrolyzed by placing it in an oven at 40 °C for a short duration, less than two hours. Placing the polymer at a higher temperature or for a longer duration could result in excessive hydrolysis that leads to severe degradation of the polymer structure, which in turn will have a negative impact.

2.3. Experimental Setup

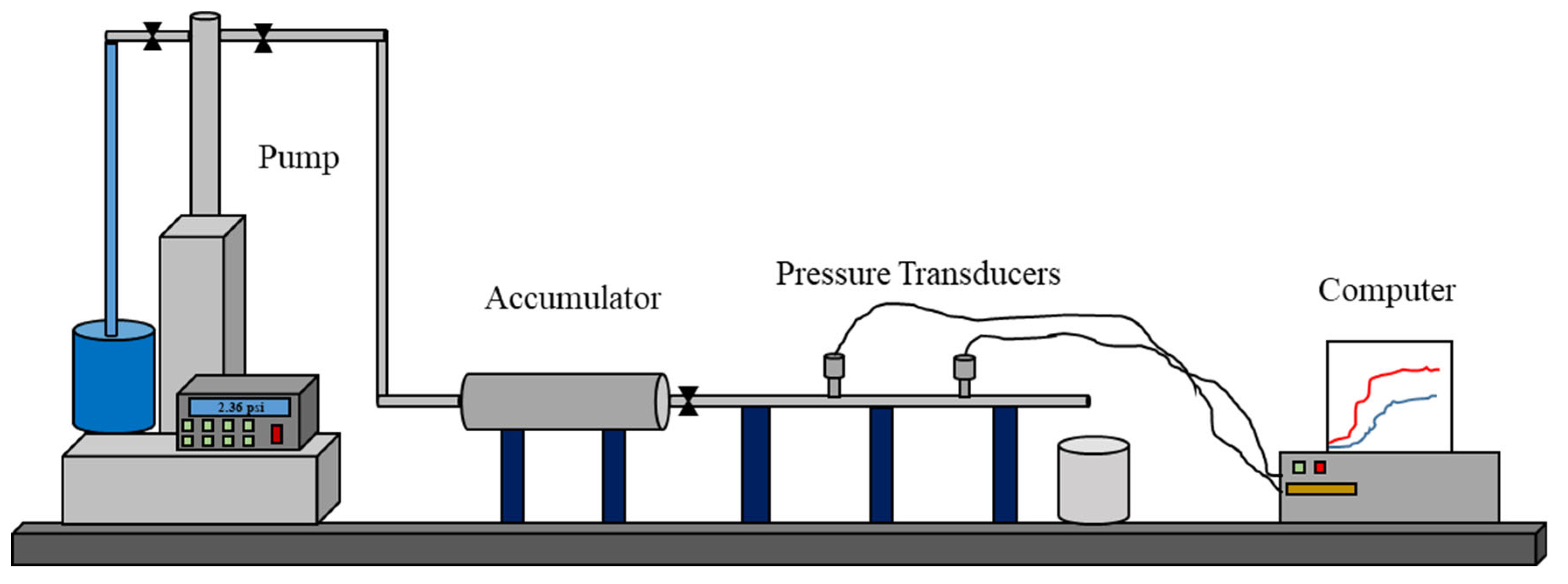

An illustration of the setup used to conduct the experiments is shown in Figure 2. The setup is composed of a syringe pump used to inject distilled water and to displace the polymer through the accumulator. The accumulator houses the polymer and is directly connected to the tube, with a valve at the outlet of the accumulator to control the polymer flow. The tube has a length of three foot with two pressure transducers located equidistant from each to record the pressure at the inlet of the tube and at the middle of the tube. The tube was maintained at the same level of the accumulator and was maintained in a horizontal position to remove the effect of gravity, which is not the focus of this study.

2.4. Experimental Procedure

All experiments were conducted using the same procedure in order to be able to accurately compare the results. The experimental procedure is as follows:

-

Synthesis the polymer using the polymer synthesis procedure discussed above and then hydrolyze the polymer by placing it in the oven until it reaches 10-15% hydrolysis. Dehydrate the polymer until it becomes a dry white powder.

-

Prepare the polymer solution by placing the polymer powder in the distilled water and stirring the mixture for at least 12 hours using a magnetic stirrer. The solution should be covered during stirring to avoid any contaminants from entering the solution during the mixing process.

-

Place the polymer in the accumulator and ensure that there are no air pockets between the polymer which may impact the experiments. Also, the accumulator must be fully occupied by the polymer.

-

Connect the tube to the accumulator and attach the pressure transducers after they have been calibrated.

-

Begin the polymer injection using the lowest flowrate. Each flowrate is stopped when the pressure becomes stable for at least two pore volumes of injection.

-

Once the experiment is concluded, the accumulator and tube are cleaned and prepared for the following experiments.

3. Results and Discussion

The results, obtained from this research and discussion in this section, include: the polymer injection plots at different flowrates for the different polymer concentrations; the average injection pressure for every flowrate; the Injectivity of the polymer at different flowrates; the impact of polymer concentration on Injectivity; and the polymer degradation mechanisms and the viability of polymer reinjection.

3.1. Polymer Injection and Injectivity

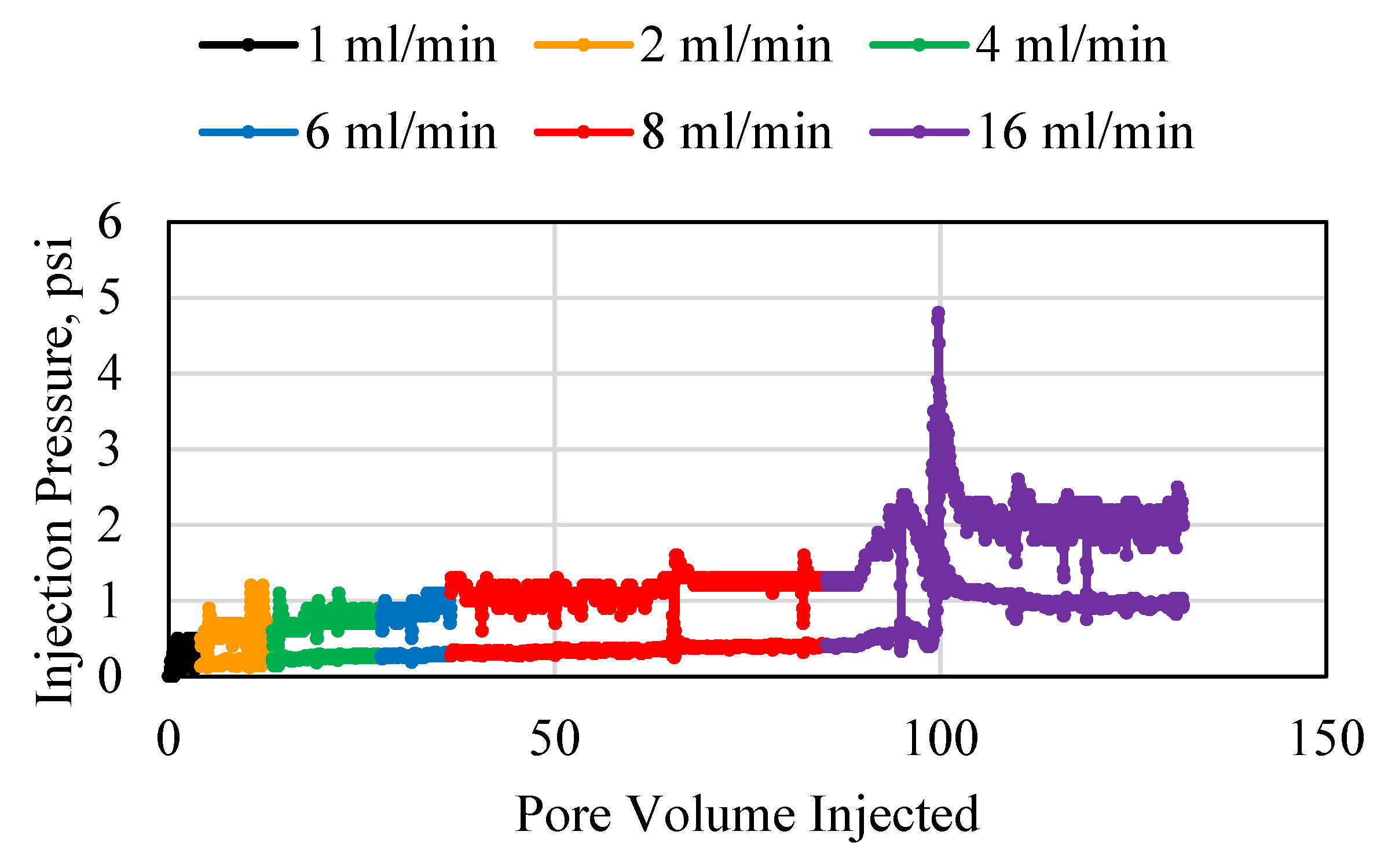

The results for the polymer injection using 0.1 wt% polymer, 1/16^th inch tube, and 1, 2, 4, 6, 8, and 16 ml/min flowrates are shown in Figure 3. Increasing the injection flowrate resulted in two significant observations. A larger pore volume of polymer was needed to ensure that pressure was stable when the flowrate was higher. This indicates that using a high flowrate may require a large volume of polymer. At the higher flowrates, 16 ml/min, more abnormalities in flow behavior were observed. For example, for the 16 ml/min injection flowrate, a sudden increase in injection pressure occurred. This is due to some of the injected polymer dehydrating under the higher pressure gradients. This resulted in the polymers becoming solid-like which makes their injectivity much more difficult. Also, increasing the flowrate will increase the overall volume of the polymer flowing through the porous media. This creates competitive flow which results in an increase in pressure. Another major observation is that at higher flow rates, the polymer injected pore volume needed for the injection pressure to stabilize was higher. This is due to the turbulence created at higher rates.

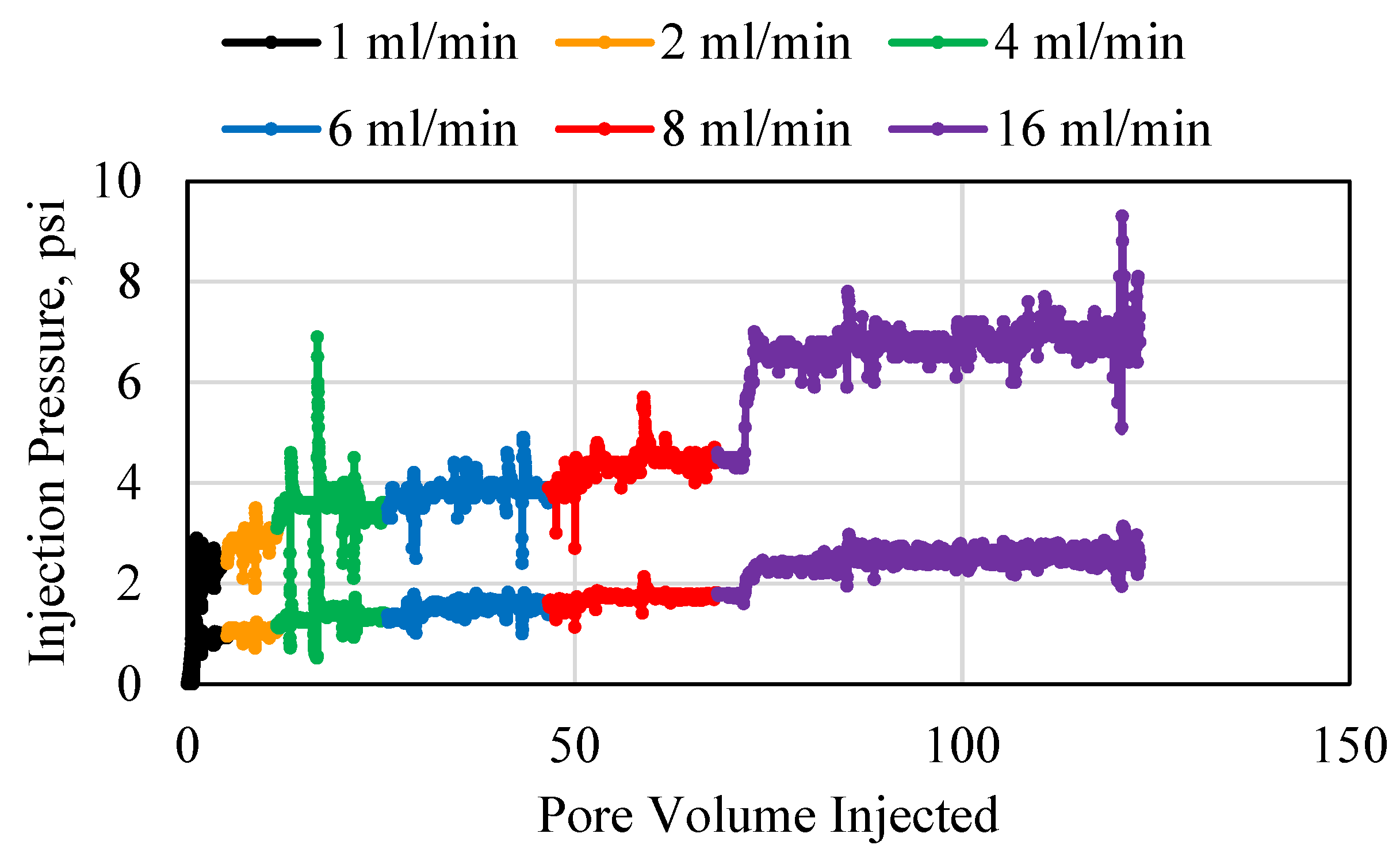

When the polymer concentration was increased from 0.1 wt% to 0.5 wt% several observations were obtained. The injection pressure plot for the 0.5 wt% polymer is presented in Figure 4. The overall pressure increased with an increase in polymer concentration. It was observed however, that the pressure increase in the first pressure transducer at the inlet was higher compared to the second pressure transducer, at the middle, when comparing the 0.1 to the 0.5 wt% polymer. This indicates that the initial injection pressure of the polymer was affected more when the polymer concentration is increased. The abnormalities in flow were more pronounced with the increase in polymer concentration.

Figure 5 shows the pressure results when the polymer concentration was increased to 1 wt%. Overall, the pressure increased beyond that of the 0.5 wt% polymer. At the highest flowrate, 16 ml/min, the flow abnormalities were extremely high, especially for the inlet pressure. When the produced polymer was analyzed, it was found that the polymer produced at the end of the experiment had formed a coagulation which resulted in the sudden pressure increase seen at the final point in the 16 ml/min flowrate. This was not significant in the middle pressure reading due to the overall lower pressure values seen at that point in the tubes.

The highest polymer concentration used in this study was 2 wt% polymer, shown in Figure 6. The pressures recorded for this polymer injection were the highest observed in all experiments. The main observation from the 2 wt% polymer experiment is that the highest flowrate required an extremely large injection pore volume in order to be able to decisively observe an average stable pressure. There are also several sudden increases in pressure for all the injection flowrates which may indicate difficulty in injection or turbulence or slight air pockets in the polymer solution.

The porous media pore size was then doubled to 1/8^th of an inch instead of 1/16^th of an inch. This resulted in a significant decrease in the overall injection pressures due to the increase in the contact are of the porous media and cross sectional area available for the flow. The polymer injection pressures using flowrates 1, 2, 4, 6, 8, and 16 ml/min for all the polymer concentrations at the inlet and the middle are presented in Figure 7 and Figure 8 respectively. For the lower flowrates, less than 4 ml/min, and the low polymer concentrations, the pressure readings were very low, and close in value to each other. This is mainly due to a very little resistance to flow in the 1/8 inch tube, which resulted in pressure readings that were very close in value. As the injection flowrate increased, the pressure increased for all the polymer concentrations. This indicates that even though increasing flowrate may improve injectivity, it will also increase pressure requirements, which is something that must be considered in the polymer injection design. Overall, the higher polymer concentration resulted in a larger pressure due to the higher viscosity of the polymer solution. Some pressure abnormalities can also be seen in the plot, which are mainly due to the presence of small air pockets that could not be overcome. The air pockets resulted in a cessation of flow for a small period accompanied by a sudden increase in pressure, and followed by a decrease in pressure. Overall, all the injection pressures are much lower than those of the 1/16^th inch tubes.

3.2. Polymer Average Stable Pressure

For all the polymer solutions injection, the average stable pressure obtained at each flowrate was recorded. The pressure was recorded as an average since small fluctuations were observed along all the experiments and thus an average value had to be taken. The average value was recorded when the pressure change was extremely low for at least two pore volumes of injection for each flowrate. The average stable pressures obtained for the 0.1, 0.5, 1, and 2 wt% polymer concentration at both the inlet and middle section of the tube for the 1/16^th inch tube ID are presented in Figure 9. Increasing the flowrate for all the polymer concentrations resulted in an increase in the average stable pressure. The increase was higher at the inlet which indicates that the length of the porous media may play a significant role in the injection pressure of the polymer, as will be explained later. As the polymer concentration increased, the average stable pressure also increased, however it is noteworthy to mention that for the 2 wt% polymer, the increase in pressure was much more significant than any other polymer concentration. This indicates that at some point, the polymer concentration increase will impact the ability of the polymer to propagate through the small sized porous media. This was also observed by Seright et al. [14] who showed that at some polymer concentration, the polymer will not be able to propagate through the porous media. It is important therefore to consider the injectivity of the polymer and its ability to propagate through a specific pore size when choosing the polymer concentration design.

The average injection pressures obtained from the 1/8^th inch tubes for both the inlet and the middle section are shown in Figure 10. An average pressure value was used since even during stable pressure, the pressure reading fluctuated slightly, and thus an average pressure for five continuous minutes of stable pressure was taken. For all experiments, the inlet pressure was much higher than the middle section pressure. This illustrates the impact of the porous media length. As the length of the porous media increases, a higher inlet pressure will be required to displace the polymer along the formation. Increasing the polymer concentration resulted in a non-linear increase in the pressure requirement as well. The injection flowrate was also found to impact the stable pressure non-linearly. Based on these results, it is apparent that even though a high polymer concentration may be favorable for oil recovery increase, the polymer may be very difficult to inject which may result in the failure of the injection operation.

3.3. Polymer Injectivity

Injectivity is defined as the ability of a fluid to be injected into a conduit or porous media. It is the ratio between the injection flowrate and the pressure observed at the inlet of the conduit during injection of a fluid into the conduit. As the injectivity value increases, the ability to inject a specific fluid also increases, therefore during polymer injection operations; a high injectivity value is favorable.

The lower polymer concentration, including 0.1, and 0.5 wt% exhibited a good injectivity compared to the higher polymer concentrations for both the 1/8^th and 1/16^th inch tubes. The Injectivity values for the 1/16^th inch tubes are presented in Figure 11 for all polymer concentrations. For the 0.1 wt% polymer, the injectivity was higher than unity for all the flowrates, which is an indication of a very favorable injectivity for this polymer concentration. When the concentration increased to 0.5 wt%, it is observed that at the lower injection flowrates, less than 4 ml/min, the injectivity falls lower than unity, and thus the injection flowrate requirement increased with the increase in the polymer concentration. The overall injectivity for the 0.5 wt% polymer was still much better compared to the 1 and 2 wt% polymer concentrations. When the polymer concentration increased beyond 0.5 wt%, the injectivity value began to fall beneath unity even at high flowrates, which is considered extremely unfavorable. For the 1 wt% polymer, the injectivity remained beneath unity until the flowrate increased beyond 6 ml/min. This shows that as the polymer concentration increases, a higher injection flowrate becomes extremely important. This is also clear from the 2 wt% injectivity results, where even the 16 ml/min flowrate could not increase injectivity beyond unity. A higher injection flowrate will require higher strength surface pumps and also may be damaging for the formation if the formation fracture pressure is exceeded, and thus a high polymer concentration requires extensive design precautions before implementing it in a field study.

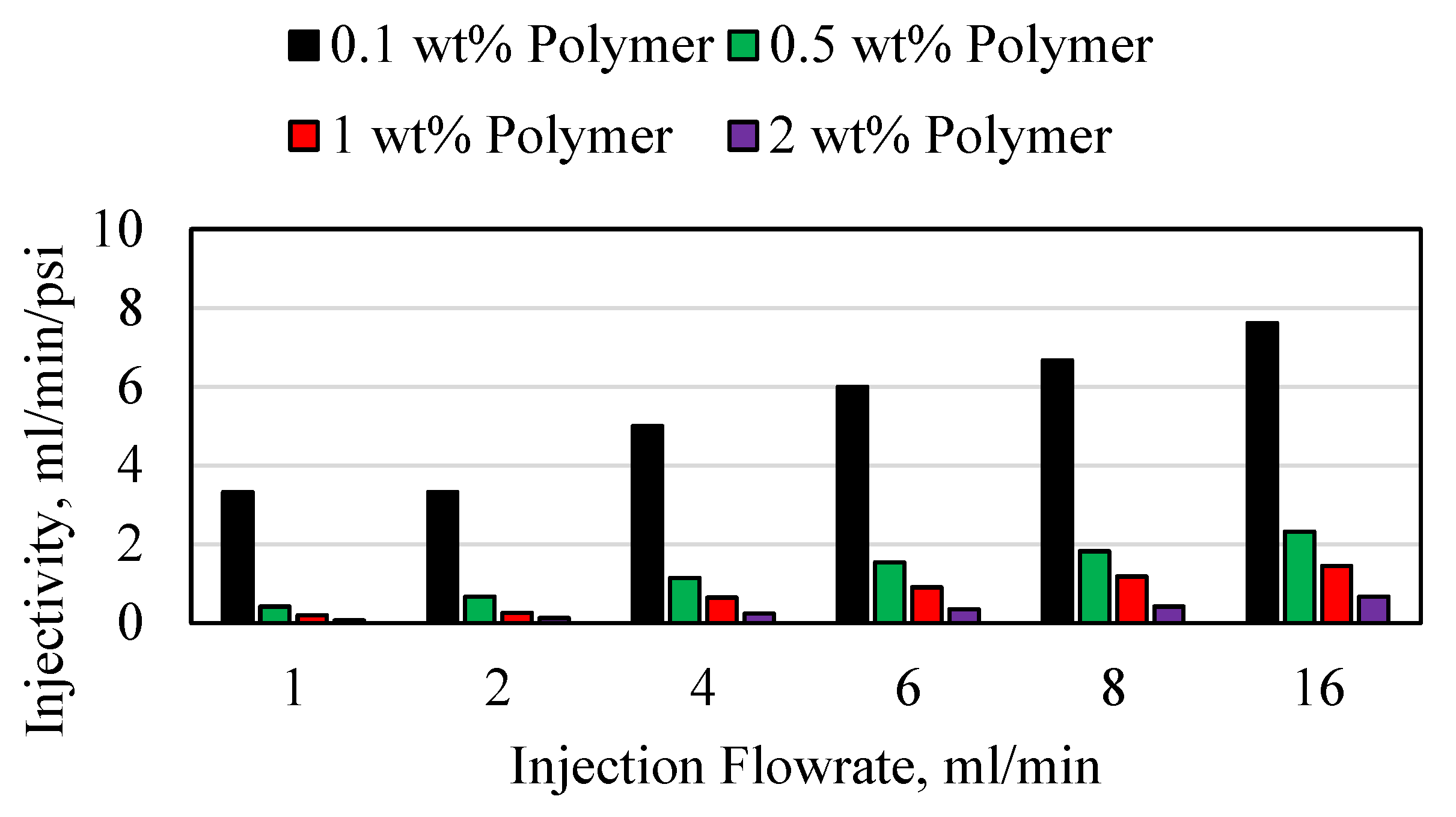

The injectivity results for the HPAM polymer using different polymer concentrations and different injection flowrates in the 1/8^th inch tube is shown in Figure 12. Increasing the injection flowrate for all the polymers resulted in an increase in injectivity. The main problem with increasing injection flowrate is the increase in pressure as well, as was shown previously. If the pressure exceeds the formation fracture pressure, complications may arise downhole. As the polymer concentration increases, the injectivity decreased significantly as well. For example, the 2 wt% polymer injectivity could not exceed 3.2 ml/min/psi, which is lower than the lowest value obtained using the 0.1 wt% polymer, 8.33 ml/min/psi. For all values, the injectivity in the larger diameter porous media was much higher compared to the smaller porous media. This will also reflect on the polymer degradation and reinjection significantly.

3.4. Polymer Degradation and Reinjection

During its injection and propagation through the porous media, the polymer was subjected to severe thermodynamic and operational conditions which resulted in polymer degradation. Degradation in polymer structure can be divided into four main types, illustrated in Figure 13, including:

Polymer Shearing: Polymer shearing refers to the reduction in the molecular weight (MW) of the polymer due to mechanical forces. These can include high pressure gradients, and shearing in the surface equipment during injection. Polymer shearing is an irreversible process which will cause permanent degradation of the polymer structure. It results in a significant reduction in the polymer viscosity, which is a paramount functional property of the polymer.

Polymer Hydrolysis: Polymer hydrolysis is the controlled breakdown of the polymer structure using chemical reactions or thermodynamic conditions. Although partial hydrolysis is beneficial, as was explained previously, uncontrolled hydrolysis can result in severe polymer degradation, MW reduction, and loss of viscosity. Uncontrolled hydrolysis can occur in the formation due to two main impacts: the first is the presence of chemicals that can degrade the polymer structure such as acids; the second is the reservoir temperature, which may cause hydrolysis in some polymers based on their thermal stability.

Polymer Dehydration: Polymer dehydration is the expulsion of the solvent, usually the water, from the polymer due to high pressure gradients. This results in a significant increase in the polymer viscosity which in turn causes fluctuations in the injection pressure, as was observed in many of the injection experiments in this research. Polymer dehydration can be reversed by rehydrating the polymer using the design solvent as long as the polymer structure was not affected. The main contributor to dehydration is the high pressure differentials that occur during injection.

Polymer Syneresis: Polymer syneresis is the structural degradation of the polymer due to expulsion of solvent or change in polymer properties. Similar to polymer dehydration, during syneresis the viscosity of the polymer is expected to increase. Unlike dehydration however, syneresis is irreversible process due to polymer structural degradation. Factors that contribute to syneresis include pressure differentials that impact the polymer structure, high temperatures that result in solvent loss, and chemical agents in the reservoir such as monovalent and divalent cations, oxygen, and other agents that result in solvent loss.

For the 1/16^th inch experiments, the discussed above four degradation mechanisms were observed. Due to the small cross-sectional and surface areas of the porous media, the injection pressure increased. This increase was much more substantial when the polymer concentration increased. This resulted in shearing action during injection. Also, polymer dehydration and syneresis were observed during injection when abnormal pressure peaks occurred. This was due to the polymer losing water which resulted in sudden increase in polymer viscosity. This was translated as an immediate increase in pressure. When the polymer was produced from the outlet, solid lumps were observed which supports the claim that dehydration occurred. An attempt was conducted to rehydrate the polymer, however it was not successful. This is a good indication that the polymer structure was degraded, therefore syneresis occurred. Finally, slight polymer dehydration occurred due to an increase in temperature during injection; however its impact was not substantial.

When the porous media size was increased to 1/8^th inch, the degradation of the polymer decreased significantly. The polymer exhibited almost no dehydration or syneresis which is evident from the injection curves which show no extreme fluctuations in the pressure. The shearing and hydrolysis effects were minimal; this was determined by measuring the viscosity of the polymer samples before and after injection. It was found that a negligible change in viscosity occurred which means that the sample maintained its structural integrity after injection, propagation through the porous media, and production.

Based on the experimental results and the different mechanisms of polymer degradation, there are multiple parameters that may impact the polymer reinjected process. These parameters can be grouped into three broad categories including reservoir rock properties, reservoir fluid properties, and operational properties. The reservoir rock properties that will strongly impact polymer degradation based on this research are the pore size and pore-size distribution, permeability, and porous media length. The fluid properties include the interaction between the polymer and the oil, formation water, acidic components, and gasses, if present. Finally, the operational properties include the average reservoir temperature, injection pressure at the surface, and the expected pressure differential in the formation. As the porous media length increased, the pressure required to inject the polymer also increased. This resulted in polymer degradation, which indicates that the length that the polymer travels is a governing criteria for polymer reinjection operations. After production of the polymer, the polymer must be analyzed for any degradation and the extent to which the polymer degraded must be quantified. Based on the polymer intended application, it can therefore be assessed whether or not the polymer can be reinjected.

4. Conclusions

This research investigates some of the parameters that may impact polymer degradation during injection and propagation through the rock for the purpose of enhanced oil recovery. Based on the results obtained, the ability to reuse the injected polymer for reinjection for cost reduction and material sustainability was assessed. The main conclusions obtained from this research are as follows:

-

Decreasing the pore size resulted in a significant decrease in injectivity and a significant increase in the pressure requirements for injection. This also resulted in a significant degradation in the polymer structure which caused the polymer to become a poor candidate for reinjection.

-

As the porous media length increased, the pressure required to inject the polymer also increased. This resulted in polymer degradation, which indicates that the length that the polymer travels is a governing criterion for polymer reinjection operations.

-

Polymer degradation is predominantly an irreversible process which indicates that if the polymer is structurally degraded, it has to be disposed which results in material loss and operational costs.

-

Excessive polymer hydrolysis can result from high injection pressures and high shearing which can generate high temperatures, thus polymer hydrolysis is not only caused by reservoir temperature.

-

Polymer degradation decreases significantly with an increase in the porous media pore size, which indicates that polymer injected in the fractures due to the high fracture widths is less susceptible to degradation compared to the polymer injected into the formation matrix which usually has much smaller pores.
