Study of the Feasibility of Decoupling Temperature and Strainfrom a ϕ-PA-OFDR over an SMF Using Neural Networks

1. Introduction

The general interest in Distribute Optical Fiber Sensors (DOFS) has increased in the past few decades [9,19,24]. Due to the huge variety of phenomena related to light propagation along an optical fiber and depending on the interrogator and the fiber used, there are more than 60 types of sensors [3]. This technology has been applied in several fields such as Structural Health Monitoring [23], Geo-Hydrological applications [2], Acoustic sensing [22] or even medicine [16].

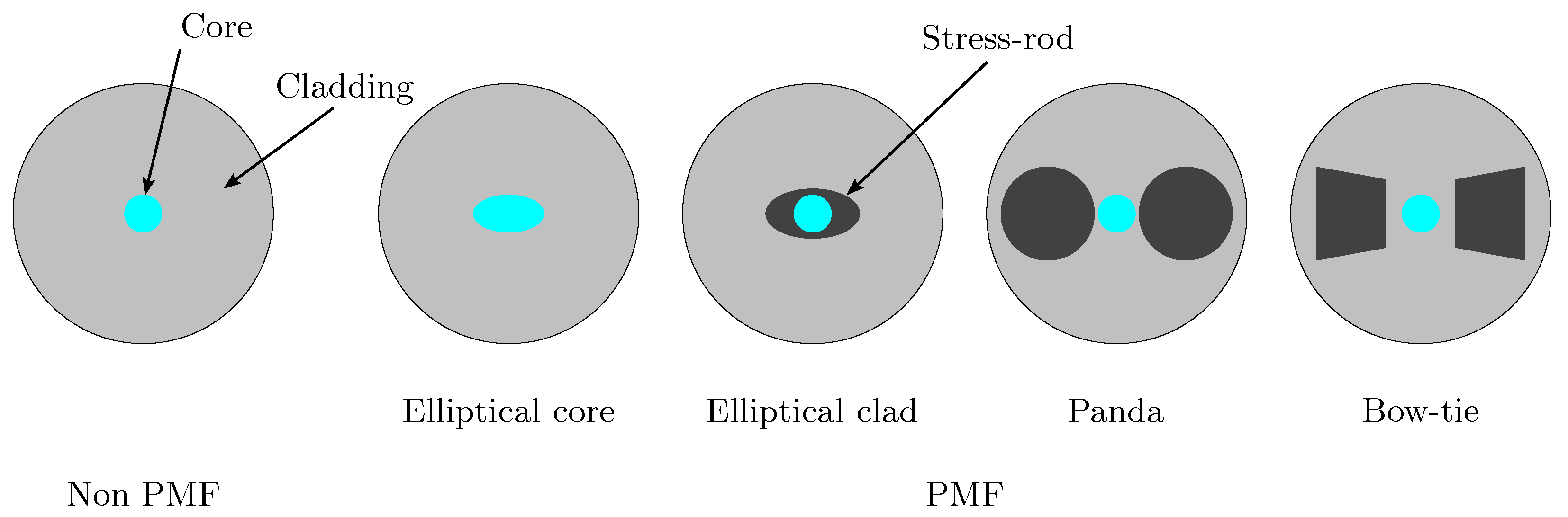

Basically, a Distributed Optical Fiber Sensor consists of a segment of optical fiber within which monochromatic light is propagated forward (transmission) and backward (backscattering). The fiber core shape is varied, going from a simple circle up to the polarization-maintaining configurations shown in Figure 1. The dimension of this core determines the number of modes that can be propagated. In the present work, light propagation into an SMF is studied. This type of fiber is preferred due to its lower cost and reduced size when compared with other types of optical fiber (PMF), where, moreover, the decoupling has been achieved currently.

Commonly, light propagated within the fiber is emitted by a tunable laser source; and the backscatter radiation is analyzed by a photodetector after passing through some filters and beamsplitters [12]. Both photonic systems are usually integrated into the same equipment, the emitted and analyzed light wavelength determines the type of interrogator: Raman, Rayleigh, or Brillouin [24]; and with the appropriate beamsplitters and filters both States Of Polarization (SOP) can be studied separately. The phase analysis needs a special configuration in the photodetector to compare the signal received with a local oscillator [21]. For the present work, a Phase-sensitive and Polarization Analyzer Optical Frequency Domain Reflectometer ($\varphi$-PA-OFDR) was used.

Light backscattering is sensible to both temperature and strain changes and is nowadays the principal limitation when implementing this technology. The solutions are diverse and depend on the type of DOFS chosen, but two main groups can be distinguished. The first type of solution is to integrate sensors in parallel, which are usually either strain gauges or thermocouples along with Optical Fiber Sensors (OFS) in order to obtain one independent measure. The second type of solution consists of a signal treatment which requires either a second type of interrogator or a signal post-processing. In Table 1 some of the methods developed for different OFS are listed.

More specifically, the last one is the most similar to the present work. In it [10], Froggat et al. use a $\varphi$-PA-OFDR over a PMF. However, in the present work, the fiber studied is an SMF because of its higher availability and lower price (around two magnitude orders [30,31]). The behavior of SOP in an SMF is different and the same technique used by Froggat et al. cannot be implemented. More specifically, the birefringence vector’s randomness causes fast and slow polarization modes to have different time arrivals. Besides that, they will decompose into both the fast and slow modes of the next segment, leading to polarization-mode coupling [17].

Artificial Intelligence has been applied successfully to Optical Fiber Sensors [18]. Because of that, before trying to find an analytical approach to the SOP evolution through the fiber or any statistical analysis of the signals acquired, Artificial Intelligence (AI) methods have been applied to the problem in the present work, in order to determine the feasibility of decoupling temperature and strain from a $\varphi$-PA-OFDR readout.

2. Materials and Methods

2.1. Resources used

The optical fiber and interrogator used are described in Table 2. Moreover, the signal was analyzed using Python open libraries as Scipy [29] and Numpy [28].

2.2. Experimental data acquisition

For a proper creation of an Artificial Intelligence model, it is imperative to have a huge and reliable experimental dataset [14,20]. For this purpose, the optical fiber was subjected to mechano-thermal tests where the longitudinal fiber strain and temperature were varied. The SMF was converted into a succession of overlapping sensors with a sensor length of 20 mm and a sensor spacing of 2 mm. This is possible because of the interferometer used that provides 2000 samples per sensor which allows signal processing calculations.

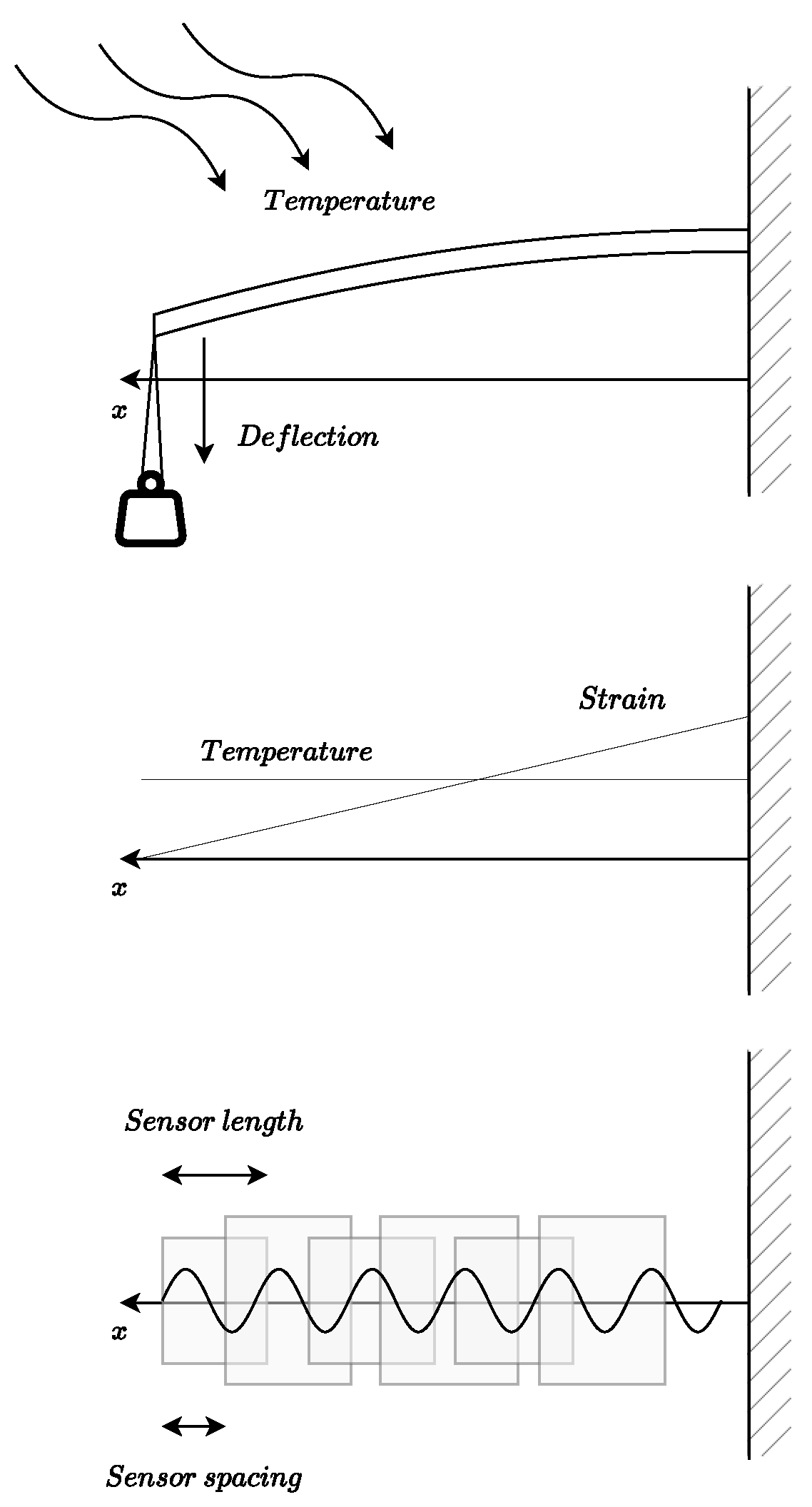

In Figure 2 the experimental setup is illustrated.

2.3. Interferometer readouts

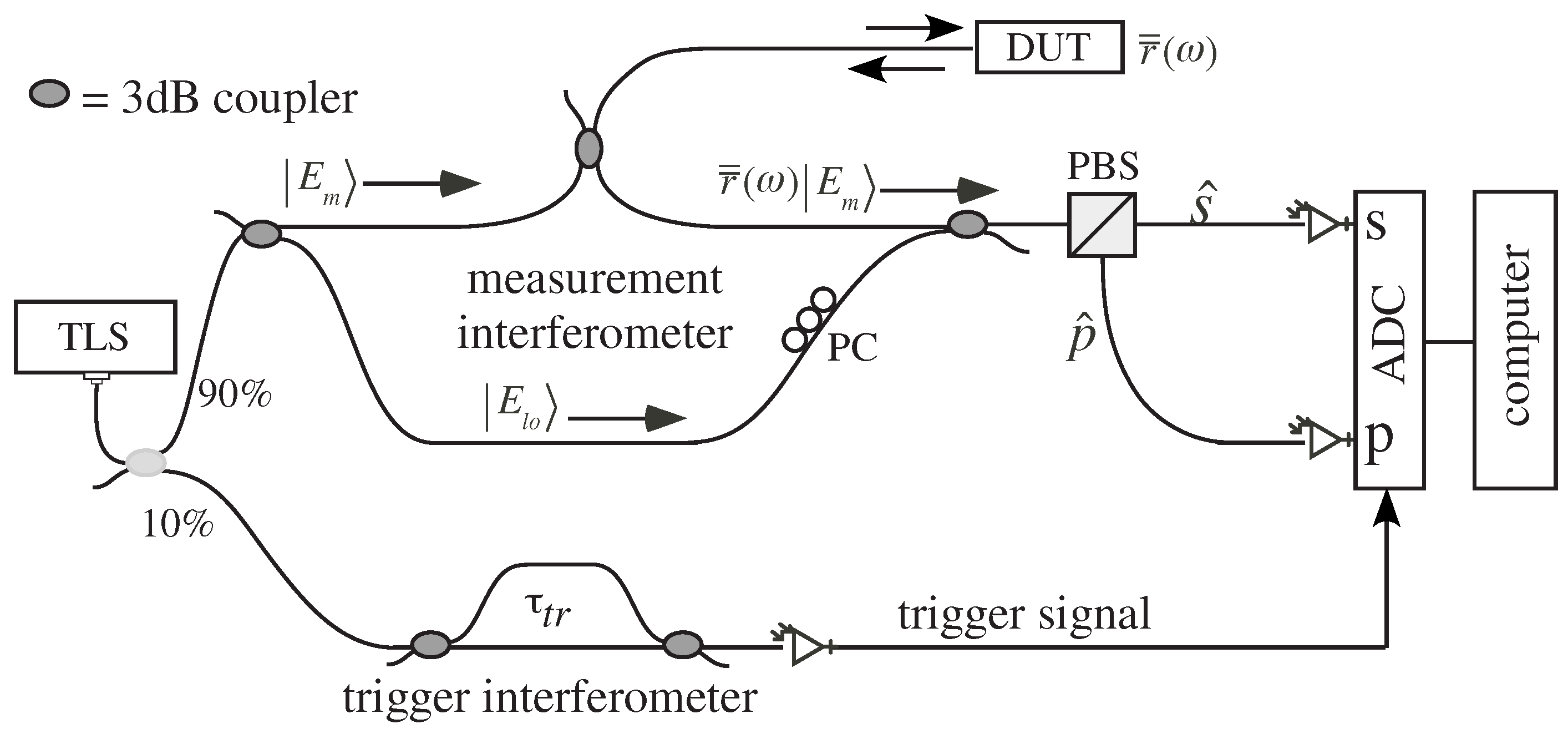

A $\varphi$-PA-OFDR provides information about the two SOP of the interference between the backscattered electromagnetic field $E_{\mathrm{m}}$ and the one generated by a local oscillator $E_{lo}$ (see Figure 3 or [12] for more details). This means that two complex measures $i_s$ and $i_p$ are received by the photo-detectors every time that the optical fiber is interrogated

$$\begin{array}{c}{i}_s\left(\omega \right)=2Re\left\{〈E_{lo}\left|{\overline{\overline{T}}}_s^{†}{\overline{\overline{T}}}_s\overline{\overline{r}}\left(\omega \right)\right|E_m〉exp[j\omega \left(t\right)\Delta \tau ]\right\},\\ i_p\left(\omega \right)=2Re\left\{〈E_{lo}\left|{\overline{\overline{T}}}_p^{†}{\overline{\overline{T}}}_p\overline{\overline{r}}\left(\omega \right)\right|E_m〉exp[j\omega \left(t\right)\Delta \tau ]\right\},\end{array}$$

(1)

where the matrix operators ${\overline{\overline{T}}}_s$ and ${\overline{\overline{T}}}_p$ represent the beam splitter action.

By means of a Discrete Inverse Fourier Transform (DIFT) the time-domain response of the Device Under Test (DUT) can be obtained. Then, knowing the speed of light into the fiber, obtaining the spatial distribution is trivial.

3. Results

3.1. Dataset

The process carried out to create the dataset is illustrated in Figure 4. The readings obtained from the test under controlled conditions have been labeled with the test conditions themselves. Then each of these signals has been taken and divided into segments that act as a point sensor, i.e. they can be assigned a single temperature and a single strain value. Finally, these segments have been taken two by two and the temperature and strain increment corresponding to the pair has been computed, thus storing the two segment signals (P and S) and the difference of states. As a priori the most suitable pre-treatment of the signals was not known, it was decided to keep both signals ($P_1,S_1,P_2,S_2$) in full in order to evaluate the performance of the different transformations.

From the test performed, data have been obtained at four temperatures: 20, 30, 40, and 50 ^oC; and five strain states associated with an end deflection of: 0, 3.11, 6.22, 9.33, and 12.45 mm. These combined states result in 20 different states which, combined two by two, amount up to 190 possible combinations. By means of the optical interrogator used, the optical fiber was converted into a succession of overlapping sensors with a sensor length of 20 mm (with a sampling period of 10 $\mu$m) and a sensor spacing of 2 mm (see Figure 2). Then, for a fiber length of 300 mm of which only measurements between 100 and 280 mm have been selected (to avoid possible errors). Taking randomly a percentage of the number of combinations, a dataset of 13950 samples has been created by taking, randomly again, a 60 % for training, 20 % for validation and the remaining 20 % for testing.

The temperature range has been determined by the room temperature at the time of the test (since the oven does not have refrigeration) and the characteristics of the adhesive used, cyanoacrylate, to adhere the optical fiber to the aluminum plate.

3.2. Pre-processing

Sometimes, when talking about Artificial Intelligence, it is presented as a tool capable of solving any problem with just the corresponding training time. Nothing could be further from the truth, the proper dataset pre-processing is key not only in the success or failure of the model but also in its accuracy and efficiency [4,8].

In this case, several signal treatment options were considered, but finally the correlation between signals,

$$X=\left[P_1★P_1,P_1★P_2,P_2★P_2,S_1★S_1,S_1★S_2,S_2★S_2\right],$$

has been chosen. The decision was made using an unsupervised machine learning model aimed at dimensionality reduction for the reasons explained in the next subsection (SubSection 3.3).

3.3. Clustering

Before starting to apply machine learning models, a clustering algorithm was used to determine if the pre-processed data is capable of being classified into groups that somehow could be related to strain and temperature increments. Note that this is an iterative process where the dataset was exposed to different pre-processing methods, however, only the final results of the clustering algorithm are shown in Figure 5. As can be seen, the algorithm (TSNE) spontaneously generates temperature groups and orders the deformations within them, which means that, although there is some confusion within some groups, an artificial intelligence model is able to differentiate both variables.

3.4. Neural Network

Input data

Once this check has been carried out, the artificial intelligence model capable of discerning between temperature increase and deformation from the signals of the different polarizations is designed. After trying several options to train the model, an input vector, composed of the cross-correlation of the two polarization states and the four auto-correlations of the four available measurements, is selected due to the clustering algorithm results. The input to the network is finally as follows:

$$x_j=\left[P_1★P_1,P_1★P_2,P_2★P_2,S_1★S_1,S_1★S_2,S_2★S_2,\Delta \nu \right],$$

where the frequency increment $\Delta \nu$ has been added to provide scaling information (since the same equipment can operate in different frequency ranges).

Normalization

These input vectors have been previously normalized since training is much more efficient with normalized values. In this case, the normalization of each variable separately has been finally selected as it is the only one with which the model has been able to fit the data:

$$\begin{array}{cc}\hfill X=& \left(\begin{array}{c}{x}_1\\ x_2\\ \dots \\ x_{n_s-1}\\ x_{n_s}\end{array}\right)\to \begin{array}{c}{X}_{\max i}=\max \left(\{X_{0i},\dots ,X_{ji},\dots X_{n_{s}i}\}\right)\\ X_{\min i}=\min \left(\{X_{0i},\dots ,X_{ji},\dots X_{n_{s}i}\}\right)\end{array}\to \hfill \\ \hfill & \to {\widehat{X}}_{ji}=\frac{X_{ji}-X_{\min i}}{X_{\max i}-X_{\min i}},\hfill \end{array}$$

(2)

where index i refers to the column index, that is, to each of the items that make up the vector $x_j$; on the other hand, index j refers to the sample number.

Architecture

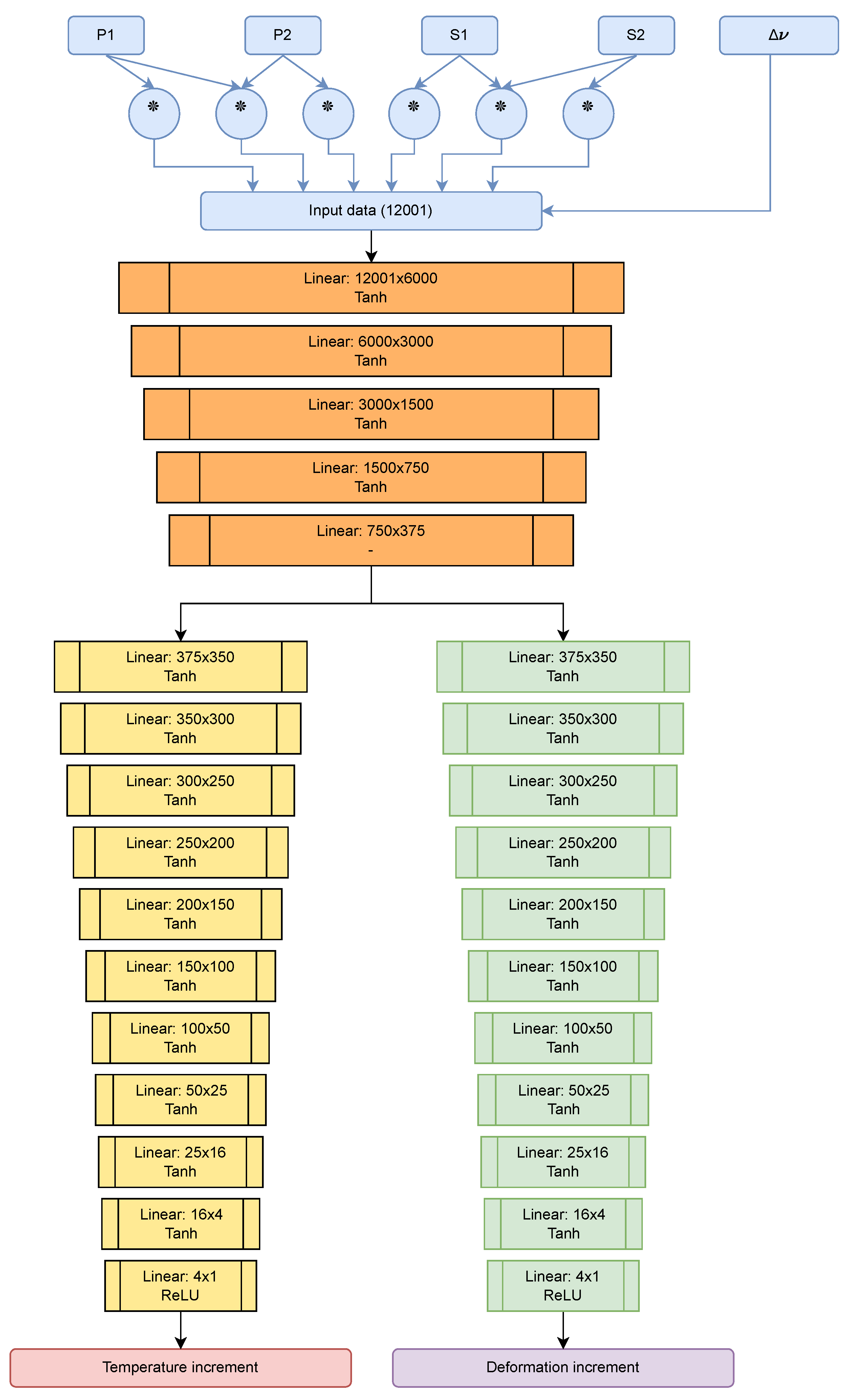

The network architecture is as shown in Figure 6 and is basically a compendium of densely connected layers with hyperbolic tangent-type activation functions that add to its nonlinearity.

Training

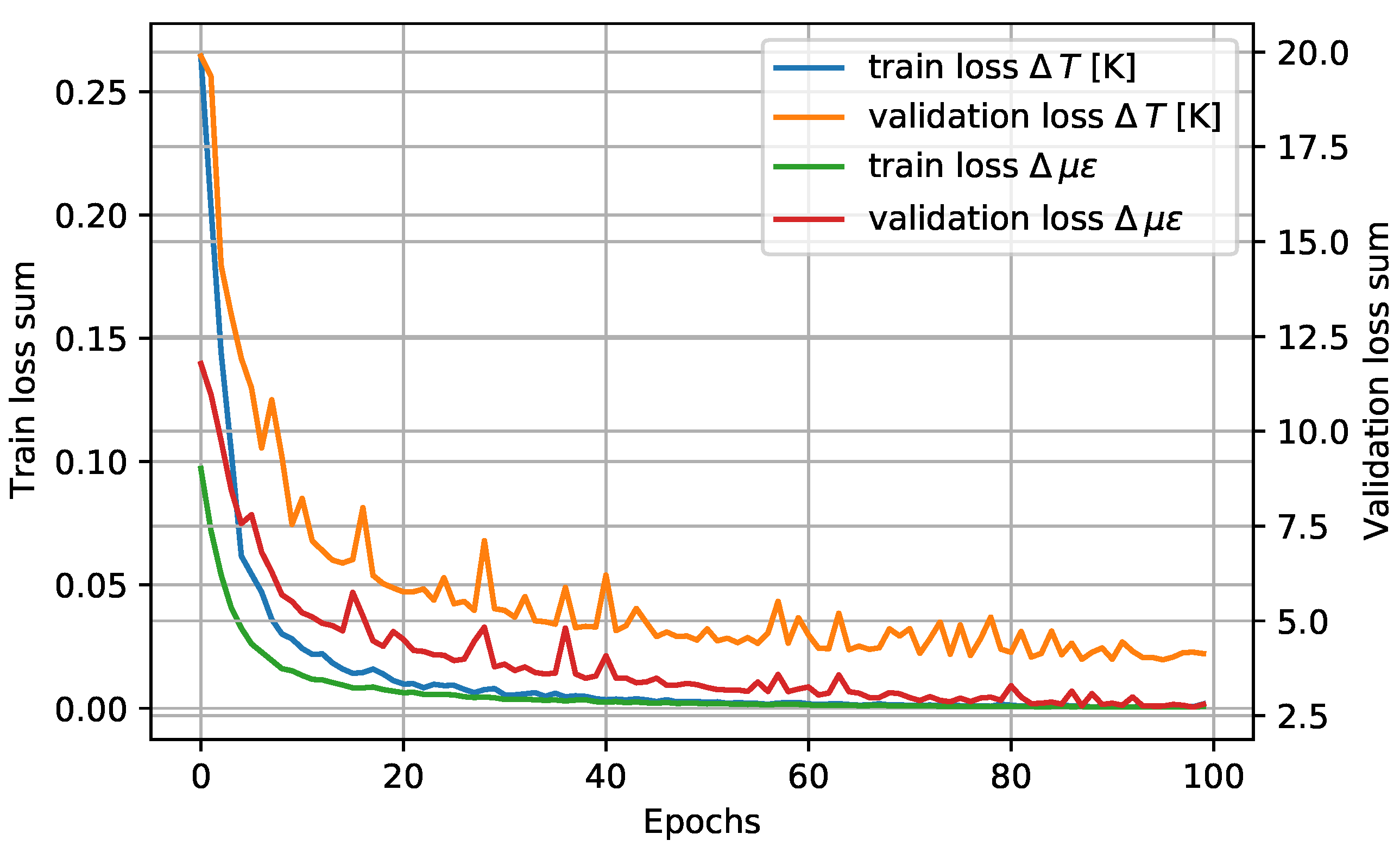

The results of the network training are shown in Figure 7. The training has been carried out with an Adam-type optimizer with a learning rate of ${10}^{-6}$, and computing the error with the mean squared error (MSE) criterion.

As can be seen at the 100 training epochs, the behavior is asymptotic, which indicates that the model is not able to fit the data. On the other hand, from the behavior of the validation curves, it can be determined that the model has not undergone overfitting.

Results

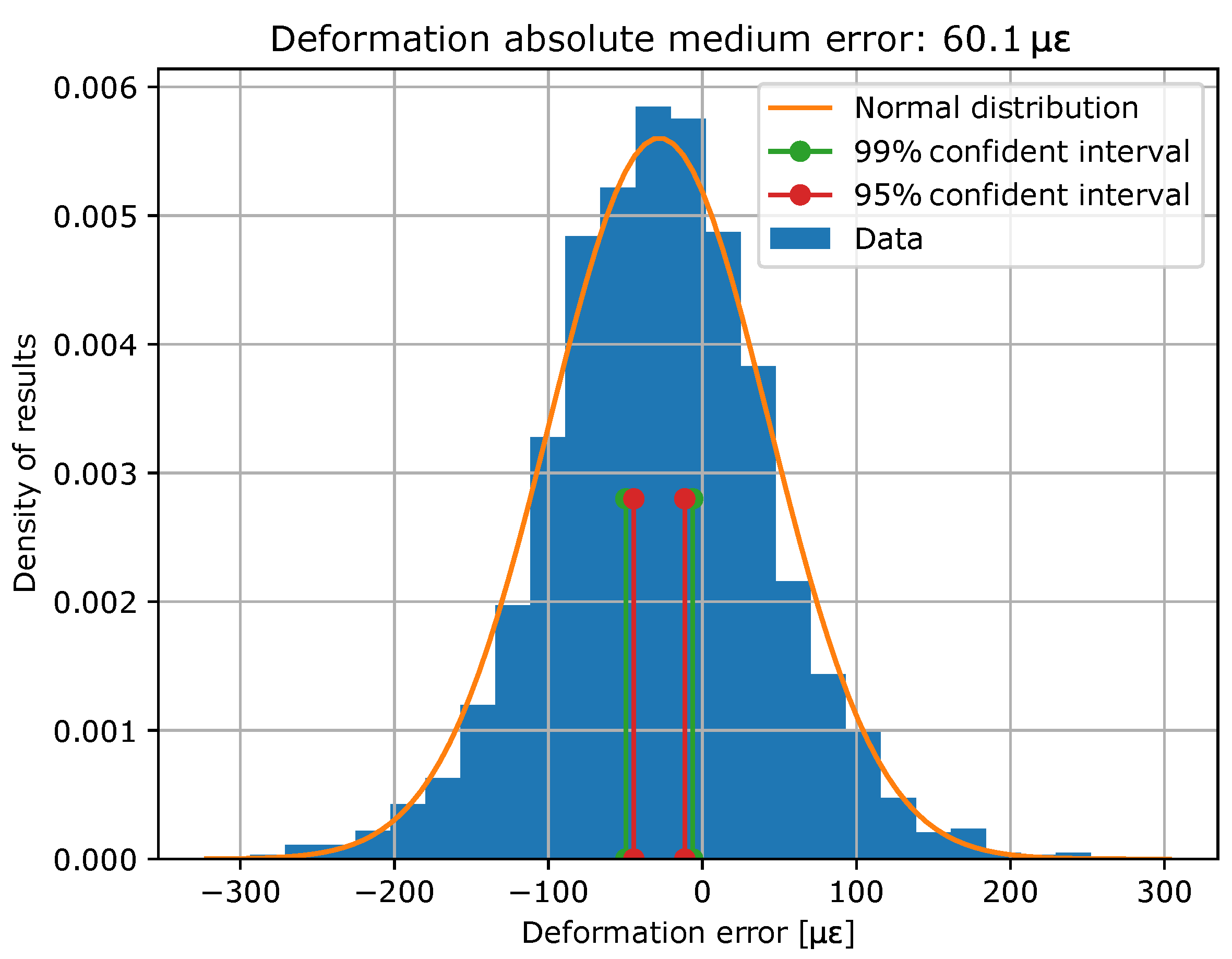

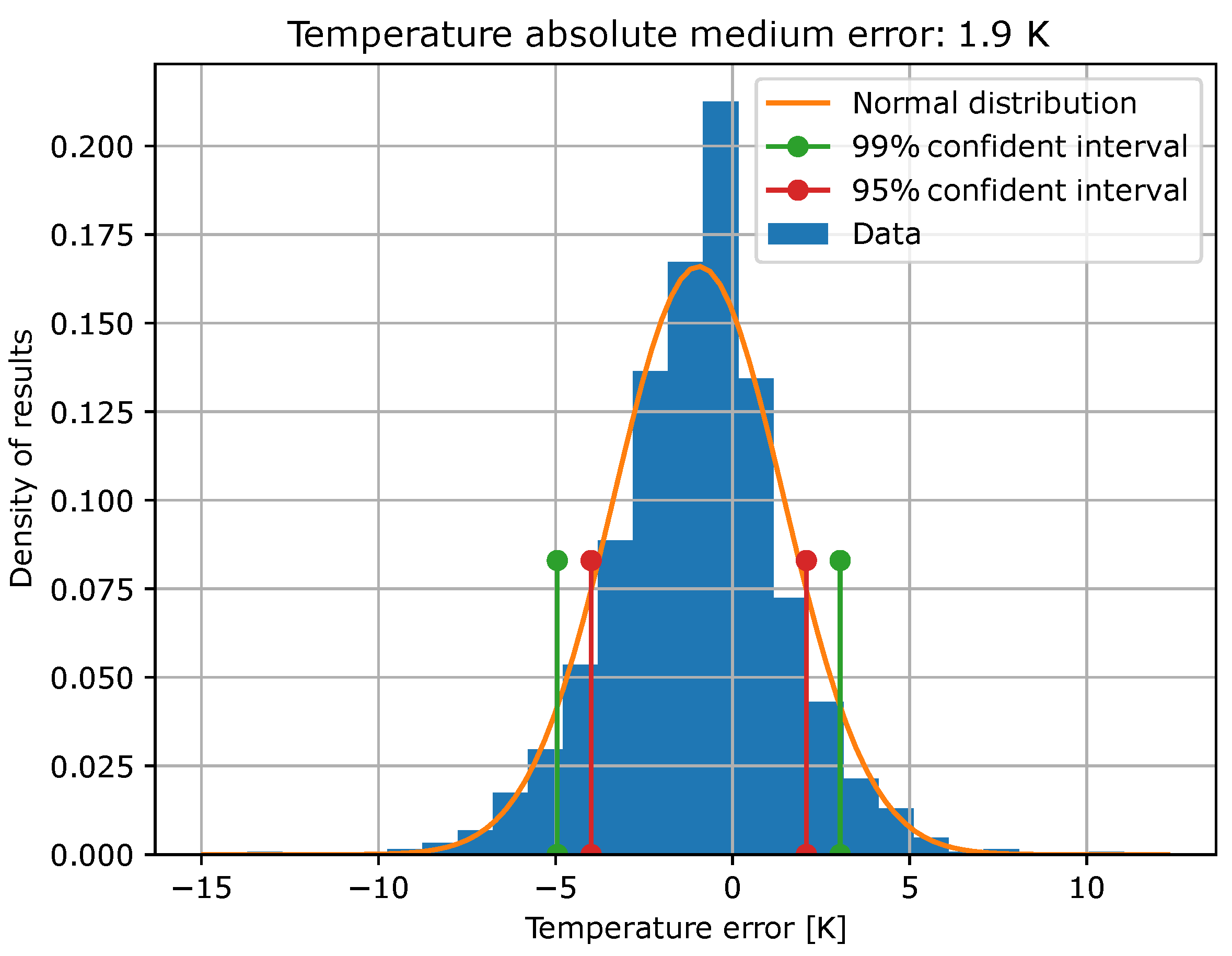

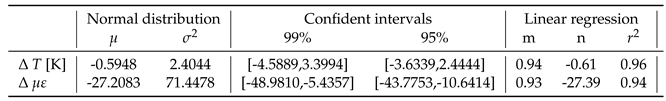

Once the model has been trained, it is evaluated with the test data. In Figure 8 and Figure 9 error histograms for the target variables are shown together with an approximation of normal distribution, whose coefficients are shown in Table . In addition, confidence intervals of 99% and 95% have been computed and the limits of these intervals are also shown in Table 3.

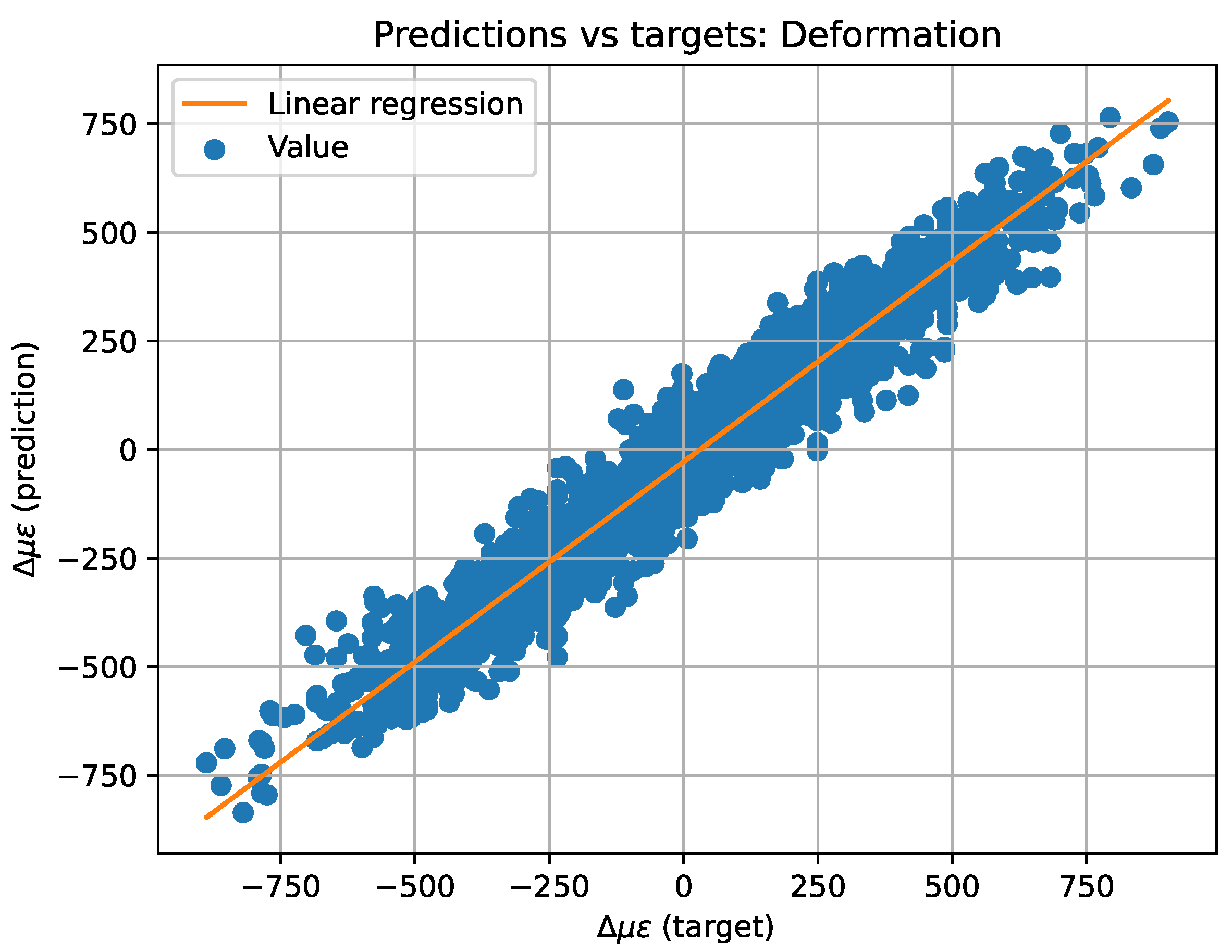

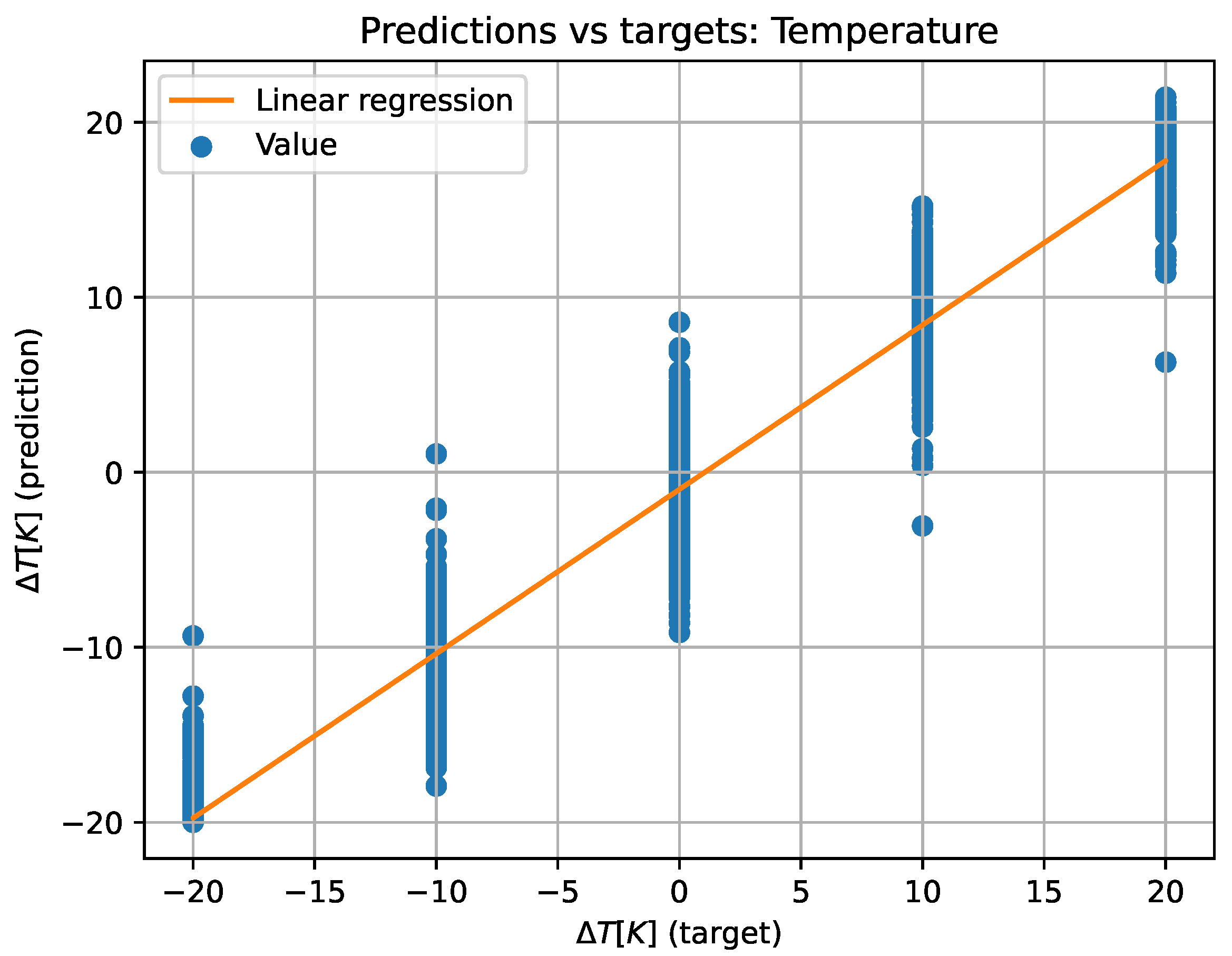

For a better comprehension, the predicted versus target values have also been plotted on a plane (see Figure 10 and Figure 11) to create the equivalent of a confusion matrix but with continuous data. If the model worked perfectly, the predicted and target data would be the same, thus plotting a diagonal. For this reason, a least squares regression line has been plotted over the plane. The regression line has the form $y=mx+n$ where x represents the target value and y the predicted one, m the slope of the straight line and n the ordinate at the origin. Additionally, the value of $r^2$ has also been computed to determine the dispersion of the values. All of the above values can be also found in Table 3.

Explainable Artificial Intelligence (XAI)

Explainable Artificial Intelligence (XAI) consists of a series of methods aimed at converting the results provided by an Artificial Intelligence (AI) in a way that can be understood by humans. It contrasts with the ”black box” concept of machine learning, where even its designers cannot explain why an AI arrived at a particular decision. Thanks to XAI methods, features can be extracted that allow existing knowledge to be confirmed, existing knowledge to be questioned, and new hypotheses to be generated.

In this case, the XAI allows explaining how the developed model interprets the correlations of the signals to reveal the information on which the actions are based. To implement the XAI methods on this model, the Lime-For-Time repository (see [11]) has been used, in which the LIME library ([1]) is used to analyze time series.

The analysis consists of taking an example signal and dividing it into segments, which in this case have been 120, given the composition of the signal. Next, the neural network is studied as a classifier in which each segment constitutes a class and which contributes, to a greater or lesser extent, to the final decision. From the example signal, multiple variations of the parameters are made to interpret how the model behaves to the different inputs. From these data, the relevance of each of the segments can be determined. Taking the 12 most relevant segments and displaying their weights in a histogram, the images shown in Figure 12 and Figure 13 are produced.

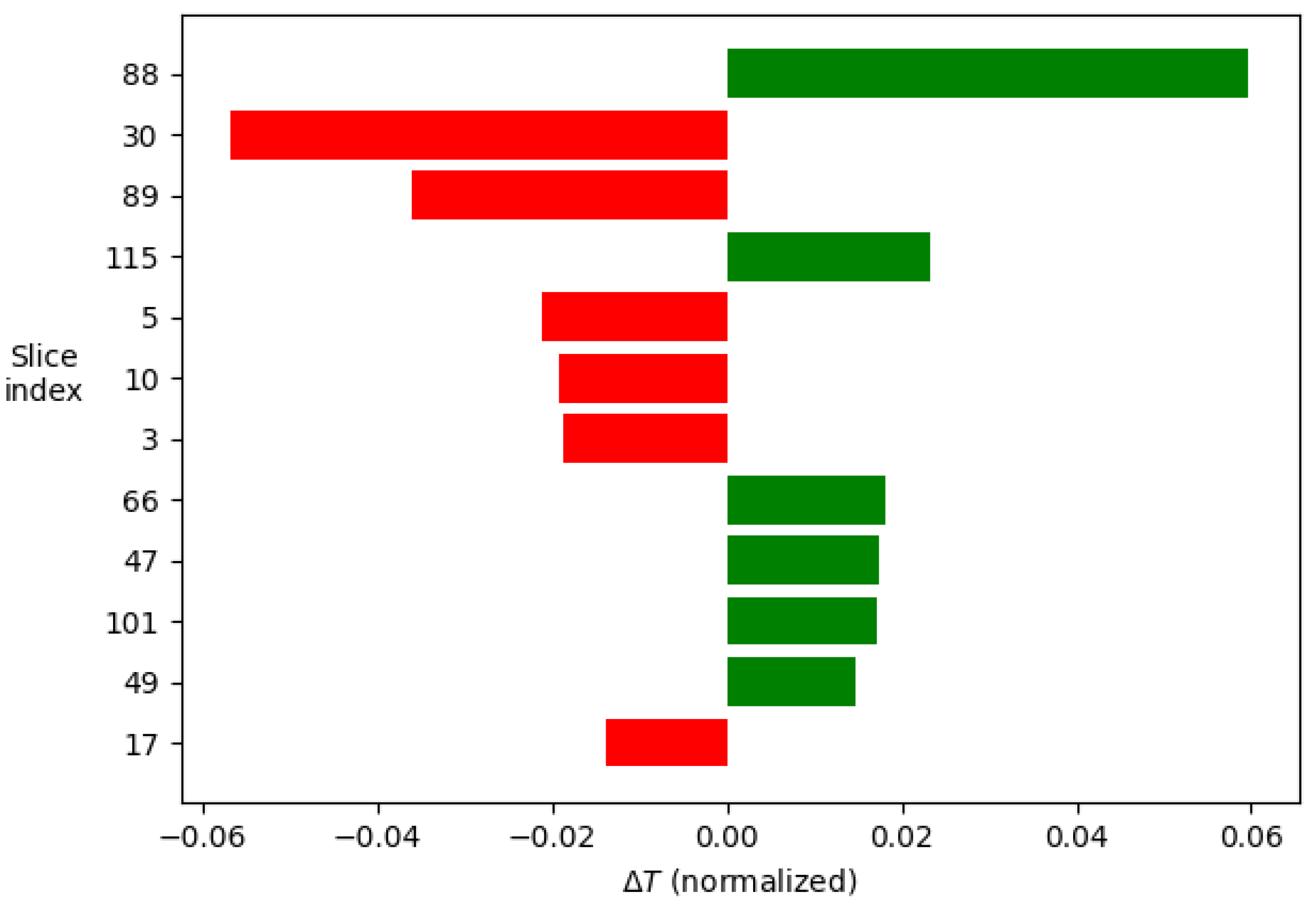

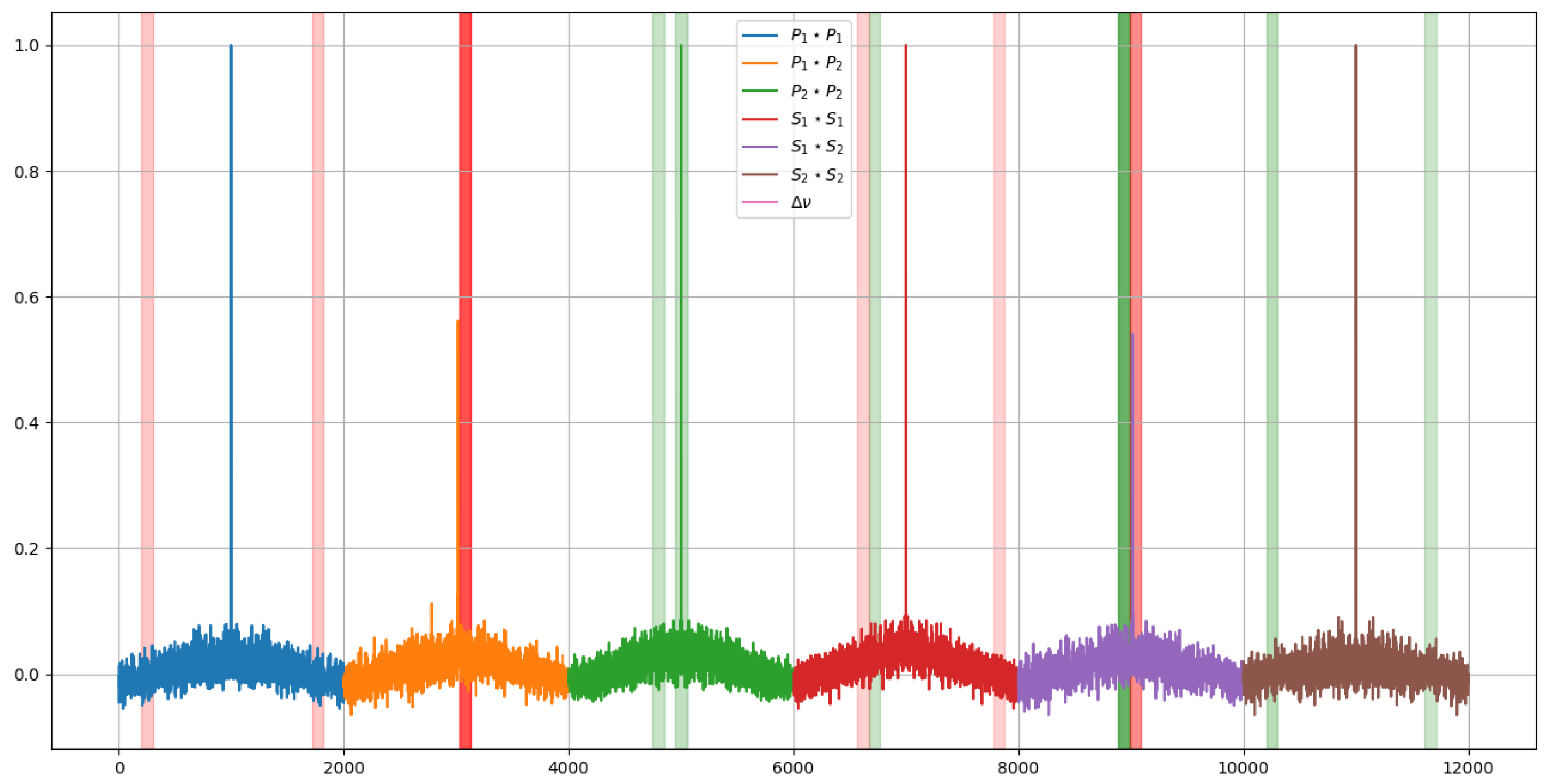

If these segments are displayed over the signal, it can be seen which regions are the most relevant. In this case, to represent the importance, an opacity has been assigned according to the weights previously shown in the histograms. The result of this graphical representation is the one shown in Figure 14 and Figure 15.

4. Discussion

From the results shown in the previous section (Section 3.4), it can be said that an Artificial Intelligence capable of distinguishing between strain and temperature readings has been trained successfully and so, the readout of the $\varphi$-PA-OFDR contains enough information to obtain the measure of the two magnitudes (strain and temperature) even when an SMF is used for sensing.

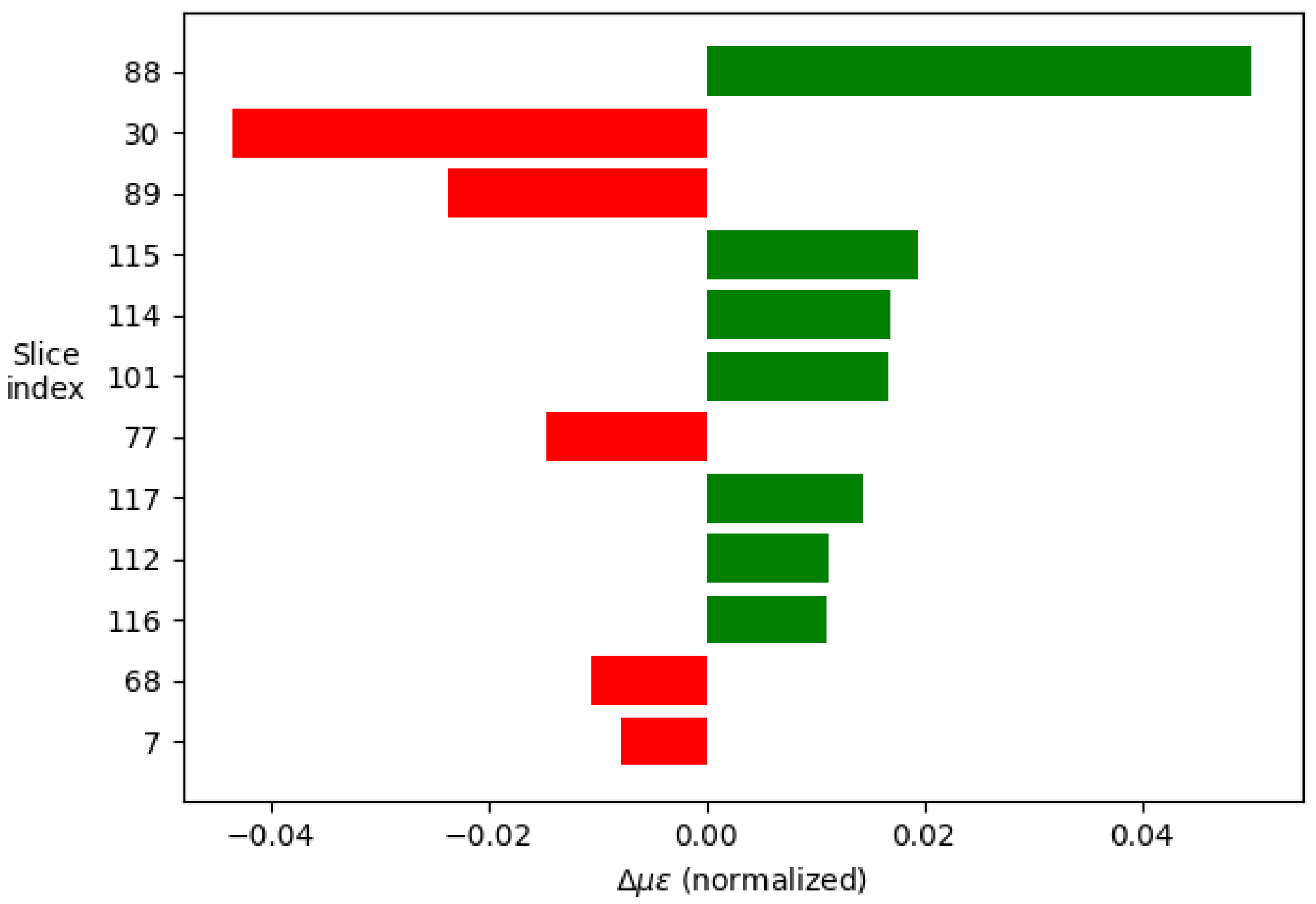

The results show how the artificial intelligence recognizes the spectral shift by comparing the values of segments 88, 30, and 89; which correspond to the central area of the cross-correlations between the two compared signals. On the other hand, studying the rest of the values is interesting as this is where the ability to discern between thermal and mechanical effects lies.

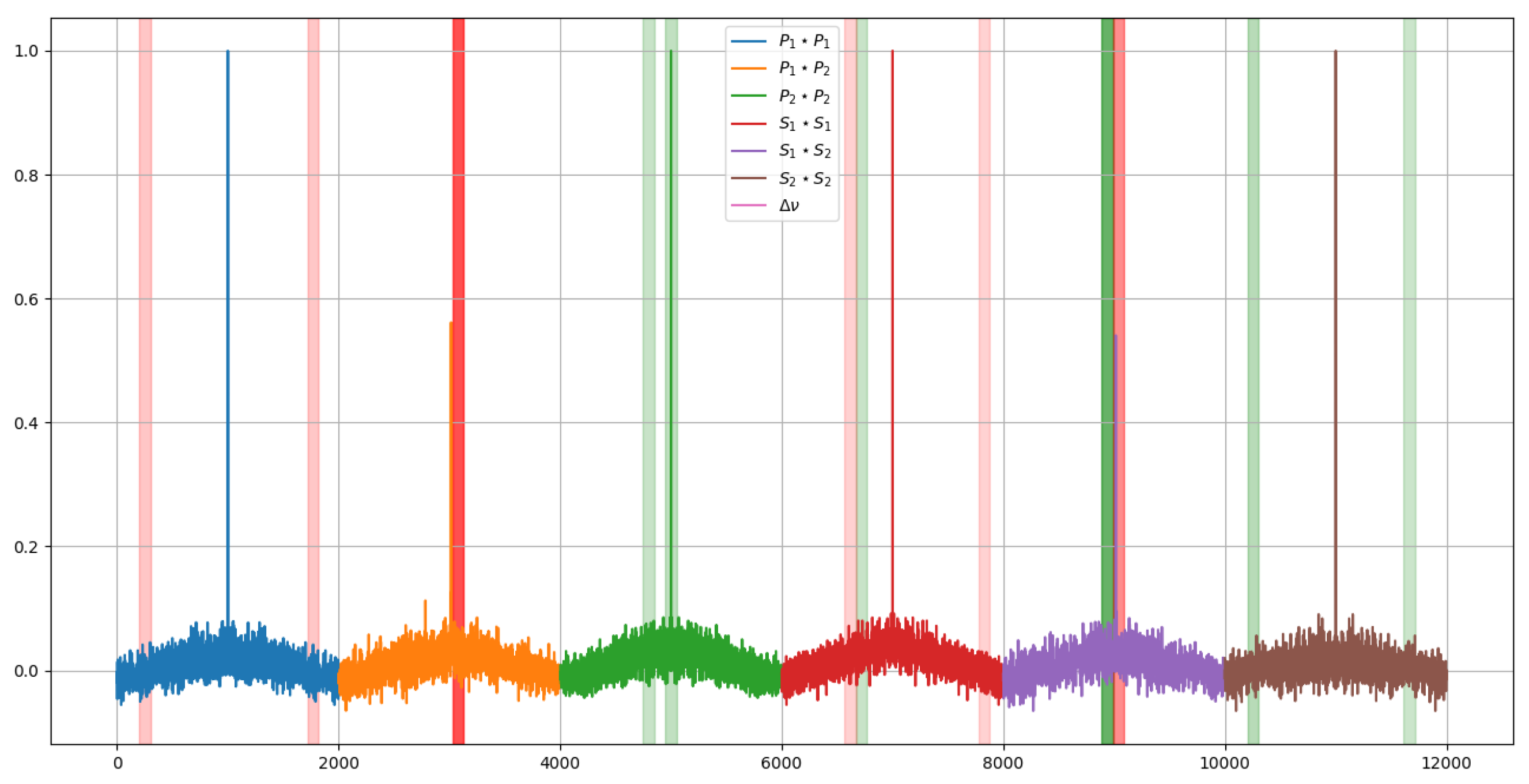

Comparing the two images in Figure 14 and Figure 15 it can be seen how, to determine the temperature, the model takes two symmetrical regions of the autocorrelation of the polarization state P of the first signal and similar regions of the autocorrelation of the polarization state S of the second one. Besides that, to determine the deformations, it is observed that the last values of the autocorrelation of the polarization state S of the second signal are interpreted by some kind of integral.

Additionally, the temperature-related decision seems to focus more on the behavior of the peak of the autocorrelation of the P polarization state of the second signal whereas the deformations focus on the peak of the autocorrelation of the S polarization state of the first one.

This information allows us to determine that the autocorrelation of the signals does provide additional information that can be key in determining unequivocally at what temperature and state of deformation the optical fiber is.

5. Conclusions

From these results, the following conclusions can be drawn:

• Readouts provided by a $\varphi$-PA-OFDR (as OBR-4800 is) contains are capable of providing more information than what nowadays is used.
• Artificial Intelligence methods are suitable for analyzing DOFS data in order to decouple temperature and strain phenomena.
• More specifically, the Neural Network model designed and trained for this purpose in the present work has reached the precision and accuracy shown in Table 4.
• In addition, explainable AI offers a deeper analysis of the AI model, which can be used to chart the course for future research.
