Wind-Wave Conditions and Geomorphological Change at the Beach-Dune Barrier of Cesine Lagoon (South Italy)

1. Introduction

Lagoon barriers are highly vulnerable coastal landforms that change and move landwards or seawards at different timescales as a result of coastal hydrodynamics, sea level change, sediment supply, geological setting, and human intervention. They are ecologically essential because acting as buffer zones for the nearby wetlands, safeguarding their ecosystems from coastal winds, waves, and storm surges as well as serving as habitats for resident and migratory bird populations. Moreover, as for other types of coastal barriers, their conservation and stabilization are crucial for protection of buildings and roads in many locations of the world [1,2,3,4].

Along the Mediterranean coasts several barriers experienced significant erosion and change in shape over the past decades, and the issue has become of increasing concern for scientists and policymakers [5,6,7,8]. With reference to a case study, the beach-dune barrier of Cesine Lagoon (Apulia region, South Italy), this note aims to infer recent shoreline dynamics and define coastal phenomena shaping the beach and the adjacent dune, to finally point out the weather-driven processes. The study has been performed between 2015-2021 because of the available field observations and high quality satellite images. The choice of the case study is motivated by its strong geomorphological change and shoreline recession, both occurred at least since the 1980s [7,9]. A challenge for this research was to obtain significant results from publicly available sources and simple and inexpensive methods.

2. Study Area

2.1. Geological-Environmental Setting

The study area is located in the Southeastern Apulia region on the western side of the Adriatic Sea, the northernmost arm of the Mediterranean Sea (Figure 1). It has the following oceanographic characteristics: mean tidal range (the difference between the average high tide level and the average low tide level) of 0.3 m, closure depth (the theoretical depth where sediment transport is negligible during a given time interval) around 5.5 m, and storm-wave base level (the depth beyond which storm wave action ceases to stir the sediments) between 20 and 25 m [10,11,12]. The Cesine Lagoon is an ensemble of water bodies, the greatest and more ecologically important of which is named "Pantano Grande" (that literally means "large quagmire" in Italian). It has different protection status like WWF Nature Reserve, Natura 2000 Area, and RAMSAR Site (no. 168), and is also a regional geosite [13]. The water lagoon depth is 0.8 m on average, shoreward reduced up to 0.3 m by silting processes [14]. Several swamps border the water bodies forming, as a whole, a large wetland. Before environmental protection measures were in place, the dune ridges were exploited for sand mining throughout the southern Apulia coast. The mined sand was used: for ship ballasting from the XIX century; for swamp reclamation in the first half of the XX century; for concrete production up to the 1970s. Such human activities likely determined a loss of sand comparable to that removed by natural processes, while the dune morphology was considerably altered [7]. As a matter of fact, the dune vegetation of the Cesine Lagoon barrier system is currently affected by loss and fragmentation of habitat types, and characterized by a pioneer vegetation including sand couch grass (Elytrigia juncea) [15,16].

The stretch of gently sloping coast facing the Cesine Lagoon belongs to a physiographic unit that extent for 70 km from Brindisi to Otranto (see panel a of Figure 1) [10,17]. It is oriented NW-SE and presents a beach-dune barrier formed on the top of a calcareous bedrock [18]. This latter forms some headlands and outcrops in several points over both the foreshore and the upper-middle shoreface [7]. The whole physiographic unit is supplied from three sources: shallow marine carbonate factories produce calcareous biogenic sand; rivers that flow north-central Apulia transport terrigenous silicate detritus and heavy black minerals of volcanic origin; coastal cliffs furnish silicate and carbonate clasts [11,19,20]. However, it is affected by erosion and shoreline retreat for almost half a century as a result of natural processes and human interferences [7,12,19]. The grain-size ranges from fine to very fine for the silicate grains, and from medium to coarse for the carbonate component [7,20].

A marked shoreline recession trend of the Cesine Lagoon beach was noticed nearly 20 years ago [9,21]. Such a process threatened ecological balance and biodiversity of the lagoon, that are both relevant [16,22]. Thus, attached (connected to the shoreline) and detached low-crested breakwaters were quickly built (Figure 1 and Figure 2) in order to counteract the shoreline retreat [7]. However, since that time, the barrier system has been affected by continuous change in morphology. Figure 2 shows the trend in shoreline change from 1948 to 2010 at the middle sector of the Cesine Lagoon (for details see Delle Rose 2015 [7]). An apparent recession trend is visible at the central part, with probable acceleration from 1988 to 1998 (blue, yellow, and green lines in Figure 2). Then, breakwaters caused re-shaping of shoreline, tombolos formation, and washover fan accretion (red line and bodies in Figure 2).

The southeastern Apulian beaches are subjected to annual progradation/retrogradation cycle [7,17]. Their emerged sectors are usually wider, higher, and coarser in summer than in winter, when significant sand volumes are temporarily transported nearshore by storms to form submerged coastal bars, and meanwhile the dunes are eroded. From spring, the nearshore sand is transported back to the shoreline to form the onshore beach and the finest sand fraction is moved inland by wind.

2.2. Wind and Wave Climates

Two main 6-months climatic seasons as October-March (Cold-Wet, CW) and April-September (Warm-Dry, WD) characterize the Mediterranean climate over the Apulia region [24,25]. Indeed the southwards migration of the Atlantic storm track (causing mainly strong winds from southern sector over the area) and the descending mid-atmospheric throughs from the Northern Europe (often accompanied by northern cold outbreaks) are typical of the CW period, while good weather with scarce precipitations prevails in the rest of the year. The region is characterised by the predominance of northerly winds, although also winds from southeast are significant for frequency and strength [26]. The wave climate of the southern Adriatic Sea strictly reflects the above wind climate, being characterized by highest and longest waves coming from N and SE [27]. The wave climate intensity of the southern Adriatic moderately increased during the last decades. In fact, statistical trend analysis of late 1970s-late 2010s wave time series detected slight increase in yearly mean values of significant wave high, wave power, and energy period [28]. The general surface current circulation of the Adriatic Sea is cyclonic, including a northwestern flow along the eastern side and a southeastern flow along the western side. Secondary gyres and coastal currents can seasonally prevail when the mean eddy kinetic energy is at a maximum in the southern Adriatic [29,30].

Measuring instruments installed in southeastern Apulia (see panel a in Figure 1) allowed the production of wave and wind datasets that are publicly available. The Monopoli buoy (108.5 km NW from the study area; mooring depth 85 m) belonging to the National Tidegauge Network (Rete Mareografica Nazionale, in Italian) that is managed by the Higher Institute for Environmental Protection and Research (Istituto Superiore per la Protezione e la Ricerca Ambientale, ISPRA) [31]. It was in operation from 1989 to 2014 with several breaks due to failure or service intervals [32,33], and it started operating again in 2021. 50 (H_s50) and 100 (H_s100) year return heights were estimated in 6.9 ± 0.8 and 7.4 ± 0.9 m, respectively [34]. The wind gauge stations reported in panel a of Figure 1 are the closest to Cesine on the Adriatic coast and belong to different authorities. The stations placed at Brindisi, Cesine, and Otranto, are managed by the Apulia Civil Protection. The first is in operation since 2009 while the second and third only came into operation in July 2020. The station located at San Cataldo (panel a of Figure 1) is part of the Apulia Meteomarine Network (Sistema Informativo Meteo Oceanografico delle coste Pugliesi, in Italian) and was in operation from 2007 to 2014 [35]. Finally, in the Otranto harbour a wind gauge installed at the mareograph station of the National Tidegauge Network is in operation since 2010 (hereinafter referred to as Otranto-ISPRA station) [31].

3. Materials and Methods

3.1. Meteorological Investigation

The wind conditions affecting the study area have been inferred from data sets reported in the Annali Idrologici, which are published by the Apulian Civil Protection [36,37,38,39,40,41,42]. These data sets consist of daily averages together with four 30-minutes averages at four selected hours of the day (00, 06, 12, 18). Data from the Otranto-ISPRA station [31] have also been processed and consist of 10-minutes averaged wind data. The considered data range from 2015 to 2021, in accordance with the availability of Google Earth high resolution images and the duration of geomorphological investigation (see below).

The Weibull distribution has been used to approximate the frequency distributions of the wind speed. It is a widely-used distribution, suitable for several environmental variables including wind speed [43], for its characteristics of high versatility in shape and the fact that allows analytical expressions for almost all its relevant statistical features. Thus the Weibull cumulative distribution W:

$$W=1-exp[-{(v/s)}^k]$$

(1)

has been used as regression equation for the cumulative frequency distribution of the measured wind speed v. The maximum probability wind speed Vm and the percentiles speeds V(p) where p is the cumulative probability to have v>V(p) are expressed as function of the regression parameters s (scale parameter) and k (shape parameter) as:

$$Vm=s{[(k-1)/k]}^{1/k}$$

(2)

$$V\left(p\right)=s{\left[ln(1/p)\right]}^{1/k}$$

(3)

A coastal storm is a "meteorologically-induced disturbance to the local maritime conditions (i.e. waves and/or water levels) that has the potential to significantly alter the underlying morphology and expose the backshore to waves, currents and/or inundation" [44]. Moreover, in agreement with Boccotti that defines a sea storm "as a succession of sea states in which the significant wave height exceeds a fixed threshold for a duration of at least equal to 12 hours" [45], this time interval is herein considered.

To obtain a significant value for the expected wave height during the statistically extreme wind events (coastal storms) the spectral peak offshore wave height H has been calculated from the offshore 10 m height wind speed U of the Bolam-Moloch model maps archive [46], from which the fetch F and duration of the oversea wind condition have also been verified. The used equation is [47,48]:

$$gH/U^2=0.0016{(gF/U^2)}^{1/2}$$

(4)

where g is the gravity acceleration.

The storm surge is a typical increasing of the sea level because of the storm atmospheric pressure drop and other effects such as the blocking by the coastal platform of the Ekman sea current caused by the surface wind stress [47,49]. The coastal surge S in storm conditions can be estimated from the following empirical equation [47,48]:

$$S=S_0{F}_s{F}_m$$

(5)

where S₀ is directly correlated to the pressure drop of the atmospheric pressure minimum and F_s and F_m are corrections depending respectively on the depth of the coastal platform (shoaling factor) and on the atmospheric storm motion (speed and direction of the pressure minimum with respect to the coastline). They can be calculated by empirical tables ([47] pp. 212–215), after estimating the pressure drop, speed and direction of the storm centre (minimum sea level pressure centre) from the Bolam-Moloch archive [48].

3.2. Geomorphological Investigation

The study of shoreline mobility and geomorphological processes acting on the beach-dune barrier of Cesine Lagoon was carried out using field surveys and analysis of high resolution satellite images. Preliminary geological investigations began in 2005, a few years after the construction of the breakwaters [9]. At the end of September 2016, before the beginning of the autumn-winter erosion (retrogradation phase, see Section 2), topographic profiling and sediment sampling-check of the larger beach facing the Cesine Lagoon were made according to literature procedures, respectively based on spirit leveling along selected profiles and mechanical sieving of sand and gravel [50,51]. Since that time, several field observations on the morphological changes affecting the north-west and central sectors of the barrier system have been made, which have been instrumental in the analysis and interpretation of satellite images. As the southeastern sector (the stretch of coast south-east of Ponte di Carlo, see Figure 1) was apparently stable, it has not been investigated so far.

Sets of middle (April 2010, June 2012) and fine spatial resolution images (July 2015, July 2017, July 2018, June 2020, and September 2021) were acquired from Google Earth Pro. Then, they were manually digitized in a Geographic Information System (GIS) software to determine morphological changes occurred in the study area. For such aim, the use of baselines corresponding to fixed points has been crucial. The visual interpretation was performed according to the rudiments of Geographic Object-Based Image Analysis (GEOBIA) [52,53].

Special care was given to shoreline detection and shoreline change interpretation. As a matter of fact, because of the dynamic nature of the land-water interface, a functional definition of the "shoreline" was required [54]. Shorelines inferred from satellite images do not represent normal or average conditions but the land-water interface at one instant of time. Actually, they are "instantaneous shorelines" [55,56,57,58] (see Appendix A).

The dune vegetation line was used to detect changes in the horizontal position of the dune toe [59,60], while the corresponding break in slope (local maxima of curvature at the beach-dune intersection) was identified on the field to verify the reliability of the image interpretation. Finally, it must be noticed that the resolution of 2010 Google Earth image resulted sufficient to draw shorelines and vegetation lines in some figures (see below).

4. Results

4.1. Wind-Wave Conditions

4.1.1. Wind Statistics

A wind data set for the considered 7 years in the Southeastern Apulia coast is available only from the Brindisi station. Cesine and Otranto have only 1 year available data set in the same period (2021) [36,37,38,39,40,41,42]. The Otranto-ISPRA station, although with a suitable position along the shore in the Otranto harbour, has an insufficient cover of about 3 years (2015, 2020, 2021 and only part of 2016 and 2019) [31]. Thus, for completeness and position the choice of the Brindisi data set as a proxy for the Cesine coast was somehow obliged (see panel a of Figure 1 for location). Nevertheless, a detailed analysis has also been performed comparing the 2021 Brindisi data set with both that available from Cesine and that available from the Otranto-ISPRA station, to evidence the extent and limits of this proxy (Figure A2). This is briefly discussed in Appendix B.

Figure 3 shows the 7 years total and seasonal wind roses from the Brindisi station, considering the two main 6-months climatic seasons (i.e. the cold-wet October-March and the warm-dry April-September) that characterize the Mediterranean climate (see Section 2.2). A seasonal relative frequency increase from the southern sector is evident in the CW season because of the increase of the incoming Atlantic storms over the Mediterranean region.

A statistical analysis has been made over the daily averages of the wind speed because they should be more relevant for prolonged coastal effects in general and, in particular, for the fact that a wind-wave intensity relation like equation (4) is valid for prolonged wind action over a long fetch that requires over 12 h of duration time [45,48]. To proceed with the statistical analysis of the proxy data set, two different 90° sectors that cover the incoming winds from offshore of the Cesine coast (315°NW-45°NE and 45°NE-135°SE) have been selected (Figure 1). This choice aims to take into account both the statistically prevailing directions (spread around the N-NW and S-SW axes, with less contribution from the E direction) and the main axis of the Cesine coast, along the NW-SE direction (see also the Brindisi and Cesine wind roses in Appendix B). These two sectors select the main meteorological contributions to strong winds (storms from Mediterranean Lows and Balkan cold outbreaks from North Eastern Europe throughs: see also Section 4.1.2), with direction components against (or at most parallel to) the coastline. An additional south sector (135°SE-225°SW) was also selected because of the importance of the Mediterranean storms associated to S-SW winds, although the effects of winds from this sector are expected quite small on the Cesine coastline. The remaining western sector has been disregarded as considered irrelevant for the purpose of this work, because of the coastal orientation and also the presence of a pine forest west and northward of the Cesine Lagoon.

The statistical analysis of the 7 years data set of wind speed from the Brindisi station has been performed by both sector and season. The cumulative frequency distribution of the wind speed has been studied by regressions with the Weibull probability cumulative distribution (Section 3). The regressions have been performed for both the whole frequency distributions, to obtain the bulk distribution parameters and the wind speed percentile values, and the upper tail only (starting from the inflection point of the cumulative frequency distribution, see also Appendix B) to obtain the minimum 1-year return times wind speeds. The 1 year return time was selected to characterize the most extreme events recorded with both some possible periodicity and strong coastal effects in the 7 years data set. The results are shown in Table 1 for the percentile values of the measured wind speed, and the daily wind speed interval (minimum-maximum) found in the Brindisi data set for speeds with 1-year minimum return times. The last two columns also show the maximum-minimum wind speed interval at 10 m over the sea surface modelled by the Bolam-Moloch model for the corresponding minimum 1-year return time selected events (daily wind averages), and the related maximum-minimum range significant offshore wave height for the same events, calculated by equation (4).

Thus, Table 1 shows some main characteristics found for the coastal wind conditions in the considered 7 years. First, somehow unexpectedly, the WD season appears to be more ‘windy’ than the CW one for what concerns the bulk properties of the statistical distribution (Vm and percentiles). This is a possible effect of the much more effective coastal breezes during the WD season. Moreover, examining the N and E sectors that are the most effective in shaping the barrier system of Cesine Lagoon, it appears that winds from the N sector are generally more intense. In addition, the N statistics in the CW season shows a very long tail towards high wind speeds (smaller Vm), suggesting a stronger contribution of local storms. This is confirmed by the wind speed ranges for the minimum 1 year return time, that show the presence of some very strong events in the CW season from the northern sector. For these events the wind speed at 10 m oversea is between 16 and 20 m/s, that cause the highest waves impinging over the coast (excluding winds from the S sector, possibly causing offshore waves only). The overall range of significant (offshore) wave height for the extreme events (minimum 1-year return time) from both the N and E sector is between 2.3 and 5.6 m, with increasing heights in the CW season. Higher wave heights are calculated from the S sector, mainly because of the longer fetch potentially available, but, in spite of their documented disrupting effect over the Ionian Apulian coast [48] they have minor effects over this part of the Adriatic coast because of its opposite orientation.

4.1.2. Coastal Storms

This section concerns a brief synoptic description of some significant events selected from the minimum 1-year return time events found in the Brindisi data set, to outline the synoptic conditions that trigger strong wind events over the considered coastal area. The number of events were found to be about half-dozen per direction sector, as expected for 1-year return time in a 7-years data set. Figure 4a, b show the wind field at 10 m and the geopotential height at 500 hPa for the strongest wind event recorded at the Brindisi station, in February 2020, with over 11 m/s wind speed from the N sector. As shown in these figures, this event was triggered by a deep incoming through from the North-Eastern Europe, intensifying over the Balkan region, a typical condition that advects cold northerly winds over the Adriatic sea. The significant offshore wave was found over 5 m height (equation 4) and in this case equation (5) gives an estimate of about 1.2 m for the storm surge.

Figure 5a, b show the wind field and the geopotential height for the Eastern outbreak of March 2015. The triggering event was a Mediterranean low but still generated by an incoming through from the North-Eastern Europe. In this case, however, its intensification over the central Mediterranean area causes a different position of the low pressure centre and a different condition for the triggered Adriatic winds, that assume a more Eastern direction. The storm surge estimated by equation (5) is of about 0.4 m height, but the direction perpendicular to the coastline of easterly sea waves of over 3 m height (Figure 5 and Table 1) can enhance the total flooding effect over the exposed coast in this case.

For completeness, the last event was selected from the Southern sector. This very strong event of October 2018 is well-known and studied in the scientific literature, where it was named the ‘Vaia’ storm, for the damage and disruption caused mainly in the North-Eastern Italian regions but also over the Ionian Apulian coast (Delle Rose et al. [48] and cited bibliography). As Figure 6a, b show, in this case the strong wind field is southerly oriented in the Ionian sea and this is related to the place of pressure minimum, located now in a more north-western position, as generated from a through located north-western of the Mediterranean, over the Atlantic Ocean. This different generation/position of the minimum is also responsible of the southerly wind speed orientation over the Adriatic sea and Ionian sea, with a typically longer fetch. The calculated significant wave was about 6 m height and the storm surge can be estimated of about 1.2 m height.

Finally, a diurnal tide contribution of about 0.3 m is also possible to increase the coastal surge for storms in this site (Section 2). All the above considerations show that an increase of the sea level of the order of 1 m could be expected along the considered coastline for stormy events with return time of about 1 year.

4.2. Barrier Profiling and Sediment Grain Size Check

On 27 September 2016, as result of specific field investigation, three cross-barrier profiles were measured and sampled in the north-west sector of the Cesine Lagoon, where the barrier system was larger than in the central sector of the study area (Figure 7). The aims were: (1) to sketch the shape of upper-shoreface/foreshore/backshore and foredune/backdune; and (2) to check the grain size class distribution.

The beach was narrower and flatter at the NW side (profile A) than at the SE side (profiles B, C), thus suggesting the prevalence of southeastern-ward longshore transport. Well shaped storm berm over the backshore and break-point step at the base of the foreshore were observed along the southeastern profiles (Figure 8). The average foreshore slope was about 1/5.

Differently from the beach, the dune was wider on the NW side. However, on the SE side the dune was higher (Figure 8). Such features were not the result of short-term morphodynamic change but rather of multi-decennial interaction between physical and vegetation factors. Sparse plants of Elytrigia juncea (L. Nevski) characterized the fore dune and the crest area, while the more internal zone of the backdune shown Spartina versicolor (E. Fabre) and Mediterranean shrubs. The presence of this vegetation type suggests a progressing stabilization of the backdune. In the following five years this environment/landscape setting will not apparently change, except for a moderate retreat of the dune toe at the NW side (see Section 4.4.1).

Grain size decreased both seaward and landward from the base of swash zone, changing from very coarse sand (mixed with gravel at profile A) to fine sand. Backshore and foreshore had similar grain size (coarse-medium sand) except for profile B with the finer samples B1 and B2 (medium-fine sand; see Appendix C for details).

4.3. Instantaneous Shorelines Comparison

For the 2015-2021, the comparison of instantaneous shorelines digitized from Google Earth images suggests a net southeastward longshore transport of sand. Shoreline retreated at the NW sides of each sector, and advanced at the SE sides (Figure 9 and Figure 10). This is in agreement with field observations. However, during the CW seasons, temporary inverse transport has been observed on site in conjunction with prevailing southeasterly winds (cf. Figure 3c).

With regard to the cross-shore dynamic, winter storms caused the steepening of the emerged beach, likely mobilizing significant volumes of sand seaward. Instead, calmer summer wave climate pushed sand back onto the shoreline, widening and lowering and the foreshore profile. This process was particularly apparent along the stretches of coast which are not protected by breakwaters, as the one named "Foce della Conca della Corva" (Figure 10).

4.4. Geomorphological Changes

4.4.1. Dune Toe Retreat

Throughout the Cesine barrier system, the dune height rarely exceeds 3 m. At the north-west sector the dune ridge is even lower than 1 m (Figure 8 and Figure 11).

As observed on site, since at least the 2019-2020 CW season, this sector has been affected by dune toe retreat due to the erosion action of the swash (Appendix D, Figure A5a). As a matter of fact, at the end of 2021 WD season the beach almost completely disappeared at the NW side of the north-west sector, thus the bedrock cropped out along the land-water interface (Figure 12).

The retreat of the boundary between the beach and the eolian deposits has been also detected in some places of the central sector. As an example, Figure 13 documented an about 5 m dune toe retreat along more than 20 m of the barrier system. Despite the short observation period it is quite significant. Unlike the case of Figure 12, the one of Figure 13 was likely due to wave run-up during storm events, as deduced from field investigations.

The distance between the dune toe (break in slope) and vegetation on the crest of the dune has been repeatedly measured during the field investigation. It has never been greater than 2 m as in the case of Figure 11.

4.4.2. Washover Fan Accretion

The barrier system of Cesine Lagoon has been affected by overwash events and accretion of washover fans since, at least, the building of the breakwaters in the early 2000s (Section 2). These processes occurred repeatedly during the investigated years as well, especially throughout the central sector of the barrier. The larger depositional body accreted since 2015 is the one named washover fan C in Figure 10. It tripled in size between 2018 and 2021, from about 150 to 500 m² (Figure 14).

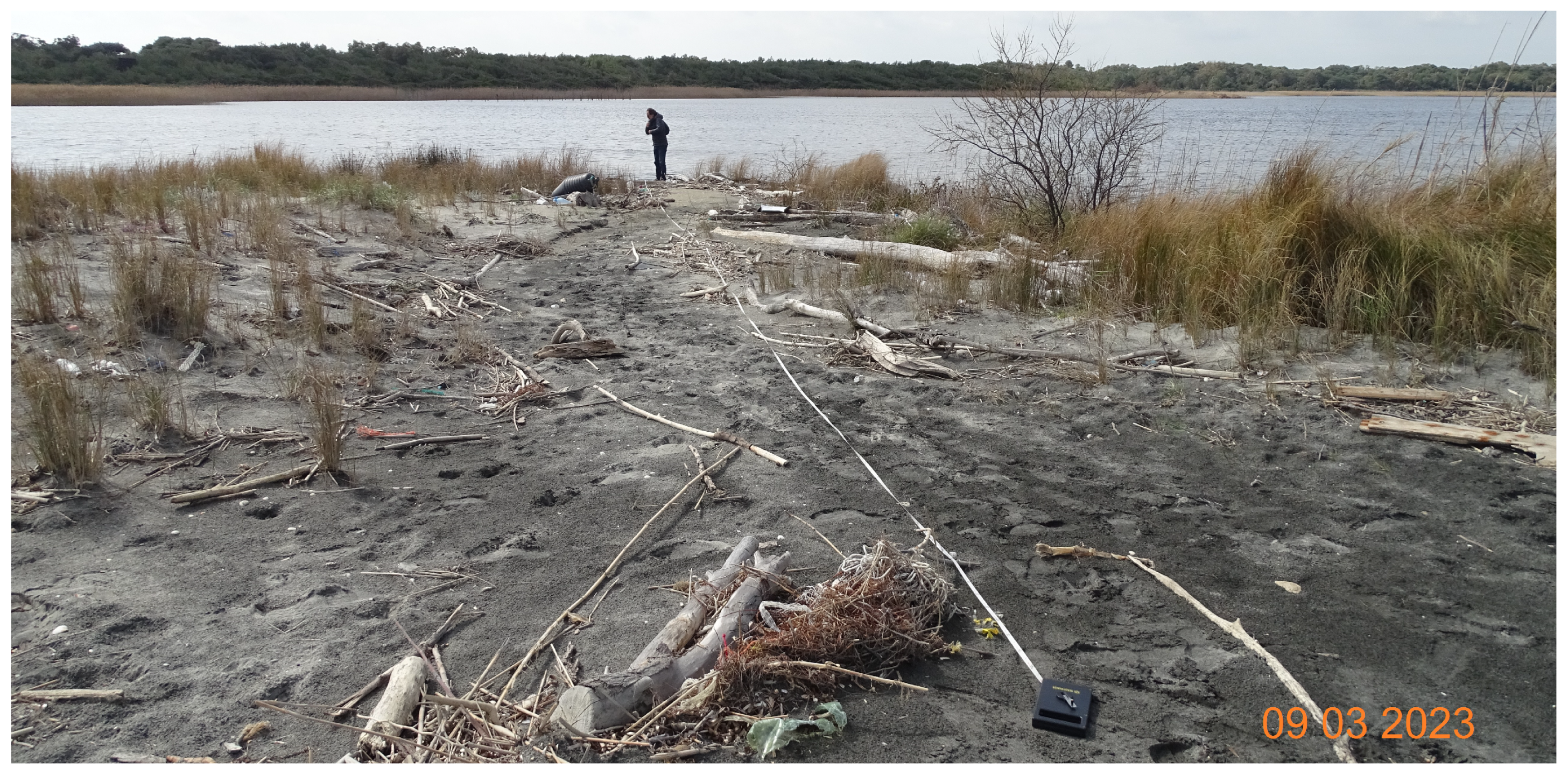

In March 2023, the average elevation of washover fan C at low tide was about 0.4 m, while the length of axes had not changed in comparison with the one of September 2021. Thus, more than 200 m³ of sand were involved in its accretion, which is a significant amount for the studied barrier. Also the little smaller washover fan B (Figure 15) experienced a similar development (Appendix D, Figure A6).

Both the overwash fan A (Figure 10) and the overwash fans located beyond the SE end of the central sector (outside the investigated area, Figure 16), have experienced different evolutionary stages. For these sedimentary bodies, the sand transport processes across the beach-dune barrier begun between 2010 and 2012. The stabilization of the lagoon shores occurred between 2015 and 2017, while few changes were observed in subsequent years (see green and red lines in Figure 16).

4.4.3. Gravel Beach Formation

In the last few years, the formation of gravel beaches has been observed along the stretch of coast where the breakwaters are attached to the shoreline (Figure 1). This is a quite new geomorphological process at the barrier system of the Cesine Lagoon. It is particularly intense in correspondence of the breakwater openings (Figure 17).

Gravels were produced from bedrock surfaces and breakwater stones, likely during the major storms. The deposits of gravel form foreshores that are steeper than sandy ones (sloped about 35°). However, during the WD seasons they are in large part covered by eolian fine and very fine sand (Appendix D, Figure A7), to be exposed again during the CW seasons.

5. Discussion and Conclusion

Due to the lack of a wind data set covering 2015-2021 at the Cesine coast, a proxy was selected among the closest stations to infer the wind conditions of the study area (Section 4.1.1 and Appendix B). The performed statistical analysis shows that winds from N are generally more intense than winds from E. Additionally, the N statistics in the CW season shows a very long tail towards high wind speeds, suggesting a stronger contribution of local storms. The overall range of significant wave height for the extreme events (minimum 1-year return time) from both the N and E sector is between 2.3 and 5.6 m, with increasing heights in the CW season. Moreover, a storm surge of the order of 1 m can be expected for events with return times of about 1 year (Section 4.1.2). The above wind-wave conditions are comparable with the ones reported in previous studies [26,27]. Considering the flat beach profile and the large amount of middle to very fine sands on foreshore and backshore (Section 4.2, Appendix C), significant shoreline mobility and geomorphological change can be expected at the beach-dune barrier of Cesine Lagoon. Furthermore, since the dune crest does not exceed 1 m in height for long stretches of the barrier, vulnerability to flooding significantly increases during the most intense storms.

A net longshore transport of the beach sand from northwest to southeast throughout the considered 7 years is inferred by satellite images analysis and on site observations (Section 4.3). It is consistent with the above wind-wave conditions. Nevertheless, such a result is in good agreement with previous hydrodynamic conditions reported in the Apulian coast literature [11,19]. Despite of the reliability of this result, the effect of extreme events has not yet been determined. It must be noted that the loss of sand towards the southeast is not compensated by the arrival of sand from the northwest. The disappearance of the emerged beach and the consequent cropping out of the bedrock at the NW end of the studied barrier system (Section 4.4.1) may be an evidence of this trend which is likely caused by the building of groynes and breakwaters along the northern coast, as previously forecasted by the authors (see e.g. [7,19]).

Dune toe retreat has been observed at different stretches of the studied coast. Where the backshore had been eroded it was due to the swash of the waves over the foreshore (both in normal and severe wind conditions) while, in presence of the emerged beach, to the wave run-up during storms (Section 4.4.1). The largest retreat can be estimated in about 5 m, which is quite significant considering that it has occurred in few years (see Figure 9 and Figure 10). At least in the case of the washover fan C (see Figure 14), the dune toe retreat seems to have driven the breaking of the dune ridge and the consequent development of the sedimentary body.

The study area experienced several episodes of overwash that allowed the accretion of washover fans during 2015-2021 (Section 4.3 and Section 4.4.2). On the other hand, the breaking of the dune ridge and the consequent lagoon flooding have been expected geomorphological and hydrogeological processes [13]. However, the collected data do not allow to establish whether the breaking of dune ridge and the accretion of washover fan are due to a major storm or are the result of a gradual process in which ordinary weather conditions are decisive. As shown by several studies, washover fans can accrete over multi-year time scales also in absence of large storms and with a significant role of the eolian processes (see e.g. [61,62]). It is apparent that more frequent and detailed field observations are needed to better investigate the weather conditions that actually drove such a morpho-sedimentological process. Anyway, their occurrence is essential for sustaining barrier system faced with rising sea level and increasing wave climate intensity (Section 2). As a matter of fact, by moving sand landward and supplying washover fans, overwash and eolian processes increase the width of the barrier and, consequently, its resilience to sea-level rise and resistance to wave erosion [63].

Another geomorphological and sedimentological process detected along the barrier system of Cesine Lagoon is the development of gravel beaches (Section 4.4.3). It is particularly active in correspondence of stretch of coast protected by the attached breakwaters (see Figure 1), where coarse clasts are produced by wave erosion of bedrock surfaces and breakwater stones (Figure 17 and Figure A7). As the importance of the gravel beaches is recognized for shore protection, the interest in quantitative studies on their geometry and transport rate is increasing [64]. A number of essential parameters will have to be measured on site to describe state and development of a gravel beach as a physical system. They are: clast size, shape, and roundness through time and space; packing, orientation and vertical/horizontal gradation; grain mobility; roughness to flow and infiltration [65].

As a whole, the geomorphological data collected since 2015 suggest an erosional trend of the studied dune-beach barrier. This trend is consistent with the multi-decadal one previously described for the whole physiographic unit to which the Cesine coast belongs [7,21]. The same trend is also shown by other barriers and beaches in the central Mediterranean, thus determining the impact of climate change on this process is a main research challenge [8,66]. For this purpose, it is essential to calculate the sedimentary budget [1,2,3]. Coastal geomorphological and sedimentological monitoring, including also the upper shoreface, is the most effective tool to achieve the goal [6,67]. In particular, to have real data on the geomorphological influence of extreme events, it will be necessary to perform barrier profiling and sampling before and after storms. Moreover, for a deeper understanding of the relationships between geomorphological changes and wind-wave conditions, the distinction between along-shore and cross-shore processes will be crucial in the next stages of the research [68,69]. In this view, the discussed results may be considered as starting points for further data collection and analysis.
