Optical Window to Polarity of Electrolyte Solutions

1. Introduction

1.1. Background

Medium polarity strongly affects the behavior of charged and dipolar species. The solvation in condensed media governs the dynamics of processes involving charge transfer (CT), ranging from intramolecular redistribution of electron density to heterogeneous CT at electrode surfaces [1]. Polarity depends on the susceptibility of the medium to polarize under electric field, and it affects various properties of the solvated species, such as their solubility, reactivity, electrochemical potentials, and spectral transitions [2,3,4,5,6,7,8,9,10].

Born polarity, accounting for the solvation energy of charges and inversely proportional to the solvent dielectric constant, provides a good quantitative description of medium effects on electrochemical potentials, CT driving forces and outer-sphere reorganization energy [11,12,13]. In fact, not only solvent polarity, but also the concentration of the supporting electrolyte (C_el) significantly affects experimentally obtained electrochemical potentials [14,15]. Dissolved ionic species do modulate solution polarity. (1) Dissolving electrolyte comprising kosmotropic ions in aqueous media tends to decrease its polarity [16,17]. (2) Chaotropic ions, on the other hand, can increase the polarity of solutions, especially those composed of low-polarity solvents [18,19,20,21,22,23].

Capacitance measurements offer a robust means for determining dielectric constants of non-conducting solvents and materials [24,25]. Adding electrolytes to the solvents for attaining the conductivity needed for electrochemical measurements, however, presents challenges. Since media polarity affects optical transition to and from highly polarized states, molecular photoprobes offer a convenient handle for examining the polarity of electrolyte solutions that solvated species experience. Such optical reporters account for the polarity of only the media that is immediately around the solvation cavity. Nevertheless, such estimates of “localized” polarity are considerably more valuable for molecular and nanometer-scale systems than the average bulk properties of the solutions.

As important as Born polarity is for characterizing medium effects on long-range CT and on reduction and oxidation processes, it fails when it comes to optical transitions involving changes in electric dipole moments. Conversely, the Onsager reaction-field theory provides a good model for quantifying solvation of dipoles [26]. Based on the Onsager model, the work of Wolfgang Lippert, Mitsuo Mataga, and Yasuteru Ooshika provides a means for estimating differences between the electric dipoles of ground and the emissive excited states [27,28,29,30].

The Lippert–Mataga–Ooshika (LMO) formalism is invaluable for extracting information about excited-state dipoles from absorption and emission spectra recorded for media with different polarity [31,32,33]. Conversely, resorting to coumarin 153 (C153), we recently demonstrated the utility of employing the LMO formalism in reverse for characterizing the polarity of electrolyte solutions essential widely used in analytical electrochemistry [34]. The inherently large dipole change upon photoexcitation makes chromophores with emissive CT states particularly attractive for LMO analysis which justifies our choice for C153. Nevertheless, the excited-state behavior of C153 limits its utility for LMO analysis to solutions that are more polar than dichloromethane (CH₂Cl₂). This outcome warrants the search for different photoprobes that allow analyzing a broad ranges of medium polarity pertinent to electrolyte solutions important for electrochemistry, and most of all, improved understanding of what consists a good photoprobe for LMO analysis.

Herein, we demonstrate the utility of 4-dimethylamino-N-phenyl-1,8-naphthalimide (ANI-Ph) for spectroscopic estimations of the Onsager polarity of electrolyte solutions in solvents ranging from relatively polar acetonitrile (CH₃CN) to medium-polarity chloroform (CHCl₃). The measured refractive indexes of the electrolyte solutions allow us to extract their Born polarities from the LMO-determined Onsager ones, since the former have pertinent importance for electrochemical applications,. Density-functional theory (DFT) reveals the electronic characteristics of the ground and excited states of ANI-Ph, which elucidates the chromophore features needed for LMO analysis. With well selected photoprobes, therefore, this optical method proves promising for determining the polarity of electrolyte solutions.

1.2. Born polarity vs. Onsager polarity: What’s the difference?

Three sources of polarization govern medium polarity: (1) orientational polarization, P_μ, reflecting on the ability of the solvent electric dipoles to orient along the applied field; (2) vibrational polarization, P_ν, depending on the field-induced redistribution of the positively charged solvent nuclei; and (3) electronic polarization, P_e, accounting for the field-induced shifts in the electron density of the solvent molecules [35]. Numerous scales for quantification of medium polarity have emerged through the years that rely on bulk solvent characteristics such as static dielectric constant, ε, and index of refraction, n [2,3]. While ε accounts for medium P_μ, P_ν and P_e, n depends only for P_e. That is, when the applied electric field oscillates too fast for the medium dipoles and nuclei to move and react to it, the polarity depends only on P_e, and thus n² is referred to as optical or dynamic dielectric constant.

Born solvation energy, ΔG_B, represents the stabilization of a spherical charge with a radius, r, in a medium with dielectric constant, ε [11]:

$$\Delta G_B=\frac{{\left(z q_e\right)}^2}{8 \pi {\epsilon }_{0}r} f_B\left(\epsilon \right)$$

(1a)

where z is the charge of the solvated species, q_e is the elementary charge, ε₀ is the vacuum permittivity and f_B is the Born polarity of the solvating media:

$$f_B\left(\epsilon \right)=\left(1 – \frac{1}{\epsilon }\right)$$

(1b)

Accounting for ΔG_B is essential for understanding the medium effects on CT processes involved, for example, in electrochemistry and (photo)redox catalysis. For example, f_B is a part of the Rehm-Weller equation for characterizing the thermodynamics of photoinduced CT [13,36], and as the Pekar factor, f_B is essential for estimating the outer-sphere, or medium, CT reorganization energy [12,37].

When opposite charges are too close within the same solvation cavity forming a dipole, ΔG_B cannot quantify their solvation energy, warranting the use of the Onsager model instead. It accounts for the mutual polarization of dipolar species and the surrounding solvent. The Onsager model includes electrostatic terms arising from the permanent dipole moment and the volume of the solvated species. It defines the Onsager polarity, f_O, encompassing P_μ, P_ν and P_e, as:

$$f_O\left(\epsilon \right)=2\frac{\epsilon – 1}{2\epsilon +1}$$

(2a)

and f_O accounting for P_e only is:

$$f_O\left(n^2\right)=2\frac{n^2-1}{{2n}^2+1}$$

(2b)

Thus, to extract the effects of the prominent polarizability arising from P_μ when it is far greater than P_ν, i.e., |P_μ| >> |P_ν|, the expression for the Onsager reaction-field polarity becomes [28]:

$$f_O\left(\epsilon {, n}^2\right)=f_O\left(\epsilon \right)-f_O\left(n^2\right)=2\left(\frac{\epsilon – 1}{2\epsilon +1}-\frac{n^2-1}{{2n}^2+1}\right)$$

(2c)

The Onsager model assumes point-dipole approximation. That is, it treats the solute dipole as a point in the center of the spherical cavity. Nevertheless, this approximation still proves fairly applicable and extends to hydrogen-bond-forming solvents and non-polar media [28,38,39]. Moreover, the Onsager reaction-field polarity relates to the Born polarity by considering solely the static dielectric constant:

$$f_B\left(\epsilon \right)=\frac{3 f_O\left(\epsilon \right)}{2+f_O\left(\epsilon \right)}$$

(3a)

$$f_O\left(\epsilon \right)=\frac{2f_B\left(\epsilon \right)}{3–f_B\left(\epsilon \right)}$$

(3b)

The Stokes' shift refers to the energy difference between the maximum of the absorption emission spectral bands originating from transitions between the ground and the same excited state of a chromophore. It represents the energy differences between Franck-Condon (FC) and relaxed electronic states. This relaxation often involves intramolecular charge redistribution. As a response to the thus induced changes in the electric fields localized around a chromophore following optical transitions, P_μ of the medium describes its reorganization around the solvation cavity. That is, as the orientation of the molecules of the solvating media does not change around the solute during light absorption and emission, it only reaches equilibrium during the relaxation of the FC states. Hence, the extent of stabilization of the relaxed states depends on the dipoles of the solvent molecules and their ability to reorient under applied electric field. This feature allows the LMO formalism to relate the Stokes' shifts (Δ$ℰ$), obtained from absorption and emission spectra, to the Onsager polarity of the media (eq. 2c):

$$\Delta E=\frac{{\left(\Delta \mu \right)}^2}{4 \pi {\epsilon }_0{r}^3} f_O\left(\epsilon ,n^2\right)+{\Delta \mathcal{E}}_0$$

(4)

where Δμ is the difference between the magnitudes of the dipoles of the emissive excited state (μ*) and the ground state (μ₀), i.e., Δμ = |μ*| – |μ₀|; and Δ$ℰ$₀ is the Stokes’ shift for non-polar media with equal static and dynamic dielectric constants, i.e., ε = n².

The LMO formalism relies on two types of solvent effects: (1) stabilization of the FC ground state after the radiative deactivation, i.e., S₀^(FC)→S₀, and (2) stabilization of the FC excited state to its emissive structure after the photoexcitation. Therefore, it is important to combine LMO with other experimental and theoretical techniques in order to extract meaningful information about the electronic properties of a molecule from the dependence of its Stokes’ shift on solvent polarity.

2. Results

2.1. Selection of a Photoprobe

The LMO analysis does not account for changes in dipole orientation. That is, a principal assumption is that μ* and μ₀ are parallel and point in the same direction, i.e., Δμ = |Δμ|, where |Δμ| is the magnitude of the vector difference between the two dipole moments. That is, |Δμ| = |μ* – μ₀| or |Δμ|² = |μ*|² + |μ₀|² – 2 |μ*| |μ₀| cos(α), where α is the angle between the ground and excited-state dipoles. For chromophores that show good linearity of Δ$\mathsf{ℰ}$ vs. f_O(ε, n²) it is important for α to be as small as possible, i.e., α→0, or ideally, α = 0. Estimating the angle between that μ* and μ₀ to characterize such chromophores, requires alternative methods such as quantum-mechanical calculations.

Another assumption of the LMO analysis is that the dipole change, Δμ, is invariant to the medium polarity, i.e., Δμ is introduced as a constant to the slope of the linear dependence of Δ$ℰ$ vs. f_O(ε, n²) (eq. 4). Considering the reaction field inside the solvation cavity warrants an increase in the solute dipole with an increase in medium polarity. Because the ground and excited-state dipole are different, such polarity-induced increase will also be different and preclude any invariance of Δμ to f_O(ε, n²). Therefore, it is common to observe non-linear behavior of Δ$ℰ$ vs. f_O(ε, n²), especially with lowering the solvent polarity [32,40]. Accounting for these consideration makes it crucial to define the LMO “working range” of a photoprobe where the polarity-induced change of Δμ is minimal and Δ$ℰ$ vs. f_O(ε, n²) shows linearity within the experimental uncertainty.

Selecting photoprobes that manifest large Δμ values enhances the sensitivity of the LMO analysis since it increases the slope of the linear dependence of Δ$ℰ$ vs. f_O(ε, n²) (eq. 4). Chromophores with emissive CT states present and excellent choice, therefore, and voltage-sensitive dyes appear quite attractive for such applications. Nevertheless, a decrease in medium polarity may destabilize the CT state and elevate its energy level above that of a locally-excited (LE) state. Such change in the nature of the emissive states usually results in alterations in the shapes of the spectral bands and proves detrimental for the LMO analysis because of changes in the orientation and the magnitude of the excited-state dipoles, μ*.

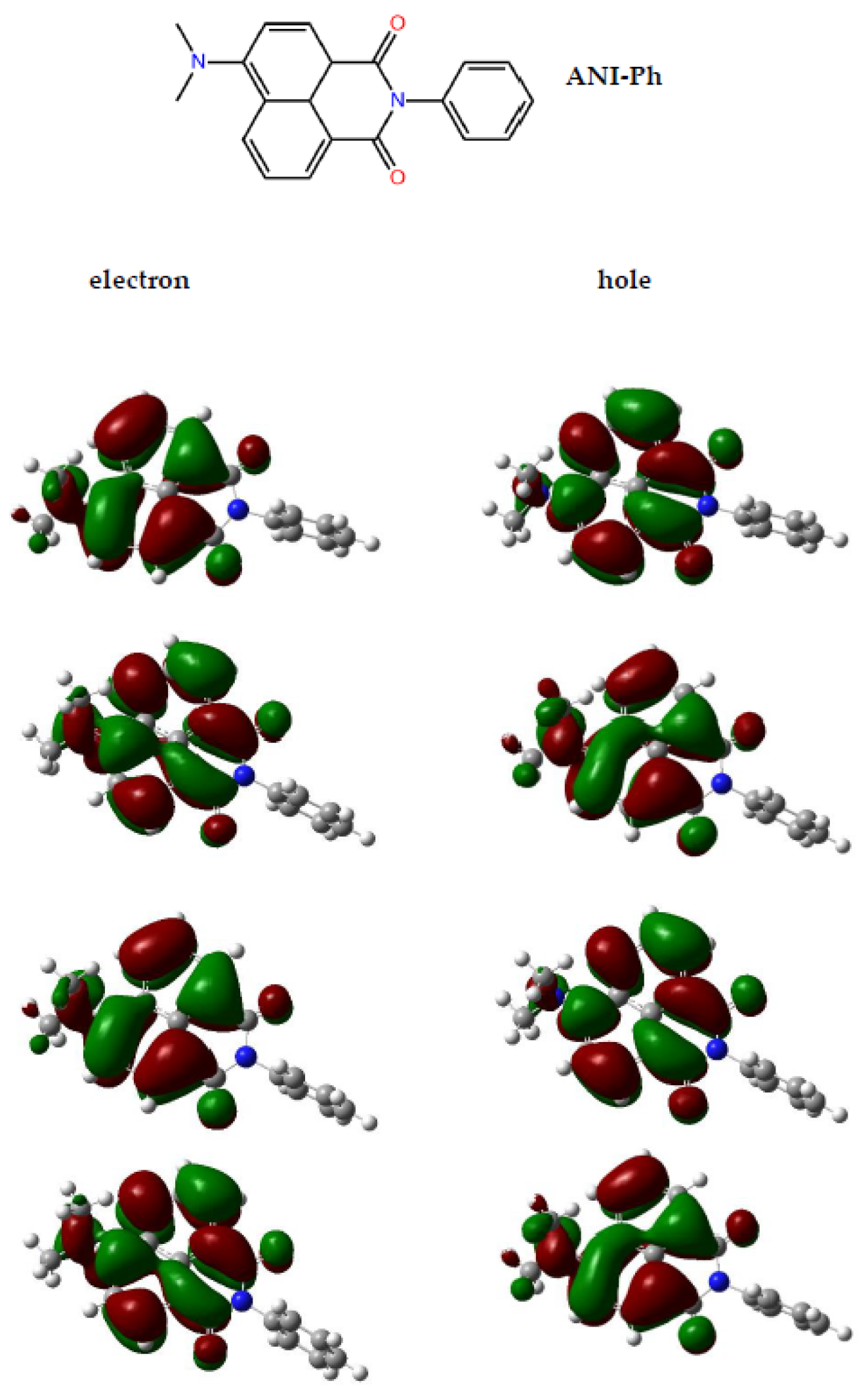

Therefore, we focus on ANI-Ph that has a fluorescent excited state with a moderate CT character. The natural transition orbitals (NTOs) for photoexcitation and radiative deactivation are delocalized predominantly over the three naphthalimide rings, with some extension over the dimethylamine (Figure 1). Solvent polarity has negligible effect on the NTOs, not only for acetonitrile, but also for the least polar we select for this study – i.e., chloroform. Also, the ground- and excited-state dipoles are practically parallel, with ~2.7º angle between them that appear invariant to solvent polarity (Table 1).

The difference between the magnitudes of the excited- and ground-state dipoles is less than 4 D. Nevertheless, Δμ increases by only 10% upon transition from chloroform to the relatively polar N,N-dimethylformamide, DMF (Table 1). Despite the small Δμ, its minimal solvent dependence, along with the almost parallel orientation of μ* and μ₀, makes ANI-Ph an attractive candidate for analyzing medium polarity using the MLO formalism.

2.2. Onsager Polarity of Electrolyte Solutions

In the presence of electrolyte in the solvating media, P_μ encompasses the ability of the cations and anions to move and reorganize around the solvation cavity along with the reorientation of the solvent dipoles. Therefore, LMO analysis can provide information about the Onsager polarity of electrolyte solutions in the vicinity of the solvation cavity of the photoprobe, i.e., ANI-Ph.

In pertinence to organic analytical electrochemistry, we focus on solutions of tetrabutylammonium hexafluorophosphate (N(n-C₄H₉)₄PF₆) as a broadly used supporting electrolyte in six solvents with different polarity: CHCl₃, CH₂Cl₂, 1,2-dichloroethane ((CH₂Cl)₂), benzonitrile (C₆H₅CN), DMF and CH₃CN (Table 1). We vary the electrolyte concentration, C_el, from 25 to 200 mM.

Absorption and emission spectra of ANI-Ph in the neat solvents, i.e., C_el = 0, provide a practical means for examining the performance of this dye as an LMO photoprobe and calibrate the linear dependence of its Δ$ℰ$ on f_O(ε, n²). Prior to extracting Stokes’ shifts for LMO analysis, it is key to transfer the measured absorption, A(λ), and fluorescence, F(λ), spectra from wavelength to energy scales by implementing transition-dipole-moment (TDM) corrections: i.e., A($ℰ$) = A(λ)$ℰ$^–1 and F($ℰ$) = F(λ)$ℰ$^–5 [41]. Such transformations change not only the relative spacing between the data points along the abscissa axes, but also the shapes of the spectra.

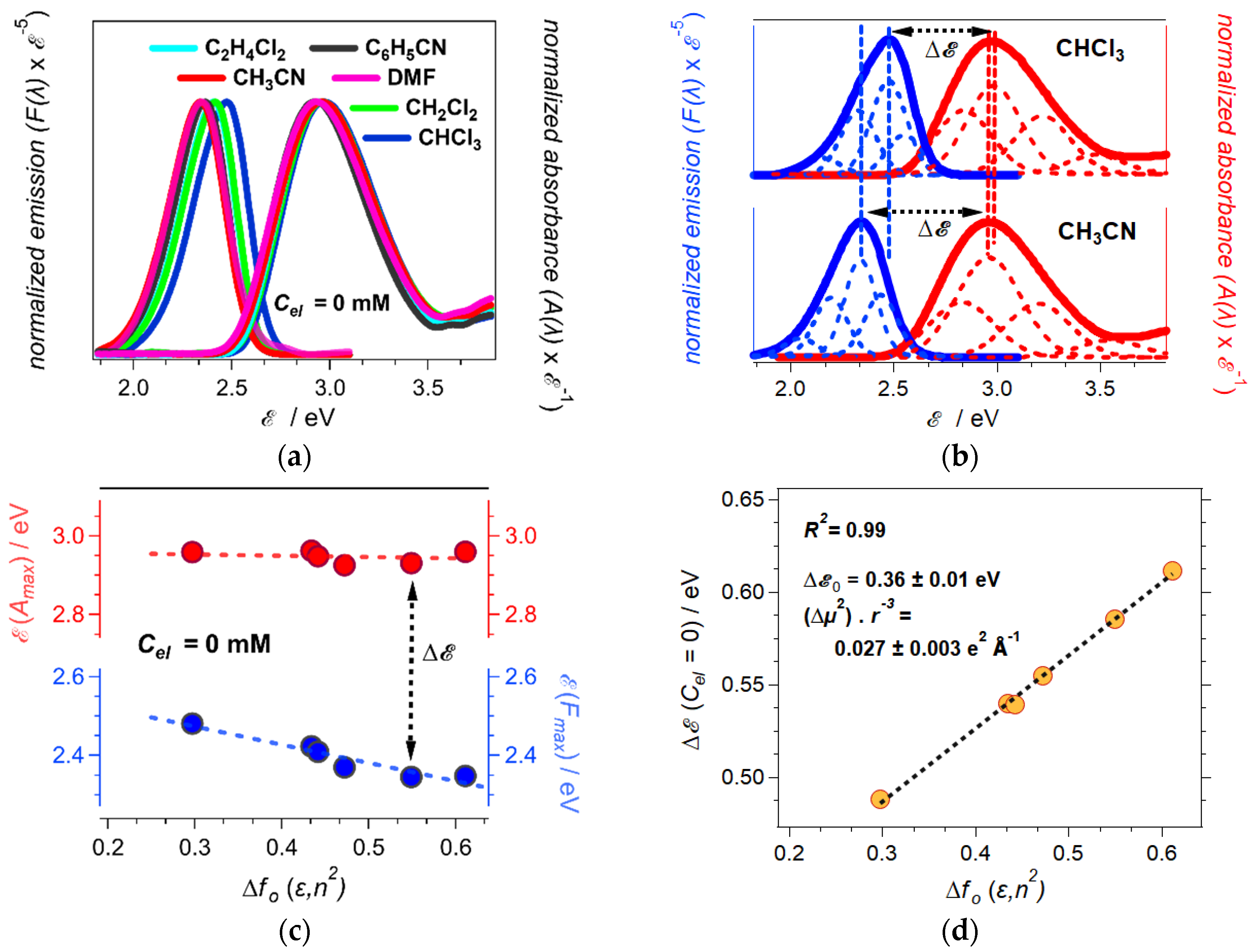

Solvent polarity mainly affects the fluorescence of ANI-Ph, while inducing only slight variations in its absorption (Figure 2a-c). This finding suggests that the solvating media have similar effects on the ground, S₀, and the Franck-Condon (FC) excited states, S₁^(FC), in order to minimally affect the energy of the S₀→S₁^(FC) transition depicted by the absorption spectra. In contrast, polar solvents stabilize the emissive excited state, S₁, more than they do the FC ground state, S₀^(FC), as the solvatochromism of the fluorescence spectra, S₁→S₀^(FC), indicates (Figure 2c).

While the polarity dependence of the absorption and the fluorescence maxima, $ℰ$(A_max) and $ℰ$(F_max), respectively, tends to deviate slightly from linearity (Figure 2c), the Stokes’ shifts of ANI-Ph manifest a strong linear correlation with the Onsager polarity of the neat solvents we use, i.e., R² = 0.99 (Figure 2d). The slope from the linear fit allows extracting the ratio between Δμ² and r³, i.e., Δμ² r^–3 = 0.027 e²Å^–1 (Figure 2d). Considering the DFT calculated Δμ is about 3.5 D = 0.73 e Å (Table 1), the effective radius, r, of ANI-Ph amounts to 2.7 Å. This value of r is twice smaller than the DFT estimation of the ANI-Ph radius, i.e., a₀ = 5.4 Å. This discrepancy is consistent with the deficiency of the spherical approximation for the solvation cavity that the theory implements [15,35].

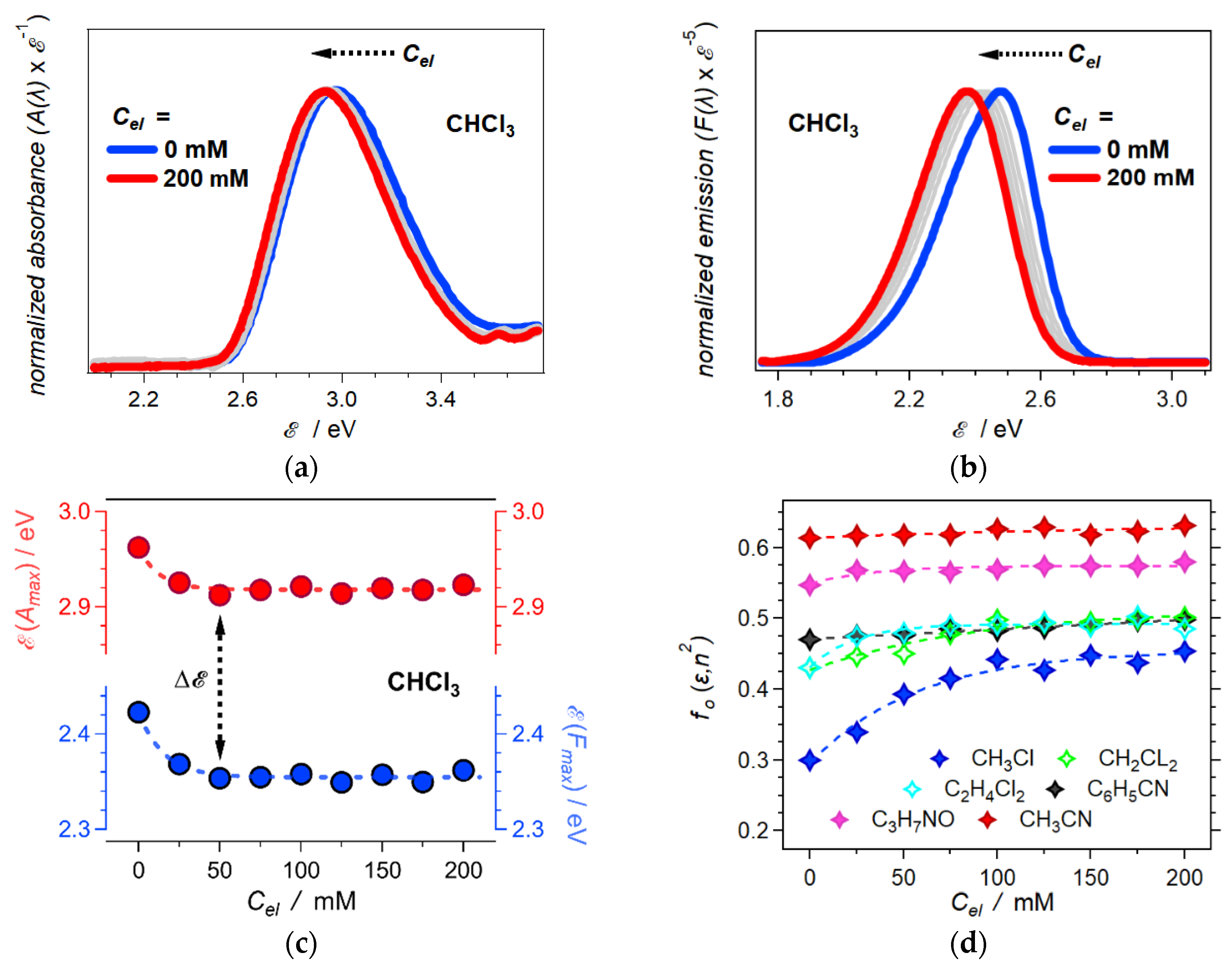

The effects of electrolyte concentration, C_el, on the optical properties of ANI-Ph show the same trends as the effects of solvent polarity. Increasing C_el from 0 to 200 mM causes bathochromic shifts that are larger for the fluorescence than the absorption (Figure 3a,b). This difference between the effects on the absorption and the emission leads to an increase in the ANI-Ph Stokes’ shift with an increase in C_el. The slope and intercept from the linear fit of Δ$ℰ$ vs. f_O(ε, n²) for neat solvents (Figure 2d) allows us to estimate the Onsager polarity for the different electrolyte organic solutions using eq. 4 (Figure 3c,d). Increasing the concertation of the supporting electrolyte enhances the medium polarity that the dissolved molecular fluorophore experiences (Figure 3d). Lowering solvent polarity enhances these C_el effects (Figure 3).

2.3. Born Polarity of Electrolyte Solutions

The Onsager reaction field, at equilibrium and optimally, follows the direction of the dipole. The different components of the medium polarization, however, do not exhibit the same dynamics when responding to the changes in the orientation and magnitude of solvated dipoles. The electronic polarization, P_e, as related to the medium polarizability and the dynamic dielectric constant, n², pretty much “instantaneously” follows the dipole changes that optical transitions produce. The response of the vibrational and orientational ”olar’zations, P_ν and P_μ, of the solvating media, however, is in the picosecond time domain and even slower, which is comparable with the relaxation of FC to optimal-geometry states. The LMO formalism, accounting for the difference between dipoles of relaxed excited and ground states, therefore, encompasses only the “slow” P_ν and P_μ components of the Onsager polarity of the solvating medium, i.e., f_O(ε, n²) (eq. 2c).

To account for polarity effects on solvation of charged species, which is important for CT and electrochemistry, it is crucial to include all components of medium polarization. To complement the results for f_O(ε, n²) from the LMO studies, therefore, we resort to concurrent measurements of the refractive indices of the electrolyte solutions in order to obtain the dynamic-dielectric component of the Onsager function, f_O(n²), which accounts solely for P_e (eq. 2c).

The added electrolyte only slightly perturbates the refractive indices and f_O(n²) of the neat solvents (Figure 4a,b). Therefore, the electronic polarization and polarizability of the comprising ions, N⁺(n-C₄H₉)₄ and PF₆^–, are quite similar to those of the used organic solvents. Following the fine electrolyte dependence of n reveals that for some solvents, such as CH₃CN, increasing C_el slightly enhances n² and f_O(n²). It indicates that the solvated electrolyte ions are more polarizable than these particular solvents. An increase in C_el in other solvents, such as C₆H₅CN, on the other hand, slightly decreases n² and f_O(n²) of the solutions, which is indicative of solvents having larger polarizability than the electrolyte ions.

The sum of f_O(ε, n₂) and f_O(n²) yields f_O(ε) (eq. 2c, Figure 4c), and f_O(ε) relates to f_B(ε) (eq. 3a, Figure 4d). Affecting the reduction potentials of solvated species, quantifying the Born polarity, f_B(ε), of electrolyte solutions is key for electrochemical and CT analysis [13].

3. Discussion

Increasing electrolyte concentration in organic solvents appears to enhances the solution polarity accounting for the orientational and vibrational polarization, i.e., f_O(ε), f_O(ε, n²) and f_B(ε) that depend on the static dielectric constant. Previous reports show that adding salts to aqueous media decreases the static dielectric constant [16,17]. Conversely, adding electrolytes to organic solutions tends to increases their polarity [18,19,20,21,22,23]. These opposing effect originate from the nature of interaction between the electrolyte ions and the solvent molecules.

Salts comprising kosmotropic ions enforce the three-dimensional structure of solvating media, such as water, and impede the rotation of the solvent molecules and the orientation of their dipoles along permeating electric fields. An increase in charge density of ions exerts similar suppression of the free rotation of dipolar solvent molecules. Decreasing the size or increasing the charge of ions enhances the strength of the electric field around them. It induces electrofreezing of dipolar solvent molecules around the solvation cavity of ions with high charge density [42].

When specific interactions between electrolyte ions and solvent molecules lack, permeating electric fields reorganize the charged species. It enhances to the orientational polarization and the static dielectric constant of the solutions without compromising the contributions from the solvent molecules. Therefore, adding an electrolyte comprising ions with small charge density, including chaotropes, increases the static dielectric constant of solutions, especially when the solvent molecules have small electric dipoles [34]. As a supporting electrolyte, N(n-C₄H₉)₄PF₆ comprises singly charged ions with relatively large van der Waals radii, i.e., small charge density, precluding strong electrostatic interactions with organic solvents broadly used in electrochemistry. It is consistent with the observed increase in f_O(ε, n²) induced by increasing C_el (Figure 3d). Furthermore, lowering solvent polarity makes this C_el-induced trend especially pronounced (Figure 3d).

The effect of the organic electrolyte, N(n-C₄H₉)₄PF₆, on the polarizability and f_O(n²) of organic solvents is negligibly minute (Figure 4a,b). Therefore, the dependence of f_O(ε) on C_el shows trends quite similar to those of f_O(ε, n²) vs. C_el (Figure 3d and 4c). This similarity extends to the C_el dependence of f_B(ε) (Figure 4d). Overall, f_O(ε) and f_B(ε) have similar dependence on ε (Figure 5a). Nevertheless, the relationship between f_O(ε) and f_B(ε) is by no means linear (Figure 5b). Thus, while optical methods provide a good means for estimating Onsager polarity of the media, it is important to convert it to the Born polarity when analyzing solvation of charged species (eq. 3).

Static dielectric constants provide a facile “convenient” means for estimating medium polarity. Nevertheless, ε is not linearly proportional to the solvation energy of dipoles and charges, as the inverse dependence of Born polarity on ε illustrates (eq. 1b). For example, changing the solvent from toluene to CH₂Cl₂ can have stronger impacts on spectroscopic and electrochemical properties than changing from CH₂Cl₂ to CH₃CN. That is, transitions from toluene to CH₂Cl₂ and from CH₂Cl₂ to CH₃CN enhance ε by about a factor of four. Nevertheless, the former increases f_B(ε) by about 0.3, and the latter – only by about 0.1. The effects of electrolyte concertation reflect these considerations of the nonlinear relationship between ε and the solvation energy. Lowering solvent polarity enhances the effects of C_el. Furthermore, the initial additions of electrolyte, up to about 100 mM, induces the largest increase in the solution polarity (Figure 3d and Figure 4c,d).

4. Conclusions

Optical methods, including steady-state spectroscopy and refractometry, provides a facile means for quantifying medium polarity. Selection of a fluorescent photoprobe with electronic properties that confine within the restrictions of the LMO analysis is key for reliable extraction of information about solution polarity from absorption and emission spectra. Conversion between different solvation models, i.e., from Onsager to Born models, broadens the applicability of the results obtained from optical spectroscopy to electrochemical and charge-transfer analysis.
